Features & Details

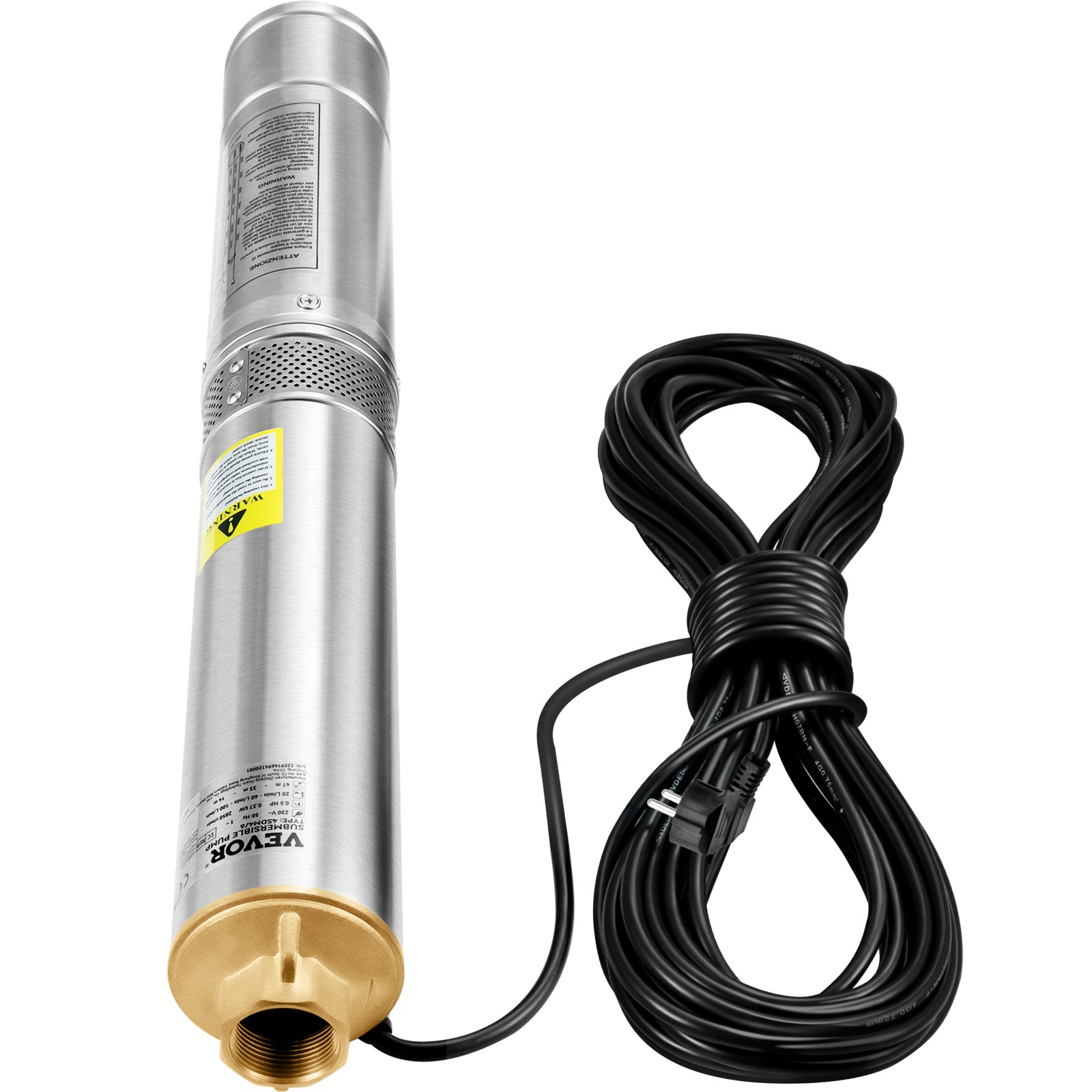

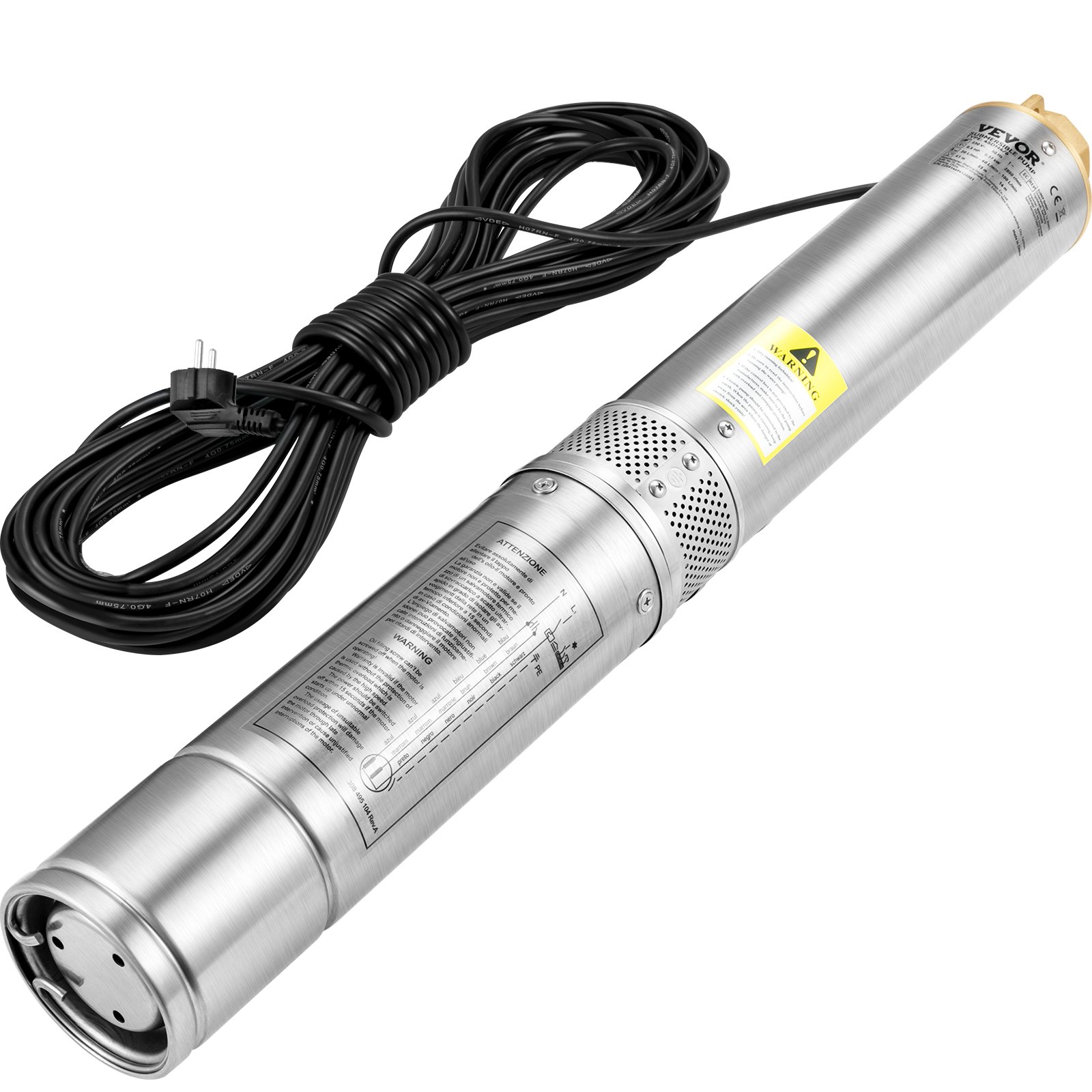

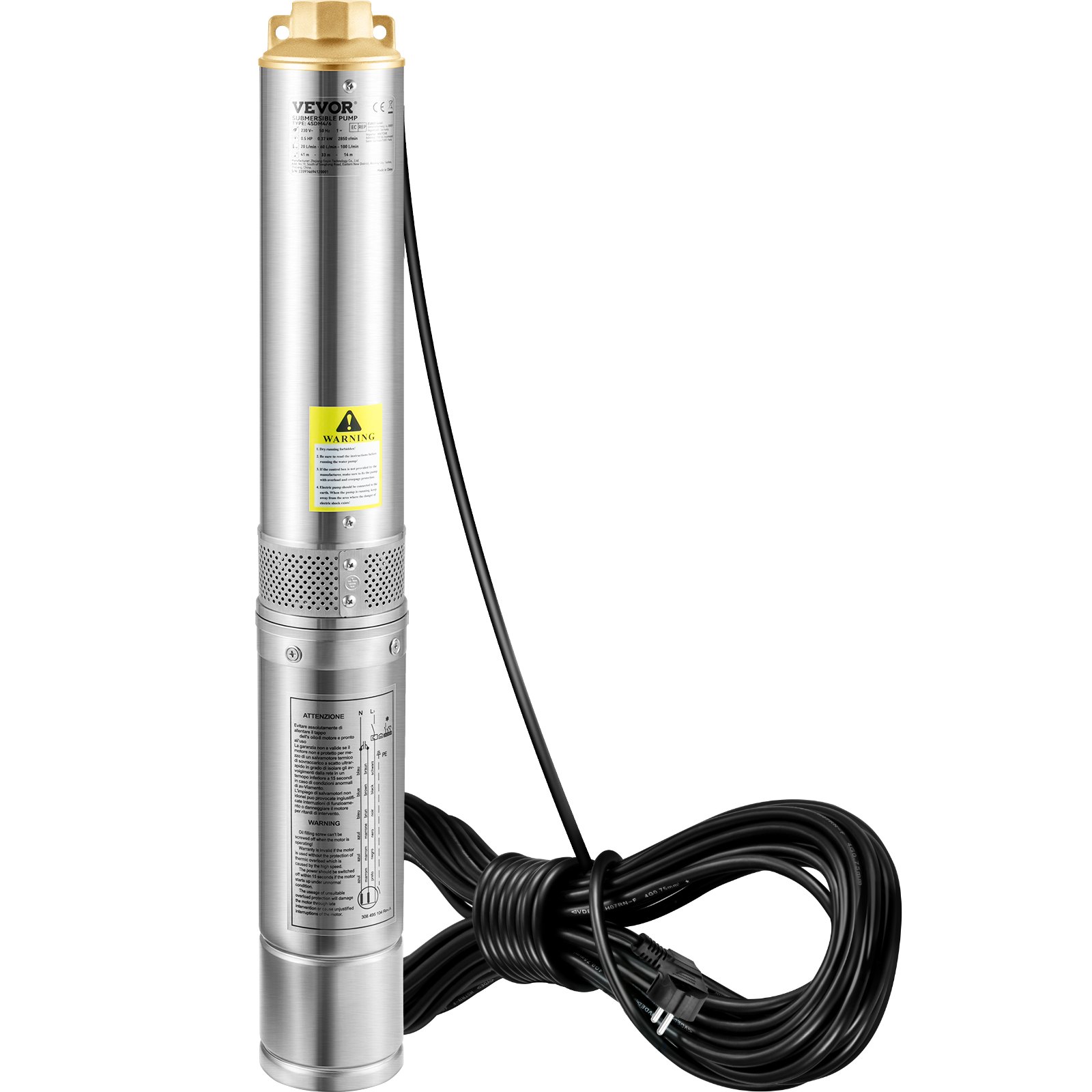

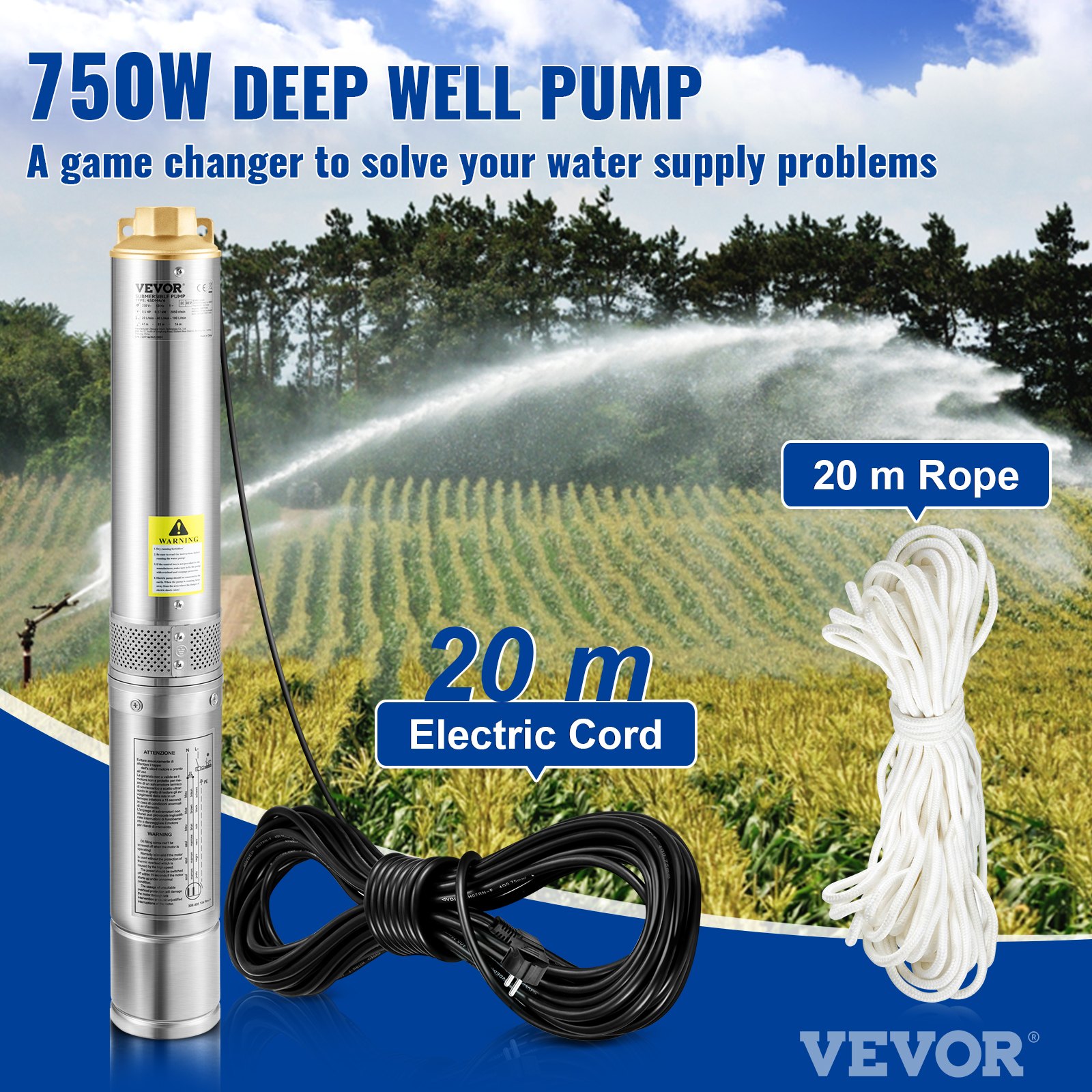

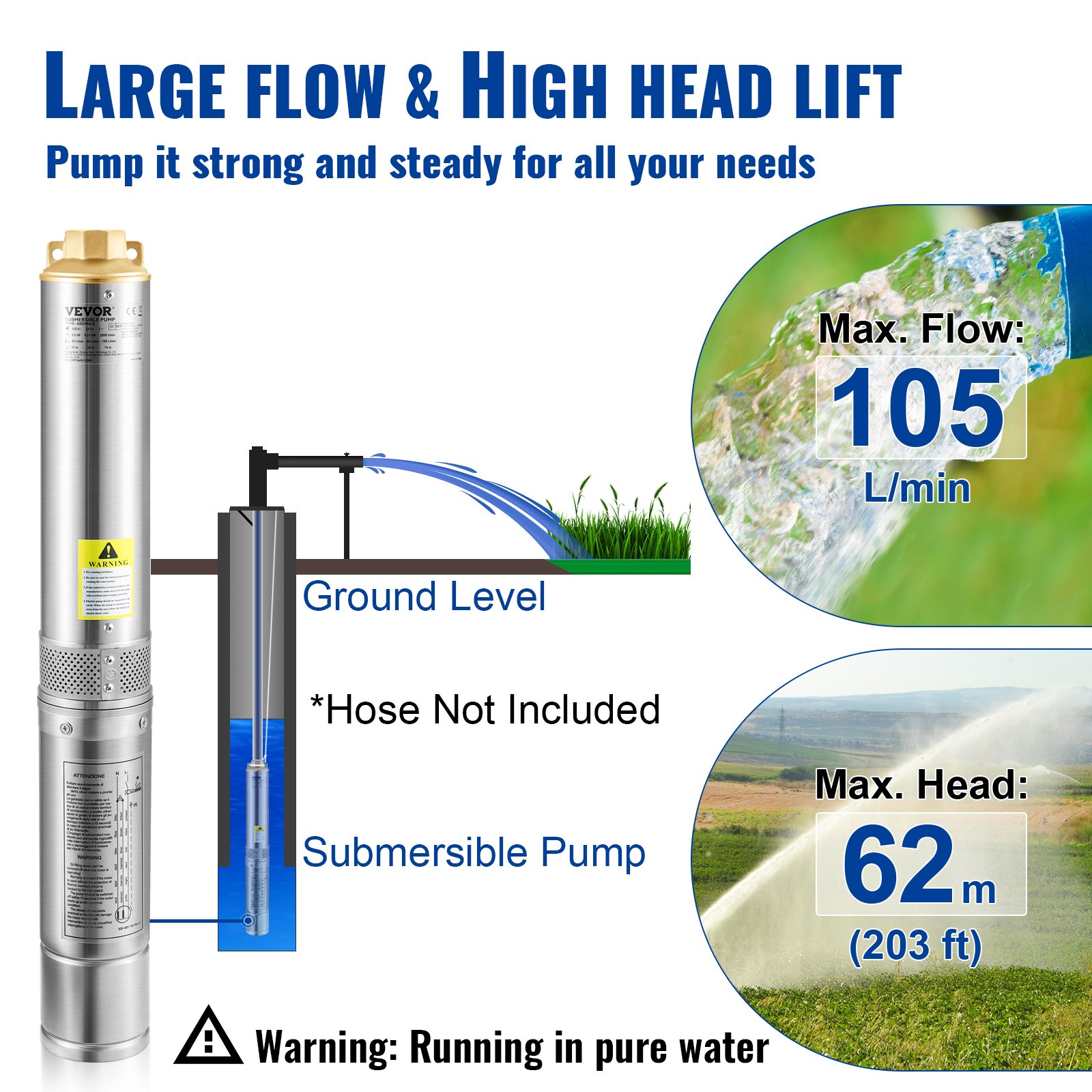

- Improved pump flow & head: Power: 750 W, 230 V; Sand resistance: < 5%; Diameter: 8.9 cm (for well casings of 8.9 cm or larger); Outlet: G1.25". This submersible deep well pump is equipped with 11-stage thermoplastic impellers, providing a maximum flow rate of 105 L/min and a maximum delivery head of 62 m. It comes with a 20 m power cable, making life much easier without modern plumbing installations. Pump away your worries with ease and relax. No challenge is too great.

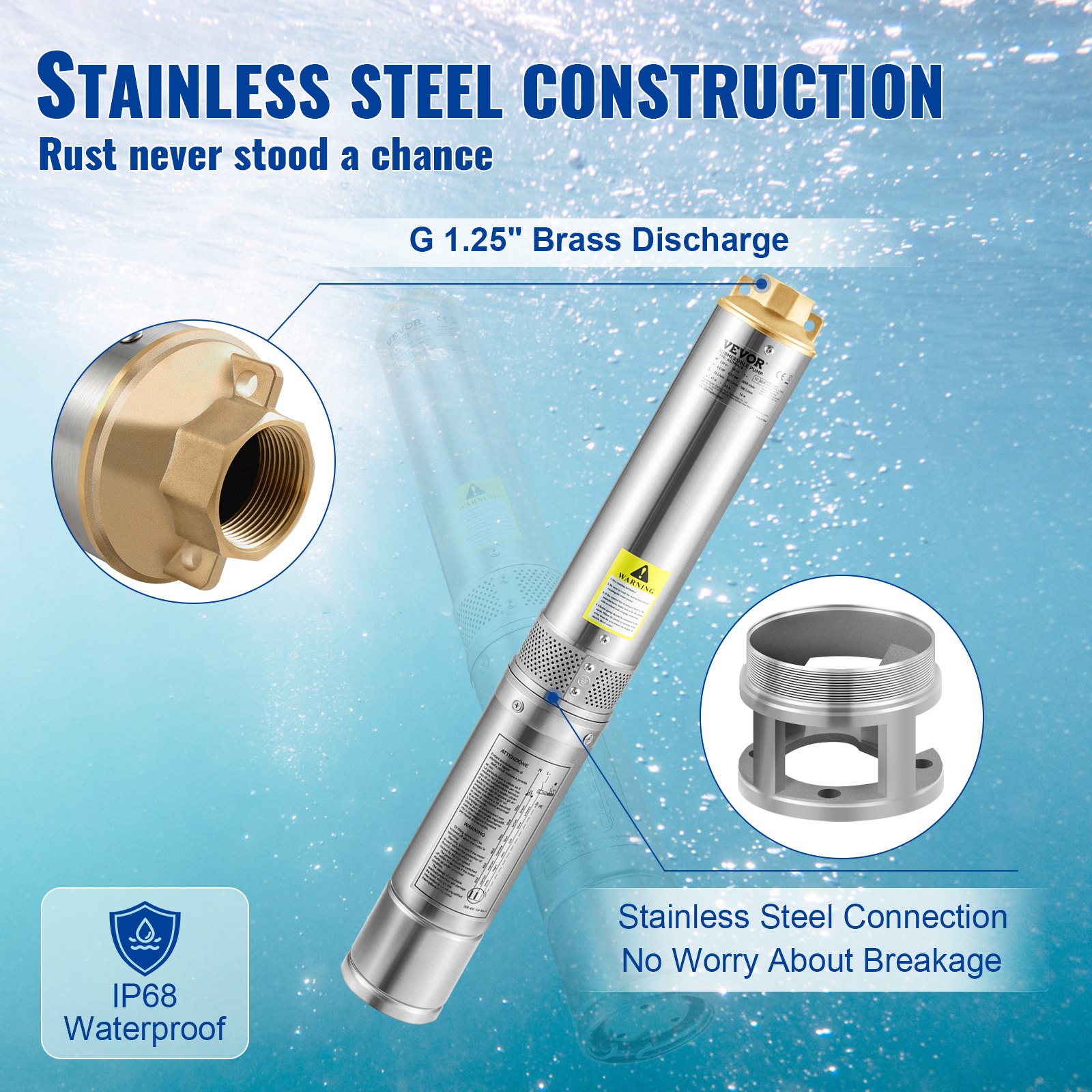

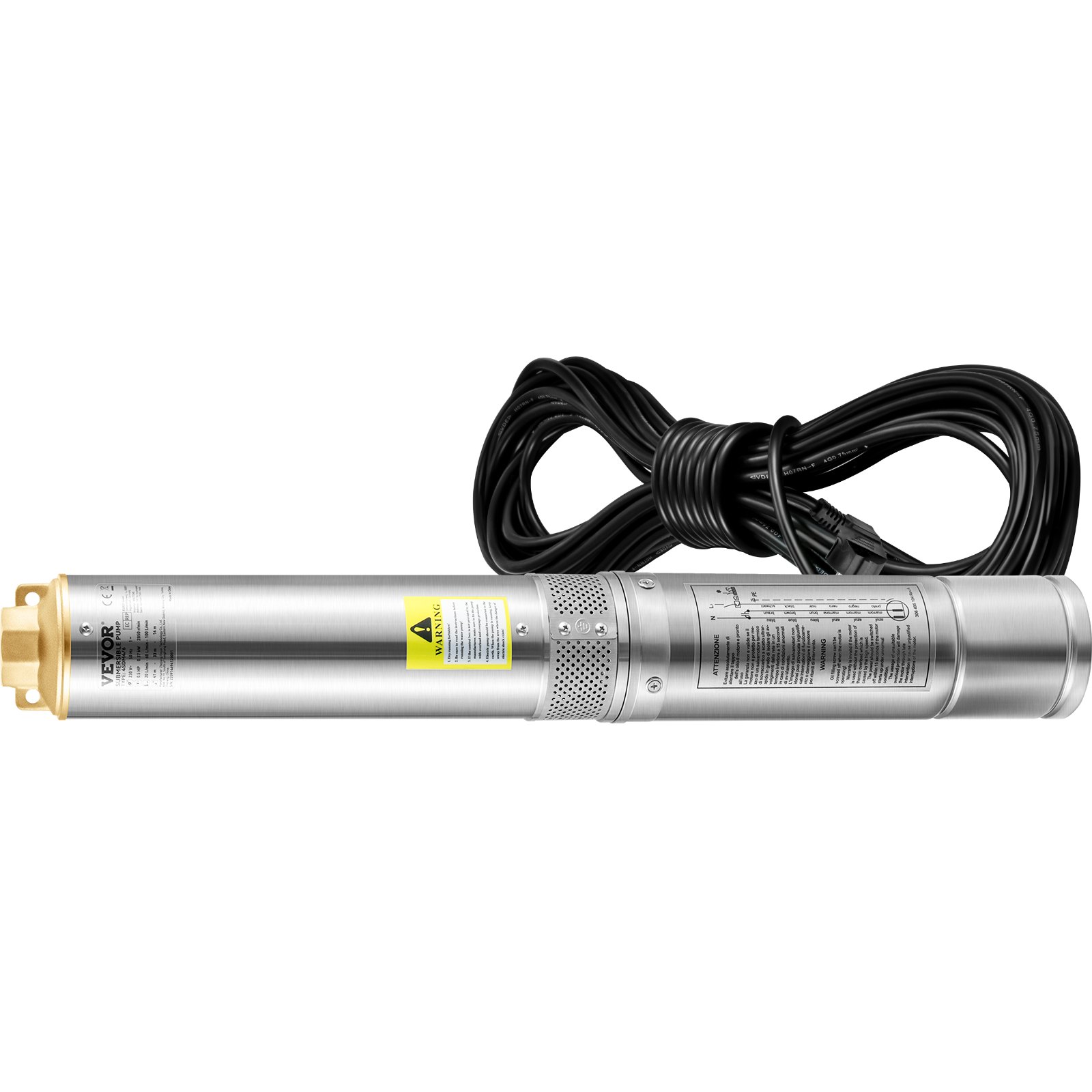

- High-quality stainless steel: The entire frame of our deep well pump is unlike anything else on the market. It consists of a stainless steel housing and a brass outlet. You don't have to worry about it rusting or corroding after prolonged submersion. With an IP68 rating, the pump can be used for 8-10 years. Stop wasting time! The perfect choice is right in front of you!

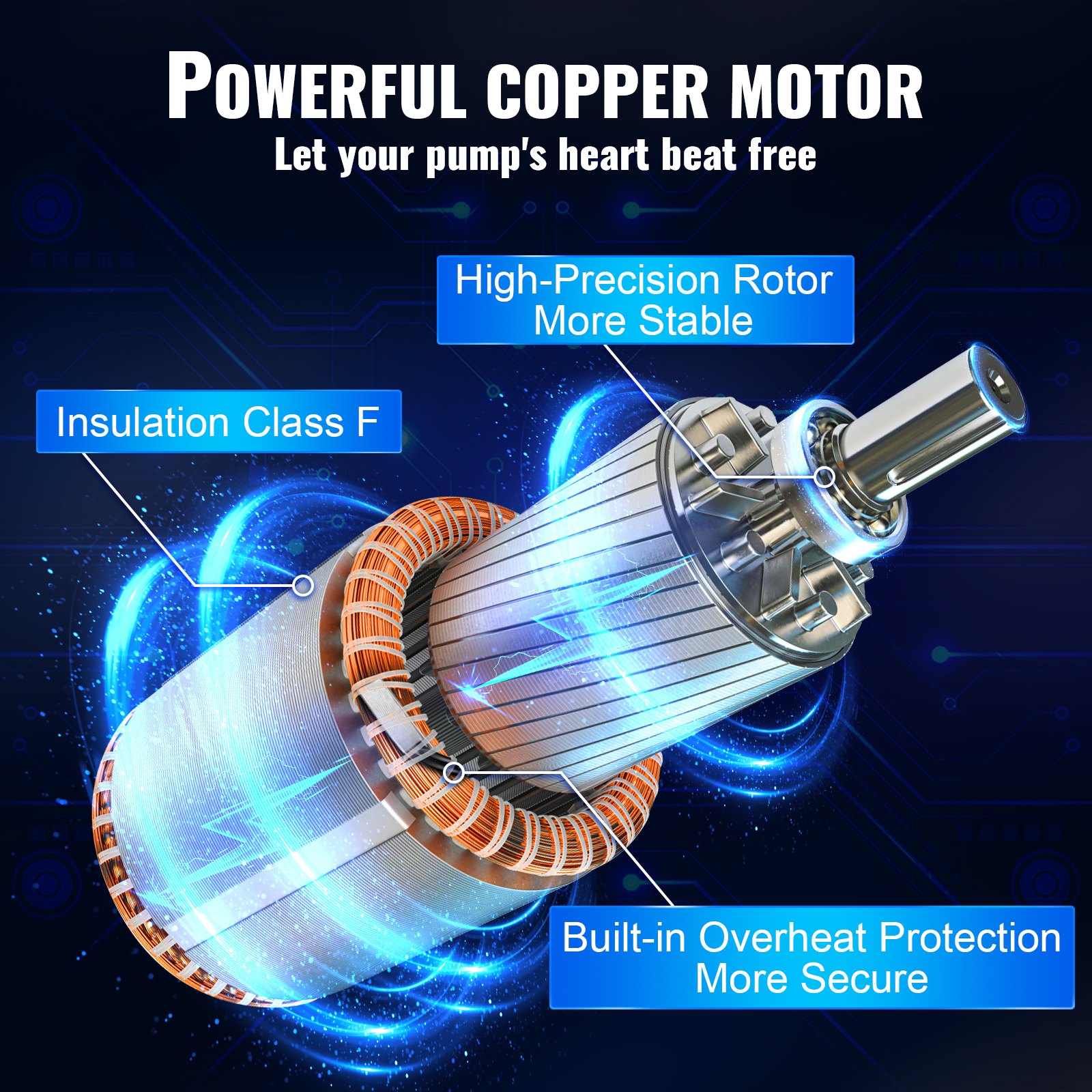

- Reliable copper motor: Are you constantly experiencing problems with submersible pumps that let you down? Are you ready for consistent satisfaction and quality? The powerful copper motor and high-precision rotor promise long-term stable operation. The motor features built-in overload protection that automatically stops it if it jams or in abnormal situations to prevent burnout. NOTE: DO NOT use it without water or at a low water level to avoid running dry.

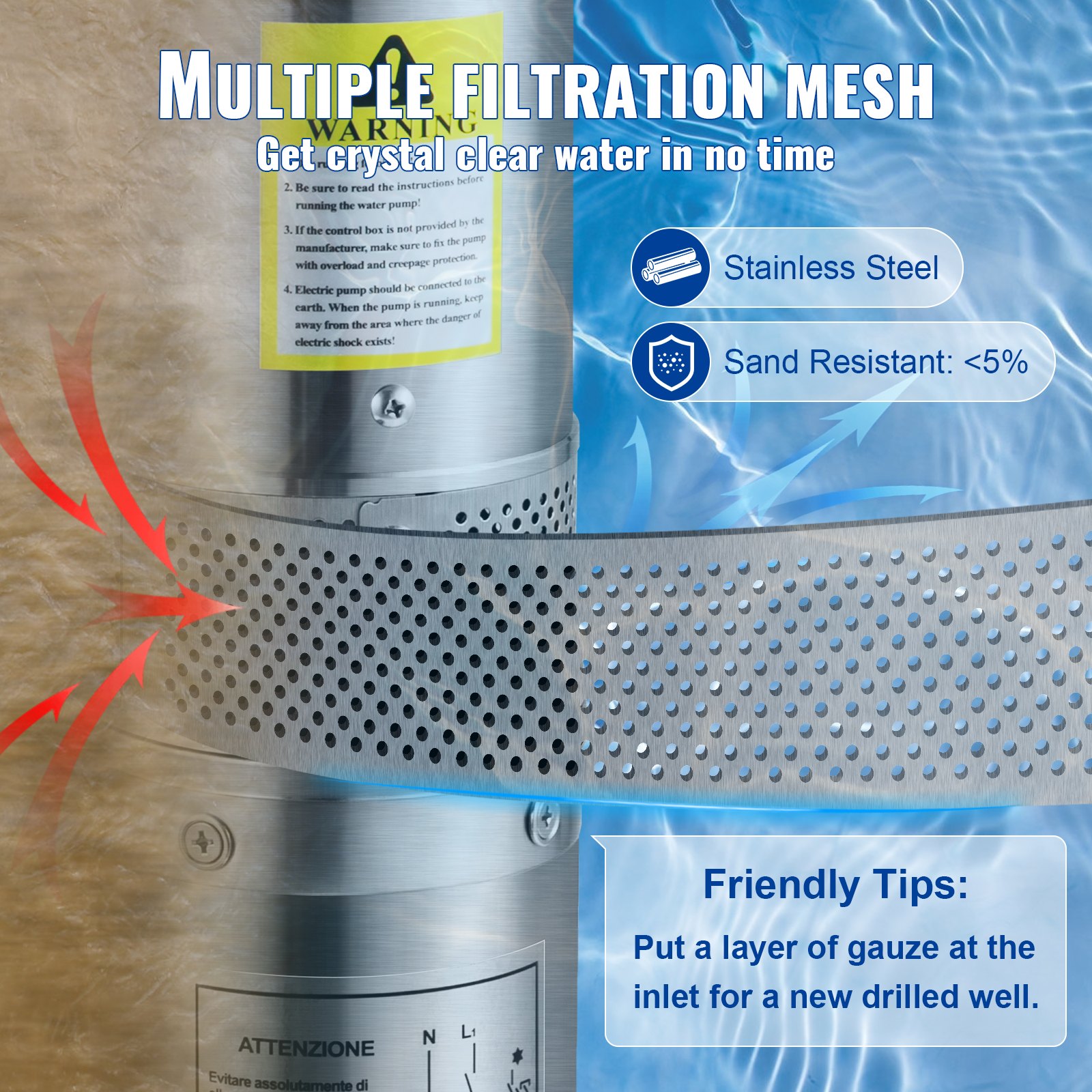

- Hassle-free check valve & filter: This well pump has a built-in check valve to prevent backflow (an additional check valve is highly recommended). The stainless steel filter mesh filters out impurities. You can add a layer of gauze before the filter inlet for a newly drilled well that may contain excessively granular sediment. Keep contaminants out without the hassle.

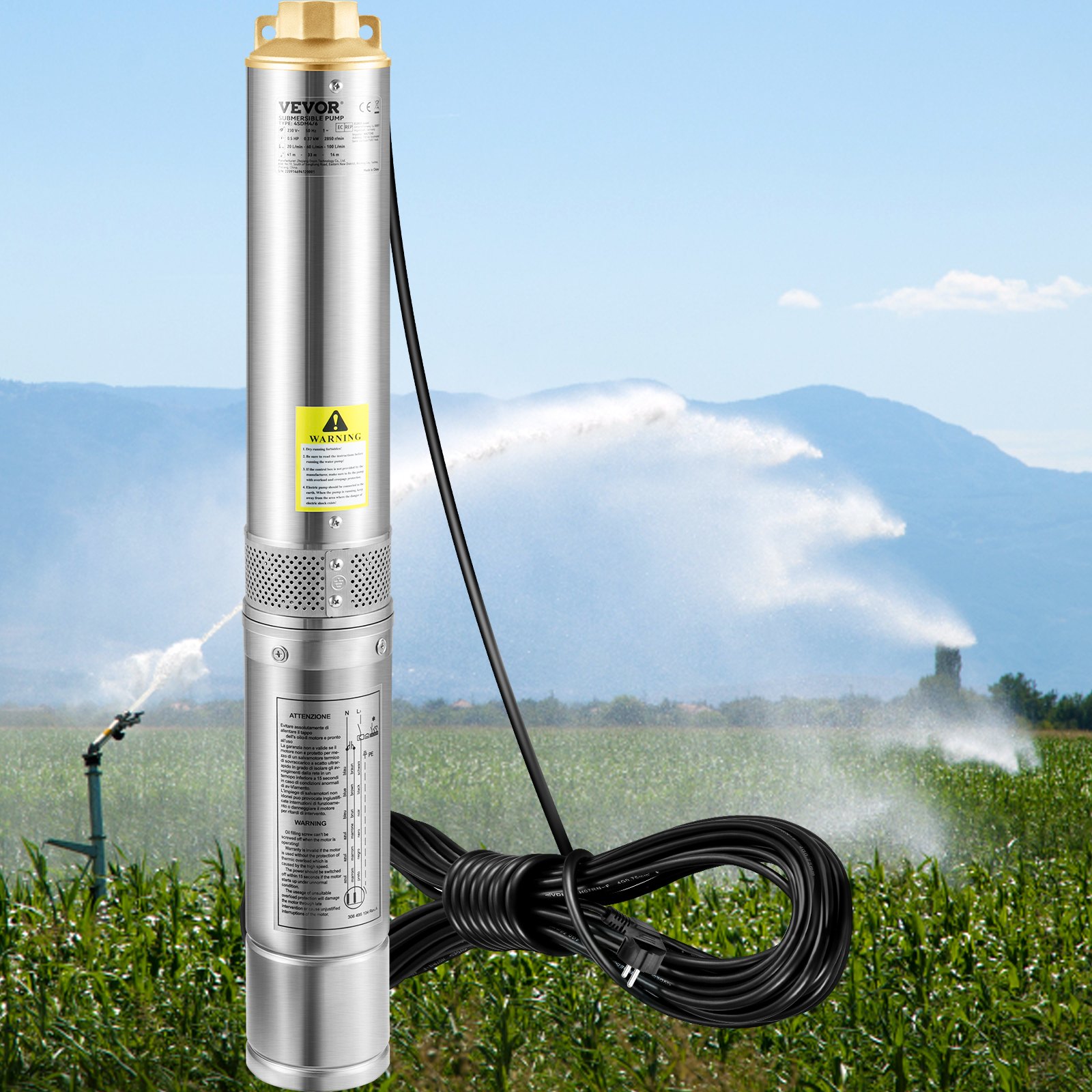

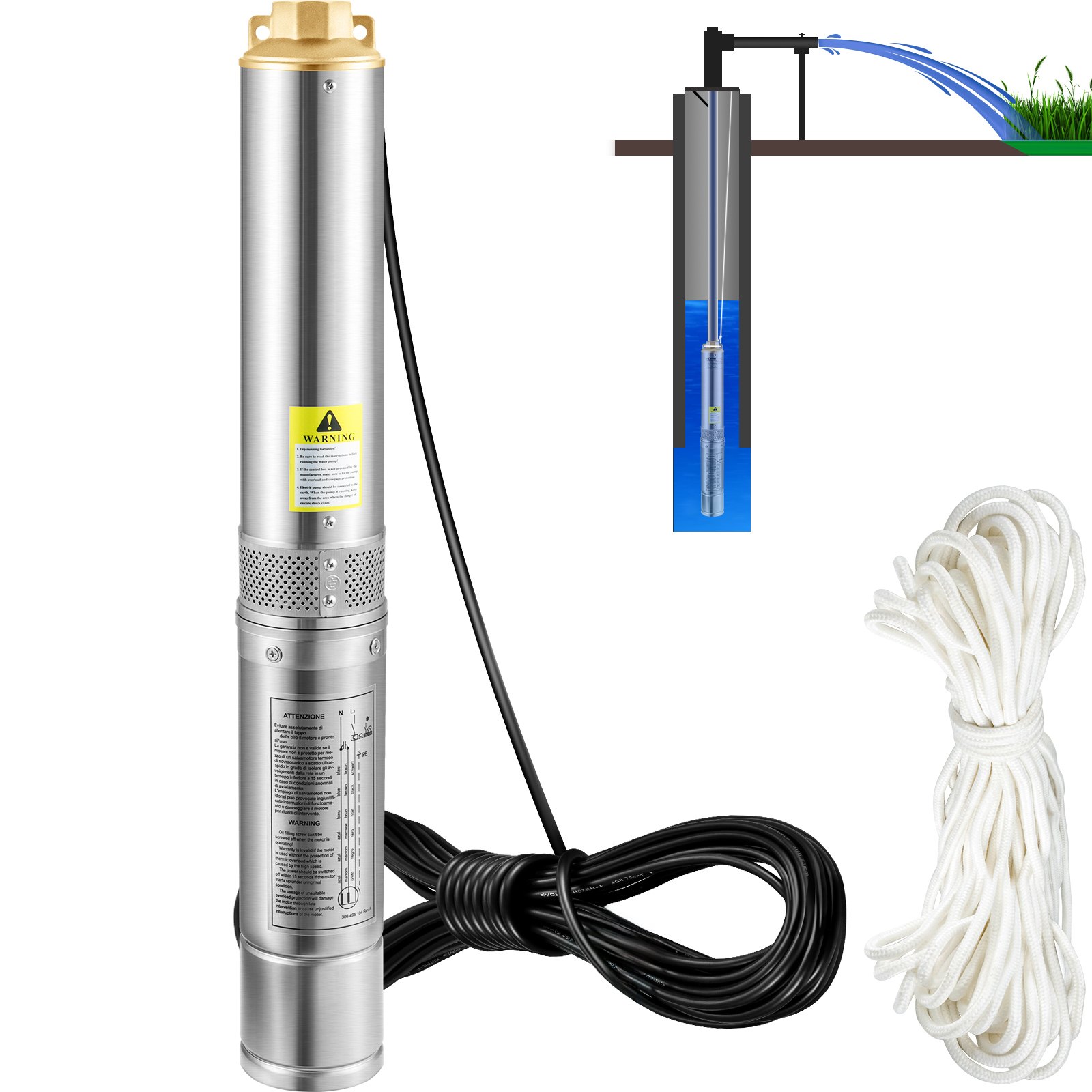

- Versatile use: Whether you need to solve water supply problems in industry, agriculture, or at home, you can rely on this deep well pump. It's ideal as a garden water source and children's sprinkler. You can use the pump to draw water from water barrels, reservoirs, canals, rivers, and other water sources.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 170 reviews
Reviews 4.9
All reviews are from verified purchases
See all 170 reviews
About this item

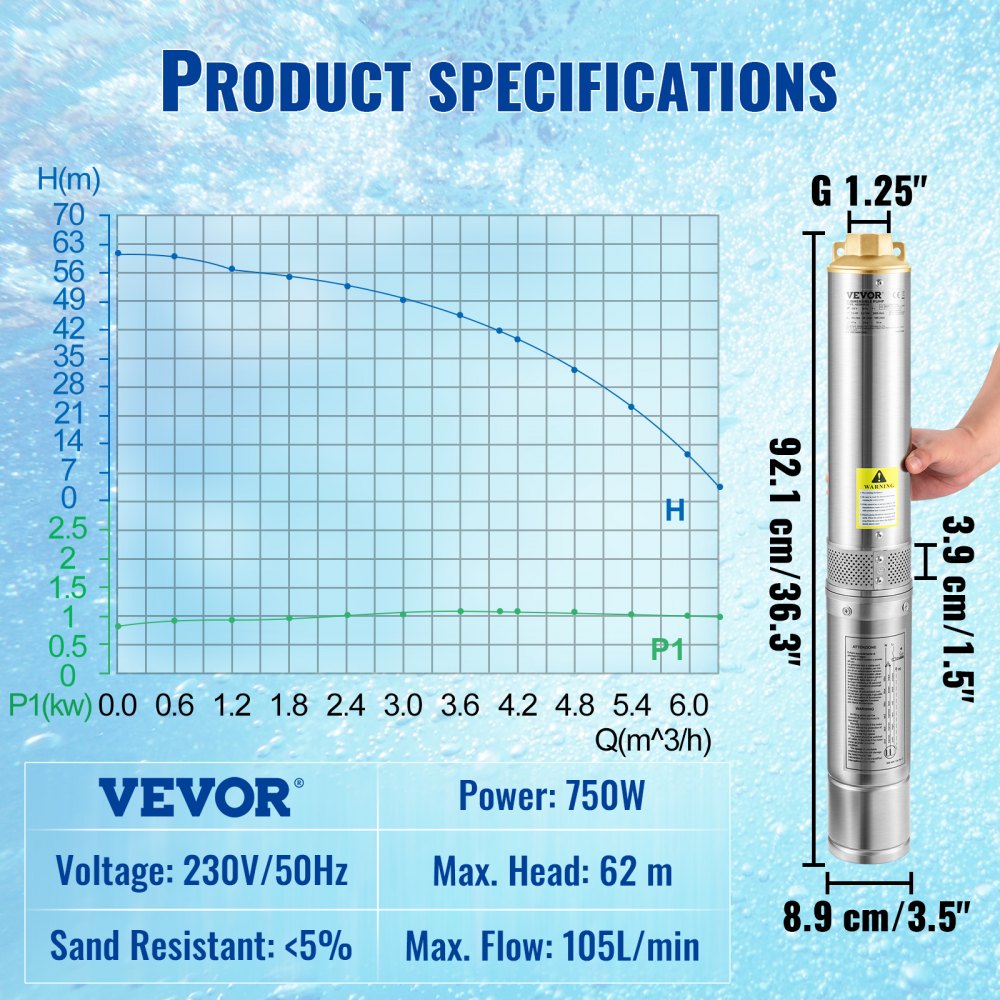

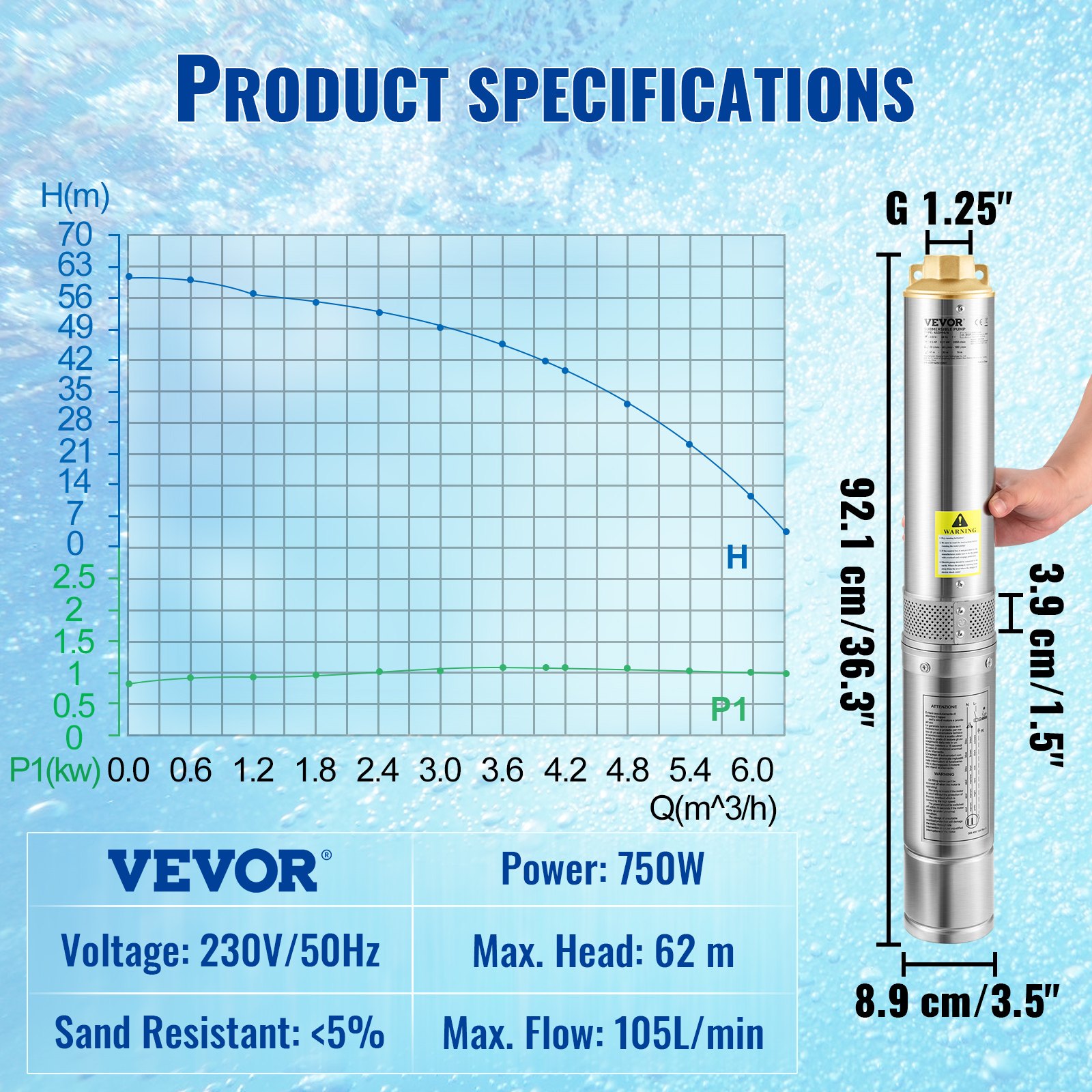

Product specification
- Model
- 3.5SDM4/11
- Material
- Stainless steel
- Power
- 750 W
- Voltage
- 230 V / 50 Hz
- Max. flow rate
- 105 L/min
- Maximum delivery head
- 62 m (203.4 ft)
- Sand resistant
- < 5%
- Pump diameter
- 8.9 cm (3.5 inches)
- Outlet size
- G 1.25"
- Cable length
- 20 m (66 ft)
- Wheel speeds
- 11
- Max. speed
- 2850 rpm
- Operating temperature
- 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Protection rating
- IP68
- Insulation class
- F
Description
Fast pumping with the VEVOR deep well pump
Are you worried about your family's water supply or your farmland? Our submersible well pump offers a high flow rate and a high delivery head, covering all your water needs. Start pumping today with our submersible well pump!
All pumps without the effort
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (8)
Hallo
Was ist der Unterschied eingebaut und automatischer
Schalter
Der Unterschied besteht darin, dass eines über eine einzelne Wasserpumpe verfügt und das andere über eine Wasserpumpe und einen elektronischen Druckschalter.
By vevor
Helpful
(
10
)
Wie hoch ist der wasserdruck?
Der maximale Druck beträgt 6bar.
By vevor
Helpful
(
4
)
Nochmal zur ersten Frage, die ist nicht beantwortet. Welchen Gewindedurchmesser hat der Pumpenausgang ? Ich denke er ist 1 1/4 oder 1,5 " ?
Der Durchmesser der Pumpe beträgt 3,5 Zoll und ihr Auslassdurchmesser beträgt 1,25 Zoll.
By vevor
Helpful
(
2
)
Was heißt eingebaut? Ist der Drucksensor in der Pumpe eingebaut?
Das bedeutet, dass sich der Startkondensator in der Wasserpumpe befindet und der Wasserpumpenstecker eingesteckt und verwendet werden kann. Alle eingebauten Wasserpumpenkabel sind dreiadrig (mit Ausnahme des Erdungskabels) und die Spulen enthalten Thermoschutzvorrichtungen. Wenn der Motor überhitzt, erkennt der Thermoschutzschalter die Stromversorgung und unterbricht sie, um ein Durchbrennen des Motors zu verhindern.
By vevor
Helpful
(
1
)
Hallo, ich interessiere mich für die VEVOR 3,5" Tiefbrunnenpumpe 750W.
Kann mit einem 32er Pe Rohr gefördert werden ?
Für den Transport können Sie PE-Rohre mit einem Durchmesser von 32 mm verwenden. Sie müssen jedoch separat einen 32-mm-Adapter kaufen. Adapter G1,25 auf 32mm.
By vevor
Helpful
(
0
)
