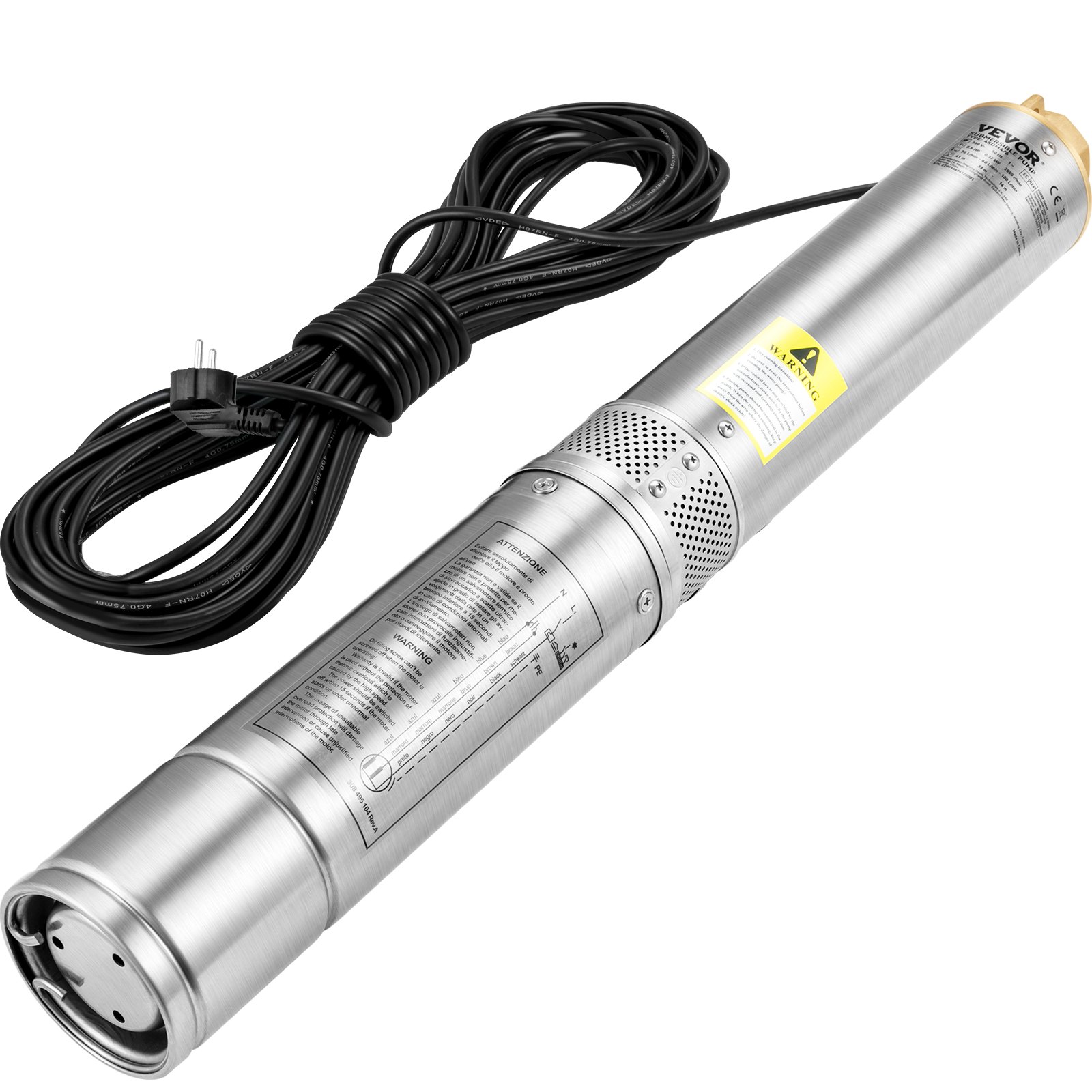

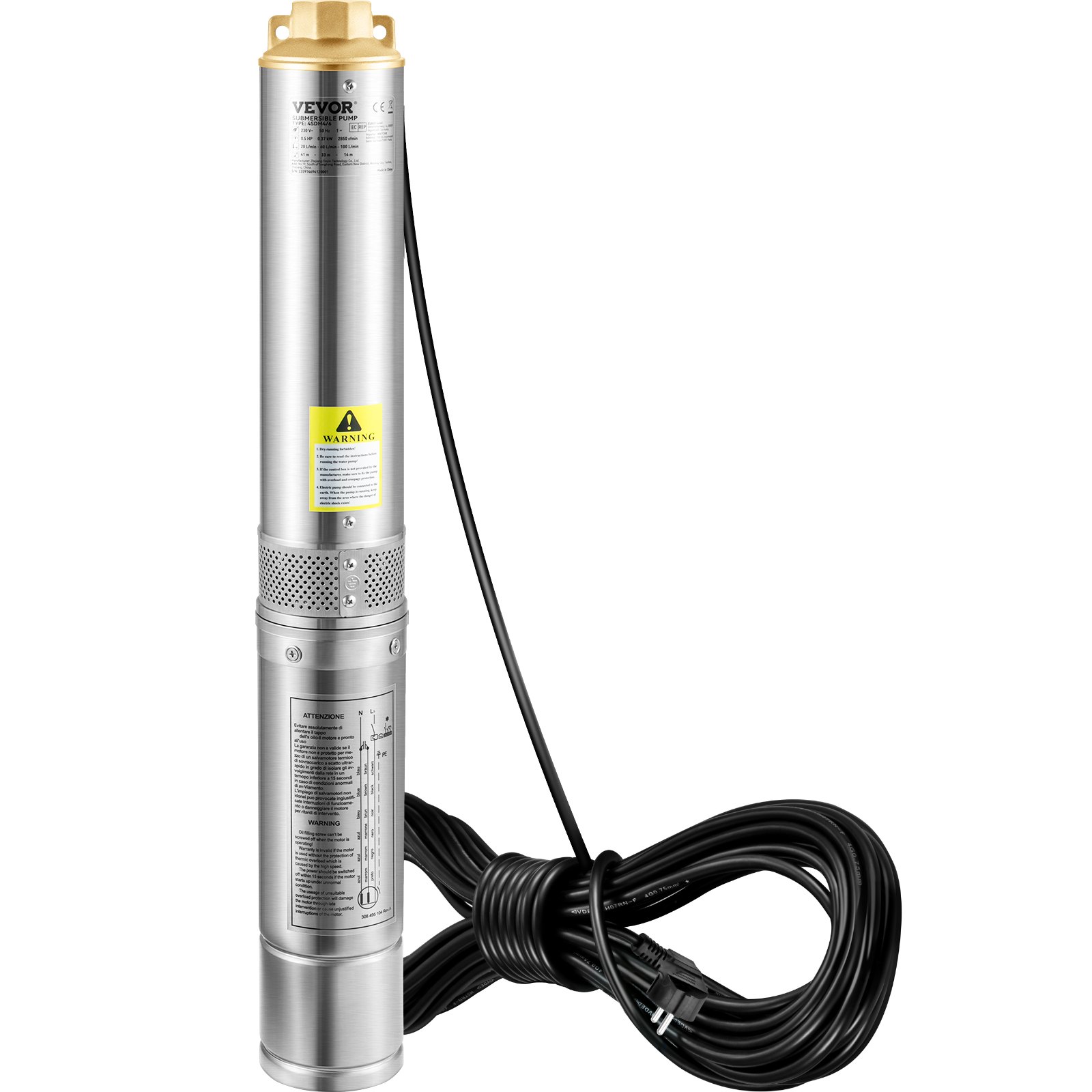

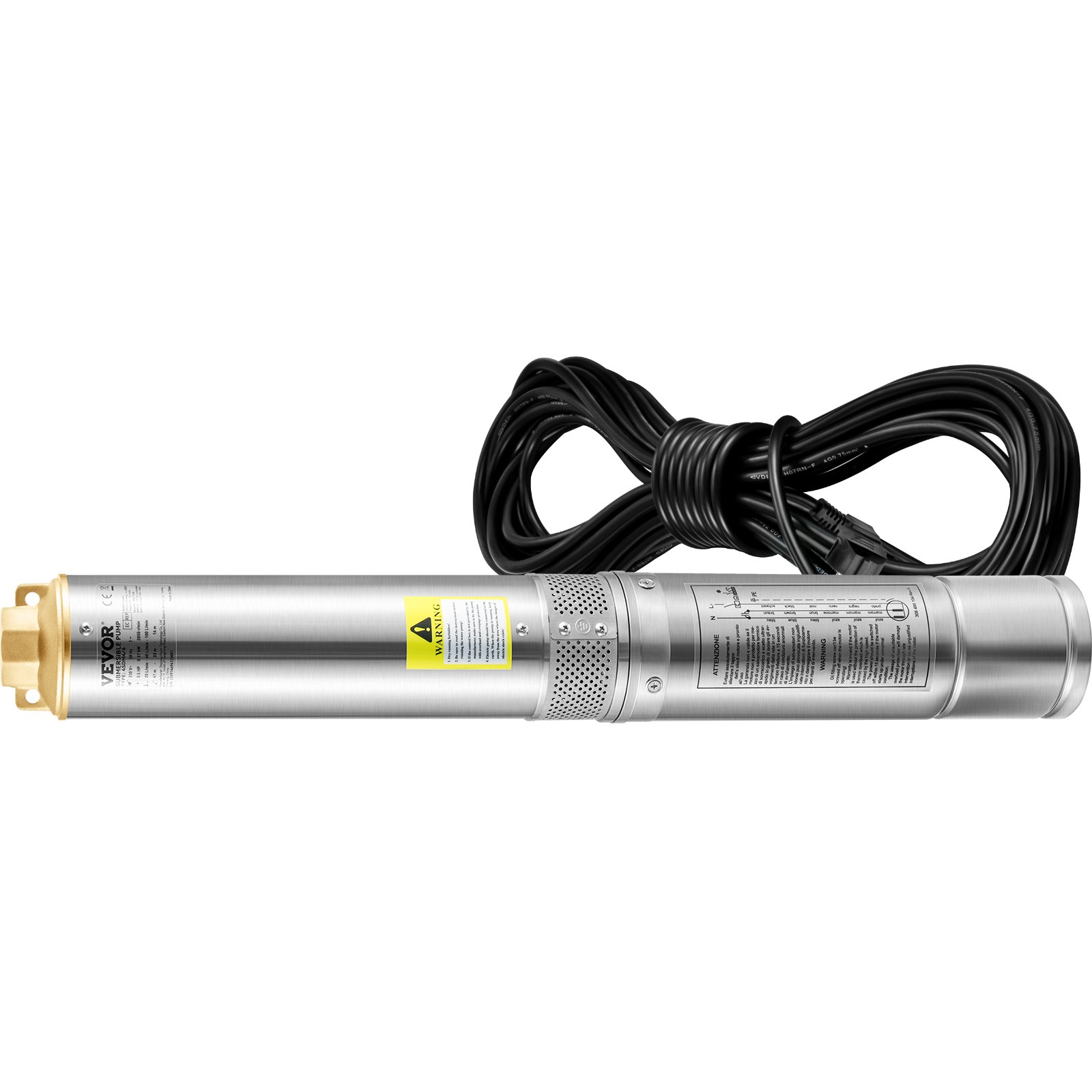

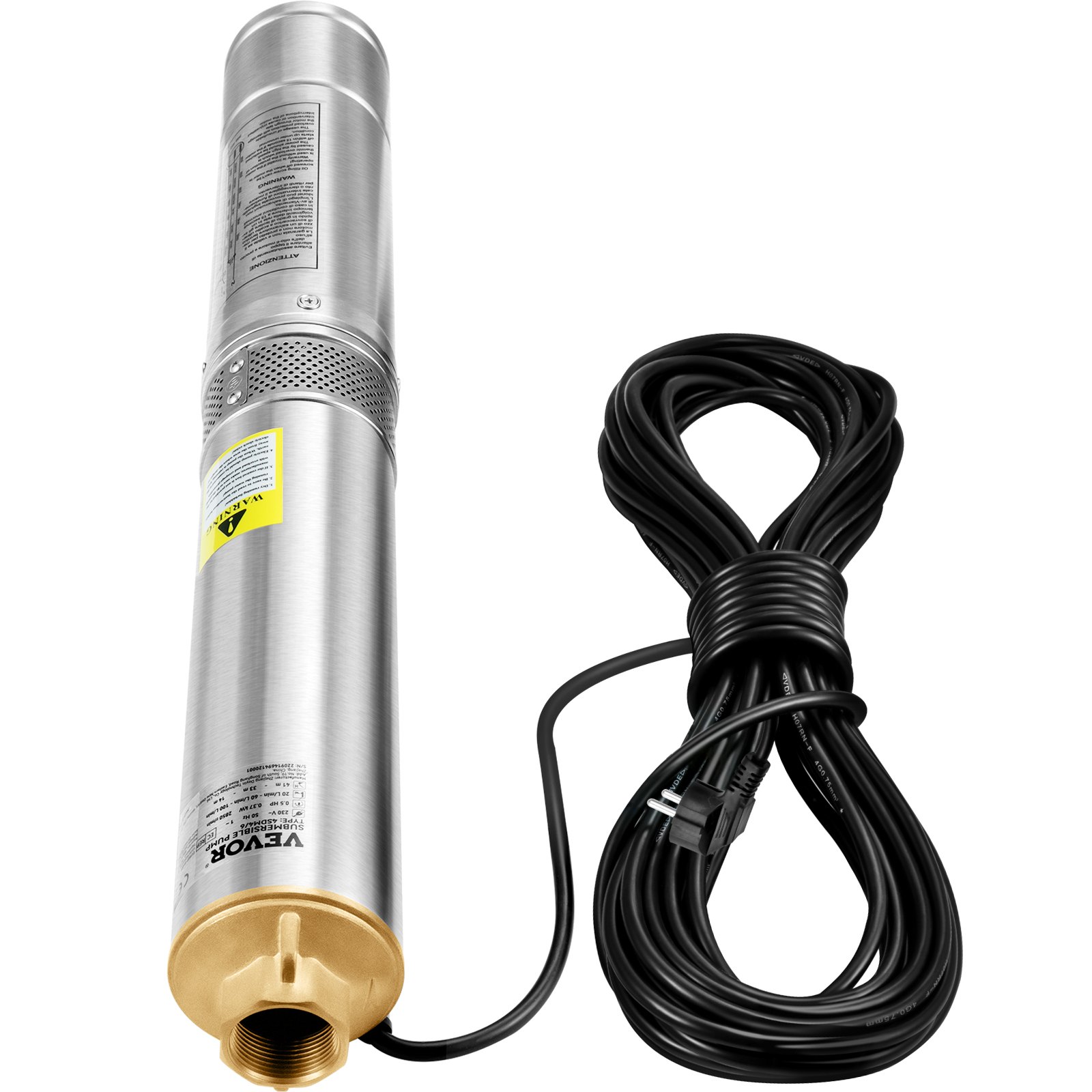

VEVOR 3" Deep Well Pump 750W Well Pump 100L/min Submersible Pump Max. Delivery Head 66m Pipe Pump 230V 50Hz Sand Pump IP68 Water Pump 16 Impeller Stages Pump Ideal for Irrigation or Water Supply
4.7 244 Reviews
122 90 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details

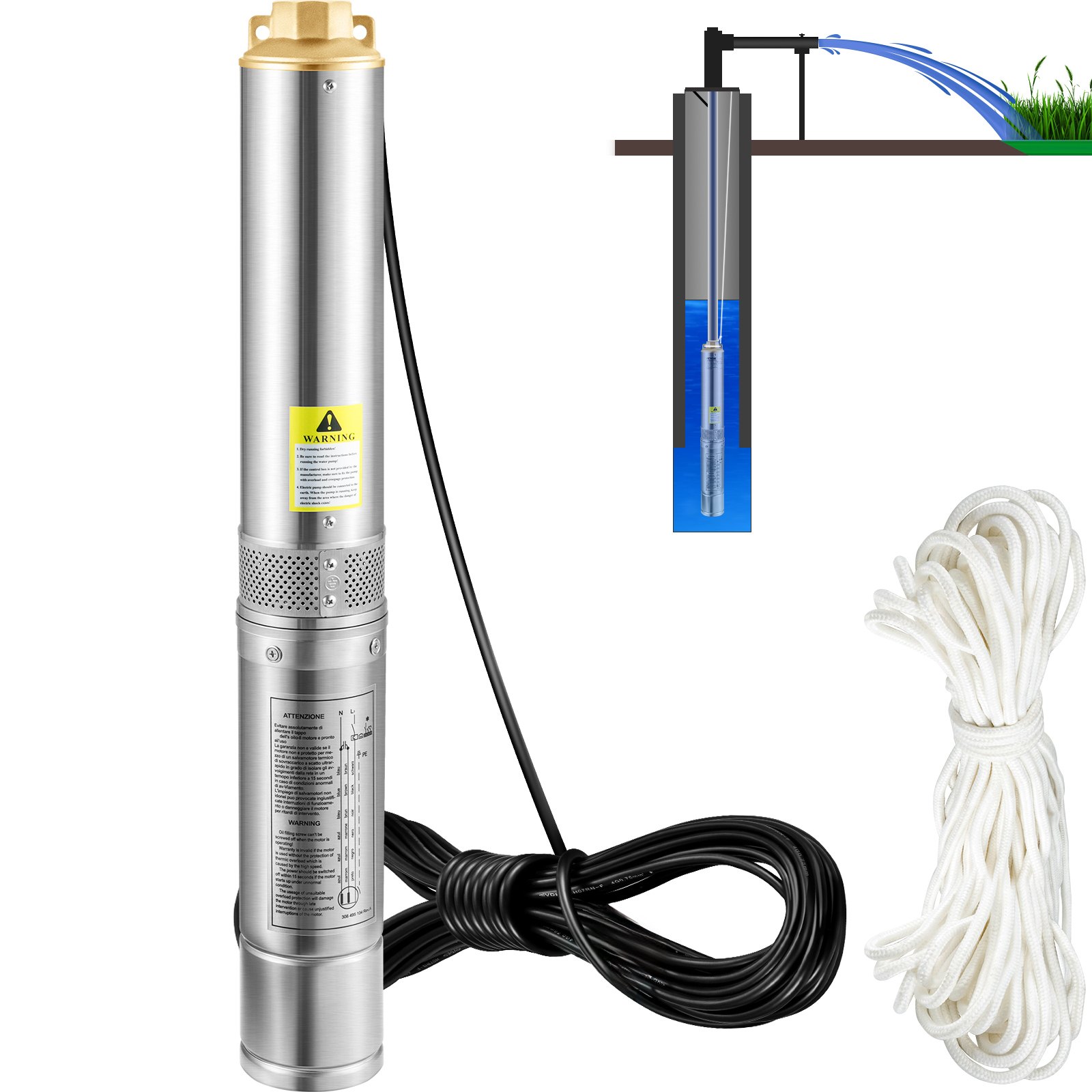

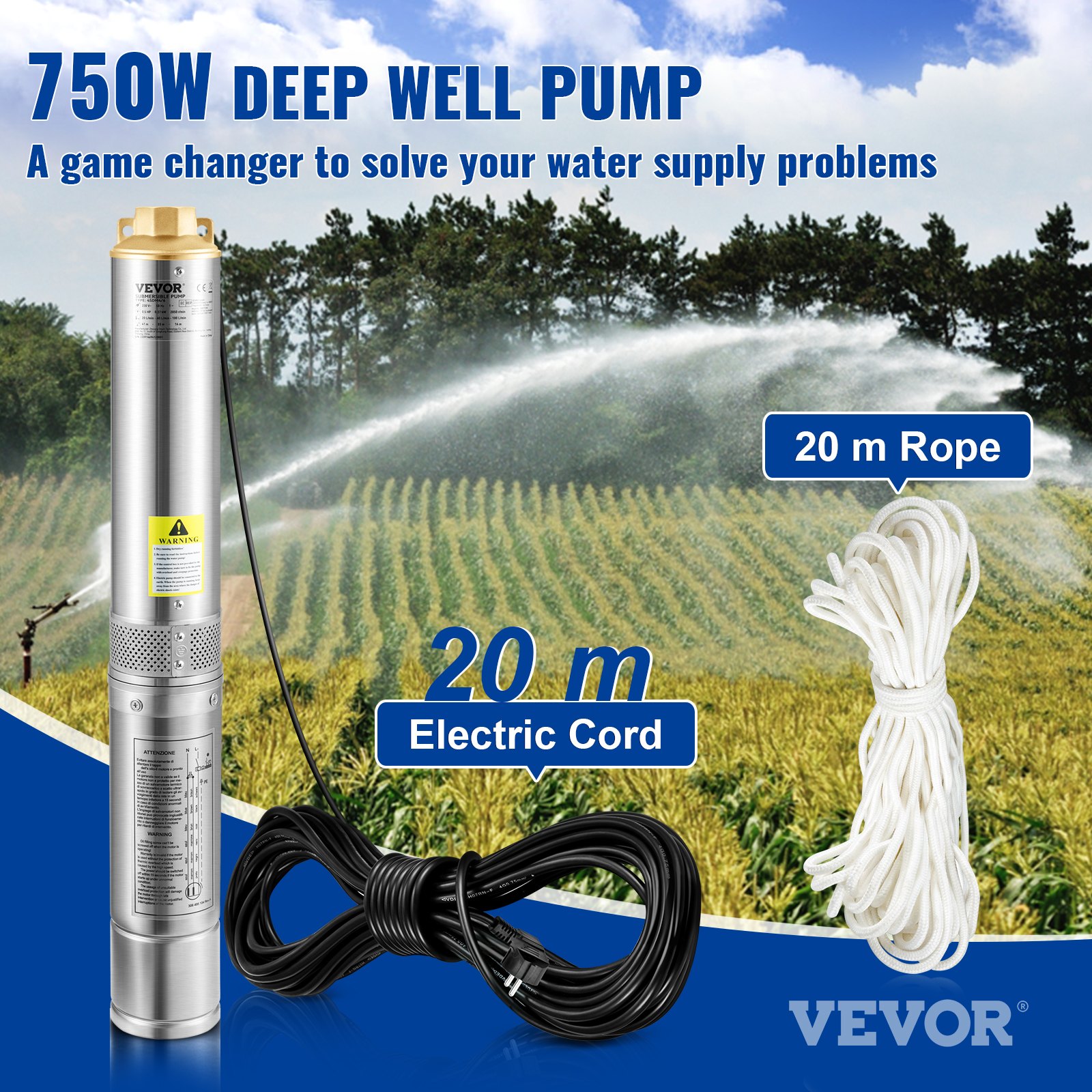

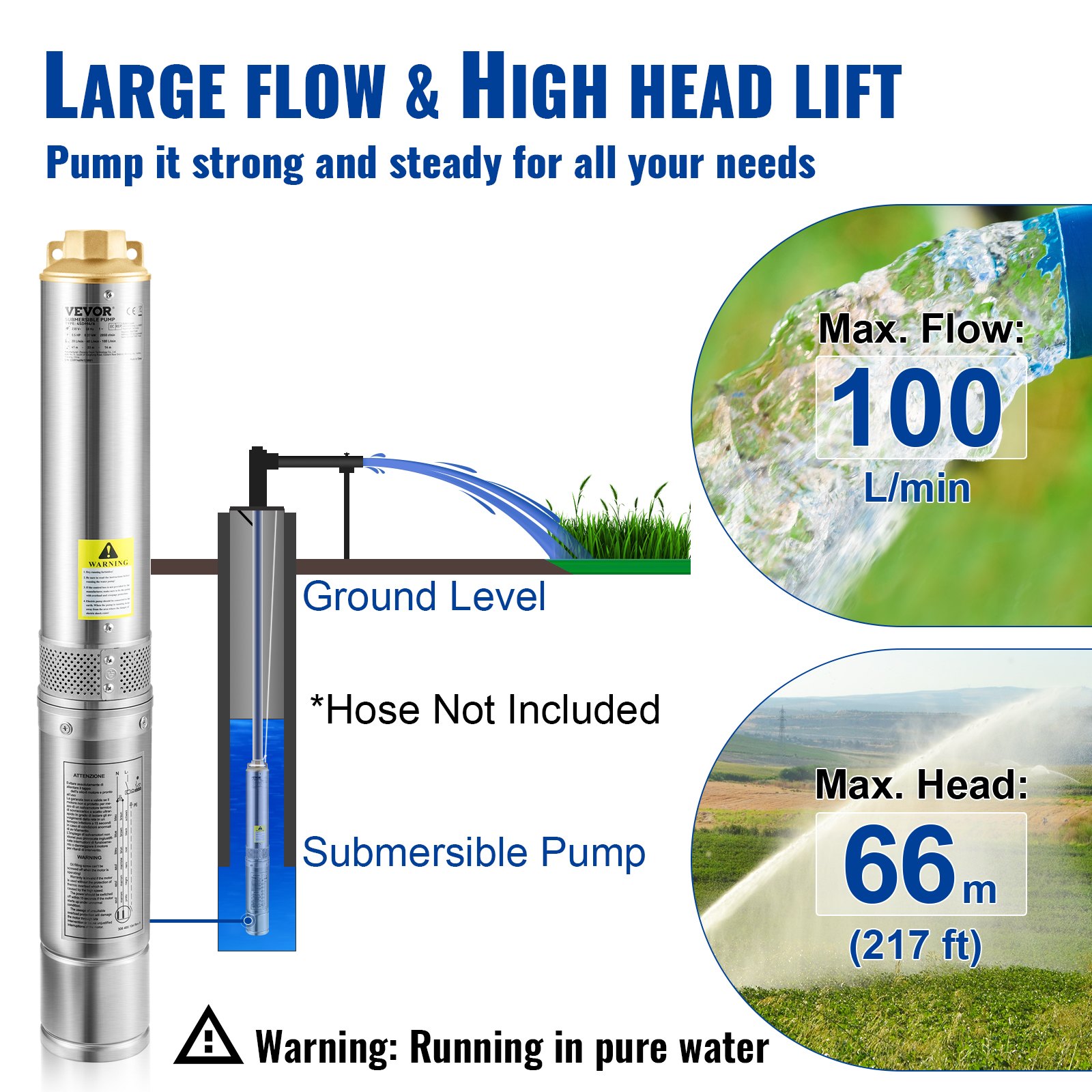

- Improved pump flow and delivery head: Power: 750 W, 230 V; Sand content: <5%; Diameter: 8.2 cm, suitable for well casings from 8.2 cm; Outlet: G1.25". The deep well submersible pump features 16-stage thermoplastic impellers and achieves a flow rate of up to 100 L/min and a delivery head of up to 66 m. The 20 m long power cable facilitates use even without modern plumbing installations.

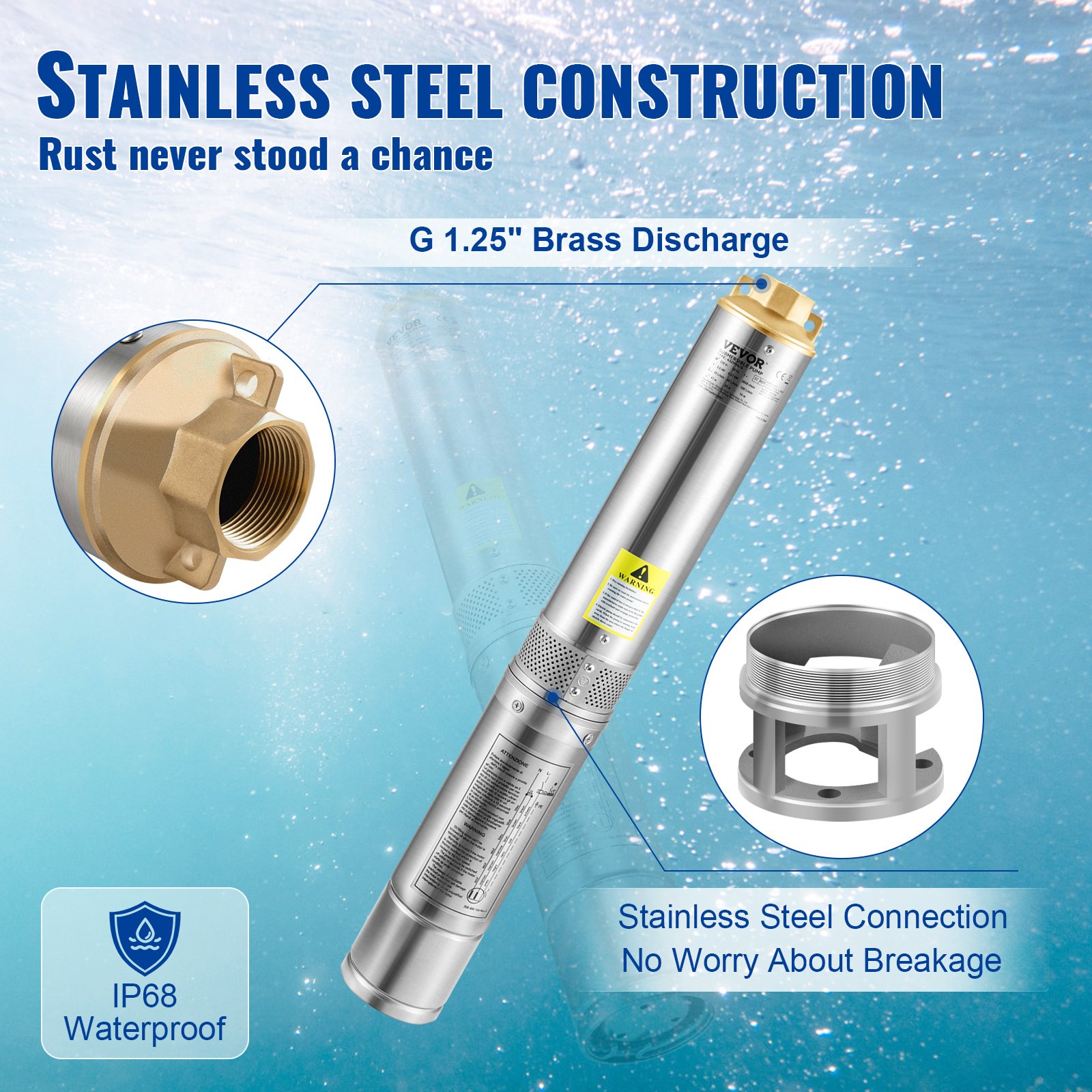

- High-quality stainless steel: The entire frame of our deep well pump is unlike anything else on the market. It consists of a stainless steel housing and a stainless steel outlet. You don't have to worry about it rusting or corroding after prolonged submersion. With an IP68 rating, the pump can be used for 8-10 years. Save time on your work! The perfect choice is right in front of you.

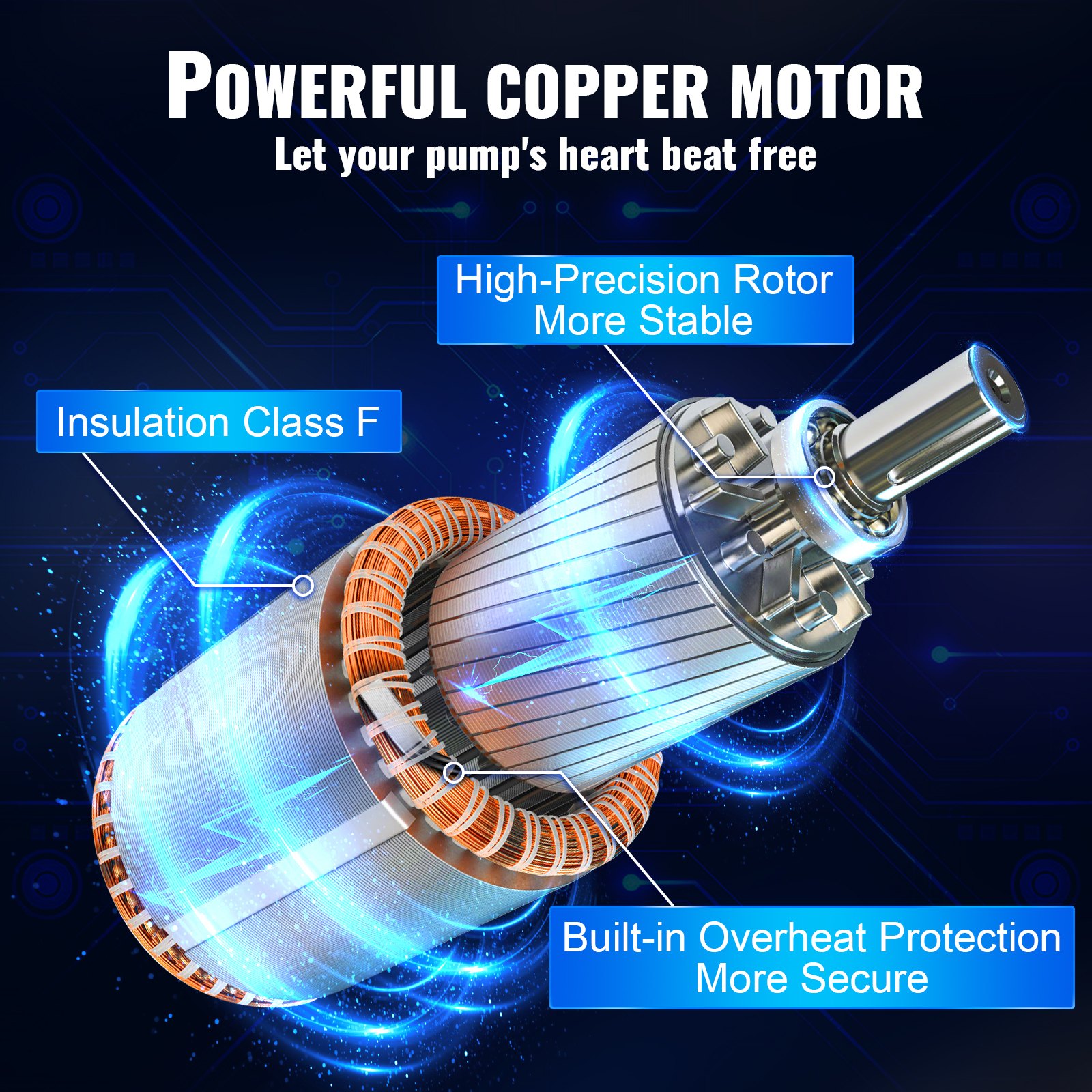

- Reliable copper motor: Experiencing problems with submersible pumps that keep failing? The powerful copper motor with its precision rotor ensures consistently stable operation. The integrated overload protection automatically stops the motor if it becomes blocked or runs erratically, thus protecting against overheating. NOTE: DO NOT use without water or at a low water level to prevent running dry.

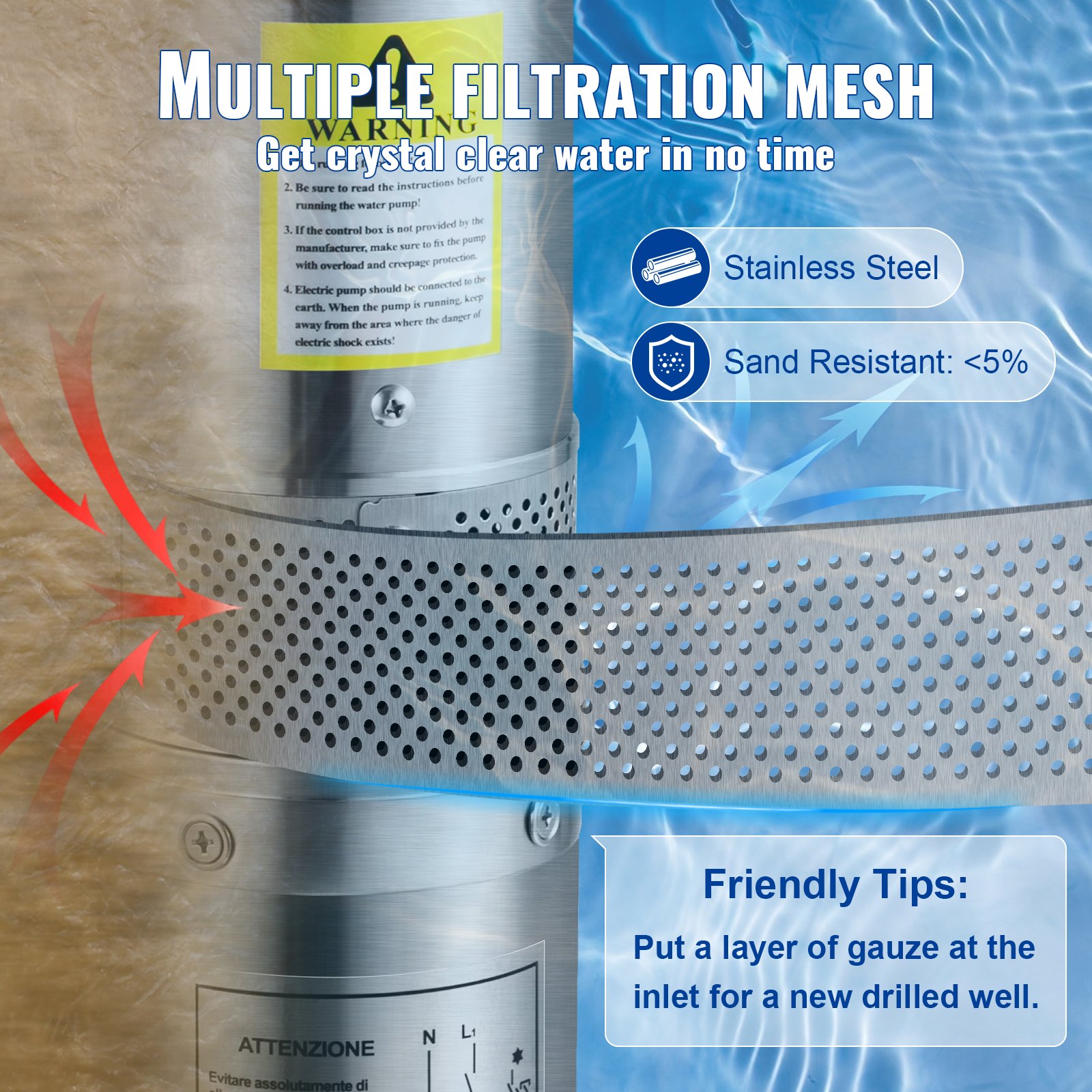

- Hassle-free check valve & filter: This well pump has a built-in check valve to prevent backflow (an additional check valve is highly recommended). The stainless steel filter mesh filters out impurities. You can add a layer of gauze before the filter inlet for a newly drilled well that may contain excessively granular sediment. Keep contaminants out without the hassle.

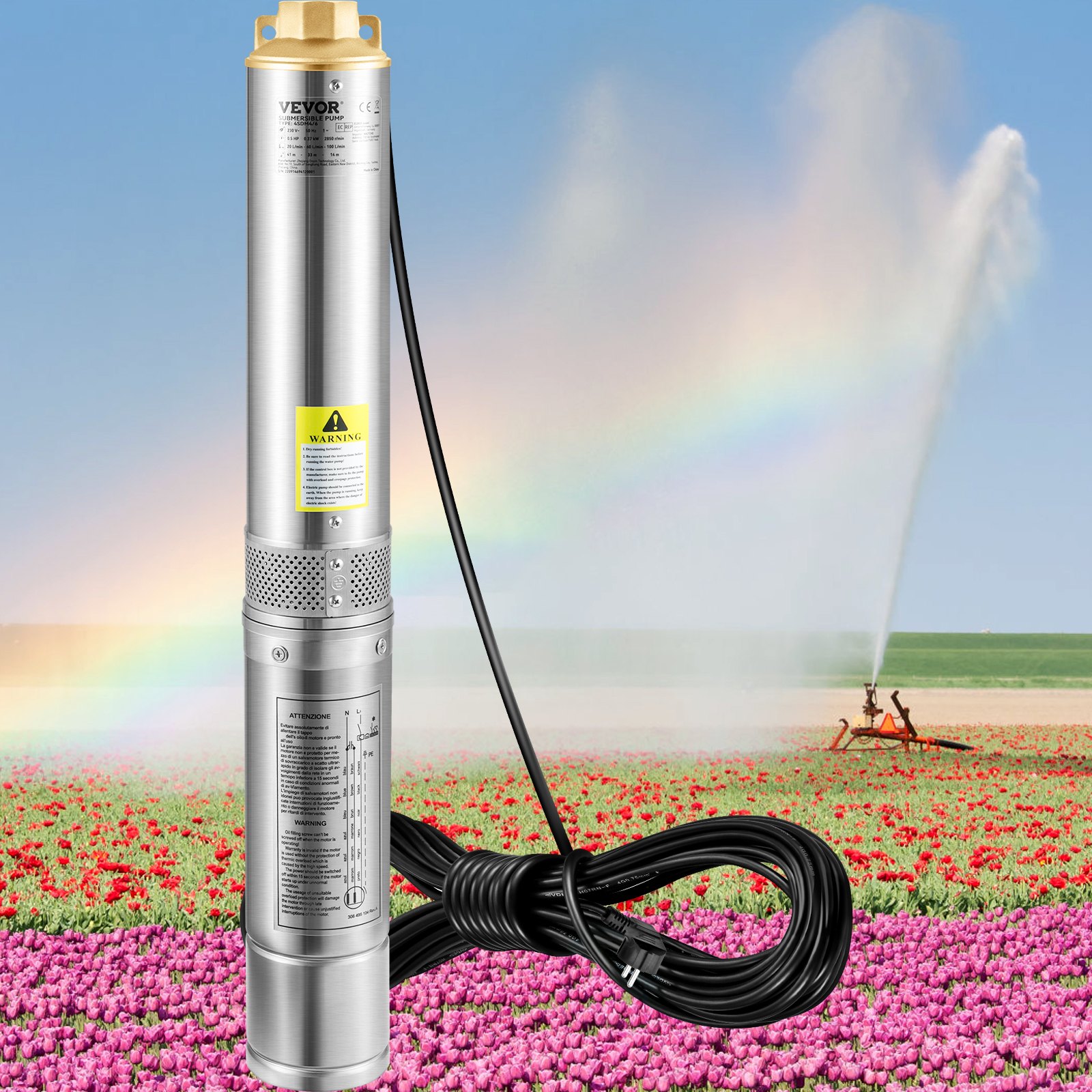

- Versatile use: Whether you need to solve water supply problems in industry, agriculture, or at home, you can rely on this deep well pump. It's ideal as a garden water source and children's sprinkler. You can use the pump to draw water from water barrels, reservoirs, canals, rivers, and other water sources.

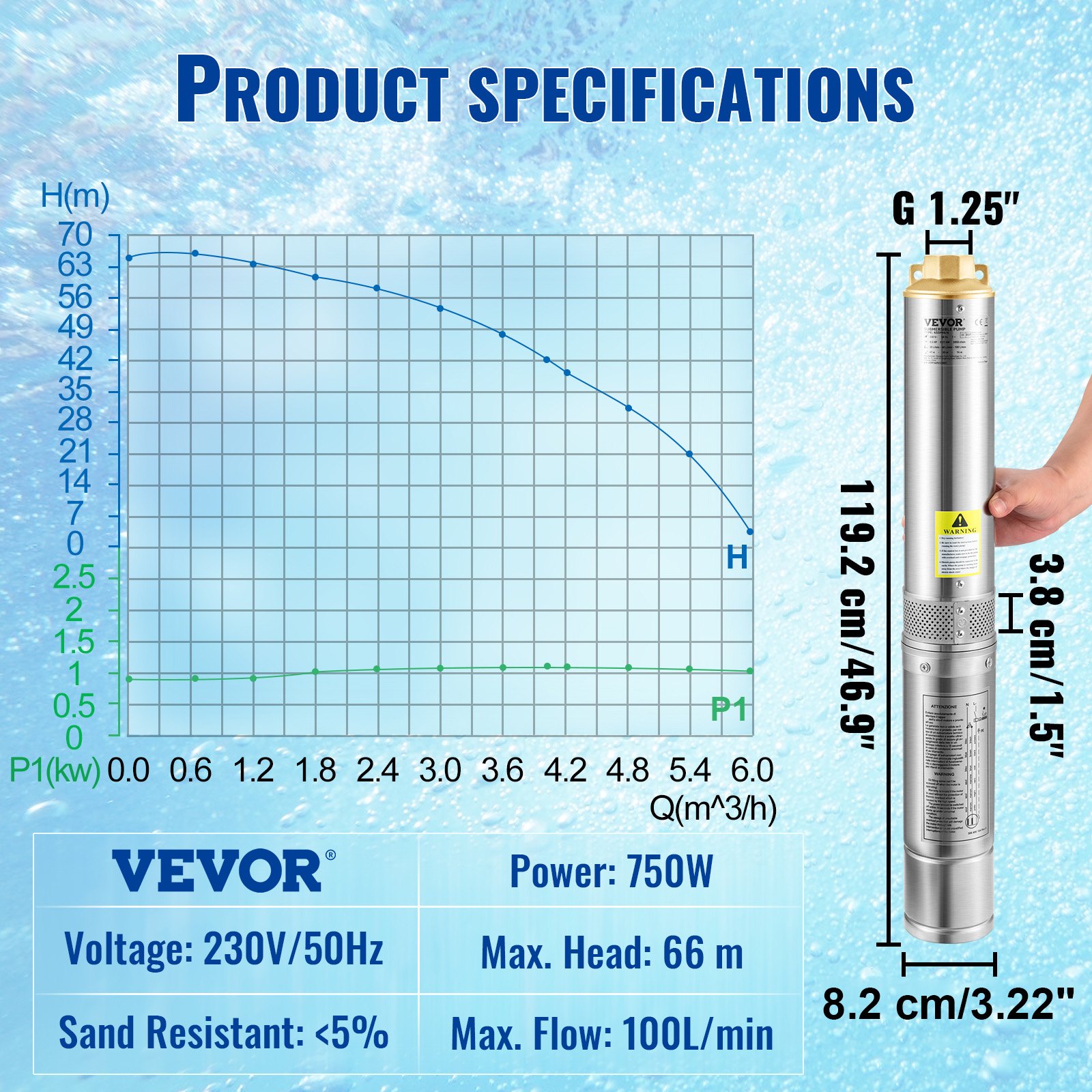

Product specification
- Model 3SDM4/16
- Material Stainless steel
- Power 750 W
- Voltage 230 V / 50 Hz
- Max. flow rate 100 L/min
- Maximum delivery head 66 m (216.5 ft)
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 4.7
All reviews are from verified purchases
Average rating based on 244 reviews
Reviews 4.7
All reviews are from verified purchases
See all 244 reviews
About this item
Product specification
- Model
- 3SDM4/16
- Material
- Stainless steel
- Power
- 750 W
- Voltage
- 230 V / 50 Hz
- Max. flow rate
- 100 L/min
- Maximum delivery head
- 66 m (216.5 ft)
- Sand resistant
- < 5%
- Pump diameter
- 8.2 cm (3.22 inches)
- Outlet size
- G 1.25"
- Cable length
- 20 m (66 ft)
- Wheel speeds
- 16
- Max. speed
- 2850 rpm
- Operating temperature
- 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Protection rating
- IP68
- Insulation class
- F
Description
Fast pumping with the VEVOR deep well pump
Are you worried about your family's water supply or your farmland? Our submersible well pump offers a high flow rate and a high delivery head, covering all your water needs. Start pumping today with our submersible well pump!
All pumps without the effort
Our deep well water pump is ideal for homes with a freshwater supply. It is also an excellent tool for irrigating farmland, supplying water in mountainous regions, and draining cities, factories, railways, and mines.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (6)
Meine VEVOR 3 (neu) verbraucht statt der angegebenen 750 Watt, 1153 Watt. Warum ?
Mit freundlichen Grüßen
Daniel R.
Die Leistung dieses Produkts beträgt 750 Watt.
By vevor
Helpful
(
4
)
Wieviel wiegt diese Pumpe in Kg?
Gibt es bei allen pumpen keine Gewicht Angabe?
Verkürzt sich die Lebensdauer der Pumpe bei Horizontaler Montage?
Wie Laut ist diese Pumpe in DB?
MfG
Gregor
Diese elektrische Pumpe wiegt ca. 14 kg. Eine horizontale Installation verkürzt die Lebensdauer der Pumpe. Der Geräuschpegel der Pumpe liegt bei 70–75 Dezibel.
By vevor
Helpful
(
0
)
Bedeutet die Auswahl "750 W Automatischer Schalter", dass ein Druckschalter im Set enthalten ist, der die Pumpe bei Öffnung eines Hahns einschaltet bzw. beim Schließen ausschaltet?
Ja, ein Wasserpumpensystem mit Druckschalter ist darauf ausgelegt, die von Ihnen beschriebene Funktion zu erfüllen: die Wasserpumpe automatisch zu starten, wenn Wasser benötigt wird (wodurch der Druck abfällt) und die Wasserpumpe automatisch abzuschalten, wenn kein Wasser mehr fließt (wodurch der Druck steigt).
By vevor
Helpful
(
0
)
Wenn ich den Hahn zu drehe, geht die Pumpe automatisch aus oder muss man von Strom trennen?
Wenn die Pumpe selbst nicht über die Funktion verfügt, die Pumpe durch Schließen des Hahns zu starten und zu stoppen, können Sie selbst einen automatischen Druckschalter installieren.
By vevor
Helpful
(
0
)
Wie hoch ist der maximale Wasserdruck?
Wie hoch ist die Fördermenge und der Druck bei -10m?
Der maximale Wasserdruck liegt bei 6,6 Bar, die Durchflussrate bei 10 Metern beträgt ca. 90 l/min und der Druck beträgt ca. 5,6 Bar.
By vevor
Helpful
(
0
)
