Features & Details
- High-quality blades: The blade material is synthetically injection-molded, with high-strength plastic plus 30% carbon fiber and anti-UV, anti-corrosion material. At the same time, the stylish spiral blade is also aerodynamically designed to ensure smooth, reliable, and quiet rotor operation.
- Excellent performance: Designed with a three-phase AC PMG, the turbine generator features an intelligent, low-torque, high-power microprocessor that effectively regulates current and voltage. This increases wind energy utilization and annual power generation.
- Compact and robust: With double bearings, the fan movement is more stable, with low vibration and noise. Its compact design allows for the lowest possible start-up wind speed and a larger wind-facing area, enabling it to generate power even at lower wind speeds.

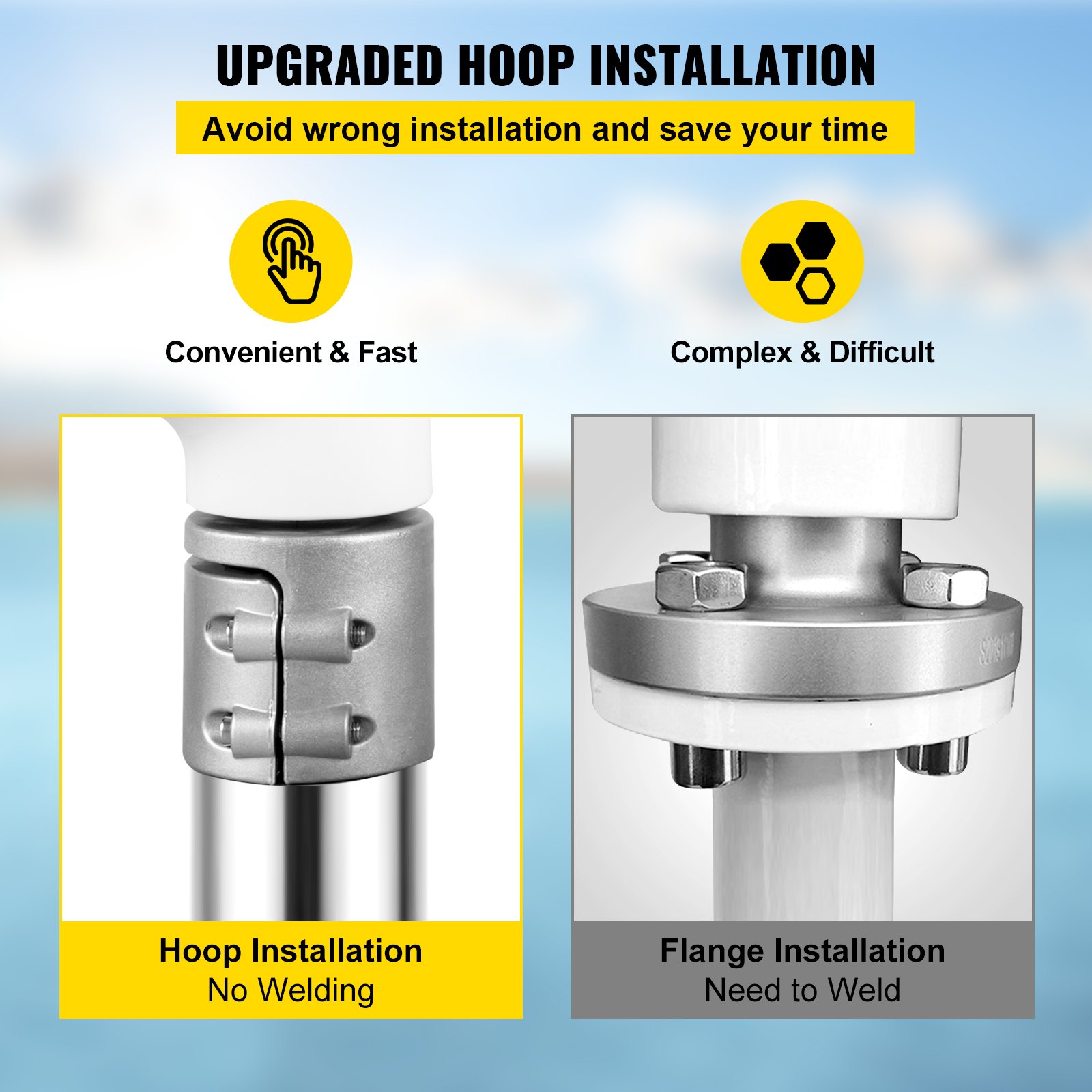

- Easy installation: Everything you need for installation is included. Humanized and convenient tire design (no welding required), easy to install and maintain. DIY installation methods with all materials provided. It can be used in conjunction with solar panels.
- Wide application: It is the ideal power supply system for scattered households, poles, weather stations, communication base stations, highways, scenic spots, and other locations. Well-suited for recreational use, it is popular for charging batteries on boats, gazebos, chalets, or RVs.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 79 reviews
Reviews 4.7
All reviews are from verified purchases
See all 79 reviews
About this item
Product specification
- Wind turbine
- Rated power
- 400 W
- Approach wind speed
- 2.5 m/s
- Nominal wind speed
- 12 m/s
- Number of sheets
- 3
- Wind turbine blade material
- PBT
- Rotor diameter
- 1.2 m
- Rated speed
- 800 rpm
- Tower diameter
- > 80 mm
- Tower height
- 4.5 m - 10 m
- Battery capacity
- 200 AH-400 AH
- Certifications
- CE, RoHS, ISO9001
- steering
- Battery nominal voltage
- DC 12 V
- Turbine rated power
- 400 W
- Brake voltage
- 14.5 V
- Turbine recovery voltage
- 13.2 V
- Maximum discharge current
- 20 A
- Static power
- 15 mA
- Operating temperature
- -35 ℃ ~ +75 ℃
- Protection against breakage
- IP67
Description

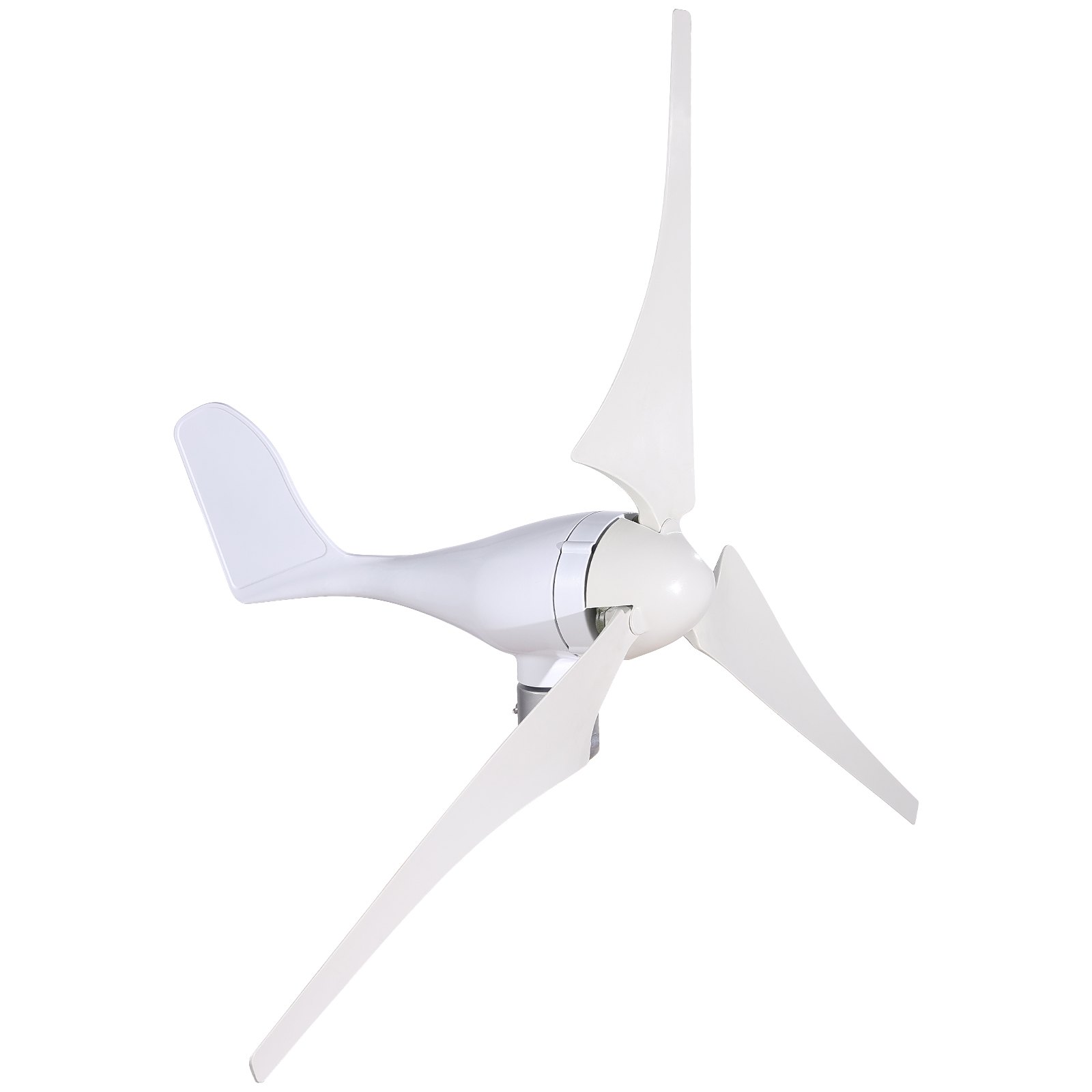

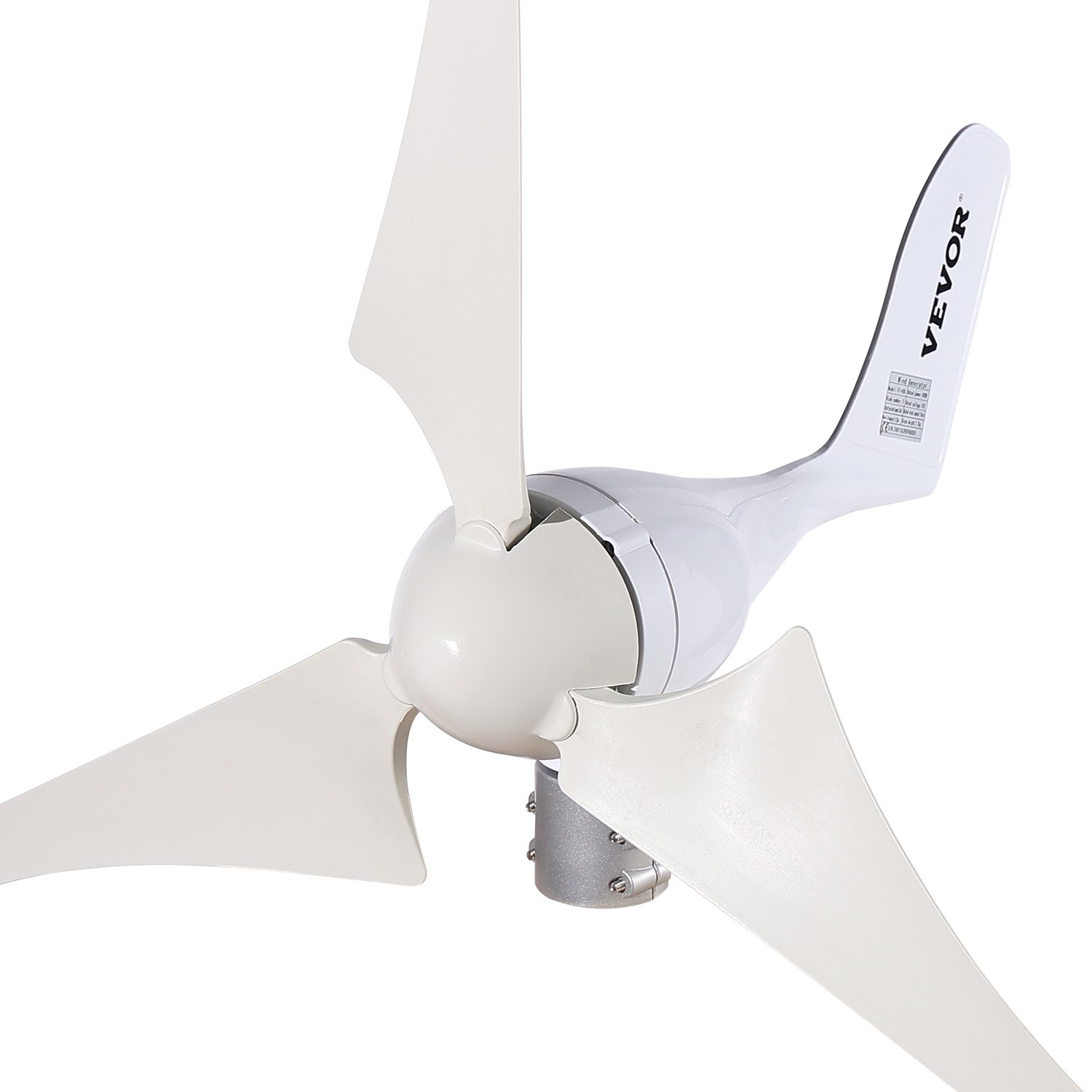

Wind turbine generator

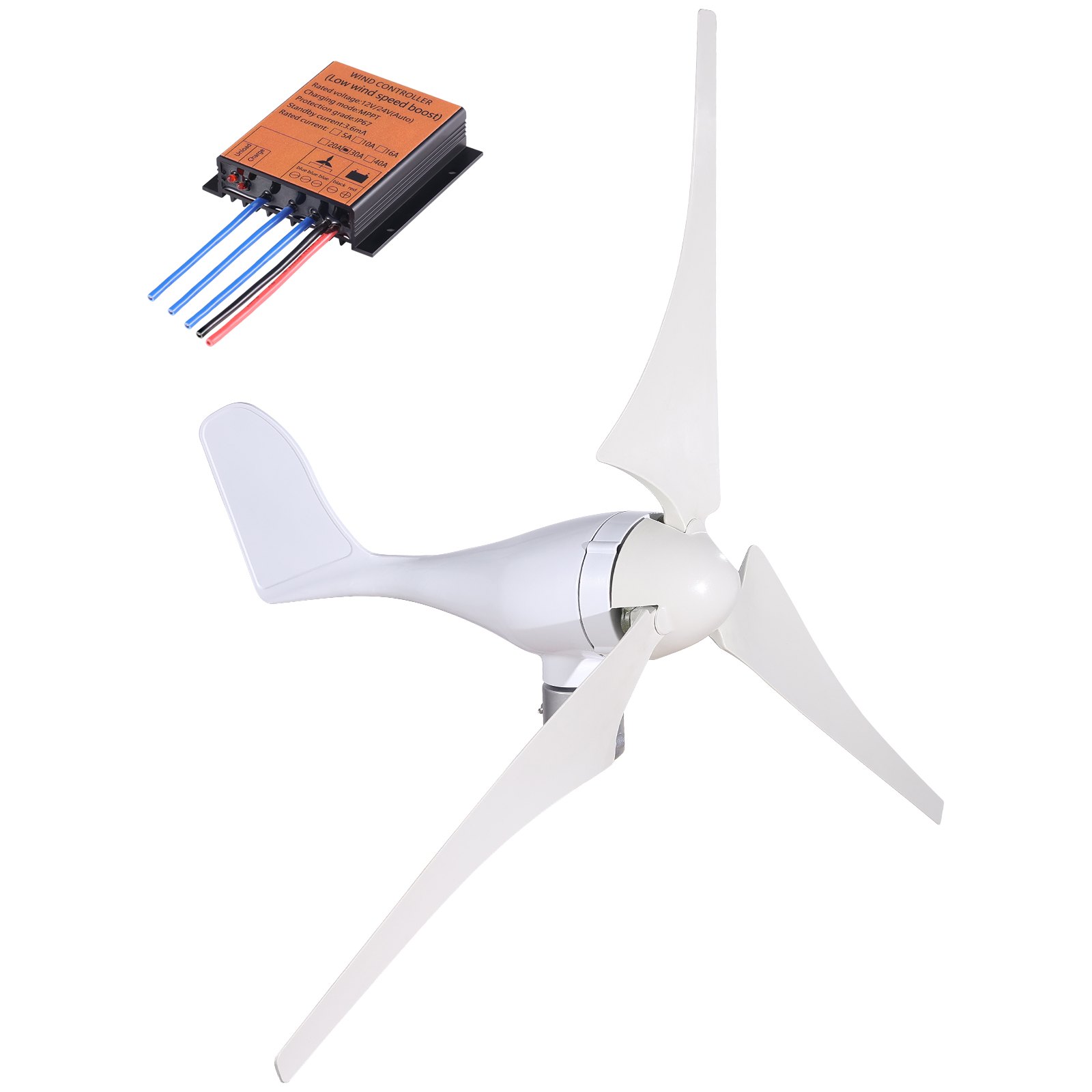

This listing is for a 12V 400W three-fiber-blade wind turbine generator kit with a charge controller. Equipped with high-quality blades and a three-phase permanent magnet motor, it offers low starting wind speed, low vibration, and low noise, and can also increase wind energy utilization and annual power generation. It is a good choice for home use, monitoring, use on boats and ships, and much more.
- High-quality rotor blades
- Strong performance
- Compact & stationary
- Easy installation
High-quality construction
The blades are fiberglass reinforced and feature an optimized structure and aerodynamic shape to reduce torque resistance and ensure stability.

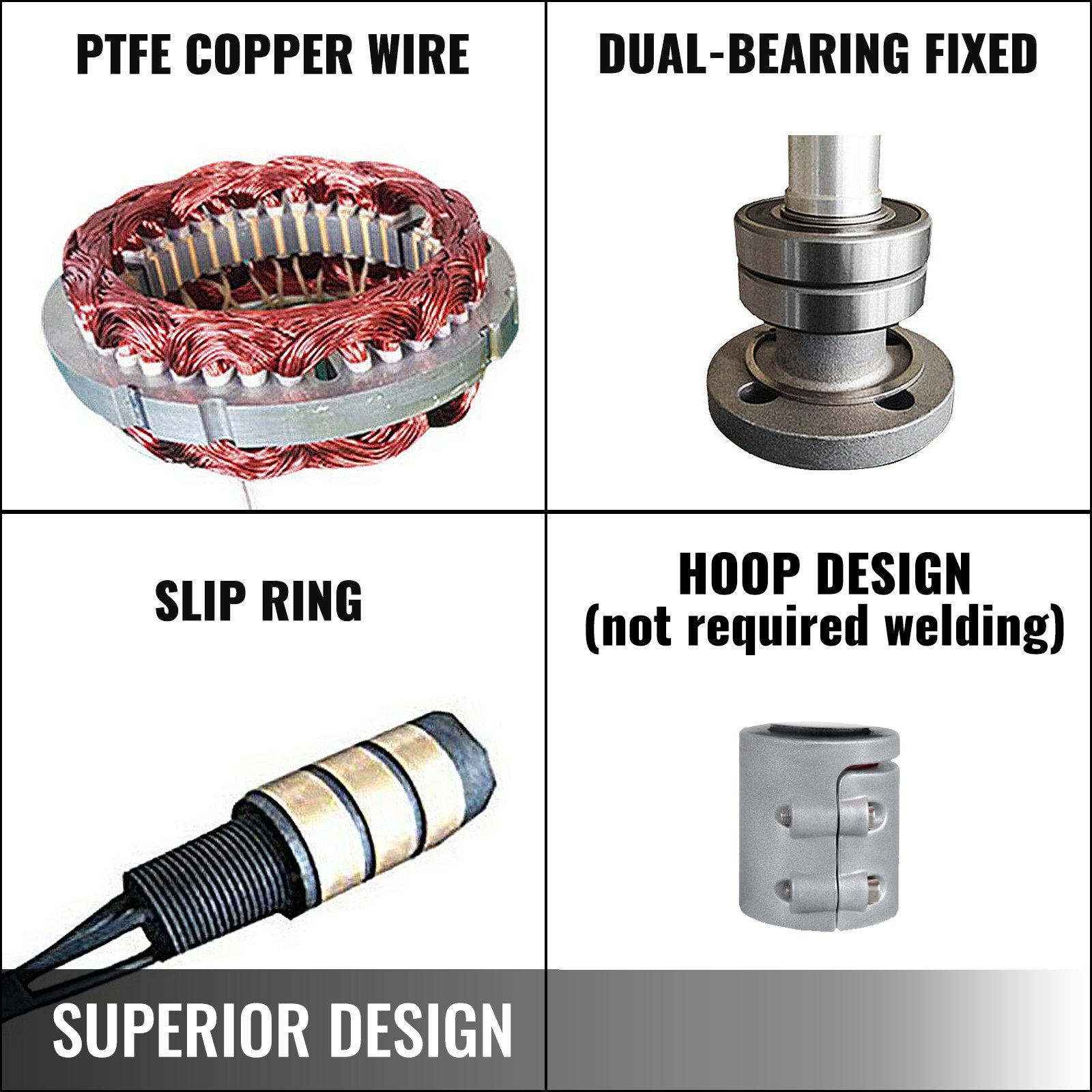

Superior design
The wind turbine consists of a copper coil, a high-quality aluminum alloy and stainless steel parts, giving it good antioxidation and corrosion protection capabilities even under harsh conditions.

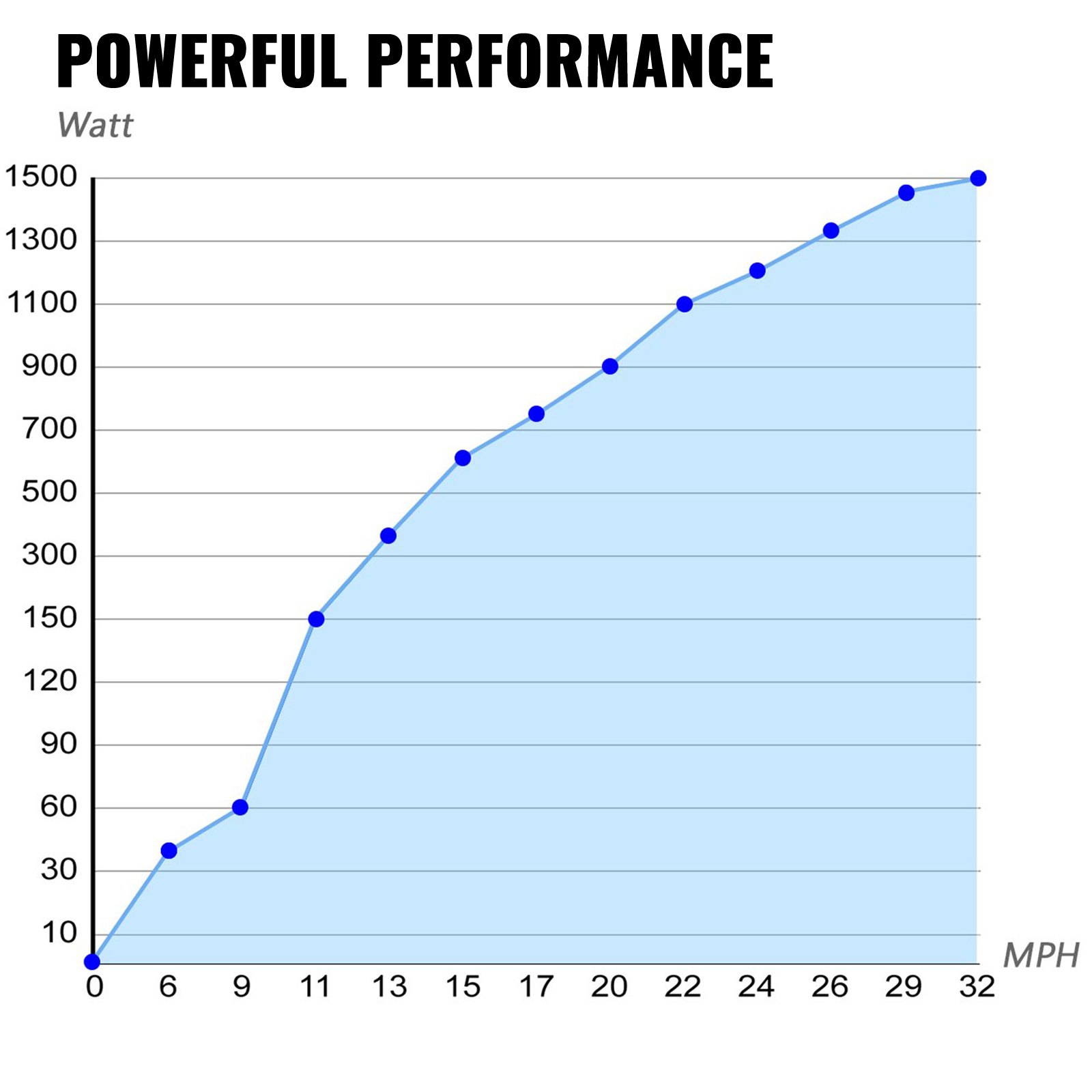

Strong performance
The motor uses a unique magnetic circuit design optimized for low starting wind speeds and low starting torque. It ensures the wind turbine can be started even in fresh winds.

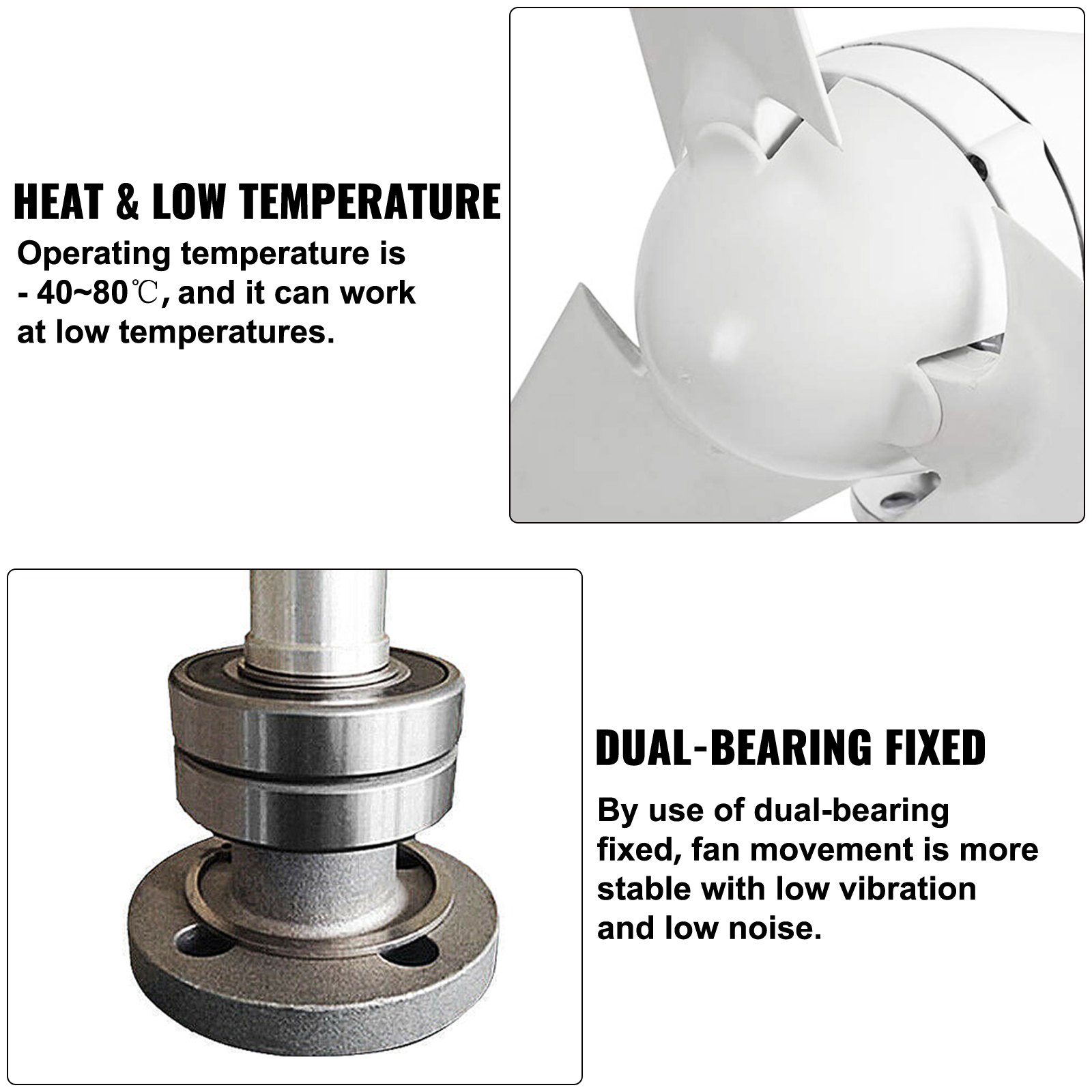

Excellent heat resistance
The wind turbines are characterized by high power generation efficiency, easy start-up, corrosion resistance, and watertightness. They feature double bearings for low vibration and noise.

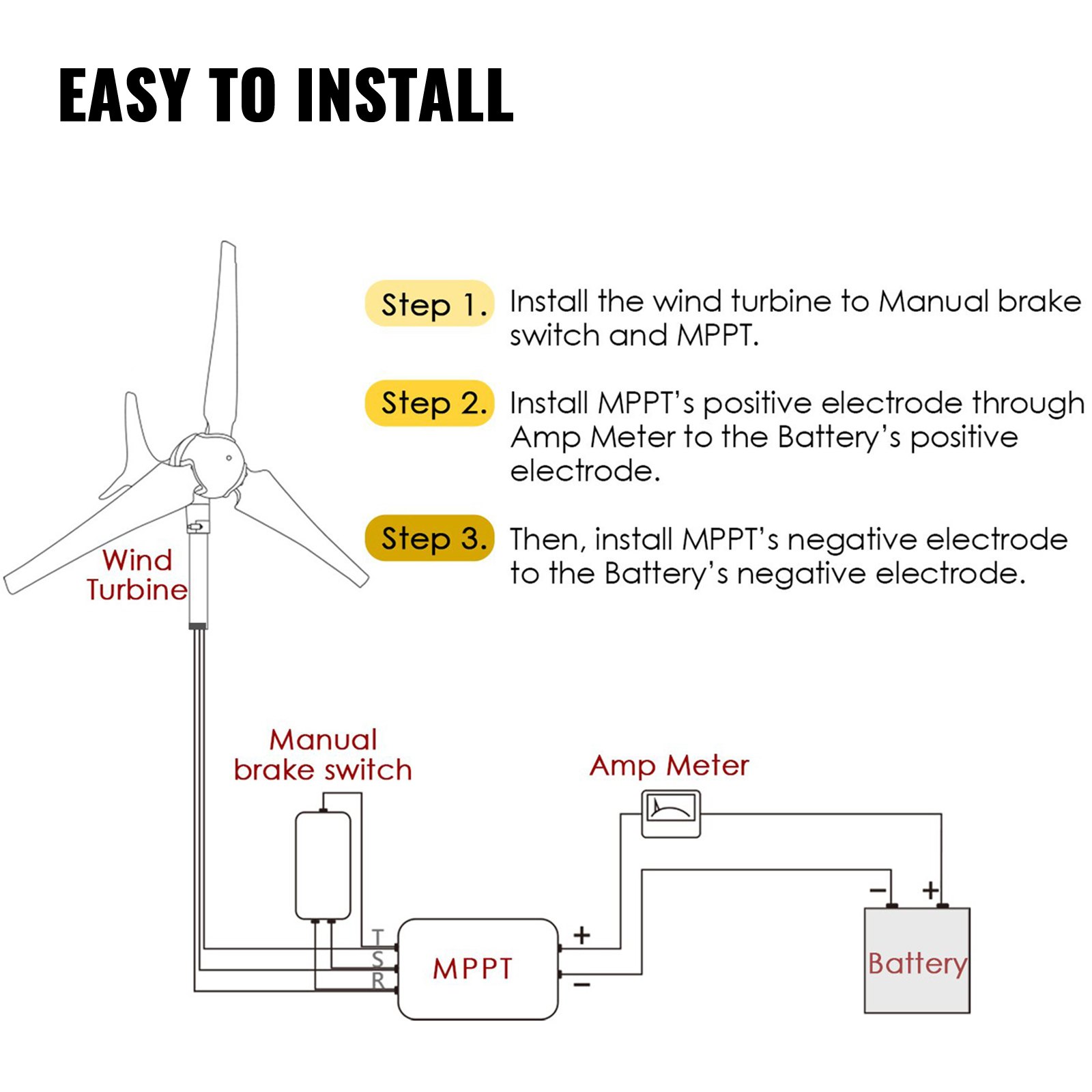

Easy to install
The wind turbine generator is easy to install yourself, as all materials are included. It can be used in conjunction with solar panels.
Wide application
It is the ideal power supply system for scattered households, outposts, weather stations, communication base stations, highways, scenic locations, and other sites. Well-suited for charging batteries on boats, gazebos, chalets, or RVs.
- Wind turbine
- Rated power: 400 W
- Approach wind speed: 2.5 m/s
- Nominal wind speed: 12 m/s
- Number of sheets: 3
- Wind turbine blade material: PBT
- Rotor diameter: 1.2 m
- Rated speed: 800 rpm
- Tower diameter: > 80 mm
- Tower height: 4.5 m - 10 m
- Battery capacity: 200 AH-400 AH
- Certifications: CE, RoHS, ISO9001
- steering
- Battery nominal voltage: DC 12 V
- Turbine rated power: 400 W
- Brake voltage: 14.5 V
- Turbine recovery voltage: 13.2 V
- Maximum discharge current: 20 A
- Static power: 15 mA
- Operating temperature: -35 ℃ ~ +75 ℃
- Protection against breakage: IP67

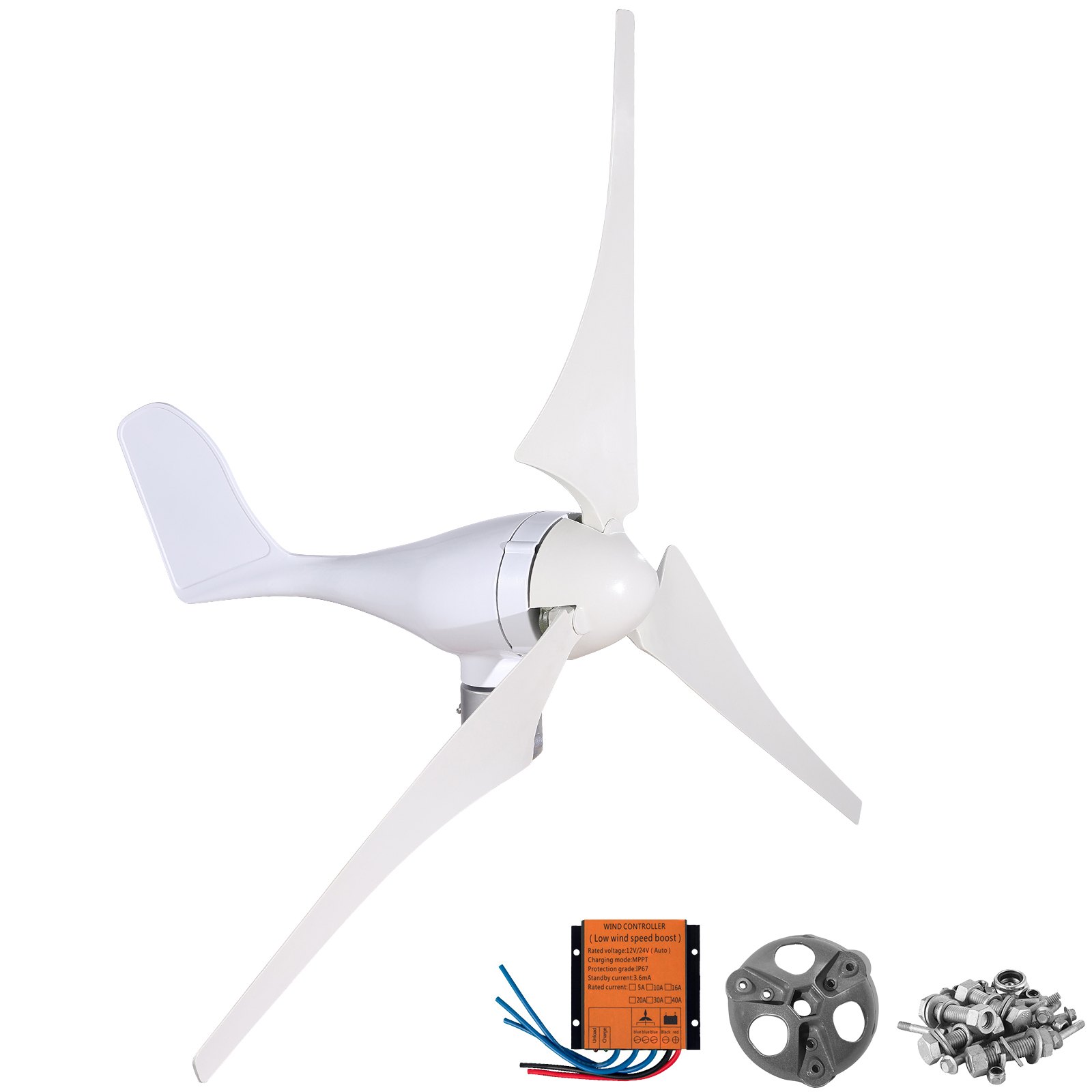

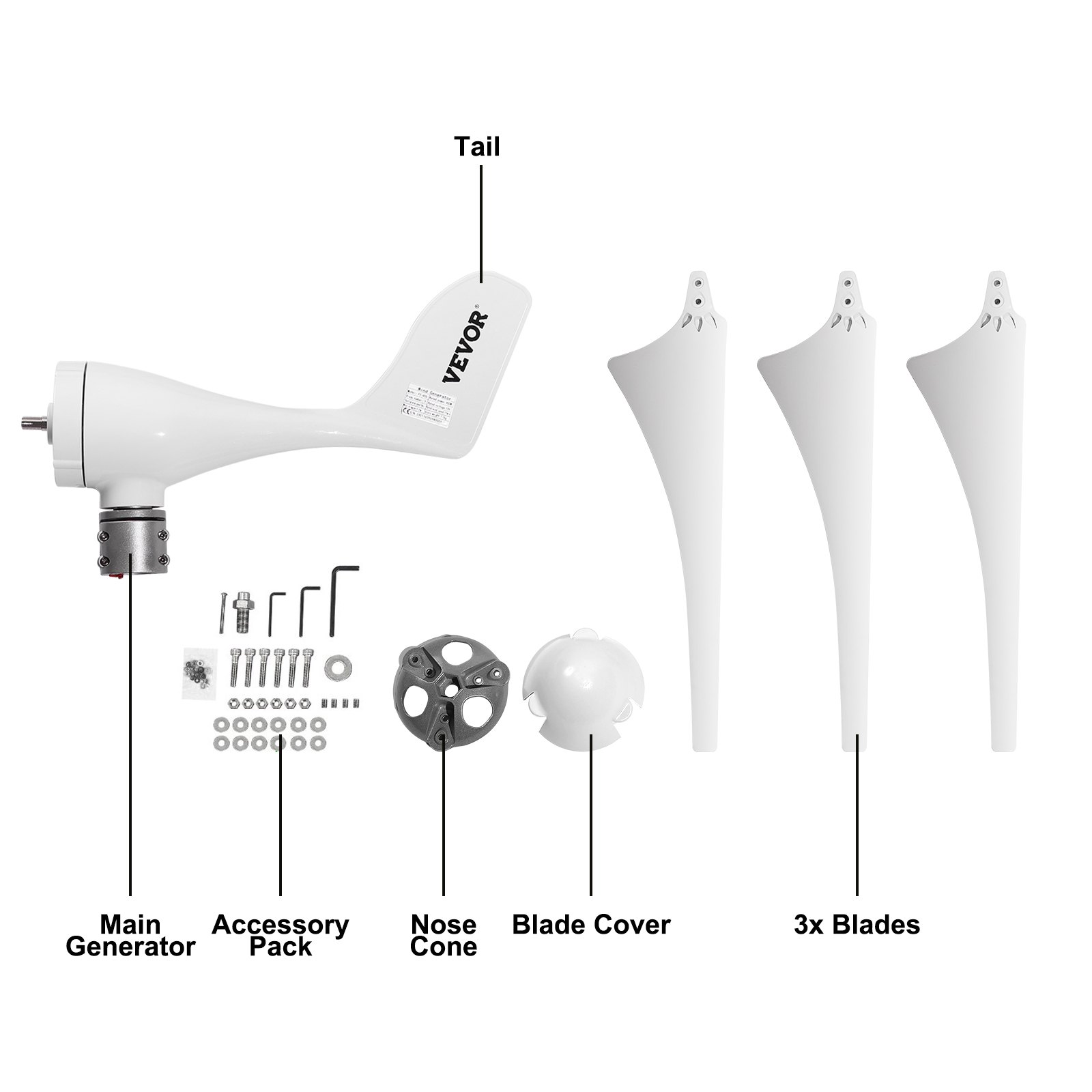

- 1 x wind turbine
- 1 x control unit

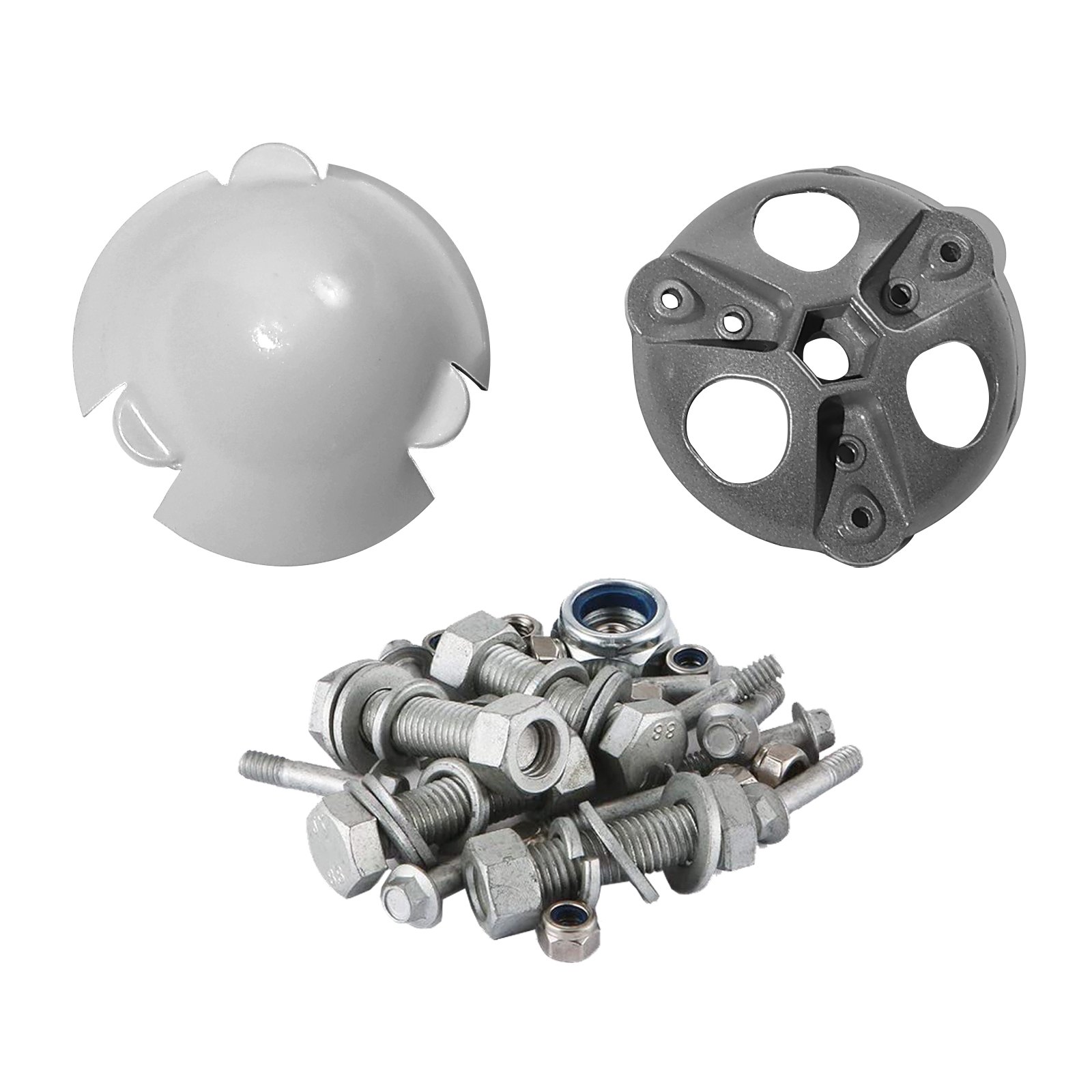

- 1 x nose cone
- 1 x set of screws and nuts
- 3 shovels
- 1 x instruction manual
Wind turbine generator
This listing is for a 12V 400W three-fiber-blade wind turbine generator kit with a charge controller. Equipped with high-quality blades and a three-phase permanent magnet motor, it offers low starting wind speed, low vibration, and low noise, and can also increase wind energy utilization and annual power generation. It is a good choice for home use, monitoring, use on boats and ships, and much more.
- High-quality rotor blades
- Strong performance
- Compact & stationary
- Easy installation
High-quality construction
The blades are fiberglass reinforced and feature an optimized structure and aerodynamic shape to reduce torque resistance and ensure stability.
Superior design
The wind turbine consists of a copper coil, a high-quality aluminum alloy and stainless steel parts, giving it good antioxidation and corrosion protection capabilities even under harsh conditions.
Strong performance
The motor uses a unique magnetic circuit design optimized for low starting wind speeds and low starting torque. It ensures the wind turbine can be started even in fresh winds.
Excellent heat resistance
The wind turbines are characterized by high power generation efficiency, easy start-up, corrosion resistance, and watertightness. They feature double bearings for low vibration and noise.
Easy to install
The wind turbine generator is easy to install yourself, as all materials are included. It can be used in conjunction with solar panels.
Wide application
It is the ideal power supply system for scattered households, outposts, weather stations, communication base stations, highways, scenic locations, and other sites. Well-suited for charging batteries on boats, gazebos, chalets, or RVs.
- 1 x wind turbine
- 1 x control unit
- 1 x nose cone
- 1 x set of screws and nuts
- 3 shovels
- 1 x instruction manual
- Wind turbine
- Rated power: 400 W
- Approach wind speed: 2.5 m/s
- Nominal wind speed: 12 m/s
- Number of sheets: 3
- Wind turbine blade material: PBT
- Rotor diameter: 1.2 m
- Rated speed: 800 rpm
- Tower diameter: > 80 mm
- Tower height: 4.5 m - 10 m
- Battery capacity: 200 AH-400 AH
- Certifications: CE, RoHS, ISO9001
- steering
- Battery nominal voltage: DC 12 V
- Turbine rated power: 400 W
- Brake voltage: 14.5 V
- Turbine recovery voltage: 13.2 V
- Maximum discharge current: 20 A
- Static power: 15 mA
- Operating temperature: -35 ℃ ~ +75 ℃
- Protection against breakage: IP67
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (9)
Hallo, ist der Laderegler dabei? Kann an diesen Regler ein Solarpanel angeschlossen werden? danke schön
Sehr geehrte Kunden, Vielen Dank, dass Sie sich mit uns in Verbindung gesetzt haben. Wir haben einen Techniker konsultiert. Das Solarmodul muss mit einem Solarregler ausgestattet sein, und unsere unterstützenden Produkte sind Regler für Windkraftanlagen. Bei Fragen können Sie sich jederzeit an uns wenden. Aufrichtig
By vevor
Helpful
(
4
)
Guten Tag, Frage: Ich habe ein 400watt Windrad Vevor gekauft kann ich hinter dem Laderegler eine Powerstation laden?
Mit freundlichen Grüßen
Ja, solange es 12V ist.
By vevor
Helpful
(
3
)
Wenn ich die 3 Phasen vom Windrad untereinander messe, dann ist dort untereinander L1 zu L2, L2 zu L3 und L2 zu L1, L1 zu L3
ein Kurzschluss. Ist das so korrekt? Ich kann auch unter den Phasen nur unterschiedliche Widerstände messen. Zwischen 25 und 80 Ohm.
Ist da etwas defekt, oder ist das so in Ordnung, sollten die Widerstände nicht annähernd gleich sein.
Wenn die drei Widerstände ungefähr gleich sind, stellt das kein Problem dar. Überprüfen Sie, ob ein Kurzschluss im Kabel vorliegt oder die Spindel oder Nabe festsitzt.
By vevor
Helpful
(
2
)
Für welche Batteriesorten (Lifepo4, Blei, Gel, Lithium?) ist der MPPT Laderegler geeignet?
Es wird empfohlen, 4-Strang-Lithium-Eisenphosphat oder 12-V-Blei-Säure-Kolloid zu verwenden.
By vevor
Helpful
(
2
)
Wie verhält sich das Windrad bei starkem Wind (Orkanstärke)?
Es hat eine Überdrehungsschutzfunktion.
By vevor
Helpful
(
2
)
400WYCWXFLFDJ0001V0
