Eigenschaften & Details

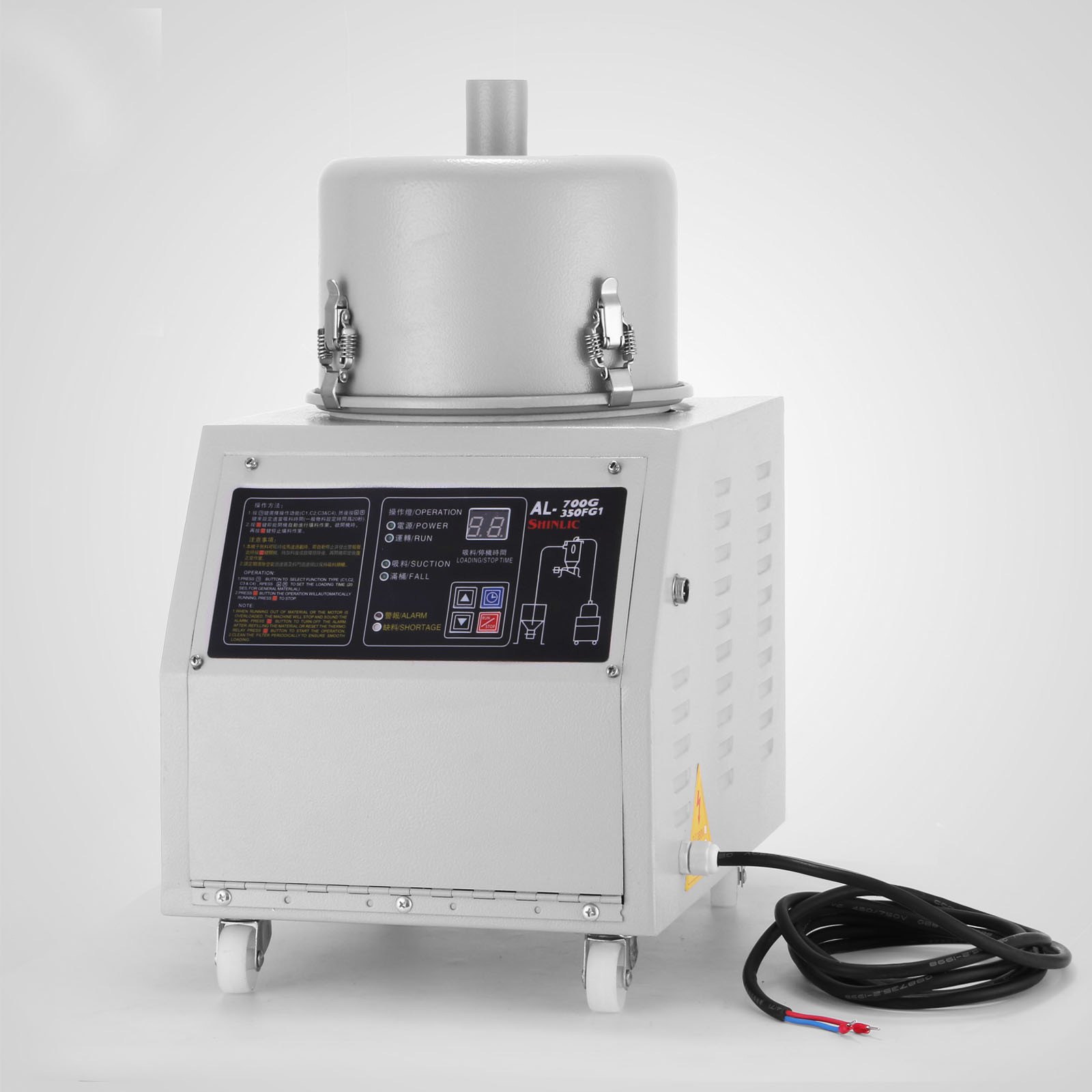

- The vacuum feeding machine is applicable for conveying raw materials and granulated materials for avoiding pollution. It is featured by microcomputer control, simple operation and easy repair, and may automatically alarm when there isn't material. Stainless steel material chamber door for protecting the materials from pollution, independent filtering device. It is convenient for removing dust, adopt double pole switch to control the feeding action (optional), motor protective device, filter observing window. Two-material proportional valve is optional for mixing new material with granulated material or immediately recycling granulated material.
- Installation
- Start the machine, press SET to set sucking materials time, keep on press INC and DEC to increase and decrease the time within 3s. The manufacturer-set time is 15 seconds.
- Presss RUN to start sucking, press again will stip sucking; The machine will stop working and sound alarm with three times no materials sucking; The machine will automatic sucking materials once power on reset if you haven't stop the working machine beforfe power dump.
- Set loading time when machine on stop condition, after that the machine will feeding automatic.
Häufig Zusammen Gekauft
Bewertungen 0.0
Alle Bewertungen stammen von verifizierten Käufen
Durchschnittliche Bewertung basierend auf 0 Bewertungen
Bewertungen 0.0
Alle Bewertungen stammen von verifizierten Käufen
Alle 0 Bewertungen ansehen
Über diesen Artikel
Produktspezifikation
- 1 X Hopper
Beschreibung

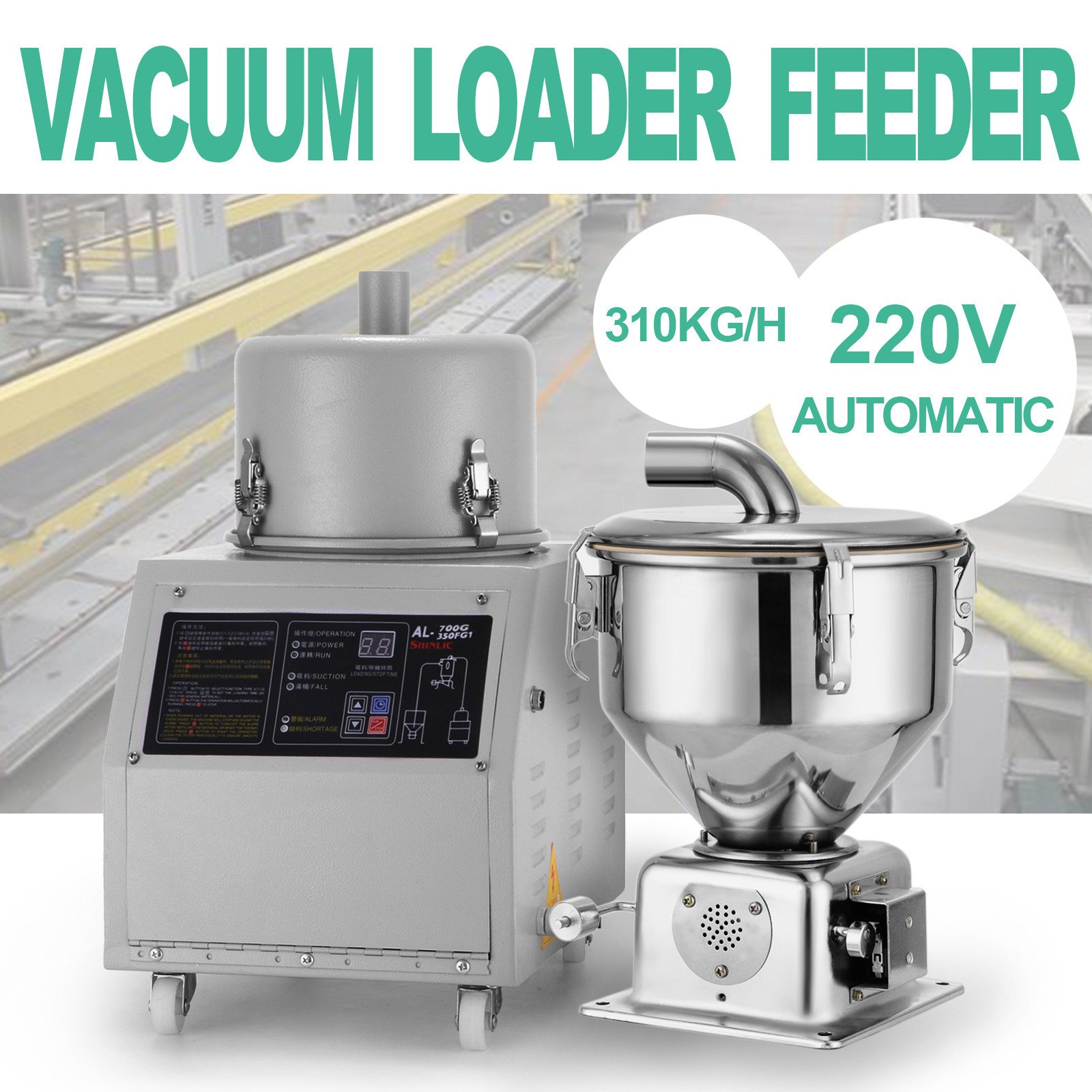

It conveys plastic granules to the injection mould machine with ease. It is easy to operate and its filter system makes it possible to be used for a long time. An independent filter device facilitates dust removal and noise reducing installations for silent operations. The machines are available in conveying capacity ranges of 310Kg/hr. Vacuum Auto-Loader, has found a large number of users swear by the qualitative parameters of this product.
The vacuum feeding machine is applicable for conveying raw materials and granulated materials for avoiding pollution. It is featured by microcomputer control, simple operation and easy repair, and may automatically alarm when there isn't material. Stainless steel material chamber door for protecting the materials from pollution, independent filtering device. It is convenient for removing dust, adopt double pole switch to control the feeding action (optional), motor protective device, filter observing window. Two-material proportional valve is optional for mixing new material with granulated material or immediately recycling granulated material.
Installation:
Start the machine, press SET to set sucking materials time, keep on press INC and DEC to increase and decrease the time within 3s. The manufacturer-set time is 15 seconds.
Presss RUN to start sucking, press again will stip sucking; The machine will stop working and sound alarm with three times no materials sucking; The machine will automatic sucking materials once power on reset if you haven't stop the working machine beforfe power dump.
Set loading time when machine on stop condition, after that the machine will feeding automatic.
Maintenance:
Set the sucking time which should be the time length needed for the sucking to fill 90% of the storage tank.

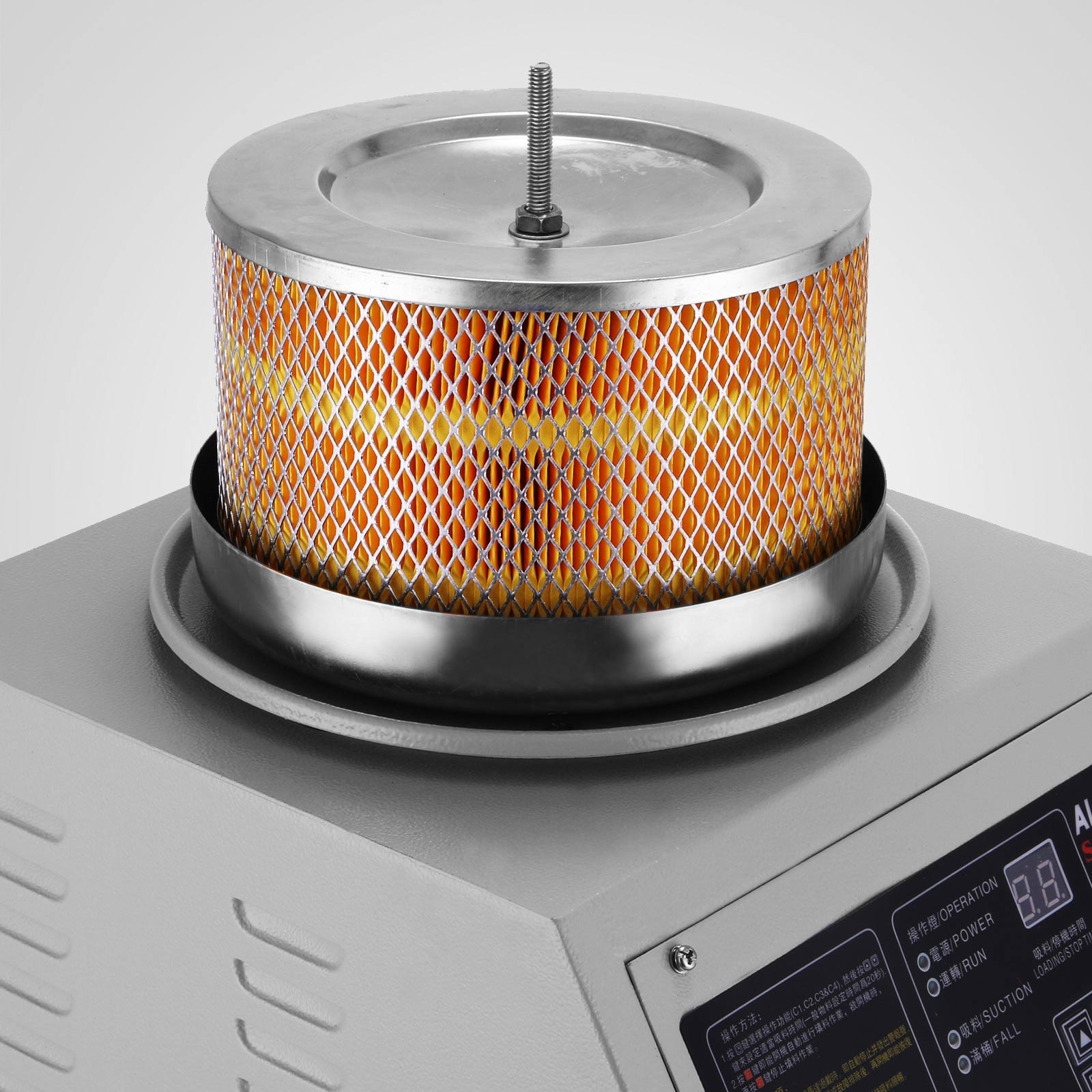

Periodical examination and cleaning air filter device.
Clean the filter net once the sucking abating.
Change the carbon brush in time, while strange sound, spark appear or current increase of motor.
The vacuum feeding machine is applicable for conveying raw materials and granulated materials for avoiding pollution. It is featured by microcomputer control, simple operation and easy repair, and may automatically alarm when there isn't material. Stainless steel material chamber door for protecting the materials from pollution, independent filtering device. It is convenient for removing dust, adopt double pole switch to control the feeding action (optional), motor protective device, filter observing window. Two-material proportional valve is optional for mixing new material with granulated material or immediately recycling granulated material.
Installation:
Start the machine, press SET to set sucking materials time, keep on press INC and DEC to increase and decrease the time within 3s. The manufacturer-set time is 15 seconds.
Presss RUN to start sucking, press again will stip sucking; The machine will stop working and sound alarm with three times no materials sucking; The machine will automatic sucking materials once power on reset if you haven't stop the working machine beforfe power dump.
Set loading time when machine on stop condition, after that the machine will feeding automatic.
Maintenance:
Set the sucking time which should be the time length needed for the sucking to fill 90% of the storage tank.
Periodical examination and cleaning air filter device.
Clean the filter net once the sucking abating.
Change the carbon brush in time, while strange sound, spark appear or current increase of motor.

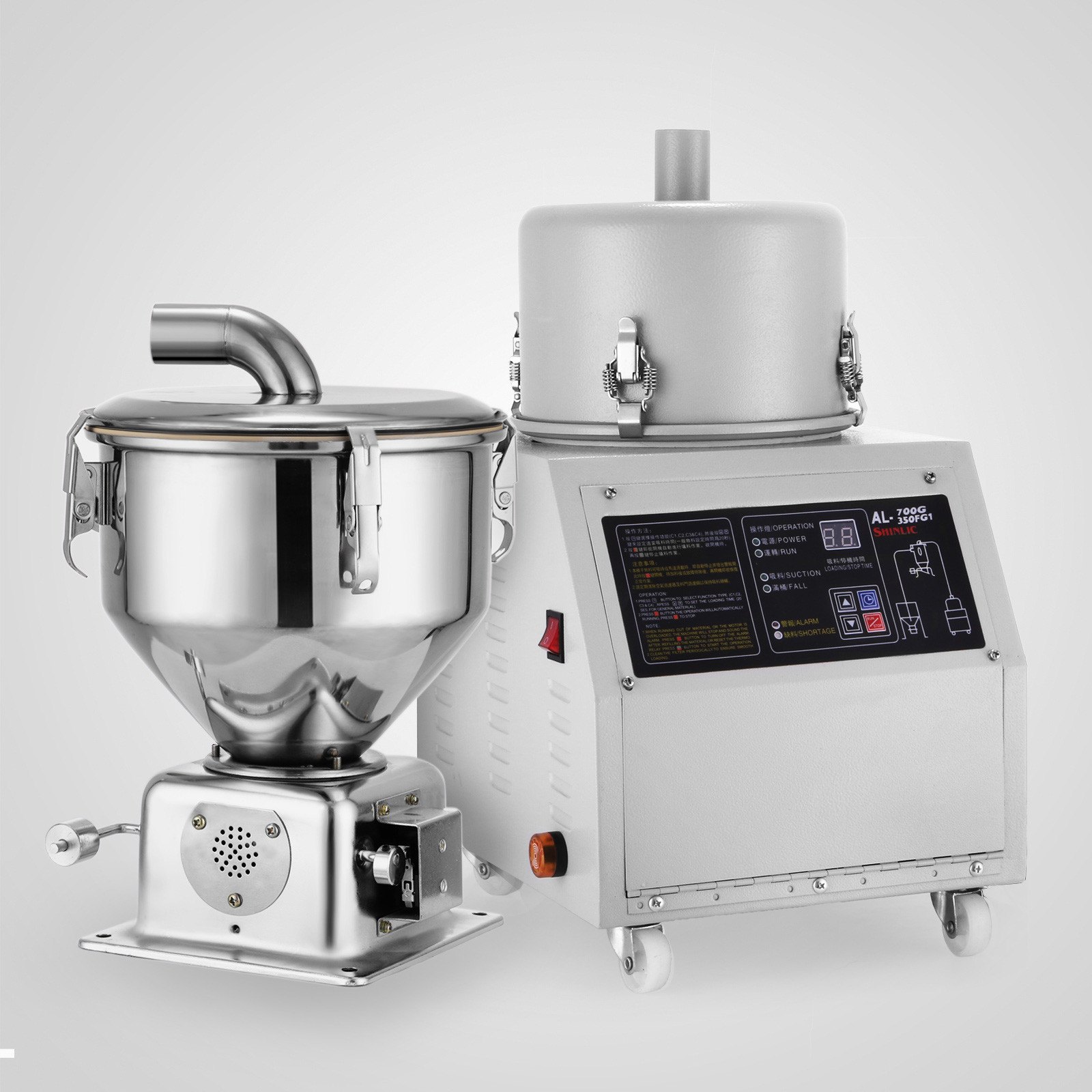

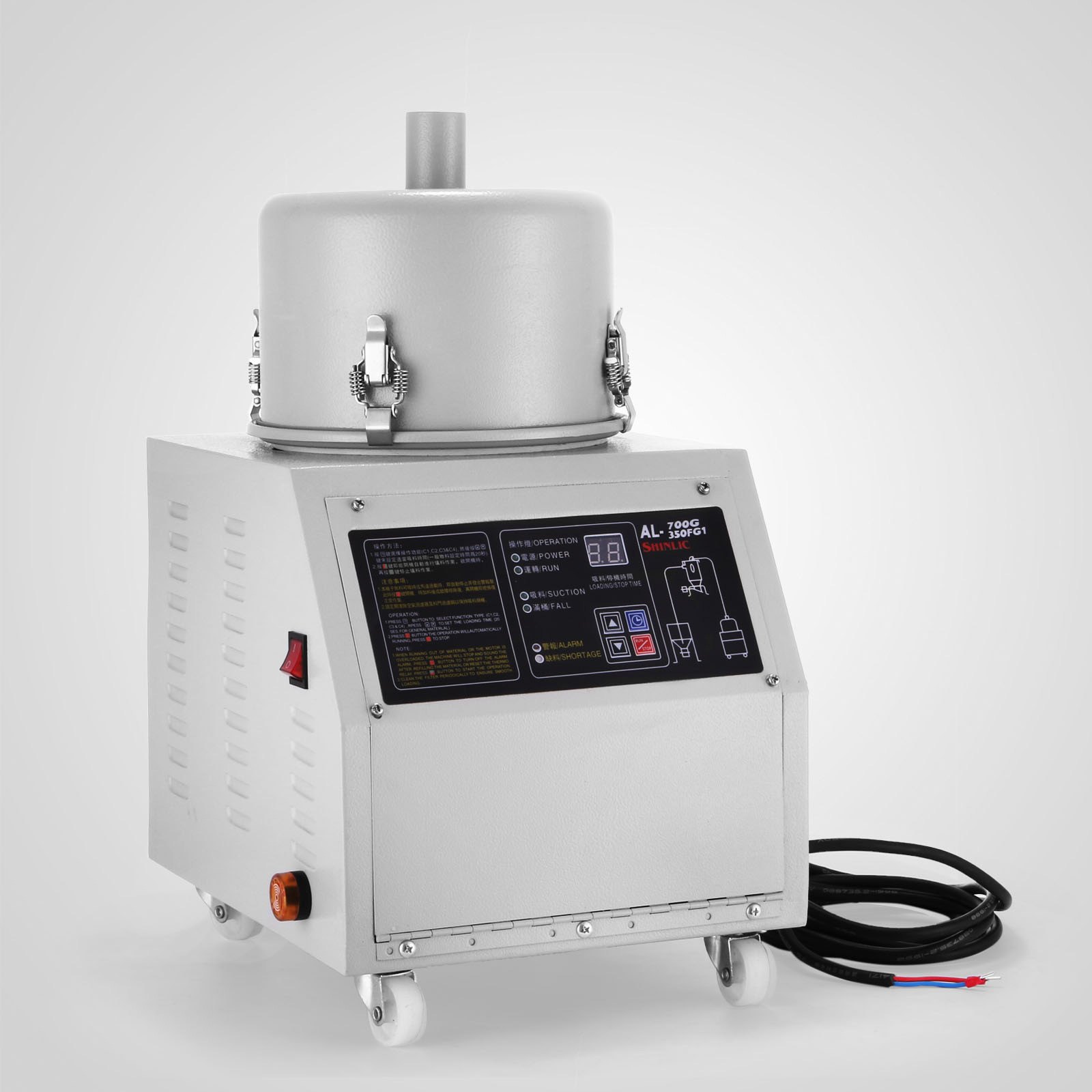

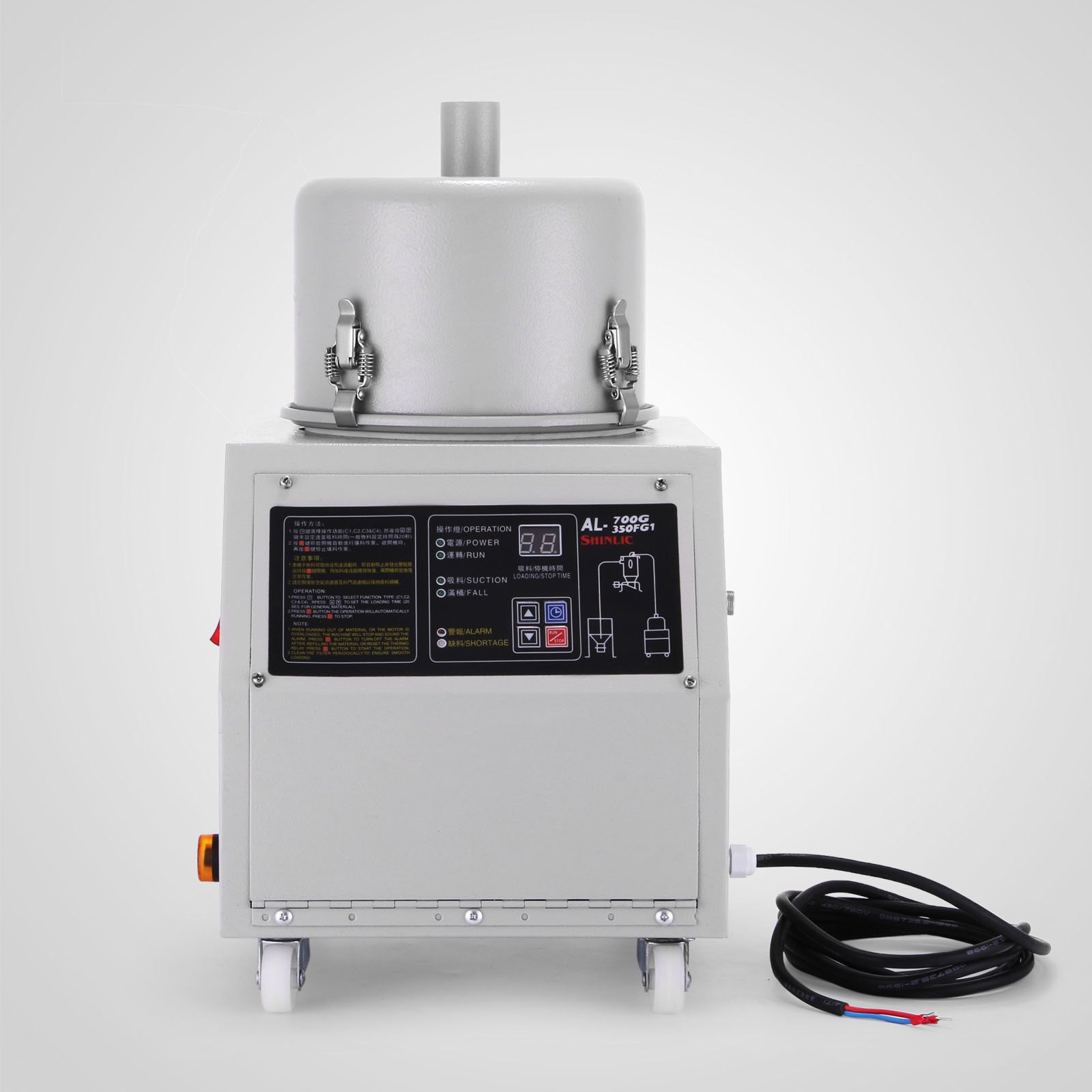

- Host and hopper separation design, safe and convenient.

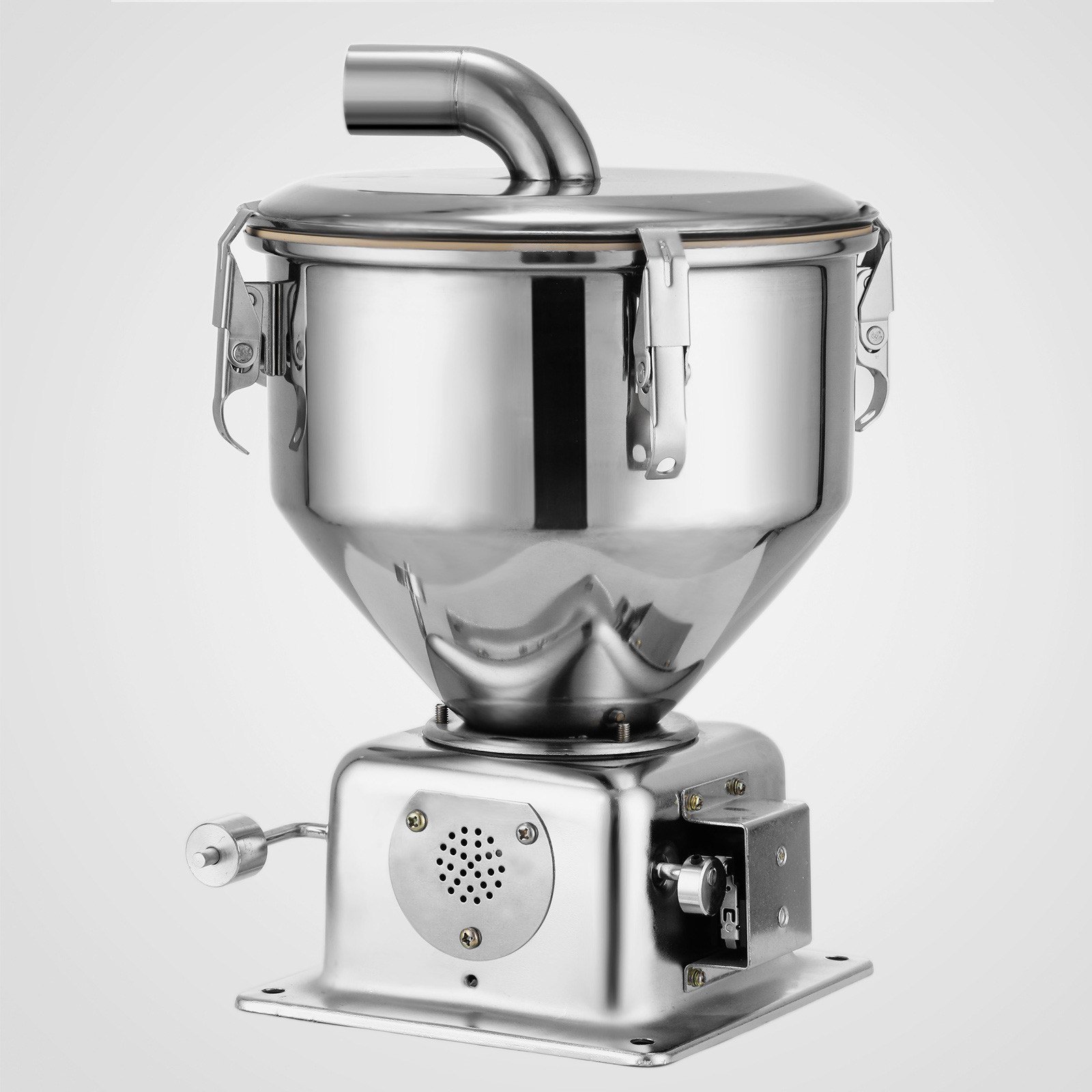

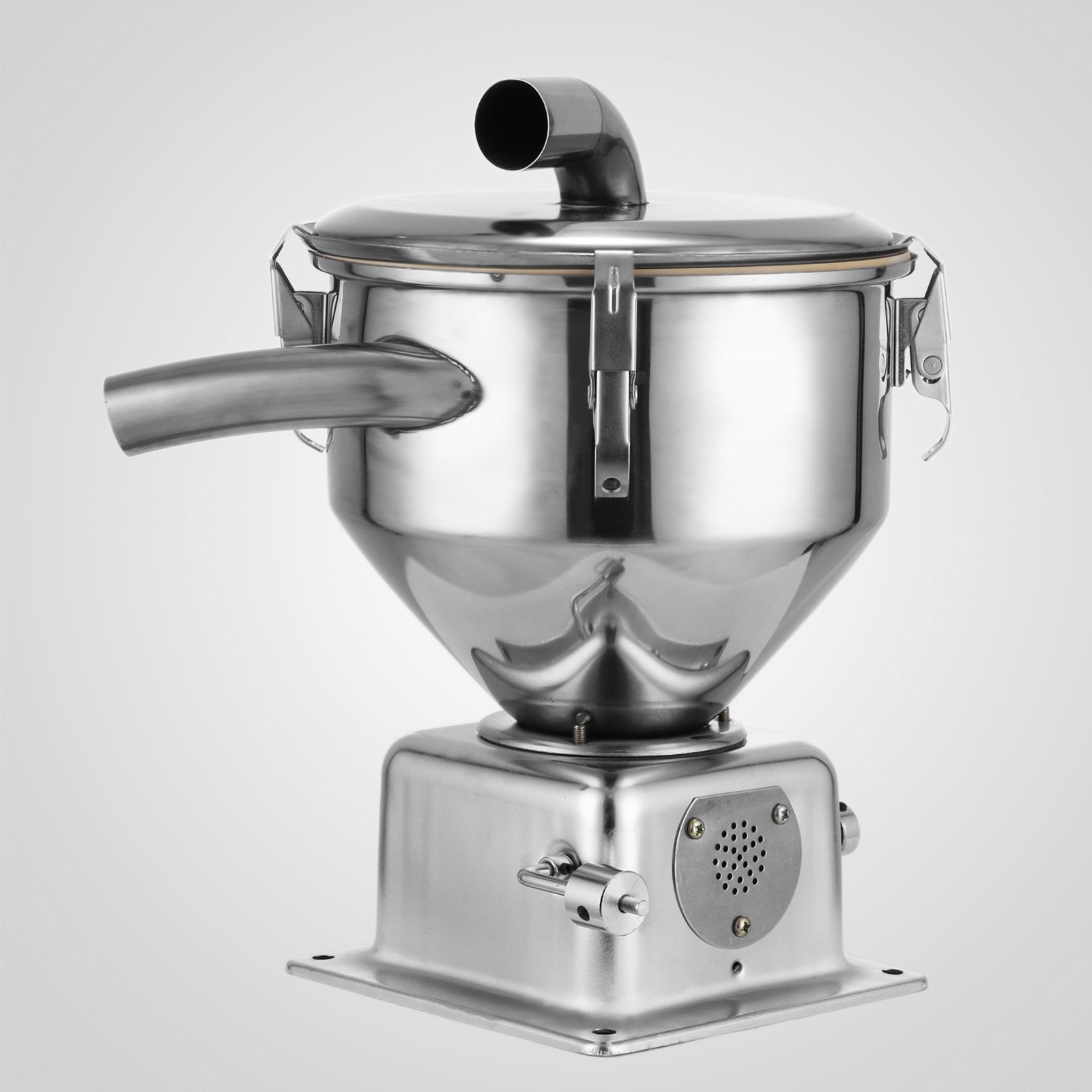

- Stainless steel vacuum hopper, to ensure that the raw material is not contaminated
- The selection of power distribution eye hopper can be directly installed in the molding machine feeding inlet
- Automatic motor protection devices for long service life
- A separate filtration device system ,easy to clean and maintenance
- Vacuum material can be directly installed on the molding machine hopper
- The microcomputer control system, simple operation, precise control, and a number of warning indicator
- 2 years warranty
- Model: HC-700G
- Power: 1kw/1.3hp 1Φ
- Voltage: 220V
- Motor type: Carbon brush
- Conveying capacity: 310kg/h
- Suction lift: 4m
- Static air pressure(MAX): 1550mm/HZO
- Reservoir volume: 7.5L
- Conveying tube inner diameter: Φ38
- Specification of the attached hoses: Φ38x4 2pcs

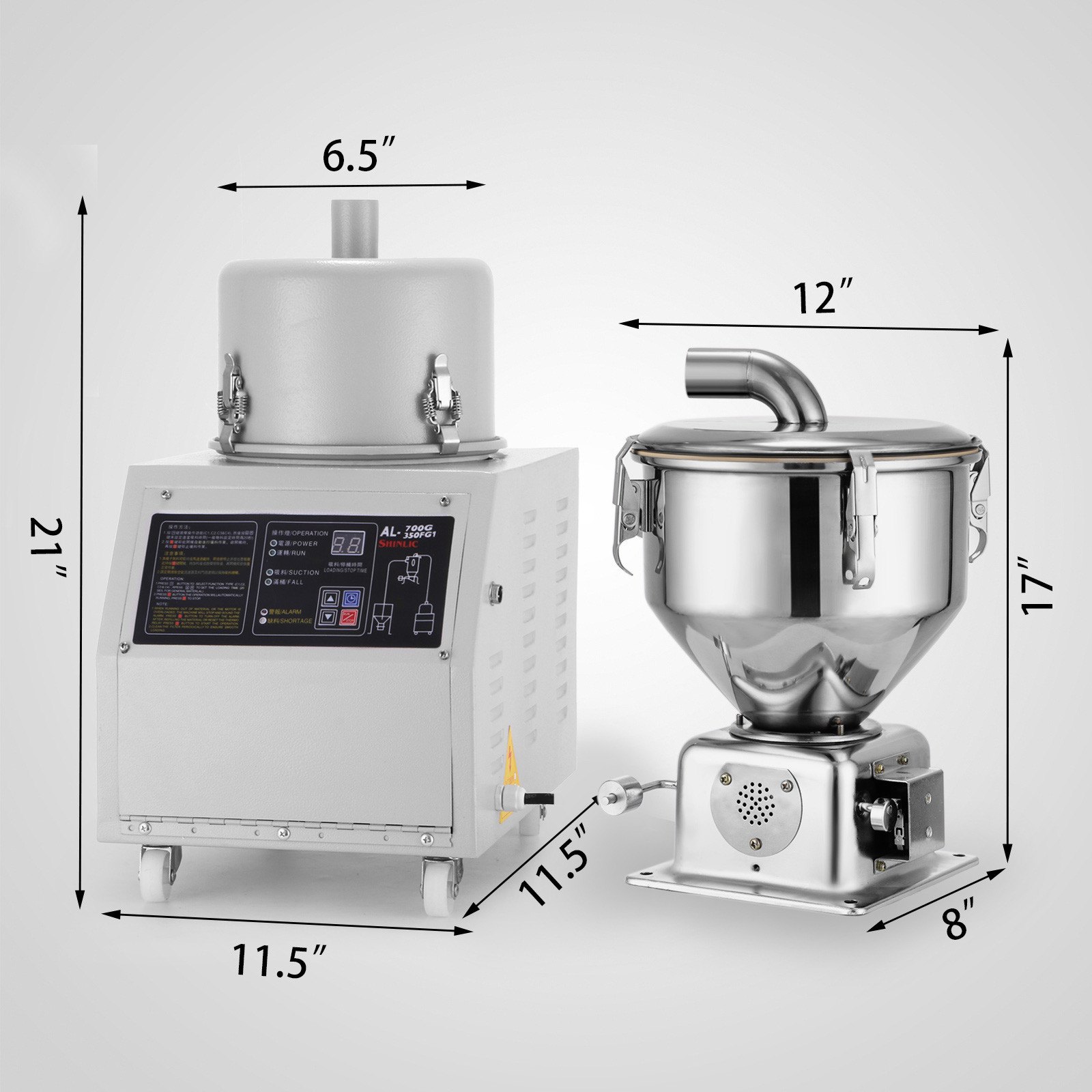

- Size: 370*300*560mm
- Weight: 20kg
- 1 X Main Frame
- 1 X Hopper
It conveys plastic granules to the injection mould machine with ease. It is easy to operate and its filter system makes it possible to be used for a long time. An independent filter device facilitates dust removal and noise reducing installations for silent operations. The machines are available in conveying capacity ranges of 310Kg/hr. Vacuum Auto-Loader, has found a large number of users swear by the qualitative parameters of this product.
The vacuum feeding machine is applicable for conveying raw materials and granulated materials for avoiding pollution. It is featured by microcomputer control, simple operation and easy repair, and may automatically alarm when there isn't material. Stainless steel material chamber door for protecting the materials from pollution, independent filtering device. It is convenient for removing dust, adopt double pole switch to control the feeding action (optional), motor protective device, filter observing window. Two-material proportional valve is optional for mixing new material with granulated material or immediately recycling granulated material.
Installation:
Start the machine, press SET to set sucking materials time, keep on press INC and DEC to increase and decrease the time within 3s. The manufacturer-set time is 15 seconds.
Presss RUN to start sucking, press again will stip sucking; The machine will stop working and sound alarm with three times no materials sucking; The machine will automatic sucking materials once power on reset if you haven't stop the working machine beforfe power dump.
Set loading time when machine on stop condition, after that the machine will feeding automatic.
Maintenance:
Set the sucking time which should be the time length needed for the sucking to fill 90% of the storage tank.
Periodical examination and cleaning air filter device.
Clean the filter net once the sucking abating.
Change the carbon brush in time, while strange sound, spark appear or current increase of motor.
The vacuum feeding machine is applicable for conveying raw materials and granulated materials for avoiding pollution. It is featured by microcomputer control, simple operation and easy repair, and may automatically alarm when there isn't material. Stainless steel material chamber door for protecting the materials from pollution, independent filtering device. It is convenient for removing dust, adopt double pole switch to control the feeding action (optional), motor protective device, filter observing window. Two-material proportional valve is optional for mixing new material with granulated material or immediately recycling granulated material.
Installation:
Start the machine, press SET to set sucking materials time, keep on press INC and DEC to increase and decrease the time within 3s. The manufacturer-set time is 15 seconds.
Presss RUN to start sucking, press again will stip sucking; The machine will stop working and sound alarm with three times no materials sucking; The machine will automatic sucking materials once power on reset if you haven't stop the working machine beforfe power dump.
Set loading time when machine on stop condition, after that the machine will feeding automatic.
Maintenance:
Set the sucking time which should be the time length needed for the sucking to fill 90% of the storage tank.
Periodical examination and cleaning air filter device.
Clean the filter net once the sucking abating.
Change the carbon brush in time, while strange sound, spark appear or current increase of motor.
- Host and hopper separation design, safe and convenient.
- Stainless steel vacuum hopper, to ensure that the raw material is not contaminated
- The selection of power distribution eye hopper can be directly installed in the molding machine feeding inlet
- Automatic motor protection devices for long service life
- A separate filtration device system ,easy to clean and maintenance
- Vacuum material can be directly installed on the molding machine hopper
- The microcomputer control system, simple operation, precise control, and a number of warning indicator
- 2 years warranty
- Model: HC-700G
- Power: 1kw/1.3hp 1Φ
- Voltage: 220V
- Motor type: Carbon brush
- Conveying capacity: 310kg/h
- Suction lift: 4m
- Static air pressure(MAX): 1550mm/HZO
- Reservoir volume: 7.5L
- Conveying tube inner diameter: Φ38
- Specification of the attached hoses: Φ38x4 2pcs
- Size: 370*300*560mm
- Weight: 20kg
- 1 X Main Frame
- 1 X Hopper
