Features & Details

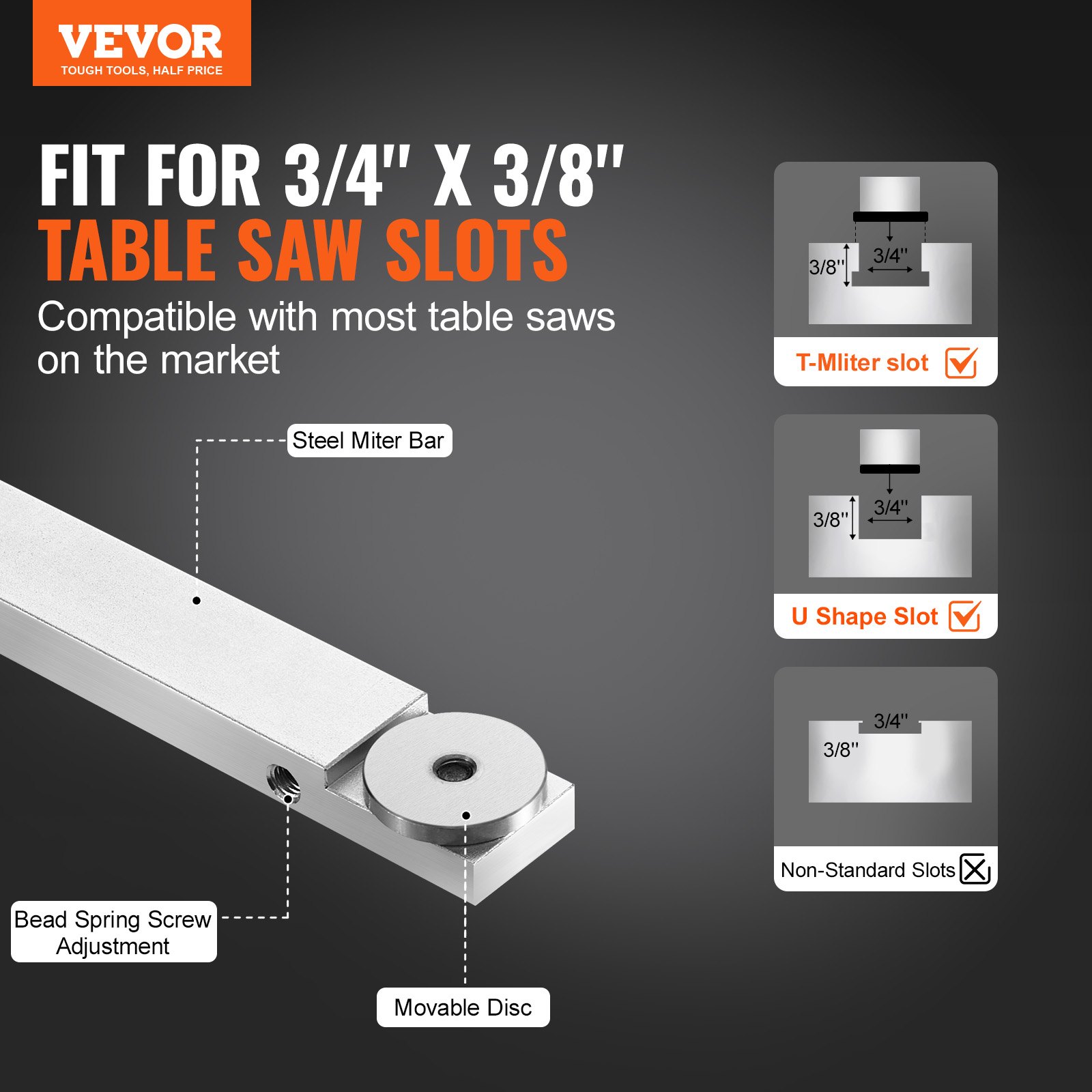

- Fits most table saws: Our miter gauge is specifically designed for most standard table saw slots measuring 19 x 10 mm (3/4 x 3/8 inches). To ensure a perfect fit, please measure the slots on your table saw before purchasing. Thanks to the removable disc, our miter gauge is compatible with both T-shaped and U-shaped slots measuring 19 x 10 mm (3/4 x 3/8 inches).

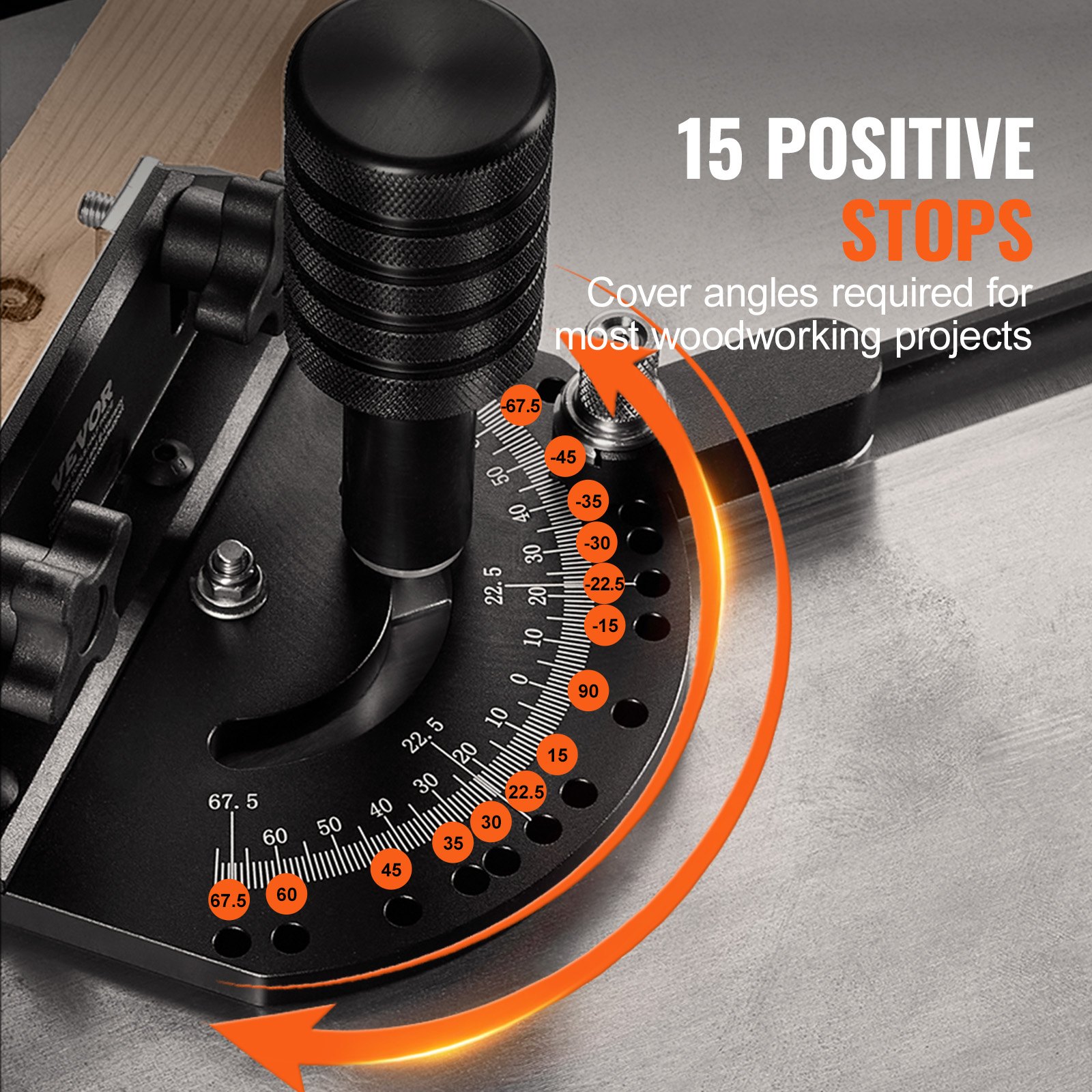

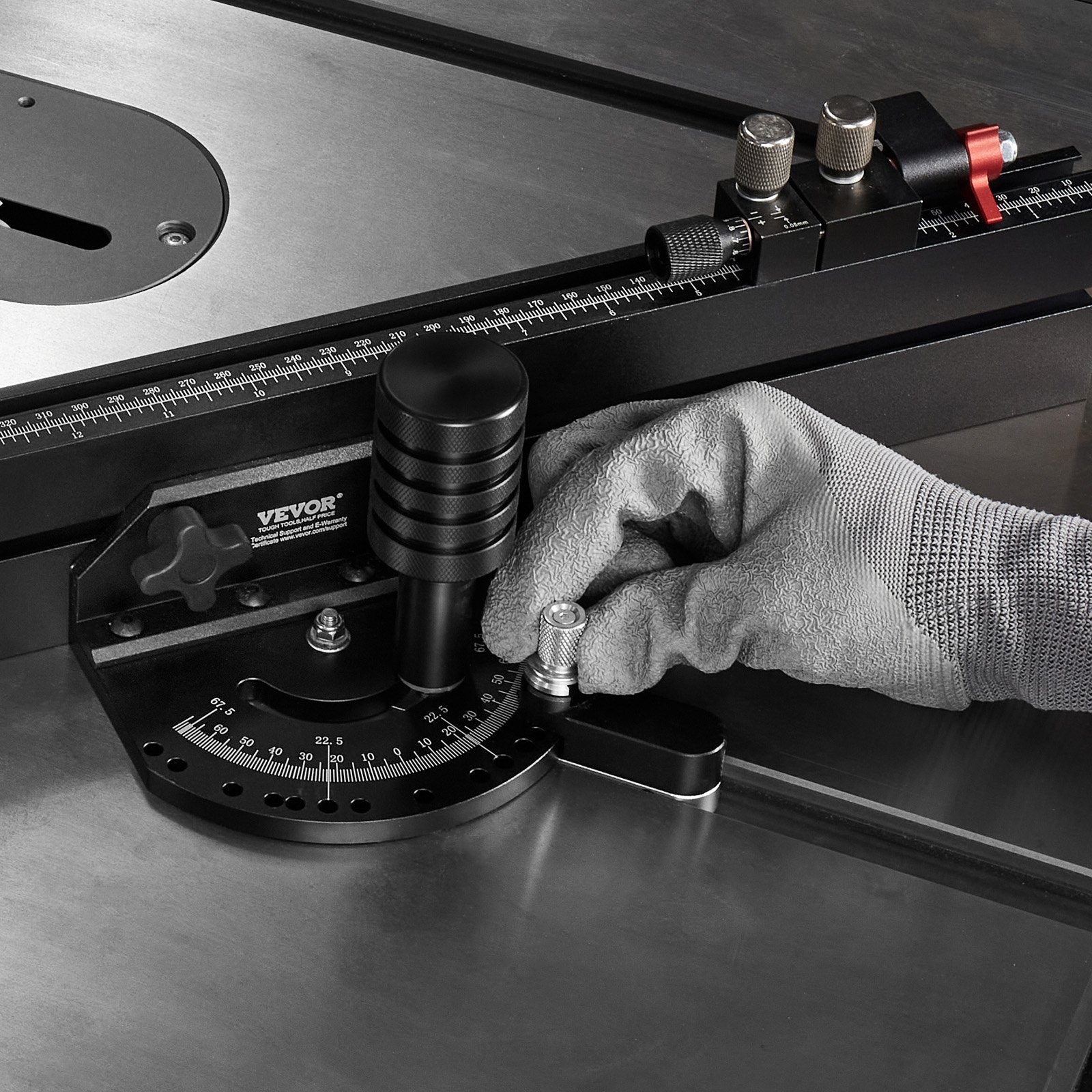

- Precise Angle Cutting: Experience precise cutting with our adjustable aluminum head. It features 15 stop holes for maximum accuracy. One stop hole is located at 90 degrees, and seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° cover most woodworking angles. For more complex angle cuts, the gauge adjusts proportionally, allowing you to achieve precise angles efficiently and effortlessly.

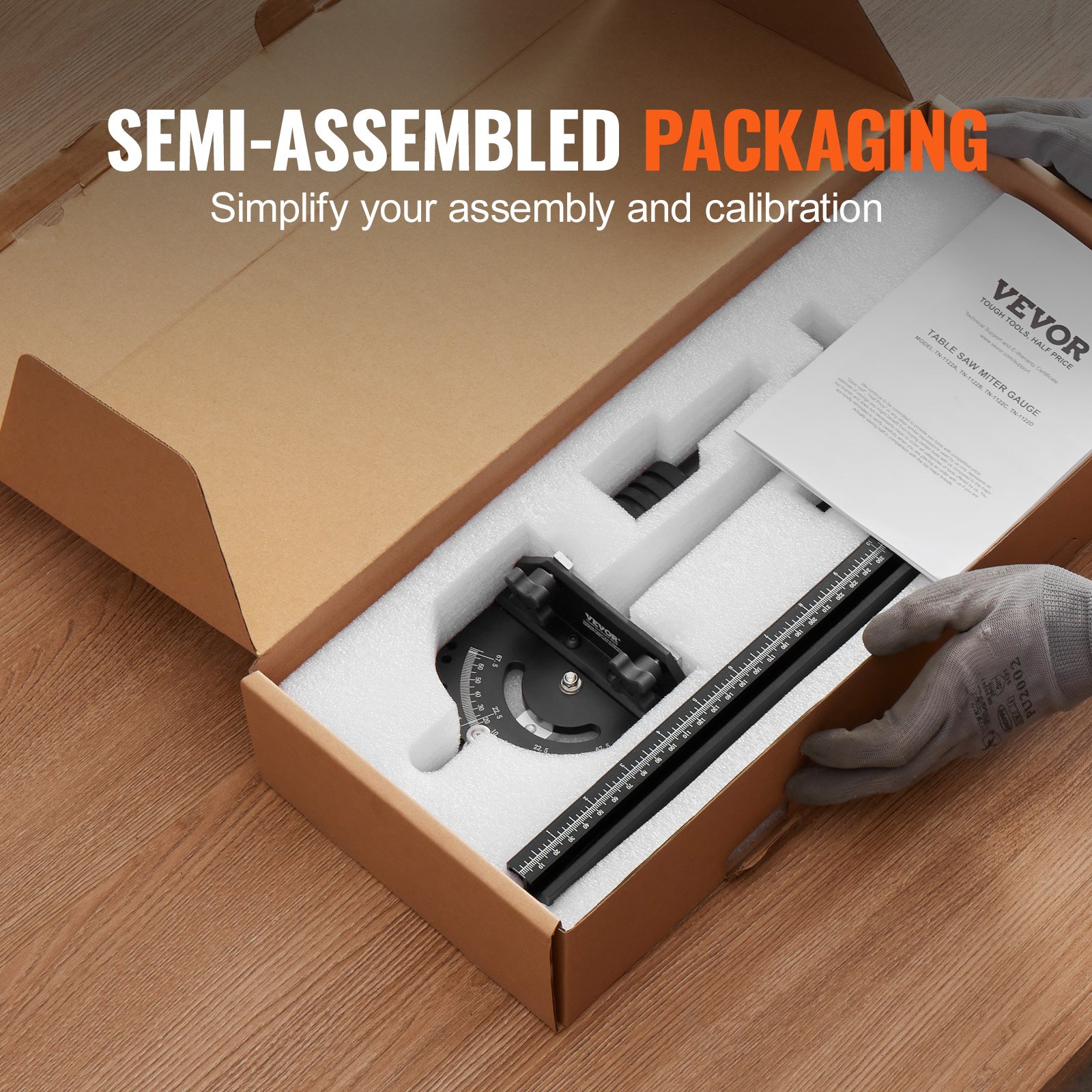

- Partially assembled components: This miter gauge for table saws arrives partially assembled to simplify your setup process. You won't have to deal with numerous small parts upon delivery. Simply attach a few key components, and you're ready to go. The accuracy of your measurements is maintained without the usual assembly hassle.
- Easy to use, easy to adjust: Our table saw miter gauge features a steel miter rail with a laterally adjustable bead spring piston. If you notice any gaps when inserting the miter gauge into the table saw slot, simply use the included Allen key to adjust the piston. This adjustment ensures an optimal fit in the slot, improves wear resistance, and simplifies your work.

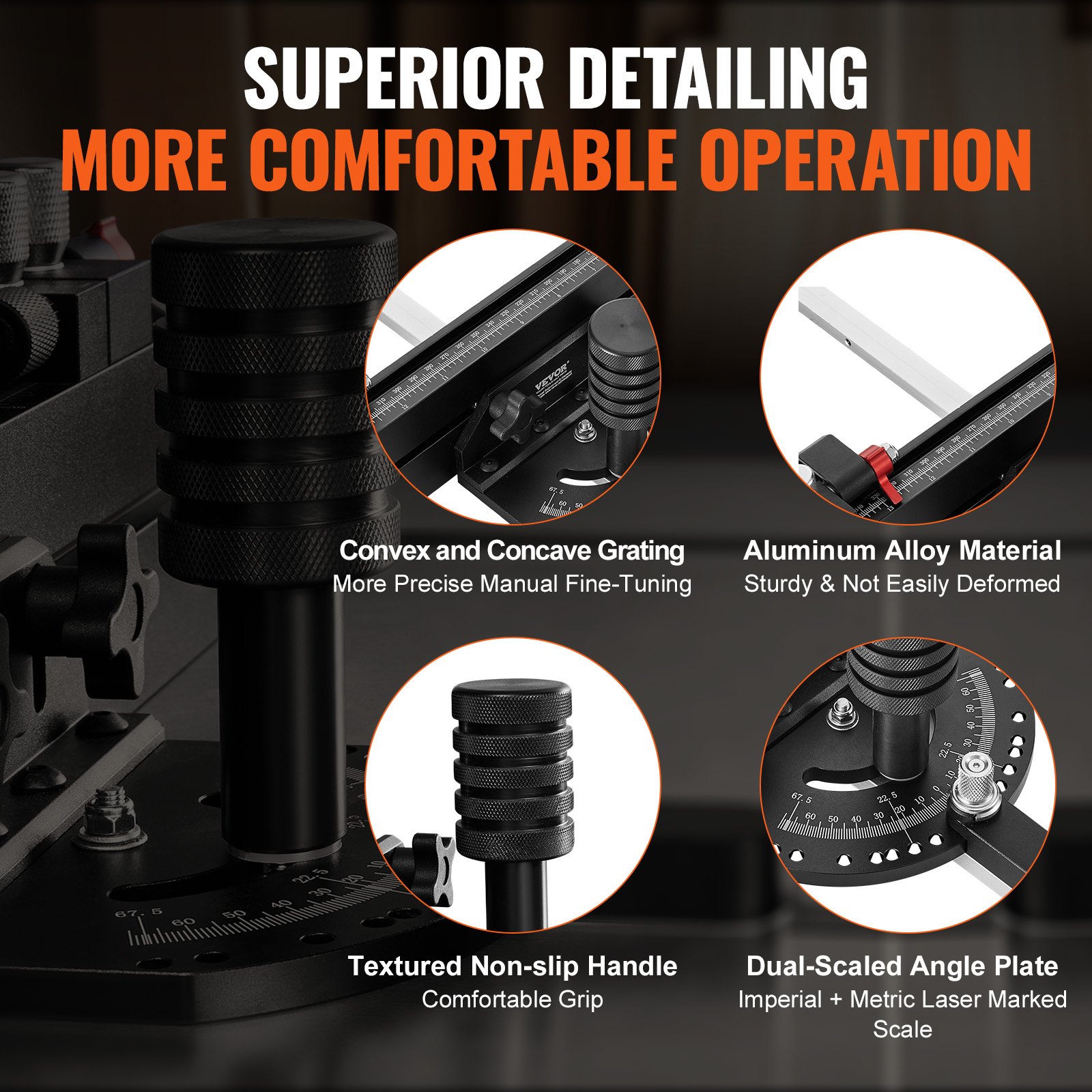

- Refined durability down to the smallest detail: This precision miter gauge is made of an aluminum alloy, ensuring longevity and resistance to deformation. Thanks to its convex-concave grid with fine-adjustment screws, it allows for manual fine adjustments for greater precision. The angle plate scale is meticulously laser-etched, and the textured metal handle provides a secure grip and prevents slipping.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 47 reviews
Reviews 4.8
All reviews are from verified purchases
See all 47 reviews
About this item

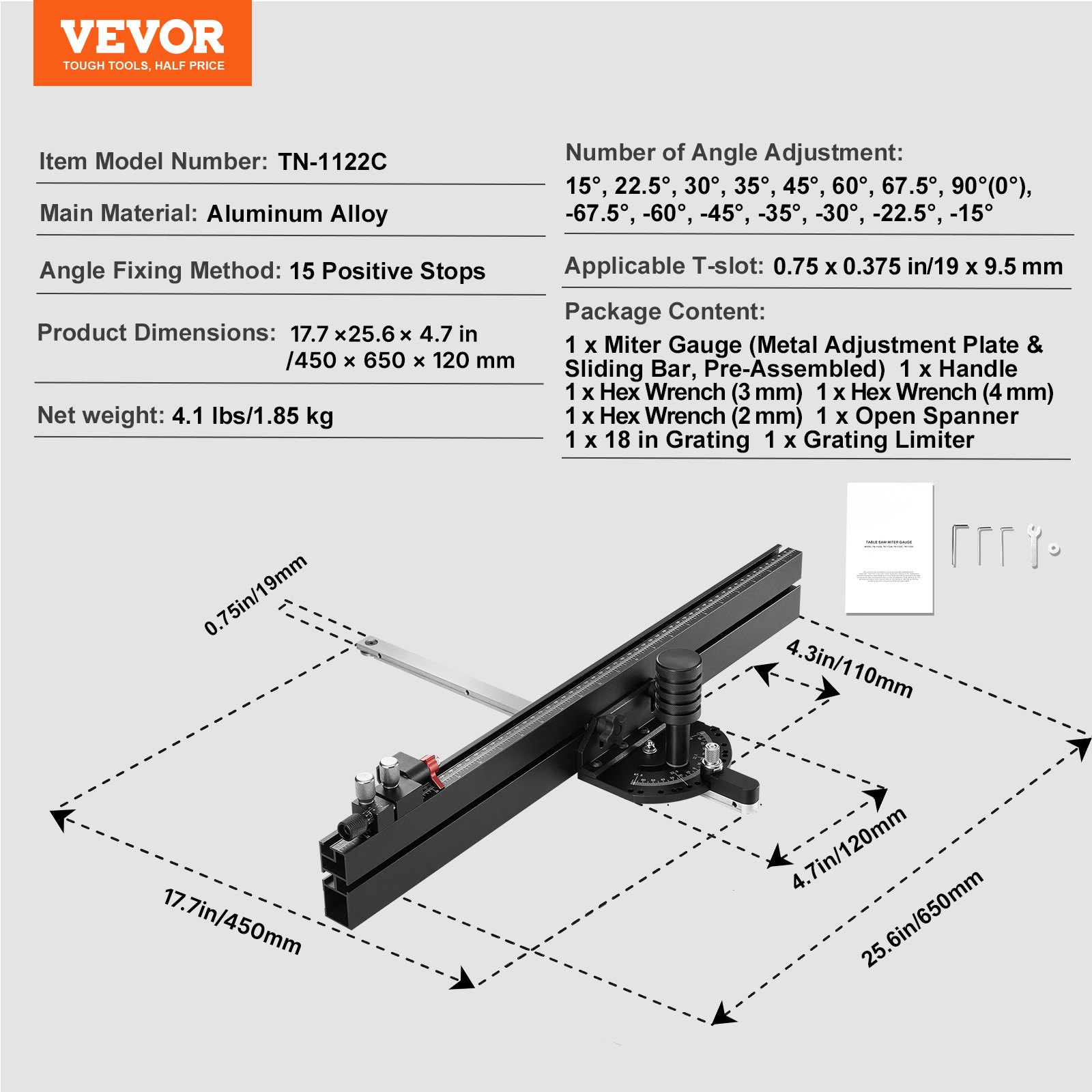

Product specification
- Article model number
- TN-1122C
- Main material
- Aluminum alloy
- Adjustment angle range
- ±70°
- Angular accuracy
- ±0.5°
- Angle mounting method
- 15 positive stops
- Number of angle settings
- 15°, 22.5°, 30°, 35°, 45°, 60°, 67.5°, 90°, -67.5°, -60°, -45°, -35°, -30°, -22.5°, -15°
- Scale
- Laser-marked, metric and imperial
- Usable T-slot
- 0.75 x 0.375 inches / 19 x 10 mm
- Product dimensions
- 17.7 x 25.6 x 4.7 inches / 450 x 650 x 120 mm
- Net weight
- 4.1 lbs/1.85 kg
Description

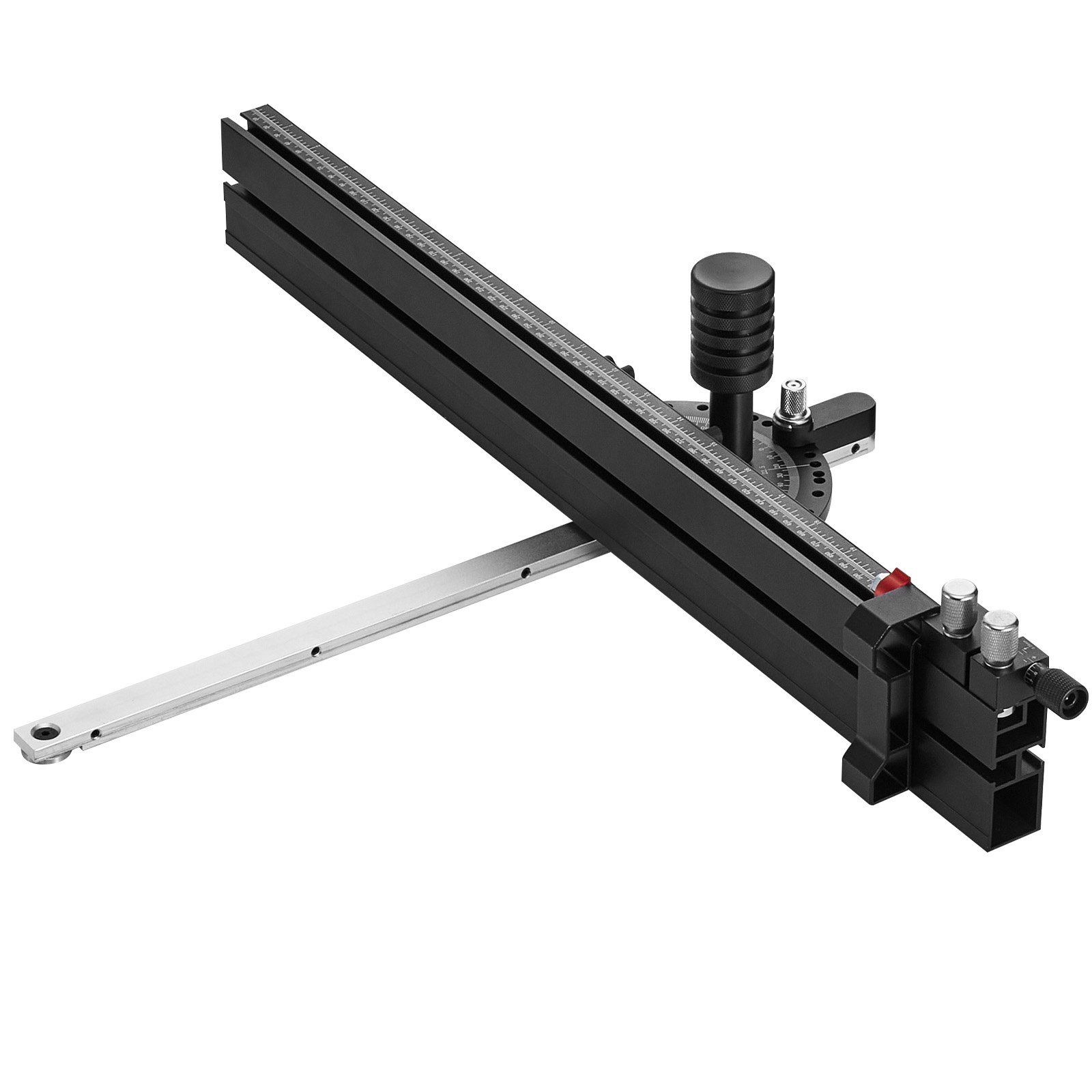

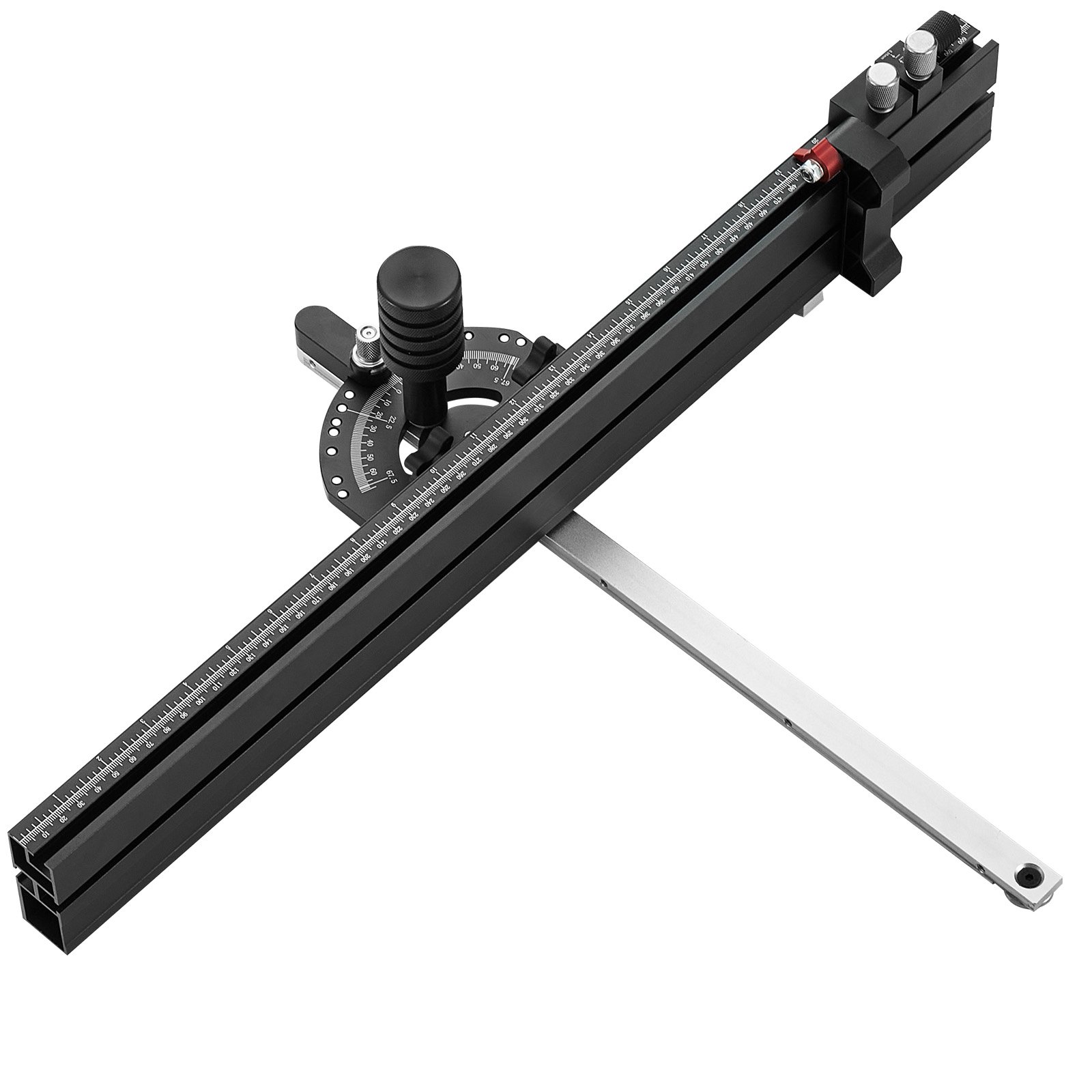

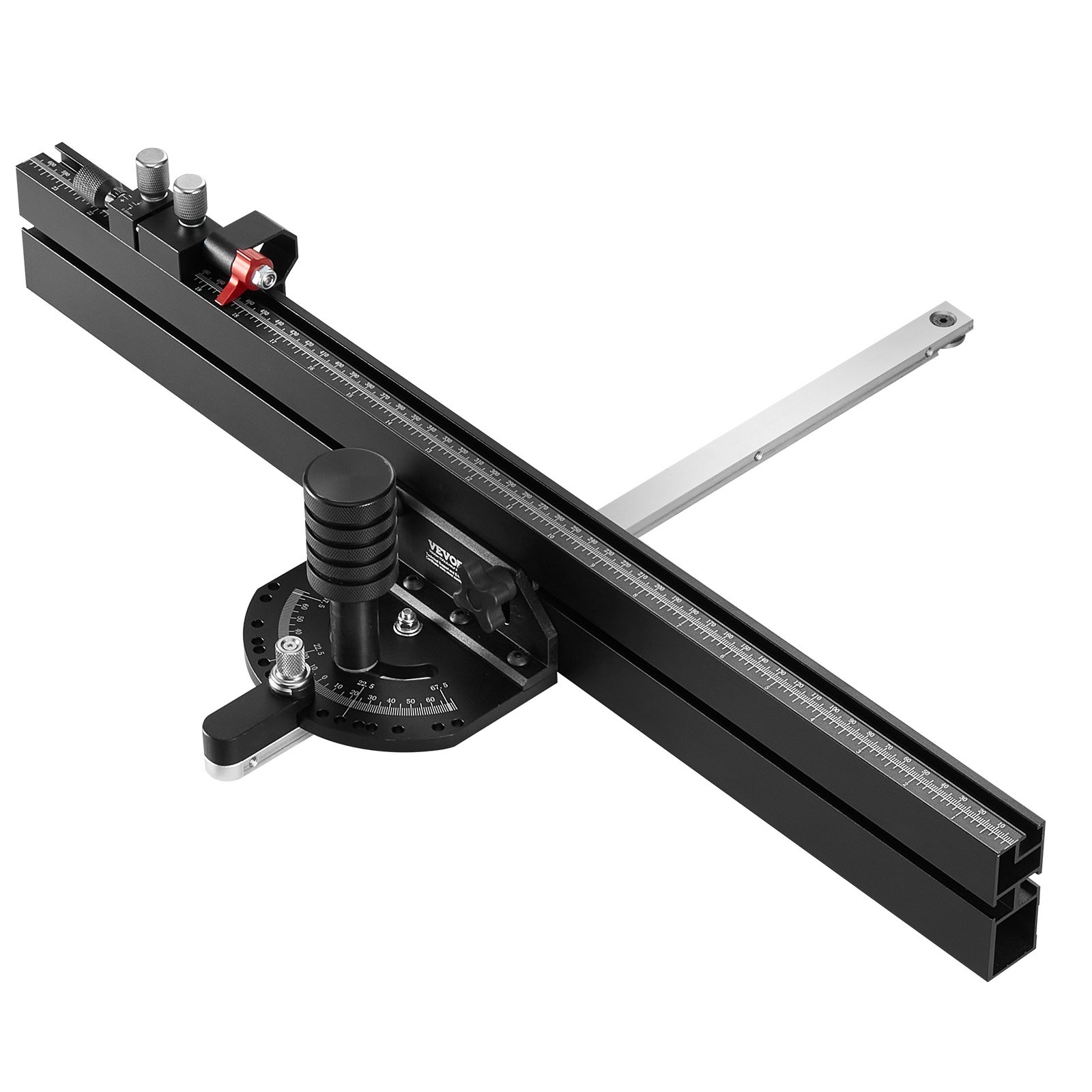

Miter gauge for table saws with 24-inch grid
Our miter gauge fits most standard 19 x 10 mm (3/4 x 3/8 inch) table saw slots. Thanks to its removable disc, it's compatible with both 3/4 x 3/8 inch T-shaped and U-shaped slots. With 15 fixed stop holes, it's the ideal tool for precise woodworking.
Experience precise cutting with our adjustable aluminum head. It features 15 stop holes for maximum accuracy. One stop hole is located at 90 degrees, and seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° cover most woodworking angles.

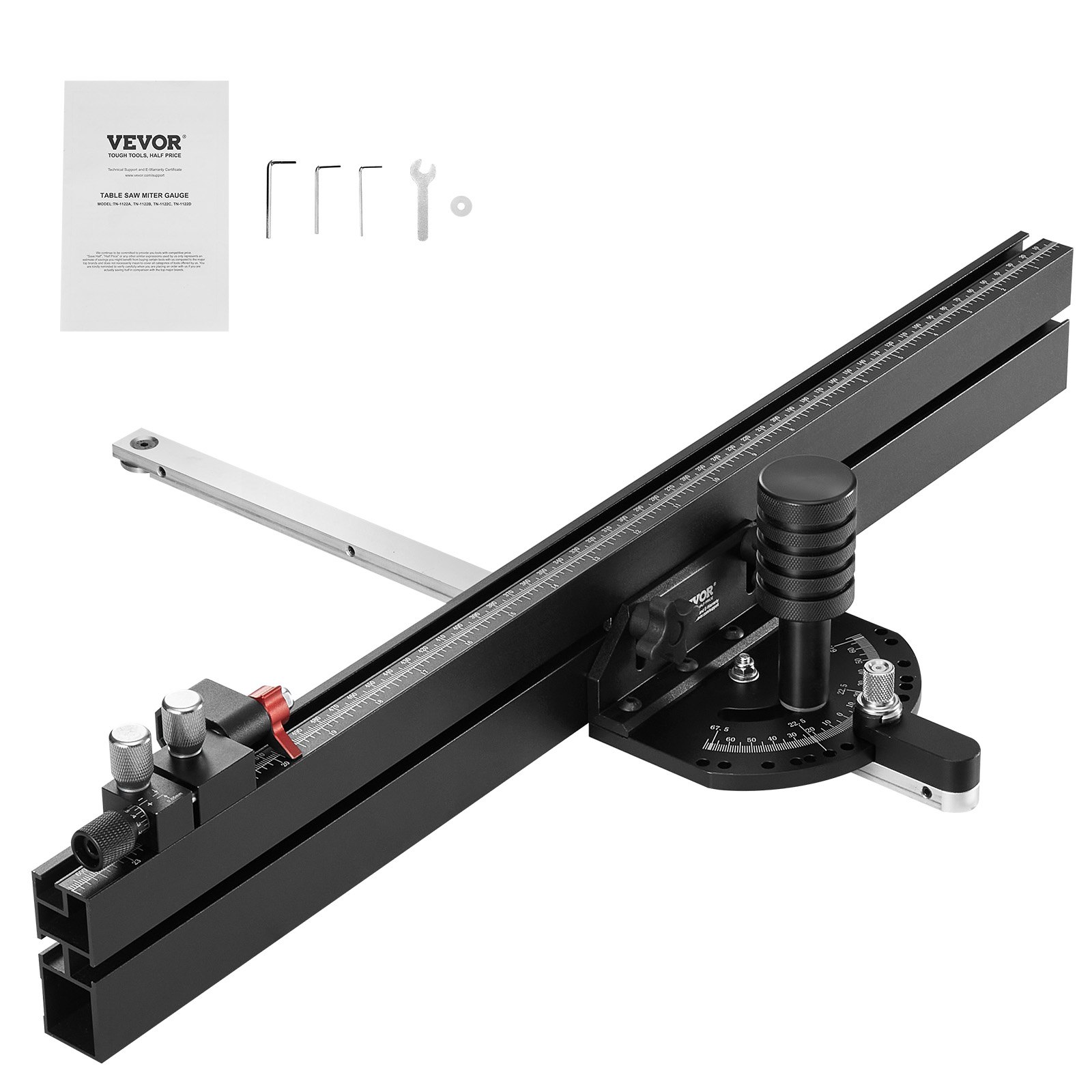

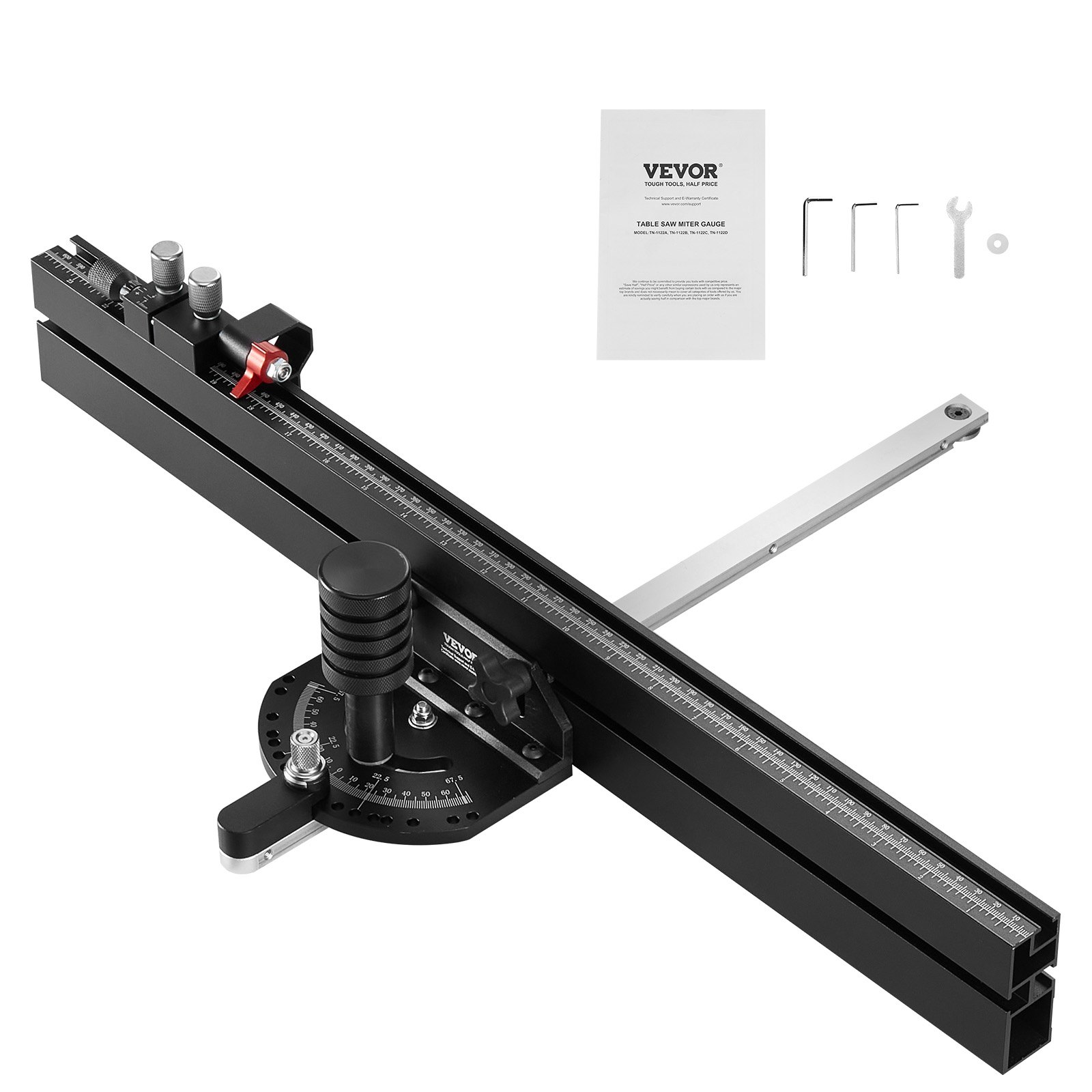

This miter gauge for table saws comes partially assembled to simplify your setup process. When it arrives, you won't have to deal with numerous small parts. Simply attach a few key components, and you're ready to go.
Our table saw miter gauge features a steel miter rail with a laterally adjustable bead spring piston. If you notice any gaps when inserting the miter gauge into the table saw slot, simply use the included Allen key to adjust the piston.
This precision miter gauge is made of an aluminum alloy, making it durable and resistant to deformation. The convex-concave grid with fine-adjustment screws for manual fine-tuning, the laser-engraved angle plate scale, and the textured metal handle ensure precision and comfort.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (1)
Hallo, passt dieser Anschlag auch auf die GTS-10-XC?
Hallo, es passt nicht zum GTS-10-XC
