Features & Details

  • 【VERTICAL & HORIZONTAL LENGTH】- Our four-slot cutting disc has a diameter of 150 mm (5.9"). It can be used in both horizontal and vertical positions, fulfilling two functions and providing you with a convenient and efficient milling experience.
  • 【FANTASTIC MATERIAL】- HT200 casting is primarily used for casting parts subjected to pressure and vibration in mechanical equipment. Our rotary milling table is durable, shock-absorbing, and heat-resistant due to the material used.
  • 【EXCELLENT PRECISION】- The cutting disc for milling machines can be rotated 360 degrees. The return wheel and handwheel can be adjusted in seconds. The enclosed design prevents the ingress of dirt and chips.
  • 【EASY TO ADJUST】- The dial of the milling machine cutting disc is marked with a precise scale. Simply operate the handle and move it to the desired position, allowing for easy and convenient operation.
  • 【WIDE APPLICATIONS】- This milling turntable is popular due to its excellent performance, practical design, and high precision. It is frequently used for circular cutting, drilling, facing, and similar operations.

Frequently Bought Together

Reviews 4.9
All reviews are from verified purchases
Average rating based on 52 reviews

See all 52 reviews

About this item

Product specification
Clamping table diameter
150 mm / 5.9"
Number of slots
4
Groove width
11 mm / 0.43"
Circular accuracy
0.04
The parallelism of the mounting surface
0.04
Accuracy of parts
45"
Worm gear ratio
90/1

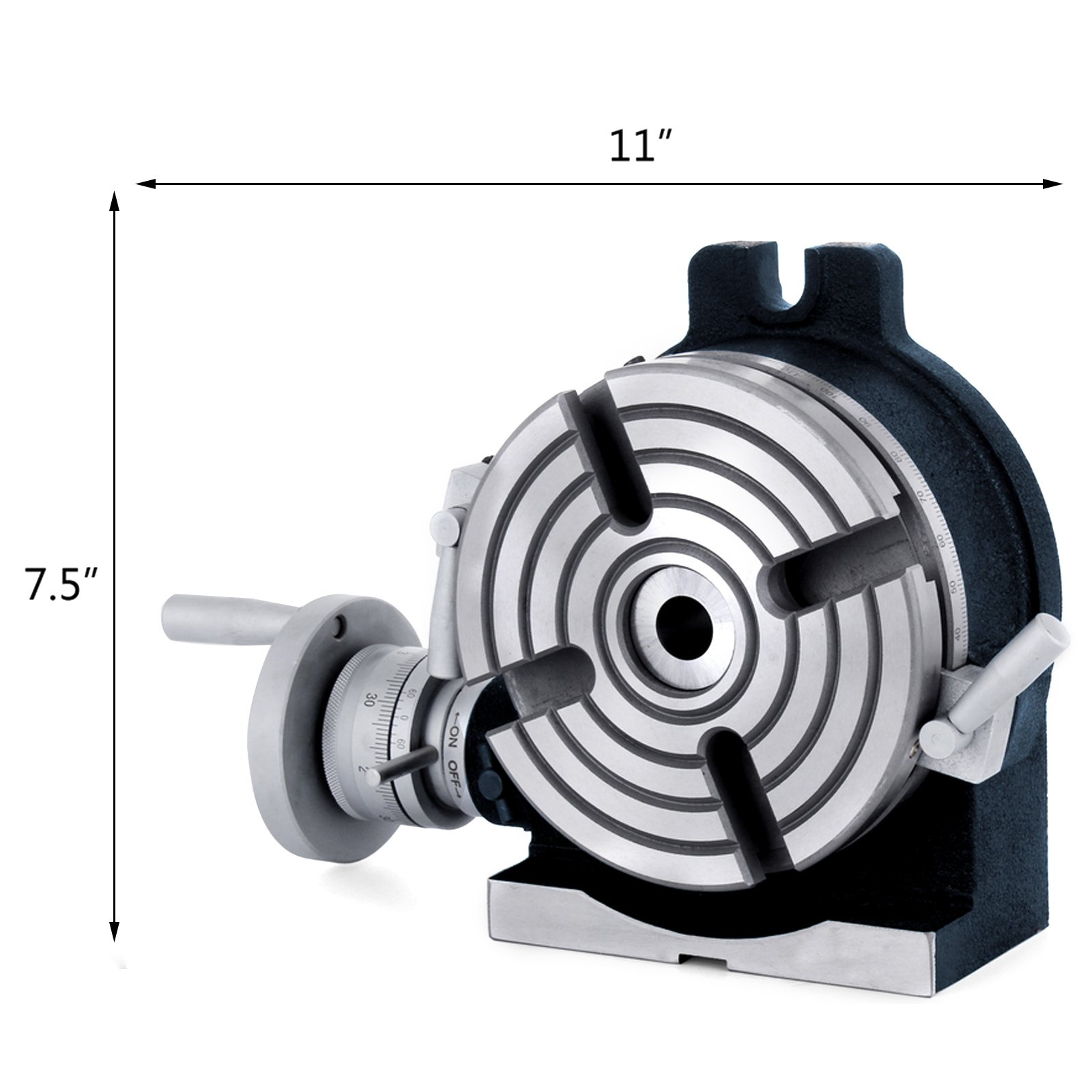

Basic dimensions (horizontal)
180 x 170 mm / 7 x 6.7"
Basic dimension vertical
205 x 80mm / 8 x 3.15"
Height
80 mm / 3.15”
Weight without packaging
11.1kg / 24.47lb
Worktable with scale
360°
Horizon load capacity
40kg / 88.18lb
Vertical load capacity
20kg / 44.09lb
MK
2
Description

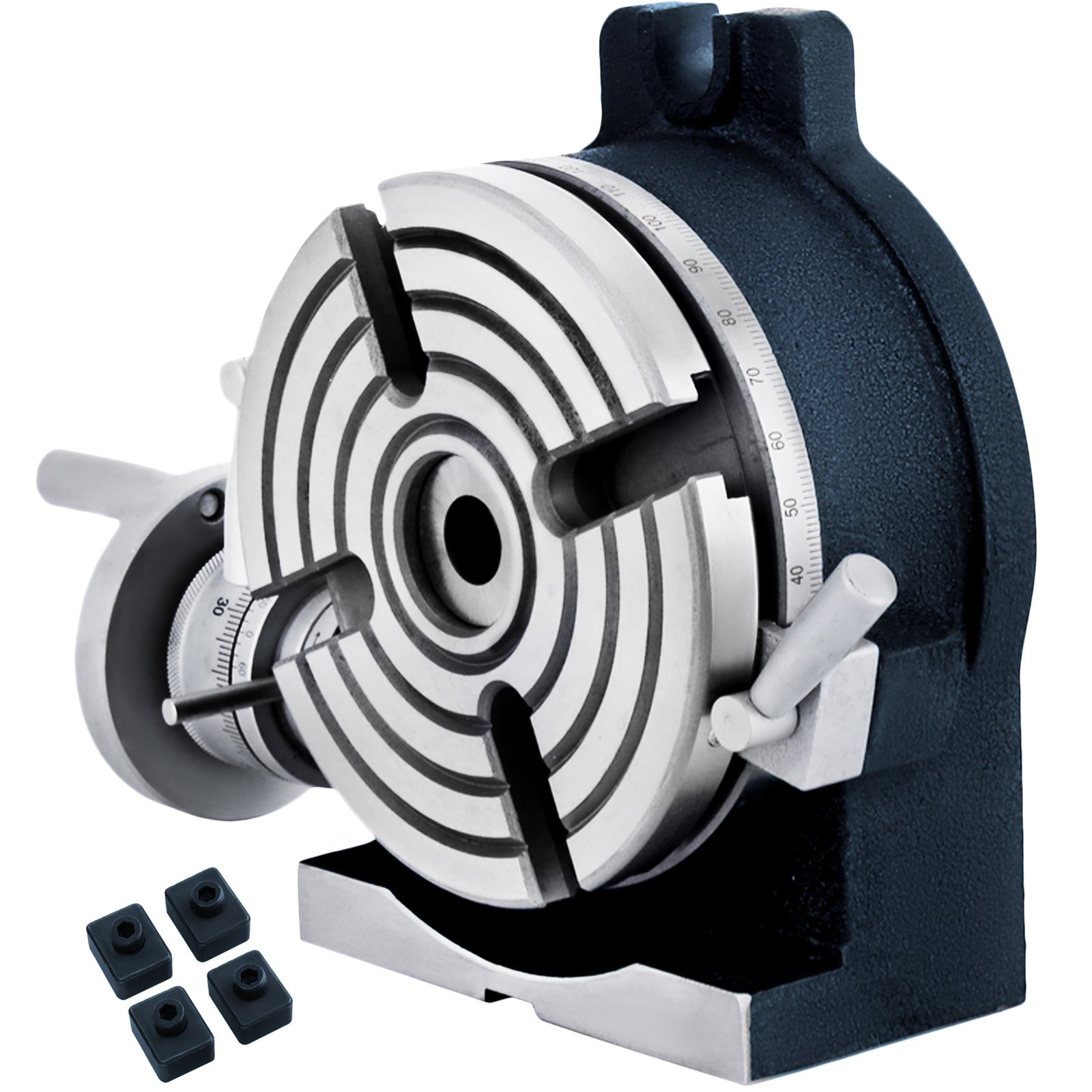

Vertical and horizontal cutting disc 150 mm
The vertical and horizontal rotary table, one of the main accessories of the milling machine, is a precision positioning device for the work. This machine is widely used in metalworking and allows the operator to drill or cut at precise intervals around a fixed axis.
  • Vertical and horizontal position
  • Fantastic material
  • Excellent precision
  • Easy to adjust
  • Wide application

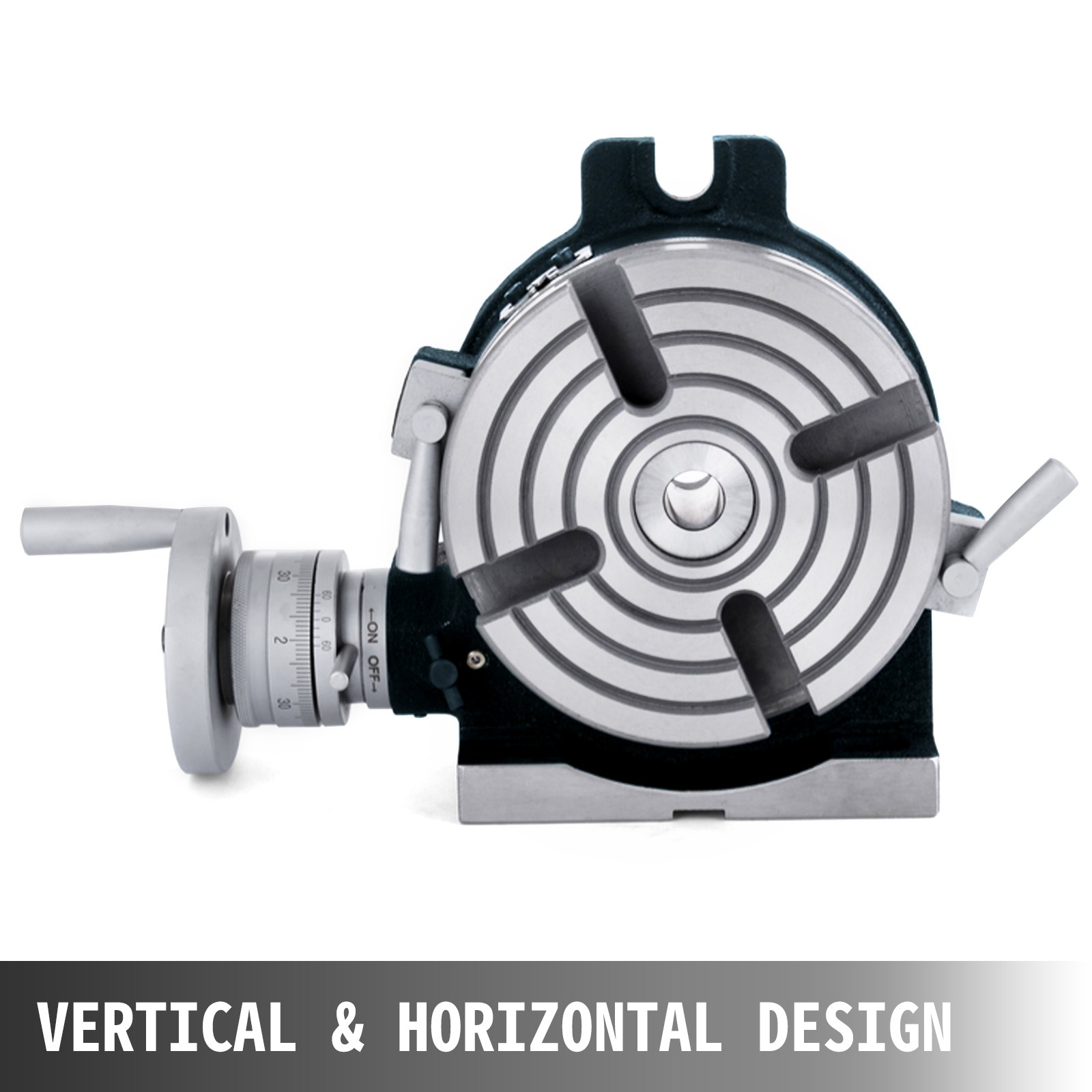

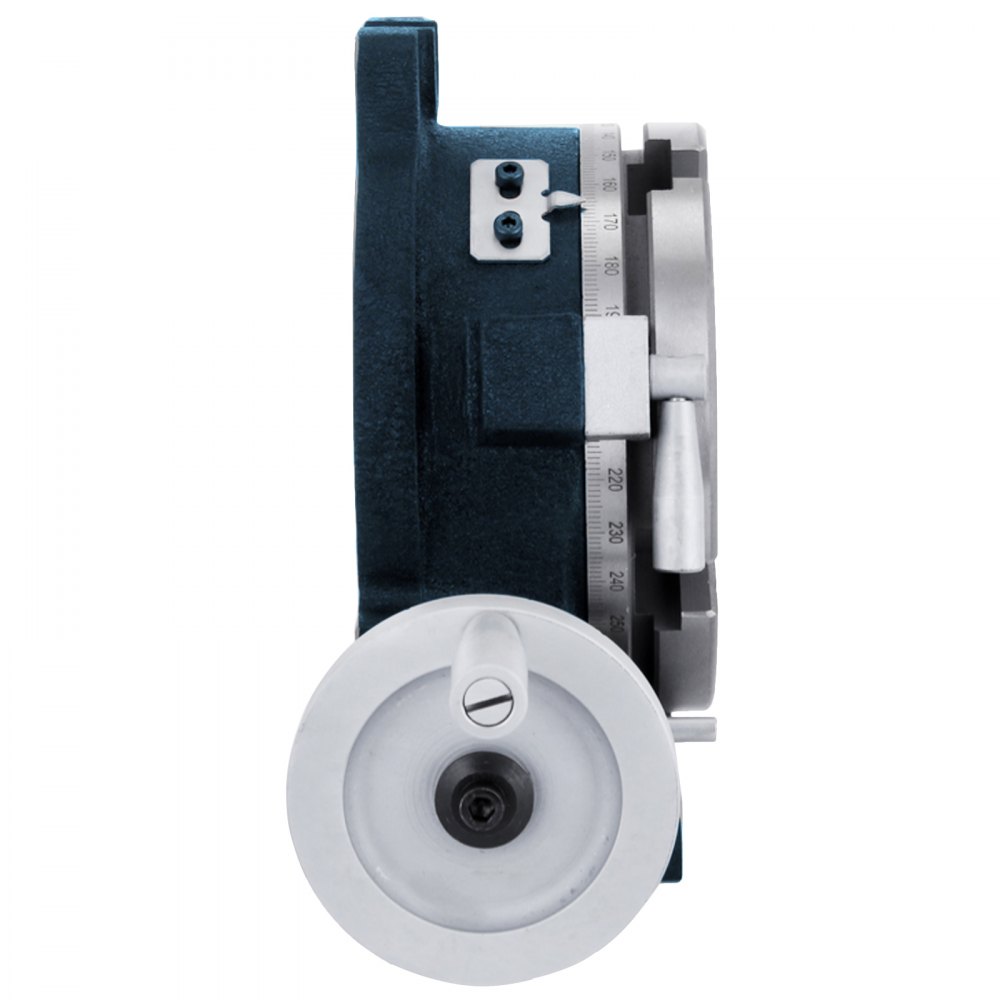

Vertical and horizontal design
It can be mounted "flat," with the table rotating around a vertical axis in the same plane as the cutter of a vertical milling machine. Alternatively, the cutting disc can be mounted at its end (or "flat" on a 90° angle plate), so that it rotates around a horizontal axis. In this configuration, a tailstock can also be used, which holds the workpiece "between centers."

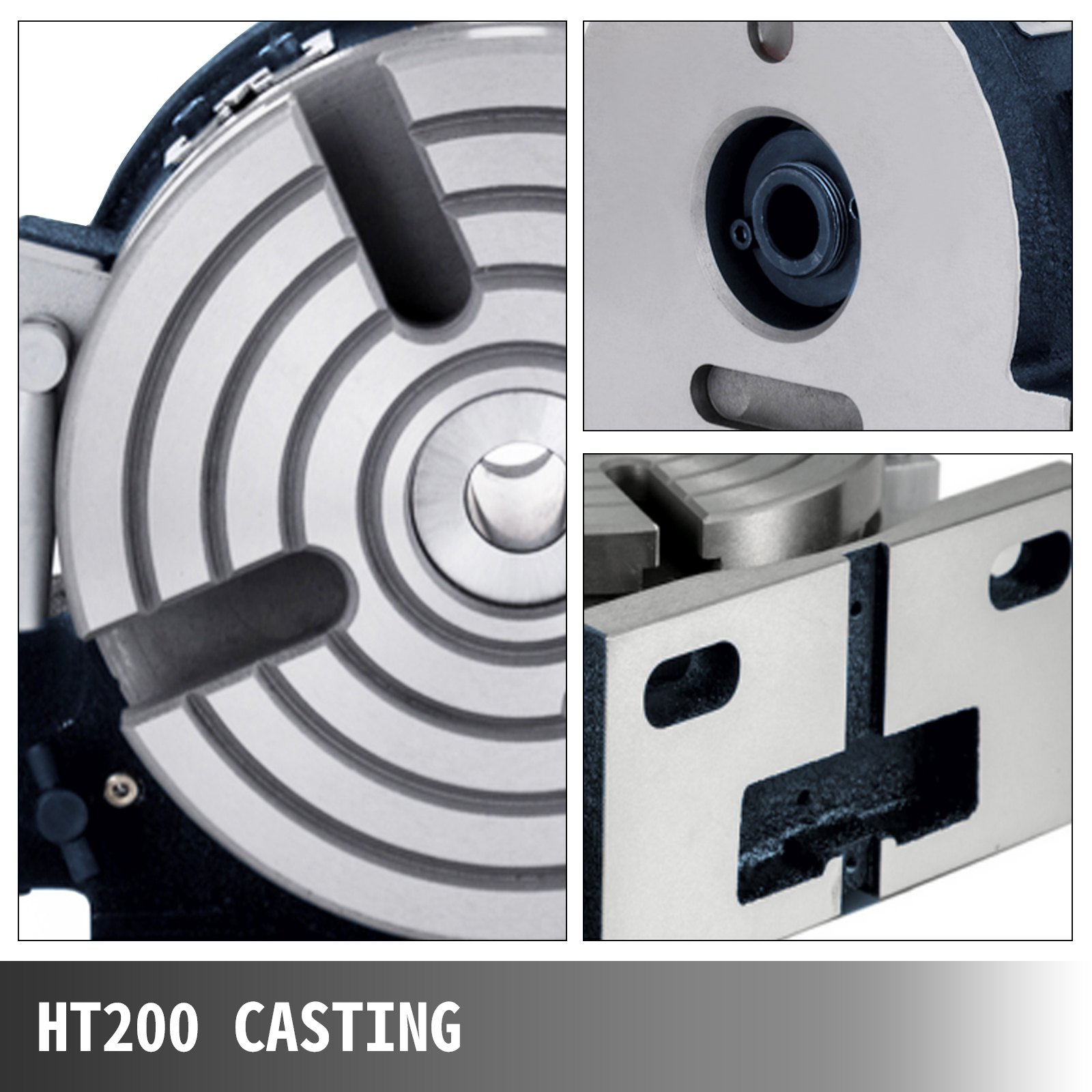

HT200 Giessen
HT200 casting offers excellent casting performance, shock absorption, and high heat resistance. It ensures superior machine performance and provides a satisfying user experience.

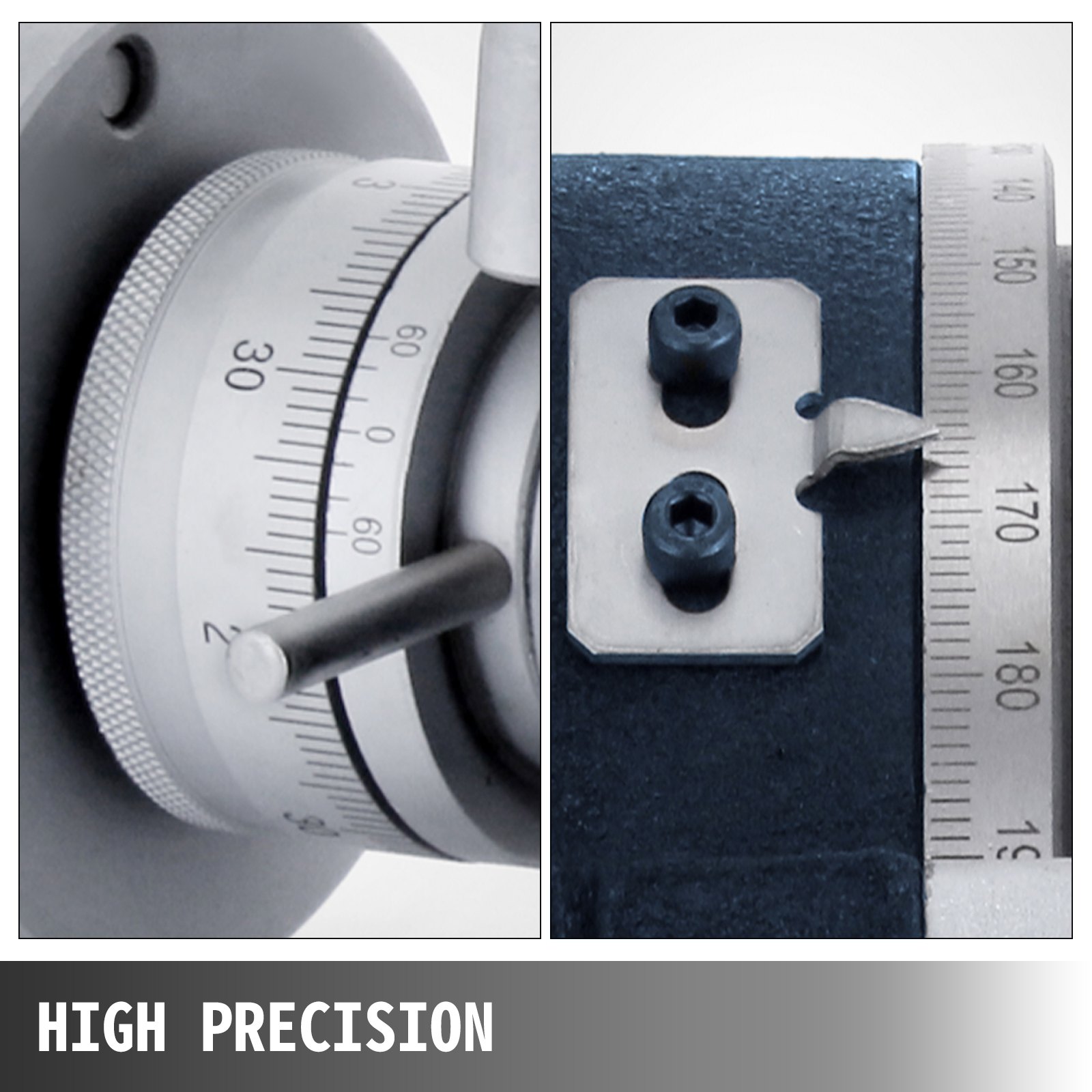

High precision
The dial is divided into a total of 360 degrees. The minimum scale can be adjusted to the second. All of this helps you tackle more complex and precise tasks. The spindle end is equipped with a precision bearing. It can be secured to remain very stable under load.

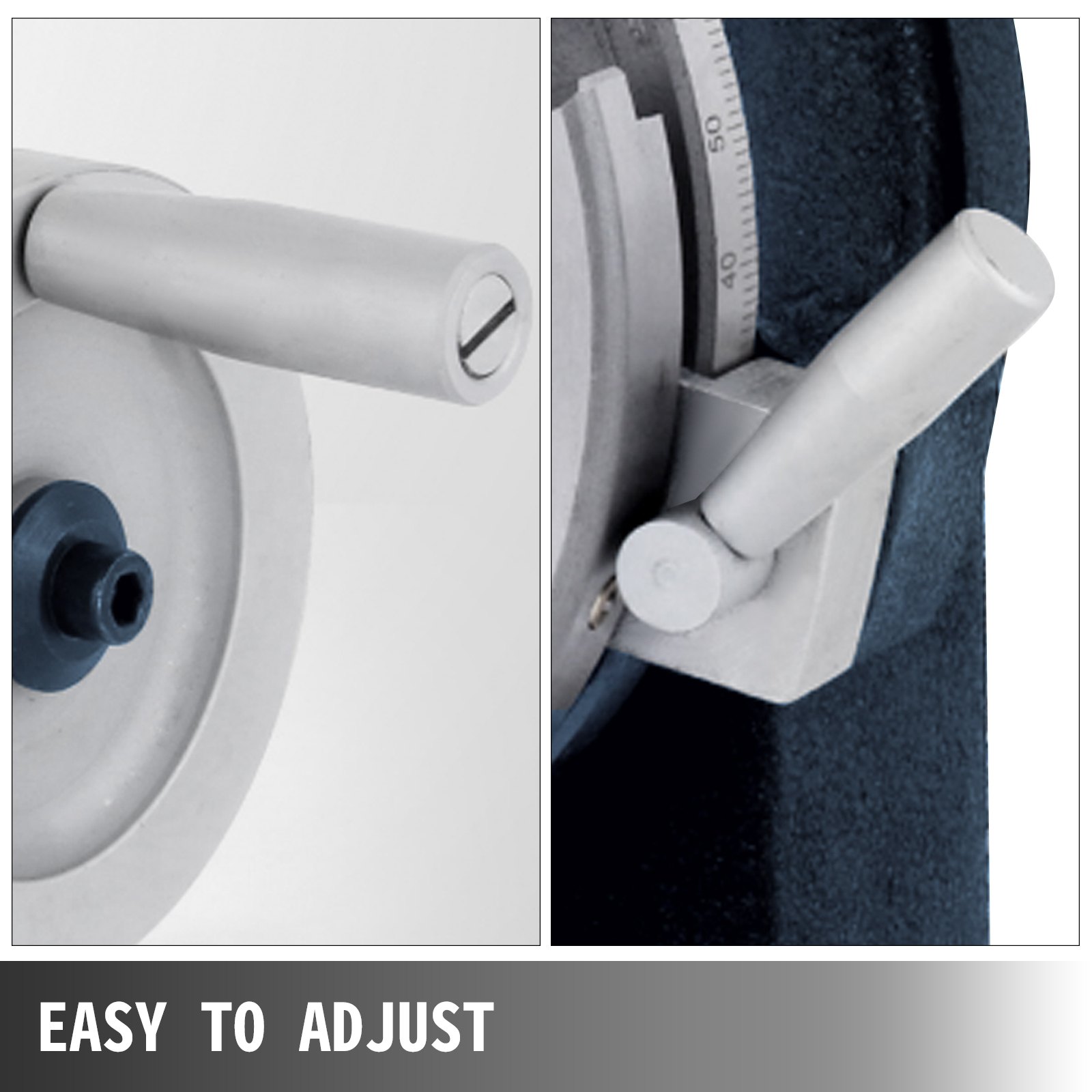

Easy to adjust
Setting up the rotary table milling machine is not difficult. All you need to do is move the handle to the desired position, as the exact scale is marked on the dial.

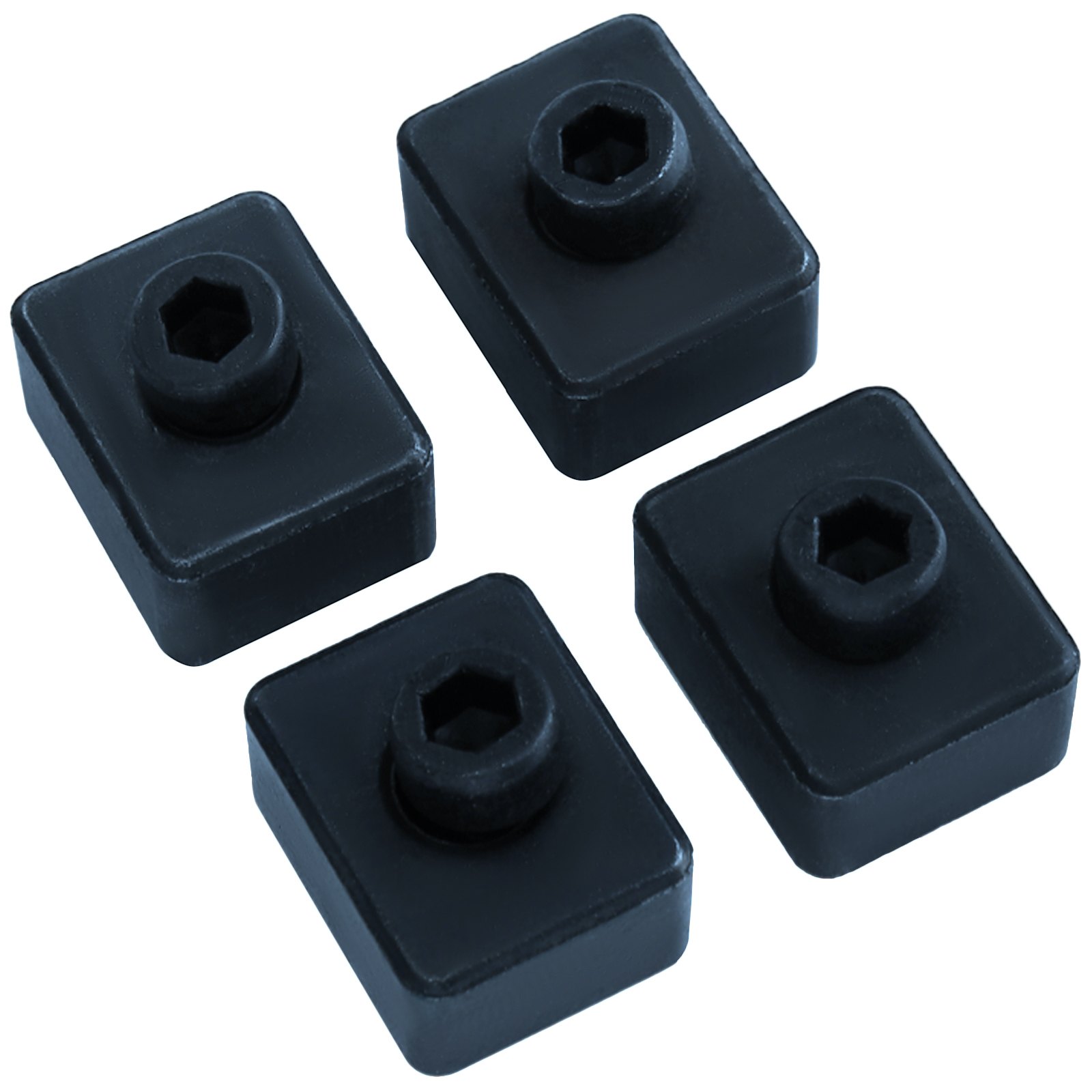

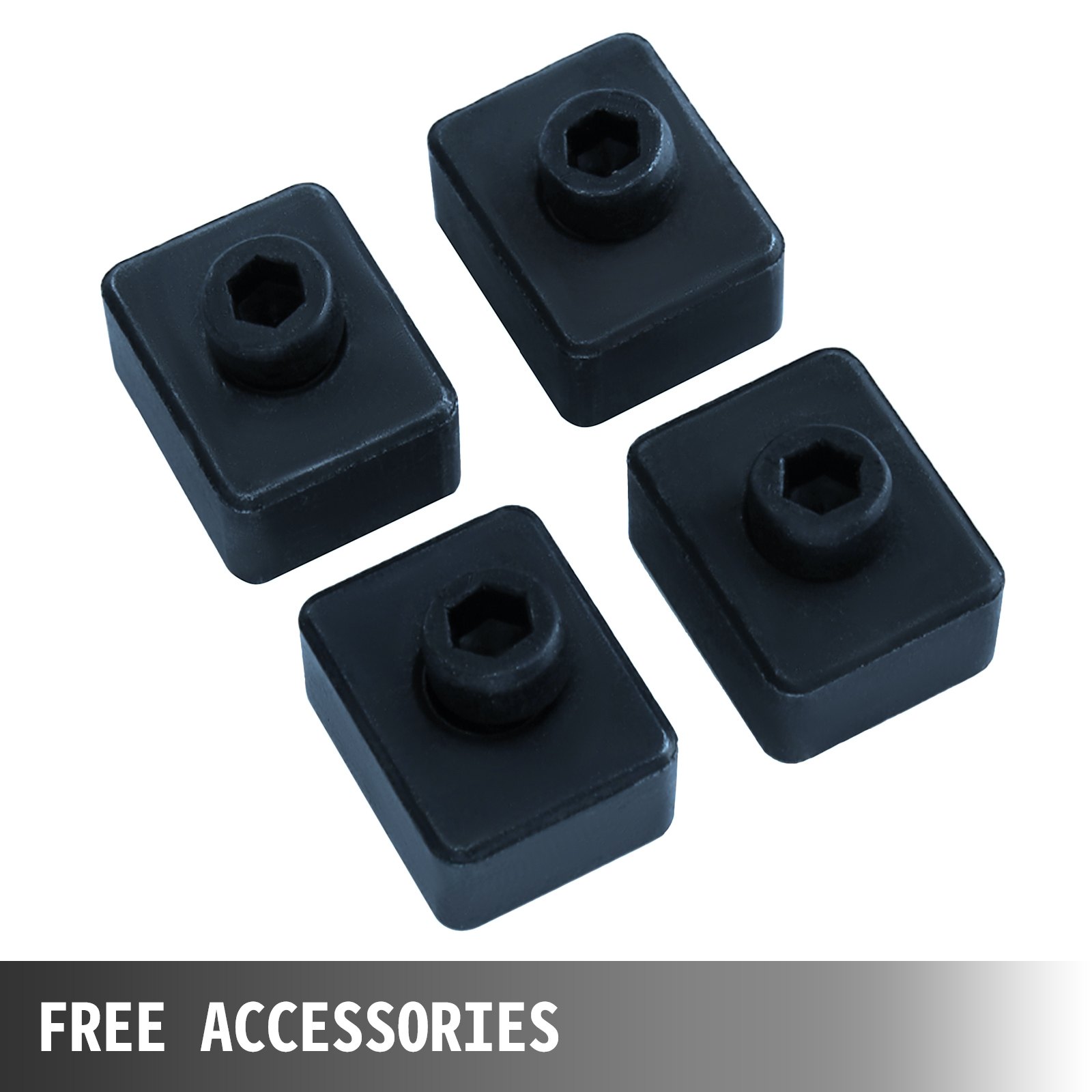

Free accessories
In addition to the 150 mm rotary machine table, we also offer four positioning blocks. The key guide block allows for quick and precise centering.

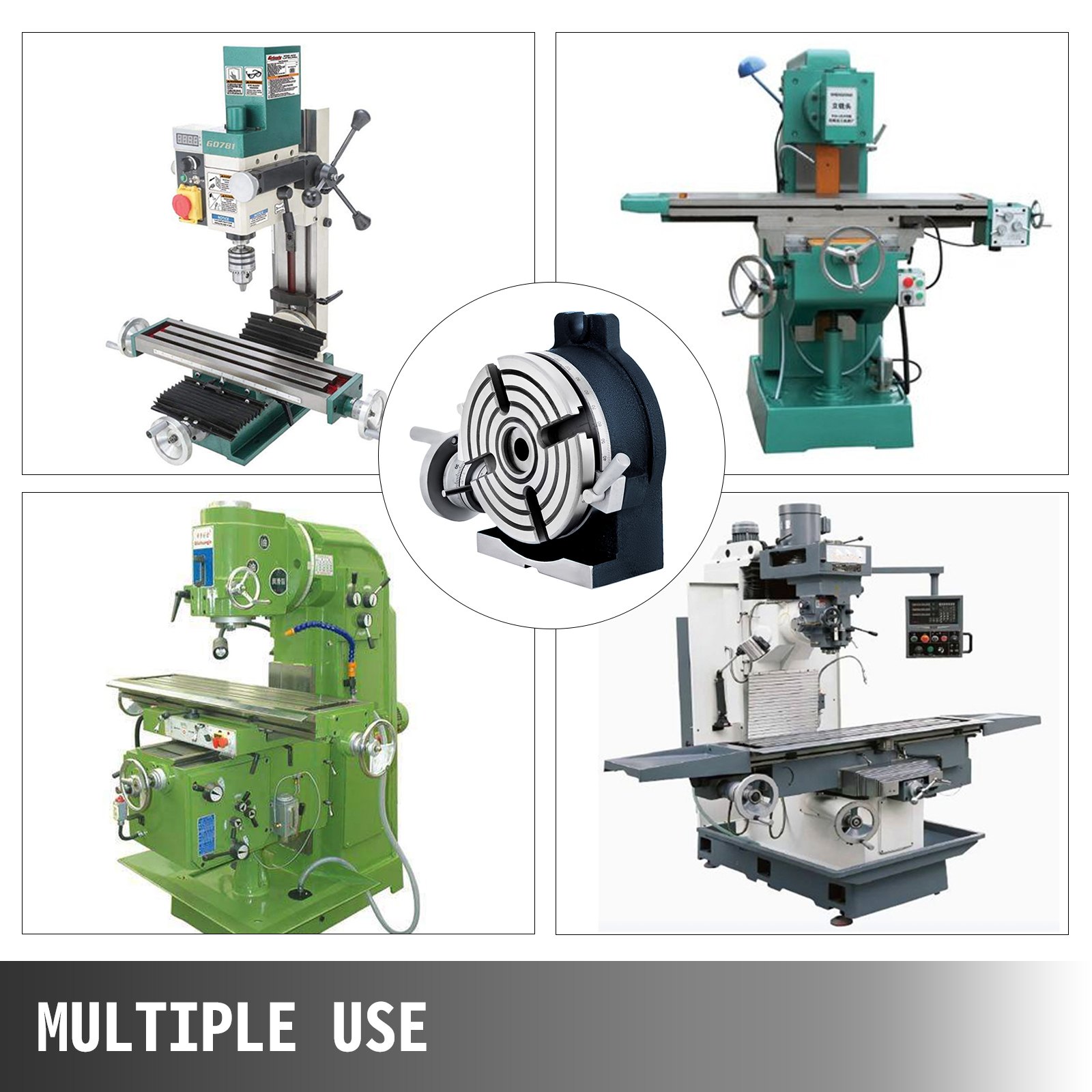

Multiple uses
Widely used in metalworking, allowing the operator to drill or cut at precise intervals around a fixed axis. Excellent for circular cutting, drilling, spot cutting, and similar operations.
  • Clamping table diameter: 150 mm / 5.9"
  • Number of slots: 4
  • Groove width: 11 mm / 0.43"
  • Circular accuracy: 0.04
  • The parallelism of the mounting surface: 0.04
  • Accuracy of parts: 45"
  • Worm gear ratio: 90/1
  • Basic dimensions (horizontal): 180 x 170 mm / 7 x 6.7"
  • Basic dimension vertical: 205 x 80mm / 8 x 3.15"
  • Height: 80 mm / 3.15”
  • Weight without packaging: 11.1kg / 24.47lb
  • Worktable with scale: 360°
  • Horizon load capacity: 40kg / 88.18lb
  • Vertical load capacity: 20kg / 44.09lb
  • MK: 2
  • 1 x vertical and horizontal cutting disc
Vertical and horizontal cutting disc 150 mm
The vertical and horizontal rotary table, one of the main accessories of the milling machine, is a precision positioning device for the work. This machine is widely used in metalworking and allows the operator to drill or cut at precise intervals around a fixed axis.
  • Vertical and horizontal position
  • Fantastic material
  • Excellent precision
  • Easy to adjust
  • Wide application
Vertical and horizontal design
It can be mounted "flat," with the table rotating around a vertical axis in the same plane as the cutter of a vertical milling machine. Alternatively, the cutting disc can be mounted at its end (or "flat" on a 90° angle plate), so that it rotates around a horizontal axis. In this configuration, a tailstock can also be used, which holds the workpiece "between centers."
HT200 Giessen
HT200 casting offers excellent casting performance, shock absorption, and high heat resistance. It ensures superior machine performance and provides a satisfying user experience.
High precision
The dial is divided into a total of 360 degrees. The minimum scale can be adjusted to the second. All of this helps you tackle more complex and precise tasks. The spindle end is equipped with a precision bearing. It can be secured to remain very stable under load.
Easy to adjust
Setting up the rotary table milling machine is not difficult. All you need to do is move the handle to the desired position, as the exact scale is marked on the dial.
Free accessories
In addition to the 150 mm rotary machine table, we also offer four positioning blocks. The key guide block allows for quick and precise centering.
Multiple uses
Widely used in metalworking, allowing the operator to drill or cut at precise intervals around a fixed axis. Excellent for circular cutting, drilling, spot cutting, and similar operations.
  • 1 x vertical and horizontal cutting disc
  • Clamping table diameter: 150 mm / 5.9"
  • Number of slots: 4
  • Groove width: 11 mm / 0.43"
  • Circular accuracy: 0.04
  • The parallelism of the mounting surface: 0.04
  • Accuracy of parts: 45"
  • Worm gear ratio: 90/1
  • Basic dimensions (horizontal): 180 x 170 mm / 7 x 6.7"
  • Basic dimension vertical: 205 x 80mm / 8 x 3.15"
  • Height: 80 mm / 3.15”
  • Weight without packaging: 11.1kg / 24.47lb
  • Worktable with scale: 360°
  • Horizon load capacity: 40kg / 88.18lb
  • Vertical load capacity: 20kg / 44.09lb
  • MK: 2
Product guides and documents
User manual-de (PDF) Review

Questions and Answers (1)

1 Questions
Ask a Question
ist der Teilscheiben Set 100mm mit Trennscheibe Durchmesser 150 mm kompatibel.
Answer This Question
Ja, es ist kompatibel.
