- 【ADJUSTABLE ANGLE】 - The semi-automatic dividing head features a 4" three-jaw chuck. Spindle bore diameter: 18mm. The headstock is adjustable from the horizontal position up to 90 degrees upwards. Center height: 4"/100mm. 3 additional free jaws for 4" chucks are included.
- 【SOLID CONSTRUCTION】 - Made from HT200 for long-lasting durability. The rigid frame offers high accuracy with minimal play for smooth rotation. Gear ratio: 1:40.
- 【CLEAR & PRECISE】 - Dividing head for milling machines with laser-engraved scale. The quick-dial holes allow for indexing at 2, 3, 4, 6, 8, 12, and 24 degrees. One circle represents 360 degrees, and one scale represents 1 degree.
- 【ADJUSTABLE MT2 TAILSTOCK】 - Large live center for heavy workpieces. Precision ball bearings ensure smooth rotation. Tailstock: MT2. One free dead center.
- 【RICH SUBDIVISION HEAD SET】 - 3 subdivision head index plates are included along with the subdivision head for indirect division in all division indices from 2-50, 51-380 except for prime numbers and certain other numbers.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 52 reviews
Reviews 4.9
All reviews are from verified purchases
See all 52 reviews
About this item
Product specification
- Chuck diameter
- 4"/100mm
- Tip height
- 4"/100mm
- Material
- HT200
- Gear ratio
- 1
- Tailstock
- MT2
Description

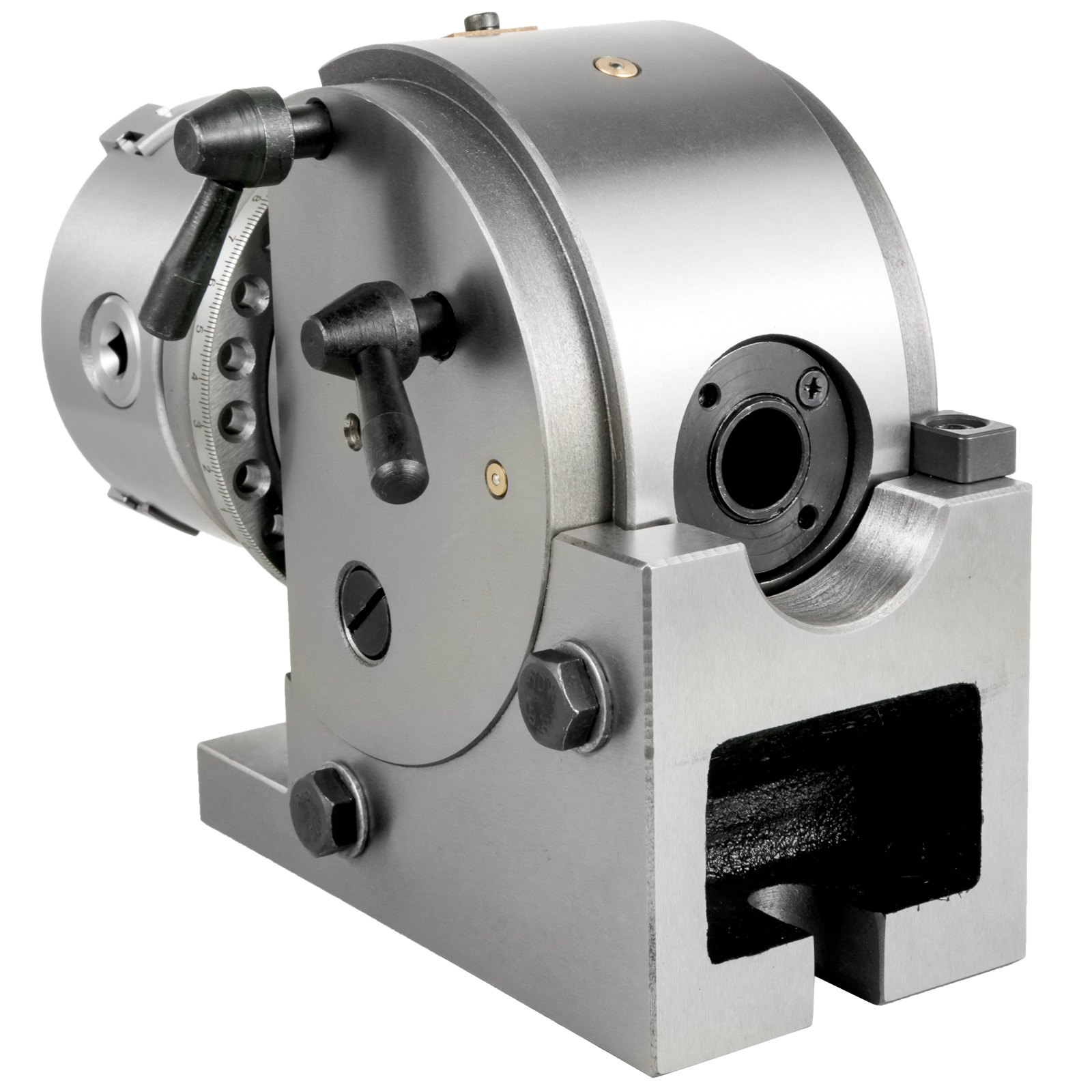

100mm dividing head for milling machine
The semi-universal dividing head is a simple indexing center and can be used for direct and indirect indexing. It is designed to complement gear, face, and flute machining, and can accommodate other accessories. The rotary indexing table allows for 24 quick-indexing holes with 2, 3, 4, 6, 8, 12, and 24 divisions.
- Adjustable angle
- Solid construction
- Clear & precise
- Adjustable MT2 tailstock
- Rich partial head set

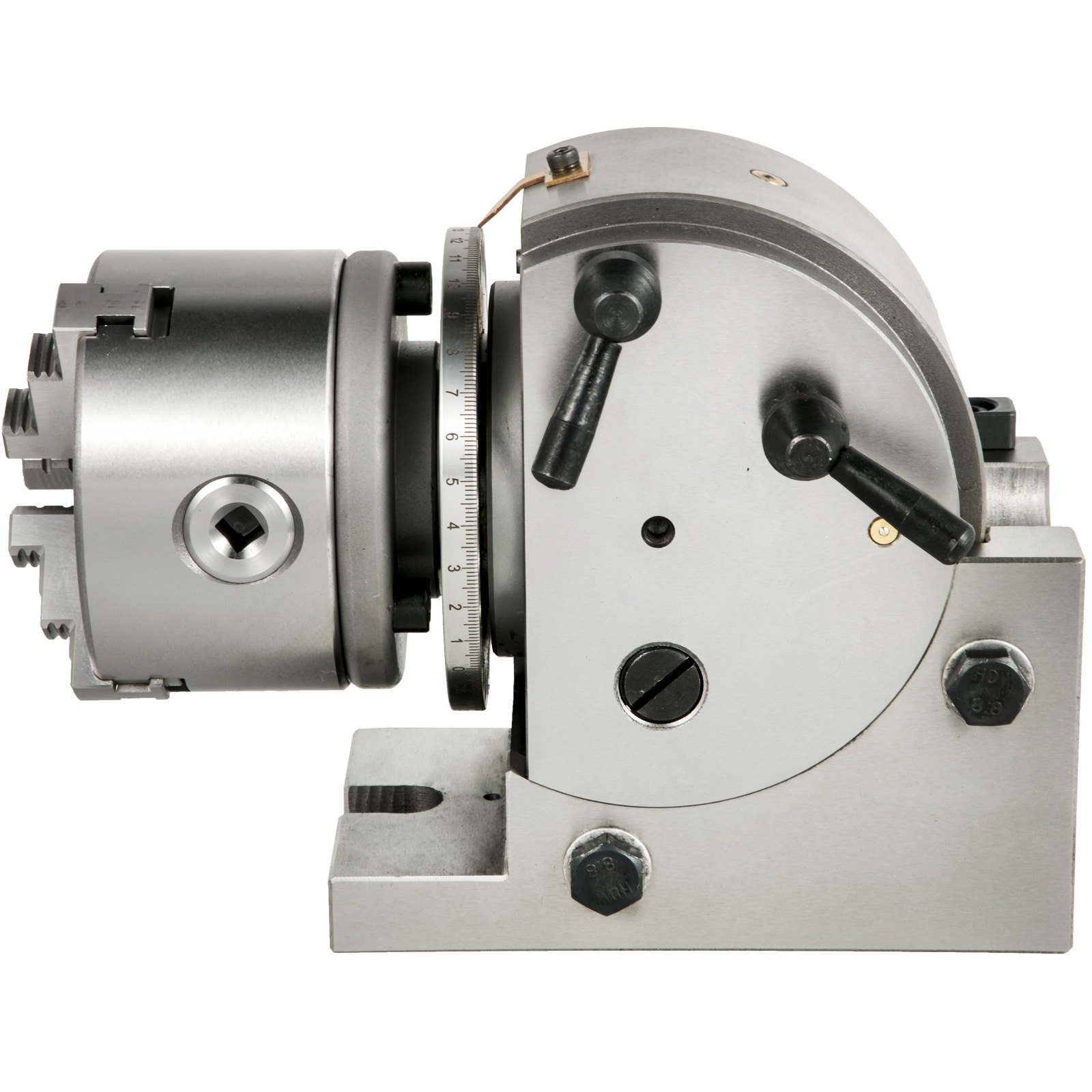

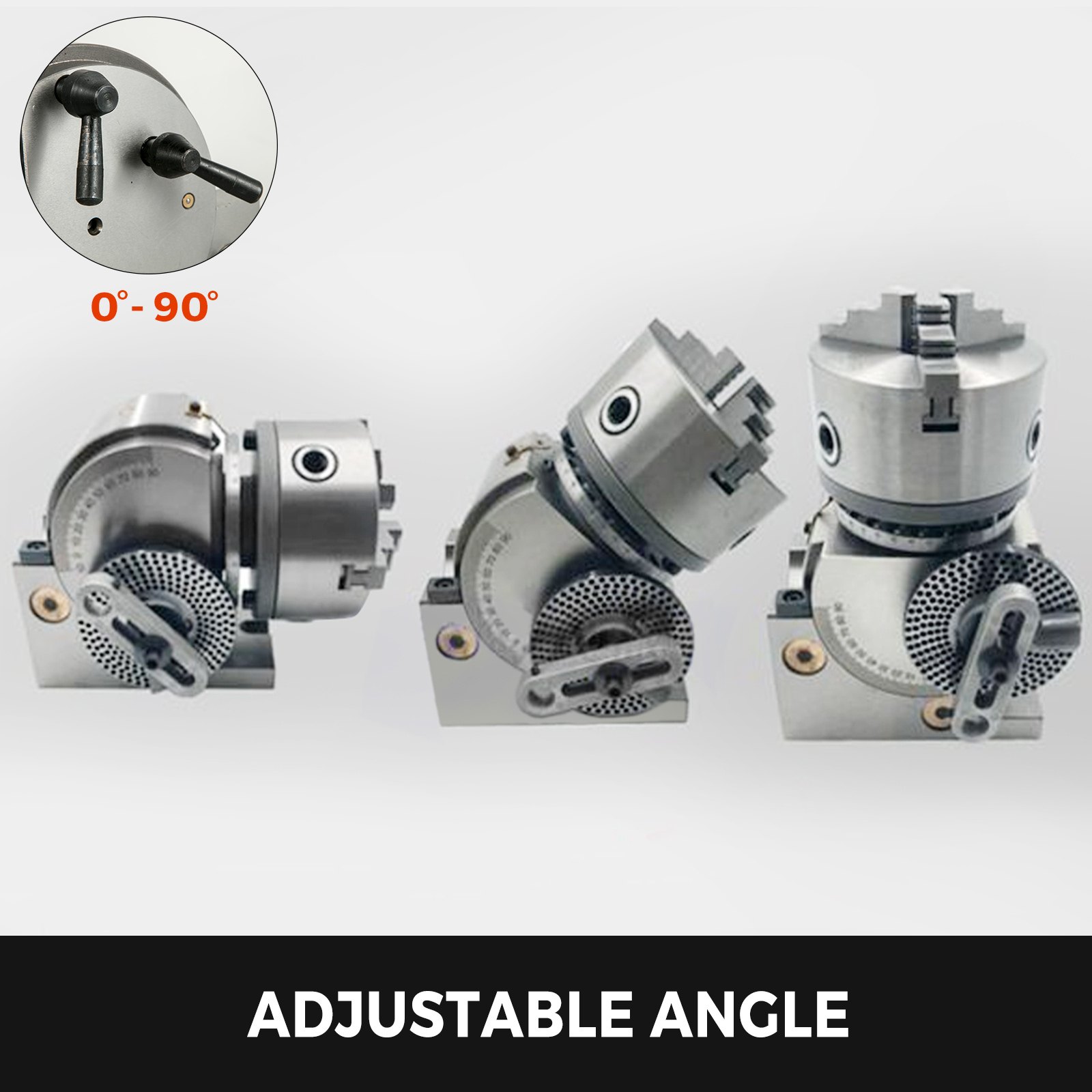

Adjustable from 0° to 90°
You can adjust the angle (0-90 degrees) as needed using the handle on this vertical and horizontal milling machine with a spindle chuck for lathes. Center height: 4"/100mm.

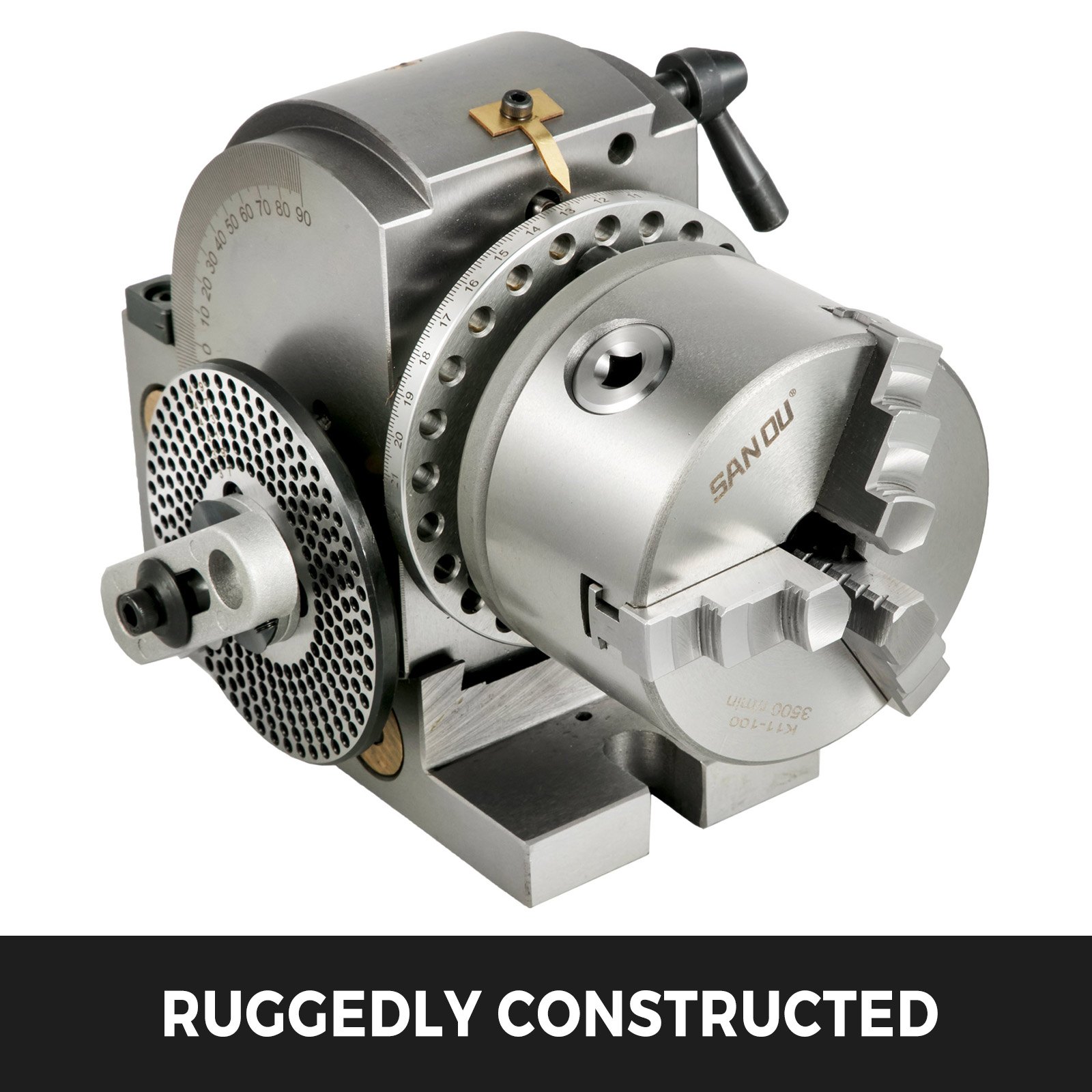

Robust construction
Robust, hardened and ground worm gear. Reduction ratio: 1:40.

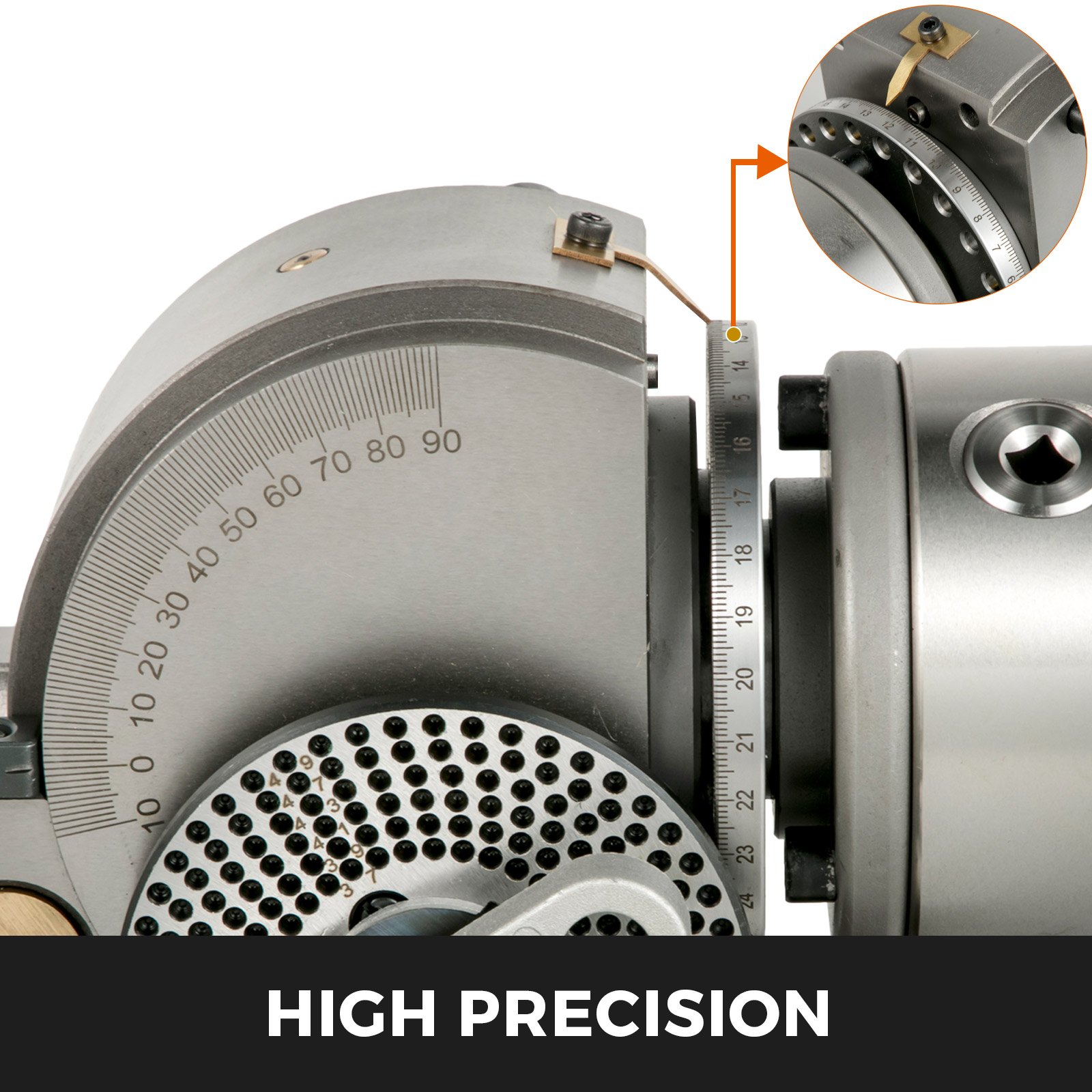

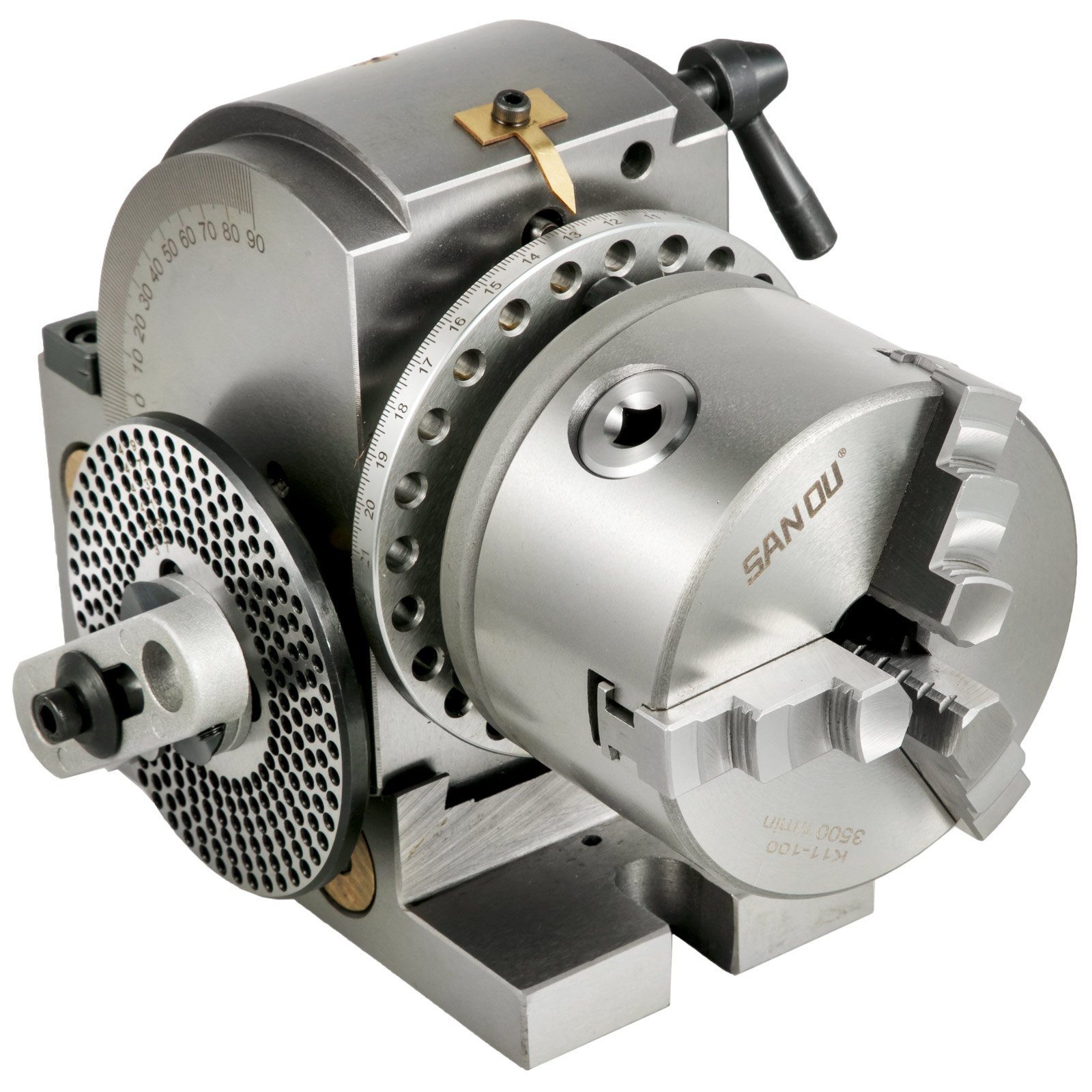

High precision
Equipped with a rotary table and an indexing chuck, two scales with precise markings help you to set the angle more accurately.

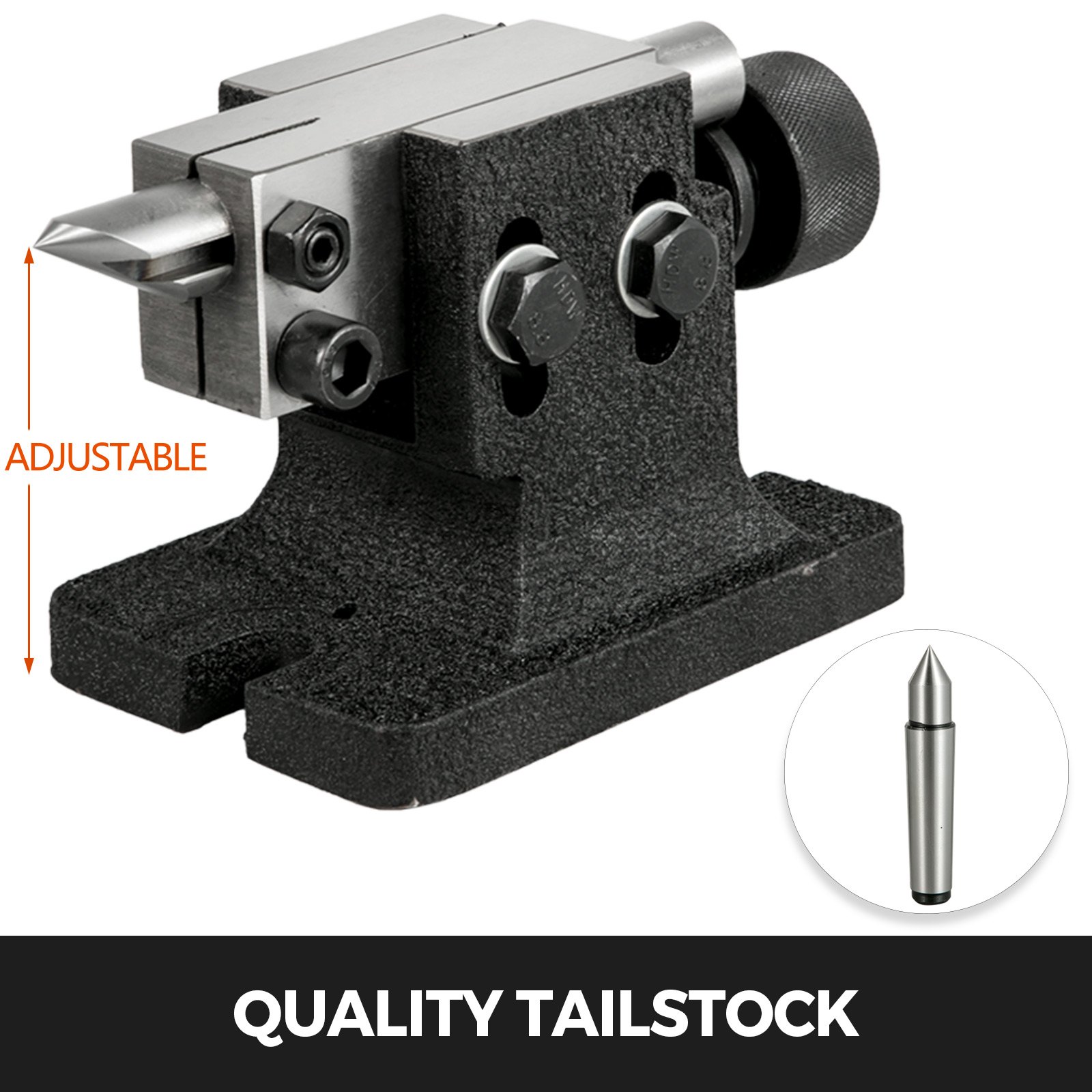

High-quality tailstock
Ball bearing precision, smooth rotation. Plus, an extra dead center position for free.

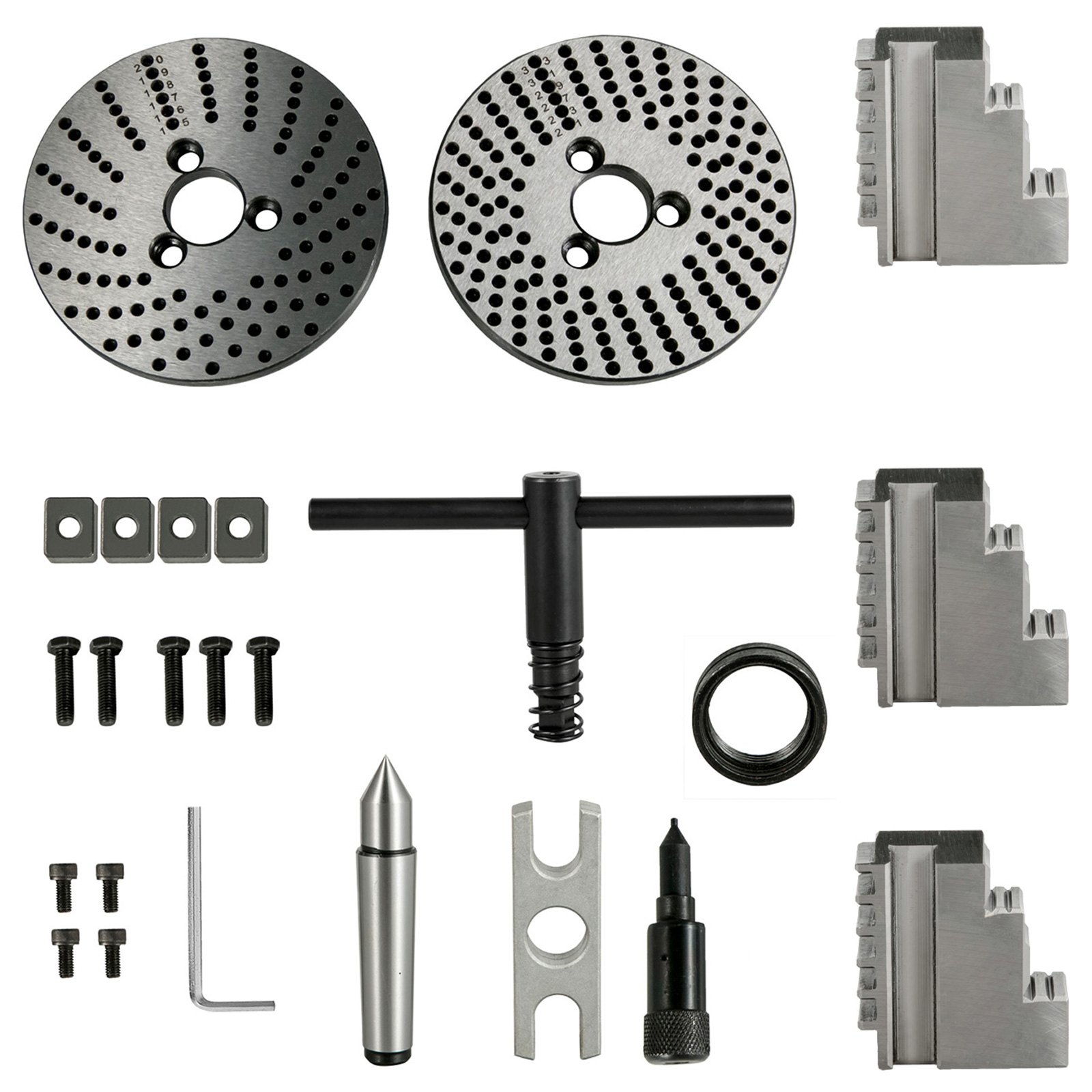

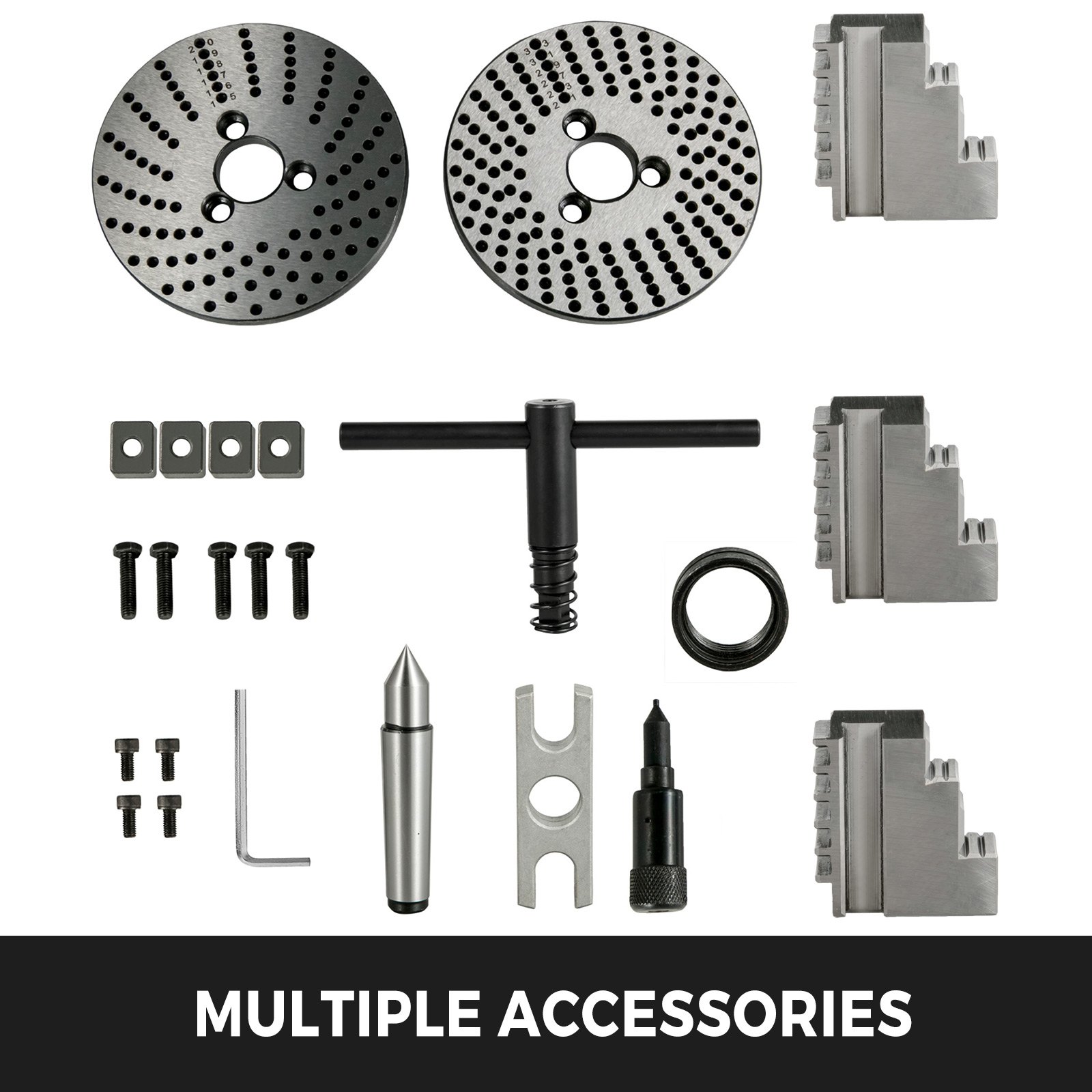

Wide range of accessories
Three division plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380. A range of tools provides additional assistance.

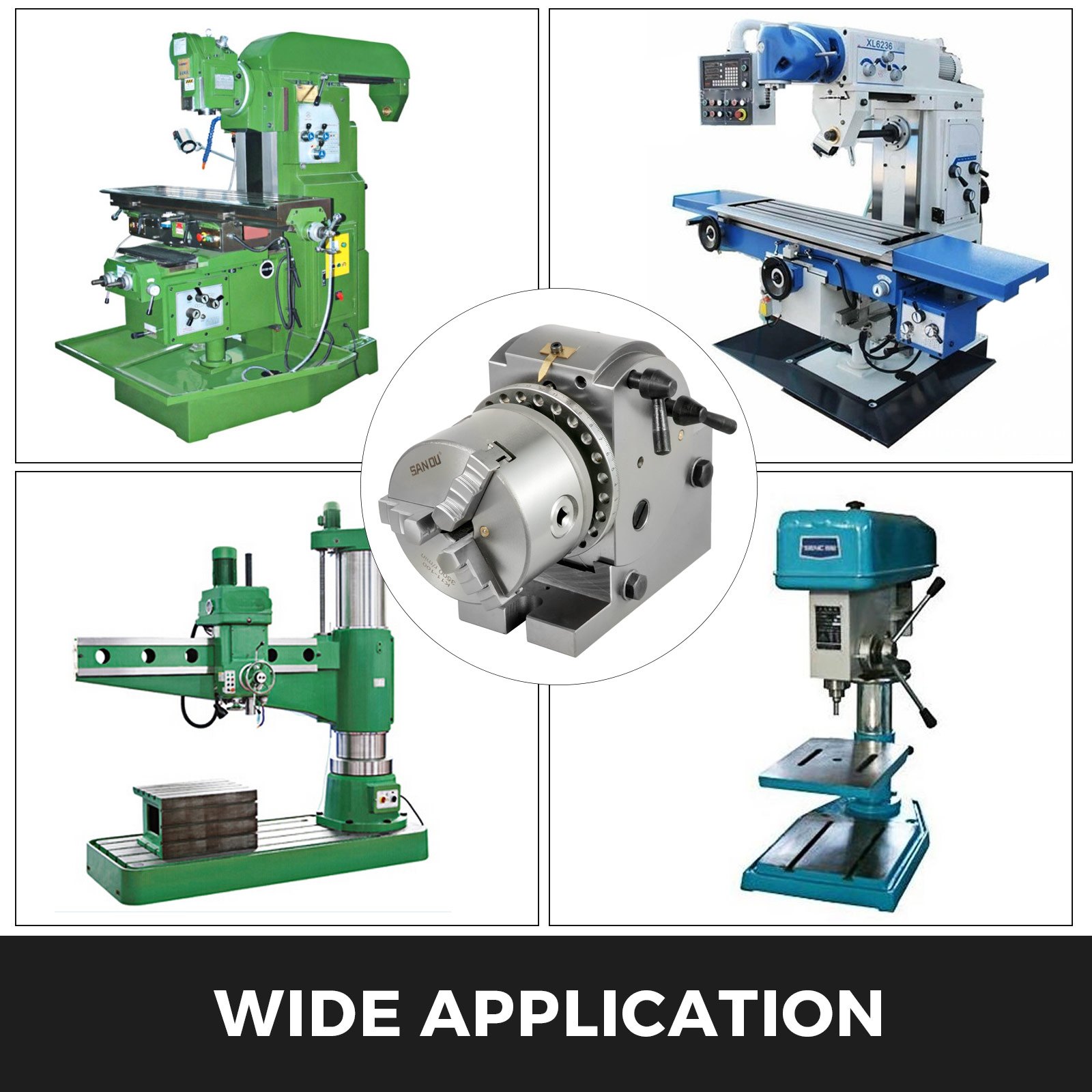

Wide application
Ideal choice for various applications in milling, grinding and drilling.

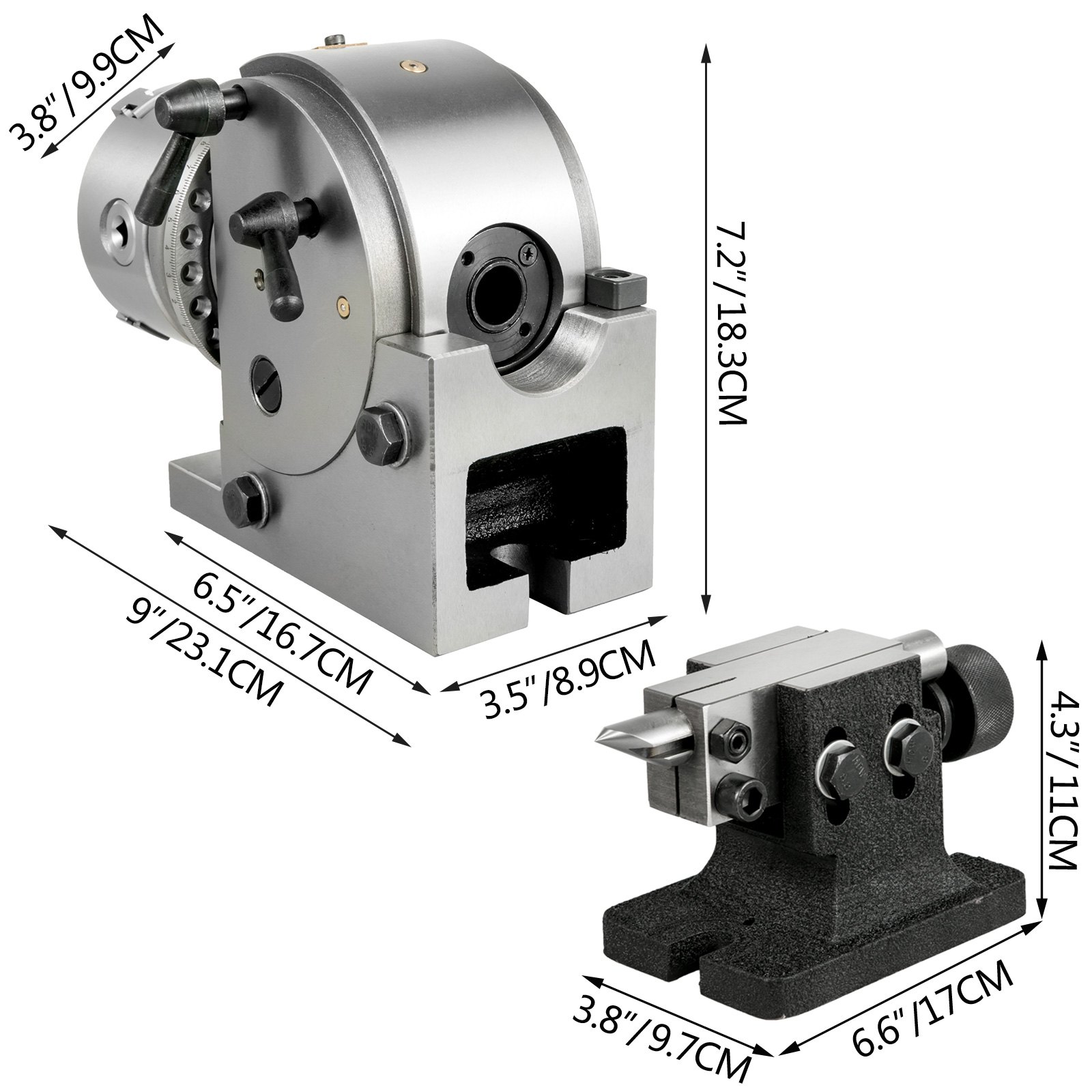

- Chuck diameter: 4"/100mm
- Tip height: 4"/100mm
- Material: HT200
- Gear ratio: 1:40
- Tailstock: MT2

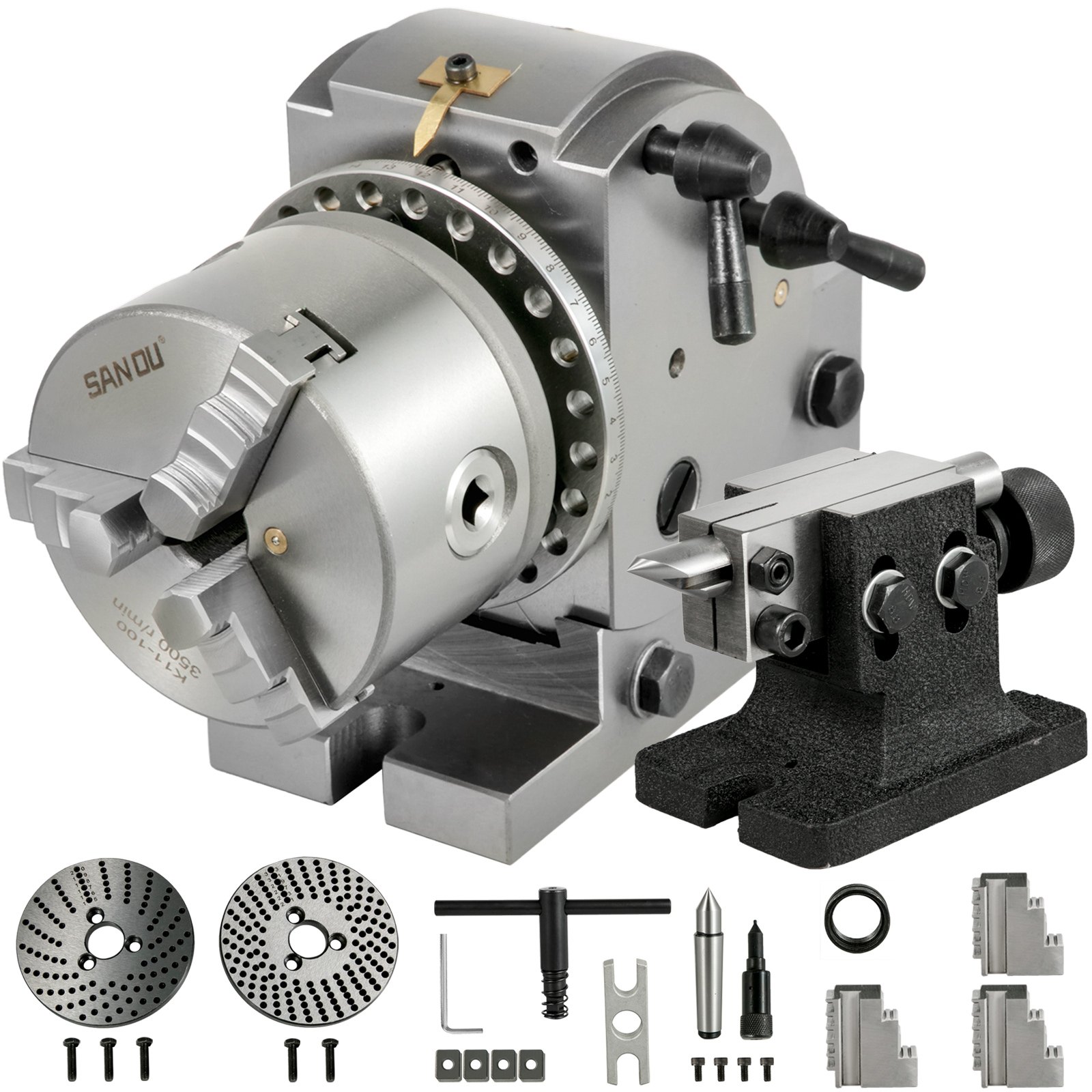

- 1 x Dividing head
- 1 x tailstock
- Some accessories
100mm dividing head for milling machine
The semi-universal dividing head is a simple indexing center and can be used for direct and indirect indexing. It is designed to complement gear, face, and flute machining, and can accommodate other accessories. The rotary indexing table allows for 24 quick-indexing holes with 2, 3, 4, 6, 8, 12, and 24 divisions.
- Adjustable angle
- Solid construction
- Clear & precise
- Adjustable MT2 tailstock
- Rich partial head set
Adjustable from 0° to 90°
You can adjust the angle (0-90 degrees) as needed using the handle on this vertical and horizontal milling machine with a spindle chuck for lathes. Center height: 4"/100mm.
Robust construction
Robust, hardened and ground worm gear. Reduction ratio: 1:40.
High precision
Equipped with a rotary table and an indexing chuck, two scales with precise markings help you to set the angle more accurately.
High-quality tailstock
Ball bearing precision, smooth rotation. Plus, an extra dead center position for free.
Wide range of accessories
Three division plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380. A range of tools provides additional assistance.
Wide application
Ideal choice for various applications in milling, grinding and drilling.
- 1 x Dividing head
- 1 x tailstock
- Some accessories
- Chuck diameter: 4"/100mm
- Tip height: 4"/100mm
- Material: HT200
- Gear ratio: 1:40
- Tailstock: MT2
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (4)
Wie sind die Verpackungsmaße?
Die Verpackungsgröße beträgt 16,54 * 9,65 * 9,25 inch.
By vevor
Helpful
(
0
)
Verstehe die Beschreibung nicht:
3 zusätzliche kostenlose Backen für 4" Spannfutter.
Ist ein dreibackenfutter zusätzlich dabei?
Drei Backen sind auf der Maschine installiert, mit zusätzlichen drei Backen.
By vevor
Helpful
(
0
)
Was wiegt den der Teilapparat?
Das Gewicht des Produkts beträgt 19,36 kg.
By vevor
Helpful
(
0
)
Hallo,
mich würde interessieren, ob das Dreibackenfutter mit zum Lieferung gehört.
Danke,
A. Schittenhelm
Ja, inklusive 3-Backen-Futter.
