Features & Details
- 【PREMIUM QUALITY】 - The stereo microscope features 3.5x to 90x magnification, including 0.5x and 2.0x lenses and WF10x/20 eyepieces. All-optical glass lenses produce sharp and clear stereo images with excellent contrast and vivid colors.

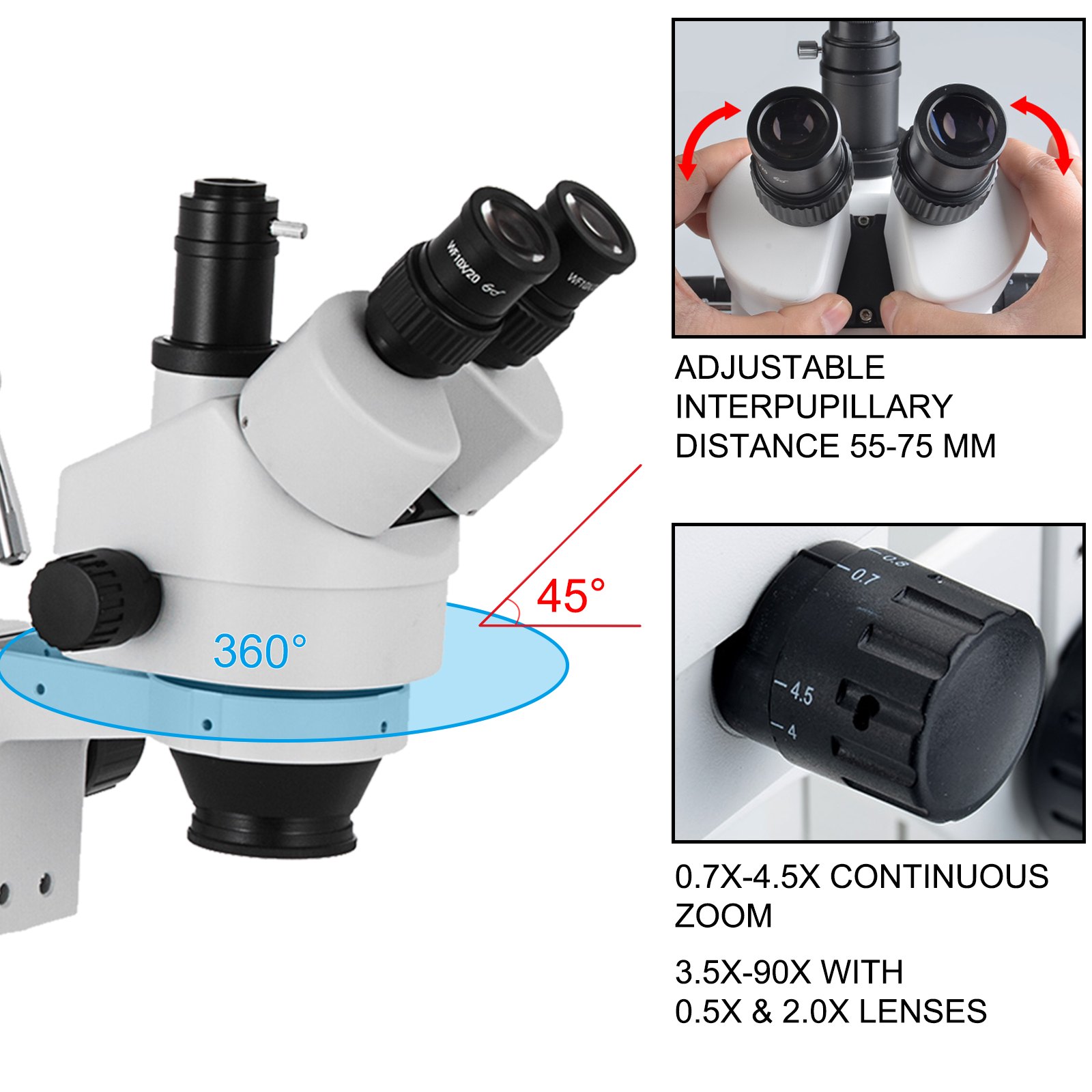

- 【VARIOUS SETTINGS】 - This digital microscope features a 45-degree tilting and 360-degree swiveling head with adjustable interpupillary distance and diopters. The fine and coarse focus adjustment knobs cater to different needs.
- 【TRINOCULAR PORT】 - Our trinocular stereo zoom microscope features a top expansion port for connecting a camera or display. You can view the sample image or live video on a larger screen with more people.

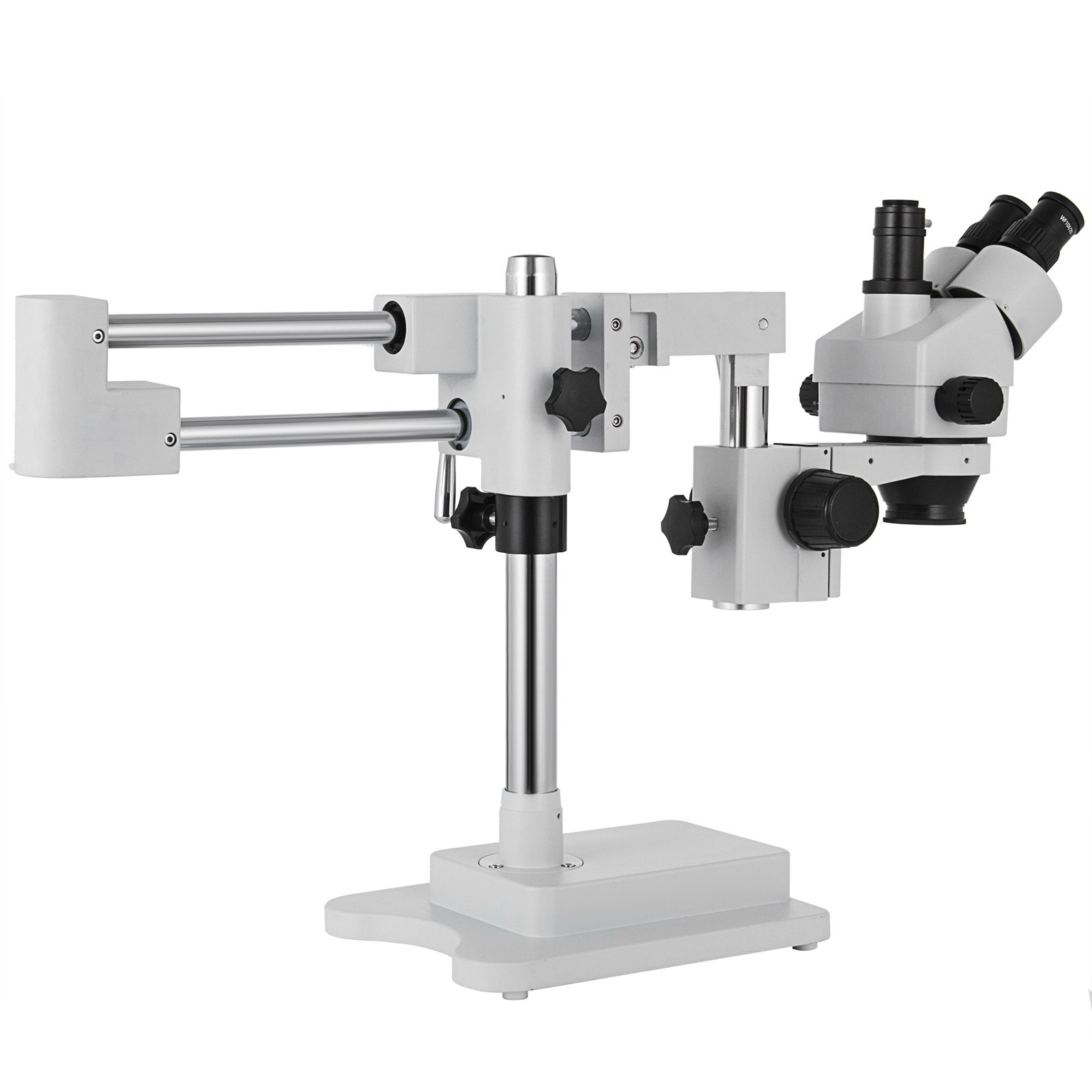

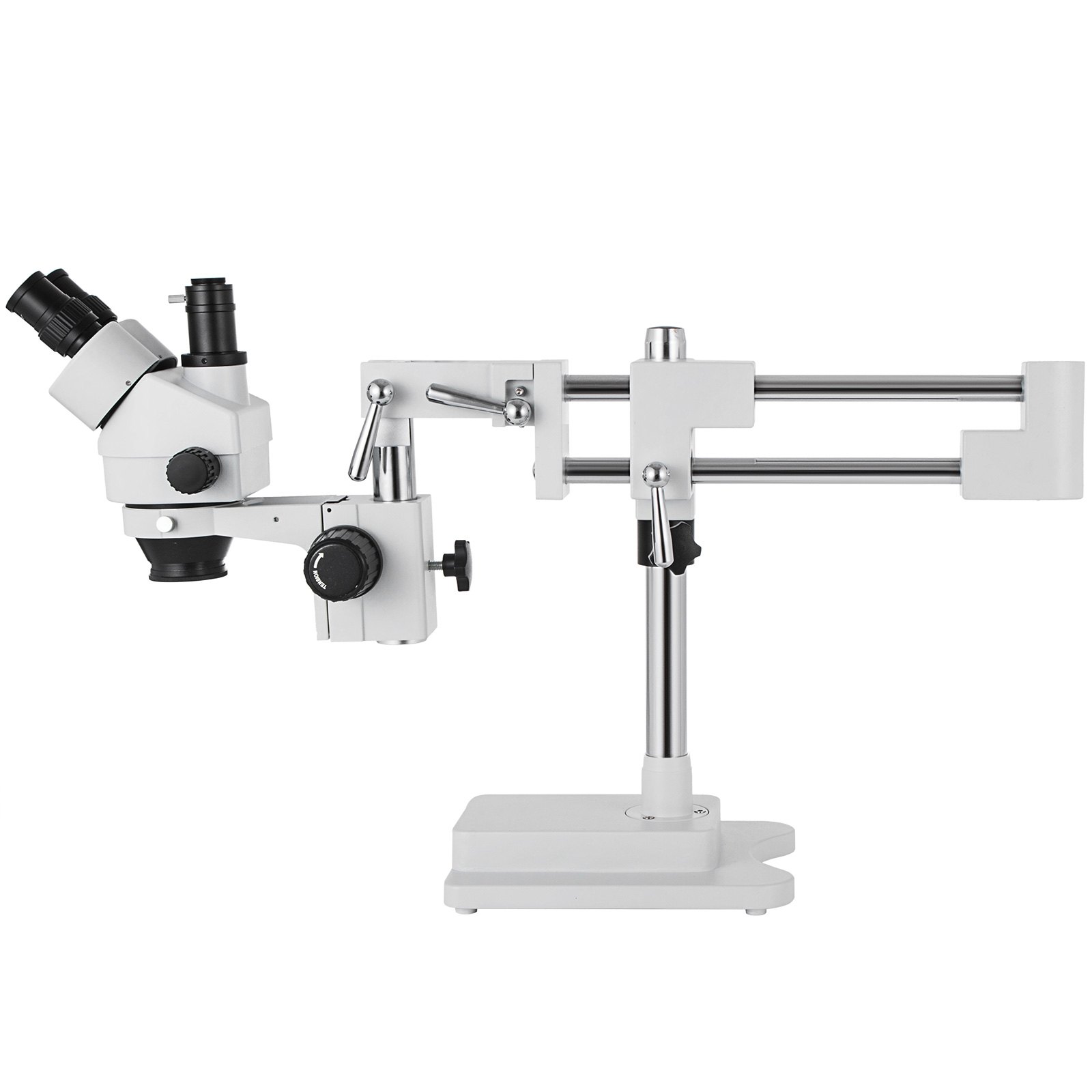

- 【DOUBLE-ARM EXTENSION】 - The trinocular stereo zoom microscope is equipped with a double-arm extension arm, allowing a working distance of up to 20 cm. It can be easily adjusted forward/backward and up/down to cover a large working area.
- 【WIDE APPLICATION】 - This stereo zoom microscope is widely used for observing insects, plants, stones, stamps, jewelry, soldered parts, microelectronic components, etc. It is an ideal tool for watchmakers, jewelers, engravers, mold makers, philatelists, and students.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 30 reviews
Reviews 4.9
All reviews are from verified purchases
See all 30 reviews
About this item
Product specification
- Material
- Al-Zn steel + optical lenses
- Trinocular head
- 360 degrees rotatable + 45 degrees tilted
- Eye port diameter
- 30 mm
- Eyepieces
- WF10X / 20 mm
- Magnification range
- 3.5X-90X
- Target
- 0.7X-4.5X
- Lens
- 0.5X and 2.0X
- Zoom range
- 26
- Diopter adjustment
- ± 5dp
- Pupil spacing
- 55-75 mm / 2.17-2.95 inches
- Field of view
- 2.5-65 mm
- Working distance
- 20 cm (adjustable)
- Weight
- 24.5 kg
Description

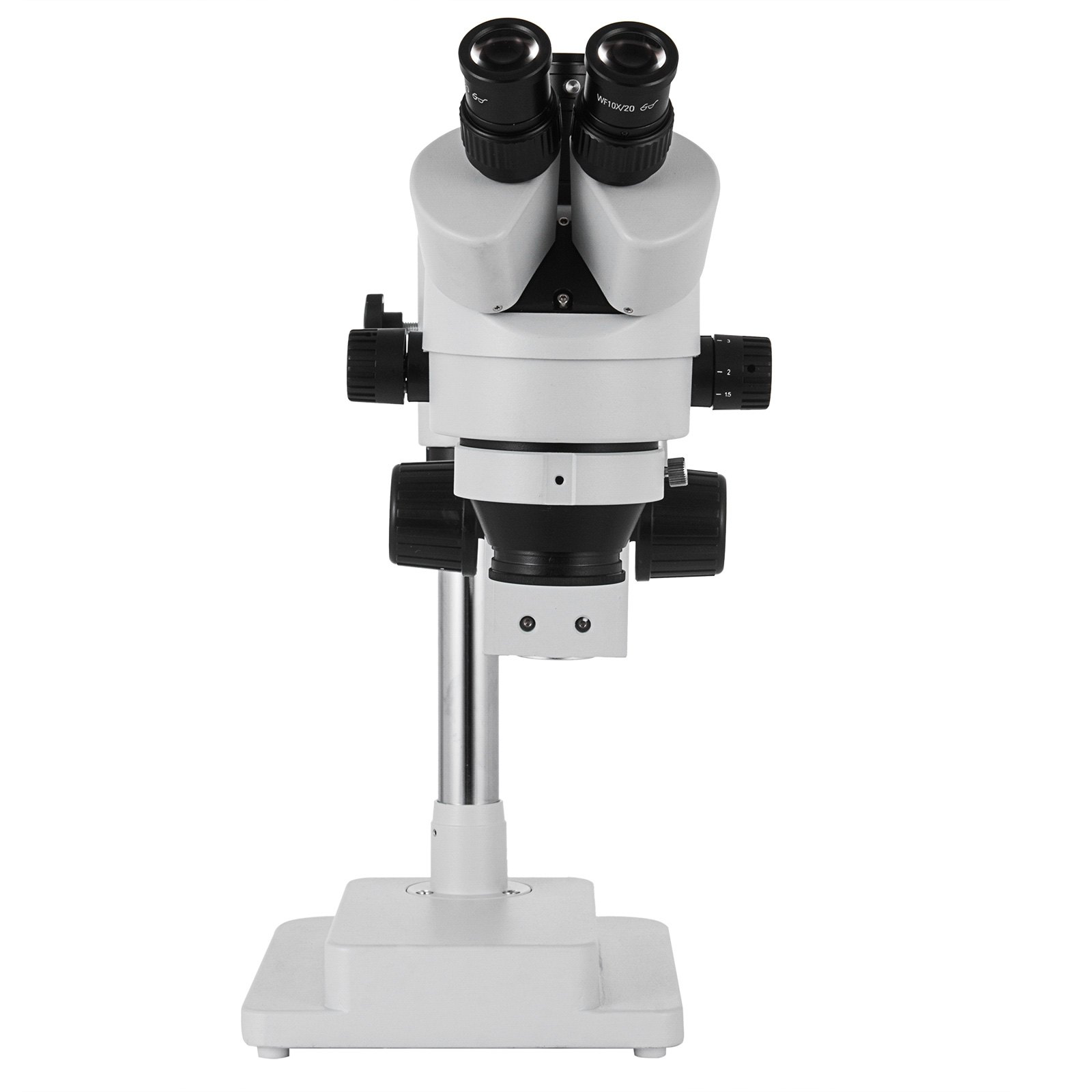

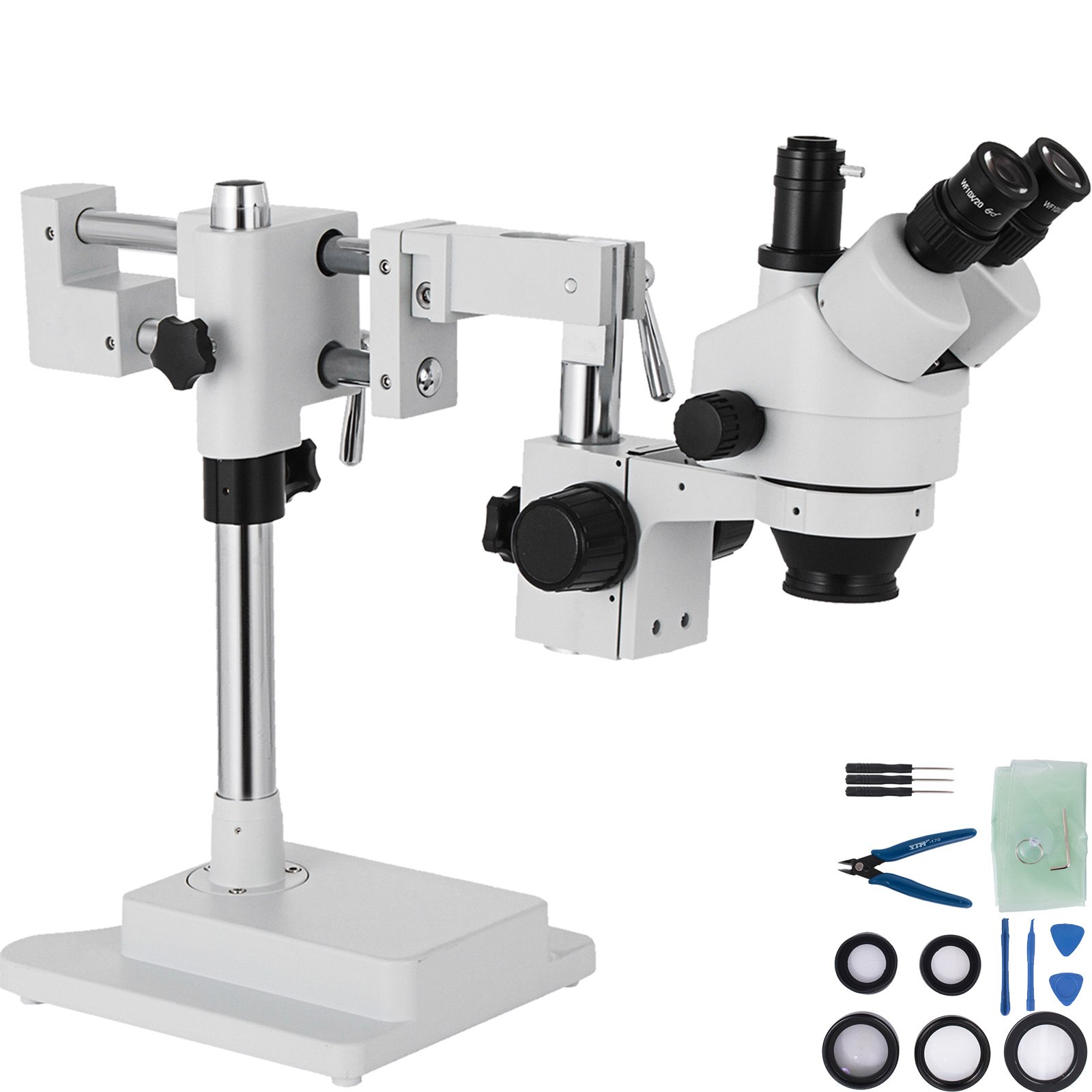

3.5X-90X trinocular stereo microscope
This product is a professional trinocular stereomicroscope specifically designed for microscopy. When used with the included 0.5x and 2.0x objectives, it offers a 3.5x to 90x zoom range. The digital microscope is adjustable for working distance, interpupillary distance, and diopters. It is commonly used for circuit board repair, insect observation, jewelry identification, and other applications.
- Premium quality
- Various adjustments
- Trinocular Port
- Double-arm boom

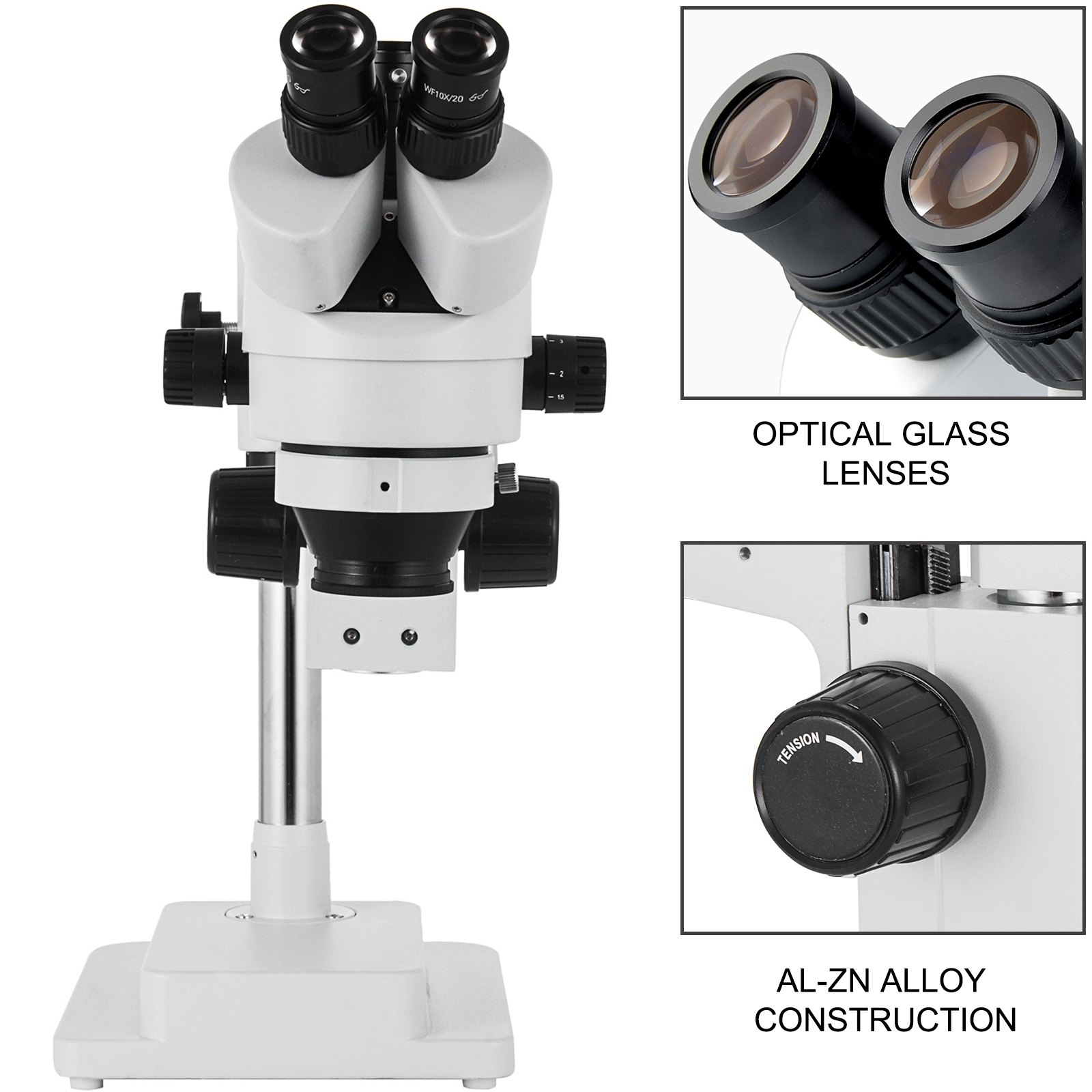

Al-Zn alloy & optical lenses
The stereomicroscope consists of a robust Al-Zn alloy with high-strength and high-quality optical glass lenses that deliver a high-resolution image.
Binocular stereo imaging
This microscope was developed with binocular stereo imaging technology and supports 3.5X-90X stepless zoom and pupillary distance adjustment.

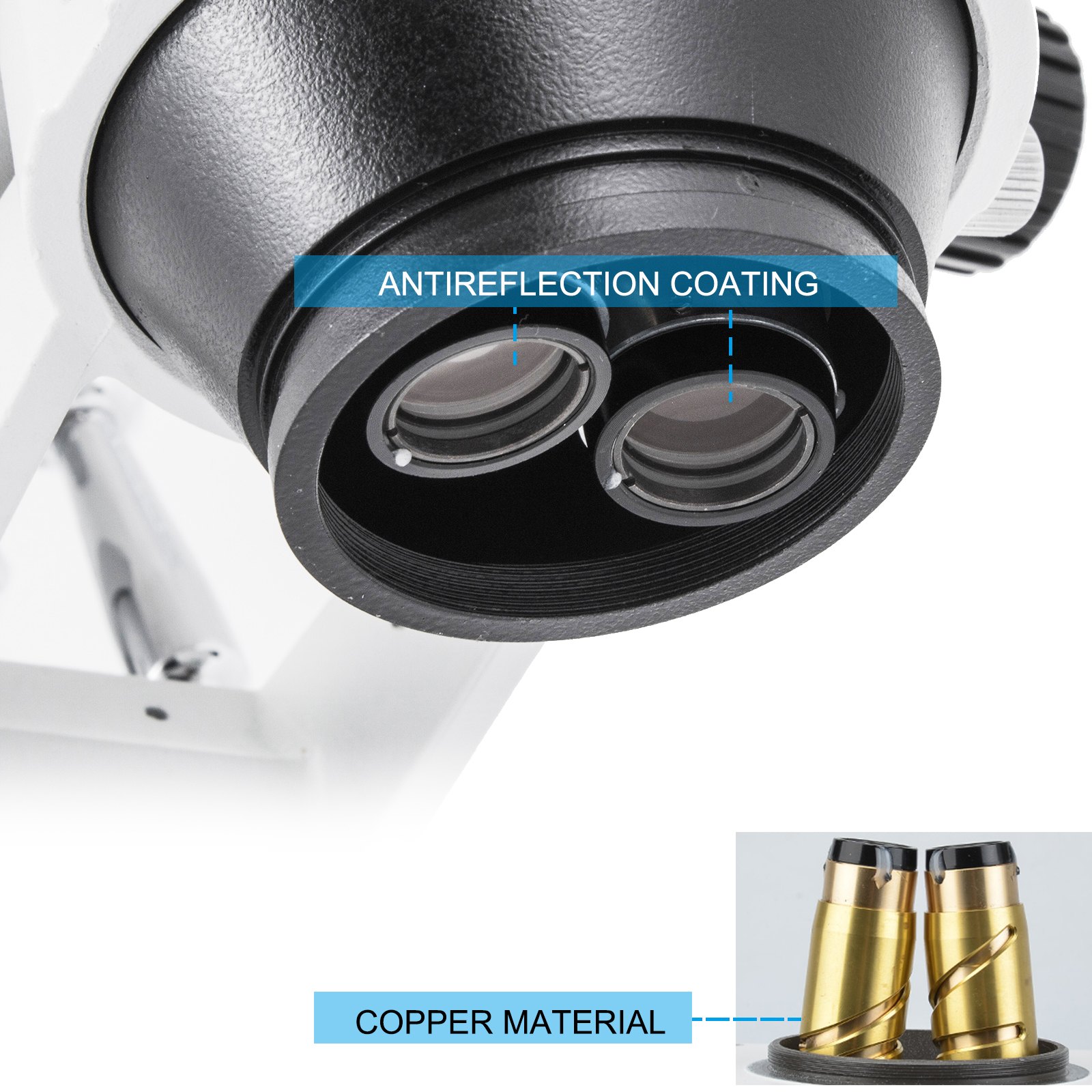

Large aperture lenses
The objective lenses are made of pure copper material and coated with anti-reflective films, and are characterized by a large aperture and a bright field of view.

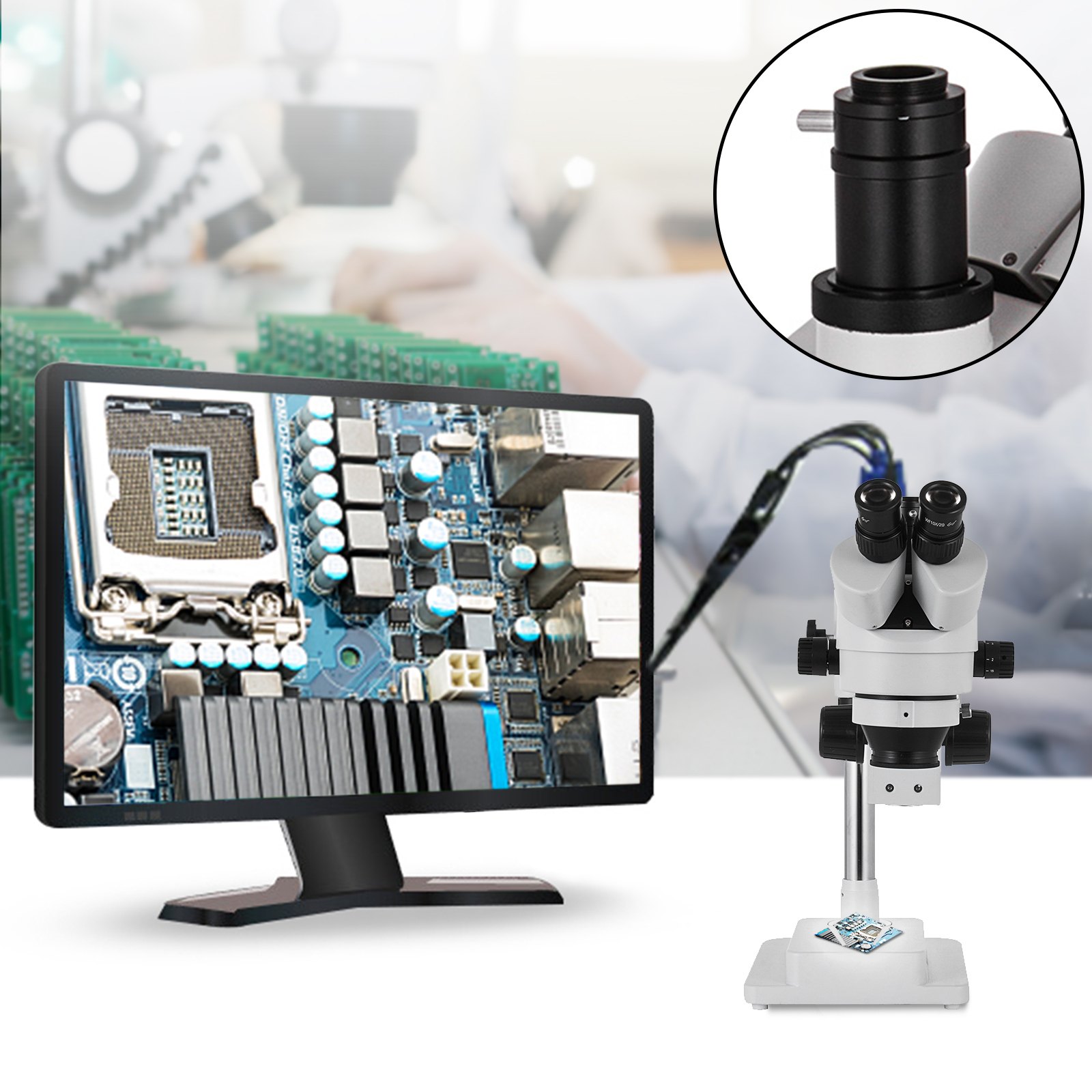

Supports camera connection
On the top side there is an expansion interface for connecting a camera, computer or LCD screen for a larger display and more accurate observation.

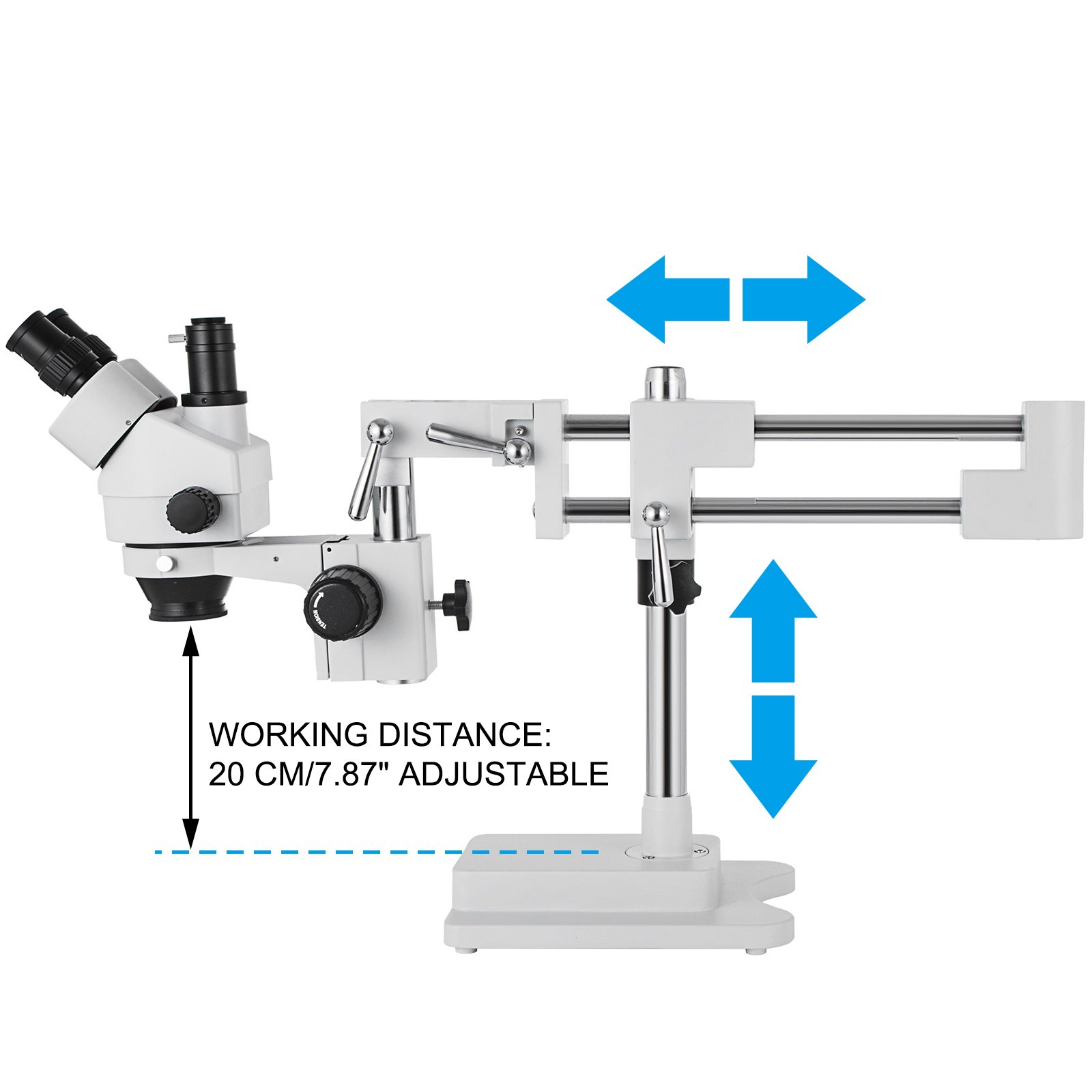

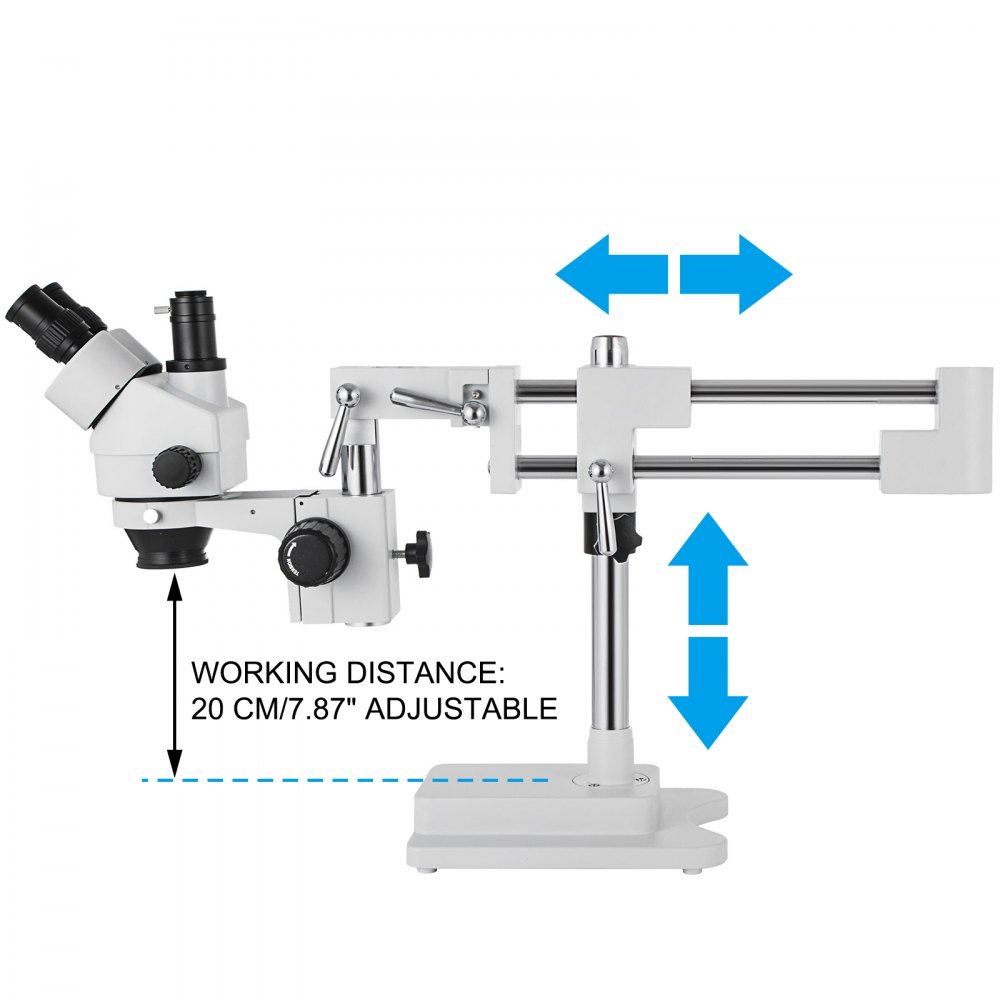

Adjustable boom stand
The stand is height-adjustable with a working distance of 20 cm/7.87 inches, and the boom can be moved forwards/backwards to cover a large working area.
Extensively used
This digital microscope kit is widely used in the electrical industry, insect observation, scientific research, jewelry identification, and the textile industry.
- Material: Al-Zn steel + optical lenses
- Trinocular head: 360 degrees rotatable + 45 degrees tilted
- Eye port diameter: 30 mm
- Eyepieces: WF10X / 20 mm
- Magnification range: 3.5X-90X
- Target: 0.7X-4.5X
- Lens: 0.5X and 2.0X
- Zoom range: 26:1
- Diopter adjustment: ± 5dp
- Pupil spacing: 55-75 mm / 2.17-2.95 inches
- Field of view: 2.5-65 mm
- Working distance: 20 cm (adjustable)
- Weight: 24.5 kg

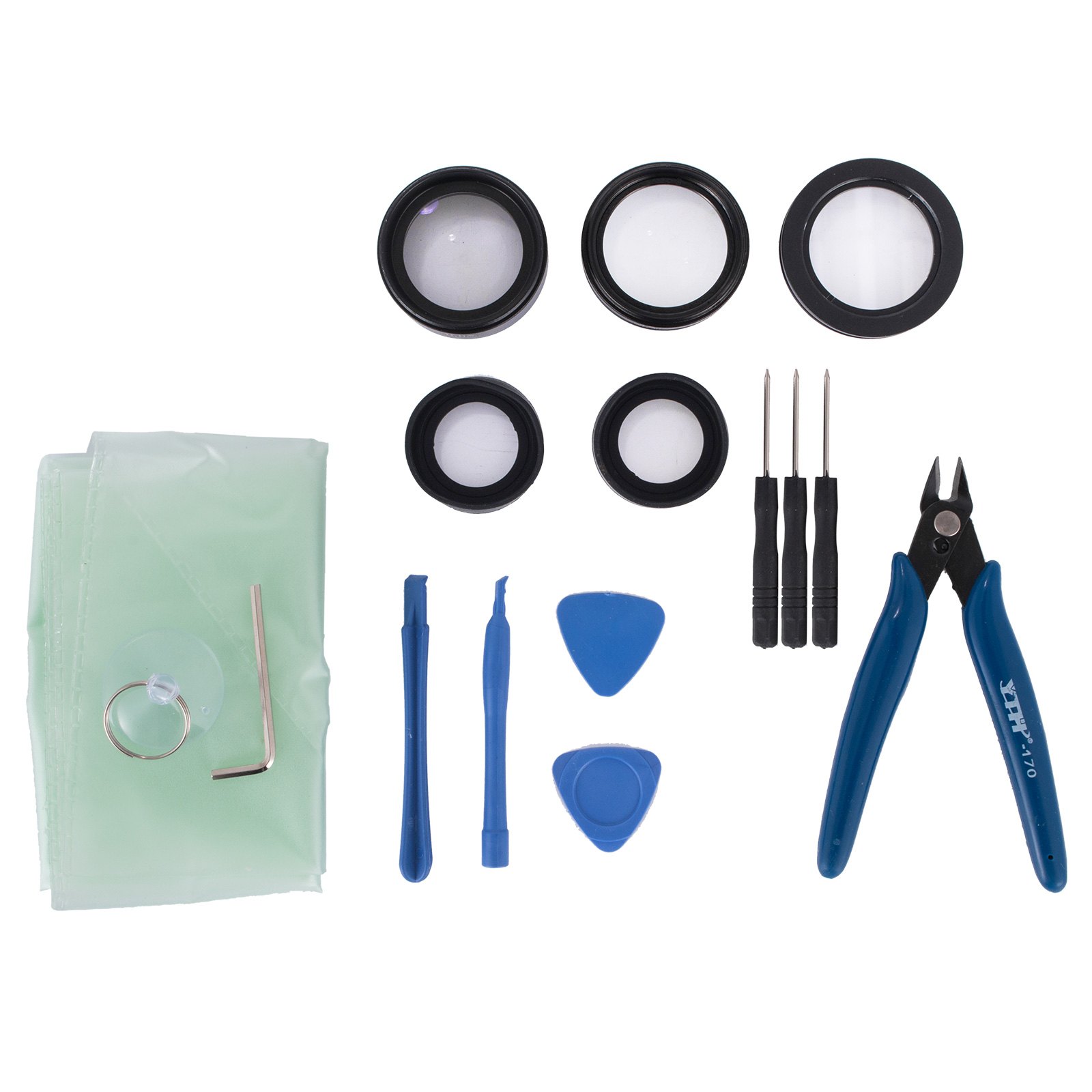

- 1 x stereo microscope (double arm boom)
- 1 x Telephone maintenance repair kit
- 1 x wrench
- 1 x dustproof cover sheet
- 1 pair of cutting pliers
- 5 x protective lens covers
- 1 x User manual
3.5X-90X trinocular stereo microscope
This product is a professional trinocular stereomicroscope specifically designed for microscopy. When used with the included 0.5x and 2.0x objectives, it offers a 3.5x to 90x zoom range. The digital microscope is adjustable for working distance, interpupillary distance, and diopters. It is commonly used for circuit board repair, insect observation, jewelry identification, and other applications.
- Premium quality
- Various adjustments
- Trinocular Port
- Double-arm boom
Al-Zn alloy & optical lenses
The stereomicroscope consists of a robust Al-Zn alloy with high-strength and high-quality optical glass lenses that deliver a high-resolution image.
Binocular stereo imaging
This microscope was developed with binocular stereo imaging technology and supports 3.5X-90X stepless zoom and pupillary distance adjustment.
Large aperture lenses
The objective lenses are made of pure copper material and coated with anti-reflective films, and are characterized by a large aperture and a bright field of view.
Supports camera connection
On the top side there is an expansion interface for connecting a camera, computer or LCD screen for a larger display and more accurate observation.
Adjustable boom stand
The stand is height-adjustable with a working distance of 20 cm/7.87 inches, and the boom can be moved forwards/backwards to cover a large working area.
Extensively used
This digital microscope kit is widely used in the electrical industry, insect observation, scientific research, jewelry identification, and the textile industry.
- 1 x stereo microscope (double arm boom)
- 1 x Telephone maintenance repair kit
- 1 x wrench
- 1 x dustproof cover sheet
- 1 pair of cutting pliers
- 5 x protective lens covers
- 1 x User manual
- Material: Al-Zn steel + optical lenses
- Trinocular head: 360 degrees rotatable + 45 degrees tilted
- Eye port diameter: 30 mm
- Eyepieces: WF10X / 20 mm
- Magnification range: 3.5X-90X
- Target: 0.7X-4.5X
- Lens: 0.5X and 2.0X
- Zoom range: 26:1
- Diopter adjustment: ± 5dp
- Pupil spacing: 55-75 mm / 2.17-2.95 inches
- Field of view: 2.5-65 mm
- Working distance: 20 cm (adjustable)
- Weight: 24.5 kg
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (6)
Hallo, ich hätte ein Frage, kann man bei Ihnen auch eine Kamera dafür bestellen und Licht, würde es sehr gerne als Komplet bestellen wollen.
Mit freundlichen Grüßen
Ivica
Bitte suchen Sie sie auf unserer offiziellen Website.
By vevor
Helpful
(
54
)
Dear Sir or Madam,
I have not found any rubber protection for spectacle wearers on the eyepiece with the microscope? And another question sind the extensions for a camera as shown. Why don't you offer a camera and lighting? When will the next microscopes arrive? Thanks for the info
Have you a phonenummber in Germany
1.Bitte prüfen Sie den Packungsinhalt:
1 x Stereomikroskop (Doppelarmausleger)
1 x Telefonwartungs-Reparatursatz
1 x Schraubenschlüssel
1 x staubdichtes Deckblatt
1 x Paar Schneidzangen
5 x Schutzlinsenabdeckungen
1 x Benutzerhandbuch
2.Es wird Ende Mai erhältlich sein.
3.Unsere offizielle Telefonnummer ist 0049-896-282-4112
By vevor
Helpful
(
1
)
what is the diameter of the bracket (of the stand / holding the microscope head) 77mm? 85mm?
Hallo, sein Durchmesser beträgt 76 mm.
By vevor
Helpful
(
0
)
Can you tell me when the item will be back in stock?
The product will be in stock soon. It is recommended that you add it to your wish list. You will be automatically reminded when the product arrives.
By vevor
Helpful
(
0
)
Beim Paketinhalt werden nicht angegeben:
2 x 10X Okulare
1 x 0,5-fache Barlow-Linse
1 x 2,0-fache Barlow-Linse
Werden diese mitgeliefert?
Ja, sie sind im Lieferumfang enthalten.
By vevor
Helpful
(
0
)
