Features & Details
- 【PREMIUM QUALITY】 - The stereo microscope features 3.5x to 90x magnification, including 0.5x and 2.0x lenses and WF10x/20 eyepieces. All-optical glass lenses produce sharp and clear stereo images with excellent contrast and vivid colors.

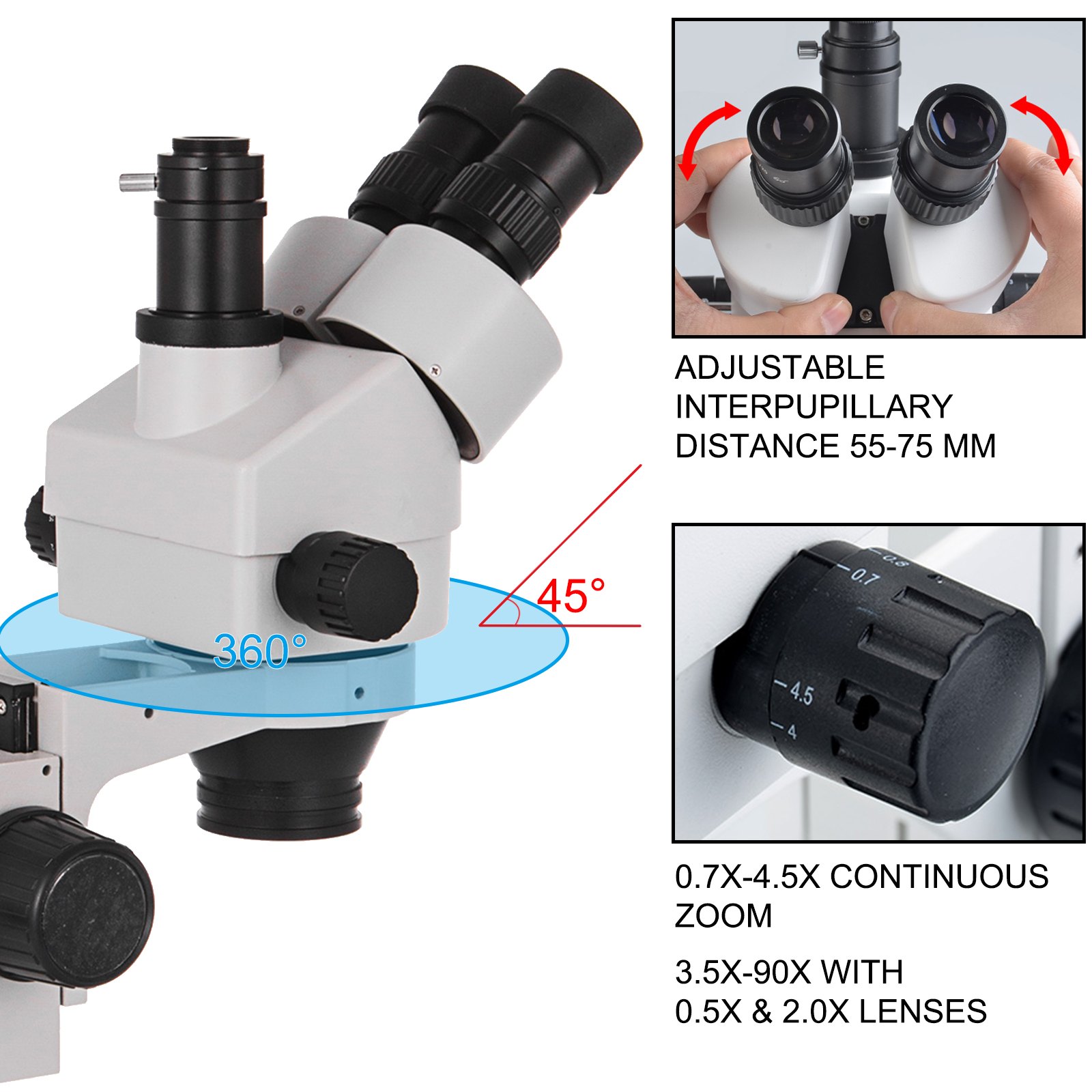

- 【VARIOUS SETTINGS】 - This digital microscope features a 45-degree tilting and 360-degree swiveling head with adjustable interpupillary distance and diopters. The fine and coarse focus adjustment knobs cater to different needs.
- 【TRINOCULAR PORT】 - Our trinocular stereo zoom microscope features a top expansion port for connecting a camera or display. You can view the sample image or live video on a larger screen with more people.
- 【LARGE WORKING DISTANCE】 - The trinocular stereo zoom microscope is equipped with a stable column stand that allows a working distance of up to 20 cm. It offers a 20 mm field of view for precise alignment and long-term observation.
- 【WIDE APPLICATION】 - This stereo zoom microscope is widely used for observing insects, plants, stones, stamps, jewelry, soldered parts, microelectronic components, etc. It is an ideal tool for watchmakers, jewelers, engravers, mold makers, philatelists, and students.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 30 reviews
Reviews 4.9
All reviews are from verified purchases
See all 30 reviews
About this item
Product specification
- Material
- Al-Zn steel + optical lenses
- Trinocular head
- 360-degree rotatable + 45-degree tiltable
- Eye port diameter
- 30 mm
- Eyepieces
- WF10X / 20 mm
- Magnification range
- 3.5X-90X
- Target
- 0.7X-4.5X
- Lens
- 0.5X and 2.0X
- Diopter adjustment
- ± 5dp
- Pupil spacing
- 55-75 mm
- Working distance
- 20 cm (adjustable)
- Stand dimensions
- 25 x 20 x 27 cm

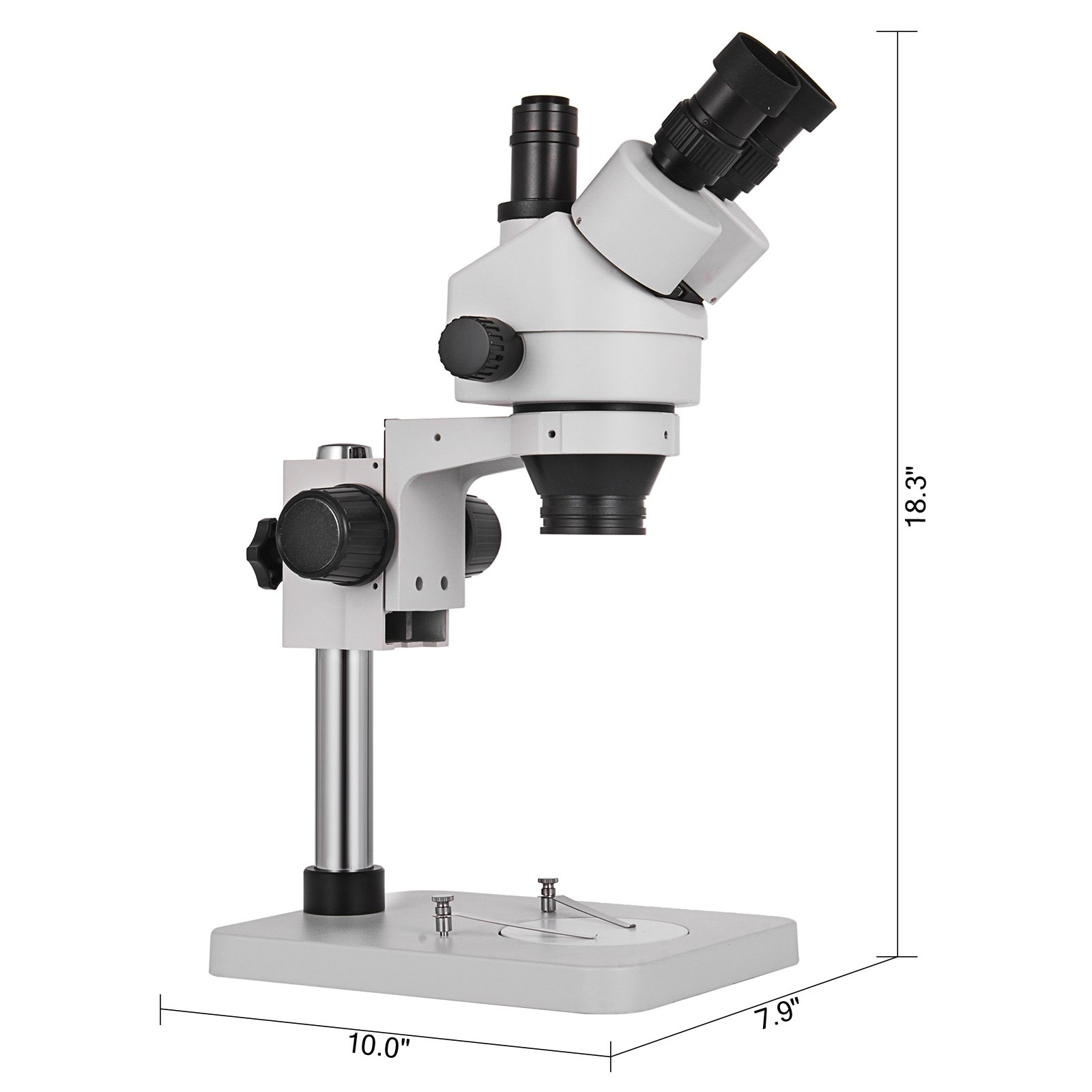

- Product size
- 25.4 x 20 x 46.5 cm
- Weight
- 6 kg
Description

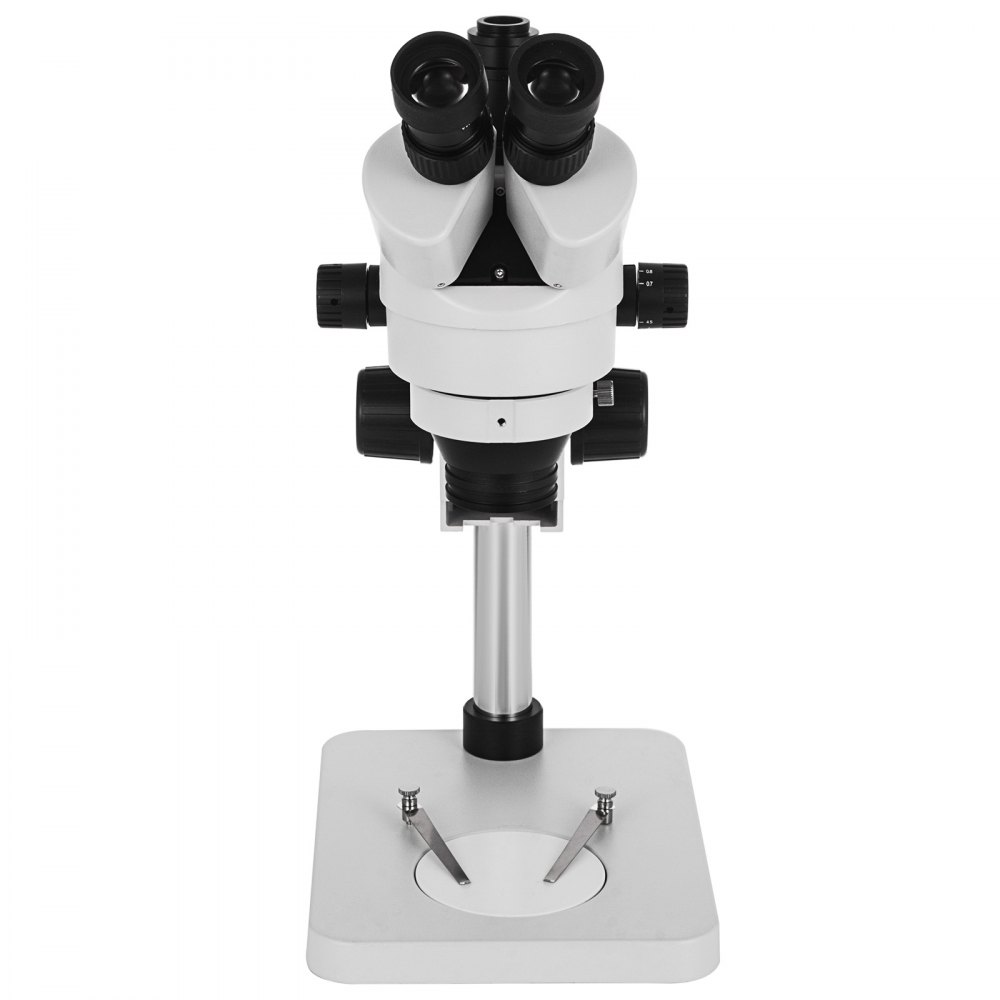

Trinocular stereo microscope 3.5X-90X
This product is a professional trinocular stereomicroscope specifically designed for microscopy. When used with the included 0.5x and 2.0x objectives, it offers a 3.5x to 90x zoom range. The digital microscope is adjustable for working distance, interpupillary distance, and diopters. It is commonly used for circuit board repair, insect observation, jewelry identification, and other applications.
- Premium quality
- Various adjustments
- Trinocular Port
- Large working distance

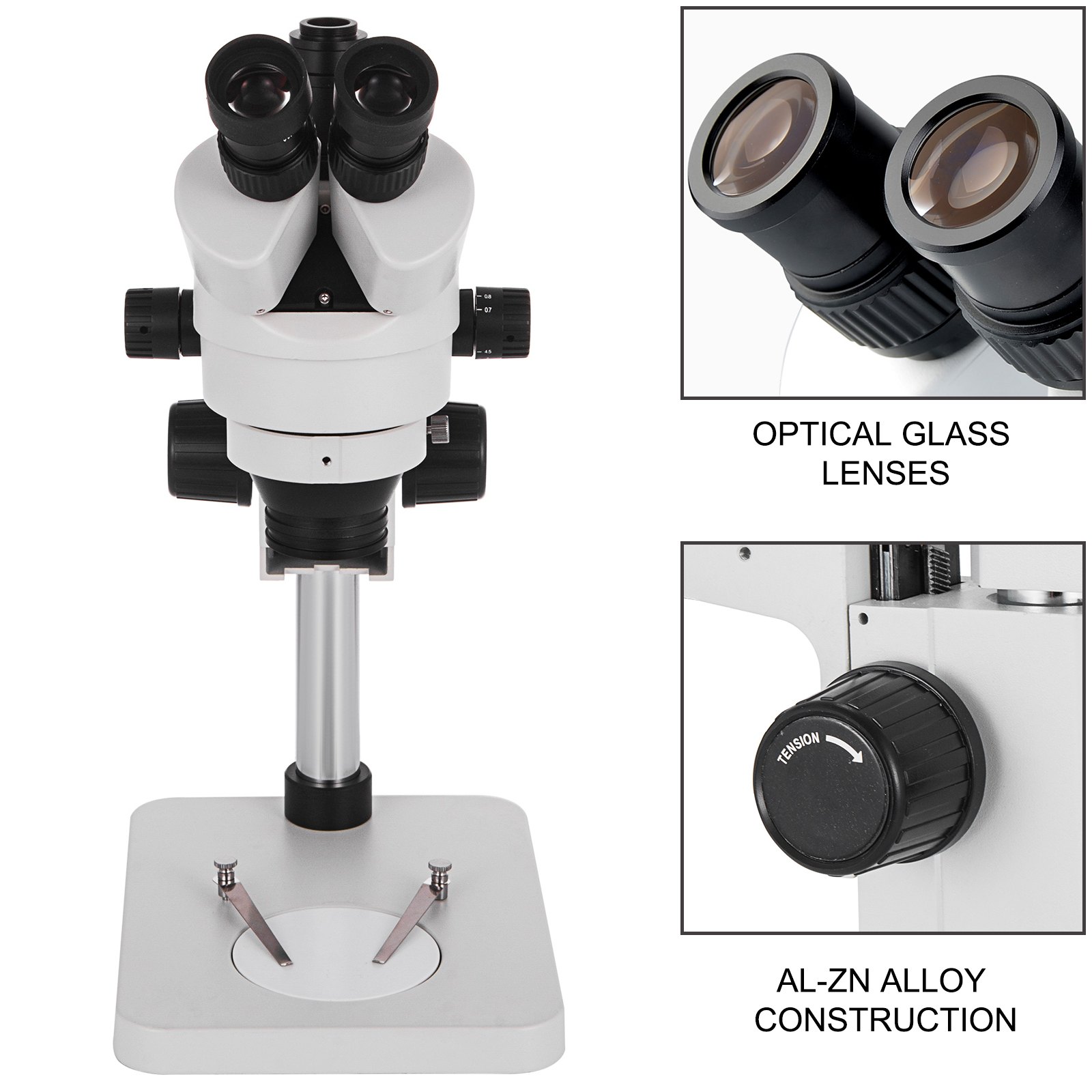

Al-Zn alloy & optical lenses
The stereomicroscope consists of a robust Al-Zn alloy with high-strength and high-quality optical glass lenses that deliver a high-resolution image.
Binocular stereo imaging
This microscope was developed with binocular stereo imaging technology and supports 3.5X-90X stepless zoom and pupillary distance adjustment.

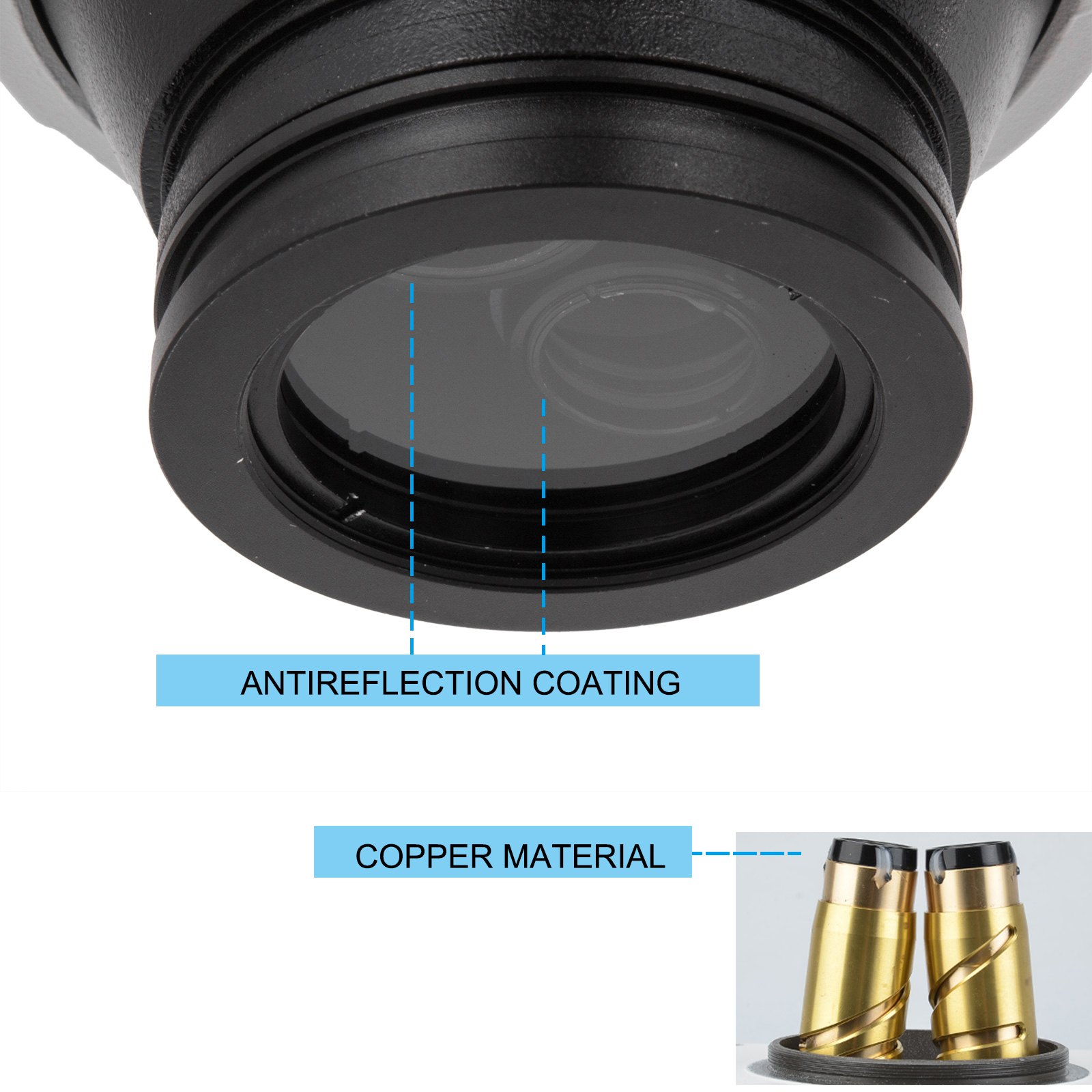

Large aperture lenses
The objective lenses are made of pure copper material and coated with anti-reflective films, and are characterized by a large aperture and a bright field of view.

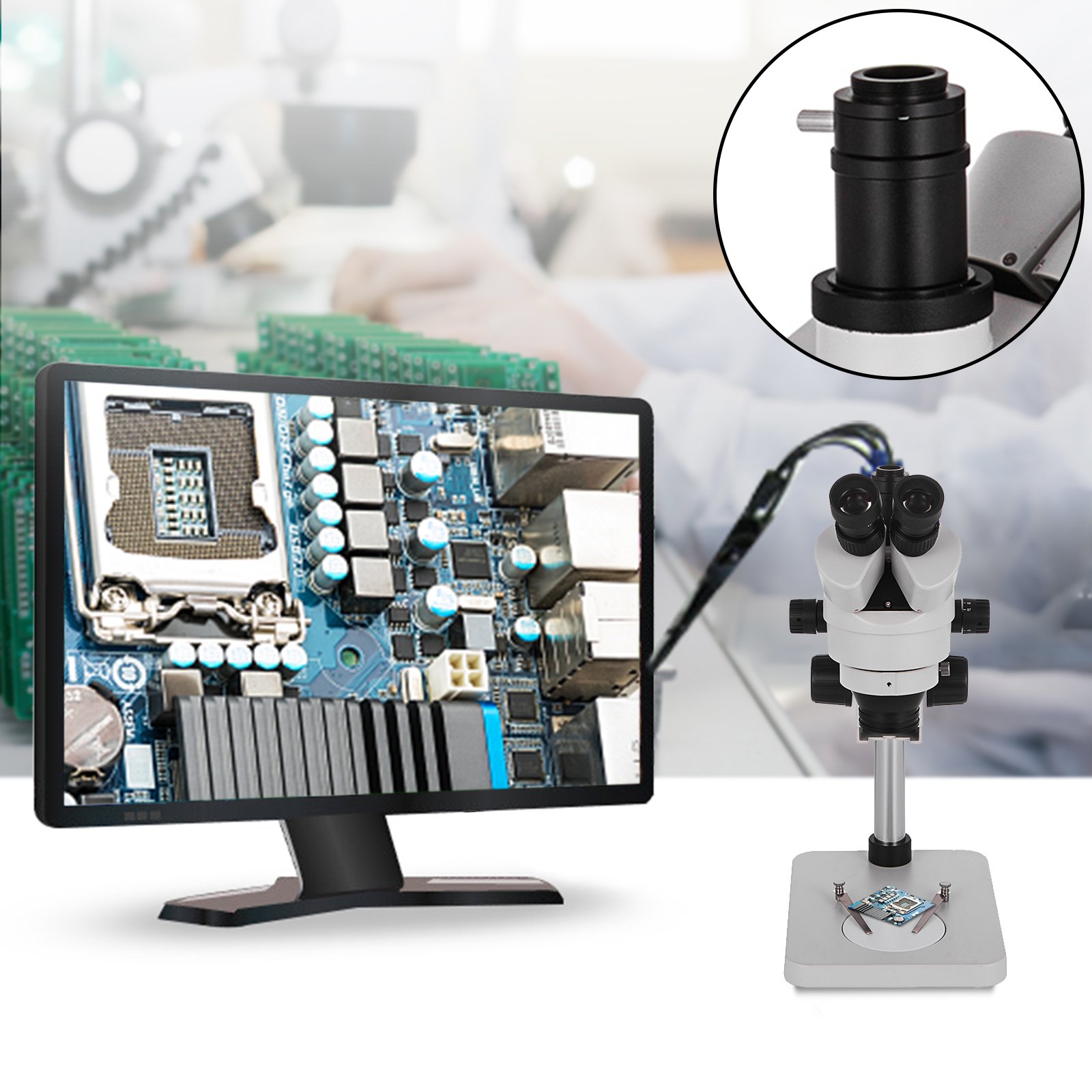

Supports camera connection
On the top side there is an expansion interface for connecting a camera, computer or LCD screen for a larger display and more accurate observation.

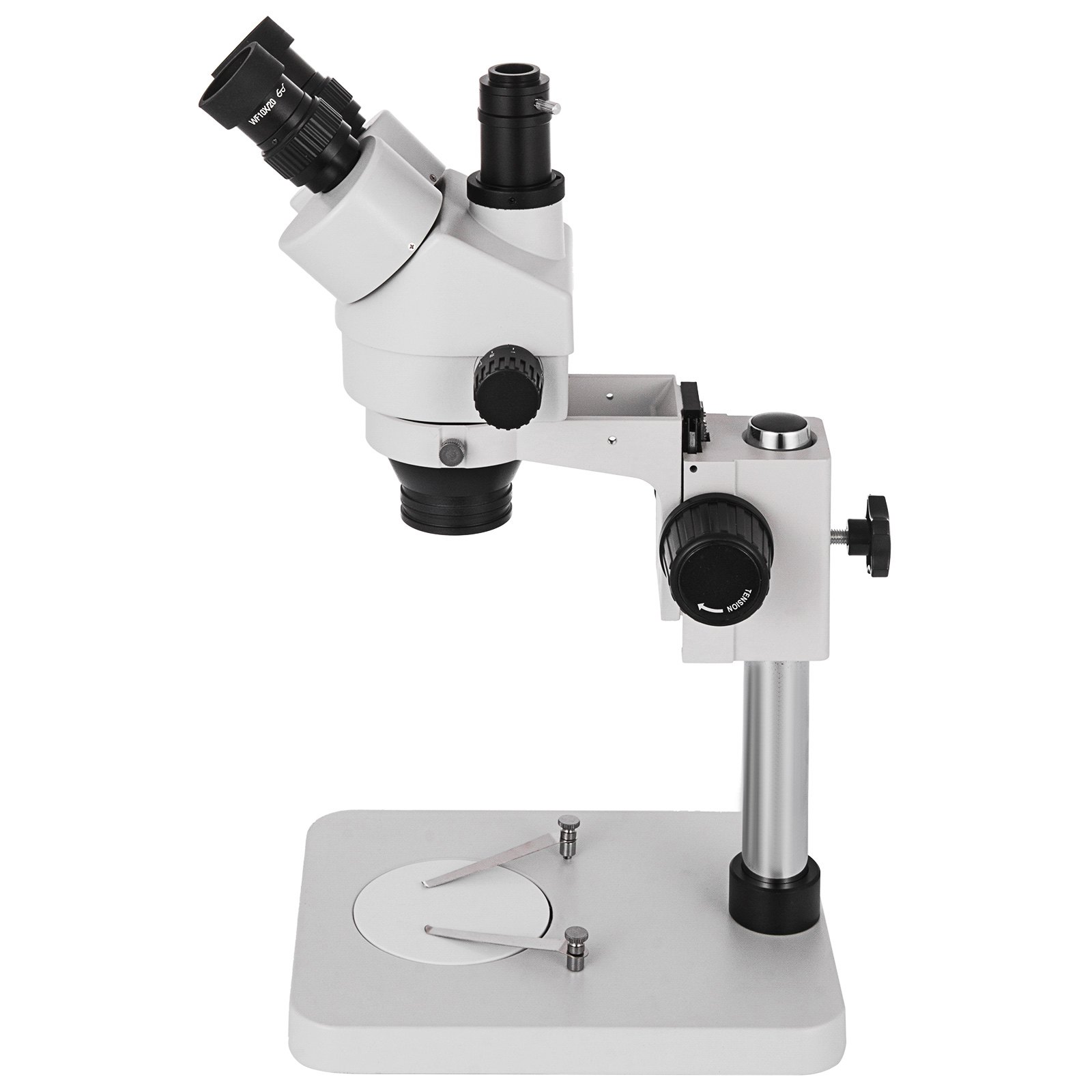

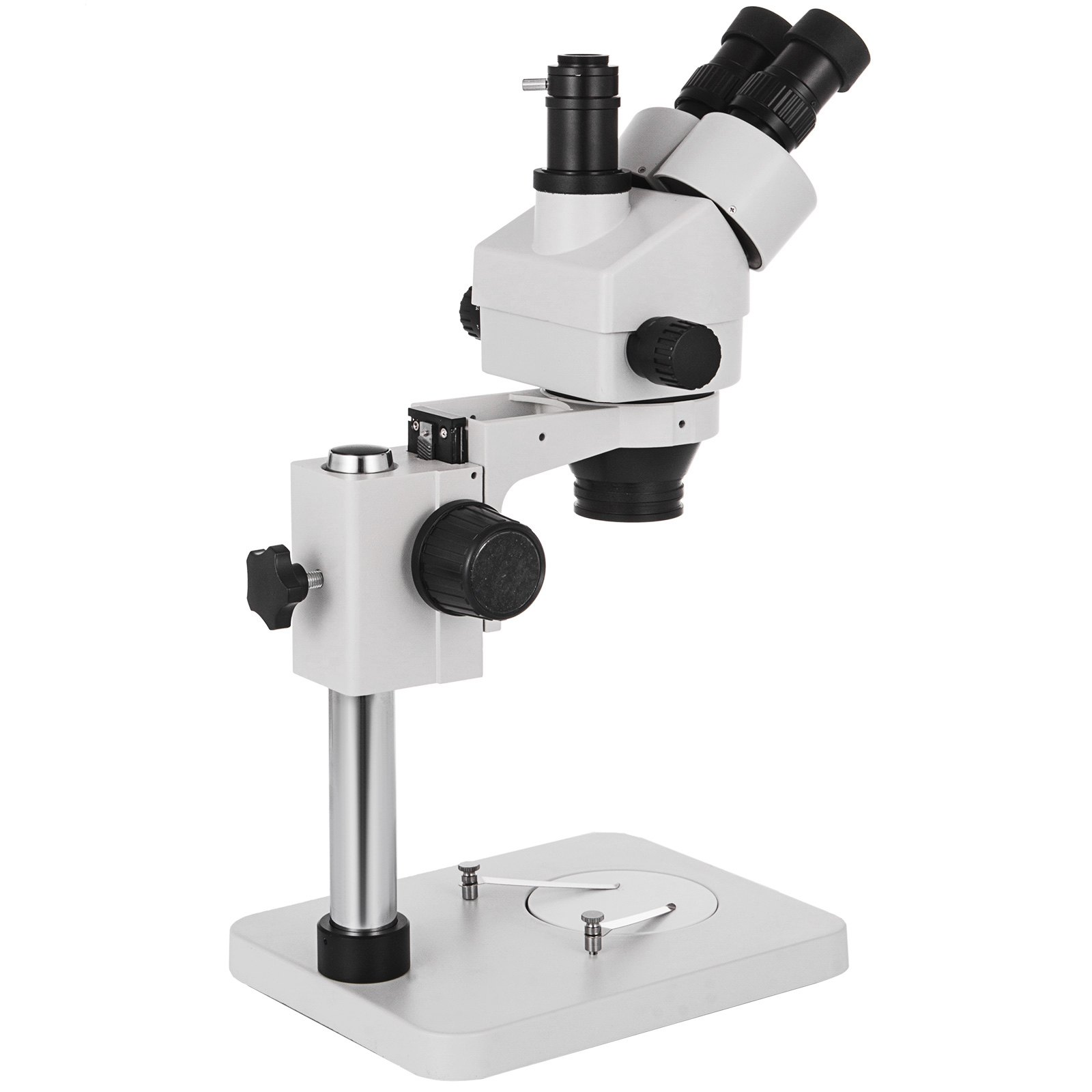

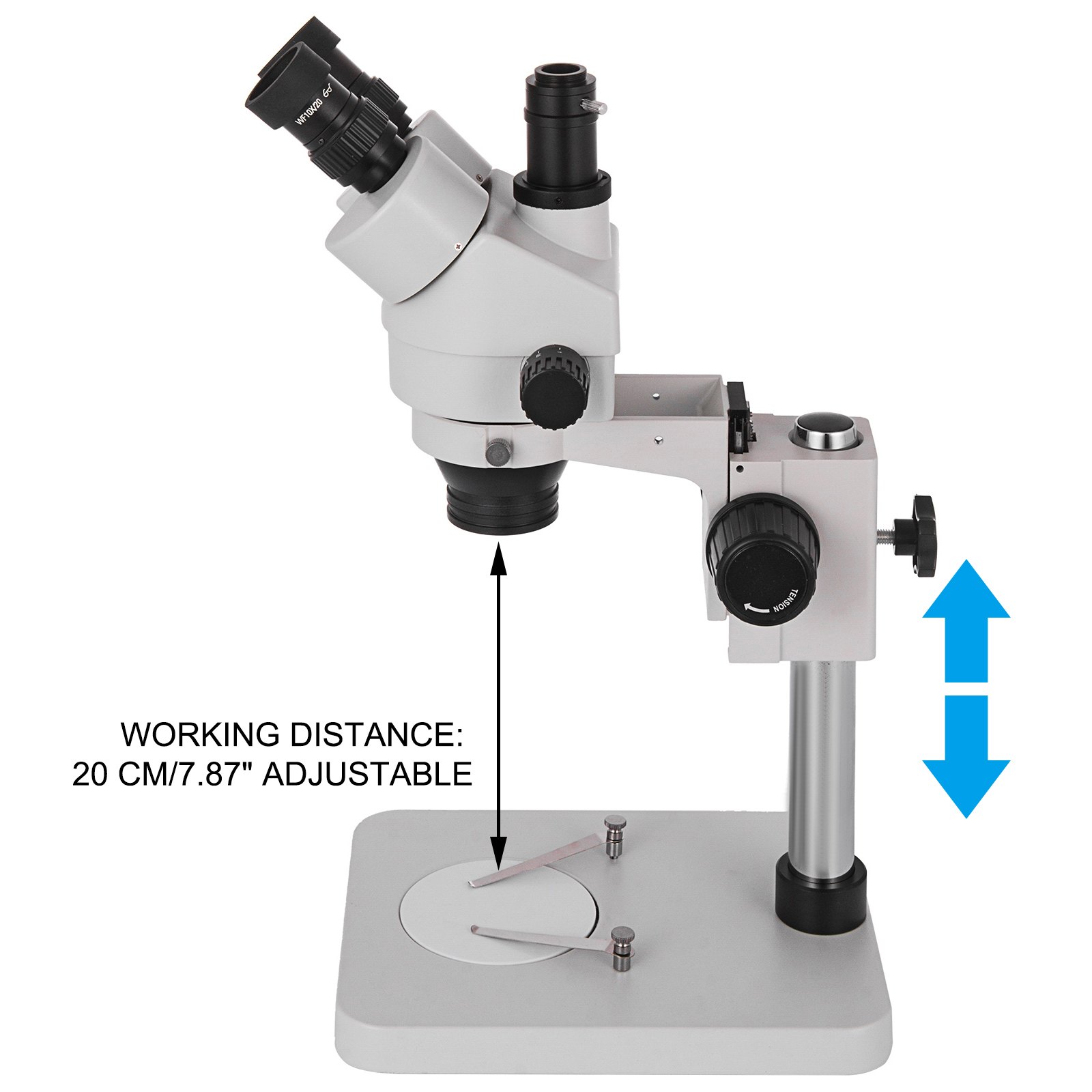

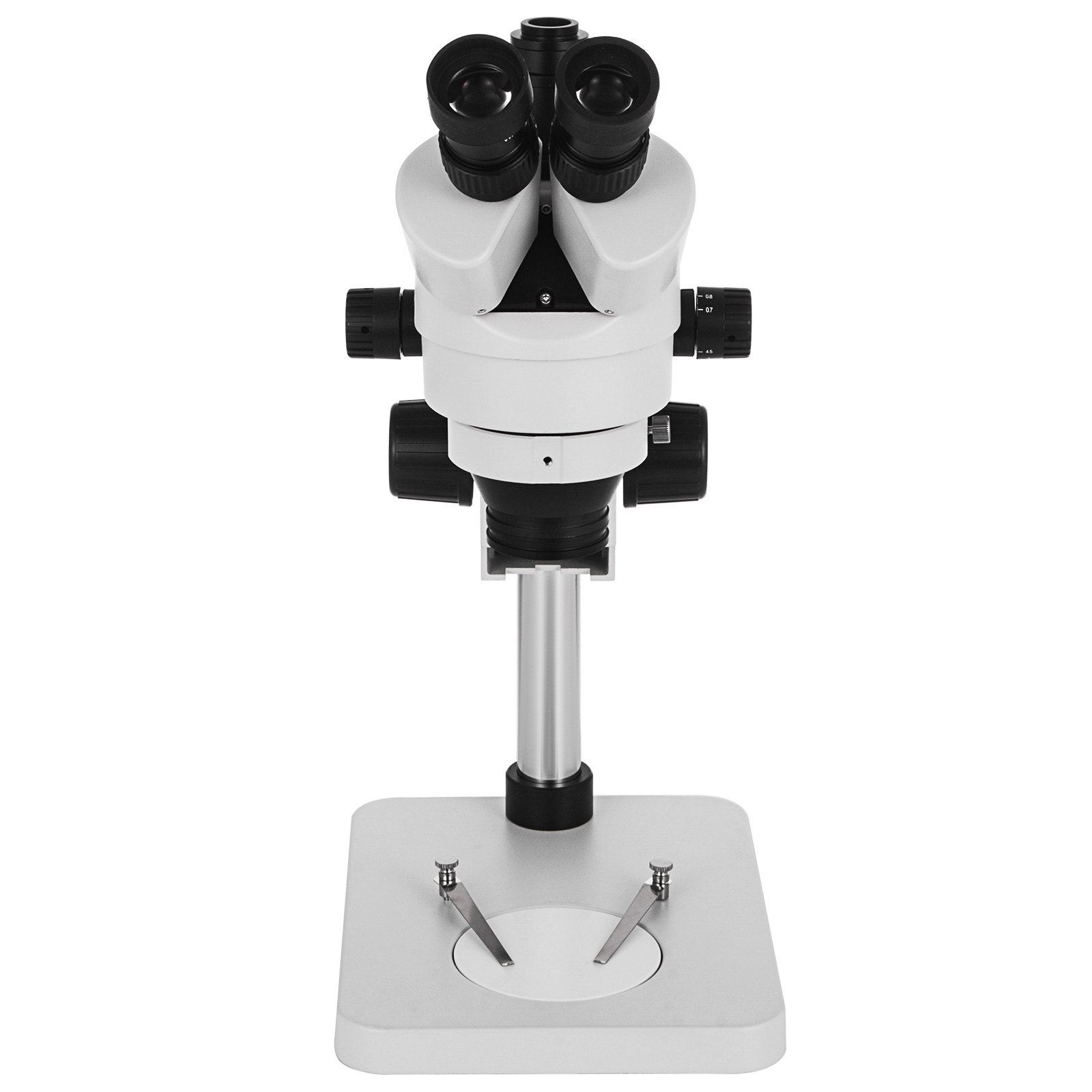

Adjustable column stand
This digital microscope stand is height-adjustable with a working distance of 20 cm and offers variable magnification for different needs.
Wide use
This digital microscope kit is widely used in the electrical industry, insect observation, scientific research, jewelry identification, and the textile industry.
- Material: Al-Zn steel + optical lenses
- Trinocular head: 360-degree rotatable + 45-degree tiltable
- Eye port diameter: 30 mm
- Eyepieces: WF10X / 20 mm
- Magnification range: 3.5X-90X
- Target: 0.7X-4.5X
- Lens: 0.5X and 2.0X
- Diopter adjustment: ± 5dp
- Pupil spacing: 55-75 mm
- Working distance: 20 cm (adjustable)
- Stand dimensions: 25 x 20 x 27 cm
- Product size: 25.4 x 20 x 46.5 cm
- Weight: 6 kg

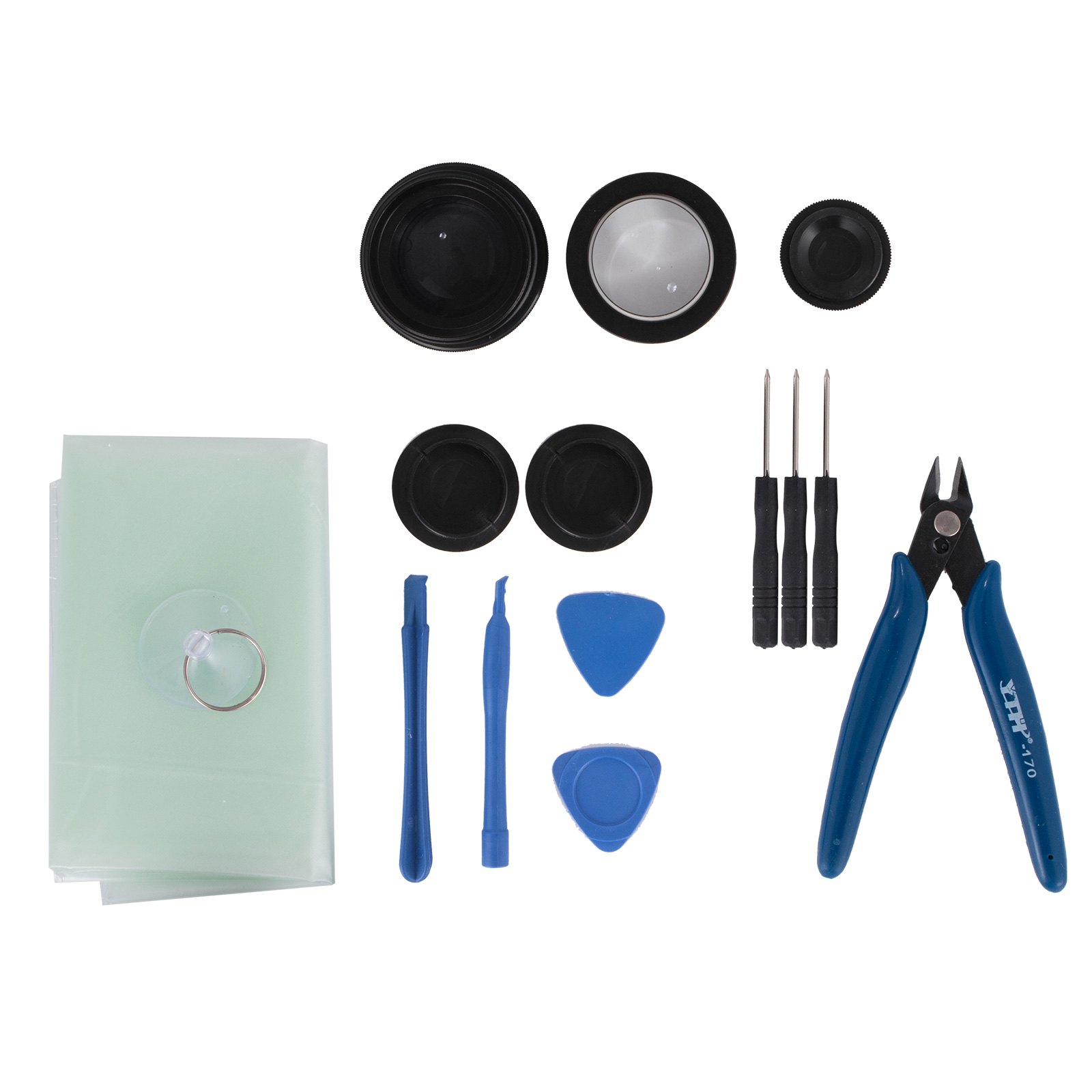

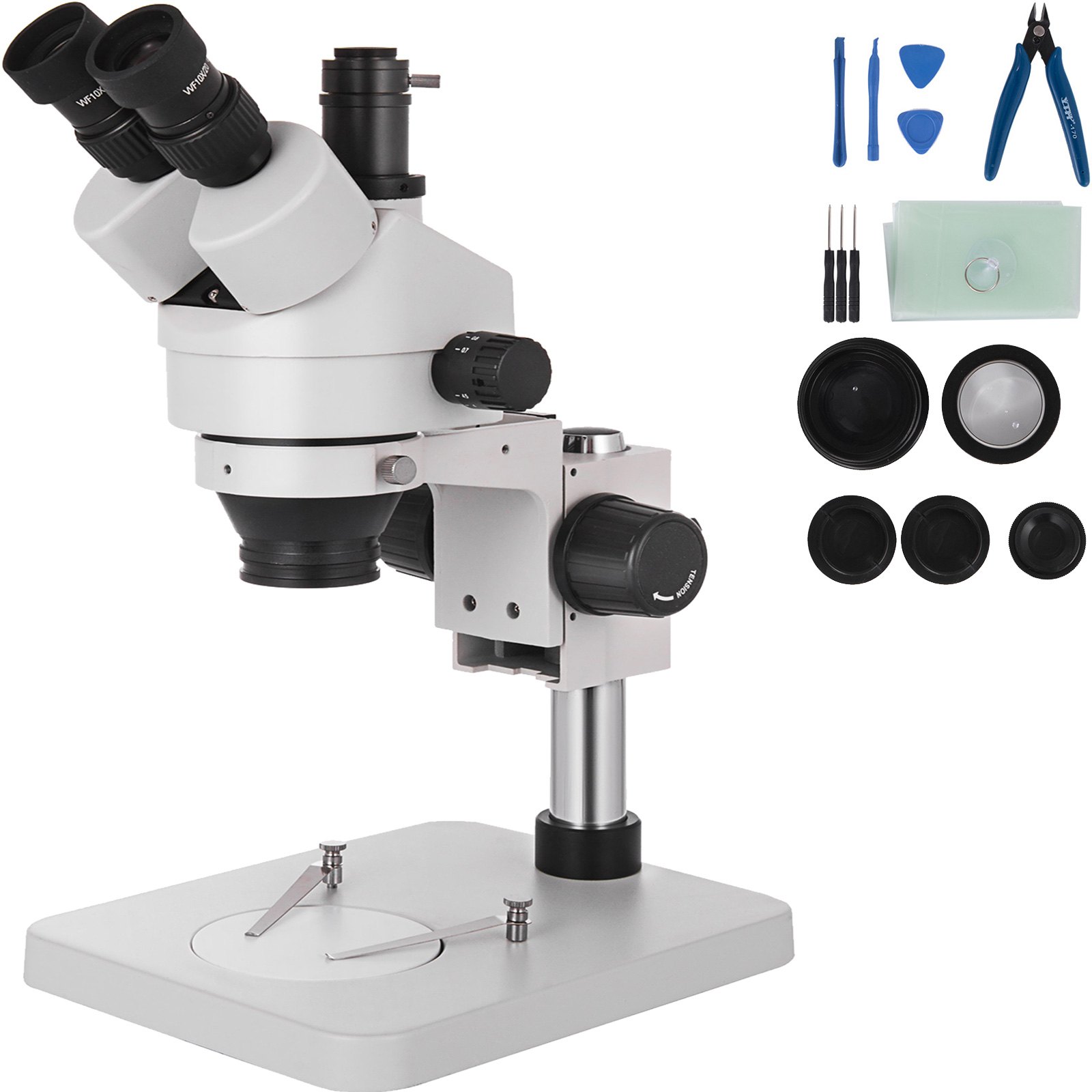

- 1 x stereomicroscope
- 2 x 10X eyepieces
- 1 x Column table stand
- 1 x focusing rack
- 1 x 0.5x Barlow lens
- 1 x 2.0x Barlow lens
- 1 x Telephone maintenance repair kit
- 1 x wrench
- 1 x dustproof cover sheet
- 1 x pair of cutting pliers
- 4 x protective lens covers
- 1 x User manual
Trinocular stereo microscope 3.5X-90X
This product is a professional trinocular stereomicroscope specifically designed for microscopy. When used with the included 0.5x and 2.0x objectives, it offers a 3.5x to 90x zoom range. The digital microscope is adjustable for working distance, interpupillary distance, and diopters. It is commonly used for circuit board repair, insect observation, jewelry identification, and other applications.
- Premium quality
- Various adjustments
- Trinocular Port
- Large working distance
Al-Zn alloy & optical lenses
The stereomicroscope consists of a robust Al-Zn alloy with high-strength and high-quality optical glass lenses that deliver a high-resolution image.
Binocular stereo imaging
This microscope was developed with binocular stereo imaging technology and supports 3.5X-90X stepless zoom and pupillary distance adjustment.
Large aperture lenses
The objective lenses are made of pure copper material and coated with anti-reflective films, and are characterized by a large aperture and a bright field of view.
Supports camera connection
On the top side there is an expansion interface for connecting a camera, computer or LCD screen for a larger display and more accurate observation.
Adjustable column stand
This digital microscope stand is height-adjustable with a working distance of 20 cm and offers variable magnification for different needs.
Wide use
This digital microscope kit is widely used in the electrical industry, insect observation, scientific research, jewelry identification, and the textile industry.
- 1 x stereomicroscope
- 2 x 10X eyepieces
- 1 x Column table stand
- 1 x focusing rack
- 1 x 0.5x Barlow lens
- 1 x 2.0x Barlow lens
- 1 x Telephone maintenance repair kit
- 1 x wrench
- 1 x dustproof cover sheet
- 1 x pair of cutting pliers
- 4 x protective lens covers
- 1 x User manual
- Material: Al-Zn steel + optical lenses
- Trinocular head: 360-degree rotatable + 45-degree tiltable
- Eye port diameter: 30 mm
- Eyepieces: WF10X / 20 mm
- Magnification range: 3.5X-90X
- Target: 0.7X-4.5X
- Lens: 0.5X and 2.0X
- Diopter adjustment: ± 5dp
- Pupil spacing: 55-75 mm
- Working distance: 20 cm (adjustable)
- Stand dimensions: 25 x 20 x 27 cm
- Product size: 25.4 x 20 x 46.5 cm
- Weight: 6 kg
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (4)
Guten Tag,
welchen Kameraanschluss hat das Trinocular (C-Mount? Proprietär?).
Hallo, solange es sich um eine C-Mount-Kamera handelt, kann sie angeschlossen werden.
By vevor
Helpful
(
2
)
Geschätztes Team Vevor,
Vor dem Kauf des VEVOR 3.5X-90X Simul Focal digital Zoom Stereo Microscope Al-Zn-Legierung hätte ich noch einige Fragen:
1. Ist dieses Stereomikroskop nach dem Greenough - Prinzip gebaut oder nach dem von Abbe?
2. Welchen Durchmesser hat die Stativstange?
3. Wenn ich zoome, bleibt dann der Arbeitsabstand gleich oder muss ich mit dem Focusrad nachjustieren?
4. Sind die Okulare für Brillenträger geeignet?
Mit freundlichen Grüßen, Matthias Deiner
Erstens ist das Mikroskop ein Greenough-Optiksystem. Zweitens beträgt der Durchmesser des Stabs 32 mm und der Arbeitsabstand bleibt unverändert. Viertens hat das Tragen einer Brille keinen Einfluss auf die Betrachtung.
By vevor
Helpful
(
2
)
Ich habe größere Objekte, gibt es eine Verlängerung für die Säule? Oder eine längere Säule?
Es kann erhöht werden, Sie müssen jedoch selbst zusätzliche Verlängerungspfosten erwerben.
By vevor
Helpful
(
1
)
Guten Tag,
Ich möchte gerne dieses Mikroskop kaufen. Allerdings dazu den Ständer eines anderen Ihrer Mikroskope („ Stereo Mikroskop Zoom 7x-4,5x Mikroskop Doppelarmigen Wf10x/20mm Mit Ständer“). Wäre das möglich?
Mit freundlichen Grüßen
Julius Hölter
Leider ist der Ständer des Produkts fest und das Produkt wird in Sets verkauft. Kann nicht einzeln verkauft werden.
By vevor
Helpful
(
1
)
