Features & Details
- Technical parameters: Specification: φ2.6 x 9.4 inches (diameter: 6.5 cm x length: 23.9 cm); Power: 1.5 kW; Voltage: 220 V; Current: 5 A; Collet size: ER11; Bearings: 4; Frequency: 200-400 Hz; Speed: 12,000-24,000 rpm; Runout: less than 0.002 mm. Primarily used for engraving machines or with a frequency converter.
- High-performance bearings: The collet of the CNC milling spindle is hardened with manganese steel, and the runout is less than 0.002 mm, ensuring high precision and preventing the cutting tool from easily breaking, thus increasing the stability of the machining process. Noise during operation is effectively reduced through dynamic balancing technology.
- High-performance bearings: The air spindle motor uses imported bearings with high accuracy, precision, and durability. These significantly improve hardness and rust resistance.
- Low noise & heat dissipation: Dynamic balancing technology effectively reduces noise during operation. The scientifically developed air cooling system provides superior heat dissipation to ensure smooth operation.
- Wide application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It utilizes air circulation to cool the heat and has a good heat dissipation effect.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 54 reviews
Reviews 4.9
All reviews are from verified purchases
See all 54 reviews
About this item
Product specification
- Power
- 1.5 kW
- Voltage
- 220 V
- Frequency
- 200-400 Hz
- Speed
- 12000-24000 rpm
- Runout deviation
- Less than 0.002 mm
- Maximum torque
- 1.1 Nm

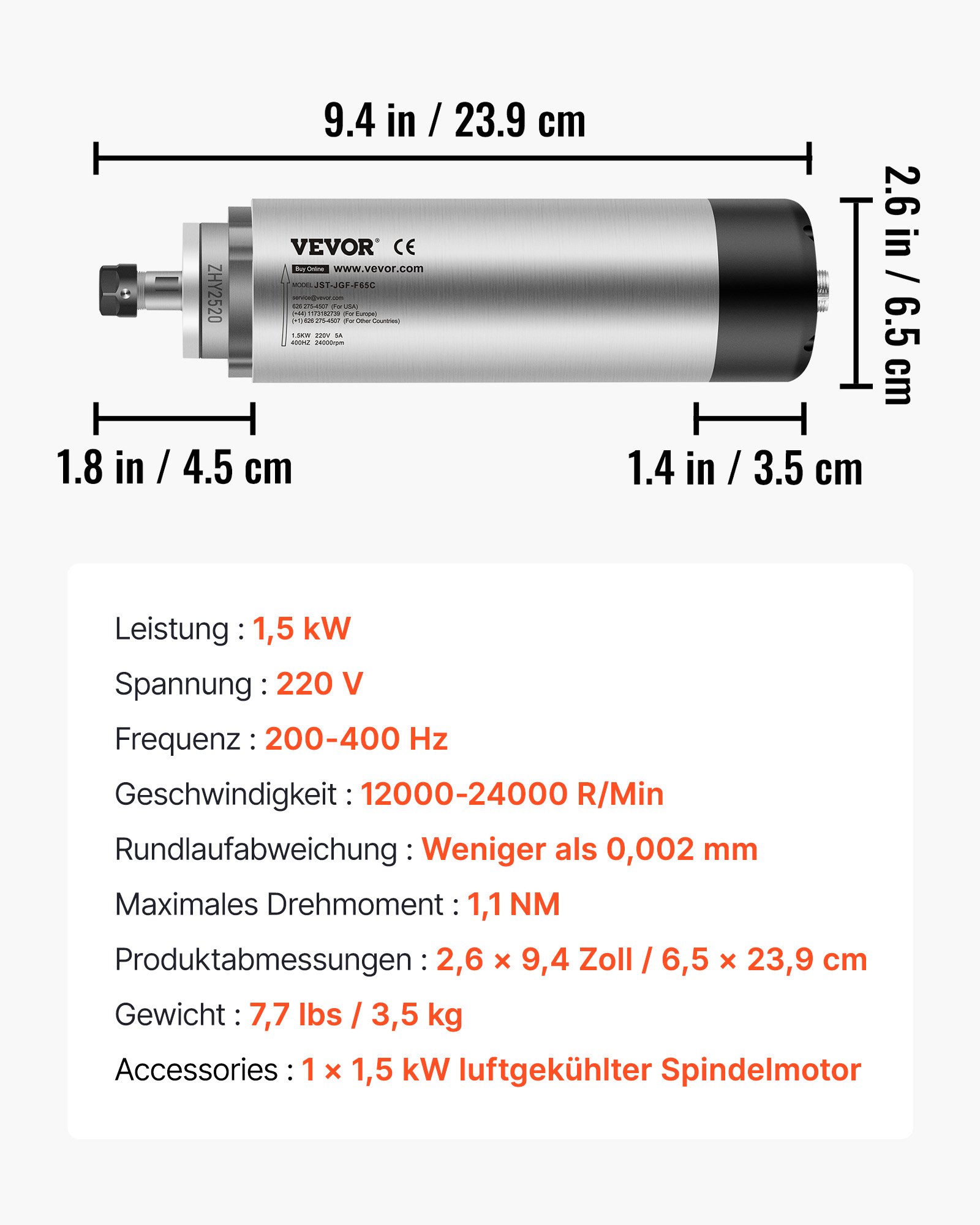

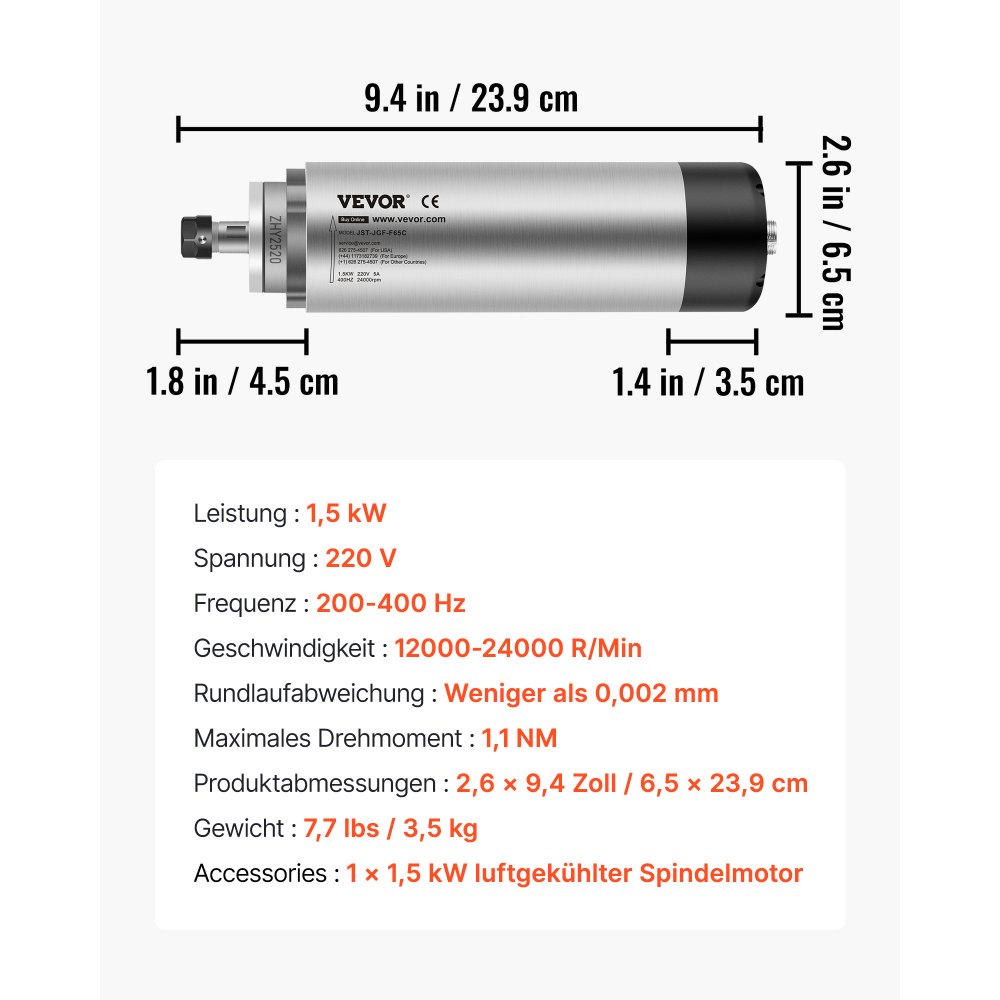

- Product dimensions
- 2.6 x 9.4 inches / 6.5 x 23.9 cm
- Weight
- 7.7 lbs / 3.5 kg
Description

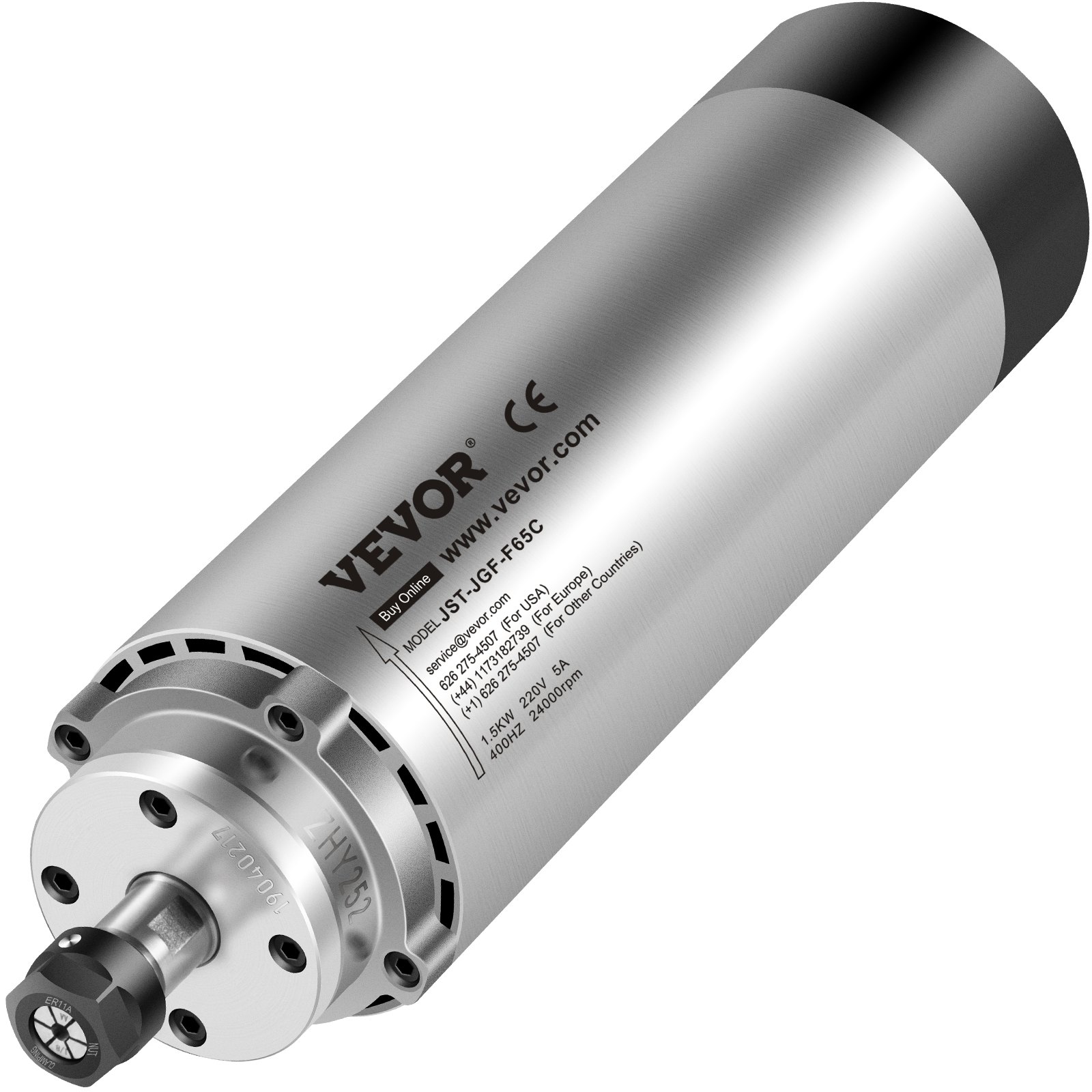

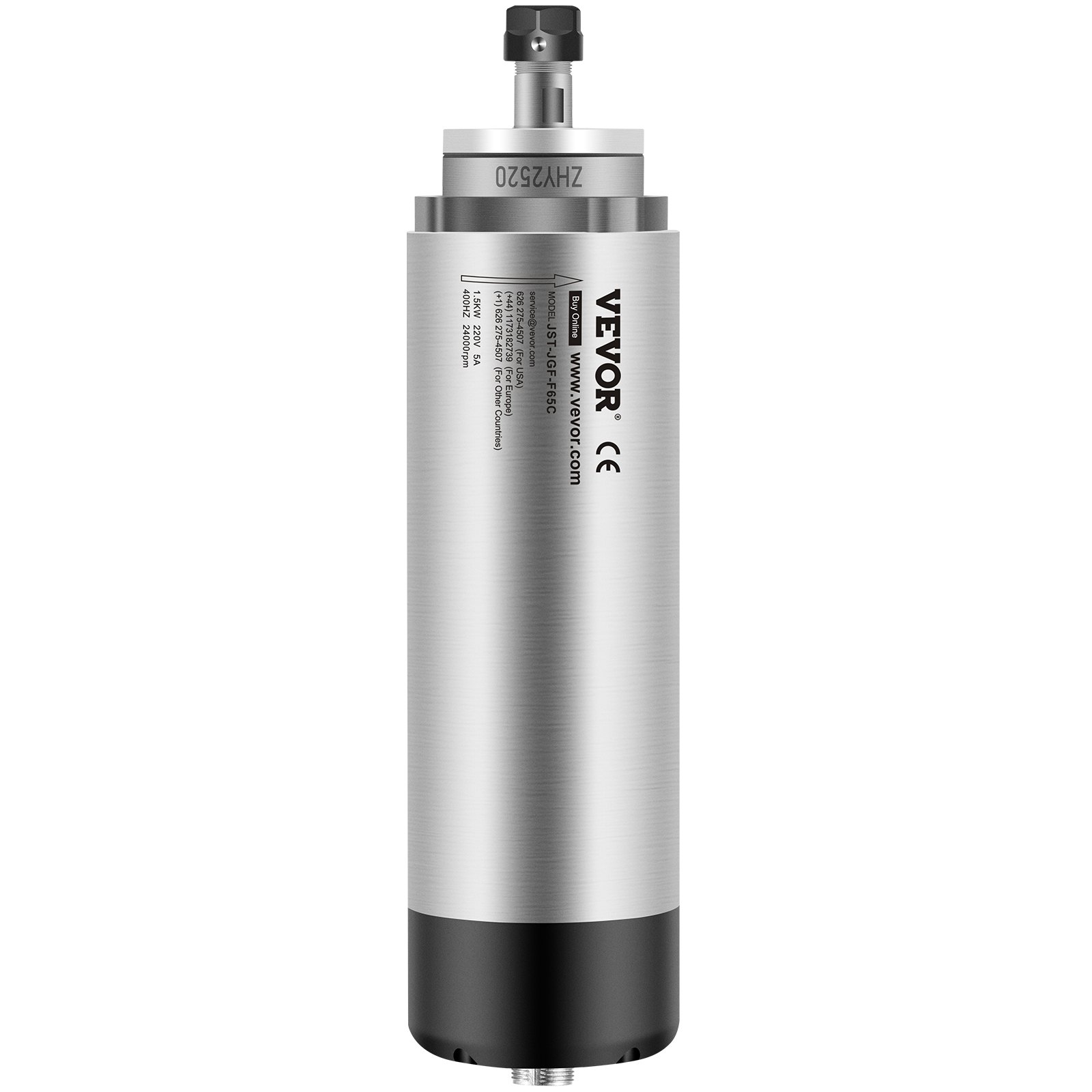

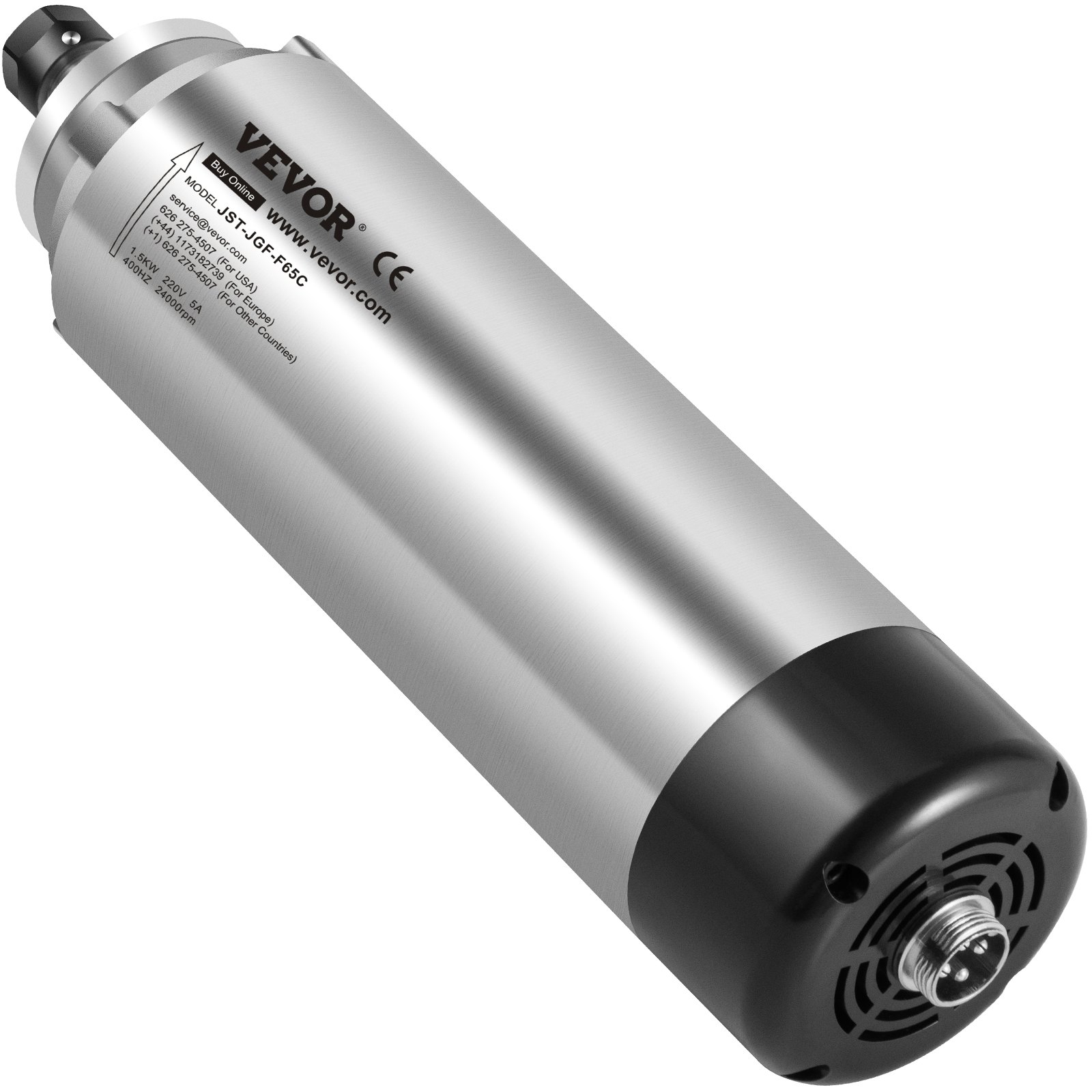

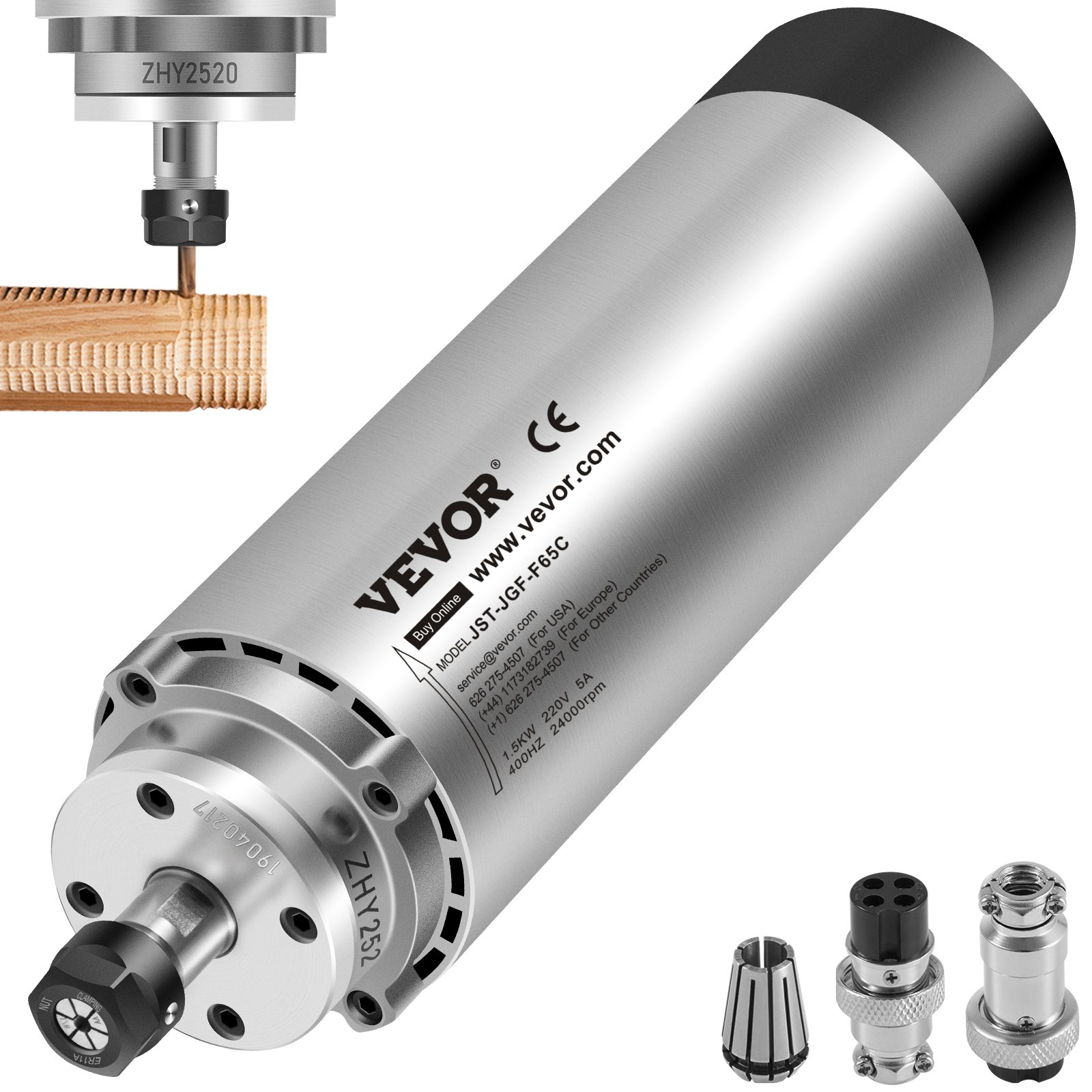

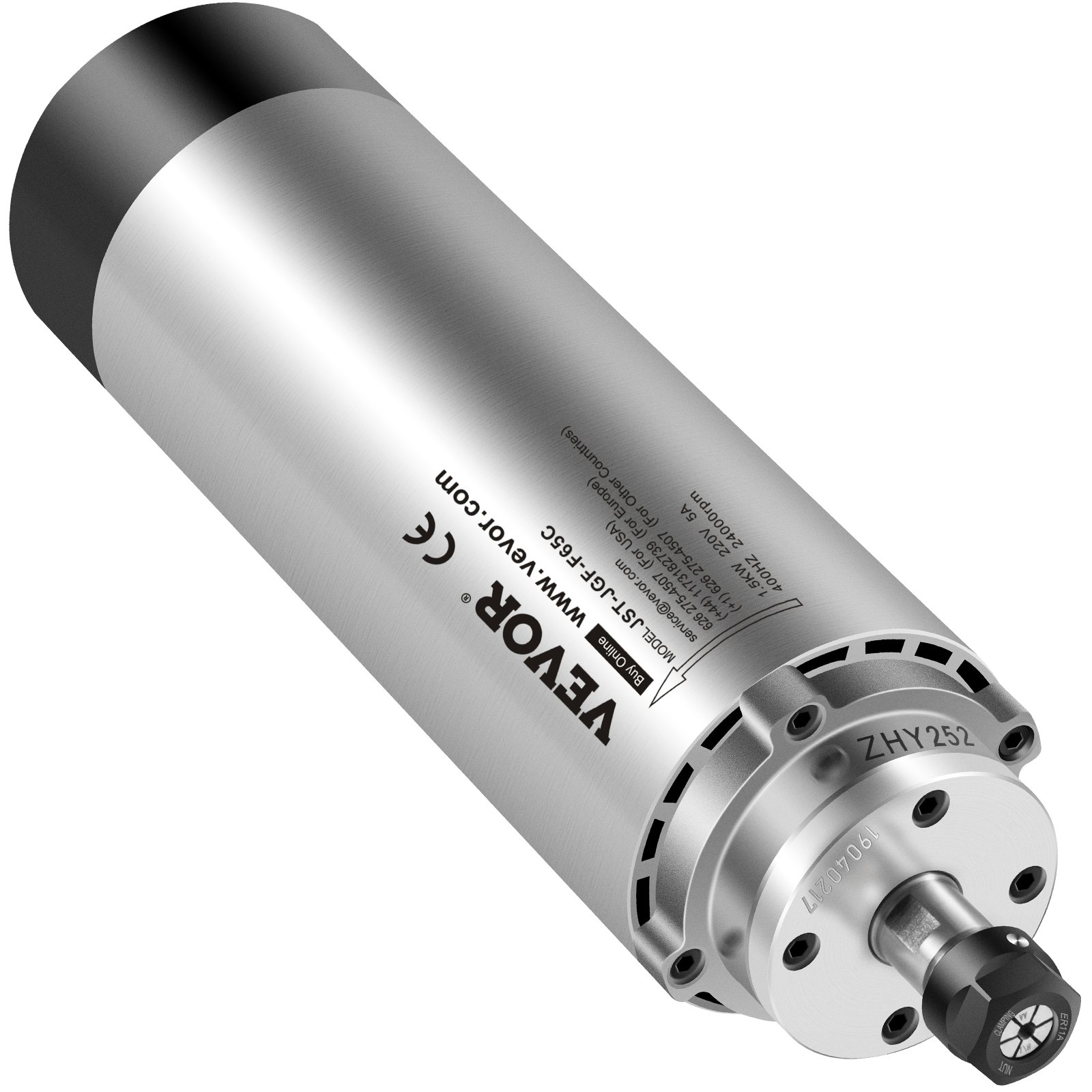

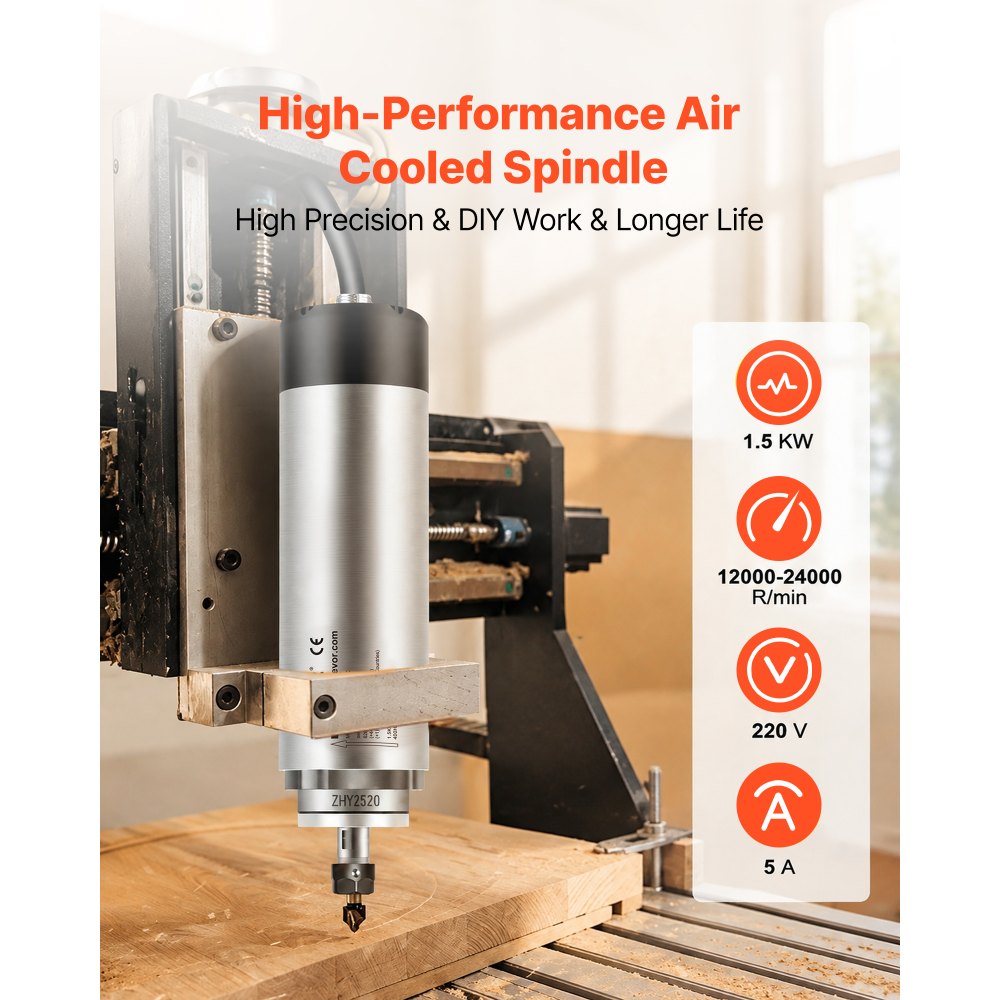

1.5 kW air-cooled spindle motor
ER11 collet & four bearings & 12000-24000 RPM
These spindle motors use imported bearings and high-quality stainless steel materials, and their lifespan is three times longer than that of conventional spindle motors. They are widely suitable for engraving machines for wood, stone, metal, and other materials.
- Technical parameters
- ER11 Standard Collet
- High-performance bearings
- Low noise & heat dissipation

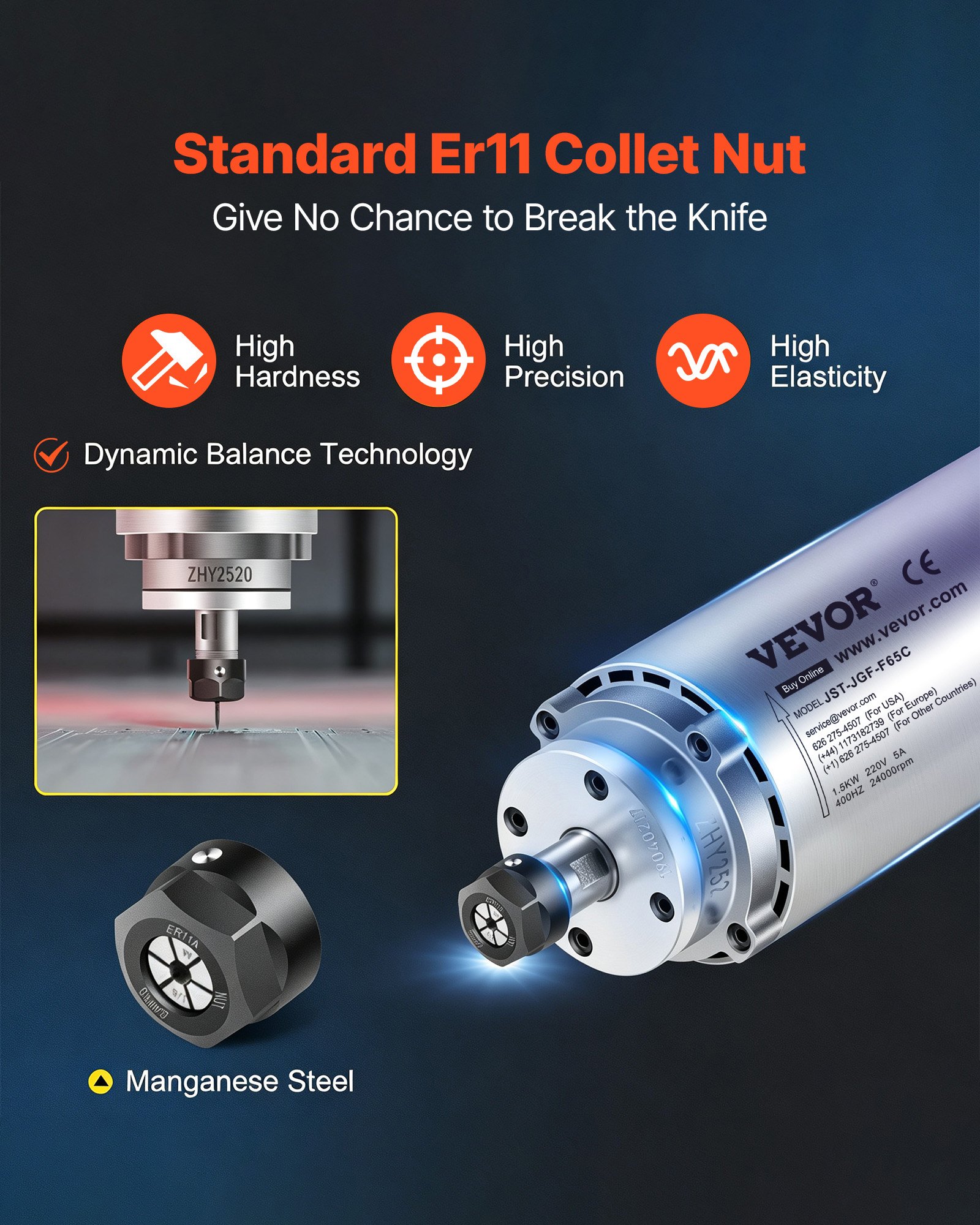

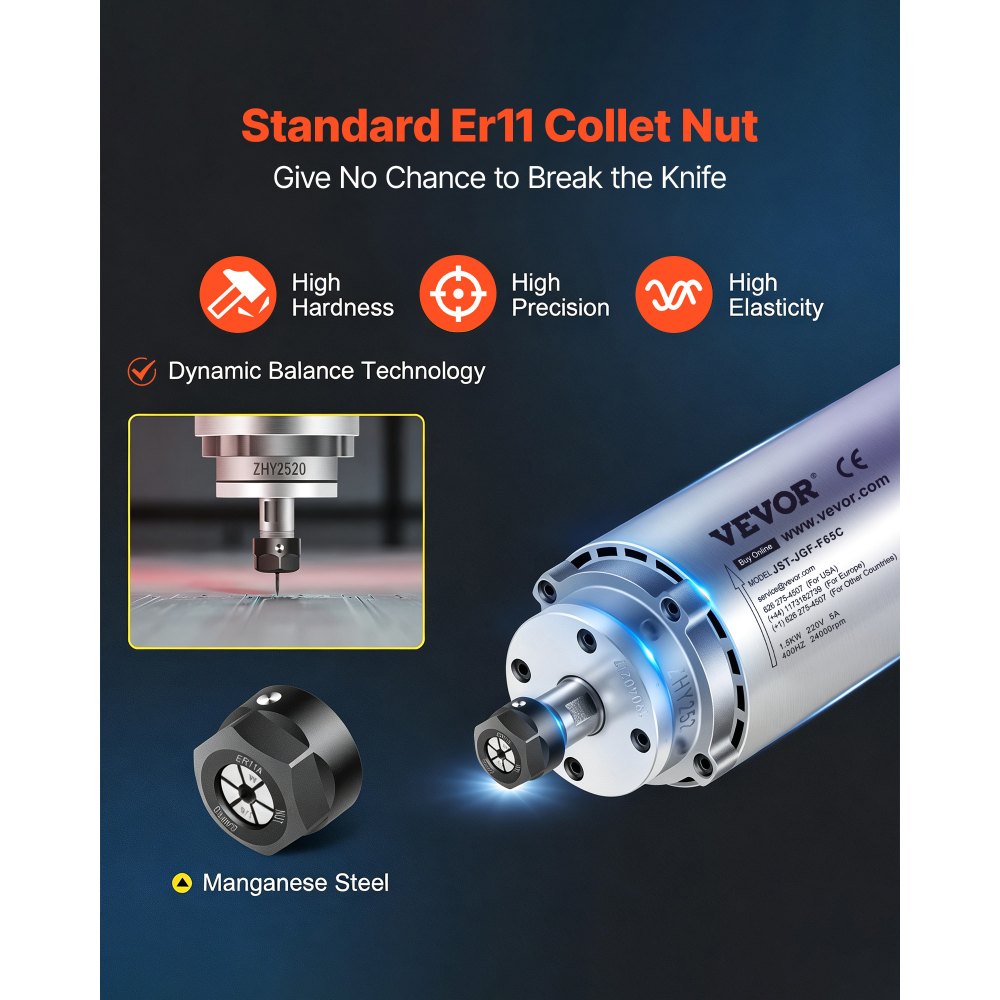

Dynamic equilibrium design
Unlike other milling spindle motors, we use an innovative and advanced dynamic balancing technology. The advantages of the ER11 standard collet include excellent rigidity, high strength, a unique drainage design, and high precision.

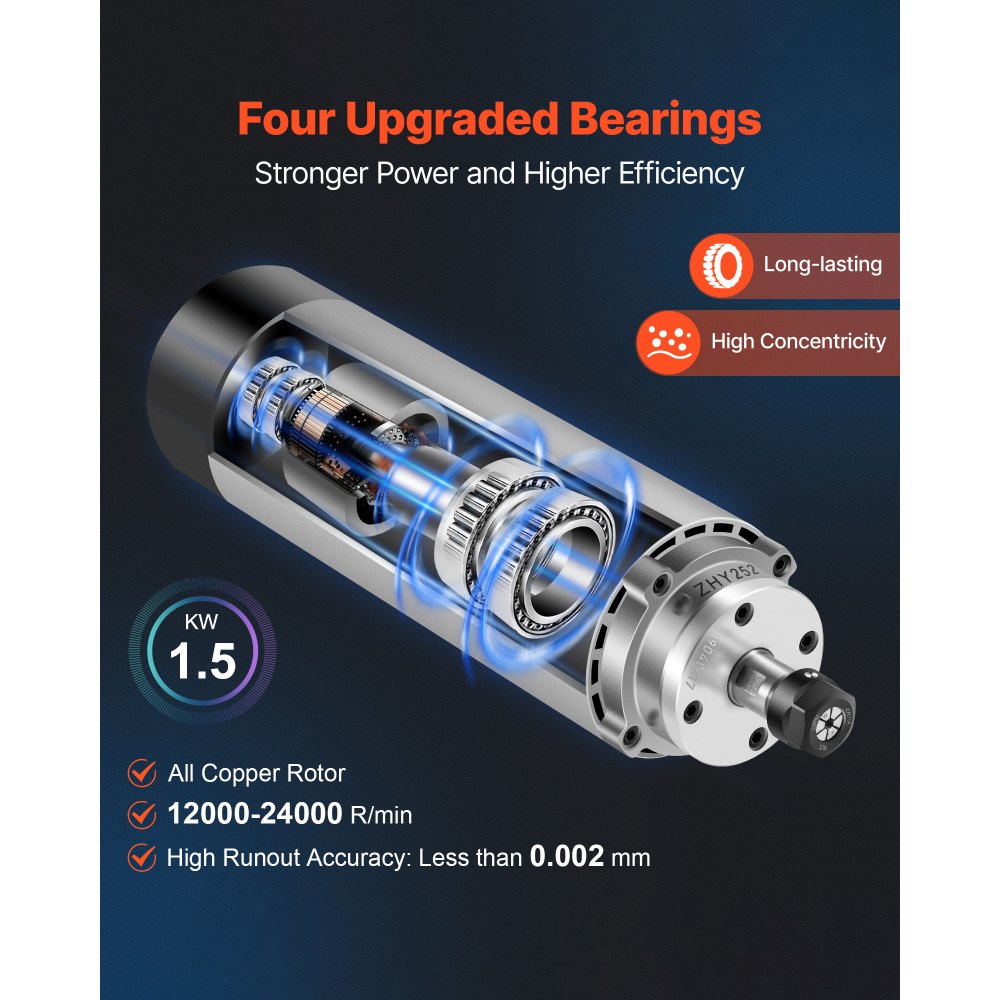

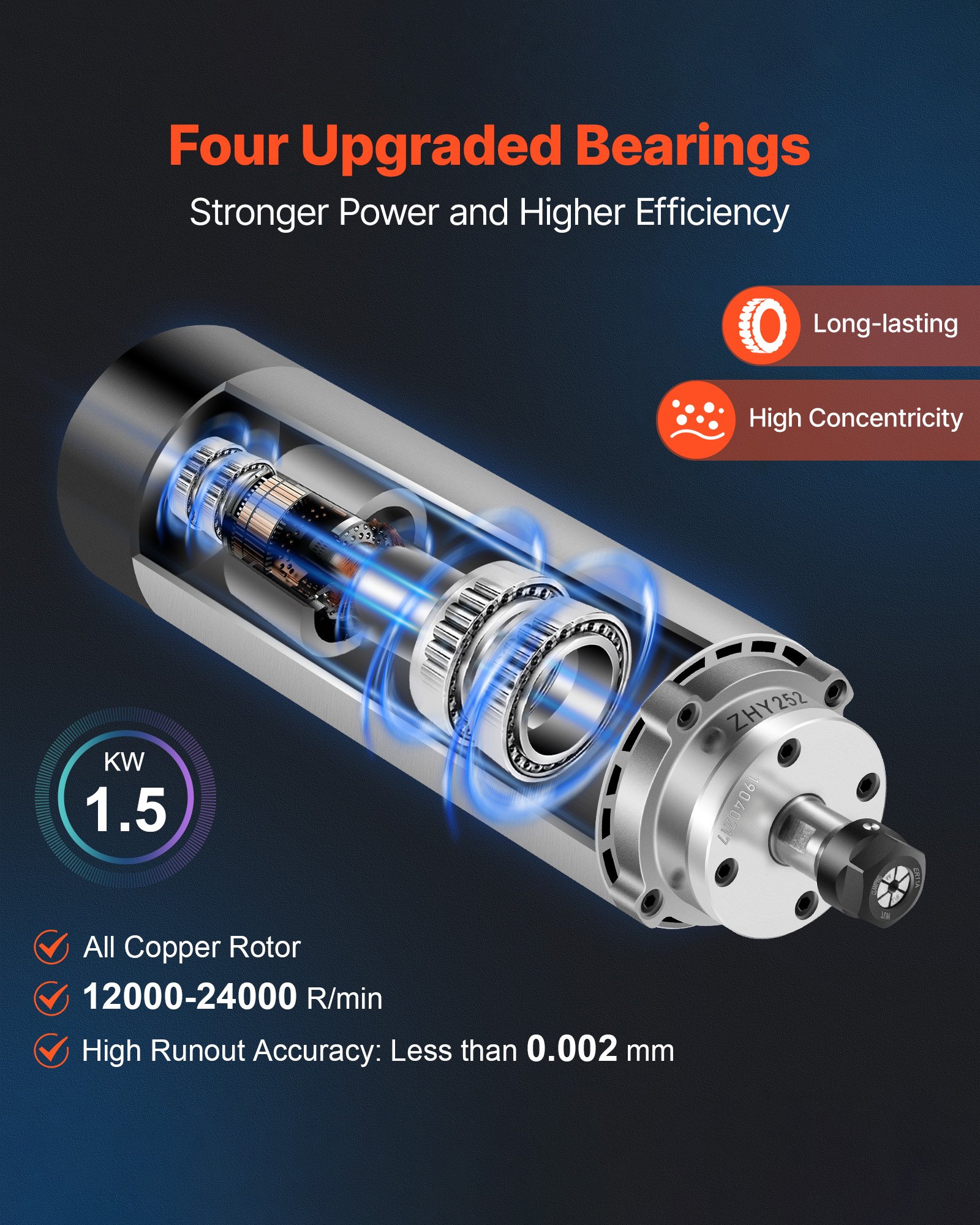

Four high-quality bearings
The upgraded bearing offers two key advantages: superior durability and corrosion protection. High speed (12,000-24,000 rpm) and powerful performance result in greater efficiency than before.

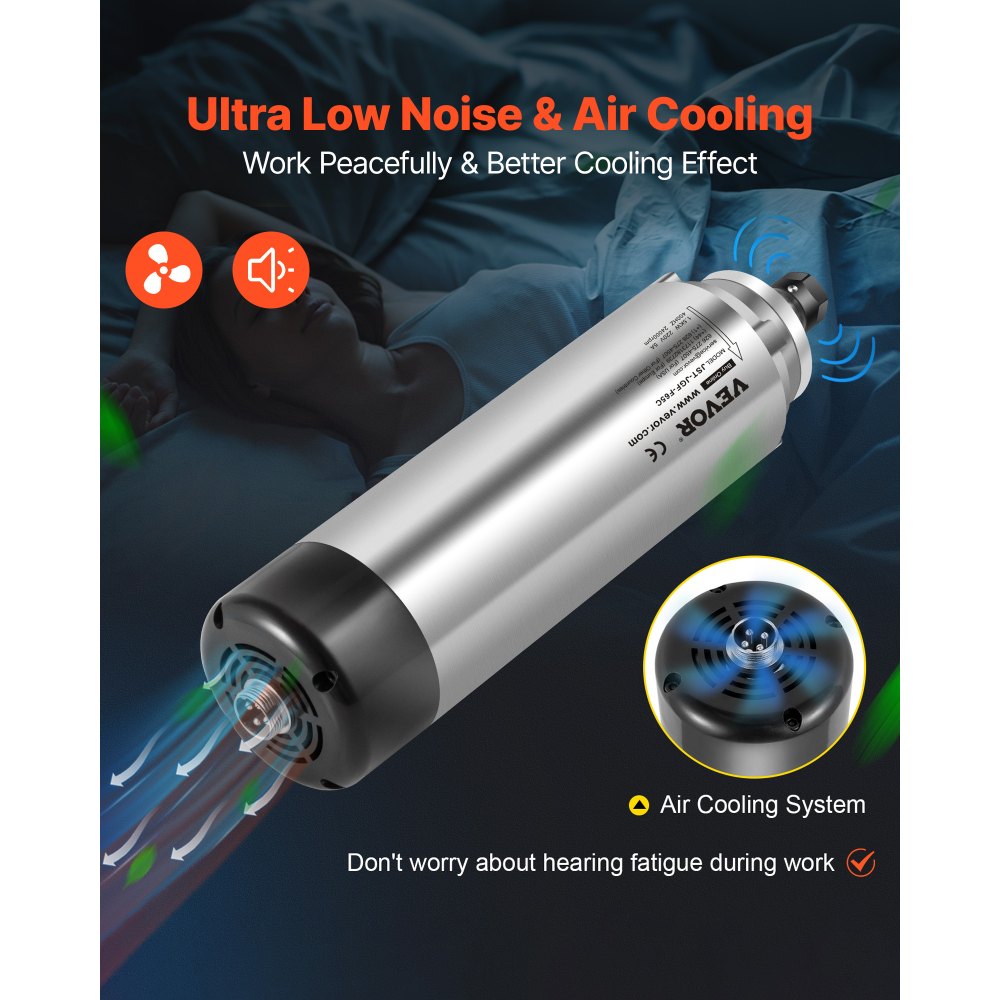

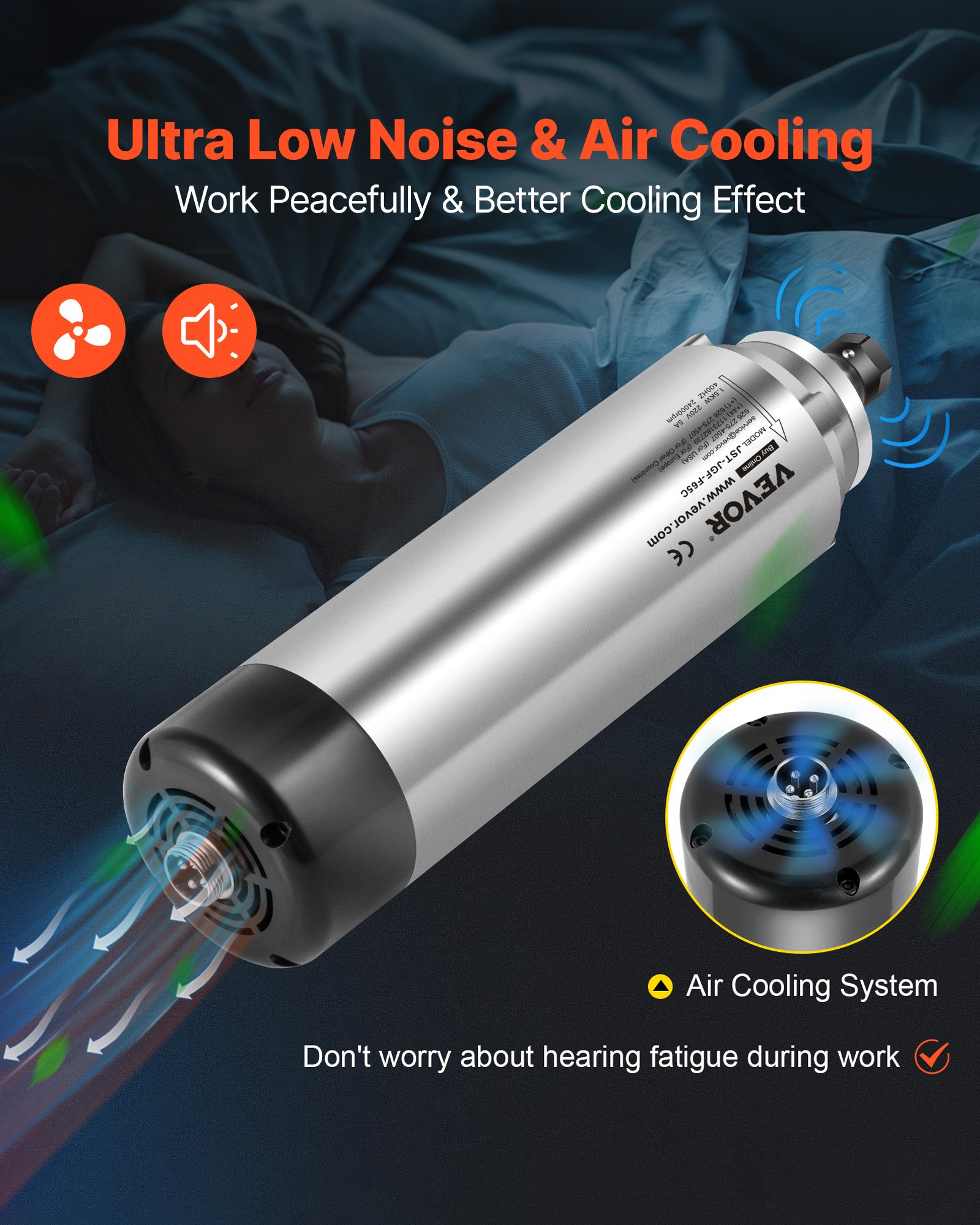

Noise reduction & air cooling
Our CNC milling spindle motor operates quietly and prevents hearing fatigue. It utilizes air circulation to cool the heat generated by the spindle at high speeds and has excellent heat dissipation.

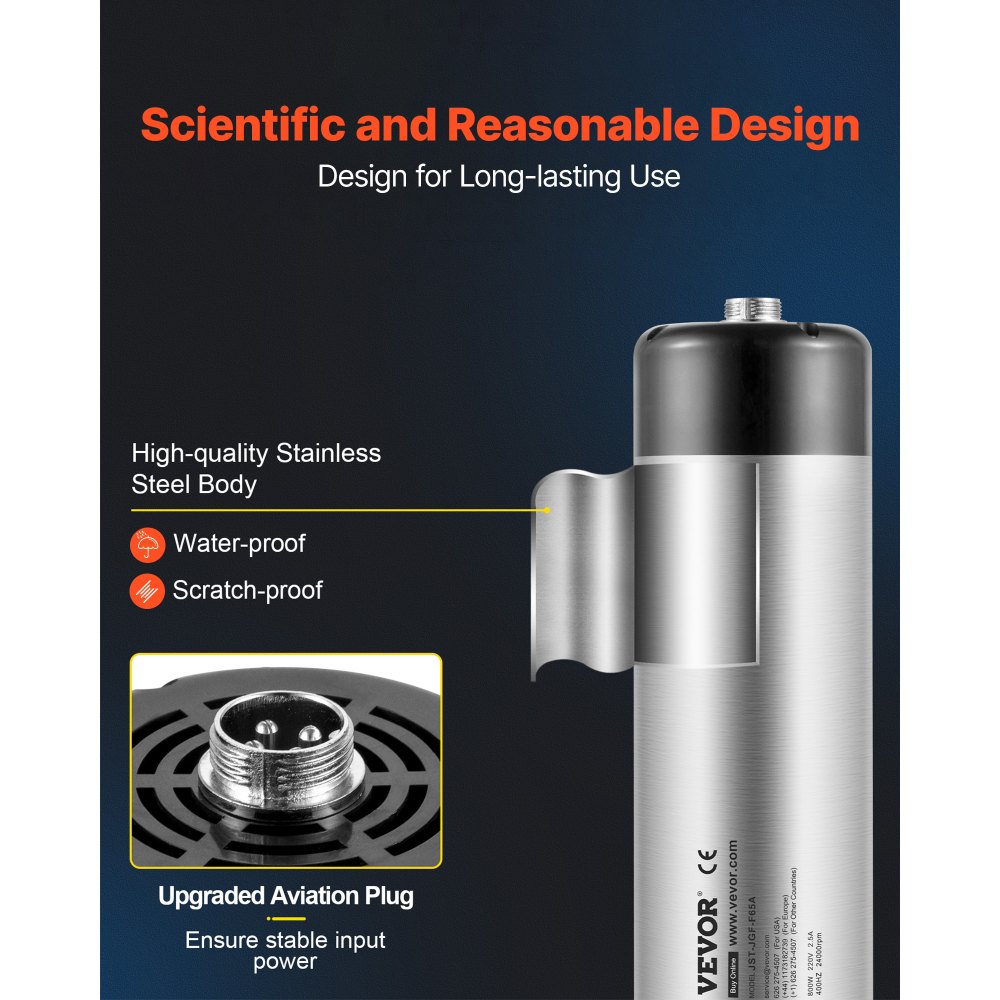

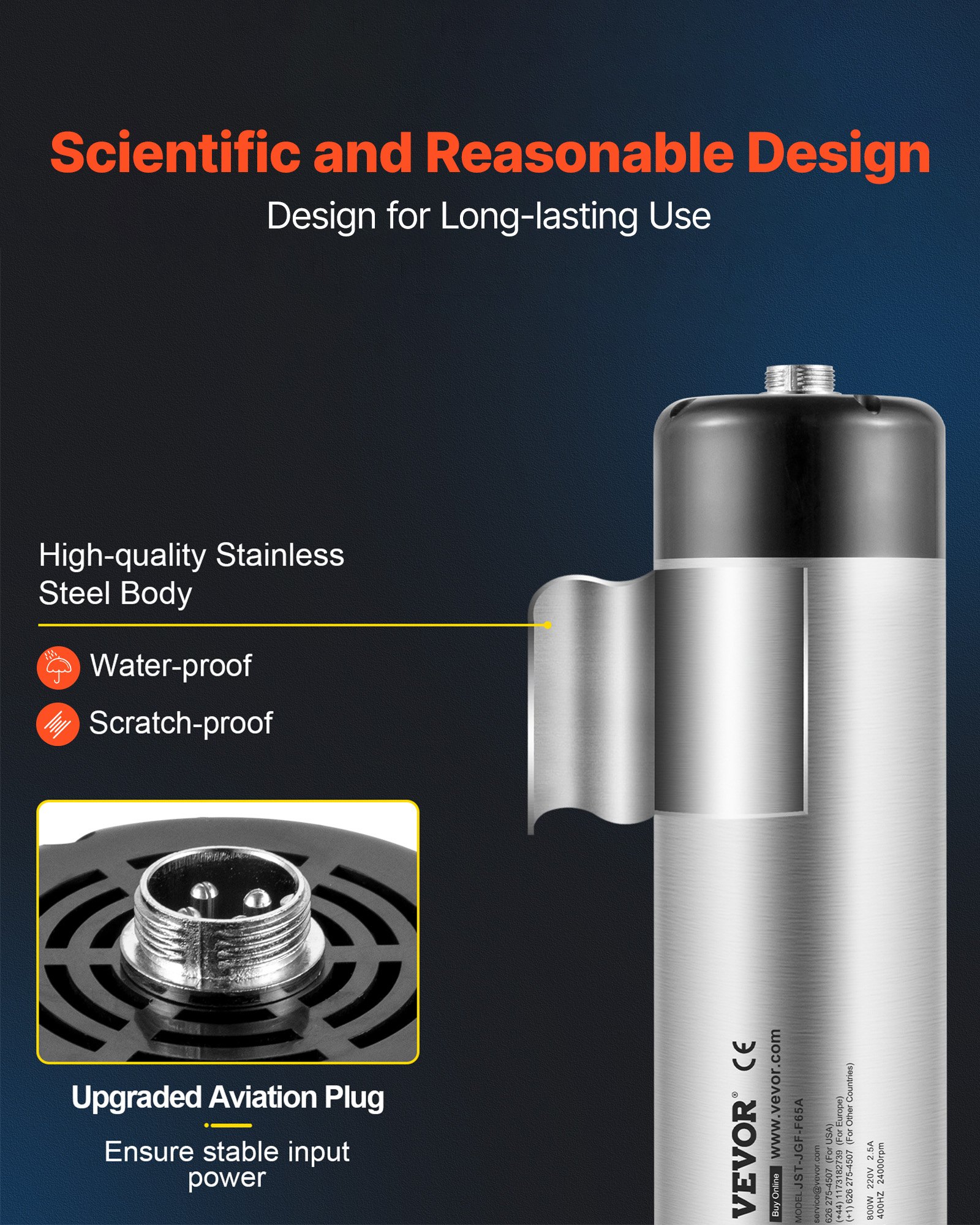

High-quality material
The stainless steel housing ensures higher performance and a longer lifespan. Unlike ordinary aluminum-coated wire, the oxygen-free copper coils guarantee high-quality workmanship and engraving performance.
Refined internal details
The CNC milling spindle features a built-in, improved aircraft connector that simplifies current flow and achieves the intended function of the circuit, effectively improving stable and smooth operation.

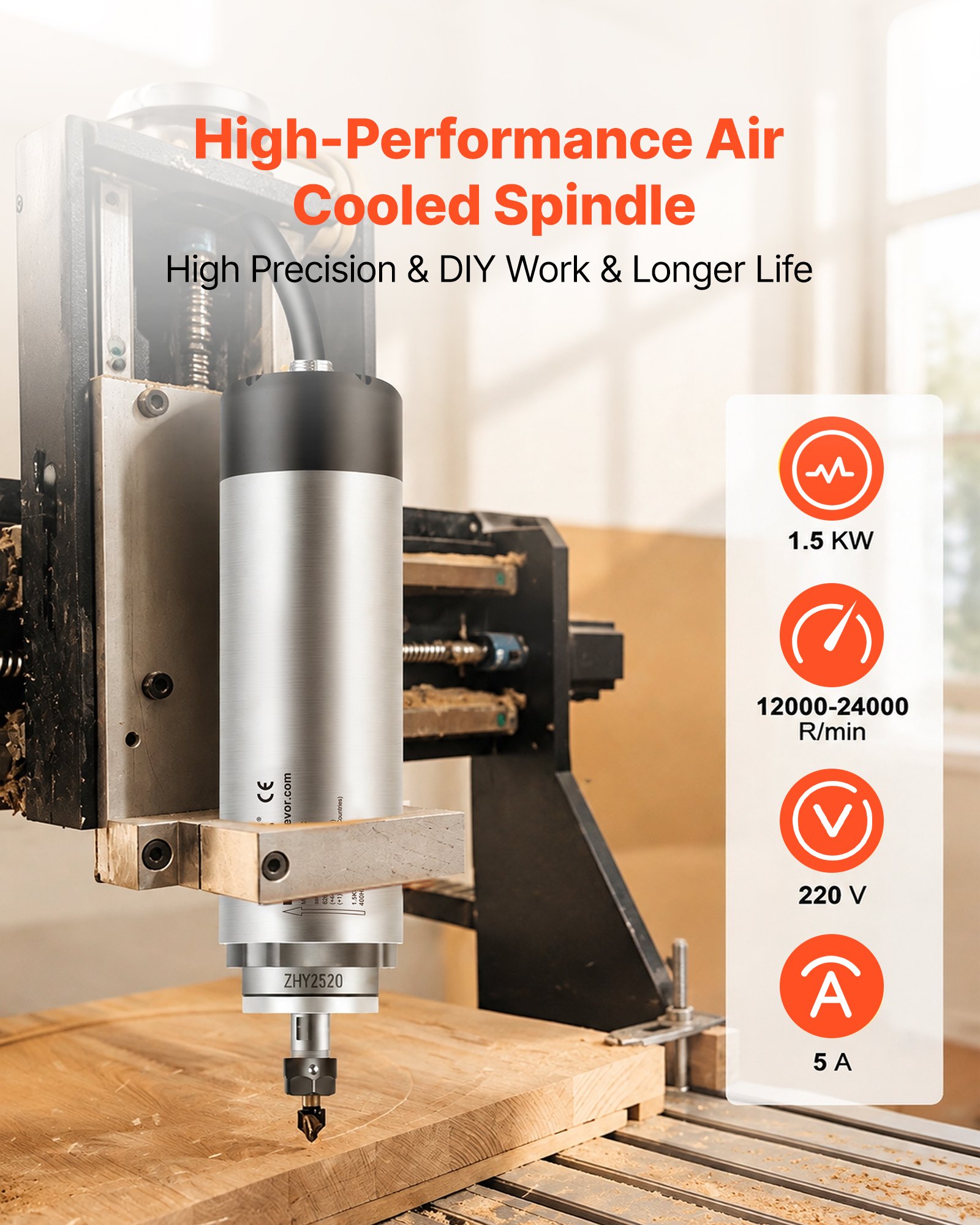

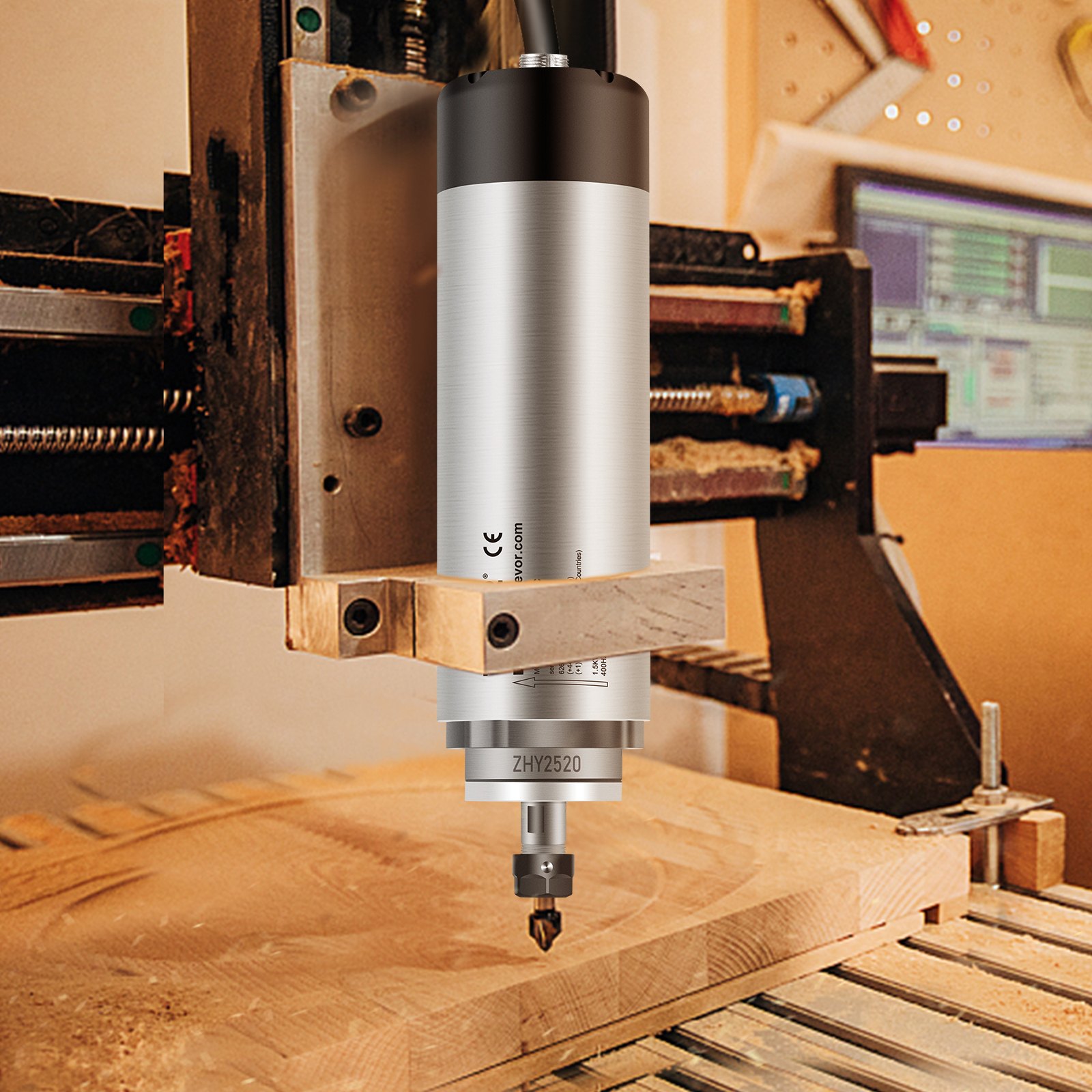

Wide application
Air-cooled engines are typically used for materials such as wood, stone, mold, and metal. They are suitable for mechanical engineering, sheet metal fabrication, railings, factories, shipyards, DIY projects, construction, and other fields.
- Power: 1.5 kW
- Voltage: 220 V
- Frequency: 200-400 Hz
- Speed: 12000-24000 rpm
- Runout deviation: Less than 0.002 mm
- Maximum torque: 1.1 Nm
- Product dimensions: 2.6 x 9.4 inches / 6.5 x 23.9 cm
- Weight: 7.7 lbs / 3.5 kg
- 1 x 1.5 kW air-cooled spindle motor
1.5 kW air-cooled spindle motor
ER11 collet & four bearings & 12000-24000 RPM
These spindle motors use imported bearings and high-quality stainless steel materials, and their lifespan is three times longer than that of conventional spindle motors. They are widely suitable for engraving machines for wood, stone, metal, and other materials.
- Technical parameters
- ER11 Standard Collet
- High-performance bearings
- Low noise & heat dissipation
Dynamic equilibrium design
Unlike other milling spindle motors, we use an innovative and advanced dynamic balancing technology. The advantages of the ER11 standard collet include excellent rigidity, high strength, a unique drainage design, and high precision.
Four high-quality bearings
The upgraded bearing offers two key advantages: superior durability and corrosion protection. High speed (12,000-24,000 rpm) and powerful performance result in greater efficiency than before.
Noise reduction & air cooling
Our CNC milling spindle motor operates quietly and prevents hearing fatigue. It utilizes air circulation to cool the heat generated by the spindle at high speeds and has excellent heat dissipation.
High-quality material
The stainless steel housing ensures higher performance and a longer lifespan. Unlike ordinary aluminum-coated wire, the oxygen-free copper coils guarantee high-quality workmanship and engraving performance.
Refined internal details
The CNC milling spindle features a built-in, improved aircraft connector that simplifies current flow and achieves the intended function of the circuit, effectively improving stable and smooth operation.
Wide application
Air-cooled engines are typically used for materials such as wood, stone, mold, and metal. They are suitable for mechanical engineering, sheet metal fabrication, railings, factories, shipyards, DIY projects, construction, and other fields.
- 1 x 1.5 kW air-cooled spindle motor
- Power: 1.5 kW
- Voltage: 220 V
- Frequency: 200-400 Hz
- Speed: 12000-24000 rpm
- Runout deviation: Less than 0.002 mm
- Maximum torque: 1.1 Nm
- Product dimensions: 2.6 x 9.4 inches / 6.5 x 23.9 cm
- Weight: 7.7 lbs / 3.5 kg
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (6)
Welchen Frequenzumrichter benötige ich für diesen Motor
1.5kw 220v
By vevor
Helpful
(
20
)
Was ist die minimale Geschwindigkeit der Spindel? Auf dieser Webseite steht 12000 R/Min. Im Handbuch steht 20000 R/Min, da es sich um eine luftgekühlte Spindel handelt und die Kühlung über die Umdrehung geregelt wird. Damit würde sich der Bereich von 12000 -24000 R/Min auf 20000-24000 R/Min reduzieren?
Die niedrigste Geschwindigkeit beträgt 12.000 U/min, was leicht zu heiß werden kann.
By vevor
Helpful
(
6
)
wie warm wird die Spindel unter normalen bedingungen? da Anfänger habe ich keinerlei vergleichswerte und möchte einem überhitzen vorbeugen.
Seine Temperatur liegt normalerweise etwa 20 Grad über der Raumtemperatur.
By vevor
Helpful
(
1
)
Frequenzumrichter Eingang 2020 Volt Ausgang dreimal 220V ist dafür gut?
Es wird empfohlen, einen Wechselrichter mit 1,5 kW und 220 V zu verwenden.
By vevor
Helpful
(
0
)
Welcher Schaftdurchmesser ist hier möglich? 6mm 8mm oder 10mm
Es ist in 3,175 mm, 4 mm und 6 mm erhältlich.
By vevor
Helpful
(
0
)
