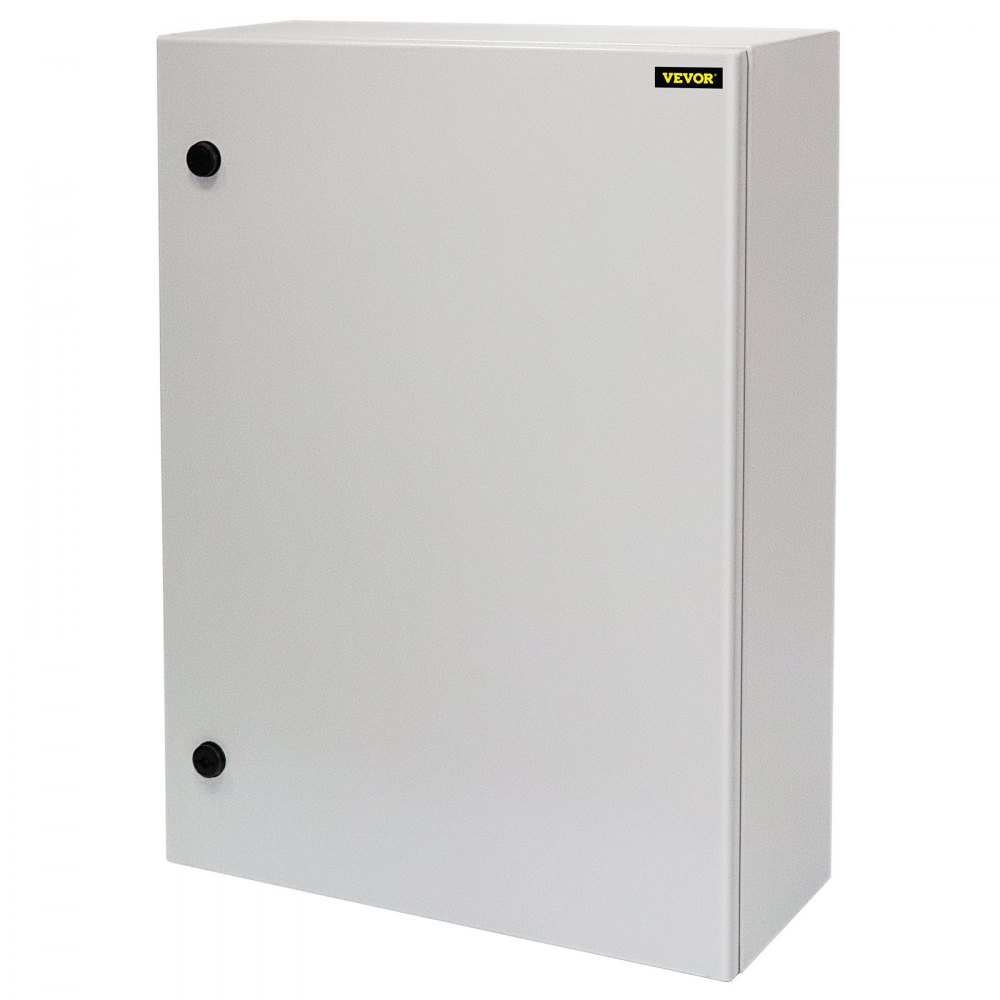

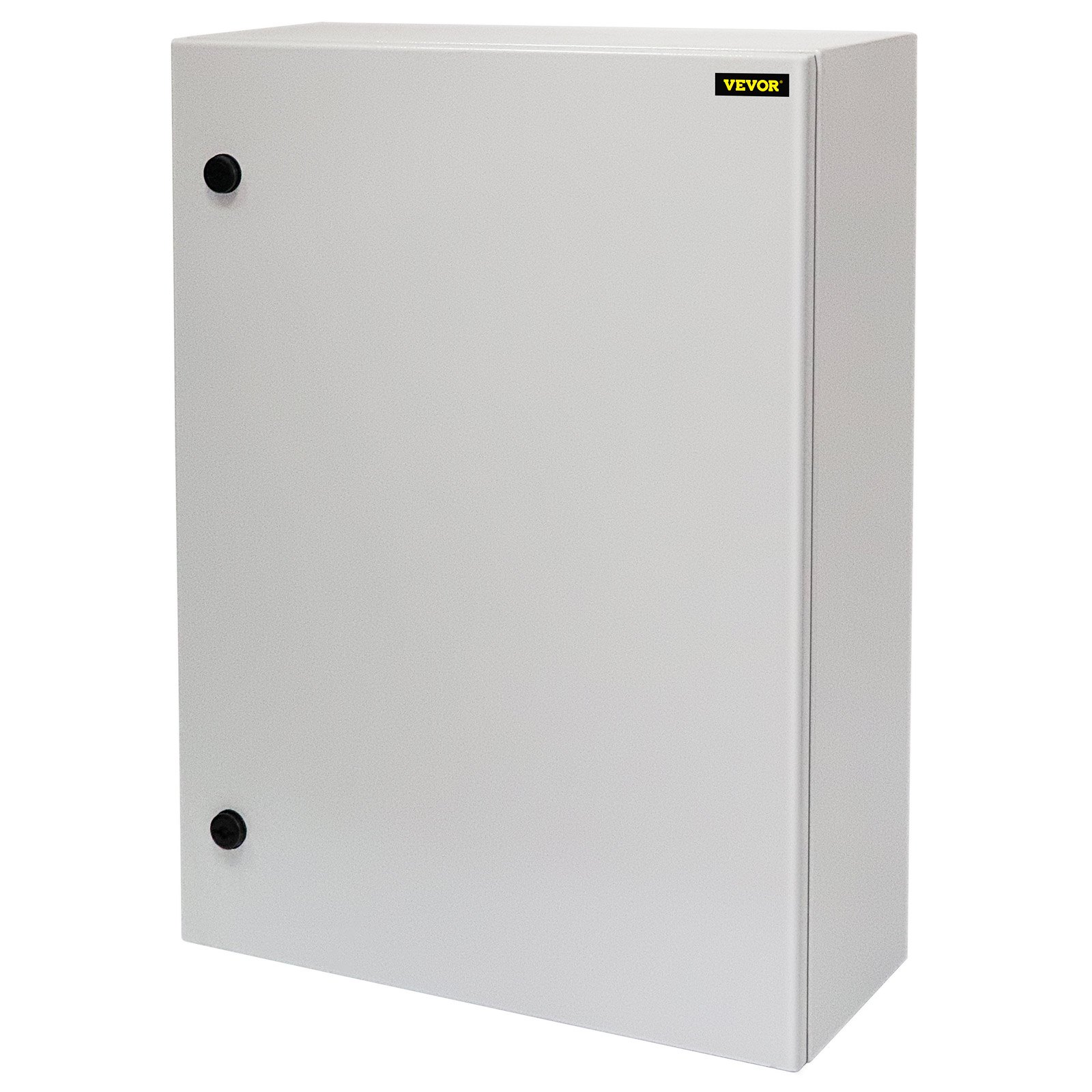

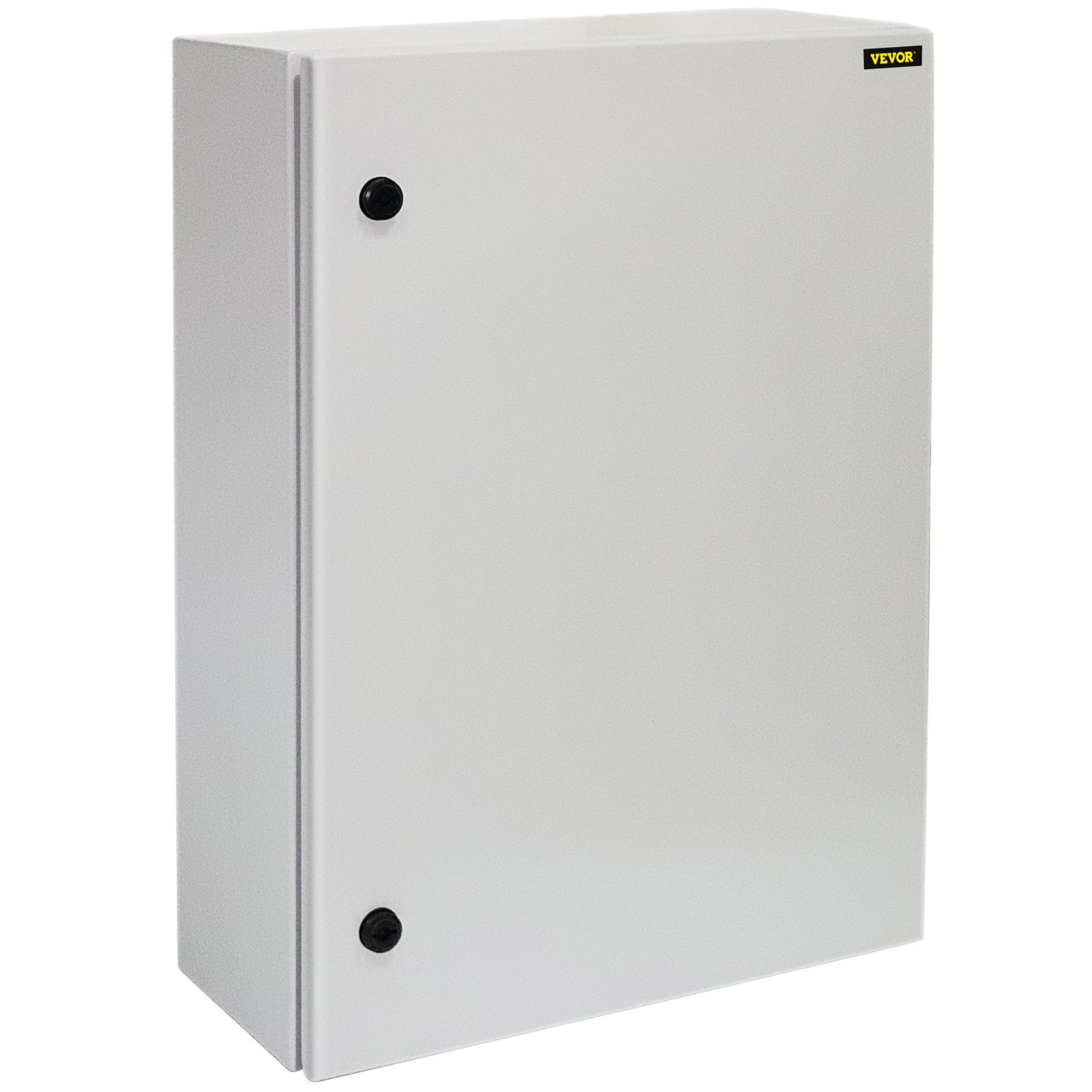

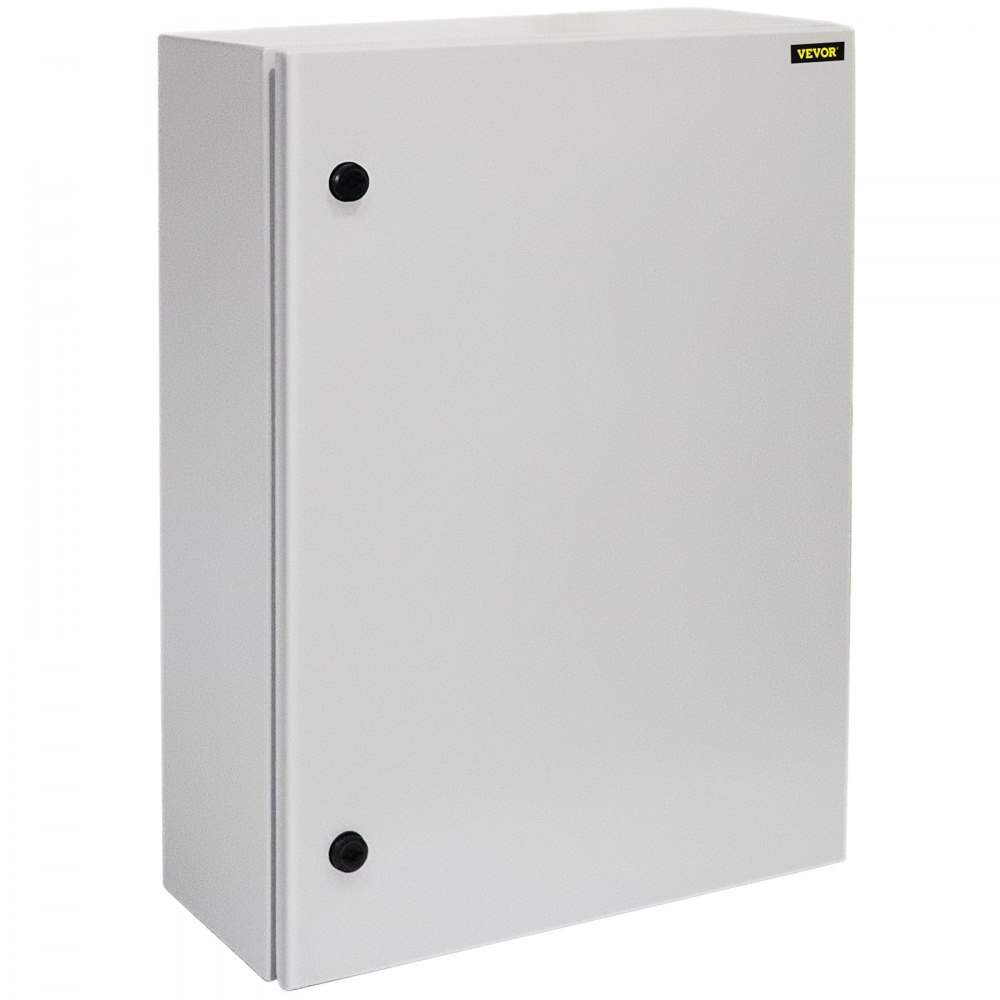

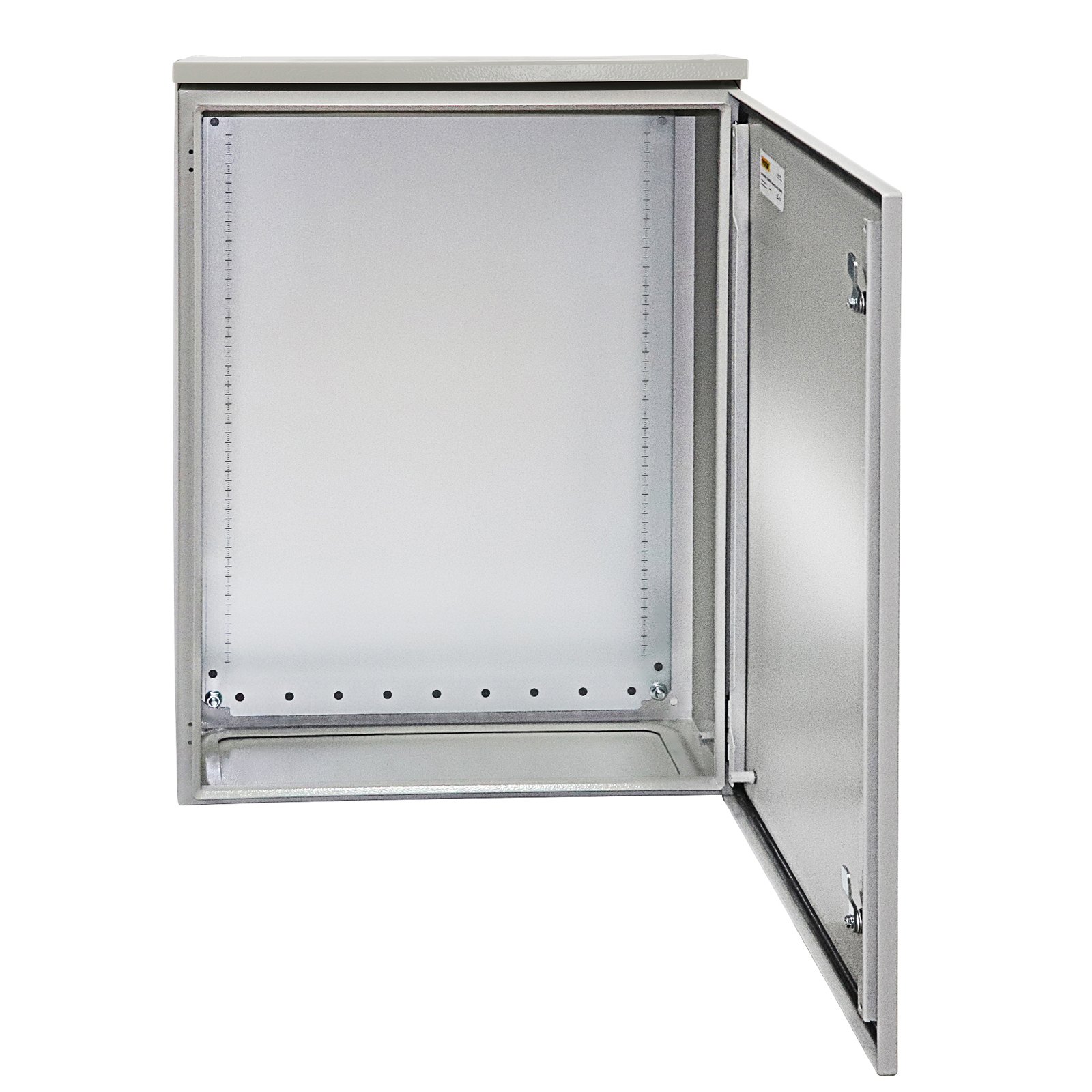

VEVOR electrical enclosure, 70 x 50 x 20 cm, NEMA 4 outdoor enclosure, IP65 waterproof and dustproof junction box made of cold-rolled carbon steel with hinge for outdoor and indoor use
4.7 34 Reviews
153 90 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
- Robust steel construction: Certifications: UL 508A (CSA C22.2 No. 14-13), TÜV, CE. The electrical enclosure is meticulously crafted from cold-rolled carbon steel, produced through precision cutting and welding. It offers superior wear resistance, ensuring your equipment is well-protected in harsh environments.

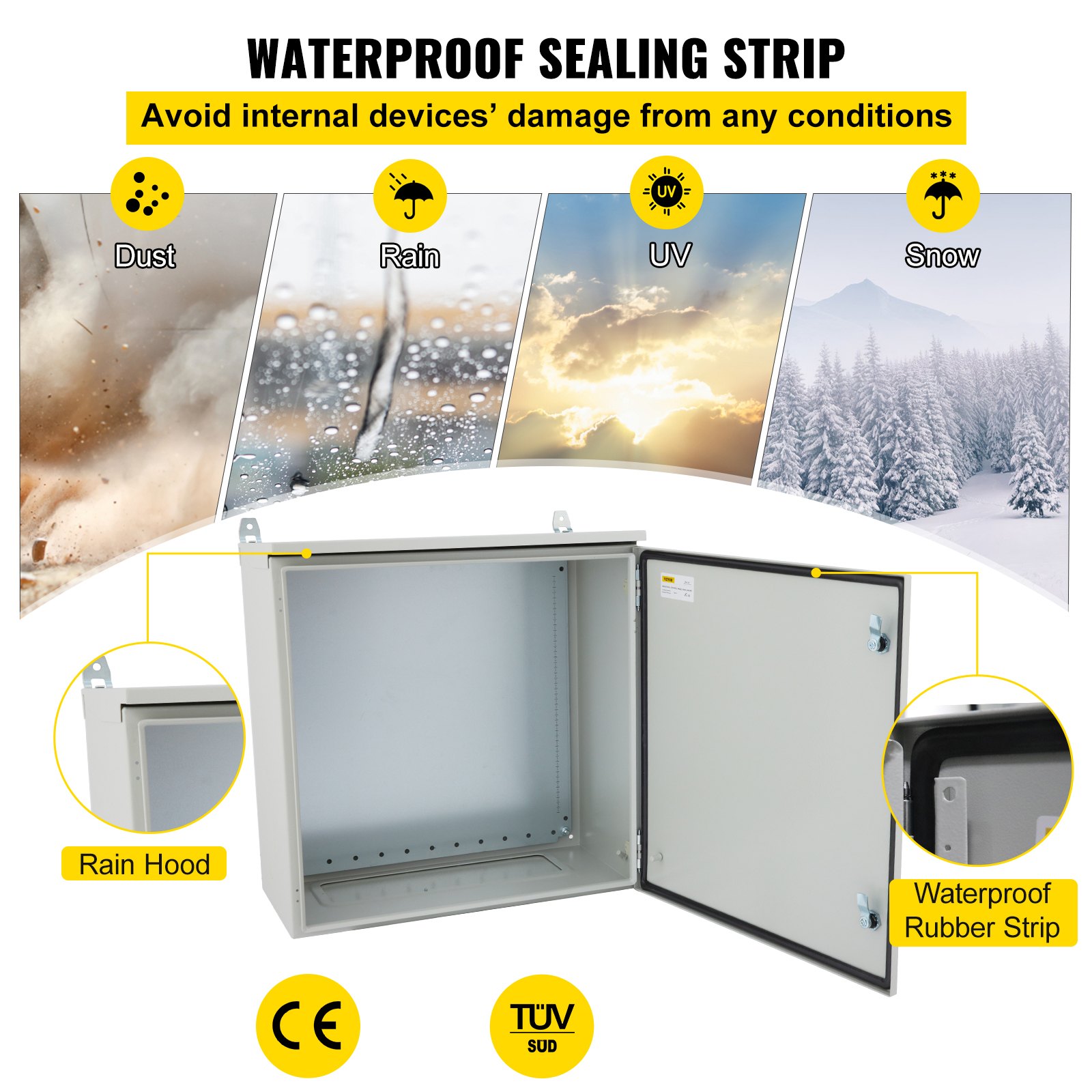

- Waterproof rating IP65: The foam/nylon sealing strip offers excellent sealing performance, and the NEMA-rated outer enclosure provides optimal IP65 protection. A rain cover can be mounted on top of the electrical box to prevent dirt and water from entering when the lid is opened.

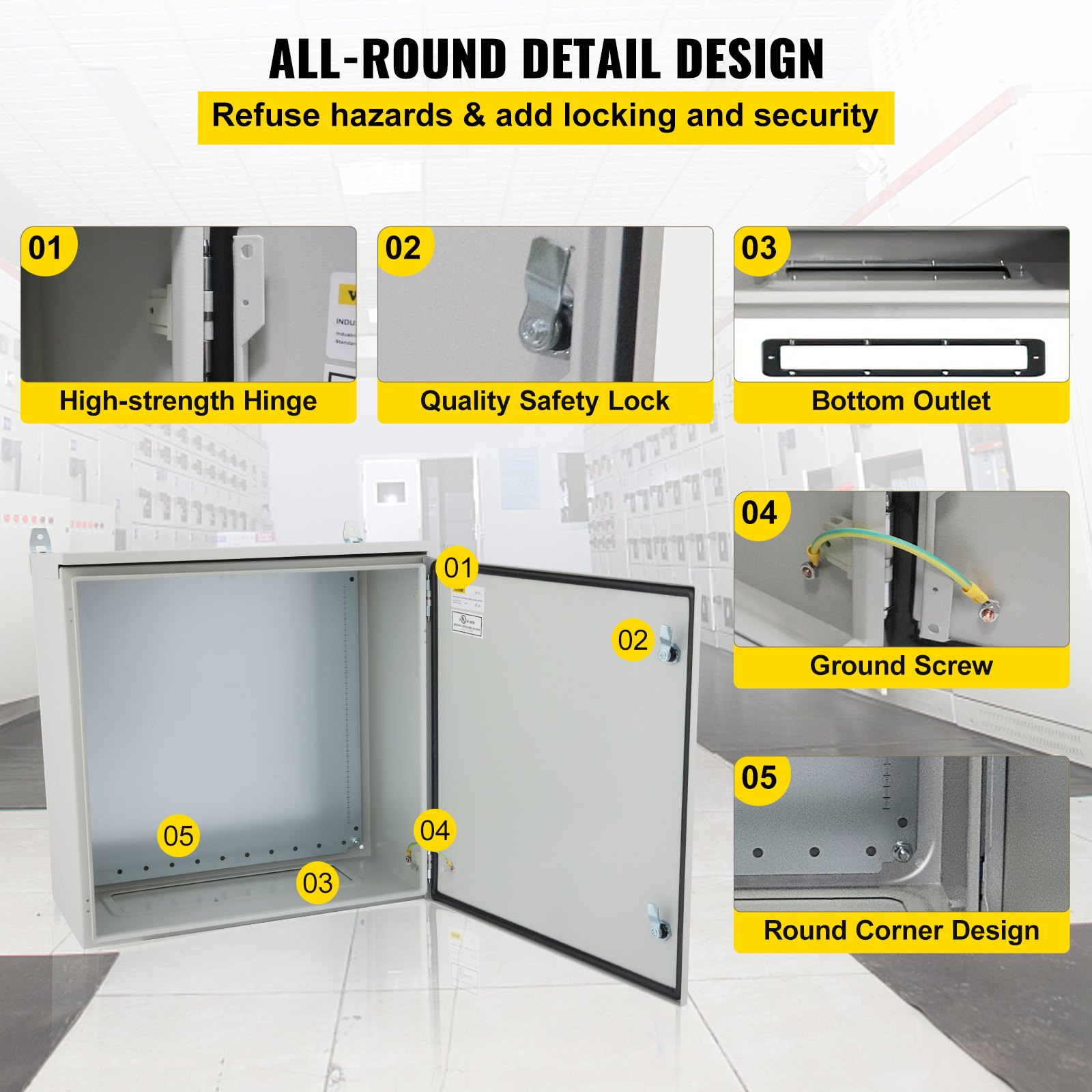

- Reinforced lock and hinge: The electric outer casing features a high-quality lock core to increase security and locking reliability, and reduce the likelihood of it falling off. The heavy-duty hinged lid is designed to ensure that the door is not easily damaged or broken by being squeezed.
- Convenient operation: The metal electrical junction box features a removable, galvanized mounting backplate for easy installation of electrical components. Complete accessories and four mounting holes on the back allow for quick wall mounting of the NEMA enclosure.
- Exquisitely designed details: The base of the electrical box is designed to facilitate cable insertion. Grounding screws are pre-installed, and the cutouts are smooth to prevent damage to the cables. Ideal for various applications, from industrial equipment to household appliances.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 4.7
All reviews are from verified purchases
Average rating based on 34 reviews
See all 34 reviews
About this item
Description

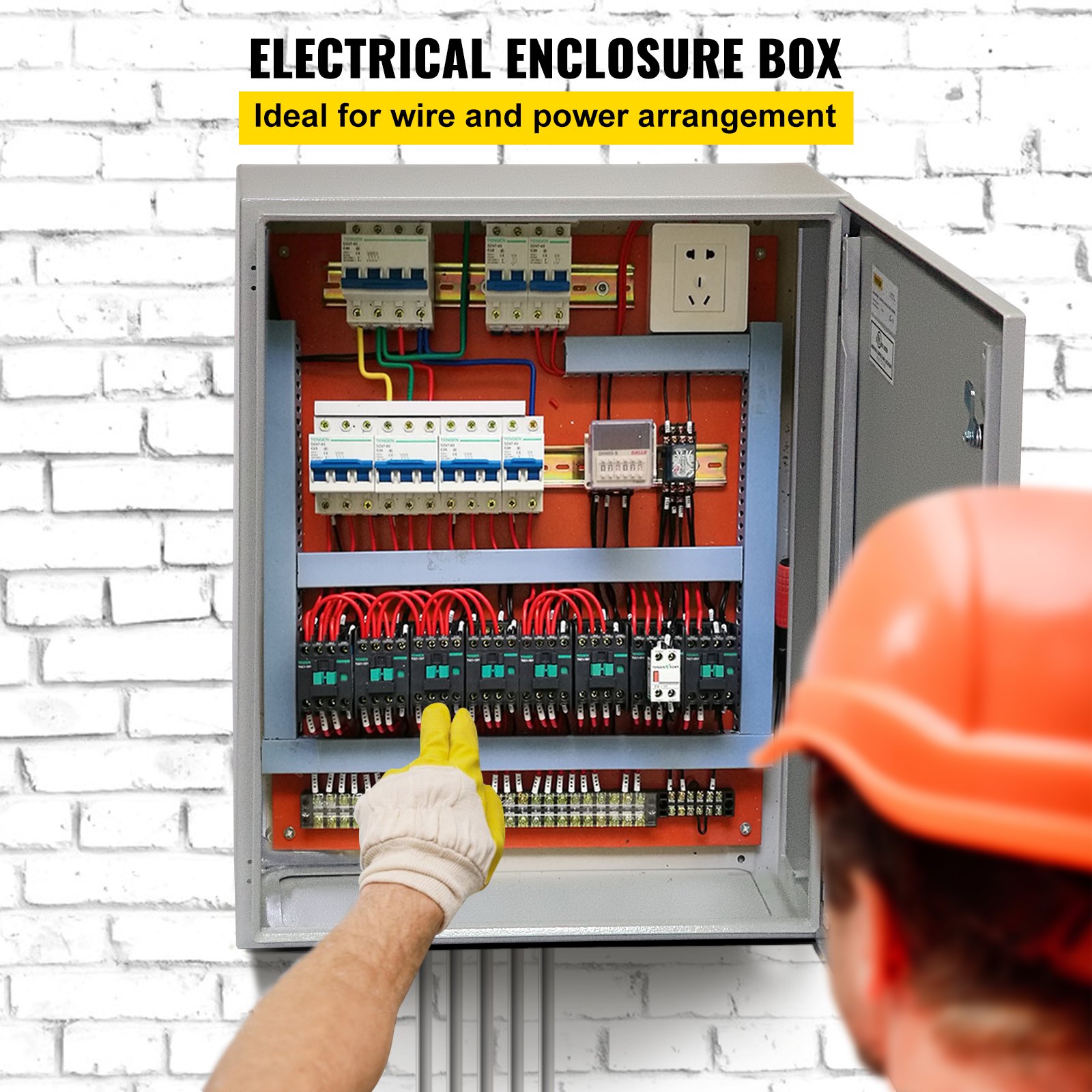

Electrical enclosure box – Start with your safety equipment!
28 x 20 x 8 inches, UL certified and IP65 protection rating
The electrical enclosure is made of high-quality carbon steel. A precise locking design, heavy-duty hinges, and a rain cover protect your plugs, power cables, and other equipment from the elements. Widely used for indoor and outdoor applications, such as in the electrical, construction, and other industries. A robust, well-made enclosure provides optimal protection and ensures consistent performance year-round. Choose a name you can trust: VEVOR.
- Robust steel construction
- Waterproof to IP65
- Reinforced lock and hinge
- Easy to use
- Exquisitely designed details

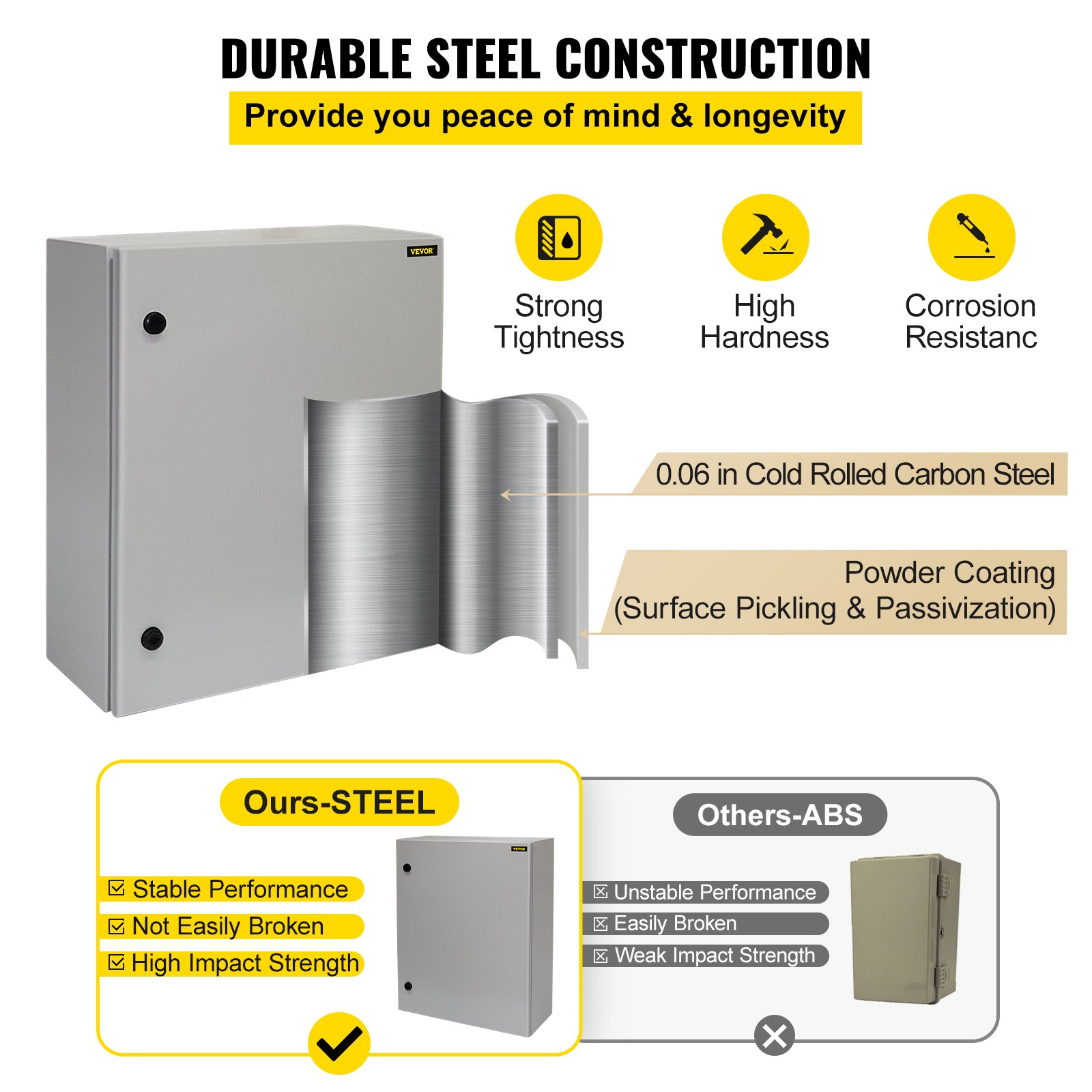

High-quality steel material
The metal of the electrical junction box is made of cold-rolled carbon steel for high toughness and corrosion resistance. Finish: Powder coating (surface pickling and passivation), offering excellent mechanical properties.
Protection class IP65
The IP65 protection rating guarantees protection against dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater safety on construction sites.
Hinge and lock safety
The inner lock core is made of metal to prevent damage from excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
Effortless installation
The removable, galvanized backplate can be easily installed on circuit boards, terminals, or other electrical components that require a fixed position. Four mounting holes on the back also allow for easy wall mounting.
Thoughtful design
The removable outlet hole on the bottom facilitates cable entry and exit. The grounding cable inside the box is pre-installed, and the rounded corners are designed to prevent cable damage.
Extensive application

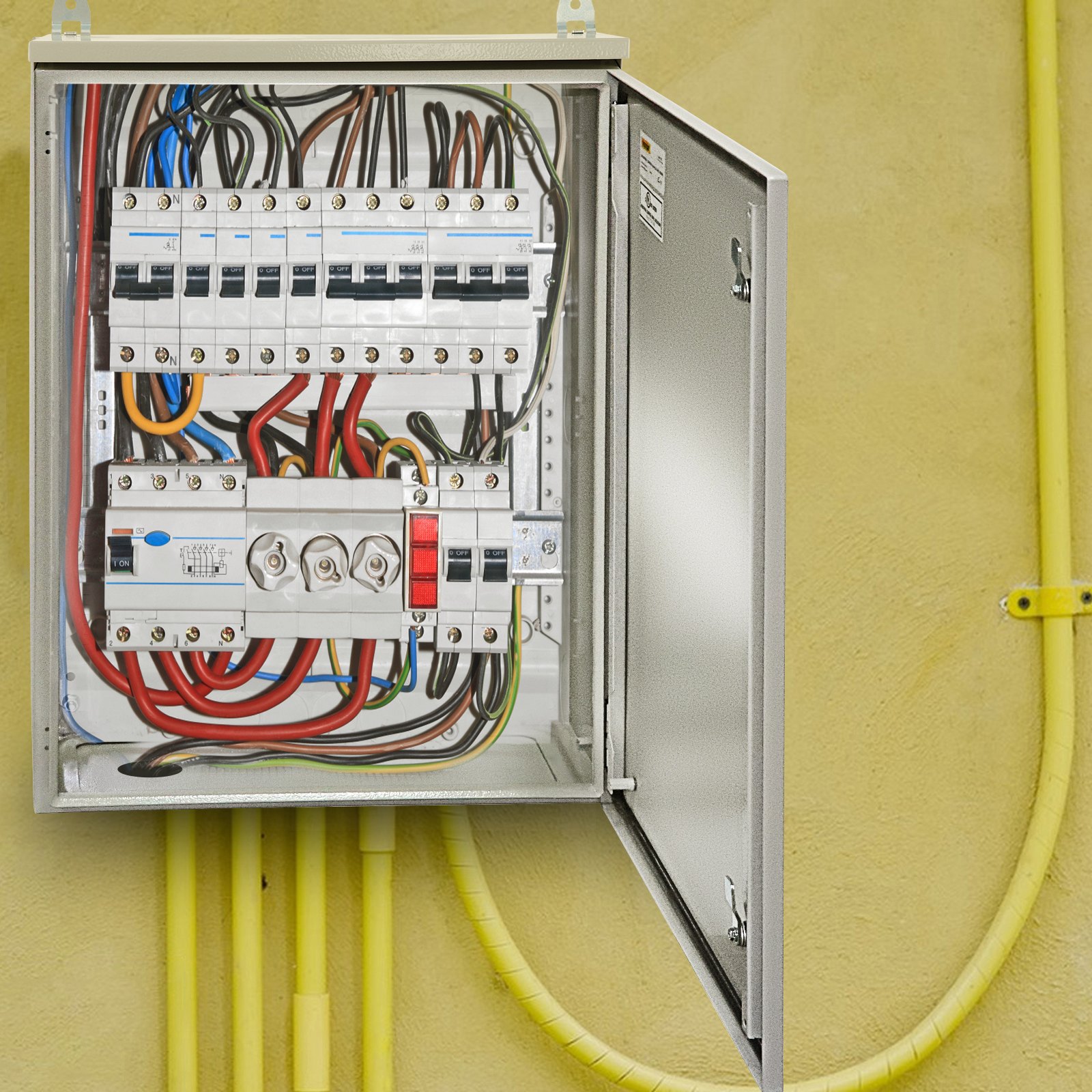

A hinged electrical enclosure is suitable for indoor and outdoor applications where protection of circuits and other electrical components is required. Applicable to factories, construction sites, shopping centers, public squares, etc.
- Model: ST7520
- Colour: RAL 7035 (White-grey)
- Housing material: 0.06 inch / 0.15 cm cold-rolled carbon steel
- Inner plate: 0.06 inch / 0.15 cm thick galvanized plate
- Finish: Powder coating (surface pickling and passivation)
- Certification: TÜV, CE, UL 508A (CSA C22.2 No. 14-13.)
- Ratings: NEMA Type 4
- Protection rating: IP65, IK10
- Construction: Welded throughout
- Ambient temperature: -40 to 122°F / -40 to 55°C
- Sealing material: Seamless foam/nylon (washer or plug)

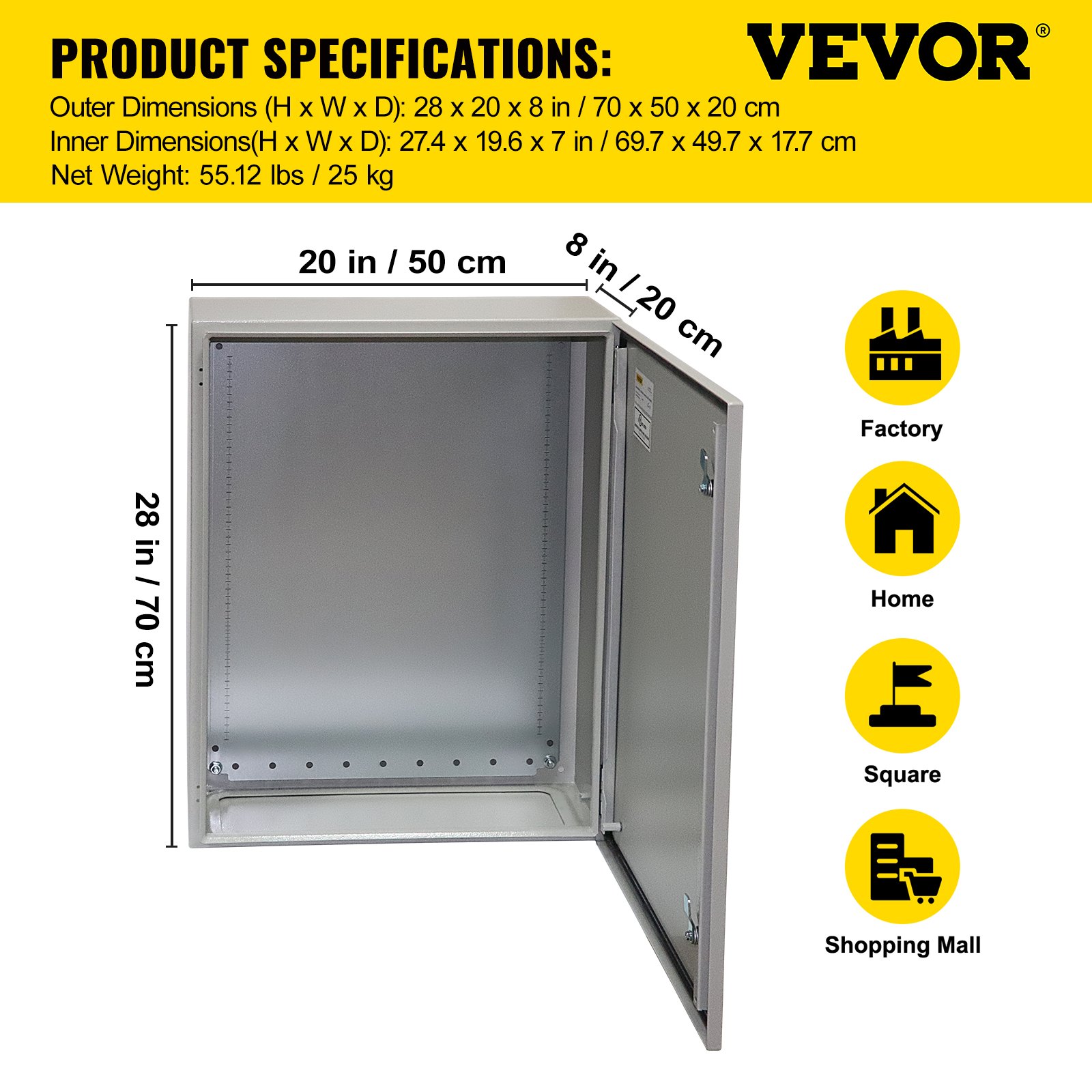

- External dimensions (H x W x D): 28 x 20 x 8 inches / 70 x 50 x 20 cm
- Internal dimensions (H x W x D): 27.4 x 19.6 x 7 inches / 69.7 x 49.7 x 17.7 cm
- Dimensions of the galvanized backplate (H x W): 26.2 x 18 inches / 66.5 x 45 cm
- Diameter of mounting hole (± 0.2 cm): 0.35 inches / 0.9 cm
- Net weight: 55.12 lbs / 25 kg

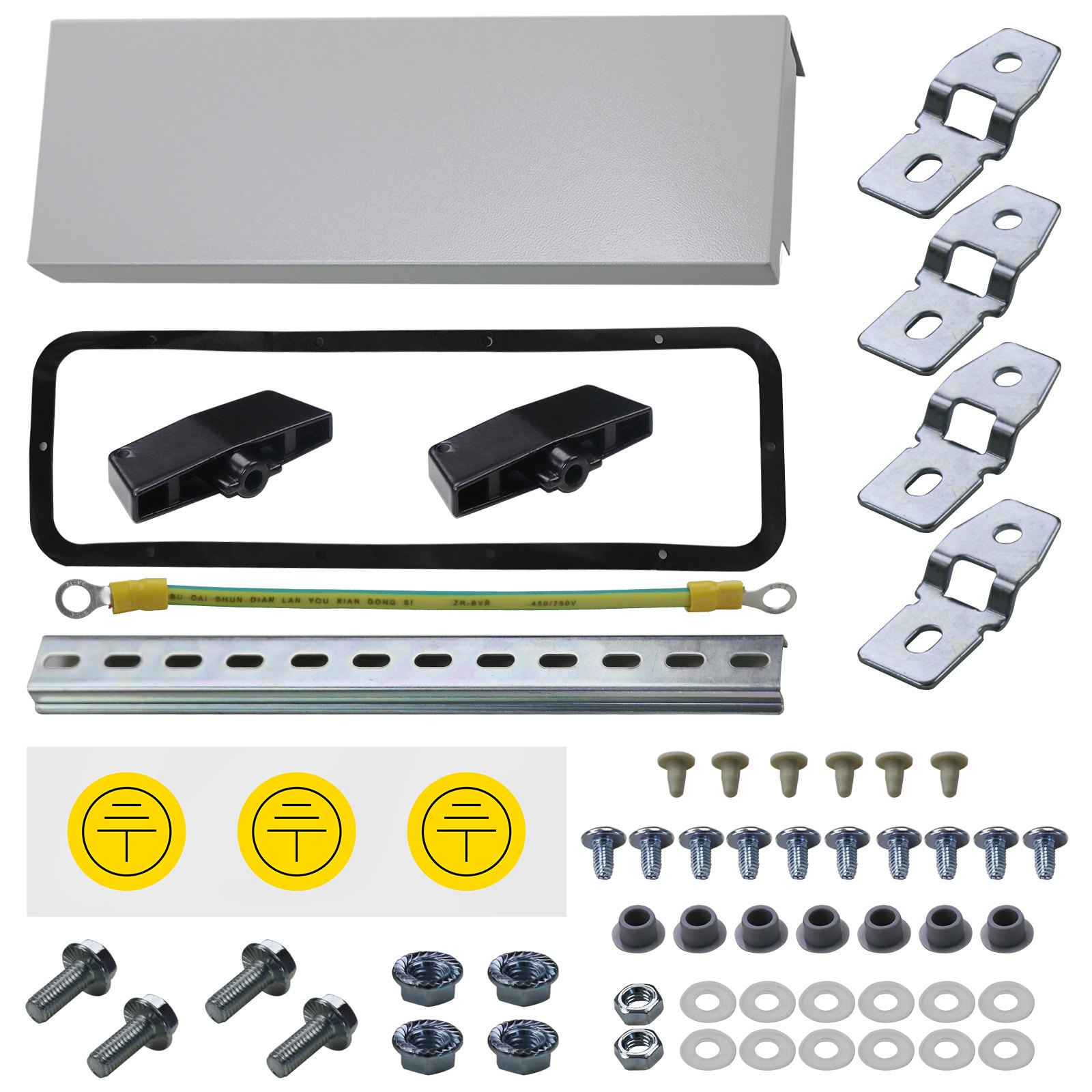

- 1 x guide rail
- 1 x Rain cover
- 4 x hanging loops
- 1 x gasket (for housing plate)
- 1 x grounding cable
- 3 x Earth shield
- 2 x keys
- 8 x plugs
- 1 x Set of accessories
- 1 x set of fasteners (number varies depending on type)
Electrical enclosure box – Start with your safety equipment!
28 x 20 x 8 inches, UL certified and IP65 protection rating
The electrical enclosure is made of high-quality carbon steel. A precise locking design, heavy-duty hinges, and a rain cover protect your plugs, power cables, and other equipment from the elements. Widely used for indoor and outdoor applications, such as in the electrical, construction, and other industries. A robust, well-made enclosure provides optimal protection and ensures consistent performance year-round. Choose a name you can trust: VEVOR.
- Robust steel construction
- Waterproof to IP65
- Reinforced lock and hinge
- Easy to use
- Exquisitely designed details
High-quality steel material
The metal of the electrical junction box is made of cold-rolled carbon steel for high toughness and corrosion resistance. Finish: Powder coating (surface pickling and passivation), offering excellent mechanical properties.
Protection class IP65
The IP65 protection rating guarantees protection against dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater safety on construction sites.
Hinge and lock safety
The inner lock core is made of metal to prevent damage from excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.

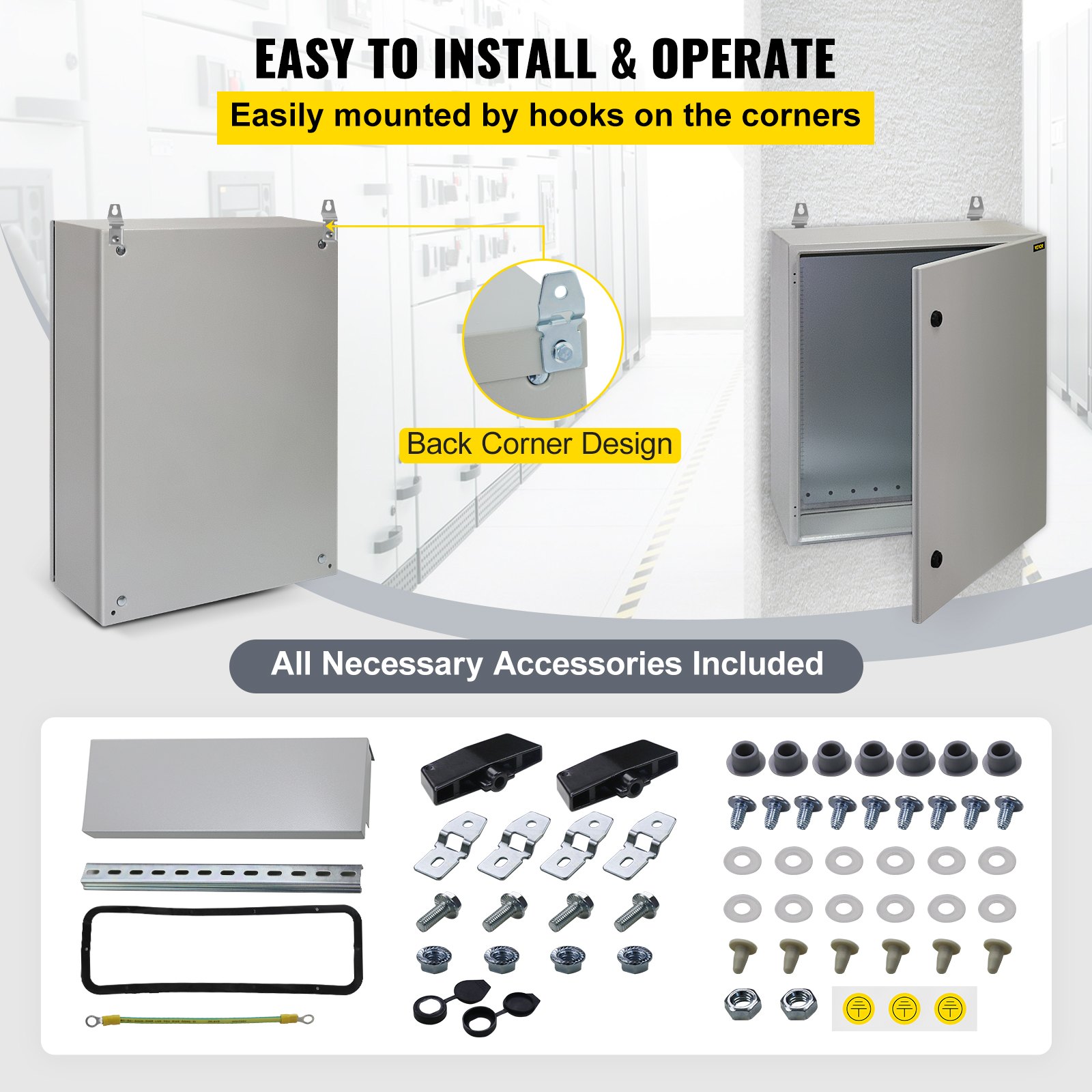

Effortless installation
The removable, galvanized backplate can be easily installed on circuit boards, terminals, or other electrical components that require a fixed position. Four mounting holes on the back also allow for easy wall mounting.
Thoughtful design
The removable outlet hole on the bottom facilitates cable entry and exit. The grounding cable inside the box is pre-installed, and the rounded corners are designed to prevent cable damage.
Extensive application
A hinged electrical enclosure is suitable for indoor and outdoor applications where protection of circuits and other electrical components is required. Applicable to factories, construction sites, shopping centers, public squares, etc.
- 1 x guide rail
- 1 x Rain cover
- 4 x hanging loops
- 1 x gasket (for housing plate)
- 1 x grounding cable
- 3 x Earth shield
- 2 x keys
- 8 x plugs
- 1 x Set of accessories
- 1 x set of fasteners (number varies depending on type)
- Model: ST7520
- Colour: RAL 7035 (White-grey)
- Housing material: 0.06 inch / 0.15 cm cold-rolled carbon steel
- Inner plate: 0.06 inch / 0.15 cm thick galvanized plate
- Finish: Powder coating (surface pickling and passivation)
- Certification: TÜV, CE, UL 508A (CSA C22.2 No. 14-13.)
- Ratings: NEMA Type 4
- Protection rating: IP65, IK10
- Construction: Welded throughout
- Ambient temperature: -40 to 122°F / -40 to 55°C
- Sealing material: Seamless foam/nylon (washer or plug)
- External dimensions (H x W x D): 28 x 20 x 8 inches / 70 x 50 x 20 cm
- Internal dimensions (H x W x D): 27.4 x 19.6 x 7 inches / 69.7 x 49.7 x 17.7 cm
- Dimensions of the galvanized backplate (H x W): 26.2 x 18 inches / 66.5 x 45 cm
- Diameter of mounting hole (± 0.2 cm): 0.35 inches / 0.9 cm
- Net weight: 55.12 lbs / 25 kg
