Features & Details

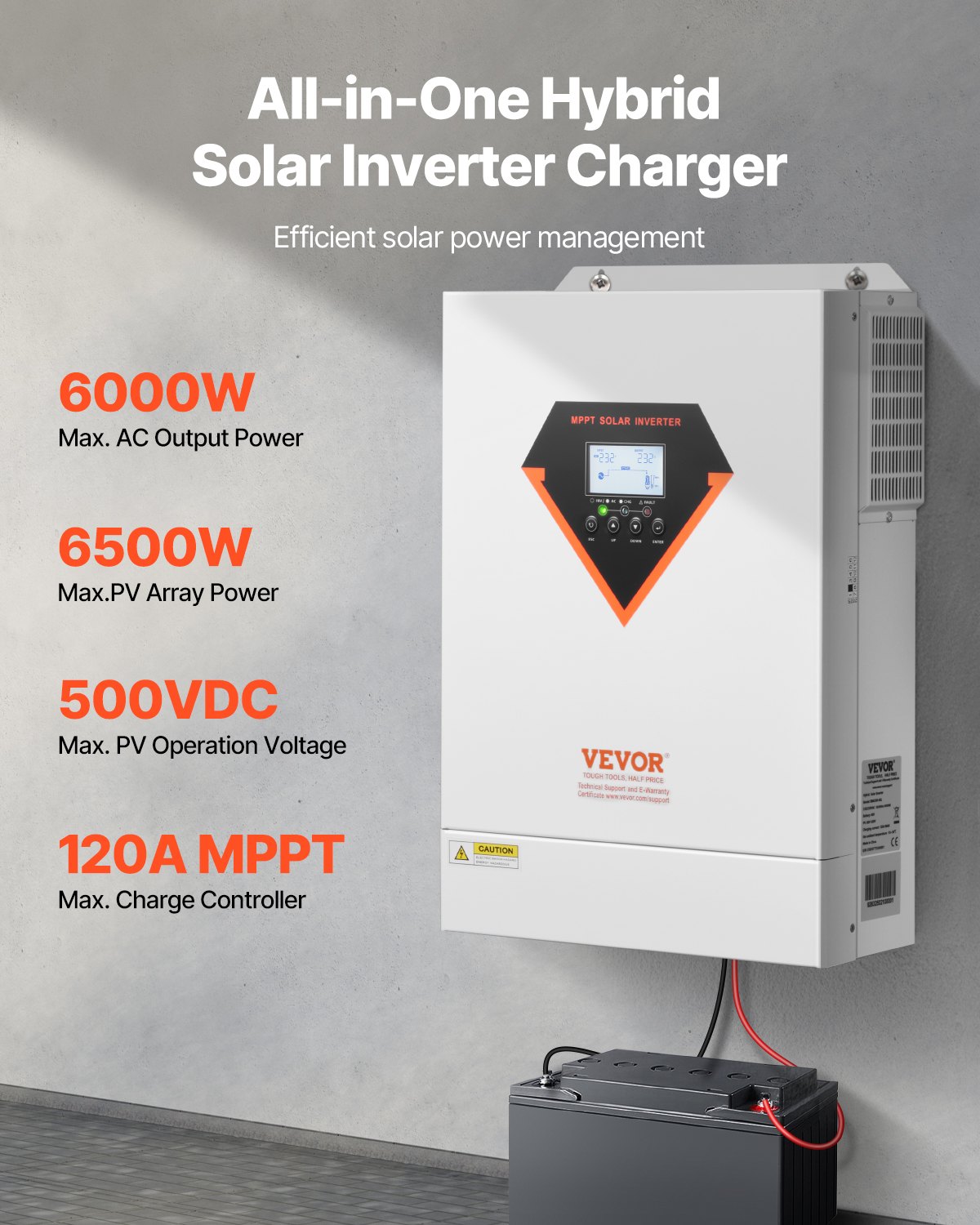

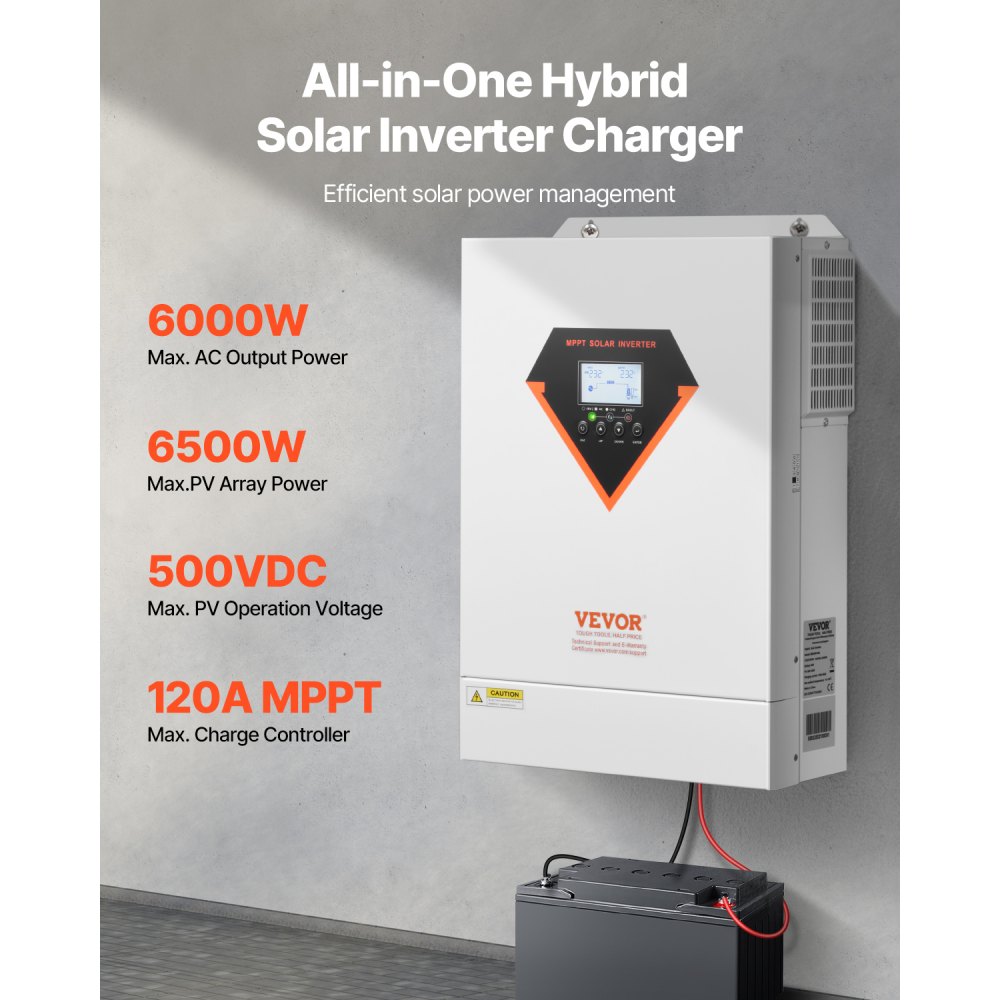

- 2-in-1 Hybrid Solar Inverter: Our 2-in-1 hybrid solar inverter combines an inverter and charge controller in one efficient unit. With a powerful 6000W pure sine wave output at 220/230V AC, it meets high energy demands. It is ideal for off-grid photovoltaic systems and offers efficient power solutions for various applications.

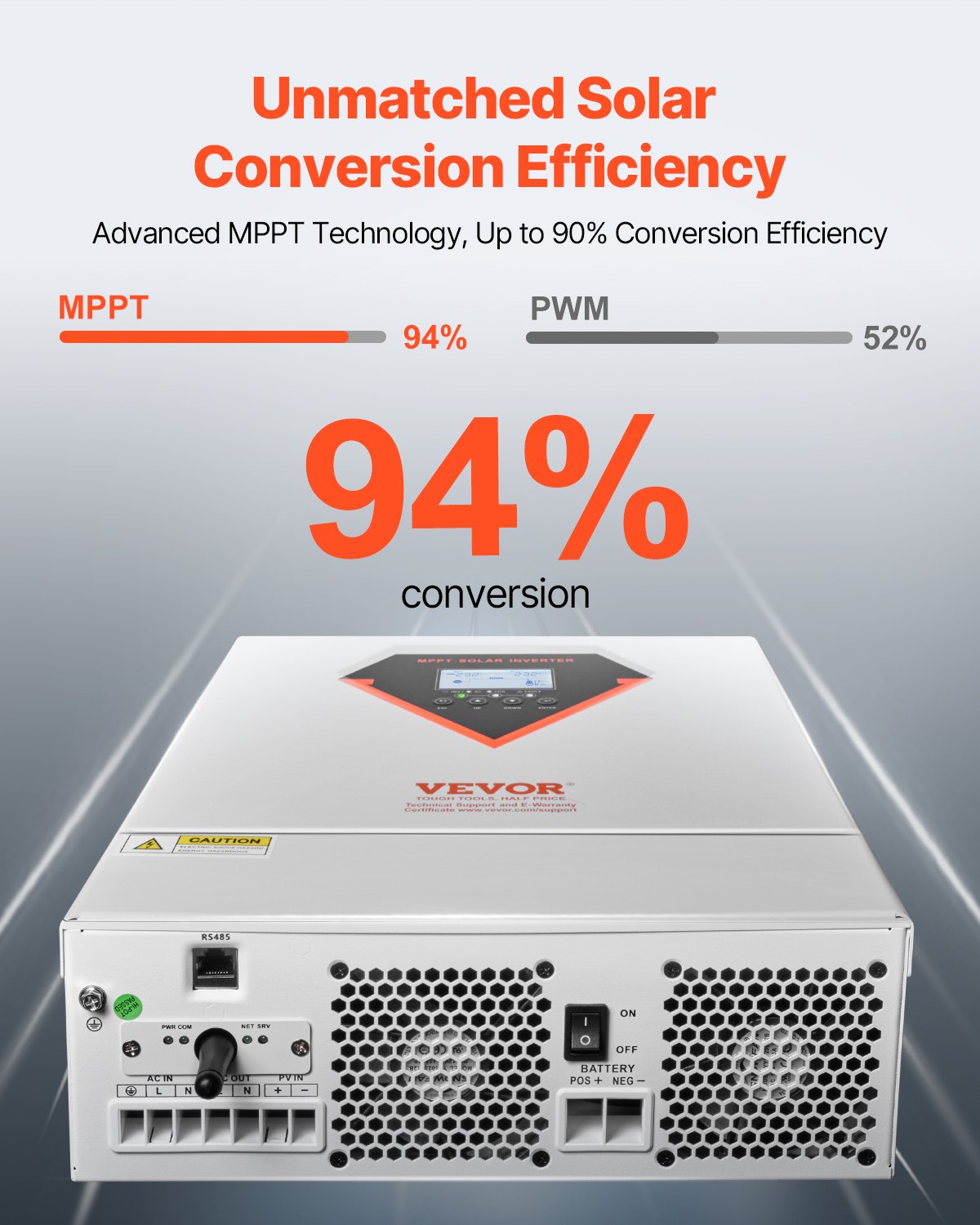

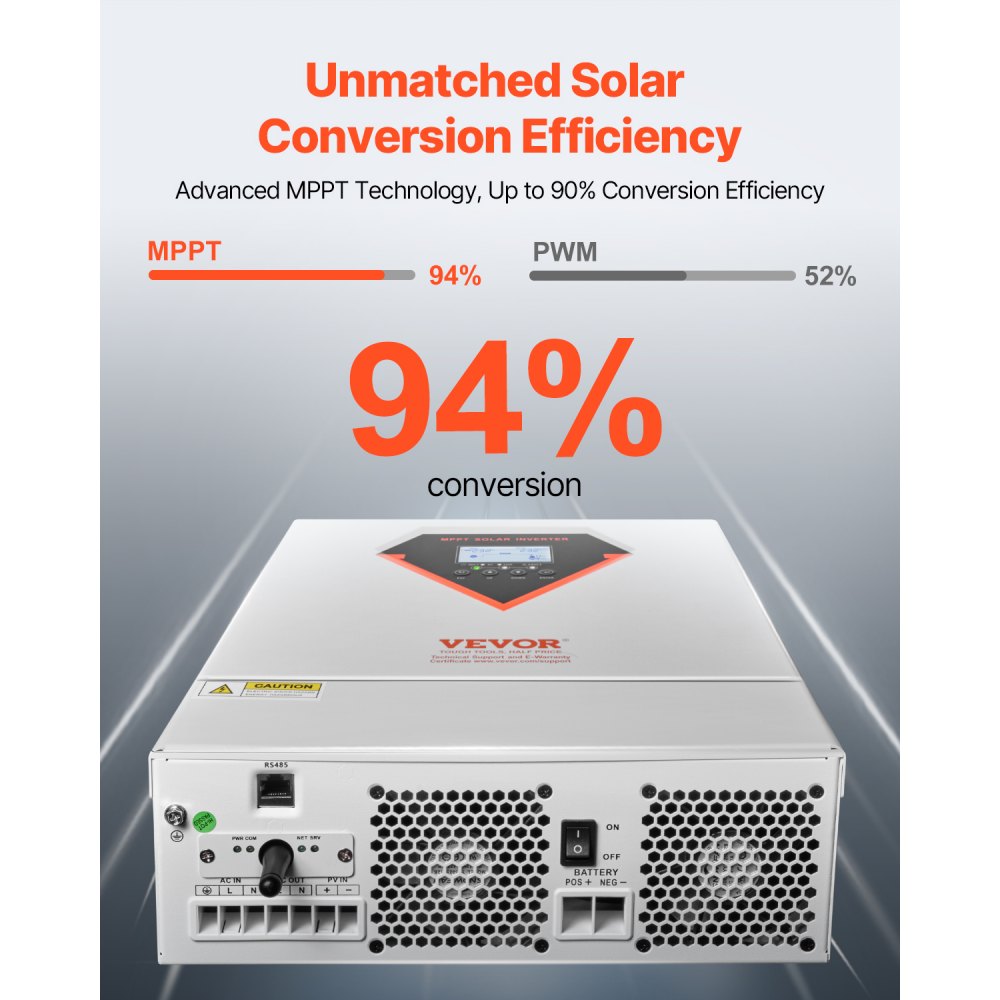

- Efficient MPPT charging technology: Equipped with an advanced MPPT solar charge controller, this hybrid solar inverter supports battery charging up to 120 A and increases the conversion efficiency of solar energy to 94%. It supports a maximum power output of 6500 W and a voltage range of 60 V to 500 V DC, making it compatible with a wide variety of solar systems.

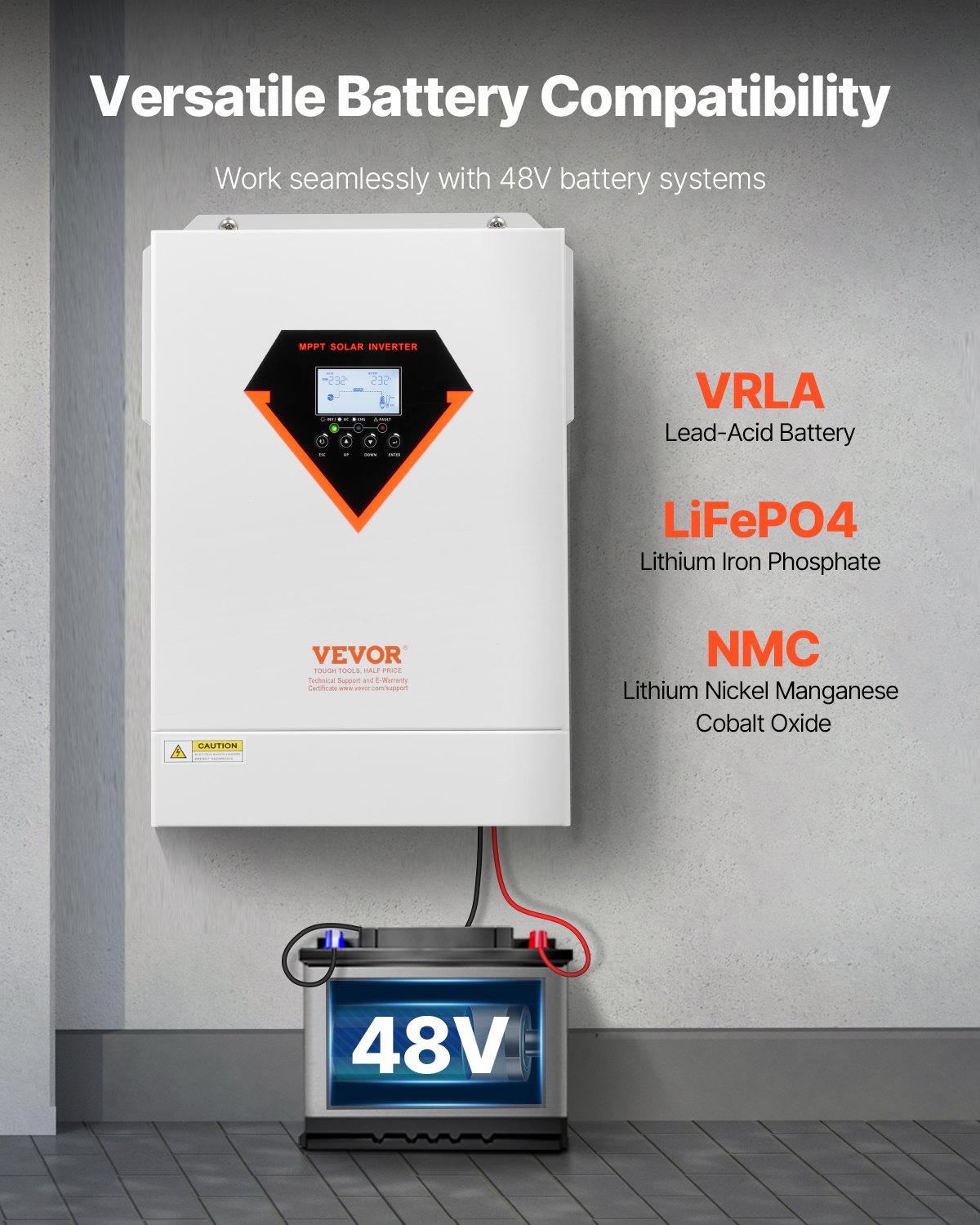

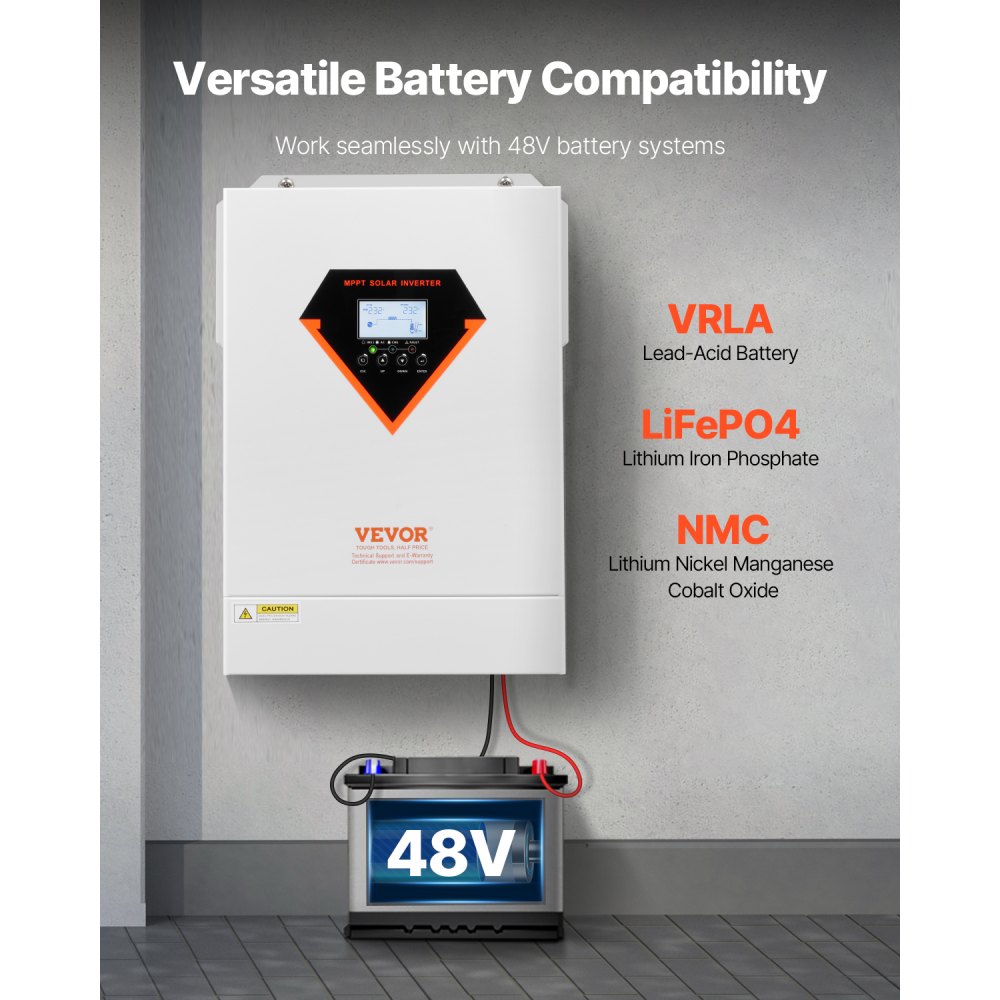

- Compatible with various battery types: Our hybrid inverter charger is designed for 48V battery systems and supports a range of battery types, including lithium, lead-acid, and specialty batteries. It is specifically optimized for lithium battery systems and features an activation function to improve battery performance.

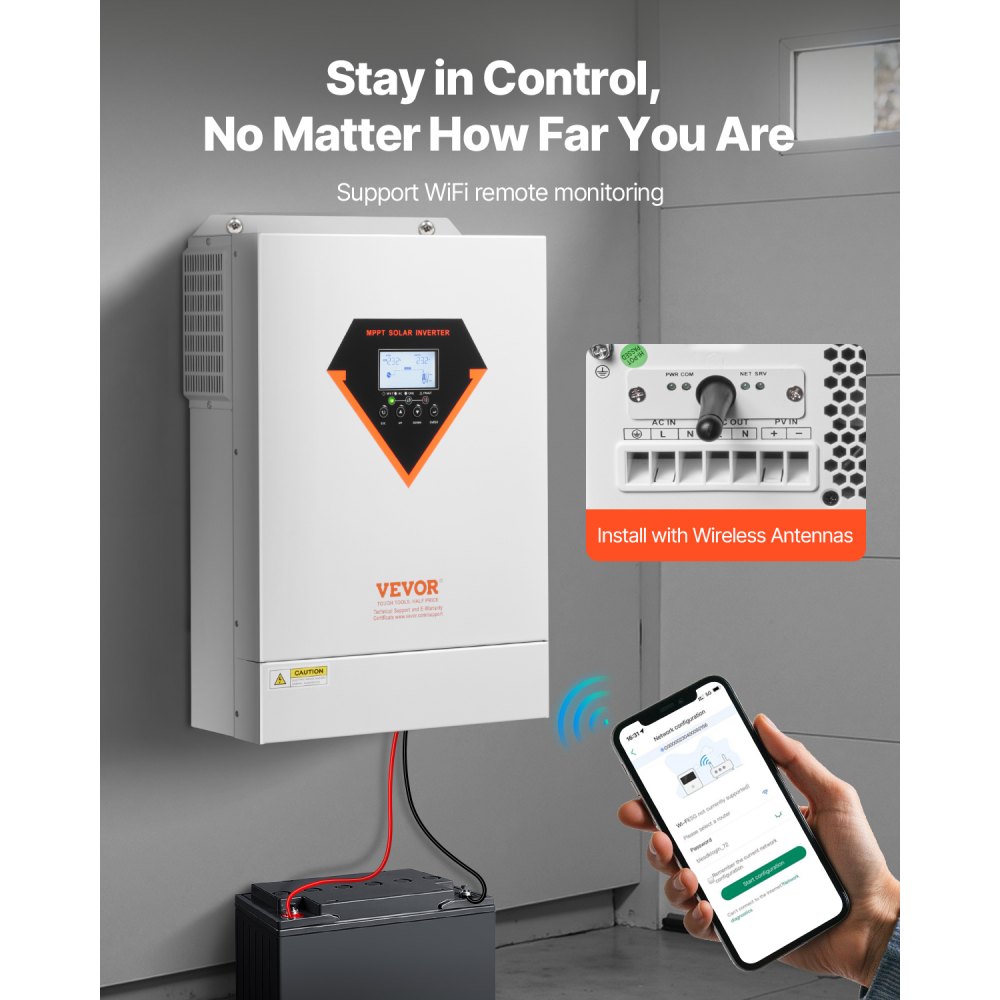

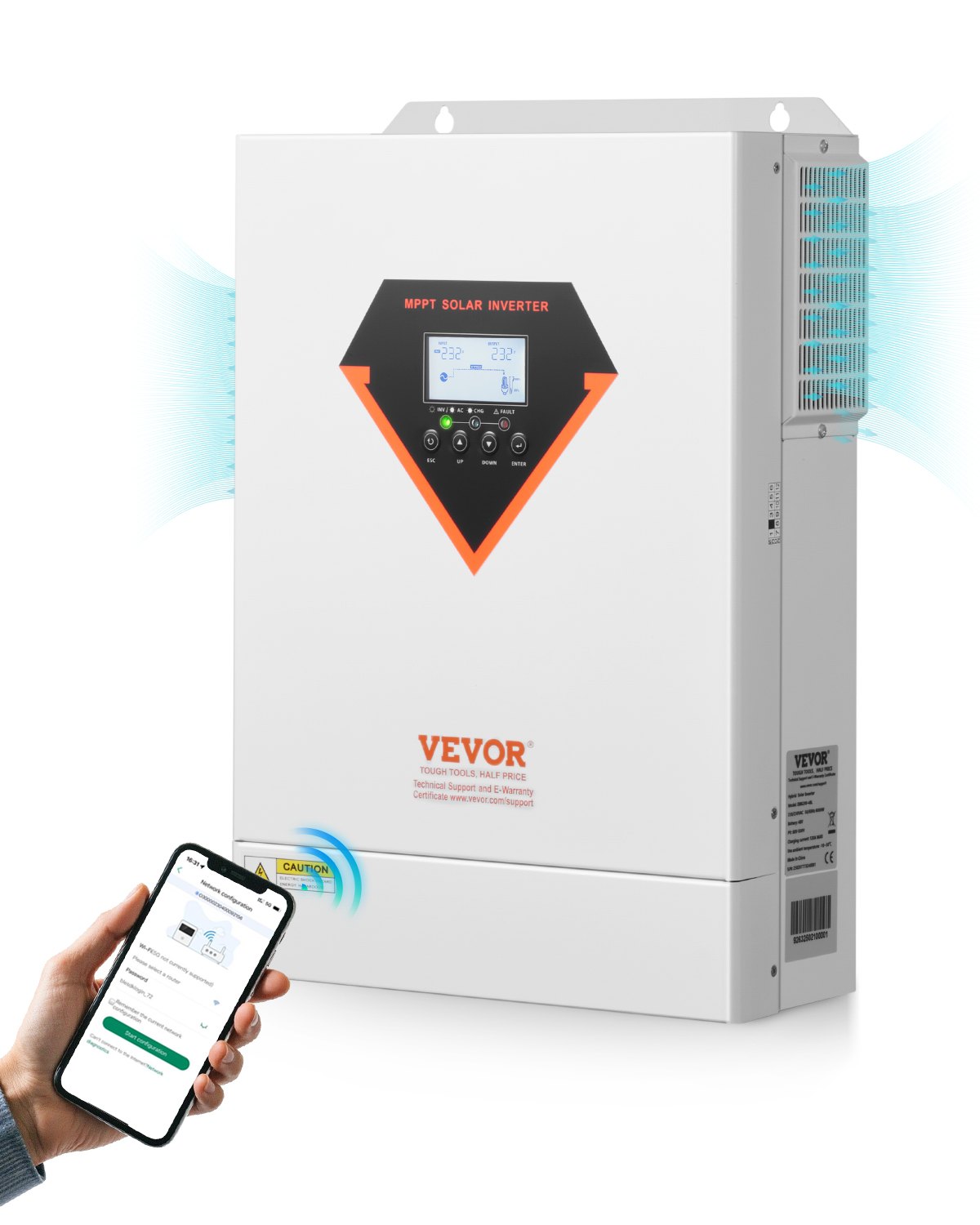

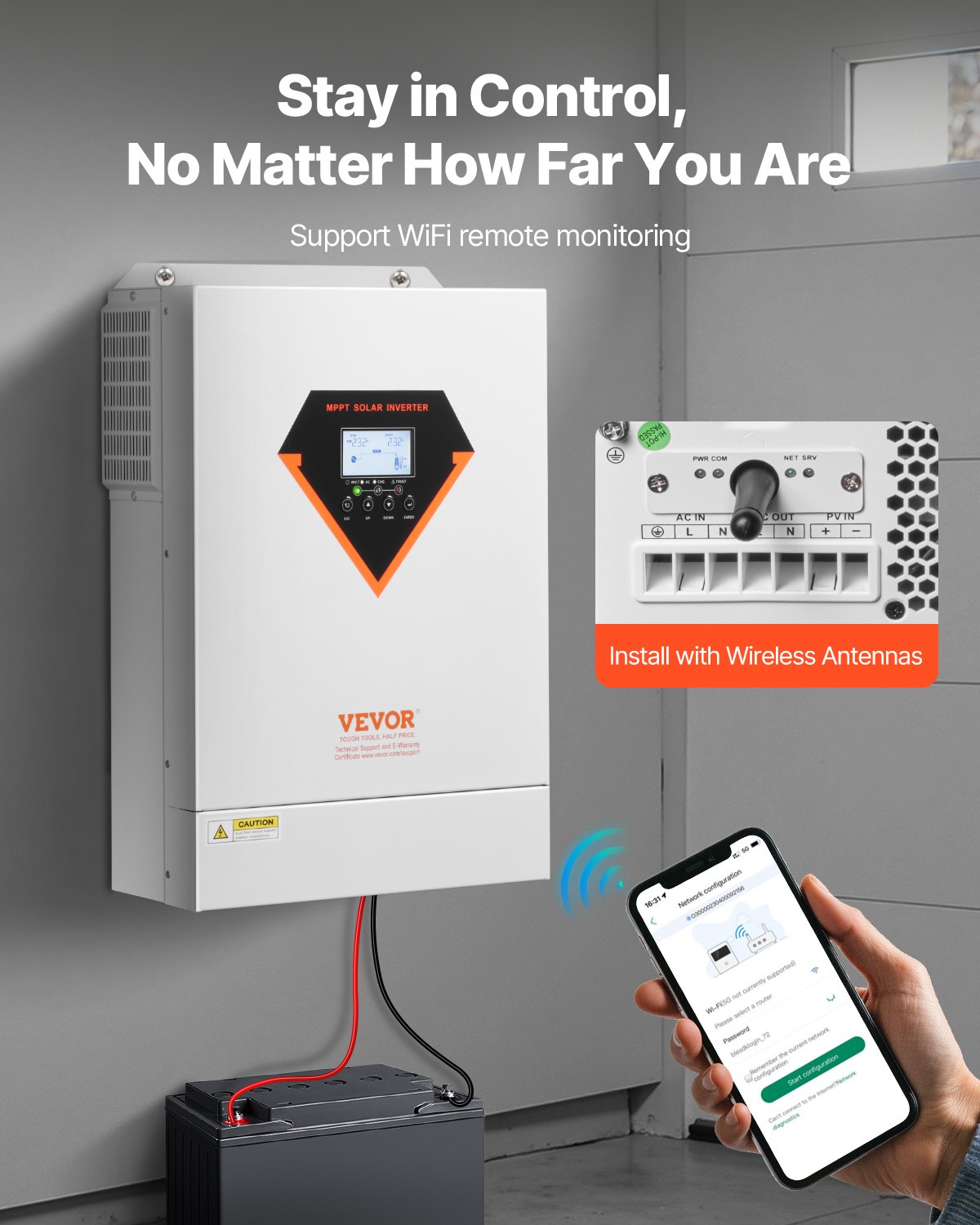

- Intelligent monitoring, stay in control: With an integrated WiFi module, this solar inverter enables remote monitoring via WiFi and offers excellent connection stability, allowing you to track your system's status anytime, anywhere. Furthermore, you can easily set various charging modes (solar only, grid only, or hybrid charging with solar and grid) and output modes (UTL, SOL, SBU, and SUB) using the buttons on the device. Suitable for powering most devices in your home or office.

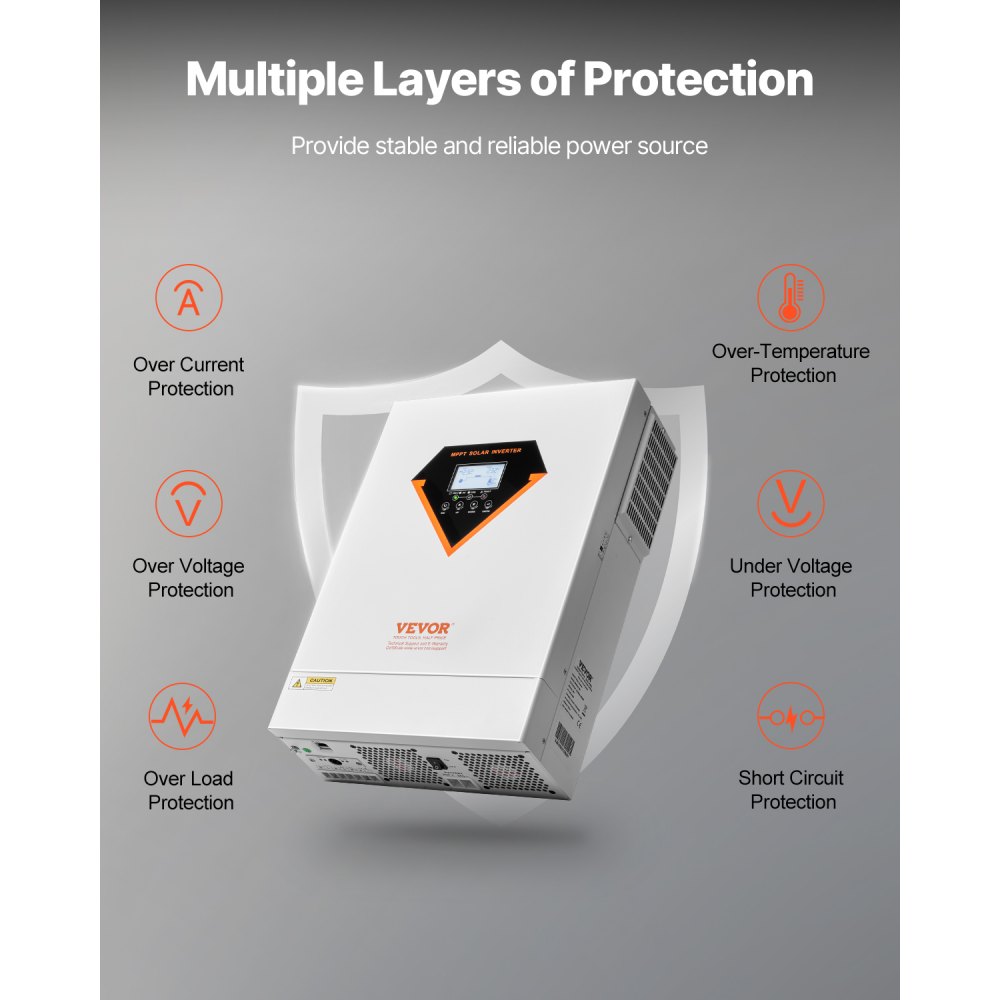

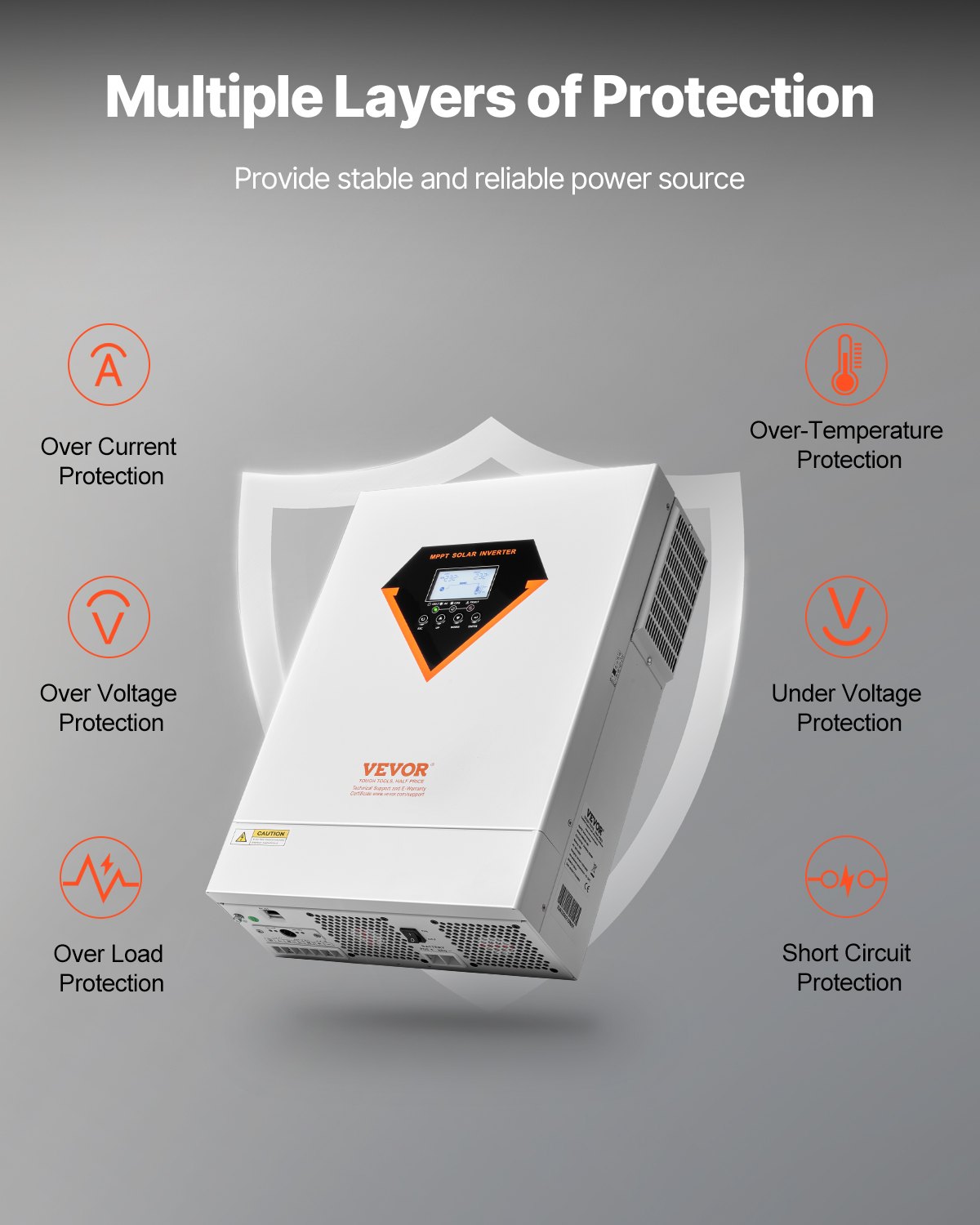

- Comprehensive protection features: The safety of your system is our top priority. This off-grid hybrid solar inverter has multiple protection features, including over-temperature, over-current, over-voltage, under-voltage, short-circuit, and overload protection, so you don't have to worry about your electrical circuit and power source.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 14 reviews
Reviews 4.8
All reviews are from verified purchases
See all 14 reviews
About this item

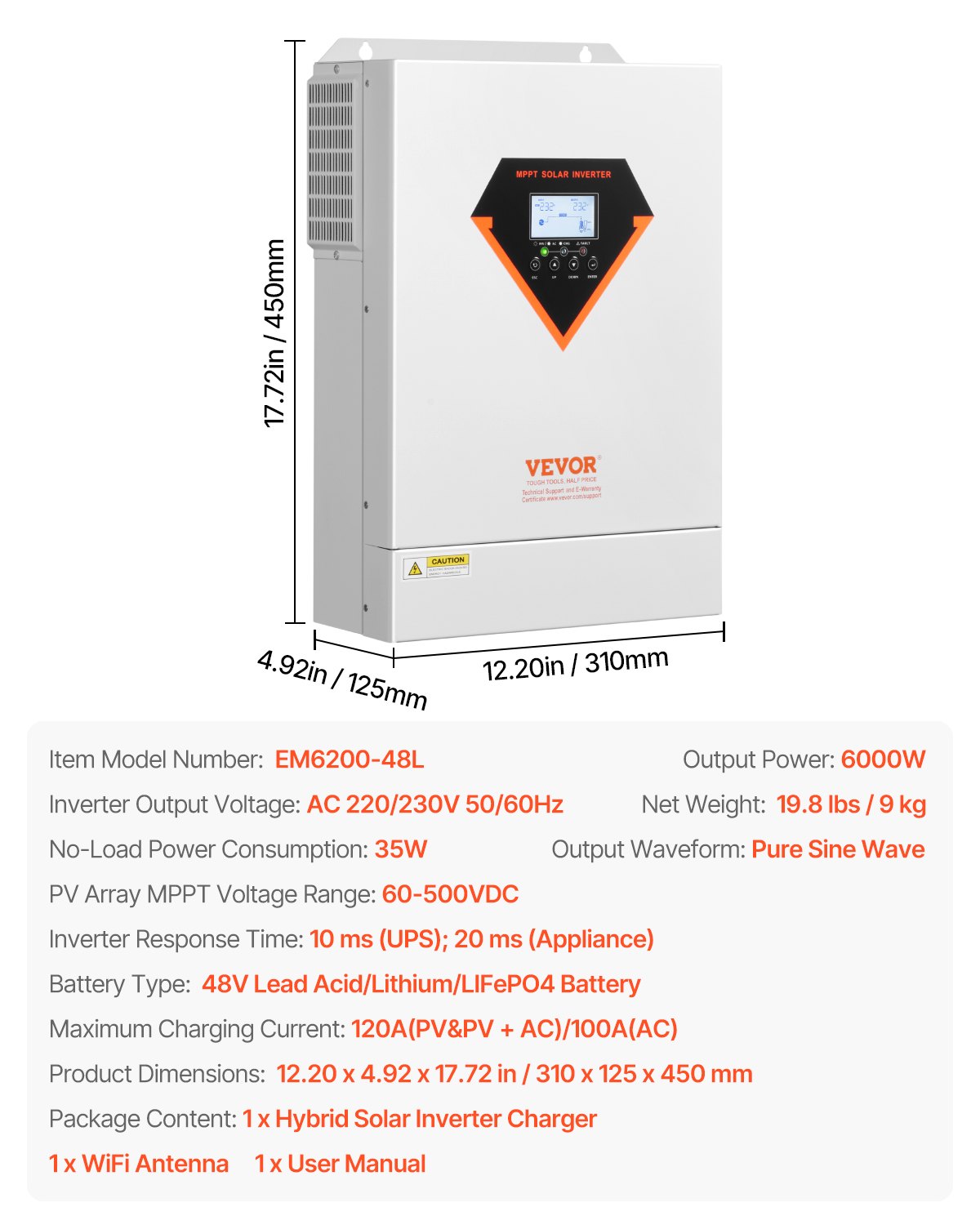

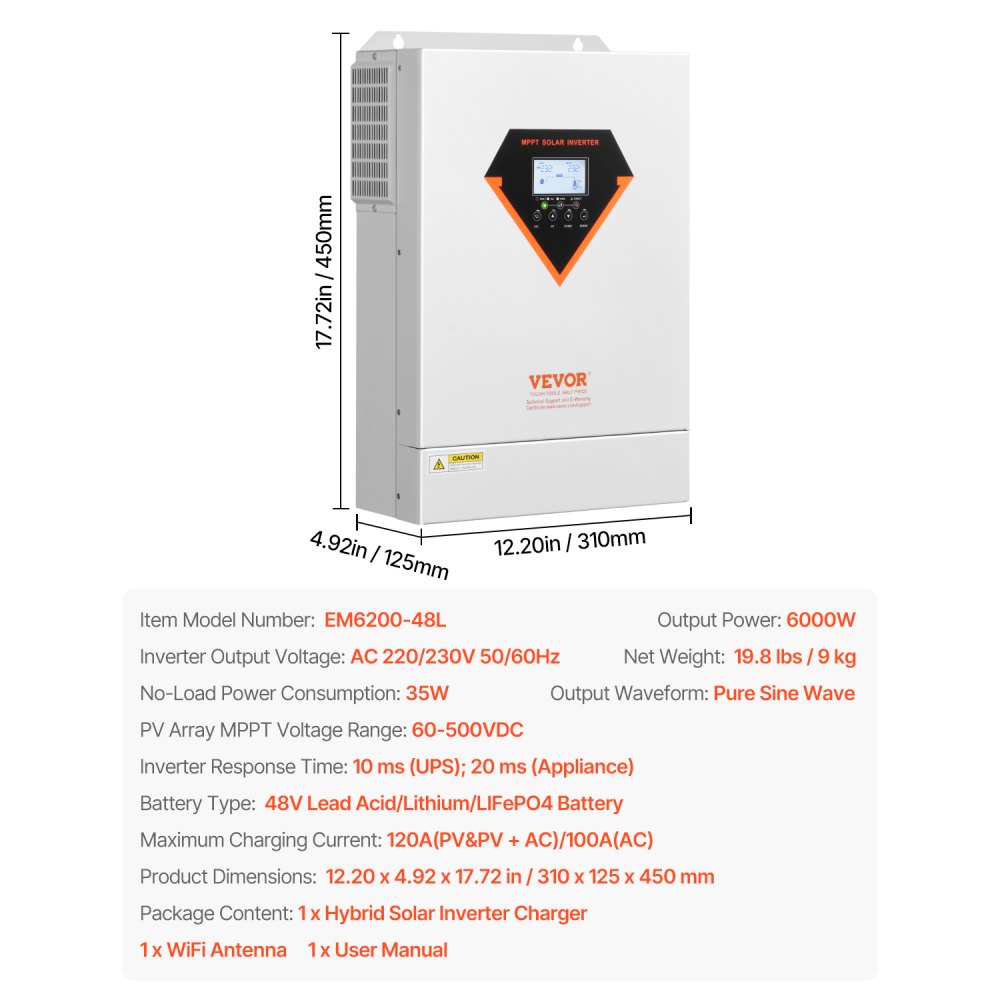

Product specification
- Article model number
- EM6200-48L
- Inverter output voltage
- AC 220/230 V, 50/60 Hz
- Inverter response time
- 10 ms (UPS); 20 ms (device)
- Output waveform
- Pure sine wave
- Battery type
- 48V lead-acid/lithium/LIFePO4 battery
- Output power
- 6000 W
- Maximum charging current
- 120 A (PV and PV + AC) / 100 A (AC)
- MPPT voltage range of the PV array
- 60–500 VDC
- Power consumption without load
- 35 W
- Product dimensions
- 17.72 x 12.20 x 4.92 inches / 450 x 310 x 125 mm
- Net weight
- 19.8 lbs / 9 kg
Description

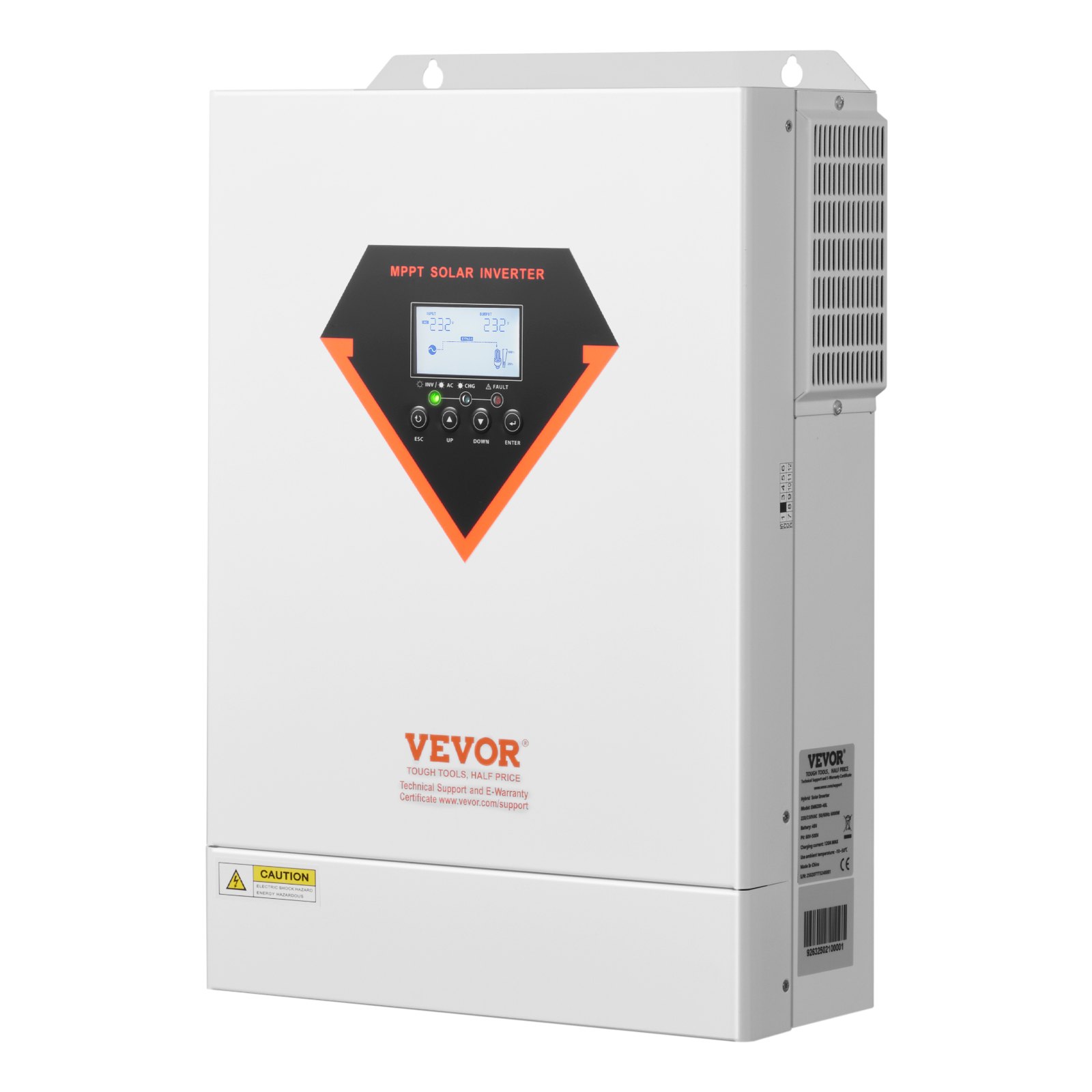

6000W hybrid solar inverter
Our 2-in-1 hybrid solar inverter controller delivers 6000W of pure sine wave power and boasts an impressive peak power of 12000VA. Advanced MPPT technology achieves a conversion efficiency of up to 94%. It is compatible with lithium, lead-acid, and LiFePO4 batteries and features a lithium activation function.
Q: Does this hybrid solar inverter support parallel operation?
A: No, parallel operation is not supported.
Q: Are there any requirements regarding the installation location?
A: It is not waterproof and should therefore be installed in a well-ventilated indoor area or in a sheltered location away from rain.
Q: Can I monitor solar power generation via my phone?
A: Yes, it has an integrated WiFi chip and APP support, allowing you to monitor the system's power generation and energy storage status anytime, anywhere.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (21)
Hallo, funktioniert der Inverter auch ohne eine Batterie angeschlossen? (Battery independent).
Hallo, der Wechselrichter funktioniert ohne angeschlossene Batterie
By vevor
Helpful
(
1
)
hat das Produkt so etwas wie PowerAssist- Funktion?
dh .der Eingangsstrom kann auf einen Fixwert eingestellt werden und das Produkt liefert bei Bedarf die volle Ausgangsleistung (aus dem Speicher)
Es wird lediglich der Ladestrom eingestellt, die Eingangsleistung richtet sich nach der Last und den Anforderungen der Batterie
By vevor
Helpful
(
1
)
Wenn ich mehr als 6000watt benutze hat der einen durchlauf betrieb?
Dieses Produkt löst einen Überlastungsschutzalarm aus und trennt den Ausgang, wenn die Leistung die Nennleistung des Wechselrichters überschreitet.
By vevor
Helpful
(
0
)
Kann das Gearet speist zurück ins Netzwerk?
Ja, das ist durch Auswahl des SUF-Modus möglich.
By vevor
Helpful
(
0
)
Ist es möglich, mit drei Wechselrichtern ein Drehstromnetz als Insel zu betreiben? Wenn ja: Was ist zu tun, um die drei Wechselrichter so zu betreiben, dass ein Drehstromnetz mit 120° Phasenwinkel entsteht (ggf. Zusatzmodule wie bei Steca Solarix oder Ähnliches?)
Dieses Produkt kann nicht verwendet werden, um ein dreiphasiges Wechselstromnetz mit drei Wechselrichtern als unabhängiges Netz zu betreiben.
By vevor
Helpful
(
0
)
