VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
+12
More
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65
VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65 VEVOR PV Combiner Box, 4-String, Solar Combiner Box with 15 A rated current fuse, 63 A circuit breaker, lightning arrester and solar connection, steel housing for on/off-grid solar panel system, IP65

Features & Details

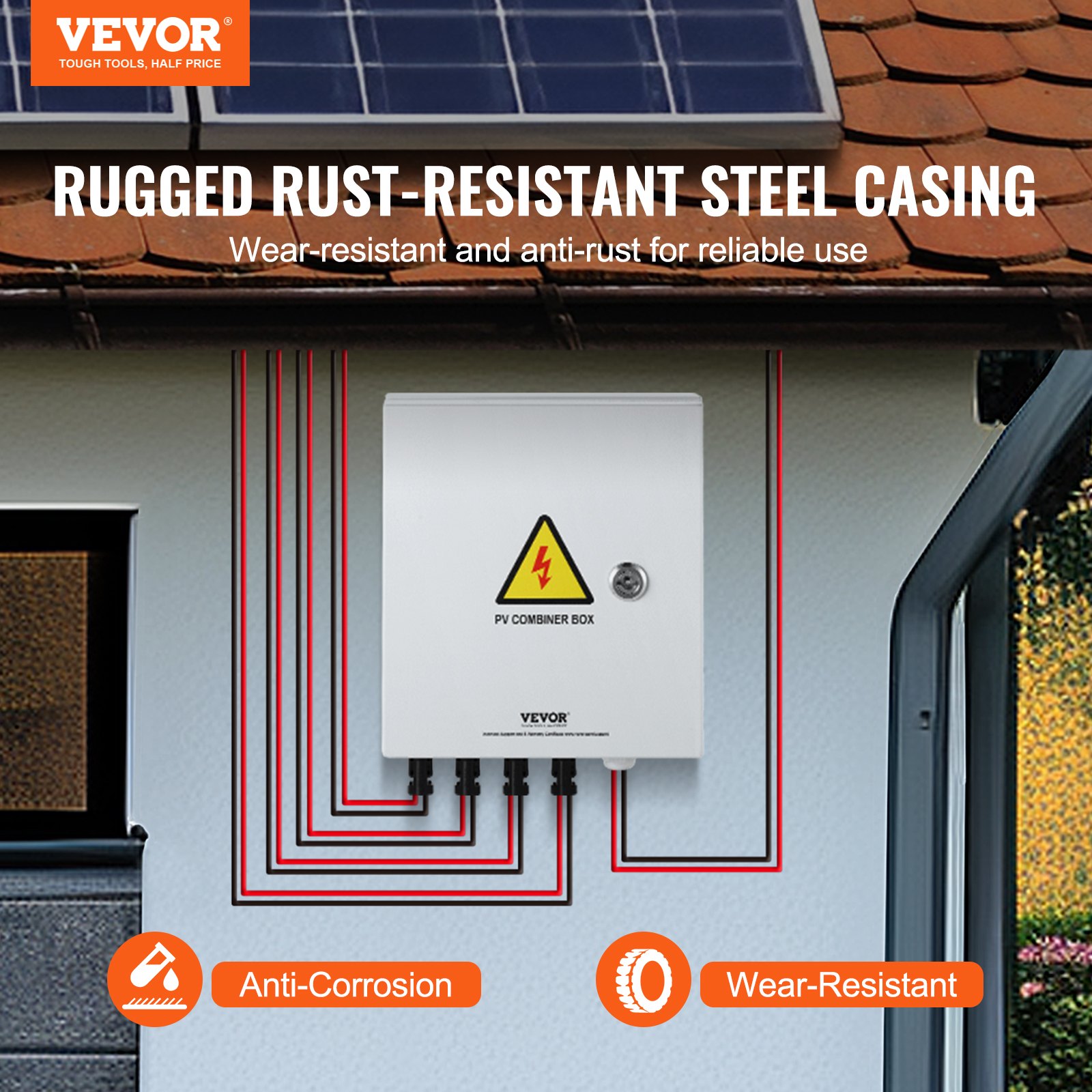

  • Durability meets reliability: The exterior of our PV combiner box is made of robust steel, ensuring flawless insulation, moisture resistance, and leak-free performance. Furthermore, its exceptional impact resistance and high fracture toughness provide optimal performance even in demanding environments. Upgrade your solar system with our solar combiner box!

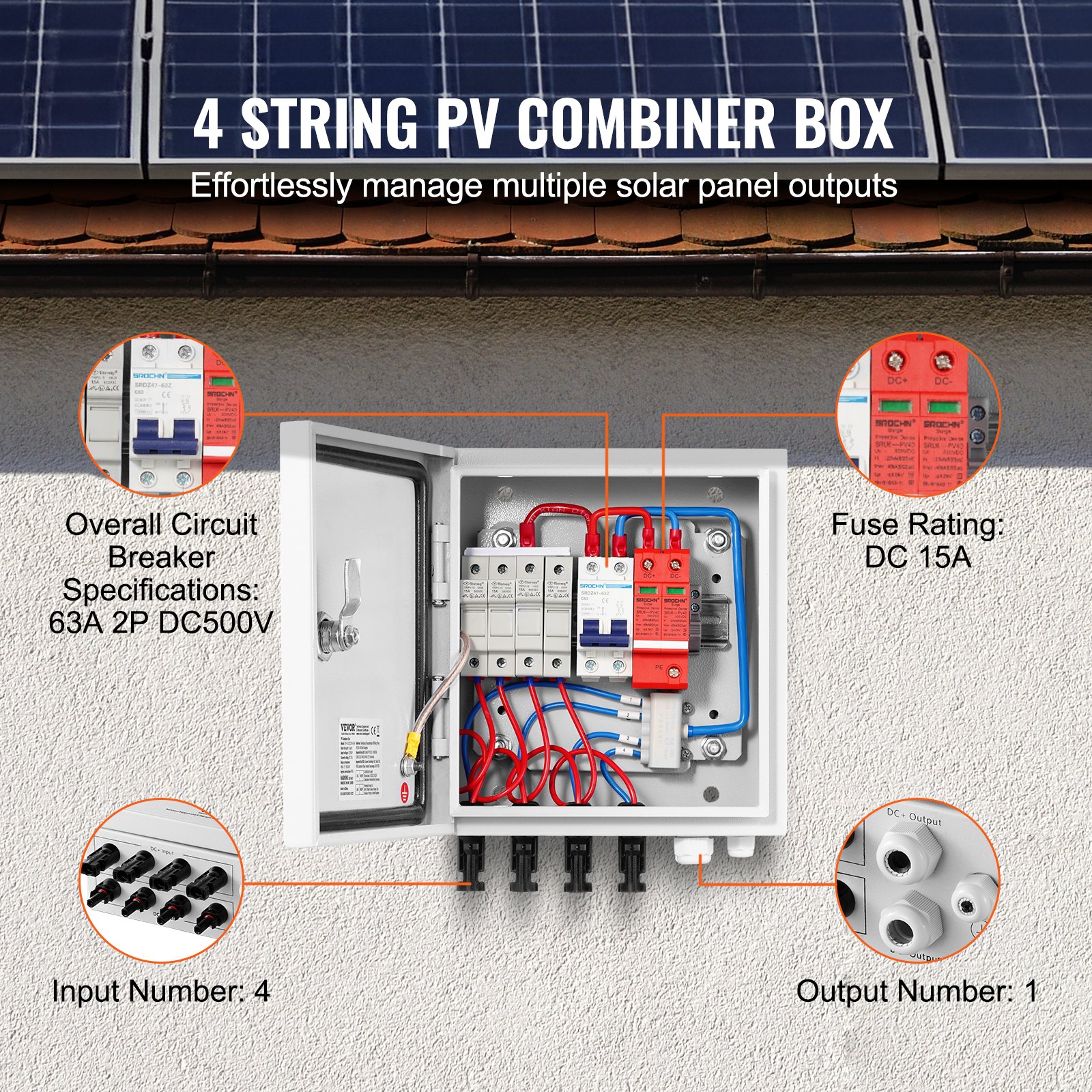

  • Professional PV combiner box: Equipped with four 15A DC fuses and a 63A circuit breaker, maintaining our 4-string PV combiner box is a breeze, and you can easily disconnect circuits. Say goodbye to major power outages in the event of PV system failures. Get ready to optimize your PV system's performance and take your output to the next level.

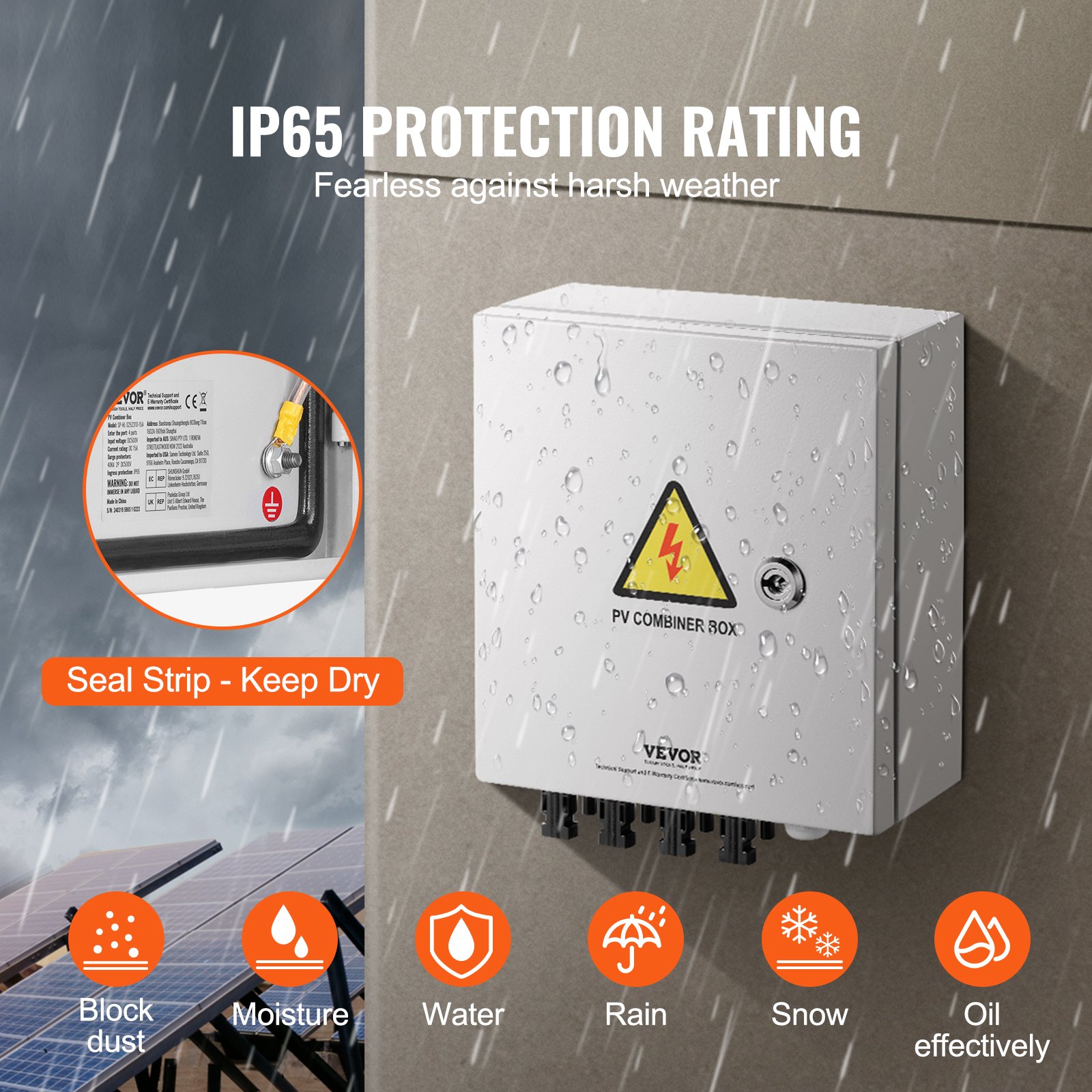

  • IP65 Dust and Water Protection: Our solar PV combiner box has an IP65 rating, ensuring water and dustproof protection for a long service life. It won't need frequent replacement – our combiner box is built to withstand the elements. Equipped with sealing strips, it keeps the interior dry and effectively repels rain and dust. Enjoy peace of mind when using it outdoors!

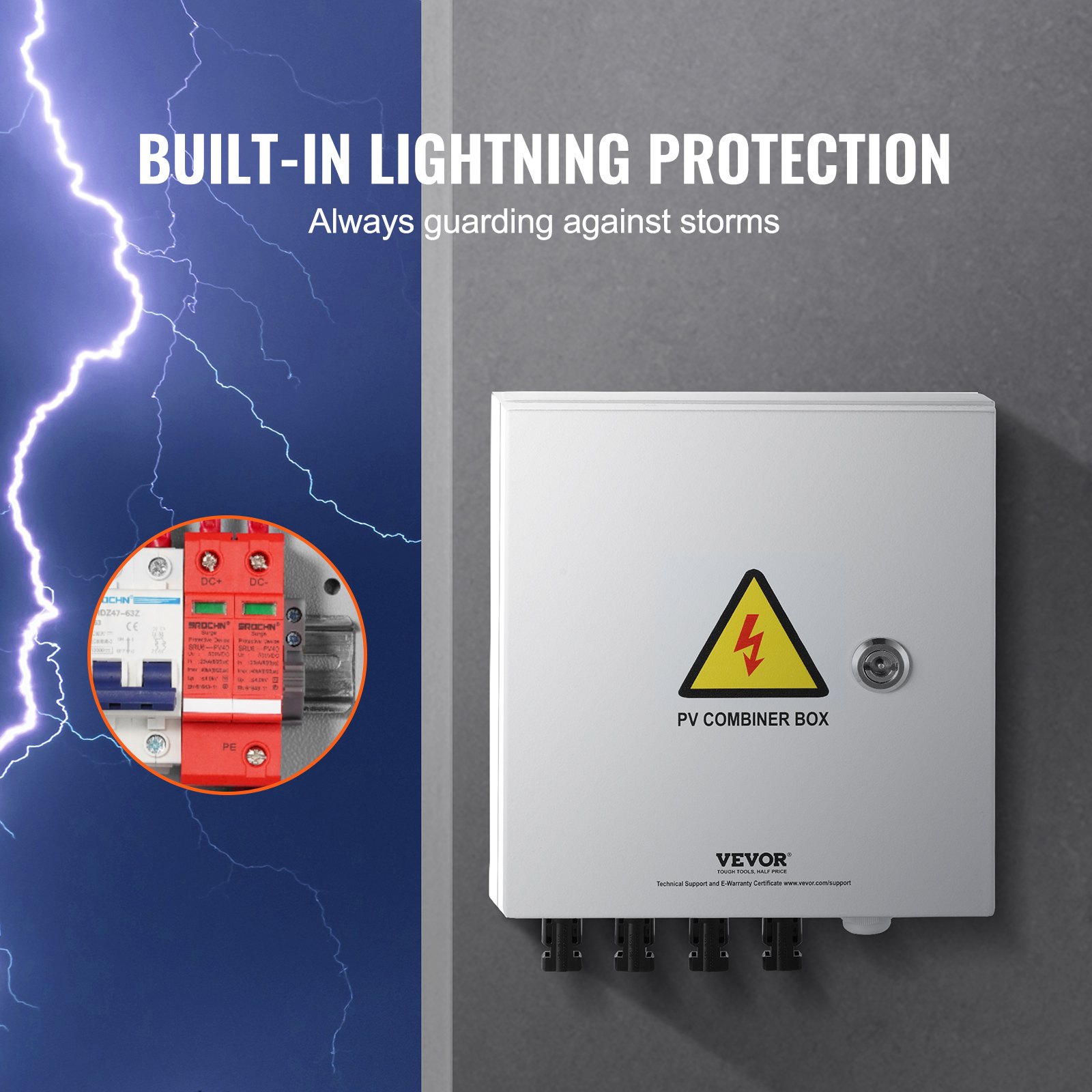

  • 24/7 lightning protection: Our solar PV combiner box is the perfect companion for outdoor use. Thanks to its integrated lightning protection, it effortlessly protects against lightning strikes, ensuring peace of mind in any outdoor environment. No matter how harsh the weather – our combiner box is ready to withstand the storm.

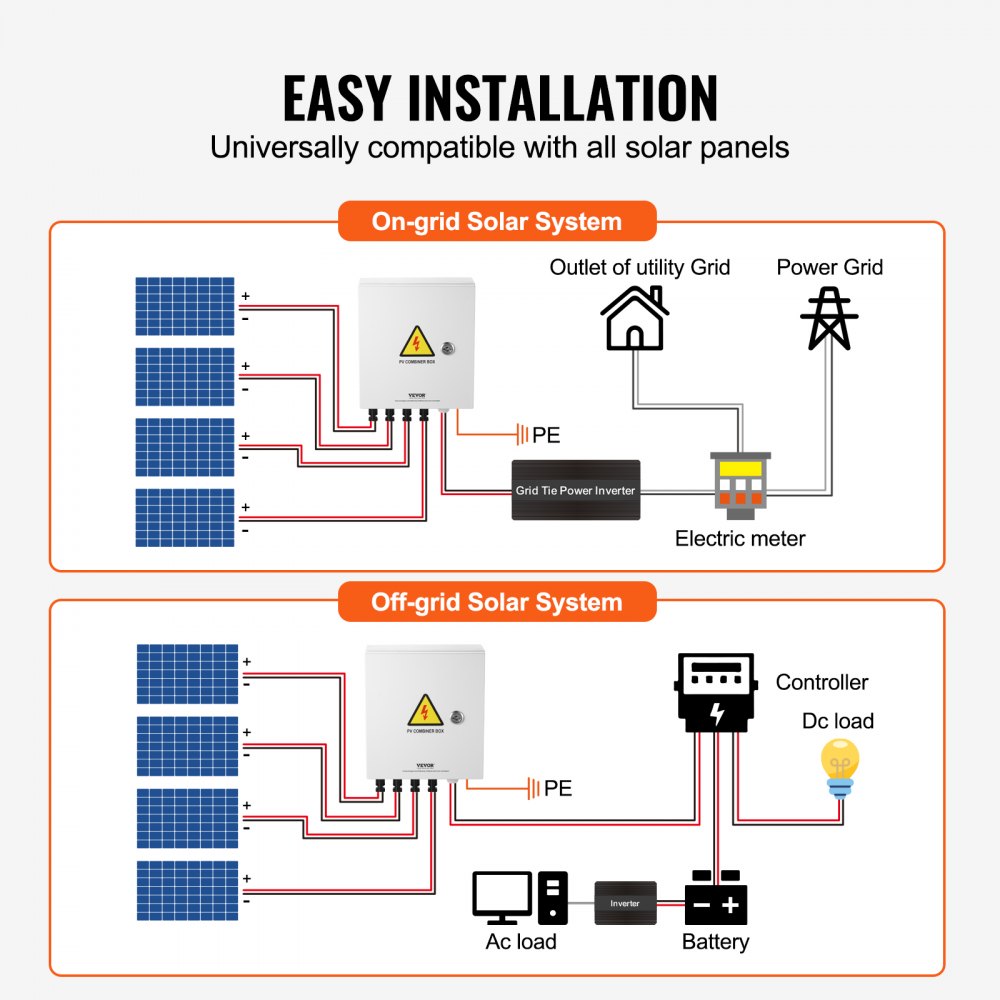

  • Easy installation: Set up your solar system in no time with our user-friendly PV combiner box, perfect for both grid-connected and off-grid solar power systems and compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that will stand the test of time!

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews

See all 2 reviews

About this item

Product specification
Article model number
SP-HL-S252310-15A
Number of entrances
4
Number of outputs
1
Nominal operating voltage
DC 500 V
Fuse holder specification
DC 15 A/500 V.
Fuse rated current
DC 15 A
Main switch specification
63A 2P DC500V
Overvoltage protection
40kA 2P DC 500V
Protection rating
IP65
Door opening method
Rotary lock opening
Mounting plate
Removable mounting plate (material
Sealing strip
PU polyurethane foam (black)
Main material
0.8 mm cold-rolled steel + RAL7035 grey-white coating
Net weight (including all accessories)
7.1 lbs / 3.22 kg
Overall external dimensions of the product (L x W x H)
9.06 x 9.84 x 3.94 inches / 230 x 250 x 100 mm
Description
Improve your solar system with our PV combiner box
VEVOR solar pv combiner box, 15a, for solar panel systems, with surge protection and circuit breakers.
VEVOR solar pv combiner box, 15a, for solar panel systems, with surge protection and circuit breakers.
Our solar combiner box optimizes the connections between solar modules and inverters for easy maintenance. Equipped with lightning protection, 15 A DC fuses, and a circuit breaker, it supports grid-connected/off-grid PV solar power systems and solar module systems.

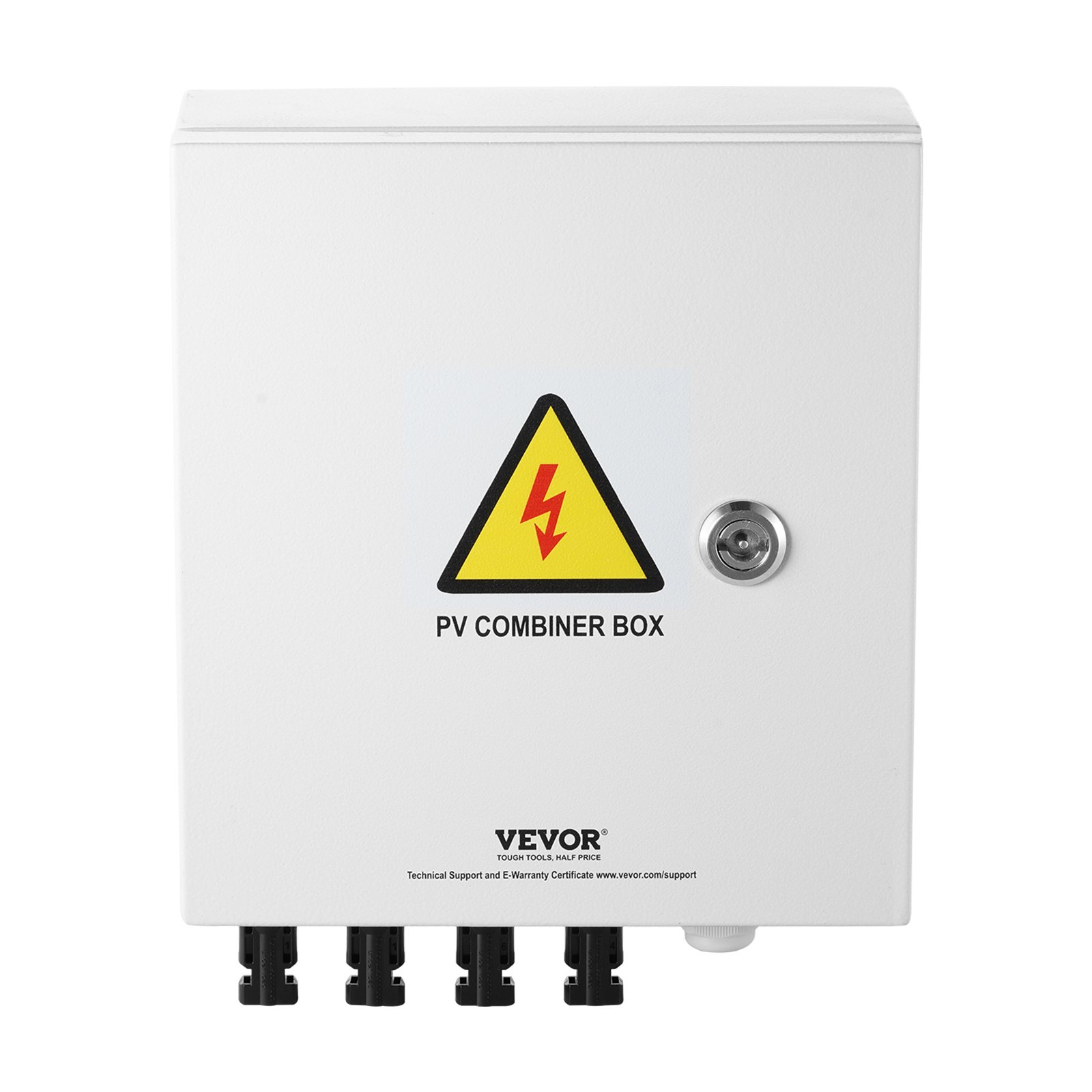

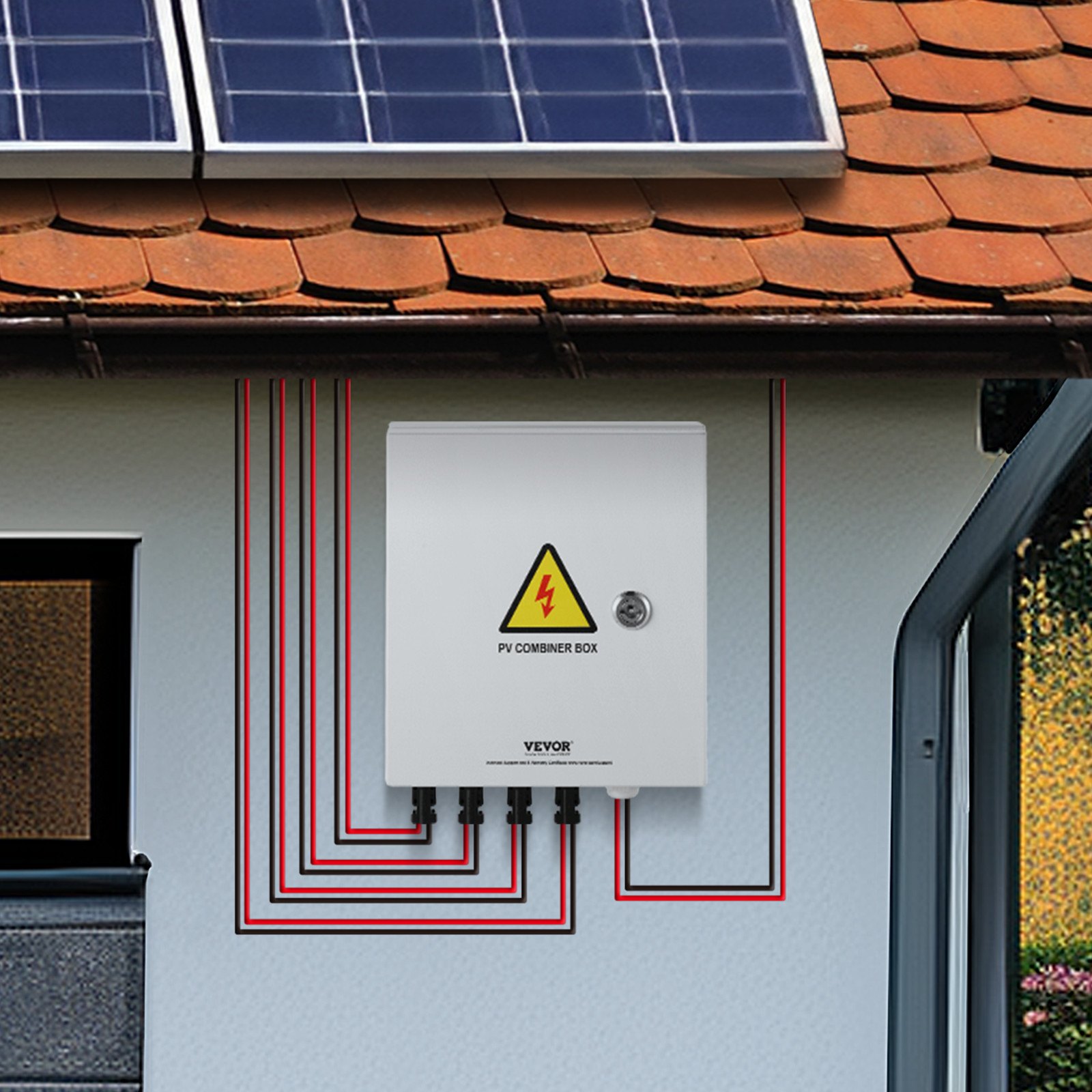

VEVOR solar pv combiner box installed on a wall with a rotary lock for effortless access.
VEVOR solar pv combiner box installed on a wall with a rotary lock for effortless access.
Our PV combiner box features a convenient key-operated rotary lock. Simply use the key, turn, and you're done. This locking mechanism, designed for security and ease of use, ensures quick and controlled access.

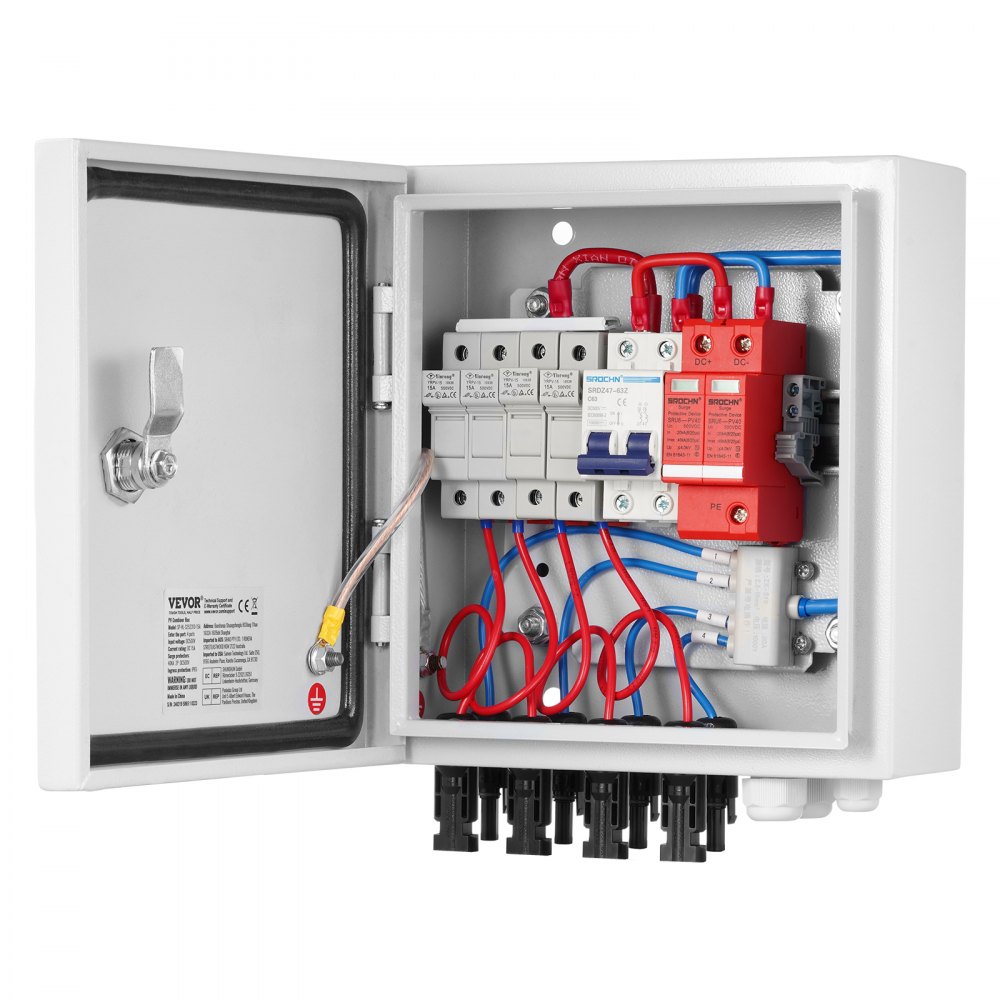

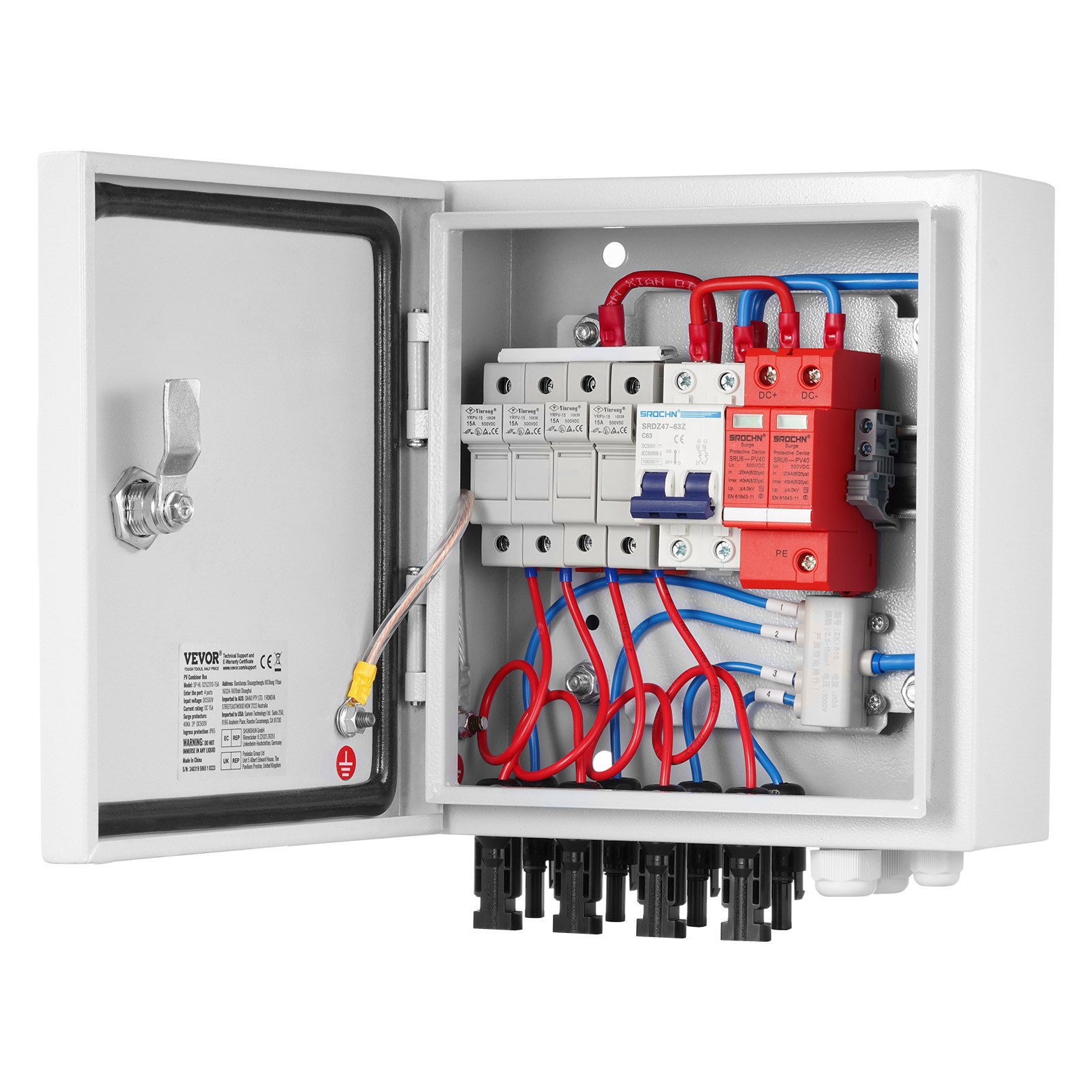

VEVOR solar pv combiner box with overcurrent, overvoltage, and lightning protection features.
VEVOR solar pv combiner box with overcurrent, overvoltage, and lightning protection features.
Thanks to the integrated safety features, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection and grounding protection, our solar combiner box offers you unparalleled safety and is therefore the reliable choice for your solar system.

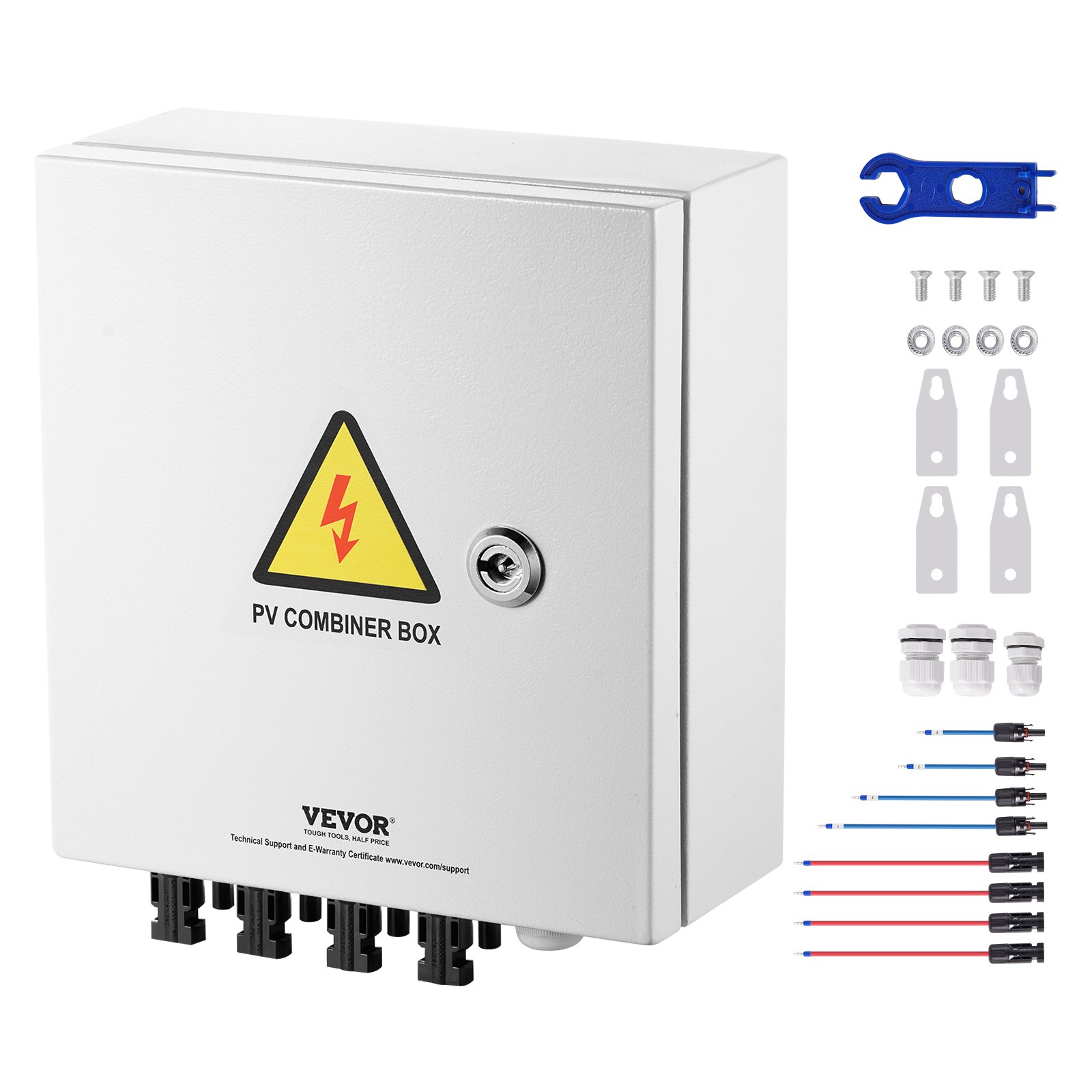

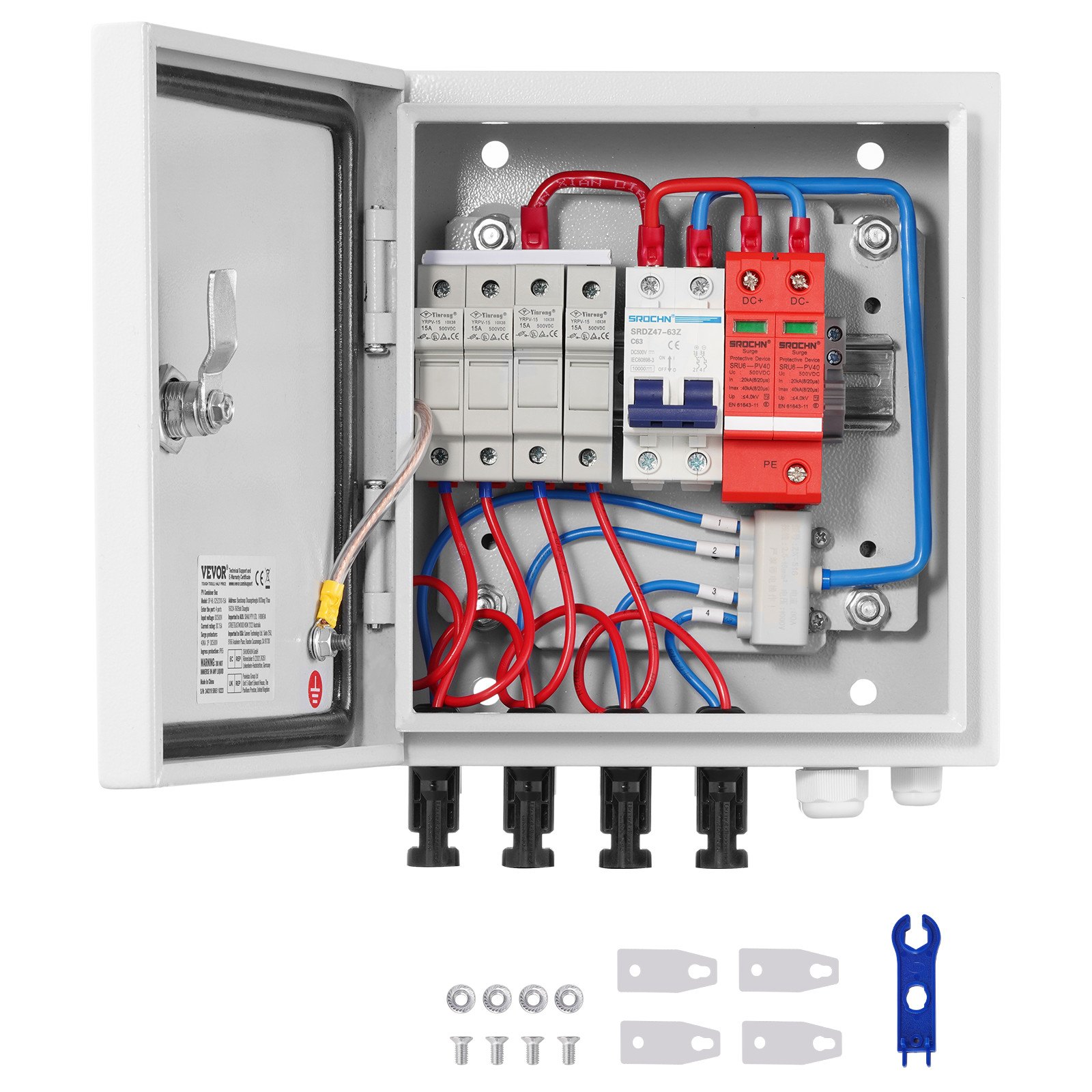

VEVOR solar pv combiner box with accessory kit including connectors, mounting brackets, and waterproof glands.
VEVOR solar pv combiner box with accessory kit including connectors, mounting brackets, and waterproof glands.
Our PV combiner box comes with a complete set of installation accessories, making assembly and integration into your solar panel system a breeze. It ensures seamless connections and hassle-free installation. You can install it anywhere!
VEVOR solar pv combiner box applications: public infrastructure, engineering, home, industrial, and rvs.
VEVOR solar pv combiner box applications: public infrastructure, engineering, home, industrial, and rvs.
Whether for public facilities, engineering projects, residential buildings, industrial plants, or even recreational vehicles, our PV Combiner Box is the perfect solution. Rely on our PV Combiner Box to power your solar projects in various sectors!

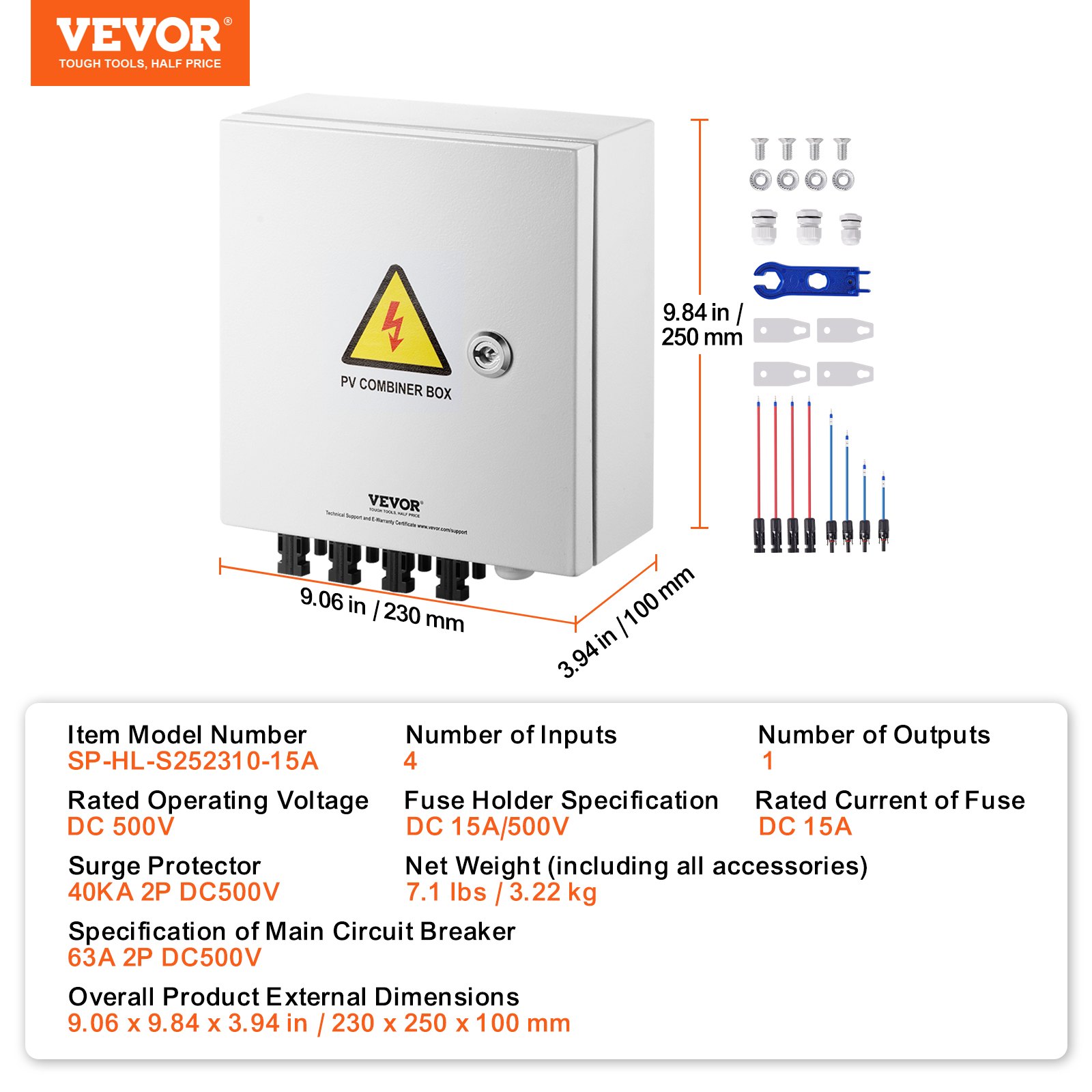

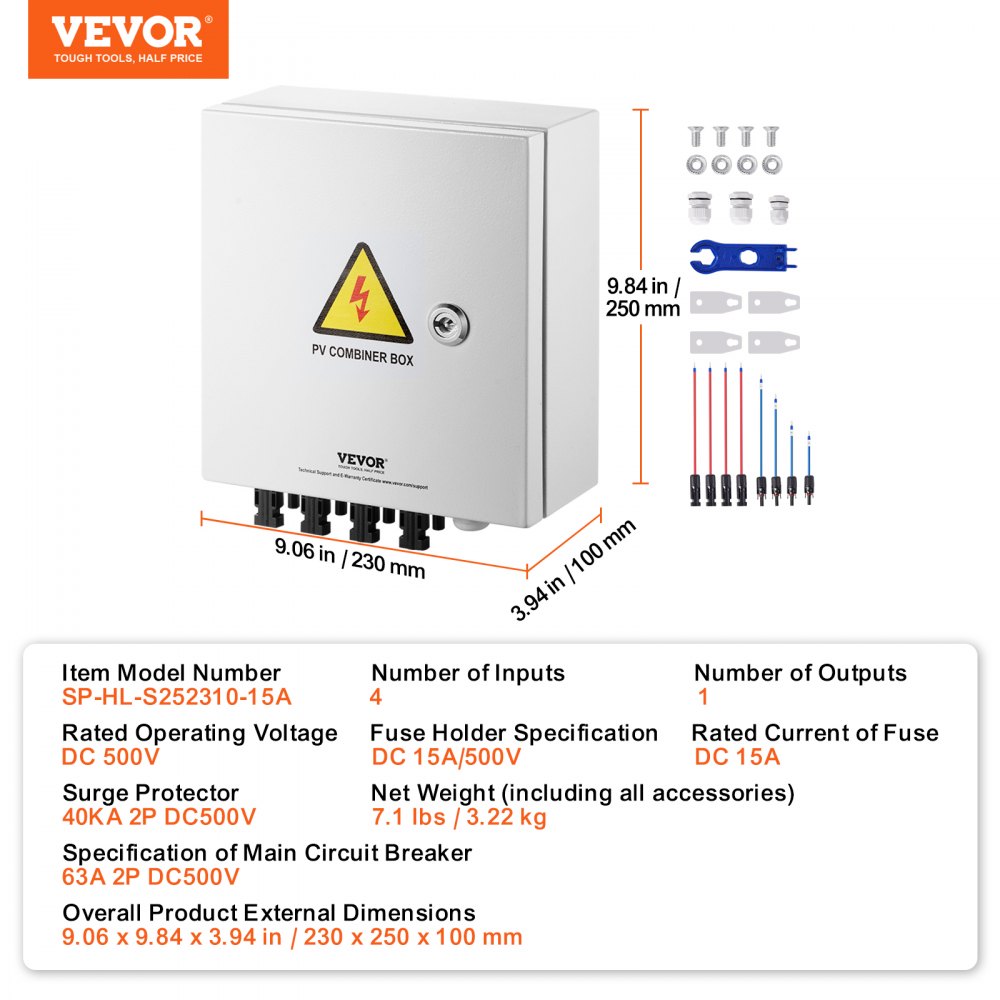

VEVOR solar pv combiner box details; model sp-hl-s252310-15a, dimensions, specs, and accessories list.
VEVOR solar pv combiner box details; model sp-hl-s252310-15a, dimensions, specs, and accessories list.
Product guides and documents
User manual-de (PDF) Review

Questions and Answers (2)

2 Questions
Ask a Question
Lieferung in die Schweiz? Lieferfrist für 30 Stk? Gegenstecker im Zubehör inklusive?
Answer This Question
Hallo, das Produkt ist steckerfrei. Die Transportzeit für reguläre Produkte beträgt 2-6 Arbeitstage, während für schwere Produkte (mit einem Nettogewicht über 66 Pfund) es ungefähr 10-15 Arbeitstage dauert. Bitte beachten Sie den folgenden Link für Details. https://www.vevor.de/pages/shipping-policy
By vevor
Helpful ( 0 )
Hat der eingebaute Überspannungsschutz 40KA 2P die DIN VDE 0100-534.4.1 Norm?
Answer This Question
Hallo, der eingebaute Überspannungsschutz des Produkts entspricht den Normen EN61643-11.
By vevor
Helpful ( 0 )
