Features & Details
- 【HIGH THERMAL EFFICIENCY】 - Turbulent flow moves the two media in opposite directions, generating strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series is CE certified.
- 【ENERGY OPTIMIZED】 - This stainless steel heat exchanger can heat water to the preset temperature, which is very energy-efficient with no electricity consumption and no oxygen consumption.
- 【ROBUST CONSTRUCTION】 - This 40-plate heat exchanger features 316L stainless steel plates brazed together at the edges and contact point matrix to form a reliable and robust component, creating a durable, integral part that withstands high pressure and high temperature. Four thickened MNPT ports facilitate easier installation.
- 【COMPACT DESIGN】 -The corrugated plate design of these plate coolers allows for a significantly smaller construction and footprint with equivalent or better performance compared to other heat transfer devices - resulting in significant space savings.
- 【HIGHLY VERSATILE】 - This heat exchanger offers the highest level of thermal efficiency and durability in a compact and lightweight unit, ideal for industrial oil cooling, refrigerant evaporators and condensers, as well as residential and commercial HVAC hydraulic systems.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 27 reviews
Reviews 4.9
All reviews are from verified purchases
See all 27 reviews
About this item
Product specification
- Model
- EATB12
- Material
- 316 l + 99.9% copper
- Connections
- 19 mm / 3/4" MNPT
- Number of plates
- 40
- Design pressure (max.)
- 3.0 MPa
- Test pressure (min)
- 4.5 MPa
- Design temperature (°C)
- Max. +225
- Design Temperature (℃)
- Min -196

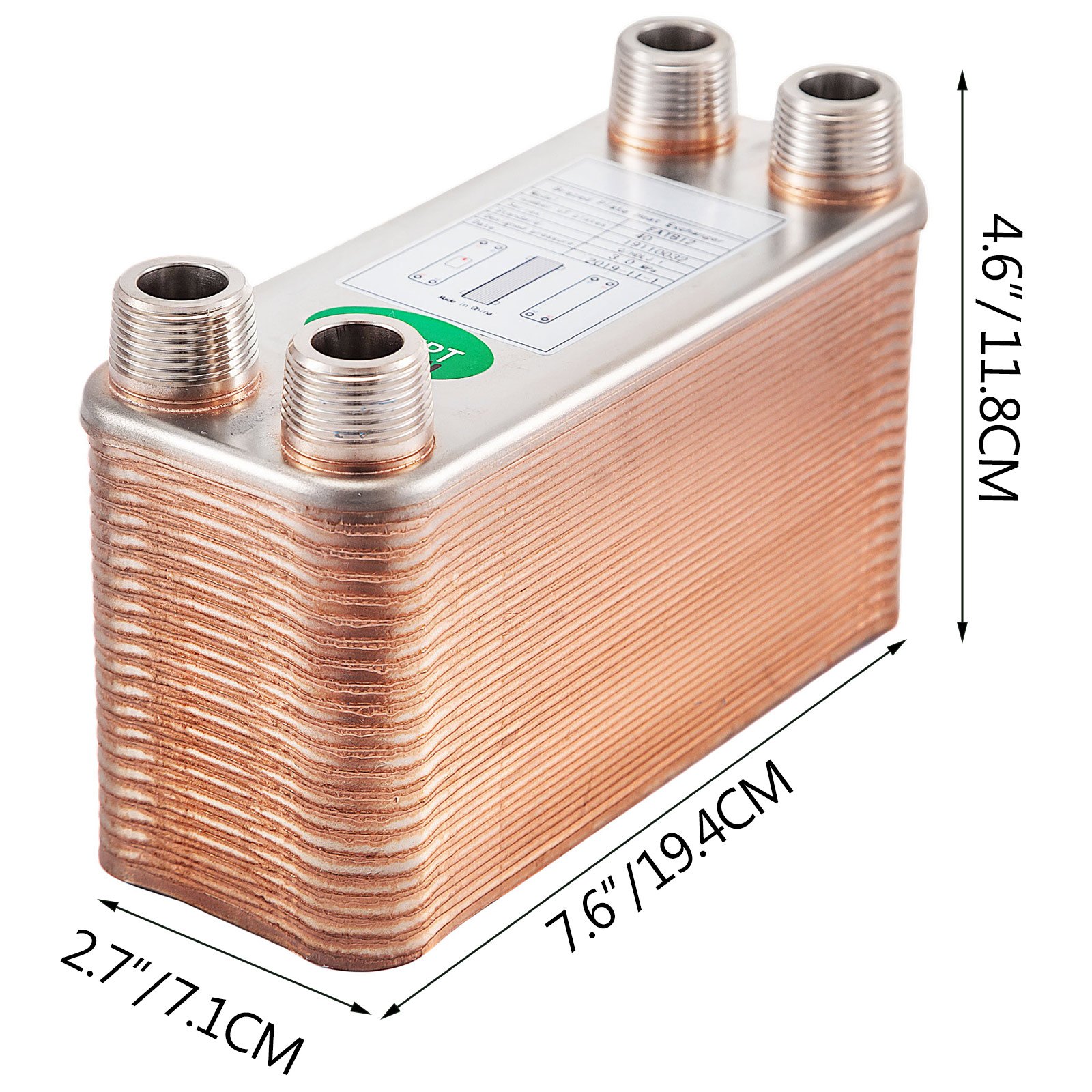

- Dimensions
- 19.4cm x 7.1cm x 11.8cm
Description

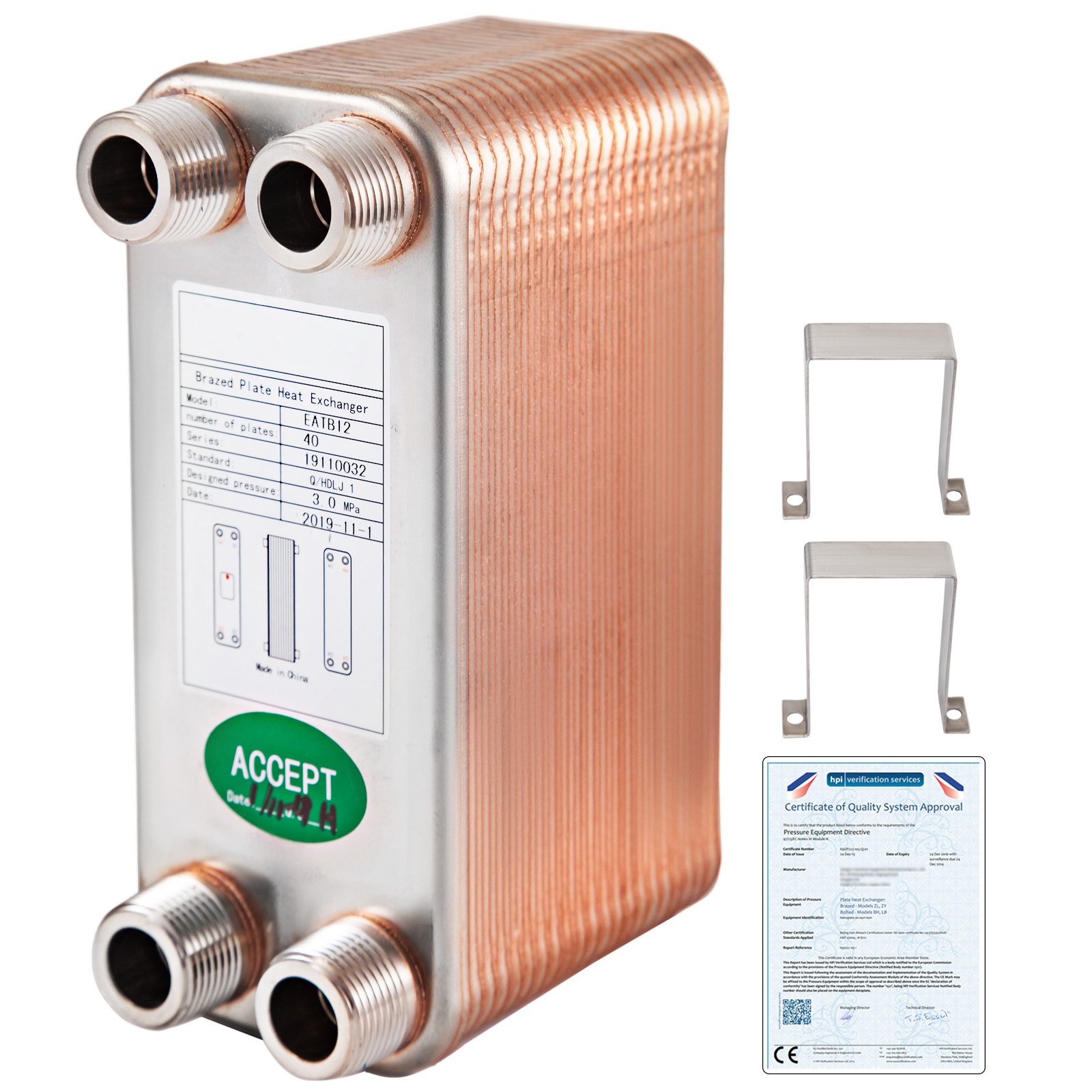

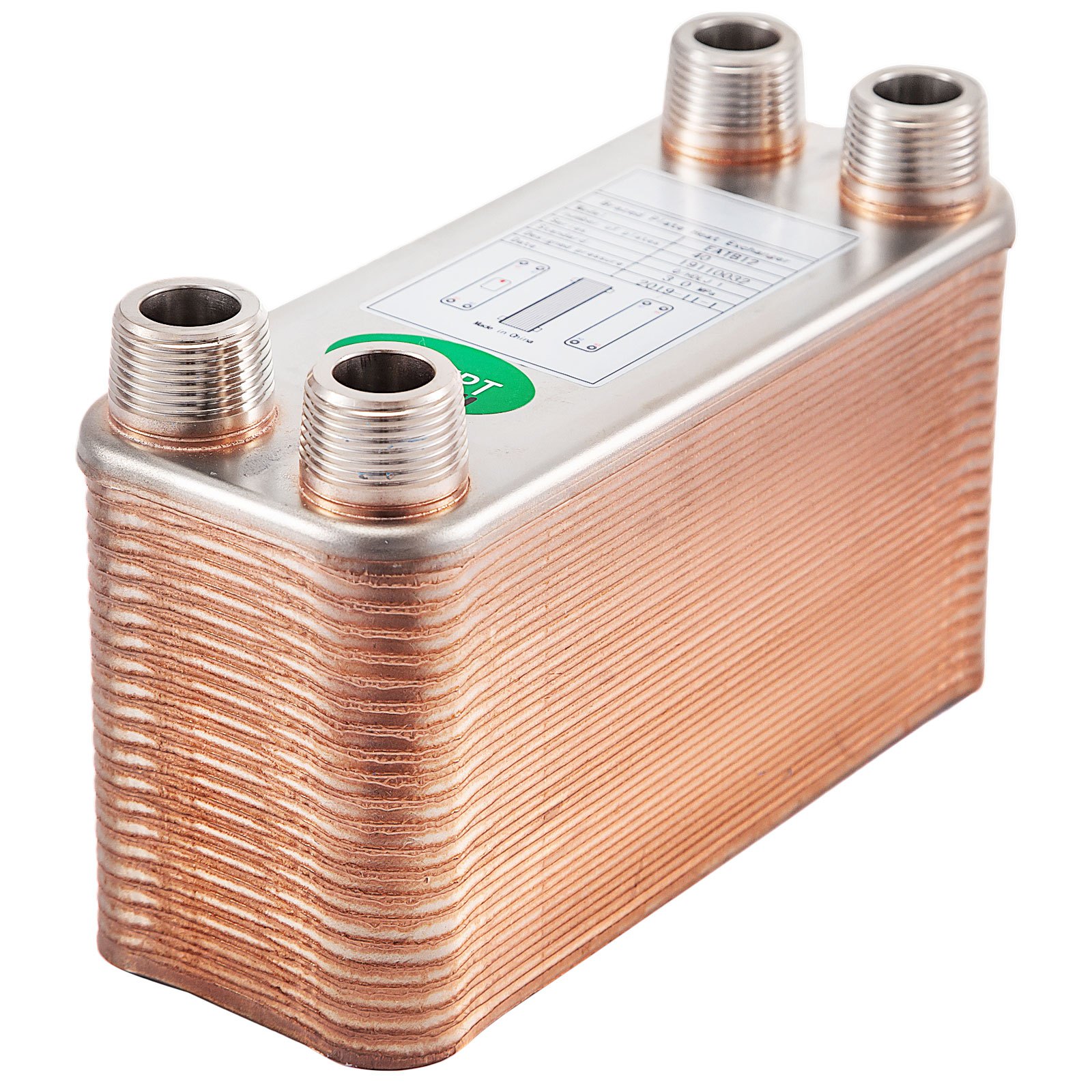

Brazed plate heat exchanger 40 plate heat exchanger
Our brand-new heat exchanger features a compact and lightweight housing with excellent thermal performance. Made from 316L stainless steel and 99.9% copper, it ensures a long service life. Therefore, it is perfectly suited for solar heating, heat recovery from oil-fired units, engine cooling, evaporation and condensation, and more.
- High thermal efficiency
- Energy optimized
- Robust construction
- Compact design

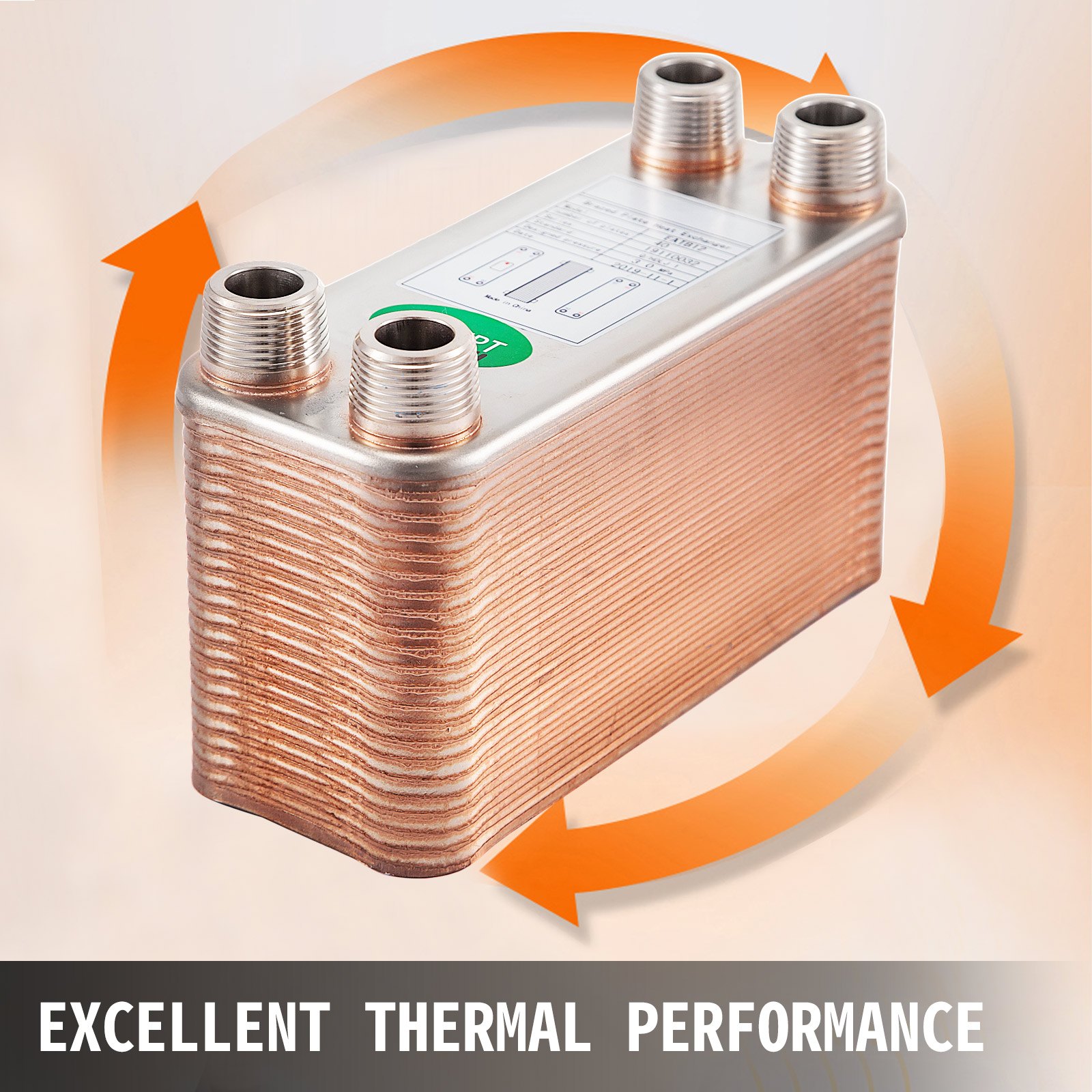

Excellent heat output
Extremely efficient herringbone design for maximum heat transfer.

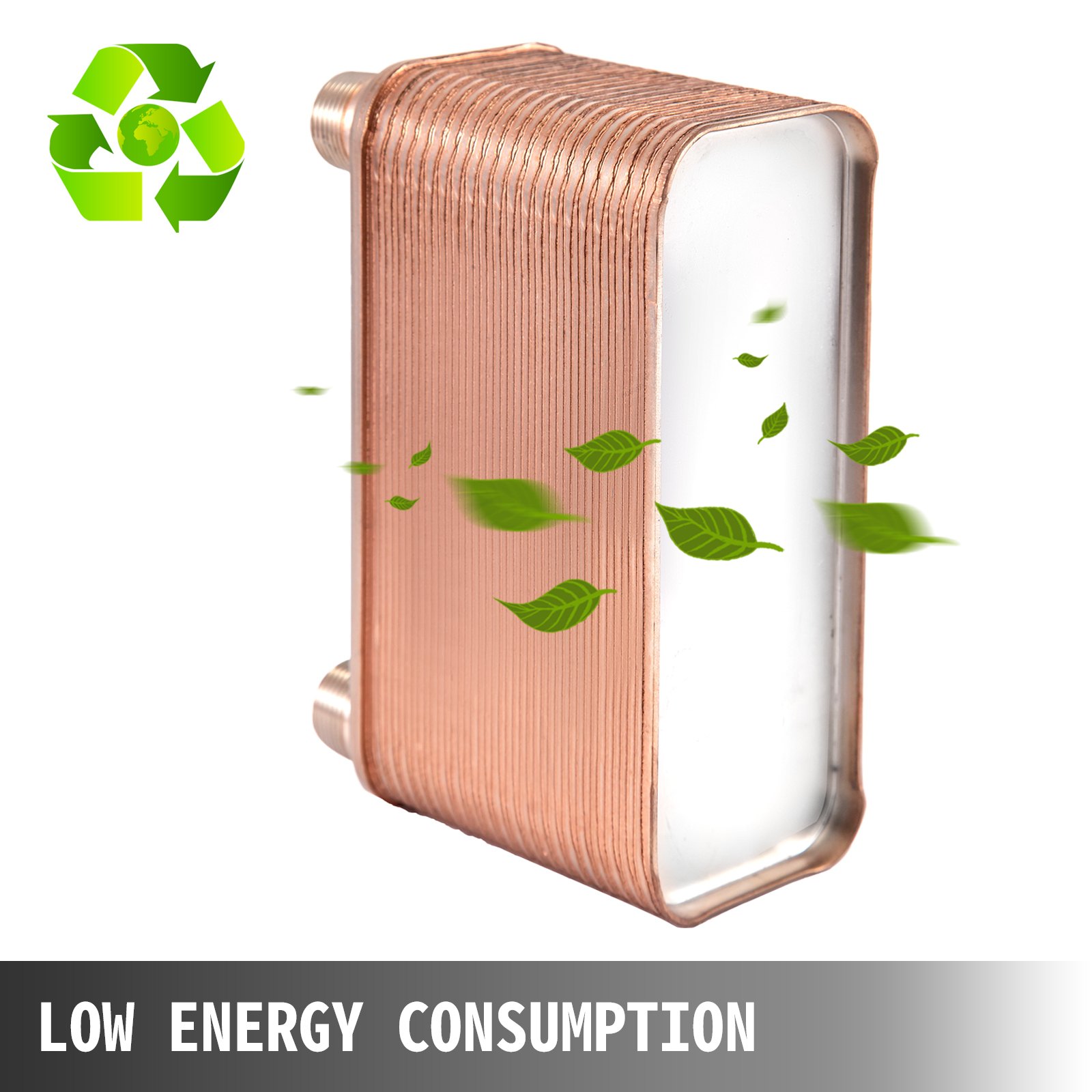

Low energy consumption
Low energy consumption due to very low pressure drop across the heat exchanger.

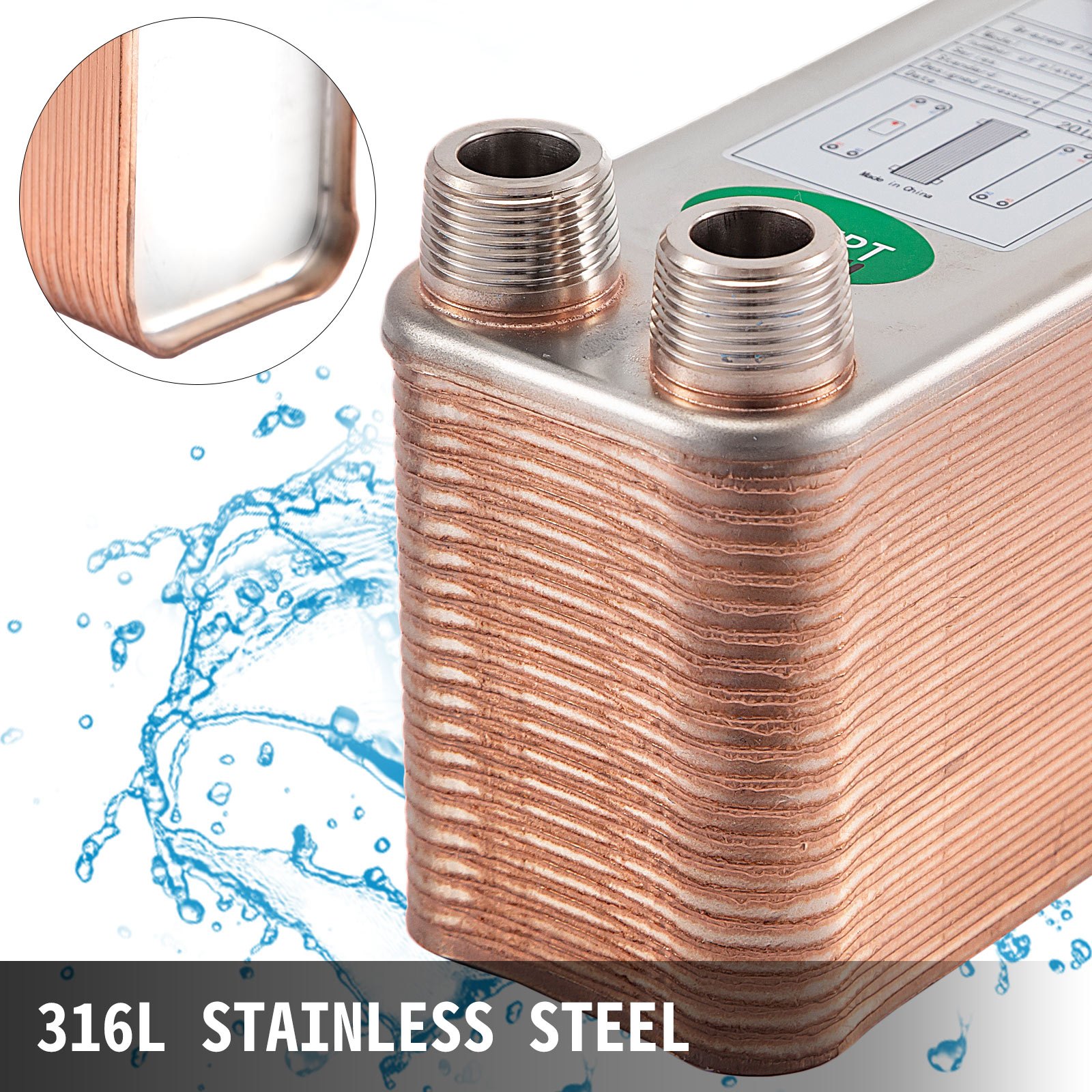

316L stainless steel
The applied 316L stainless steel is highly corrosion-resistant, reliable and durable.

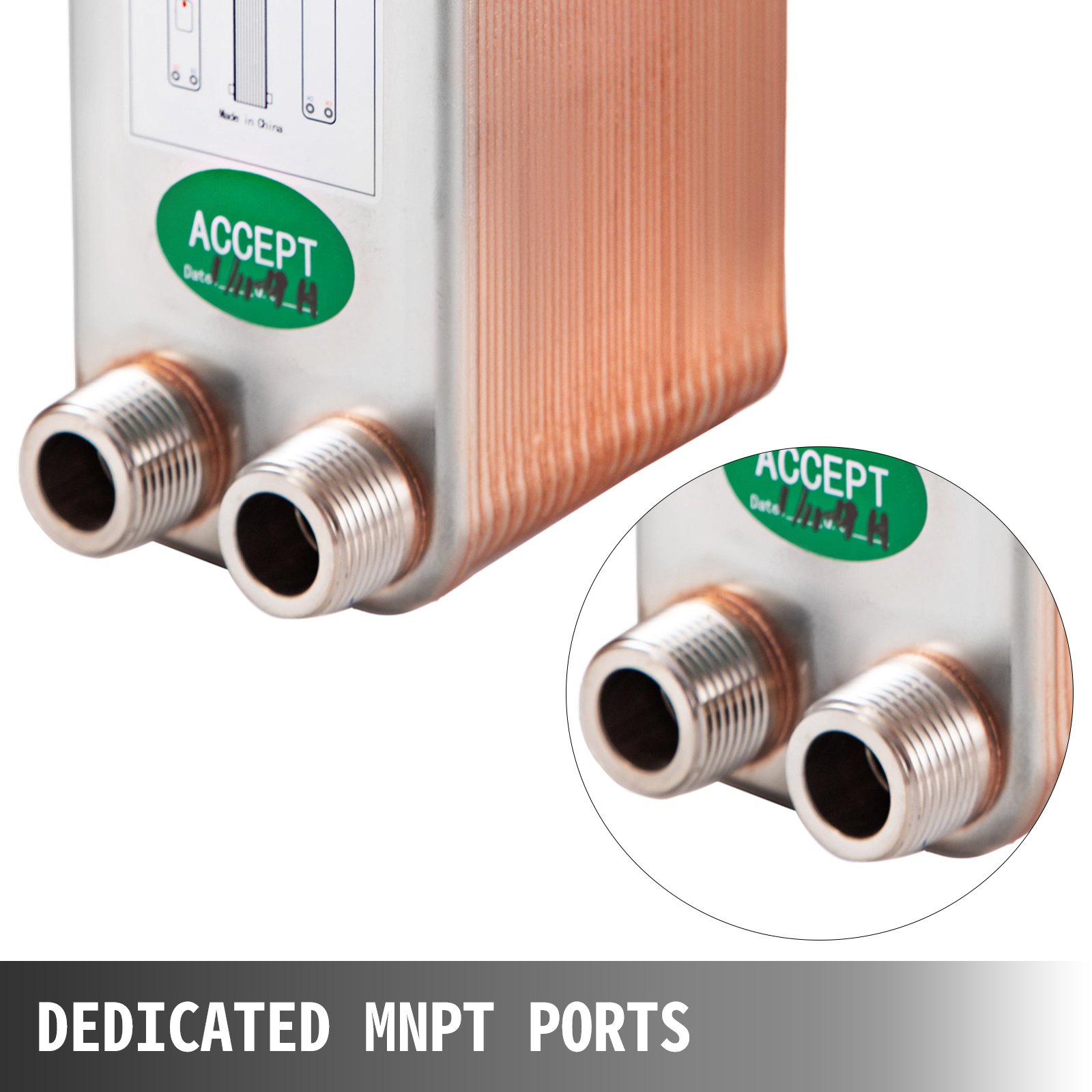

Dedicated MNPT ports
Four thickened 19 mm / 3/4" MNPT ports for easier installation.

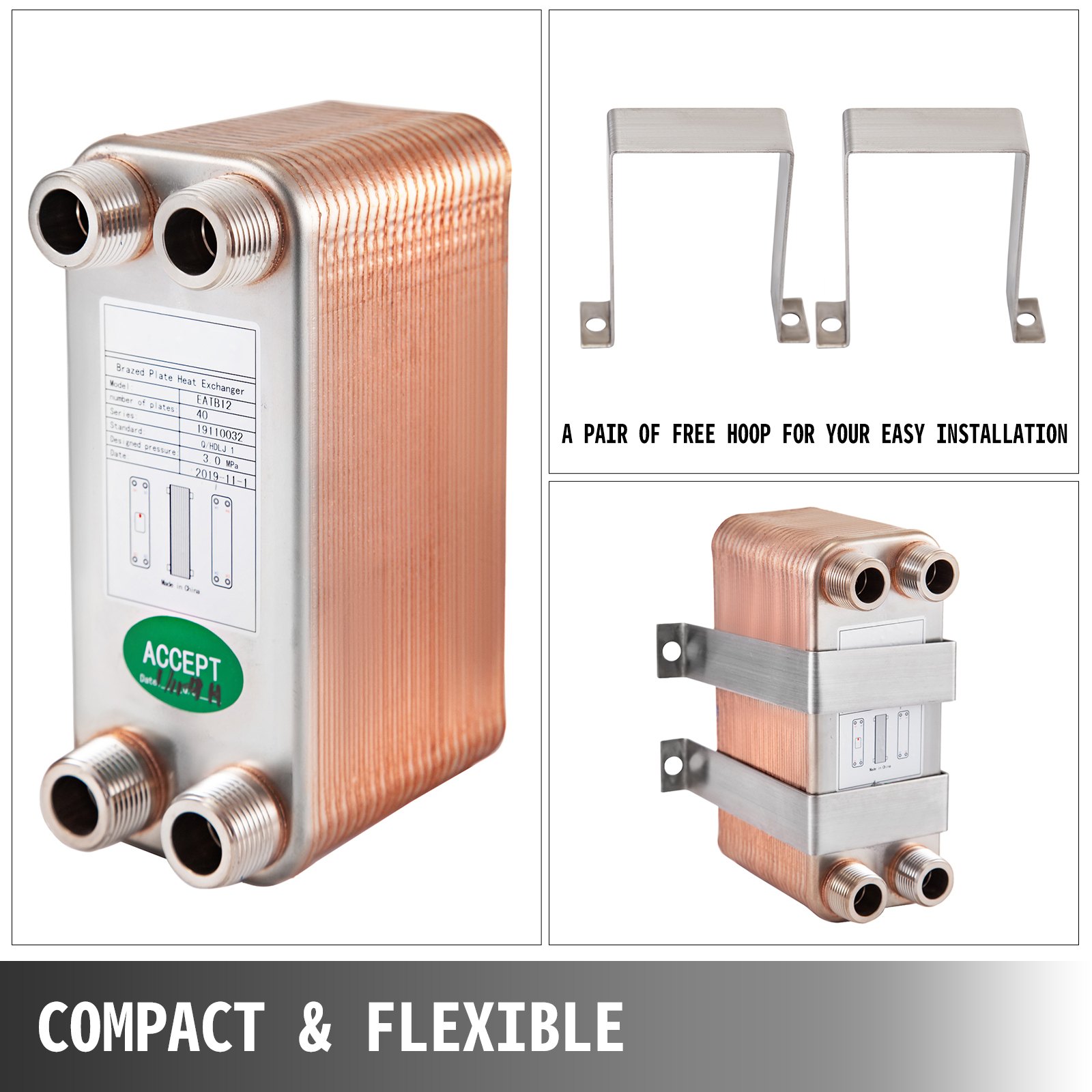

Compact & flexible
The footprint can be only one tenth that of a shell and tube heat exchanger, and due to its compact size, it also offers more freedom in system design.

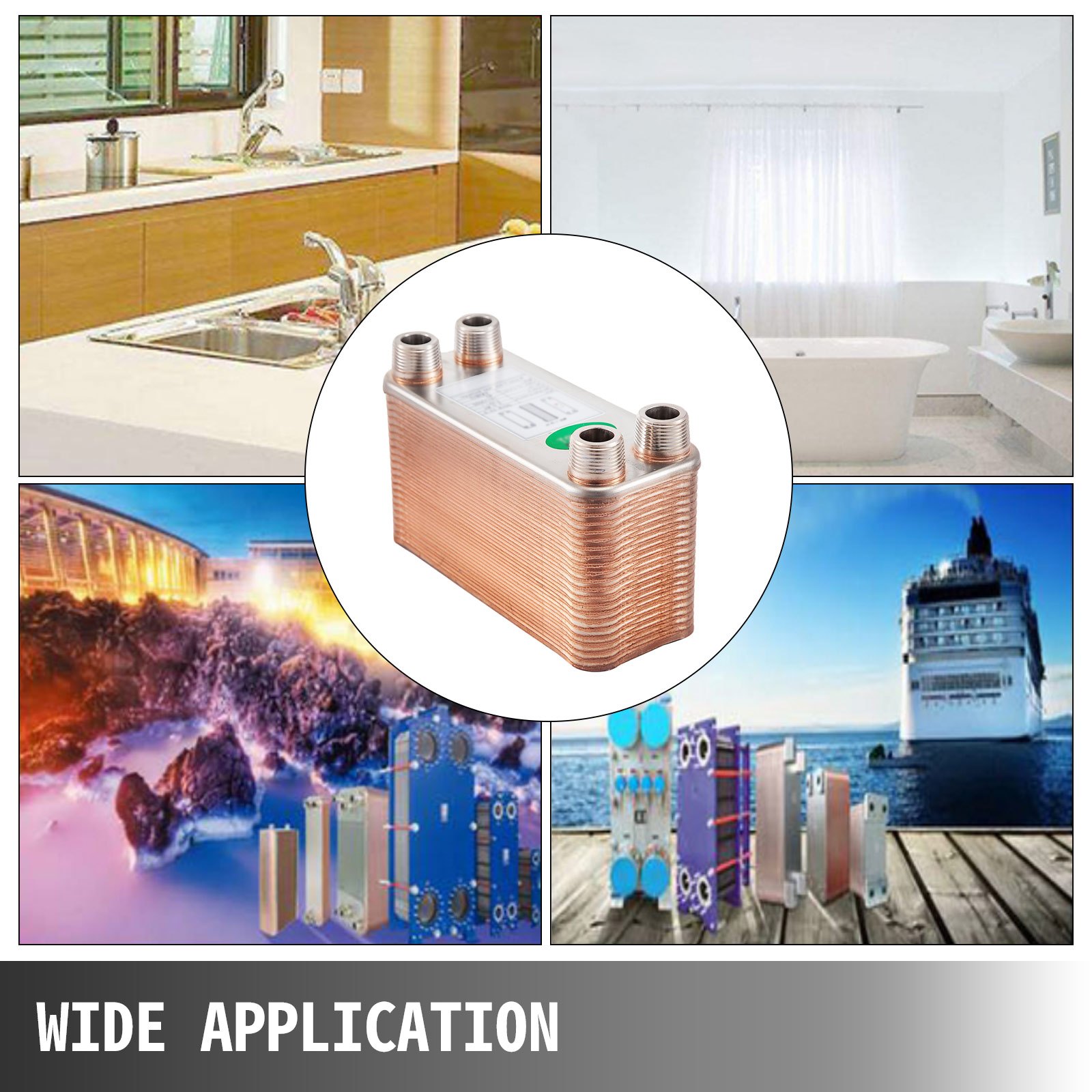

Wide application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- Model: EATB12
- Material: 316 l + 99.9% copper
- Connections: 19 mm / 3/4" MNPT
- Number of plates: 40
- Design pressure (max.): 3.0 MPa
- Test pressure (min): 4.5 MPa
- Design temperature (°C): Max. +225
- Design Temperature (℃): Min -196
- Dimensions: 19.4cm x 7.1cm x 11.8cm
- 1 x heat exchanger
- 1 x a pair of tires
Brazed plate heat exchanger 40 plate heat exchanger
Our brand-new heat exchanger features a compact and lightweight housing with excellent thermal performance. Made from 316L stainless steel and 99.9% copper, it ensures a long service life. Therefore, it is perfectly suited for solar heating, heat recovery from oil-fired units, engine cooling, evaporation and condensation, and more.
- High thermal efficiency
- Energy optimized
- Robust construction
- Compact design
Excellent heat output
Extremely efficient herringbone design for maximum heat transfer.
Low energy consumption
Low energy consumption due to very low pressure drop across the heat exchanger.
316L stainless steel
The applied 316L stainless steel is highly corrosion-resistant, reliable and durable.
Dedicated MNPT ports
Four thickened 19 mm / 3/4" MNPT ports for easier installation.
Compact & flexible
The footprint can be only one tenth that of a shell and tube heat exchanger, and due to its compact size, it also offers more freedom in system design.
Wide application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- 1 x heat exchanger

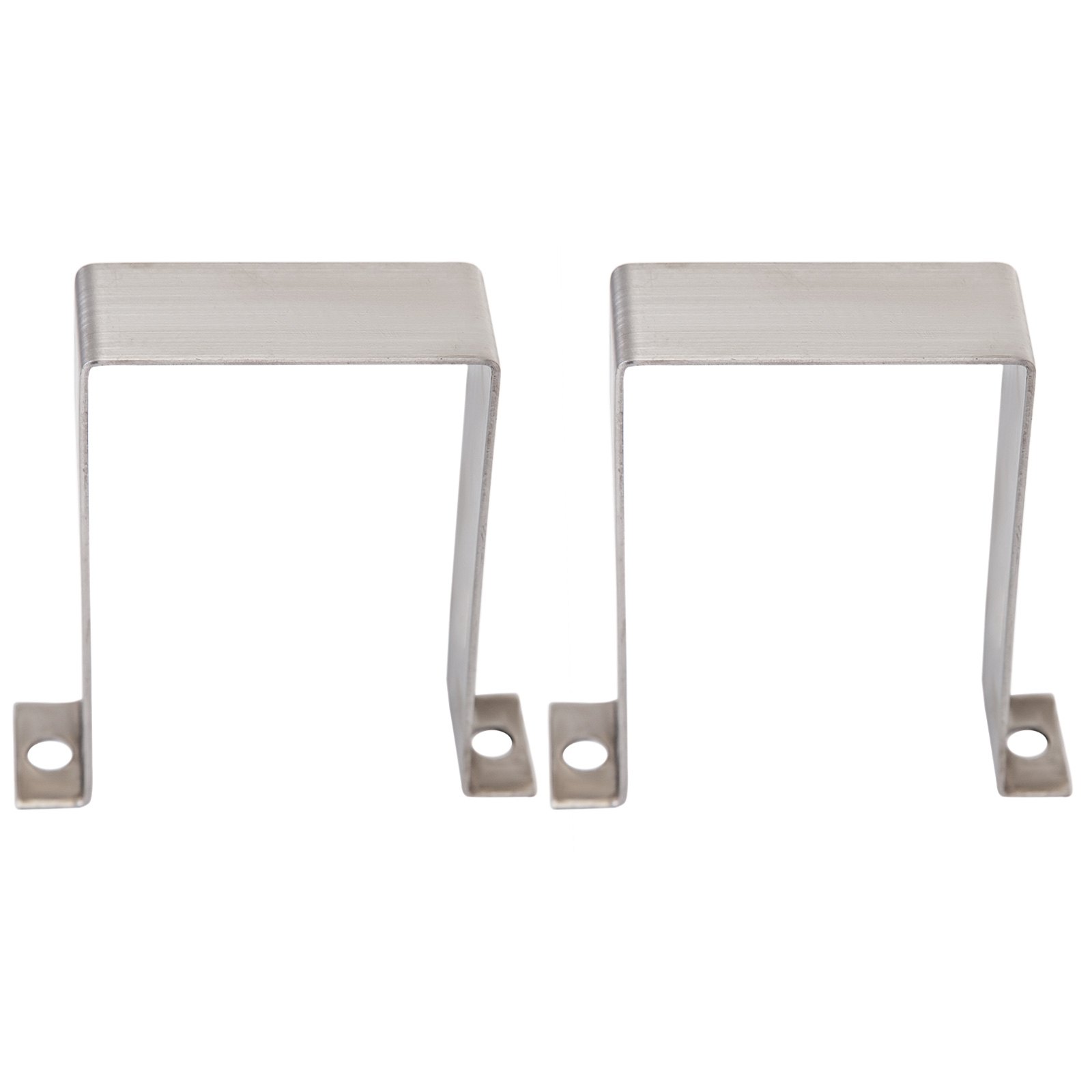

- 1 x a pair of tires
- Model: EATB12
- Material: 316 l + 99.9% copper
- Connections: 19 mm / 3/4" MNPT
- Number of plates: 40
- Design pressure (max.): 3.0 MPa
- Test pressure (min): 4.5 MPa
- Design temperature (°C): Max. +225
- Design Temperature (℃): Min -196
- Dimensions: 19.4cm x 7.1cm x 11.8cm
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (8)
Wie groß ist der Durchfluss maximal?
Mehr oder weniger als 3000L?
Der maximale Durchfluss dieses Produkts beträgt 8m ³/ h. Der spezifische Durchfluss ist jedoch entsprechend den spezifischen Arbeitsbedingungen zu bestimmen.
By vevor
Helpful
(
11
)
Wieviel Kw Übertragung Leistung hat der Tauscher. bei 35 C° primär VL .
Der Wärmeübertragungseffekt des Wärmetauschers ist mehr als 95%, und sogar der Wärmeerhaltungseffekt kann 99%. Wenn Sie wissen müssen, wie viel Wärmeaustausch ist, müssen Sie spezifische Arbeitsbedingungen berechnen. Wie im Bild im Link gezeigt: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/3_1675563070757.png
By vevor
Helpful
(
10
)
Wieviel Austauschfläche hat dieser Wärmetauscher pro Platte?
Hallo, dieser 40-teilige Wärmetauscher hat eine Wärmetauscherfläche von 0,456 Quadratmetern.
By vevor
Helpful
(
5
)
ist er für frischwasserstationen geeignet
Hallo, es ist geeignet, solange keine Korrosion oder Verunreinigungen vorhanden sind, muss es gefiltert werden.
By vevor
Helpful
(
4
)
Hallo,
Kann man den Plattenkühler auch zur Bierkühlung nutzen ?
Bei diesem Produkt handelt es sich um einen kupfergelöteten Plattenwärmetauscher. Das Lot ist Kupfer, ein Schwermetall. Wenn Ihre Lebensmittelsicherheitsanforderungen nicht so streng sind, kann es für Bier verwendet werden. Kupferionen sind relativ stabil. Verwenden Sie es jedoch nicht, wenn Sie hohe Anforderungen an die Lebensmittelsicherheit haben.
By vevor
Helpful
(
3
)
