Eigenschaften & Details
- The brazed plate heat exchanger has a simple operating principle. Based on the plate and nozzle orientation, each fluid passes through alternative channels within the heat exchanger. An extremely high heat transfer coefficient is attained due to the flow characteristics in each channel. A specially design and test result in higher heat transfer and reduction of the amount of deposits inside the unit.
- Advantages

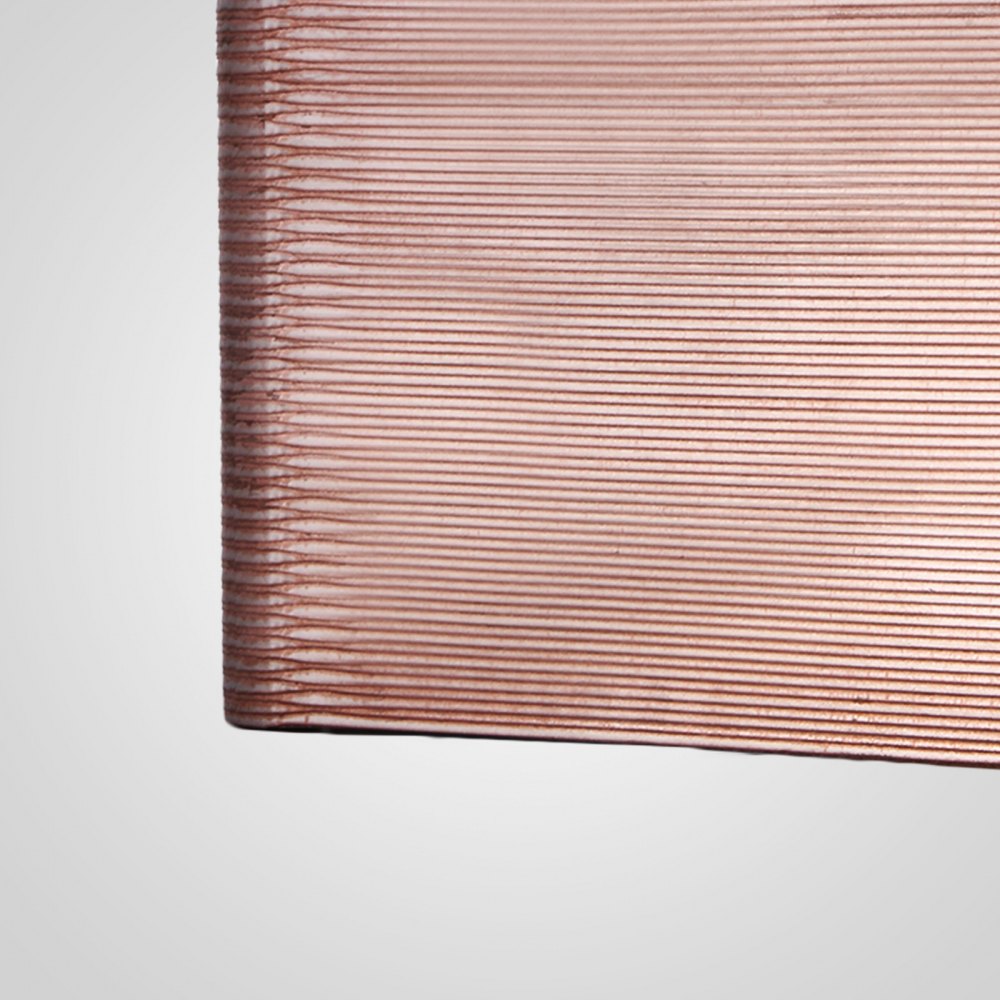

- "Herring bone" plate pattern increases heat transfer area and improves efficiency.
- Compact design allows for more flexibility in installation.

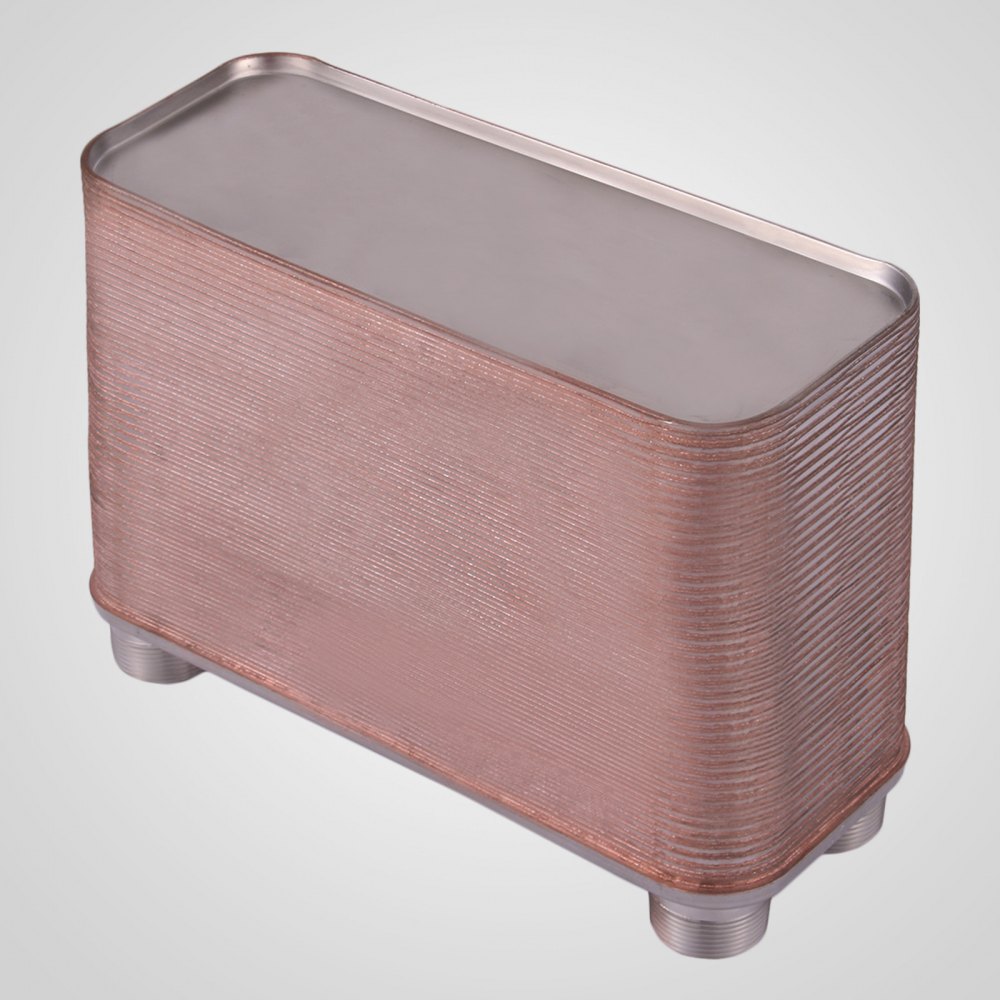

- Heavy-gauge top and bottom plates protect the unit from corrosion and accidental damage.
Häufig Zusammen Gekauft
Bewertungen 4.9
Alle Bewertungen stammen von verifizierten Käufen
Durchschnittliche Bewertung basierend auf 27 Bewertungen
Bewertungen 4.9
Alle Bewertungen stammen von verifizierten Käufen
Alle 27 Bewertungen ansehen
Über diesen Artikel
Beschreibung

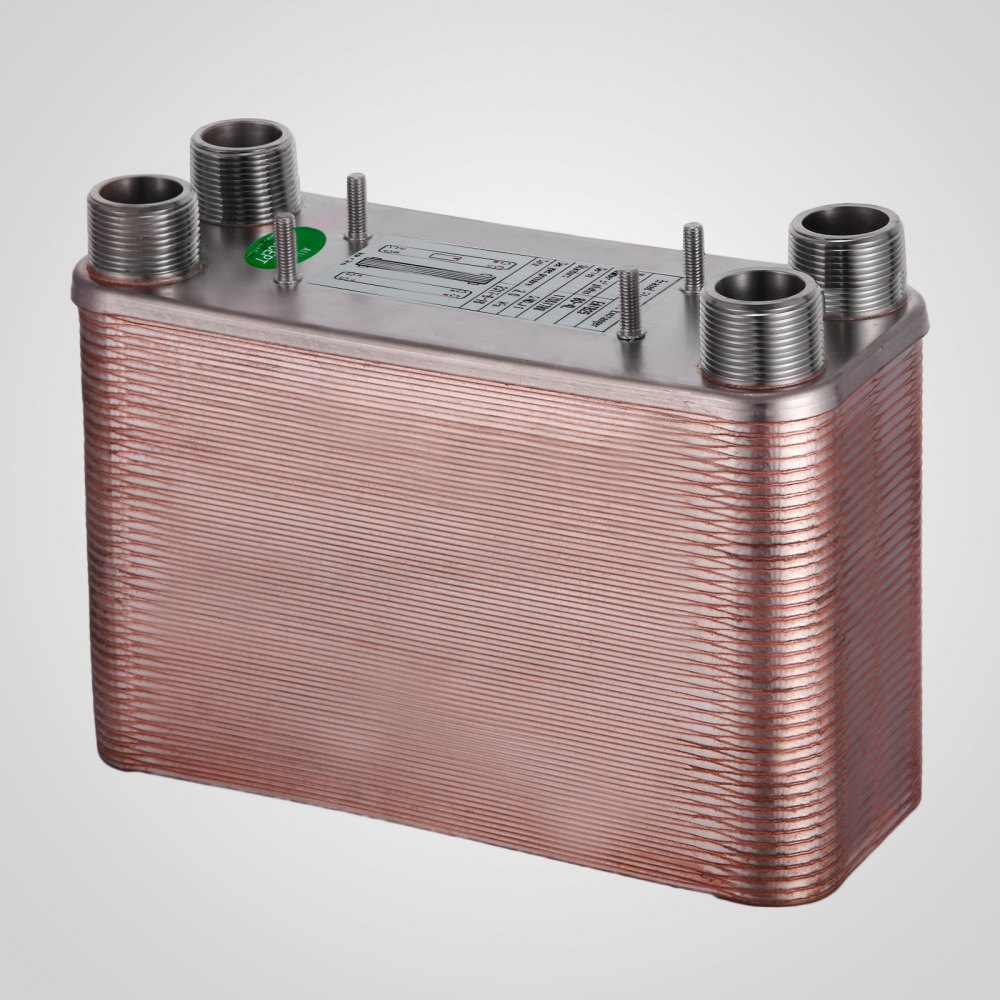

The 80-Plate Brazed Plate Heat Exchangers are used for transferring heat from one hot water source to another without mixing the two different water sources. For example when hooking up a non pressurized furnace to an indoor boiler or for heating cold water before it goes into the hot water heater to eliminate the need for fuel to power your water heater. They are good for preheating water to water heaters and for transferring heat from an outdoor furnace or solar system to an indoor boiler. Other uses for them include transferring heat from hot oil or cooling milk off a milk pipeline.
Compact design allows for more flexibility in installation.
Heavy-gauge top and bottom plates protect the unit from corrosion and accidental damage.
2. Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
3. For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the lifespan of the unit.
4. Connect the pipes in a manner where liquids move in a counter-flow direction -this will maximize the heat transfer.
The brazed plate heat exchanger has a simple operating principle. Based on the plate and nozzle orientation, each fluid passes through alternative channels within the heat exchanger. An extremely high heat transfer coefficient is attained due to the flow characteristics in each channel. A specially design and test result in higher heat transfer and reduction of the amount of deposits inside the unit.
Advantages
"Herring bone" plate pattern increases heat transfer area and improves efficiency.Compact design allows for more flexibility in installation.
Heavy-gauge top and bottom plates protect the unit from corrosion and accidental damage.
Applications
The 80-plate brazed plate heat exchangers are ideal for using with outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar systems, oil cooling and other liquid to liquid heat transfer applications.Precautions
1. Not to be used for transferring steam!2. Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
3. For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the lifespan of the unit.
4. Connect the pipes in a manner where liquids move in a counter-flow direction -this will maximize the heat transfer.
- Brand new
- Nice exterior
- Small size and no space occupation
- Plate pattern
- Increases heat transfer area
- Improves efficiency
- Compact design
- More flexibility in installation
- Heavy-gauge top and bottom plates
- Protect the unit from corrosion and accidental damage
- Ideal for liquid to liquid heat transfer applications
- Two years warranty

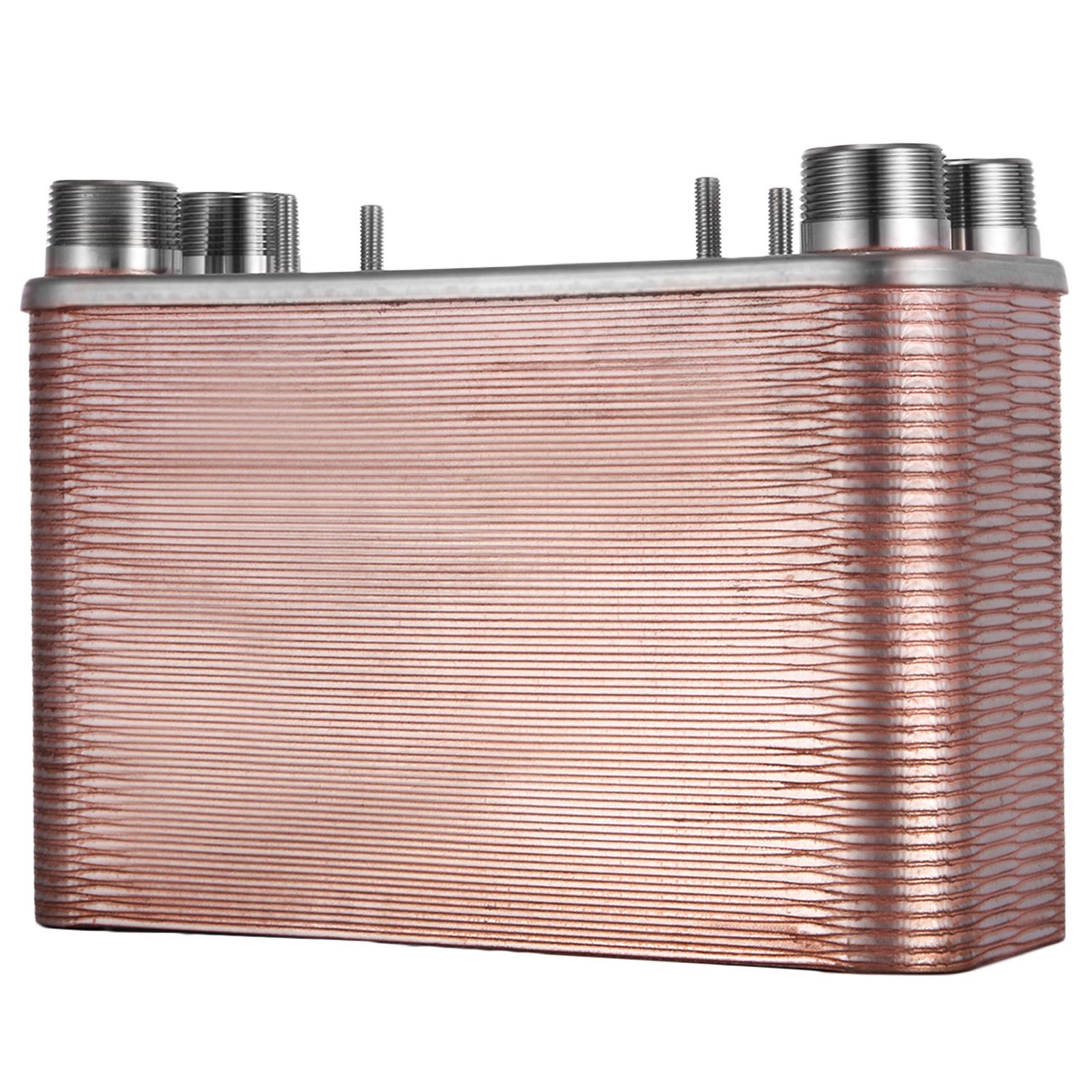

- Type: Brazed plate heat exchanger
- Plate material: AISI 316L stainless steel

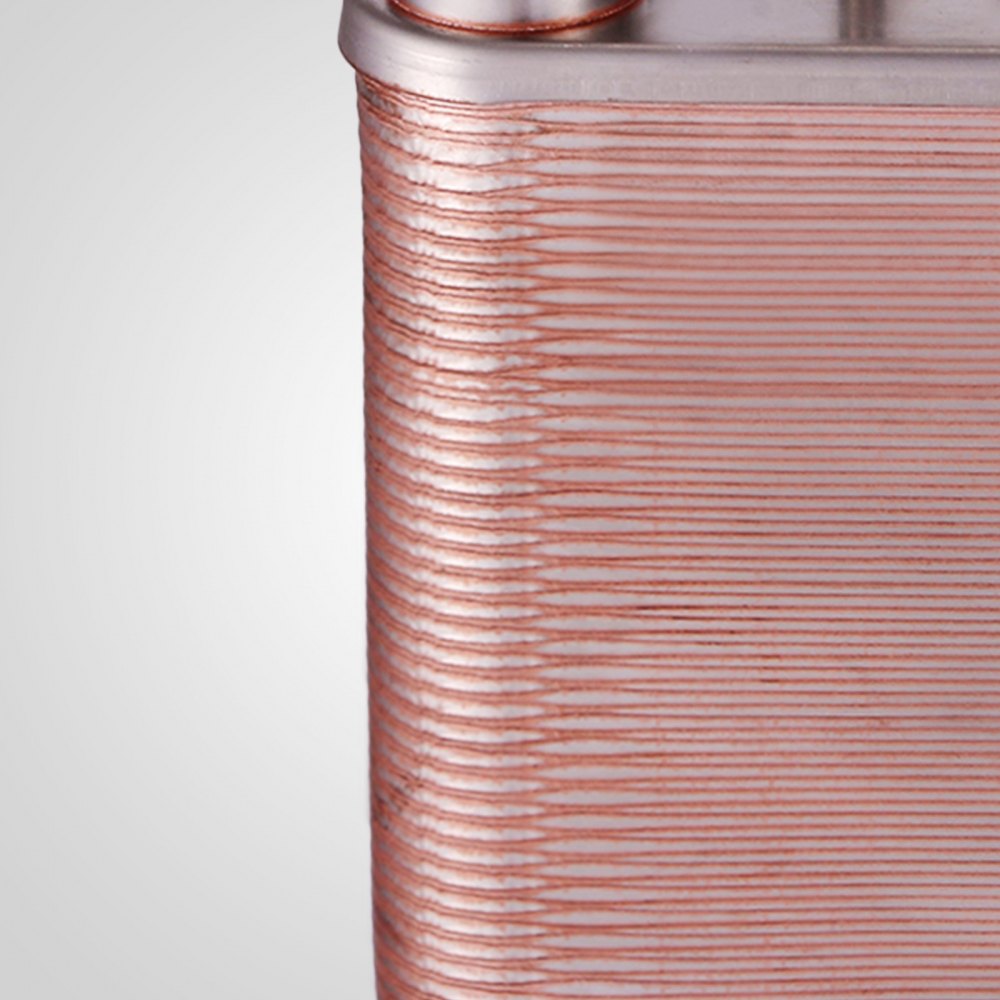

- Brazing material: 99.9% pure copper

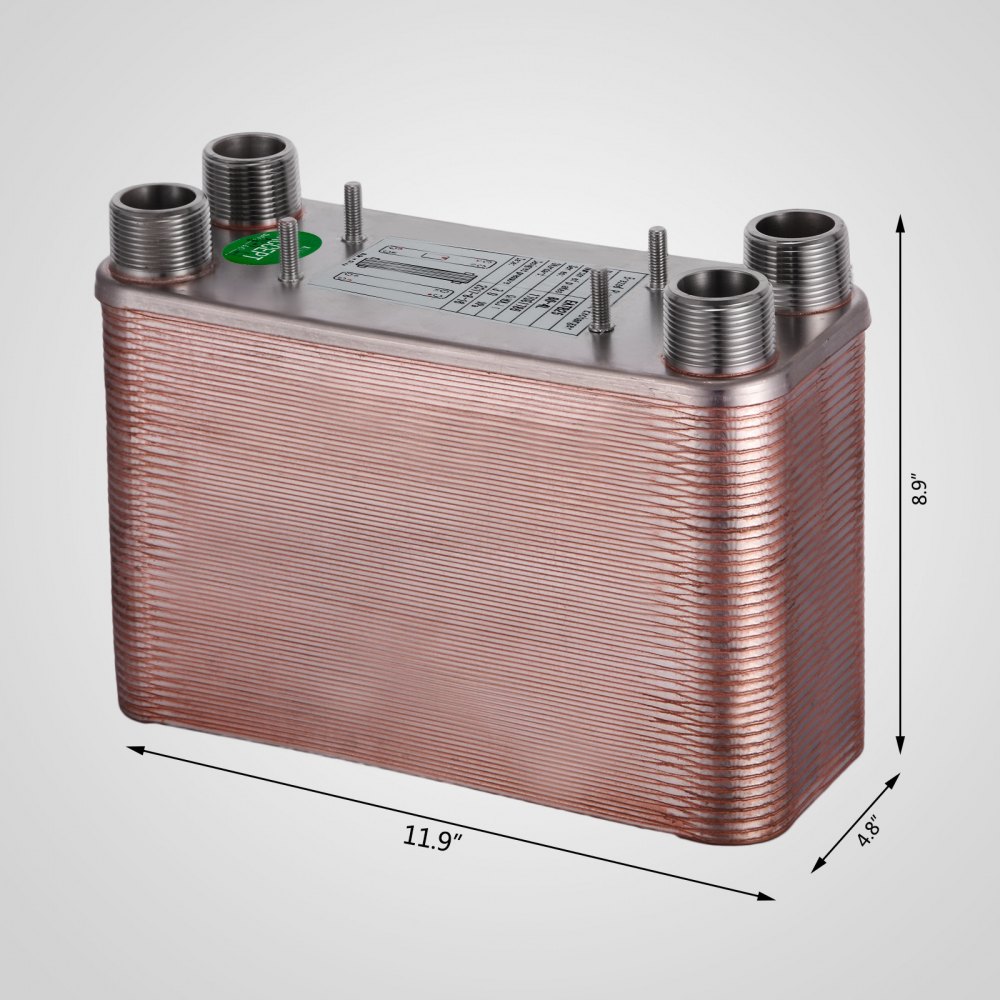

- Plate dimensions: 5 x 12 inch (12.7 x 30.5 cm)
- Volume per channel: 0.05 L

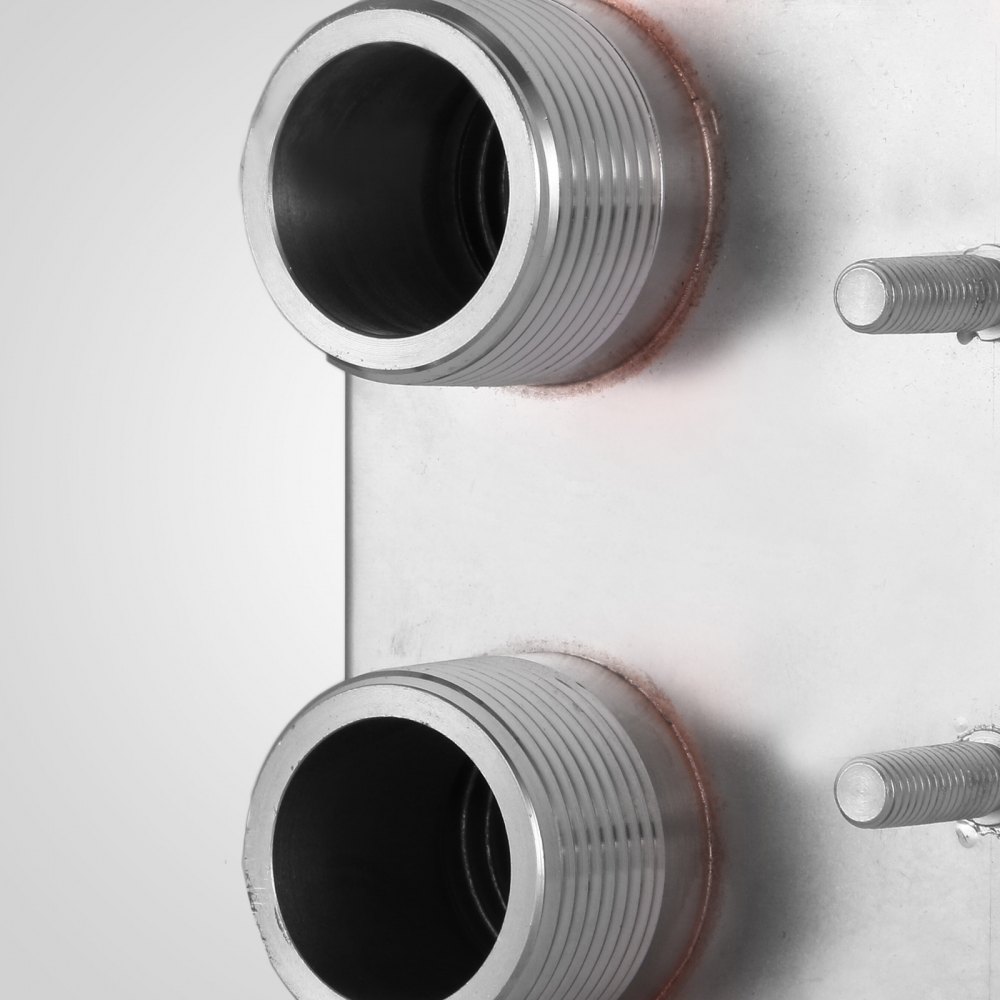

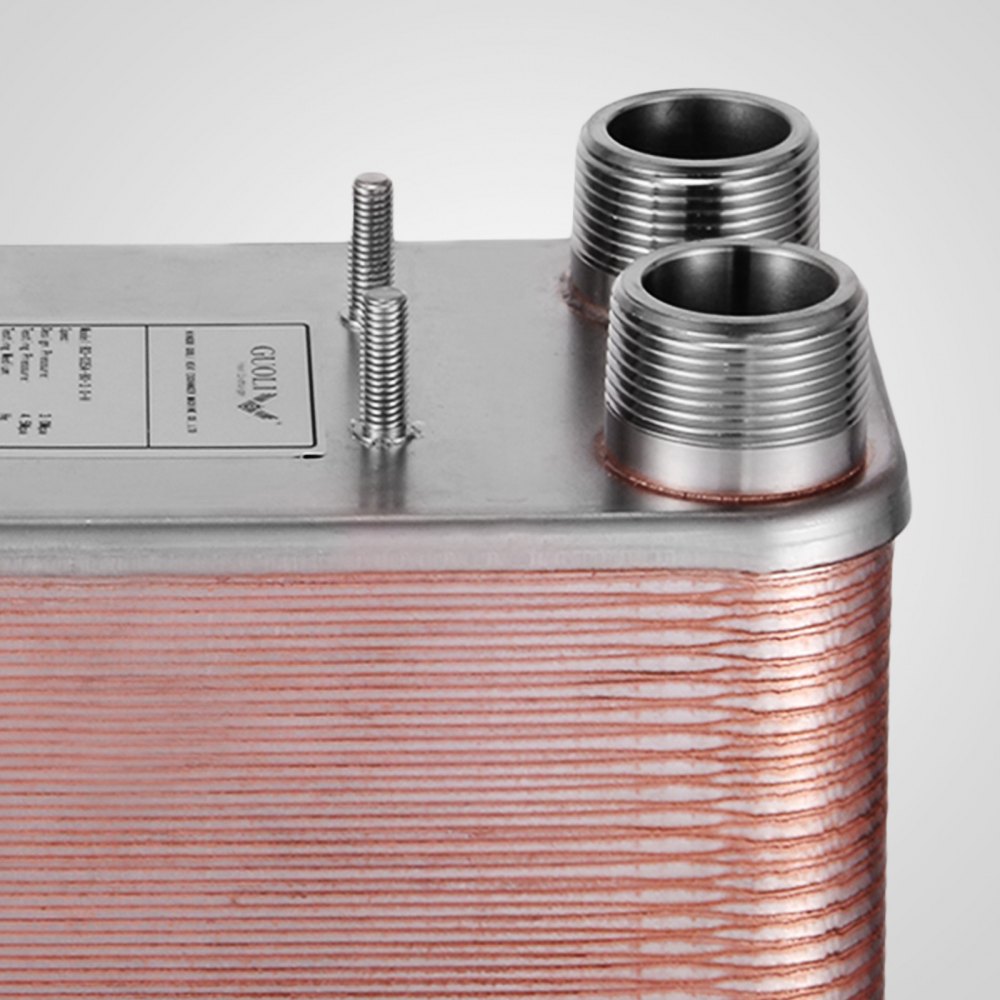

- Inlet/Outlet sizes: 1.25 inch(3.2 cm) male NPT(MPT) threaded, U.S. standard threads
- Max. design pressure: 435 psi
- Test pressure: 652 psi
- Min operating temperature: -256 ℉ (-160 ℃)
- Max operating temperature: 437 ℉ (225 ℃)
- Package size: 12.6 x 6.3 x 11.4 inch (32 x 16 x 29 cm)
- Weight: 28 lbs (12.6 kg)
- 1 x Set Of 80-Plate Brazed Plate Exchanger
The 80-Plate Brazed Plate Heat Exchangers are used for transferring heat from one hot water source to another without mixing the two different water sources. For example when hooking up a non pressurized furnace to an indoor boiler or for heating cold water before it goes into the hot water heater to eliminate the need for fuel to power your water heater. They are good for preheating water to water heaters and for transferring heat from an outdoor furnace or solar system to an indoor boiler. Other uses for them include transferring heat from hot oil or cooling milk off a milk pipeline.
Compact design allows for more flexibility in installation.
Heavy-gauge top and bottom plates protect the unit from corrosion and accidental damage.
2. Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
3. For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the lifespan of the unit.
4. Connect the pipes in a manner where liquids move in a counter-flow direction -this will maximize the heat transfer.
The brazed plate heat exchanger has a simple operating principle. Based on the plate and nozzle orientation, each fluid passes through alternative channels within the heat exchanger. An extremely high heat transfer coefficient is attained due to the flow characteristics in each channel. A specially design and test result in higher heat transfer and reduction of the amount of deposits inside the unit.
Advantages
"Herring bone" plate pattern increases heat transfer area and improves efficiency.Compact design allows for more flexibility in installation.
Heavy-gauge top and bottom plates protect the unit from corrosion and accidental damage.
Applications
The 80-plate brazed plate heat exchangers are ideal for using with outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar systems, oil cooling and other liquid to liquid heat transfer applications.Precautions
1. Not to be used for transferring steam!2. Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
3. For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the lifespan of the unit.
4. Connect the pipes in a manner where liquids move in a counter-flow direction -this will maximize the heat transfer.
- Brand new
- Nice exterior
- Small size and no space occupation
- Plate pattern
- Increases heat transfer area
- Improves efficiency
- Compact design
- More flexibility in installation
- Heavy-gauge top and bottom plates
- Protect the unit from corrosion and accidental damage
- Ideal for liquid to liquid heat transfer applications
- Two years warranty
- Type: Brazed plate heat exchanger
- Plate material: AISI 316L stainless steel
- Brazing material: 99.9% pure copper
- Plate dimensions: 5 x 12 inch (12.7 x 30.5 cm)
- Volume per channel: 0.05 L
- Inlet/Outlet sizes: 1.25 inch(3.2 cm) male NPT(MPT) threaded, U.S. standard threads
- Max. design pressure: 435 psi
- Test pressure: 652 psi
- Min operating temperature: -256 ℉ (-160 ℃)
- Max operating temperature: 437 ℉ (225 ℃)
- Package size: 12.6 x 6.3 x 11.4 inch (32 x 16 x 29 cm)
- Weight: 28 lbs (12.6 kg)
- 1 x Set Of 80-Plate Brazed Plate Exchanger
