Features & Details
- 【HIGH THERMAL EFFICIENCY】 - Turbulent flow moves the two media in opposite directions, generating strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series is CE certified.
- 【ENERGY OPTIMIZED】 - This stainless steel heat exchanger can heat water to the preset temperature, which is very energy-efficient with no electricity consumption and no oxygen consumption.
- 【ROBUST CONSTRUCTION】 - This 60-plate heat exchanger features 316L stainless steel plates brazed together at the edges and contact point matrix to form a reliable and robust component, creating a durable, integral part that withstands high pressure and high temperature. Four thickened BSP-FPT ports facilitate installation.
- 【COMPACT DESIGN】 -The corrugated plate design of this plate chiller wort allows for a significantly smaller construction and footprint with equivalent or better performance compared to other heat transfer equipment - resulting in significant space savings.
- 【WIDE APPLICATION】 - This heat exchanger offers maximum thermal efficiency and durability in a compact and lightweight unit, ideal for industrial oil cooling, refrigerant evaporators and condensers, as well as residential and commercial HVAC hydraulic systems.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 27 reviews
Reviews 4.9
All reviews are from verified purchases
See all 27 reviews
About this item
Product specification
- Model
- B12-60
- Material
- 316 l + 99.9% copper
- Connections
- 1/2 "BSP FPT
- Number of plates
- 60
- Design pressure (max.)
- 3.0 MPa
- Test pressure (min)
- 4.5 MPa
- Design temperature (°C)
- Max. +225
- Design Temperature (℃)
- Min -196

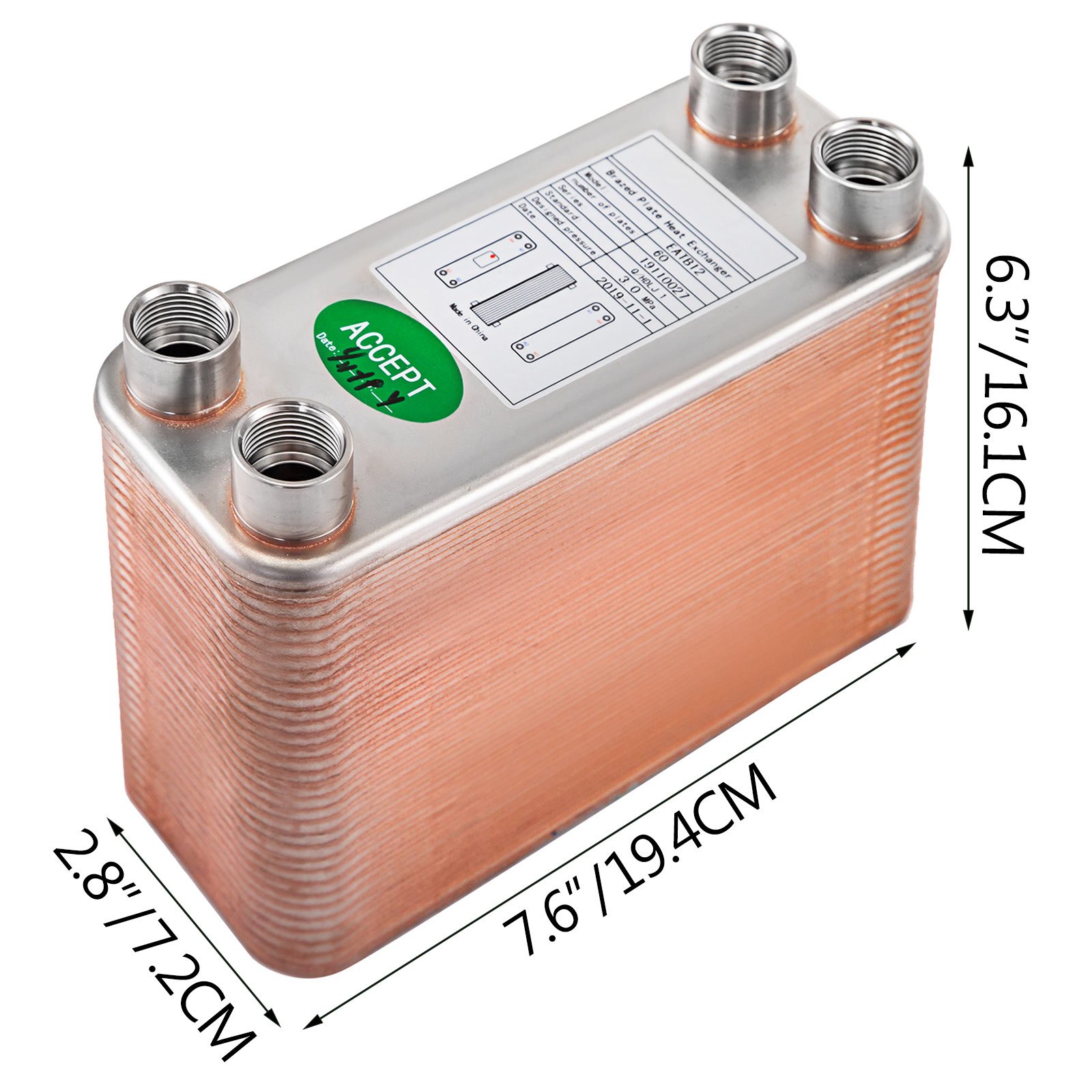

- Dimensions
- 7.6" (19.4cm) x 2.8" (7.2cm) x 6.3" (16.1cm)
Description

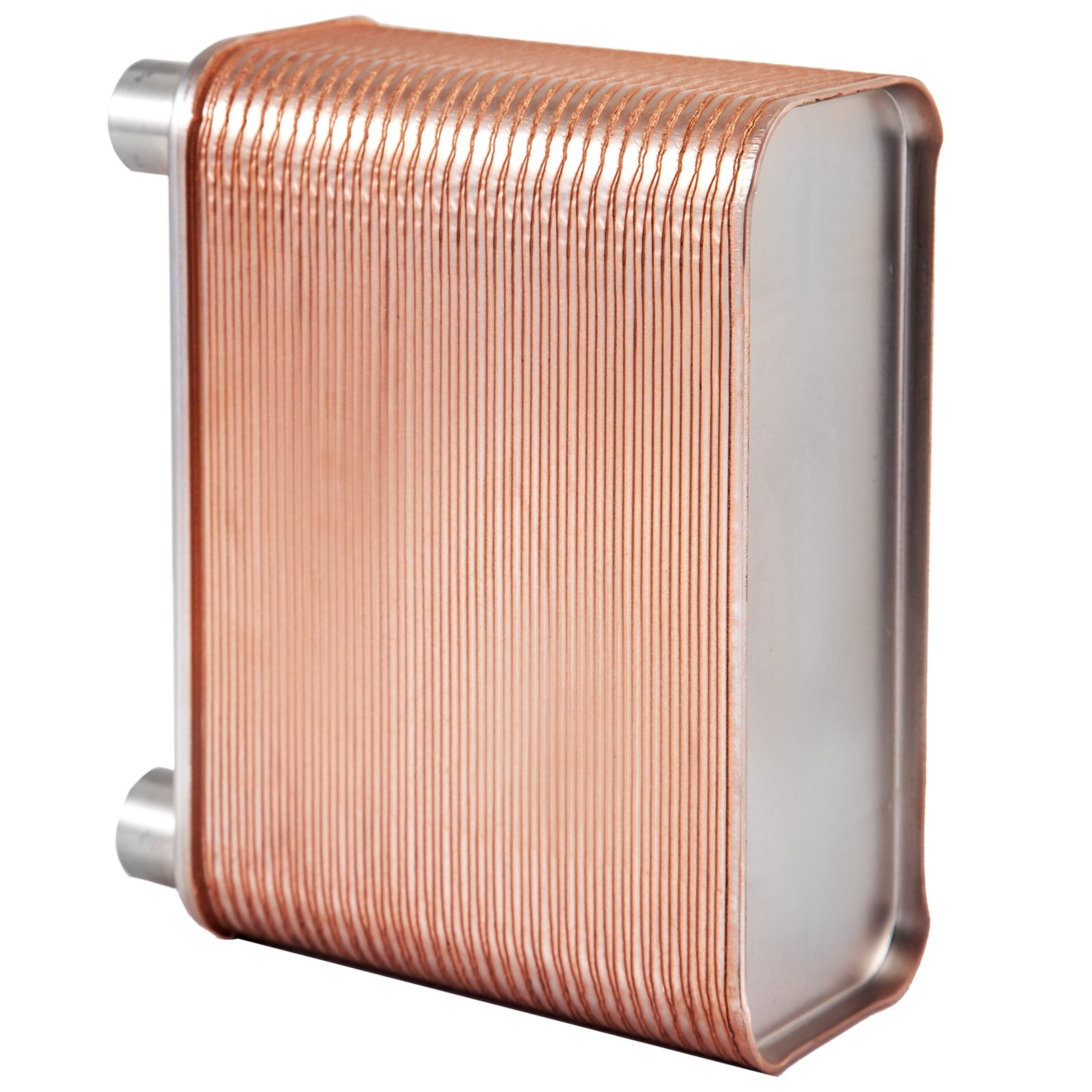

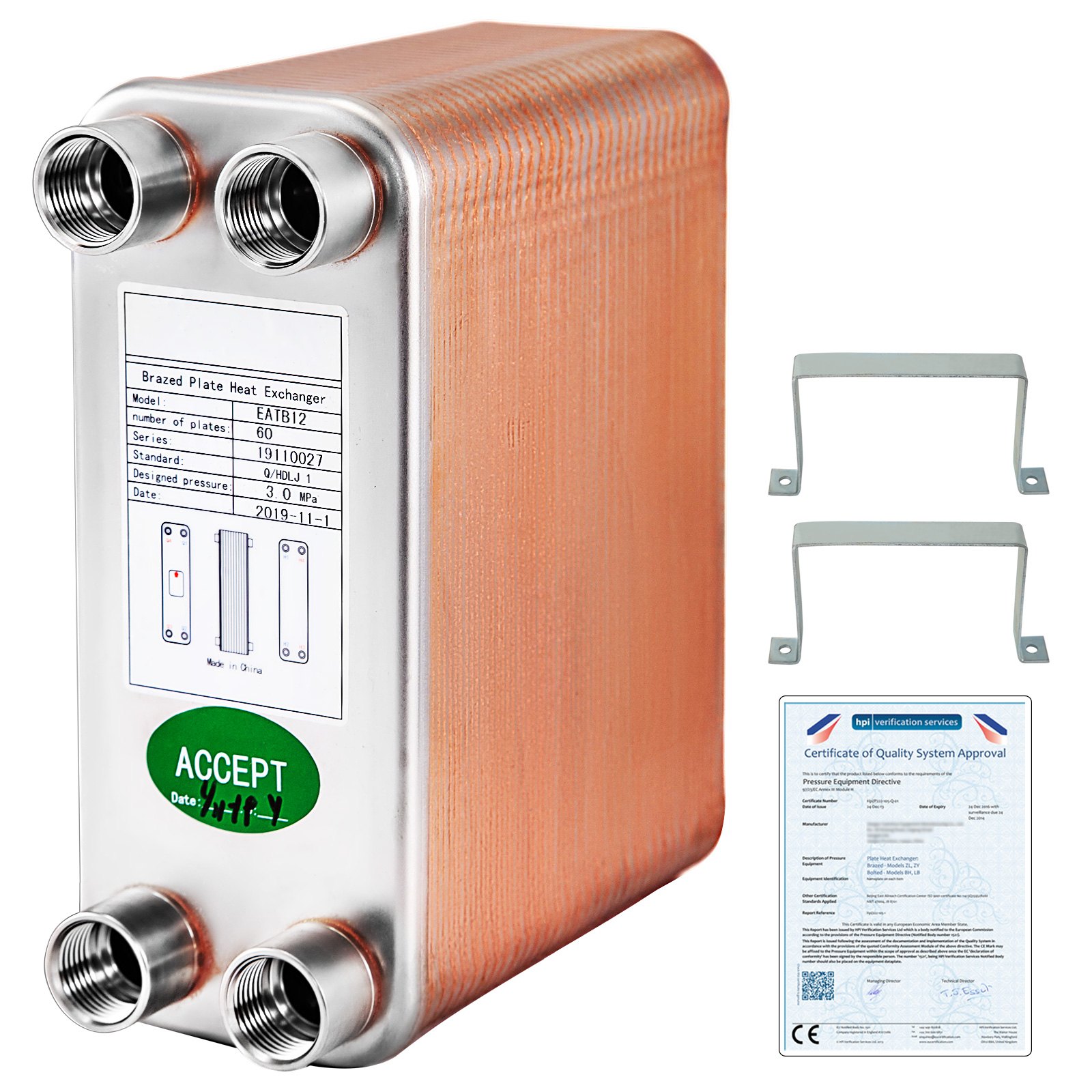

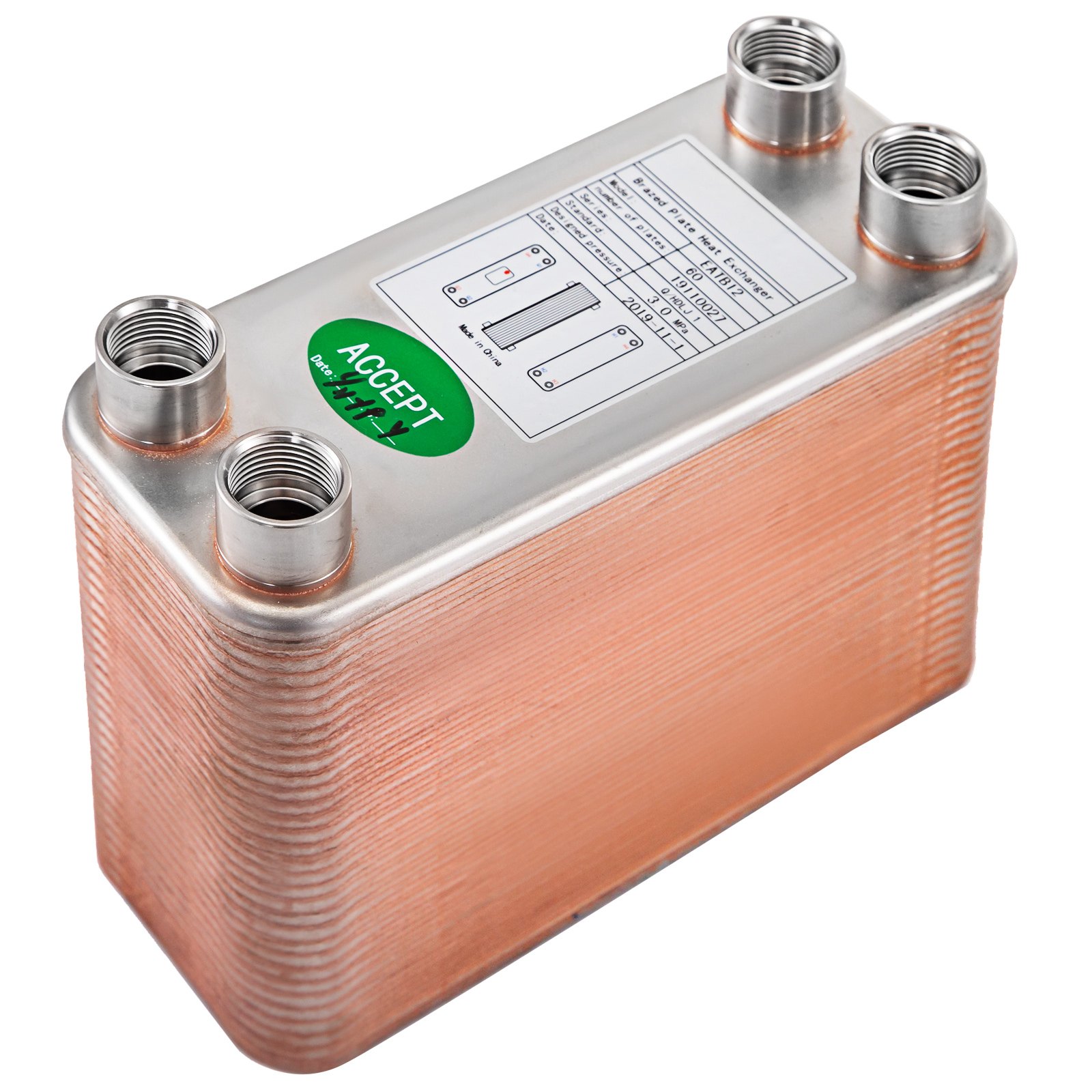

Brazed plate heat exchanger 60 plate heat exchanger
Our brand-new heat exchanger features a compact and lightweight housing with excellent thermal performance. Made from 316L stainless steel and 99.9% copper, it ensures a long service life. It is therefore perfectly suited for solar heating, heat recovery from oil-fired units, engine cooling, evaporation and condensation, and more.
- High thermal efficiency
- Energy optimized
- Robust construction
- Compact design

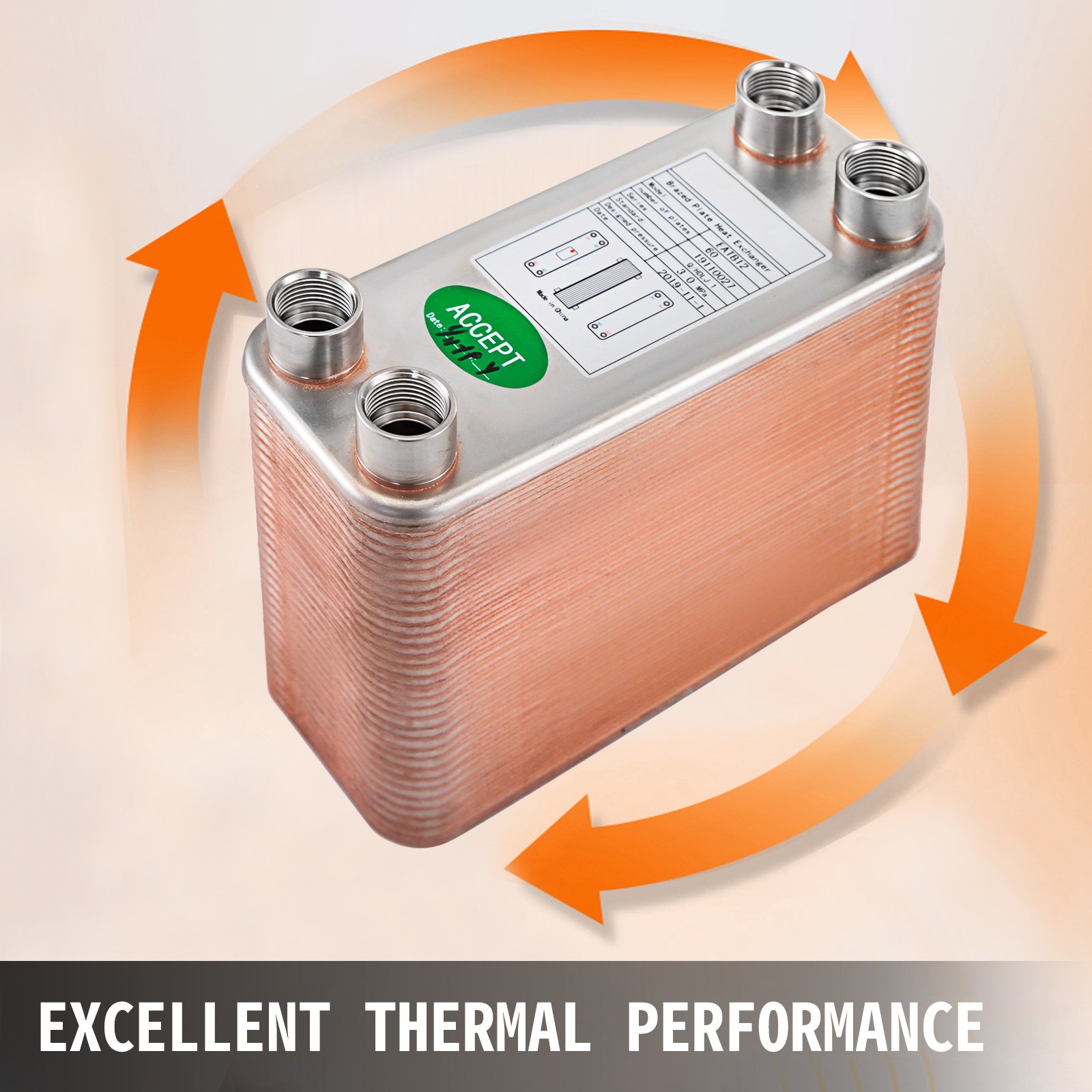

Excellent heat output
Extremely efficient herringbone design for maximum heat transfer.

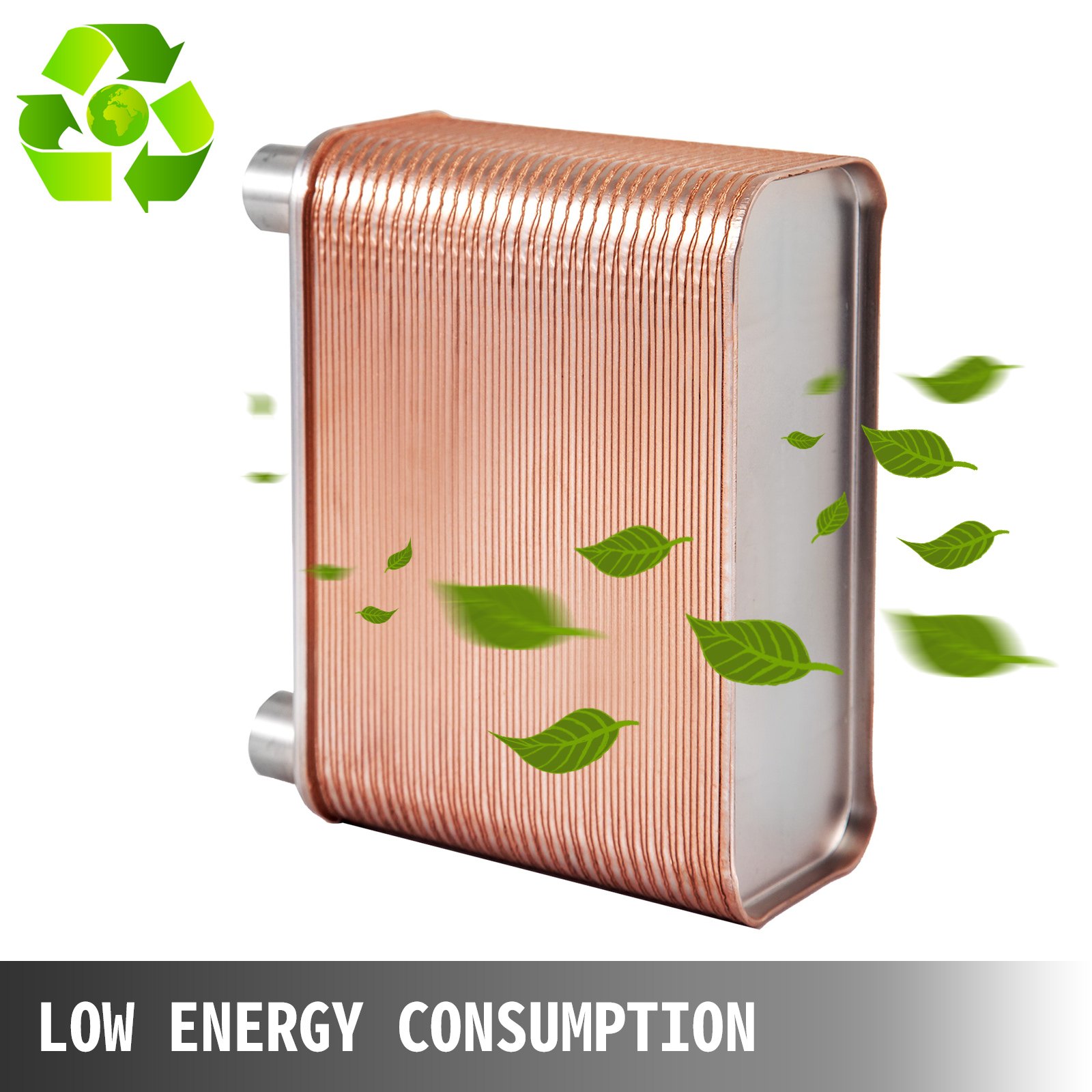

Low energy consumption
Low energy consumption due to very low pressure drop across the heat exchanger.

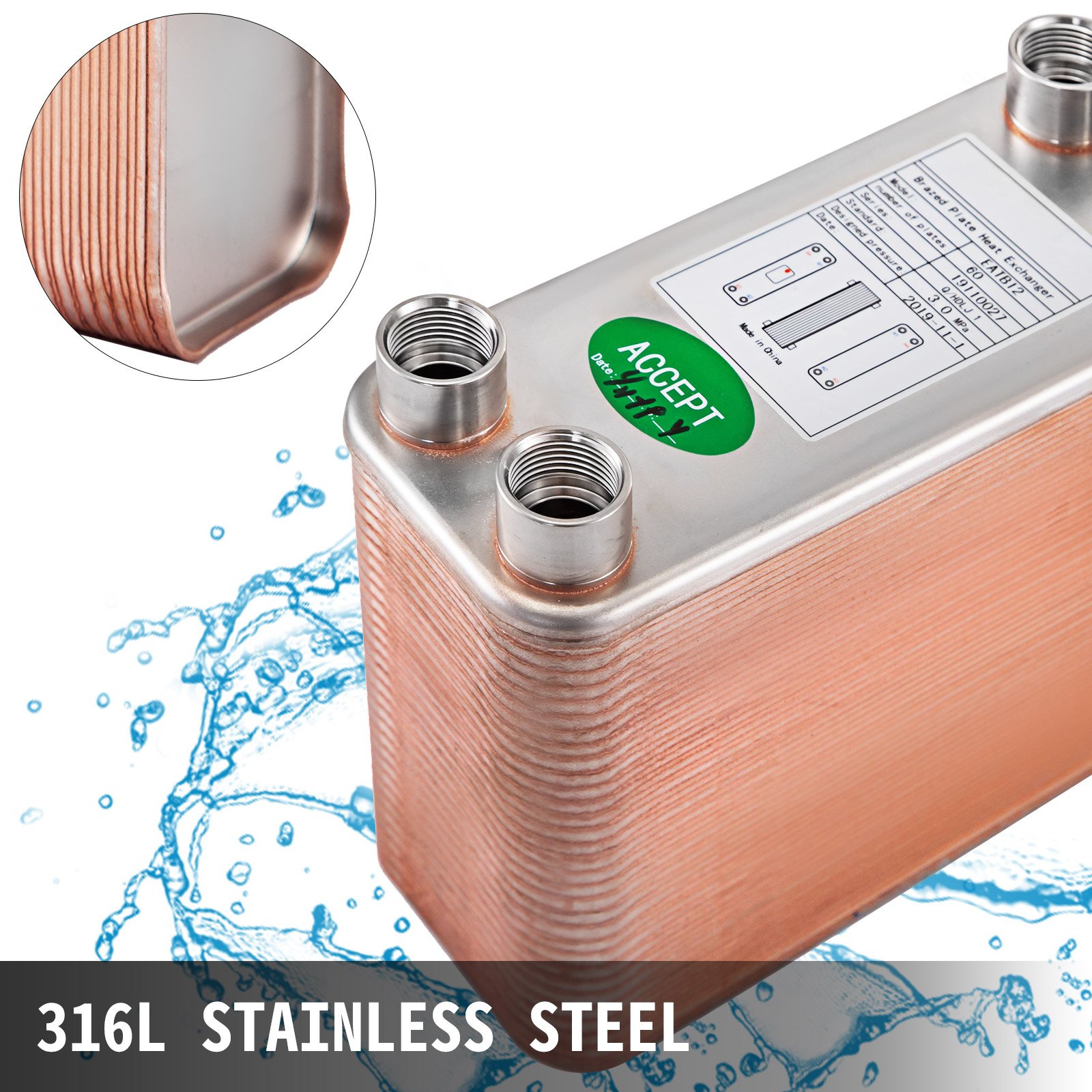

316L stainless steel
The applied 316L stainless steel is highly corrosion-resistant, reliable and durable.

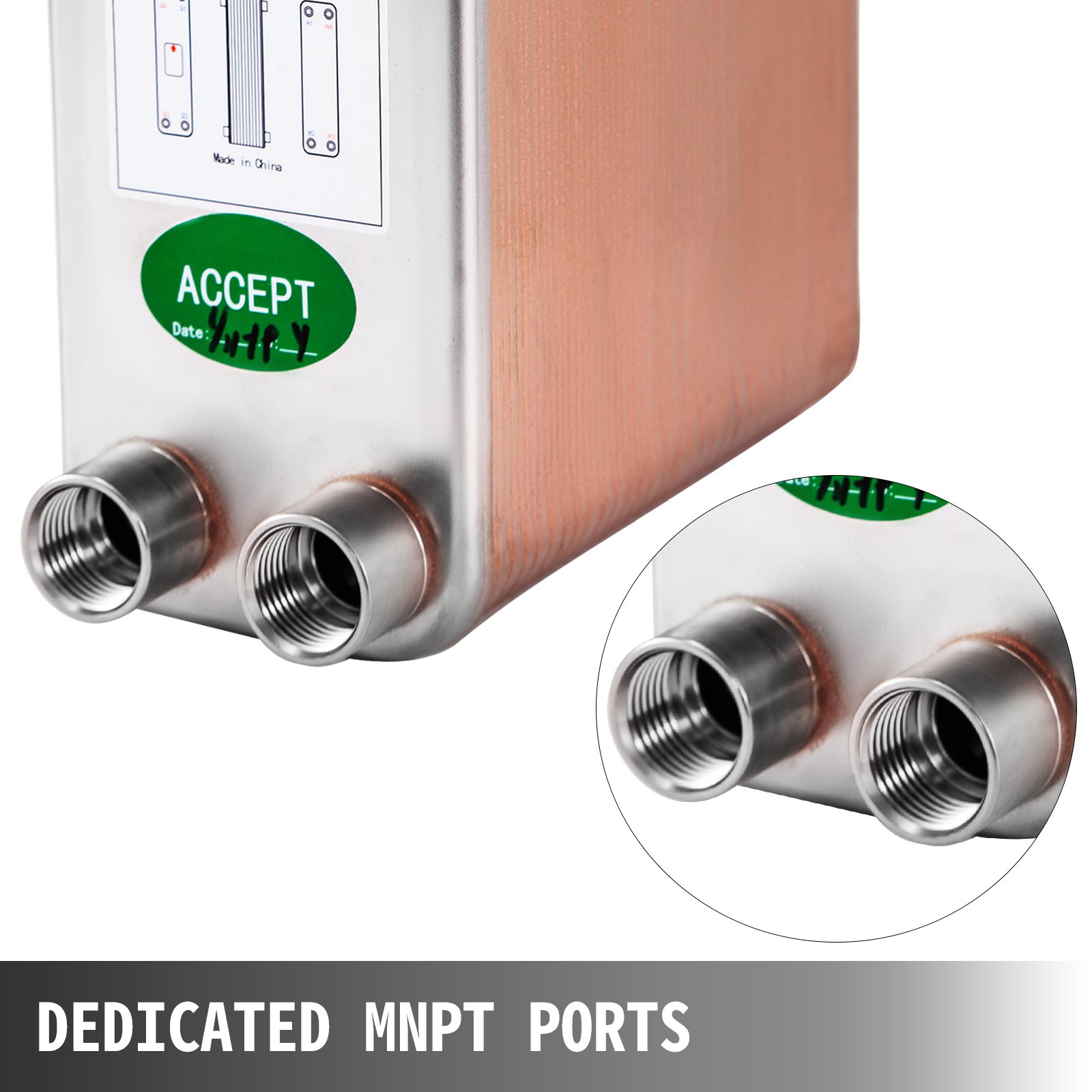

Special FB ports
Four thickened 1/2" BSP-FPT ports for easier installation.

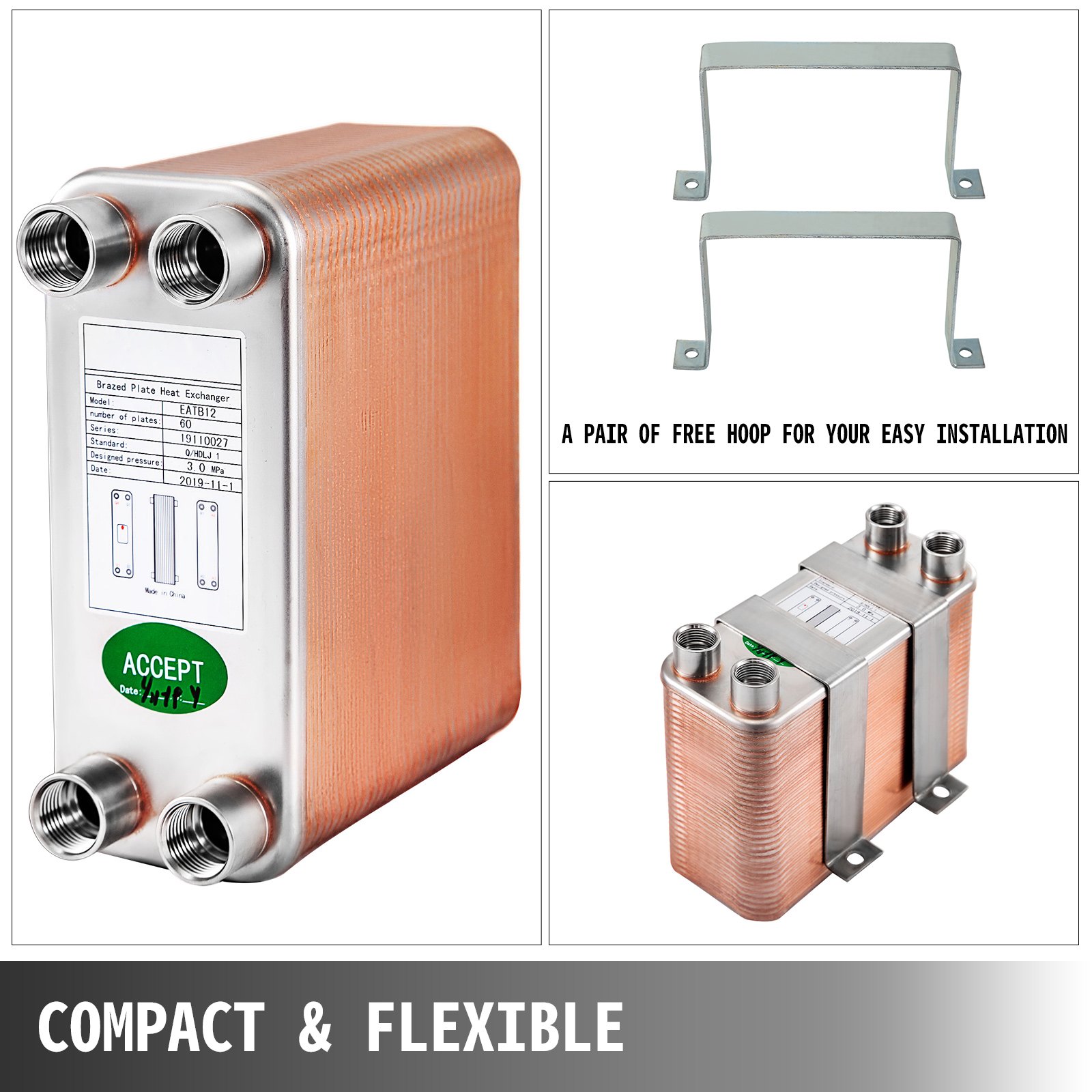

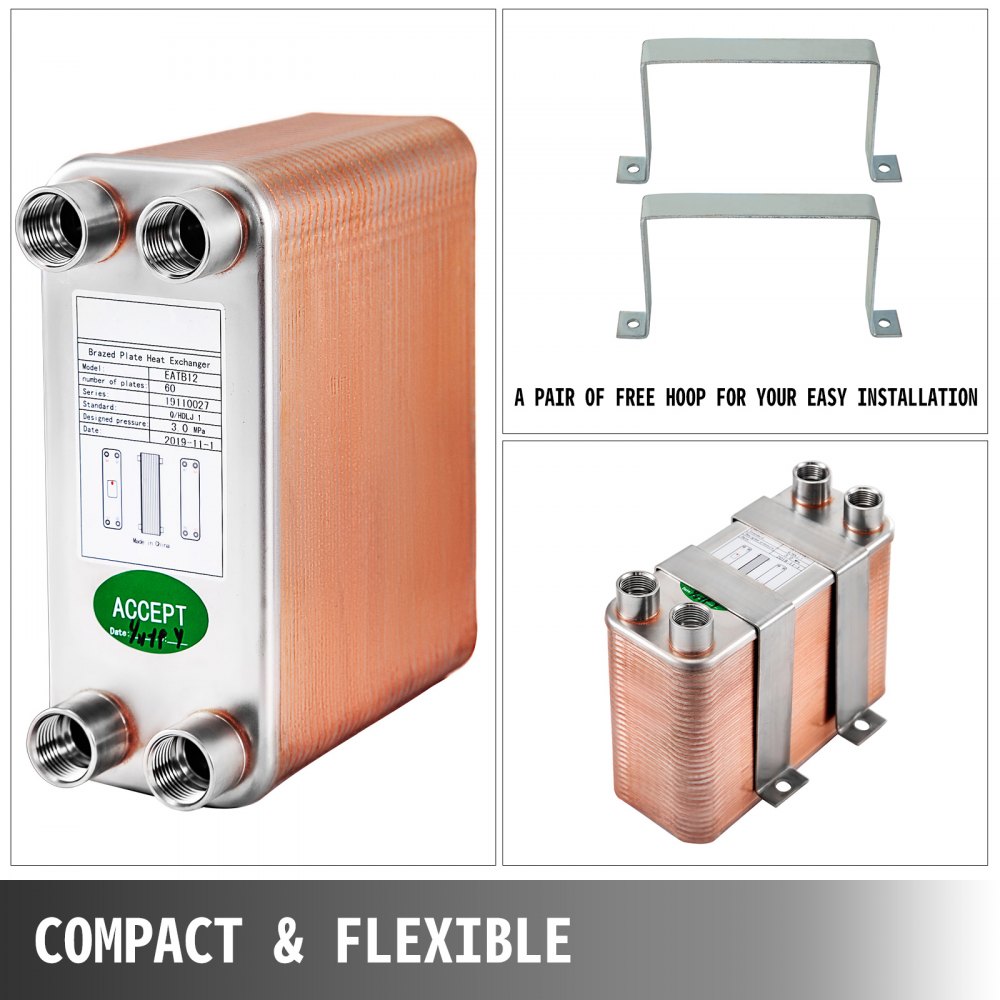

Compact and flexible
The footprint can be only one tenth that of a shell and tube heat exchanger, and due to its compact size, it also offers more freedom in system design.
Wide application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- Model: B12-60
- Material: 316 l + 99.9% copper
- Connections: 1/2 "BSP FPT
- Number of plates: 60
- Design pressure (max.): 3.0 MPa
- Test pressure (min): 4.5 MPa
- Design temperature (°C): Max. +225
- Design Temperature (℃): Min -196
- Dimensions: 7.6" (19.4cm) x 2.8" (7.2cm) x 6.3" (16.1cm)

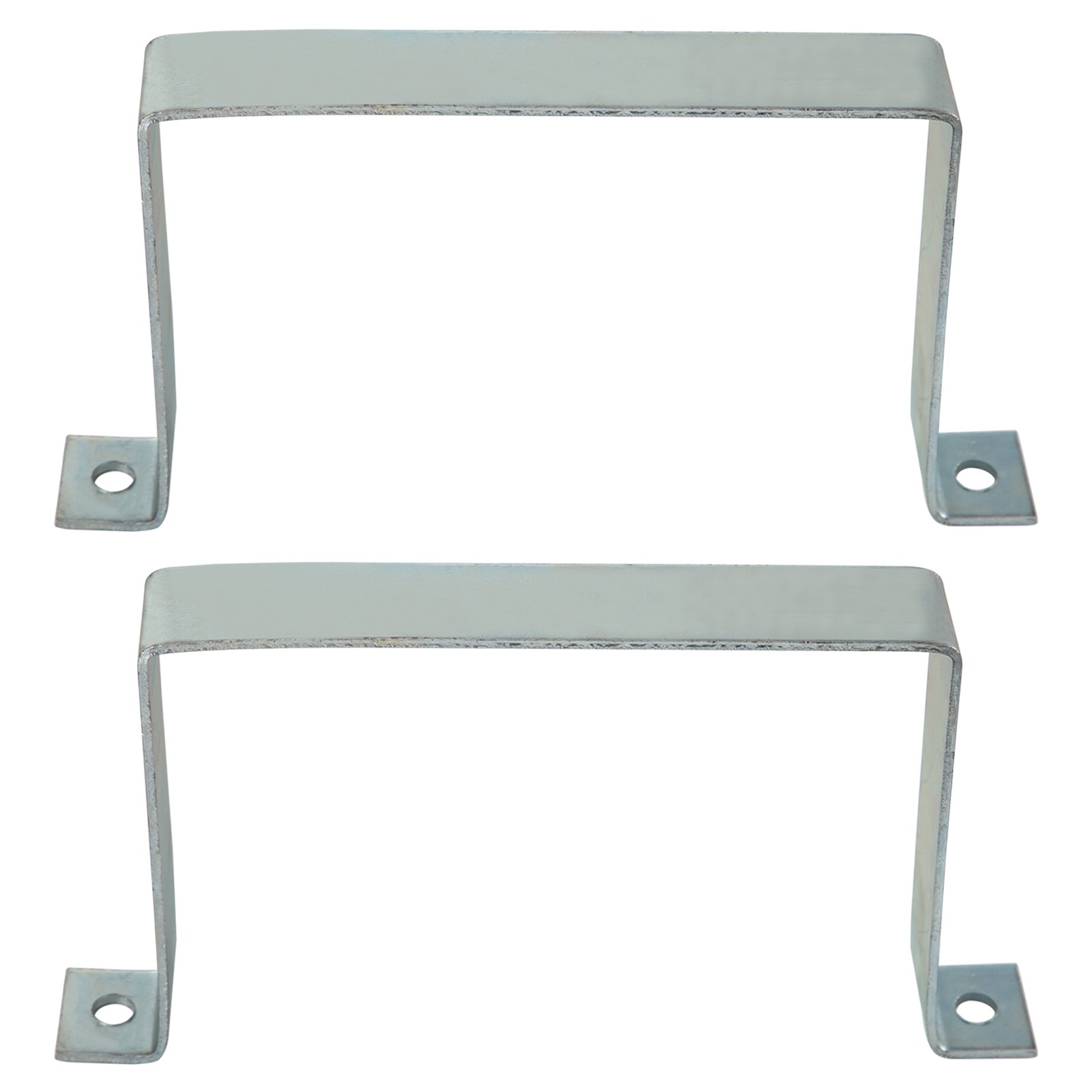

- 1 x heat exchanger
- 1 x A pair of tires
Brazed plate heat exchanger 60 plate heat exchanger
Our brand-new heat exchanger features a compact and lightweight housing with excellent thermal performance. Made from 316L stainless steel and 99.9% copper, it ensures a long service life. It is therefore perfectly suited for solar heating, heat recovery from oil-fired units, engine cooling, evaporation and condensation, and more.
- High thermal efficiency
- Energy optimized
- Robust construction
- Compact design
Excellent heat output
Extremely efficient herringbone design for maximum heat transfer.
Low energy consumption
Low energy consumption due to very low pressure drop across the heat exchanger.
316L stainless steel
The applied 316L stainless steel is highly corrosion-resistant, reliable and durable.
Special FB ports
Four thickened 1/2" BSP-FPT ports for easier installation.
Compact and flexible
The footprint can be only one tenth that of a shell and tube heat exchanger, and due to its compact size, it also offers more freedom in system design.
Wide application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- 1 x heat exchanger
- 1 x A pair of tires
- Model: B12-60
- Material: 316 l + 99.9% copper
- Connections: 1/2 "BSP FPT
- Number of plates: 60
- Design pressure (max.): 3.0 MPa
- Test pressure (min): 4.5 MPa
- Design temperature (°C): Max. +225
- Design Temperature (℃): Min -196
- Dimensions: 7.6" (19.4cm) x 2.8" (7.2cm) x 6.3" (16.1cm)
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (3)
Guten Morgen!
Wieviel KW kann der ubertragen?
Hallo, die spezifische Leistung muss unter bestimmten Arbeitsbedingungen berechnet werden. Leistung bezieht sich auf den Wärmeaustausch und Wärmeaustausch = Temperaturdifferenz * Durchflussrate * spezifische Wärme * spezifisches Gewicht, daher müssen bestimmte Arbeitsbedingungen angegeben werden, bevor die Berechnung durchgeführt werden kann.
By vevor
Helpful
(
10
)
Ist der Wärmetauscher Trinkwasser geeignet?
Nein, der Wärmetauscher ist nicht für Trinkwasser geeignet.
By vevor
Helpful
(
7
)
Bei diesem Produkt handelt es sich um einen kupfergelöteten Plattenwärmetauscher. Das Lot besteht aus Kupfer, einem Schwermetall. Er kann in Lebensmitteln verwendet werden, wenn Ihre Lebensmittelanforderungen nicht so streng sind. Die Kupferionen sind relativ stabil. Wenn Sie jedoch hohe Ansprüche haben, empfehlen wir Ihnen, ihn nicht für Lebensmittel oder Getränke zu verwenden.
By vevor
Helpful
(
1
)
Welche Gesamtfläche in m² hat der Wärmetauscher?
Die Wärmeaustauschfläche beträgt 0,696 Quadrat.
By vevor
Helpful
(
7
)
BSHRQ1260FB12G601V0
