Features & Details
- Key parameters: Power: 1.5 kW, Horsepower: 2 hp, Input current: 7.5 A. Input phase: single-phase 220 V or three-phase 220 V; Output phase: three-phase 220 V. Input frequency: 40–60 Hz; Output frequency: 0–400 Hz.

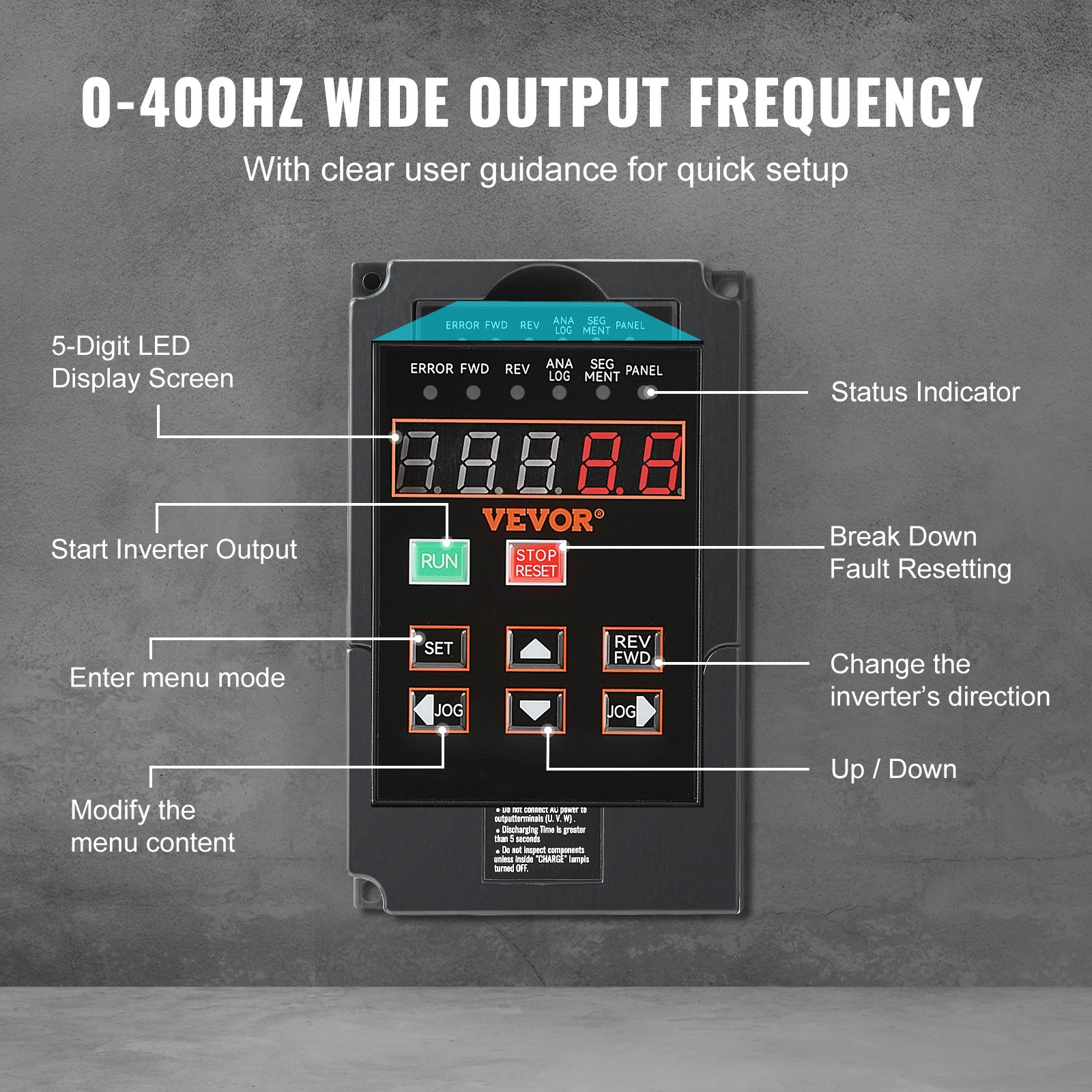

- Intuitive display and buttons: Our variable frequency drive (VFD) features an intuitive display and user-friendly buttons, allowing users to get started quickly. The detachable control panel can be connected to the appropriate interface for remote control, providing added convenience and flexibility.

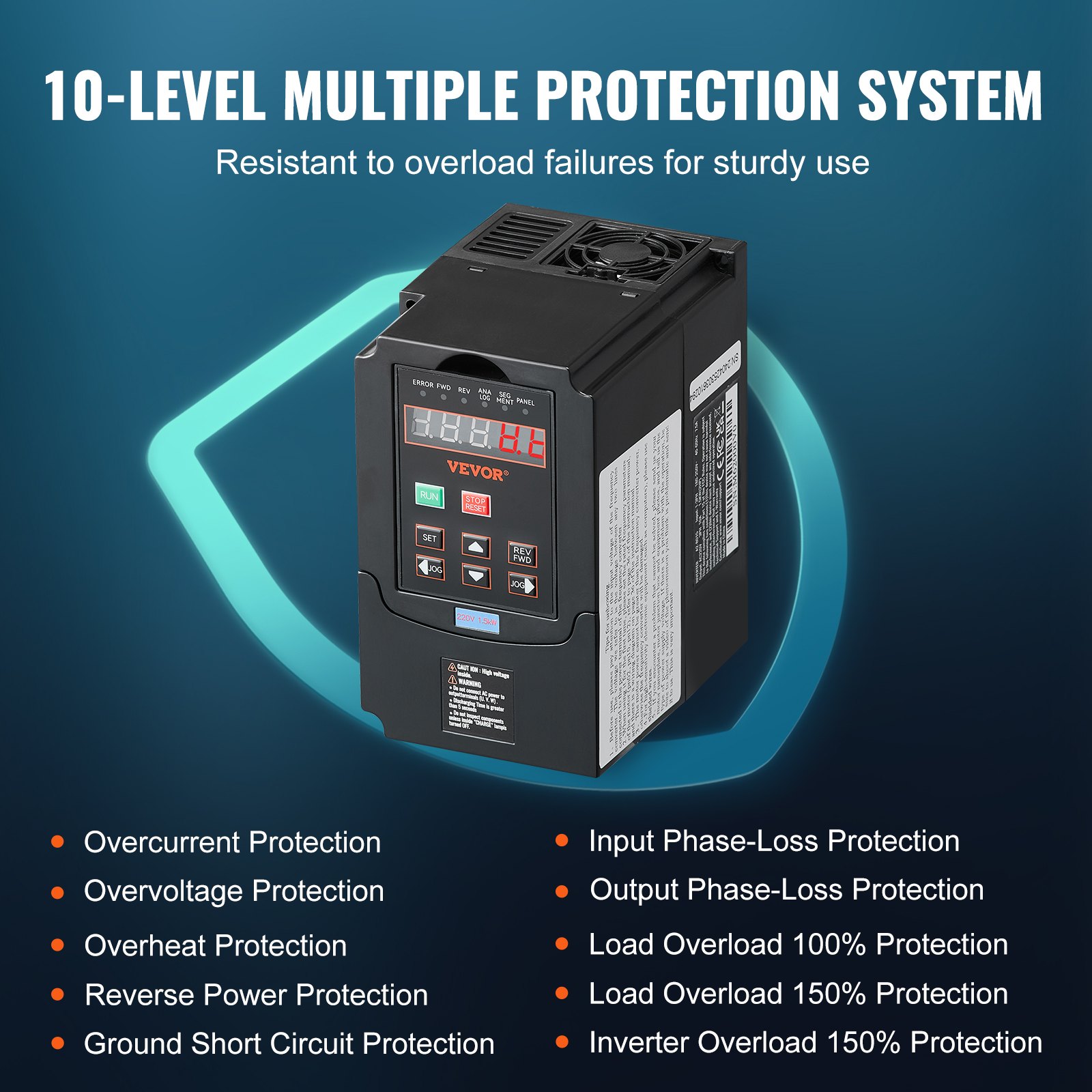

- Safety and durability redefined: The VFD features a comprehensive protection system that safeguards against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and increase the VFD's lifespan. Its multi-sided, multi-hole design ensures rapid cooling during extended use.

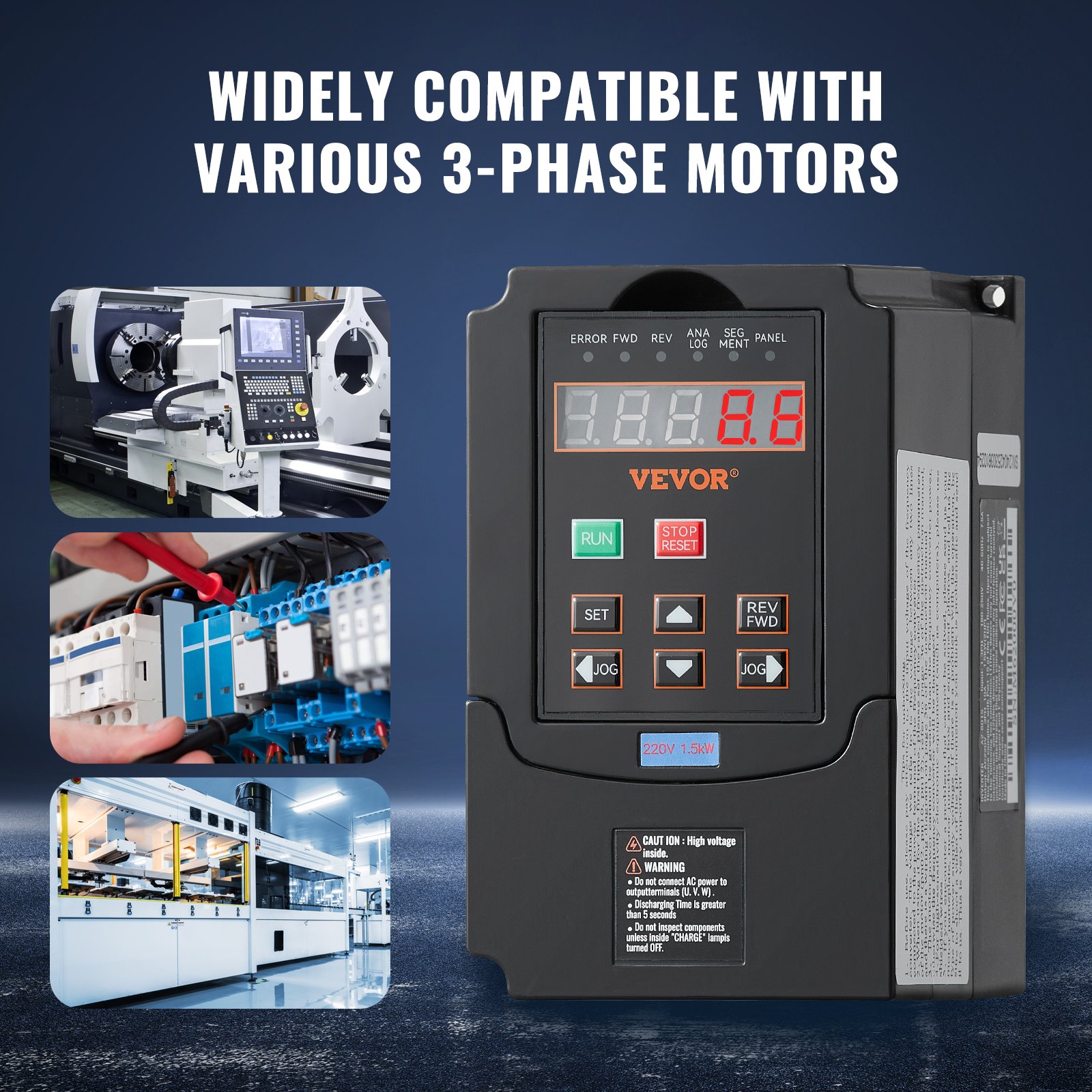

- Master of versatility: Our VFD is ideal for driving three-phase motors in various machines, including CNC milling machines, CNC machining centers, milling machines, drilling machines, compressors, pumps, grinding machines, elevators, centrifuges, and other speed-controlled machines. For higher motor loads and optimal results, choose a higher-powered VFD.
- Friendly reminder: The motor power should not exceed that of the frequency converter, and a lower power rating is perfectly acceptable. Depending on the varying load, the power may need to be reduced for optimal performance, especially under high load conditions.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 10 reviews
Reviews 4.9
All reviews are from verified purchases
See all 10 reviews
About this item
Product specification
- Article model number
- A2-8015
- Input voltage
- 220 V (single-phase or three-phase)
- Input current
- 7.5 A
- Output voltage
- 220 V (three-phase)
- Power
- 1.5 kW
- Input frequency
- 40-60 Hz
- Output frequency
- 0-400 Hz
- Power
- 2 hp
- Main material
- Flame-retardant ABS
- Net weight
- 1.9 lbs / 0.86 kg

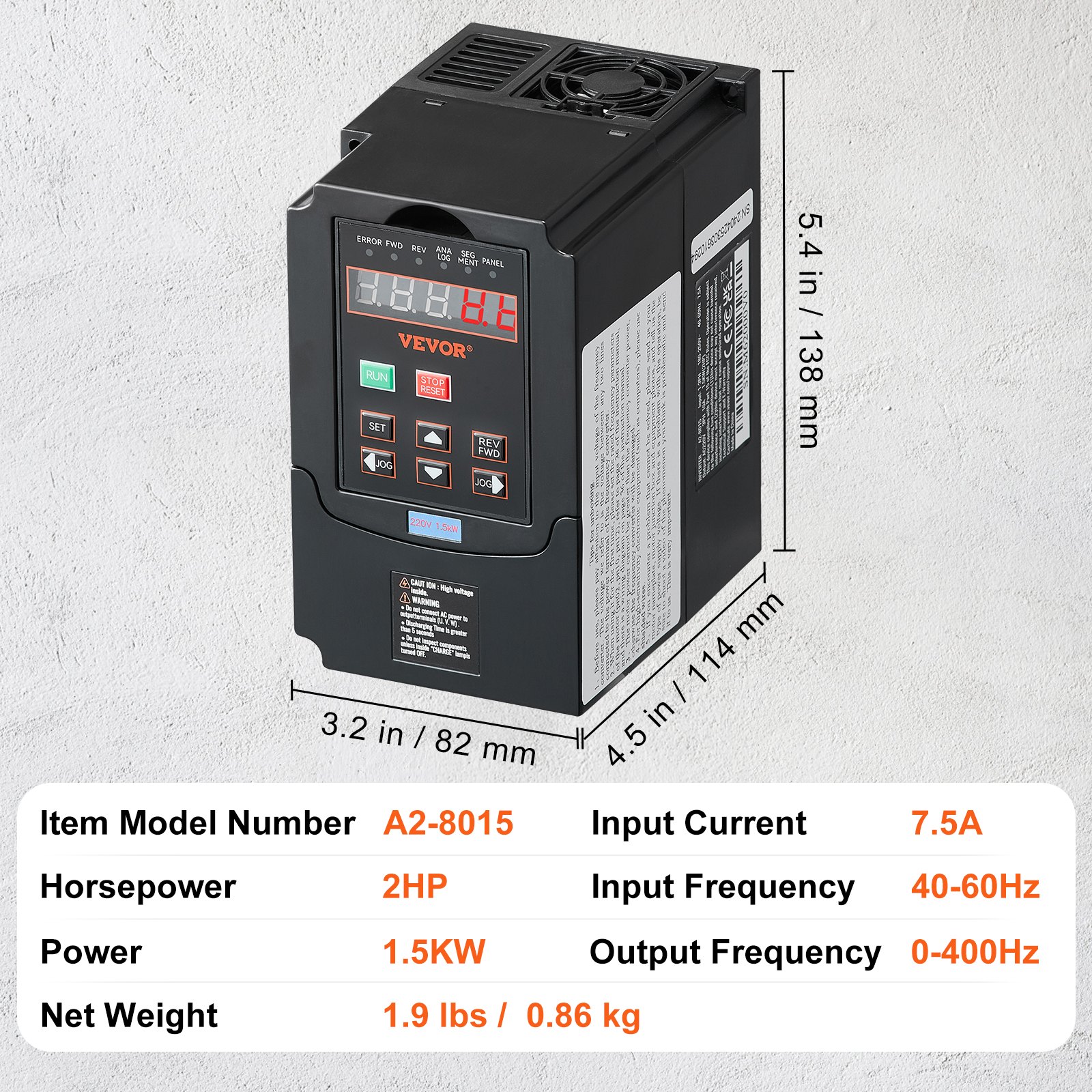

- Product dimensions
- 5.4 x 3.2 x 4.5 inches / 138 x 82 x 114 mm
Description
1.5 kW, 7.5 A, 2 HP frequency converter

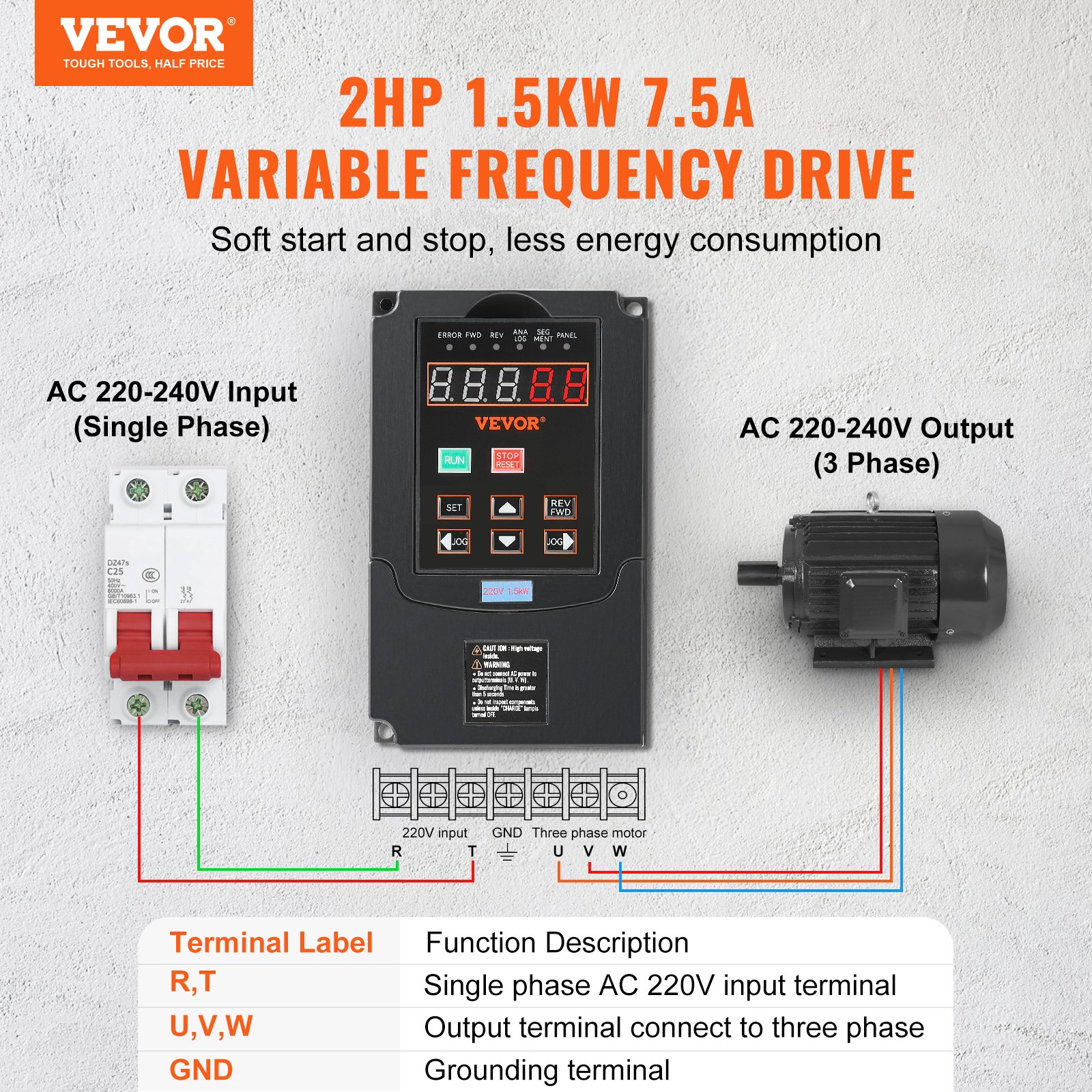

The frequency converter's input is single-phase 220 V (1PH) or three-phase 220 V (3PH), and its output is three-phase 220 V (3PH). Simple wiring, an intuitive display, and comprehensive protection functions improve energy efficiency and minimize machine failures.

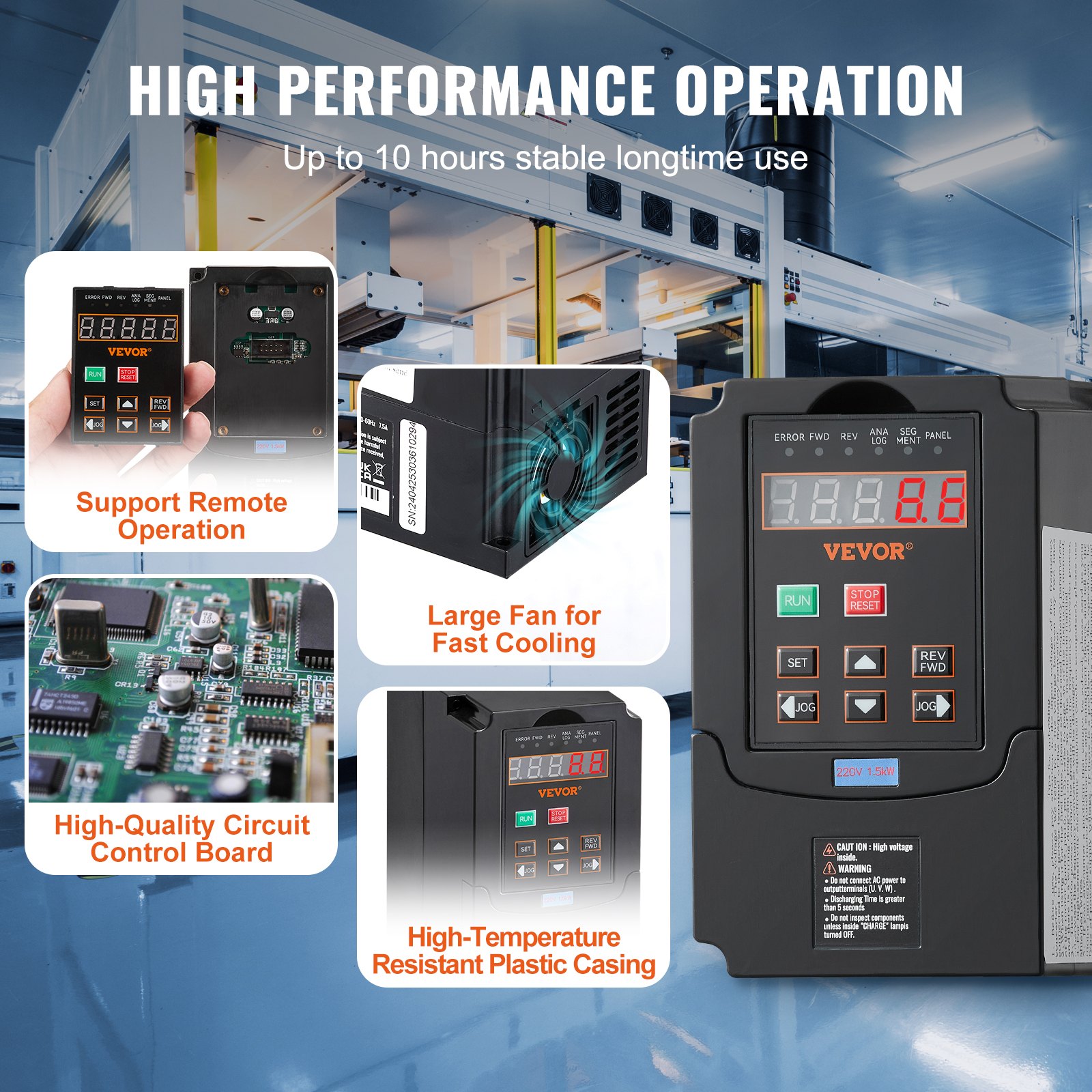

The frequency inverter features an intuitive display and easy-to-use buttons for quick and trouble-free start-up. It also has a detachable control panel that can be connected to the appropriate interface for remote control.
Our VFD is equipped with an intelligent protection system that offers protection against overcurrent, overload, overvoltage, and phase loss. It is primarily constructed of flame-retardant ABS, ensuring high performance and quality from the inside out.
For stable and efficient operation, large cooling fans and a design with multiple heat dissipation holes are required, which prevents overheating and overloading during prolonged operation.
① Turn off the power when connecting cables. ② To protect the VFD, press the red "Stop" button and turn off the power when not in use. ③ Avoid humid or hot environments. ④ You should choose a VFD with higher power.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (2)
Die Angabe der Ausgangsspannung "220 V (dreiphasig)" ist für mich nicht eindeutig. Beim Drehstromnetz sind die Spannungen zwischen den Phasen 400 V (früher 380 V) und auch die Drehstrom-Asynchronmotore (230/400 V) werden an den drei Phasen L1, L2, L3 mit 400 V in Sternschaltung betrieben. Wenn aus dem FU jeweils "nur" 220 V an den Ausgängen zur Verfügung stehen, käme ja nur eine Anschaltung des Drehstrommotors in Dreieckschaltung (Strangspannung 230 V) in Frage. Die ist aber ggf. unmöglich.
Bei diesem Produkt handelt es sich um einen 220-Volt-Wechselrichter, daher beträgt die Spannung zwischen zwei beliebigen Leitungen des Netzkabeleingangs 220 Volt. Wenn Ihr aktuelles Spannungssystem also dreiphasig mit 400 Volt ist, können Sie nur einphasigen Strom einspeisen. Der Ausgang erfolgt ebenfalls dreiphasig mit 220 Volt. Sie müssen lediglich Ihren Motor auf Delta-Modus umstellen und nichts anderes unverändert lassen.
By vevor
Helpful
(
8
)
Kann ich an dem FU A2-8015 einen 1phasigen Motor (Sägenmotor)
eine Hasuptwicklung U1,U2 und eine Hilfswicklung Z1,Z2 ( kondensator Wicklung) betreiben.
mfG Gerhard
Nein, der Umrichterausgang ist nur für Drehstrom-Asynchronmotoren nutzbar, einphasige Motoren können nicht verwendet werden.
By vevor
Helpful
(
2
)
