Features & Details
- Key parameters: Power: 0.75 kW, Horsepower: 1 hp, Input current: 3.5 A. Input phase: single-phase 220 V or three-phase 220 V; Output phase: three-phase 220 V. Input frequency: 40–60 Hz; Output frequency: 0–400 Hz.

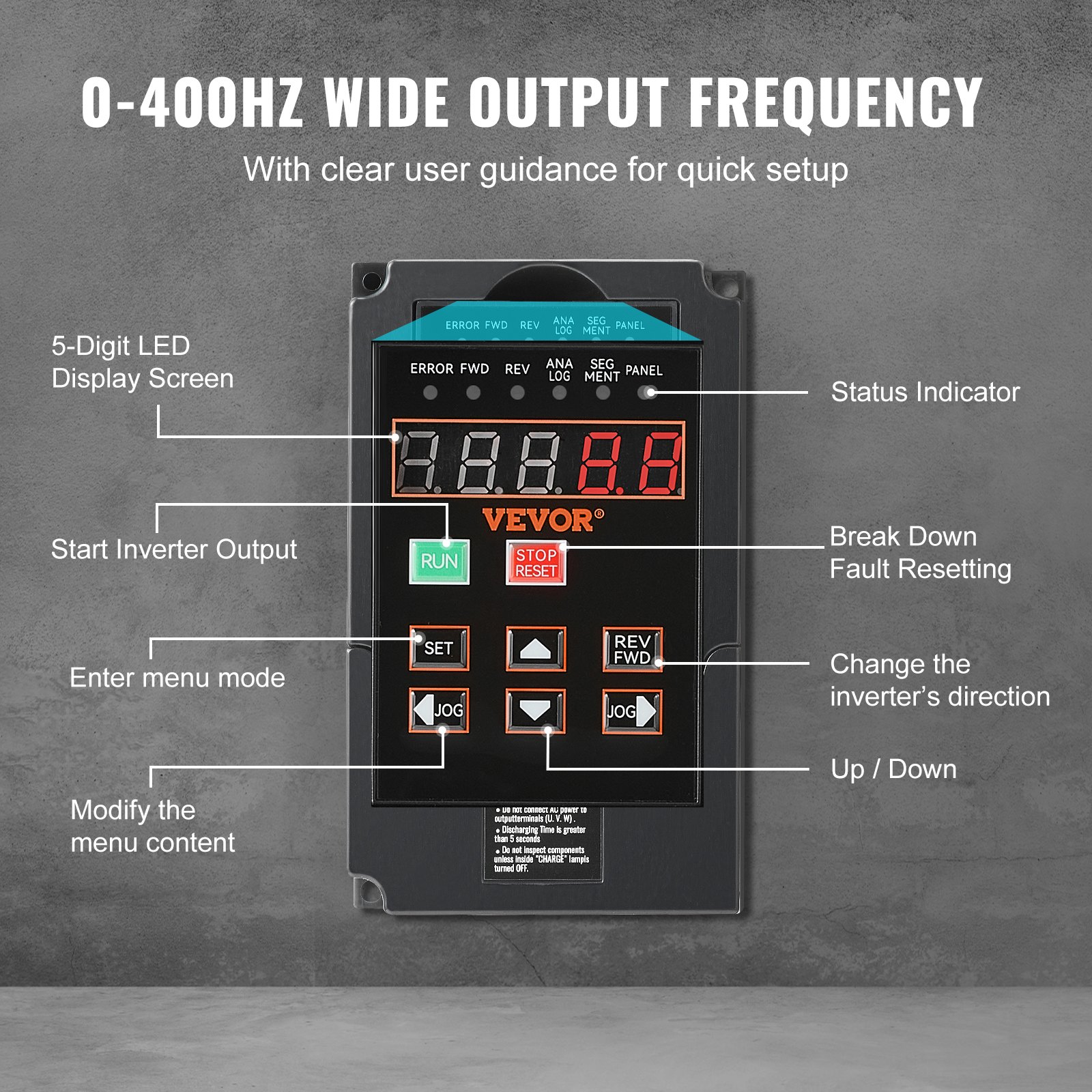

- Intuitive display and buttons: Our variable frequency drive (VFD) features an intuitive display and user-friendly buttons, allowing users to get started quickly. The detachable control panel can be connected to the appropriate interface for remote control, providing added convenience and flexibility.

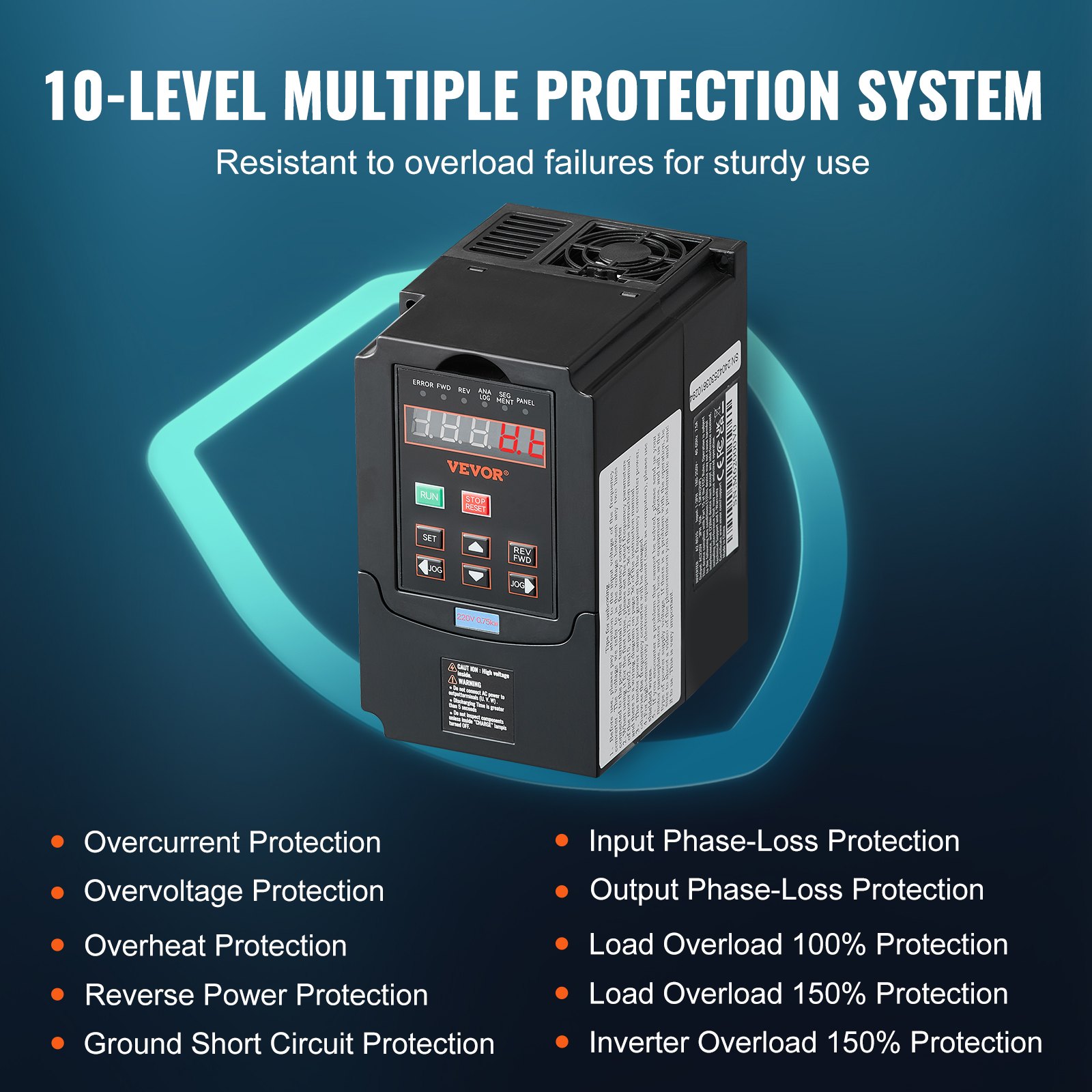

- Safety and durability redefined: The VFD features a comprehensive protection system that safeguards against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and extend the VFD's lifespan.
- Stay cool, stay safe: The frequency converter, with its versatile design featuring multiple holes, ensures rapid cooling during prolonged use, thus supporting optimal ventilation while maintaining a low noise level.

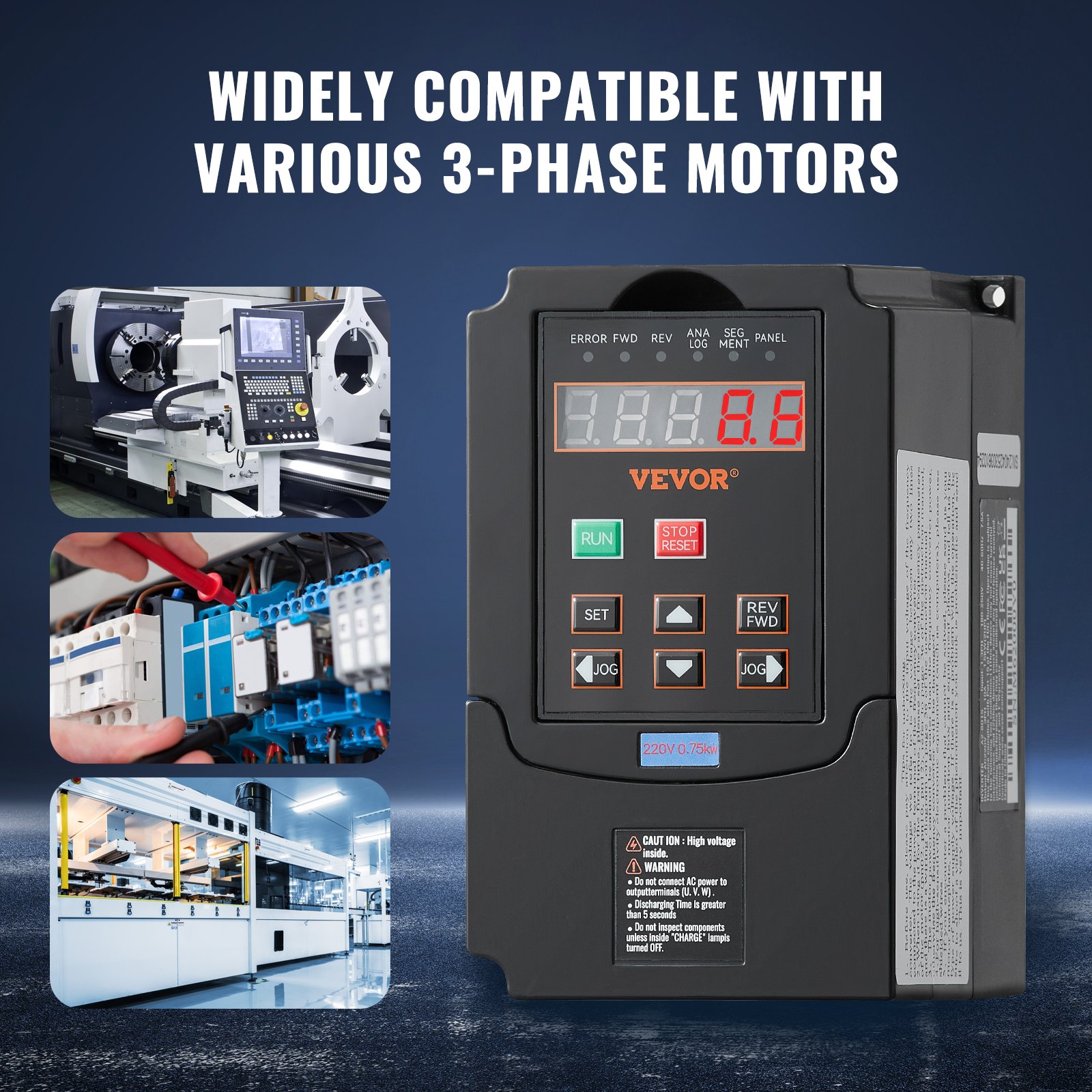

- Master of versatility: Our VFD is ideal for driving three-phase motors in various machines, including CNC milling machines, CNC machining centers, milling machines, drilling machines, compressors, pumps, grinding machines, elevators, centrifuges, and other speed-controlled machines. For higher motor loads and optimal results, choose a higher-powered VFD.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 10 reviews
Reviews 4.9
All reviews are from verified purchases
See all 10 reviews
About this item
Product specification
- Article model number
- A2-8007M
- Input voltage
- 220 V (single-phase or three-phase)
- Input current
- 3.5 A
- Output voltage
- 220 V (three-phase)
- Power
- 0.75 kW
- Input frequency
- 40-60 Hz
- Output frequency
- 0-400 Hz
- Power
- 1 hp
- Main material
- Flame-retardant ABS
- Net weight
- 1.8 lbs / 0.82 kg

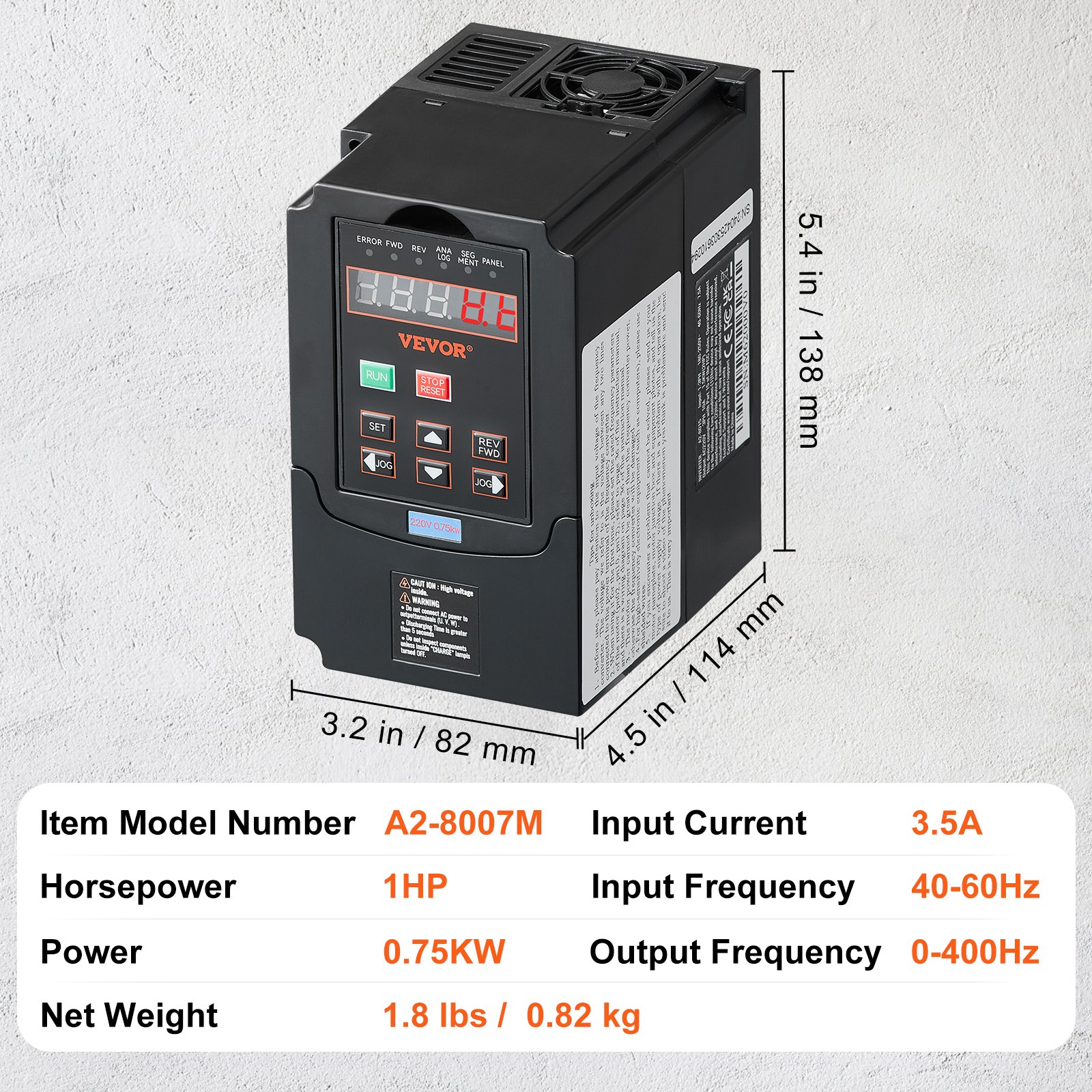

- Product dimensions
- 5.4 x 3.2 x 4.5 inches / 138 x 82 x 114 mm
Description
0.75 kW, 3.5 A, 1 HP frequency converter
The frequency converter's input is single-phase 220 V (1PH) or three-phase 220 V (3PH), and its output is three-phase 220 V (3PH). Simple wiring, an intuitive display, and comprehensive protection functions improve energy efficiency and minimize machine failures.
The frequency inverter features an intuitive display and easy-to-use buttons for quick and trouble-free start-up. It also has a detachable control panel that can be connected to the appropriate interface for remote control.
Our VFD is equipped with an intelligent protection system that offers protection against overcurrent, overload, overvoltage, and phase loss. It is primarily constructed of flame-retardant ABS, ensuring high performance and quality from the inside out.

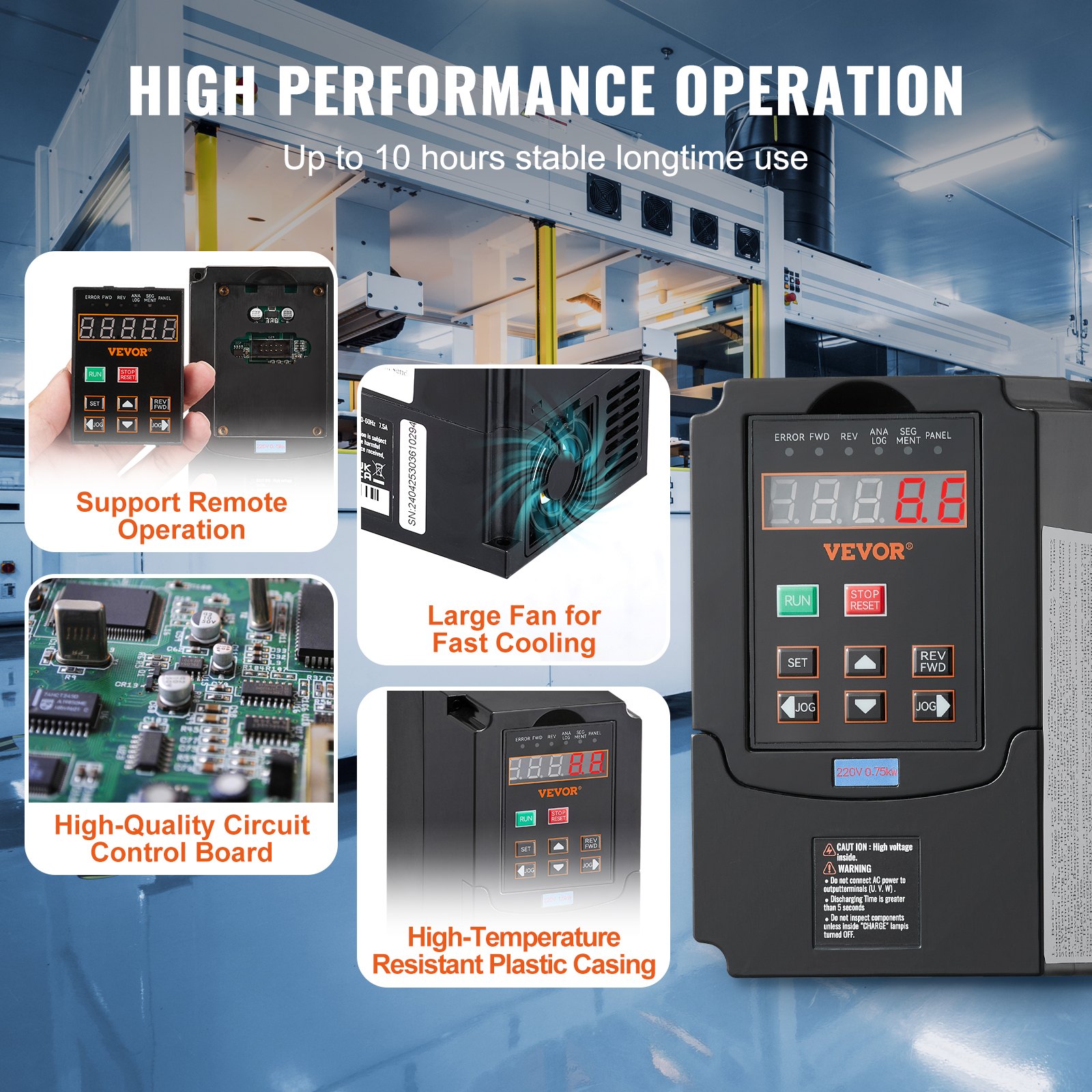

Stable and efficient operation relies on large cooling fans and a design with multiple heat dissipation holes, which prevents overheating and overload during prolonged operation.
① Turn off the power when connecting cables. ② To protect the VFD, press the red "Stop" button and turn off the power when not in use. ③ Avoid humid or hot environments. ④ You should choose a VFD with higher power.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (4)
Kann man die Frequenz bzw. die Drehzahl extern z.B mit einem Potientiometer verändern?
Ja, und es kann auch extern gestartet und gestoppt werden.

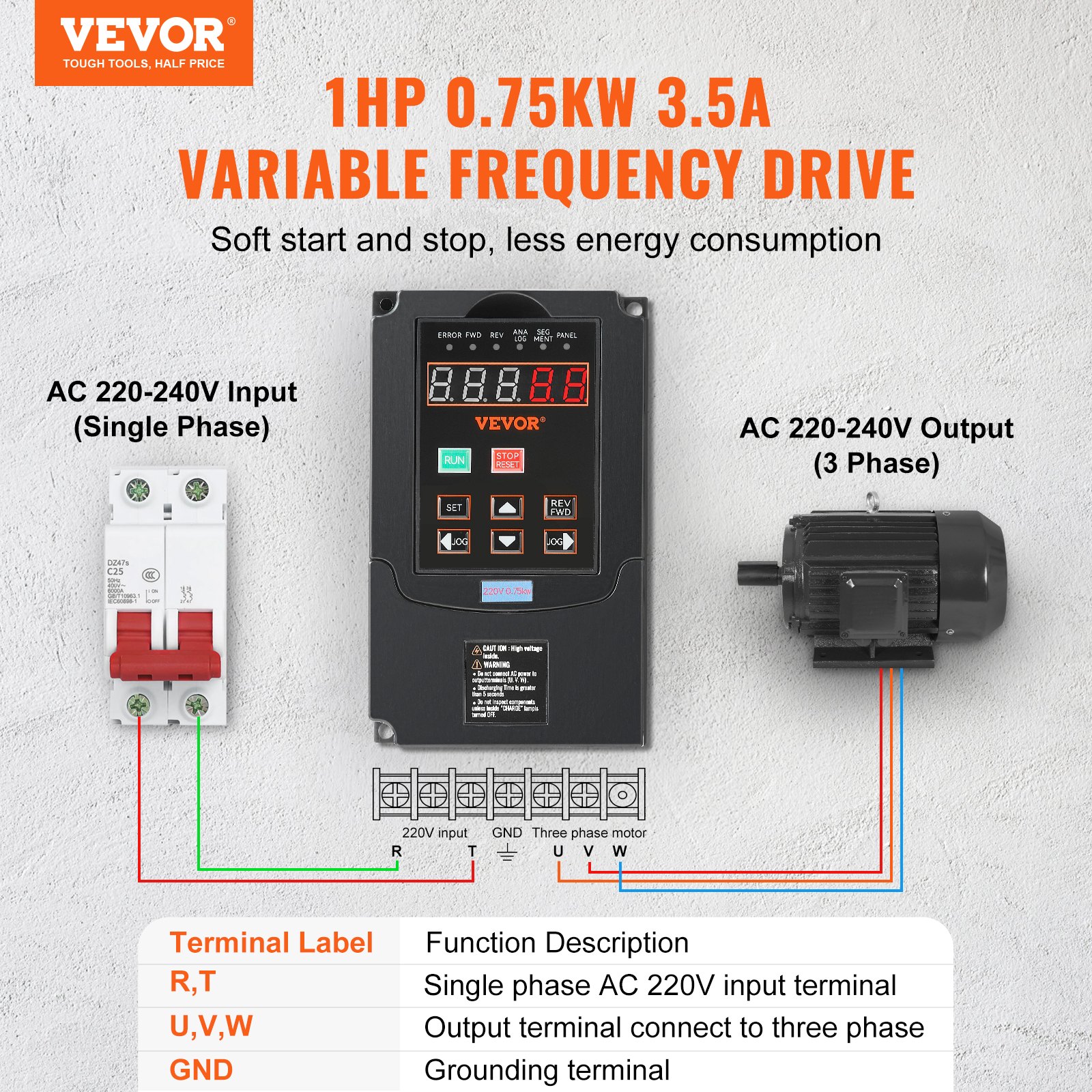

Stromanschlussmethode,
Wenn Sie einphasiges 220 V verwenden, schließen Sie es bitte an R und T an. Wenn S leer ist, ist kein Anschluss erforderlich.
Wenn Sie über eine dreiphasige 220-V-Stromversorgung verfügen, schließen Sie sie an RST an.
Die drei Drähte des Motors sind an U, V und W angeschlossen.
Zwischen Motor und Wechselrichter dürfen nur Kabel angeschlossen werden, dazwischen darf kein Schalter installiert werden.
By vevor
Helpful
(
4
)
hat das Gerät die CE/UL Zulassung?
Hallo, das Produkt ist CE-zertifiziert.
By vevor
Helpful
(
2
)
ich möchte einen 1 Ph-Kondensatormotor regeln. Also Eingang 230V, Ausgang 230V
Sehr geehrter Kunde, vielen Dank für Ihre Anfrage.
Nein, der Wechselrichter kann nur für Drehstrommotoren verwendet werden.
By vevor
Helpful
(
0
)
Wie verhält sich das gerät wenn man es mit einer Zeitschaltuhr an und ausschaltet, Beginnt es bei der Grundeinstellung oder setzt es die Letzte Programmierung fort ?
Nachdem der Wechselrichter ausgeschaltet wurde, speichert er alle zuvor eingestellten Parameter.
By vevor
Helpful
(
0
)
BPQDQ075KW22HSLPSV7
VEVOR frequency converter VFD 1 HP, 0.75 kW, 3.5 A, 1- or 3-phase 220 V input to 3-phase 220 V output, 40-60 Hz input, 0-400 Hz output, VFD for spindle motor CNC speed control
