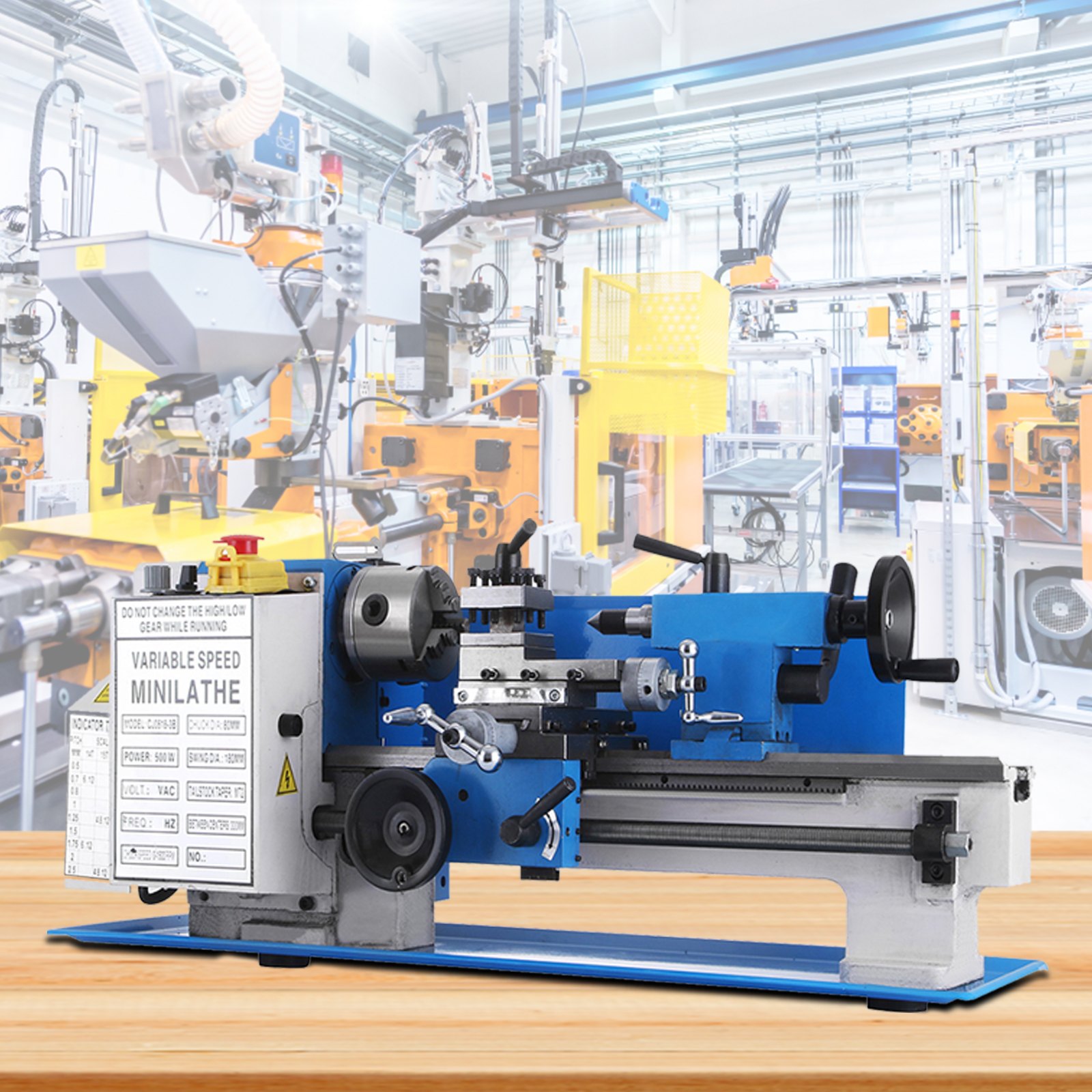

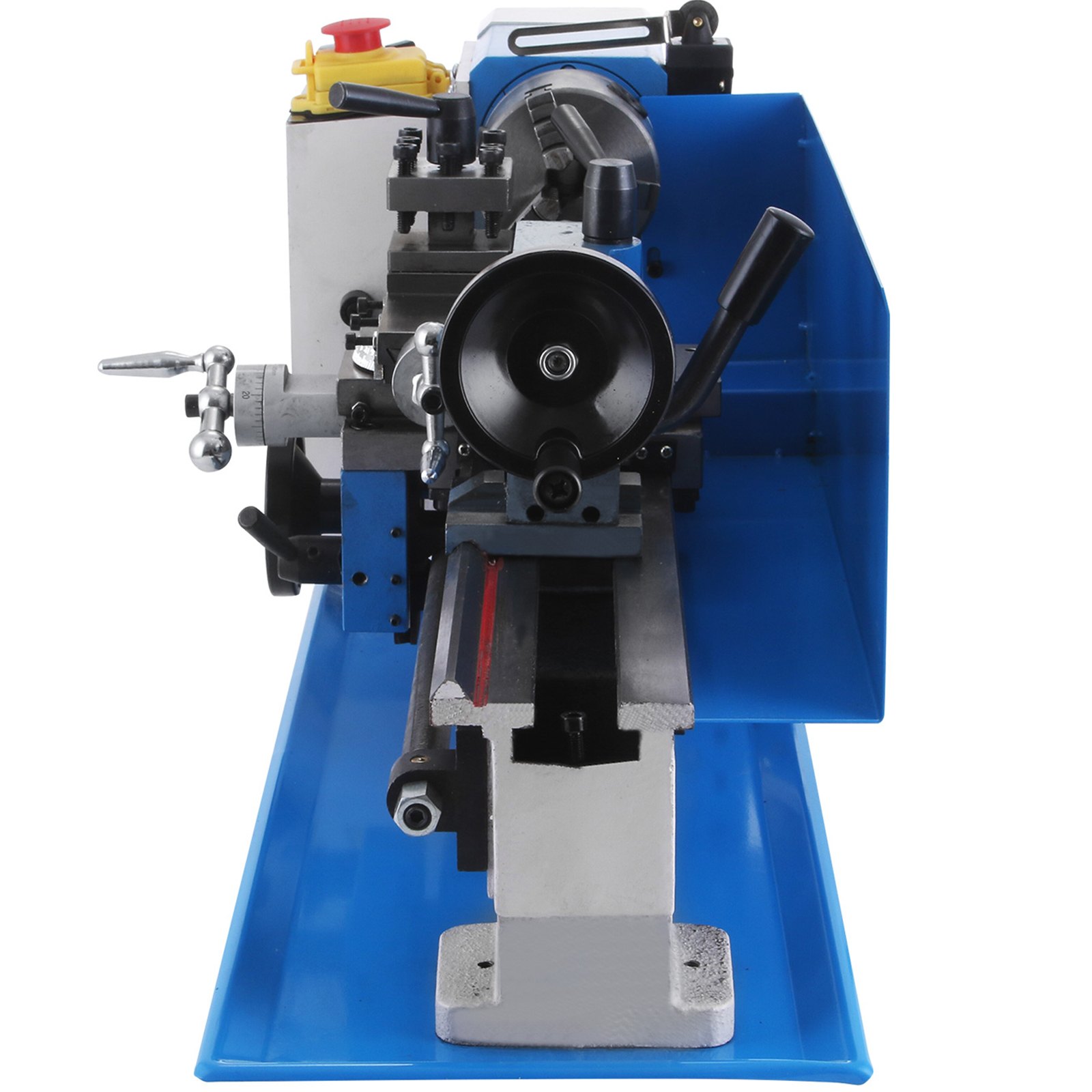

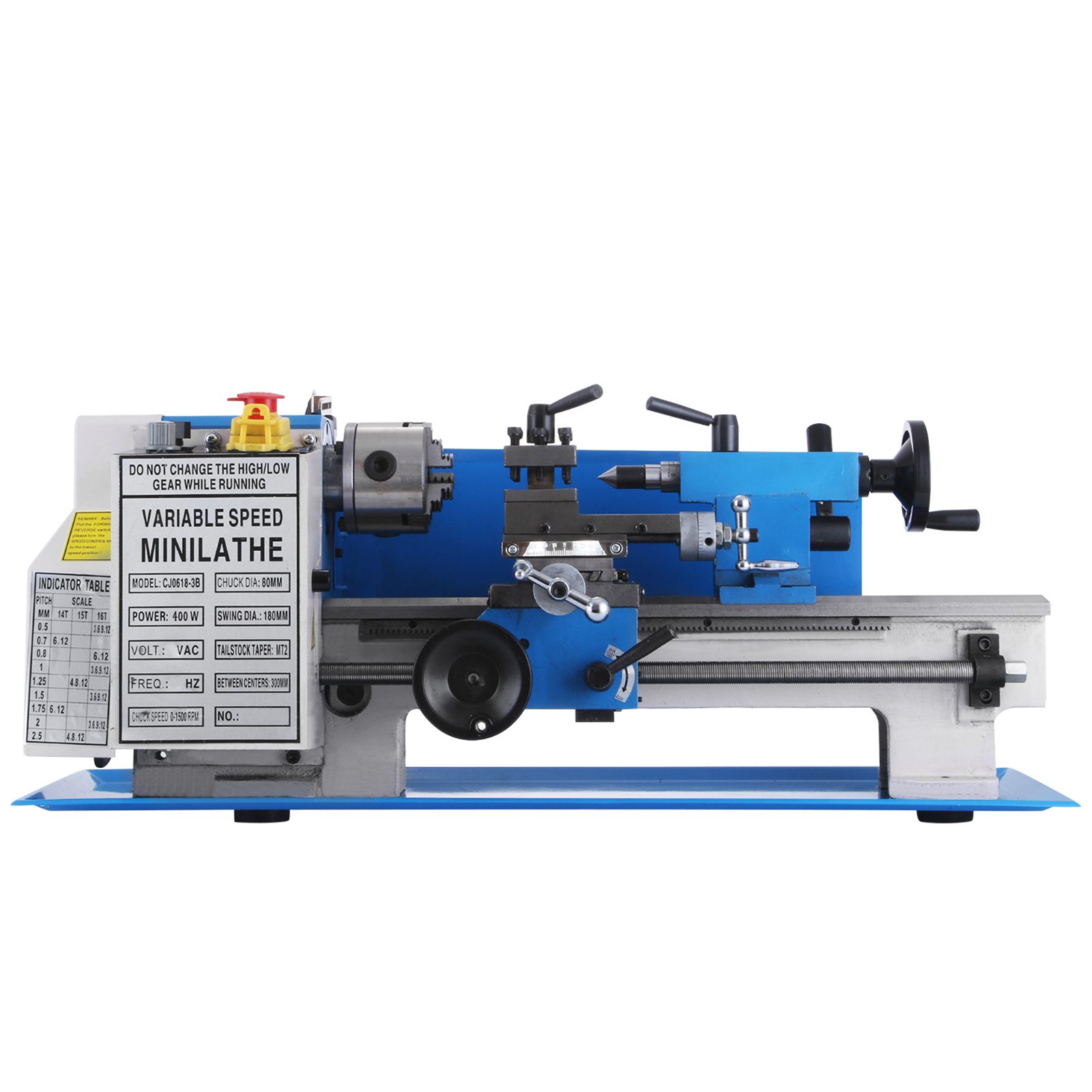

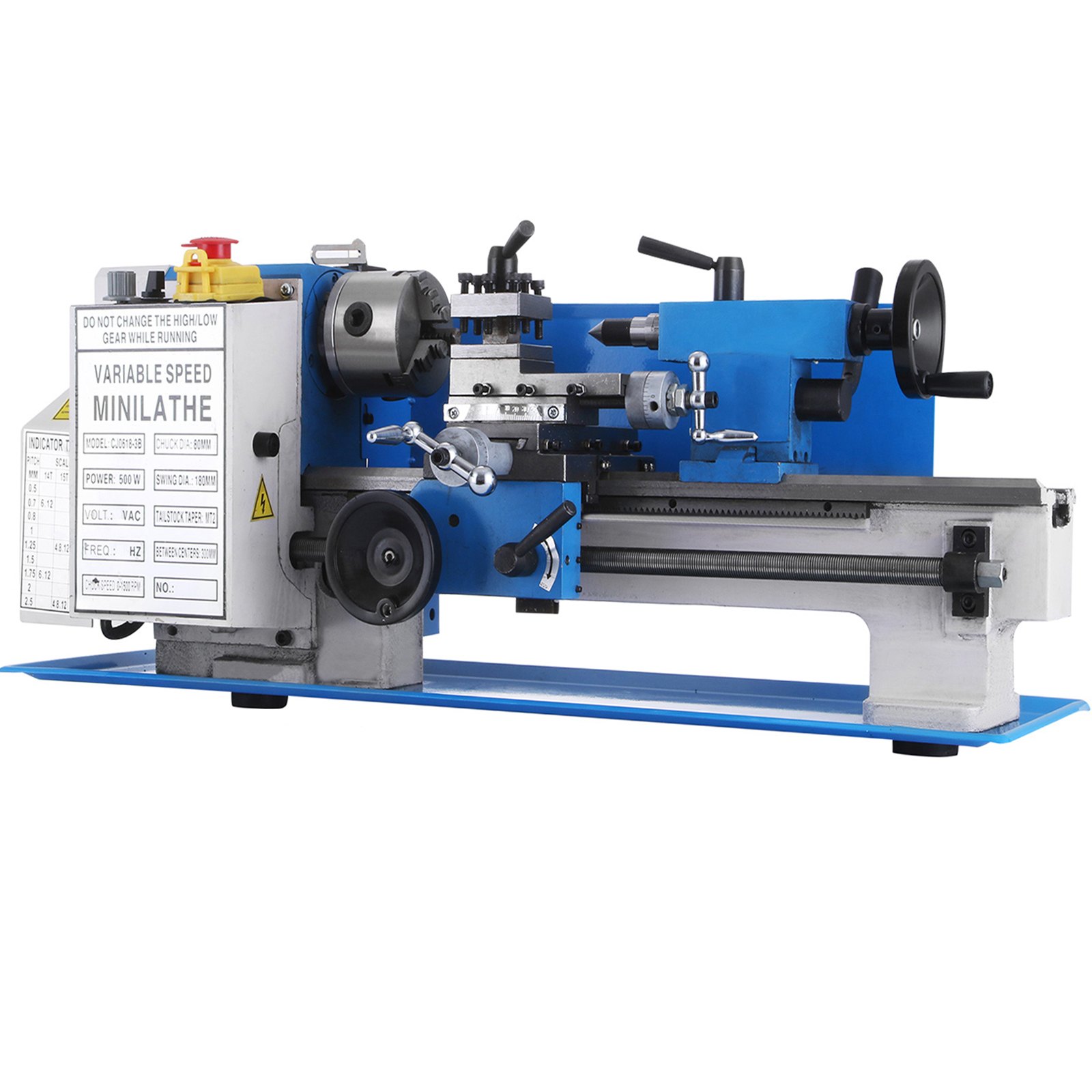

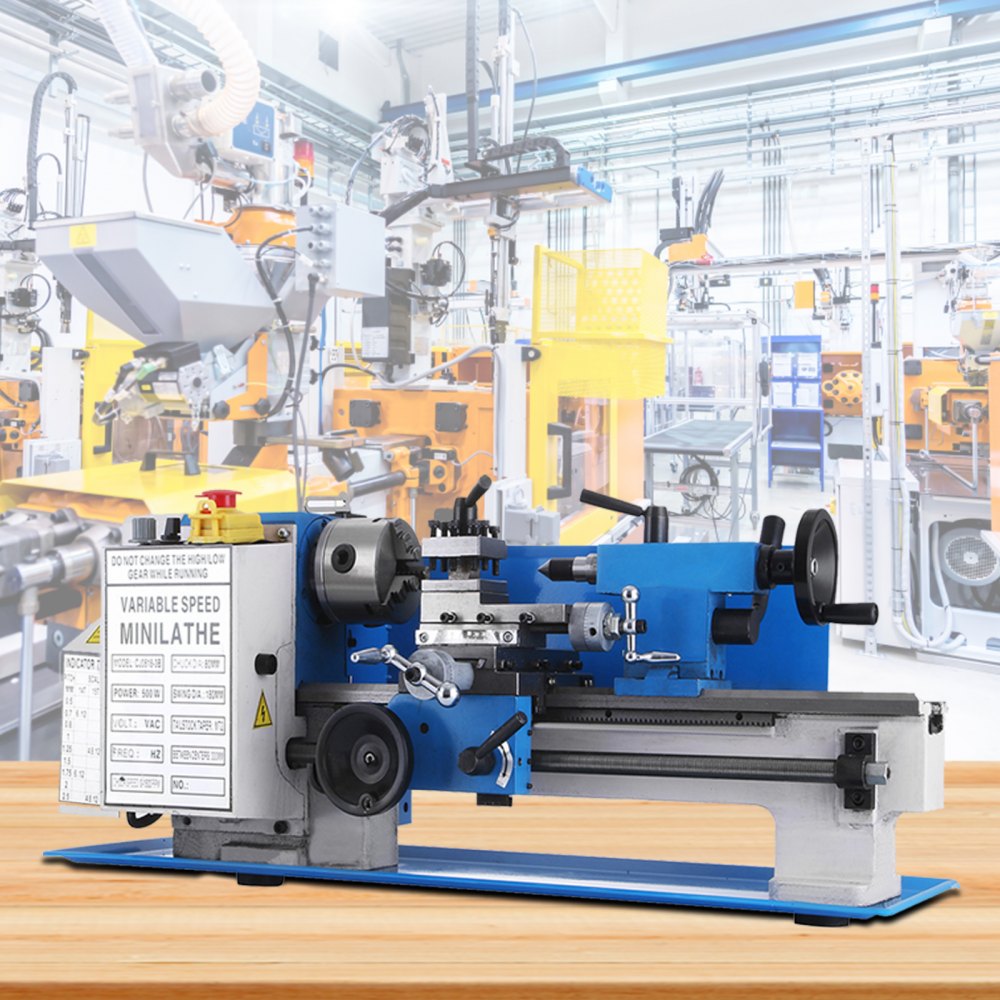

VEVOR Lathe 550W Metal Lathe 7x12inch Precision Mini Metal Lathe 2500RPM
4.7 31 Reviews
664 99 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- Robust iron construction: The mini metal lathe bed is made of high-quality iron. Equipped with a nylon gearbox, this lathe is wear-resistant, robust, and professional. Mini metal lathe motor power: 400W. The full splash guard provides maximum protection.
- Speed: Variable speed from 50 to 2250 RPM. Forward and reverse operation at all speeds. Operate either manually or with the adjustable automatic feed speed. The hardness and accuracy of the sides are achieved through raw material, heat treatment, and grinding. An emergency stop switch is included.
- Precision 3-jaw chuck: Self-centering 3-jaw chuck for consistent material positioning. Includes edge protection. The spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.
- Professional cross slide: The mini metal lathe's quick-change tool holder allows for internal cutting, face cutting, and chamfer cutting by changing the tool holder angles and adjusting the composite support. The professional slide is wear-resistant and moves the cutting tools freely with a feed rod.
- Wide Application: Powered by a high-quality motor, this mini metal lathe can be used in areas such as mini precision parts production, pattern making, and model making. It is suitable for processing tasks such as drilling, milling, thread cutting, and machining on various materials.
Product specification
- Voltage 220 V 50 Hz
- Motor power 400 W
- Motor type Brushed
- Phase Single-phase
- Variable speed gearbox plastic-nylon
- Certification CE
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 4.7
All reviews are from verified purchases
Average rating based on 31 reviews
Reviews 4.7
All reviews are from verified purchases
See all 31 reviews
About this item
Product specification
- Voltage
- 220 V 50 Hz
- Motor power
- 400 W
- Motor type
- Brushed
- Phase
- Single-phase
- Variable speed gearbox
- plastic-nylon
- Certification
- CE
- Swing over bed
- 7 inches / 180 mm
- Distance between centers
- 11.8 inches / 300 mm
- Spindle accuracy
- 0.0004 inches / 0.01 mm
- Spindle speed
- 50 - 2250 RPM
- Spindle bore
- 0.83 inches / 21 mm
- Tailstock cone
- MT2
- Spindle taper
- MT3
- Travel of upper slide
- 1.38 inches / 35 mm
- Travel of cross slide
- 2.56 inches / 65 mm
- Net weight
- 102.5 lbs / 46.5 kg
- Item dimensions (L x W x H)
- 27.5 x 9 x 11.5 inches / 69.9 x 22.9 x 29.2 cm
Description

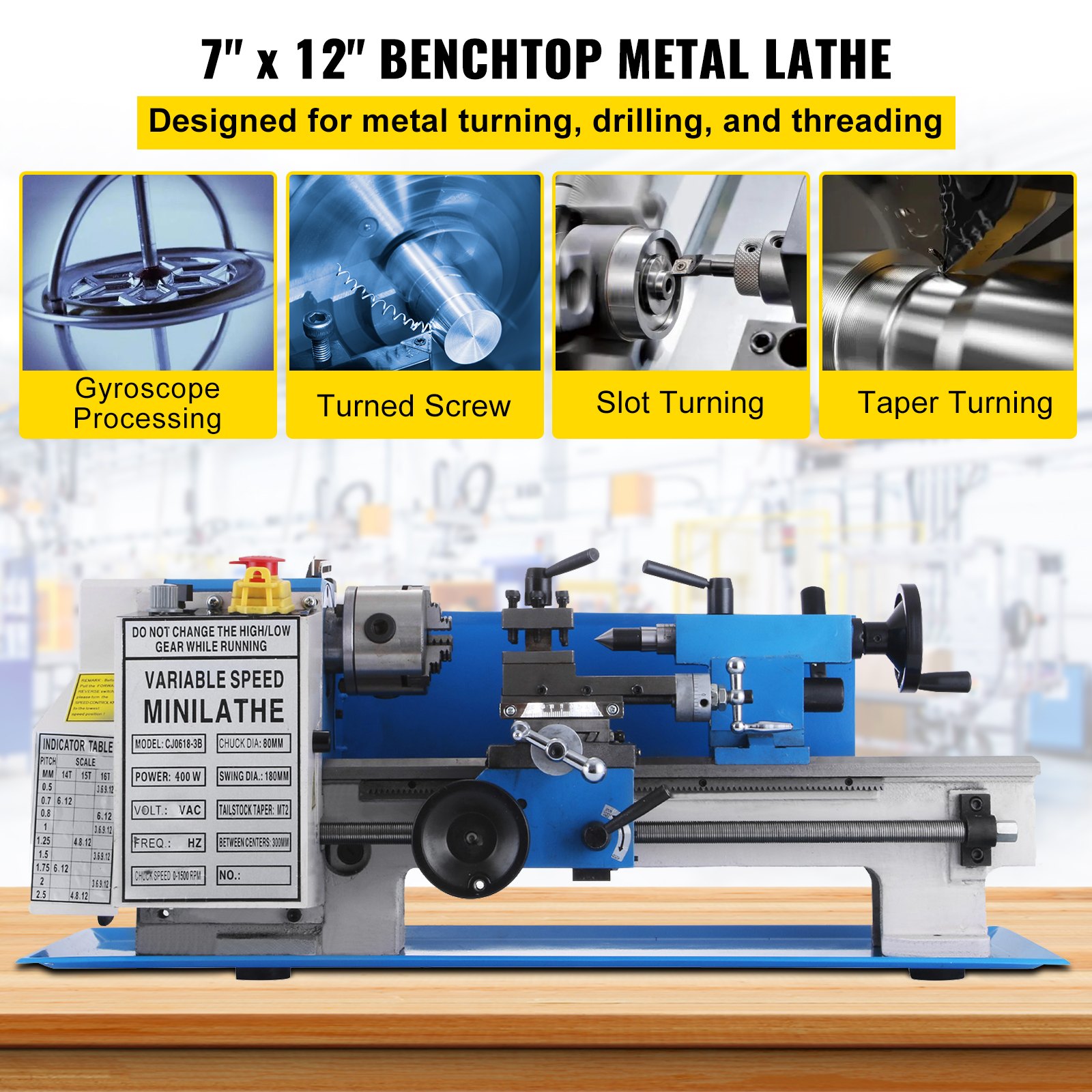

180 mm x 300 mm metal lathe
400 W powerful motor & MT3 spindle & 0.01 mm spindle accuracy
The precision mini bench lathe features a 3-jaw chuck, spindle taper, tailstock taper, tool rest, and a high-quality motor designed for various types of metal turning. It is easy to operate thanks to the high-frequency quenching process and precision grinding of the high-quality cast iron bed.
- Robust iron construction
- Continuously variable speed
- Precise 3-jaw chuck
- Professional armband support

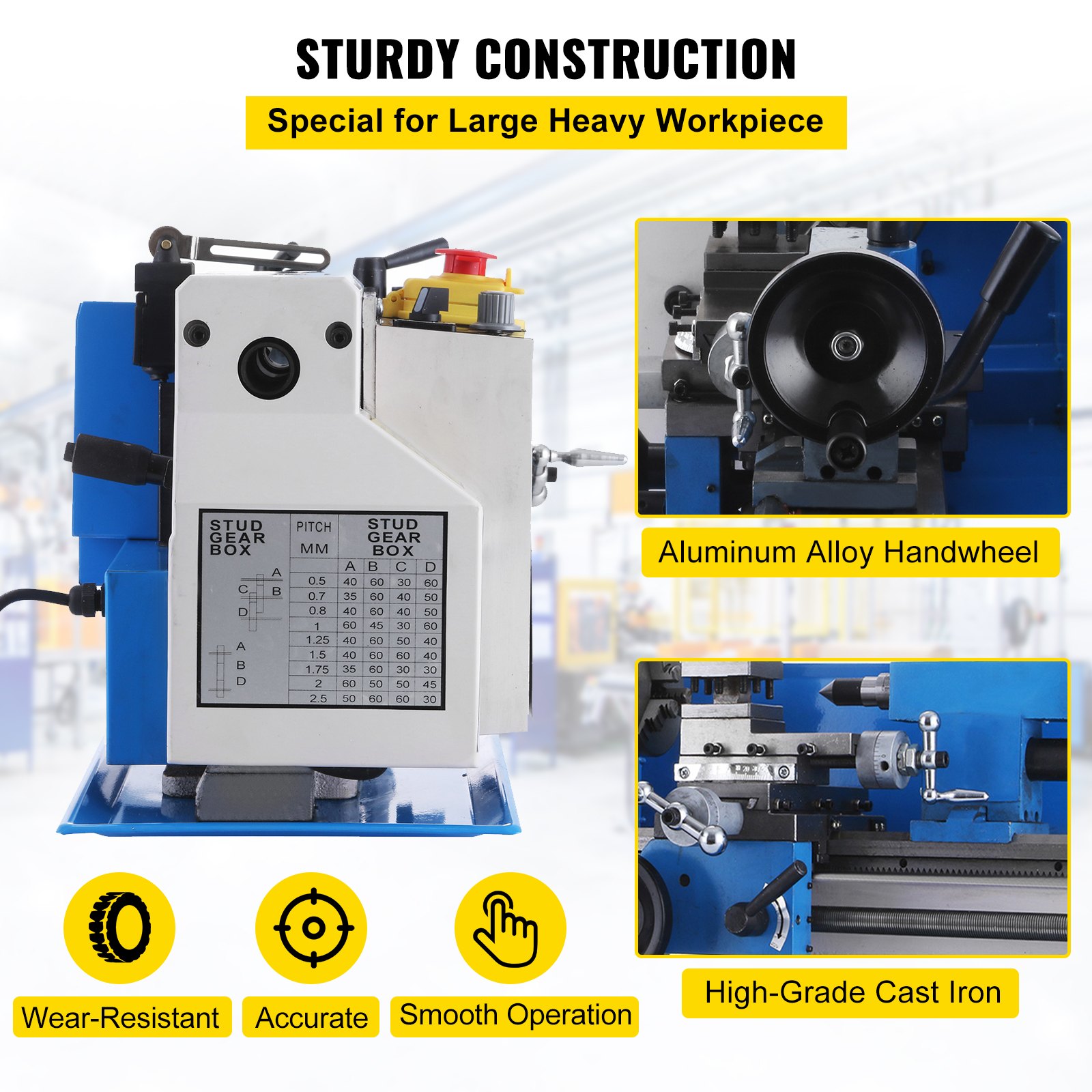

Heavy & robust machine
This heavy metal lathe is made of high-quality iron material and is designed for durability and longevity.

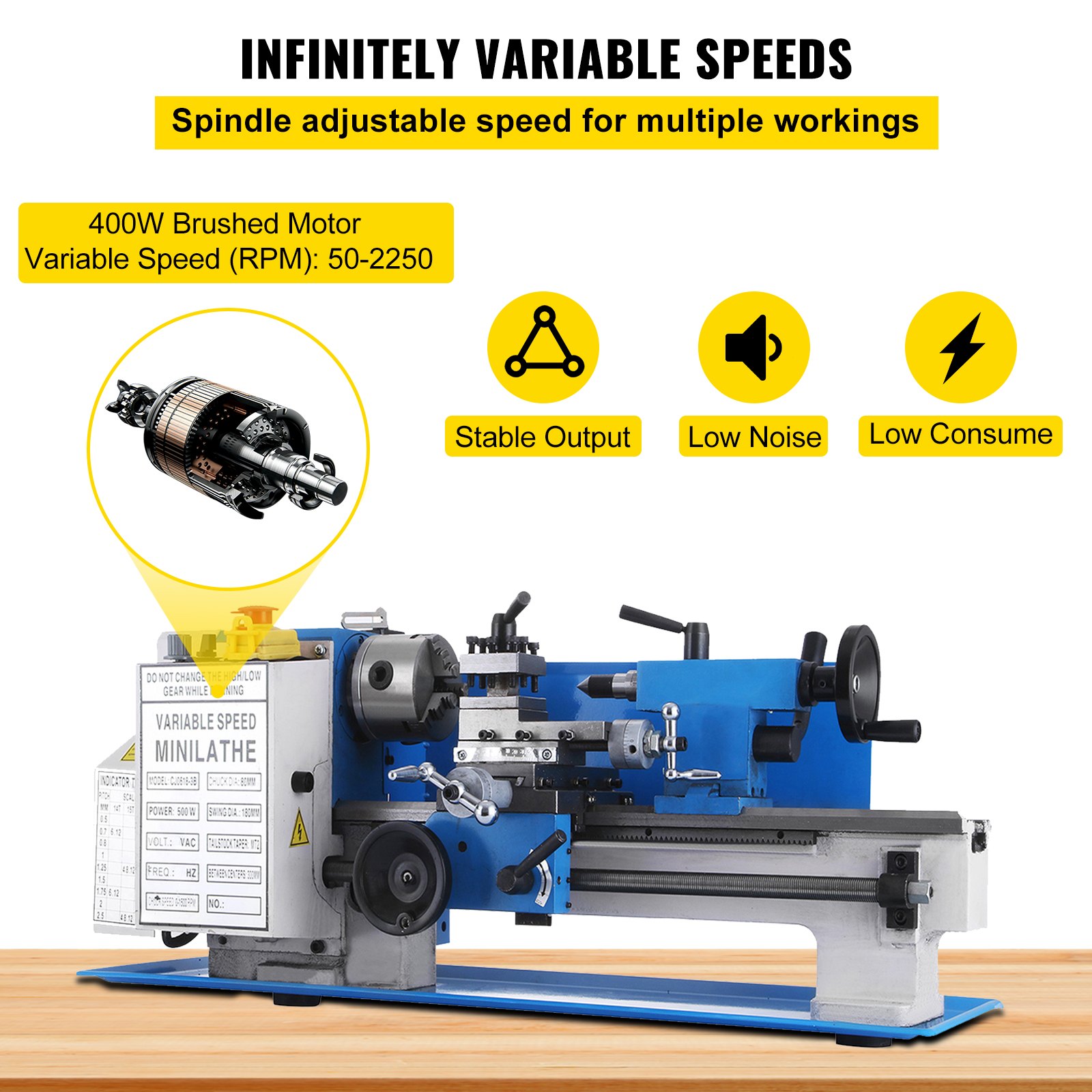

Speeds
Variable speed: 50 - 2250 RPM. You can operate this benchtop lathe manually. The feed rate can be adjusted according to the requirements of different workpieces.

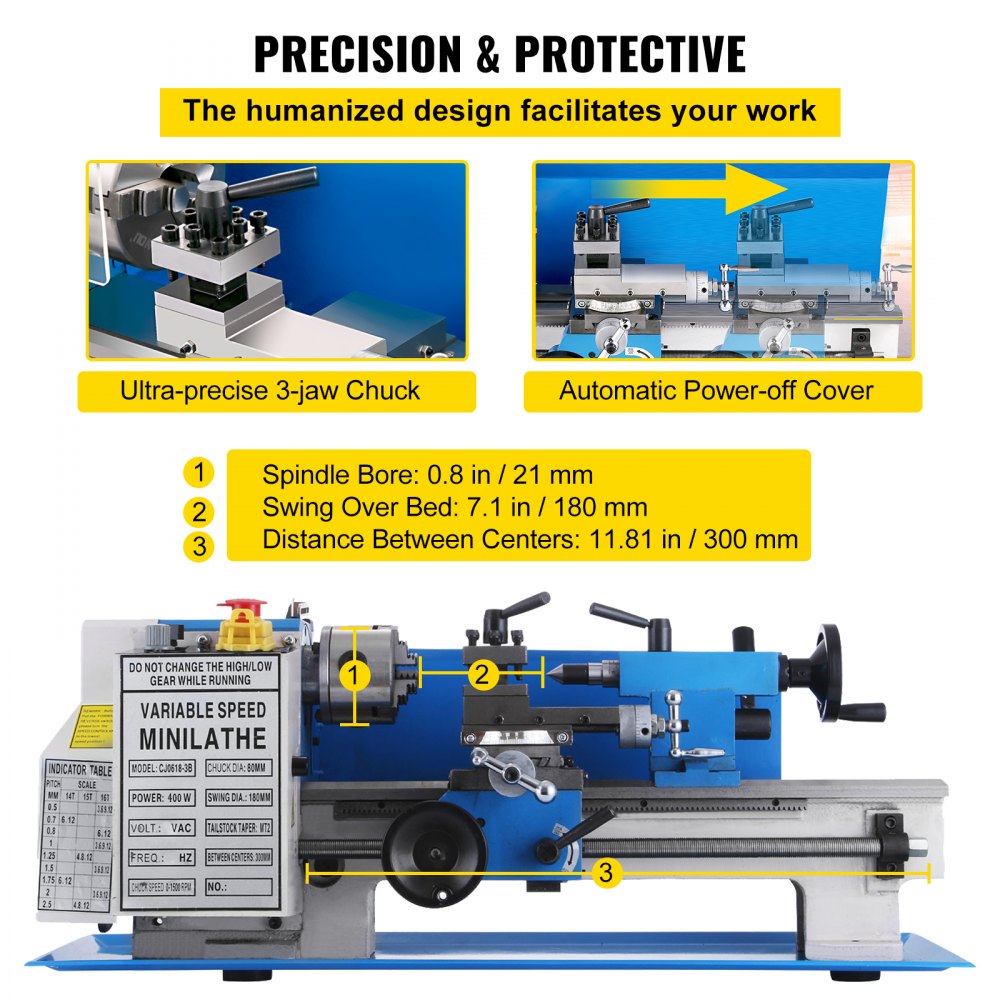

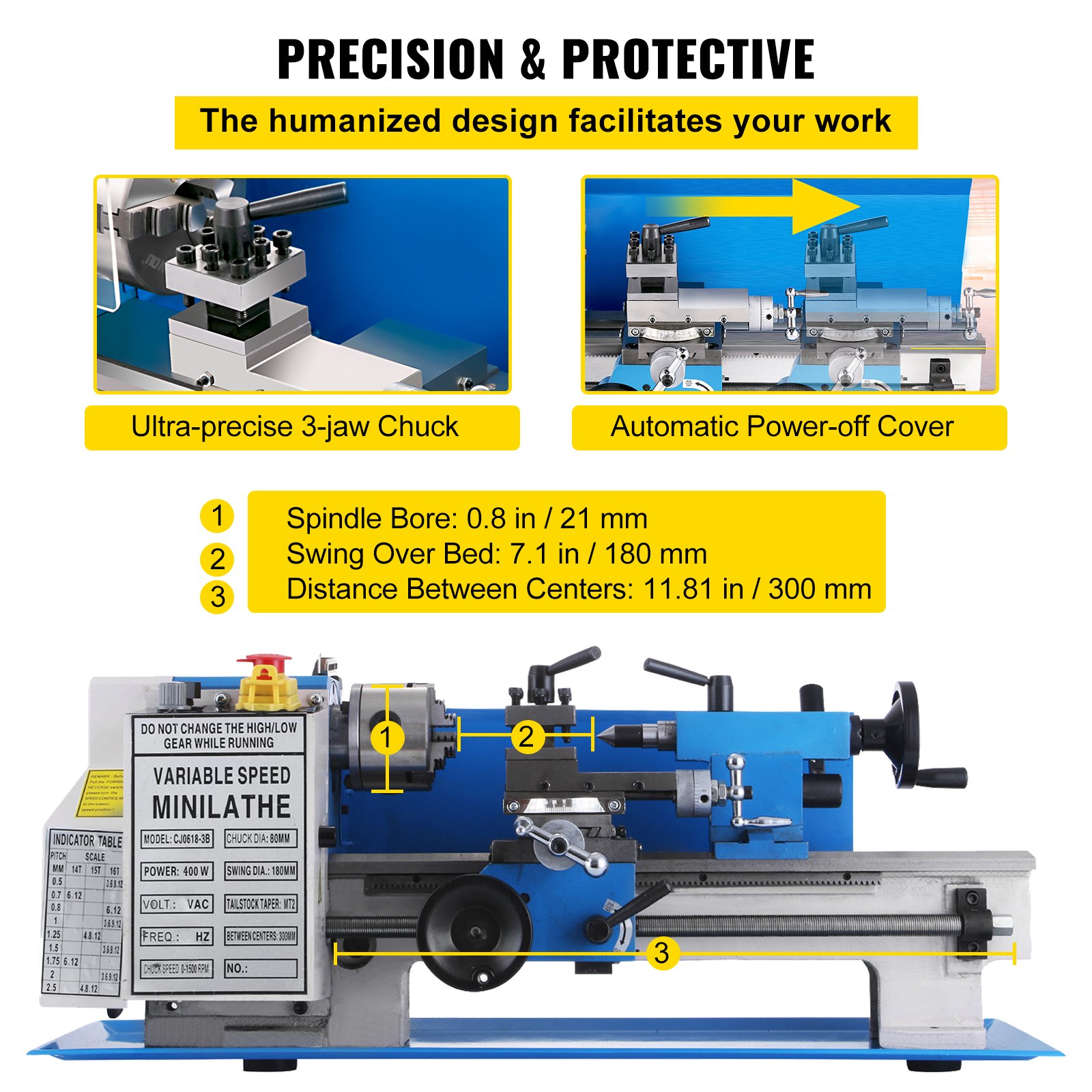

High-precision chuck
The self-centering 3-jaw chuck has been tested for high accuracy and repeatability to clamp materials evenly. The spindle is supported by precision tapered roller bearings.

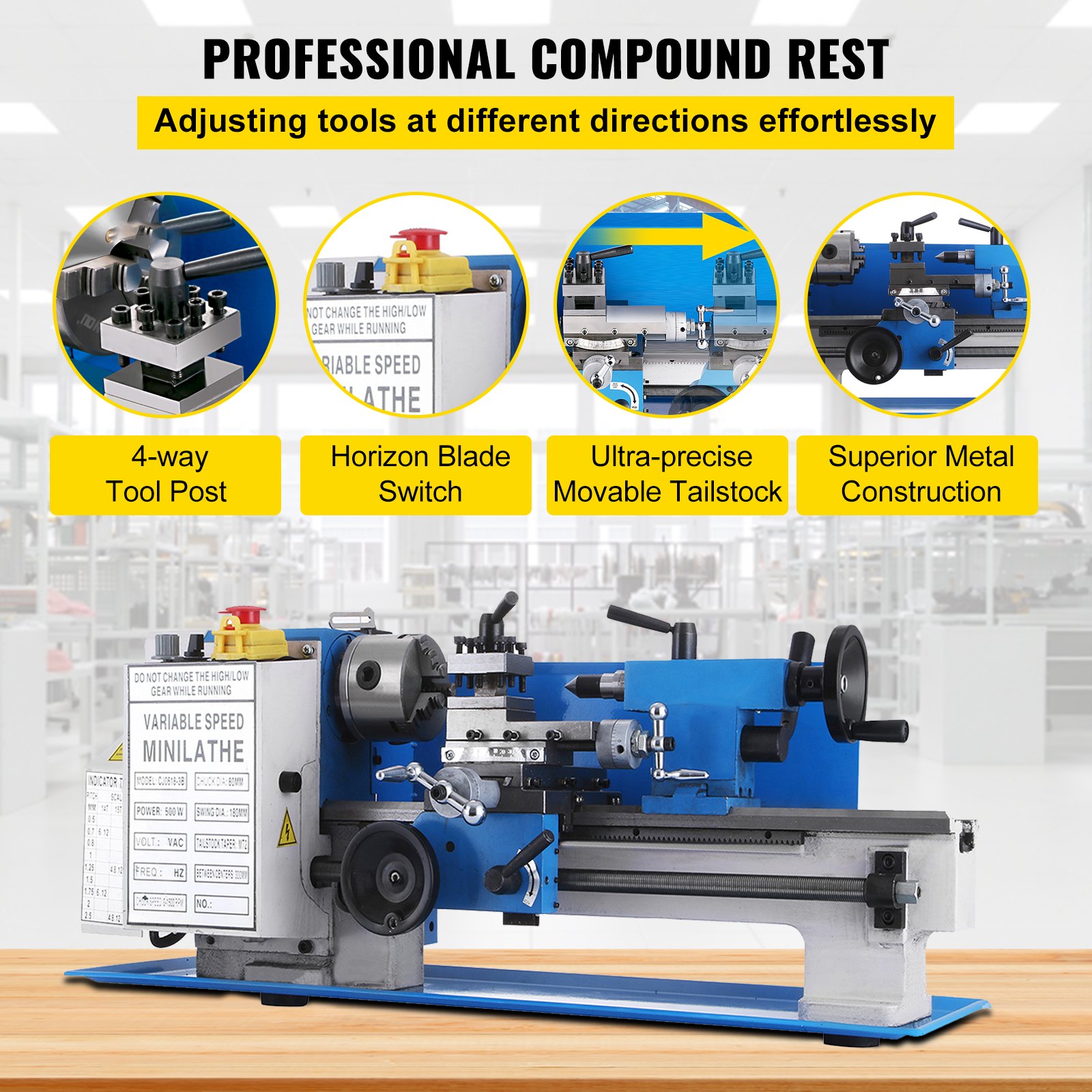

Quadruple tool holder
T-slotted cross slide with 4-way tool holder, quick and easy to change. Bevel cuts can be made by adjusting the angle of the cross slide with the lever.
Professional cross sled
Our lathe is equipped with wear-resistant, movable cutting tools and an optional feed rod. The carriage travels with a center-to-center distance of 300 mm (12 inches), providing a large work surface for easier machining.
Adjustable MT2 tailstock
The tailstock is compatible with the MT2 taper and slides along the travel to support workpieces of varying lengths, ensuring stable and secure operation. All accessories are well packaged.
- Voltage: 220 V 50 Hz
- Motor power: 400 W
- Motor type: Brushed
- Phase: Single-phase
- Variable speed gearbox: plastic-nylon
- Certification: CE
- Swing over bed: 7 inches / 180 mm
- Distance between centers: 11.8 inches / 300 mm
- Spindle accuracy: 0.0004 inches / 0.01 mm
- Spindle speed: 50 - 2250 RPM
- Spindle bore: 0.83 inches / 21 mm
- Tailstock cone: MT2
- Spindle taper: MT3
- Travel of upper slide: 1.38 inches / 35 mm
- Travel of cross slide: 2.56 inches / 65 mm

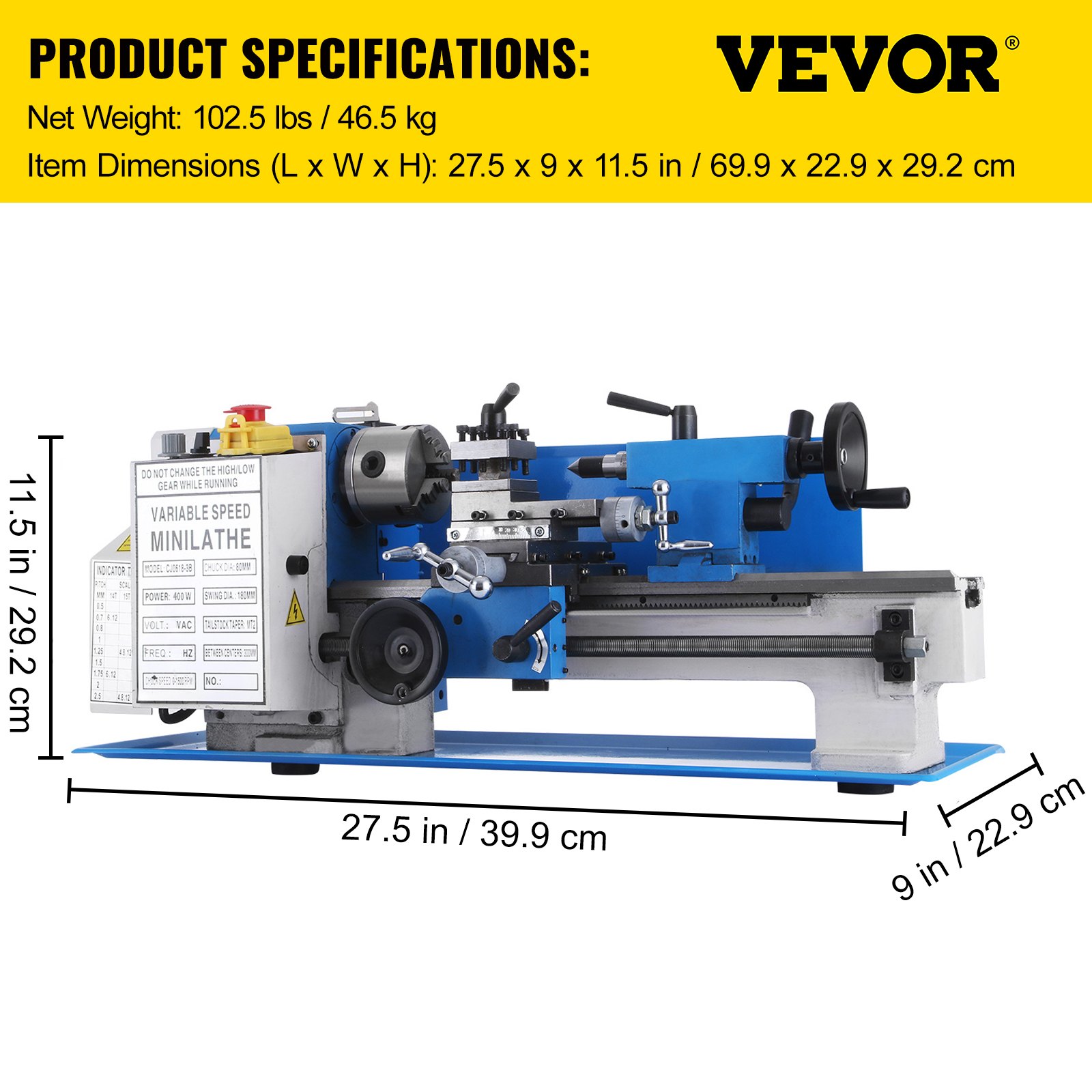

- Net weight: 102.5 lbs / 46.5 kg
- Item dimensions (L x W x H): 27.5 x 9 x 11.5 inches / 69.9 x 22.9 x 29.2 cm

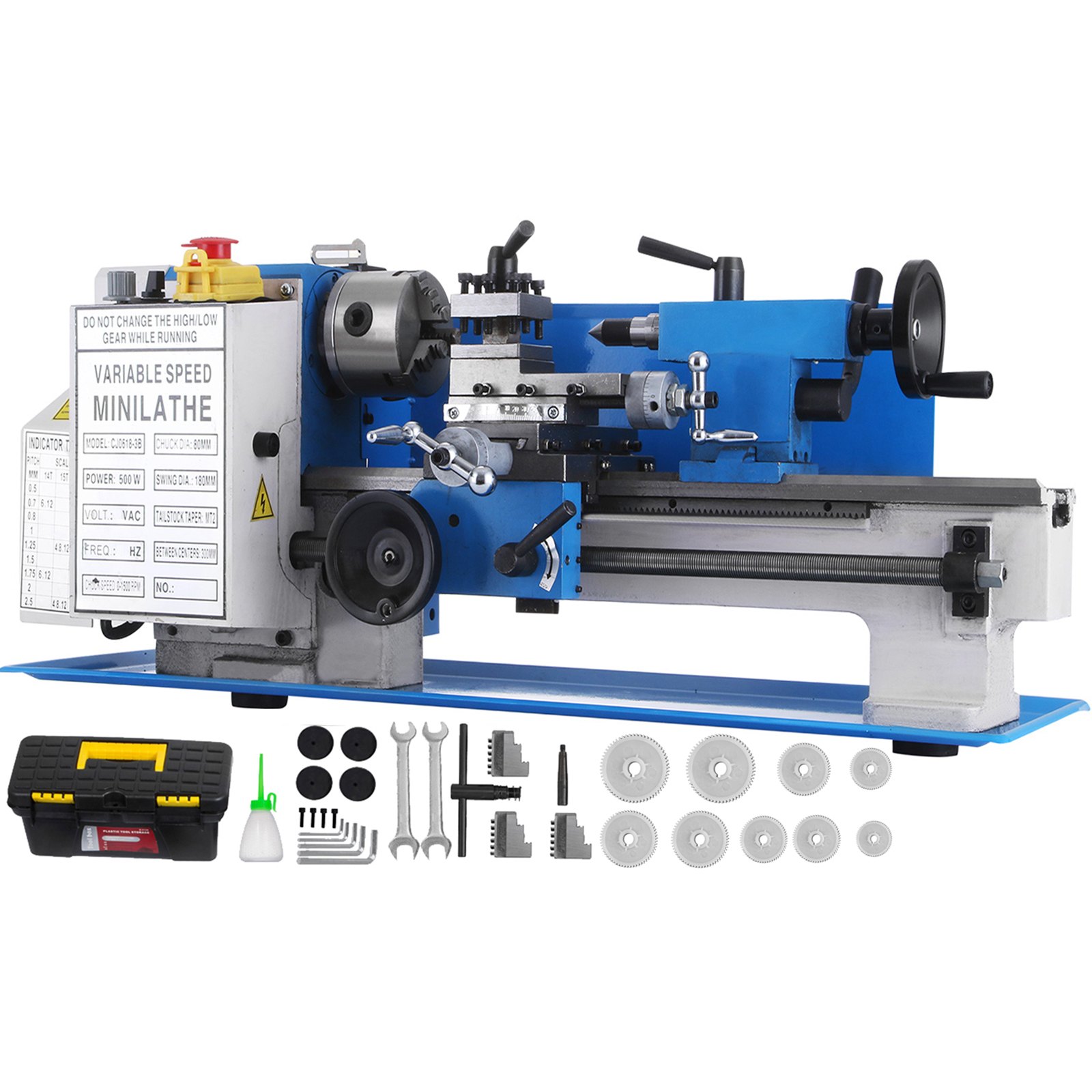

- 1 x Mini lathe
- 1 x chuck key
- 2 x wrenches
- Bake 3 batches of food
- 9 x Nylon gears
- 1 x oil can
- 5 x Hex keys
- 1 x dead center
- 1 x chuck claw
- 1 x protective mask
- 4 x shock-resistant foot cushions
- 1 x tool set
- 1 x instruction manual
180 mm x 300 mm metal lathe
400 W powerful motor & MT3 spindle & 0.01 mm spindle accuracy
The precision mini bench lathe features a 3-jaw chuck, spindle taper, tailstock taper, tool rest, and a high-quality motor designed for various types of metal turning. It is easy to operate thanks to the high-frequency quenching process and precision grinding of the high-quality cast iron bed.
- Robust iron construction
- Continuously variable speed
- Precise 3-jaw chuck
- Professional armband support
Heavy & robust machine
This heavy metal lathe is made of high-quality iron material and is designed for durability and longevity.
Speeds
Variable speed: 50 - 2250 RPM. You can operate this benchtop lathe manually. The feed rate can be adjusted according to the requirements of different workpieces.
High-precision chuck
The self-centering 3-jaw chuck has been tested for high accuracy and repeatability to clamp materials evenly. The spindle is supported by precision tapered roller bearings.
Quadruple tool holder
T-slotted cross slide with 4-way tool holder, quick and easy to change. Bevel cuts can be made by adjusting the angle of the cross slide with the lever.
Professional cross sled
Our lathe is equipped with wear-resistant, movable cutting tools and an optional feed rod. The carriage travels with a center-to-center distance of 300 mm (12 inches), providing a large work surface for easier machining.
Adjustable MT2 tailstock
The tailstock is compatible with the MT2 taper and slides along the travel to support workpieces of varying lengths, ensuring stable and secure operation. All accessories are well packaged.
- 1 x Mini lathe
- 1 x chuck key
- 2 x wrenches
- Bake 3 batches of food
- 9 x Nylon gears
- 1 x oil can
- 5 x Hex keys
- 1 x dead center
- 1 x chuck claw
- 1 x protective mask
- 4 x shock-resistant foot cushions
- 1 x tool set
- 1 x instruction manual
- Voltage: 220 V 50 Hz
- Motor power: 400 W
- Motor type: Brushed
- Phase: Single-phase
- Variable speed gearbox: plastic-nylon
- Certification: CE
- Swing over bed: 7 inches / 180 mm
- Distance between centers: 11.8 inches / 300 mm
- Spindle accuracy: 0.0004 inches / 0.01 mm
- Spindle speed: 50 - 2250 RPM
- Spindle bore: 0.83 inches / 21 mm
- Tailstock cone: MT2
- Spindle taper: MT3
- Travel of upper slide: 1.38 inches / 35 mm
- Travel of cross slide: 2.56 inches / 65 mm
- Net weight: 102.5 lbs / 46.5 kg
- Item dimensions (L x W x H): 27.5 x 9 x 11.5 inches / 69.9 x 22.9 x 29.2 cm
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (2)
Welche Werkzeuge kommen in dem Paket mit ?
Das Produkt enthält die folgenden Inhalte.
1 x Mini-Drehmaschine
1 x Spannfutter-Schlüssel
2 x Schraubenschlüssel
3 x Futter backen
9 x Nylon Zahnräder
1 x Ölkanne
5 x Sechskantschlüssel
1 x Totpunkt
1 x Spannfutter klaue
1 x Schutzmaske
4 x stoßfeste Fußkissen
1 x Werkzeugsatz
1 x Gebrauchsanweisung
By vevor
Helpful
(
2
)
Habe vor 11/2 Jahren diese Maschine gekauft.Jetzt sind die Kohlebürsten defekt es ist unmöglich welche mit diesen Maßen
zu bekommen.Habe bei vervor reklamiert aber bis Heute keine Antwort bekommen.Kann mir jemand weiterhelfen?
Vielen Dank
Sollten Sie Fragen zum Produkt haben, kontaktieren Sie bitte unsere Kollegen über unsere E-Mail-Adresse https://www.vevor.de/pages/contact-us, damit unsere Kollegen Ihnen bei der Lösung des Problems behilflich sein können.
