Powerful performance: This 1200 mm tile cutter is designed to handle your home renovation projects quickly and effortlessly. Maximum cutting length: 1200 mm, cutting thickness: 4-15 mm. Tile types that can be cut: wall tiles, polished tiles. Tile types that cannot be cut: marble, granite, tiles with uneven surfaces, microcrystalline stone (0.5-3 mm surface crystal layer).

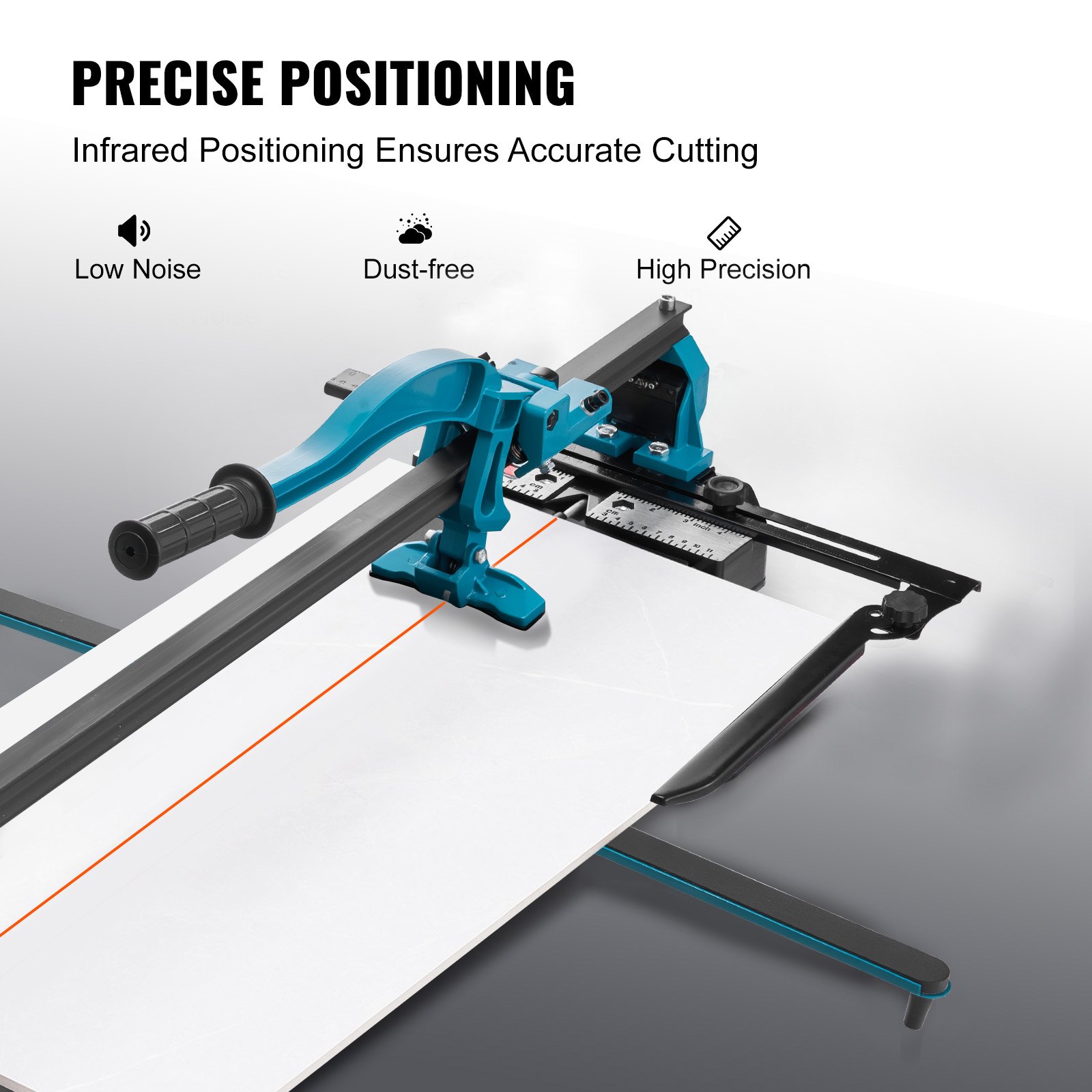

Precise positioning: The infrared function helps you position accurately and mark in a straight line. The metal guide, aligned with the path of the marking wheel, and the ball-bearing sliding head ensure consistent grooving, allowing you to cut tiles with the highest precision.

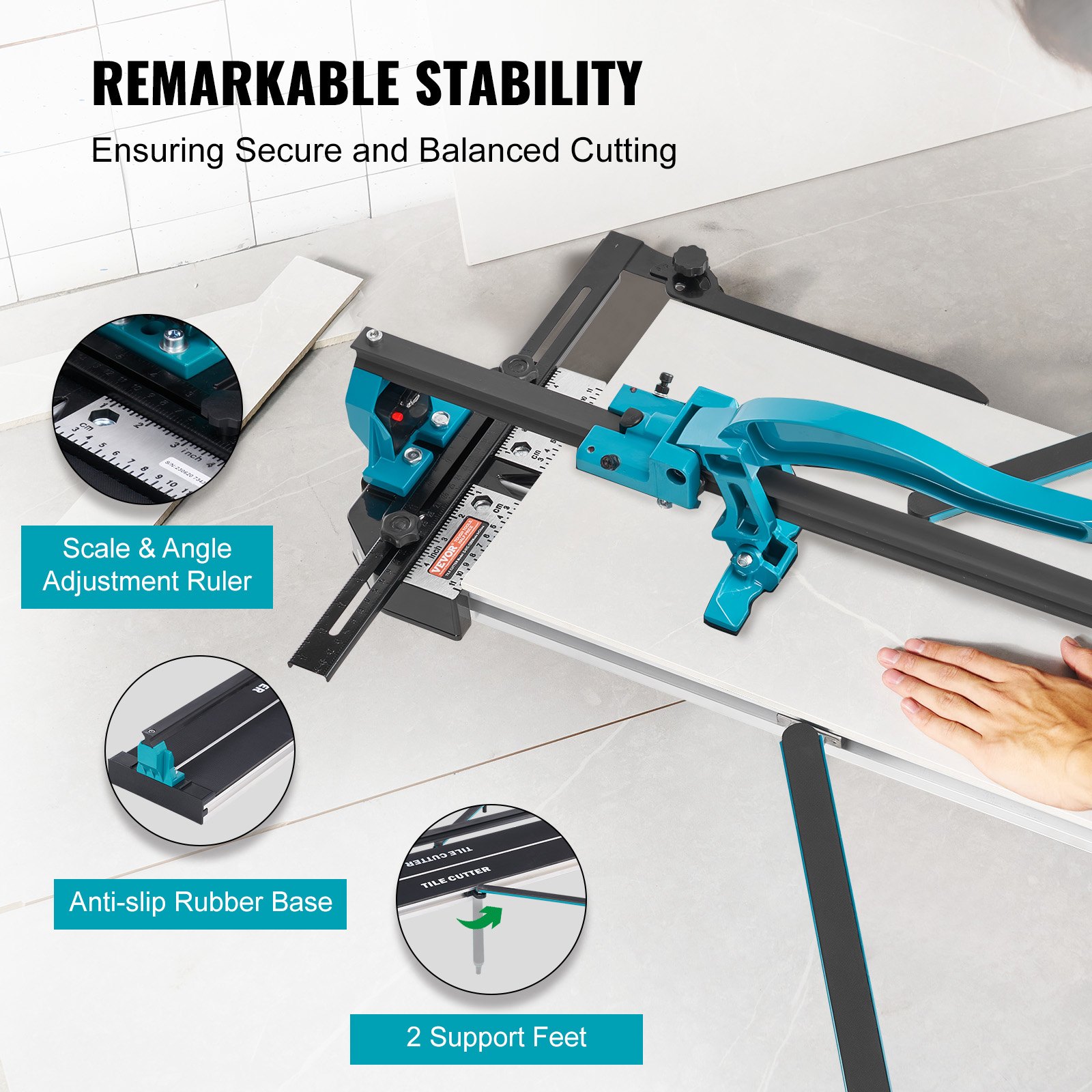

Excellent stability: Equipped with a scale and angle adjustment rulers for precise measurements and secure positioning. The two support legs swivel up to 180 degrees, ensuring safe and balanced operation. The non-slip rubber base keeps the machine firmly in place, even under cutting force.

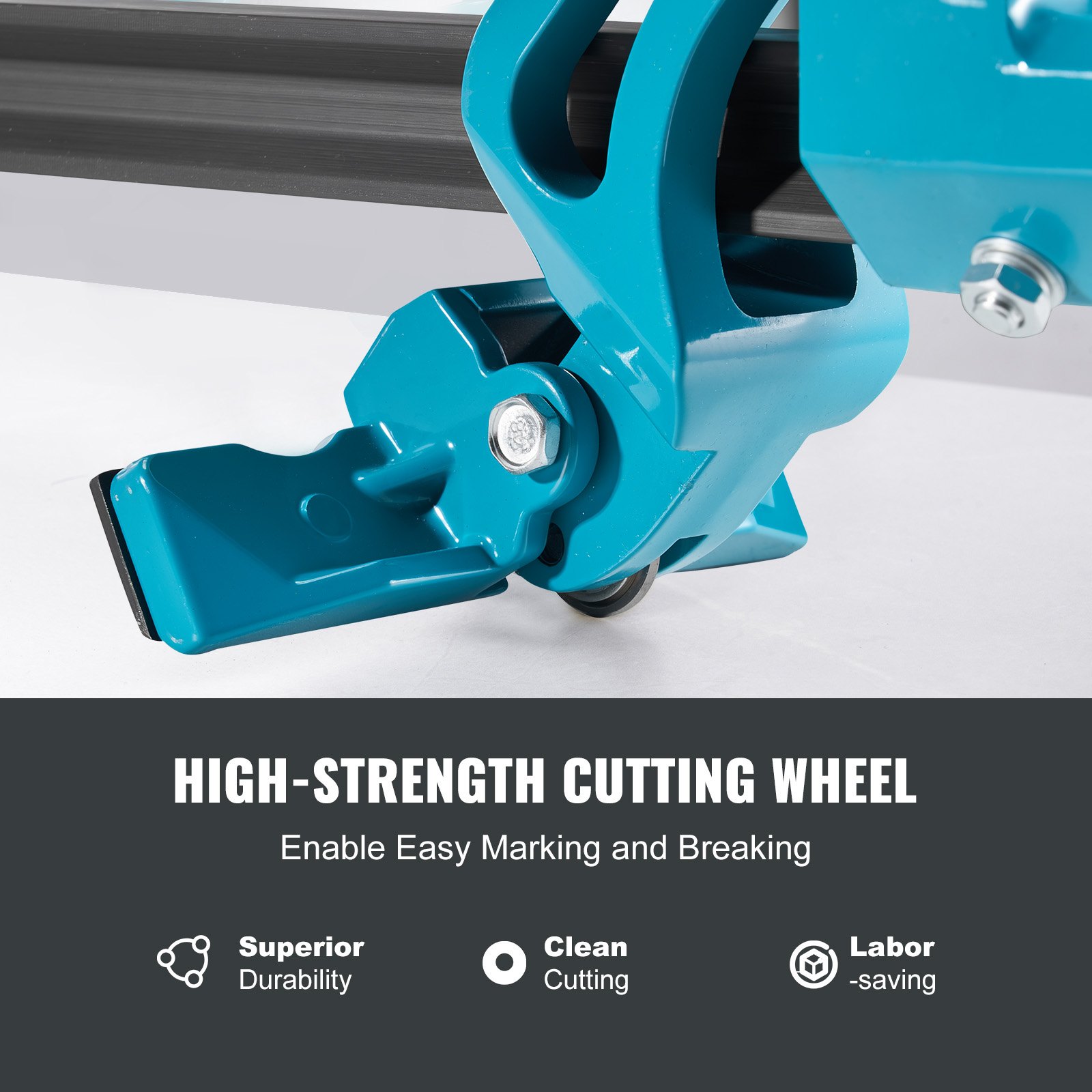

Durable construction: The cutting wheel boasts excellent toughness and rigidity, effortlessly scoring and breaking tiles. The machine features corrosion-resistant steel rails, professionally engineered bearings, and a heavy-duty aluminum base, ensuring reliable performance during your tile laying and renovation projects.
Effortless operation: The curved handle makes it easier to press the tile into place, while the non-slip plastic grip increases cutting comfort. Ideal for professional installers or beginners looking for a versatile tile cutter.

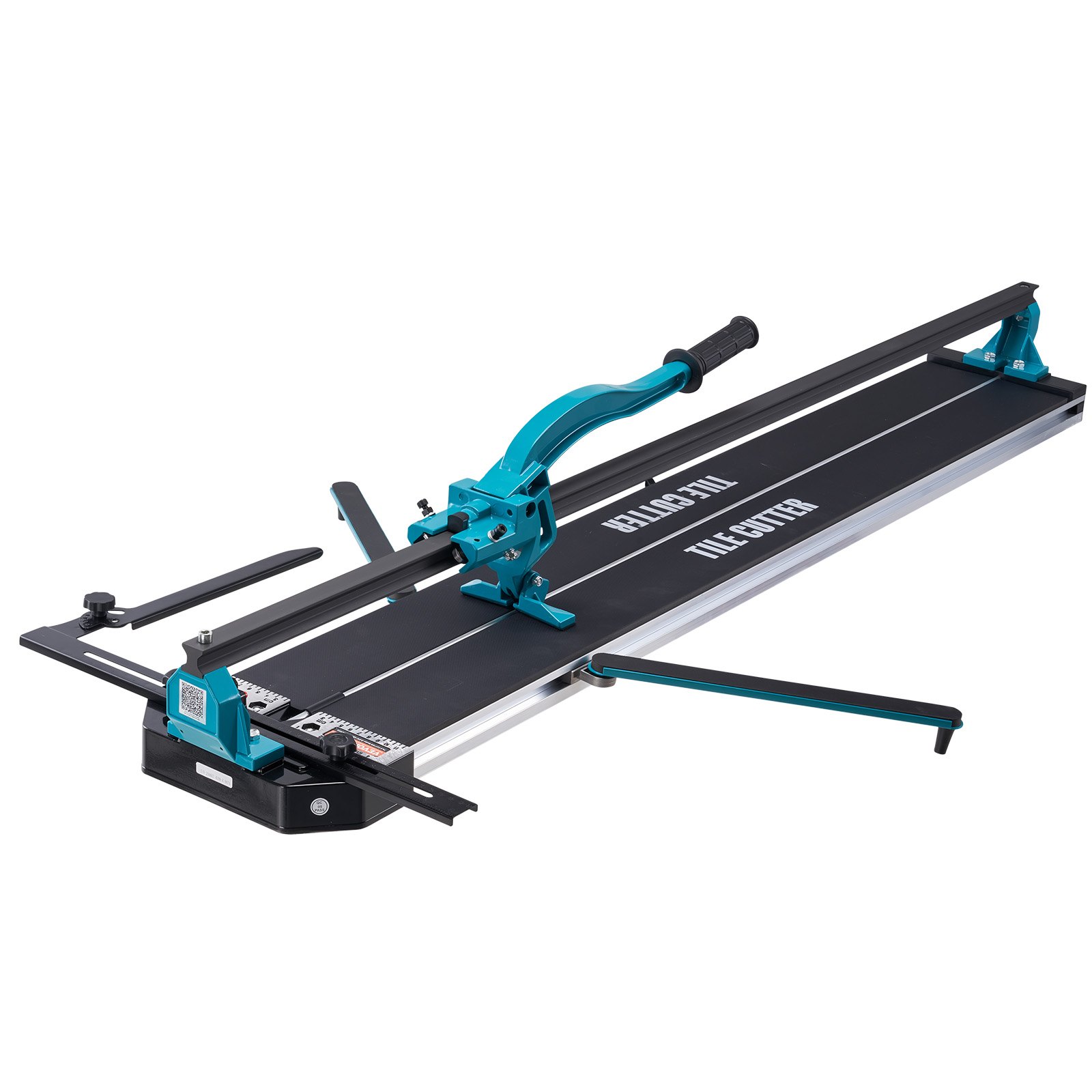

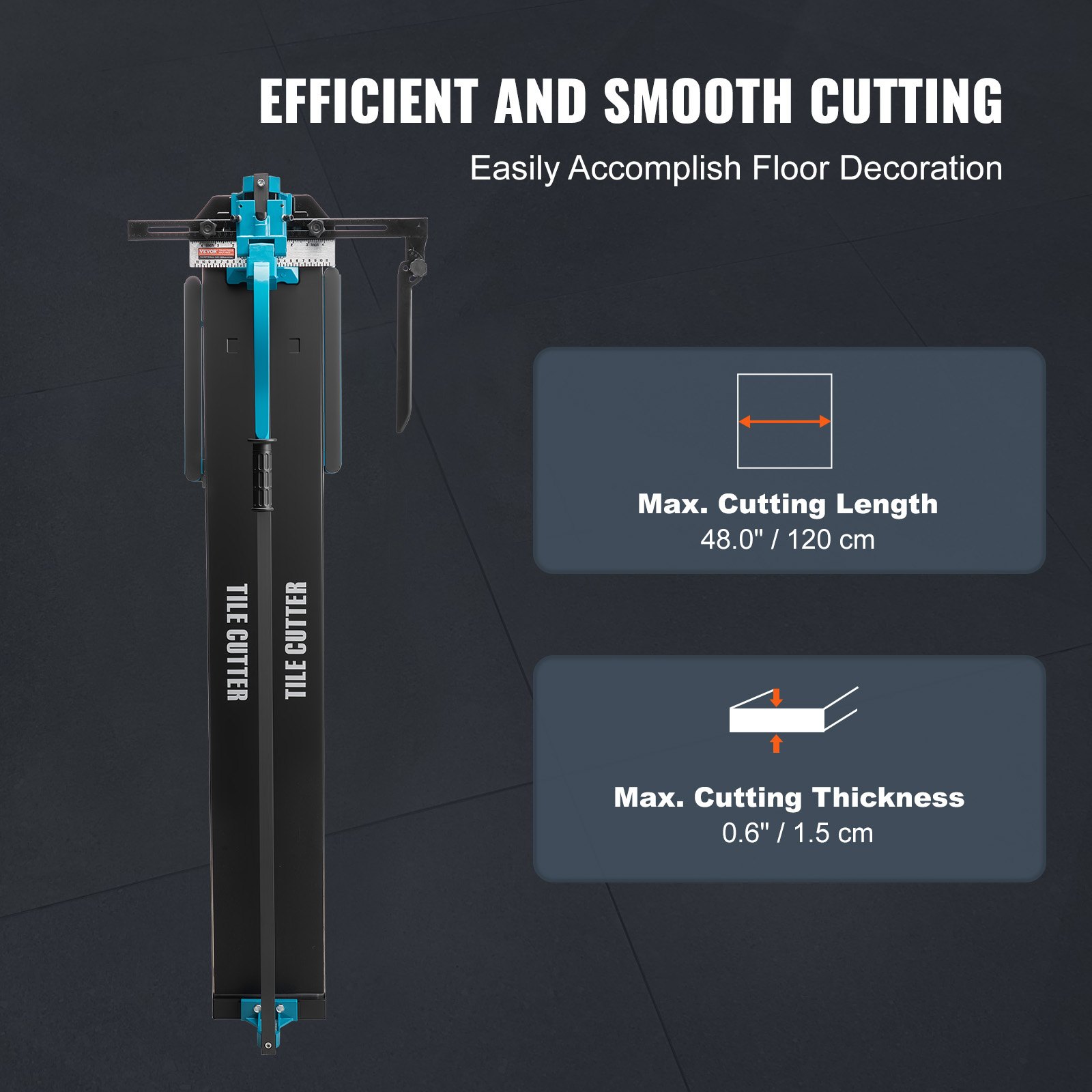

The manual tile cutter cuts ceramic tiles up to 1200 mm in length. The cutting thickness is 4 to 15 mm. Perfect for most household tiles.
The infrared guide design helps you achieve accurate positioning and straight markings, thus ensuring precise cuts.
Scale and angle setting rulers, two support legs and a non-slip rubber base for stability during operation.
Corrosion-resistant steel rails, professionally engineered bearings and a robust aluminium base for worry-free tiling and home renovation.

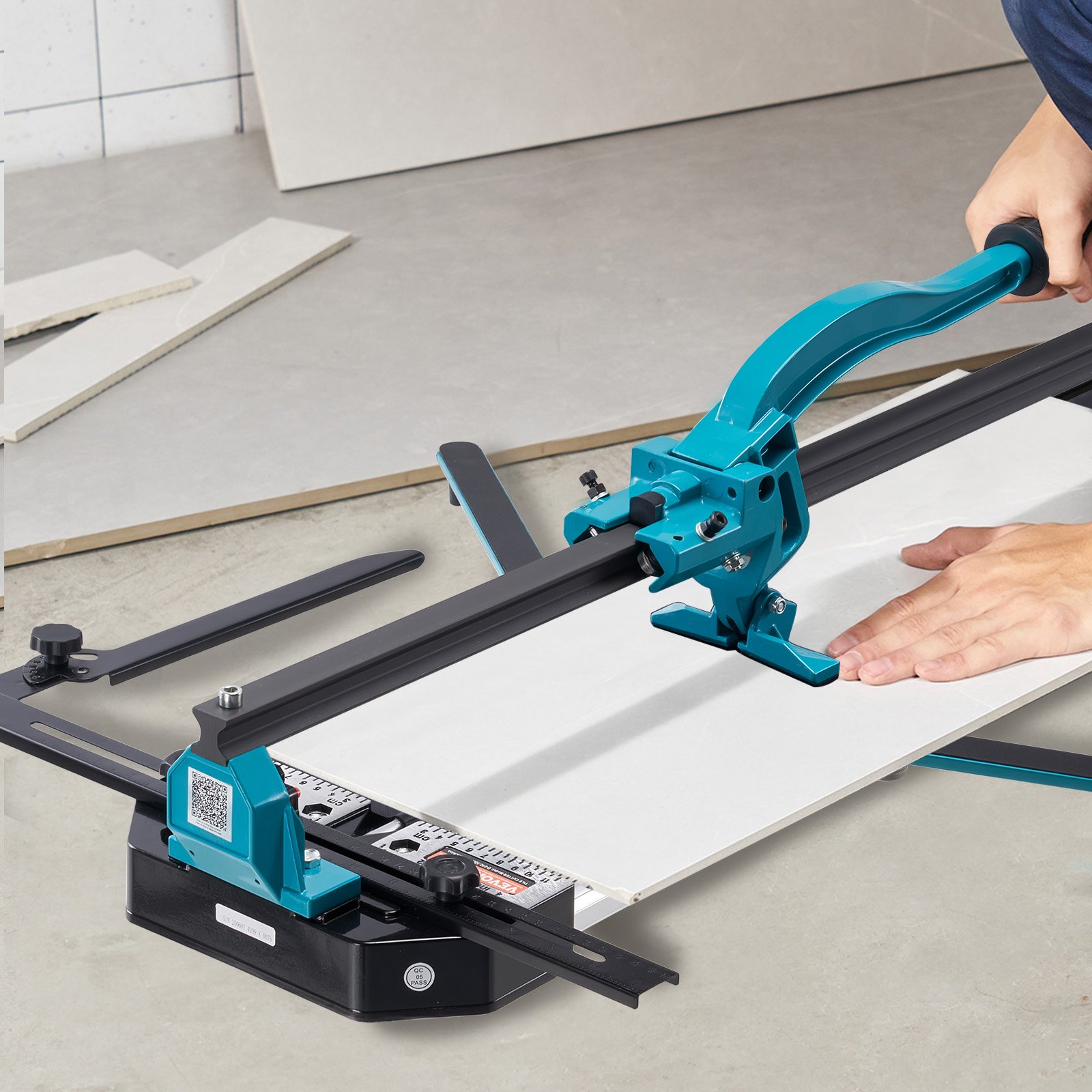

Align your tiles with the special guide on the cutting wheel, score the tile with light pressure on the handle and carefully apply more pressure until the tile breaks.
Bei ungenauen Lasern ist es notwendig, die Position entsprechend anzupassen, ob der Laser nach links oder rechts verzerrt ist.
https://youtu.be/X4AjbqCgO1Y
Hinweis: Das Video zeigt nur die Schritte zur Fehlerbehebung, den Prozess und die Methoden, und die spezifischen Details hängen vom tatsächlichen Produkt ab.
By Vevor
Helpful
(
0
)
Wie kann ich den Monorail -Kopf links und rechts einstellen?
Wenn der Einschienenkopf nach links und rechts wackelt, ist es notwendig,
1. Verwenden Sie einen 10-Zoll-Schraubenschlüssel, um die linken und rechten Muttern zu lösen;
2. Verwenden Sie einen 5-Zoll-Sechskantschlüssel, um die linken und rechten Schrauben einmal festzuziehen;
3. Testen Sie, ob der Maschinenkopf noch schüttelt;
Wenn der Maschinenkopf noch wackelt, verwenden Sie einen Inbusschlüssel, um die linken und rechten Schrauben um eine halbe Drehung festzuziehen;
5. Anpassung abgeschlossen
Siehe Link zur Bedienung: https://youtu.be/bOTV1QwynaM
Hinweis: Das Video zeigt nur die Schritte zur Fehlerbehebung, den Prozess und die Methoden, und die spezifischen Details hängen vom tatsächlichen Produkt ab.
Montageschritte für Einschienenbahnen
1. Entfernen Sie die Pflaumenblütenschraube am langen Lineal, verbinden Sie das andere Lineal und befestigen Sie es mit der Pflaumenblütenschraube;
2. Schrauben Sie die beiden Pflaumenblütenschrauben auf dem dreieckigen Kasten ab, legen Sie das neu installierte Lineal darauf und befestigen Sie es dann mit den Pflaumenblütenschrauben
Achtung: Schrauben nicht zu fest anziehen
Installation siehe Link: https://youtu.be/uROb83l1jqE
Hinweis: Das Video zeigt nur die Schritte zur Fehlerbehebung, den Prozess und die Methoden, und die spezifischen Details hängen vom tatsächlichen Produkt ab.
By Vevor
Helpful
(
0
)
Welche Variante ist pezieser, die mi Einzel- oder Doppelführung? danke
Es hängt von den Vorlieben jedes Einzelnen ab, manche mögen eine Einzelstange, andere eine Doppelstange. Es gibt keinen Unterschied im Schnitt und in der Anwendung.
By vevor
Helpful
(
0
)
KCZQGJMDDIY12IXM7V0

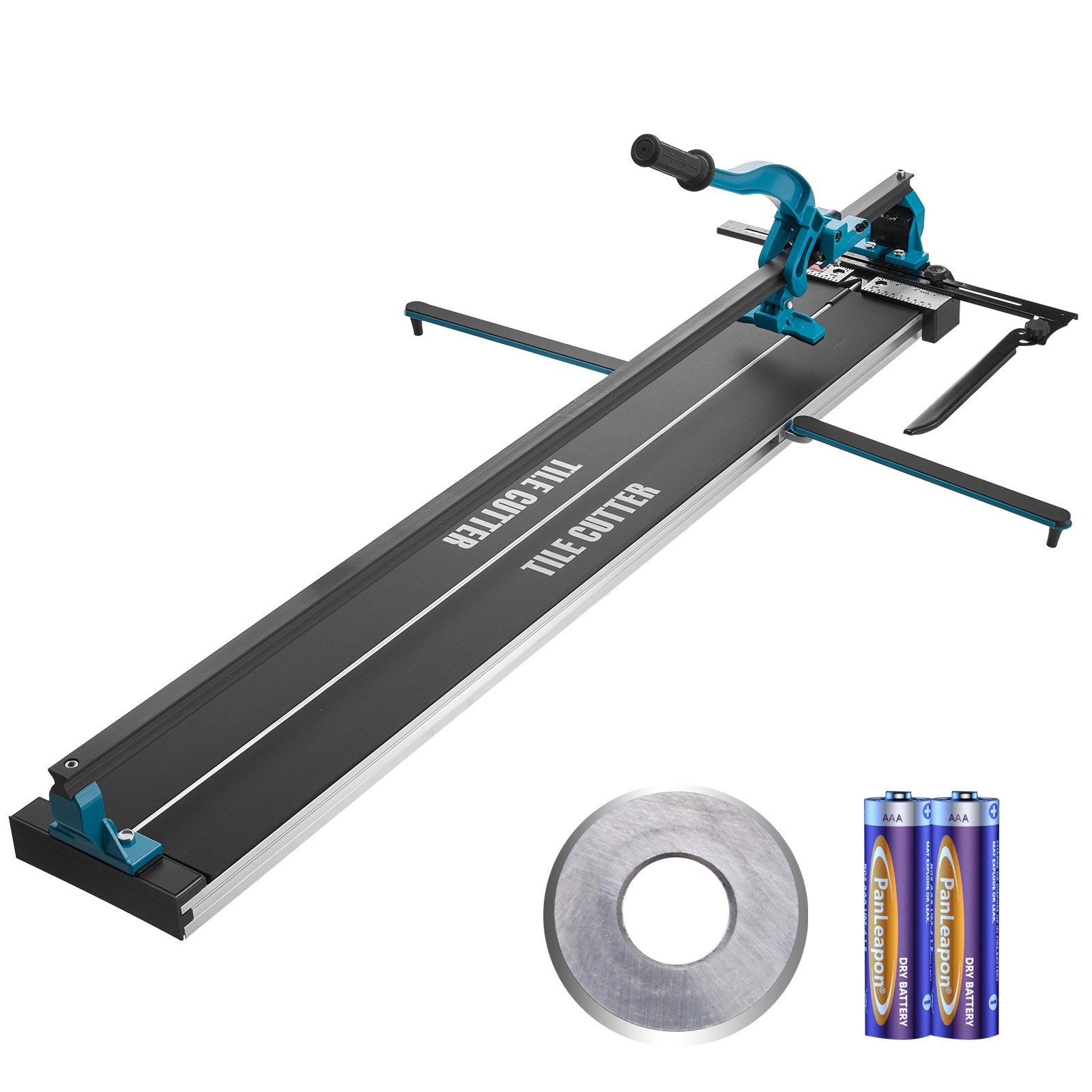

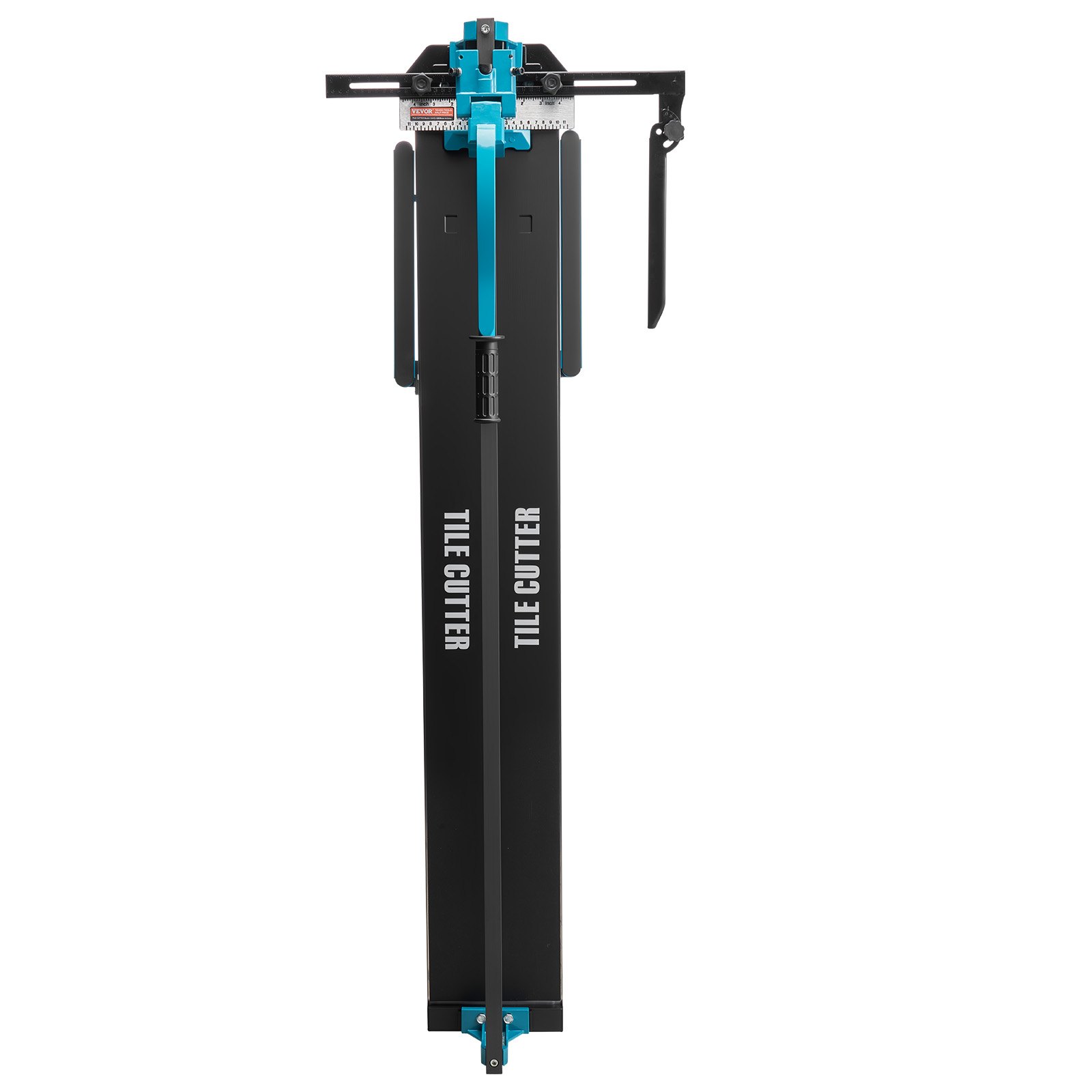

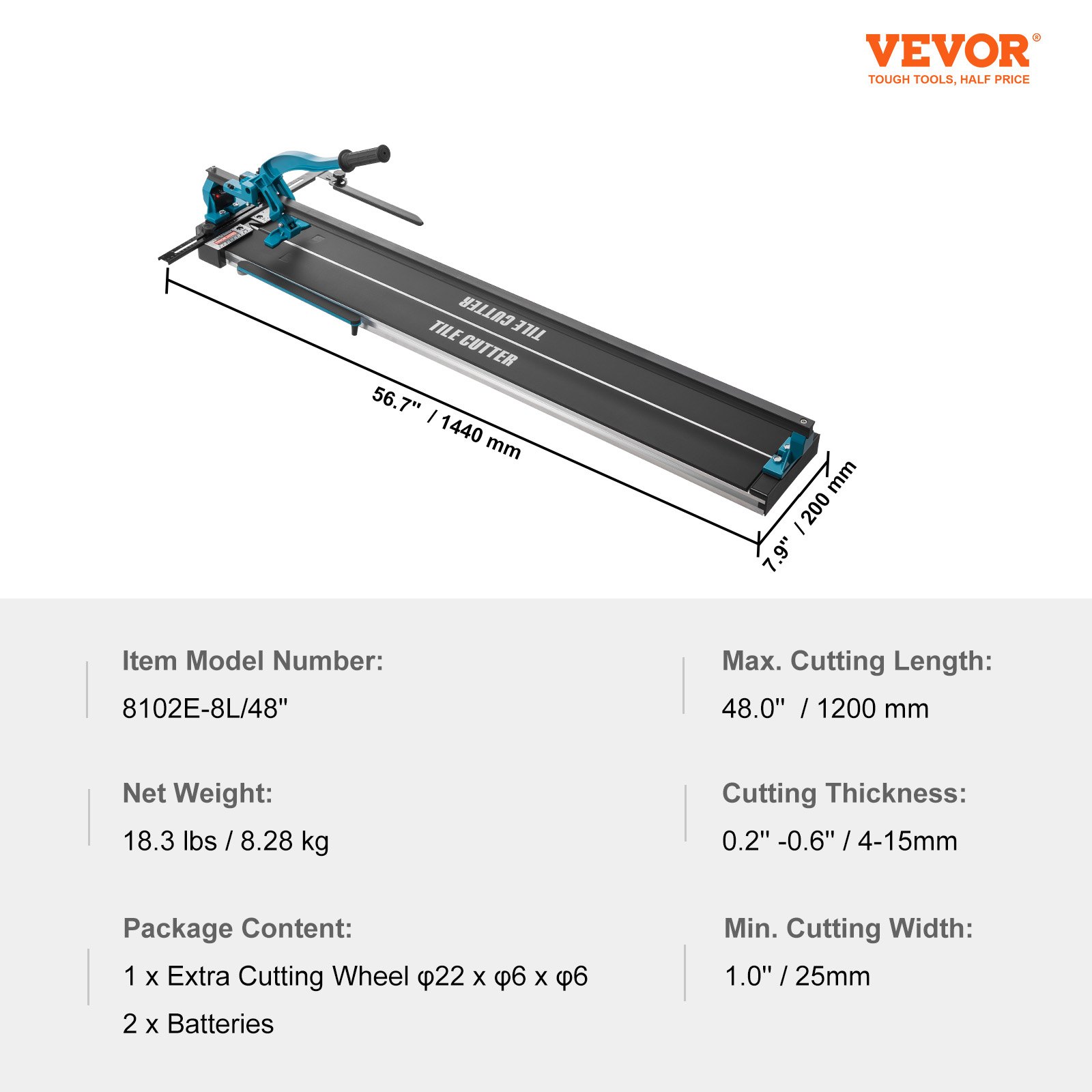

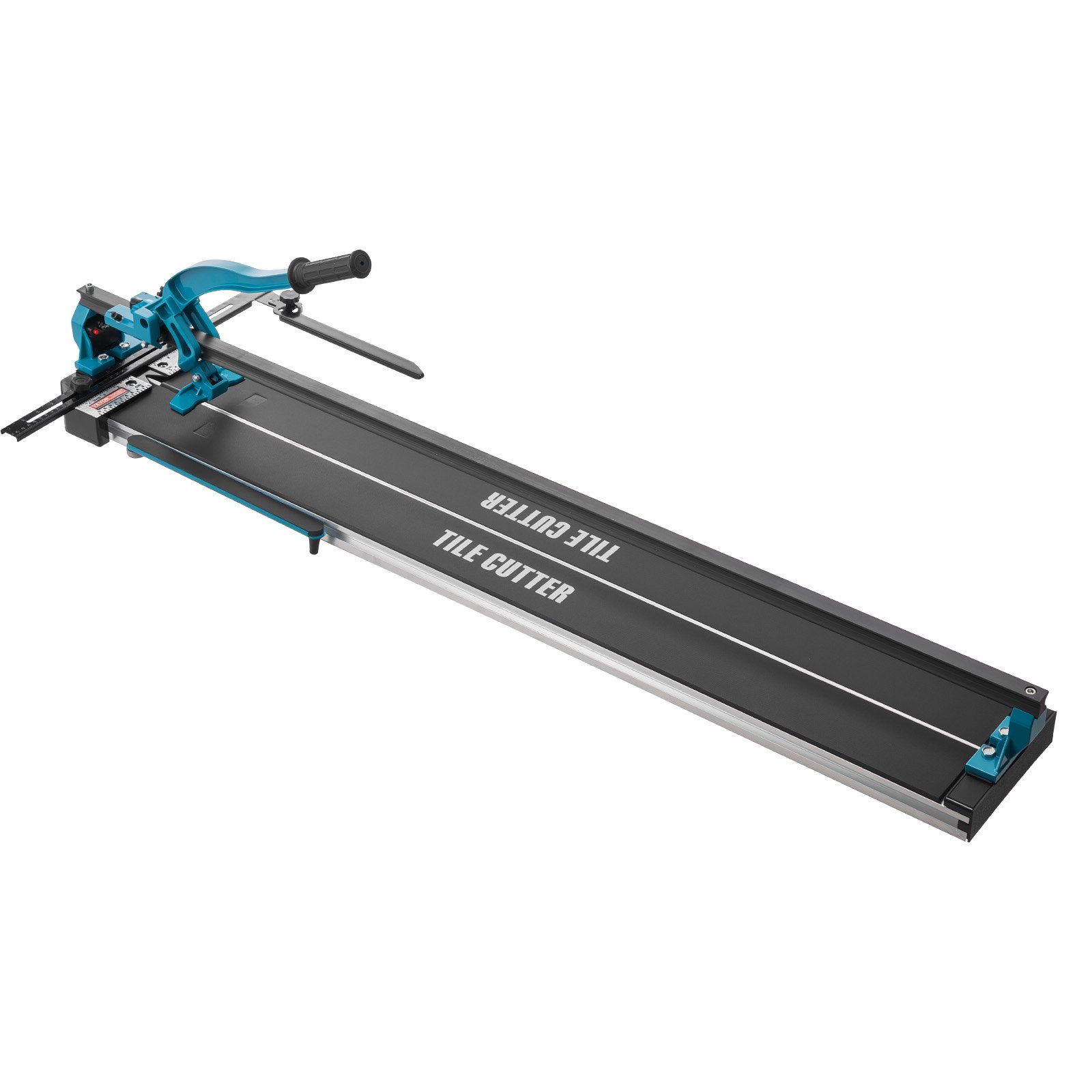

VEVOR tile cutter with a total cutting length of 1200 mm, cutting thickness 4-15 mm, minimum cutting width 25 mm. Tile cutting machine including extra cutting wheel. For tile laying and renovation projects.
