Features & Details

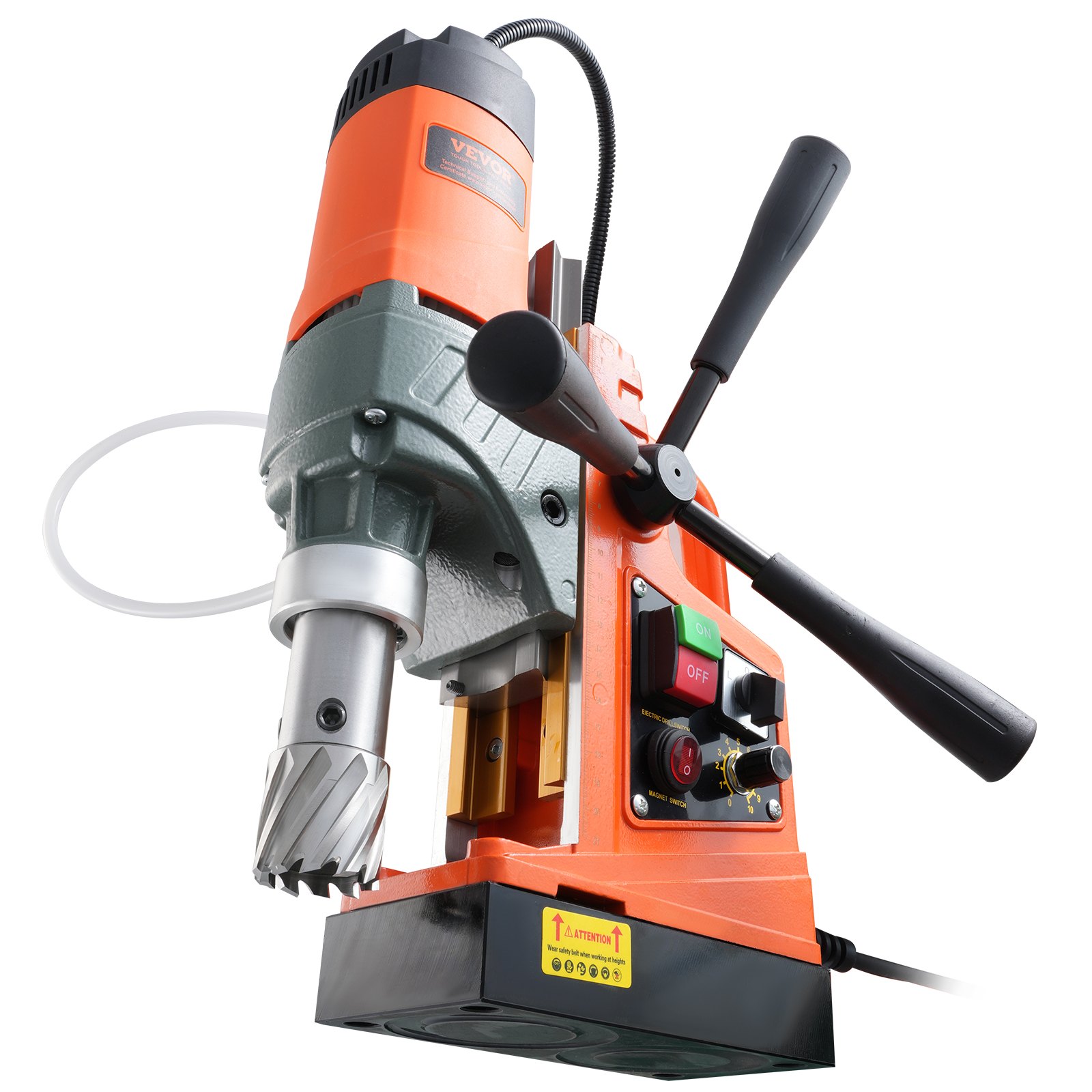

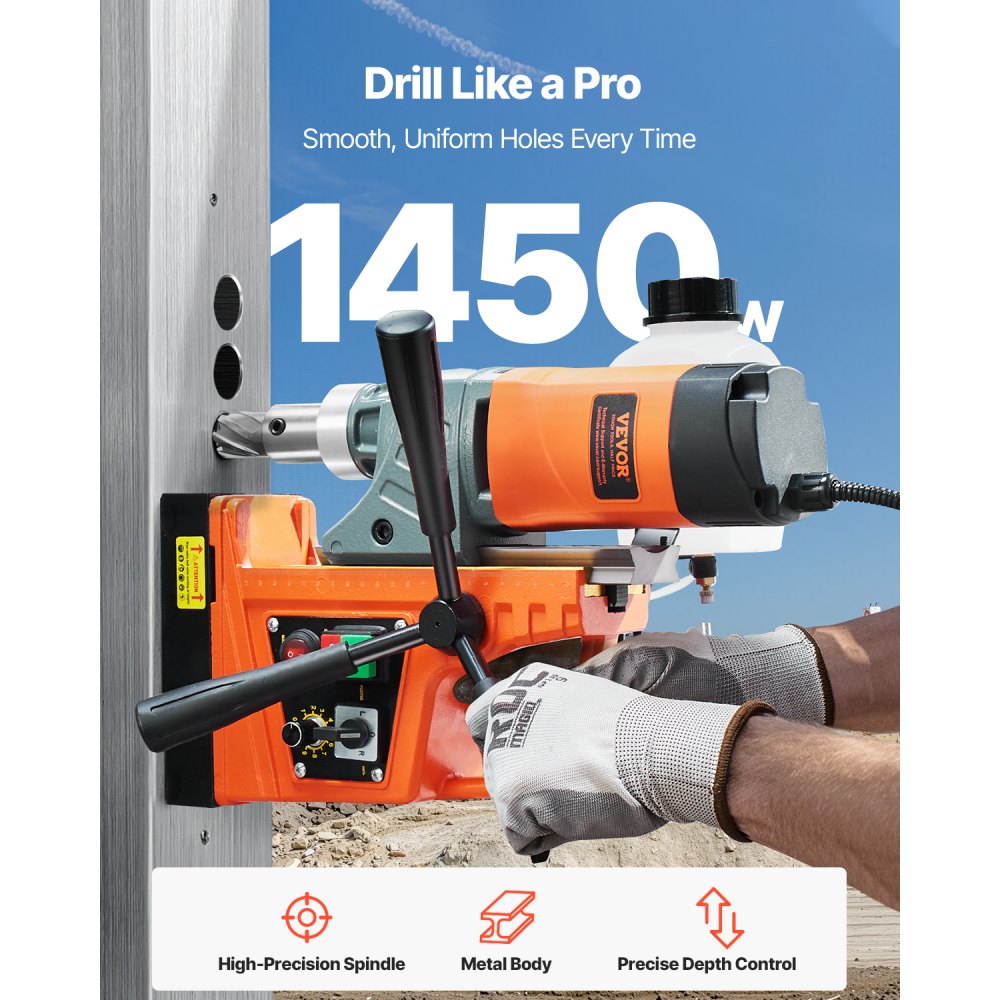

- Top-of-the-line magnet: Prepare for unstoppable power! Our electric magnetic drill generates exceptionally strong driving force with its 1450W copper motor. It can drill into the hardest materials at 0-830 RPM. Max. drill diameter (core drill): Φ1.6 inches (Φ40 mm); Max. core depth: 2 inches (50 mm)

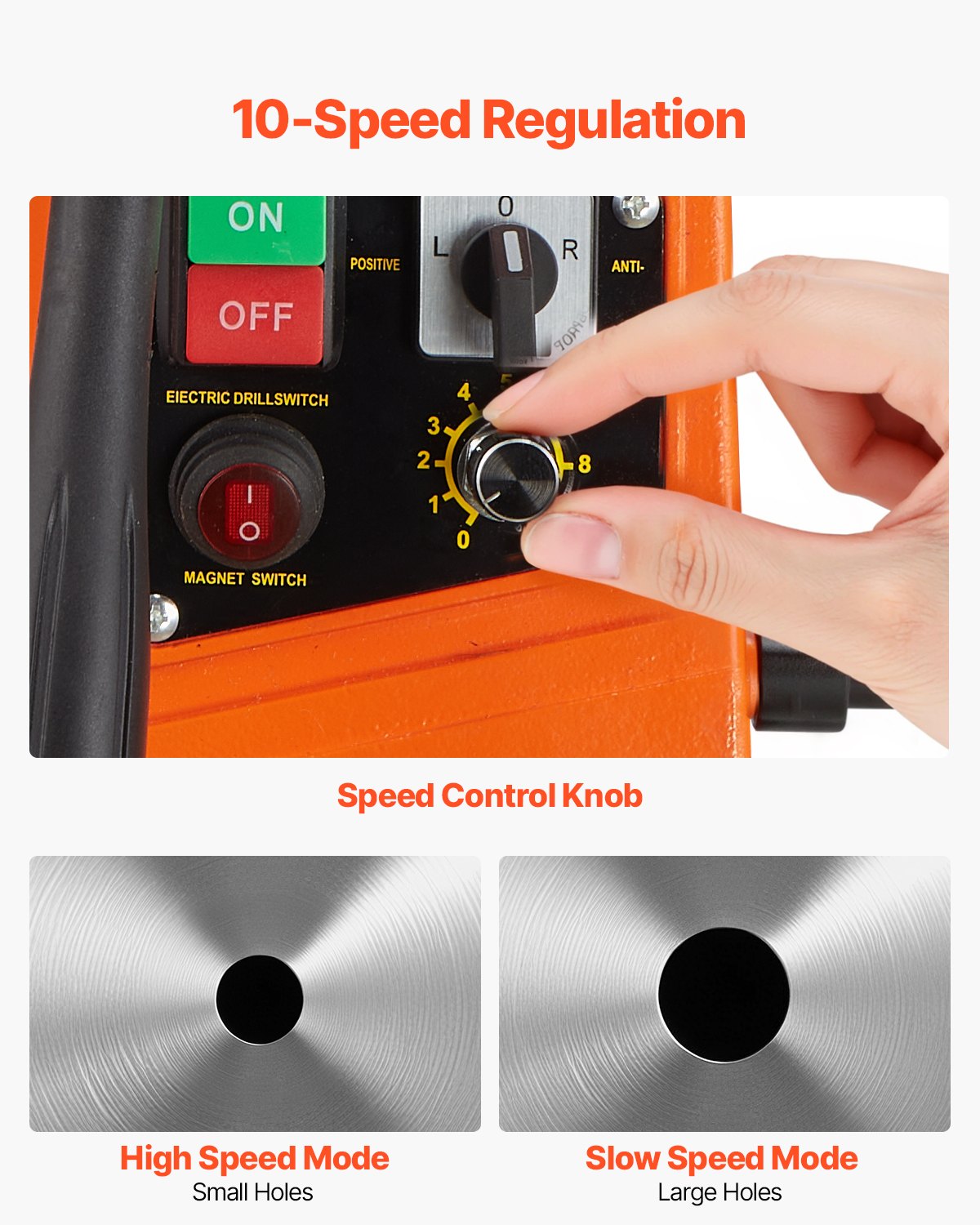

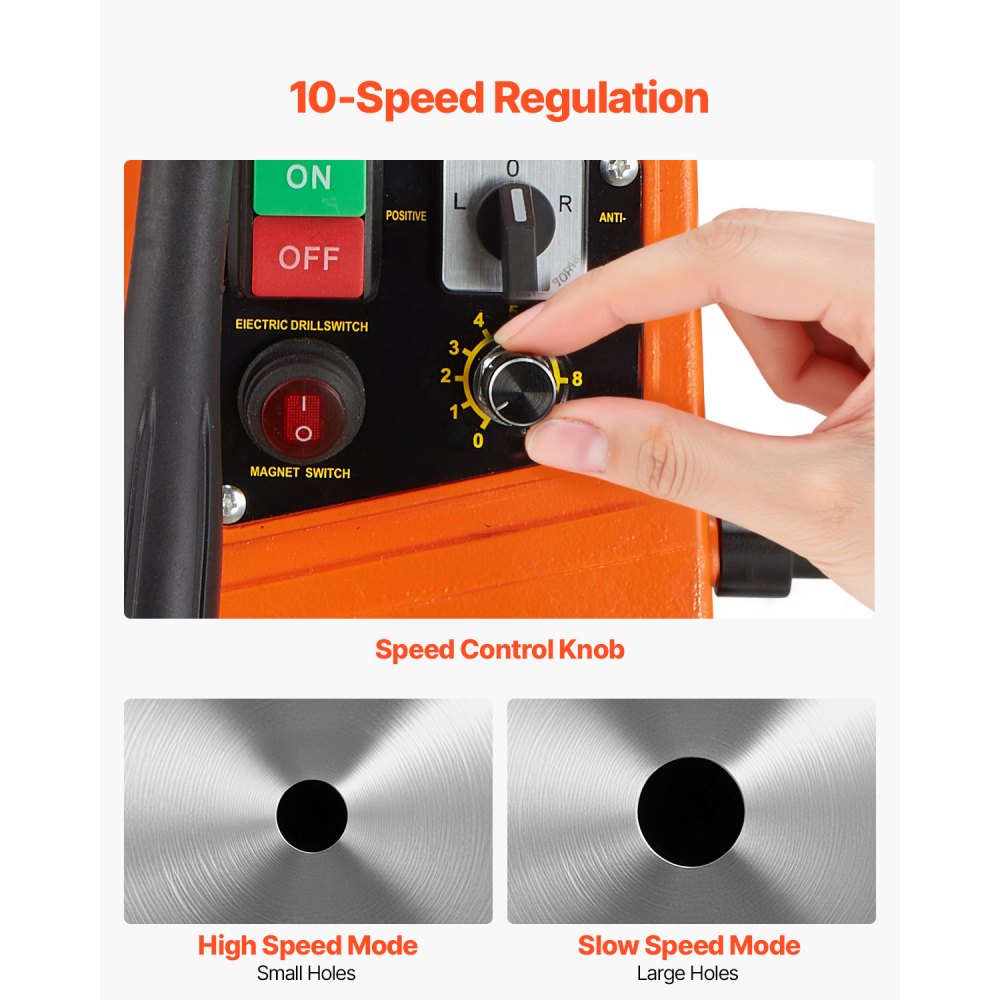

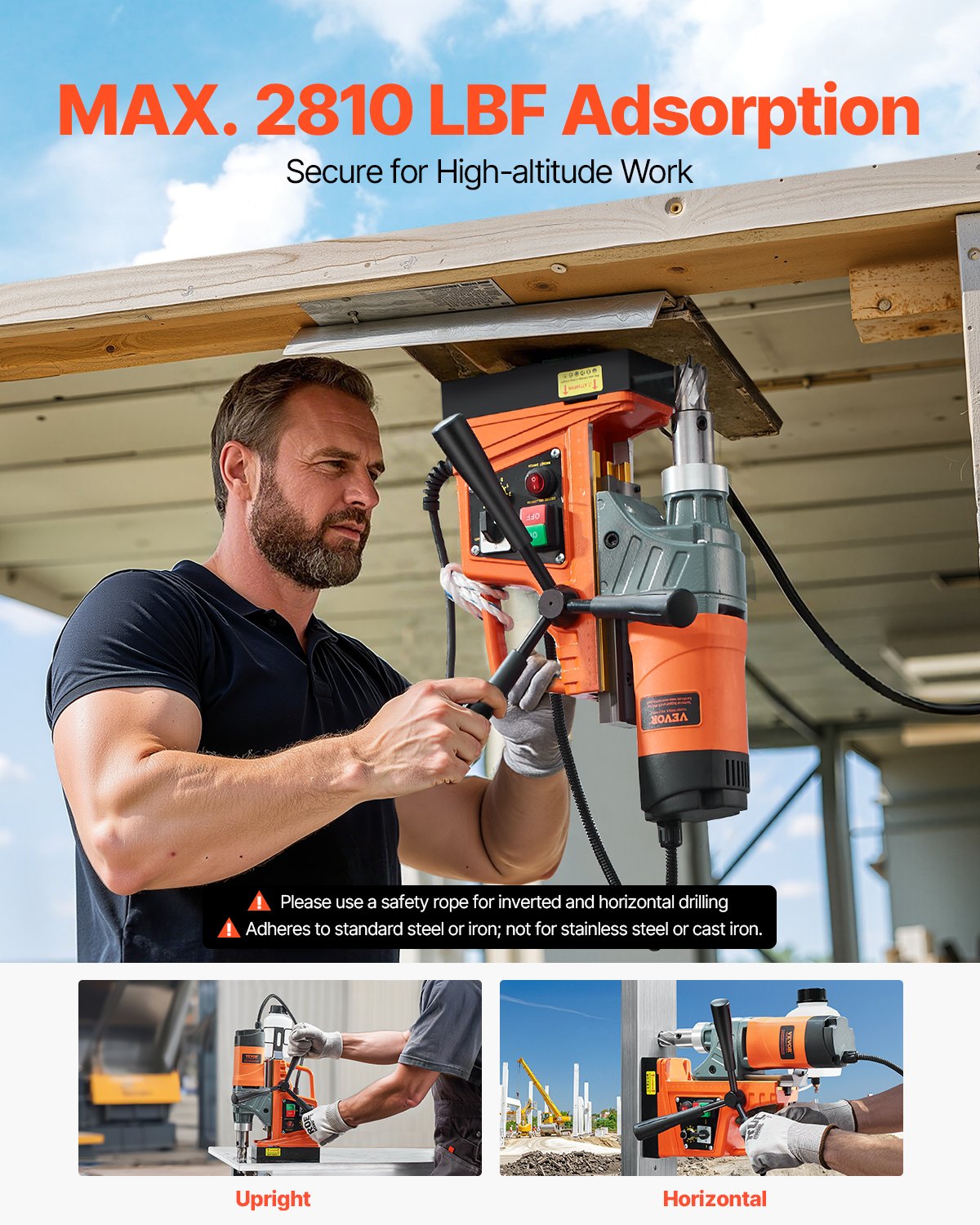

- Understand the performance: 2810 lbf (12500 N) of robust force is generated by the electromagnetically thickened base, with pure iron armatures. The magnetic drill operates stably at any angle during the drilling process. Adjustable 10-speed gearboxes ensure precise and efficient operation depending on the drill diameter.

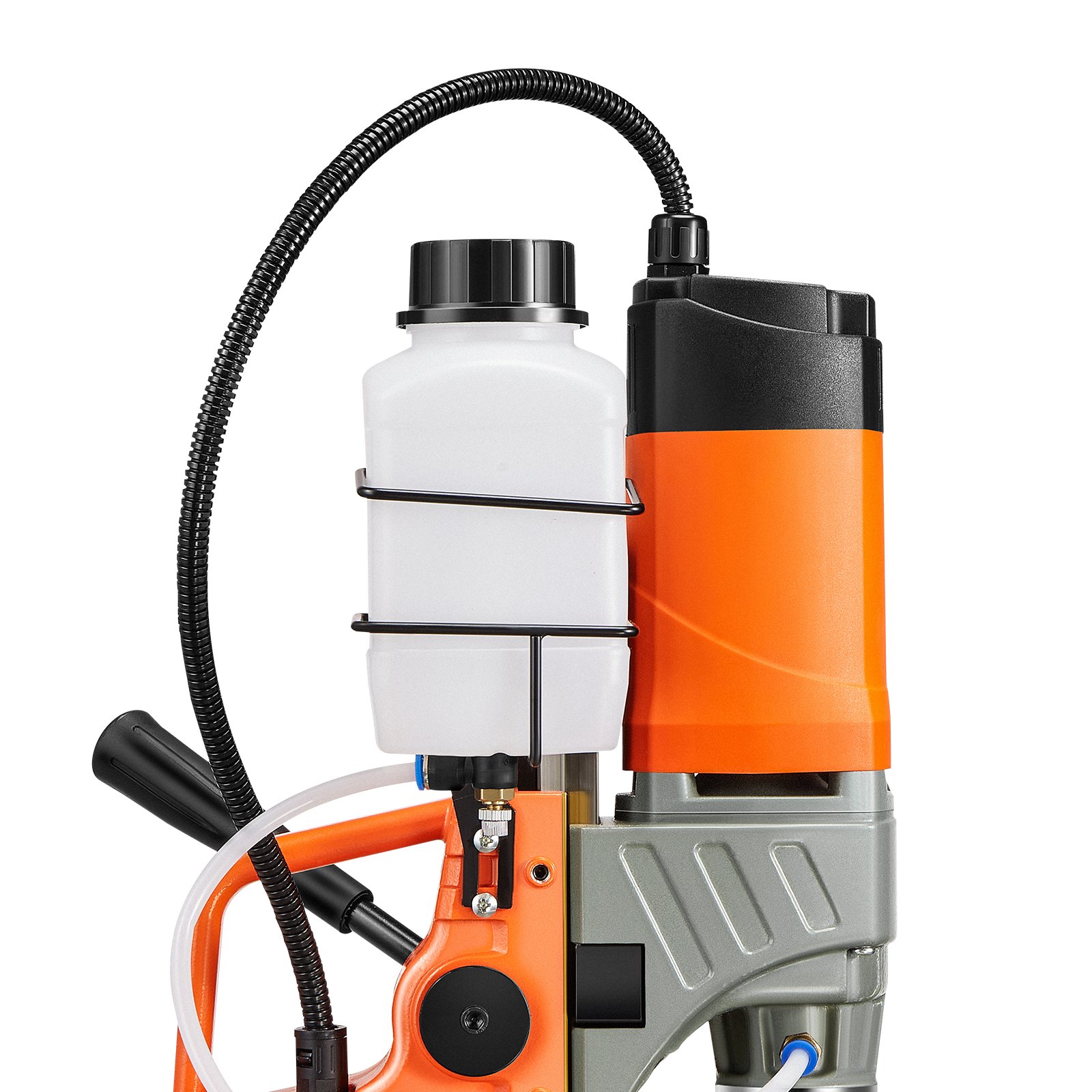

- Safety & Durability: For this reason, combined overload protection functions are included. The cooling system features rapid heat dissipation to protect the operator from injury due to sudden overload and high temperatures during drilling. Furthermore, the titanium-magnesium alloy guide rail has corrosion-resistant and wear-resistant properties that significantly extend the tool's lifespan.
- User-friendly design: A scale is integrated into the machine's frame, allowing users to determine the distance between the drill bit and the material being drilled in millimeters. Even a beginner can drill precise and clean holes. Furthermore, the ergonomically shaped handle and three extended cranks ensure a comfortable grip during handling and movement, saving considerable effort.

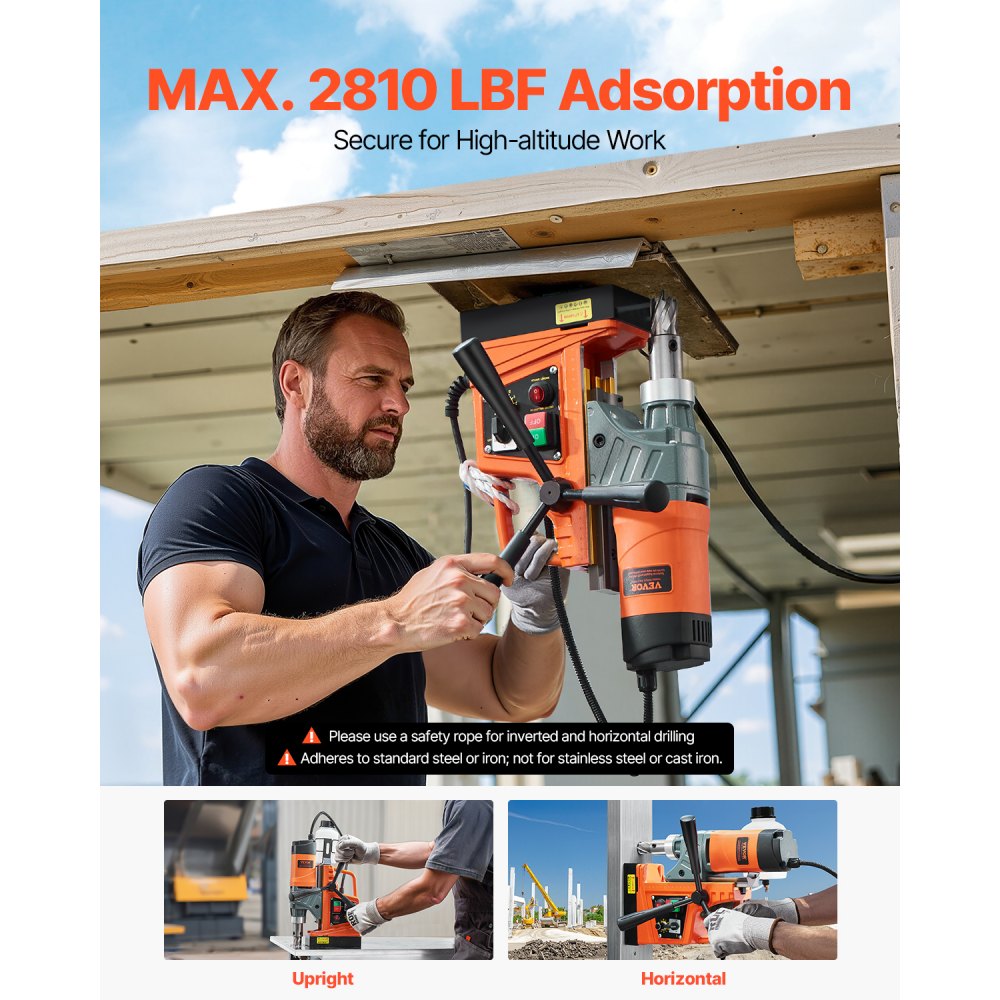

- Versatile Applications: This magnetic drill plays a vital role in DIY projects, appliance installation, industrial and steel construction, shipbuilding and bridge building, railway construction, wind turbine and power plant construction, and many other fields. Note: For optimal performance, use steel sheets 10 mm (0.39 in) thick or more. Not suitable for stainless steel or cast iron. A safety rope must be used when drilling in reverse or horizontal directions.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 137 reviews
Reviews 4.9
All reviews are from verified purchases
See all 137 reviews
About this item

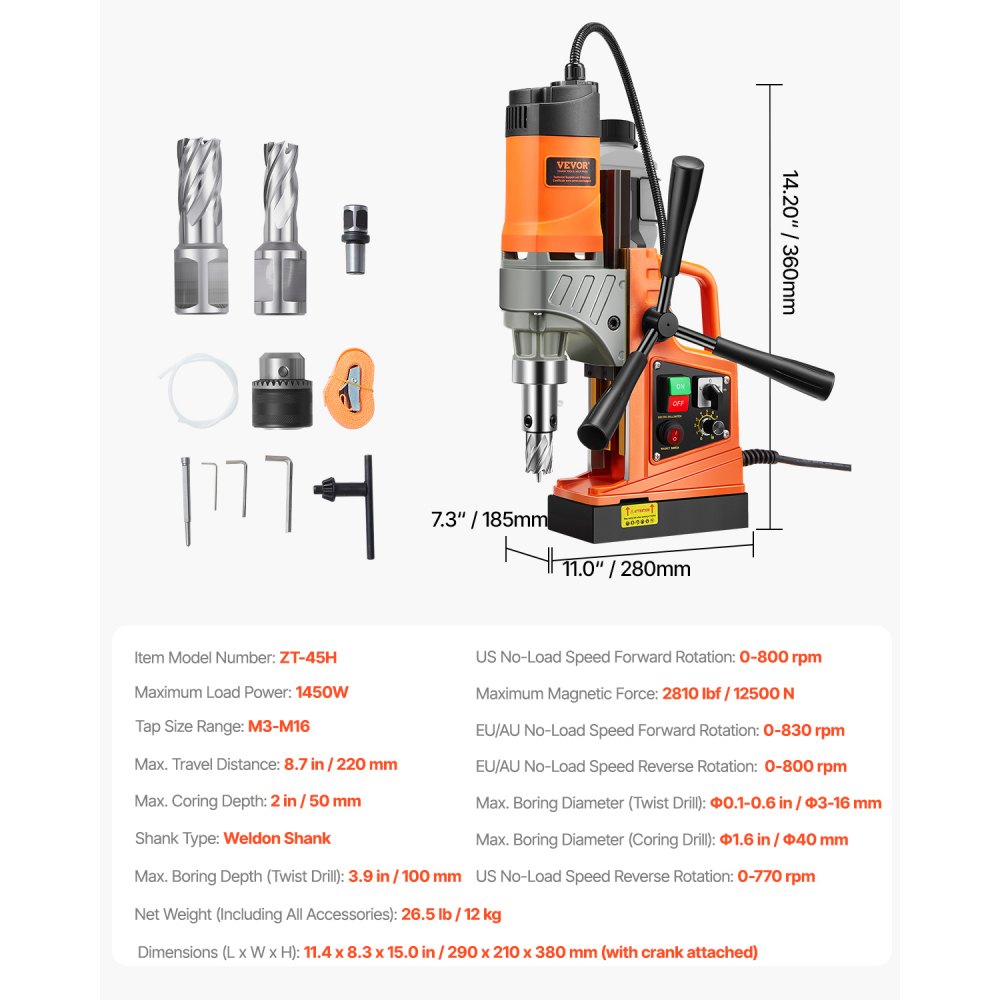

Product specification
- Article model number
- ZT-45H
- Shaft type
- Weldon shaft
- Maximum charging power
- 1450 W
- Maximum magnetic force
- 2810 lbf / 12500 N
- Idle speed forward rotation
- 0-830 rpm
- Idle speed reverse rotation
- 0-800 rpm
- Max. drill diameter (core drill)
- Φ1.6 inch / Φ40 mm
- Max. drilling depth
- 2 inches / 50 mm
- Max. drill diameter (spiral drill)
- Φ0.1-0.6 inch / Φ3-16 mm
- Max. drilling depth (spiral drill bit)
- 3.9 inches / 100 mm
- Tap size range
- M3–M16
- Maximum travel
- 8.7 inches / 220 mm
- Net weight (including all accessories)
- 26.5 lbs / 12 kg
Description
Drill with unstoppable force

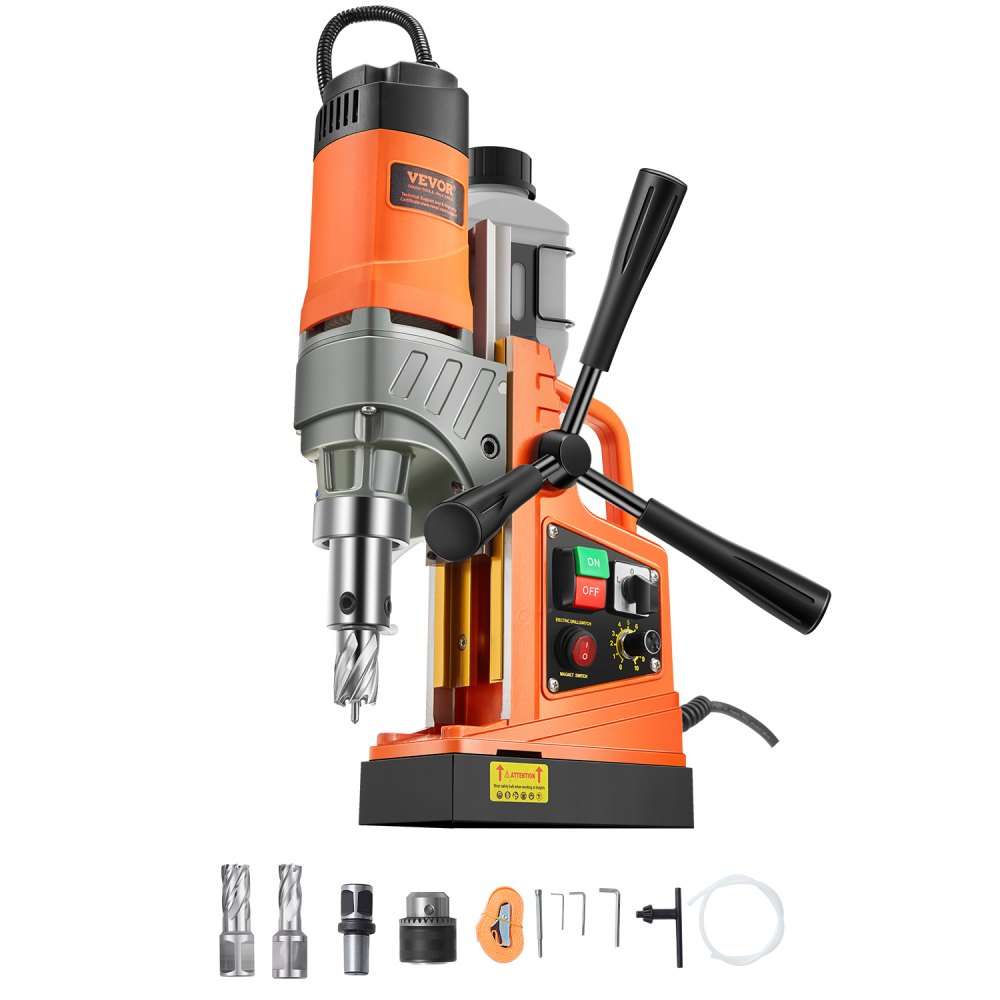

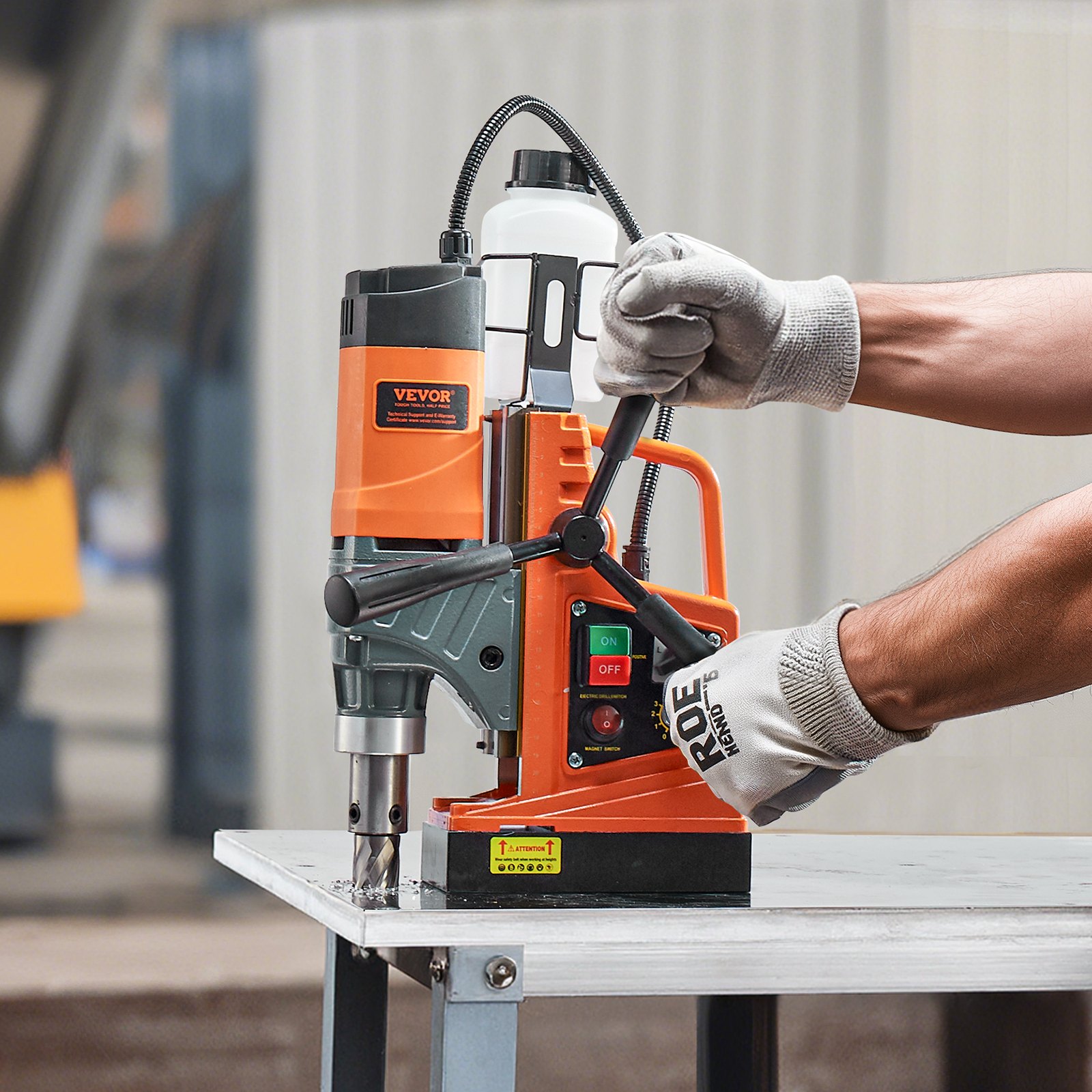

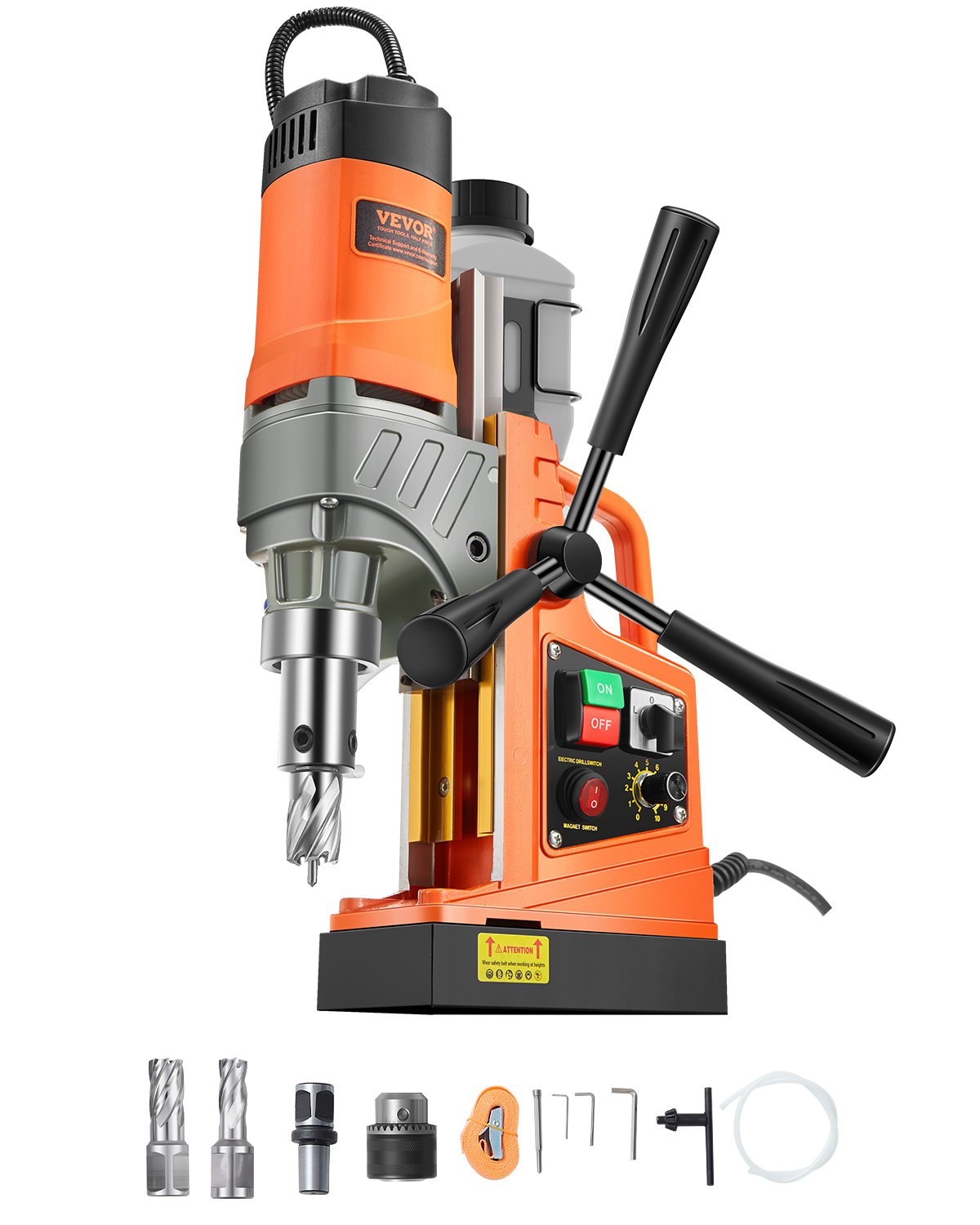

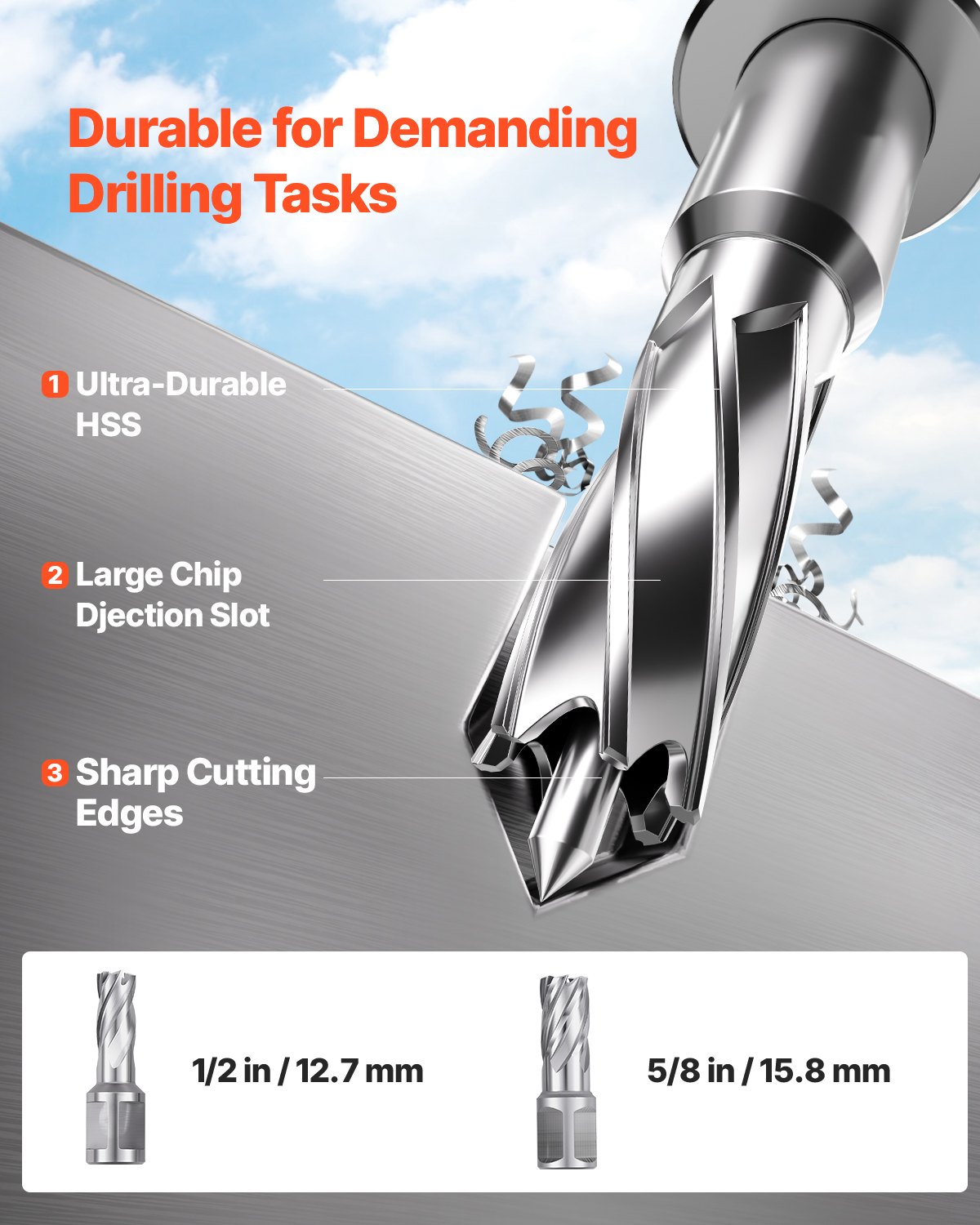

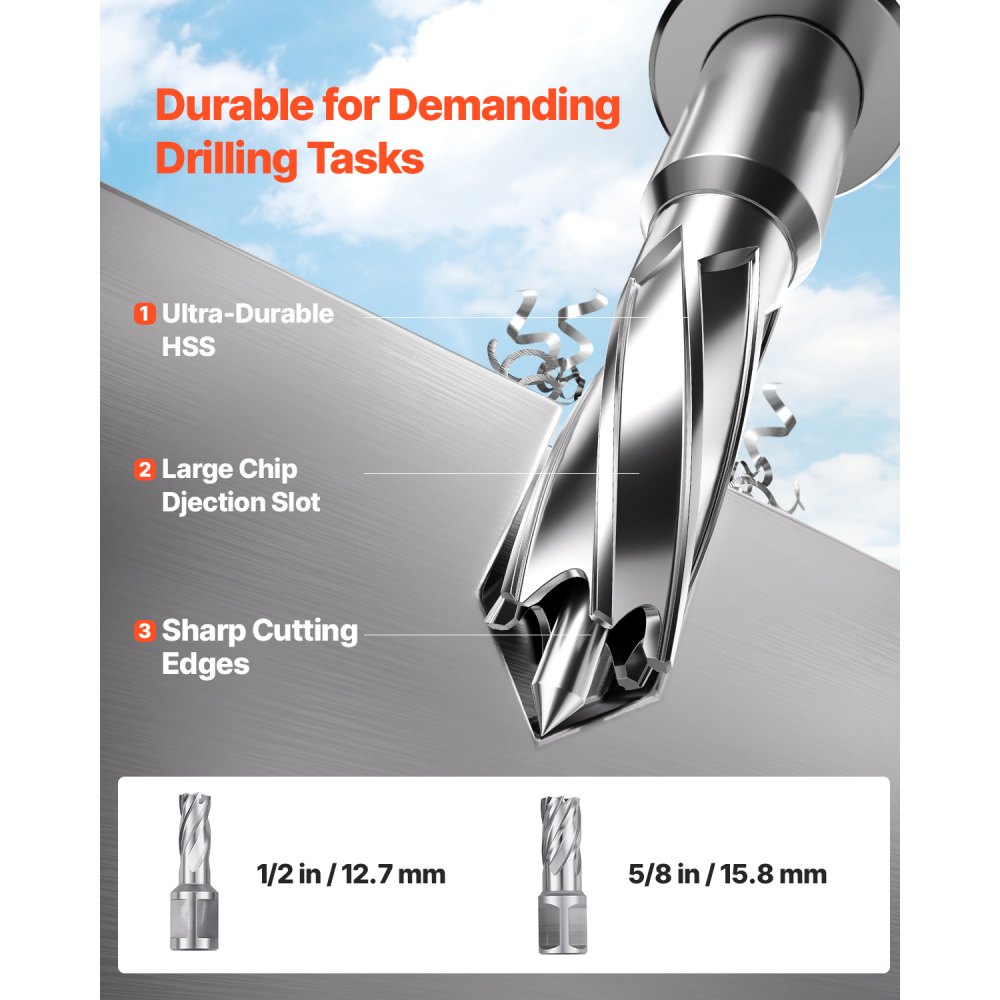

This magnetic drill bit adheres securely to steel or iron surfaces and produces precise, burr-free holes. With two drill bits, it can handle various drilling tasks. Made from a high-quality alloy, it is ideal for DIY enthusiasts, industrial applications, and steel processing.
Q: What is the applied voltage and what is the magnitude of the product?
A:The product size is 11 x 7.3 x 14.2 inches / 280 x 185 x 360 mm, the applicable voltage/frequency is 230 V 50 Hz for EUR/AUS or 120 V 60 Hz for the USA.
Q: What materials can the magnetic press work with? What drill bits is it compatible with?
A: The magnetic drill can drill into steel and iron structures over 10 mm thick using upright, inverted, and horizontal mounting positions. Drill bits with a diameter of less than 50 mm are used.

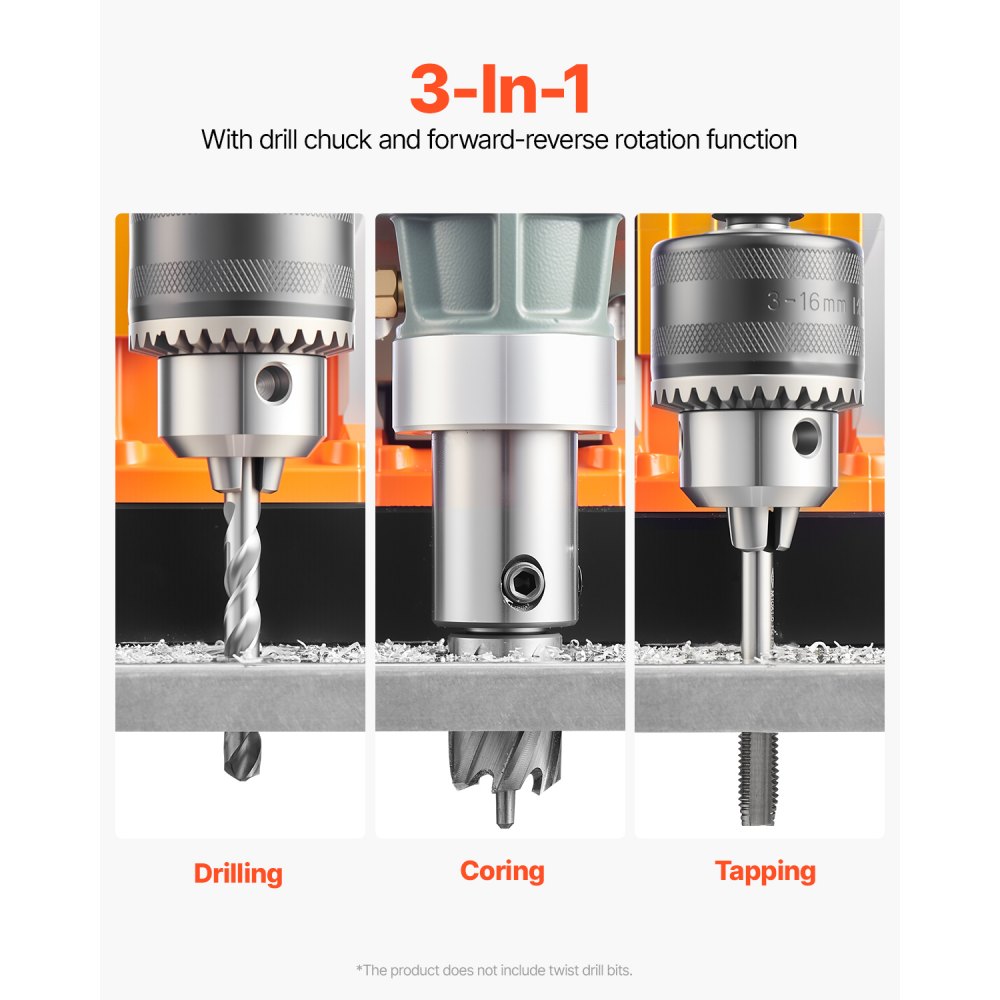

Q: Is a drill chuck included in the package?
A: Yes, the product has a spiral drill chuck with a 100 mm drilling depth.
Q: Can this product run backwards?
A: Our products can perform positive and negative thread drilling to meet your diverse drilling requirements.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (2)
Wird die Maschine im Koffer geliefert?
Sehr geehrter Kunde, vielen Dank für Ihre Anfrage.
Die Maschine wurde in einem Wabenkarton versendet.
By vevor
Helpful
(
0
)
wie viel Volt ???
110 V oder 220 V
220V.
By vevor
Helpful
(
0
)
CLZTJ2J40MMMO8WSCV2

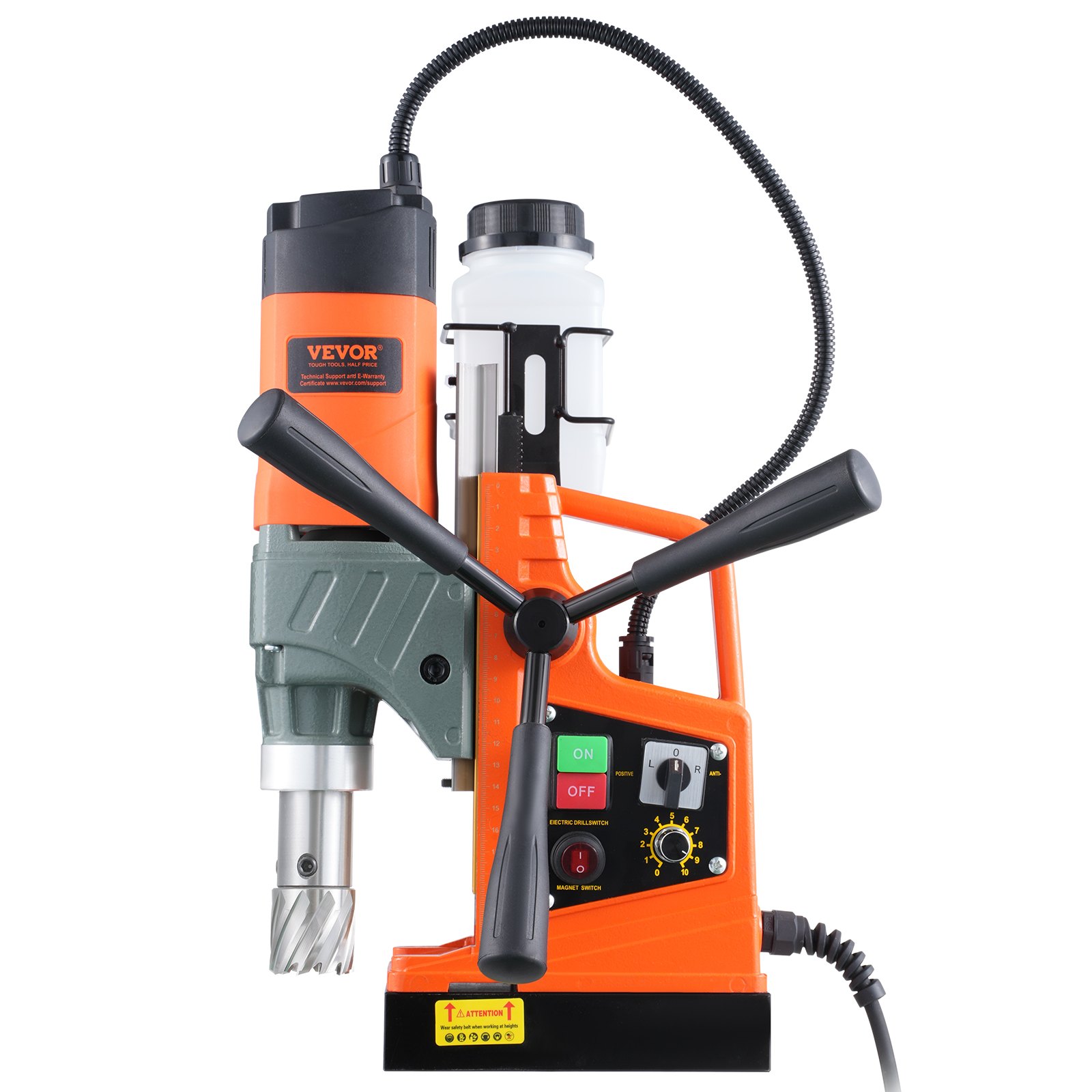

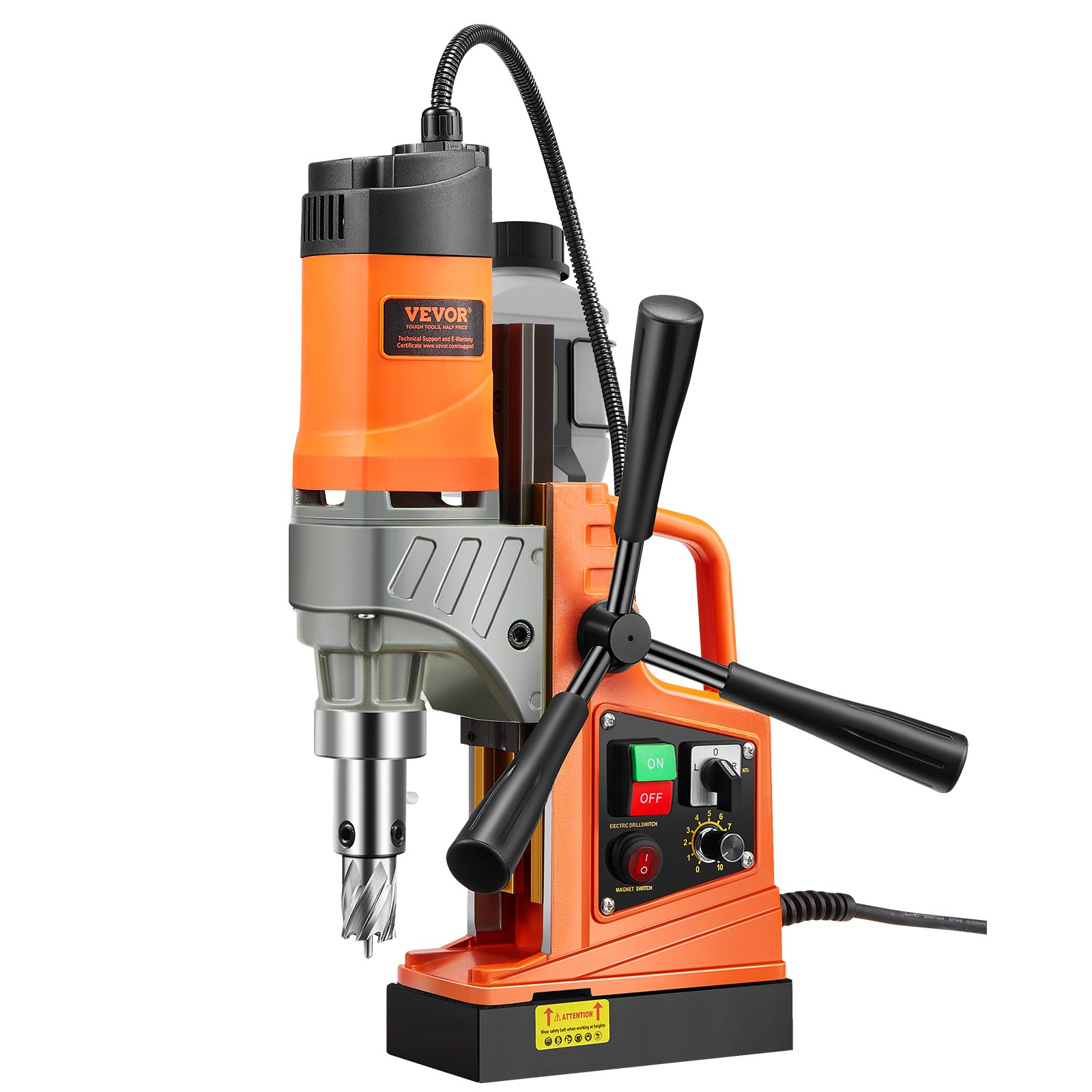

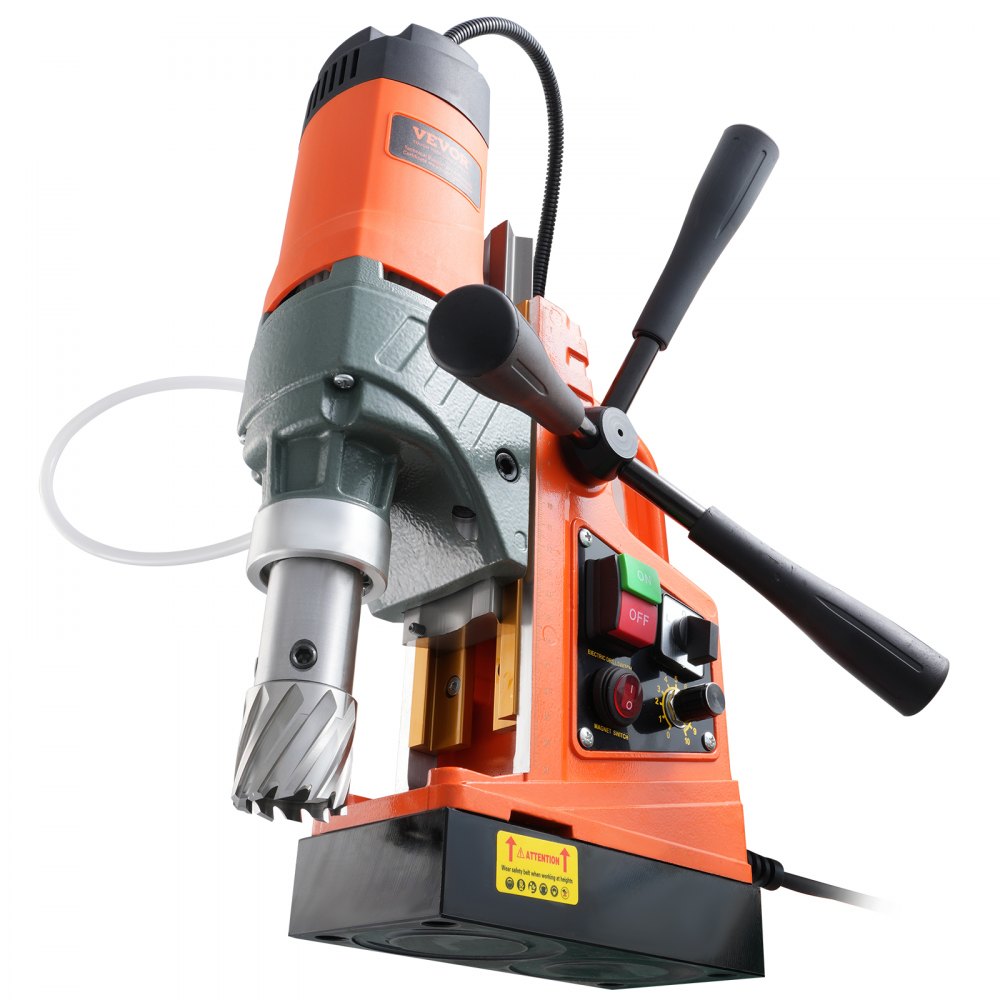

VEVOR Magnetic Drilling Machine, Core Drilling Machine, 40 mm Drilling Diameter, 12500 N Portable Electric Magnetic Drilling Machine with 2 Core Drills, Variable Speed, Drilling Machine for Metal Surfaces
