Features & Details

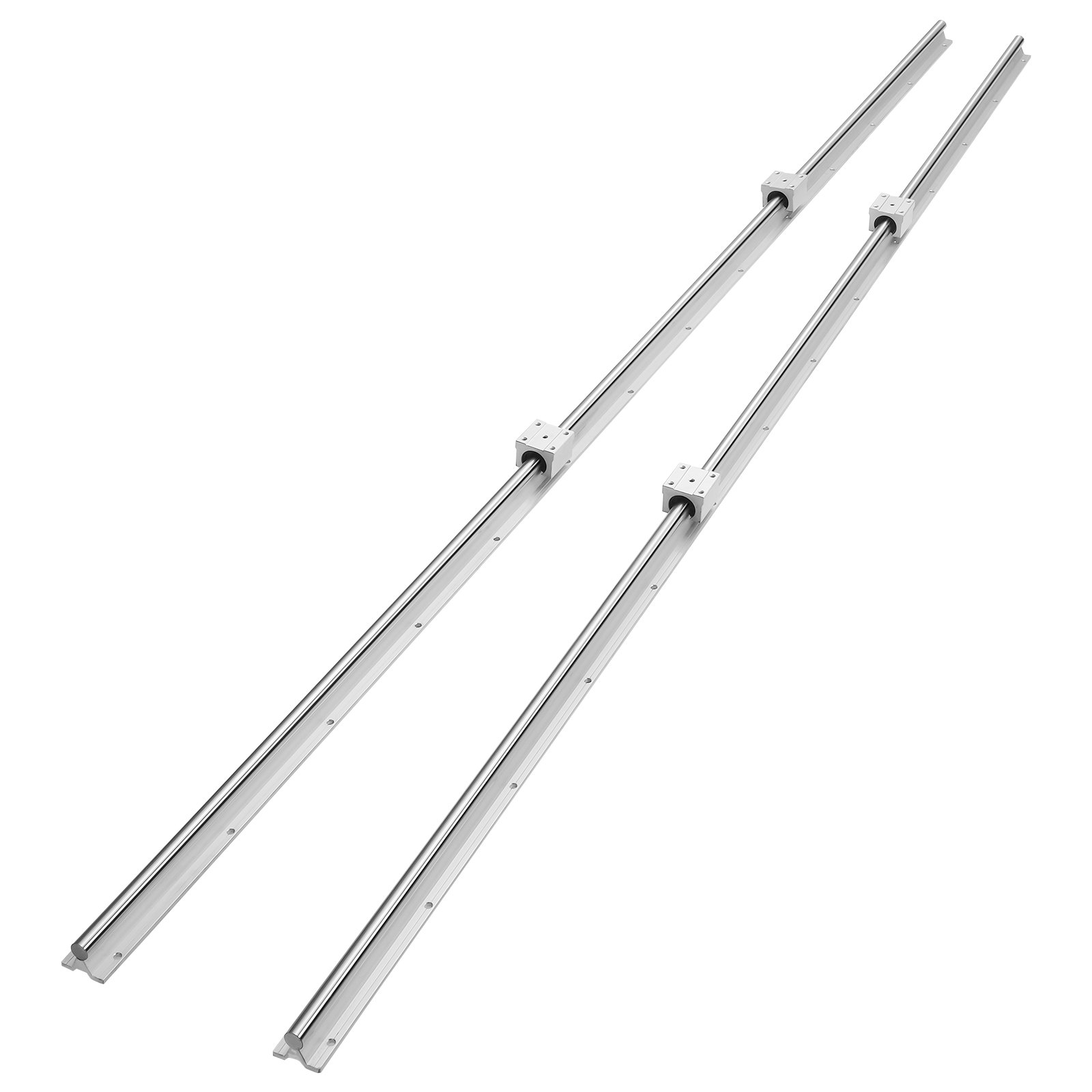

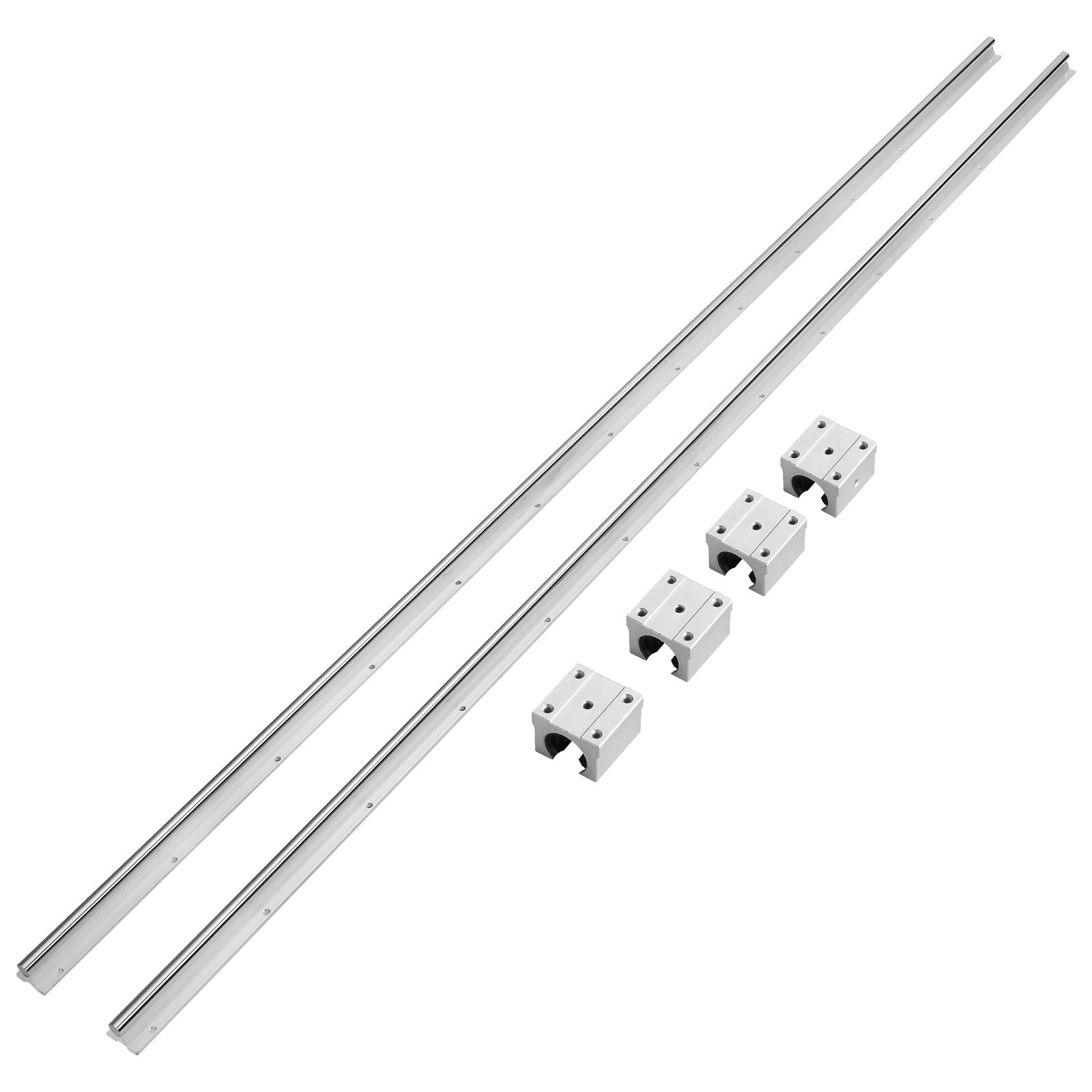

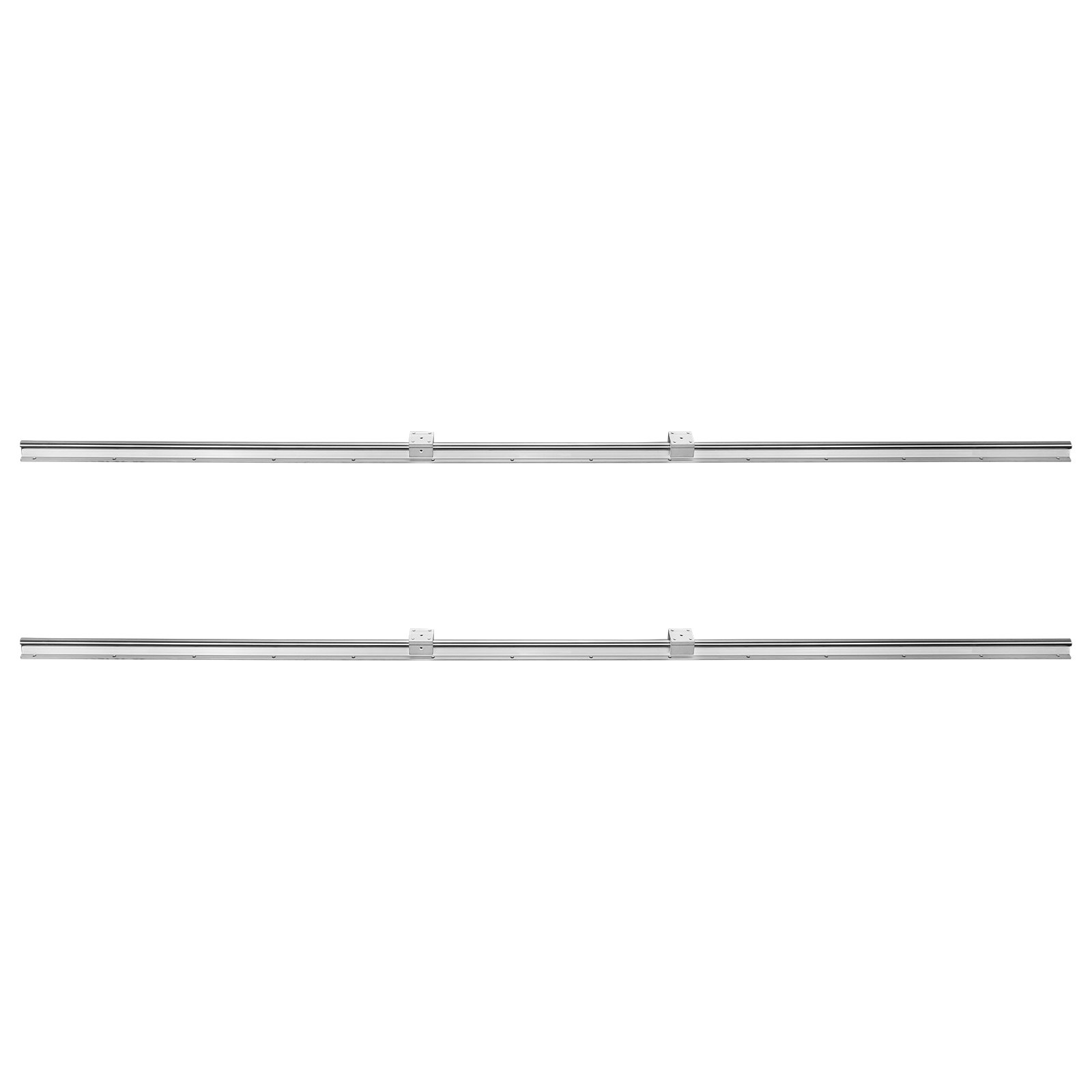

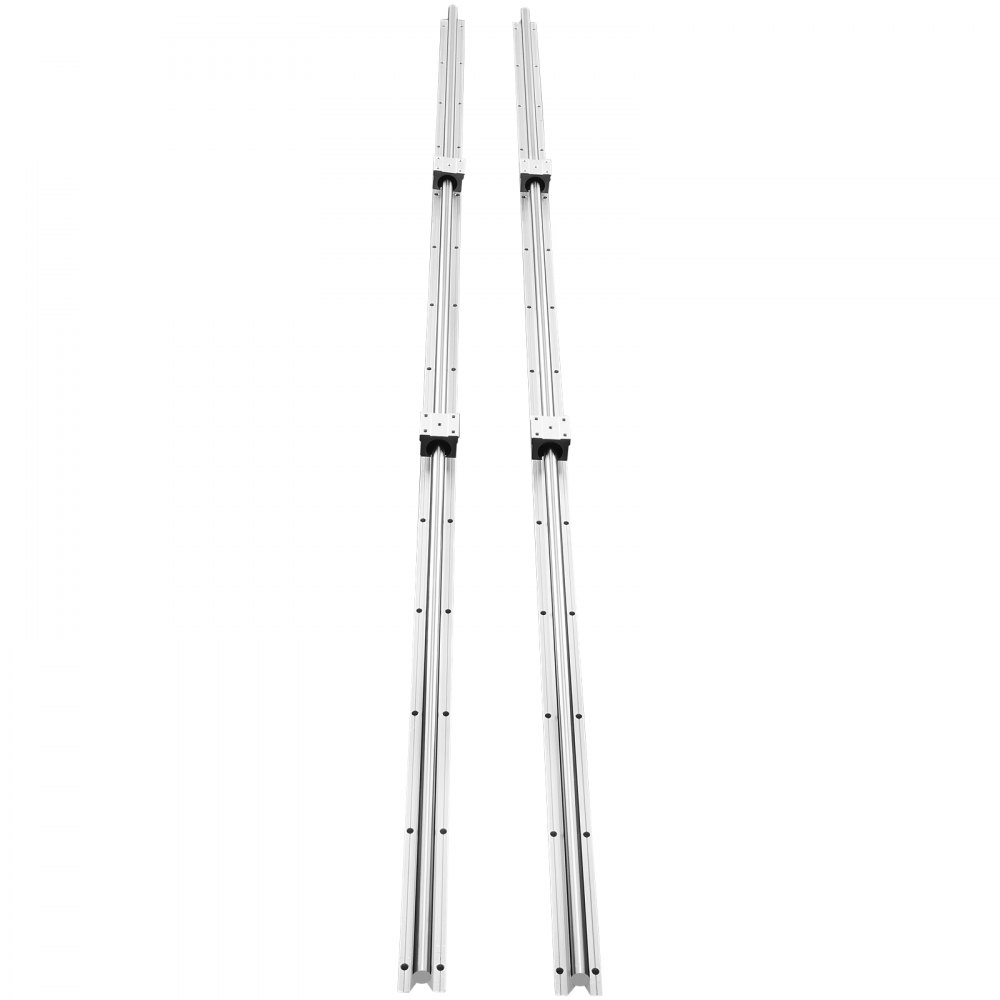

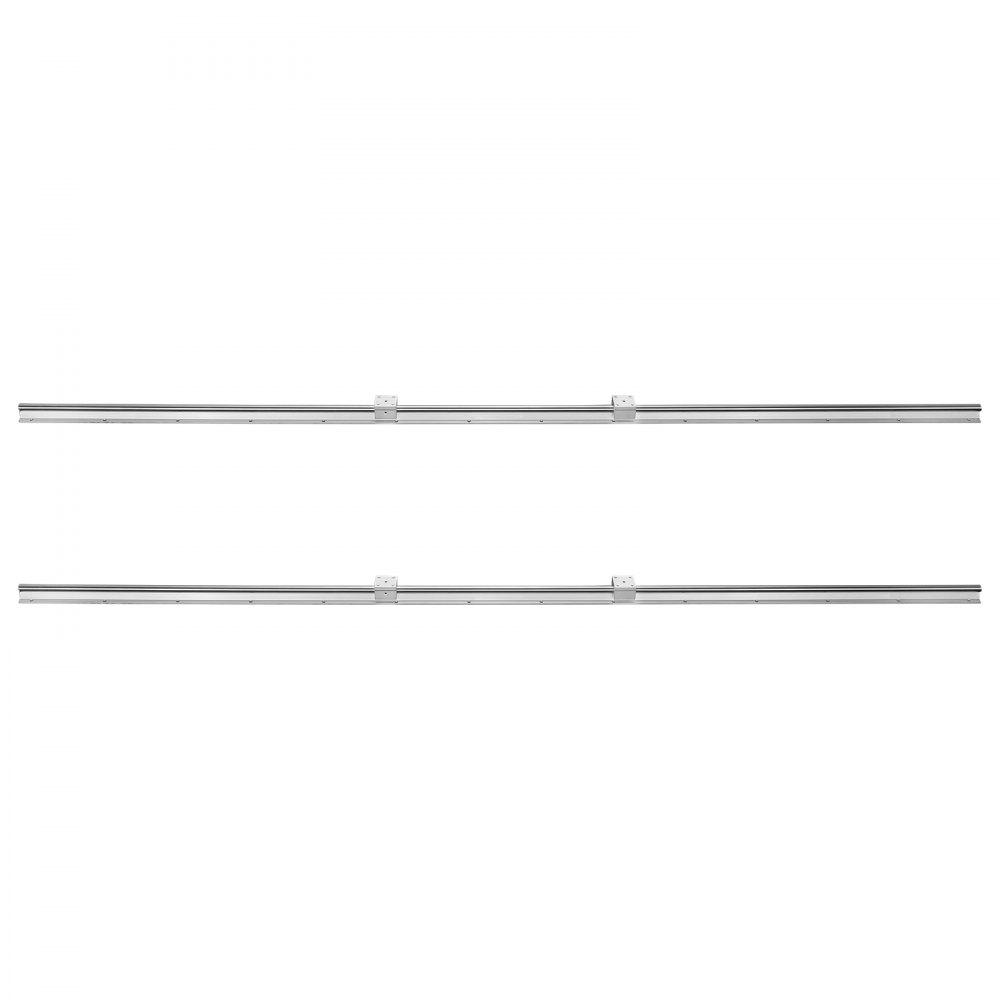

- SBR linear guide rail set: The SBR20-2200 mm linear motion guide rail contains two 2200 mm long SBR20 guide rails and four SBR20UU sliding blocks. Dynamic load per block: 882 N, static load per block: 1370 N.

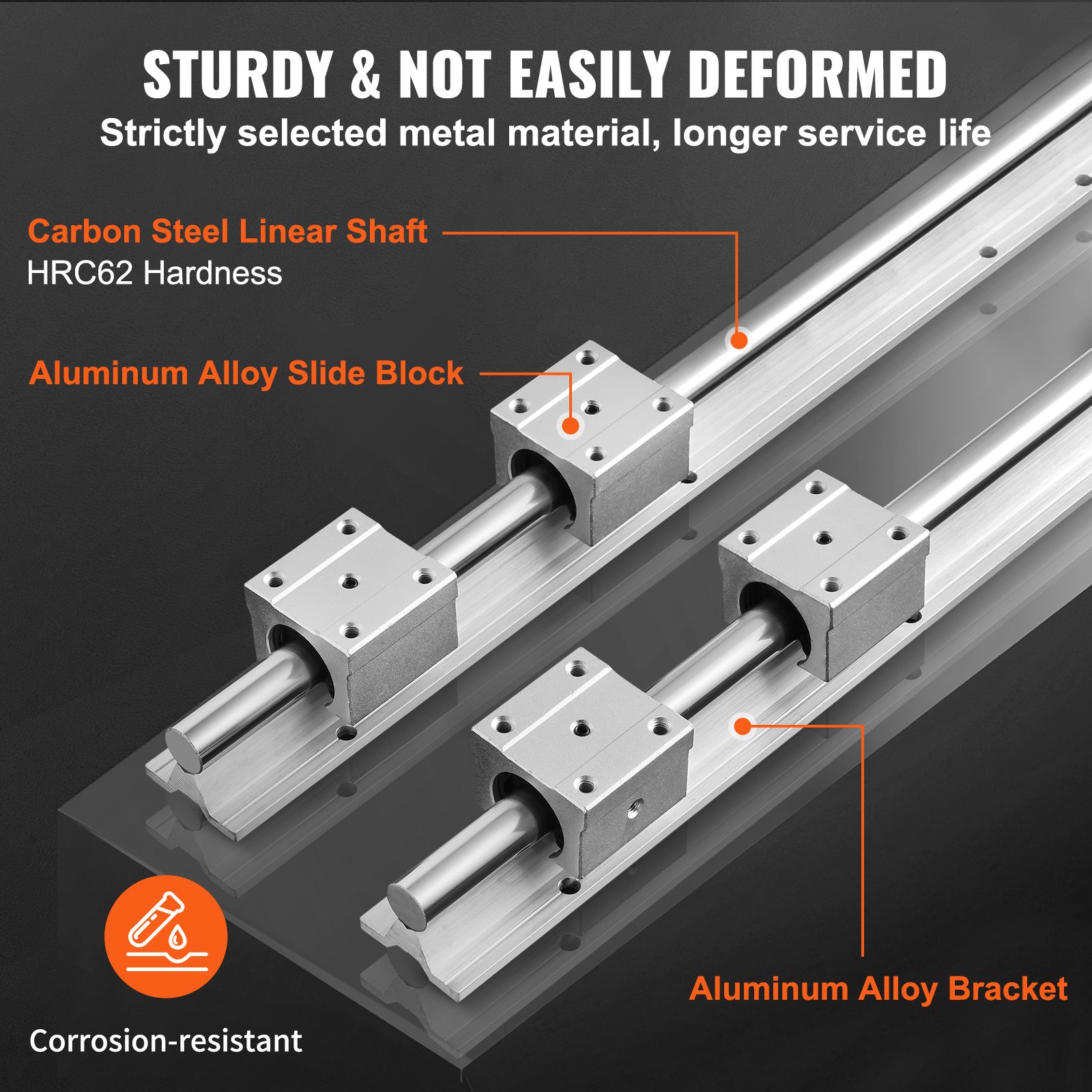

- Durable & Long-Lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated finish for rust resistance and high durability. It features four built-in aluminum sliding blocks and ball bearings for smooth and unimpeded movement.
- Quiet gliding: The SBR aluminum sliding blocks and the carbon steel linear shaft are perfectly matched. The integrated ball bearing ensures smooth, jam-free movement, enabling effortless control.

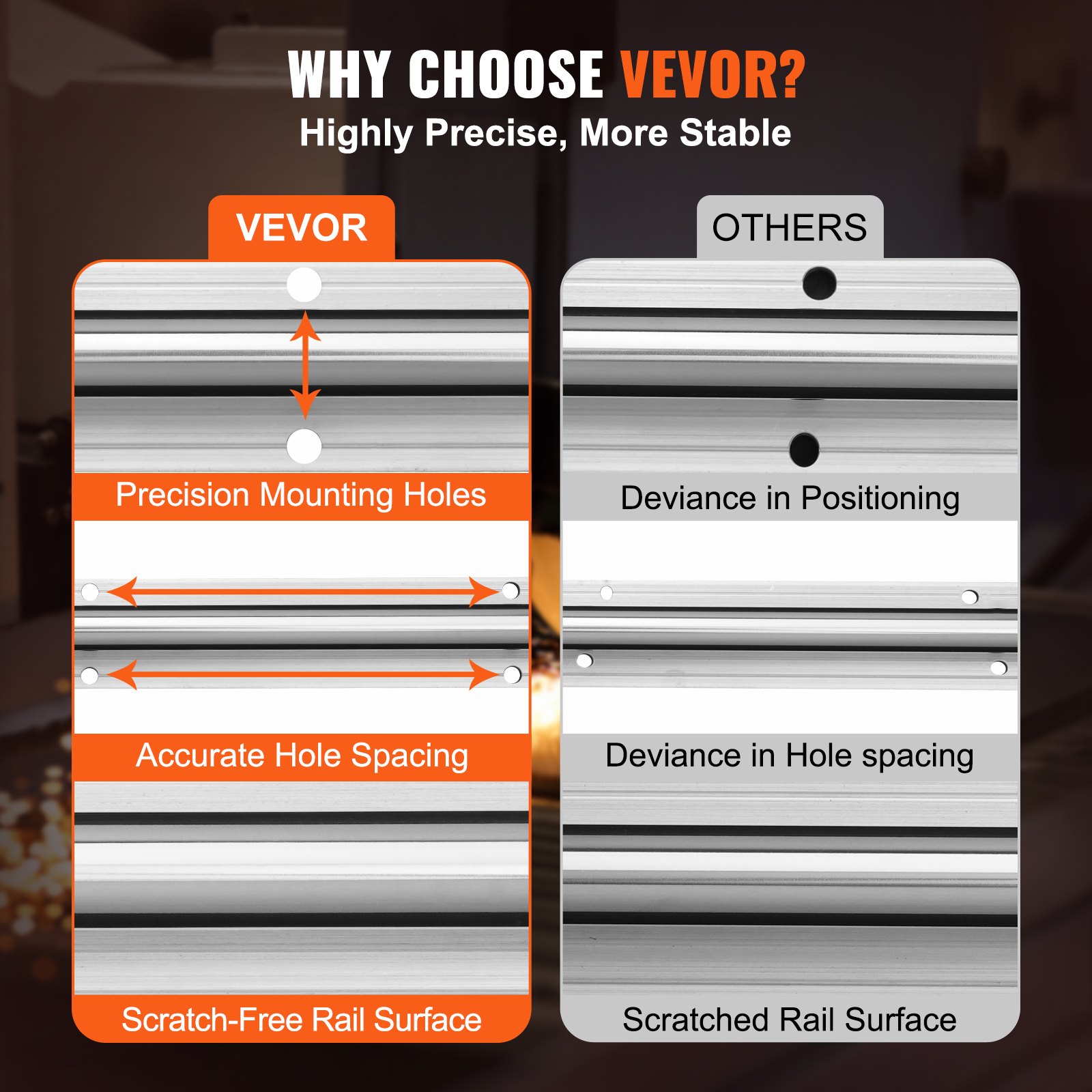

- High precision: Precise circular shaft dimensions and straightness ensure high accuracy, repeatability, and stability of movement. The robust aluminum base and sliding block feature precision mounting holes, facilitating reliable installation and connection for the user.

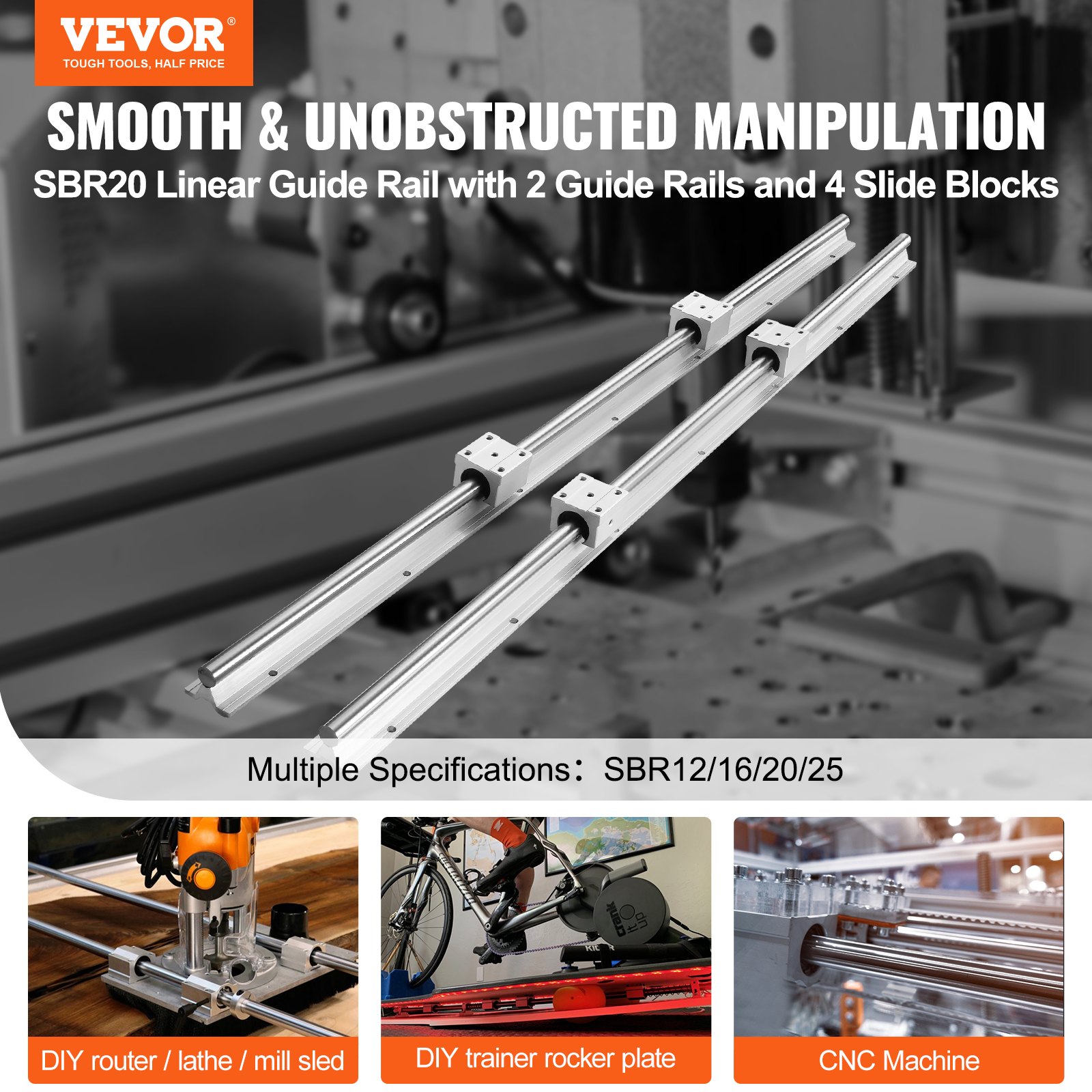

- Wide application: The SBR linear rail set is versatile and suitable for all types of heavy-duty automation equipment and DIY projects, such as router/milling/turning machine slides, 3D printers, laser engravers, CNC machines, trainer swivel plates, etc.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 217 reviews
Reviews 4.9
All reviews are from verified purchases
See all 217 reviews
About this item

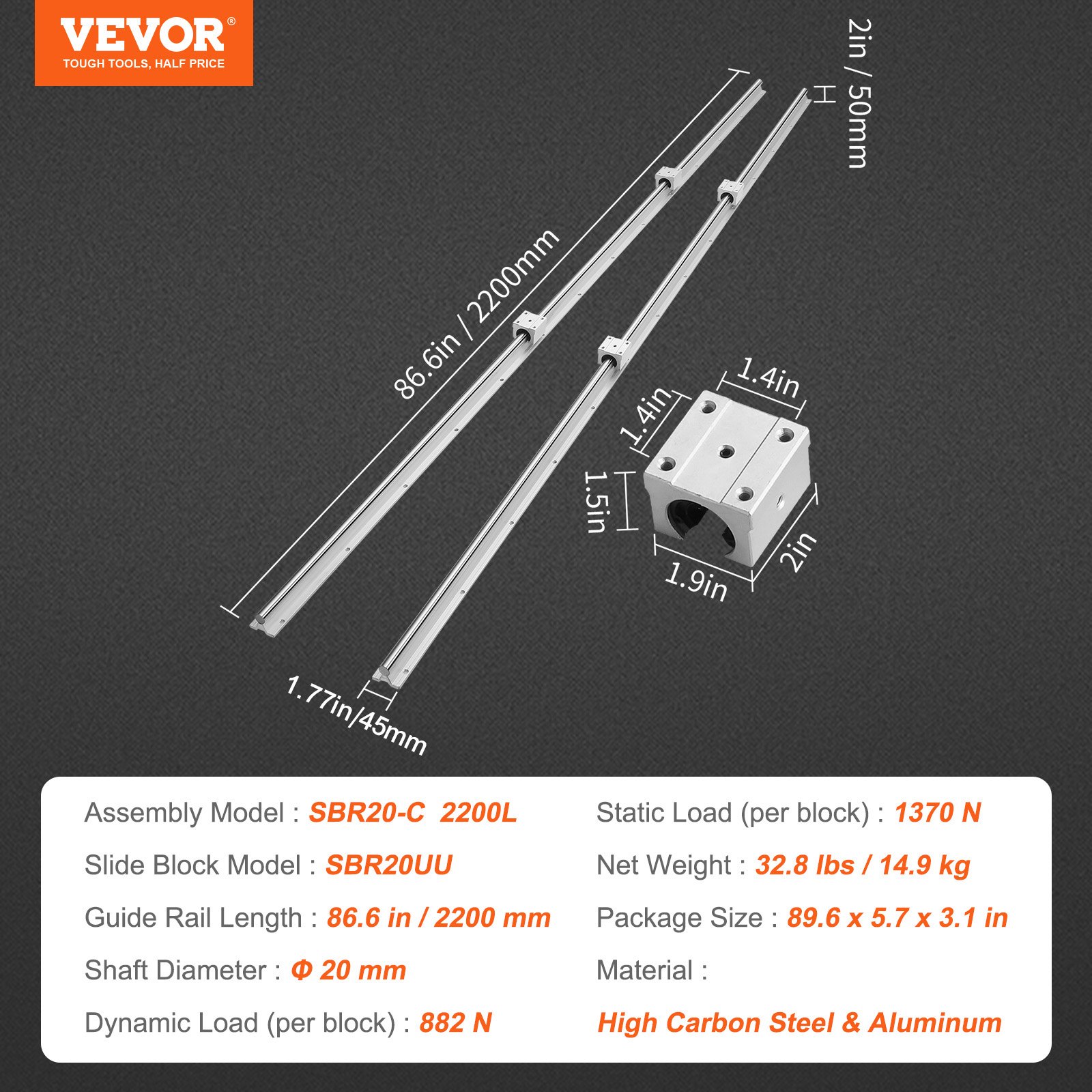

Product specification
- Item model number
- SBR20-C 2200L
- Sliding block model
- SBR20UU
- Guide rail length
- 86.6 inches (2200 mm)
- Shaft diameter
- Φ 20 mm
- Dynamic load (per block)
- 882 N
- Static load (per block)
- 1370 N
- Material
- Carbon steel and aluminum
- Mounting hole spacing A
- 35 mm (1.4 inches)
- Mounting hole spacing B
- 35 mm (1.4 inches)
- Sliding block size (L x W x H)
- 50 x 48 x 39 mm (2 x 1.9 x 1.5 inches)
- Product dimensions (L x W x H)
- 2200 x 96 x 50 mm (86.6 x 3.8 x 2 inches)
- Packaging dimensions (L x W x H)
- 2275 x 145 x 80 mm (89.6 x 5.7 x 3.1 inches)
- Net weight
- 14.9 kg (32.8 lbs)
Description
SBR linear guide rail
VEVOR's high-quality SBR linear guide rail includes two guide rails and four sliding blocks. The durable aluminum guide rails feature precise hole diameters and spacing, while the SBR sliding blocks utilize ball bearings for smooth movement.
The linear bearing consists of a solid metal structure, and the sliding block is firmly locked onto the linear shaft, providing a high load-bearing capacity.

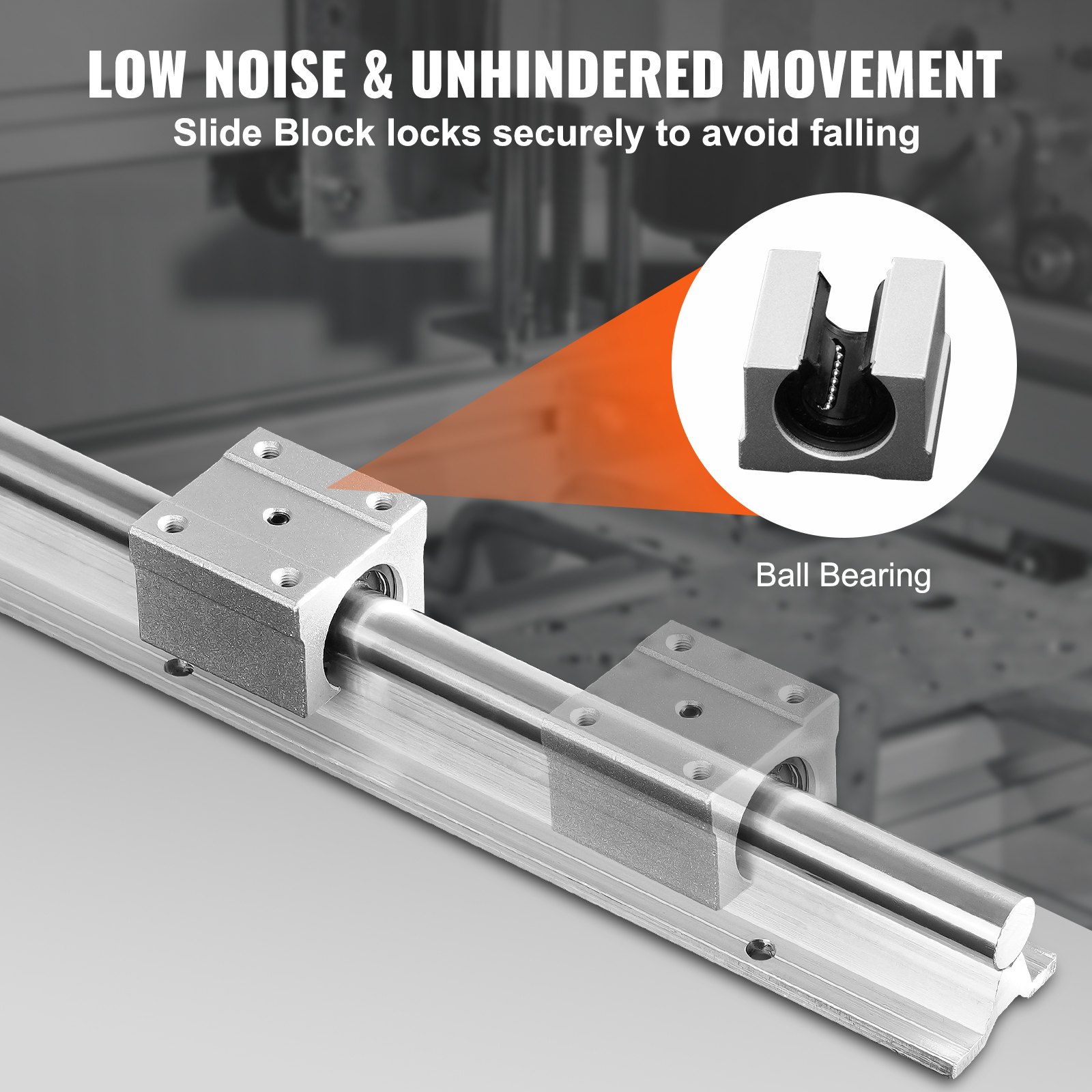

The SBR aluminum sliding block and the built-in ball bearings glide smoothly and move effortlessly to ensure long-term stable operation.
The linear guides feature precise hole spacing, hole diameters and standard shaft diameters, allowing you to install your equipment with even greater precision.
The linear rail kit is frequently used in heavy-duty automation systems and DIY projects. For example, DIY CNC engraving machines, lathes, etc.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (5)
Kann die Führung auch längere Zeit im Freien betrieben werden, da sie ja nicht aus rostfreiem Stahl gefertigt ist?
Es wird nicht empfohlen, es längere Zeit im Freien zu verwenden. Es wird empfohlen, es regelmäßig mit Öl zu bürsten, um es zu pflegen.
By vevor
Helpful
(
1
)
Guten Tag
Darf man die Schienen miteinander verbinden? Ich brauche eine Schienenlänge von 2550mm.
Wie gross darf die Belastung wenn sie auf 4 Blöcke verteilt wird?
Freundliche Grüsse Stefn Hinder
Tracks können nicht miteinander verbunden werden, wenn Sie nicht wissen, wie sie andocken.
By vevor
Helpful
(
0
)
Hallo,
können die Schienen auch in der Schräge benutzt werden oder müssen sie horizontal verbaut werden?
Danke und Gruß
Der Einbau erfolgt am besten waagerecht, da bei schrägem Einbau die Tragfähigkeit abnimmt.
By vevor
Helpful
(
0
)
Habt ihr auch Endanschläge für das Linearschienen System
Nein, wir haben keine Endanschläge für Linearführungssysteme.
By vevor
Helpful
(
0
)
Hallo,
können diese Schienen auch in der Länge verbunden werden damit sich eine Gesamtlänge von 4400mm ergibt?
Es kann ein einzelnes Stück verwendet werden, zwei miteinander verbundene Schieber können jedoch nicht hindurchgehen.
By vevor
Helpful
(
0
)
