Features & Details

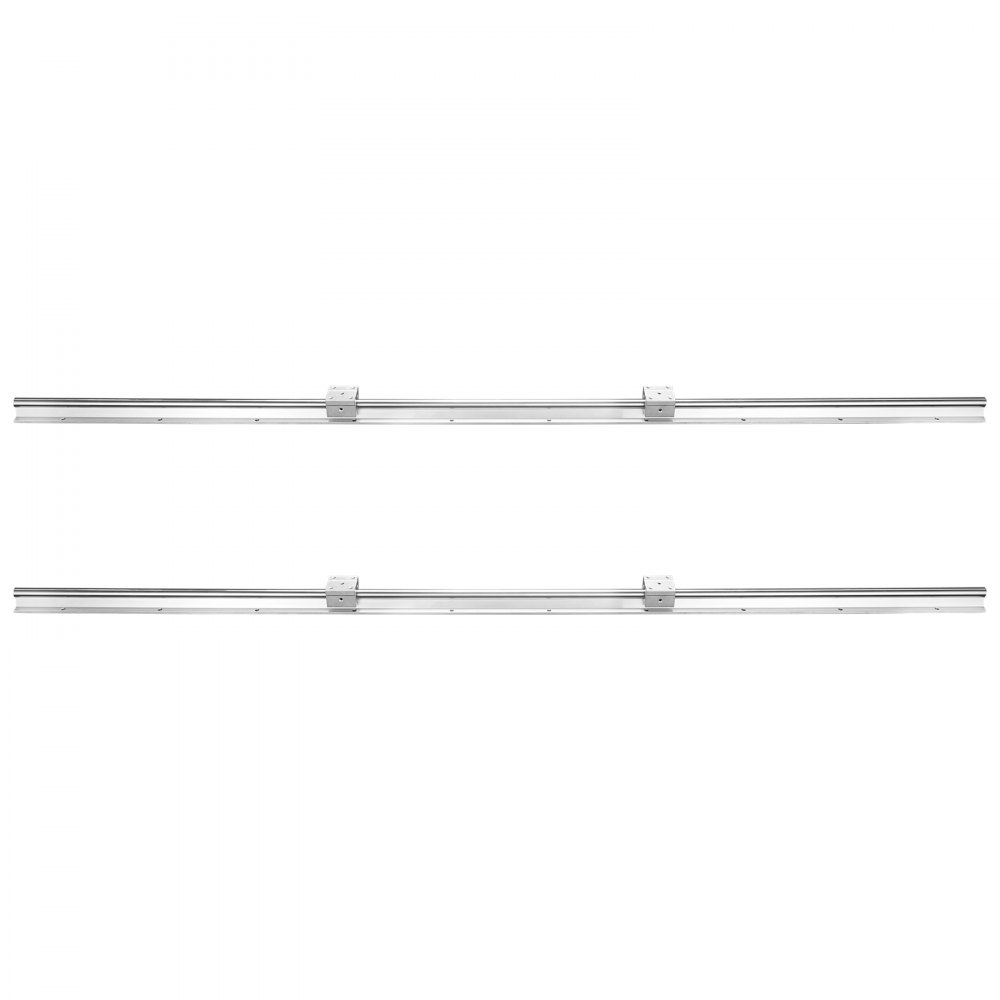

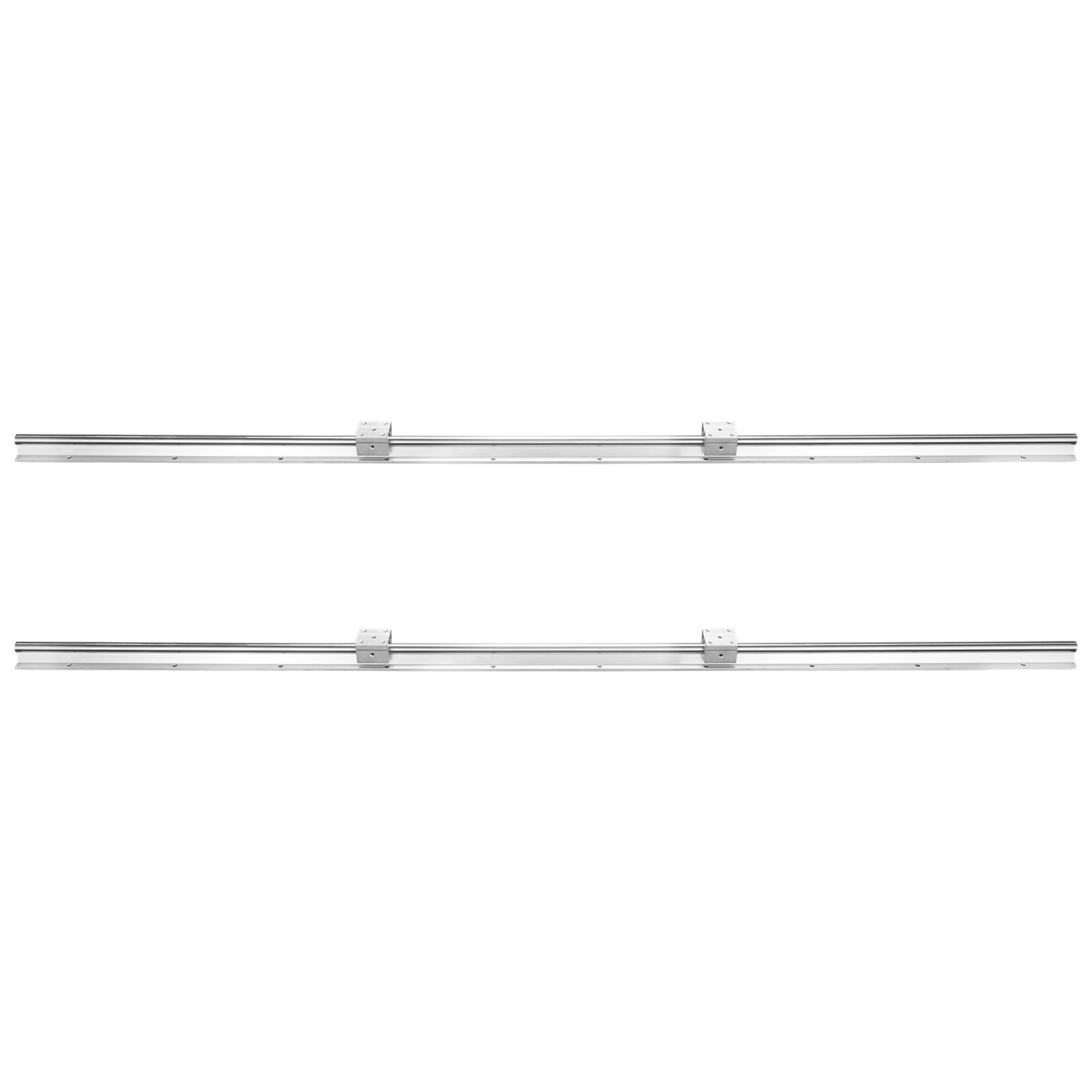

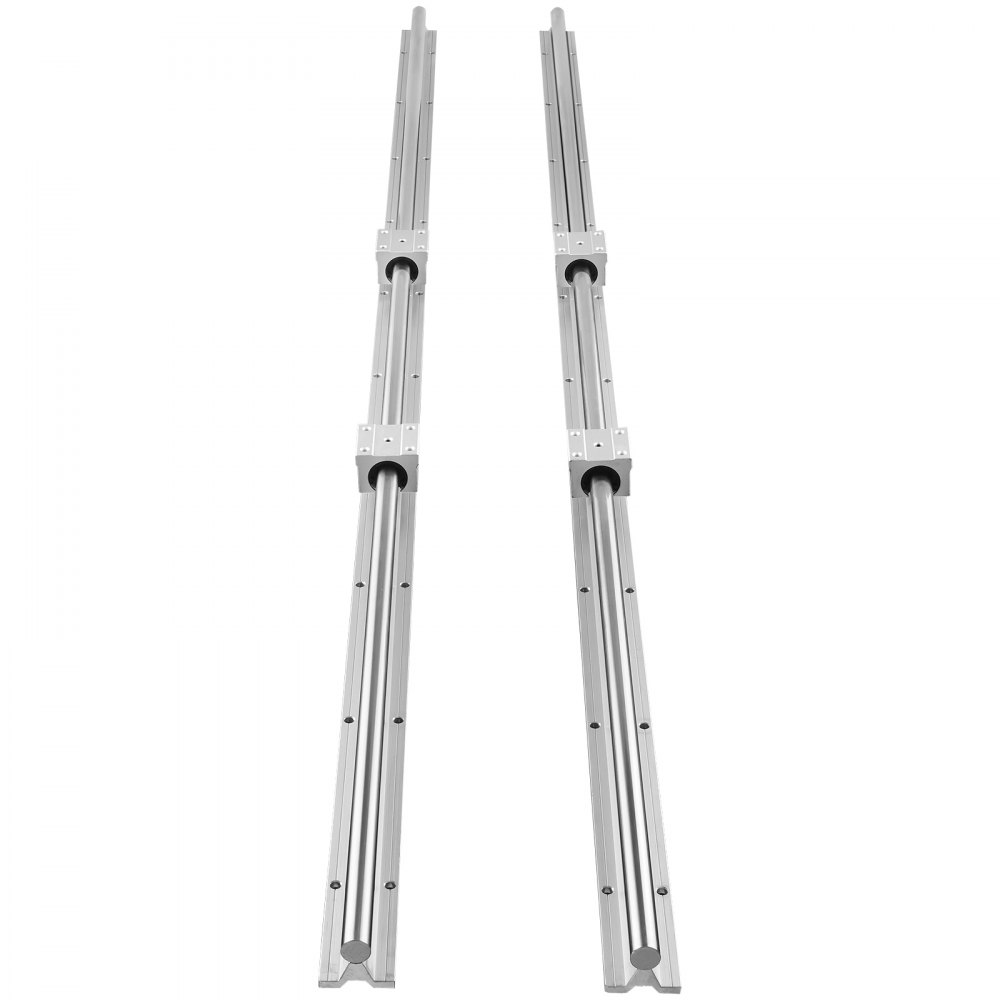

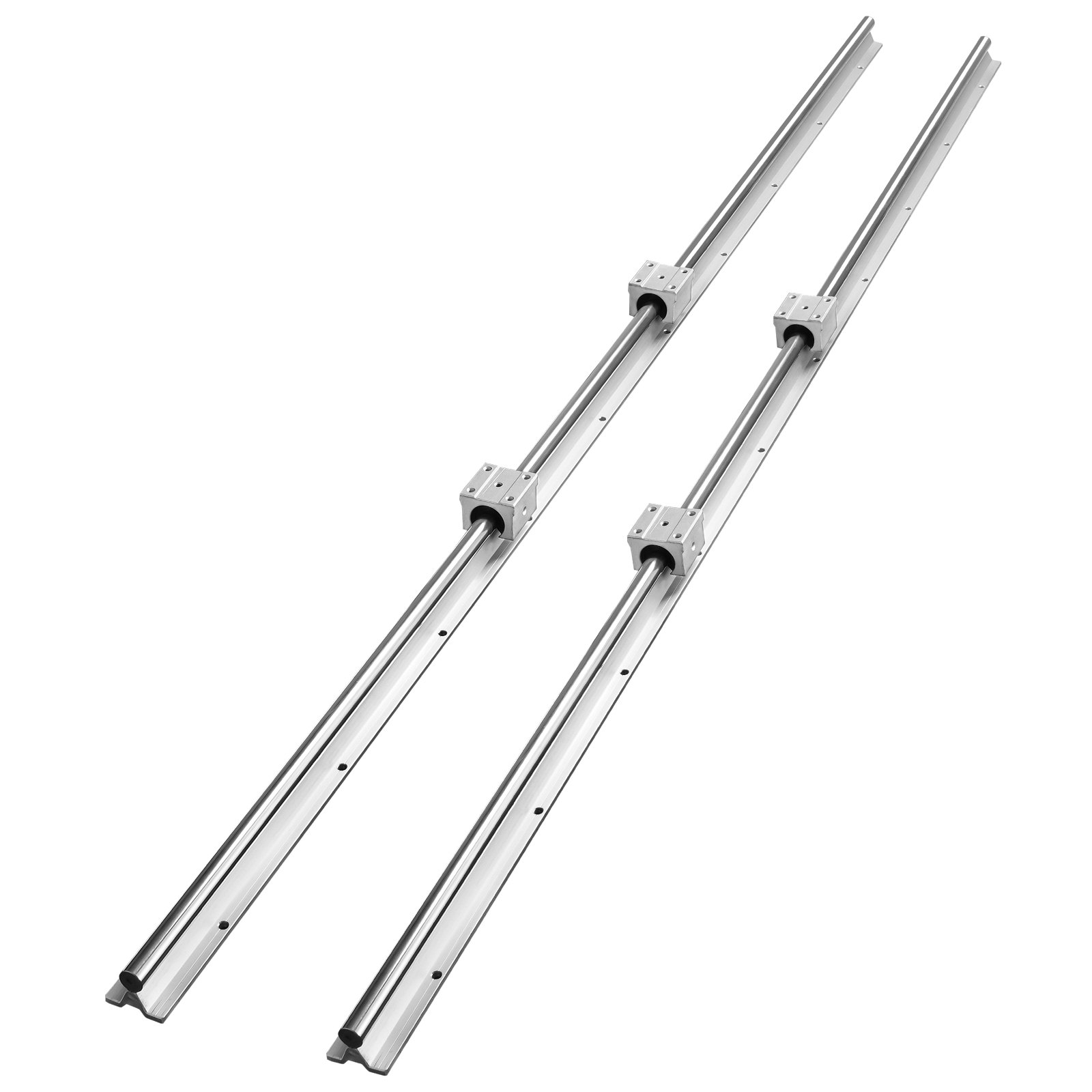

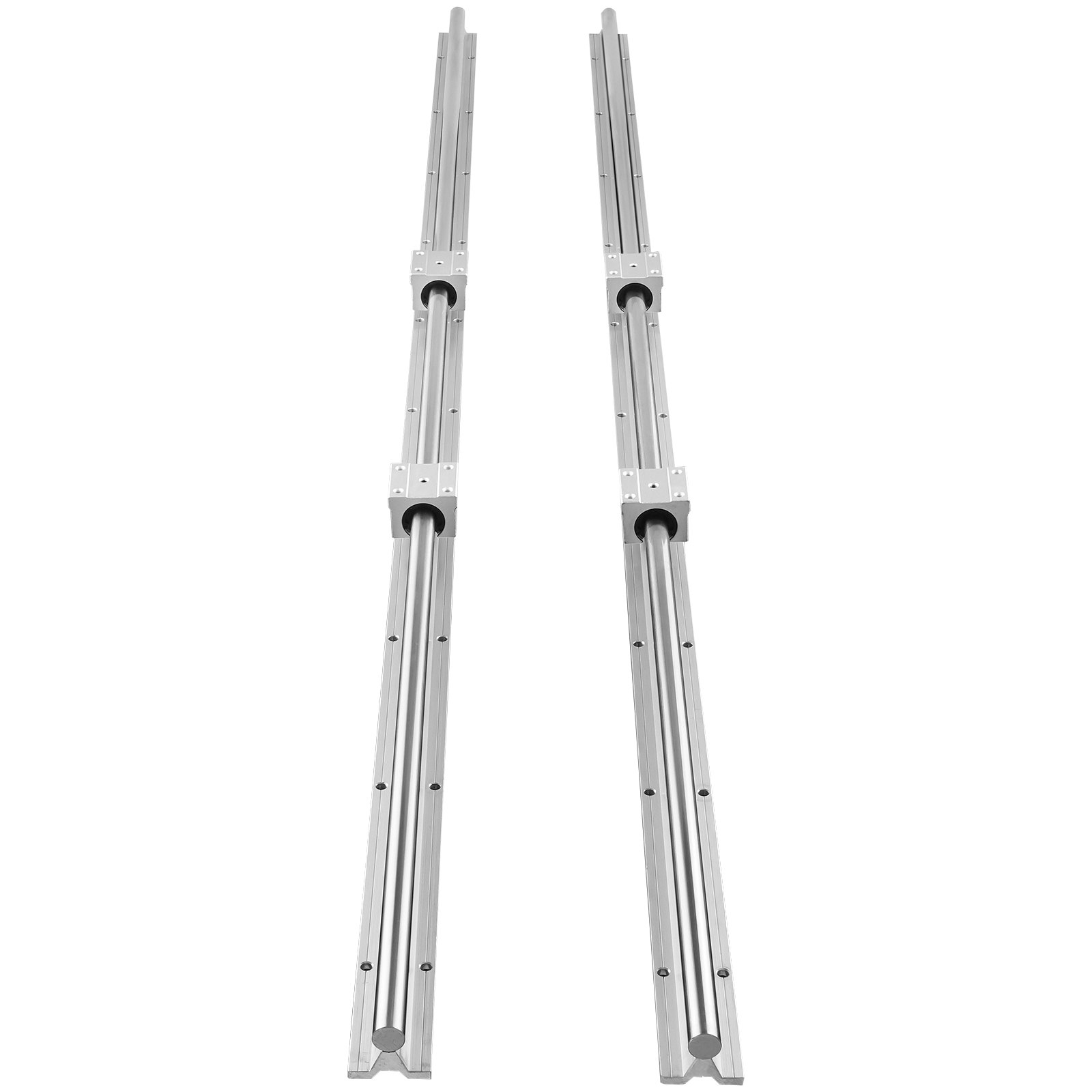

- SBR linear guide rail set: The SBR20-1500 mm linear motion guide rail contains two 1500 mm long SBR20 guide rails and four SBR20UU sliding blocks. Dynamic load per block: 882 N, static load per block: 1370 N.

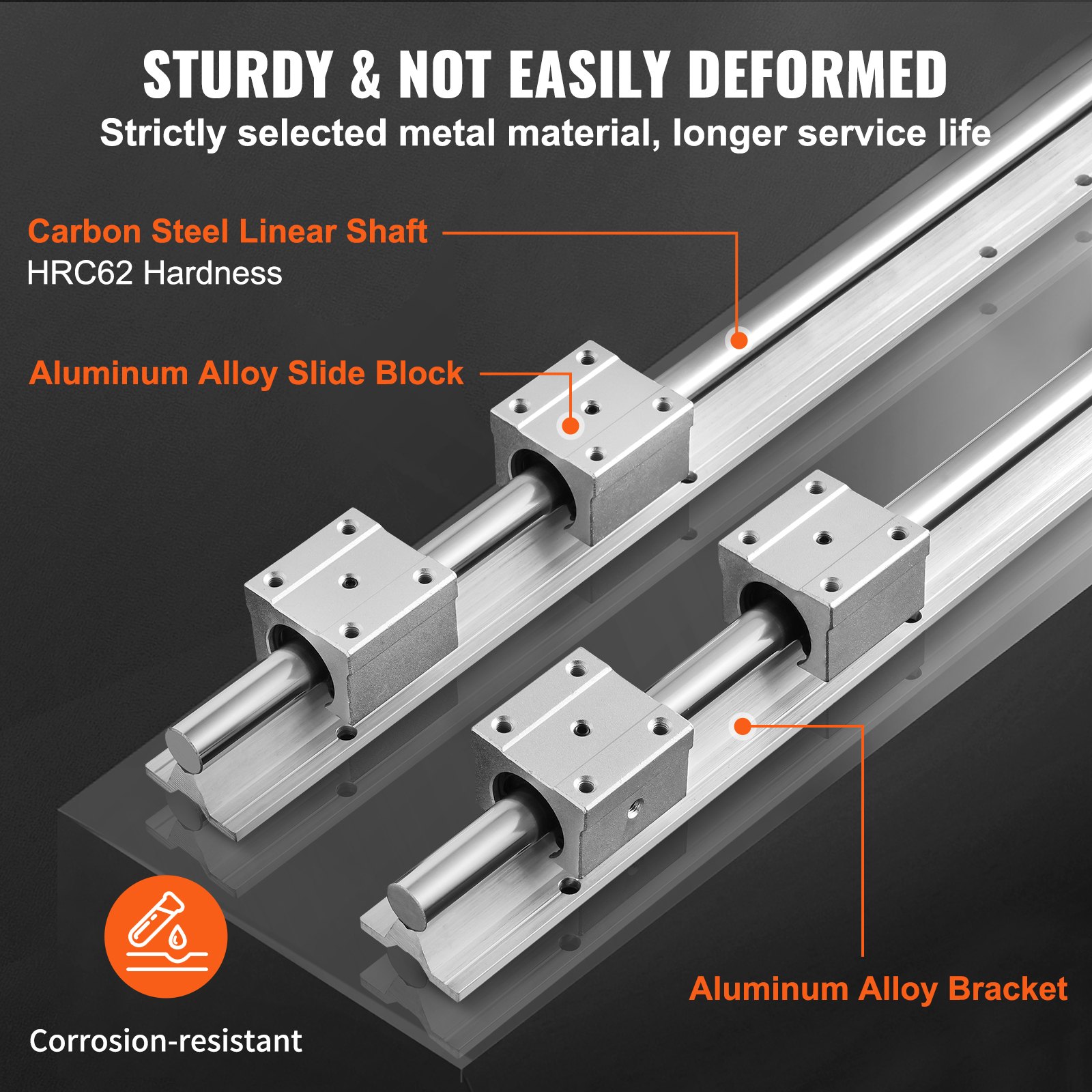

- Durable & Long-Lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated finish for rust resistance and high durability. It features four built-in aluminum sliding blocks and ball bearings for smooth and unimpeded movement.
- Quiet gliding: The SBR aluminum sliding blocks and the carbon steel linear shaft are perfectly matched. The integrated ball bearing ensures smooth, jam-free movement, enabling effortless control.
- High precision: Precise circular shaft dimensions and straightness ensure high accuracy, repeatability, and stability of movement. The robust aluminum base and sliding block feature precision mounting holes, facilitating reliable installation and connection for the user.

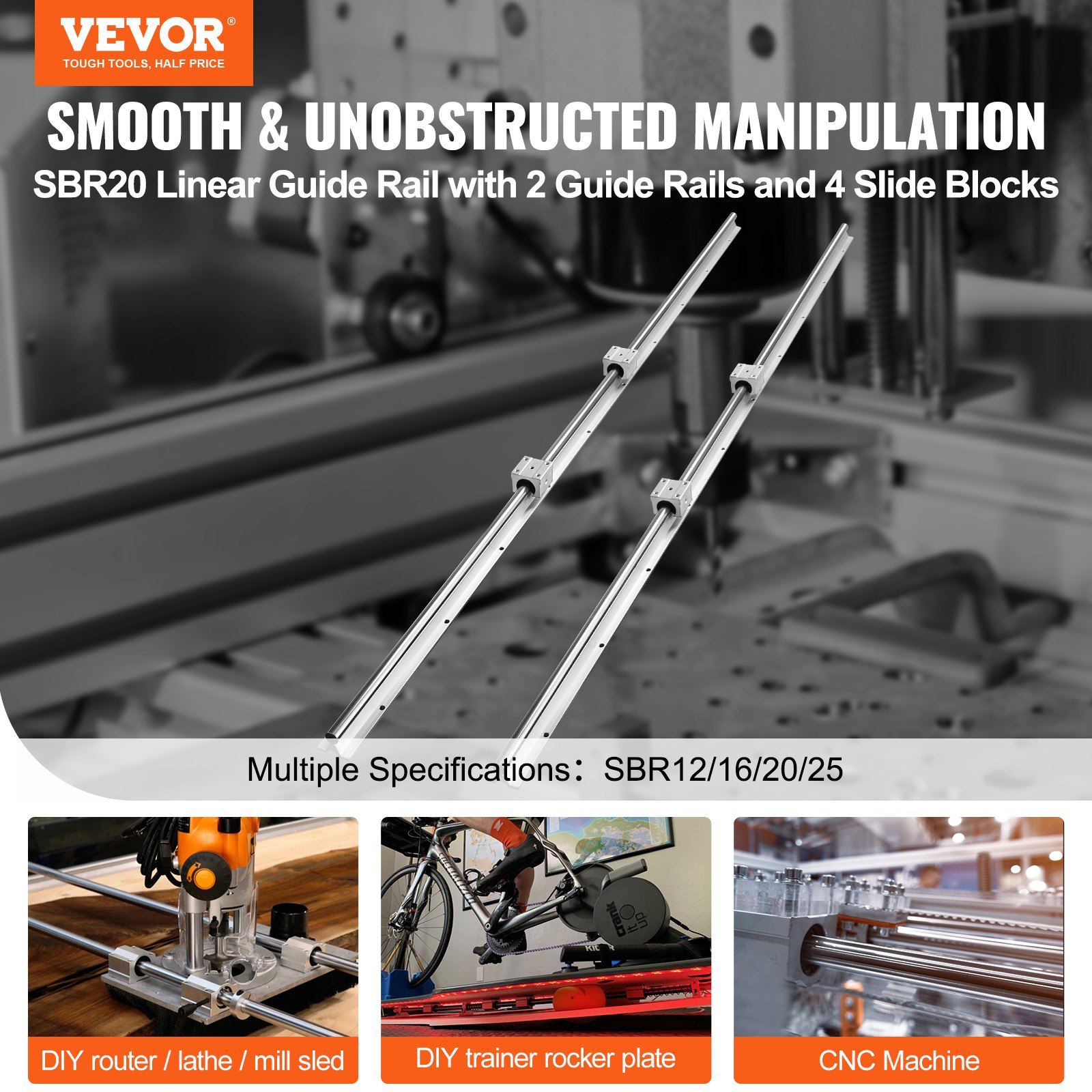

- Wide application: The SBR linear rail set is versatile and suitable for all types of heavy-duty automation equipment and DIY projects, such as router/milling/turning machine slides, 3D printers, laser engravers, CNC machines, trainer swivel plates, etc.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 217 reviews
Reviews 4.9
All reviews are from verified purchases
See all 217 reviews
About this item

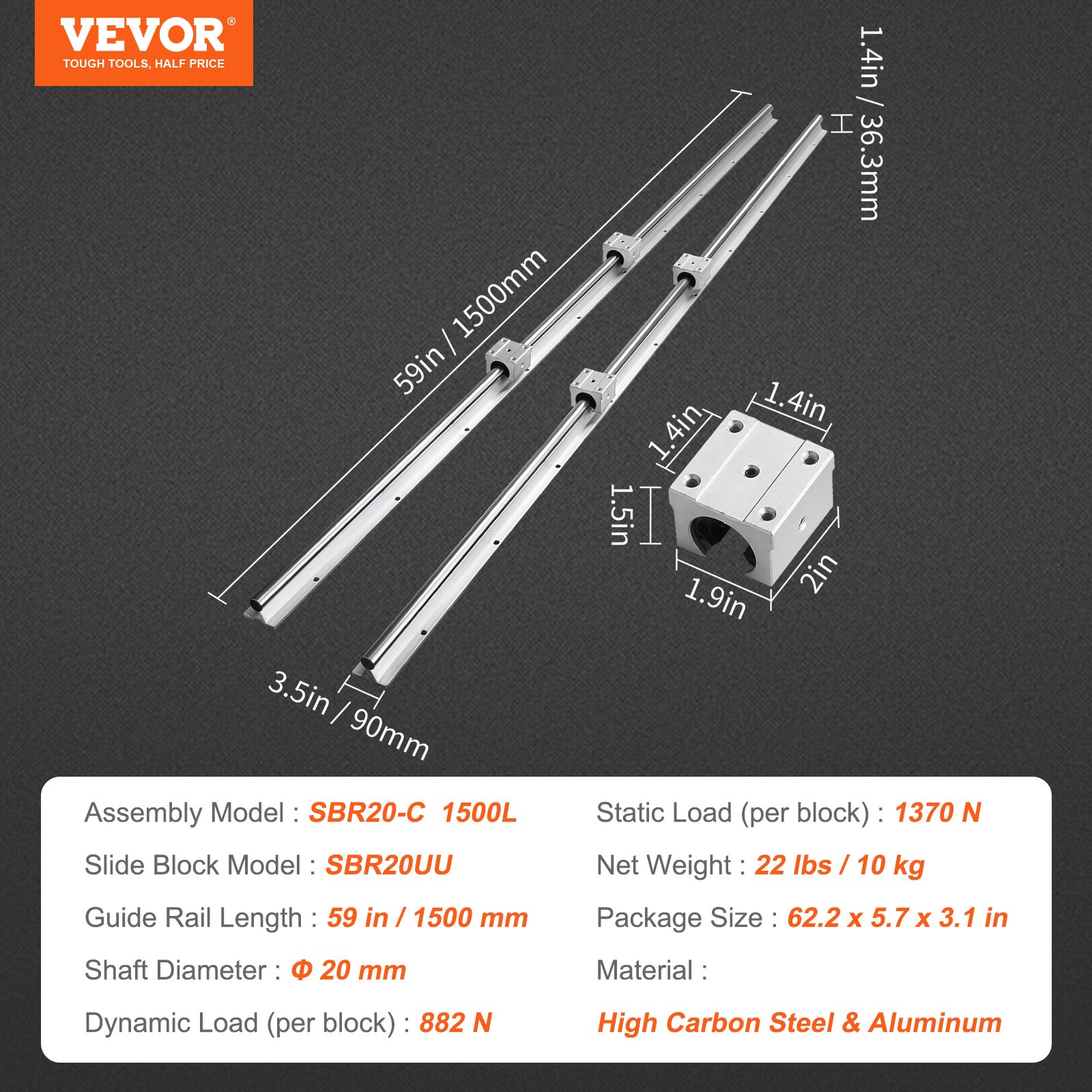

Product specification
- Article model number
- SBR20-C 1500L
- Sliding block model
- SBR20UU
- Guide rail length
- 1500 mm (59 inches)
- Shaft diameter
- Φ 20 mm
- Dynamic load (per block)
- 882 N
- Static load (per block)
- 1370 N
- Material
- Carbon steel and aluminum
- Mounting hole spacing A
- 35 mm (1.4 inches)
- Mounting hole spacing B
- 35 mm (1.4 inches)
- Sliding block size (L x W x H)
- 50 x 48 x 39 mm (2 x 1.9 x 1.5 inches)
- Product dimensions (L x W x H)
- 1500 x 90 x 36.3 mm (59 x 3.5 x 1.4 inches)
- Packaging dimensions (L x W x H)
- 1580 x 145 x 80 mm (62.2 x 5.7 x 3.1 inches)
- Net weight
- 10 kg (22 lbs)
Description

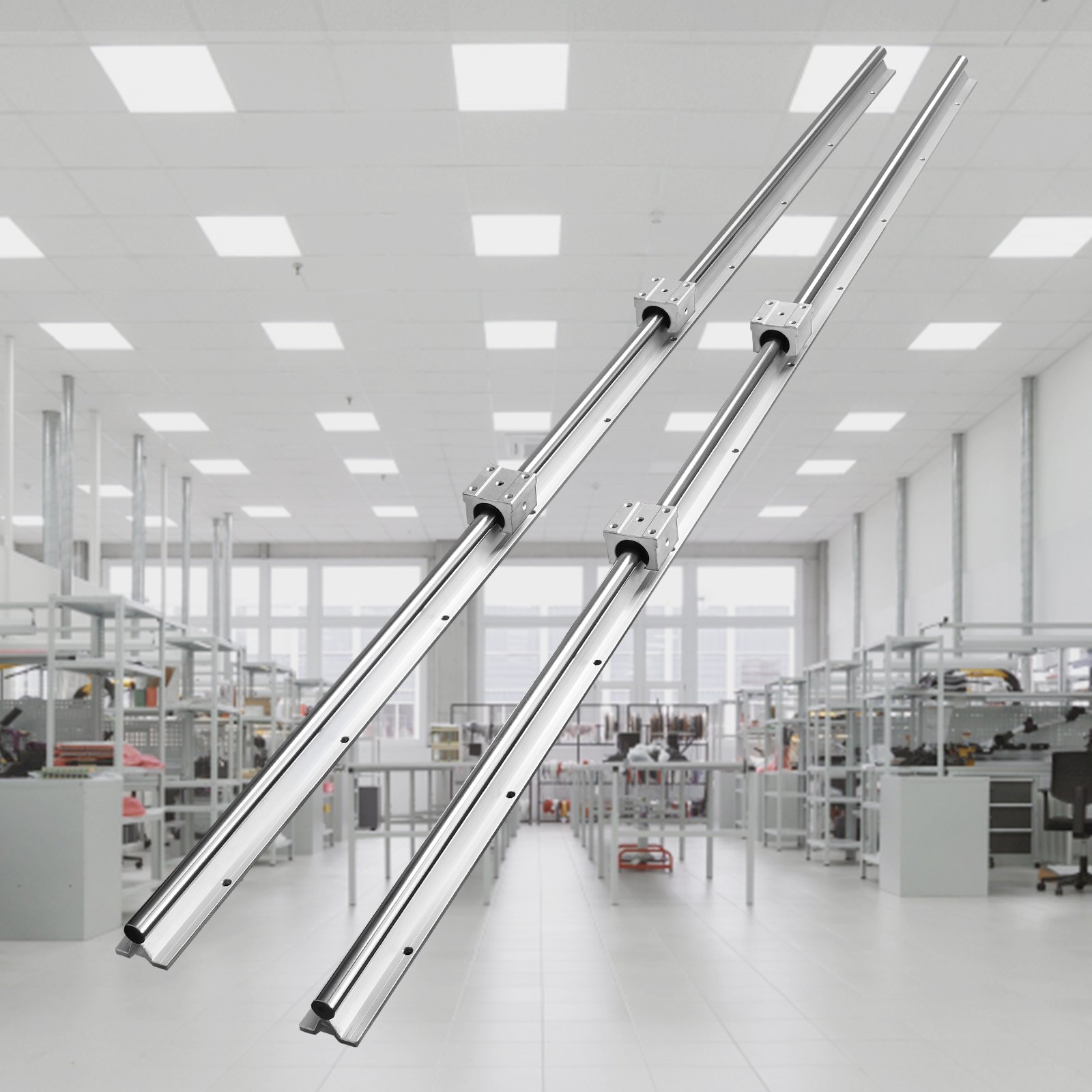

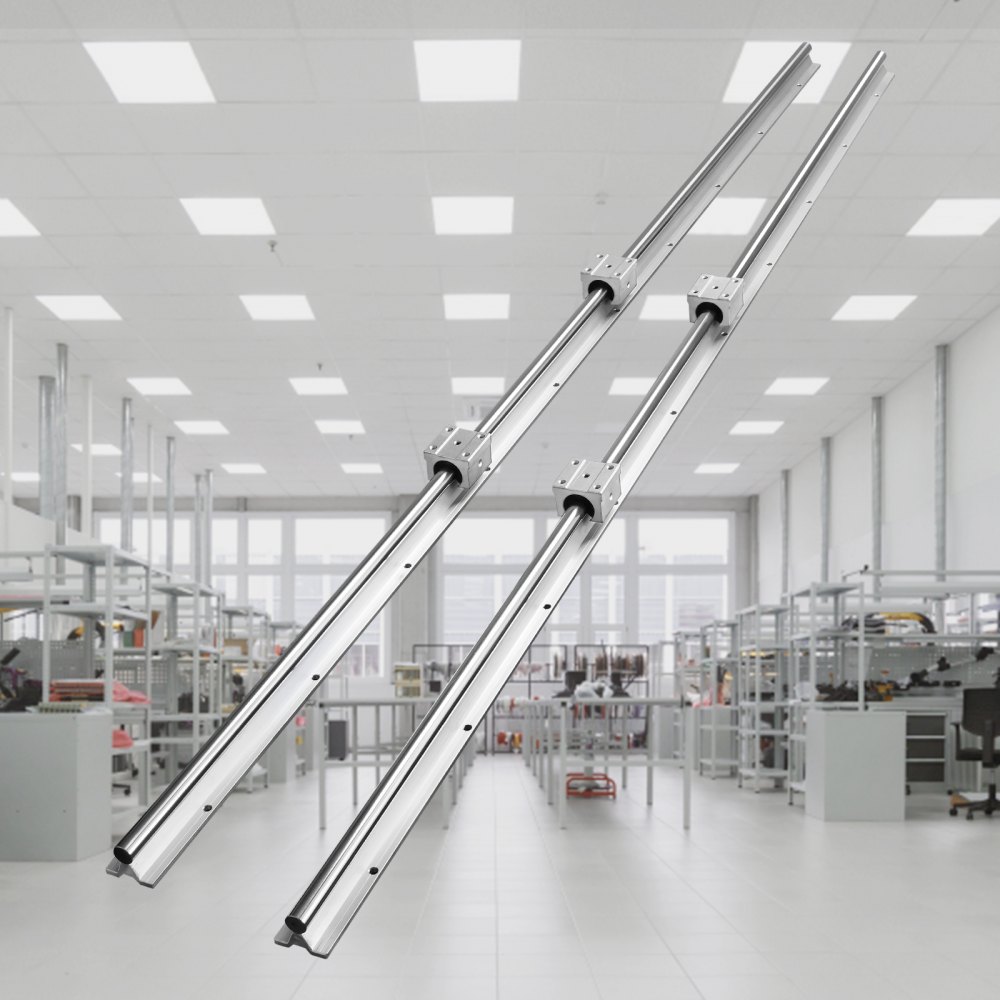

SBR linear guide rail

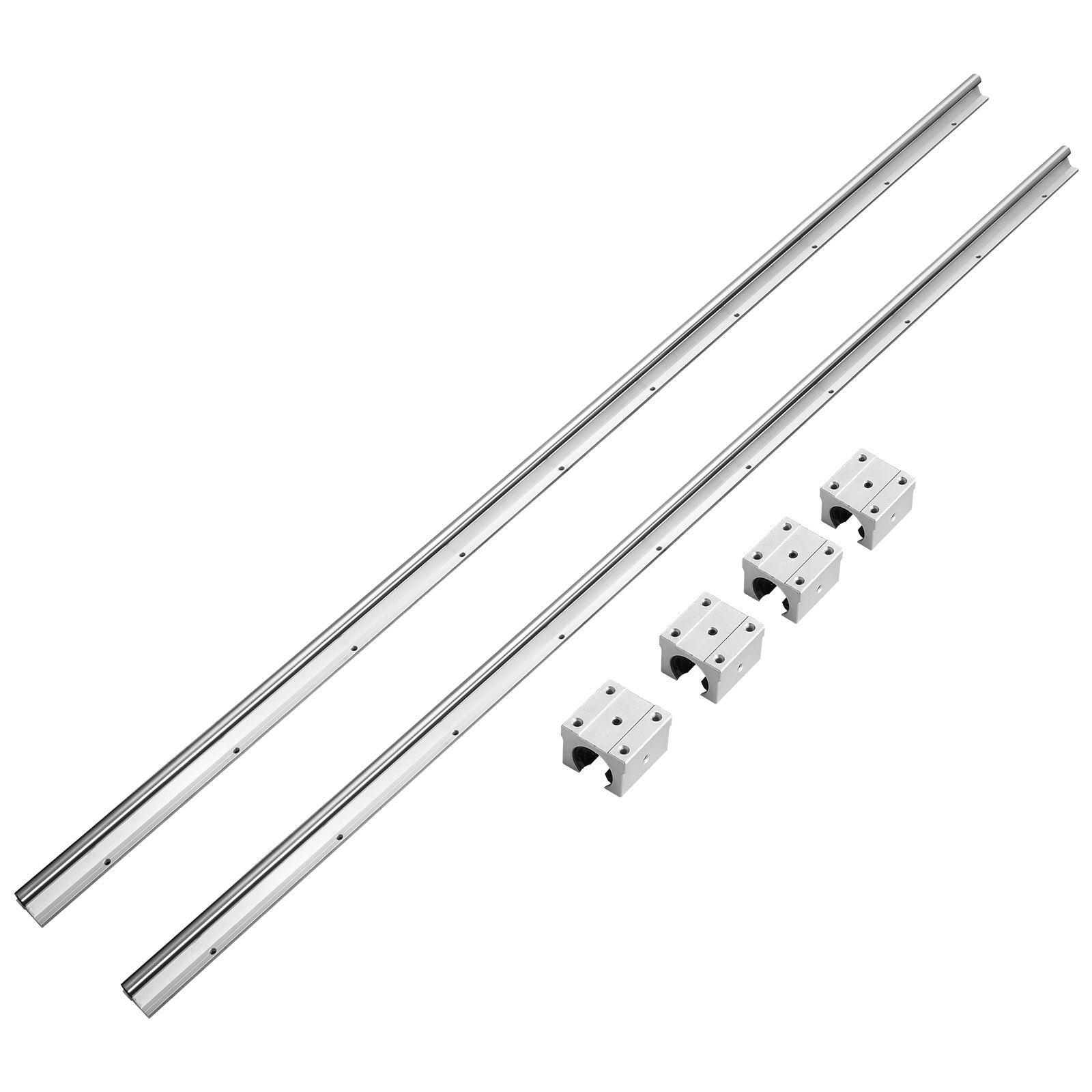

VEVOR's high-quality SBR linear guide rail includes two guide rails and four sliding blocks. The durable aluminum guide rails feature precise hole diameters and spacing, while the SBR sliding blocks utilize ball bearings for smooth movement.
Handle pressure with ease
The linear bearing consists of a solid metal structure, and the sliding block is firmly locked onto the linear shaft, providing a high load-bearing capacity.

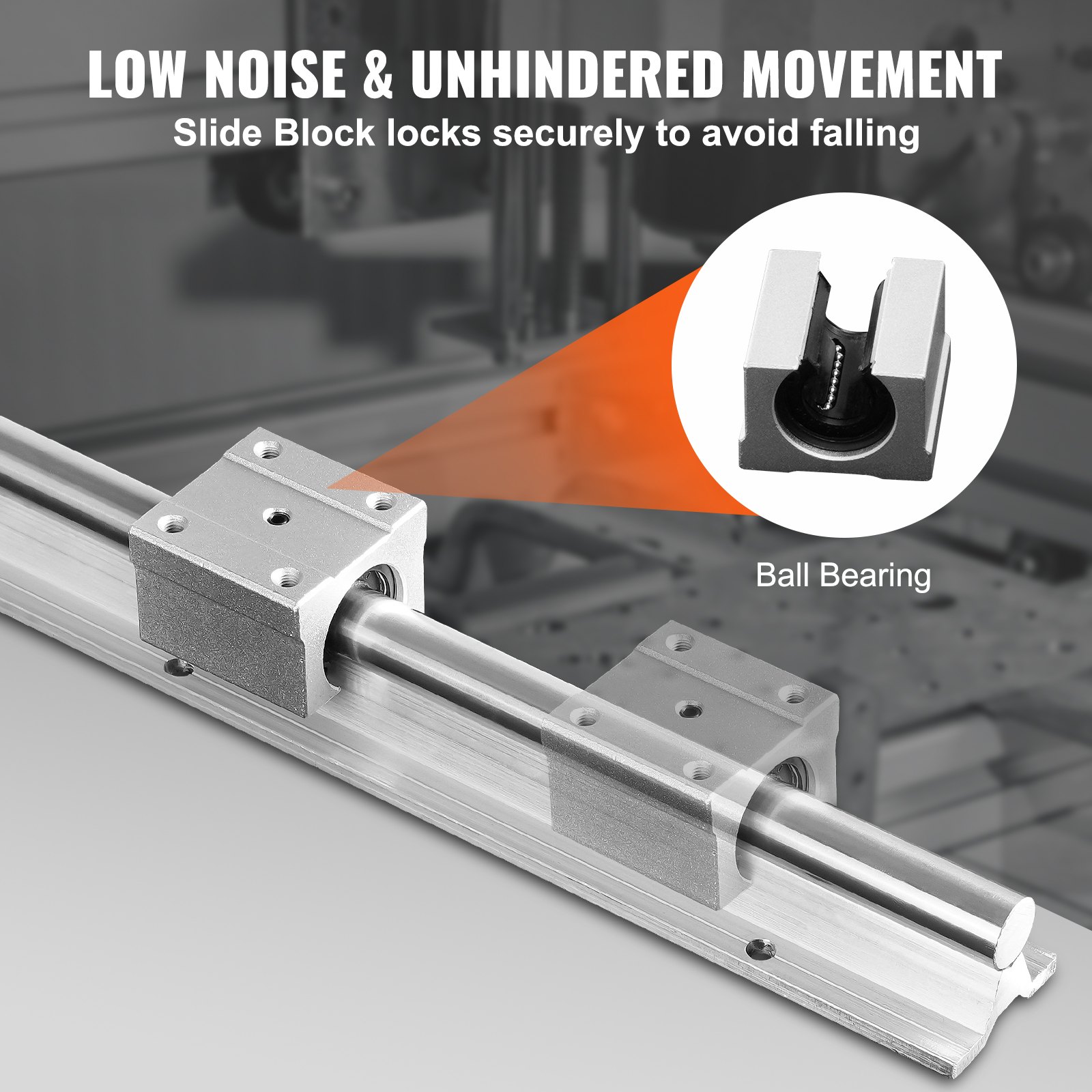

Smooth gliding without stuttering
The SBR aluminum sliding block and the built-in ball bearings glide smoothly and move effortlessly to ensure long-term stable operation.
More precise than ever before
The linear guides feature precise hole spacing, hole diameters and standard shaft diameters, allowing you to install your equipment with even greater precision.
Wide range of applications
The linear rail kit is frequently used in heavy-duty automation systems and DIY projects. For example, DIY CNC engraving machines, lathes, etc.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (4)
Habe eine Linearführung Schiene SBR20 gekauft. Müssen die Gleitböcke noch gefettet oder geölt werden ???
Hallo, der Schieber kann gefettet werden.
By vevor
Helpful
(
1
)
Moin, die Löcher in den Gleitböcken, welches Gewinde ist das M8 oder was für ein Schraubendurchmesser ist das?
Ich bedanke mich im Vorfeld für ihre Antwort
Gruß
Das Gewinde ist M6.
By vevor
Helpful
(
0
)
Halllo,
Kann man zwei Führungsschienen miteinander verbinden? Wenn ja benötigt man dazu Zubehör oder eine bestimmte Option? Wie kann man diese mitbestellen?
Nein, die Terminals müssen angedockt werden, bevor sie angeschlossen werden können.
By vevor
Helpful
(
0
)
Bezieht sich die Gewichtsangabe auf zwei Schienen?
Seine dynamische Belastung (pro Schlitten) beträgt 882 N und die statische Last (pro Schlitten) beträgt 1370 N.
By vevor
Helpful
(
0
)
