Features & Details

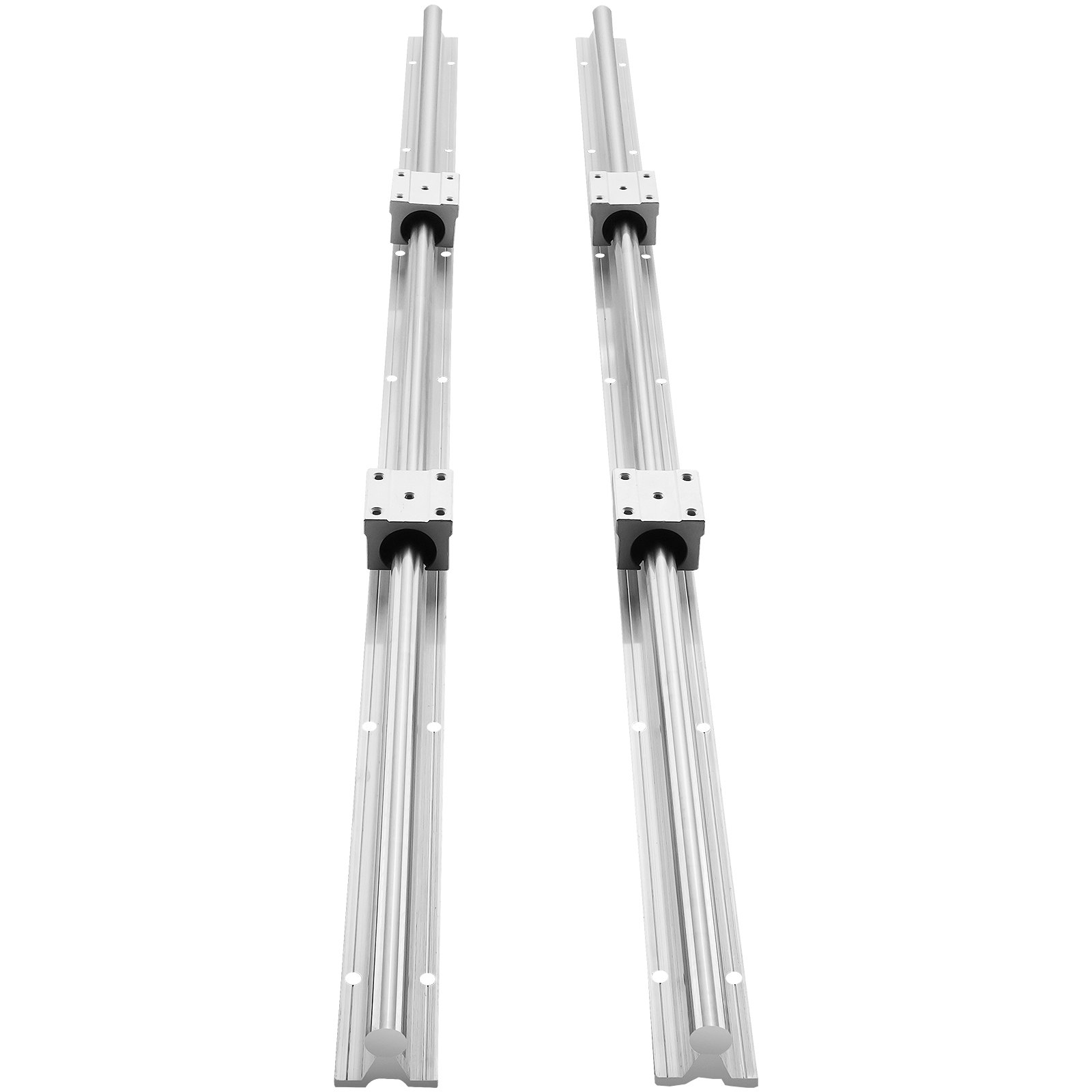

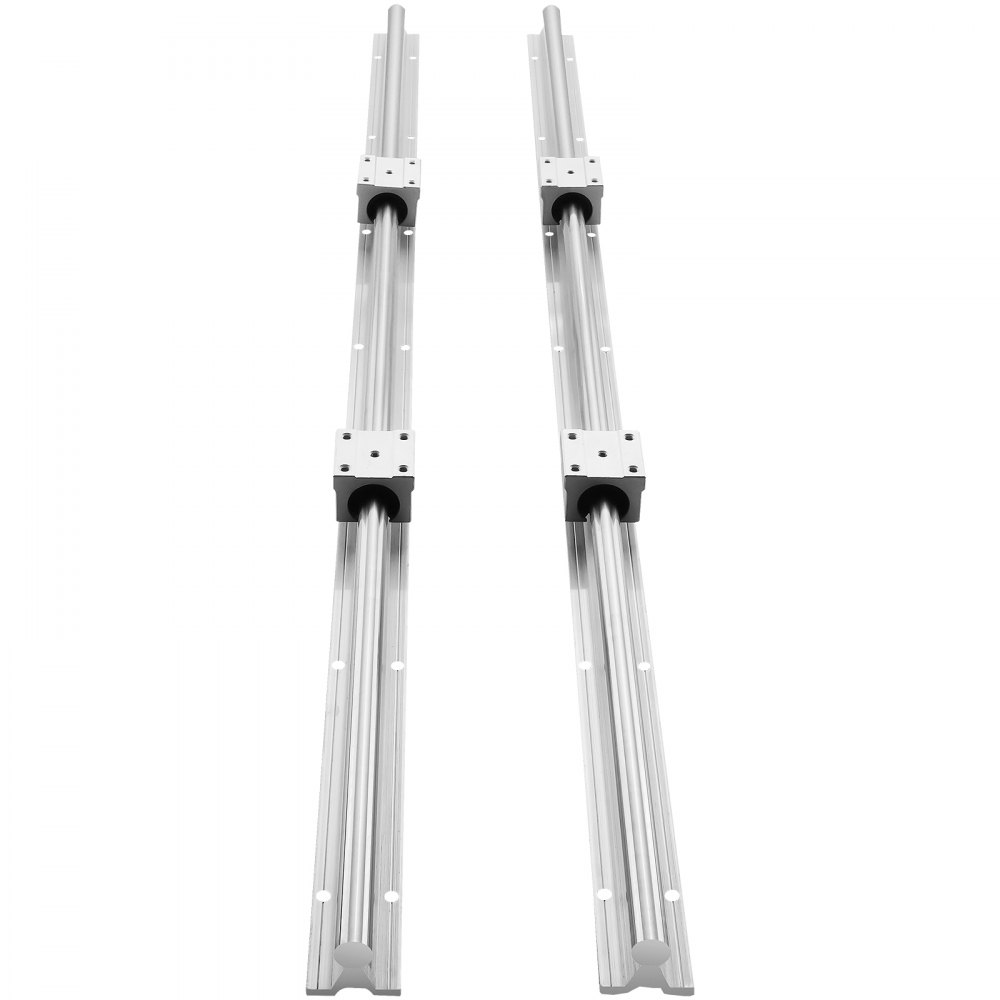

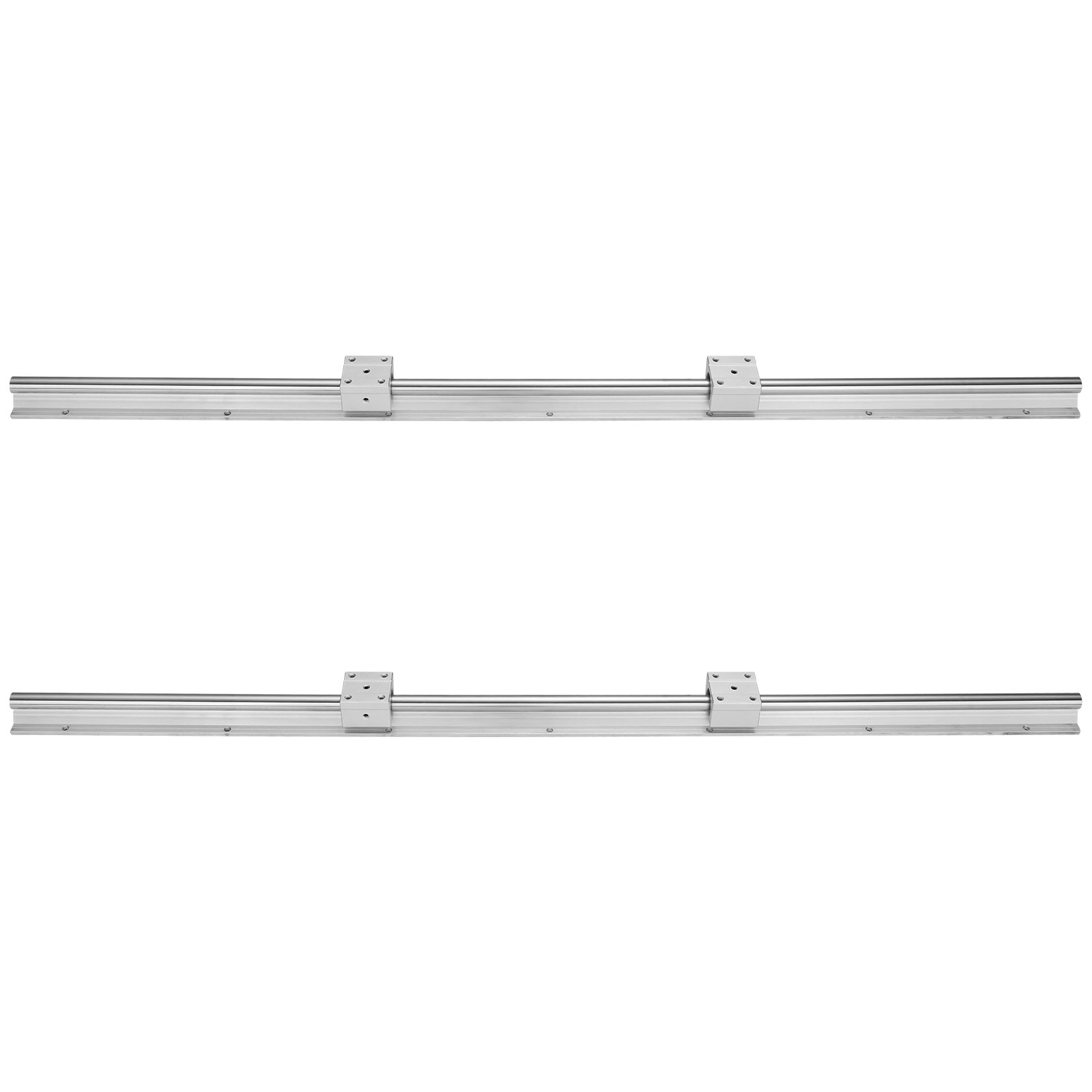

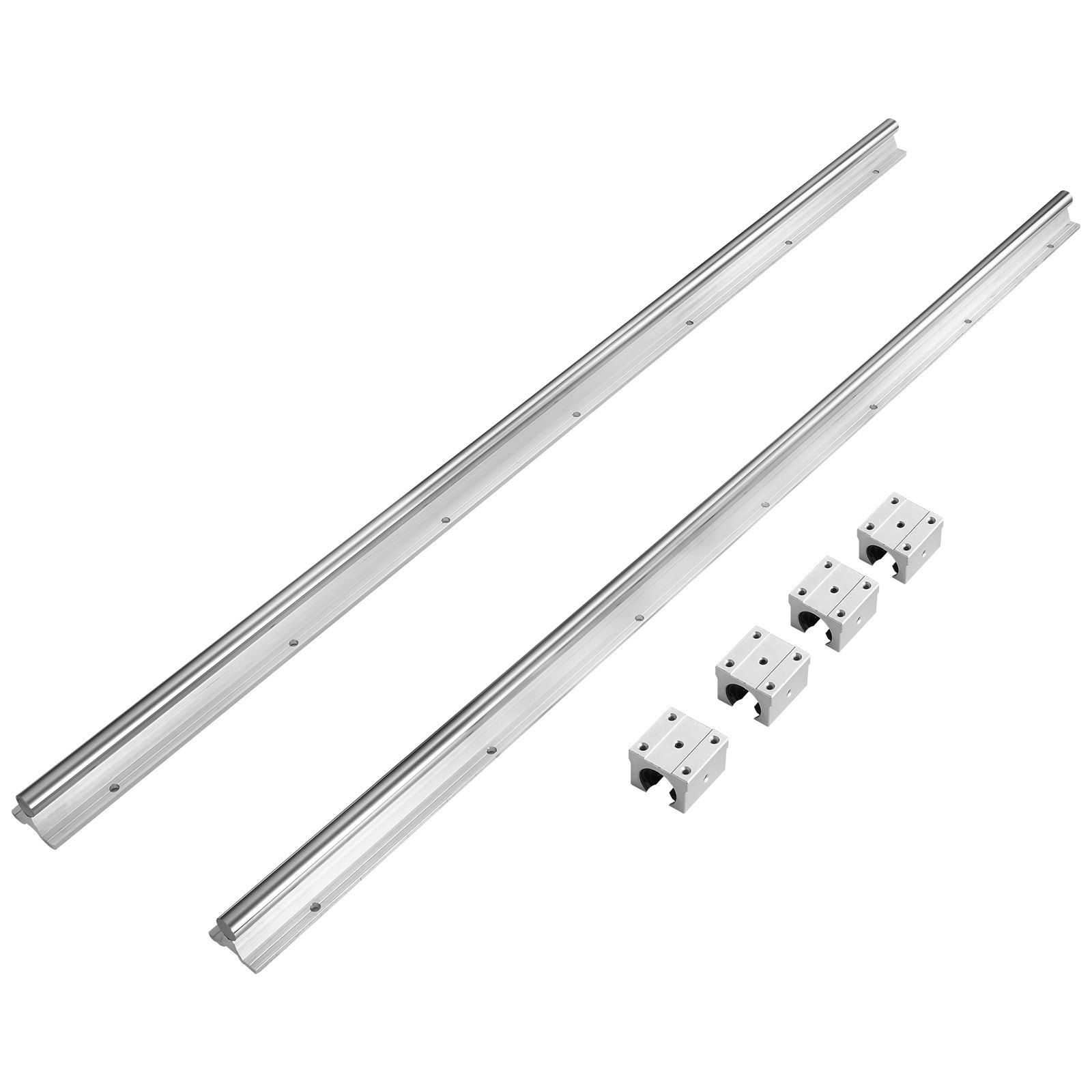

- SBR linear guide rail set: The SBR16-1000 mm linear motion guide rail contains two 1000 mm long SBR16 guide rails and four SBR16UU sliding blocks. Dynamic load per block: 774 N, static load per block: 1180 N.

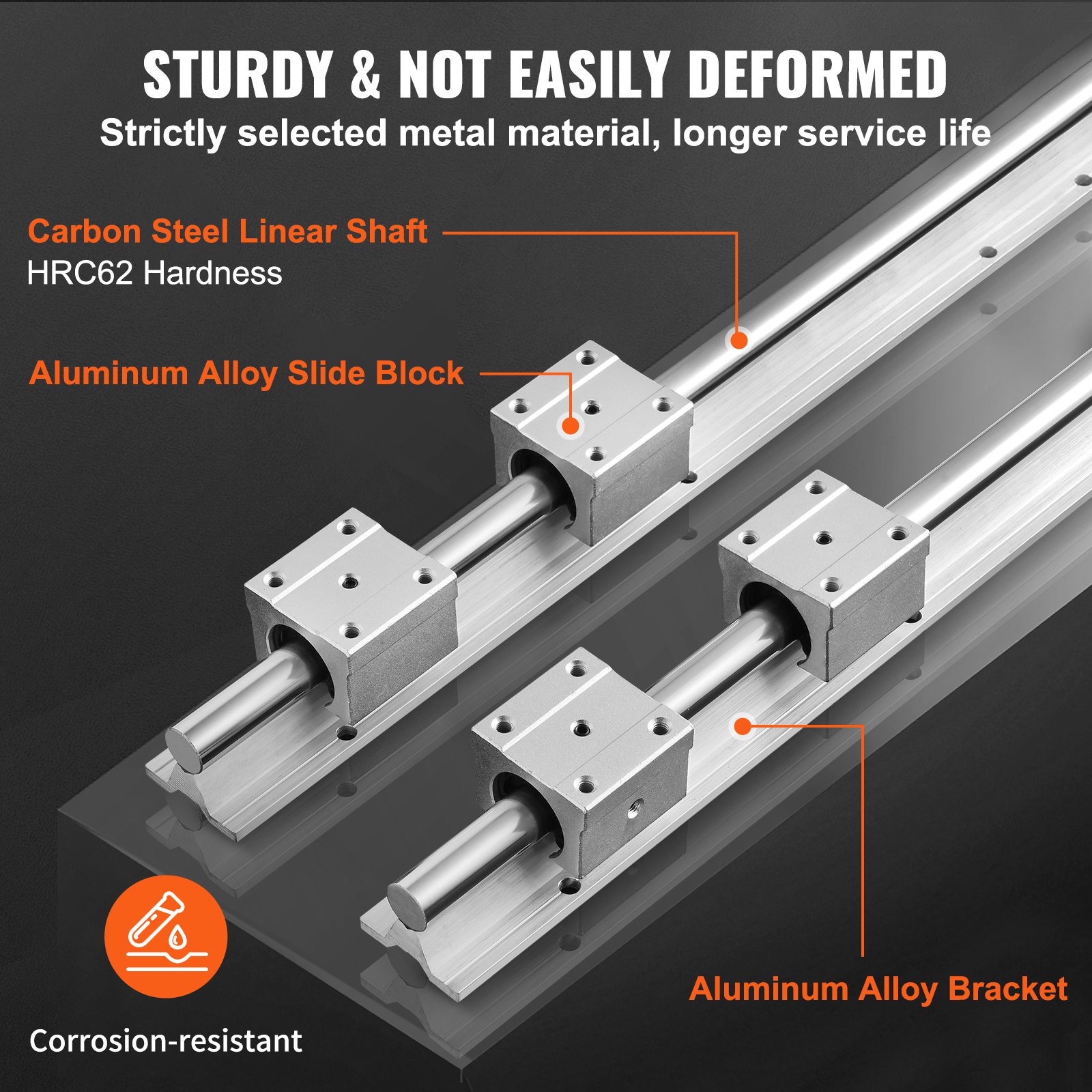

- Durable & Long-Lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated finish for rust resistance and high durability. It features four built-in aluminum sliding blocks and ball bearings for smooth and unimpeded movement.
- Quiet gliding: The SBR aluminum sliding blocks and the carbon steel linear shaft are perfectly matched. The integrated ball bearing ensures smooth, jam-free movement, enabling effortless control.

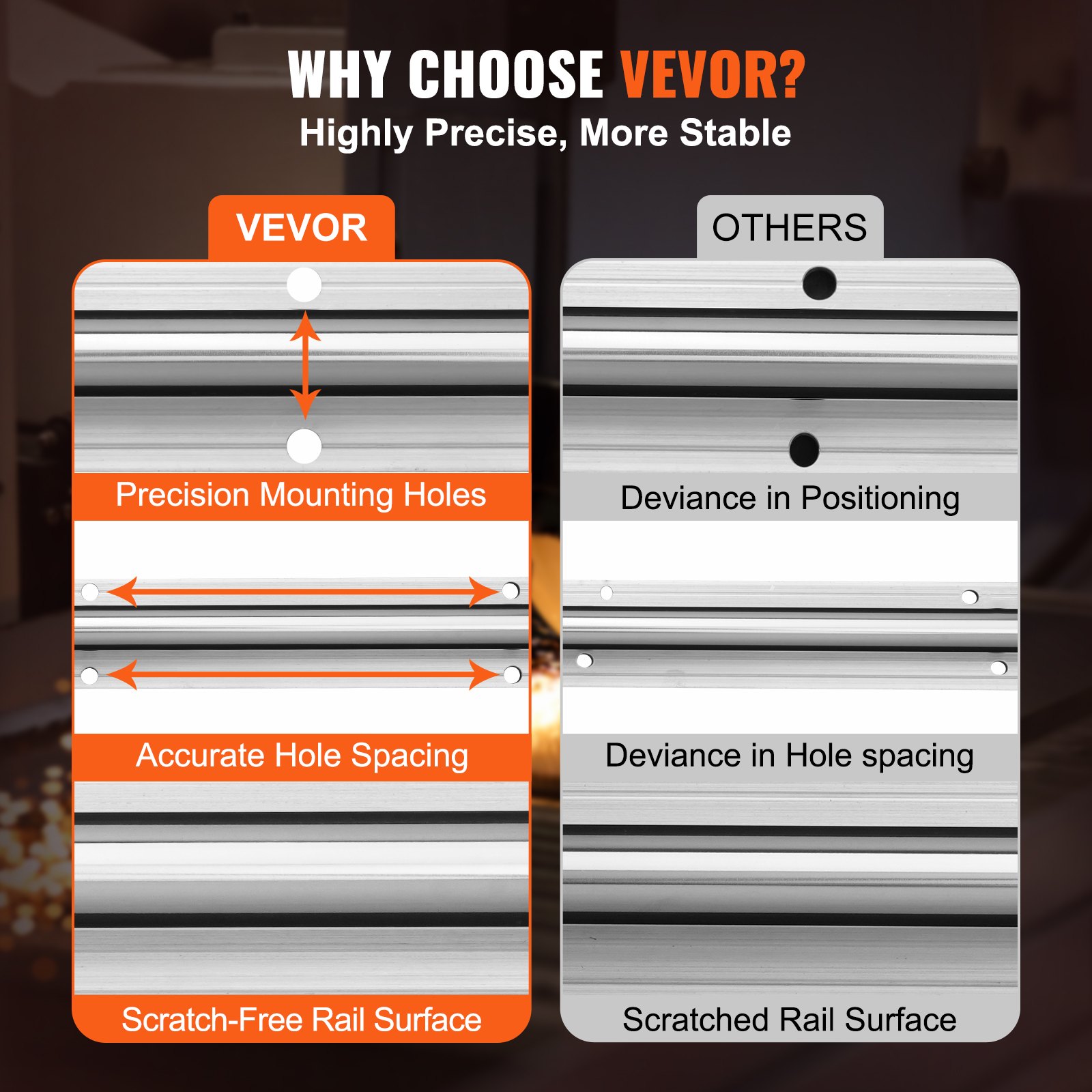

- High precision: Precise circular shaft dimensions and straightness ensure high accuracy, repeatability, and stability of movement. The robust aluminum base and sliding block feature precision mounting holes, facilitating reliable installation and connection for the user.
- Wide application: The SBR linear rail set is versatile and suitable for all types of heavy-duty automation equipment and DIY projects, such as router/milling/turning machine slides, 3D printers, laser engravers, CNC machines, trainer swivel plates, etc.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 217 reviews
Reviews 4.9
All reviews are from verified purchases
See all 217 reviews
About this item

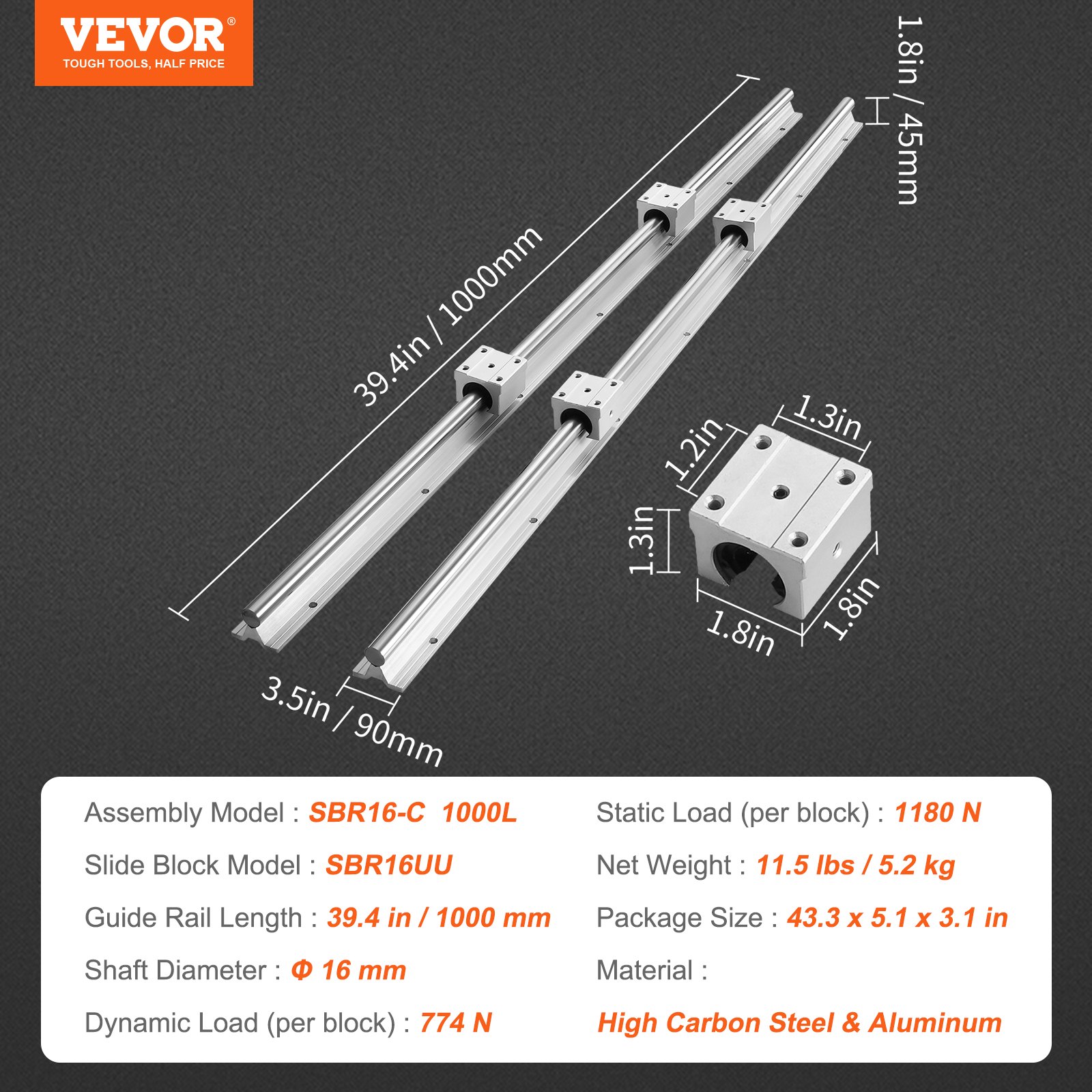

Product specification
- Article model number
- SBR16-C 1000L
- Sliding block model
- SBR16UU
- Guide rail length
- 1000 mm (39.4 inches)
- Shaft diameter
- Φ 16 mm
- Dynamic load (per block)
- 774 N
- Static load (per block)
- 1180 N
- Material
- Carbon steel and aluminum
- Mounting hole spacing A
- 32 mm (1.3 inches)
- Mounting hole spacing B
- 30 mm (1.2 inches)
- Sliding block size (L x W x H)
- 45 x 45 x 33 mm (1.8 x 1.8 x 1.3 inches)
- Product dimensions (L x W x H)
- 1000 x 90 x 45 mm (39.4 x 3.5 x 1.8 inches)
- Packaging dimensions (L x W x H)
- 1100 x 130 x 80 mm (43.3 x 5.1 x 3.1 inches)
- Net weight
- 5.2 kg (11.5 lbs)
Description

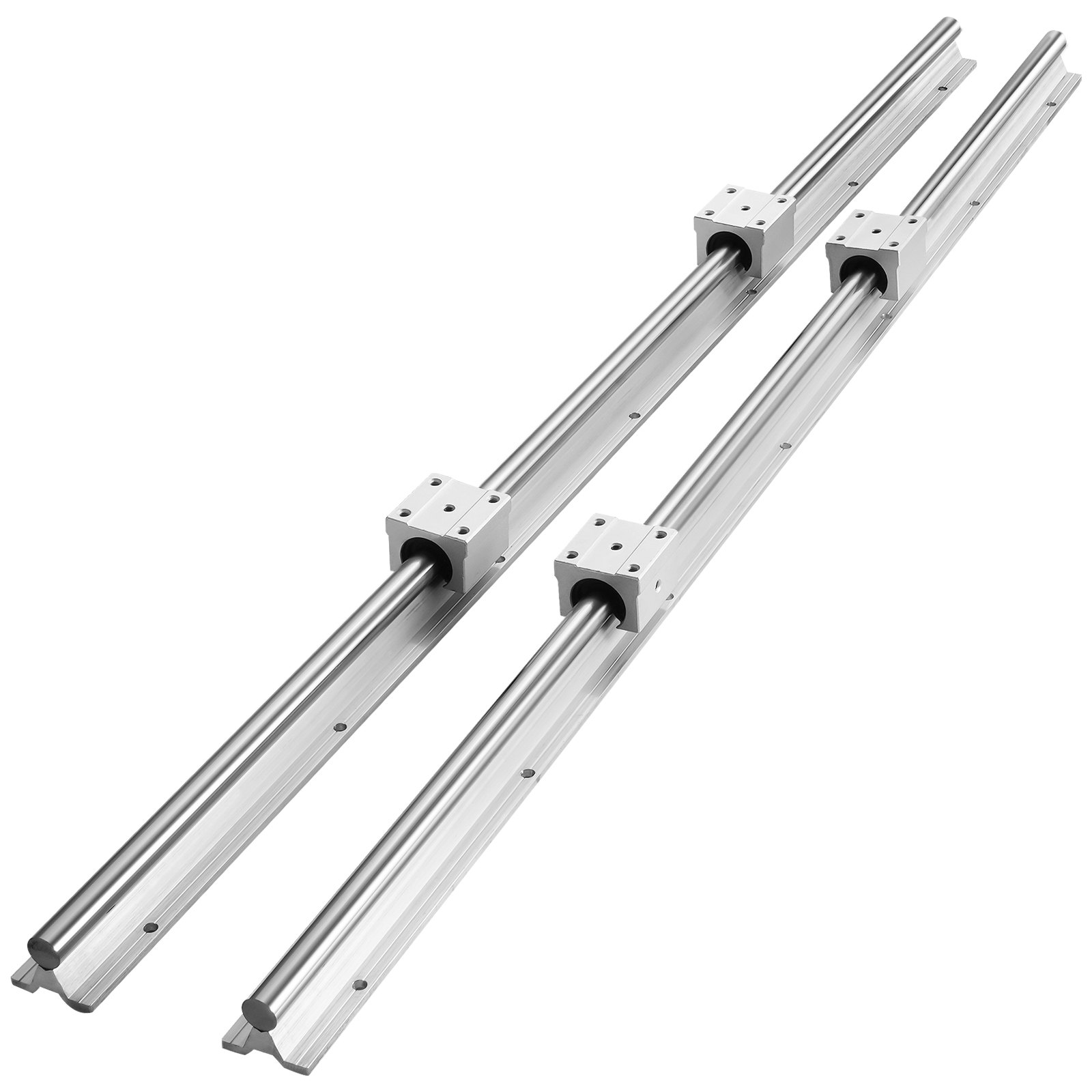

SBR linear guide rail
VEVOR's high-quality SBR linear guide rail includes two guide rails and four sliding blocks. The durable aluminum guide rails feature precise hole diameters and spacing, while the SBR sliding blocks utilize ball bearings for smooth movement.
Handle pressure with ease
The linear bearing consists of a solid metal structure, and the sliding block is firmly locked onto the linear shaft, providing a high load-bearing capacity.

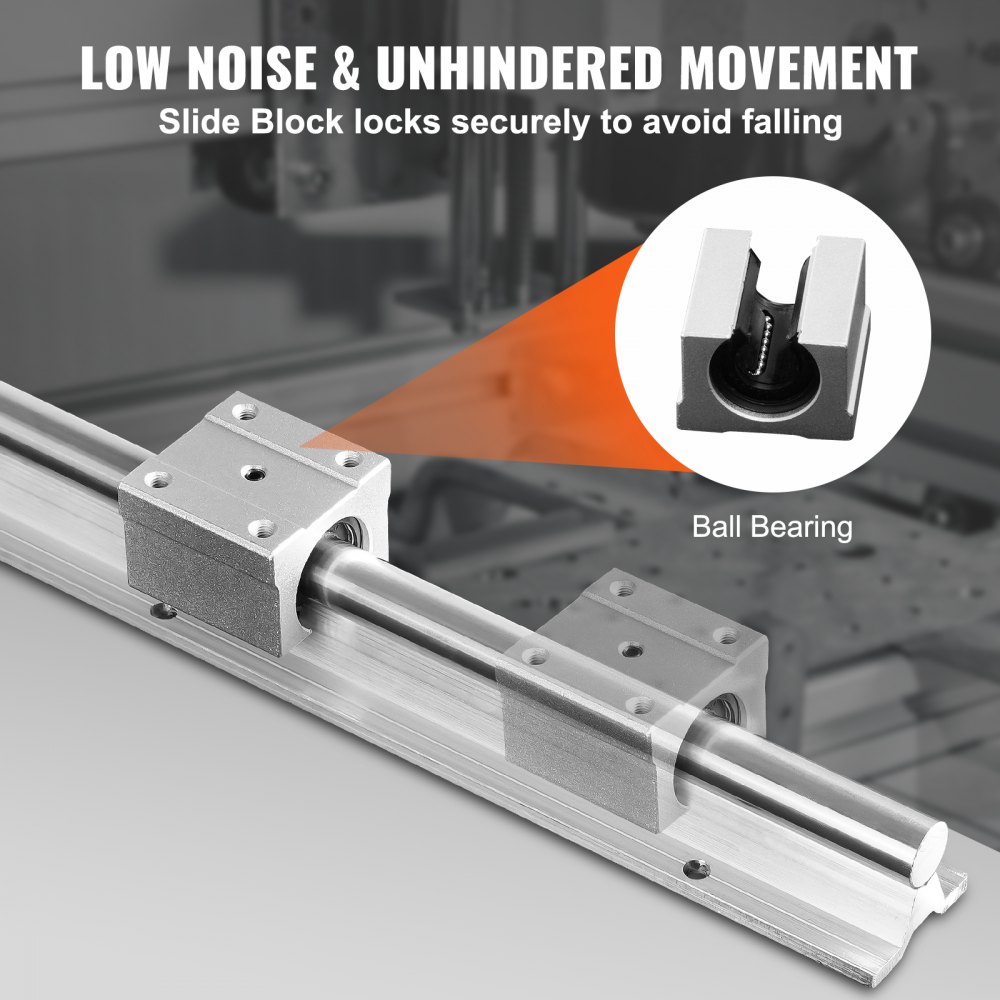

Smooth gliding without stuttering

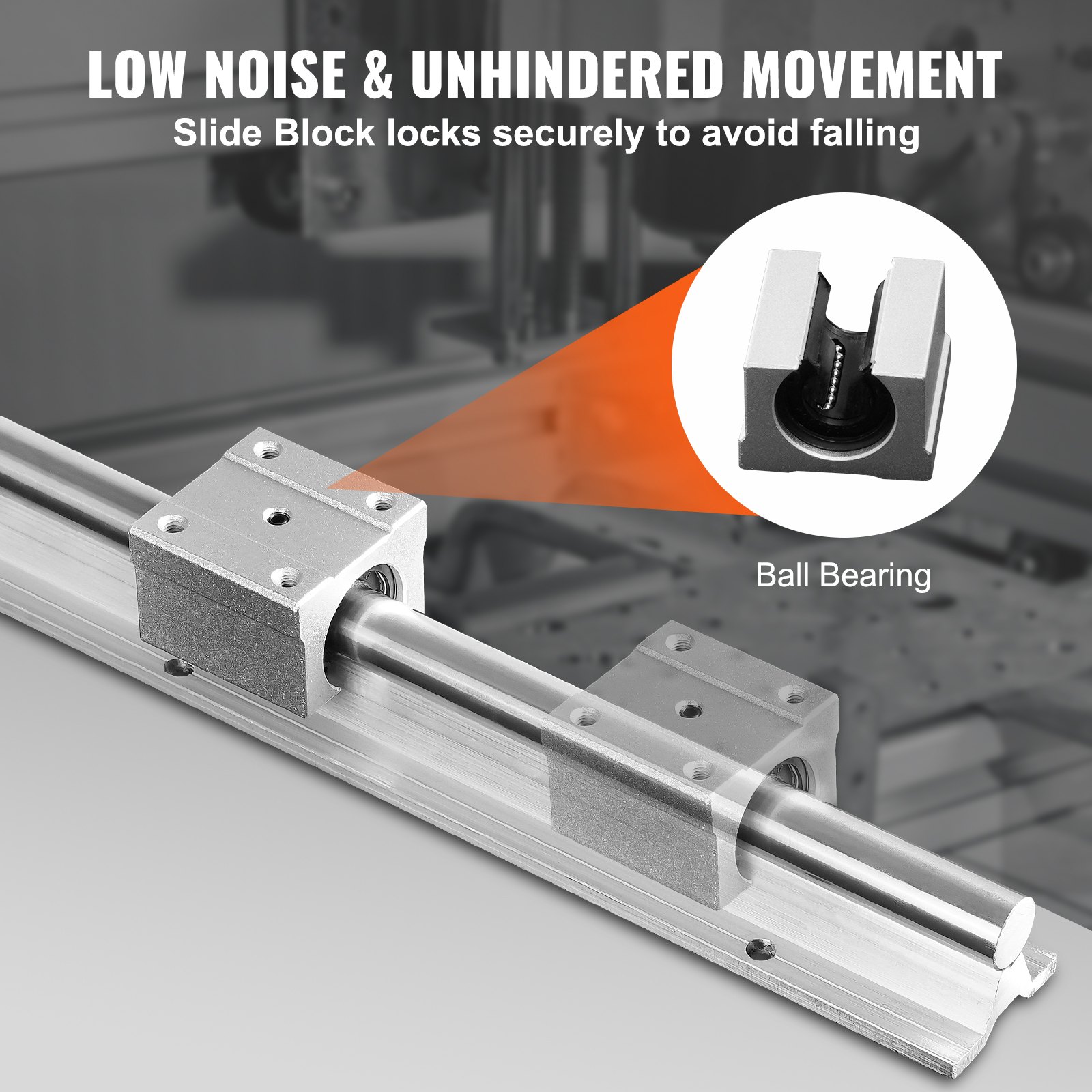

The SBR aluminum sliding block and the built-in ball bearings glide smoothly and move effortlessly to ensure long-term stable operation.
More precise than ever before
The linear guides feature precise hole spacing, hole diameters and standard shaft diameters, allowing you to install your equipment with even greater precision.

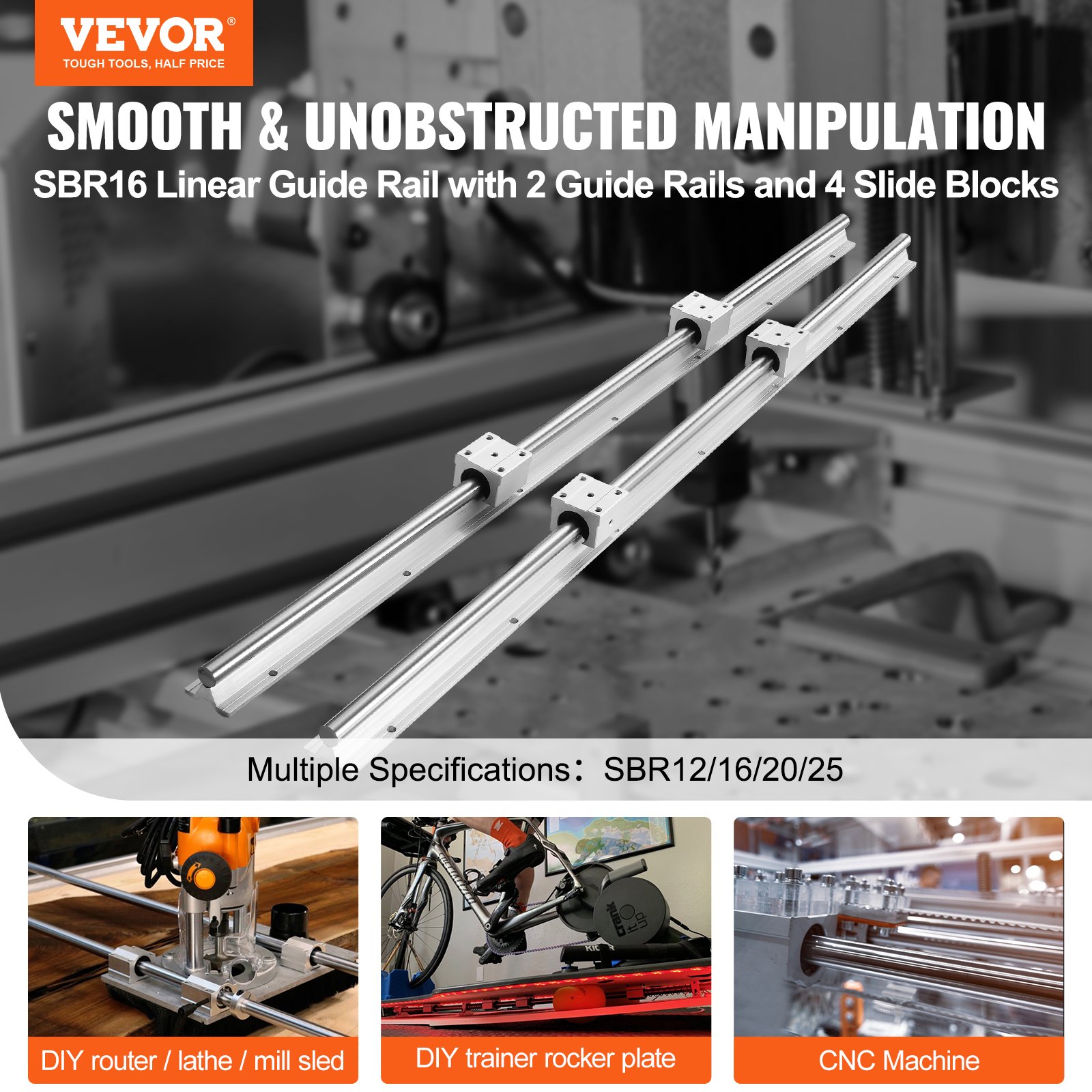

Wide range of applications
The linear rail kit is frequently used in heavy-duty automation systems and DIY projects. For example, DIY CNC engraving machines, lathes, etc.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (5)
Kann man in der Mitte des Lagerblocks eine Schraube einsetzen, um eine bestimmte Position fest zustellen?
Das Produkt kann nur mit den mitgelieferten Schrauben festgezogen und befestigt werden. Sie können es nicht mit einer weiteren langen Schraube gerade öffnen. Andernfalls wird es beschädigt.
By vevor
Helpful
(
1
)
Gibt es Feststellmöglichkeiten für diese Schienen (Linearführung SBR16-1000mm), damit das Montierte nicht runterrutscht?
Zur Arretierung der Führungsschiene können die Löcher im Sockel auf beiden Seiten mit Schrauben fixiert werden. Der Schieberegler kann derzeit nicht gesperrt werden.
By vevor
Helpful
(
0
)
Wann ist die Sbr16 1000mm lang wieder für 40,—€ verfügbar. Können Sie dafür schon einen Tag sagen?
Das Produkt wird bald verfügbar sein. Wir empfehlen Ihnen, es zu Ihrer Wunschliste hinzuzufügen. Sie werden automatisch daran erinnert, wenn das Produkt eintrifft.
By vevor
Helpful
(
0
)
Kann man mehrere Schienen aneinander reihen?
Sie können zusammengestellt werden. Ein Spleißen ist jedoch nicht möglich. Weil es keine Docking-Verarbeitung gibt.
By vevor
Helpful
(
0
)
Kann man die Linearschienen auch hängend montieren, sodass die Lagerblöcke nach unten hängen? Laufen die Kugellager auch "kopfüber"?
Ja, dieses Produkt kann verkehrt herum installiert werden.
By vevor
Helpful
(
0
)
