Features & Details

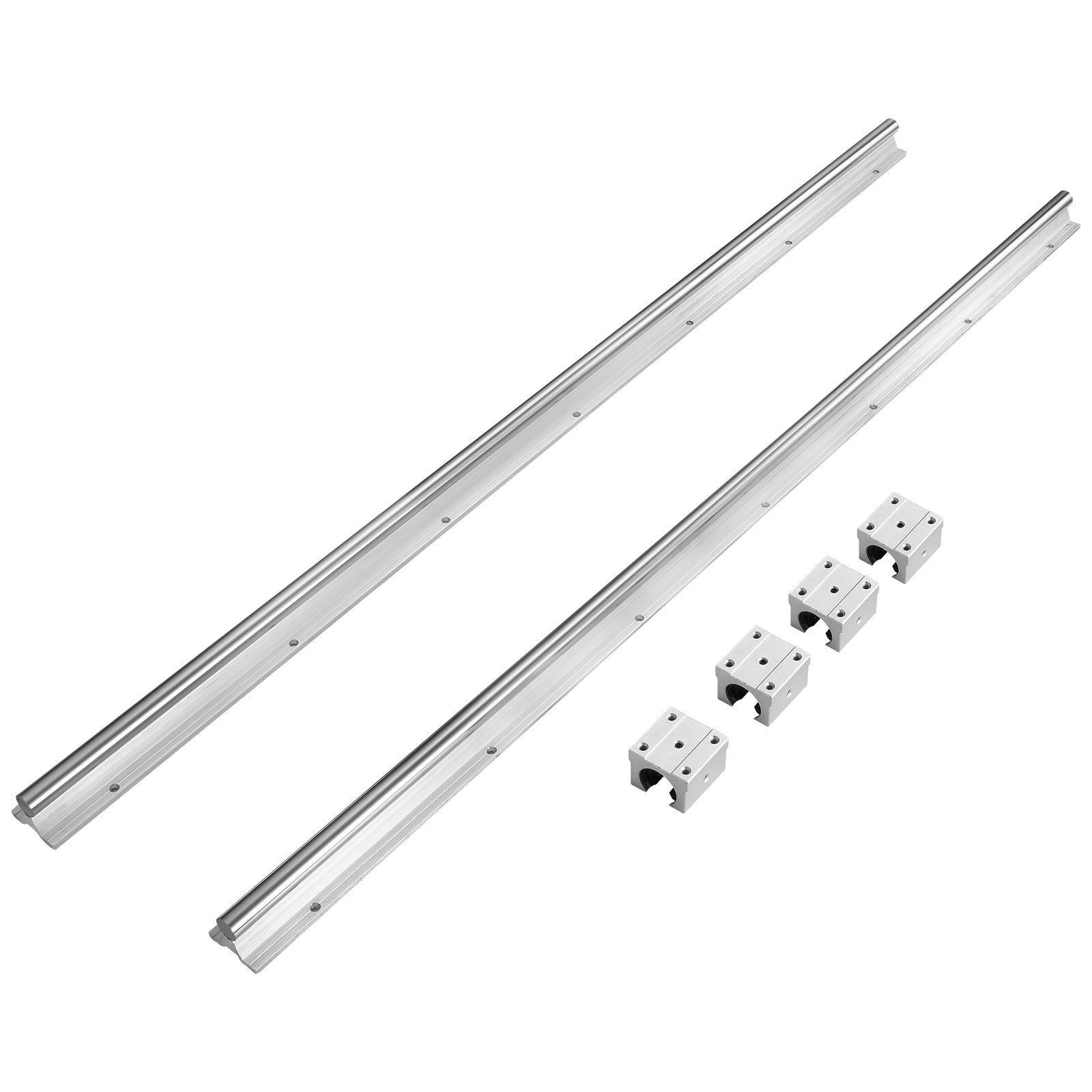

- SBR linear guide rail set: The SBR12-1000 mm linear motion guide rail contains two 1000 mm long SBR12 guide rails and four SBR12UU sliding blocks. Dynamic load per block: 372 N, static load per block: 549 N.

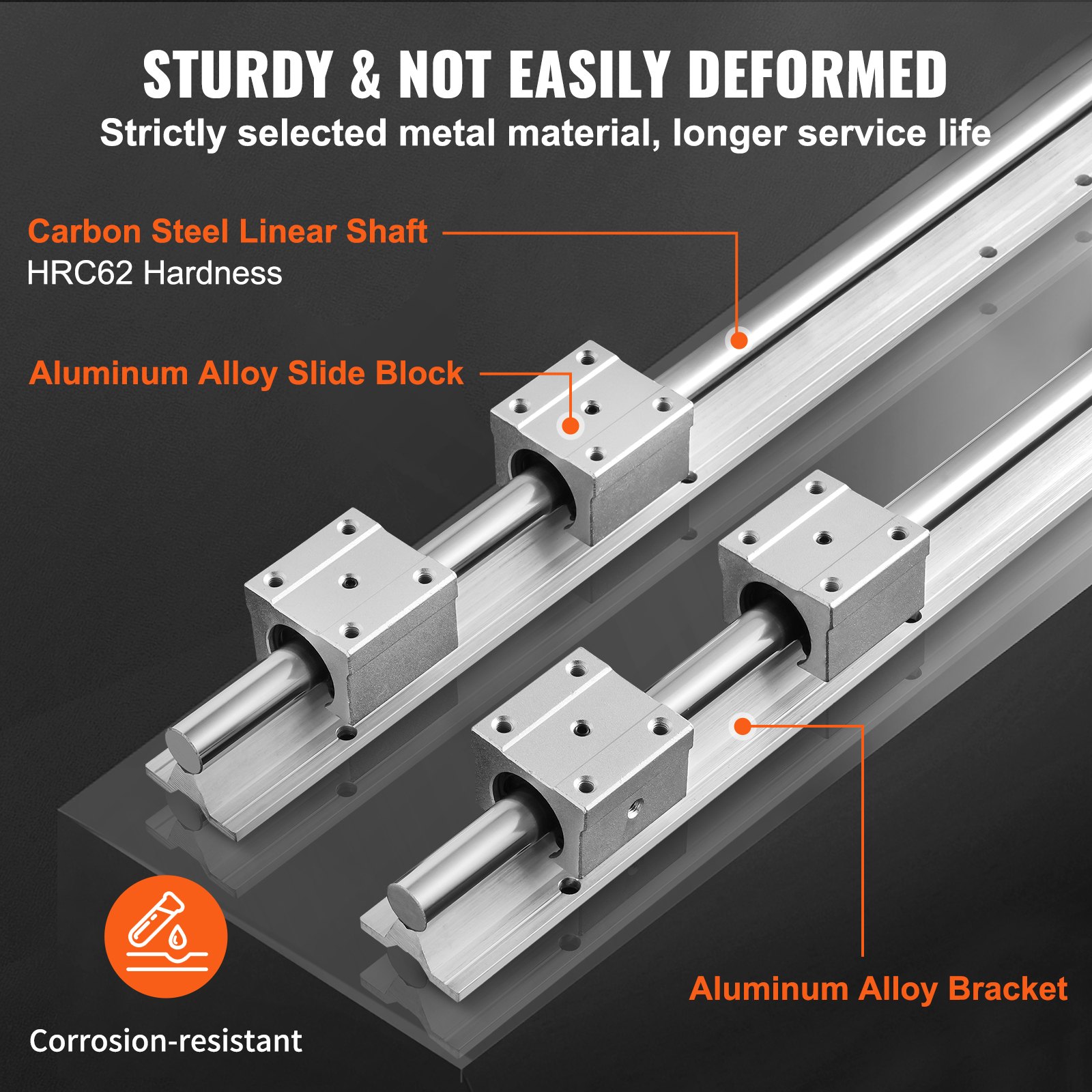

- Durable & Long-Lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated finish for rust resistance and high durability. It features four built-in aluminum sliding blocks and ball bearings for smooth and unimpeded movement.
- Quiet gliding: The SBR aluminum sliding blocks and the carbon steel linear shaft are perfectly matched. The integrated ball bearing ensures smooth, jam-free movement, enabling effortless control.
- High precision: Precise circular shaft dimensions and straightness ensure high accuracy, repeatability, and stability of movement. The robust aluminum base and sliding block feature precision mounting holes, facilitating reliable installation and connection for the user.
- Wide application: The SBR linear rail set is versatile and suitable for all types of heavy-duty automation equipment and DIY projects, such as router/milling/turning machine slides, 3D printers, laser engravers, CNC machines, trainer swivel plates, etc.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 217 reviews
Reviews 4.9
All reviews are from verified purchases
See all 217 reviews
About this item

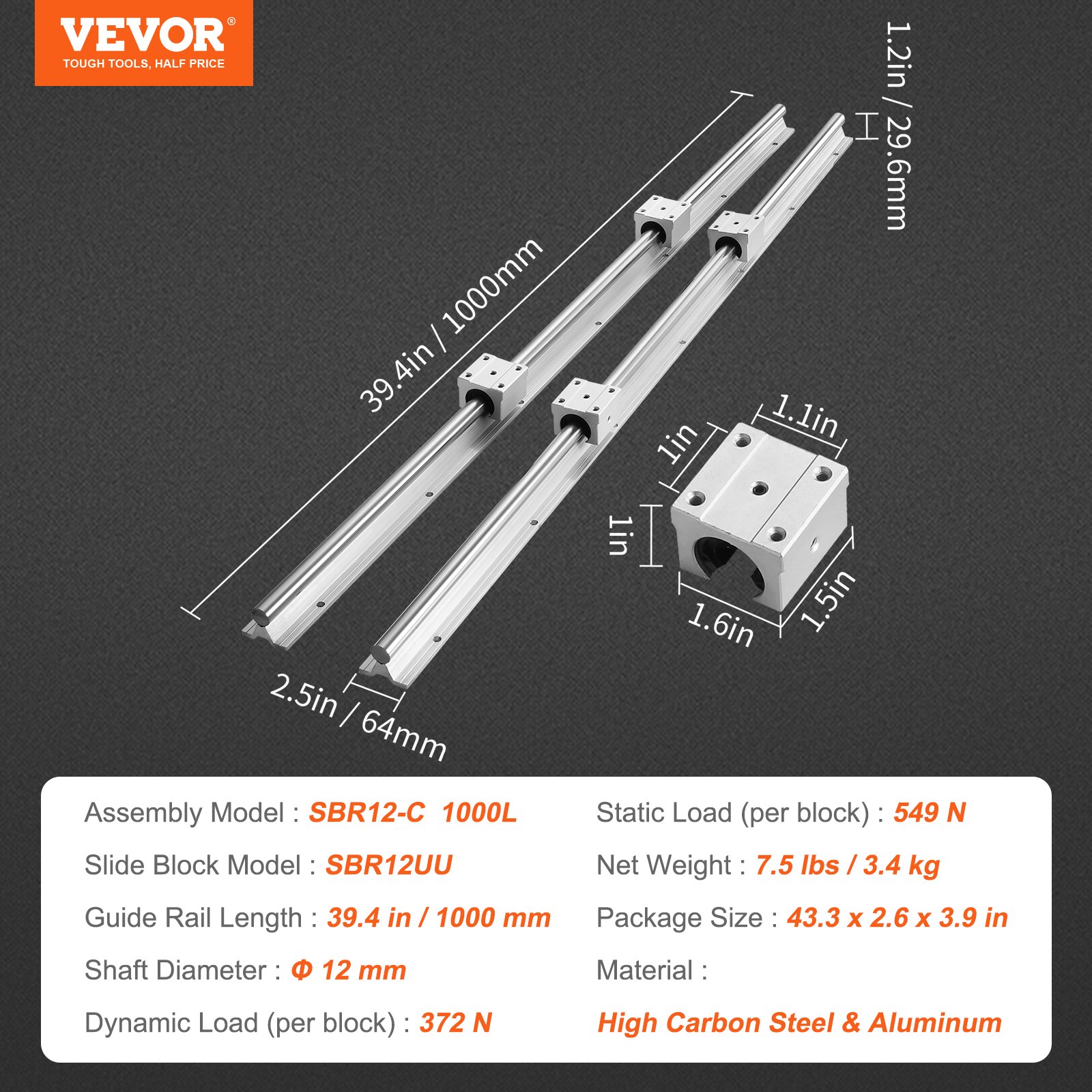

Product specification
- Article model number
- SBR12-C 1000L
- Sliding block model
- SBR12UU
- Guide rail length
- 1000 mm (39.4 inches)
- Shaft diameter
- Φ 12 mm
- Dynamic load (per block)
- 372 N
- Static load (per block)
- 549 N
- Material
- Carbon steel and aluminum
- Mounting hole spacing A
- 28 mm (1.1 inches)
- Mounting hole spacing B
- 26 mm (1 inch)
- Sliding block size (L x W x H)
- 39 x 40 x 27.6 mm (1.5 x 1.6 x 1 inch)
- Product dimensions (L x W x H)
- 1000 x 64 x 29.6 mm (39.4 x 2.5 x 1.2 inches)
- Packaging dimensions (L x W x H)
- 1100 x 65 x 100 mm (43.3 x 2.6 x 3.9 inches)
- Net weight
- 3.4 kg (7.5 lbs)
Description

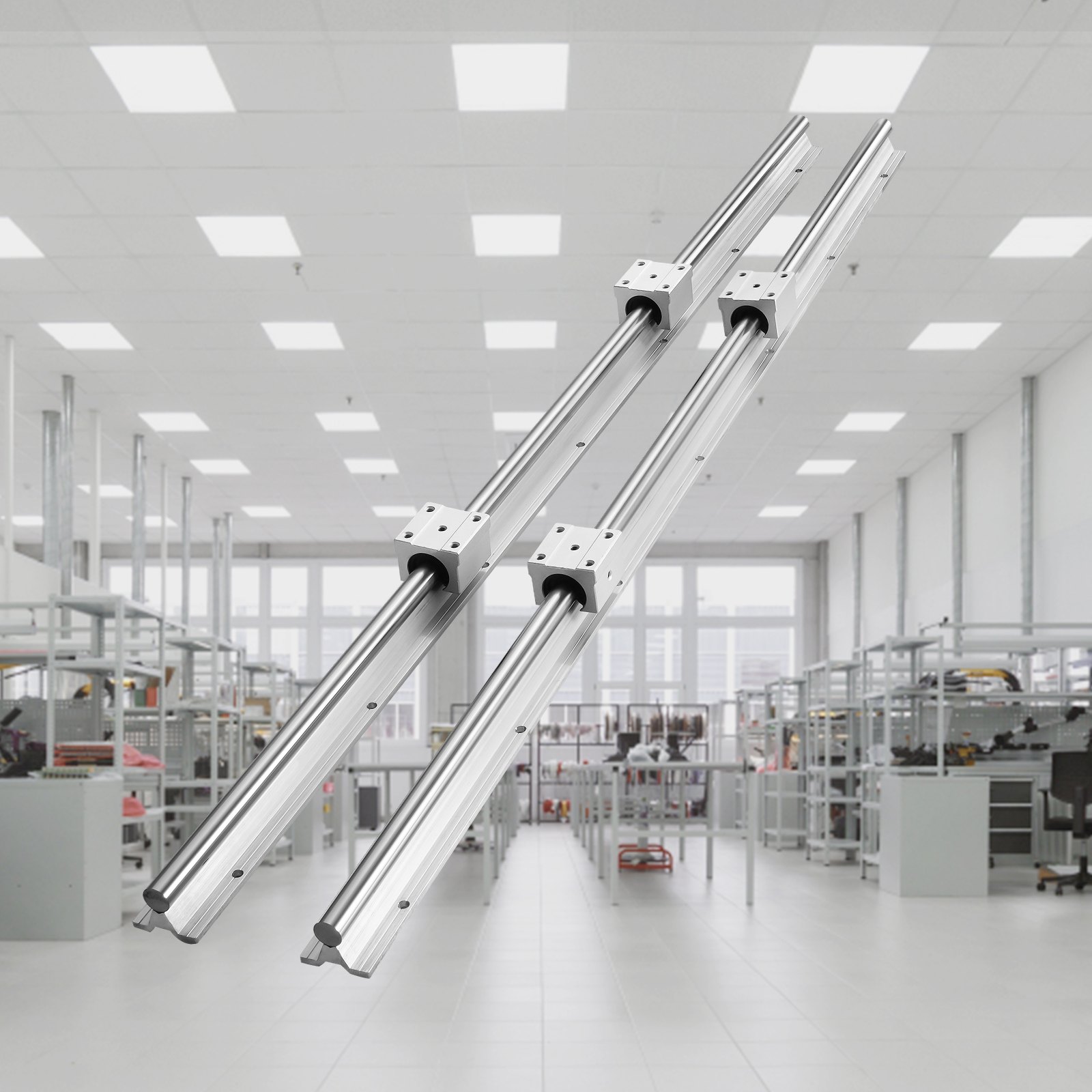

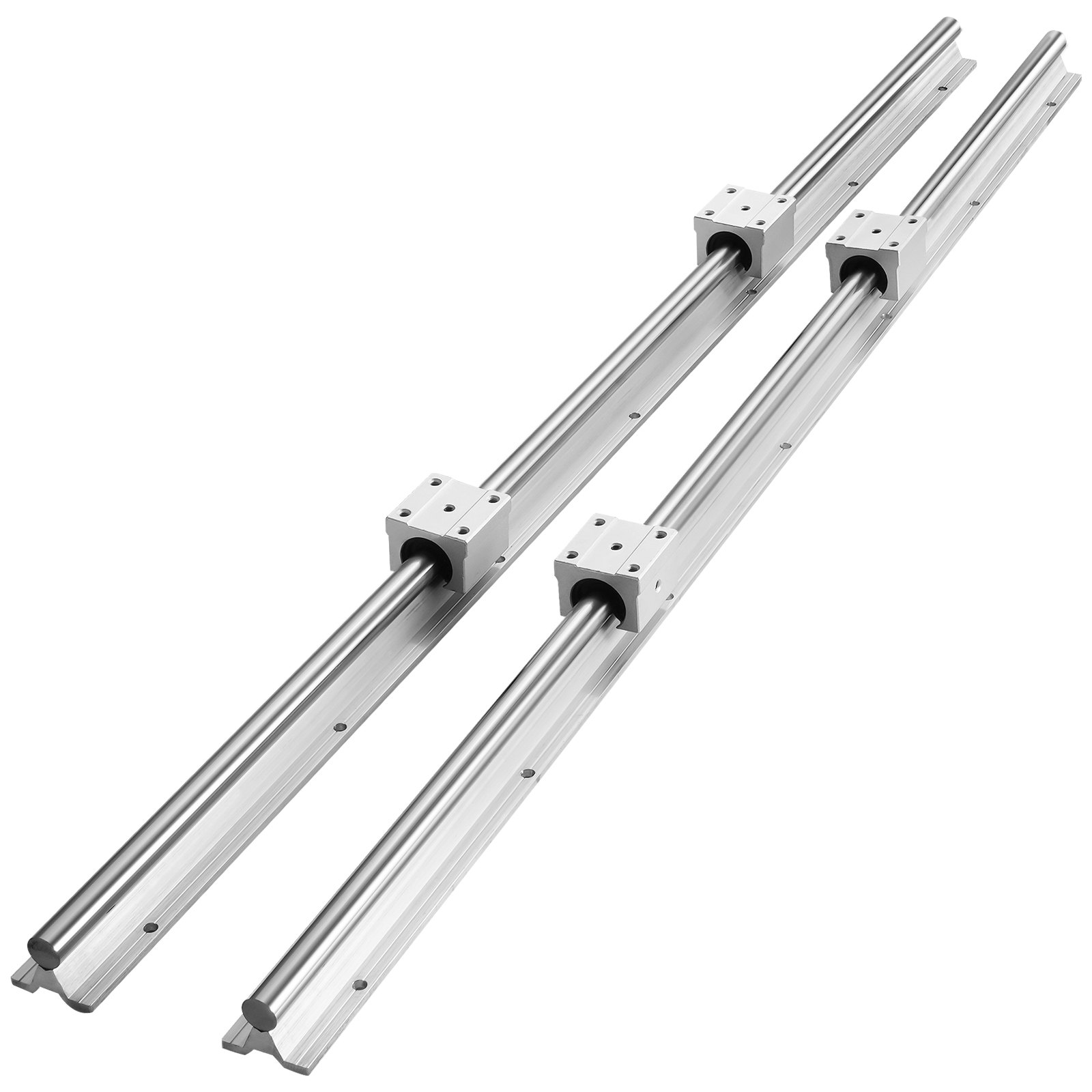

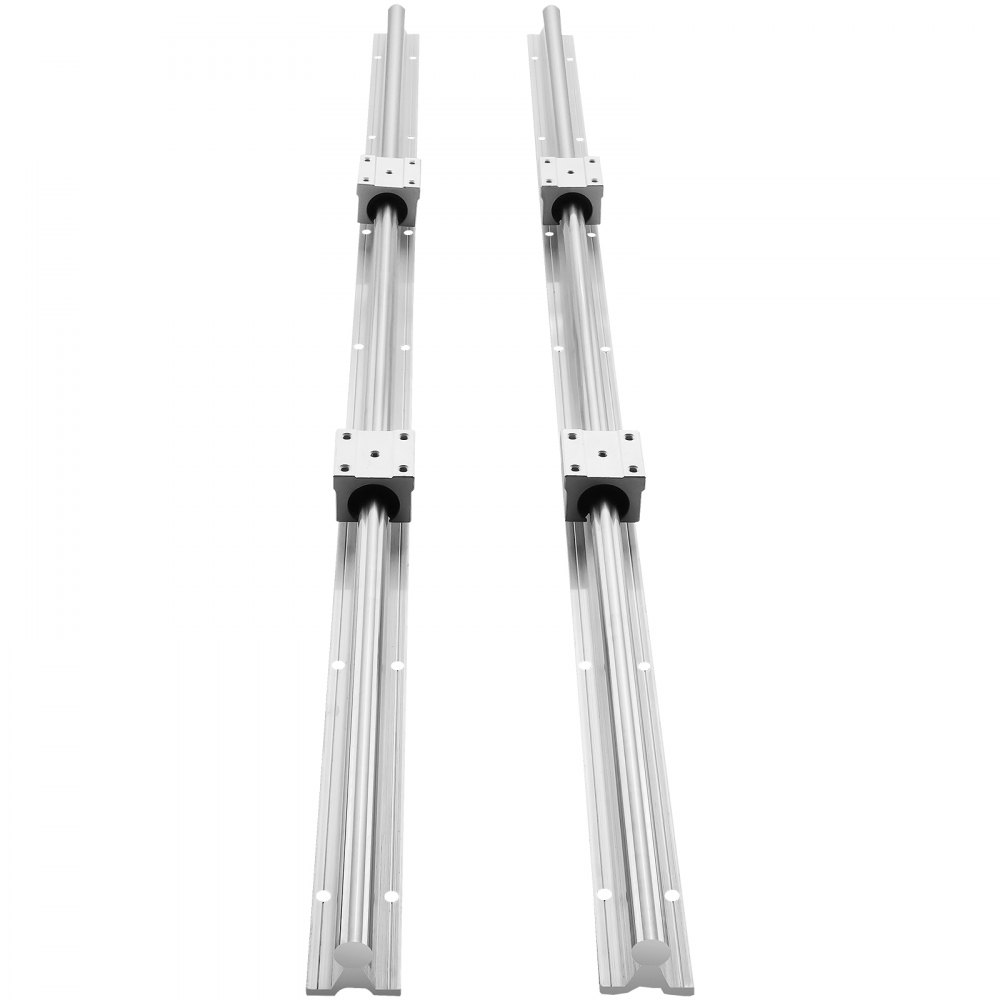

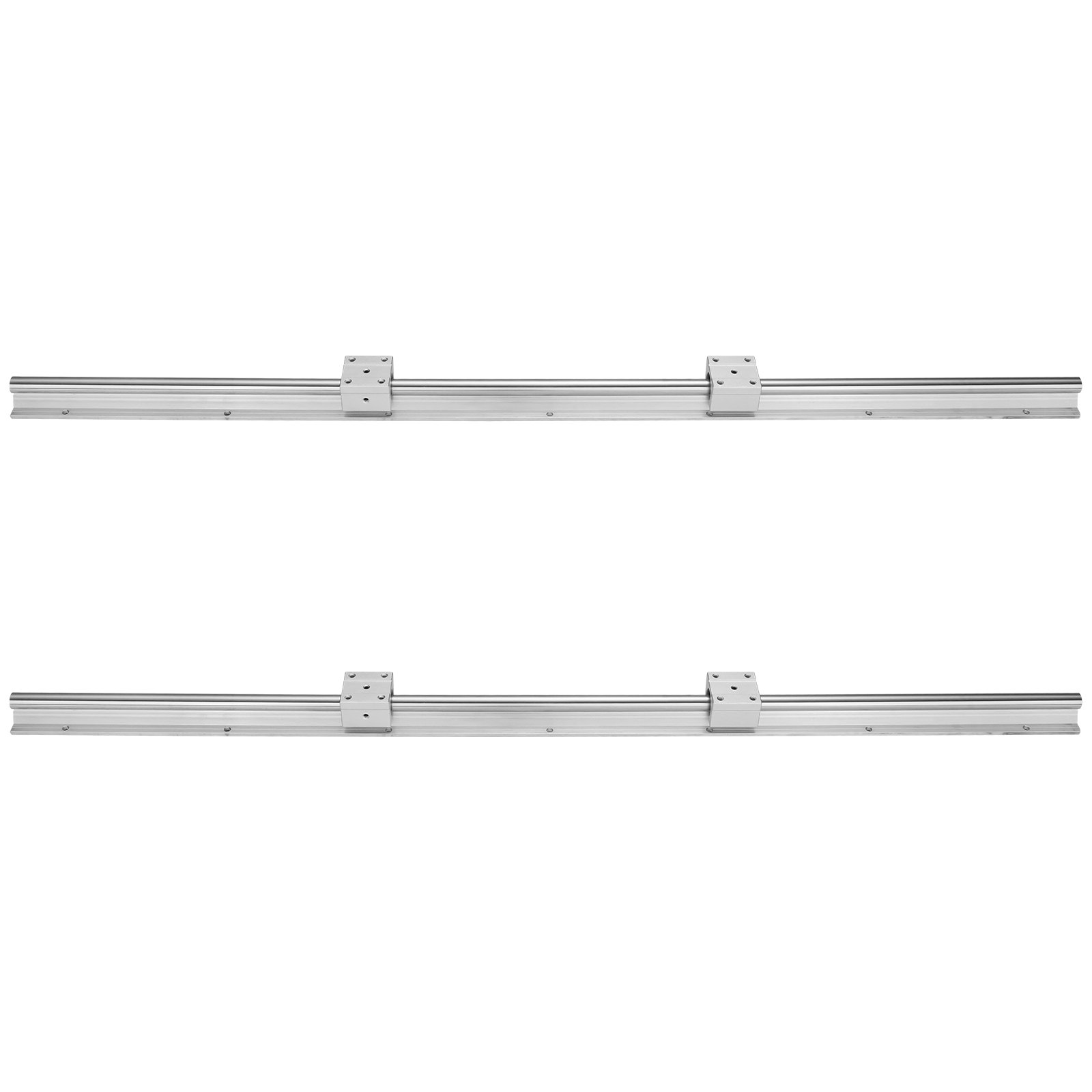

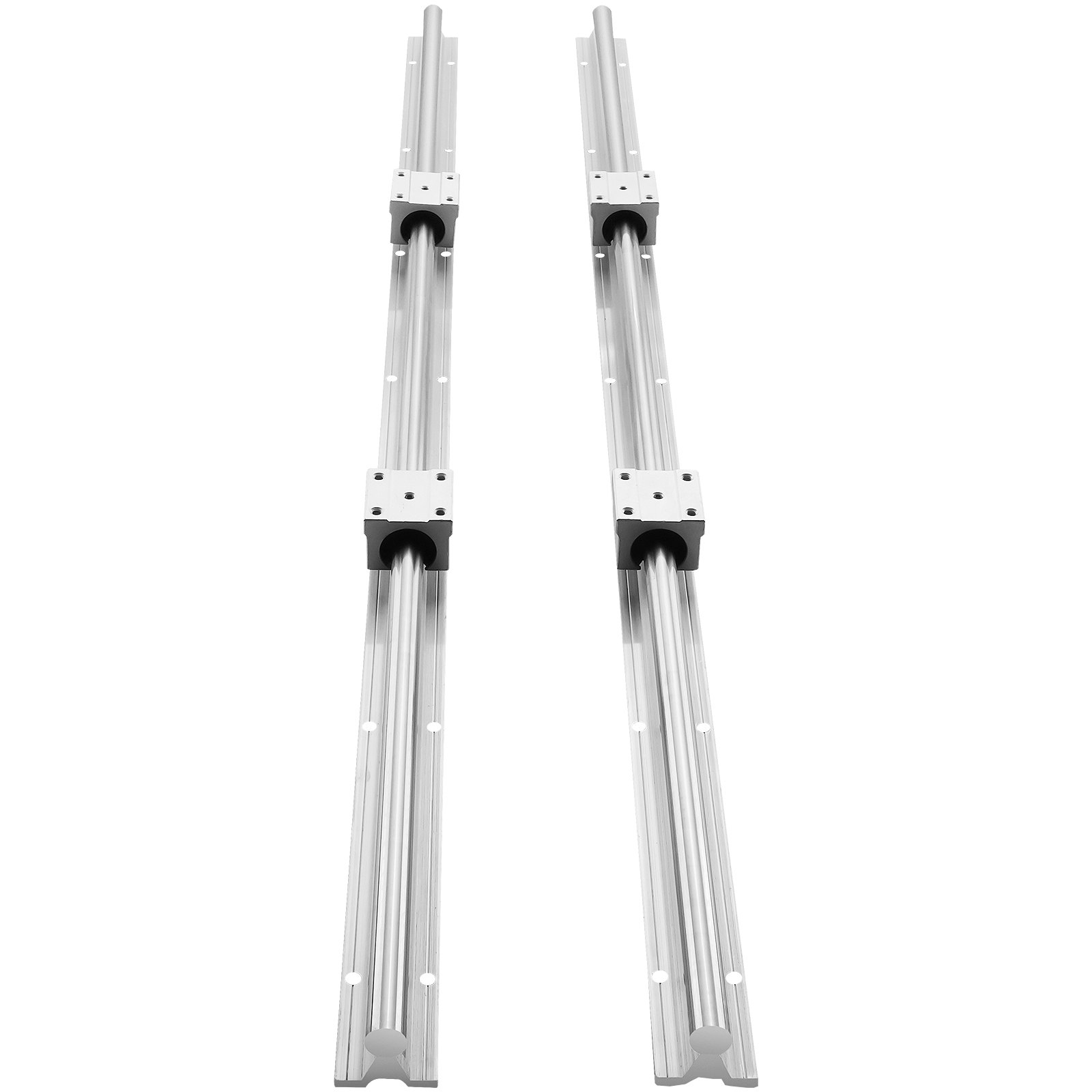

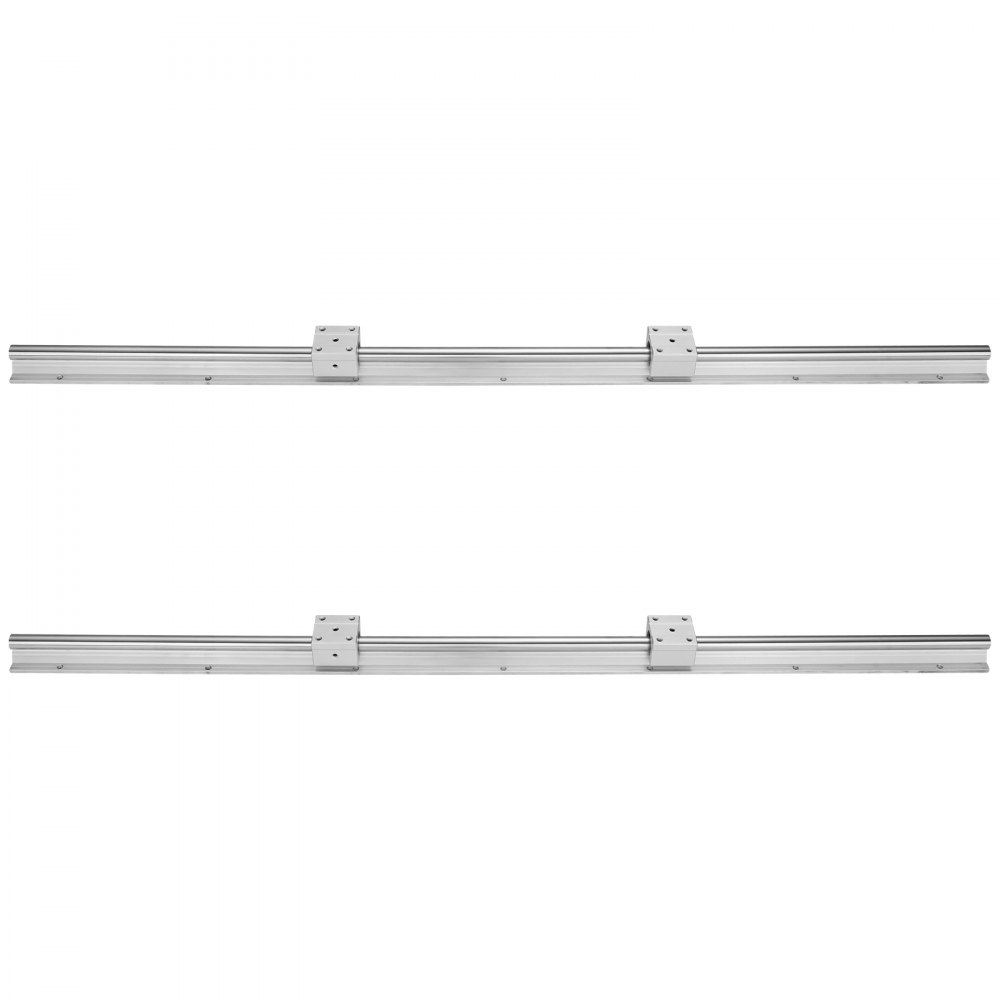

SBR linear guide rail
VEVOR's high-quality SBR linear guide rail includes two guide rails and four sliding blocks. The durable aluminum guide rails feature precise hole diameters and spacing, while the SBR sliding blocks utilize ball bearings for smooth movement.
Handle pressure with ease
The linear bearing consists of a solid metal structure, and the sliding block is firmly locked onto the linear shaft, providing a high load-bearing capacity.

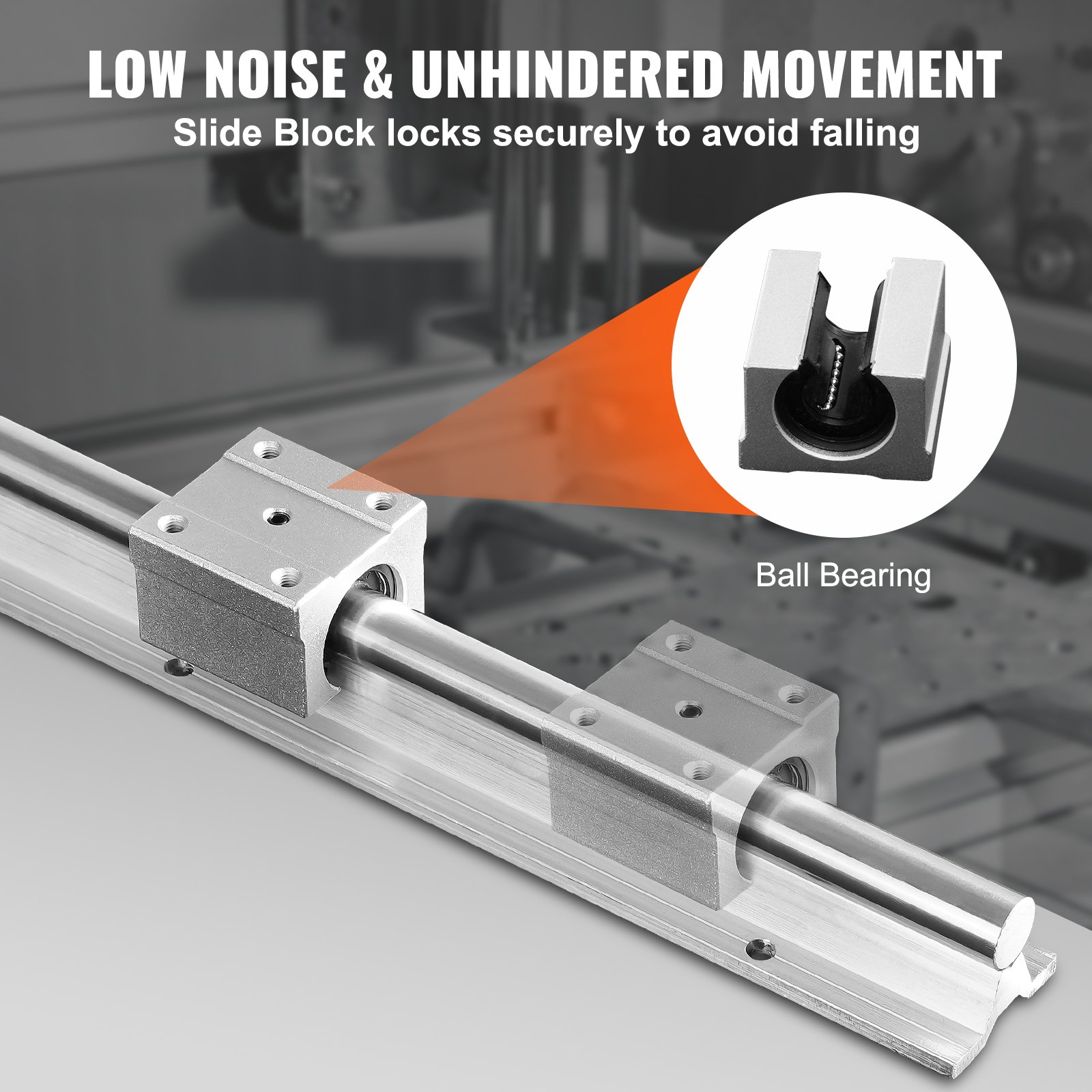

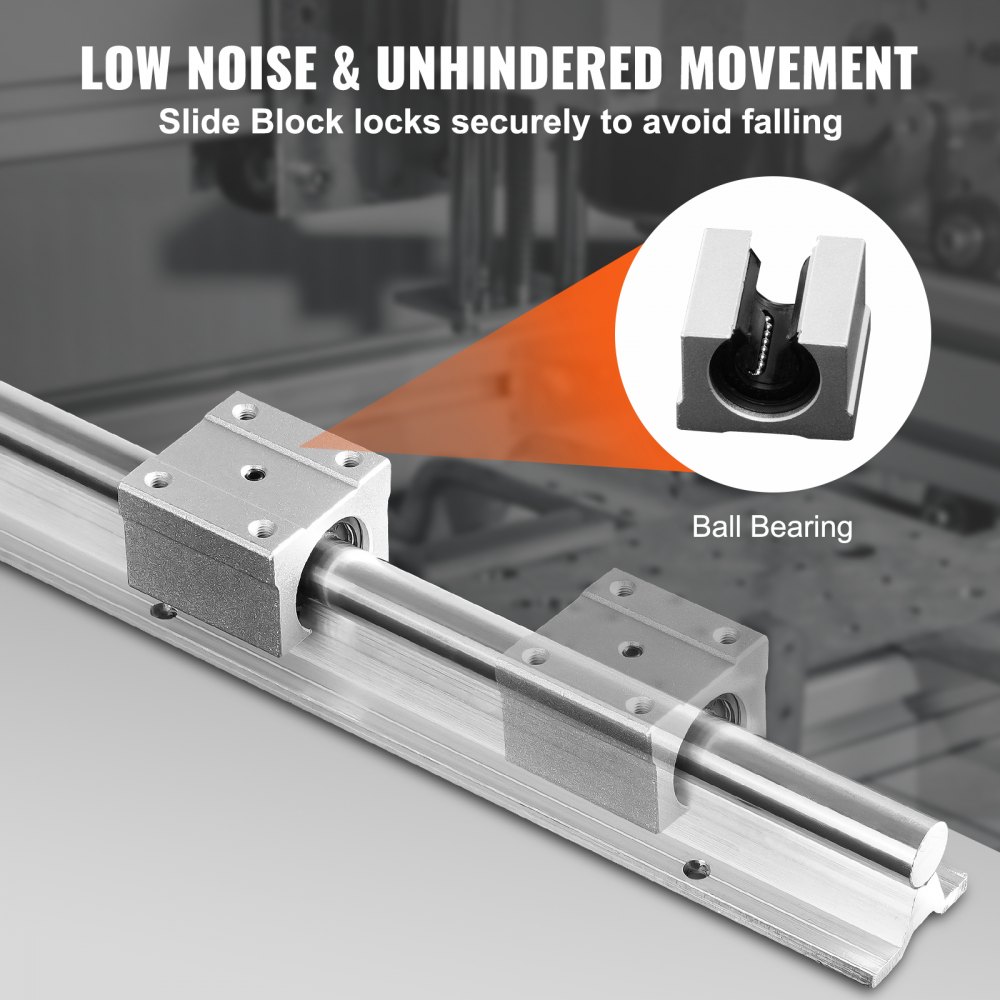

Smooth gliding without stuttering
The SBR aluminum sliding block and the built-in ball bearings glide smoothly and move effortlessly to ensure long-term stable operation.
More precise than ever before
The linear guides feature precise hole spacing, hole diameters and standard shaft diameters, allowing you to install your equipment with even greater precision.
Wide range of applications
The linear rail kit is frequently used in heavy-duty automation systems and DIY projects. For example, DIY CNC engraving machines, lathes, etc.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (2)
gibt es auch längere Schienen?
Leider haben wir keine längeren Schienen.
By vevor
Helpful
(
0
)
Gibt es zur SBR 16- 1000mm Auch Feststellkomponenten, um deie Blöcke an einer beliebigen Stelle der Schiene temporär zu fixieren?
Nein, es gibt keine Verriegelungskomponente, um den Block vorübergehend an einer beliebigen Stelle der Strecke zu sichern.
