Features & Details

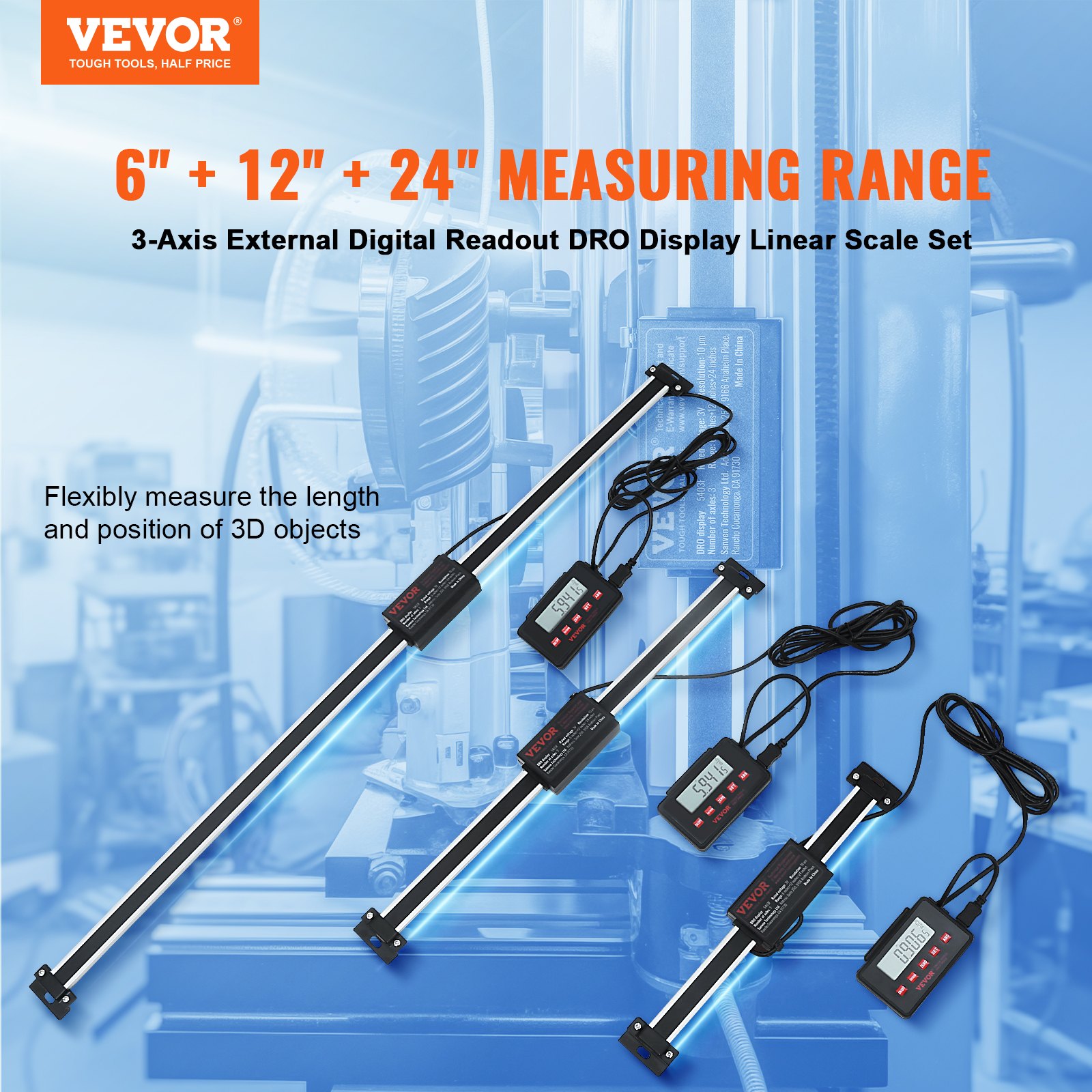

- 6" + 12" + 24" Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 6" (150 mm), 12" (300 mm), and 24" (600 mm). Customize the X-axis (length), Y-axis (height), and Z-axis (width) to your specific requirements, enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Craftsmanship without limits.

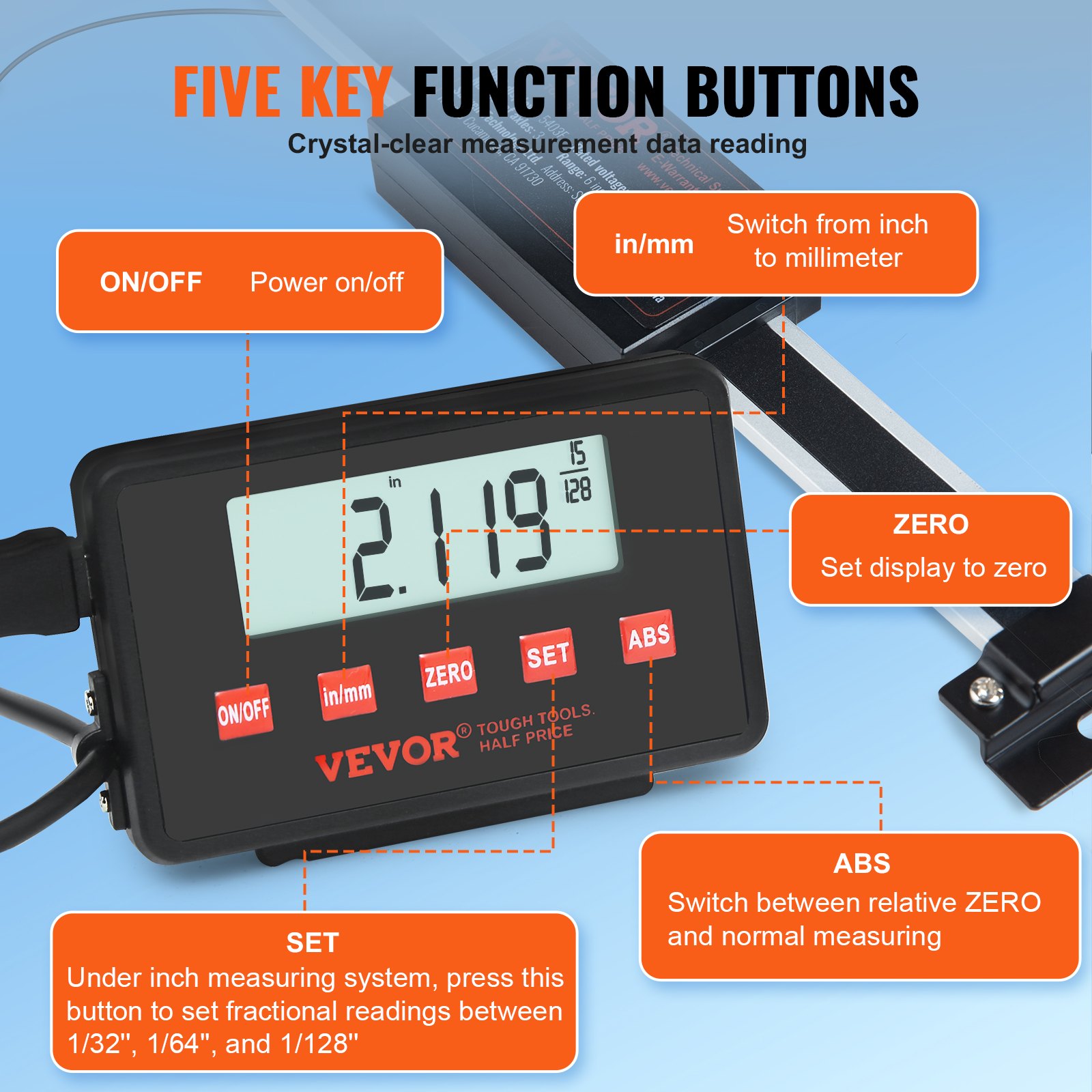

- Multifunctional, crystal-clear display: Our high-resolution screen with a premium chip effortlessly displays decimals and fractions. It allows you to switch between inches and millimeters, zero the display, toggle between relative zero and standard measurement, and adjust the resolution. In inch mode, press this button to set fractional values between 1/32", 1/64", and 1/128". Precision made easy, down to the smallest detail.

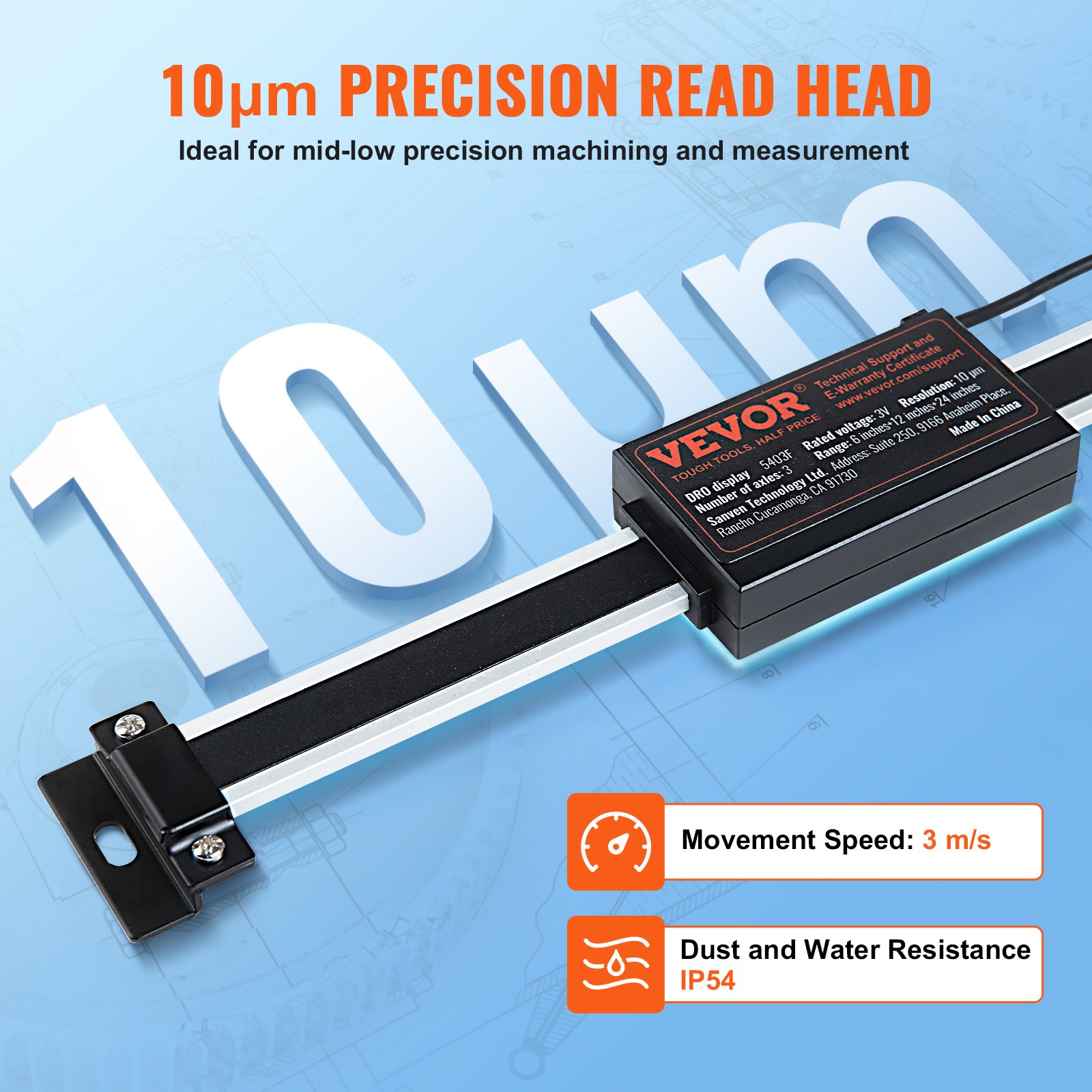

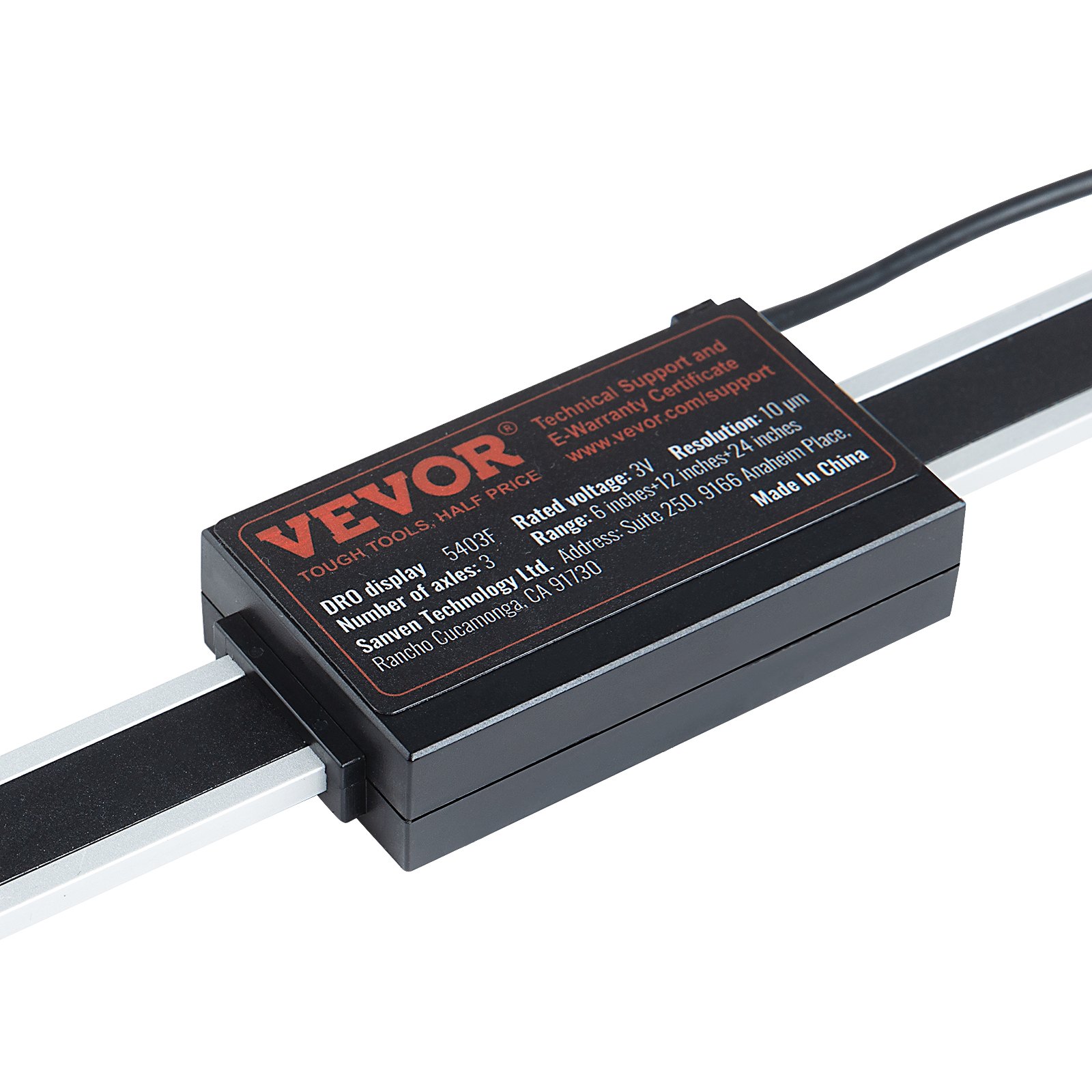

- 10 μm Precision Read Head: Our fully enclosed linear scale set offers a 10 μm resolution for minimal length measurement errors. Even the longest 24-inch (600 mm) linear scale has an error of only 0.006 inches (0.15 mm), making it perfect for low- to medium-precision machining and measurement applications. It features a movement speed of 3 m/s with no overspeed errors and a corrosion-resistant dust cover to achieve IP54 dust and water resistance.

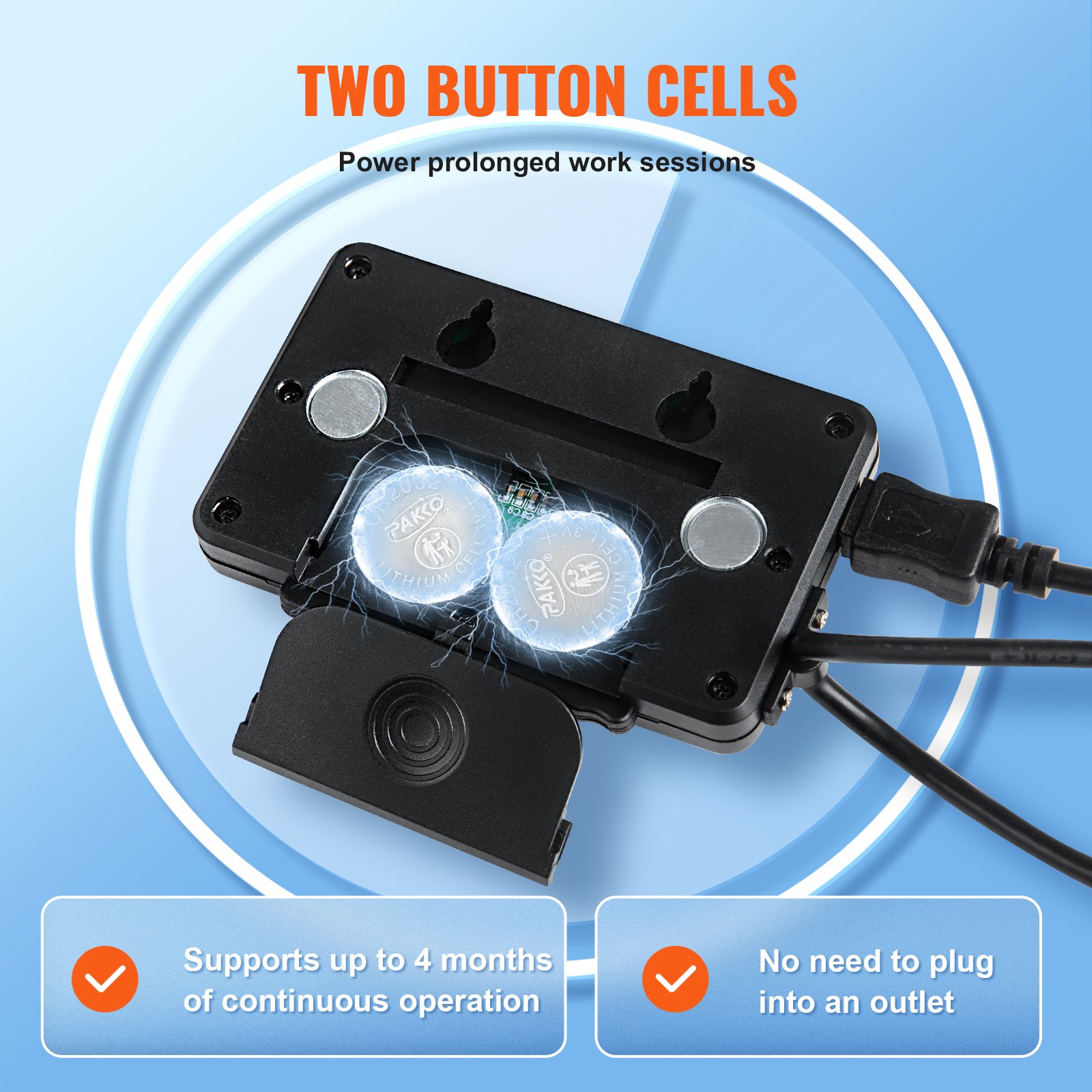

- Long-lasting 3V button cells: The screen of our linear scale set is powered by two discreetly mounted 3V button cells on the back. No additional power sources are required. Enjoy up to 4 months of continuous operation, and when it's time to replace them, it's a hassle-free process. Power your precision with ease.

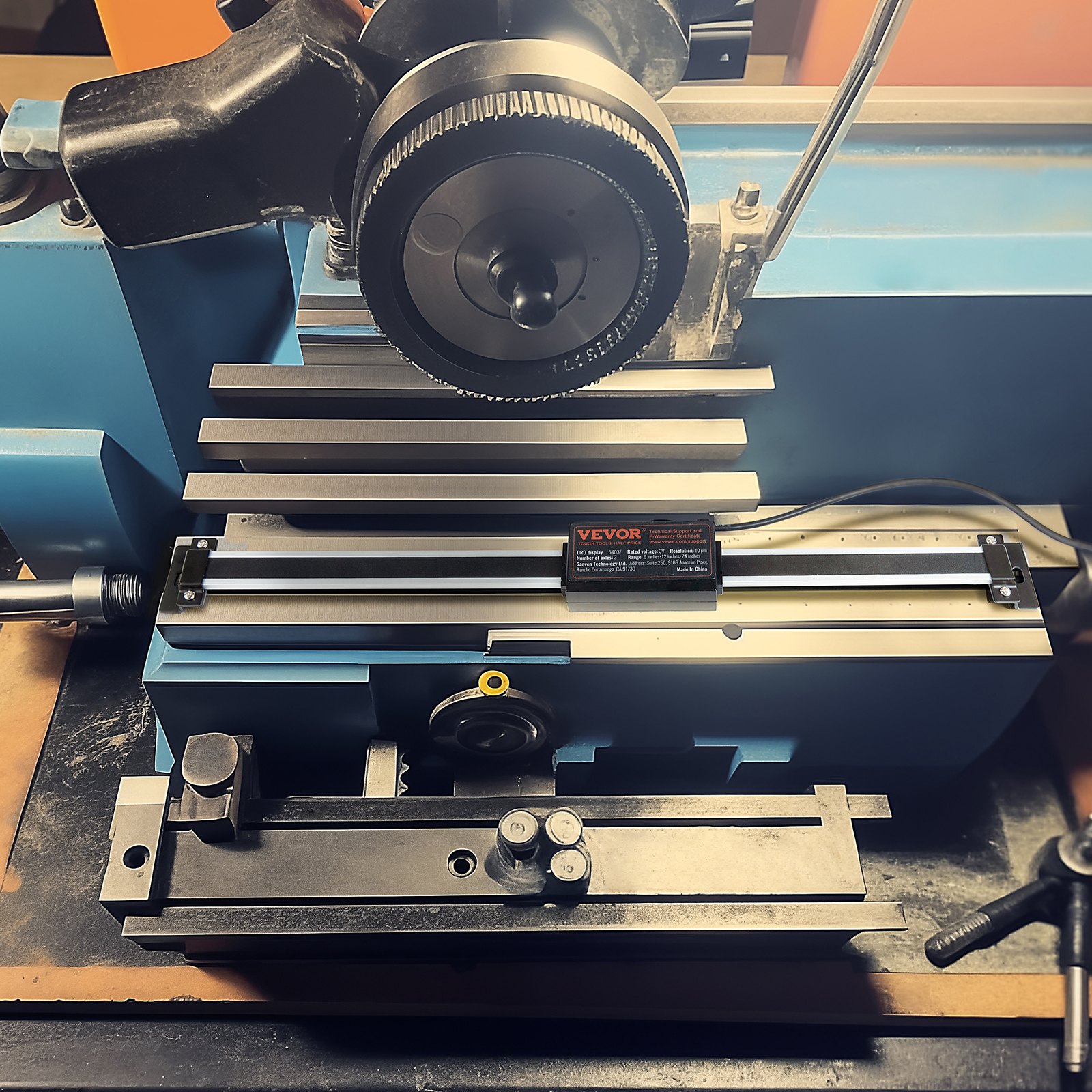

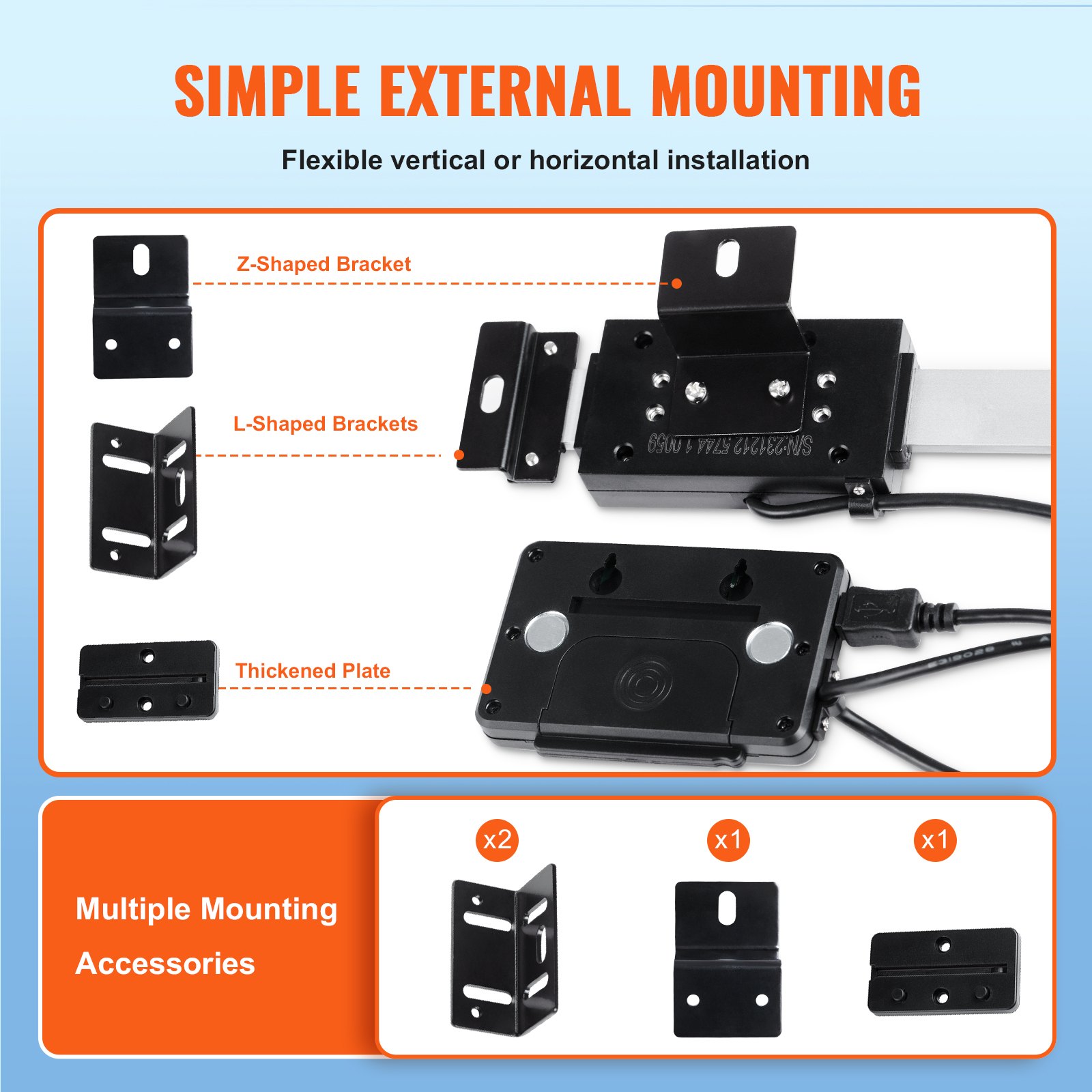

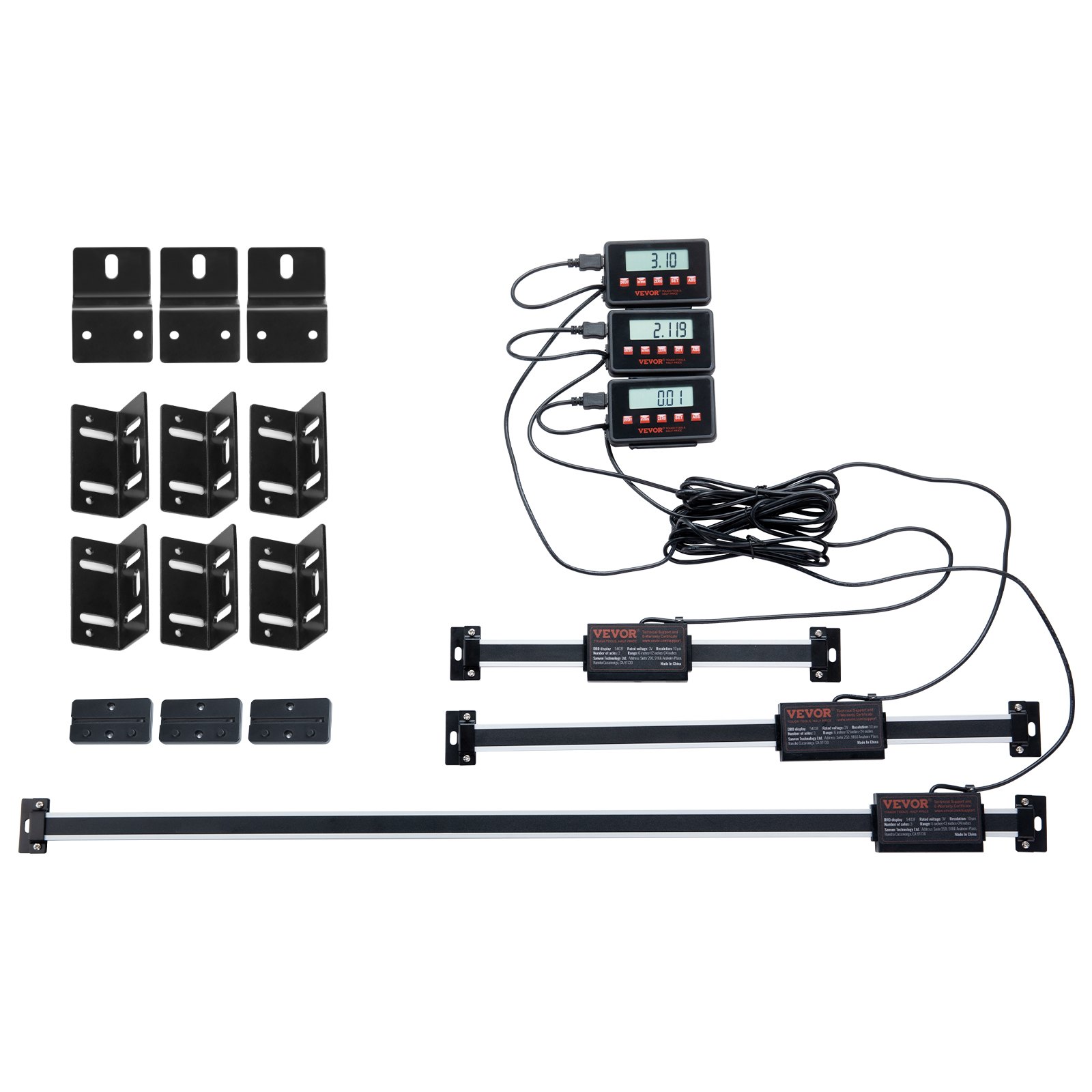

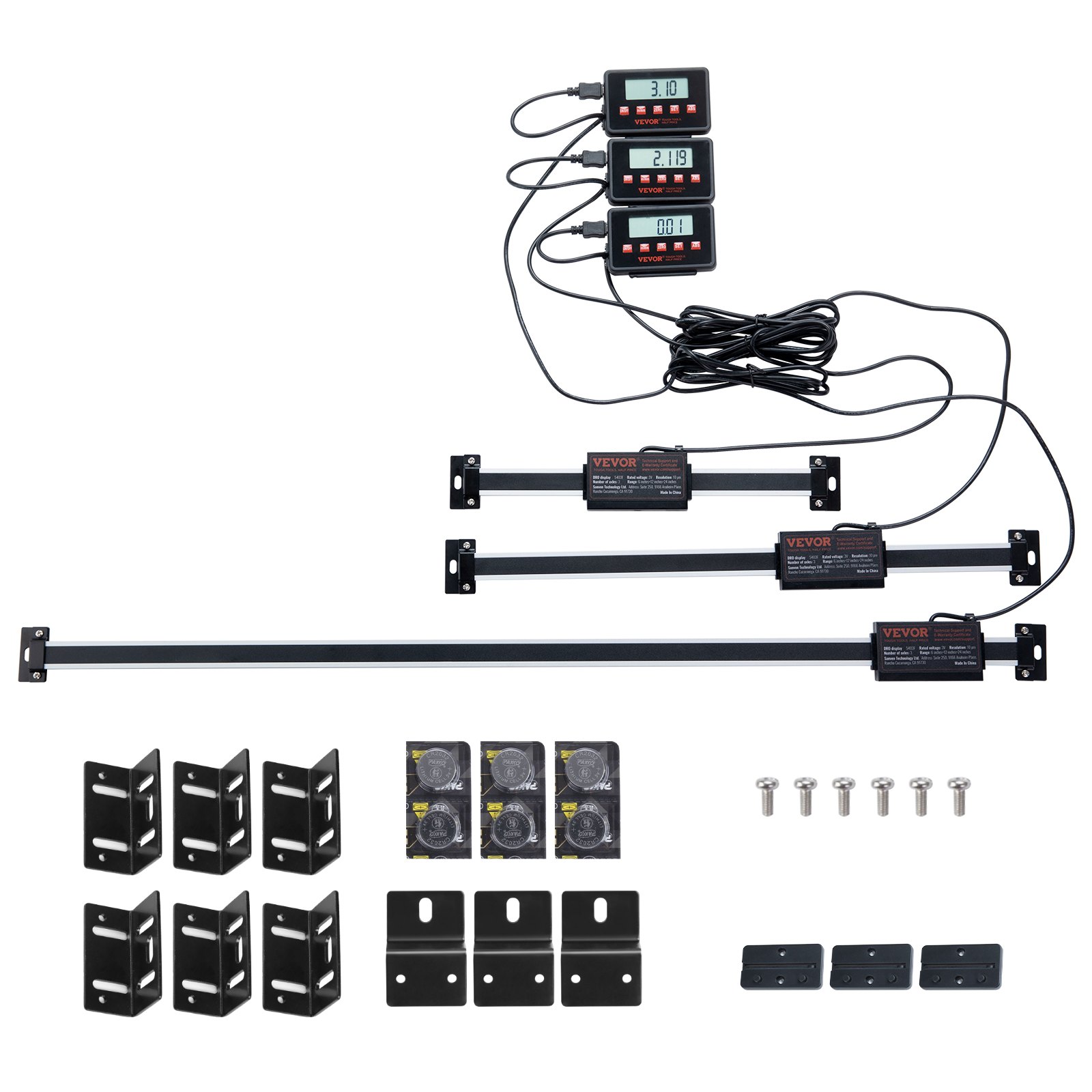

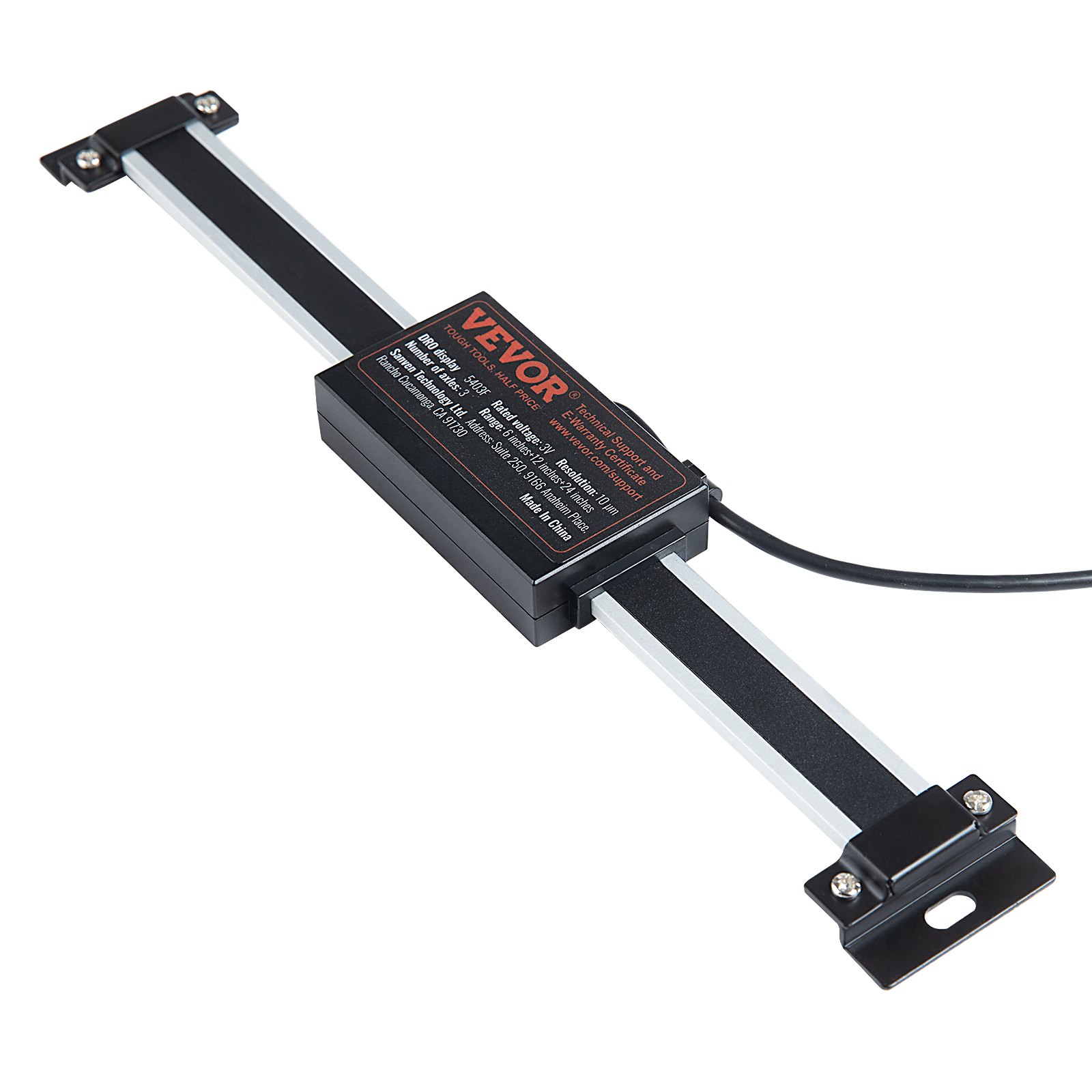

- Easy installation: Mounting holes are located on the back of the reading head. We also supply two L-shaped brackets, one Z-shaped bracket, and one thickened plate for each linear scale. With a total of 12 installation accessories, allowing for vertical or horizontal mounting, it perfectly complements a wide variety of machine tools, including cutting and drilling machines. Furthermore, the back of the display screen is equipped with two magnets for secure attachment to iron surfaces.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 17 reviews
Reviews 4.9
All reviews are from verified purchases
See all 17 reviews
About this item
Product specification
- Article model number
- 5403F
- Nominal voltage of the button cell
- 3 V
- Resolution
- 10μm
- Number of axes
- 3
- Measuring range
- 6 inches / 152.4 mm, 12 inches / 304.8 mm, 24 inches / 609.6 mm
- Net weight
- 7.5 lbs / 0.94 kg, ±3%

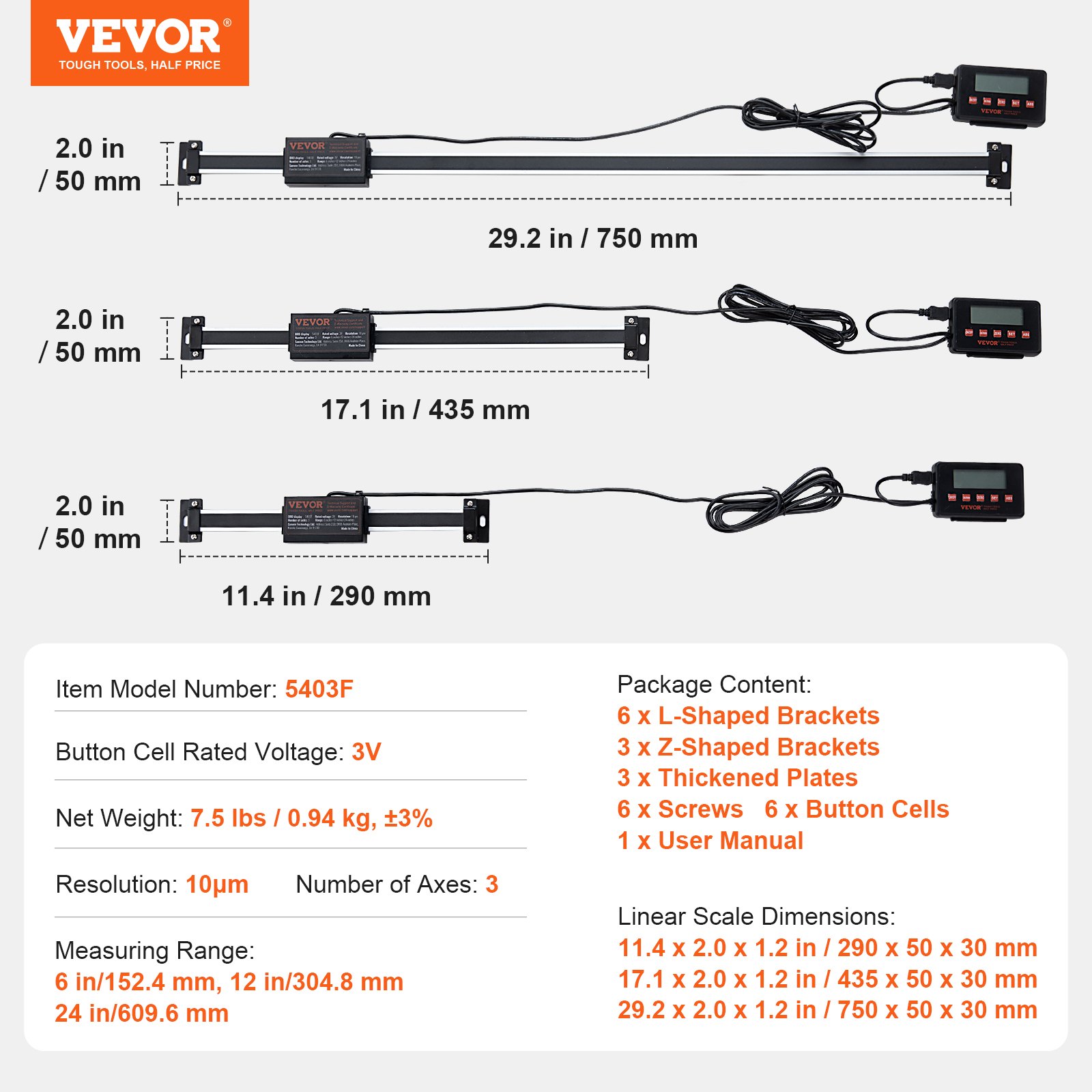

- Dimensions of the linear scale
- 11.4 x 2.0 x 1.2 inches / 290 x 50 x 30 mm; 17.1 x 2.0 x 1.2 inches / 435 x 50 x 30 mm; 29.2 x 2.0 x 1.2 inches / 750 x 50 x 30 mm
Description

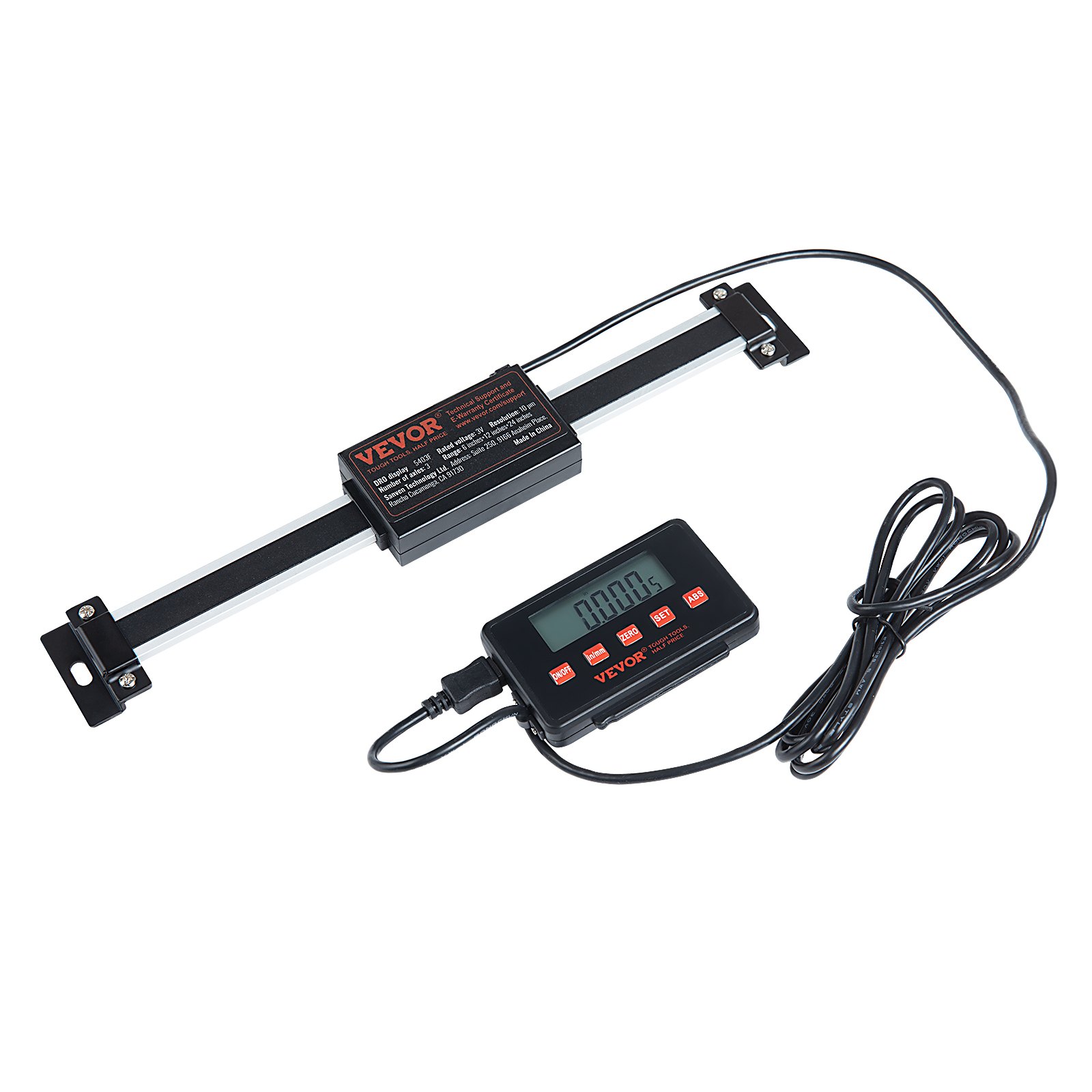

3-axis linear scale set
Our 3-axis linear scale set delivers full-dimensional measurements of complex workpieces with a resolution of 10 μm. It features a fast-responding display and three travel lengths of 150 mm, 300 mm, and 600 mm. Unleashed precision in 3D machining.
We offer three travel lengths: 6 inches (150 mm), 12 inches (300 mm), and 24 inches (600 mm). If you need simple to medium-precision measurements on your machine tools, this linear scale set is exactly what you need.
Our compact display unit features 5 essential function keys that allow for quick switching between inches and millimeters, precision settings, relative zeroing, and standard measurement. Experience ultimate ease of reading.
Our linear scale set is designed for precision measurements. With a resolution of 10 μm, lightning-fast response time, and a dustproof and waterproof design to protect against environmental influences, your data is displayed on the screen instantly.
Our linear scale set is powered by two easily replaceable 3V button cell batteries and features a compact, lightweight display. Equipped with magnets on the back for easy attachment to any tool surface, it offers ultimate portability.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (2)
Hallo,
Ist dies ein optische (Glasmessstab) oder ein magnetisches Messsystem?
Hallo,
Dies ist ein optischer (Glasmessstab)
By vevor
Helpful
(
0
)
Kann man einen Maßstab kürzen?
Nein, die Größe des Produkts ist festgelegt.
By vevor
Helpful
(
0
)
SZGZCTZ5WM6YL2FL2V2
VEVOR digital display, 152.4, 304.8, 609.6 mm, 3-axis linear scale DRO display set with L-shaped supports, Z-shaped supports, thickened plates, knob screw
