Features & Details

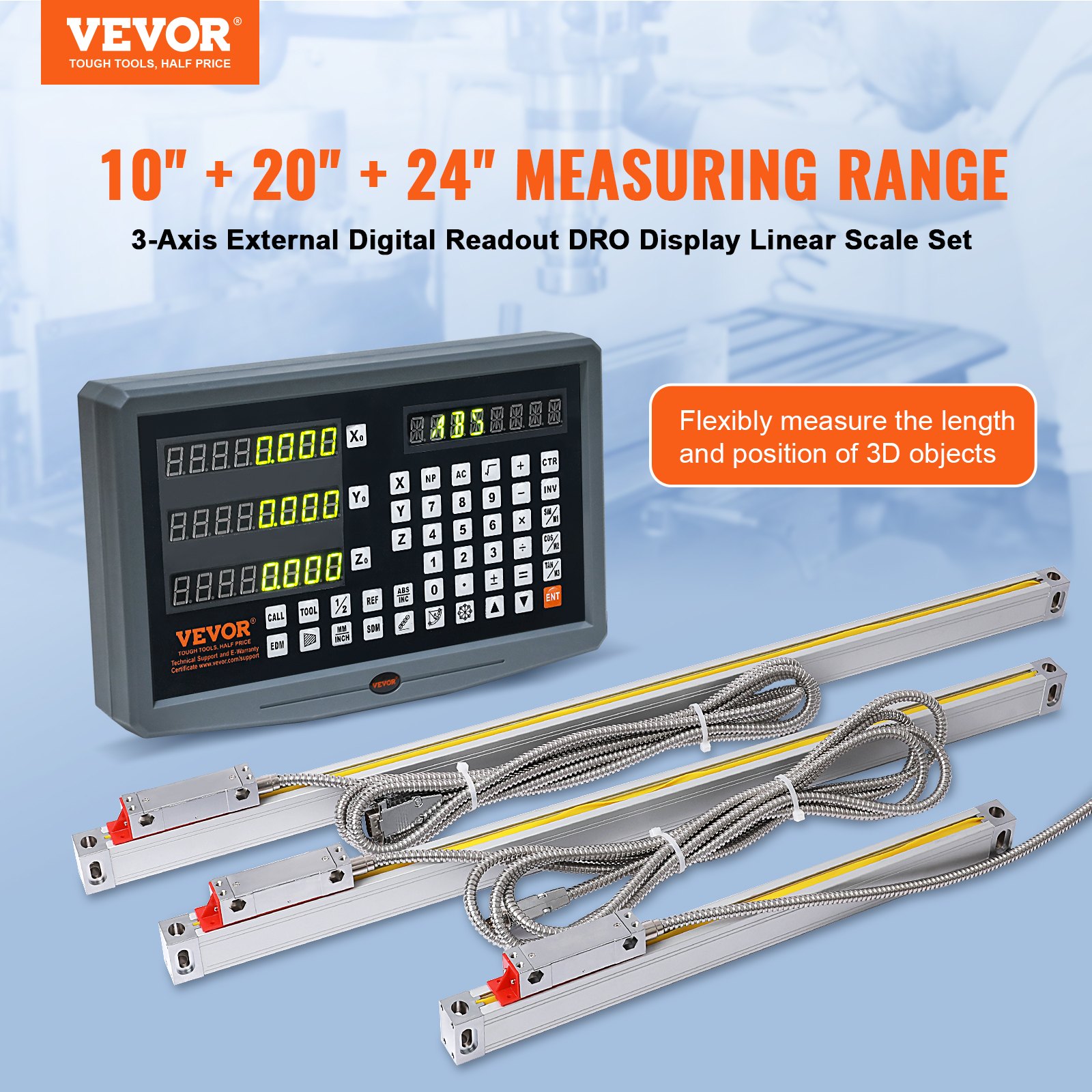

  • 10" + 20" + 24" Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 10 inches (250 mm), 20 inches (500 mm), and 24 inches (600 mm). Customize the X-axis (length), Y-axis (height), and Z-axis (width) to your specific requirements and enable seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Facilitates high-precision processes like peripheral drilling.

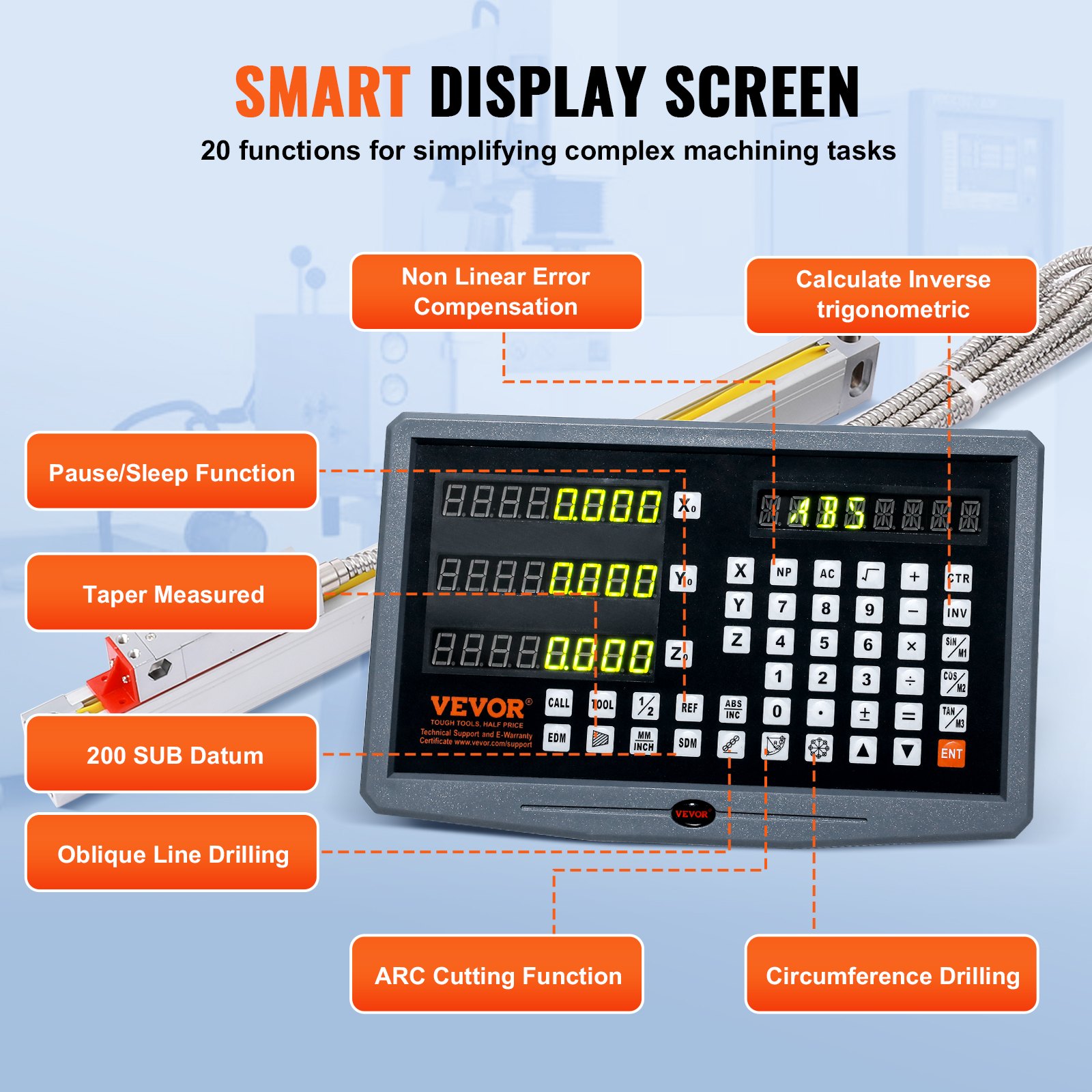

  • Multifunctional, crystal-clear display: Our display offers many basic and specialized functions to ensure convenient measuring and positioning. Basic functions include standard data measurement, calculation, zeroing, unit conversion, pause standby, power-off memory, non-linear error compensation, and more. Special functions include arc cutting, circumferential drilling, slant drilling, and inverse trigonometric function calculation.

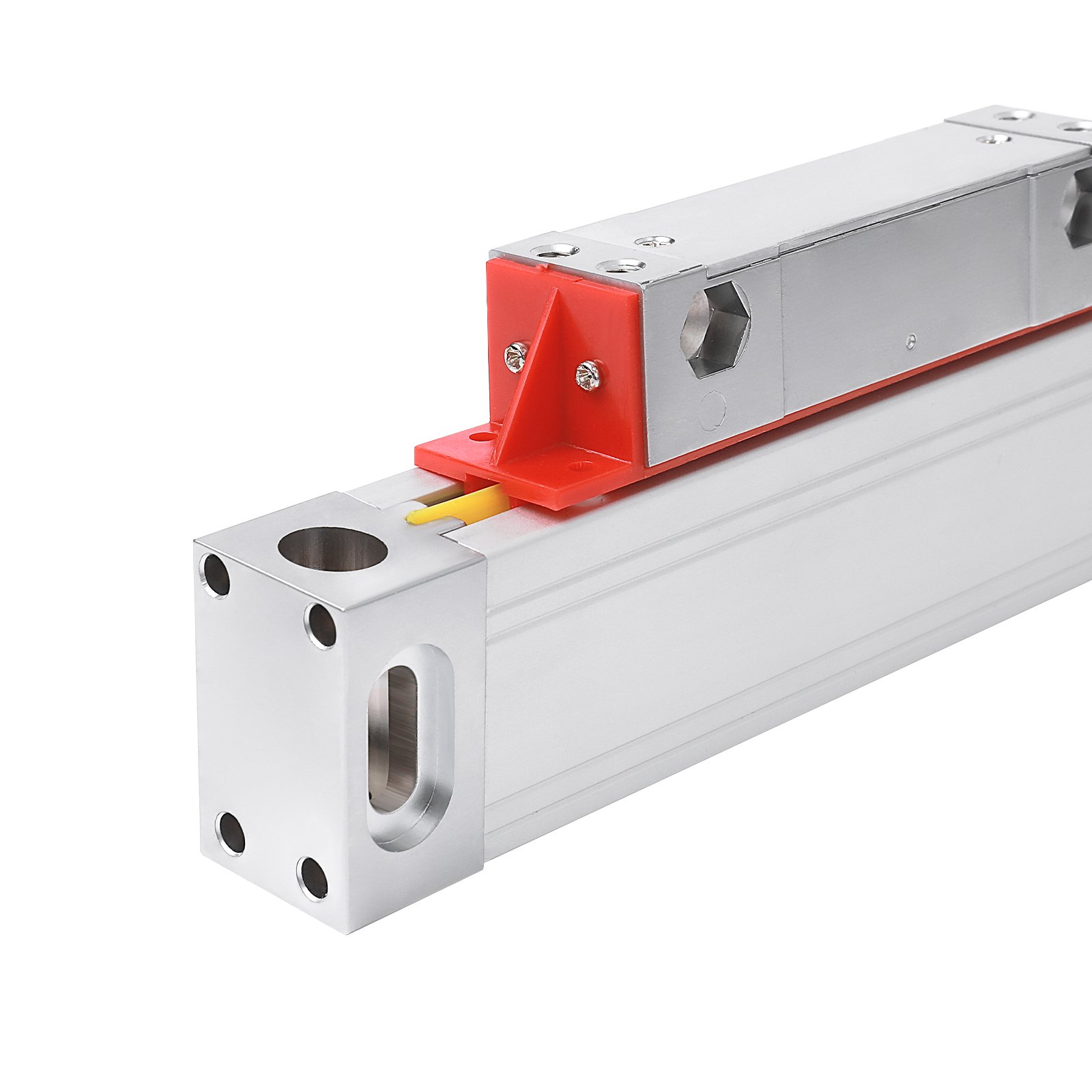

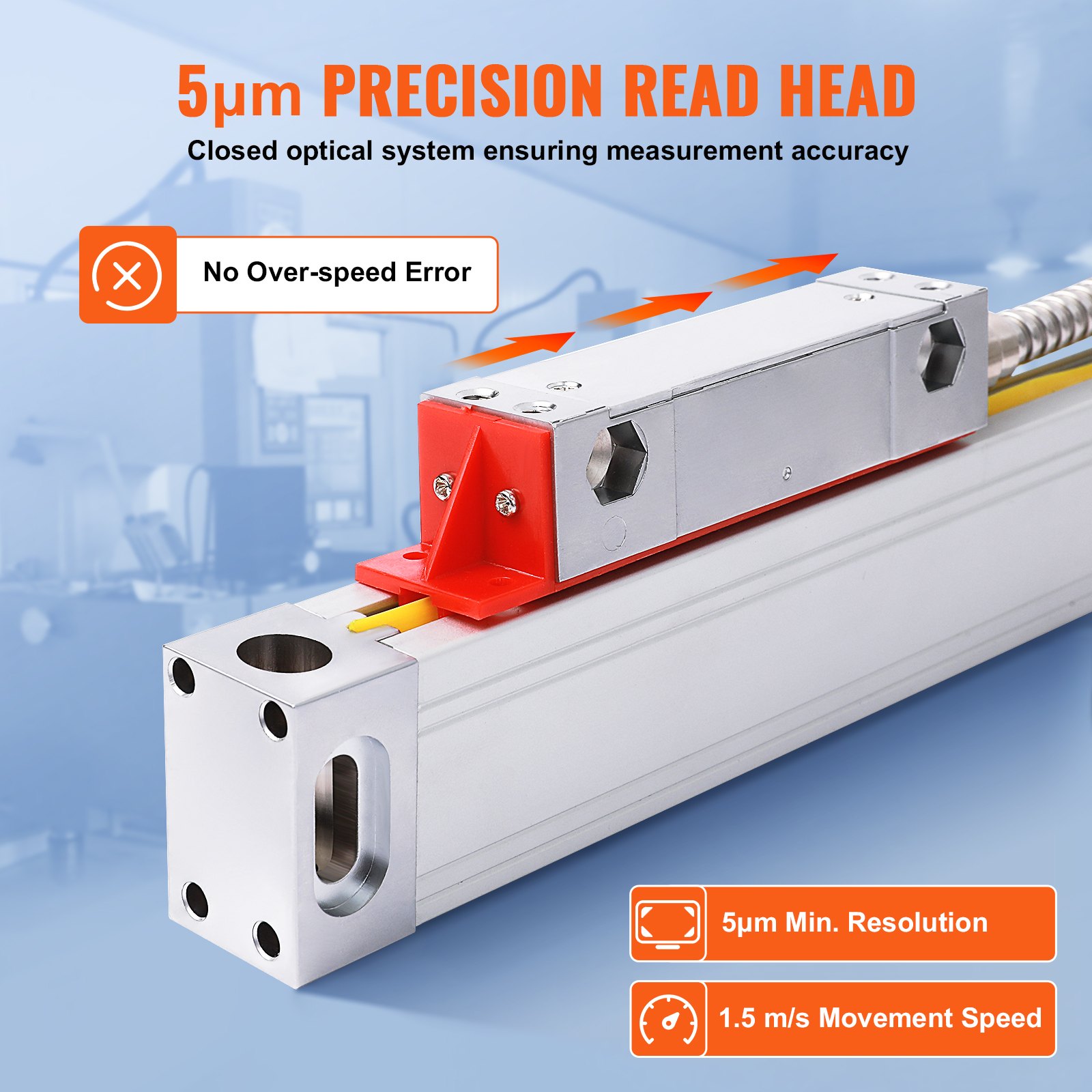

  • Precise 5-μm read head: Our linear scale offers a remarkable minimum resolution of 5 μm. Even at its maximum reach of 24 inches (600 mm), it exhibits an error of only 0.004 inches (0.1 mm) in standard and repeat measurements. With a fast read head movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision redefined where every micrometer counts.

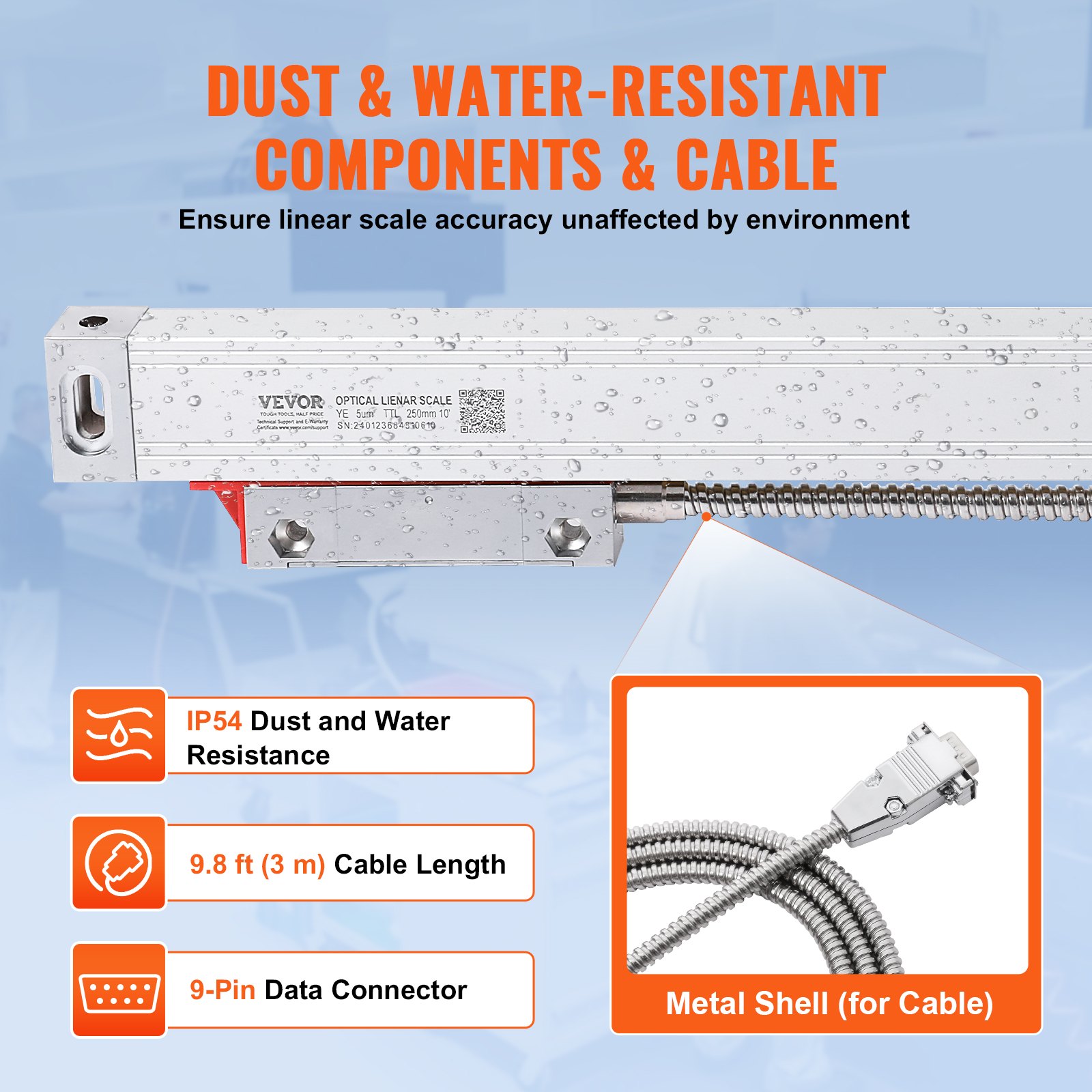

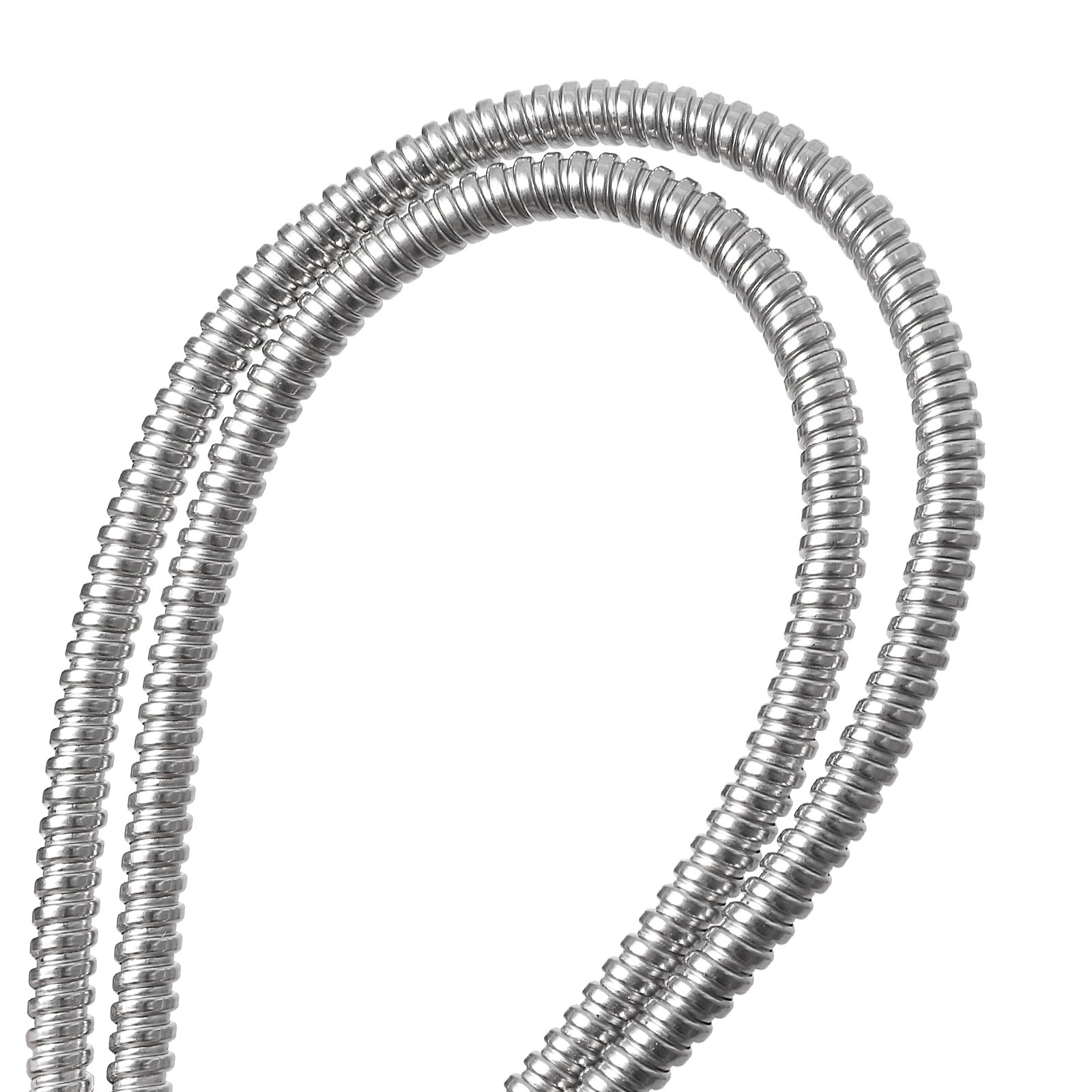

  • Protection against dirt and liquids: With a dual-layer lubricating seal and reinforced optical glass protection, our linear scale achieves IP54 dust and water resistance. It prevents dust accumulation and protects against splashes from all directions. The 3 m signal cable is equipped with a 9-pin data connector and features multiple layers of shielded steel wires and a soft metal housing, ensuring excellent water resistance and interference immunity.

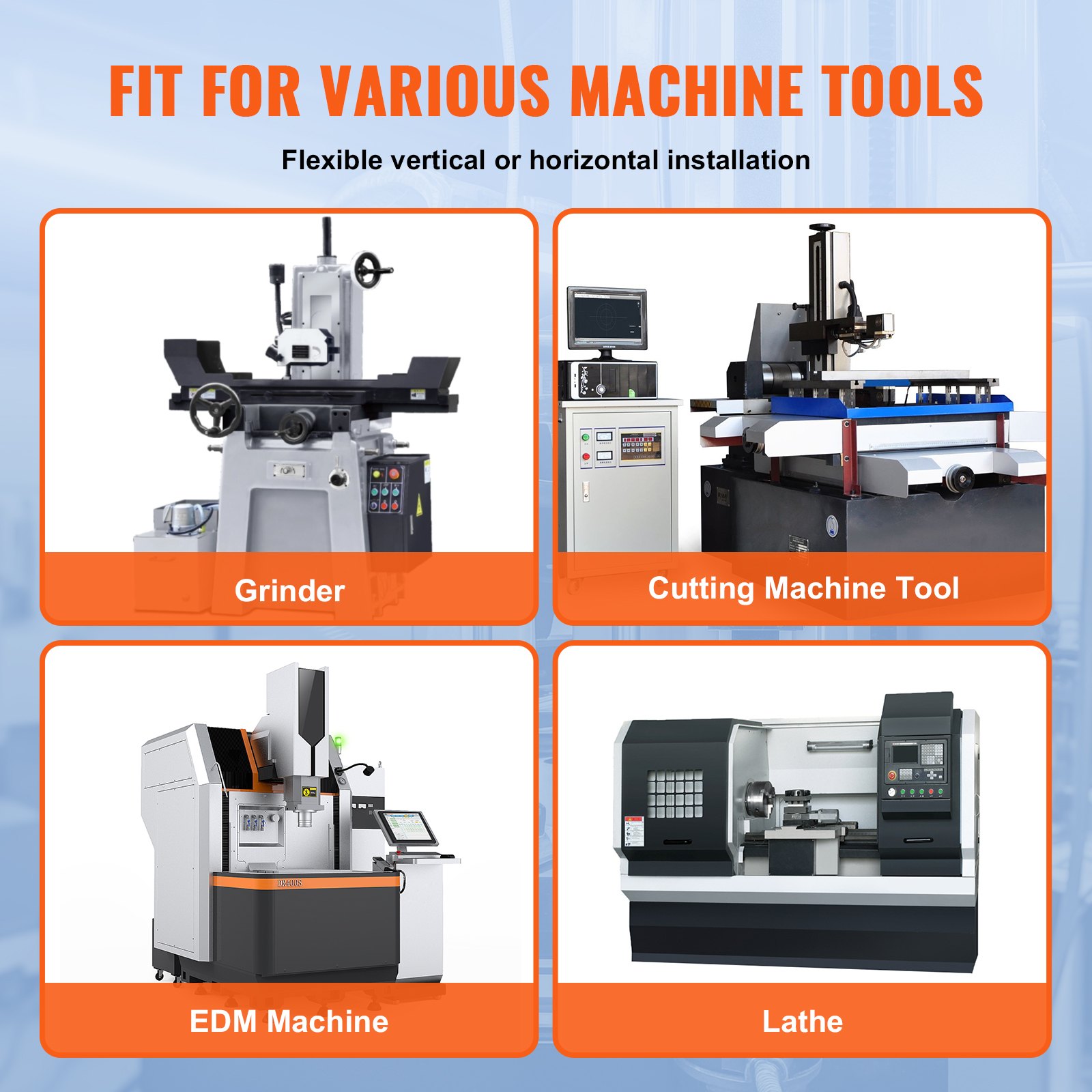

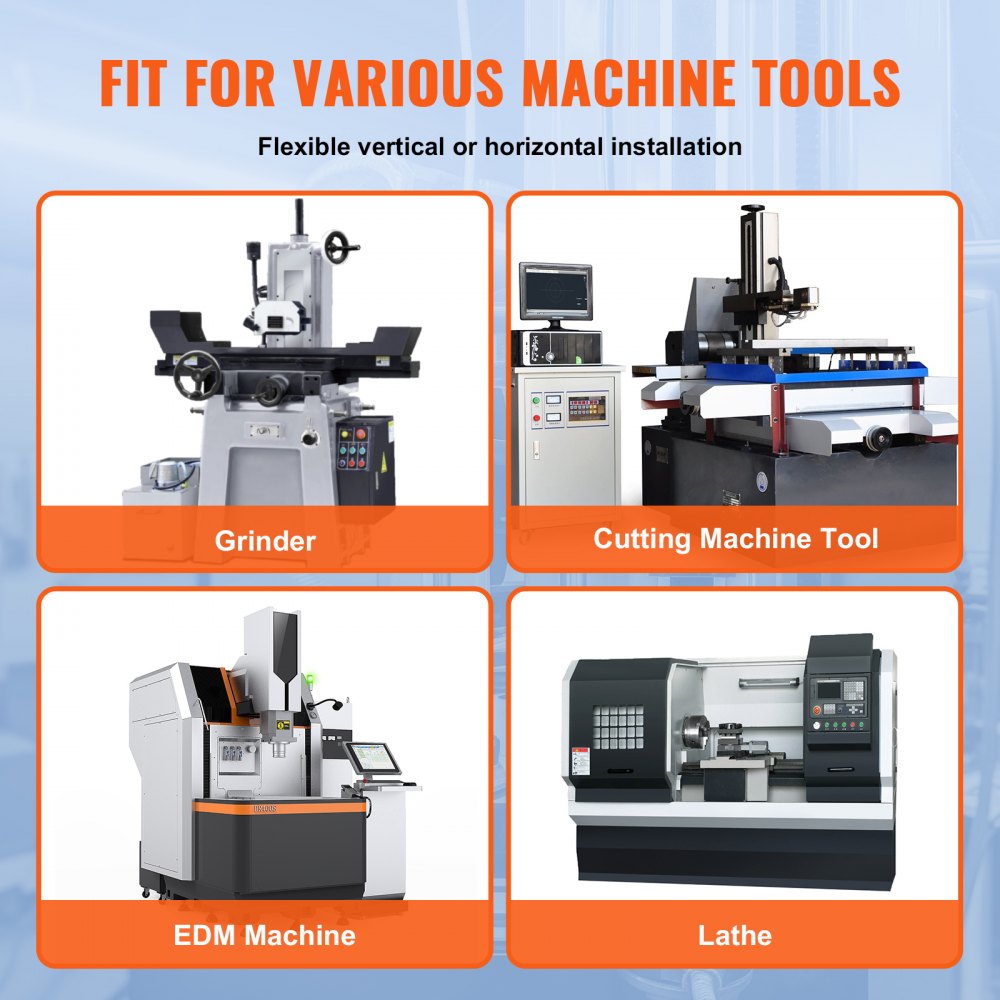

  • Vertical or horizontal installation: Our linear scale is designed for both vertical and horizontal installation on various machine tools, including cutting and drilling machines. When installing the scale, ensure that the height direction is parallel to the mounting surface of the workbench with a tolerance of less than 0.1 mm. Please note that when installing on unmachined surfaces, washers must be attached to the back of the scale for stabilization. Precise setup will be a breeze.

Frequently Bought Together

Reviews 4.9
All reviews are from verified purchases
Average rating based on 17 reviews

See all 17 reviews

About this item

Product specification
Item model number
SNS-3V-YE102024
Nominal voltage
AC 80-230 V, 50 Hz/60 Hz
Maximum power consumption
15 W, ±10%
Resolution
5μm
Number of axes
3
Measuring range
10 inches / 250 mm, 20 inches / 500 mm, 24 inches / 600 mm
Net weight
9.0 lbs / 4.09 kg, ±3%
Description

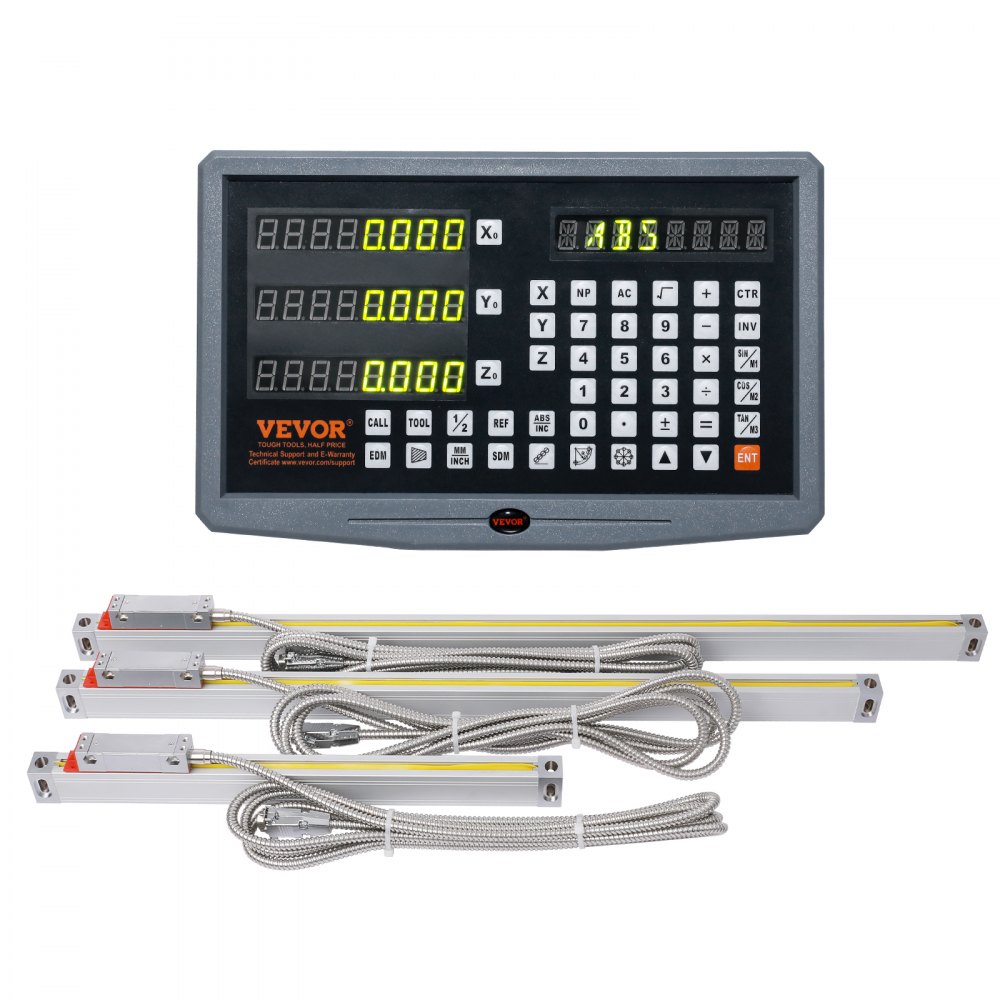

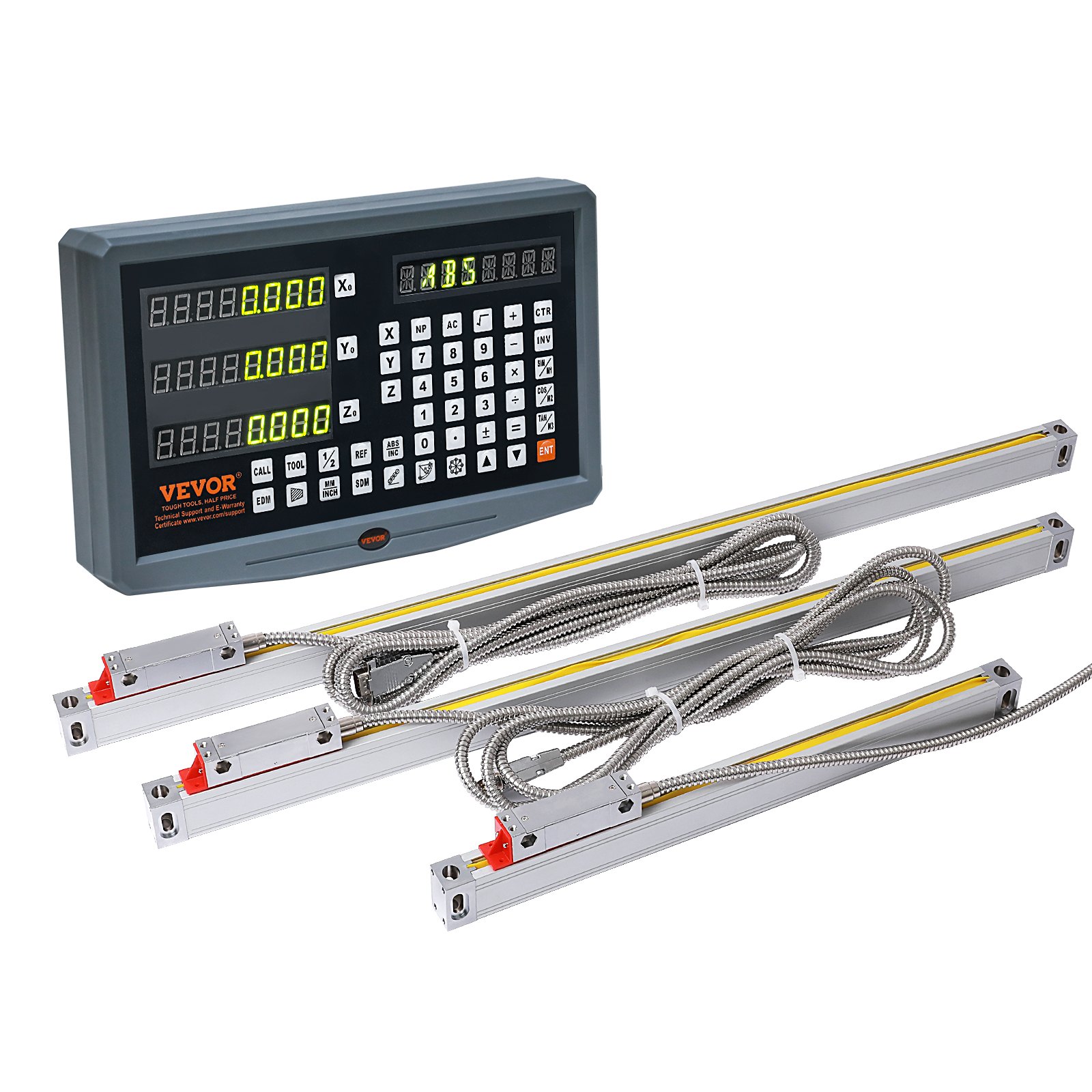

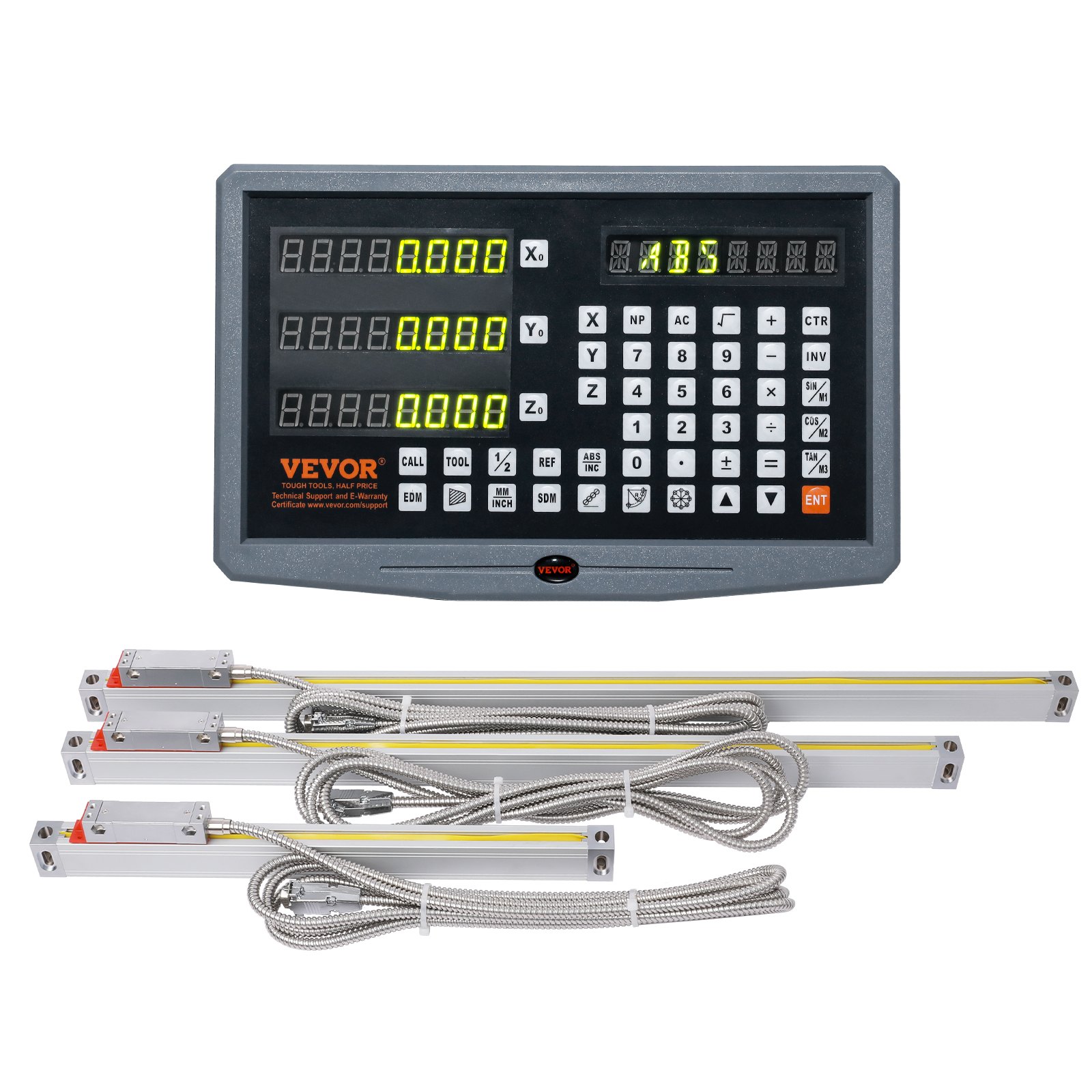

3-axis linear scale set
VEVOR dro display kit with 3-axis digital readout, linear scale, and flexible installation options.
VEVOR dro display kit with 3-axis digital readout, linear scale, and flexible installation options.
Our 3-axis linear scale set enables full-dimensional measurements of complex workpieces with a resolution of 10 μm. It features a fast-responding display for instant, accurate data and three travel lengths: 10 inches/250 mm, 20 inches/500 mm, and 24 inches/600 mm. Precision in 3D machining.
VEVOR dro display kit with pause sleep and power-off memory functions, featuring 20 advanced features.
VEVOR dro display kit with pause sleep and power-off memory functions, featuring 20 advanced features.
Choose from 3 travel lengths: 10 inches/250 mm, 20 inches/500 mm, 24 inches/600 mm. If your requirements extend beyond high-precision length measurements on machine tools and include complex tasks such as arc cutting and angled drilling, our linear scale set is exactly what you need.
VEVOR dro display kit 1.5 m/s precision read head with 5µm resolution, ip54 rating, and 0.015mm error.
VEVOR dro display kit 1.5 m/s precision read head with 5µm resolution, ip54 rating, and 0.015mm error.
Our display screen simplifies operation with features such as the ARC cutting function and peripheral drilling, while the sleep function and power-off memory ensure that your settings and data are retained even when leaving your work environment or in the event of a power failure.
VEVOR dro display kit with dual dust and water protection, ip54, double layer sealing, optical glass.
VEVOR dro display kit with dual dust and water protection, ip54, double layer sealing, optical glass.
Our grid linear scale is the epitome of measurement precision. With a resolution of 5 μm, lightning-fast response, and real-time data display on the screen, it achieves astonishingly low errors of only ±15 μm (0.0006 inches). Experience precision like never before.
vertical or horizontal installation guide for VEVOR dro display kit with images of vertical and horizontal setups.
vertical or horizontal installation guide for VEVOR dro display kit with images of vertical and horizontal setups.
Our linear balance features a comprehensive dustproof and waterproof design, protecting it from environmental factors that could lead to data inaccuracies. Unlike ordinary single-layer seals, our linear balance has an optimized double-layer seal that increases its resistance to external influences.

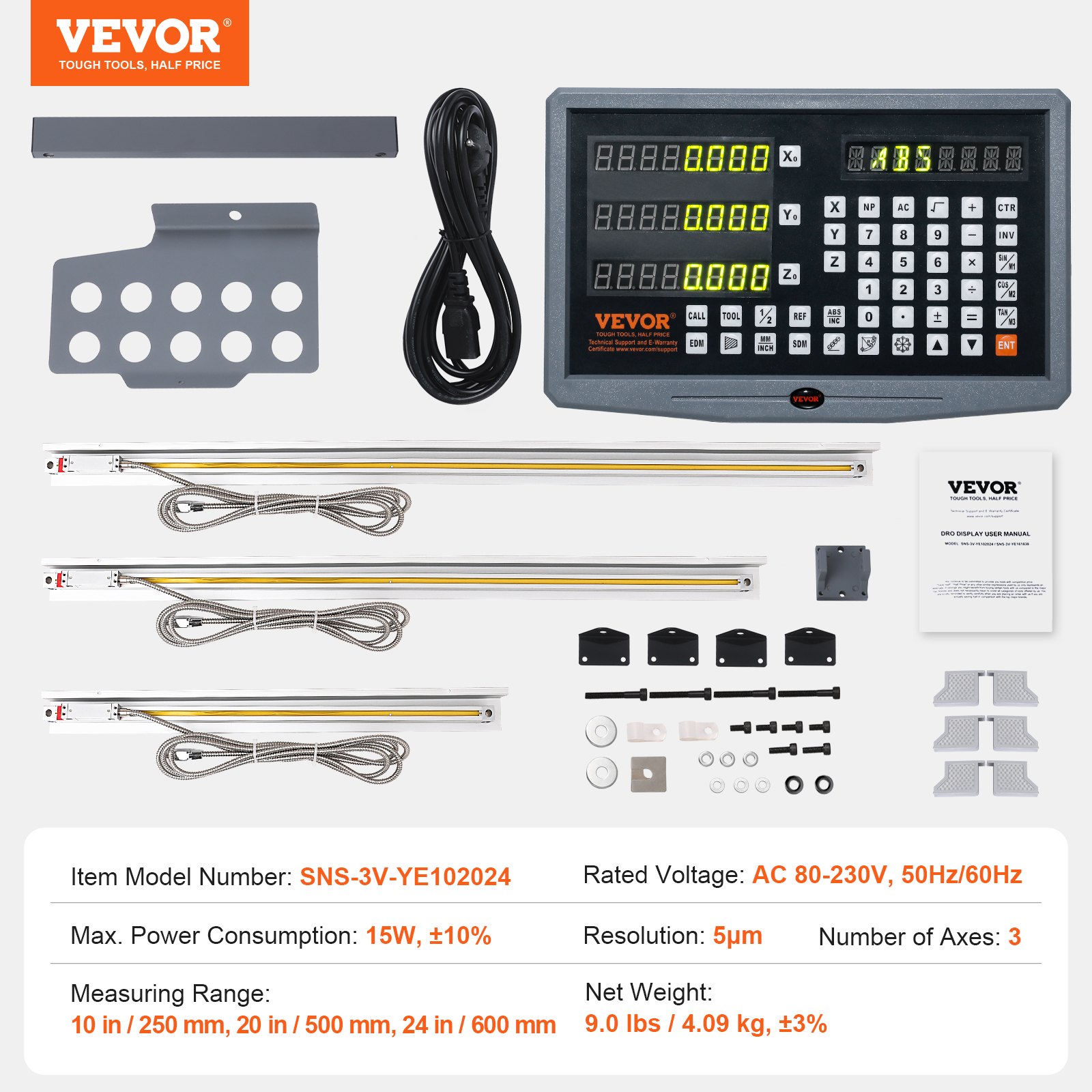

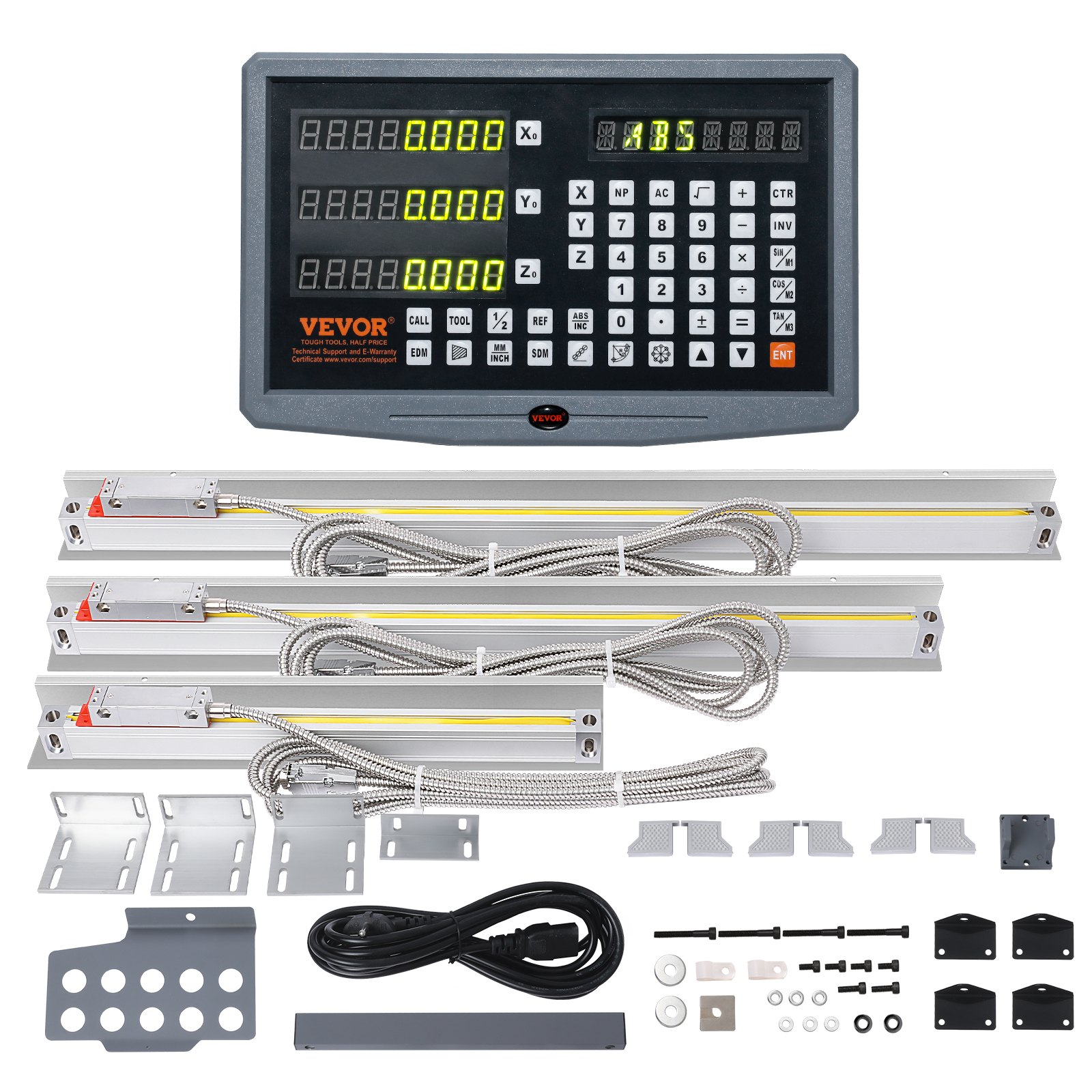

VEVOR dro display kit specifications, accessories, and dimensions for three measuring ranges.
VEVOR dro display kit specifications, accessories, and dimensions for three measuring ranges.
Product guides and documents
User manual-de (PDF) Review

Questions and Answers (1)

1 Questions
Ask a Question
Kann man die Glasmessstäbe auf eine für die eigene Maschine passende Länge kürzen?
Answer This Question
Nein, so kann es nicht sein.
