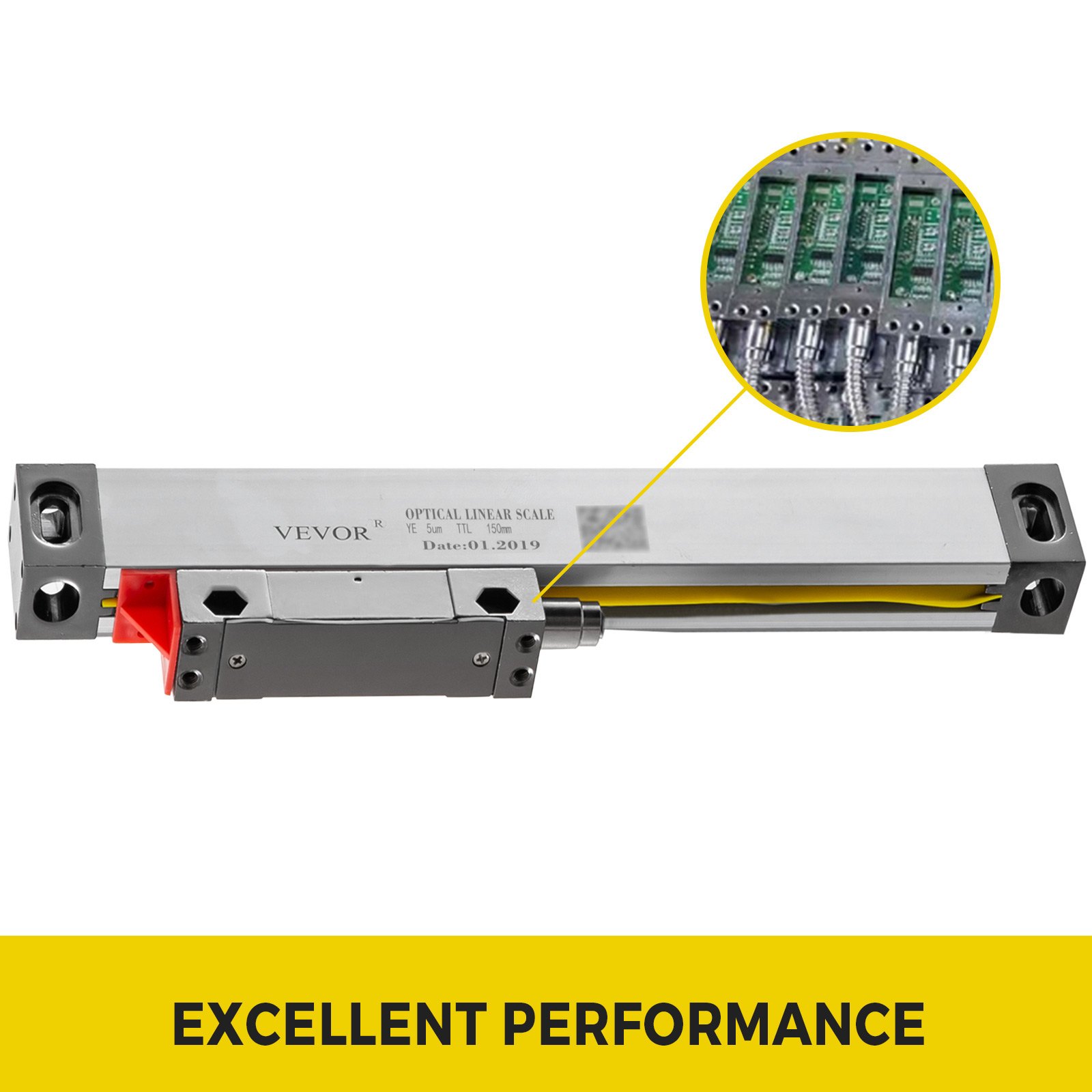

The linear scale uses an intelligent chip with a travel range of 0-150 mm, high accuracy of 5 µm, grid spacing of 0.02 mm, and a response speed of 60 m/min. 100% brand new and high quality. Connection: 9-pin connector (pin 26789), pins 2 to 0V, 6 to A, 7 to 5V, 8 to B, and 9 to R1.

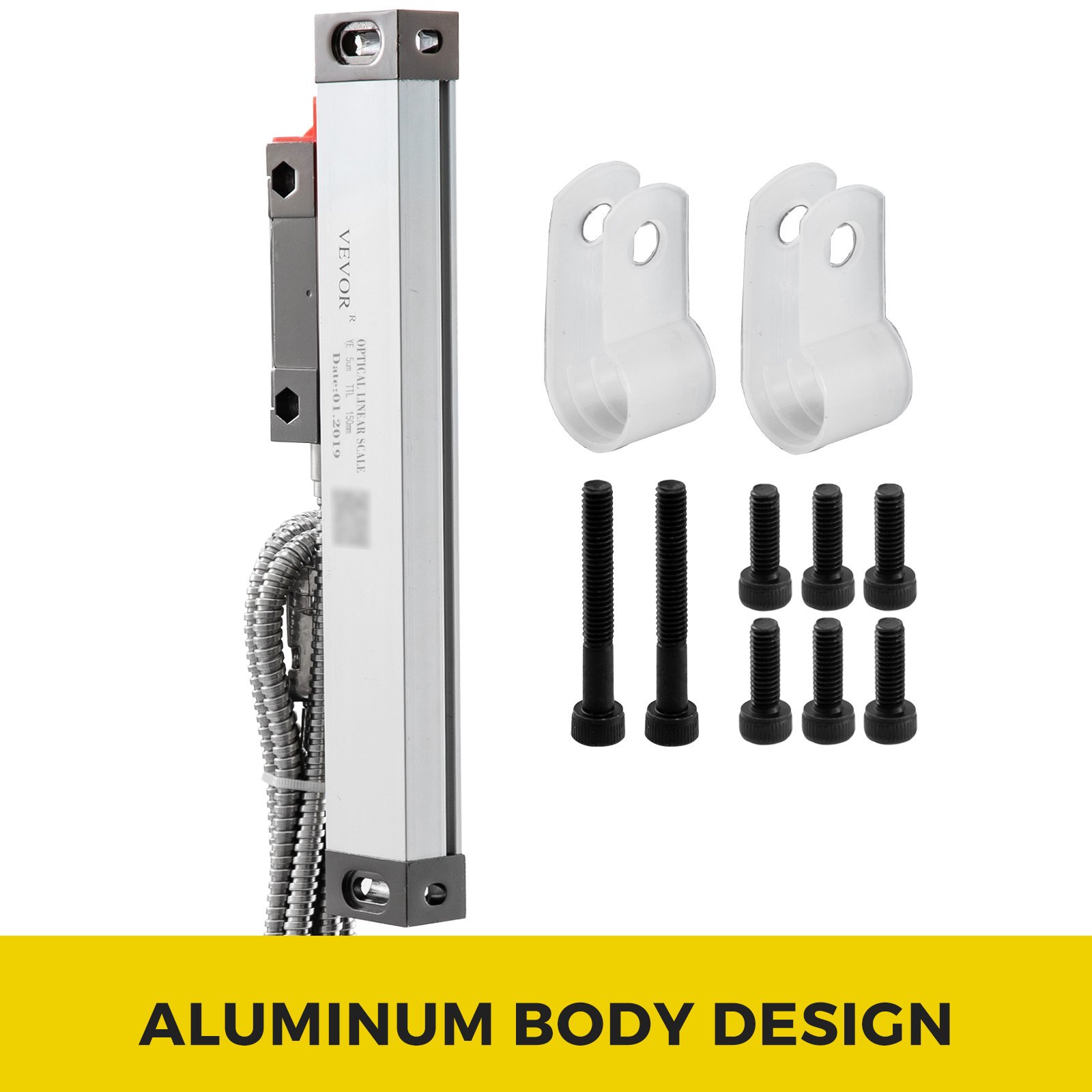

The scale body uses an aluminum profile, and the head is made of zinc alloy die-casting with a chrome coating for corrosion resistance. It has a nice and decent appearance, a sensible design, and good rigidity.

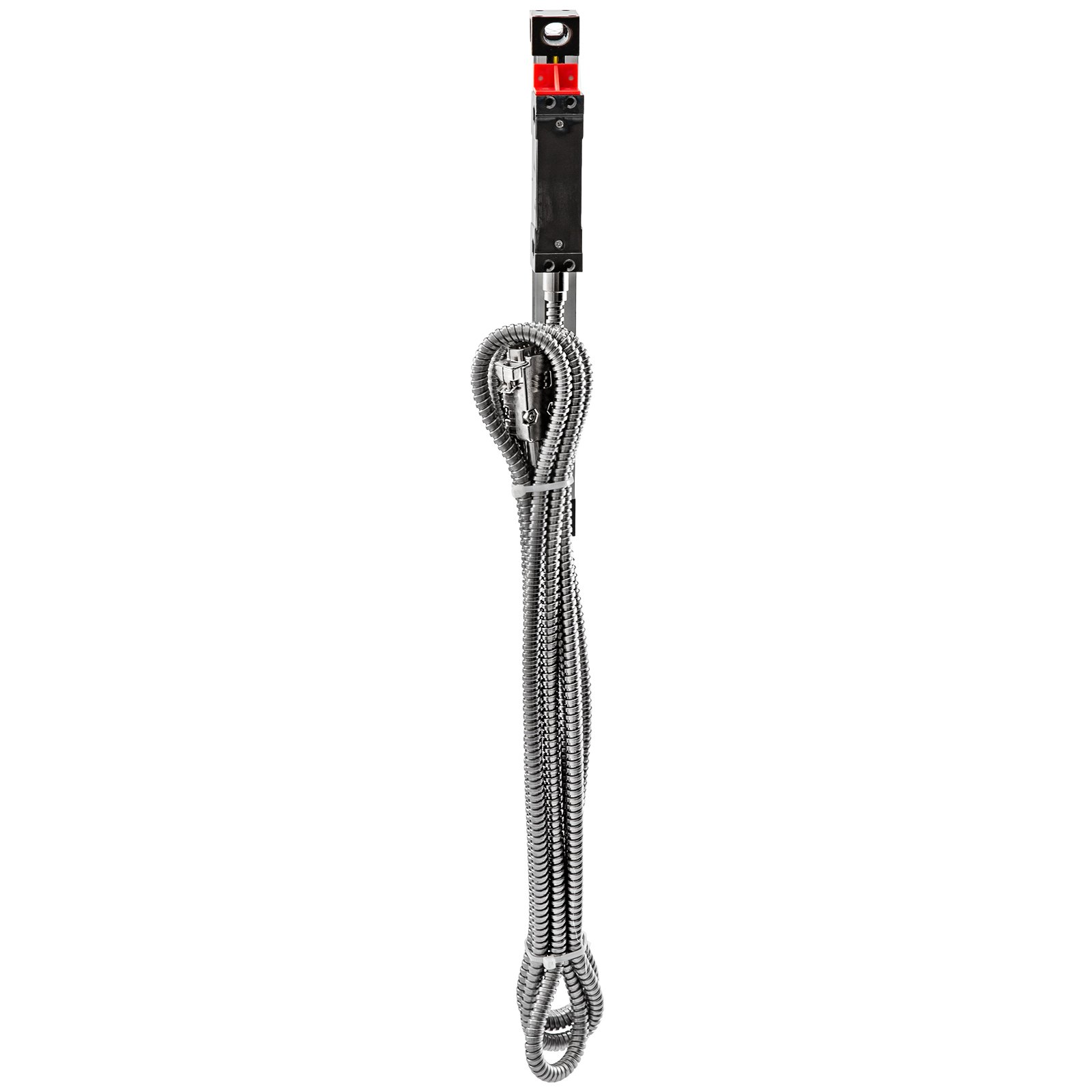

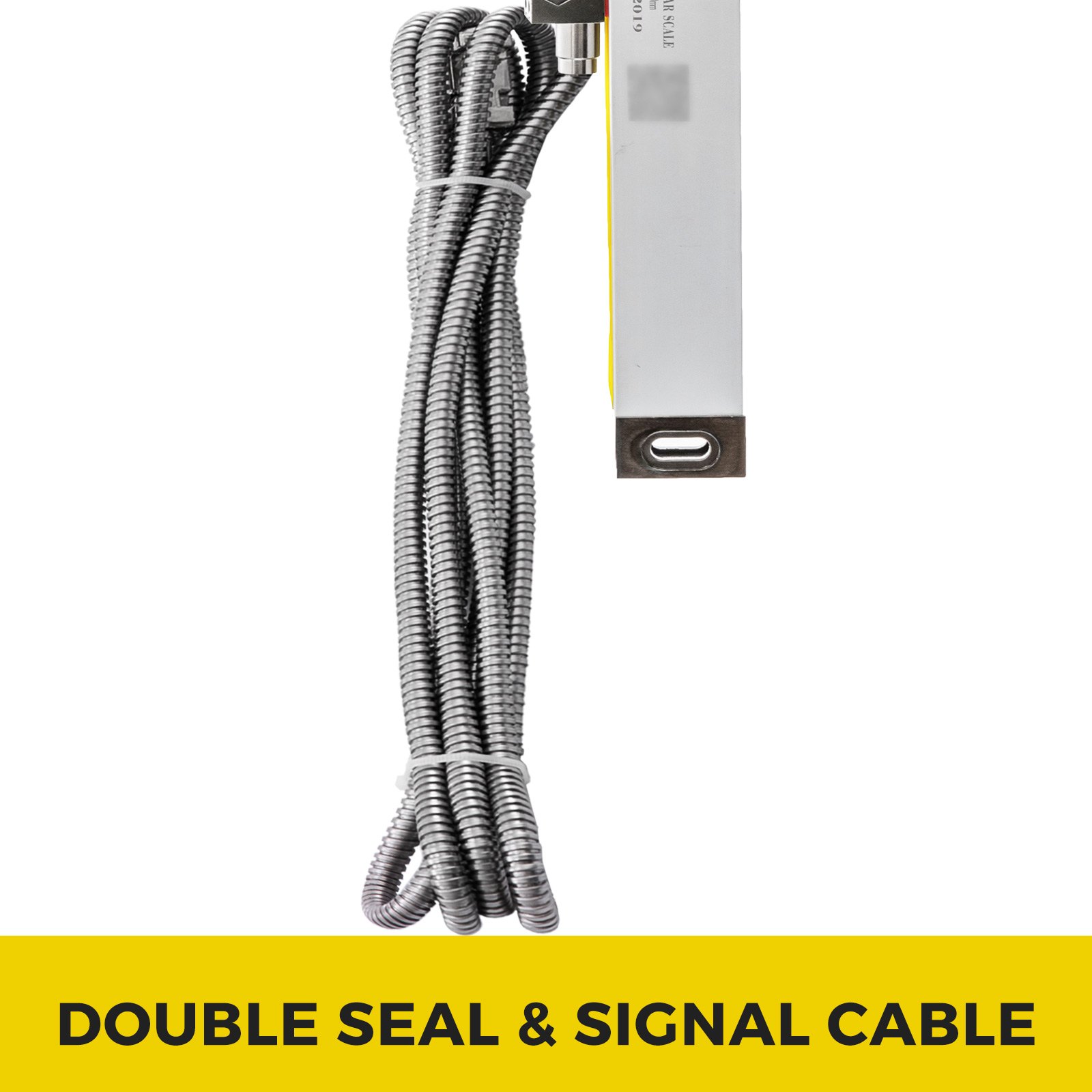

The transmitter bar is equipped with a double lip seal, providing additional protection against contamination. The signal cable is protected with a multi-layered shielded steel wire and a metal sheath.

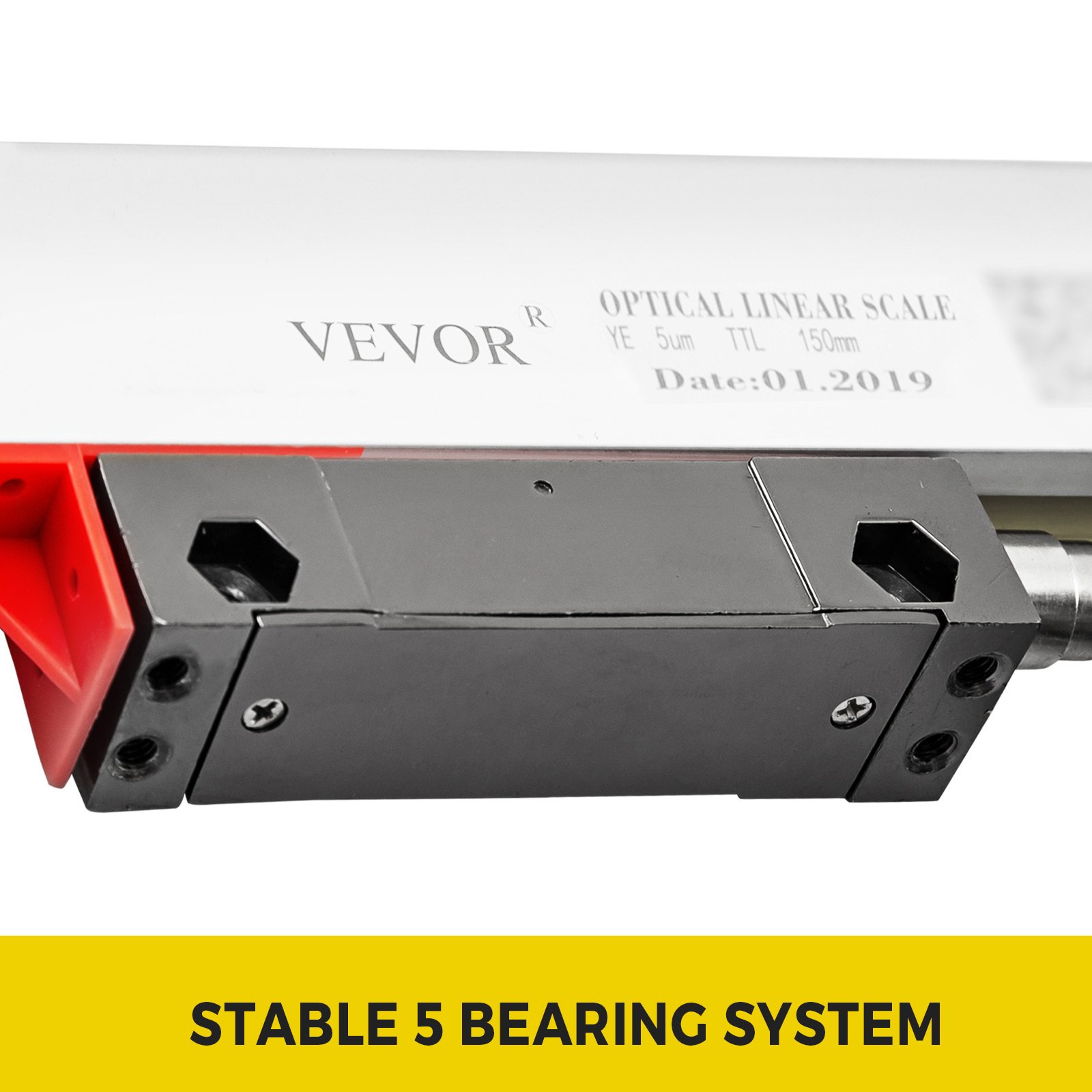

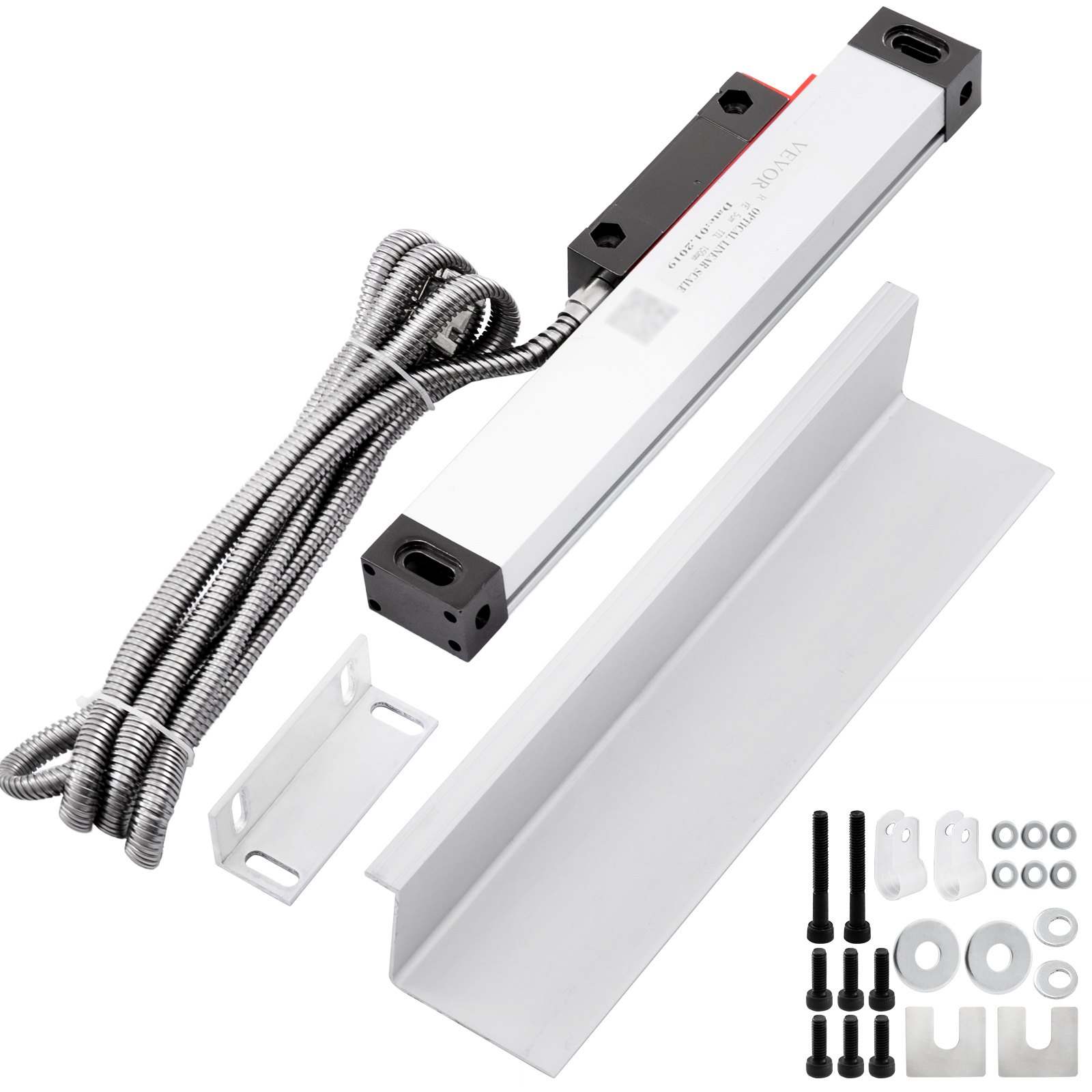

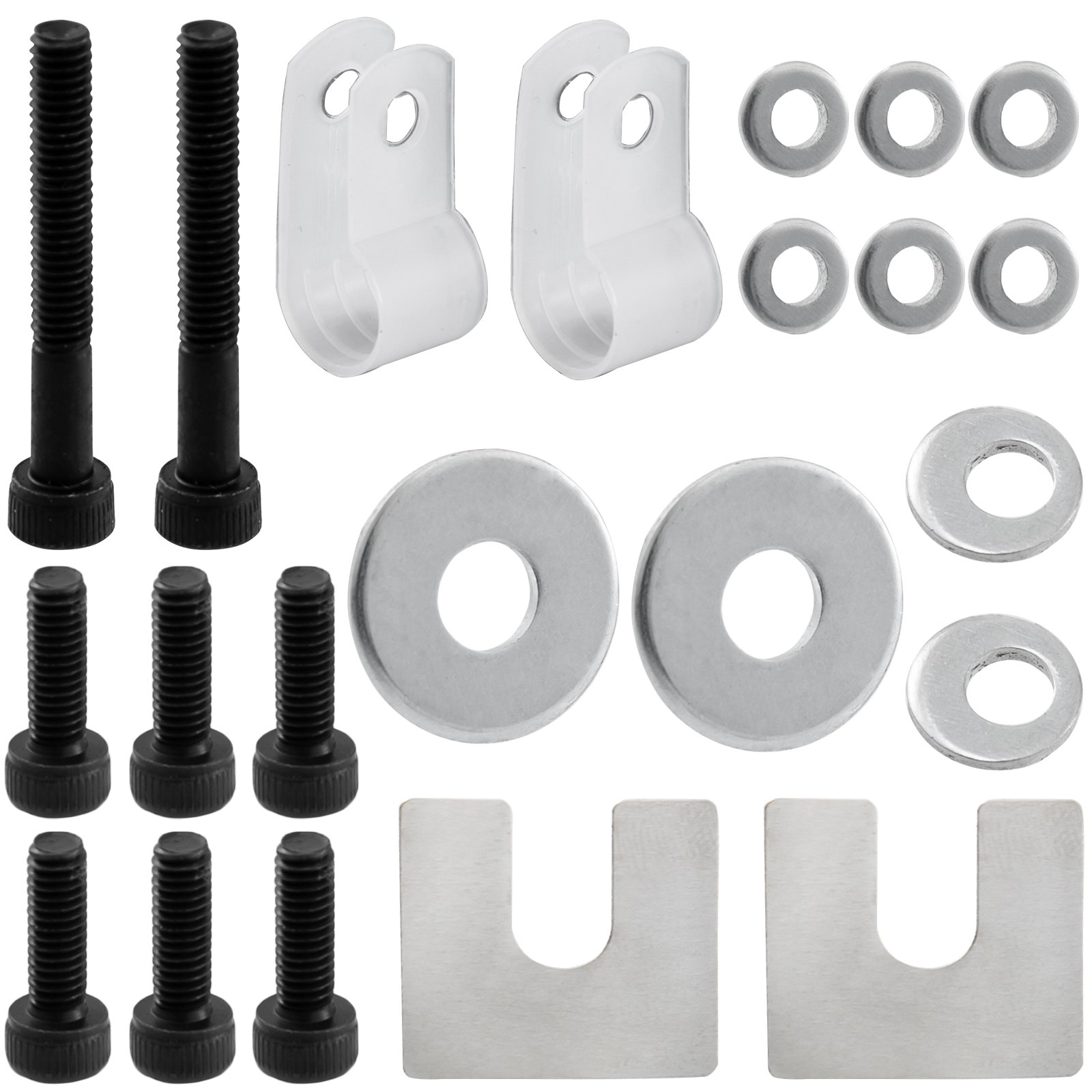

The slide mechanism utilizes a reliable and durable 5-bearing system design. Repeated positioning measurements are more stable. An L-shaped plate and a screw set are also included in the package.

The reading head offers multiple mounting points for through-holes or easy attachment to brackets and additional mounting hardware. It consists of a rigid metal profile with slotted end blocks for easy, adjustable mounting.

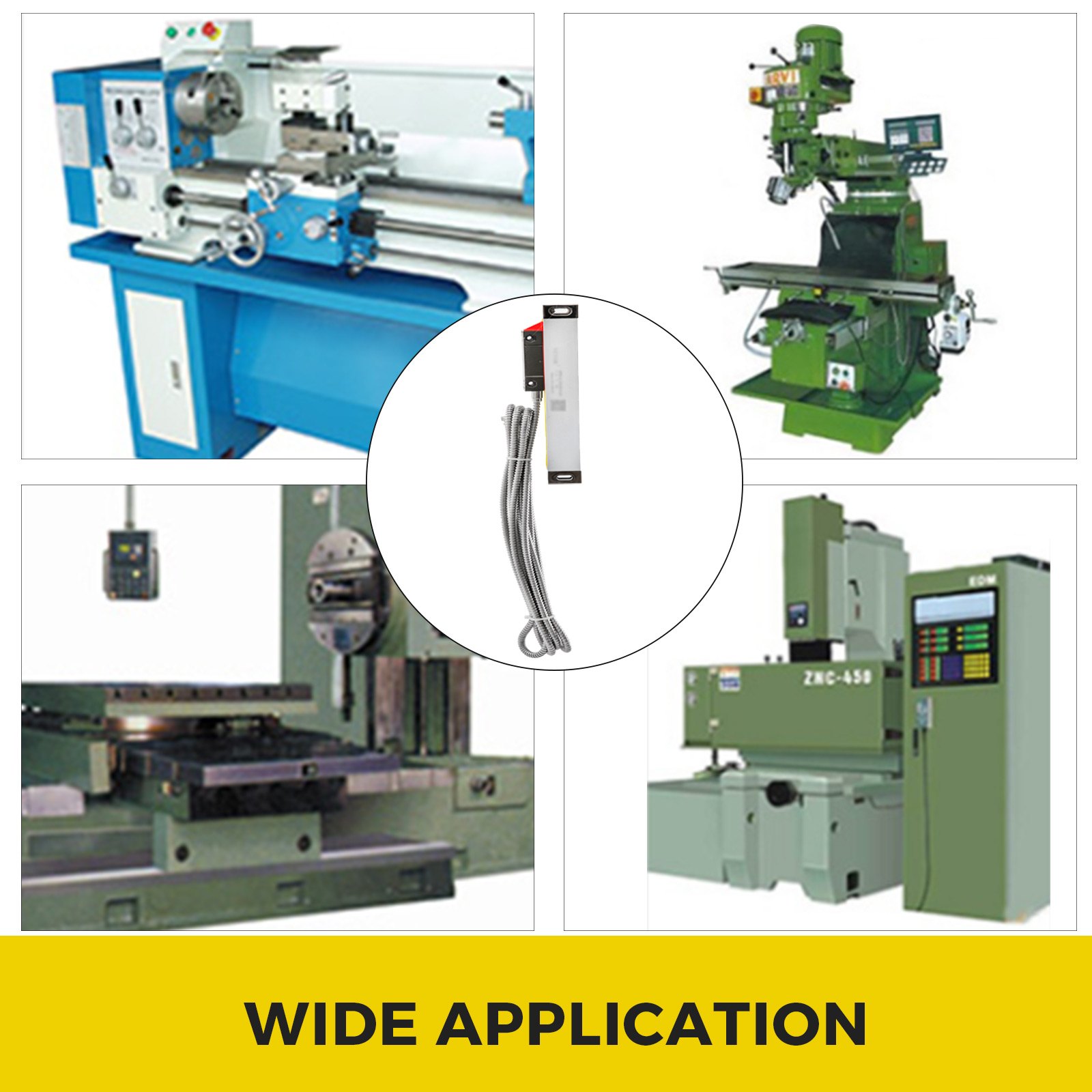

Perfect for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, video measuring machines, motion control, position monitoring, coordinate measurement and so on.
