Features & Details
- High performance: Our linear scale has passed rigorous quality control. It meets the standards for accuracy and rigidity. 10" & 40" (250 mm & 1000 mm) travel and a 5 μm resolution enable good straightness and precise measurement. Connection: 9-pin connector (pin 26789), 2 to 0 V, 6 to A, 7 to 5 V, 8 to B, 9 to R1.
- Robust aluminum housing: This lathe linear scale features an anodized aluminum profile housing that is oxidation-resistant. The reading head is die-cast with hard chrome for increased corrosion resistance – offering an attractive appearance and good stability.
- Double seal and signal cable: This high-precision linear scale is equipped with a 3 m long signal cable. The signal cable is protected by multi-layered shielded steel wire and a soft metal sheath. This makes it exceptionally waterproof and interference-free.
- Stable sliding section: The sliding section of this DRO linear scale features a reliable five-bearing system with excellent repeatability, resulting in more stable measurements. An additional T-slot (not included) allows the rear slot to be used for mounting when the contact surface is too short or as extra support when using a long linear scale.
- Practical and convenient: The lathe's linear scale features slotted end blocks for easy and adaptable installation. Furthermore, multiple mounting holes are easily accessible for securing brackets and additional mounting hardware, thus offering a wide range of applications.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 17 reviews
Reviews 4.9
All reviews are from verified purchases
See all 17 reviews
About this item
Product specification
- Voltage
- 5 V DC
- Current
- 50 mA
- Stroke length
- 250 mm & 1000 mm / 10'' & 40''
- Grid spacing
- 0.02 mm / 50 LP/min
- Resolution
- 5μm
- Accuracy
- ±0.005 mm / 0.0002" (at 20 degrees C)
- Reaction speed
- 60 m/min or 40 inches/s
- Cable length
- 3 m / 118.11''
- 250 mm linear scale, dimensions (L x W x H)
- 39 x 2 x 5 cm / 15.35 x 0.79 x 1.97 inches
- 1000 mm linear scale, dimensions (L x W x H)
- 114 x 2 x 5 cm / 44.88 x 0.79 x 1.97 inches
Description

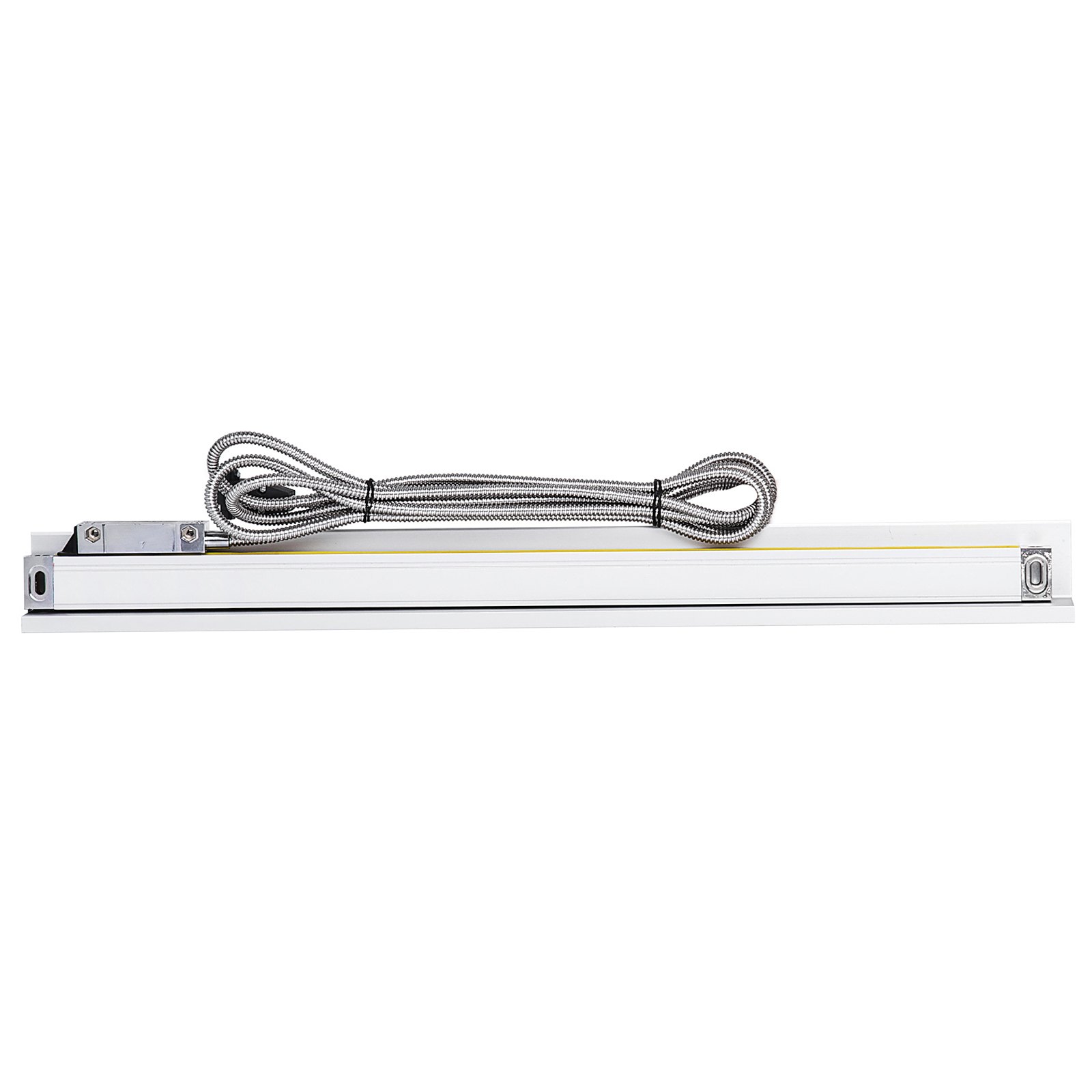

250 mm and 1000 mm precision linear scale
Our linear scale is an encoder with a wide range of applications. It is characterized by its optimized structure, attractive design, and high rigidity. Therefore, it meets the requirements of most machine users. The linear scale is suitable for metalworking applications, such as lathes, cylindrical grinding machines, milling machines, and surface grinding machines.
- High performance
- Robust aluminum housing
- Double seal & signal cable
- Stable sliding part
- Comfortable and practical
Excellent efficiency
The linear scale uses an intelligent chip with a movement speed of 60 m/min and a resolution of 5 μm for increased performance. Connection: 9-pin connector (pin 26789), 2 to 0 V, 6 to A, 7 to 5 V, 8 to B, 9 to R1.

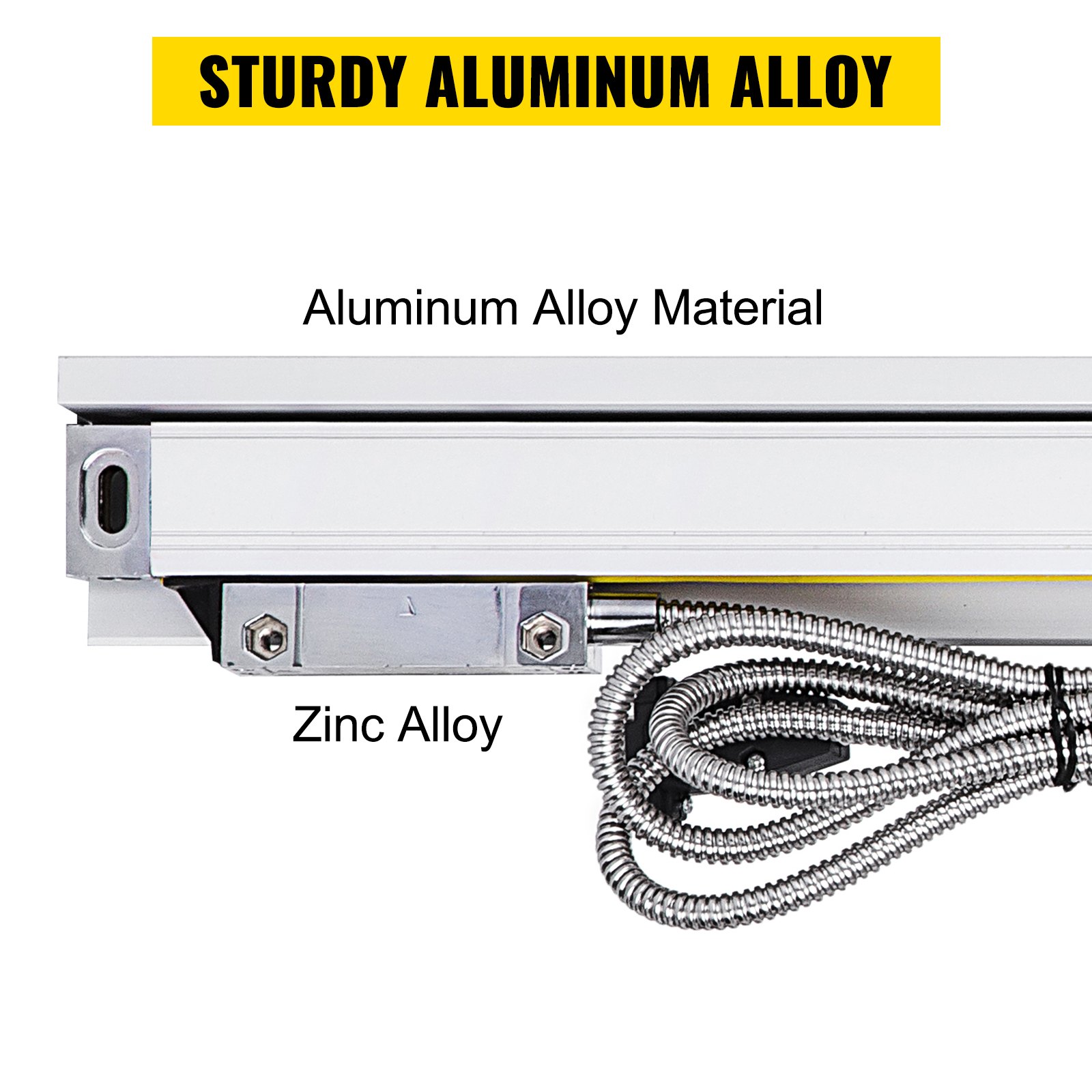

Robust aluminum alloy
The scale body is made of a vibration-damping and deformation-resistant aluminum profile. The reading head is made of a chrome-plated zinc alloy and is therefore highly resistant to abrasion and corrosion.

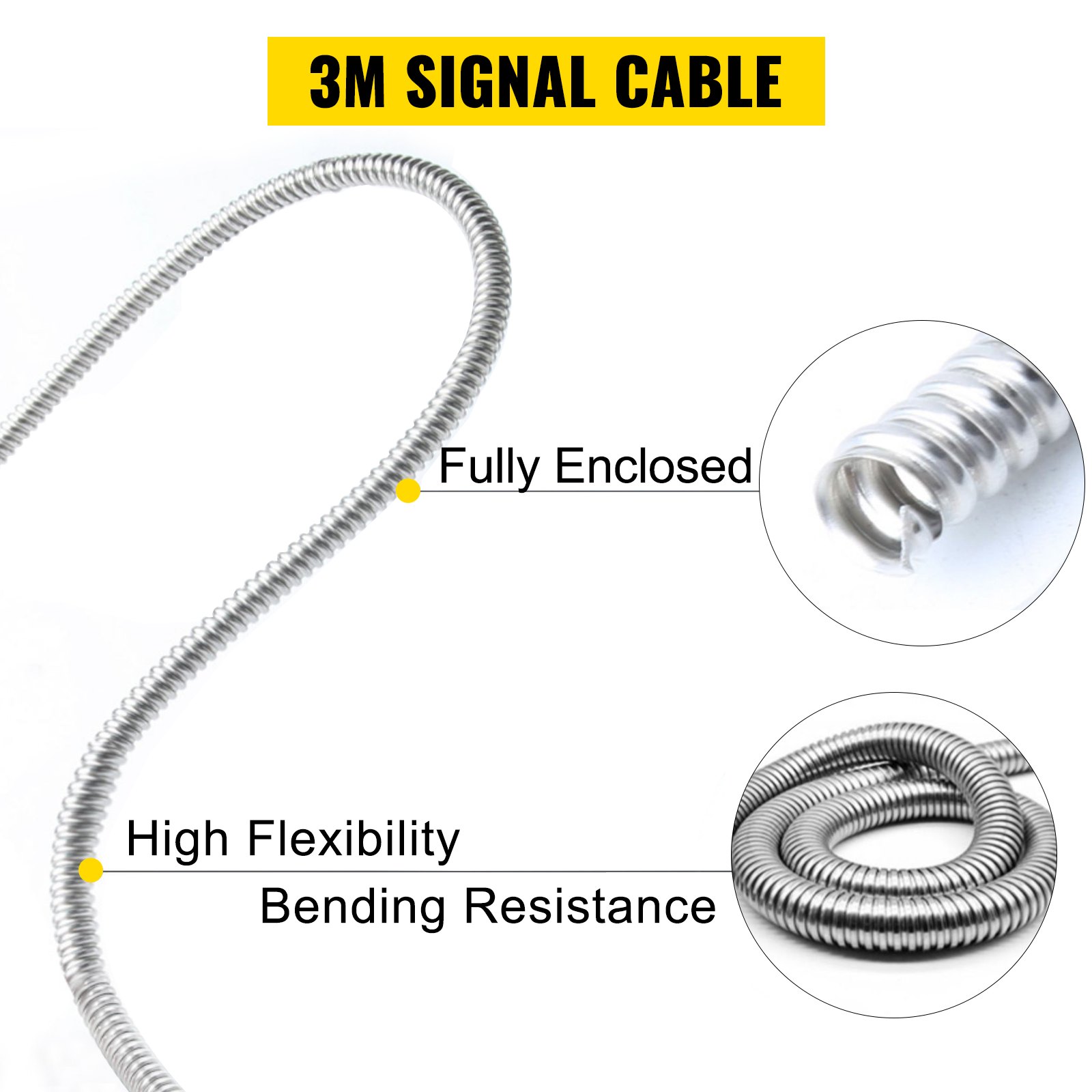

3M signal cable
The standard 3-meter signal cable features a fully enclosed wave channel with high flexibility and bending strength. Additionally, the encoder bar with a double-layered lip seal provides extra protection against contamination.

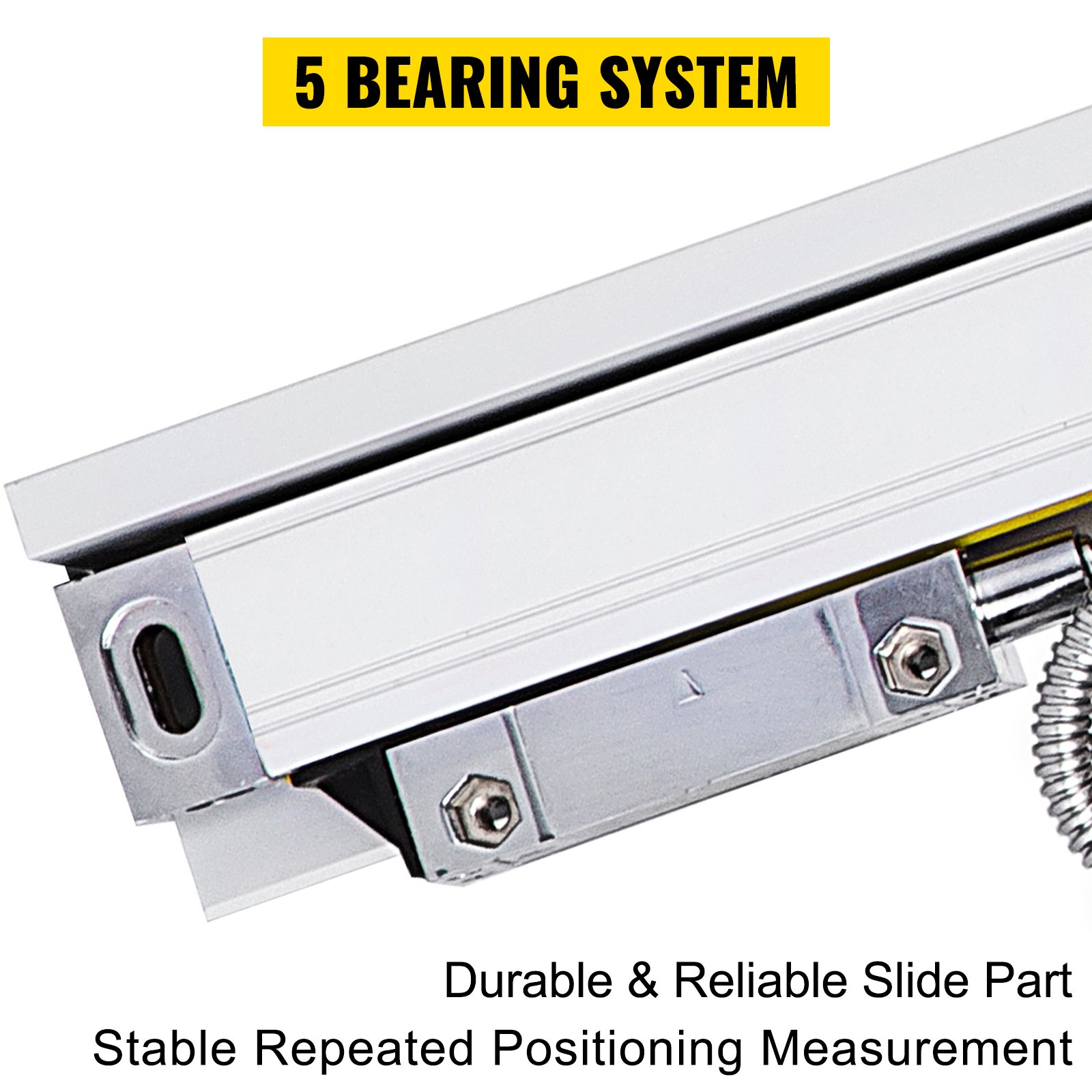

5 storage system
The sliding element is equipped with a reliable and durable 5-bearing system for smooth operation. This ensures more stable repeated position measurements. An L-shaped plate and a screw set are also included.

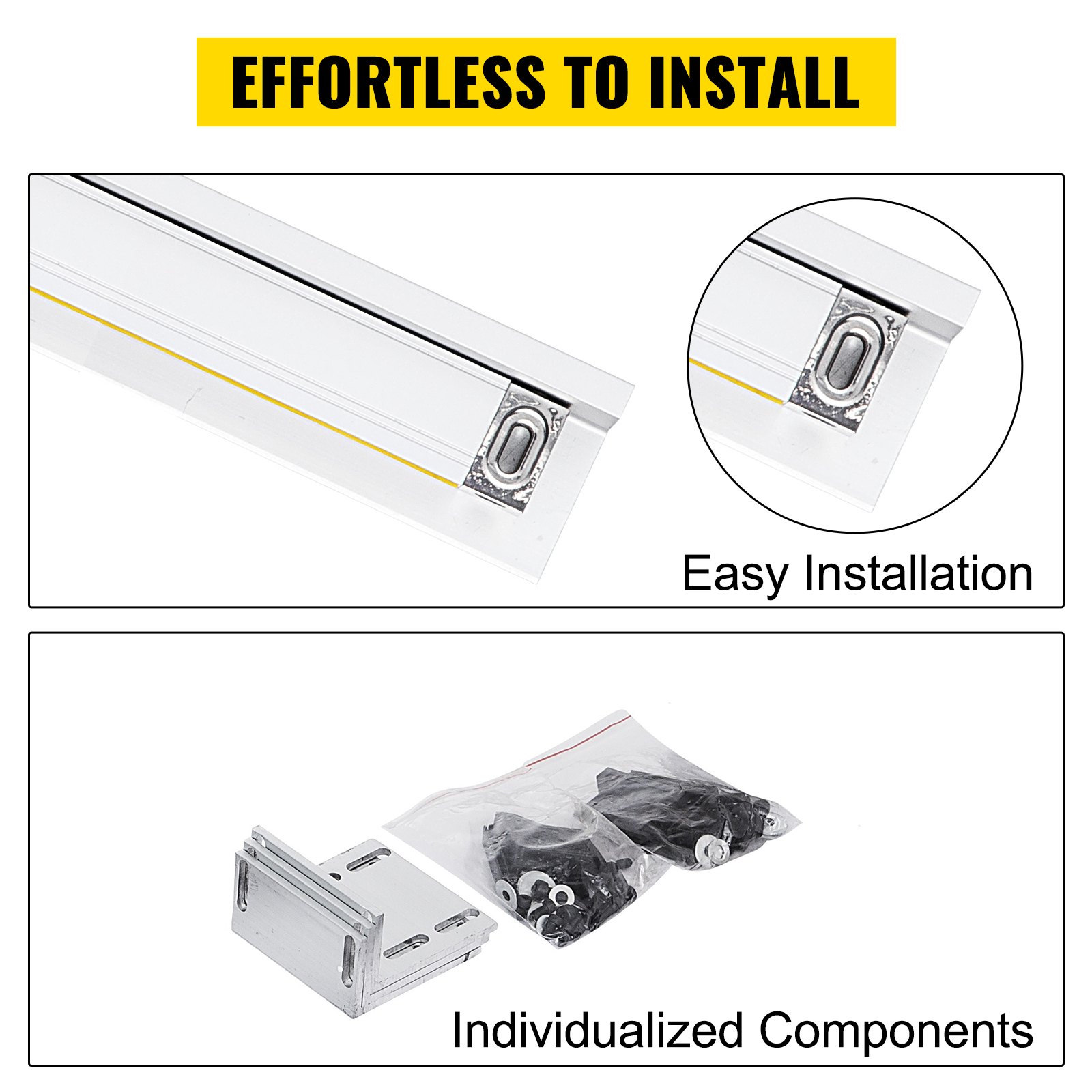

Effortless installation
The high-precision linear scale features multiple mounting holes for easy installation. Individual components further simplify assembly and maintenance. It consists of a sturdy metal profile with slotted end blocks for simple, adjustable mounting.
Wide application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring devices. Furthermore, it allows you to use functions such as motion control, position monitoring, coordinate measurement, etc.
- Voltage: 5 V DC
- Current: 50 mA
- Stroke length: 250 mm & 1000 mm / 10'' & 40''
- Grid spacing: 0.02 mm / 50 LP/min
- Resolution: 5μm
- Accuracy: ±0.005 mm / 0.0002" (at 20 degrees C)
- Reaction speed: 60 m/min or 40 inches/s
- Cable length: 3 m / 118.11''

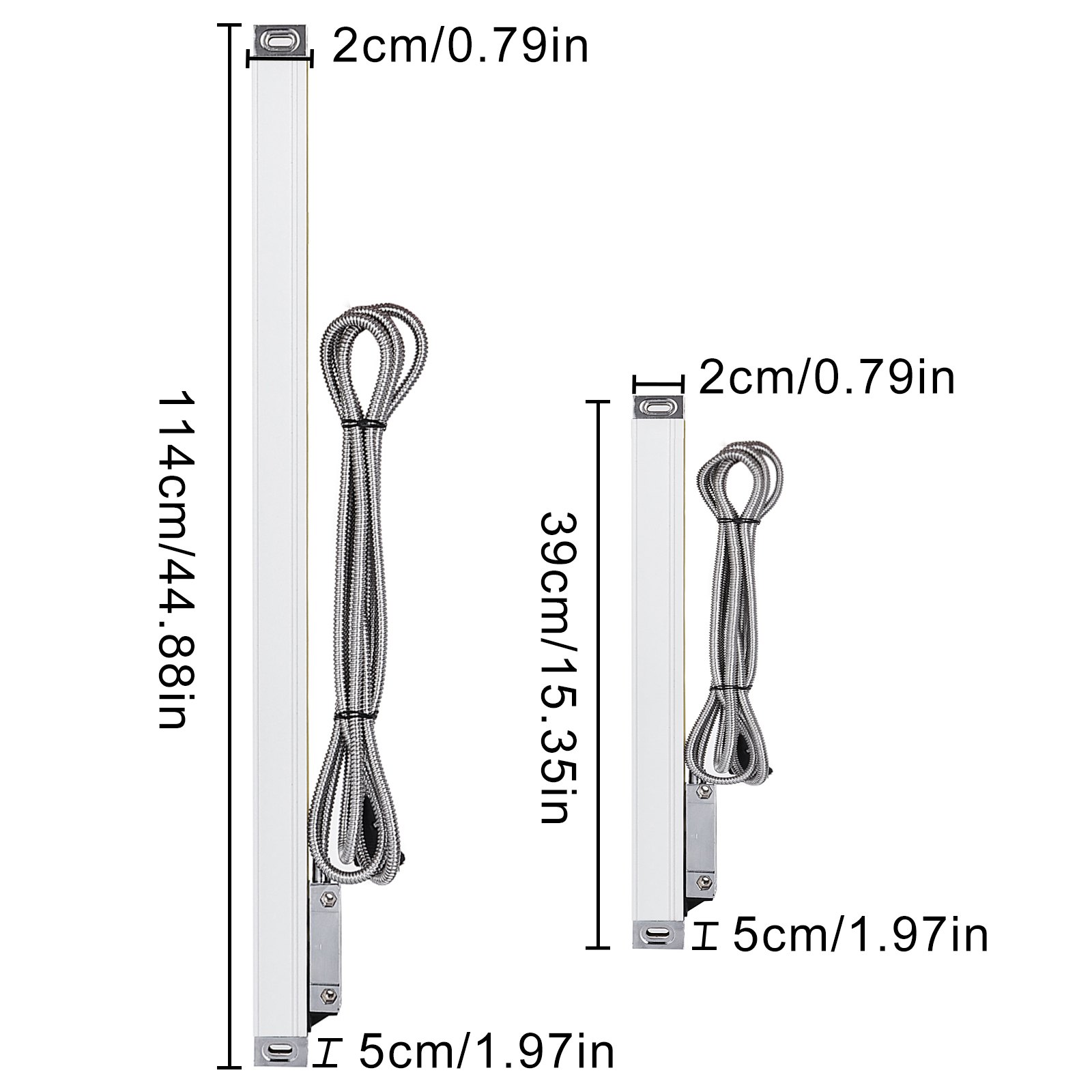

- 250 mm linear scale, dimensions (L x W x H): 39 x 2 x 5 cm / 15.35 x 0.79 x 1.97 inches
- 1000 mm linear scale, dimensions (L x W x H): 114 x 2 x 5 cm / 44.88 x 0.79 x 1.97 inches

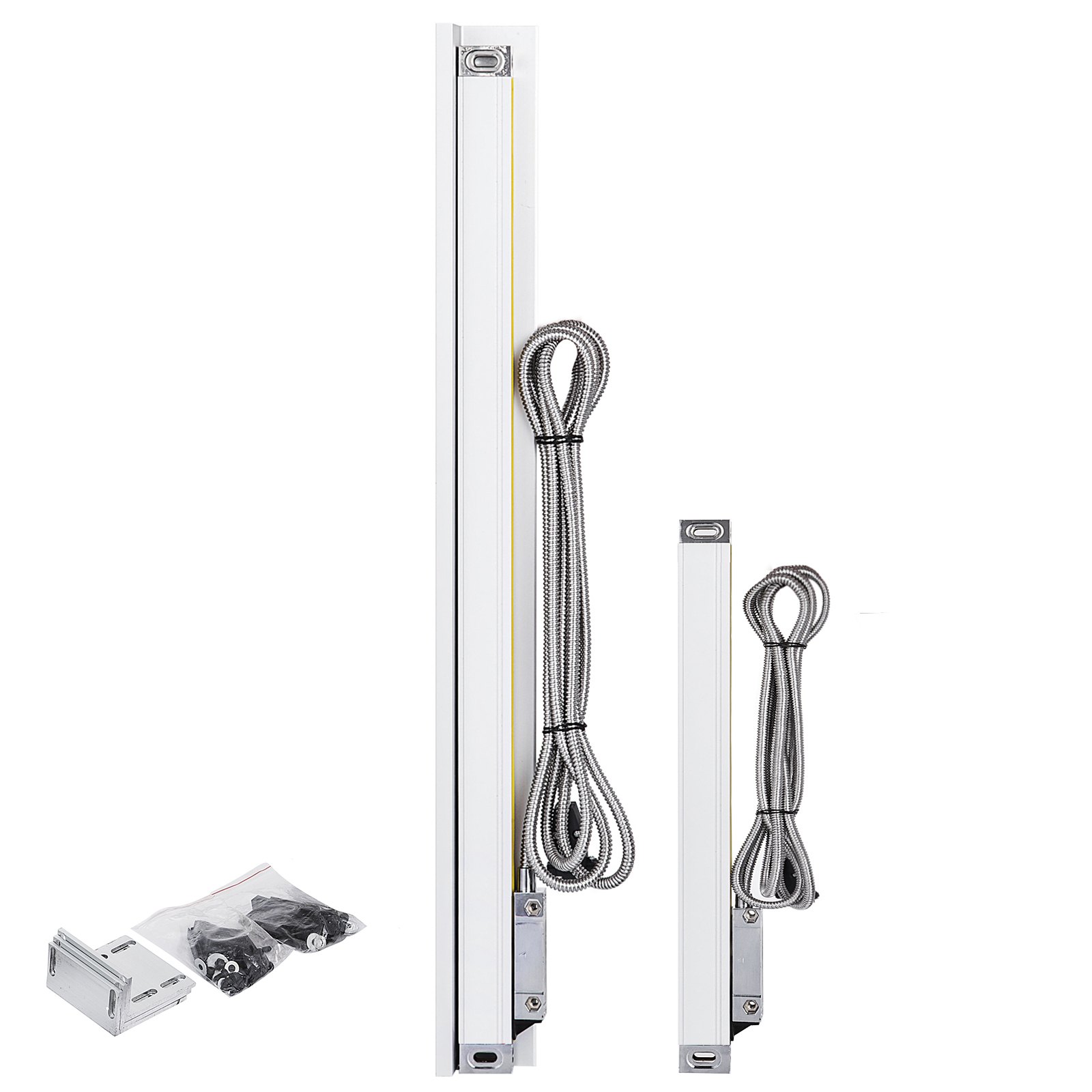

- 1 x 250 mm / 10'' linear scale
- 1 x 1000mm / 40'' linear scale
- 1 x accessory set
250 mm and 1000 mm precision linear scale
Our linear scale is an encoder with a wide range of applications. It is characterized by its optimized structure, attractive design, and high rigidity. Therefore, it meets the requirements of most machine users. The linear scale is suitable for metalworking applications, such as lathes, cylindrical grinding machines, milling machines, and surface grinding machines.
- High performance
- Robust aluminum housing
- Double seal & signal cable
- Stable sliding part
- Comfortable and practical
Excellent efficiency
The linear scale uses an intelligent chip with a movement speed of 60 m/min and a resolution of 5 μm for increased performance. Connection: 9-pin connector (pin 26789), 2 to 0 V, 6 to A, 7 to 5 V, 8 to B, 9 to R1.
Robust aluminum alloy
The scale body is made of a vibration-damping and deformation-resistant aluminum profile. The reading head is made of a chrome-plated zinc alloy and is therefore highly resistant to abrasion and corrosion.
3M signal cable
The standard 3-meter signal cable features a fully enclosed wave channel with high flexibility and bending strength. Additionally, the encoder bar with a double-layered lip seal provides extra protection against contamination.
5 storage system
The sliding element is equipped with a reliable and durable 5-bearing system for smooth operation. This ensures more stable repeated position measurements. An L-shaped plate and a screw set are also included.
Effortless installation
The high-precision linear scale features multiple mounting holes for easy installation. Individual components further simplify assembly and maintenance. It consists of a sturdy metal profile with slotted end blocks for simple, adjustable mounting.
Wide application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring devices. Furthermore, it allows you to use functions such as motion control, position monitoring, coordinate measurement, etc.
- 1 x 250 mm / 10'' linear scale
- 1 x 1000mm / 40'' linear scale
- 1 x accessory set
- Voltage: 5 V DC
- Current: 50 mA
- Stroke length: 250 mm & 1000 mm / 10'' & 40''
- Grid spacing: 0.02 mm / 50 LP/min
- Resolution: 5μm
- Accuracy: ±0.005 mm / 0.0002" (at 20 degrees C)
- Reaction speed: 60 m/min or 40 inches/s
- Cable length: 3 m / 118.11''
- 250 mm linear scale, dimensions (L x W x H): 39 x 2 x 5 cm / 15.35 x 0.79 x 1.97 inches
- 1000 mm linear scale, dimensions (L x W x H): 114 x 2 x 5 cm / 44.88 x 0.79 x 1.97 inches
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (3)
Sind alle Linearmaßstäbe (egal welche Länge), Ihres Sortiment, mit den von Ihnen angebotenen 2-Achs- und 3-Achs-Digitalanzeigen kompatibel ?
Ja, es ist kompatibel.
By vevor
Helpful
(
0
)
Lassen sich die Lineale auch auf die für meine Maschine passenden Maße kürzen [Drehbank 8 x 16 (210 x 400 mm)]?
Entschuldigen Sie bitte die vielen Fragen in letzter Zeit, ich möchte bei Ihnen etliche Sachen auf einmal bestellen um Versandkosten zu sparen. Und mir und Ihnen Rücksendekosten ersparen. LG, gauberan
Nein, es kann nicht gekürzt werden.
By vevor
Helpful
(
0
)
Hallo
Gibt es die Lineale auch in Läne 800mm und 200mm?
Wir haben keine Produkte in dieser Größe.
By vevor
Helpful
(
0
)
GSC250-1000MMC001V2
