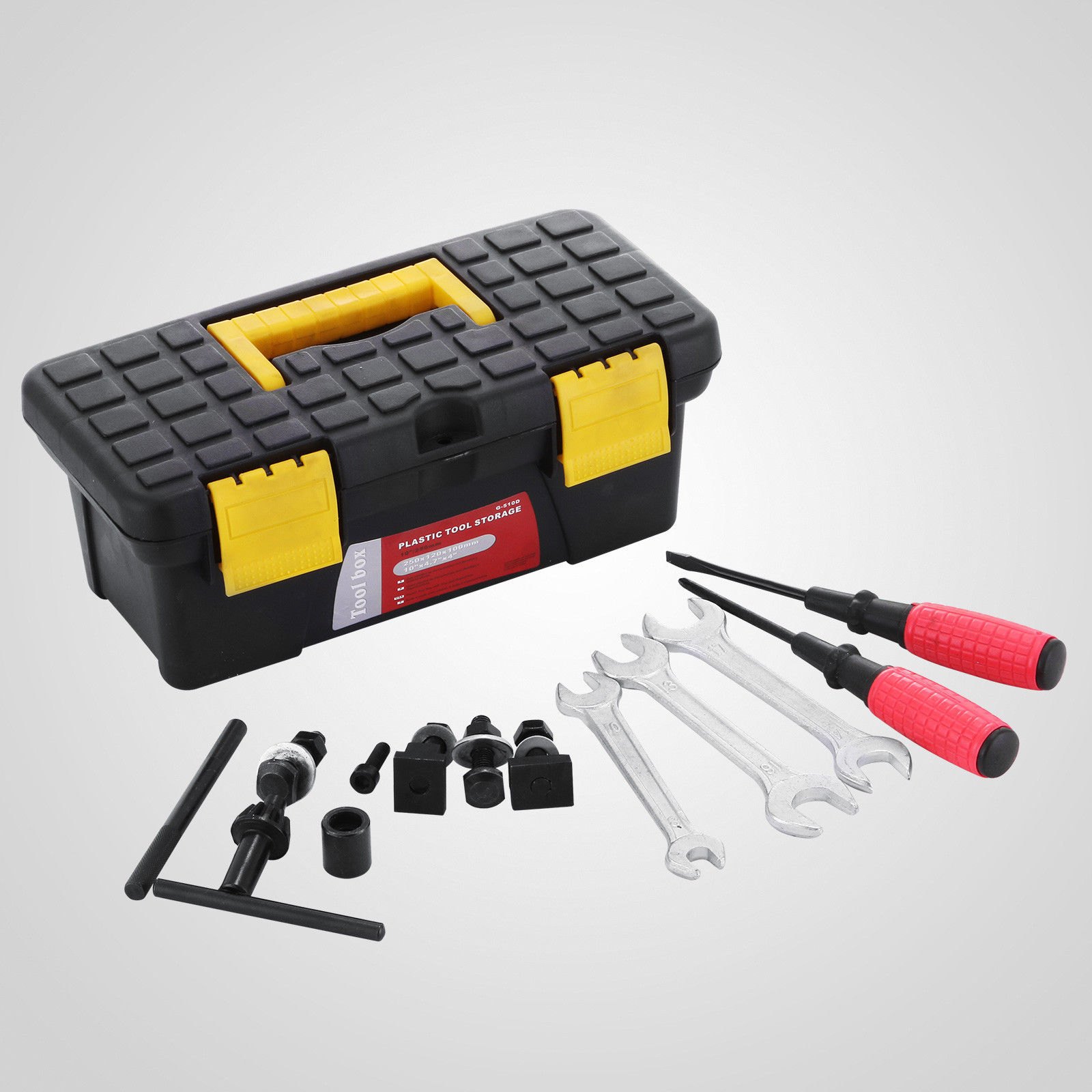

*** This listing contains only 1 tool kit for this milling machine !!! ***

The detailed introduction of this drilling/milling machine is as follows:

This mini rotary bed drill/mill can handle most materials. It features a 550-watt variable-speed motor, and the worktable with T-slots allows for clamping workpieces and metric graduated joints. The machine also includes a tilting column, enabling drilling/milling of the workpiece at ±90° from the vertical. It comes with a 13mm chuck accessory kit for adjustments and setup.
The lathe bed is made of high-quality iron. The rigidity of the lathe, the ease of use, and the accuracy of the V-slides are achieved through the use of high-quality raw materials, heat treatment, and grinding. This machine is driven by a DC motor. The spindle speed is variable from 20 to 2500 RPM. The loading speed can be adjusted according to the requirements of different workpieces.

Application

1. This is a high-quality mini mill, ideal for the professional engineer or model maker.

2. The precision mini lathe is designed to handle various types of machining operations. Counterface timing, drilling, threading, and cutting of workpieces on materials consisting of round bars and rod stock can be performed with this machine. The machine can be used in areas such as mini precision parts production, sample processing, and modeling work.

note

This machine is only suitable for temperatures between 12°C and 35°C (53.6°F and 95°F).

• Head swivels ± 90° vertically
• Adjustable GIBS for table accuracy
• Adjustable stops on table
• Simple gear drive mechanism
• Robust construction
• Extra wide cross table
• Chuck arbor bolts allow the drill chuck to be tightened by the spindle.
• Rack and pinion chucks for drilling operations
• Security guard with microswitch according to EU requirements
• Available in metric lead screws
• Start/stop switch includes emergency stop

• Motor power: 550 W
• Drilling capacity: 13mm / 0.51"
• Facial milling capacity: 30mm / 1.18"
• End milling capacity: 16mm / 0.63"
• Longitudinal travel: 100mm / 3.94"
• Cruise: 250mm / 9.84"
• Spindle stroke: 200mm / 7.87"
• Worktable size: 460 x 112 mm / 18.11 x 4.41
• Maximum distance spindle to table: 220mm / 8.66"
• Spindle confusion: MT3
• T-Slot: 10mm / 0.39"
• Spindle speed: 20 - 2500 rpm
• Spindle rotation angle: -45°~+45°
• Dimension: 368x673x685mm /14.5"x26.5"x27"
• X-axis travel cot: 300mm / 11.81"
• Y-axis travel cot: 140mm / 5.51"
• Z-axis travel cot: 220mm / 8.66"
• Table size: 460 * 110mm / 18.11" x 4.33"
• Tool set gross weight: 17 kg / 37.5 lb
• Tool set Packegege Dimensions (L x W x H): 68 x 21 x 18 cm / 26.8.8 "x 8.3" x 7.1 "
