Features & Details

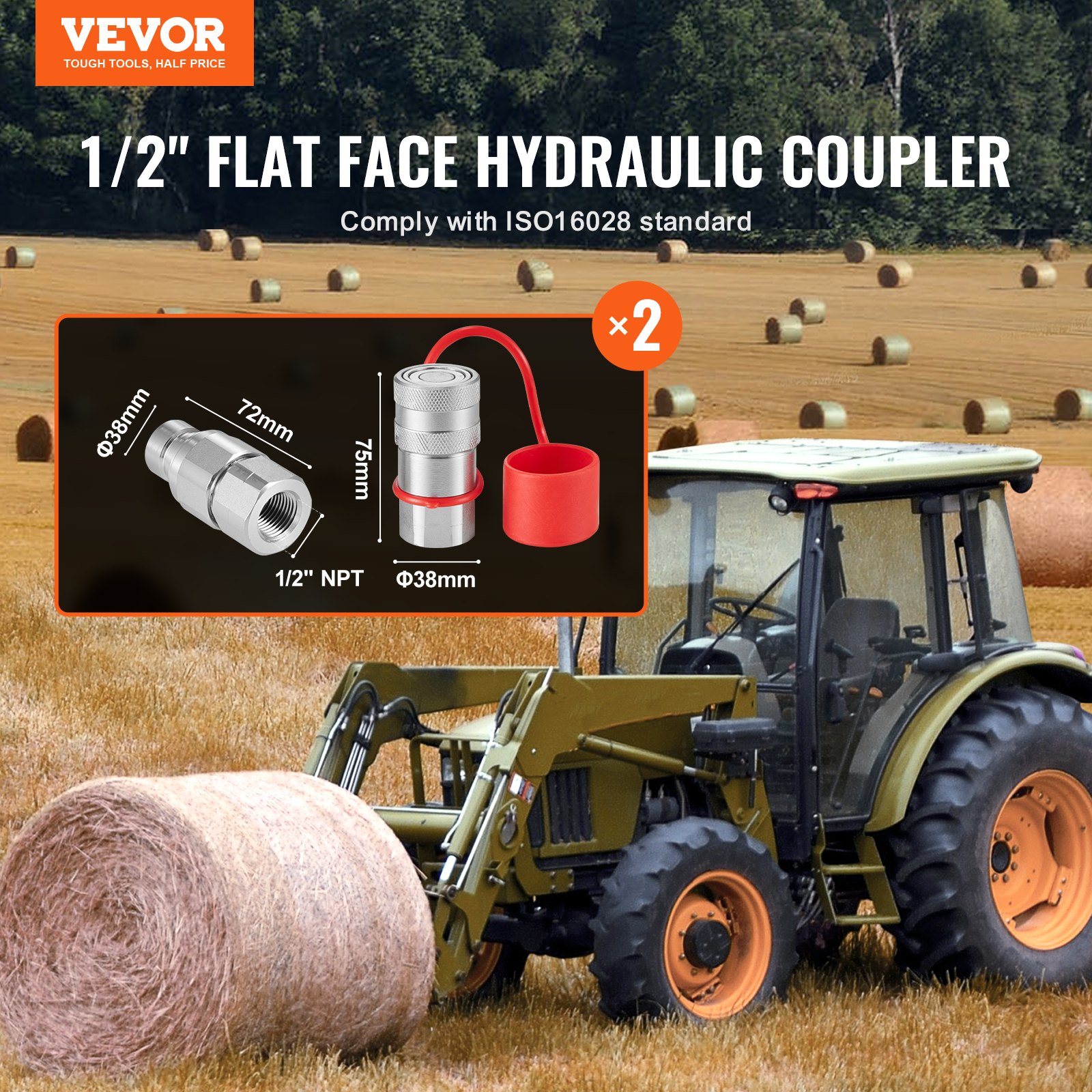

- Standard compliance: This hydraulic coupling has a body size of 1/2 inch and a 1/2 inch NPT thread size for both the coupling and the nipple and complies with ISO standard 16028, making it ideal for connecting hydraulic lines.

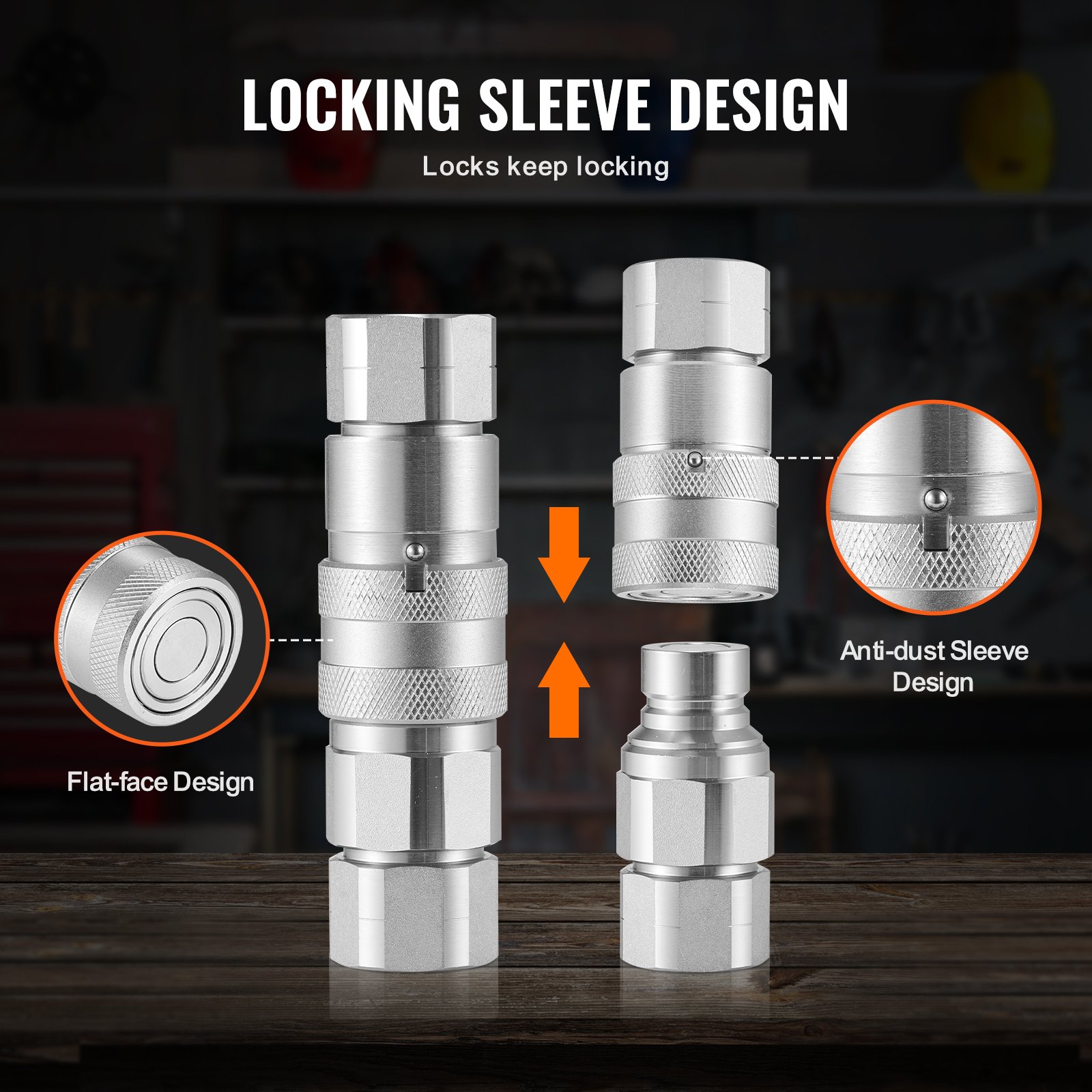

- Sleeve locking mechanism: The low-profile hydraulic couplings feature a sleeve locking mechanism that allows for easy coupling with just one push. The coupling's low-profile design facilitates cleaning and prevents dust from entering the hydraulic system during coupling and uncoupling.

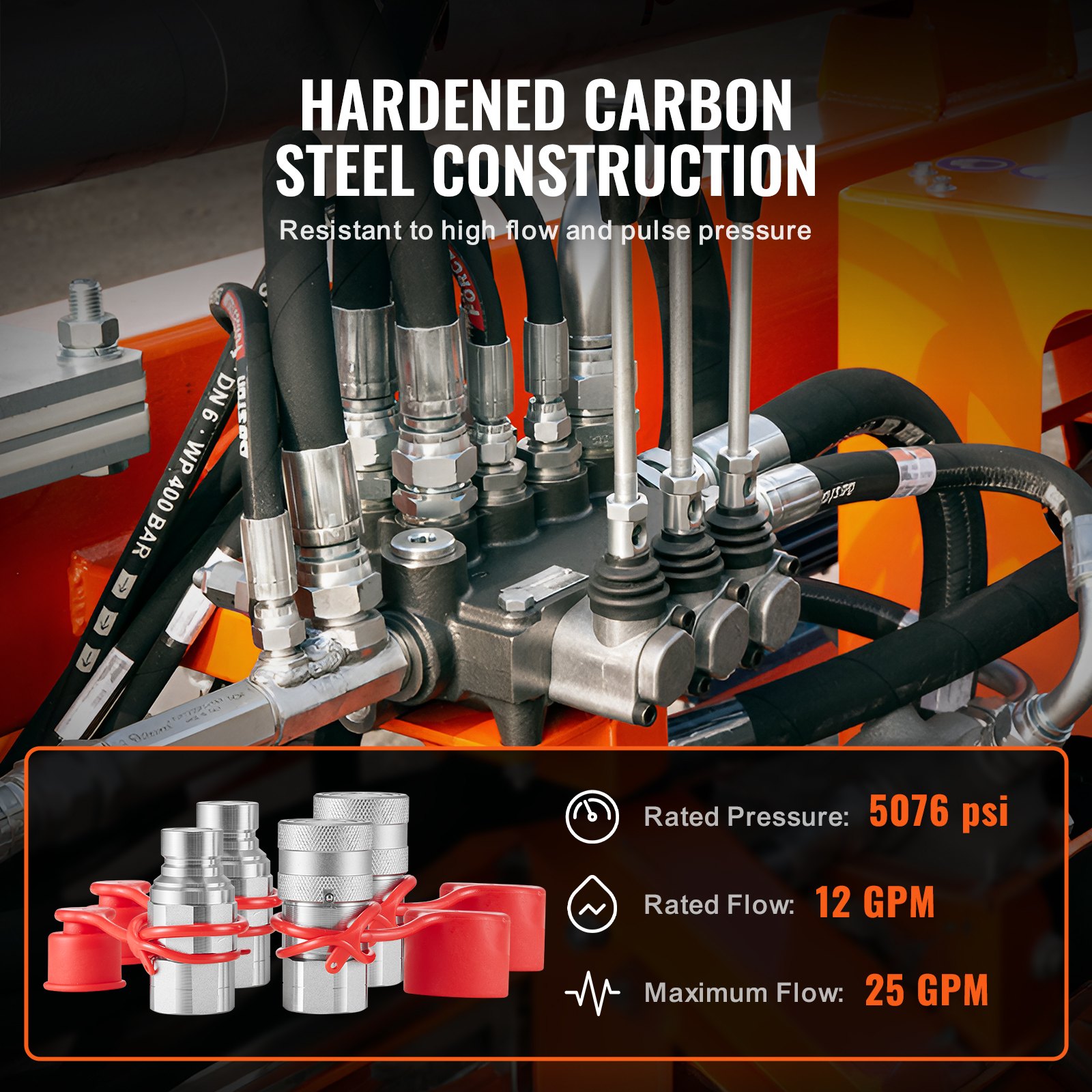

- Construction made of hardened steel: The hydraulic quick couplings are made of hardened carbon steel and are designed for pressures up to 5076 PSI and a high flow rate of 25 GPM.

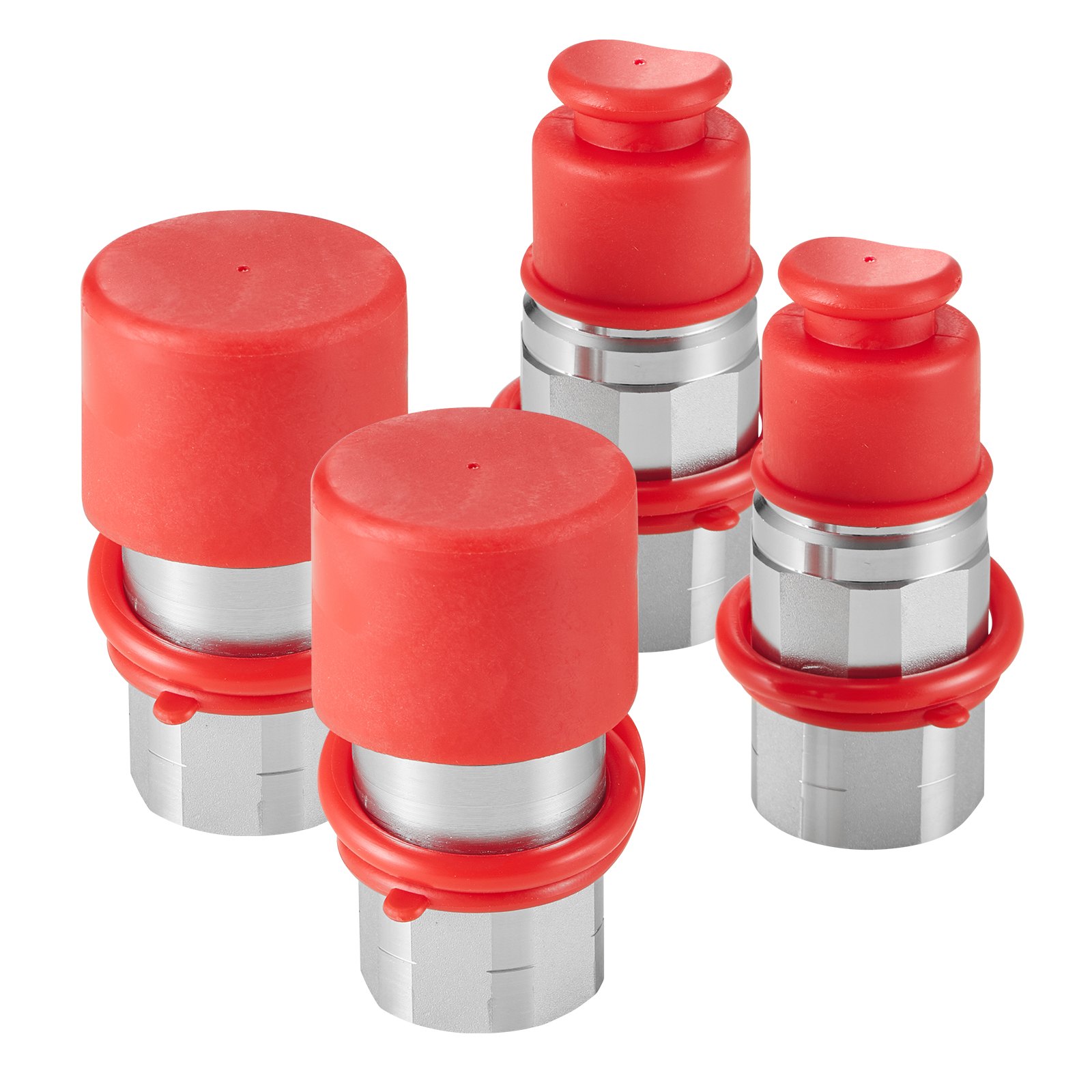

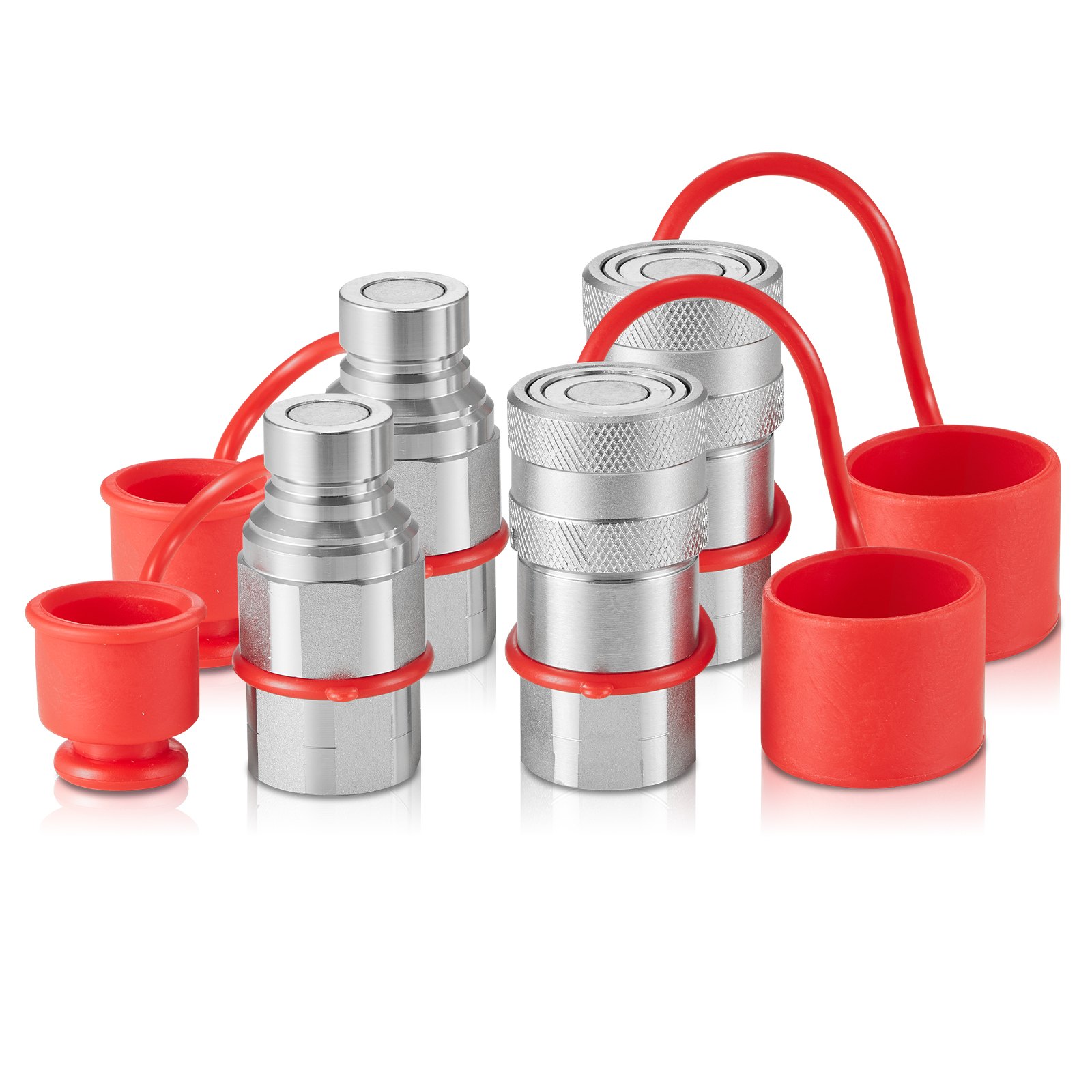

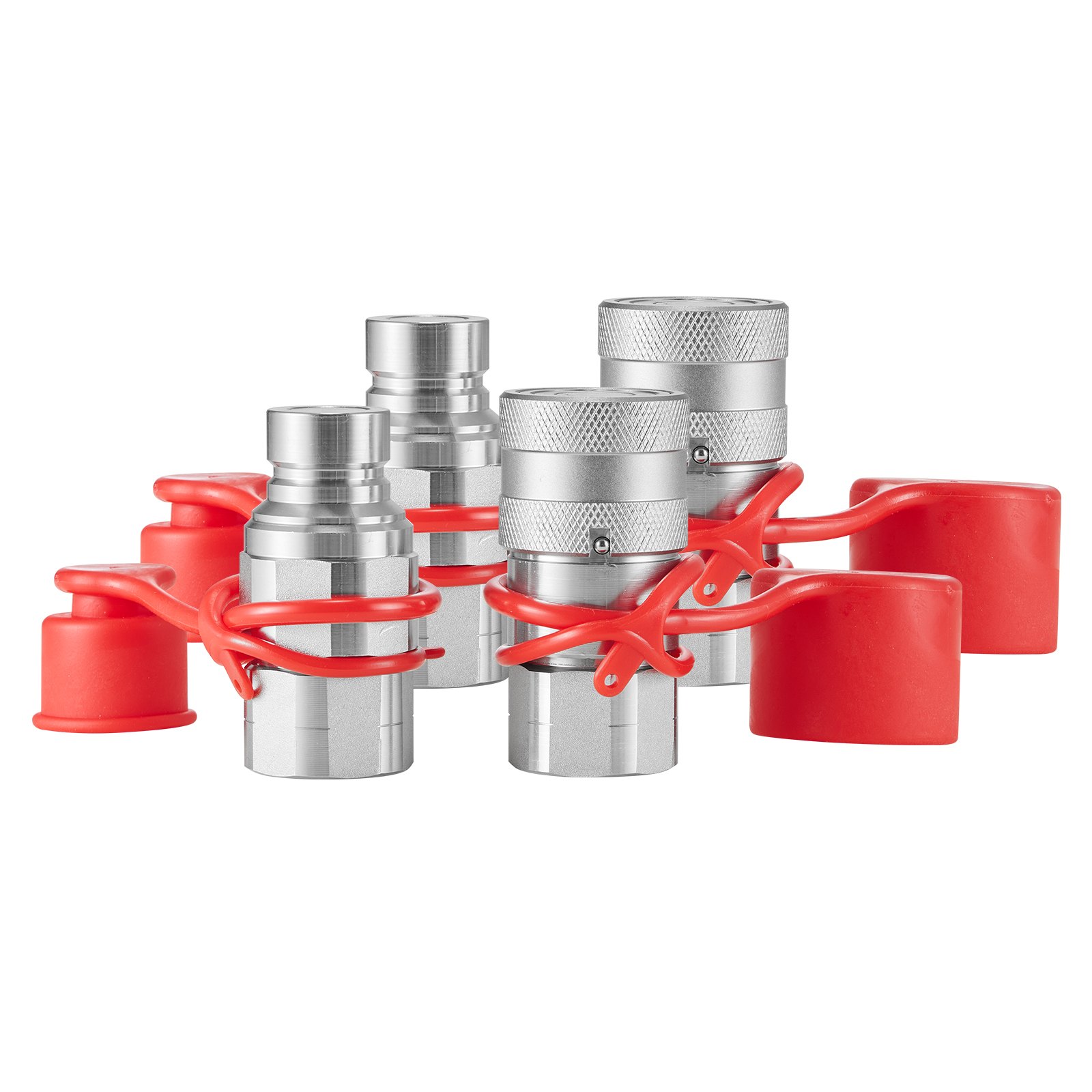

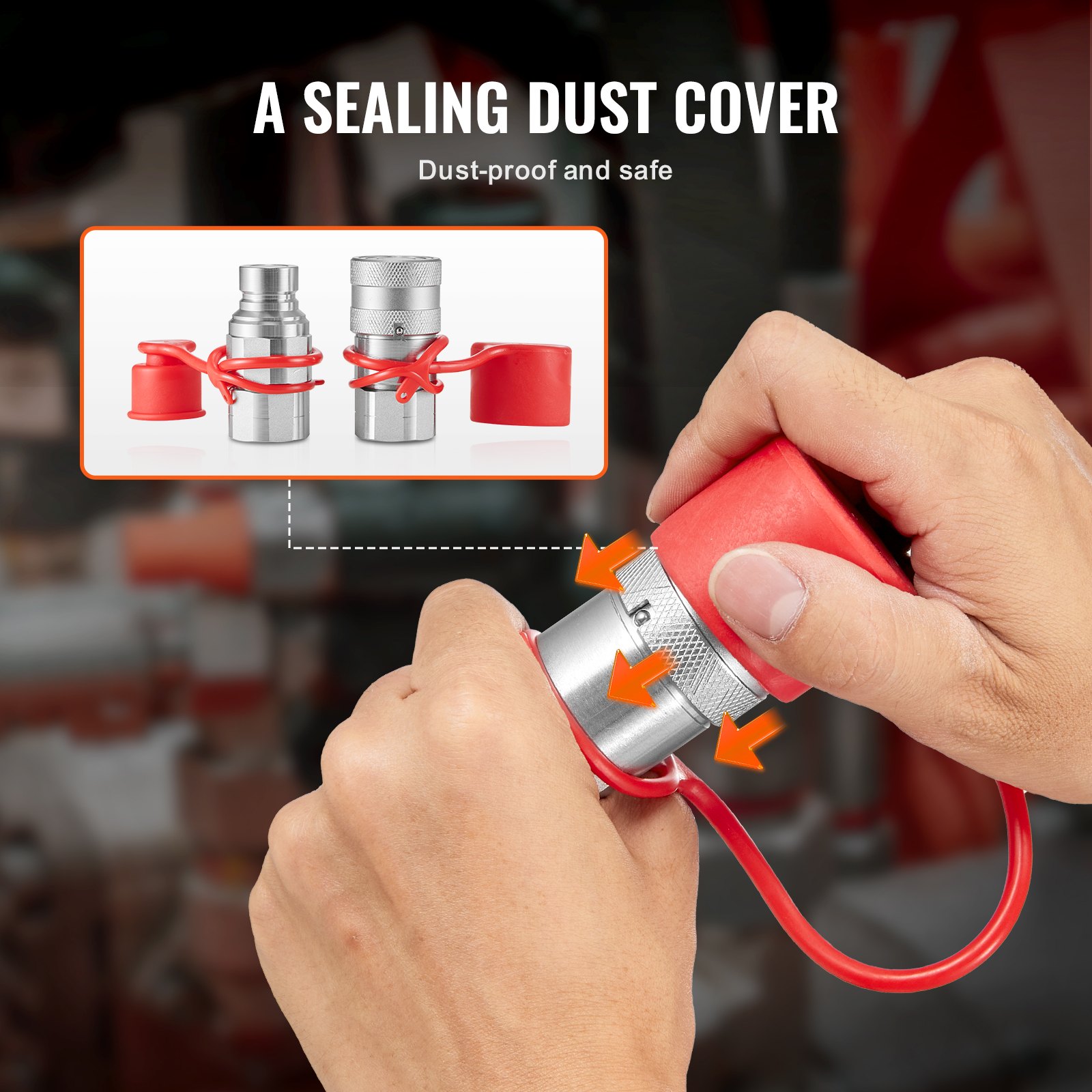

- Dust caps: Dust caps are included to prevent dirt from damaging the connection system. This reduces the risk of failure and keeps the compact loader's hydraulic couplings clean when not in use. Internal dust caps also ensure that the coupling locking system functions smoothly and without interference.

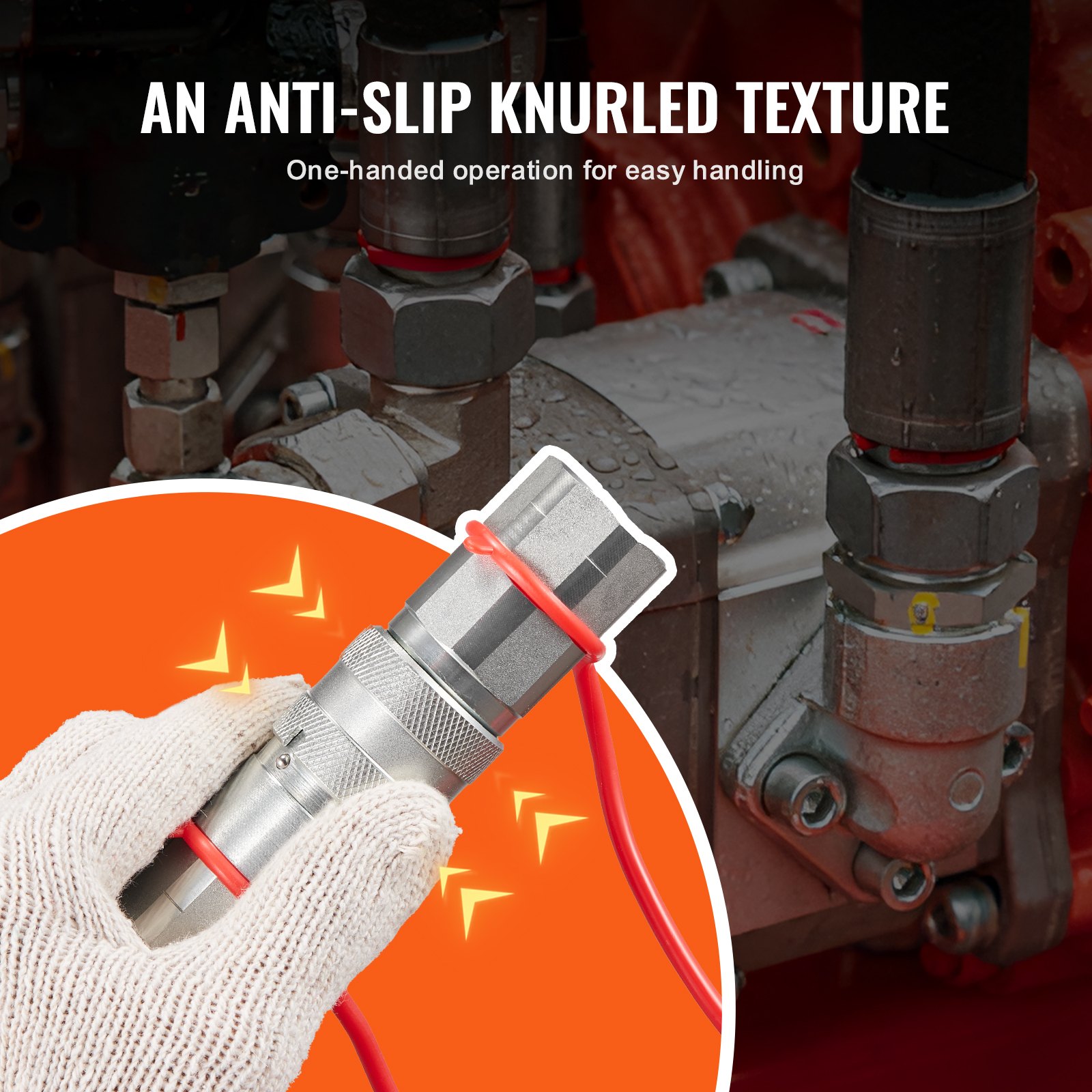

- Non-slip knurling: Robust knurled sleeves on the surface of the hydraulic valve ensure a non-slip grip. This valve design allows for minimal pressure drop and one-handed operation and is interchangeable with most compact loader types such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 4.8
All reviews are from verified purchases
See all 4 reviews
About this item
Product specification
- Article model number
- LSQ-FF
- Coupling type
- Flat-surface hydraulic coupling
- Standard
- ISO16028
- Clutch body size
- 1/2 inch
- Nominal pressure
- 5076 psi
- Nominal flow rate
- 12 GPM
- Maximum flow rate
- 25 GPM
- Quantity
- 2 pairs
- Thread size of the male coupling
- 1/2 inch NPT (female thread)
- Thread size of the internal coupling
- 1/2 inch NPT (internal thread)
- Configuration
- Dust caps
- Color
- White
- Main material
- 45# carbon steel.

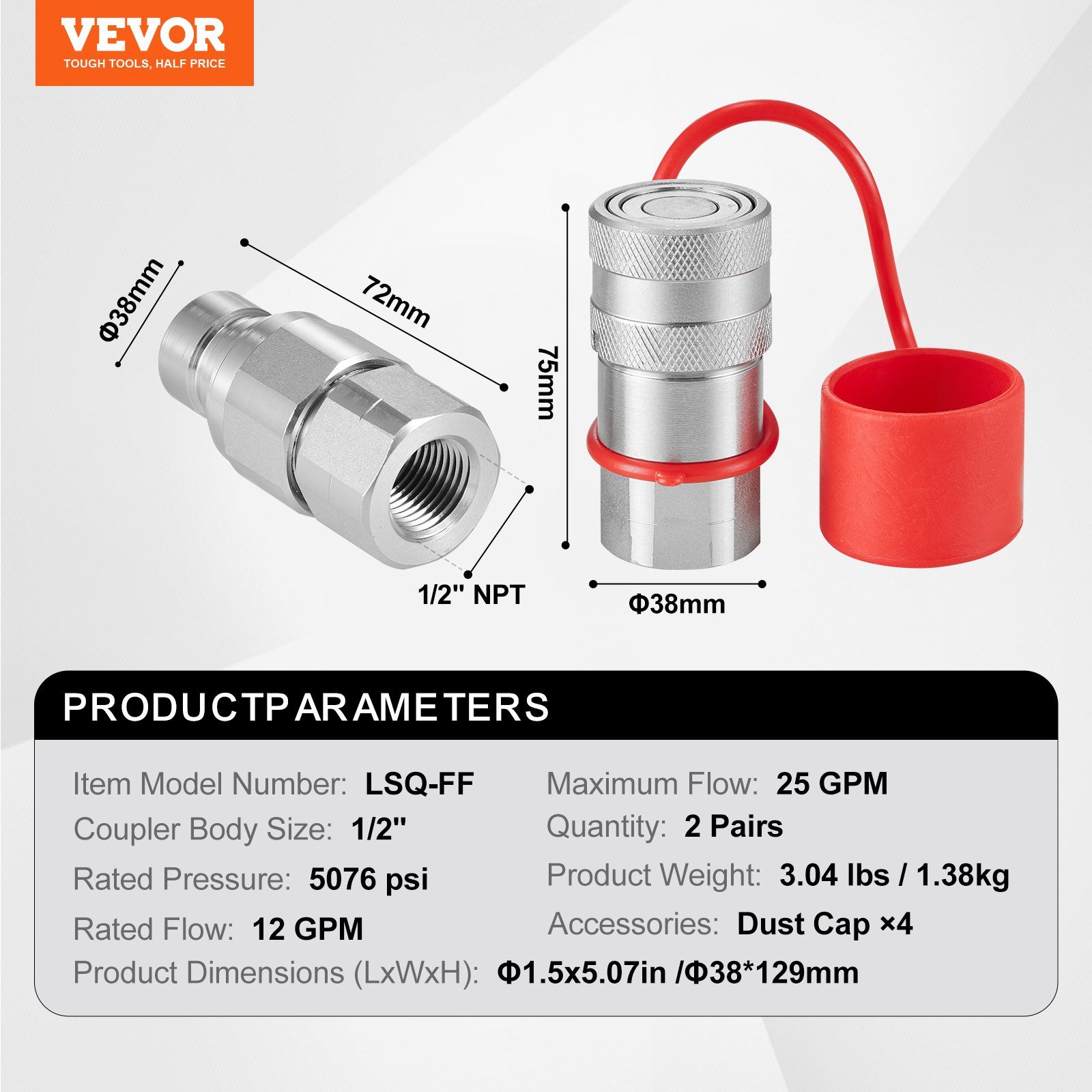

- Male coupling
- Φ38 x 72 mm (OD x L), 45# carbon steel, chrome-plated
- Bushing coupling
- Φ38 x 75 mm (OD x L), 45# carbon steel, chrome-plated
- Dust cap
- Φ40 x 260 mm (OD x L), rubber, red
- Product weight
- 3.04 lbs / 1.38 kg
- Product dimensions (L x W x H)
- Φ1.5 x 5.07 inches / Φ38 x 129 mm
Description
VEVOR 1/2 inch hydraulic couplings with smooth sealing strip
Our hydraulic couplings have passed impact, high-pressure, and high-temperature tests to ensure compliance with ISO standard 16028. Our commitment to the highest quality makes our products the right choice for you.
The hydraulic flat couplings are equipped with 1/2 inch NPT threads and feature a new, improved valve design that provides a high flow rate of 25 GPM at a nominal pressure of 5076 PSI and significantly extends service life.
Our hydraulic couplings for compact loaders are made of high-quality carbon steel and galvanized to ensure high rust and corrosion resistance as well as a long service life.

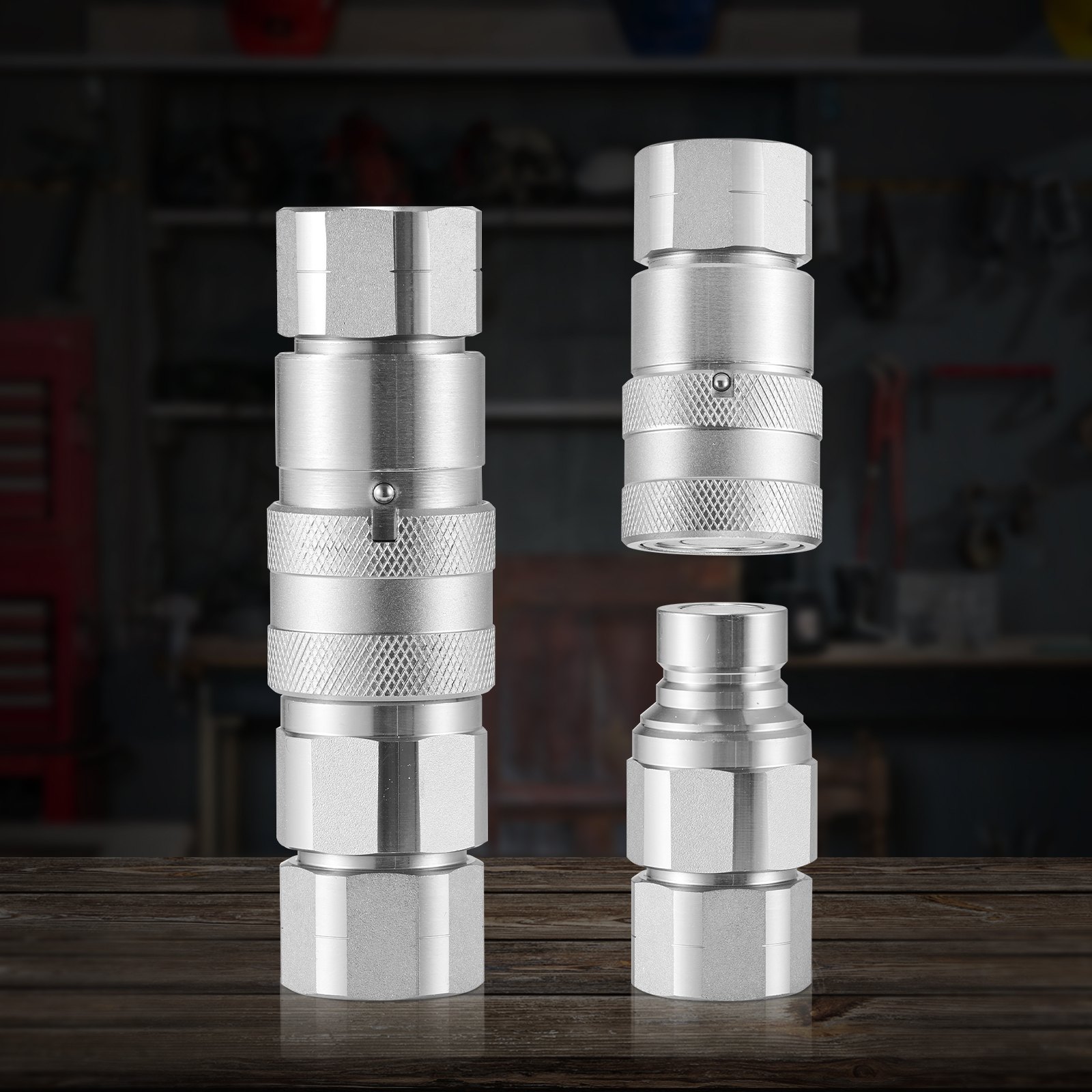

The sleeve locking mechanism of the hydraulic quick couplings allows for easy coupling by pushing. The rotating sleeve locks securely and prevents unintentional uncoupling. To disconnect, the tip is pointed at the gap and pulled.
The hydraulic couplings were developed for applications where hydraulic leaks may occur. They are interchangeable with most compact loader types and are suitable for agriculture, construction, forestry, etc.
