Features & Details

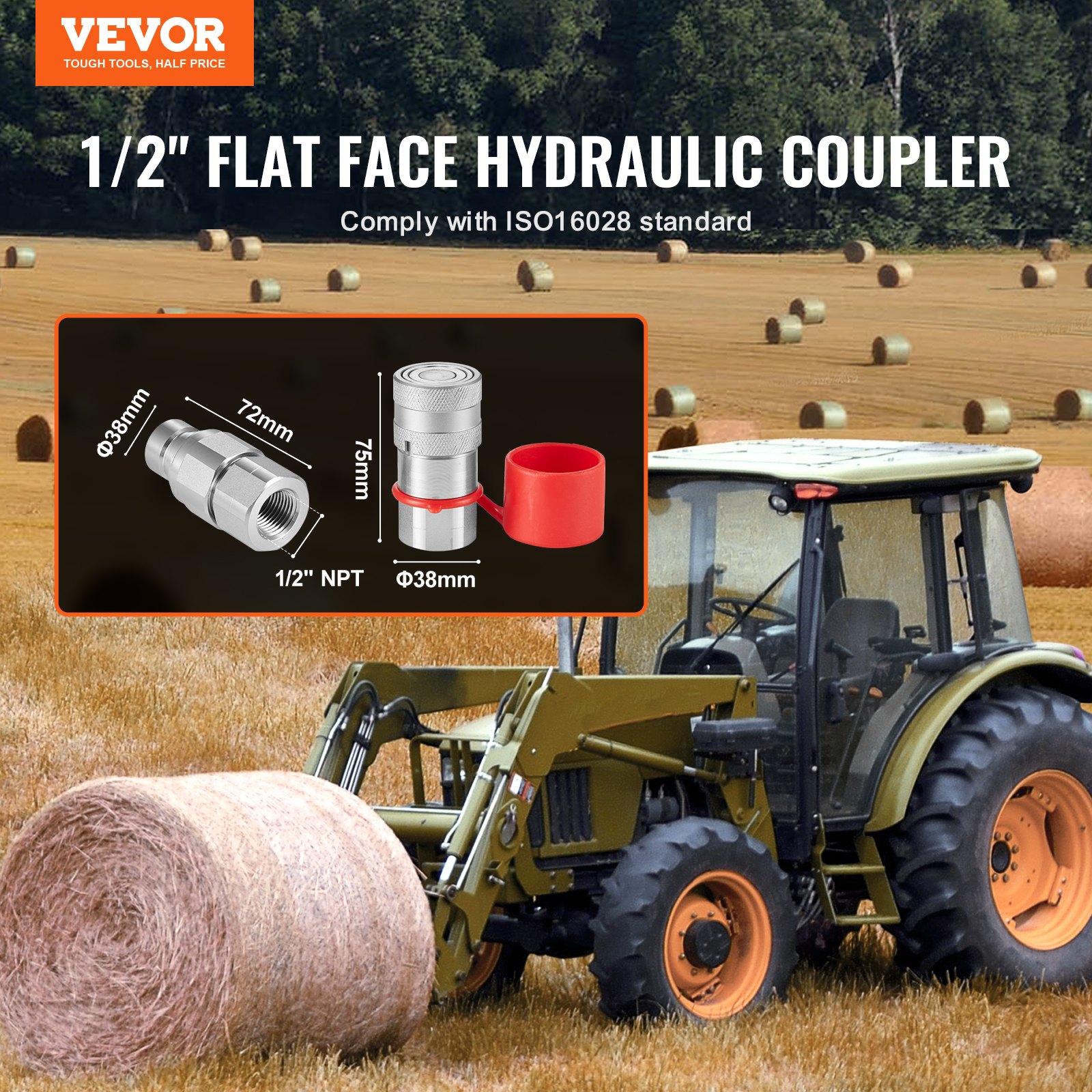

- Standards compliant: This hydraulic coupling has a 1/2 inch body size and a 3/4 SAE thread size for both the male and female couplings. It complies with ISO 16028 standards and is therefore ideally suited for connecting hydraulic lines.

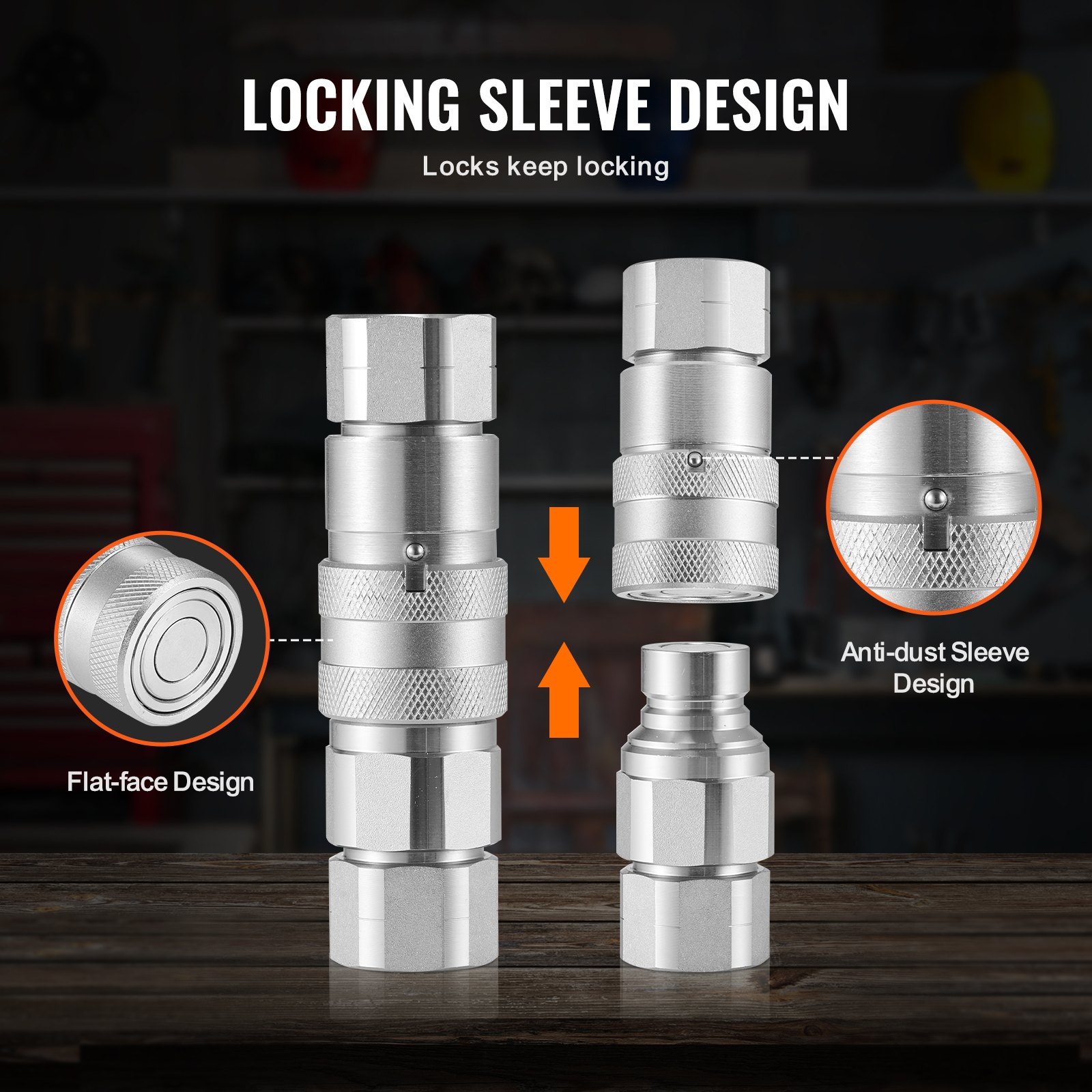

- Sleeve locking design: The low-profile hydraulic couplings feature a sleeve locking design that allows for easy connection with just a simple push. The coupling's low-profile design facilitates cleaning and prevents dust from entering the hydraulic system during connection and disconnection.

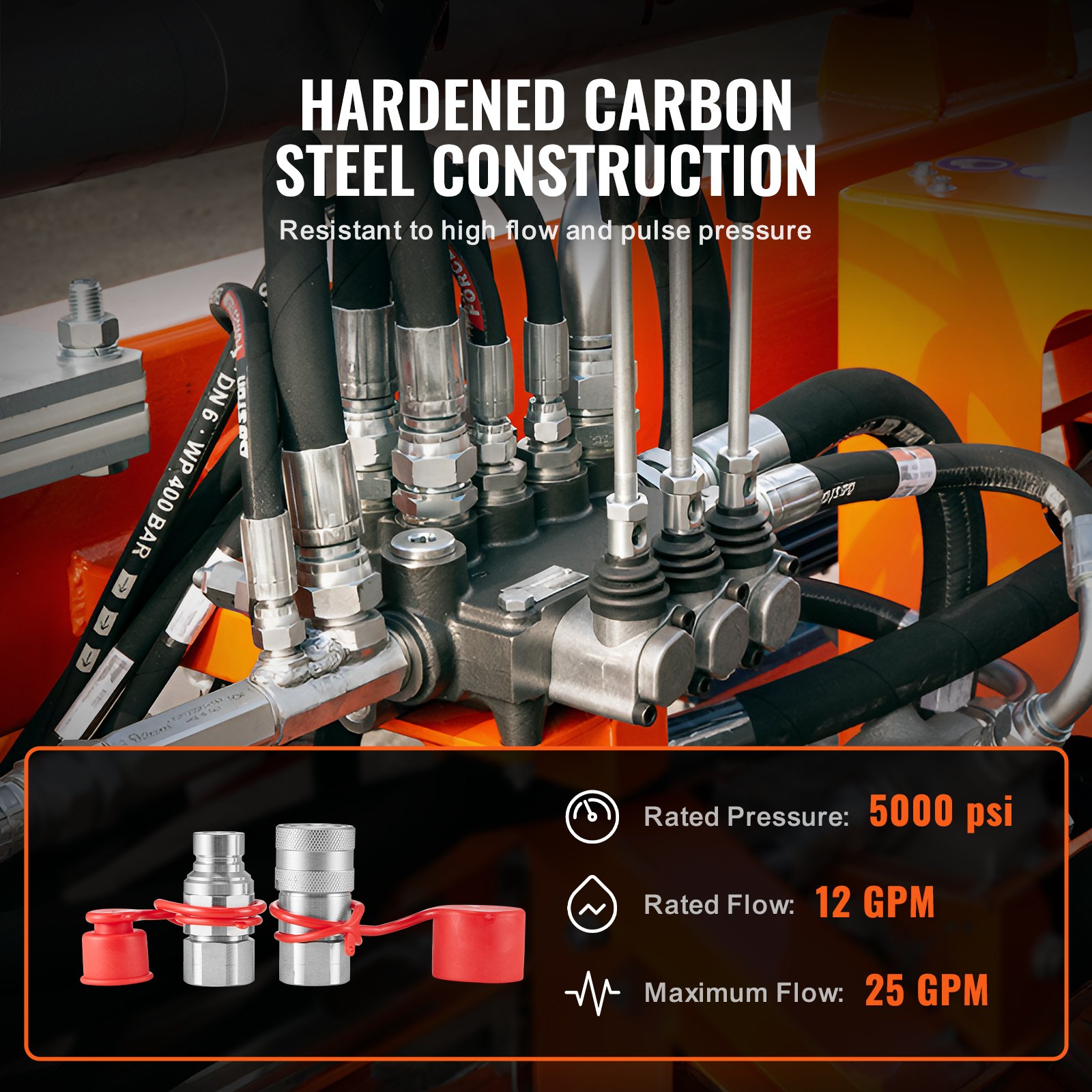

- Construction made of hardened steel: The hydraulic quick couplings are made of hardened carbon steel, are designed for pressures up to 5000 PSI and a high flow rate of 25 GPM, and can withstand high flow rates and impulse pressures, ensuring durability for years of continuous use.

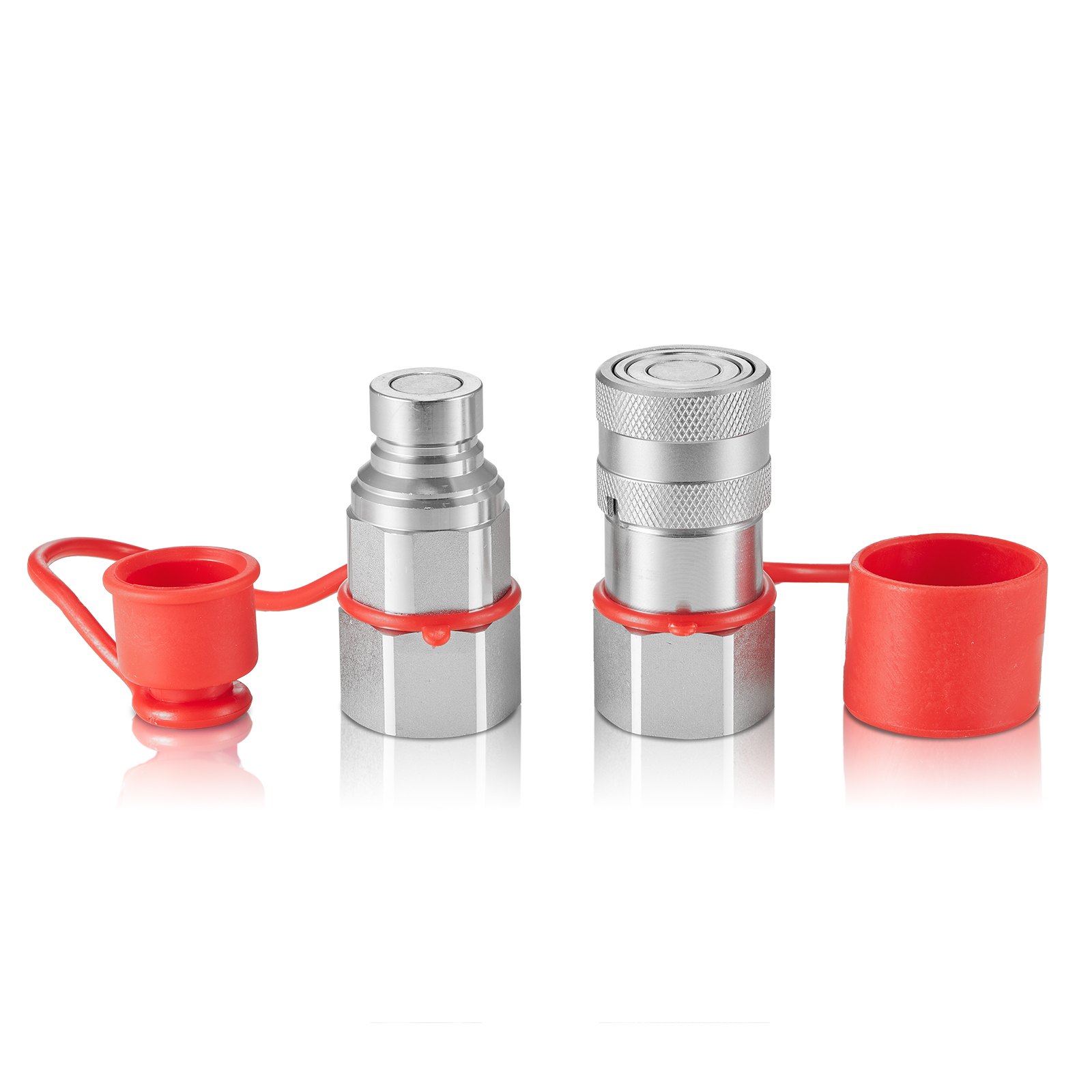

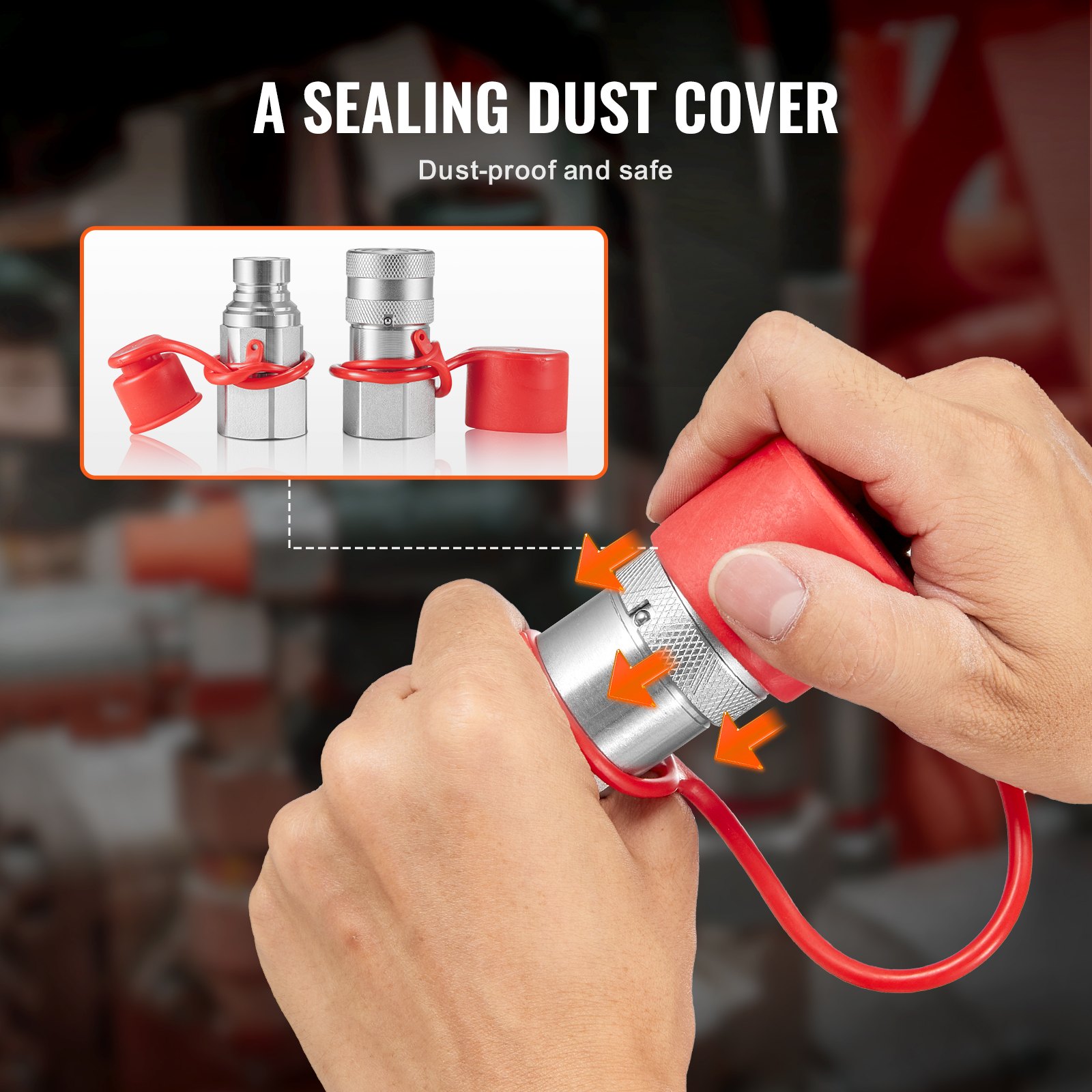

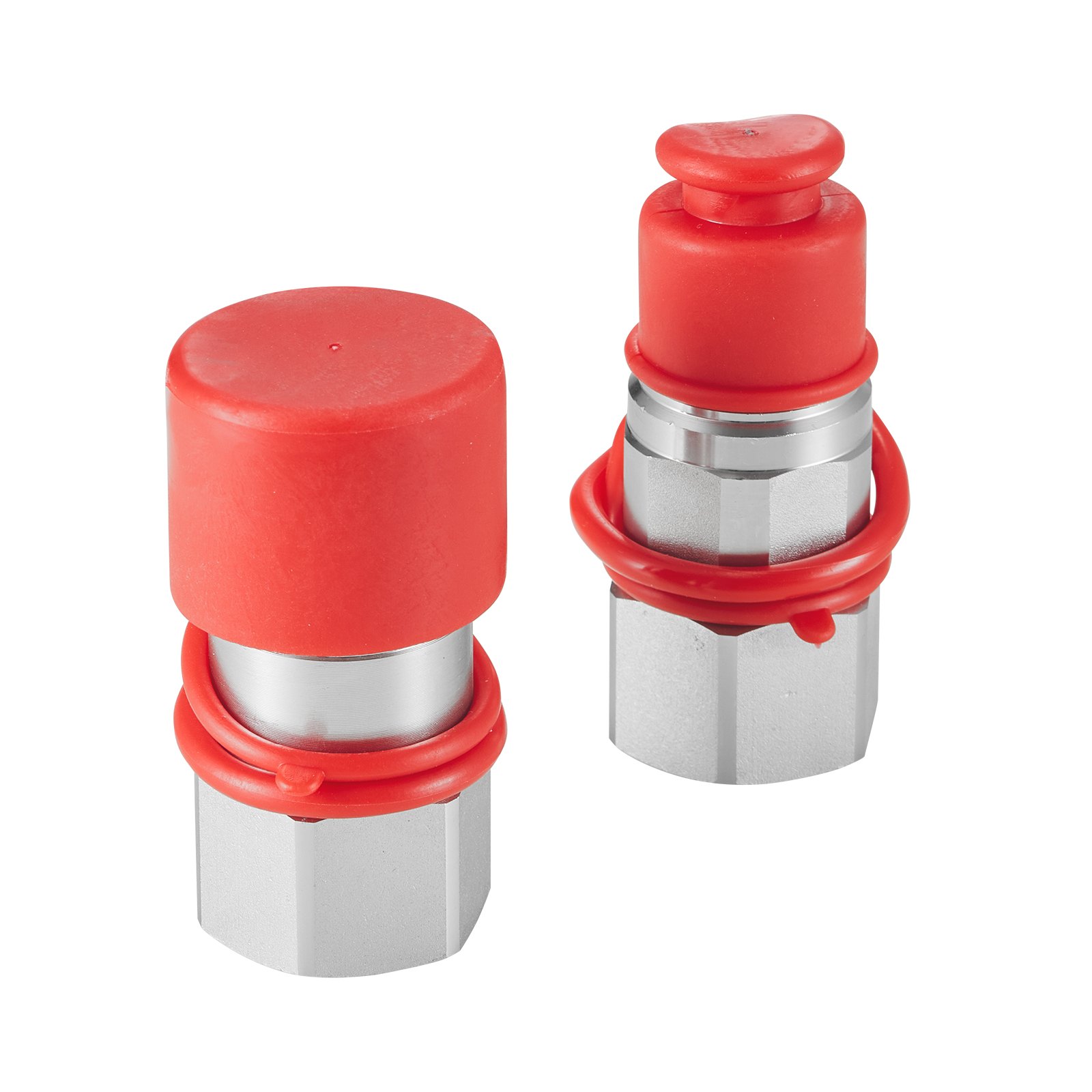

- Dust caps: Dust caps are included to prevent dirt from damaging the connection system. This reduces the risk of failure and keeps the compact loader's hydraulic couplings clean when not in use. Internal dust caps also ensure that the sleeve locking system functions smoothly and without interference.

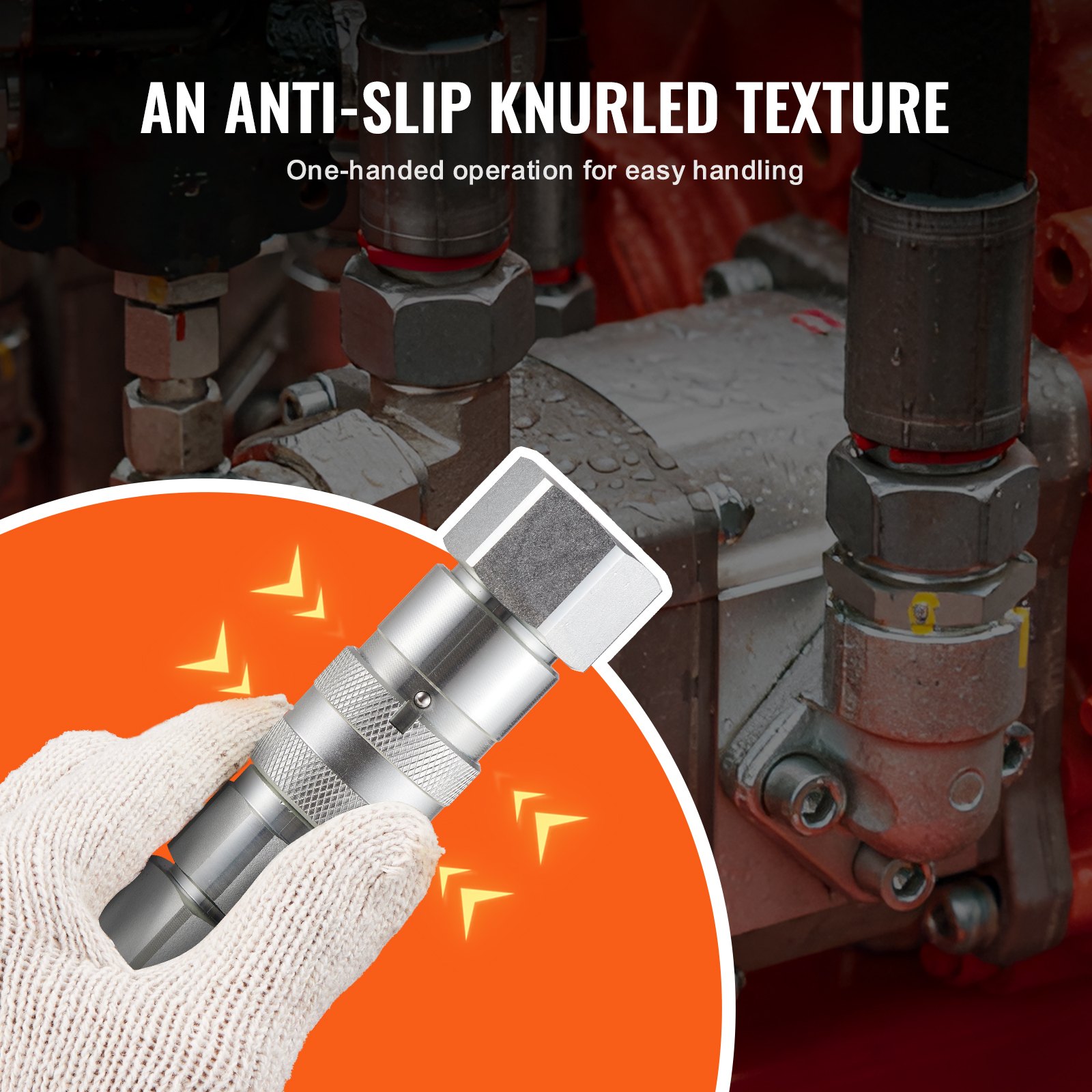

- Non-slip knurling: Robust knurled sleeves on the surface of the hydraulic valve ensure a non-slip grip. This valve design allows for minimal pressure drop and one-handed operation and is interchangeable with most compact loader types such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 4.8
All reviews are from verified purchases
See all 4 reviews
About this item

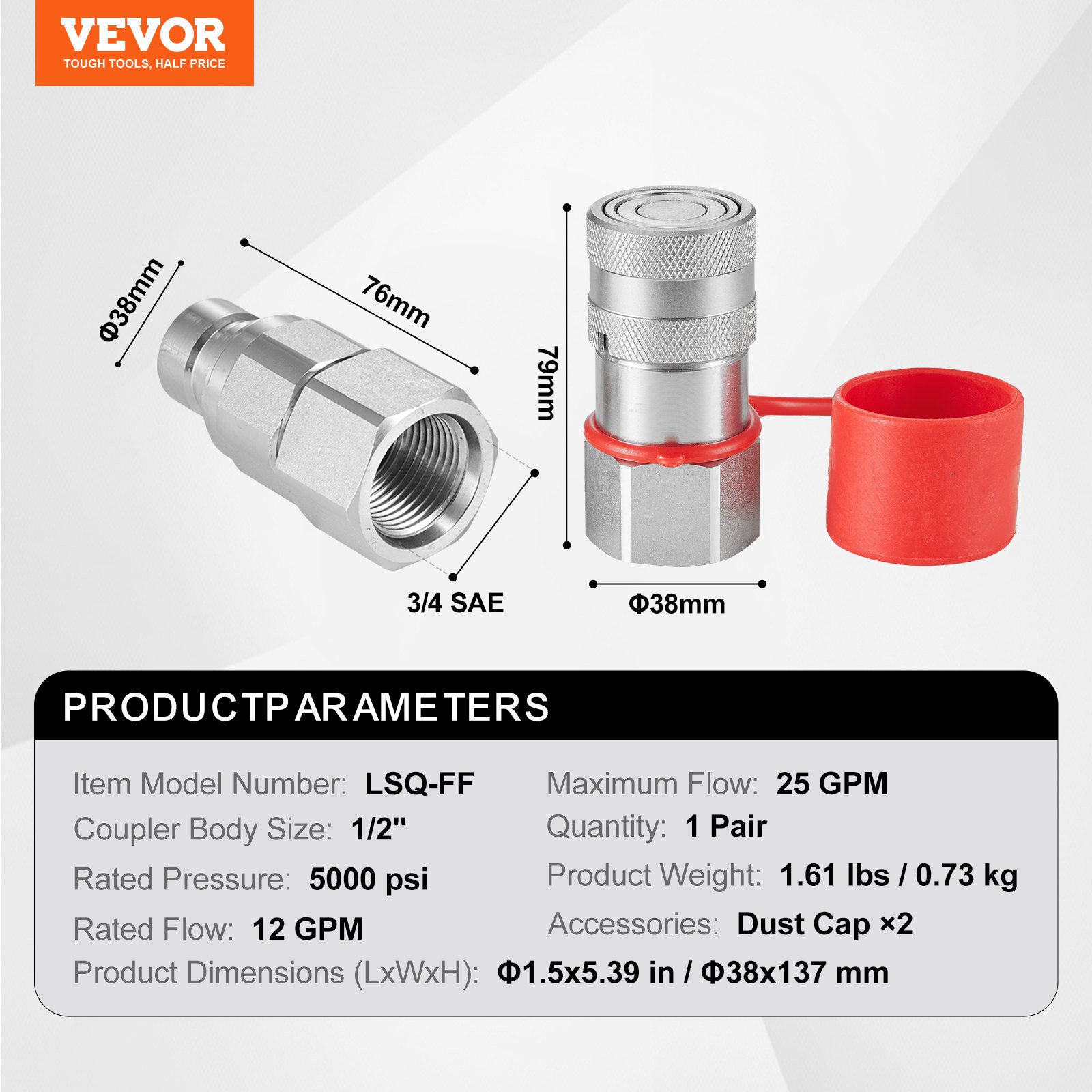

Product specification
- Article model number
- LSQ-FF
- Coupling type
- Flat-surface hydraulic coupling
- Standard
- ISO16028
- Clutch body size
- 1/2 inch
- Nominal pressure
- 5000 psi
- Nominal flow rate
- 12 GPM
- Maximum flow rate
- 25 GPM
- Quantity
- 1 pair
- Thread size of the male coupling
- 3/4 SAE (female thread)
- Thread size of the internal coupling
- 3/4 SAE (internal thread)
- Configuration
- Dust caps
- Color
- White
- Main material
- 45# carbon steel.
- Male coupling
- Φ38 x 76 mm (OD x L), 45# carbon steel, chrome-plated
- Bushing coupling
- Φ38 x 79 mm (OD x L), 45# carbon steel, chrome-plated
- Dust cap
- Φ40 x 260 mm (OD x L), rubber, red
- Product weight
- 1.61 lbs / 0.73 kg
- Product dimensions (L x W x H)
- Φ1.5 x 5.39 inches / Φ38 x 137 mm
Description

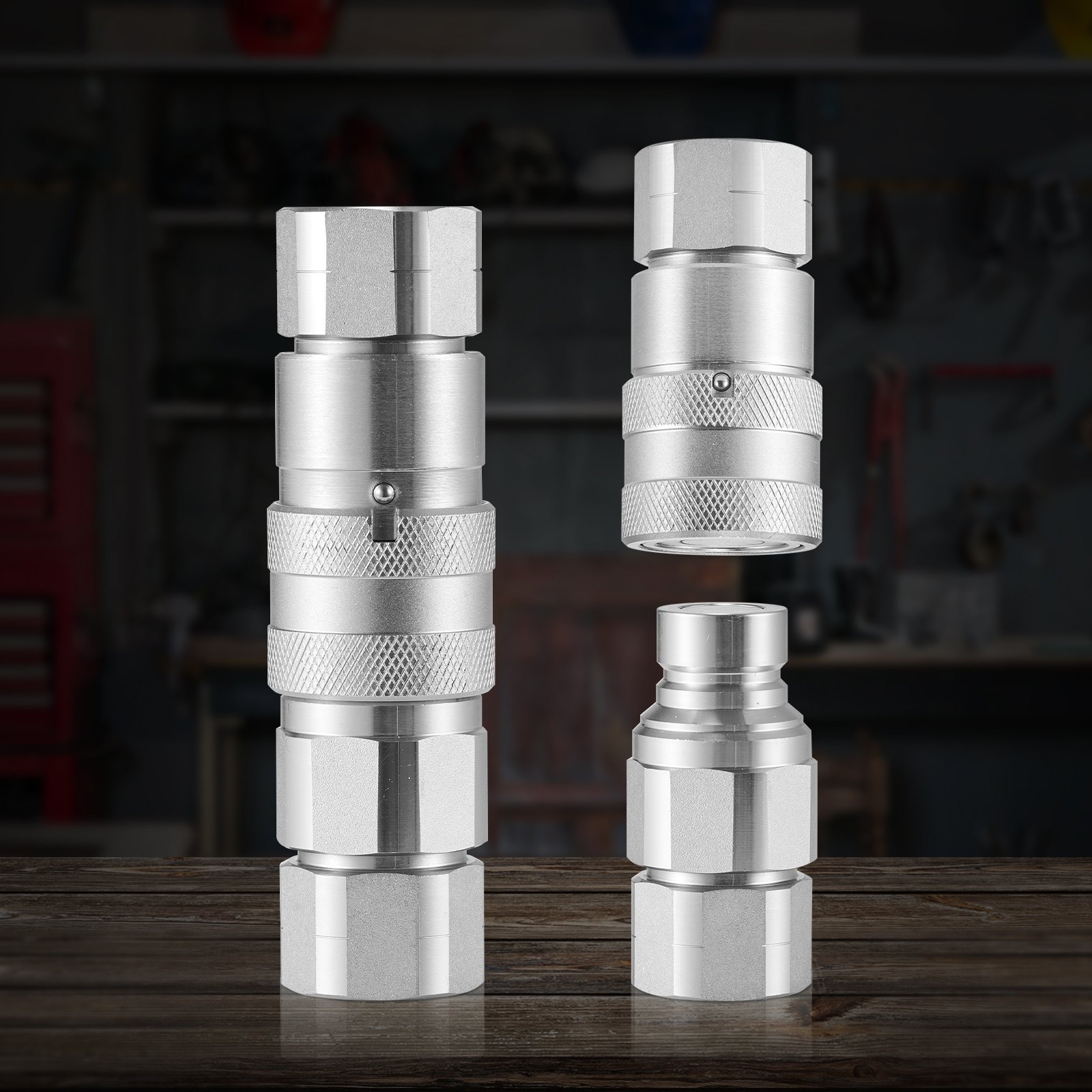

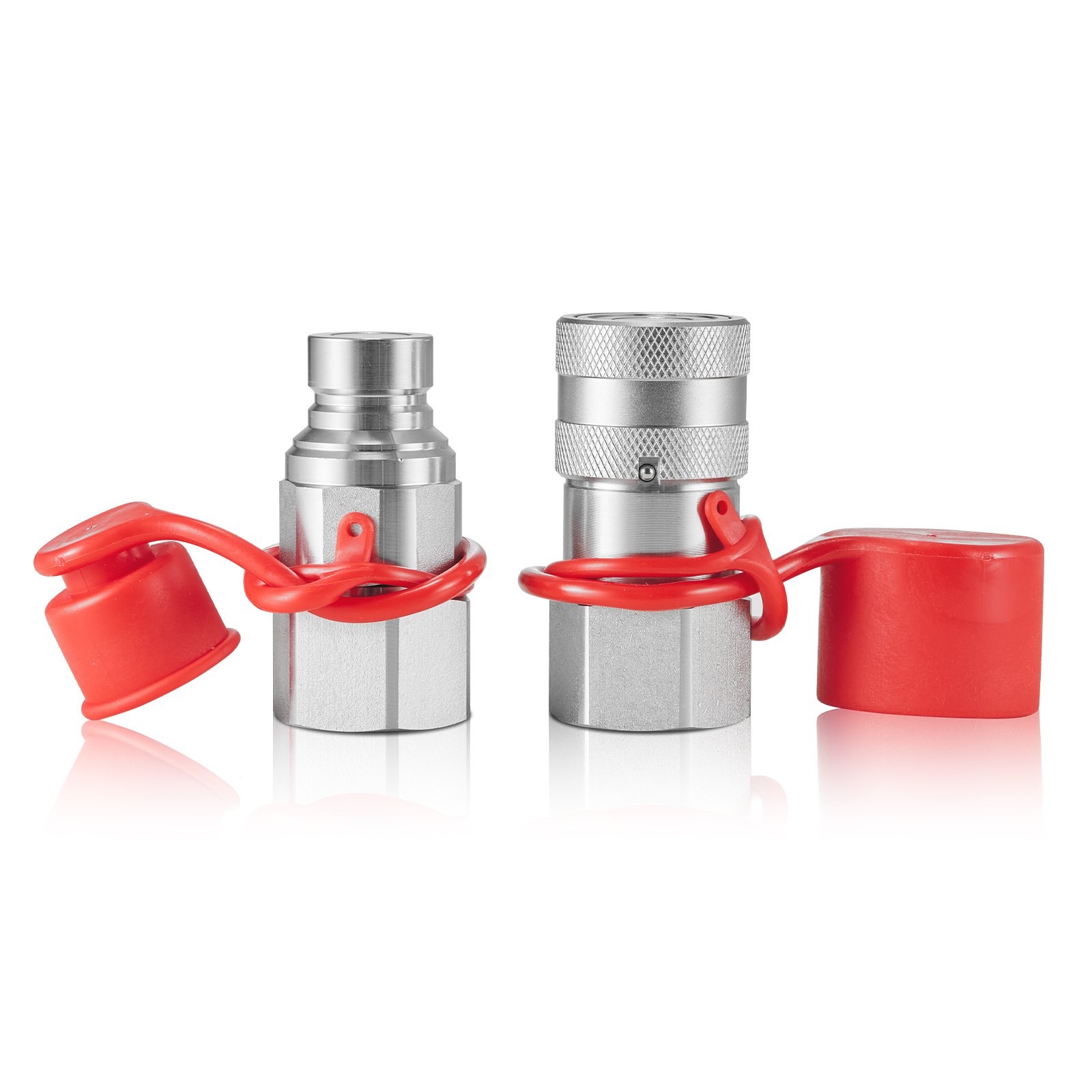

VEVOR 1/2 inch flat surface hydraulic couplings
Our hydraulic couplings have passed impact, high-pressure, and high-temperature tests to ensure compliance with ISO standard 16028. Our commitment to the highest quality makes our products the right choice for you.
The hydraulic flat couplings are equipped with a 3/4 SAE thread and feature a new, improved valve design that provides a high flow rate of 25 GPM at a nominal pressure of 5000 PSI and significantly extends service life.
Our hydraulic couplings for compact loaders are made of high-quality carbon steel and galvanized to ensure high rust and corrosion resistance as well as a long service life.
The sleeve locking mechanism of the hydraulic quick couplings allows for easy coupling by pressing. The rotating sleeve locks securely and prevents unintentional uncoupling.
The hydraulic couplings were developed for applications where hydraulic leaks may occur. They are interchangeable with most compact loader types and are suitable for agriculture, construction, forestry, etc.
