Features & Details

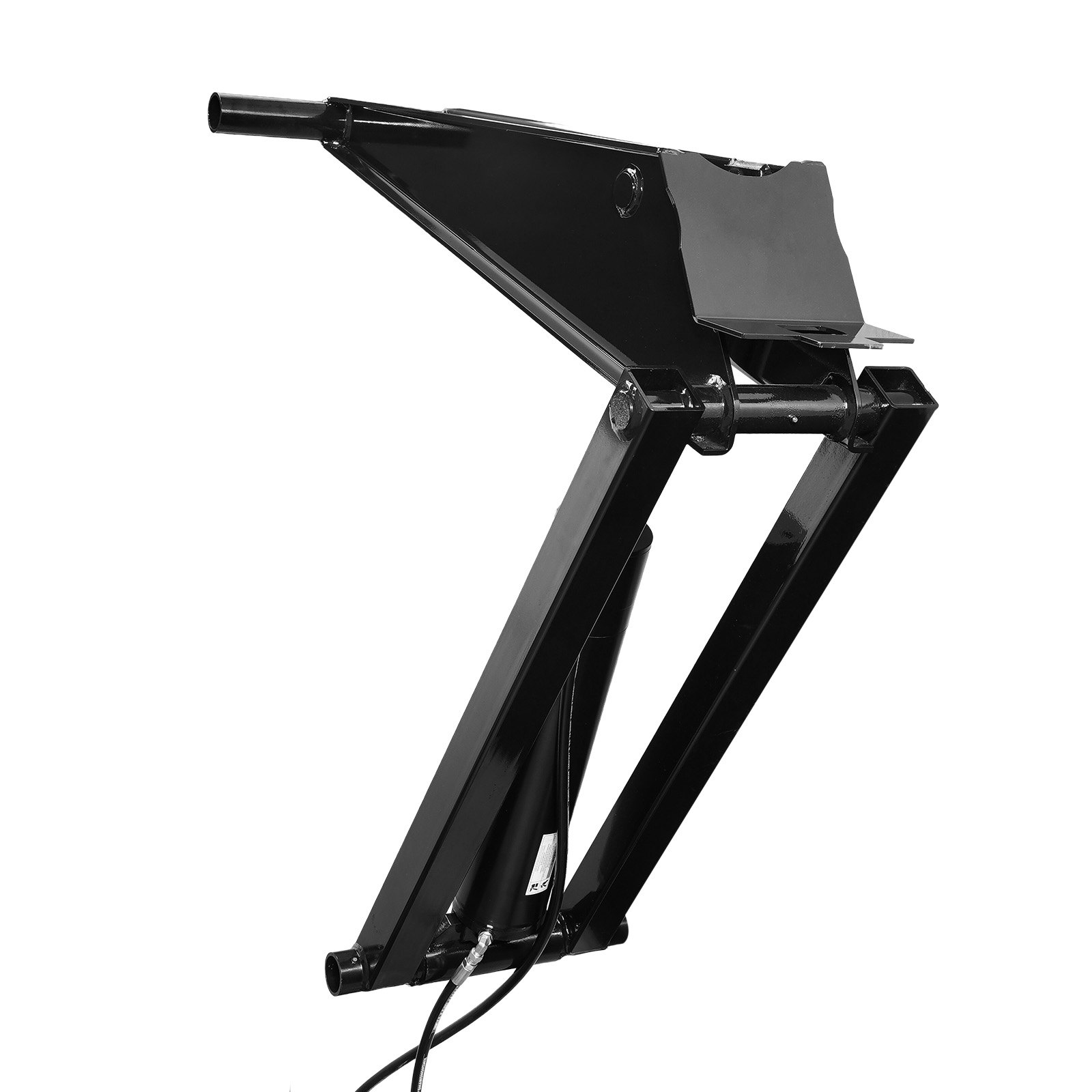

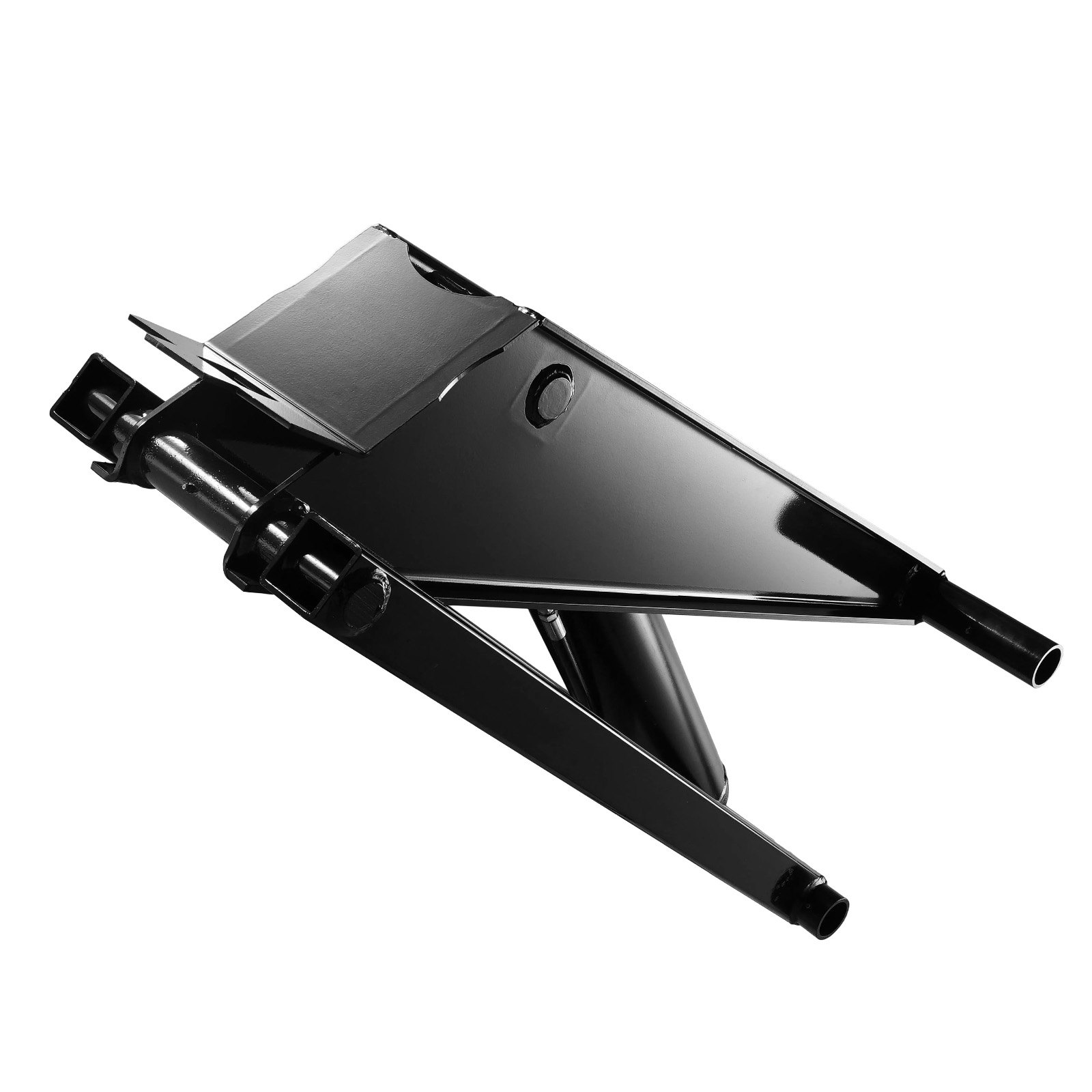

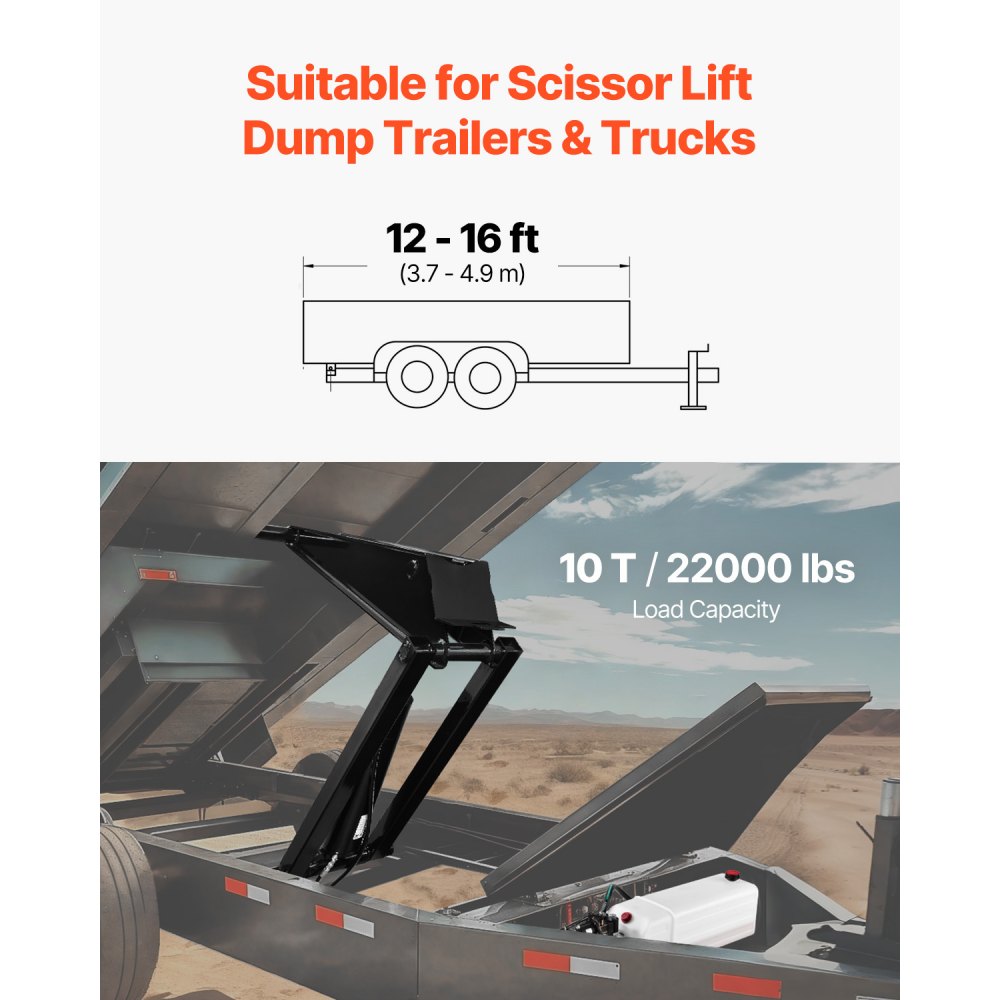

- Heavy-duty lifting: This truck tipper kit is specifically designed for hydraulic scissor lifts and is suitable for tipper trailers and trucks 12 to 16 feet (3.7-4.9 m) in length. It has a total lifting capacity of 10 t/22,000 lbs, including cargo and loading platform. It is ideal for various heavy-duty lifting applications, such as agricultural transport, construction equipment, and vehicle transport.

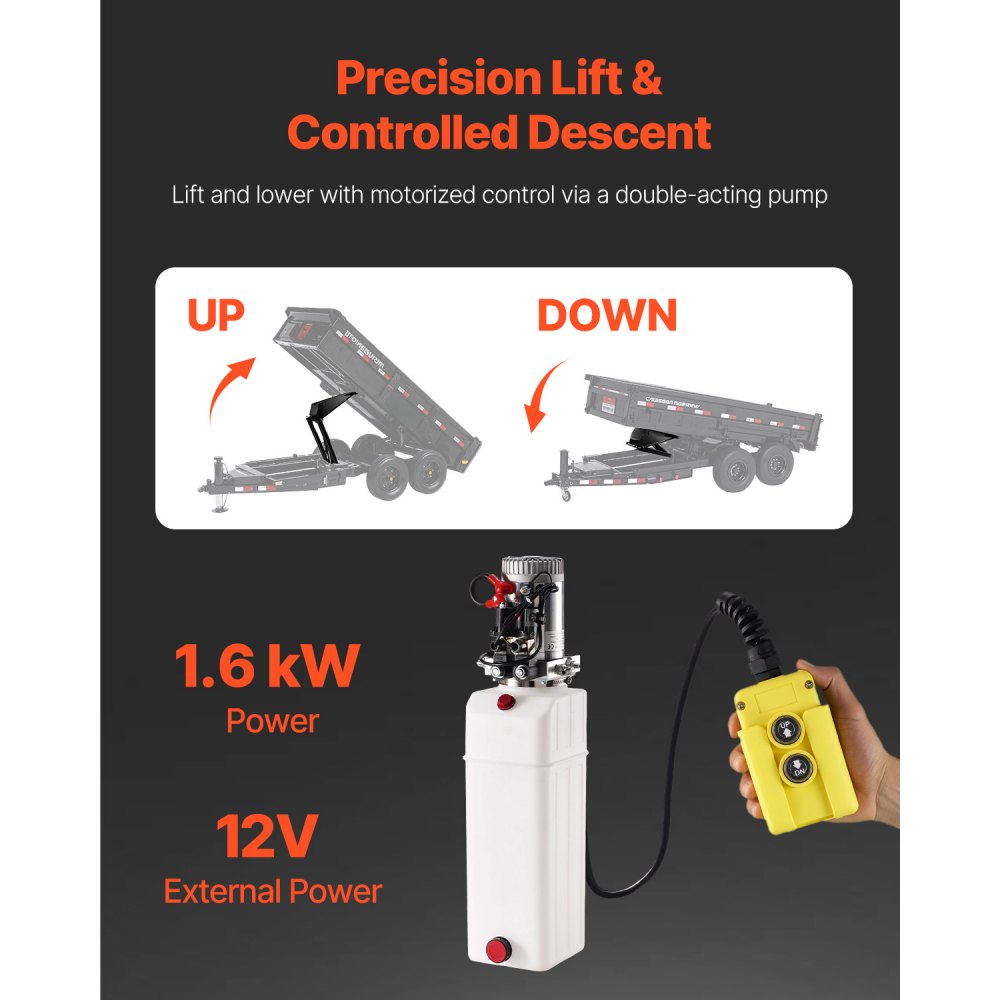

- Efficient and smooth: The 10 QT / 9.5 L hydraulic pump in this dumper kit features a double-acting system, allowing remote control of raising and lowering the dumper. This ensures smooth and fast operation, reducing time and effort. It is more efficient than single-acting pumps that rely on weight for slow descent. It can be easily powered by a 12V vehicle power source.

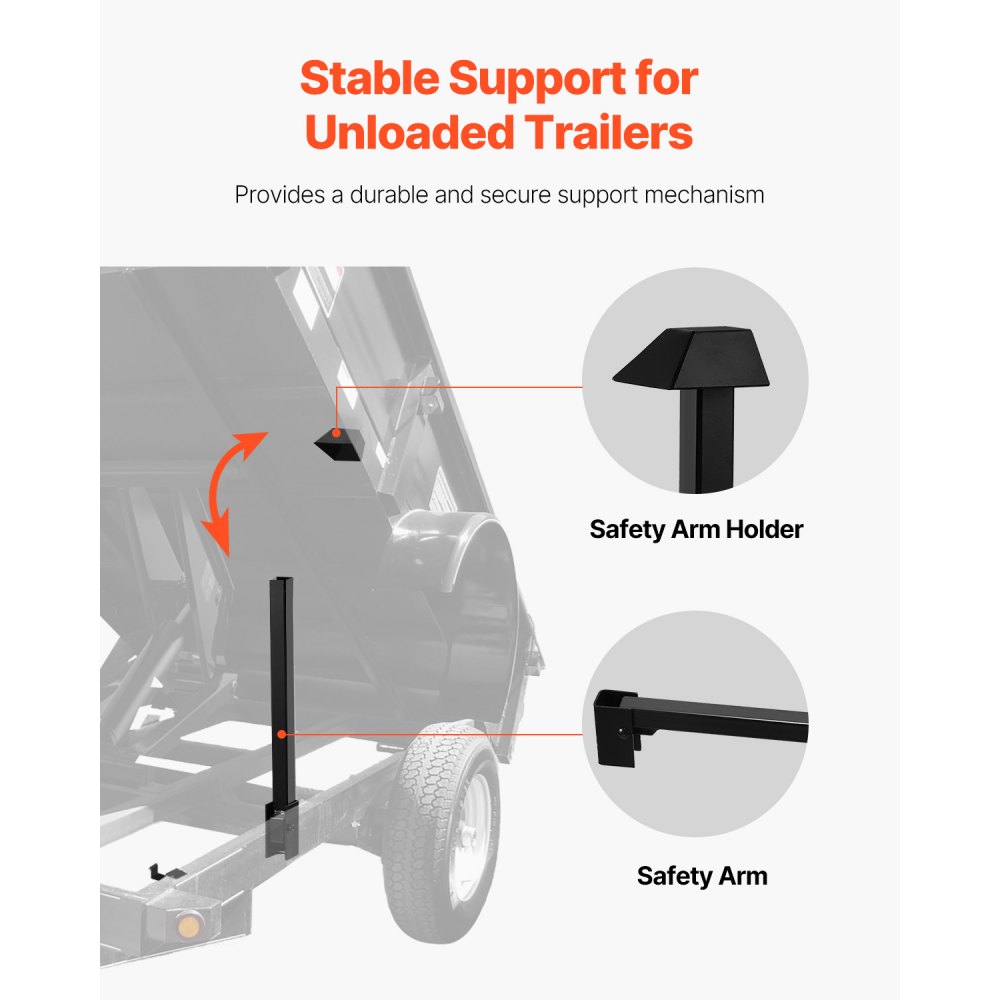

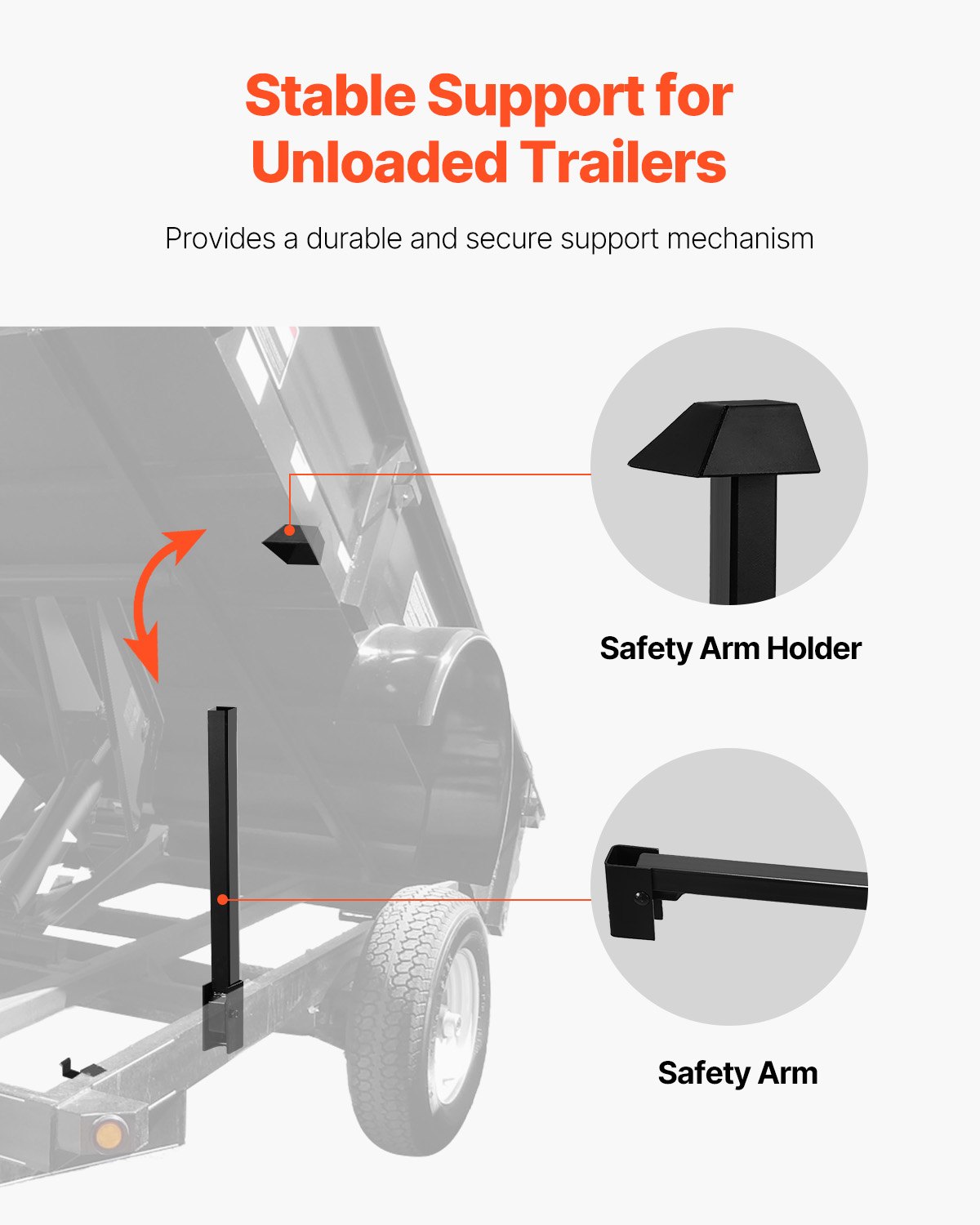

- Safety first: This hydraulic tipping lift set ensures safe operation with a safety arm that provides stable support when unloading the trailer, avoids the risk of accidental lowering and minimizes operational risks.

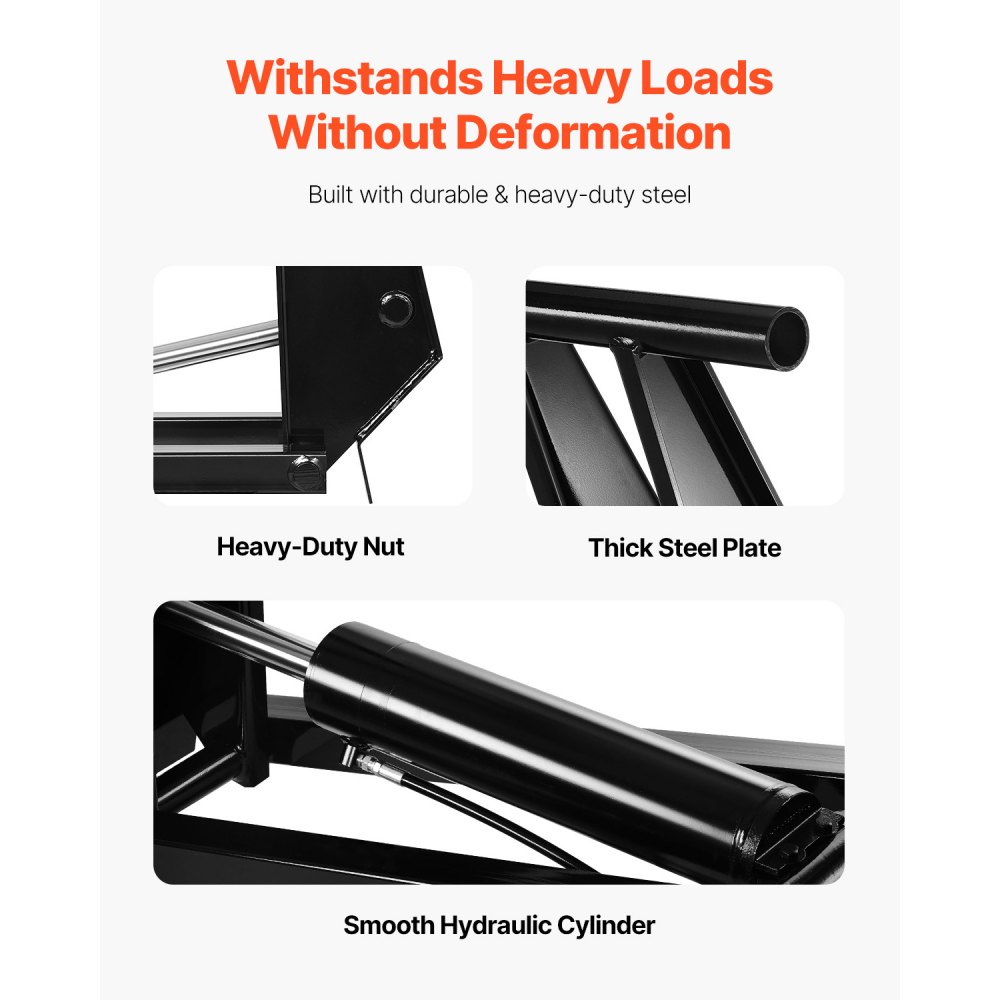

- Robust and durable: This hydraulic scissor lift for tipper trailers is made from high-quality materials. The lifting components are constructed of high-strength steel to withstand heavy loads and impacts, as well as deformation and weathering. The plastic oil tank ensures stability under all conditions.
- Easy to maintain: To maintain sufficient lifting capacity and prevent breakdowns, it is recommended to service this hydraulic tipping bed kit every six months. This includes replacing the hydraulic oil and lubricating the lifting connections. Installation requires welding and lifting.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item

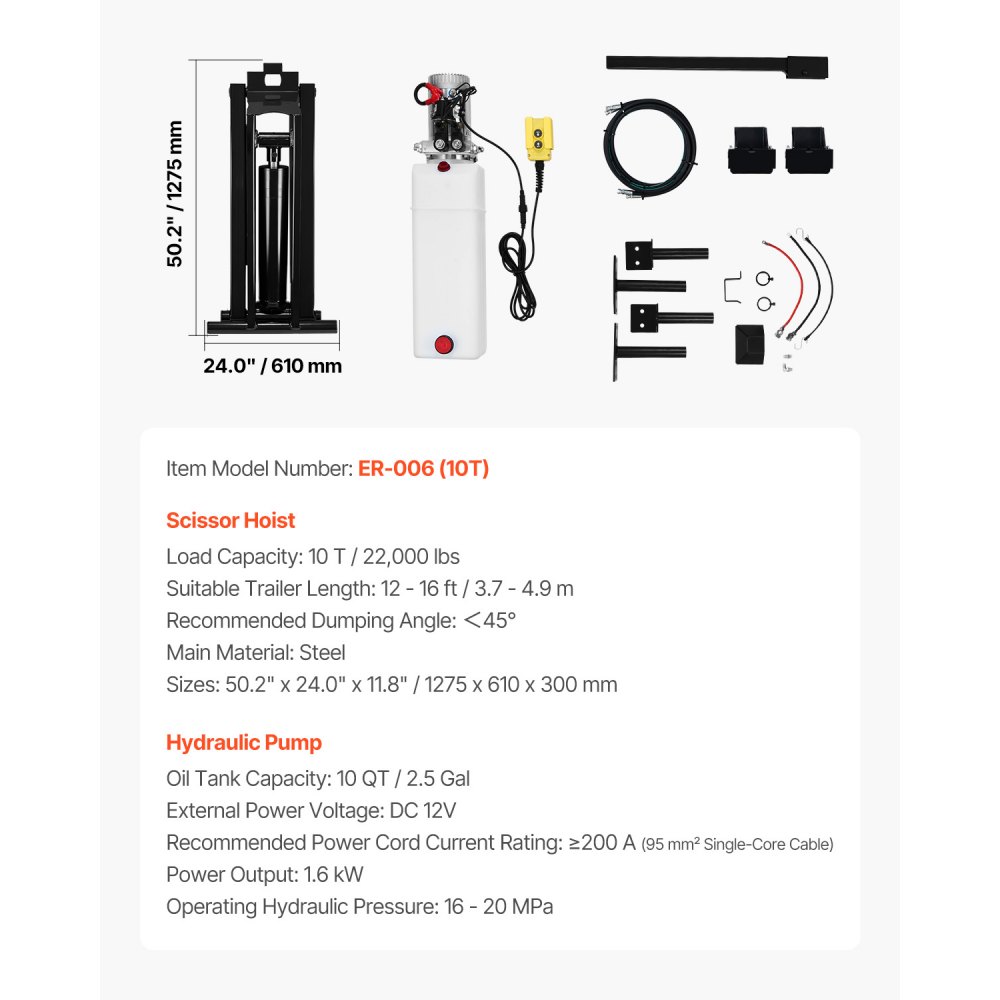

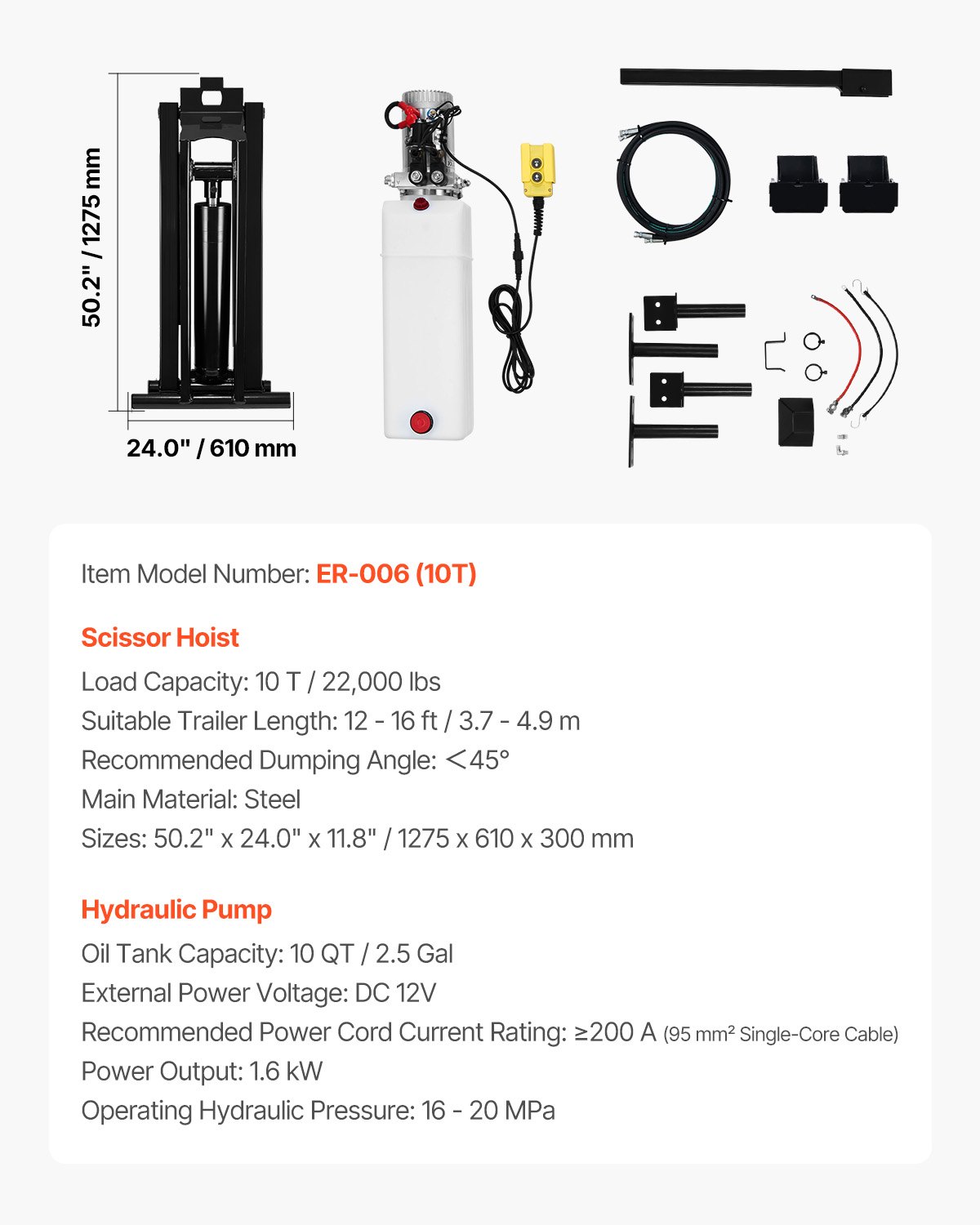

Product specification
- Item model number
- ER-006 (10T)
- Load capacity
- 10 t / 22,000 lbs

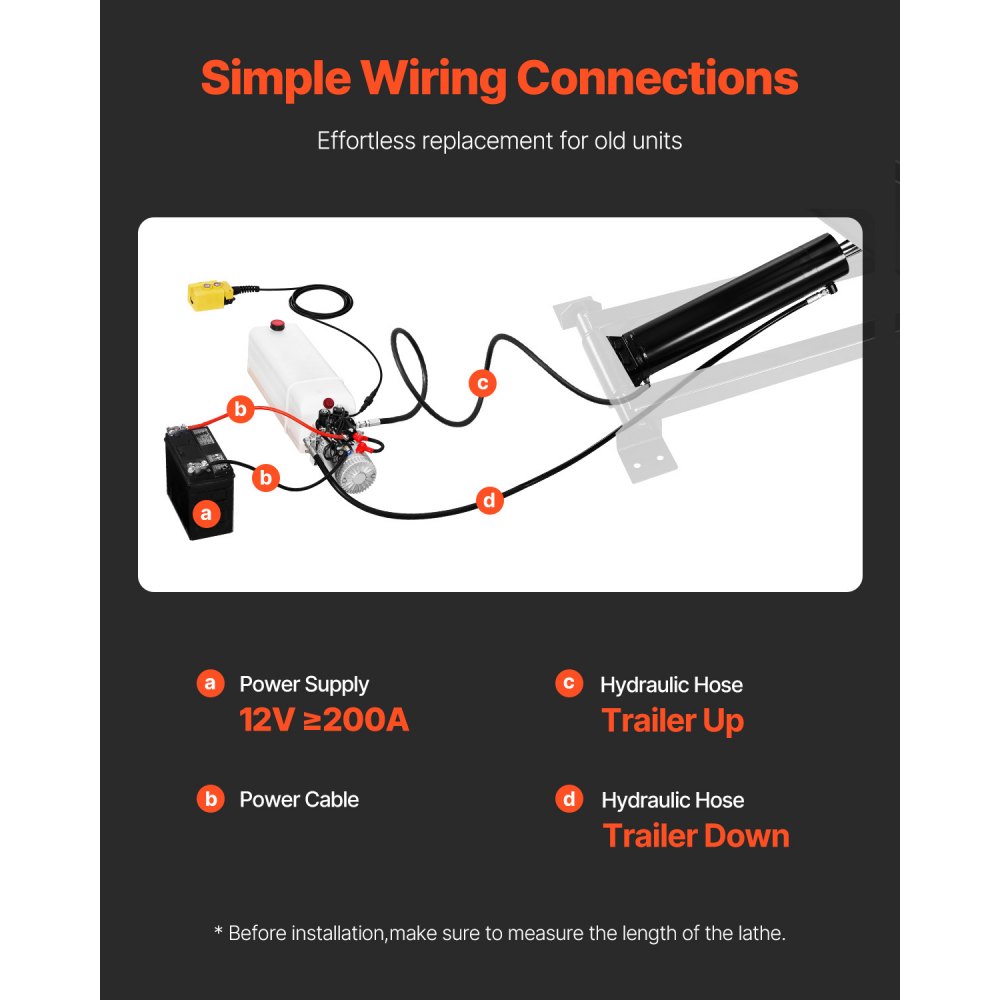

- External power supply
- DC 12 V
- Suitable trailer length
- 12-16 feet / 3.7-4.9 m
- Capacity of the building's power cable
- ≥200 A (single-core cable with 95 mm²)
- Hydraulic oil tank capacity
- 10 QT / 9.5 L
- Power output
- 1.6 kW
- Hydraulic operating pressure
- 16-20 MPa
- Flow rate
- 1.45 GPM
- Maximum release pressure
- 3200 PSI / 22 MPa
- Oil tank material
- PP plastic
- Thickness of the lifting plate
- 0.3 inches / 8 mm
- Maximum body tilt angle
- 127°
- Recommended tilt angle
- <45°
- Main material
- Steel (Q355B)
- Net weight
- 383.6 lbs / 174 kg
- Product dimensions
- 50.2 x 24.0 x 11.8 inches / 1275 x 610 x 300 mm
Description
Easy maintenance or self-assembly of a safe tipping trailer

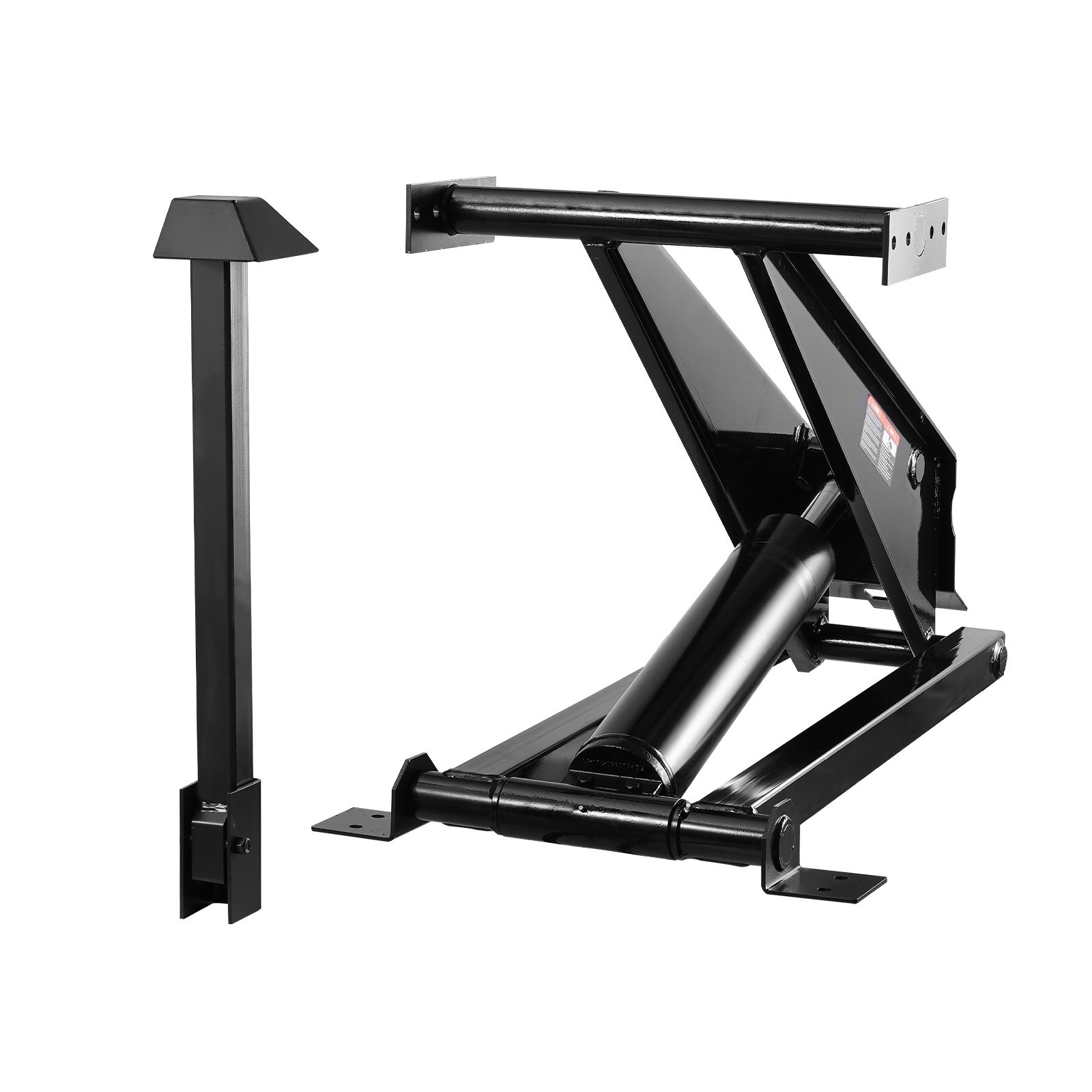

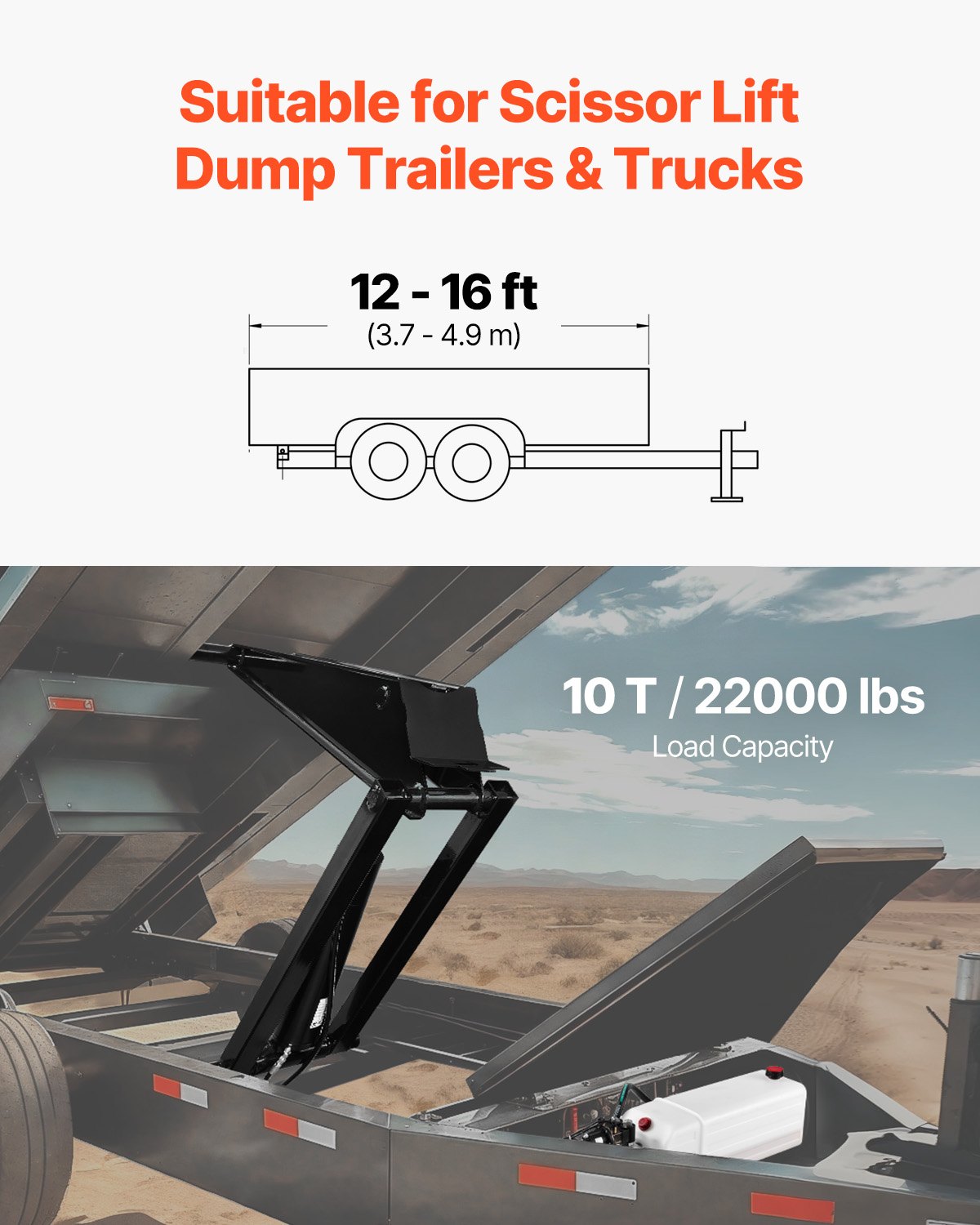

Our hydraulic tipping device is designed for tippers and trailers with a length of 3.7 to 4.9 m and is ideally suited as a replacement for the hydraulic tipping device of large scissor tippers. It can carry up to 10 tons, including load and loading platform.

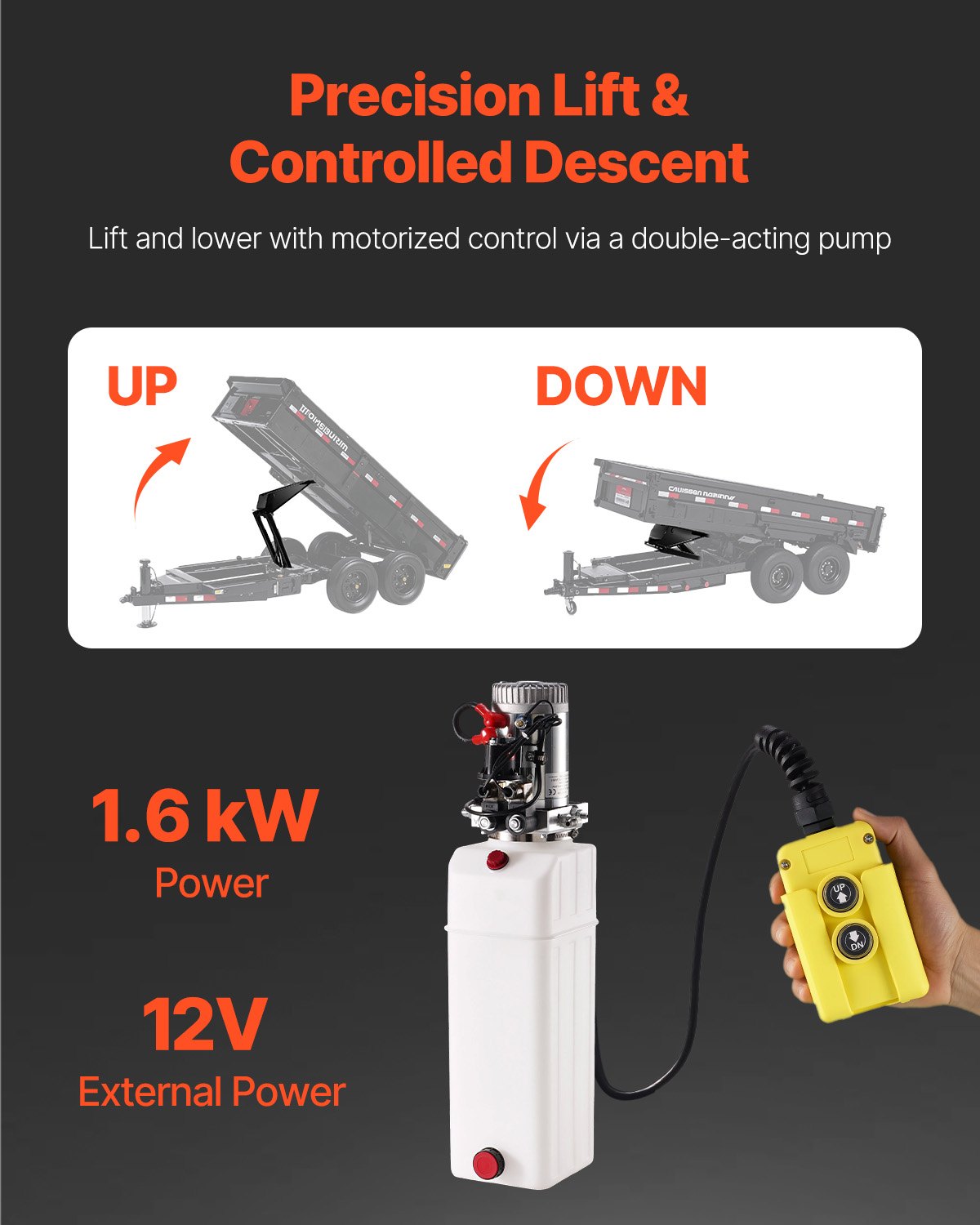

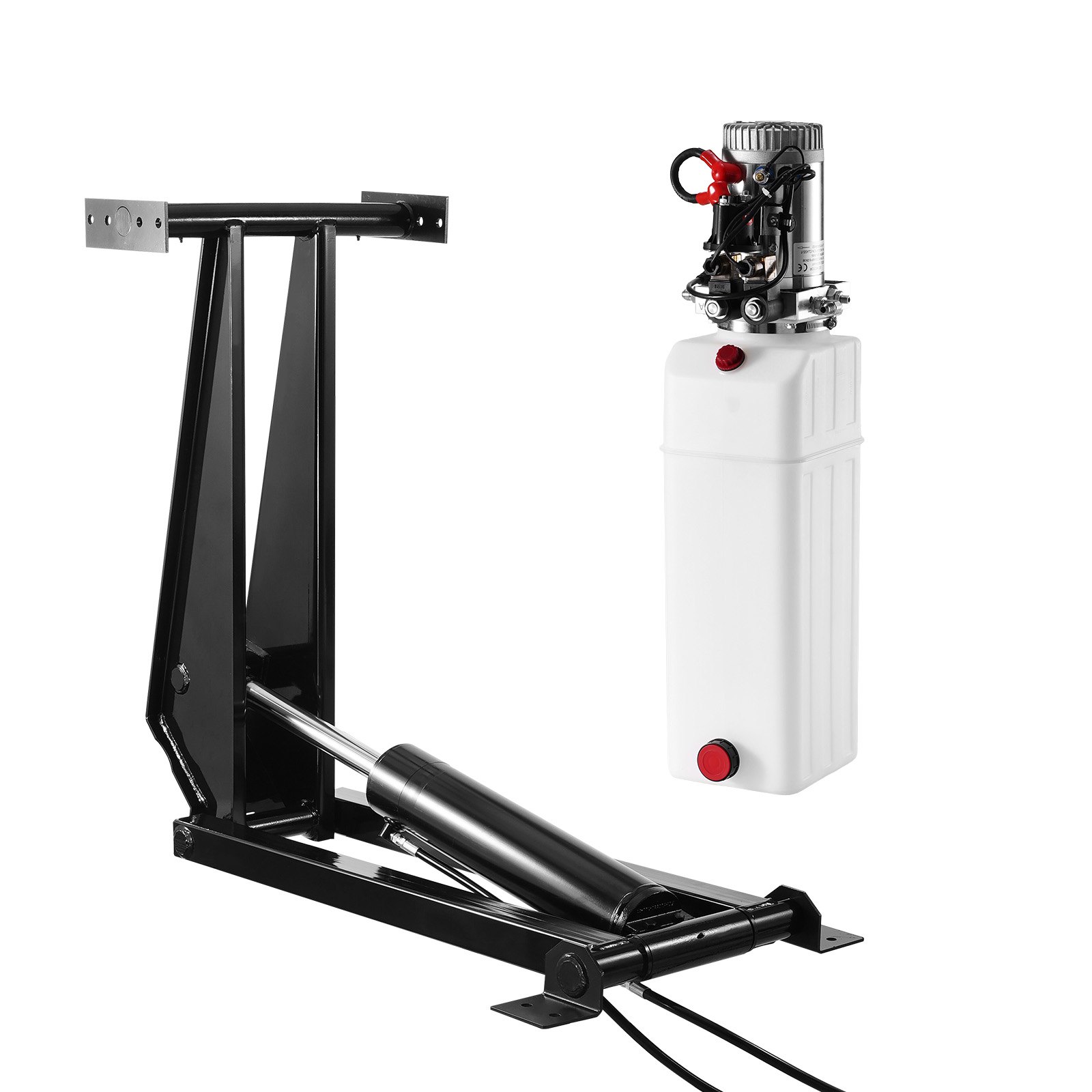

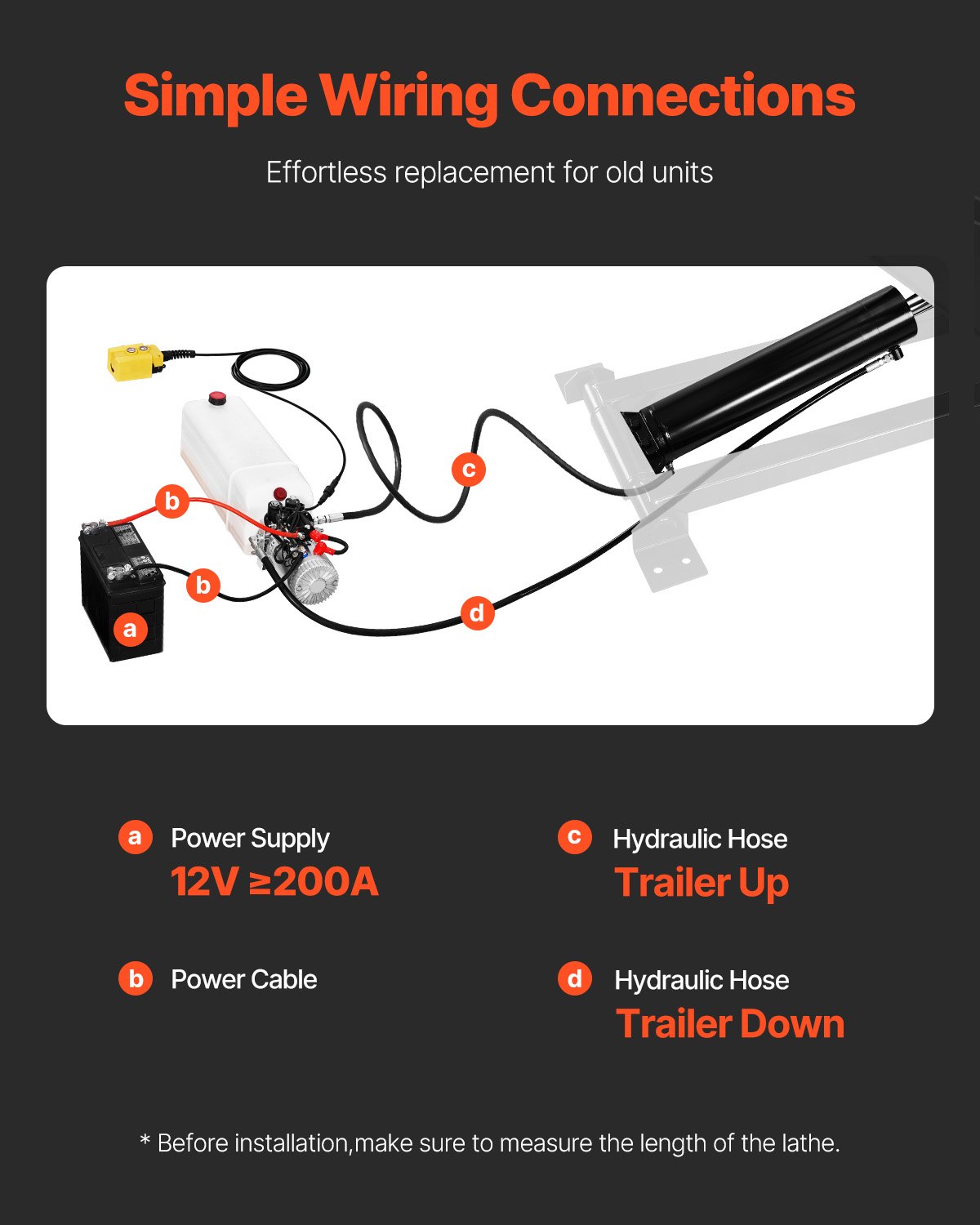

This tipper body is equipped with a double-acting hydraulic pump that enables motor-controlled lifting and lowering. Powered by a high-performance 12V DC motor, it offers quick start-up and rapid oil delivery for flexible height control.
It must also be folded up during maintenance, assembly and service work to prevent unintentional falling, which could lead to serious injuries, and to ensure operational safety.

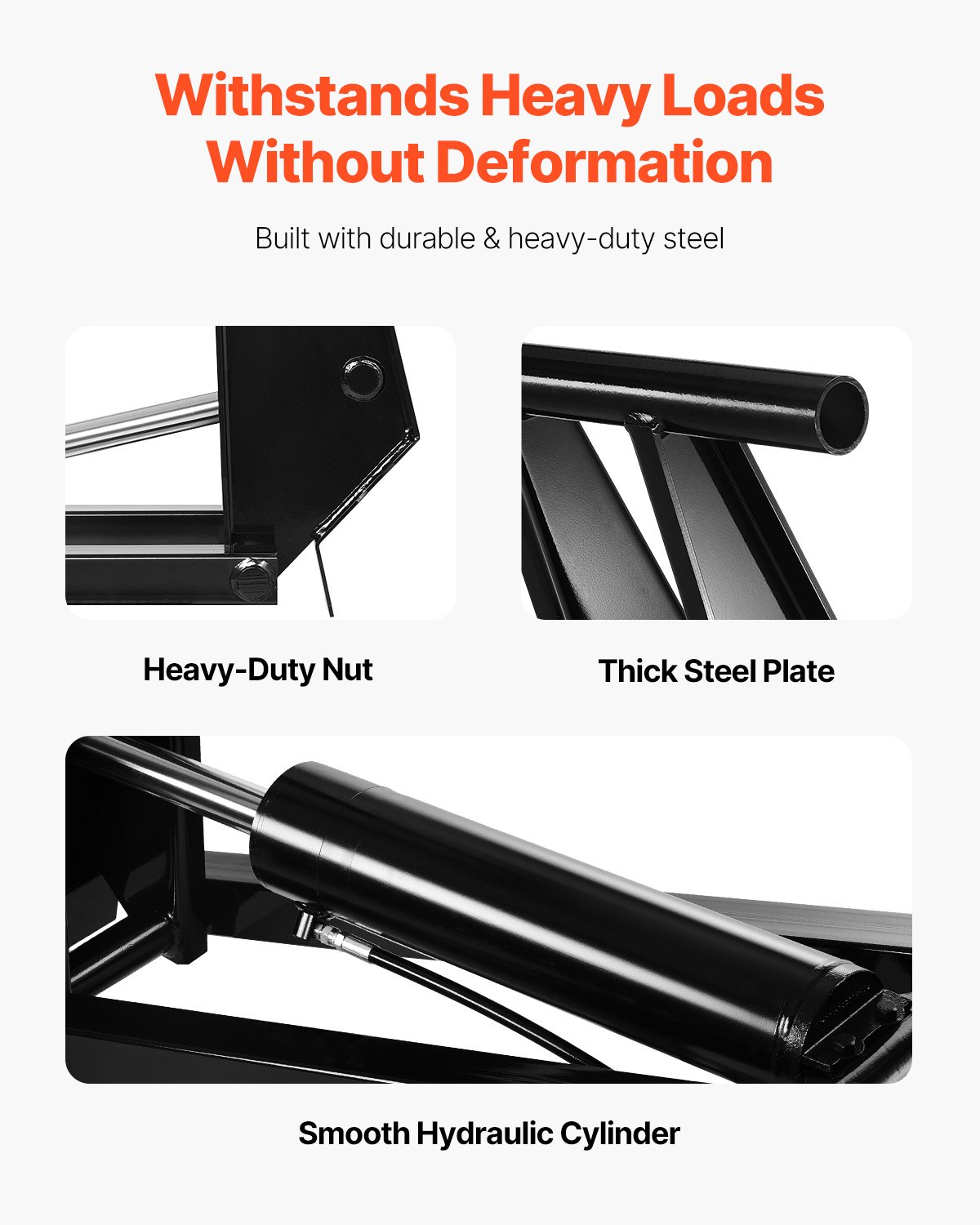

The durable plastic oil tank is leak-proof and wear-resistant, and the unit is equipped with a powerful motor. High-strength structural steel ensures that the unit does not deform even under heavy loads.

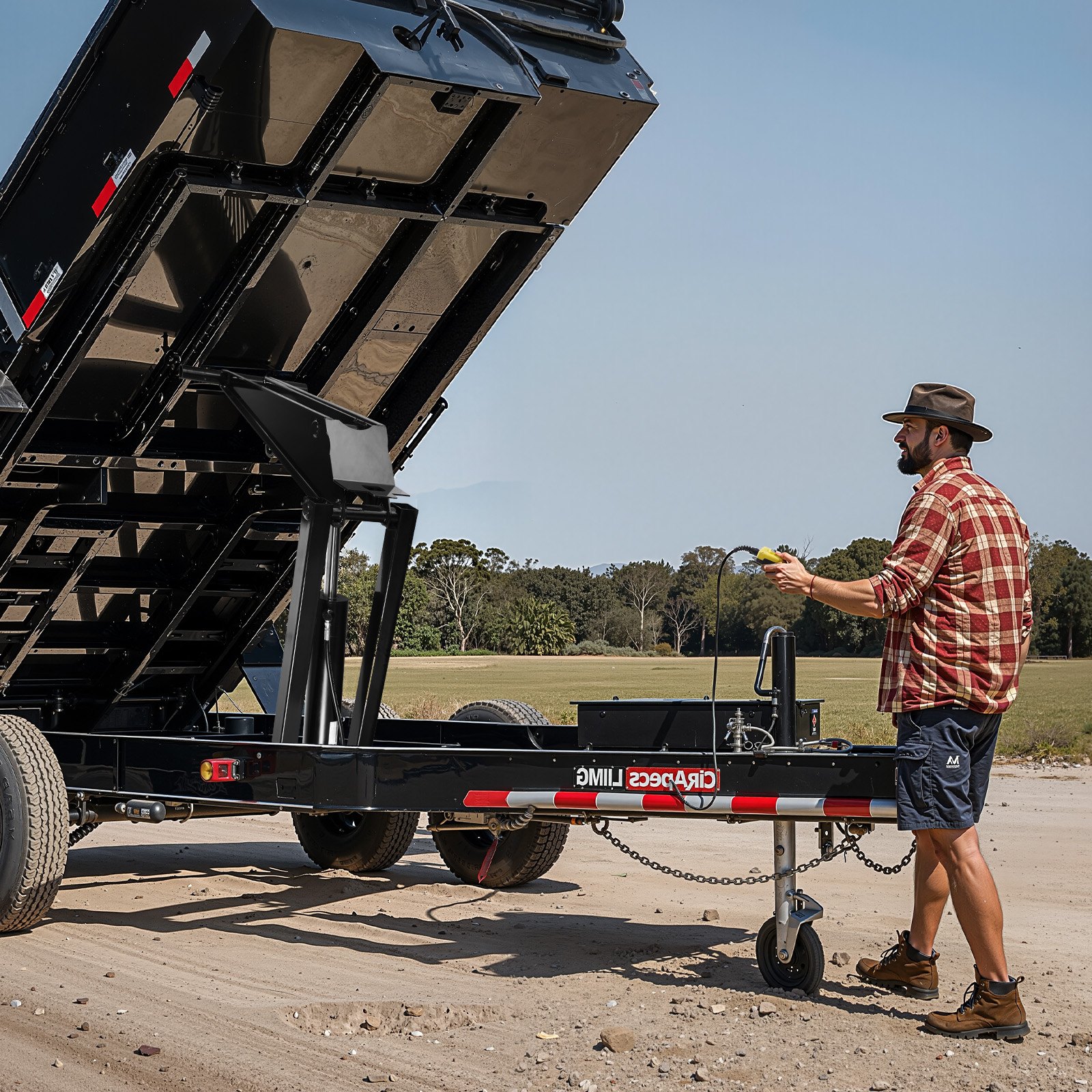

This tipping skip is mounted at the rear of the tipper trailer and allows for the easy handling of various materials such as construction debris, soil, gravel and mulch.
