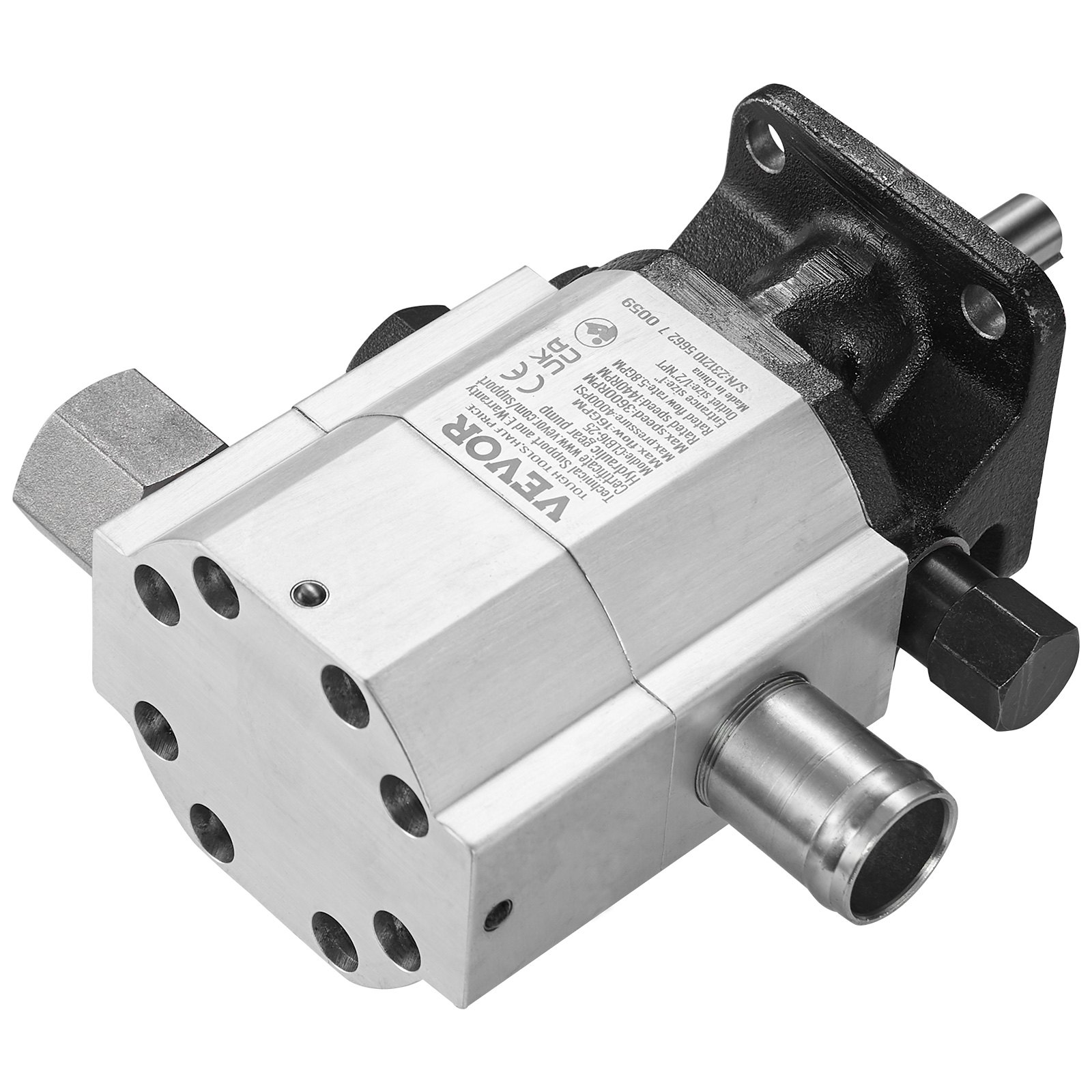

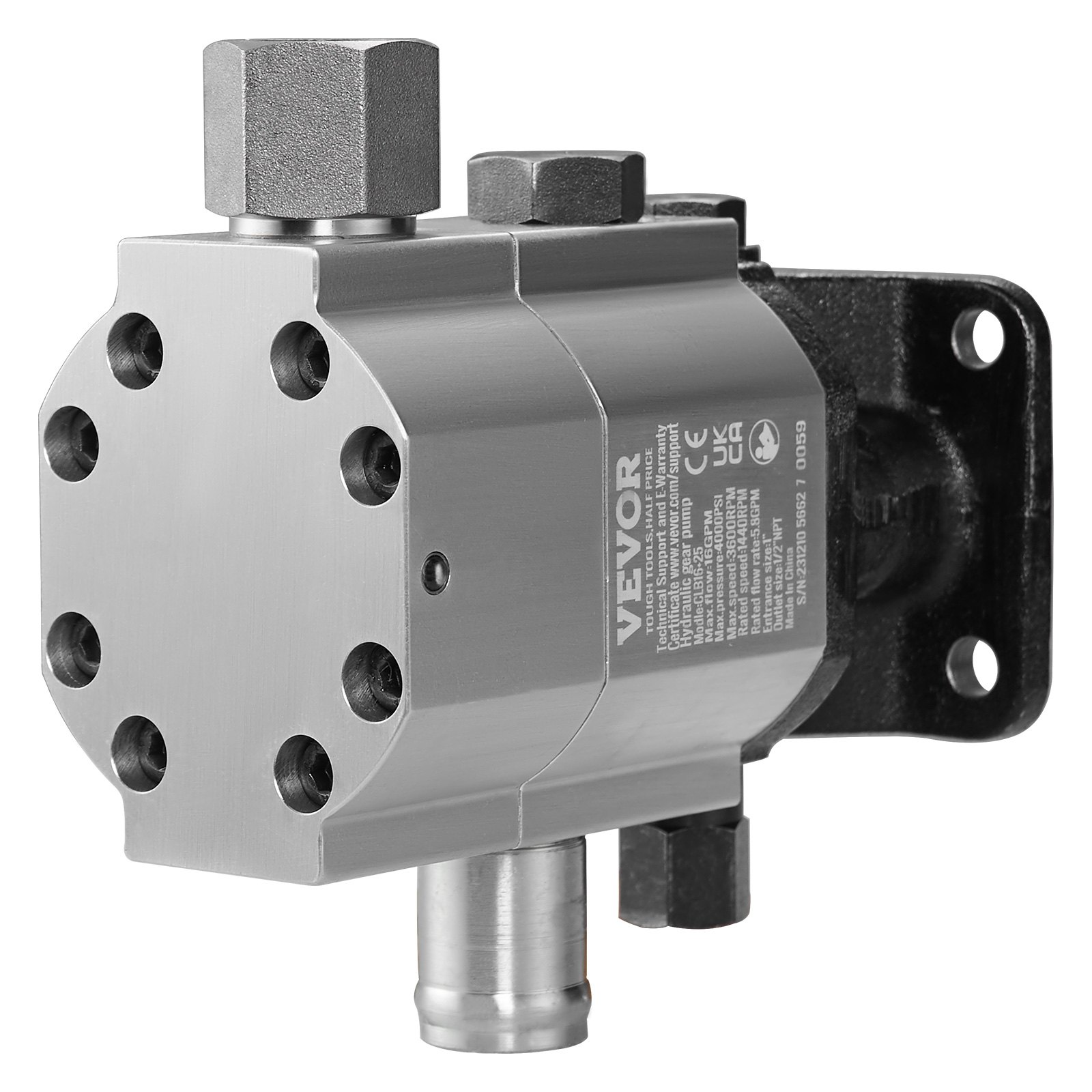

VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
+12
More
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters
VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters VEVOR Hydraulic Log Splitter Pump Kit, 16 GPM, 2-stage 4000 PSI Aluminum Hydraulic Gear Pump, with Valve 1" Inlet 1/2" NPT Outlet 3600 RPM, for Small Motor Mounting Log Splitters

Features & Details

  • High-performance pump with 16 GPM: This hydraulic pump is equipped with an automatically controlled shut-off valve with a flow rate of 25 GPM. It boasts a maximum speed of 3600 RPM, a valve setting of 2250 PSI, and a high flow rate of 16 GPM. This gives your log splitter powerful performance. Get ready to split logs in half the time.
  • 1-inch inlet and 1/2-inch NPT outlet: Our log splitter pump features a standard 1/2-inch NPT outlet connection (for an 8 HP or more motor) and a 1-inch barb on the inlet. It also has a 1/2-inch diameter shaft and a 3/8-inch wrench for clockwise rotation. Quality you can trust, for unsurpassed results you can see.
  • Robust and durable: The high-strength extruded aluminum housing ensures that the pump withstands shocks, rust, and high pressure. This robust structure prevents leaks and guarantees a longer service life.
  • Easy installation: This pump features a 4-hole screw-on design, allowing for direct and quick installation. Install the pump effortlessly and make your log splitting more efficient and robust.
  • It doesn't just split logs: This two-stage hydraulic pump is ideal for log splitters, presses, machine tools, and snowplow drive units. It boasts excellent compatibility with many OEMs such as Speeco, Huskee, Champion, and many more.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews

See all 1 reviews

About this item

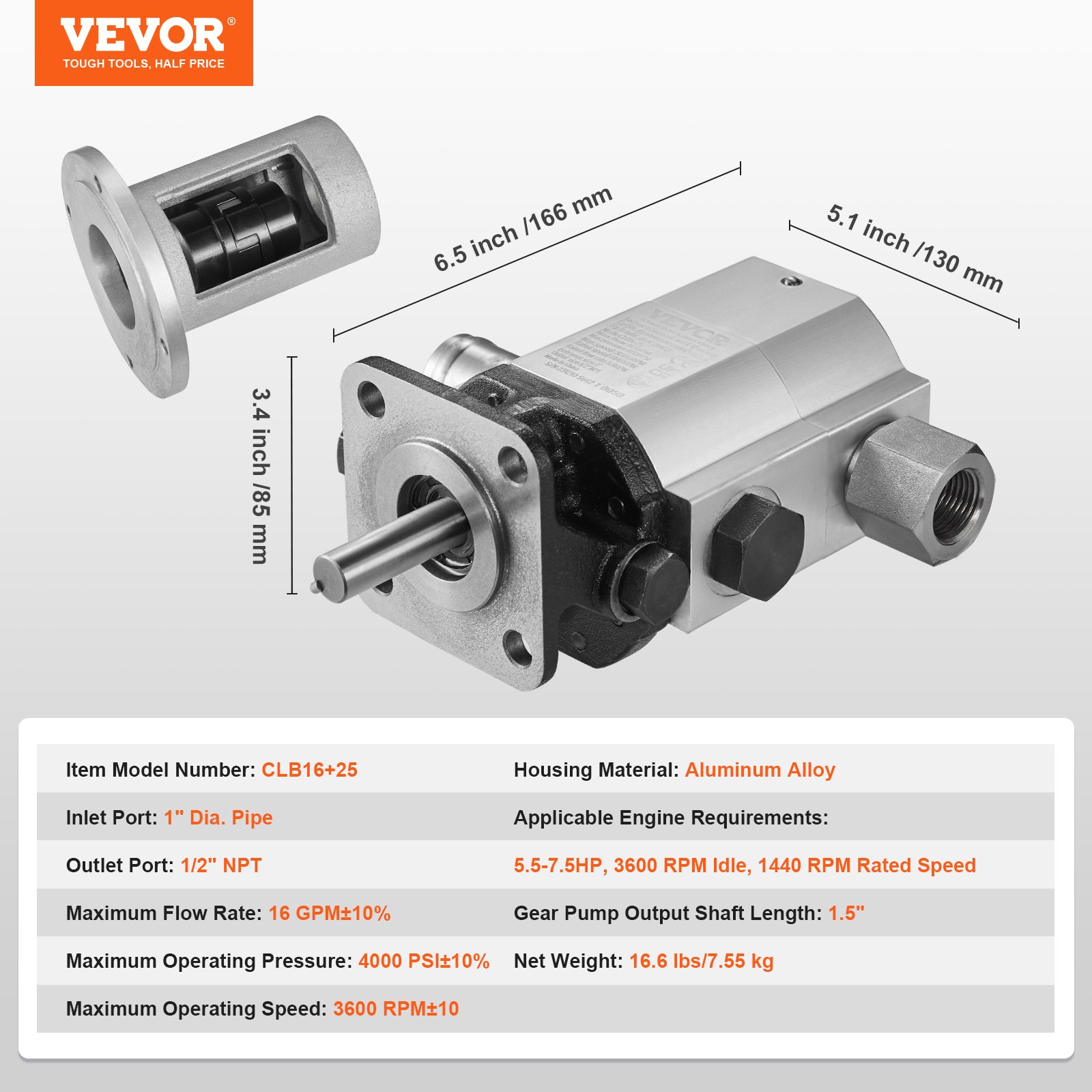

Product specification
GPM
16
Shank
1/2 inch
Input
1 inch
Output
1/2 NPT motor with at least 8 hp
Max. PSI 1st stage
16 GPM at 650 PSI
Max. PSI Stage 2
3.5 GPM at 2500 PSI
Bolt circle size
2.83 inches, 4 holes spaced 2 inches apart
Applies to
RuggedMade, Speeco, Huskee, Champion
Note
The filter on the intake side should be no smaller than 150 micrometers.
Maximum operating temperature
180 °F
Safety valve setting
2250 PSI
Brake release pressure
1400 PSI
Work connection
1/2 NPT
Input/output connection
3/4 NPT
Weight
8.64 kg
Description
log splitter pump
2 levels ＆ 16 GPM ＆ 3600 RPM
This hydraulic gear pump starts quickly and generates a high speed. In addition to its high flow rate, it supplies your log splitter with unparalleled performance, making your work more efficient than ever before. Choose VEVOR and see the difference.
  • High-performance pump with 13 GPM
  • 1" inlet and 1/2" NPT outlet
  • Robust and durable
  • Easy installation
  • It doesn't just share protocols.
2-stage log splitter pump
This hydraulic pump is a perfect replacement pump for log splitters. It can increase the energy conversion of oil into power, thus significantly improving your work efficiency when splitting logs.
Fast and powerful
With a flow rate of 16 GPM and a speed of 3600 rpm, this pump is capable of providing log splitters with powerful performance. Thanks to our high-performance pump, your work will be significantly easier.

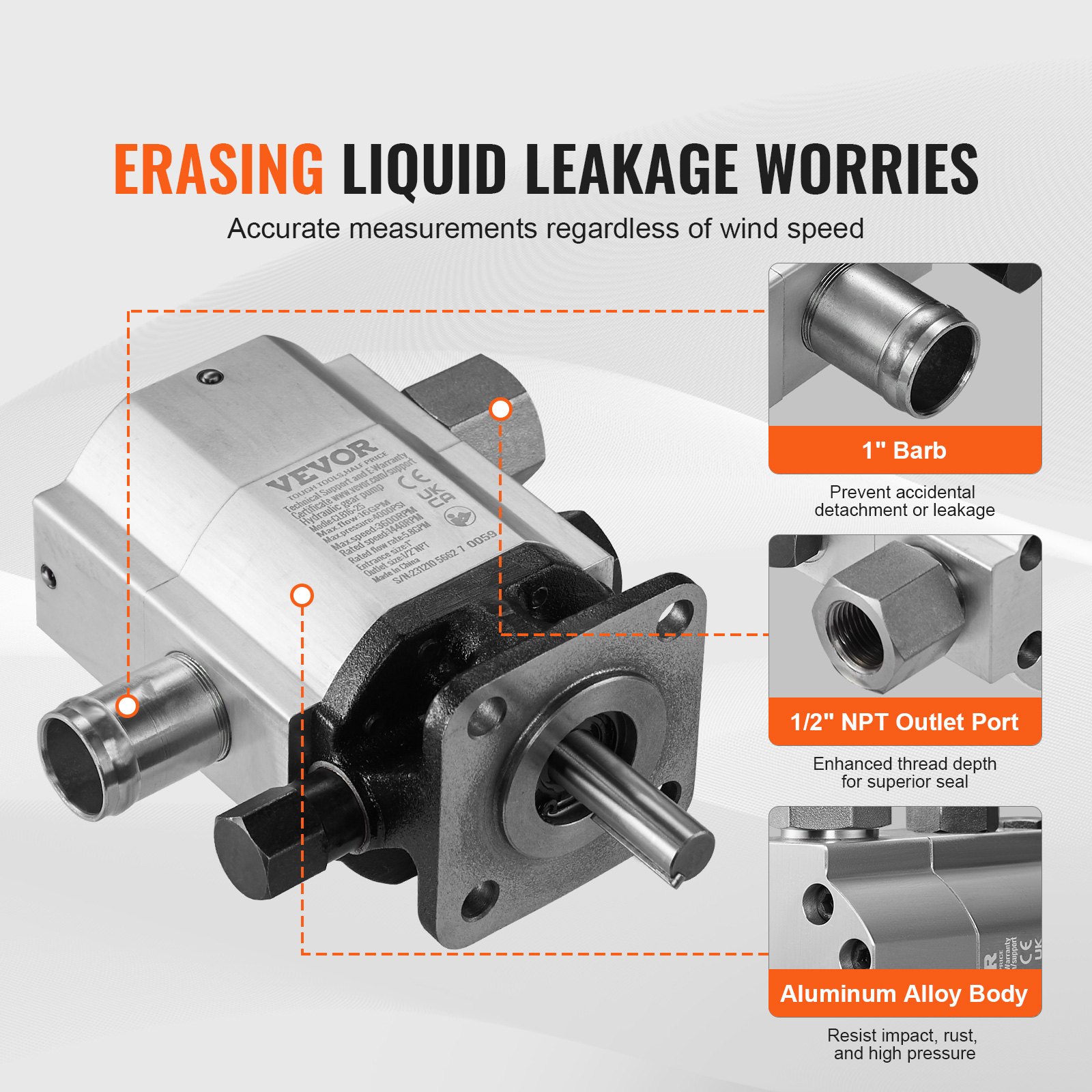

No fluid leaks
Our hydraulic log splitter pump is leak-proof. It features a standard 1/2-inch NPT outlet and a 1-inch inlet for a perfect fit. The wedge shaft is 1/2 inch in diameter and 1.5 inches long.
Reinforced aluminum housing
This two-stage hydraulic pump is made of high-strength extruded aluminum, which withstands high pressure and impacts. It is also corrosion and rust resistant. Such a robust and durable structure ensures long-lasting use.
Easy to assemble
Our hydraulic pump for log splitters can be mounted directly to the engine using four screws. The standard connections also ensure a smooth connection to the oil lines.
Wide application
As a powerful tool that adds tremendous power to your equipment, our hydraulic pump is frequently used in numerous hydraulic systems, for example in truck tailgate lifts, scissor lifts, tipper trailers, snowplows, aerial work platforms, wheelchair lifts, etc.
  • GPM: 16
  • Shank: 1/2 inch
  • Input: 1 inch
  • Output: 1/2 NPT motor with at least 8 hp
  • Max. PSI 1st stage: 16 GPM at 650 PSI
  • Max. PSI Stage 2: 3.5 GPM at 2500 PSI
  • Bolt circle size: 2.83 inches, 4 holes spaced 2 inches apart
  • Applies to: RuggedMade, Speeco, Huskee, Champion
  • Note: The filter on the intake side should be no smaller than 150 micrometers.
  • Maximum operating temperature: 180 °F
  • Safety valve setting: 2250 PSI
  • Brake release pressure: 1400 PSI
  • Work connection: 1/2 NPT
  • Input/output connection: 3/4 NPT
  • Weight: 8.64 kg

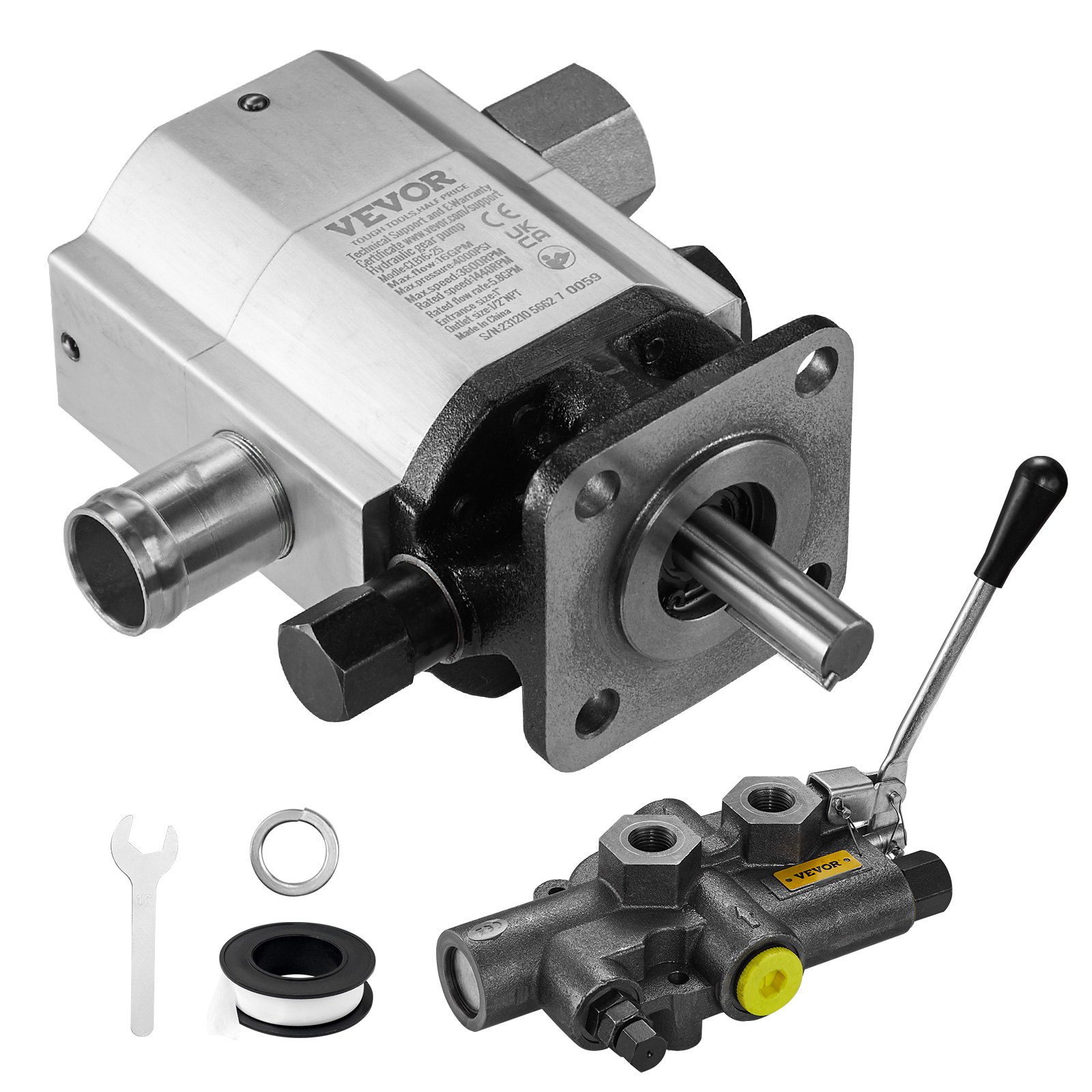

  • 1 x set 16 GPM 2-stage hydraulic pump

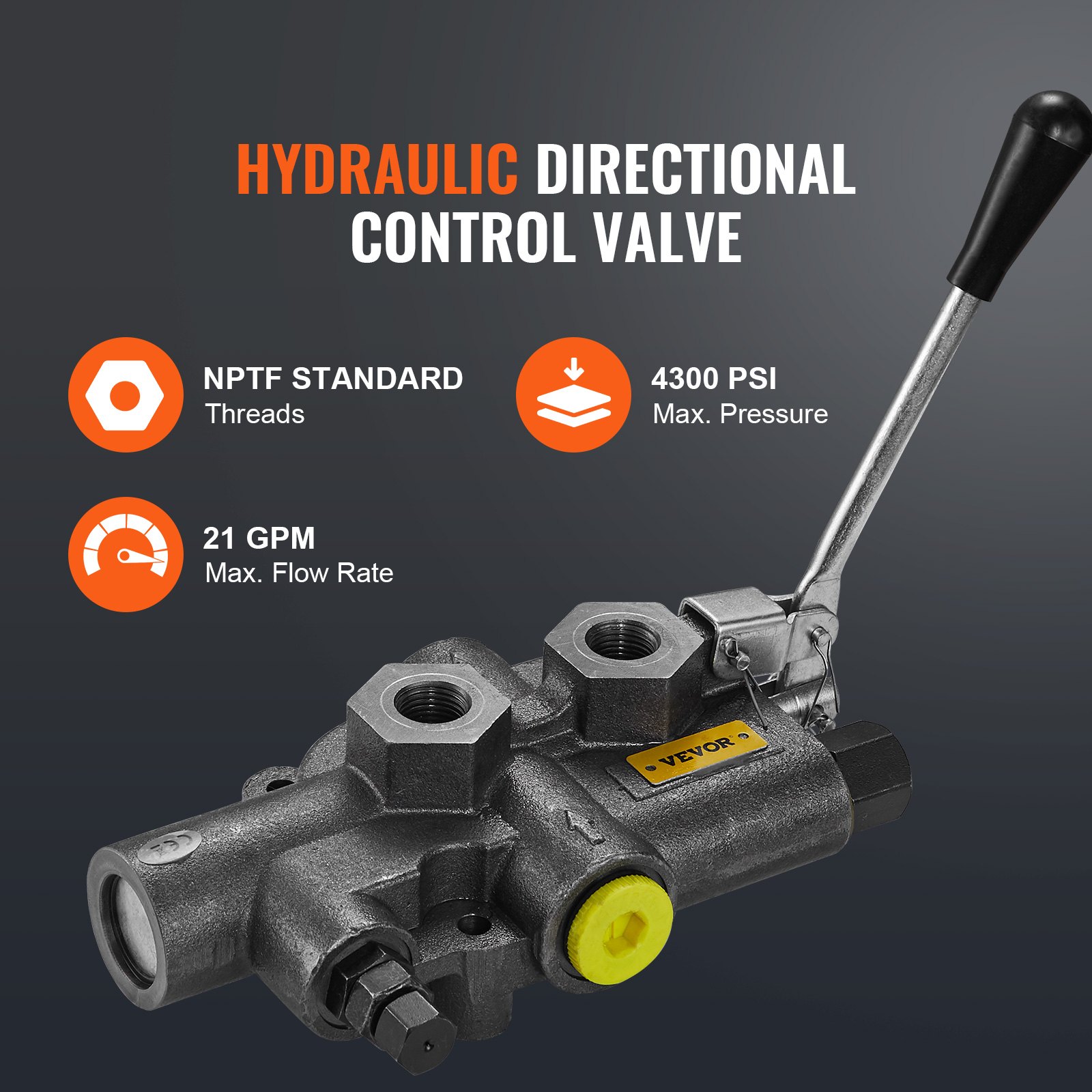

  • 1 x set of automatic control valves with 25 GPM
log splitter pump
2 levels ＆ 16 GPM ＆ 3600 RPM
This hydraulic gear pump starts quickly and generates a high speed. In addition to its high flow rate, it supplies your log splitter with unparalleled performance, making your work more efficient than ever before. Choose VEVOR and see the difference.
  • High-performance pump with 13 GPM
  • 1" inlet and 1/2" NPT outlet
  • Robust and durable
  • Easy installation
  • It doesn't just share protocols.
2-stage log splitter pump
This hydraulic pump is a perfect replacement pump for log splitters. It can increase the energy conversion of oil into power, thus significantly improving your work efficiency when splitting logs.
Fast and powerful
With a flow rate of 16 GPM and a speed of 3600 rpm, this pump is capable of providing log splitters with powerful performance. Thanks to our high-performance pump, your work will be significantly easier.
No fluid leaks
Our hydraulic log splitter pump is leak-proof. It features a standard 1/2-inch NPT outlet and a 1-inch inlet for a perfect fit. The wedge shaft is 1/2 inch in diameter and 1.5 inches long.
Reinforced aluminum housing
This two-stage hydraulic pump is made of high-strength extruded aluminum, which withstands high pressure and impacts. It is also corrosion and rust resistant. Such a robust and durable structure ensures long-lasting use.
Easy to assemble
Our hydraulic pump for log splitters can be mounted directly to the engine using four screws. The standard connections also ensure a smooth connection to the oil lines.
Wide application
As a powerful tool that adds tremendous power to your equipment, our hydraulic pump is frequently used in numerous hydraulic systems, for example in truck tailgate lifts, scissor lifts, tipper trailers, snowplows, aerial work platforms, wheelchair lifts, etc.
  • 1 x set 16 GPM 2-stage hydraulic pump
  • 1 x set of automatic control valves with 25 GPM
  • GPM: 16
  • Shank: 1/2 inch
  • Input: 1 inch
  • Output: 1/2 NPT motor with at least 8 hp
  • Max. PSI 1st stage: 16 GPM at 650 PSI
  • Max. PSI Stage 2: 3.5 GPM at 2500 PSI
  • Bolt circle size: 2.83 inches, 4 holes spaced 2 inches apart
  • Applies to: RuggedMade, Speeco, Huskee, Champion
  • Note: The filter on the intake side should be no smaller than 150 micrometers.
  • Maximum operating temperature: 180 °F
  • Safety valve setting: 2250 PSI
  • Brake release pressure: 1400 PSI
  • Work connection: 1/2 NPT
  • Input/output connection: 3/4 NPT
  • Weight: 8.64 kg
Product guides and documents
User manual-de (PDF) Review

Questions and Answers (1)

1 Questions
Ask a Question
Ist das ein normales zweiwege-Ventil oder hat das Ventil einen Eilgang? Ist auch ein Flansch erhältlich für die Verbindung zum Motor. (Kupplung?) Lg Andreas
Answer This Question
Dies ist ein normales Doppelpumpenprodukt mit schneller Bewegungsfunktion.
By vevor
Helpful ( 0 )
CLB16+25KZFTJ0001V0
