Features & Details

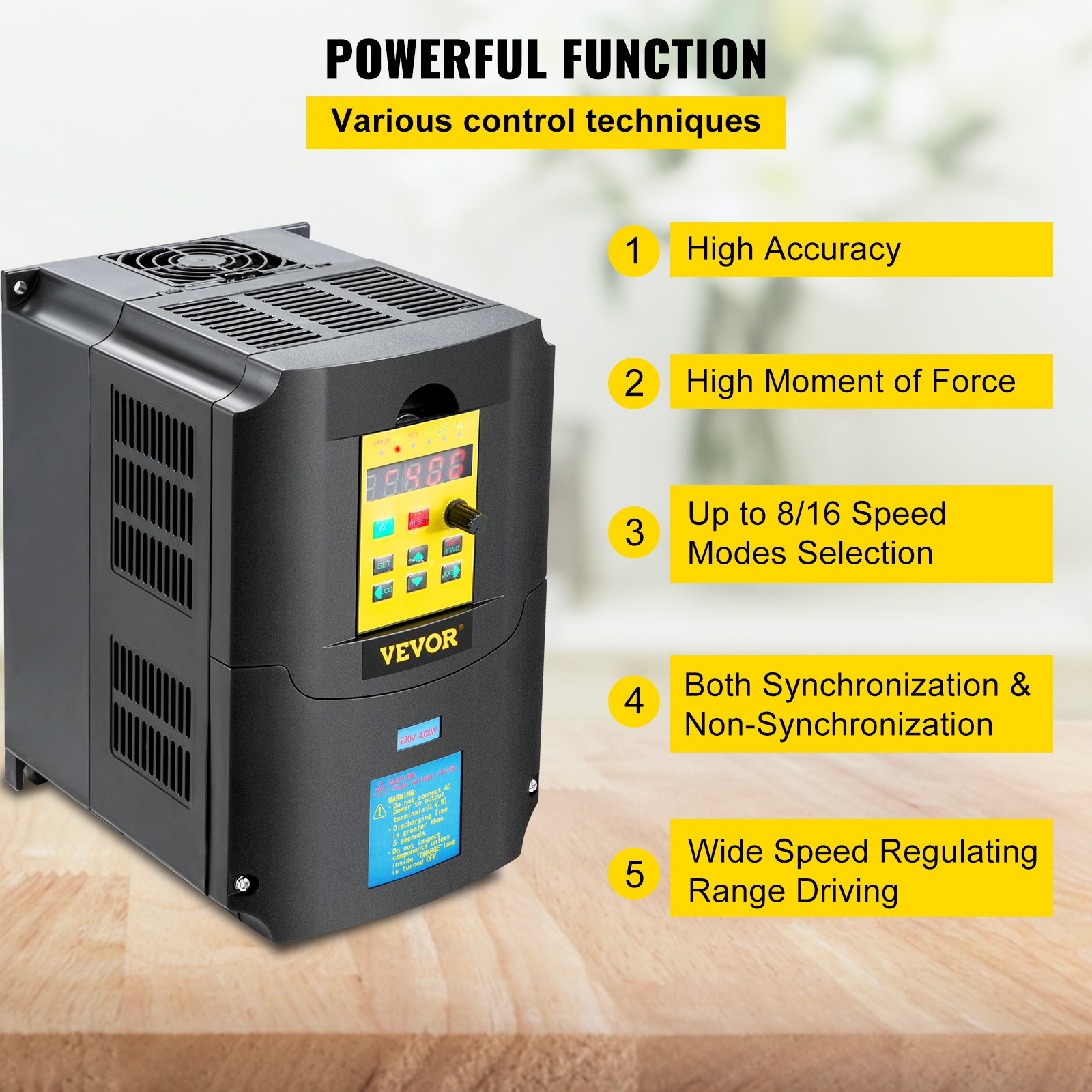

- Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.
- Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.

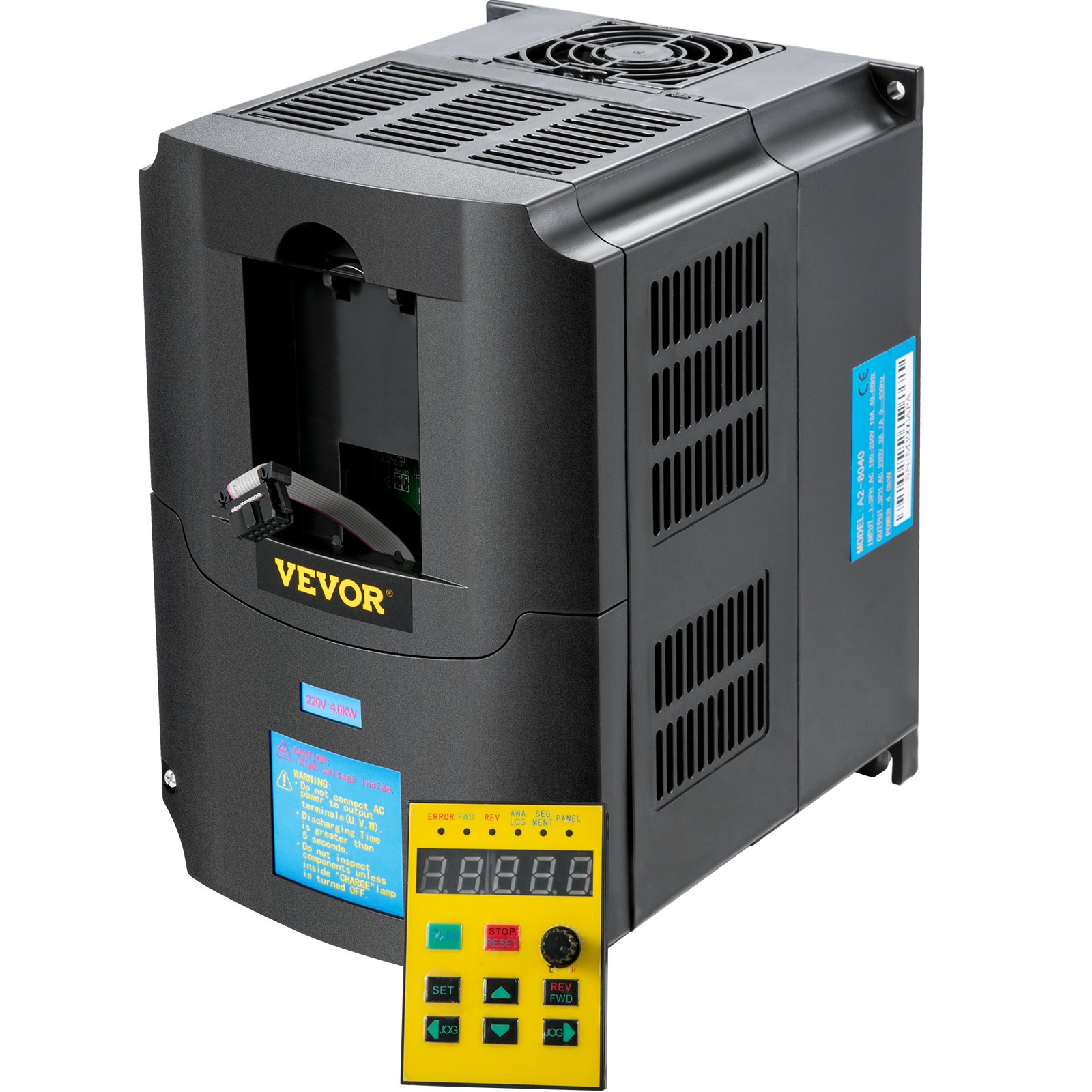

- Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.

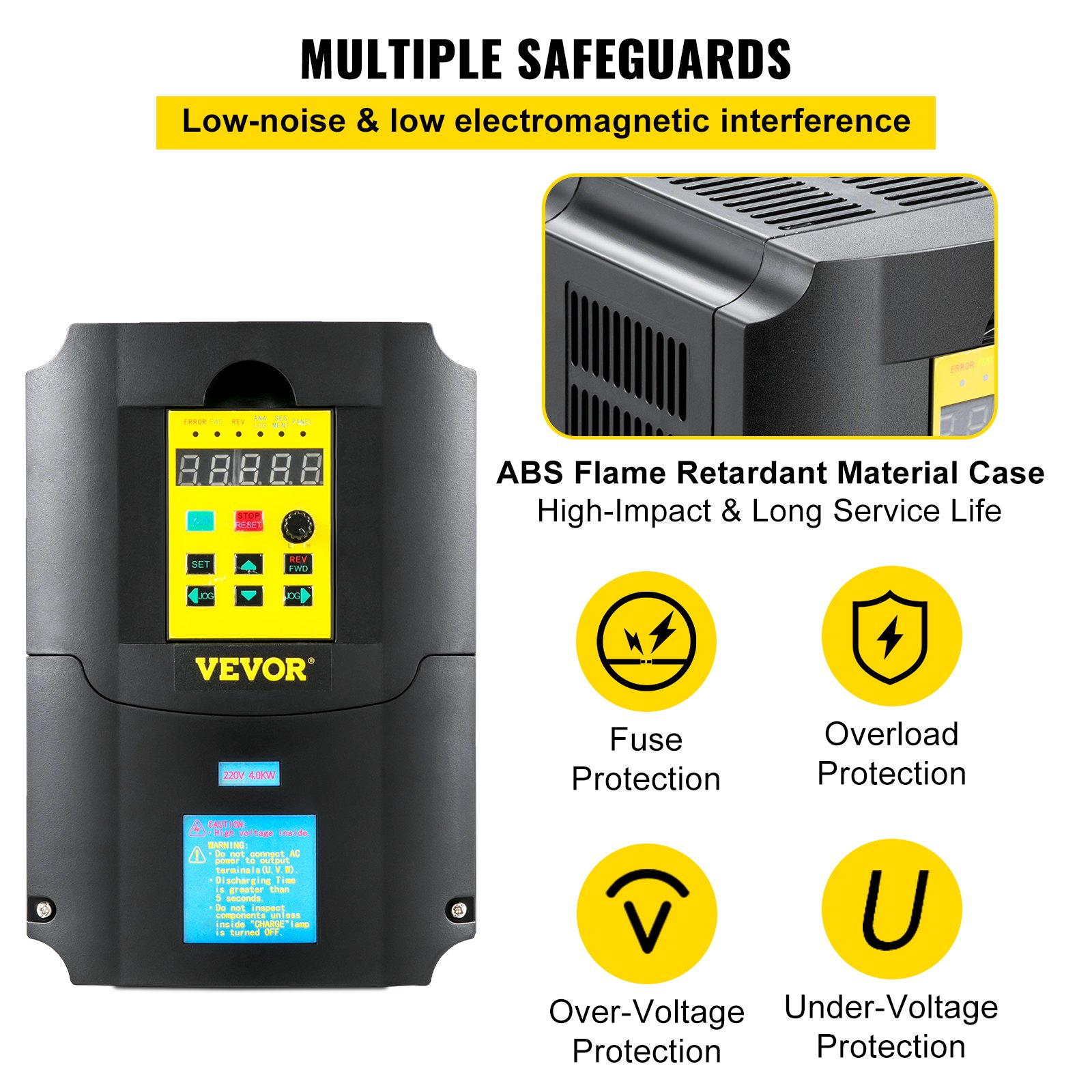

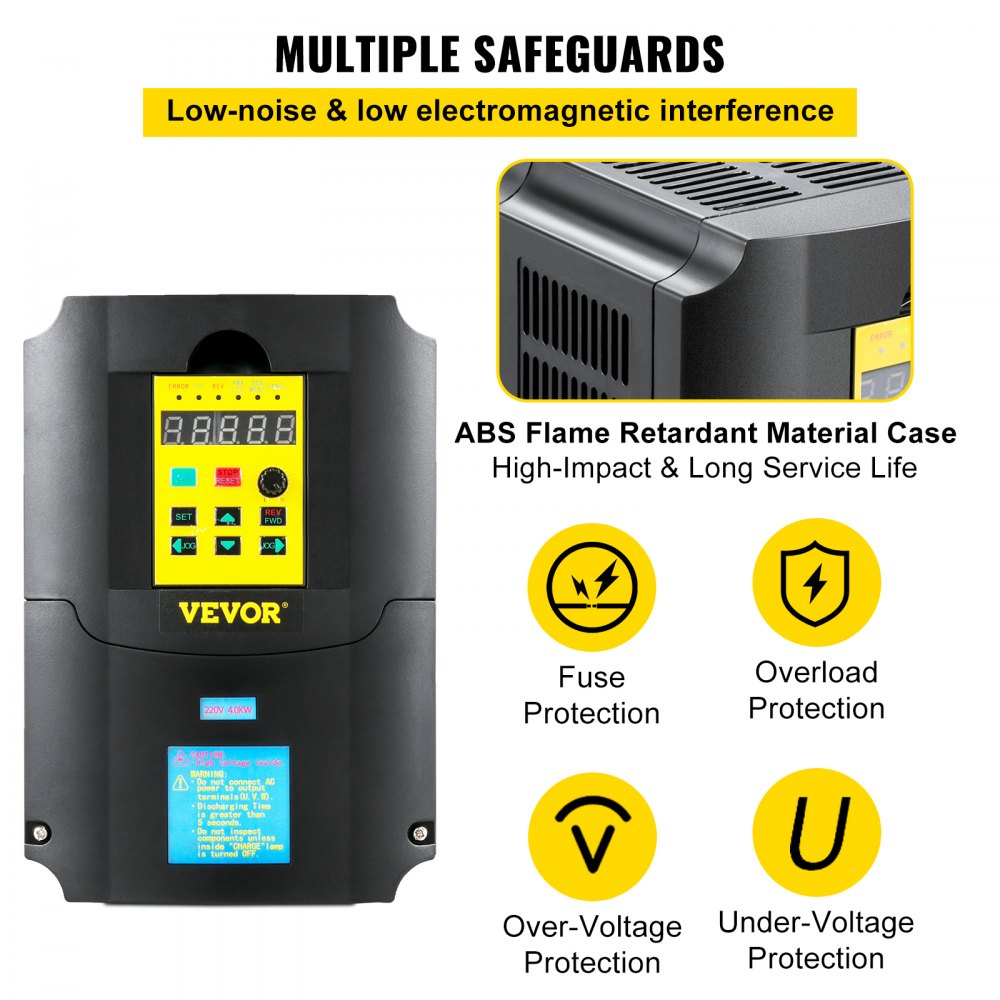

- Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.

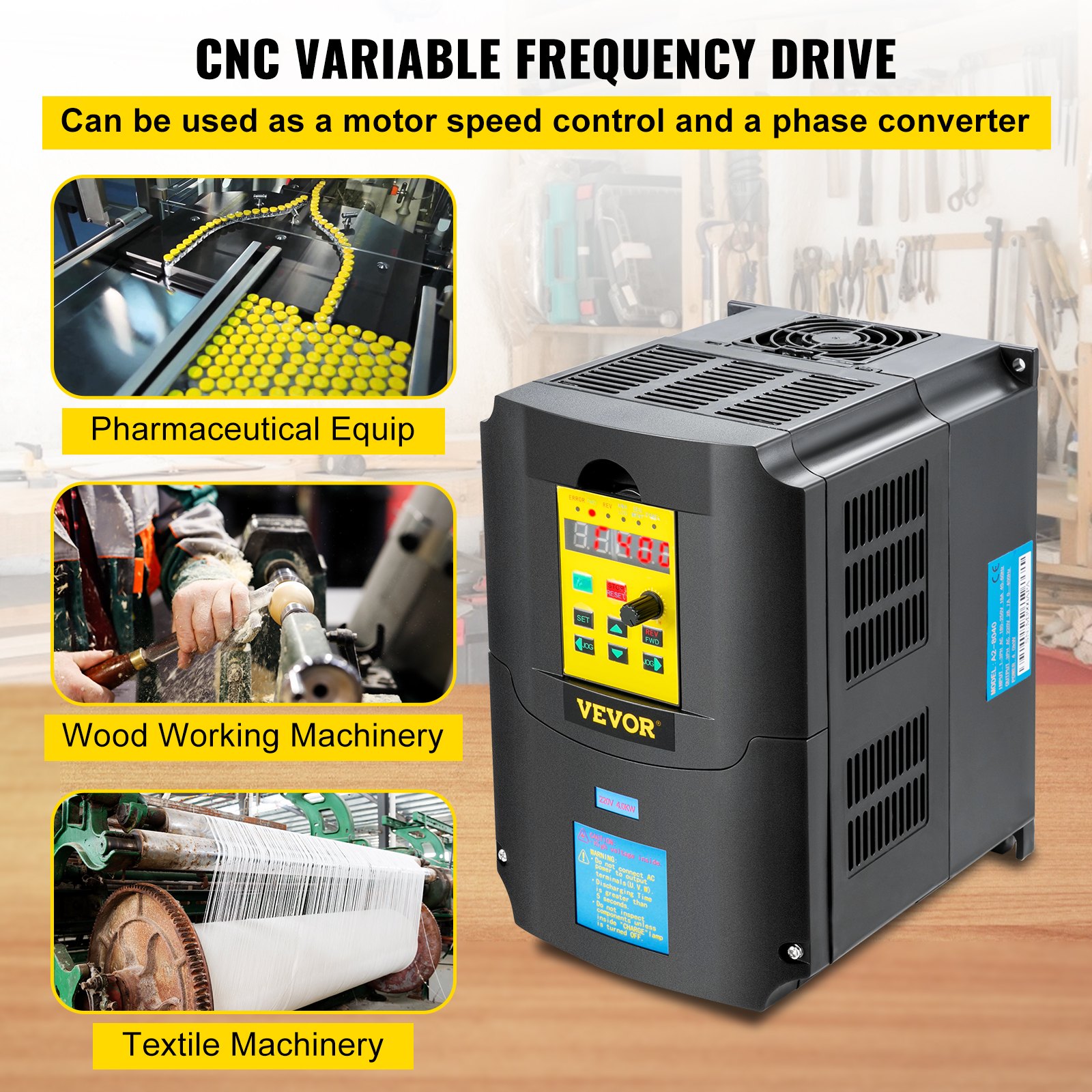

- Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 28 reviews
Reviews 4.7
All reviews are from verified purchases
See all 28 reviews
About this item
Product specification
- Model
- H100-4S2-1B
- Power
- 4 kW
- Input Voltage
- 220V
- Output Voltage
- 0-220V
- Input Current
- 0-17A
- Output Current
- 0-17A
- Input Phase
- 1 or 3 Phase
- Output Phase
- 3 Phase
- Input Frequency
- 50/60 Hz
- Output Frequency
- 0-1000 Hz
- Horsepower
- 5.5 HP
- Working Temperature
- 23~104℉/-5 ~ 40 ℃
- Humidity
- 0-90% Relative Humidity (without dew)
- Vibration
- Below 0.5 G
- Net Weight
- 5.73 lbs / 2.6 kg

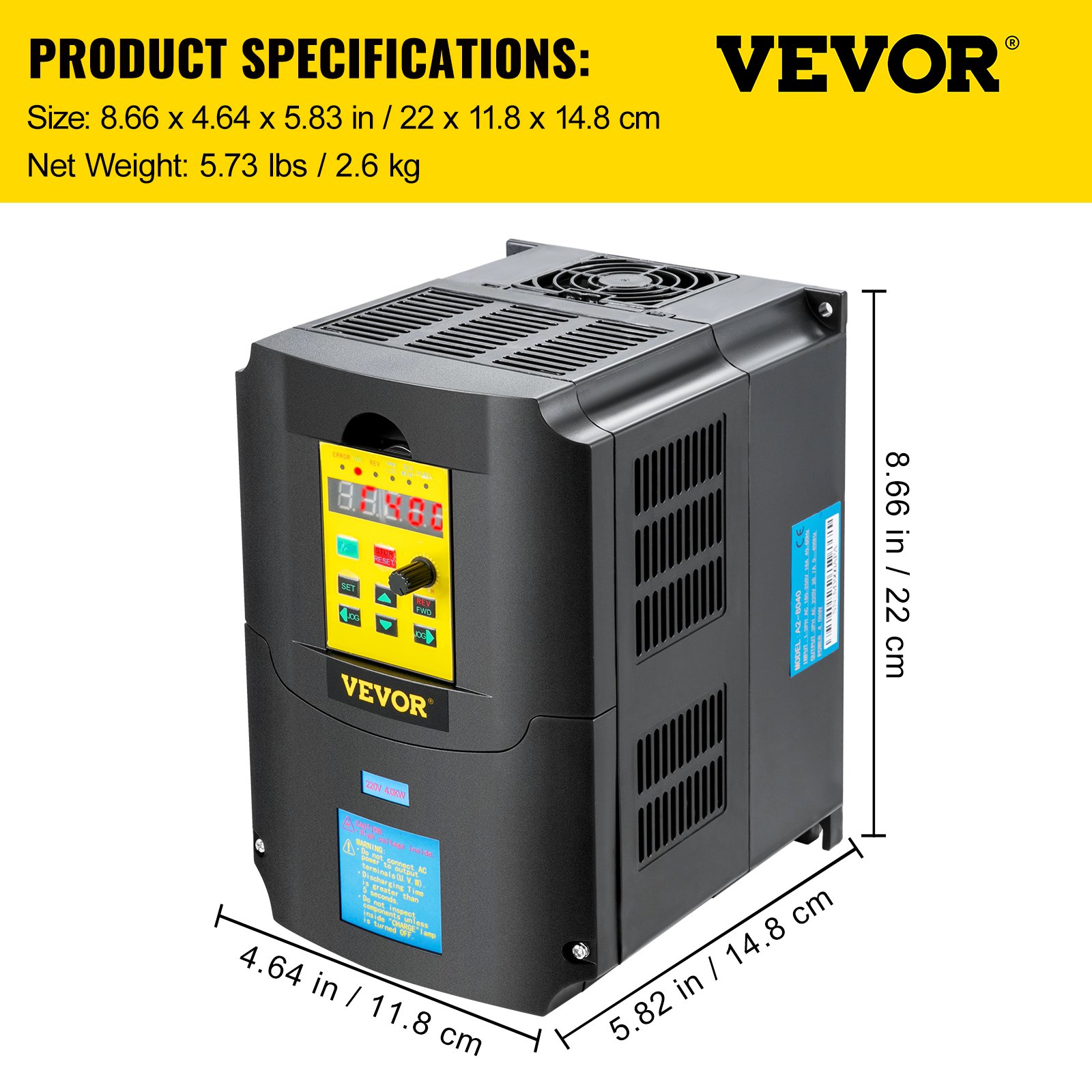

- Product Size
- 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
Description

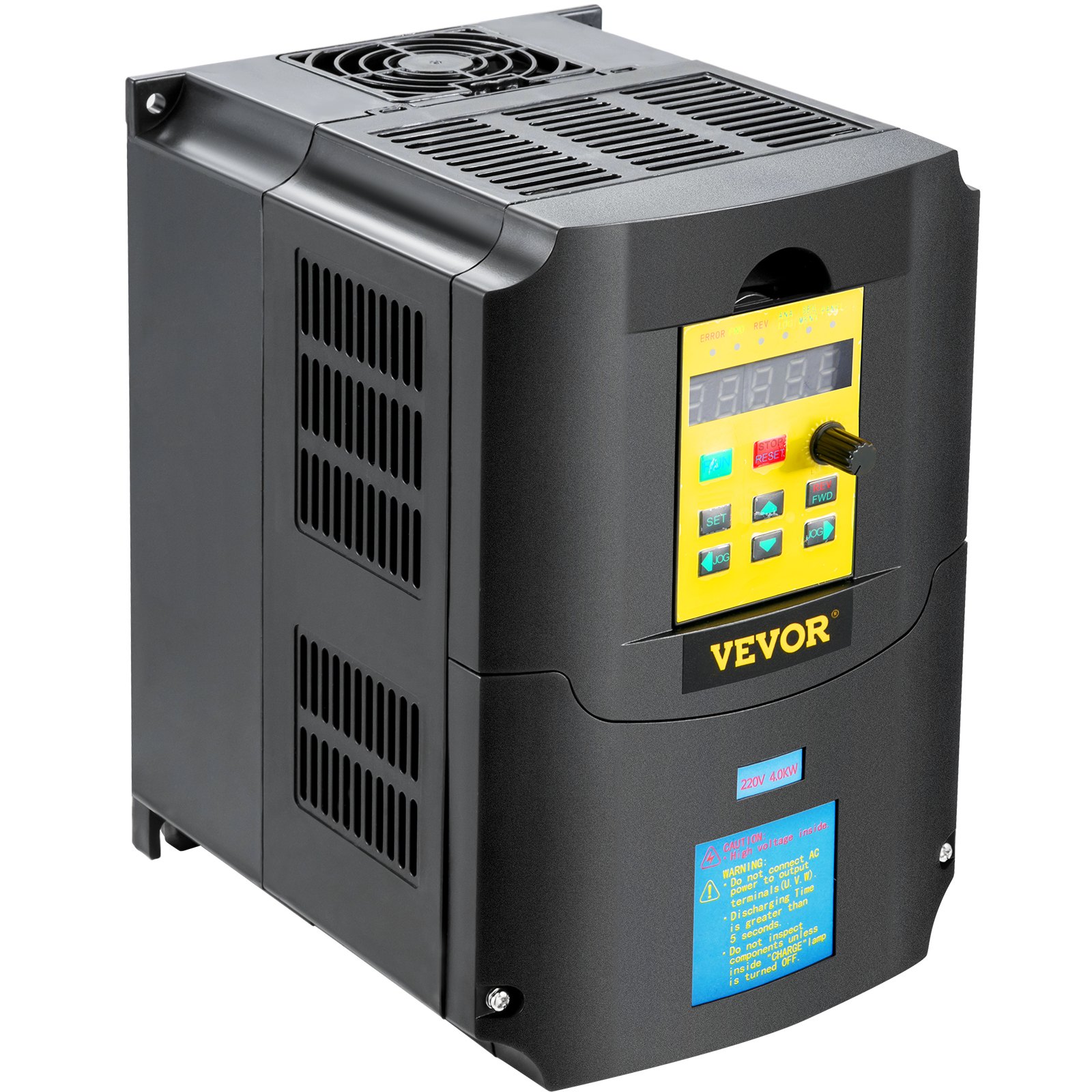

Variable Frequency Drive

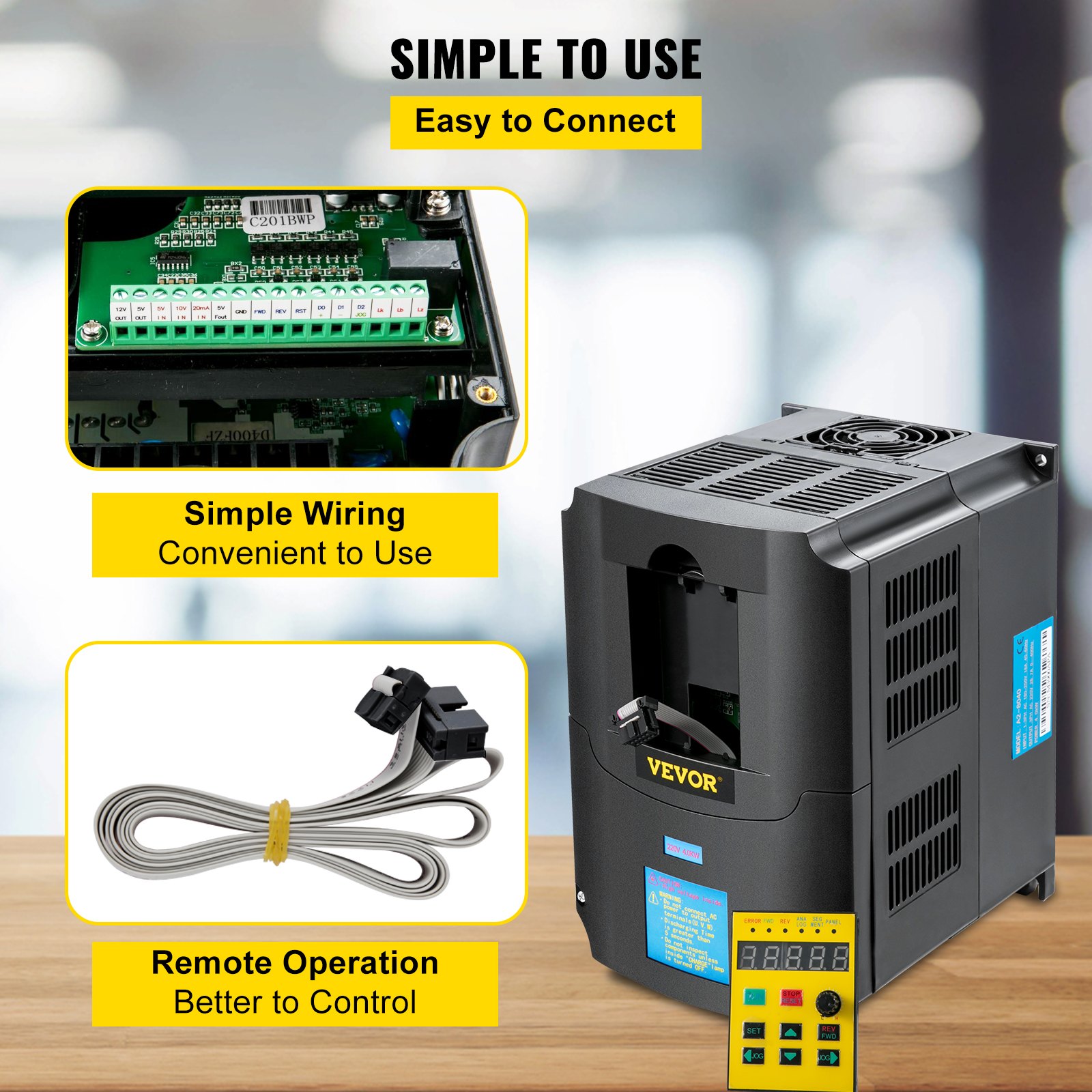

The input of the VFD is single-phase AC 220V (1PH) or three-phase AC 220V (3PH), and the output is three-phase AC 0~220V (3PH). With easy wiring, intuitive display, and comprehensive protections, it simplifies operations, enhances energy efficiency, and minimizes machinery faults.

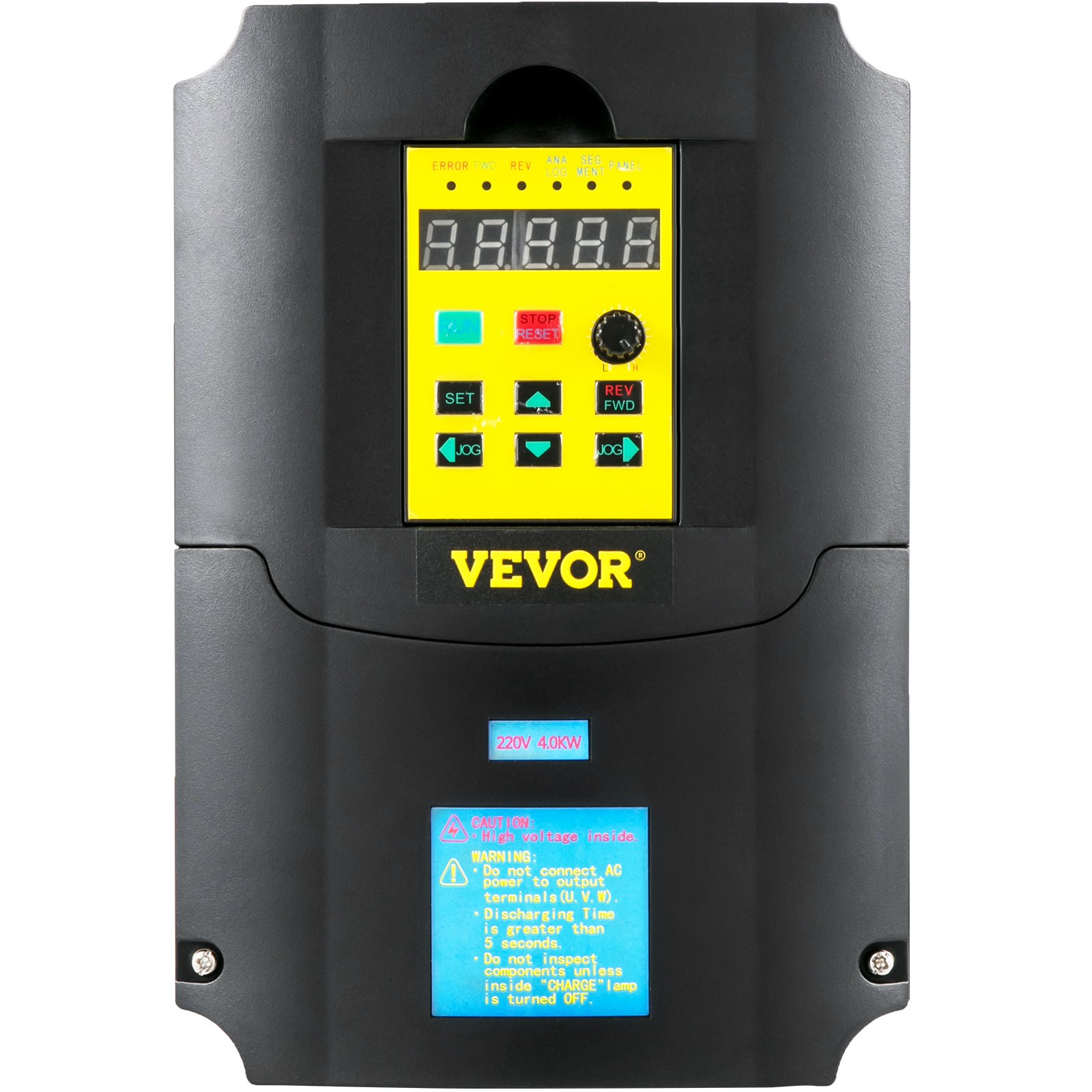

The variable frequency drive is designed with user-friendliness, featuring an intuitive display and easy-to-use buttons for a quick start.
Our VFD comes with intelligent protection system, providing security against overcurrent, overload, overvoltage, and phase loss.

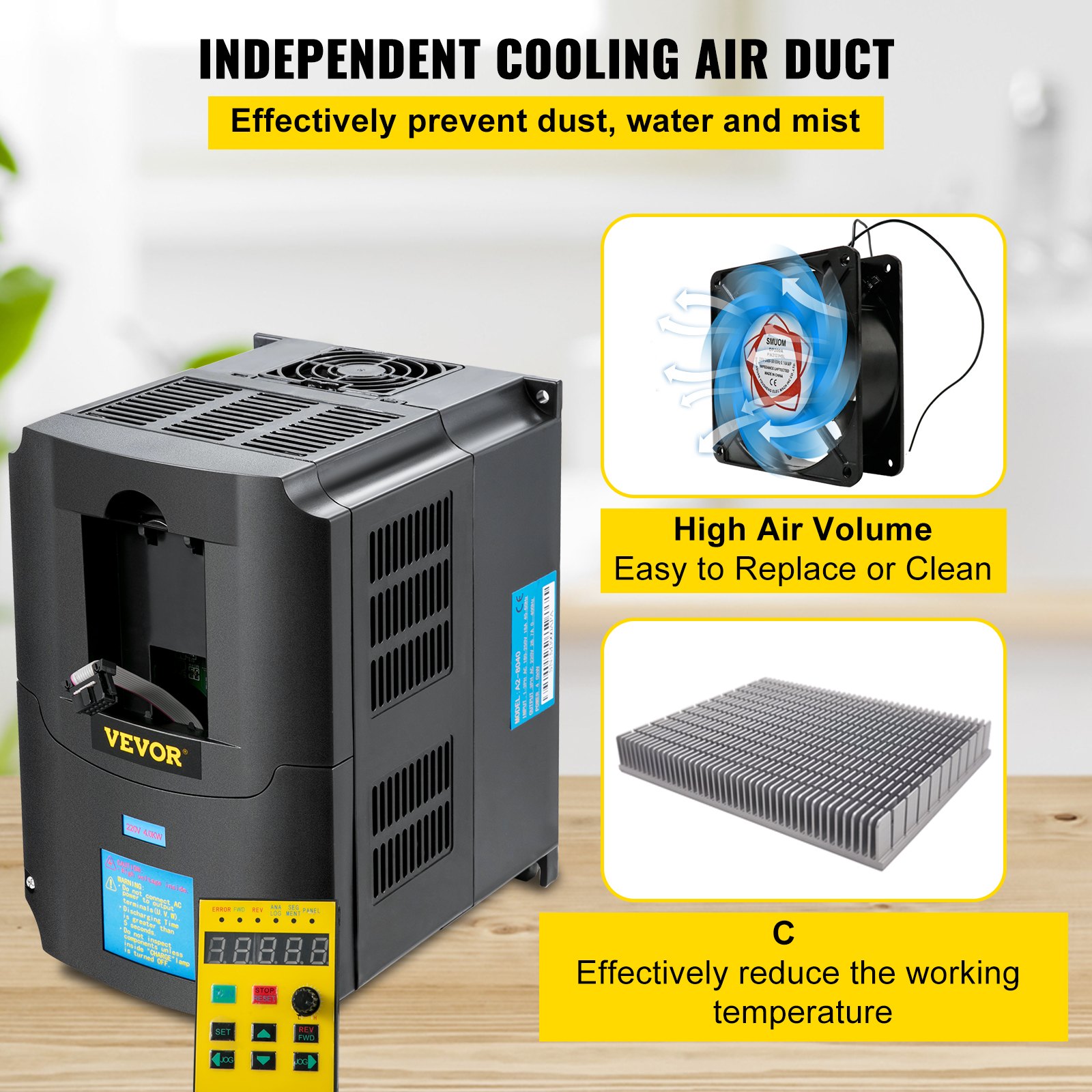

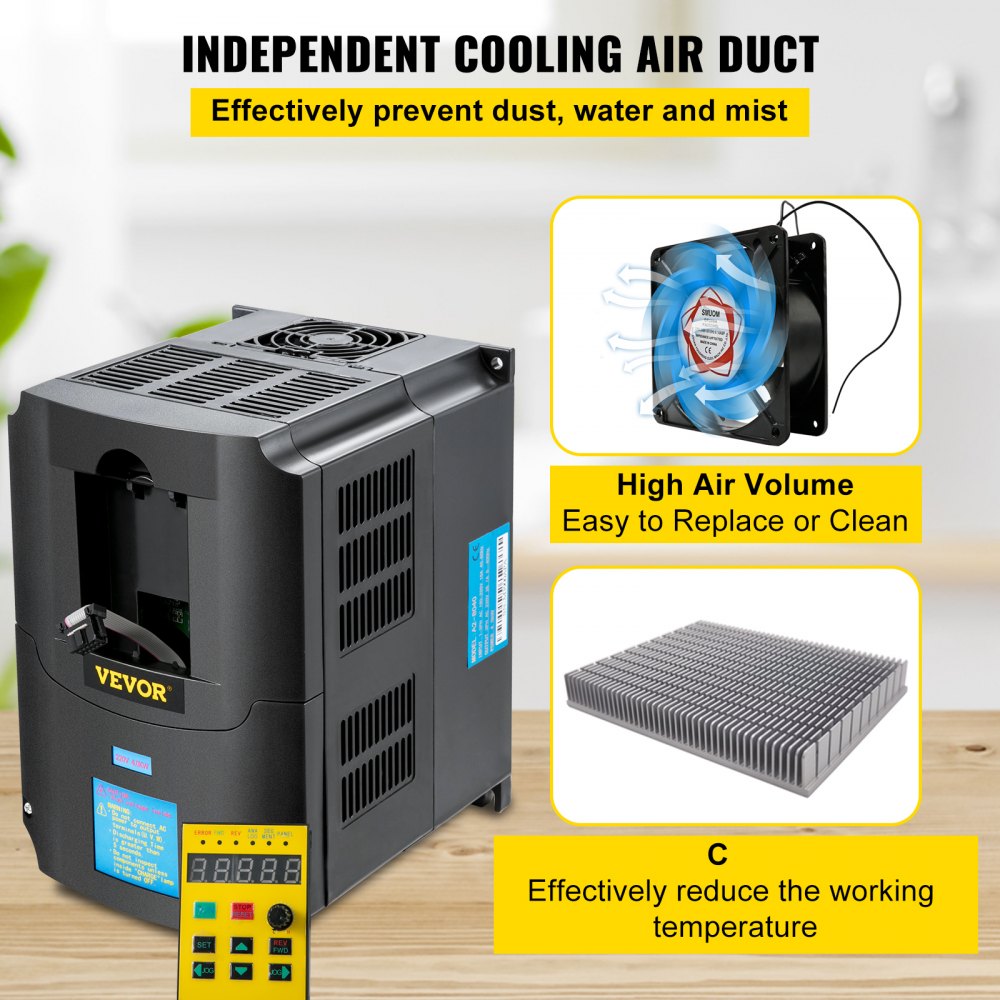

Stable and efficient operation relies on large cooling fans and a multi-hole heat dissipation design, preventing overheating during extended operation.
Installation Tips: 1. Turn off power when connecting wires 2. For VFD protection, press red 'Stop' button and power off when not in use. 3. Avoid installation in humid or high-temperature environment. 4. For optimal performance with heavier motor loads, consider selecting a higher-powered VFD.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (6)
Guten Tag,
kann ich bei dem Frequenzumrichter bei einer Phase 220Vam Eingang auch die Ausgangsspannung auf 110V pro Phase einstellen?
Es ist OK, wenn die Nennleistung Ihres Motors unter 1,5 kW und die Nennfrequenz unter 200 Hz liegt. Sie können uns das Motortypenschild und das Motormodell senden und Fotos machen, und wir geben Ihnen die Parameter, die Sie benötigen.
By vevor
Helpful
(
1
)
Funktioniert der "VEVOR VFD Frequenzumrichter 220 V, 4 kW 5,5 PS, VFD-Wandler" mit dem "VEVOR Wechselstrommotor 2.2kW Elektro Motor 3000 Drehstrommotor Motor 55mm Asynchronmotor Wechselstrommotor" ???
Wenn das nicht funktioniert, frage ich, welcher Frequenzumwandler funktioniert mit dem Motor ?
Ja, sie sind kompatibel.
By vevor
Helpful
(
1
)
Ist es geeignet für die Stromversorgung einer 3-Phasen-Klimaanlage mit 3 kW?
Der Frequenzumrichter wird nicht als Stromversorgung verwendet und kann nur dreiphasige Asynchronmotoren antreiben, beispielsweise Klimakompressormotoren
By vevor
Helpful
(
0
)
Lässt sich die Anlauframpe einstellen von 0 bis 120sek. ?
Ja, das ist möglich. Sie müssen lediglich den Parameter pn08 festlegen.
By vevor
Helpful
(
0
)
Guten Tag, kann ich mit diesem Gerät meine Kappsäge (Metabo KGS254 M) in der Drehzahl herunterregulieren?
Wäre über Antworten sehr erfreut.
LG
Ist Ihre Kappsäge dreiphasig? Es ist nur ein Dreiphasenmotor.
By vevor
Helpful
(
0
)
