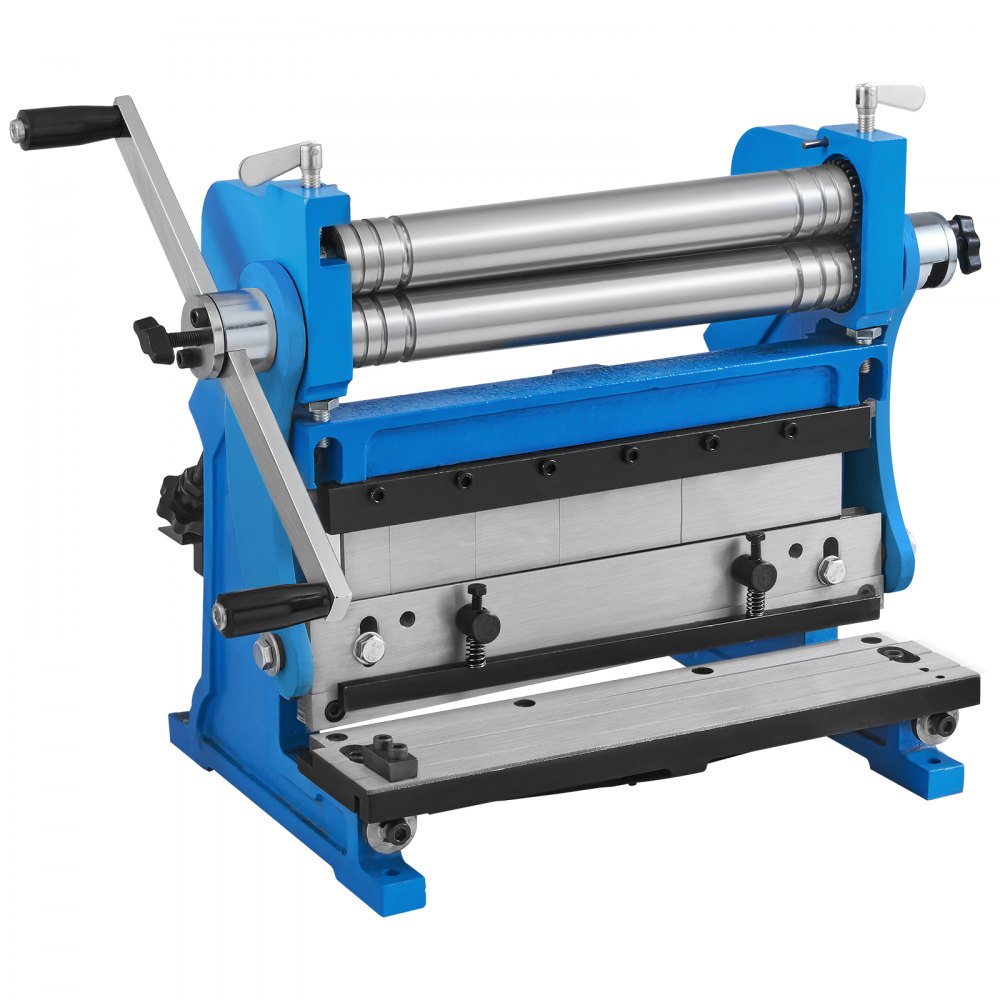

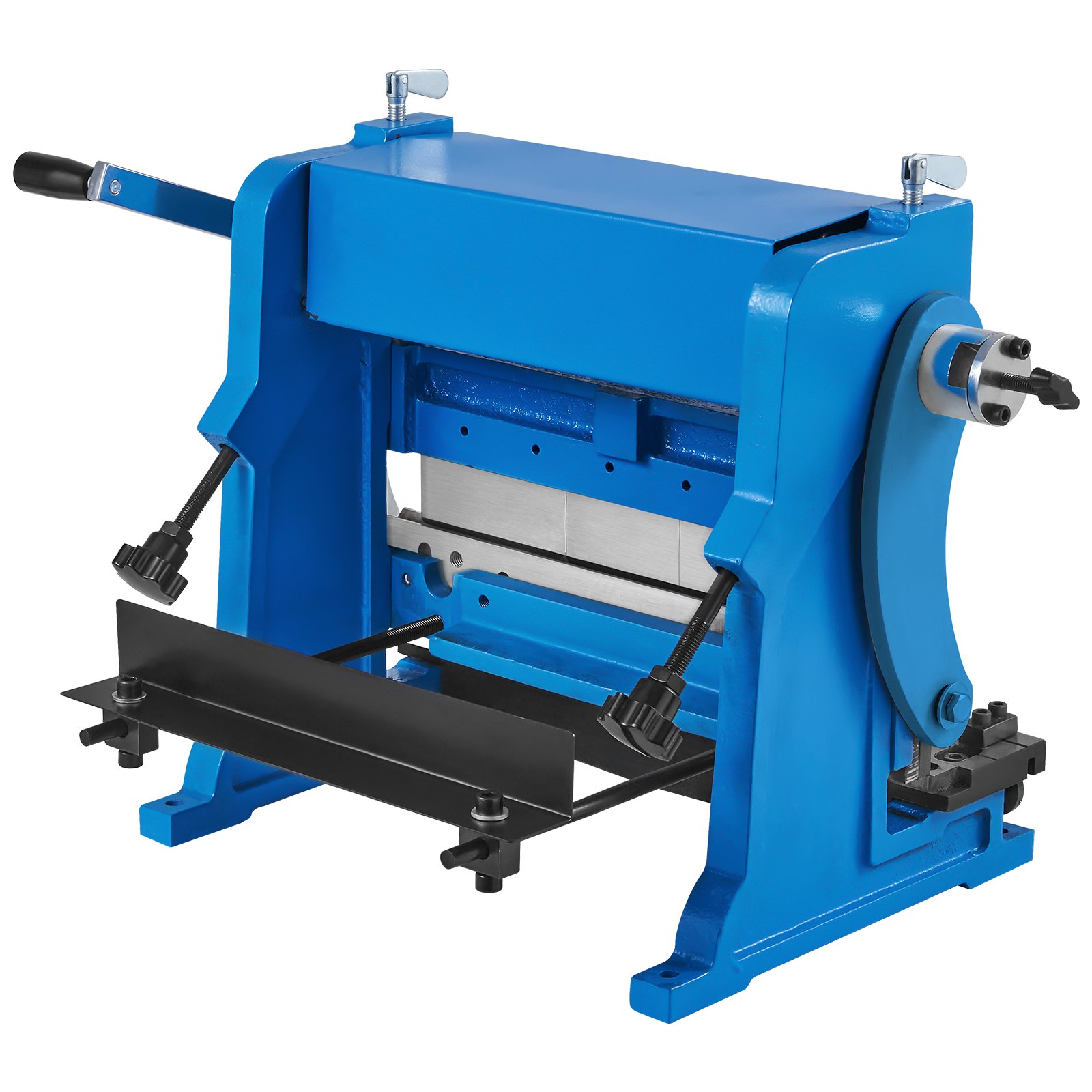

VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
+12
More
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling

Features & Details

  • All-in-One Functionality: Our 3-in-1 combination sheet metal machine offers the functions of a bending machine, shearing machine, and rolling machine all in a single unit. Say goodbye to the hassle of purchasing multiple independent machines and the tedious switching process. It is a must-have for your factory and workshop, enhancing overall work efficiency.
  • Exceptional Compatibility: Our sheet metal brake supports sheet materials with a 12 in/ 305 mm Max. Width and 20 GA / 1 mm Max. Thickness. With 90° Max. Bending angle and a blade clearance of less than 0.0027 in/0.07 mm provides a wide range of options for your processing tasks.
  • Robust Construction: This shear press brake features HT200 material casting built to last. The shearing blade is made of T10 material, cutting without burrs. Both the bending blade and the roller are constructed from 45# material, offering exceptional durability and resistance to deformation. It easily processes low-carbon steel, aluminum, brass, copper, lead, plastic, zinc sheet metal, etc.
  • Segmented Bending Versatility: The central bending module of our sheet metal brake press includes five blades with sizes of 1", 2 x 2", 3", and 4".You can customize blade combinations based on your requirements to carry out a wide range of complex sheet metal processing tasks, such as manufacturing exterior wall panels for houses, doors, and window materials. It is widely used in homes, factories, and small workshops.
  • Precision Processing: Utilizing advanced external cylindrical grinding technology, our 3 in 1 combination sheet metal machine reduces friction between the sheet metal and rollers, enhancing machine stability during operation. It also minimizes scraping caused by uneven roller surfaces, improving sheet metal surface smoothness.

Frequently Bought Together

Reviews 4.8
All reviews are from verified purchases
Average rating based on 6 reviews

See all 6 reviews

About this item

Product specification
Item Model Number
3-in-1/305
Max Shearing Length
12 in / 305 mm
Max Shearing Thickness
20 GA / 1 mm
Blade Clearance
<0.07 mm
Shearing Tensile Strength
≤235 MPa
Max Bending Thickness
20 GA / 1 mm
Max Bending Width
12 in / 305 mm
Max Bending Length
28 in / 710 mm (±10mm)
Max Bending Angle
90° ± 1°
Max Sheet Rolling Width
12 in / 305 mm (±3mm)
Roller Working Length
12 in / 305 mm (±3mm)
Sheet Rolling Thickness
20 GA / 1 mm
Min Sheet Rolling Diameter
1.8 in / 45 mm
Surface Treatment and Color
Painted
Primary Materials
Q235, 45#, HT200
Net Weight
90 pounds / 41 kg
Product Dimensions
20.9 x 14.8 x 15 in / 530 x 375 x 380 mm
Shearing Blade
Thickness
Upper Bending Tool
Straight Blade, Thickness
Lower Bending Die
V-shaped Die, Thickness
Sheet Rolling Drum
Diameter
Description

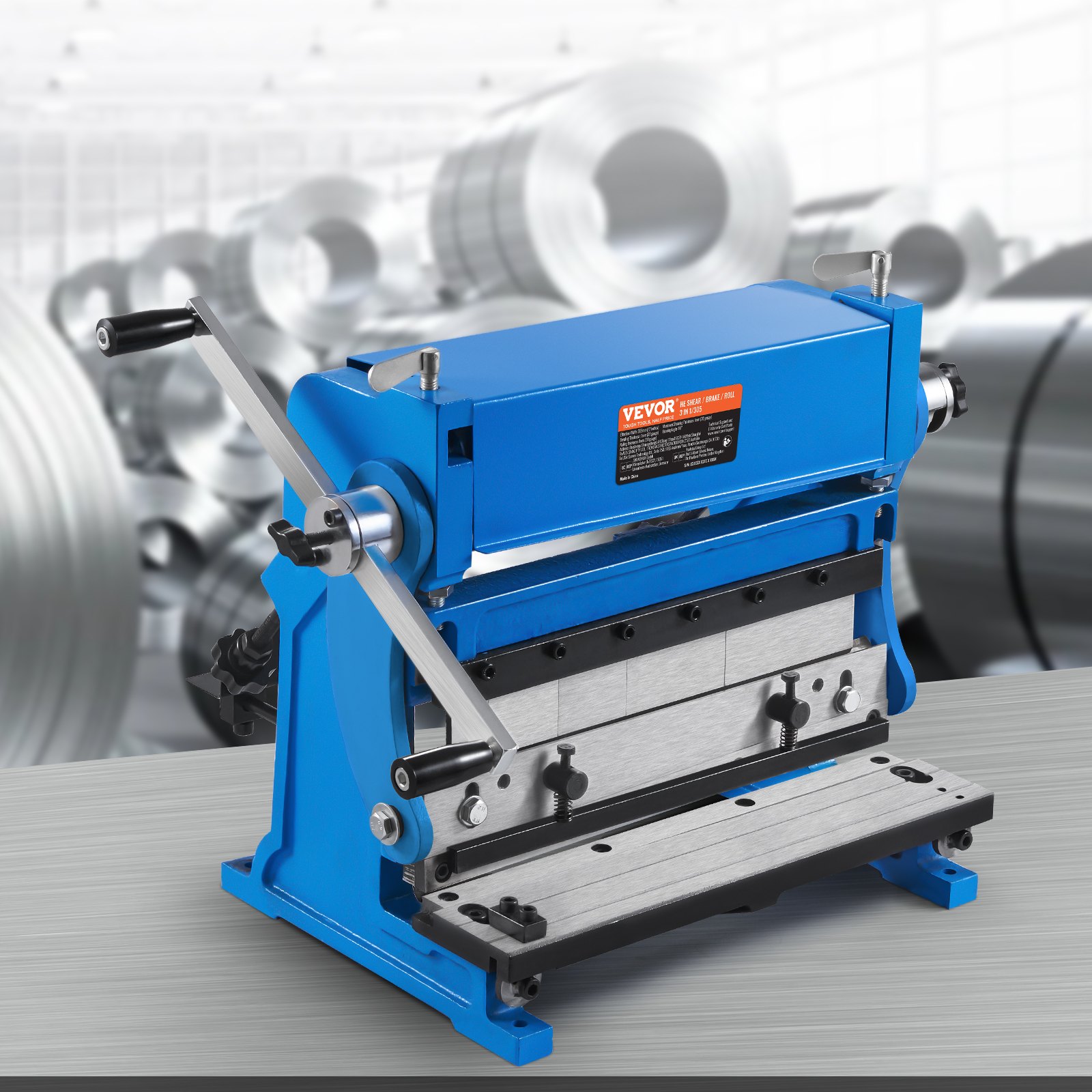

VEVOR 3-In-1 Sheet Metal Brake
VEVOR sheet metal brake with adjustable rollers, handles 20 ga thickness, 12 in width, 90° bending angle.
VEVOR sheet metal brake with adjustable rollers, handles 20 ga thickness, 12 in width, 90° bending angle.

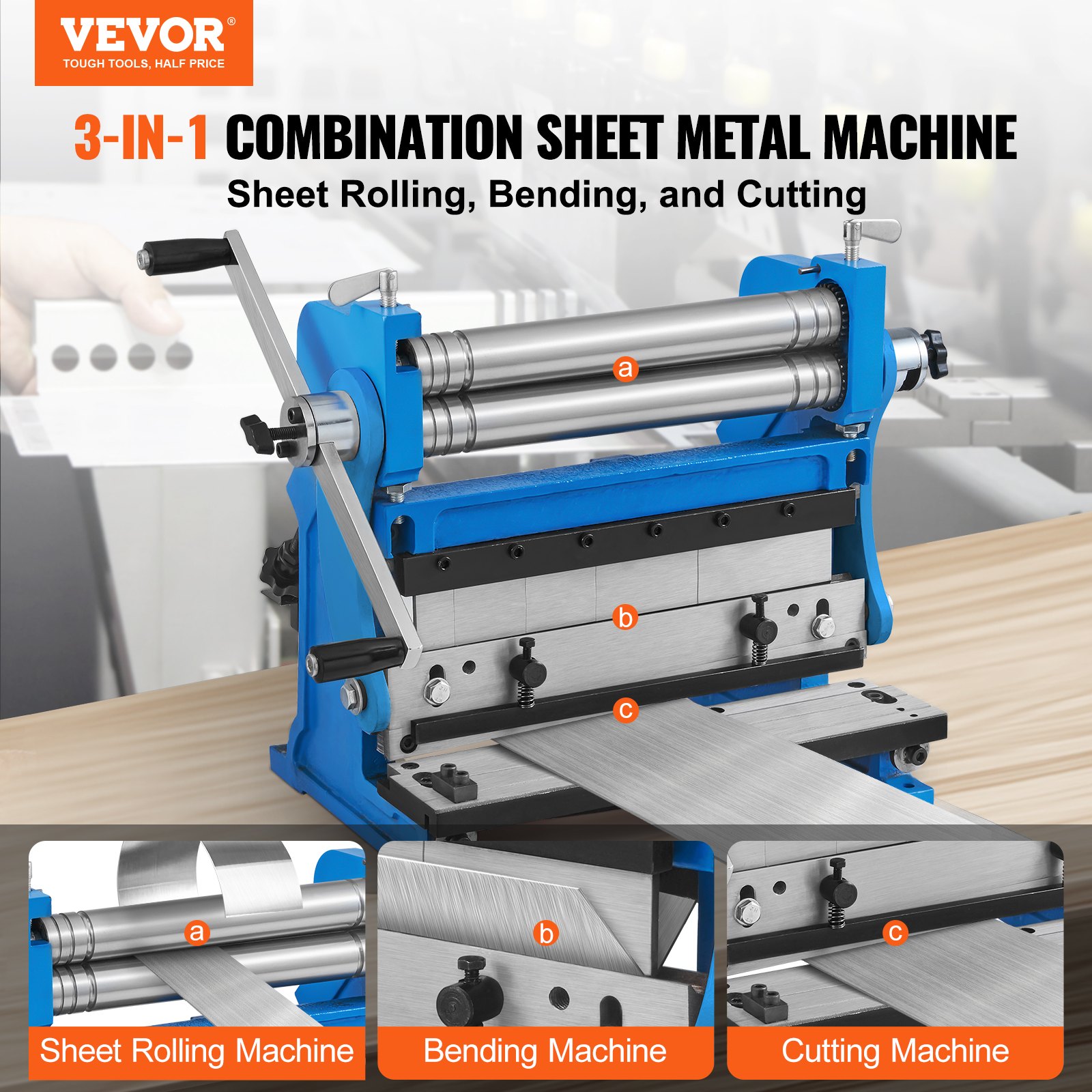

Our sheet metal machine combines rolling, bending, and shearing functions into one compact unit. It allows you to adjust the roller position with a knob, extend up to 90 degrees, and cut through various sheet materials.
VEVOR sheet metal brake with <0.0027" blade clearance for smooth, edge-free cuts on thin sheets.
VEVOR sheet metal brake with <0.0027" blade clearance for smooth, edge-free cuts on thin sheets.

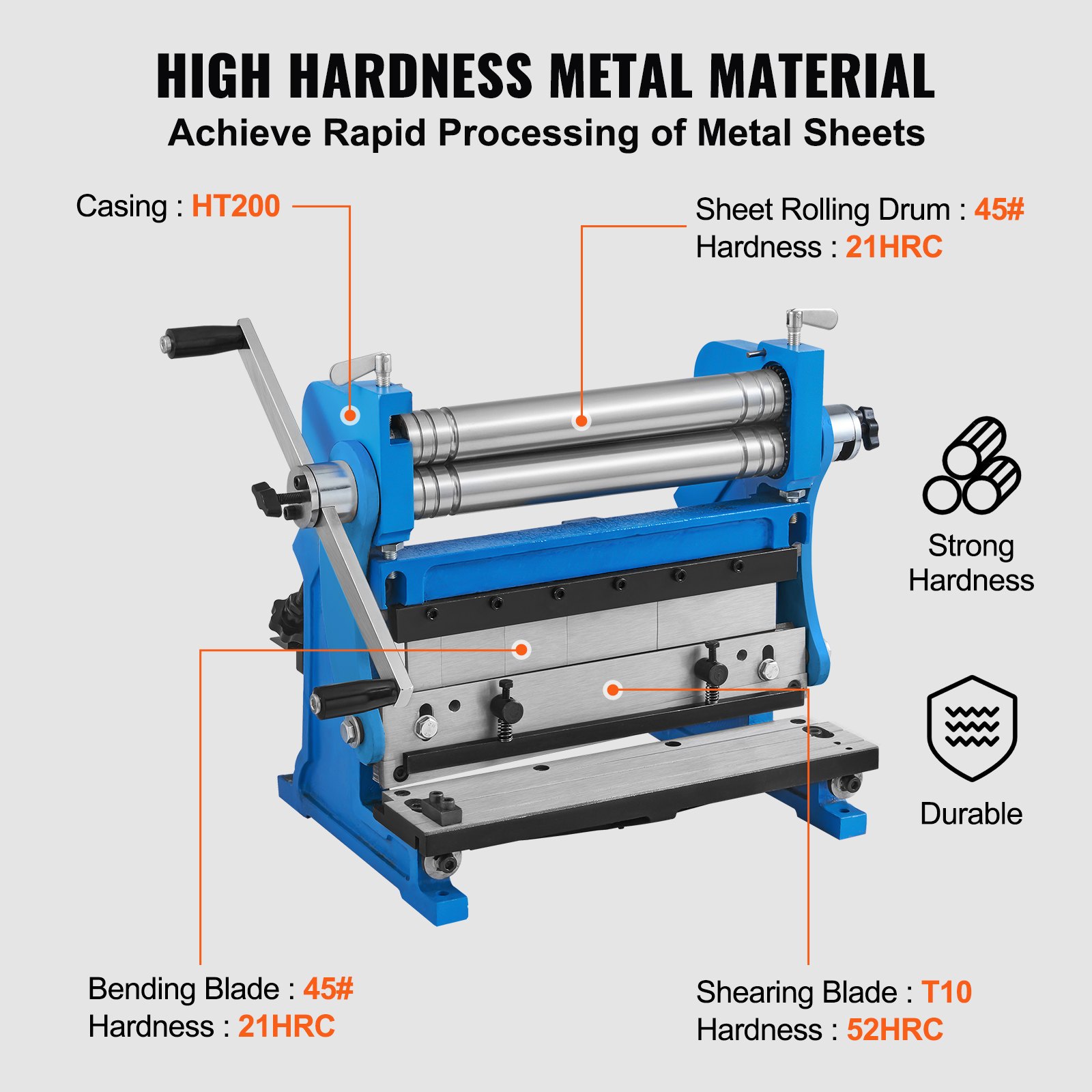

Crafted with care to be your enduring workhorse. This shear press brake is built with carefully selected materials to deliver optimal performance. Industrial-grade materials ensure durability and resistance to wear, ensuring a long lifespan.

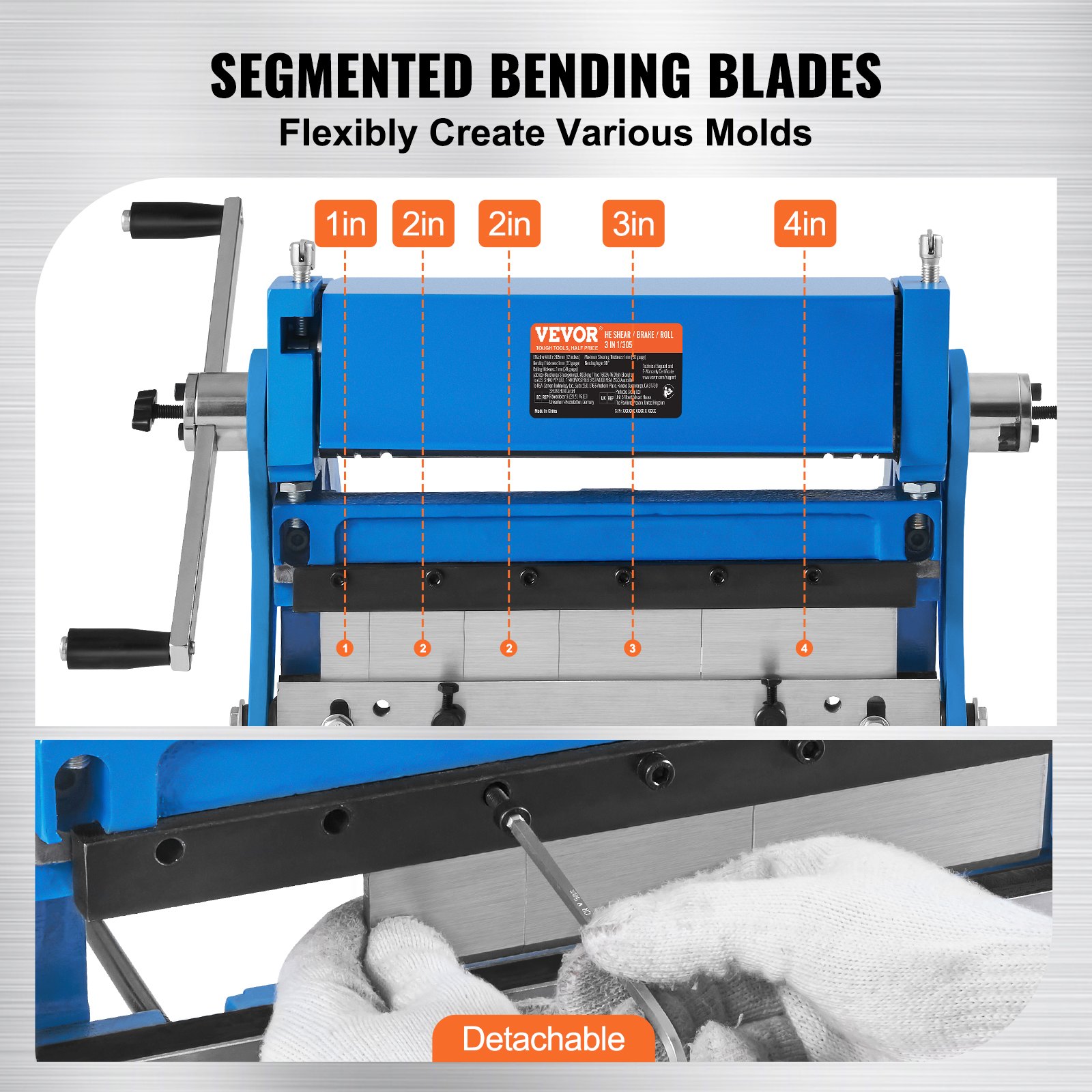

customizable VEVOR sheet metal brake with various size machining needs and flexible segmented bending.
customizable VEVOR sheet metal brake with various size machining needs and flexible segmented bending.
The upper bending tool and lower die module are constructed from sturdy 0.2-inch/5 mm thick #45 material. It comes with five different-sized blades: 1", 2 x 2", 3", and 4", ensuring effortless bending of low-carbon steel and aluminum.

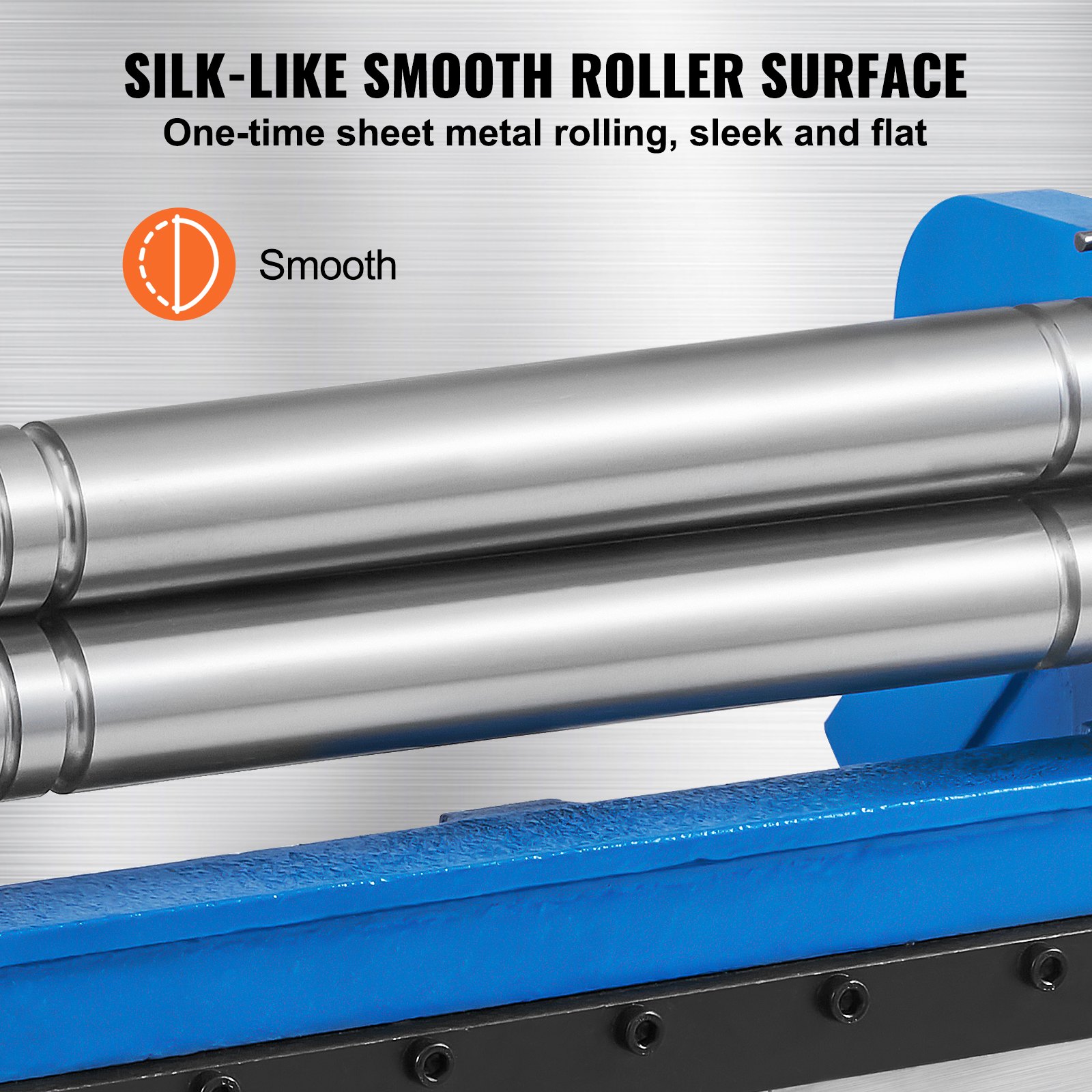

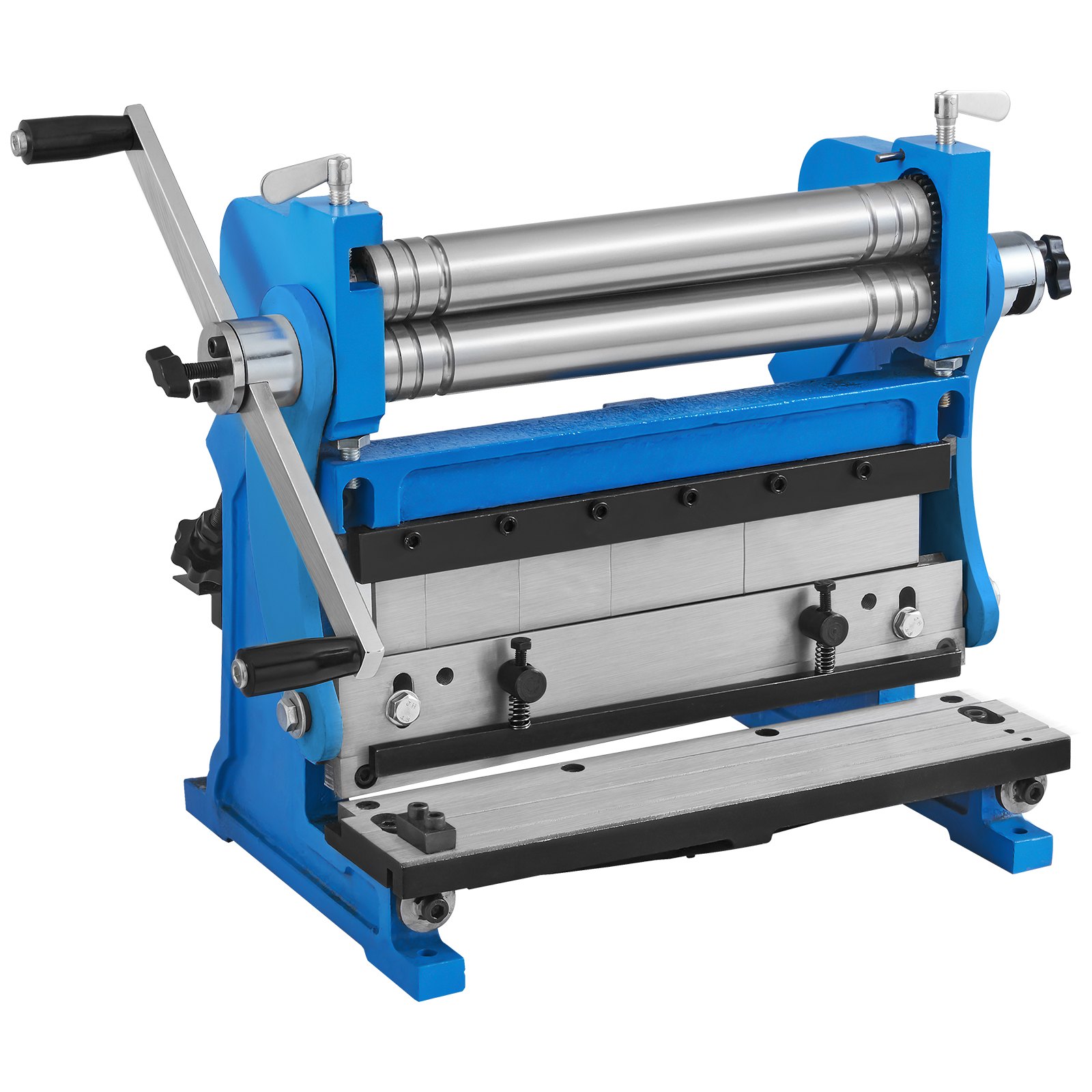

VEVOR sheet metal brake with adjustable rollers for crafting cylindrical and conical products.
VEVOR sheet metal brake with adjustable rollers for crafting cylindrical and conical products.
The roller of our sheet metal brake is equipped with precise curvature adjustment technology, allowing you to effortlessly create a wide array of cylindrical and tapered workpieces and result in flawlessly smooth sheet metal.

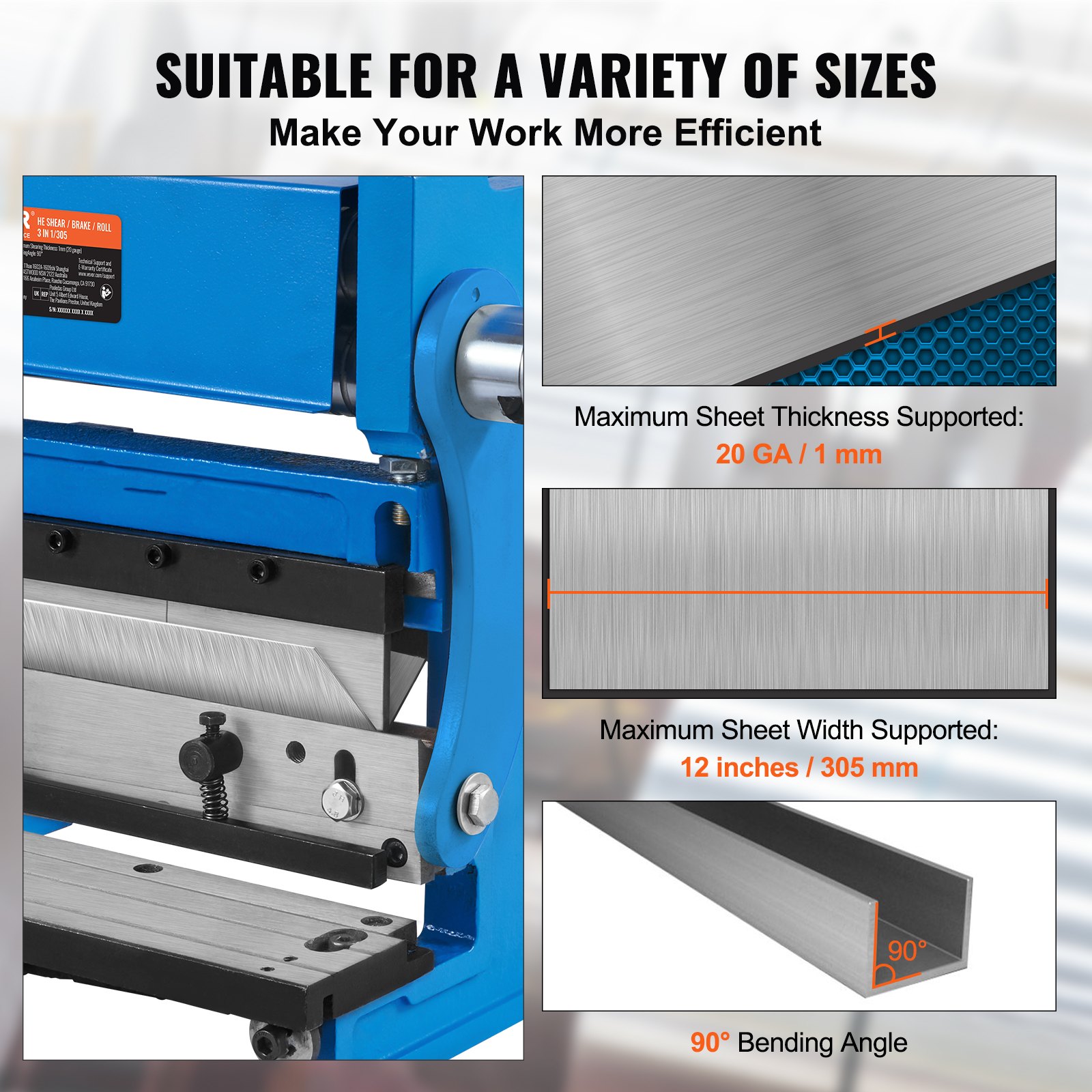

versatile VEVOR sheet metal brake for low carbon steel, stainless steel, and aluminum processing.
versatile VEVOR sheet metal brake for low carbon steel, stainless steel, and aluminum processing.
Our 3-in-1 combination sheet metal machine enables you to easily handle various sheet metal processing requirements and supports sheet materials with 20 GA / 1 mm Max. Thicknesses, 12 in /305 mm Max. Width and also offers a 90-degree bending angle.

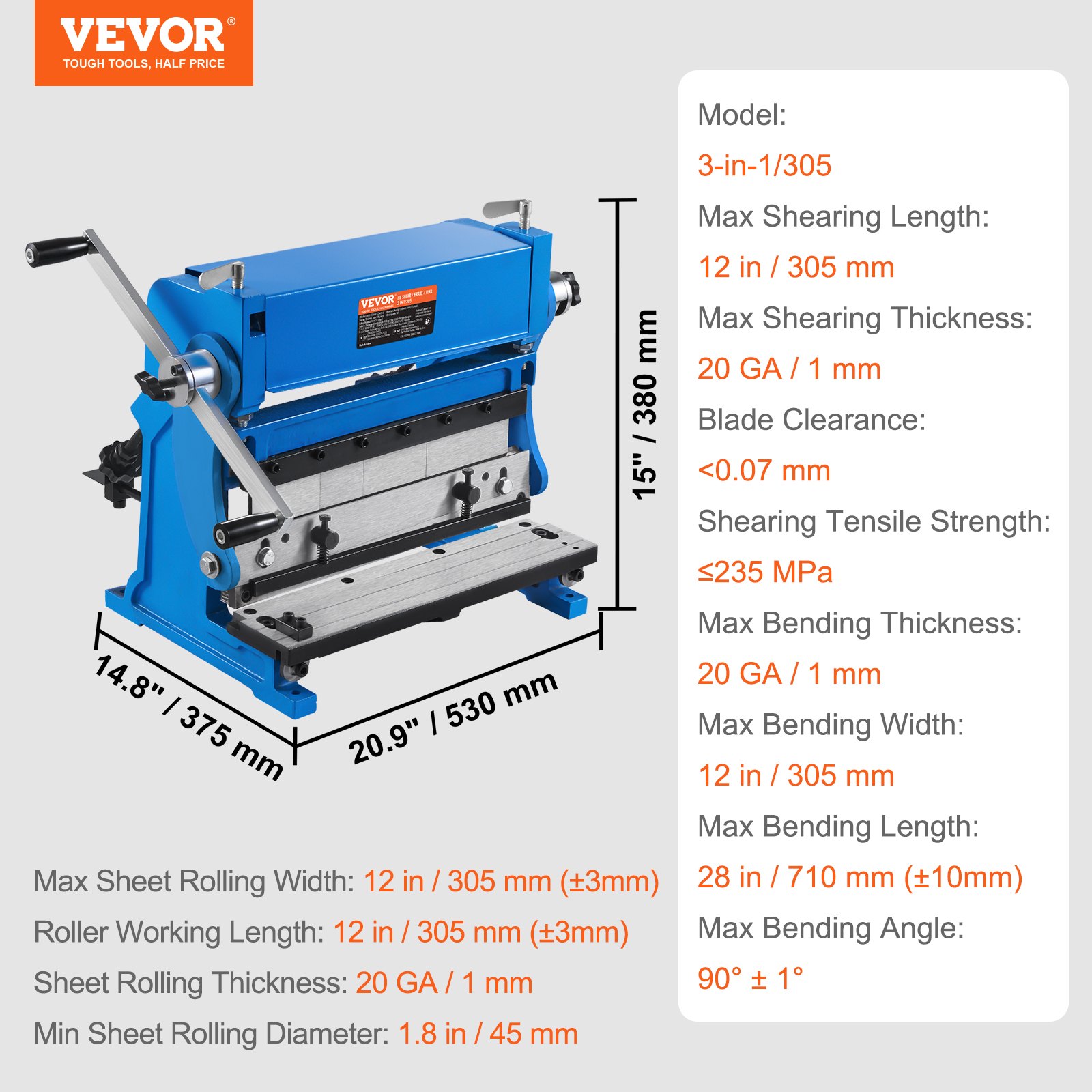

VEVOR sheet metal brake 3-in-1/305, blue machine with specifications for shearing, bending, and rolling.
VEVOR sheet metal brake 3-in-1/305, blue machine with specifications for shearing, bending, and rolling.
