Features & Details
- 【STABLE AND HIGH-PERFORMANCE】 - Electrical connection: AC 220 V / 50 Hz; Wire cross-section: 0.1-8 mm²; Cable length range: 1-100,000 mm; Cutting tolerance: ± (0.002 × L) mm. This wire stripper is ideal for those who frequently need to strip large quantities of wire. The LCD display on top allows you to set values for precise and fast cuts.
- 【OPTIONAL DEGREE OF PEELING】 - The wire can be stripped completely, partially, or even in the middle to simplify the pressure welding process and multi-pole connection.
- 【EASY OPERATION】 - The electric wire stripper has a microcomputer that executes the stripping process steps as programmed. This saves you a lot of time that you might otherwise spend on small tasks. You simply set the number and then it does the rest.
- 【ELAST CLUTTER】 - Equipped with a wire straightening machine to neatly adjust the wire before it is pushed into the inlet.
- 【WIDE APPLICATION】 - The scrap wire stripper is the perfect choice for various types of wire, including PVC, Teflon, silicone cables, fiberglass, etc. The product is widely used in the electronics industry, electrical industry, automotive industry, and so on.
Frequently Bought Together
Reviews 4.5
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 4.5
All reviews are from verified purchases
See all 4 reviews
About this item
Product specification
- Model
- SWT508-JE
- Power supply
- AC 220 V, 50 Hz
- Power
- 300 W
- Cutting length
- 1-100,000 mm
- Cutting tolerance
- ± (0.002 × L) mm
- Stripping length
- Rope waste 0-50 mm; Wire ends 0-50 mm
- Center stripe cut
- Stripe with eleven spots
- Cutting wire core section
- 0.1-8 mm²
- Max. channel diameter
- 8 mm
- Blade material
- Hard tungsten steel
- Peeling capacity (a/hour)
- L = 100 mm, 4000-5000 pieces/pc.
- Gross weight
- 32 kg
Description

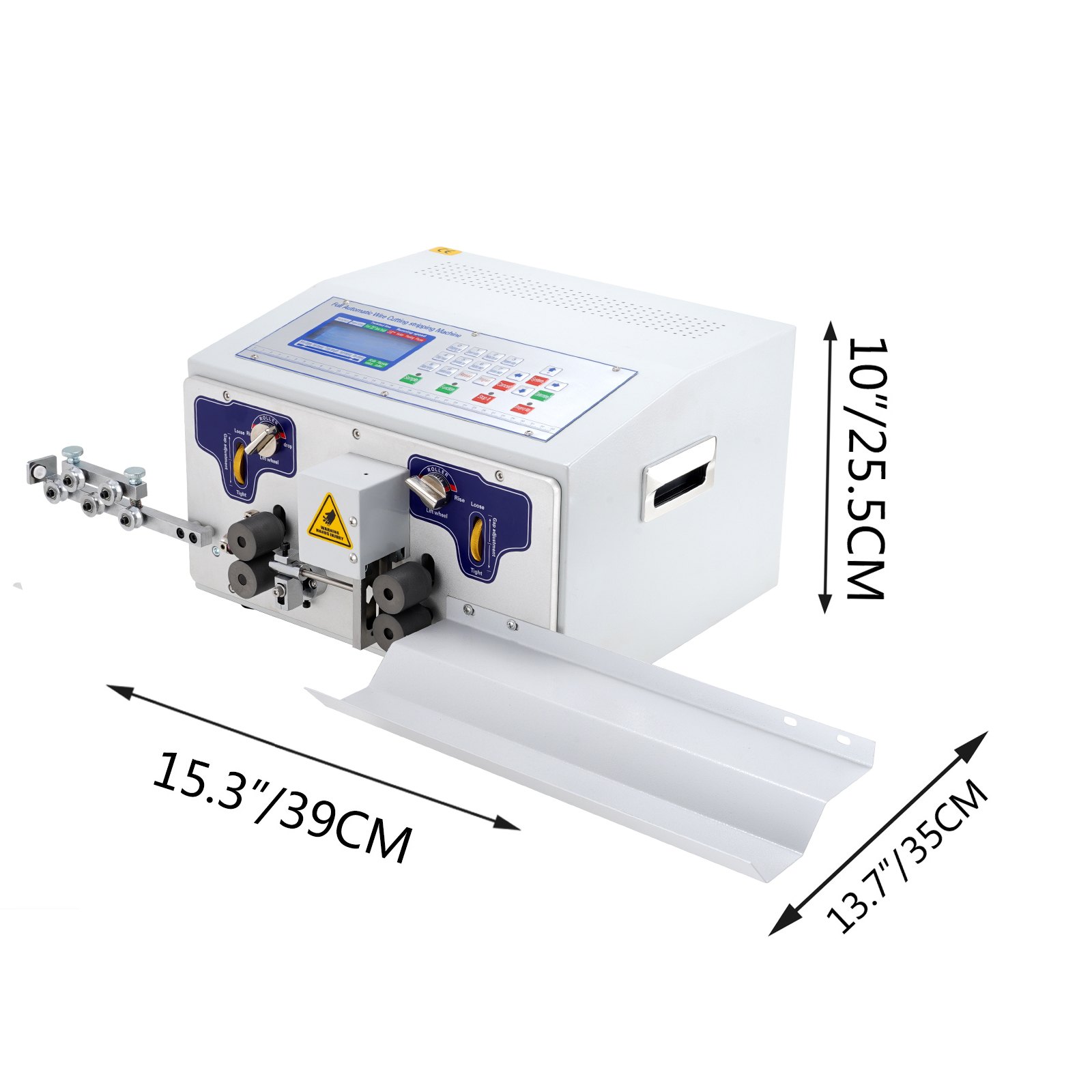

Automatic wire stripping machine
If you need to strip a lot of wire, or do so regularly, the SWT508-JE automatic wire stripper offers a maximum cross-section of 8 mm². The cutting length is 100,000 mm, the head length of the stripped wire is 50 mm, and the tail length of the stripped wire is also 50 mm. Our products save you a lot of time and make the entire process more profitable.
- Stable and excellent performance
- Optional stripping level
- Easy to use
- Eliminate clutter

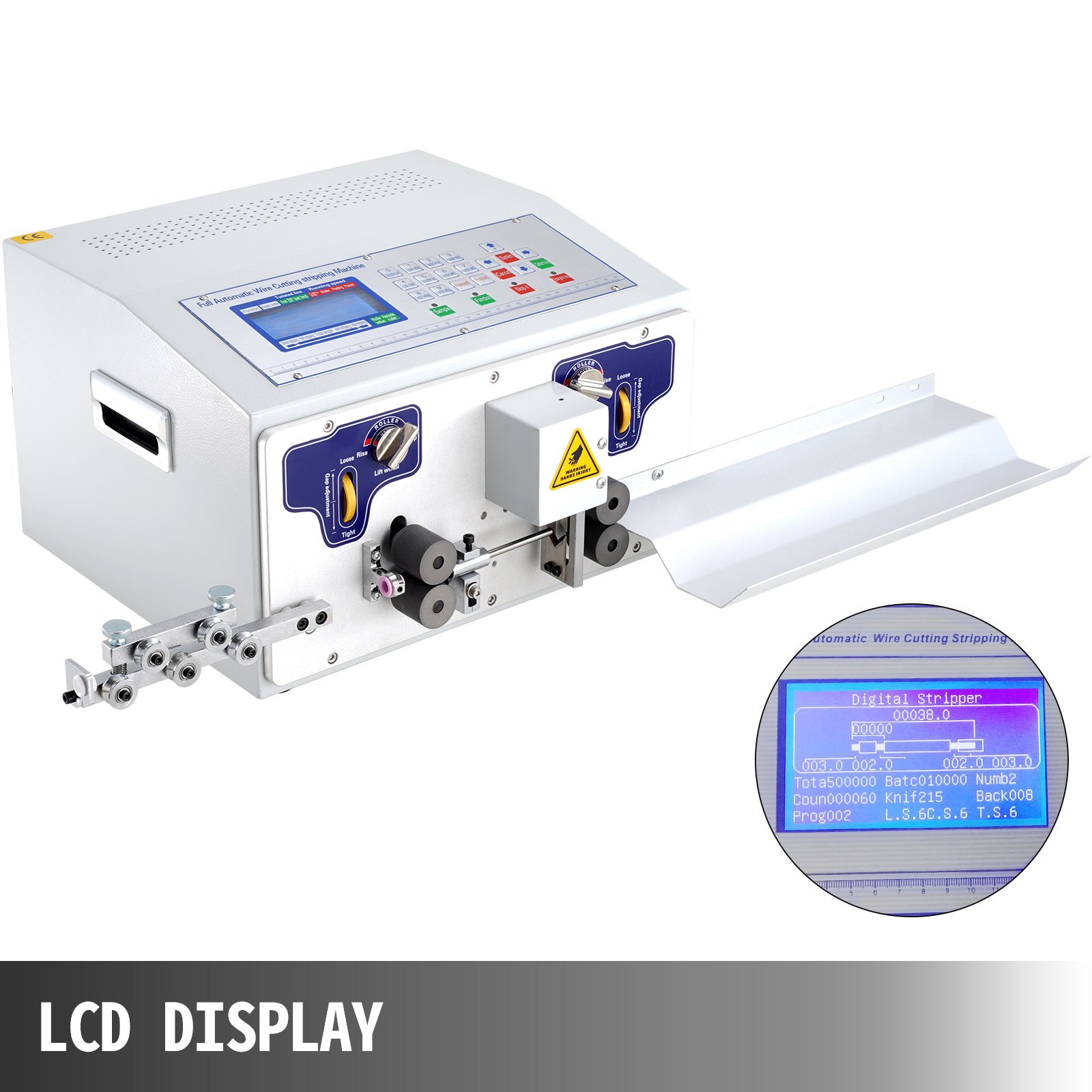

LCD screen
An LCD display is integrated at the top of the wire stripping machine, offering maximum transparency thanks to simple settings for important parameters.

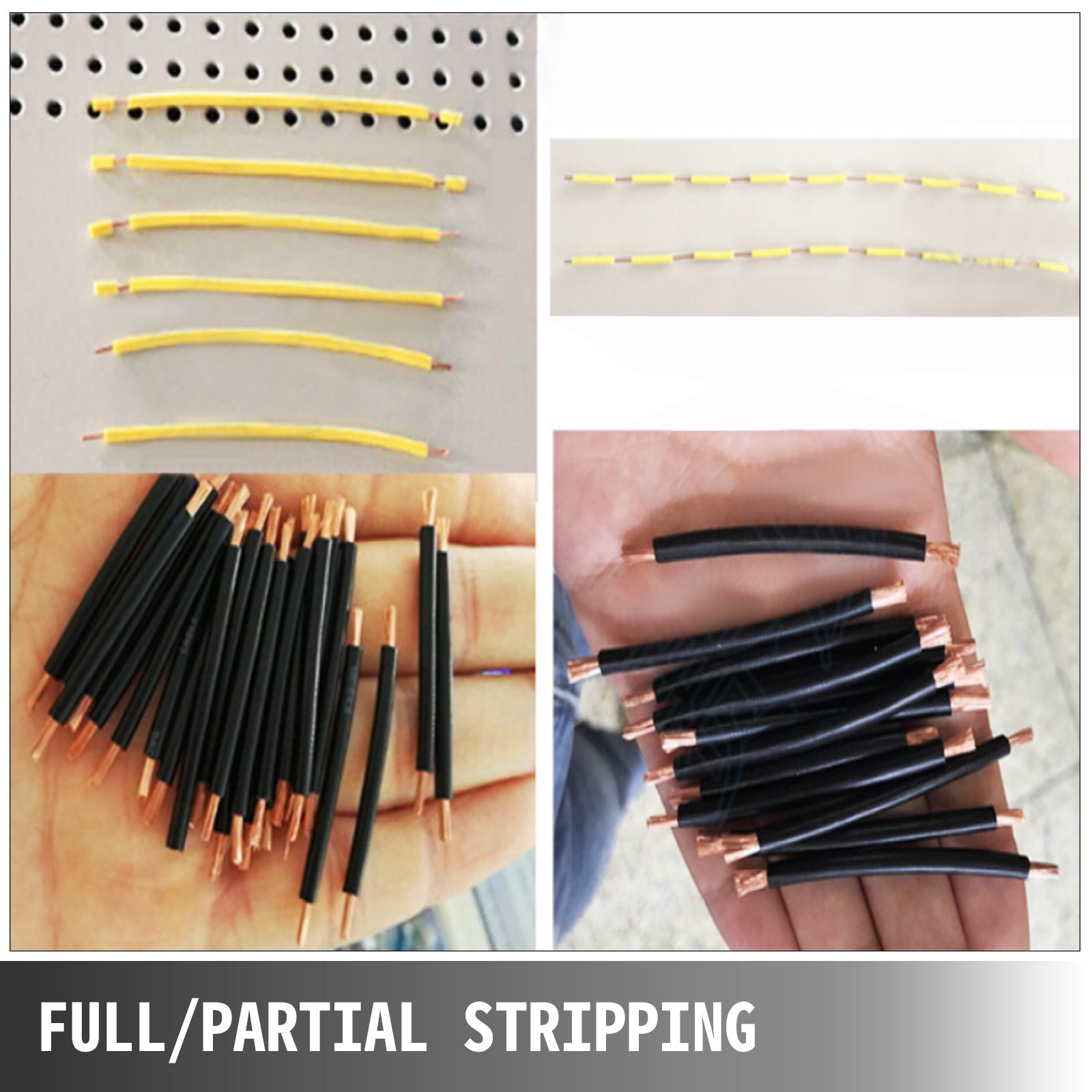

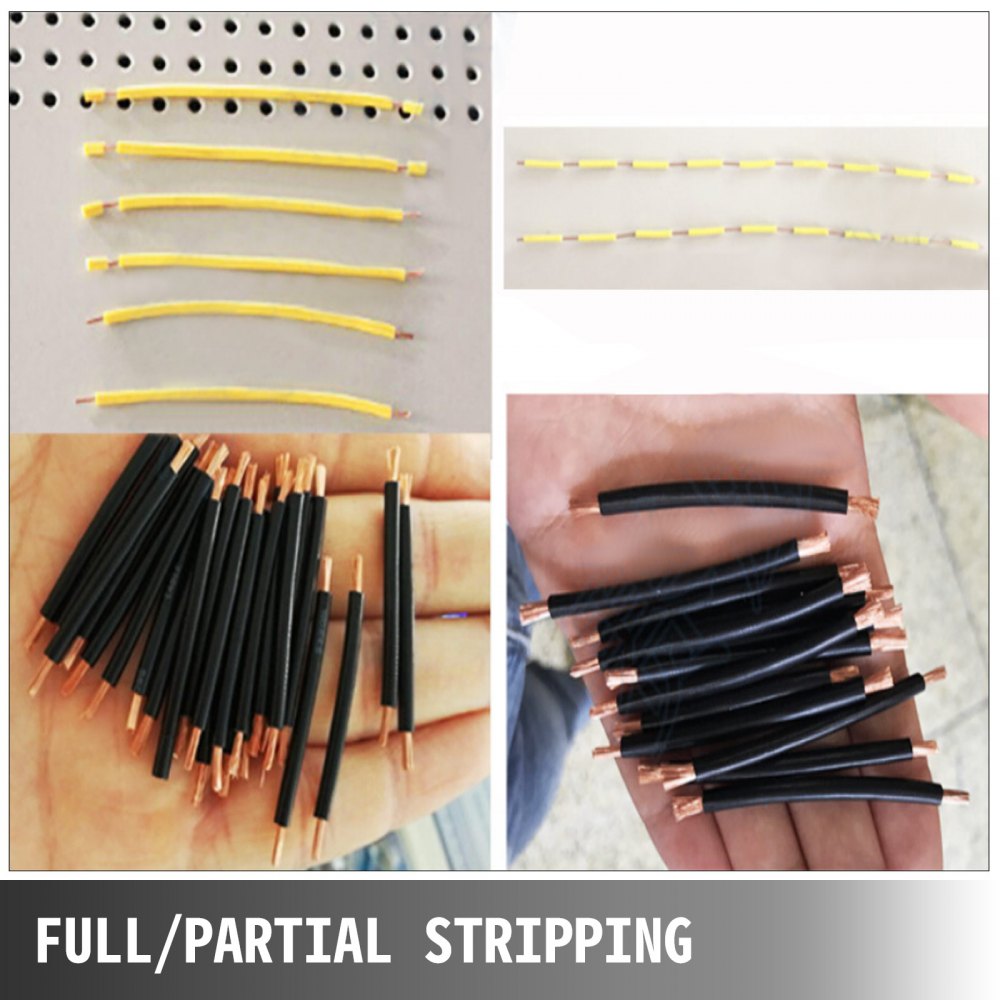

Complete / Partial Stripping
The automatic wire stripper can completely or partially cut the ends of coatings or sections in the middle. This is helpful if you want to weld the wire to terminals.

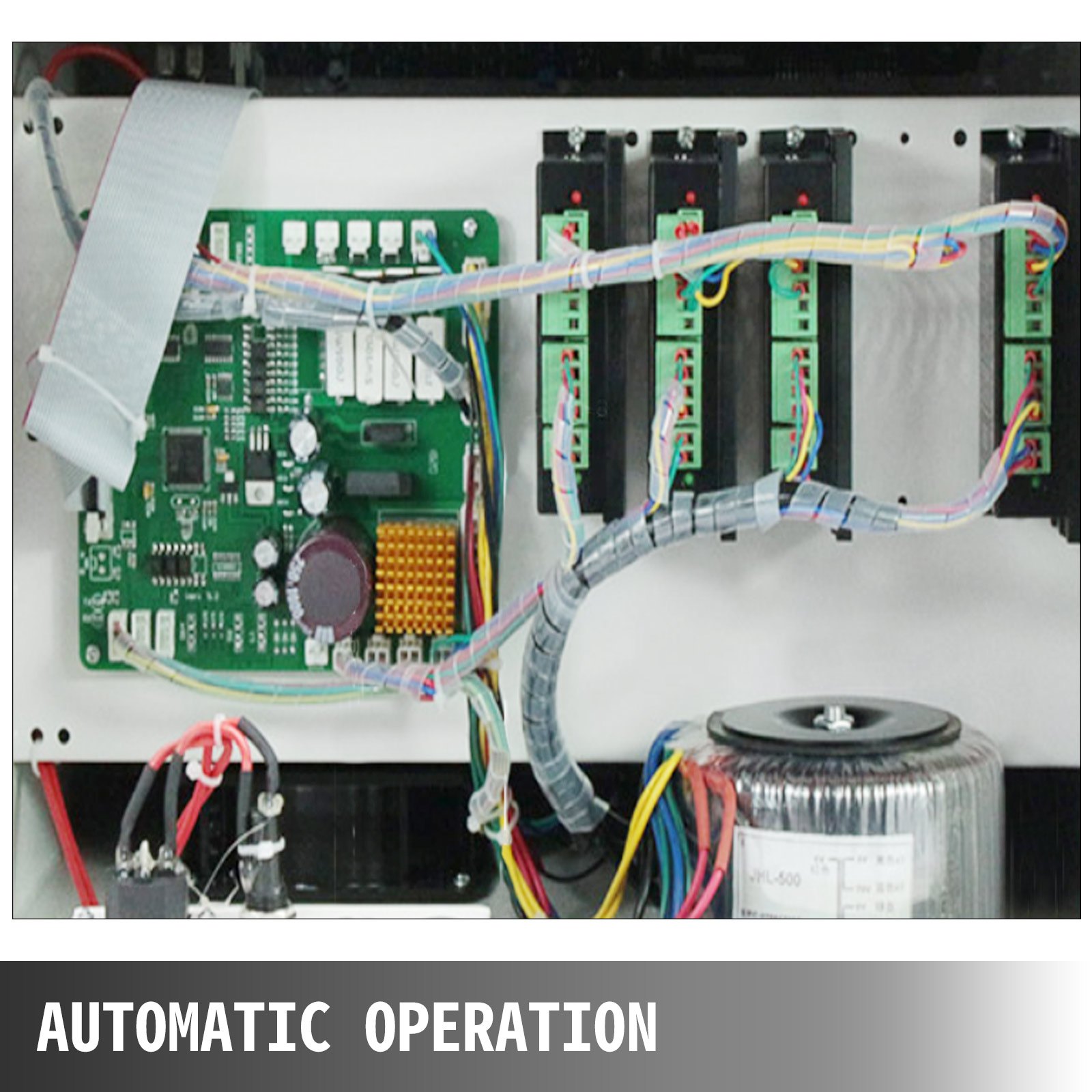

Automatic operation
The copper wire stripping machine is controlled by a microcomputer, which offers higher precision and speed than manual work.

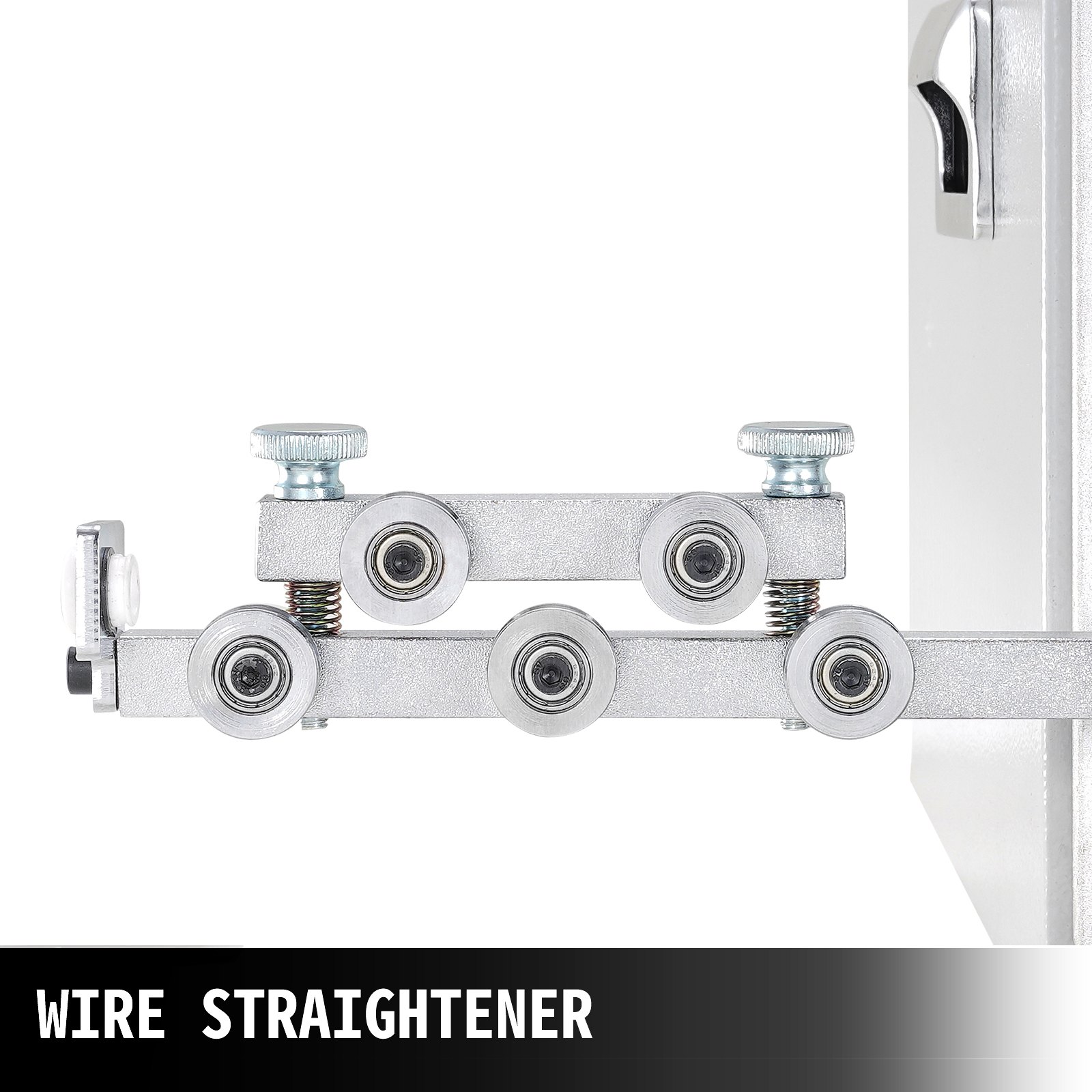

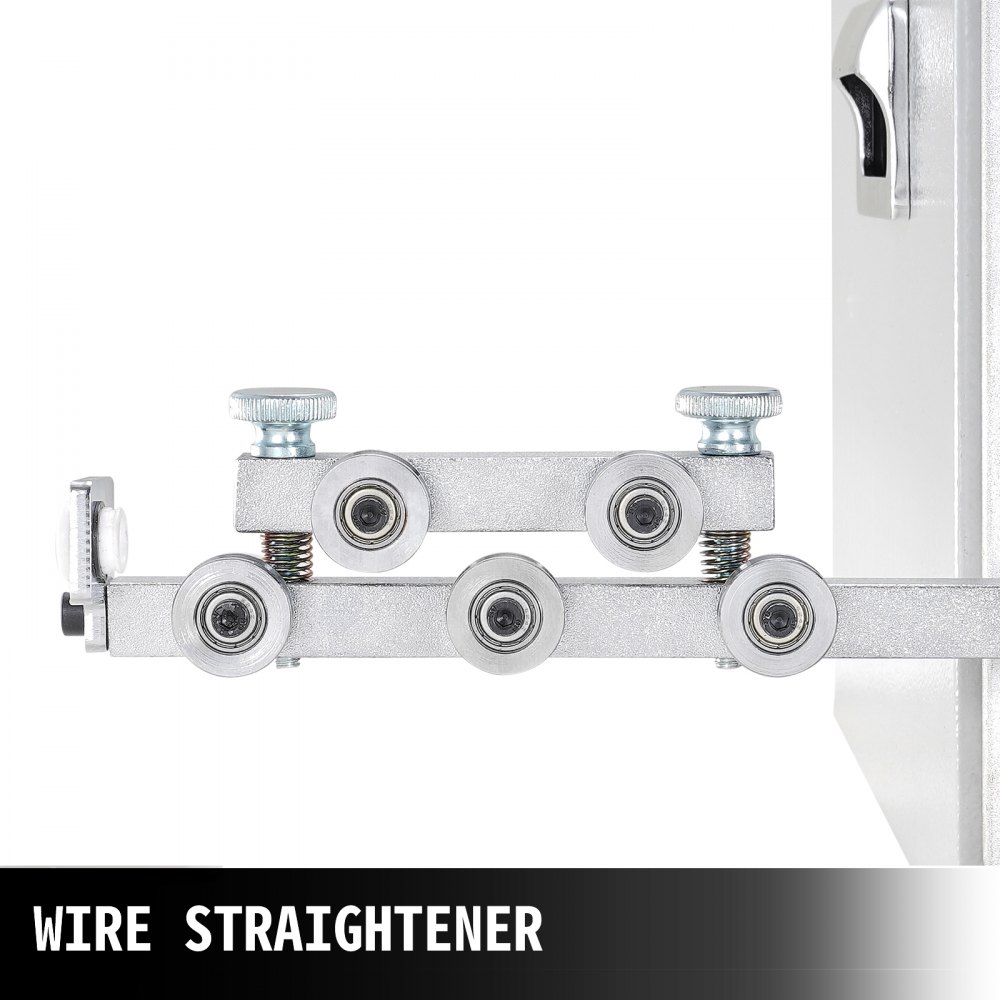

Wire smoother
The automatic computer wire stripper produces a smoother cut when used with a straightening machine. The straightening machine adjusts the wires one by one before they are fed into the input.

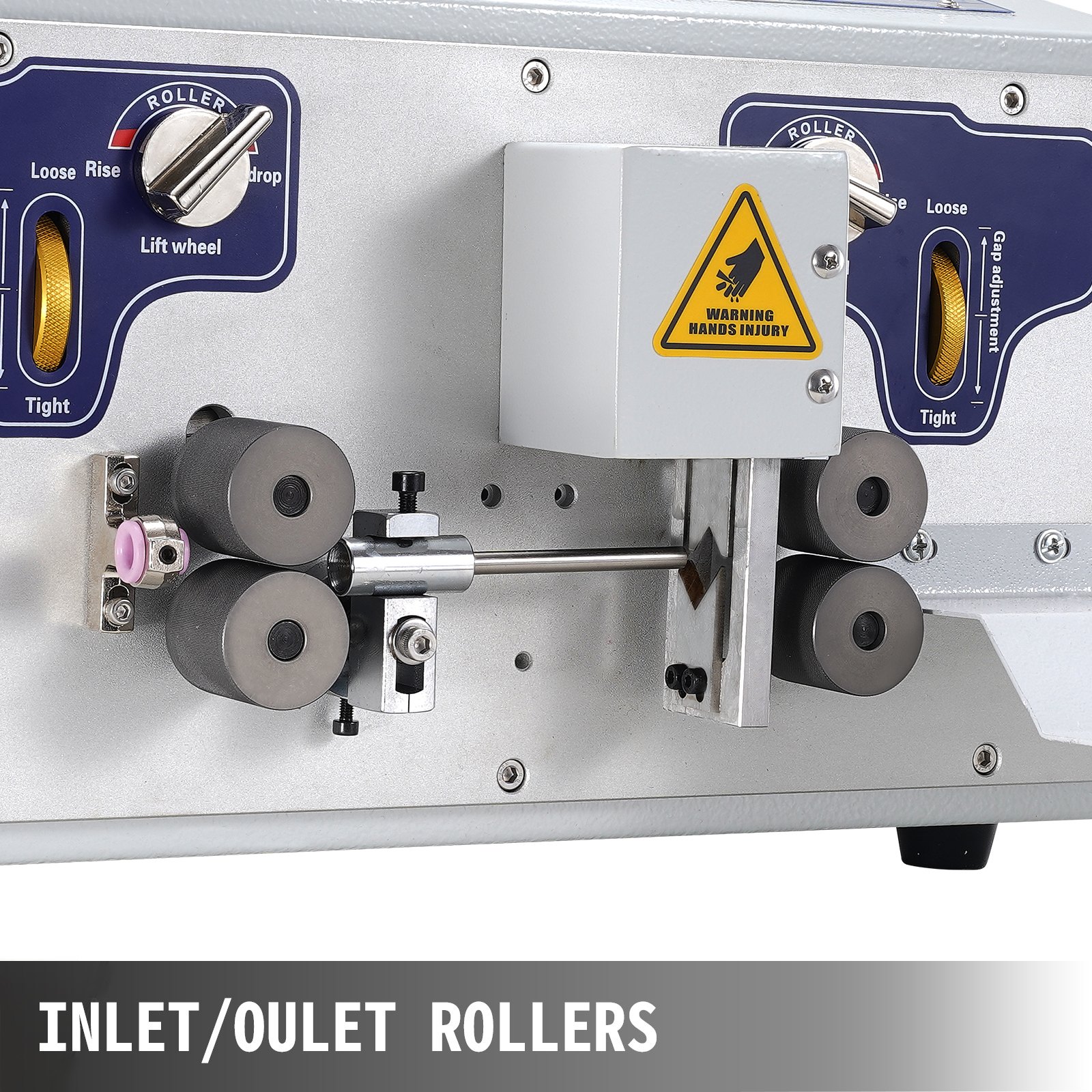

Inlet rollers / outlet rollers
The electrical wire stripper has an inlet roller and an outlet roller. You can adjust its pressure by turning the orange switches above it to accommodate wires made of different materials.

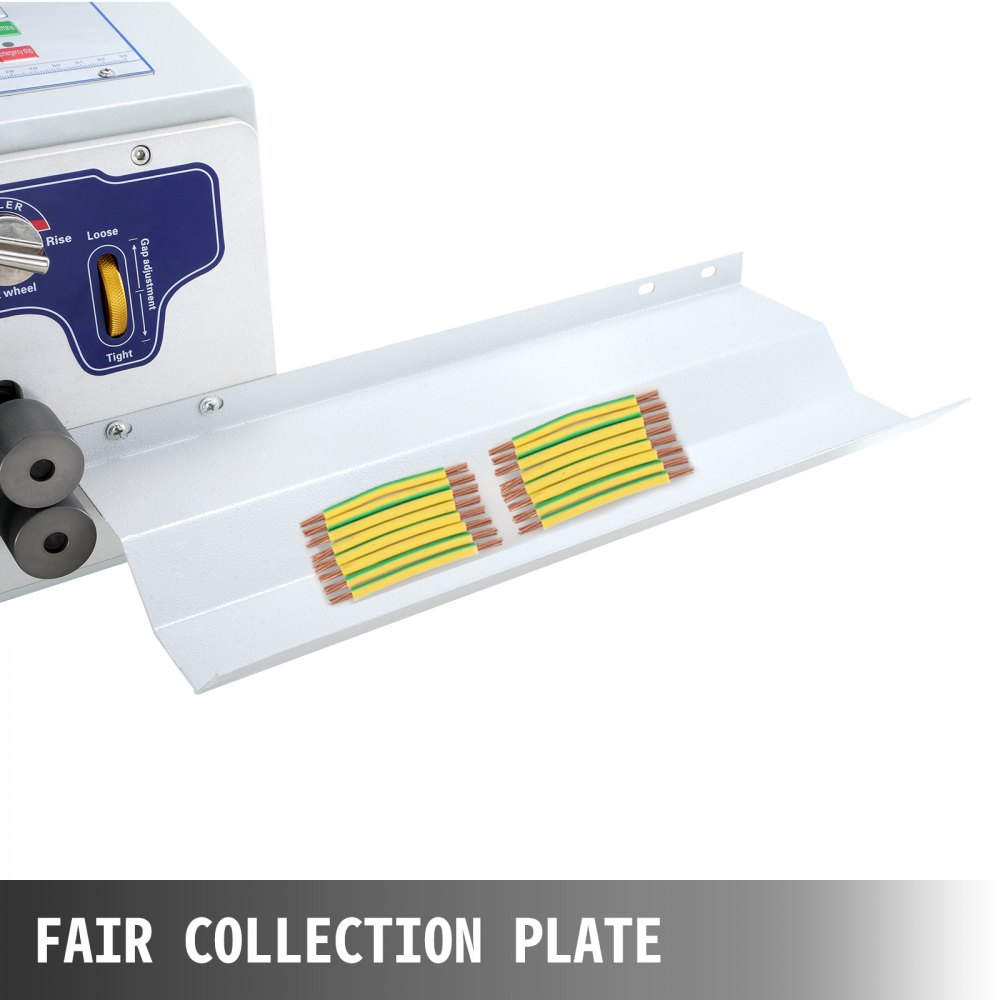

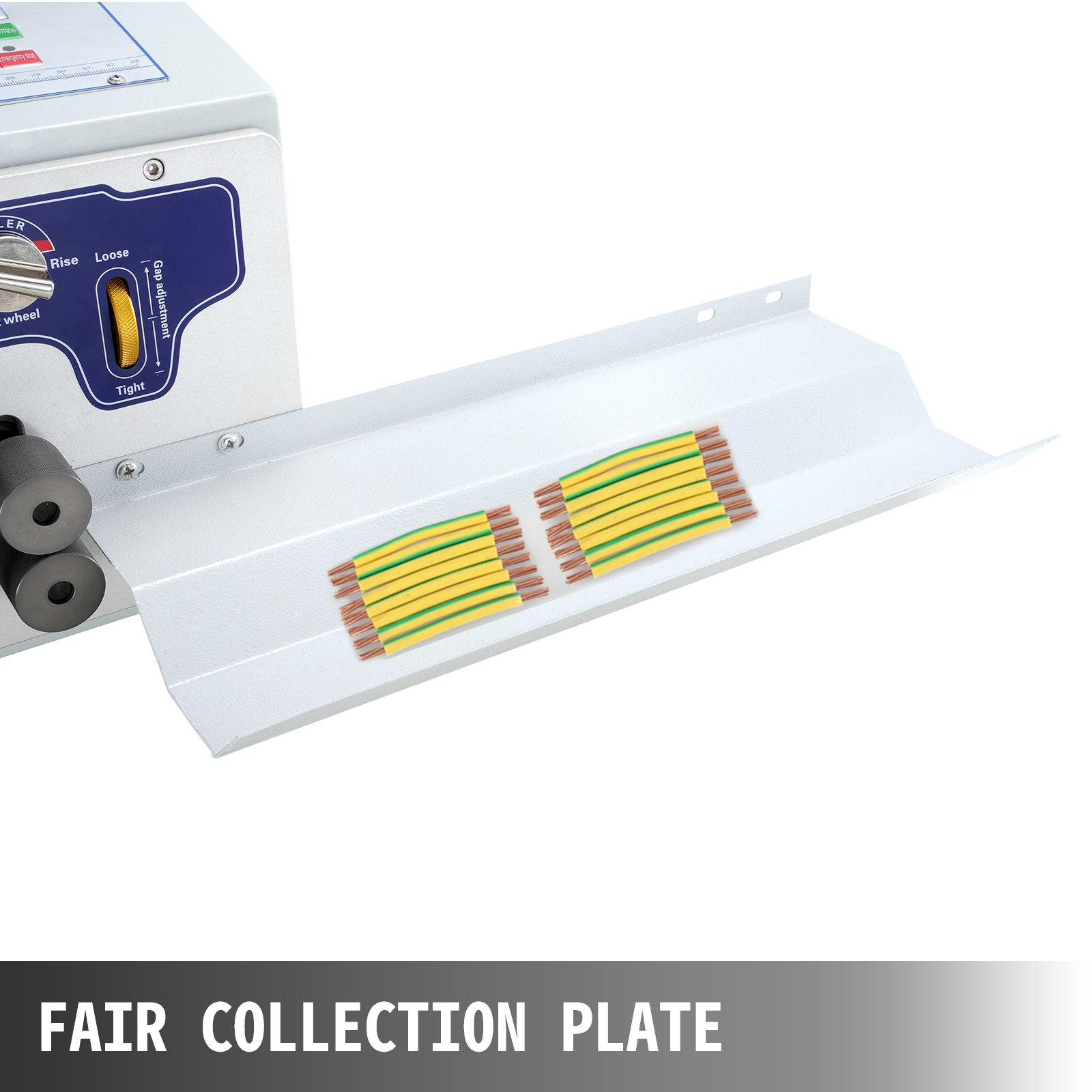

Fair trade plate
The electric wire stripper comes with a suitable collection plate. Instead of scattering segments across your workbench, the wire stripper can pour the wire directly onto the plate.
- Model: SWT508-JE
- Power supply: AC 220 V, 50 Hz
- Power: 300 W
- Cutting length: 1-100,000 mm
- Cutting tolerance: ± (0.002 × L) mm
- Stripping length: Rope waste 0-50 mm; Wire ends 0-50 mm
- Center stripe cut: Stripe with eleven spots
- Cutting wire core section: 0.1-8 mm²
- Max. channel diameter: 8 mm
- Blade material: Hard tungsten steel
- Peeling capacity (a/hour): L = 100 mm, 4000-5000 pieces/pc.
- Gross weight: 32 kg

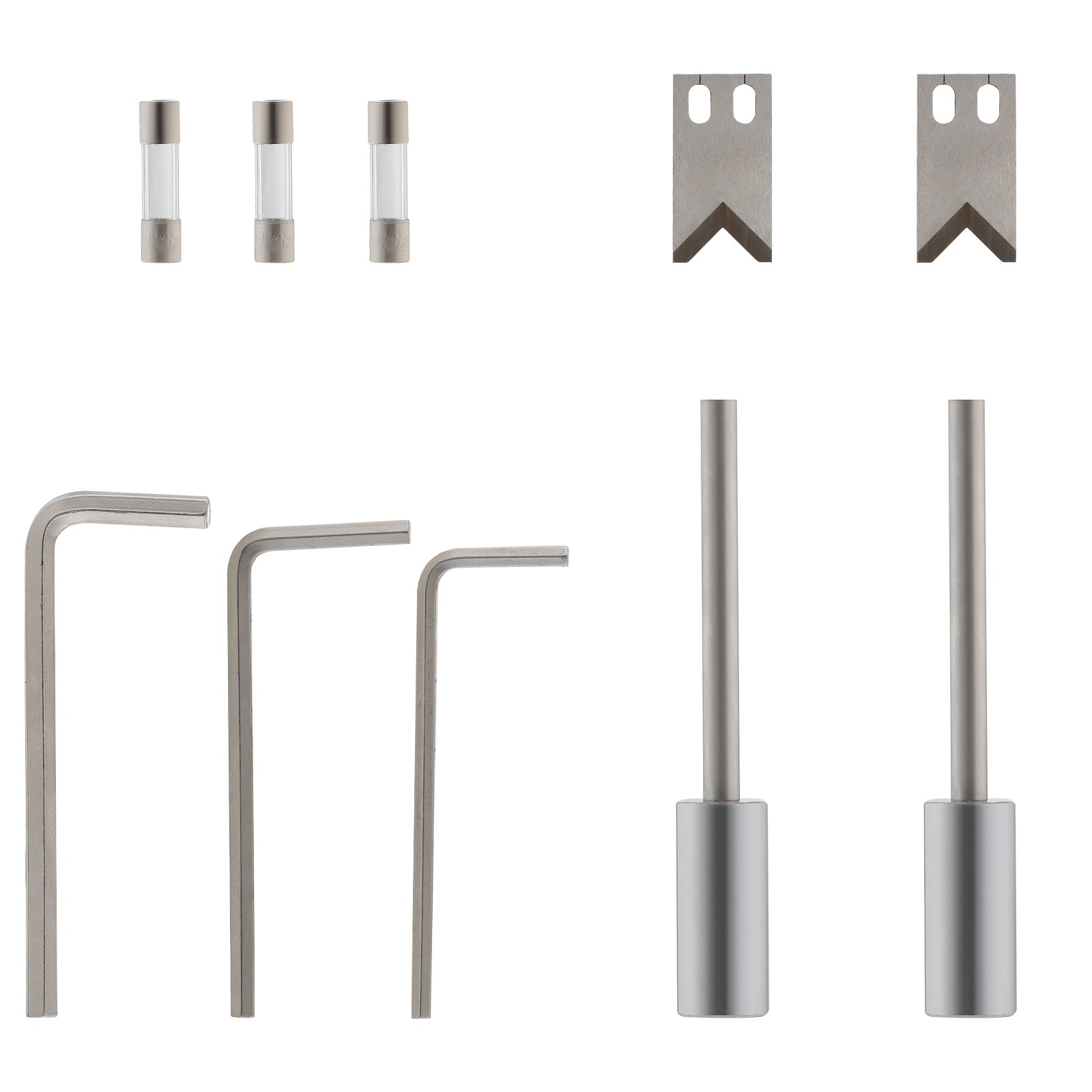

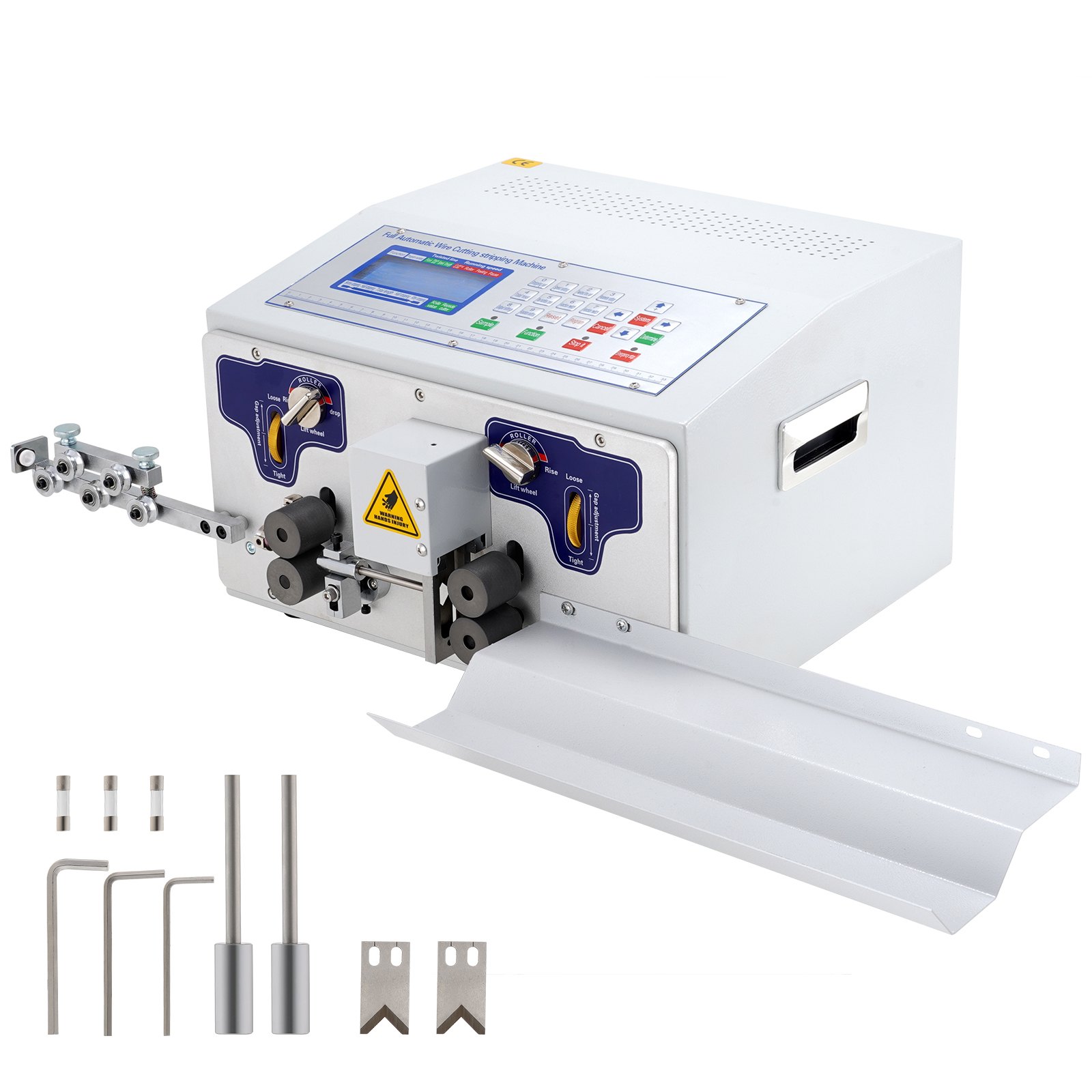

- 1 x wire stripping machine
- 1 x wire straightener
- 1 x Collector's plate
- 2 x blade
- 1 x manual
Automatic wire stripping machine
If you need to strip a lot of wire, or do so regularly, the SWT508-JE automatic wire stripper offers a maximum cross-section of 8 mm². The cutting length is 100,000 mm, the head length of the stripped wire is 50 mm, and the tail length of the stripped wire is also 50 mm. Our products save you a lot of time and make the entire process more profitable.
- Stable and excellent performance
- Optional stripping level
- Easy to use
- Eliminate clutter
LCD screen
An LCD display is integrated at the top of the wire stripping machine, offering maximum transparency thanks to simple settings for important parameters.
Complete / Partial Stripping
The automatic wire stripper can completely or partially cut the ends of coatings or sections in the middle. This is helpful if you want to weld the wire to terminals.
Automatic operation
The copper wire stripping machine is controlled by a microcomputer, which offers higher precision and speed than manual work.
Wire smoother
The automatic computer wire stripper produces a smoother cut when used with a straightening machine. The straightening machine adjusts the wires one by one before they are fed into the input.
Inlet rollers / outlet rollers
The electrical wire stripper has an inlet roller and an outlet roller. You can adjust its pressure by turning the orange switches above it to accommodate wires made of different materials.
Fair trade plate
The electric wire stripper comes with a suitable collection plate. Instead of scattering segments across your workbench, the wire stripper can pour the wire directly onto the plate.
- 1 x wire stripping machine
- 1 x wire straightener
- 1 x Collector's plate
- 2 x blade
- 1 x manual
- Model: SWT508-JE
- Power supply: AC 220 V, 50 Hz
- Power: 300 W
- Cutting length: 1-100,000 mm
- Cutting tolerance: ± (0.002 × L) mm
- Stripping length: Rope waste 0-50 mm; Wire ends 0-50 mm
- Center stripe cut: Stripe with eleven spots
- Cutting wire core section: 0.1-8 mm²
- Max. channel diameter: 8 mm
- Blade material: Hard tungsten steel
- Peeling capacity (a/hour): L = 100 mm, 4000-5000 pieces/pc.
- Gross weight: 32 kg
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (22)
Kann ich die Klingen als Ersatzteil nachkaufen?
Was kostet ein Paar Ersatzklingen?
Hallo, wir bedauern, Ihnen mitteilen zu müssen, dass auf unserer Website derzeit keine Messer einzeln verkauft werden. Derzeit werden die Produkte in kompletten Sets verkauft. Wir werden Ihre Bedürfnisse jedoch an die Einkaufsabteilung des Unternehmens weiterleiten, um die Vielfalt unserer Verkäufe zu erhöhen. Das hoffen wir Sie können die Produkte, die Sie benötigen, auf unserer Website erwerben.
By vevor
Helpful
(
19
)
Kann ich mit dieser Maschine bis zu 6mm Drahtseillitzen (ummantelt) bis zu einer Gesamtlänge von 300cm schneiden ohne abzuisolieren?
Nein, diese Maschine kann keine Drahtseillitzen (mit Mantel) bis zu einer Länge von 6 mm schneiden.
By vevor
Helpful
(
2
)
Kann ich damit eine AWG-Litze mit 15mm Länge abschneiden und am ersten Ende 1,5 mm abisolieren, und am anderen Ende 4 mm abisolieren
Ja, dieses Produkt kann das.
By vevor
Helpful
(
1
)
Kann ich damit auch Gummischlauchleitung H07F 3x1,5mm2 schneiden und abisolieren welche 4 Meter lang werden sollen?
Ja, das ist machbar.
By vevor
Helpful
(
1
)
Hallo, gibt es für die Maschine Ersatzteile? Wir bräuchten andere Transportrollen, denn diese sind aus Metall und wir brauchen gummierte Fläche
Das Produkt wird mit Ersatzklingen geliefert. Gummiräder müssen separat erworben werden
By vevor
Helpful
(
0
)
QZDBXJSWT508-JE01V2

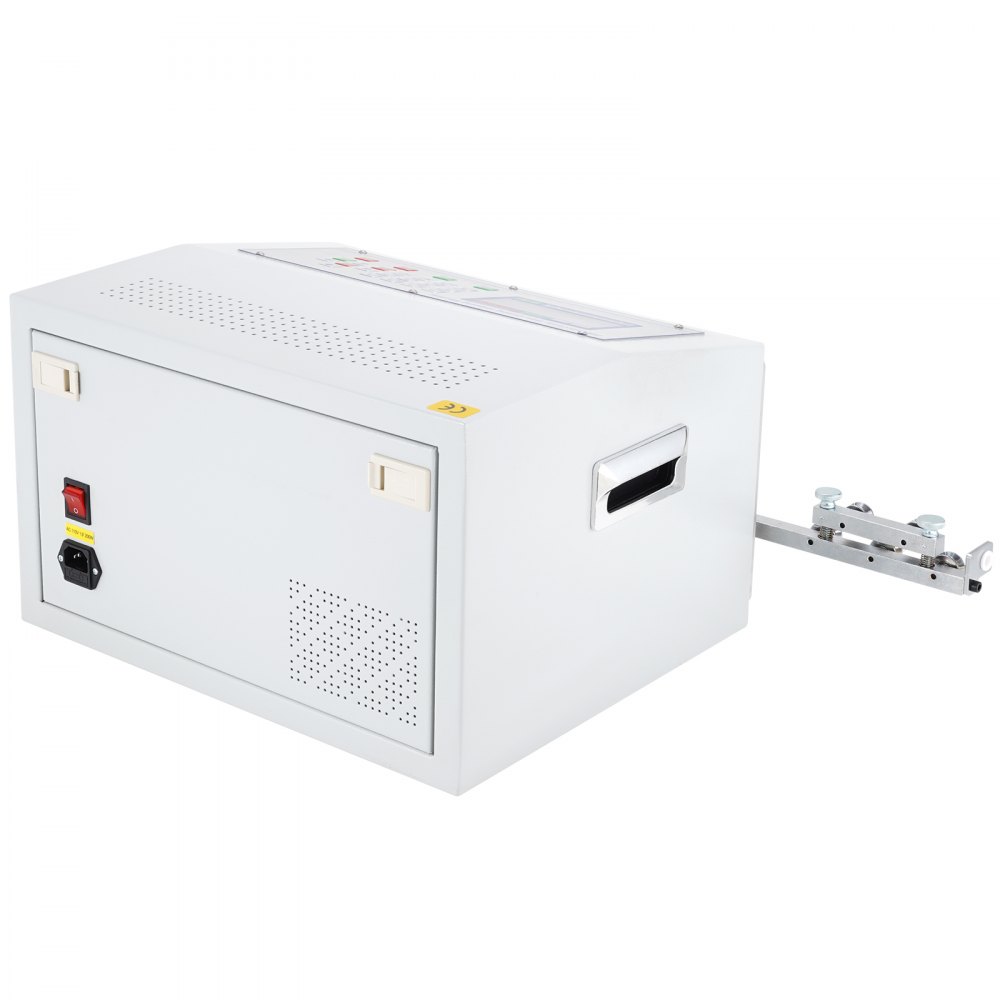

VEVOR Automatic Computerized Wire Stripping Machine 300 W, Cable Cutting Machine 1-100,000 mm, 230 V Wire Bending Machine Max. Channel Diameter 10 mm, Cable Stripping Machine with LCD Screen and Straightening Machine
