Features & Details

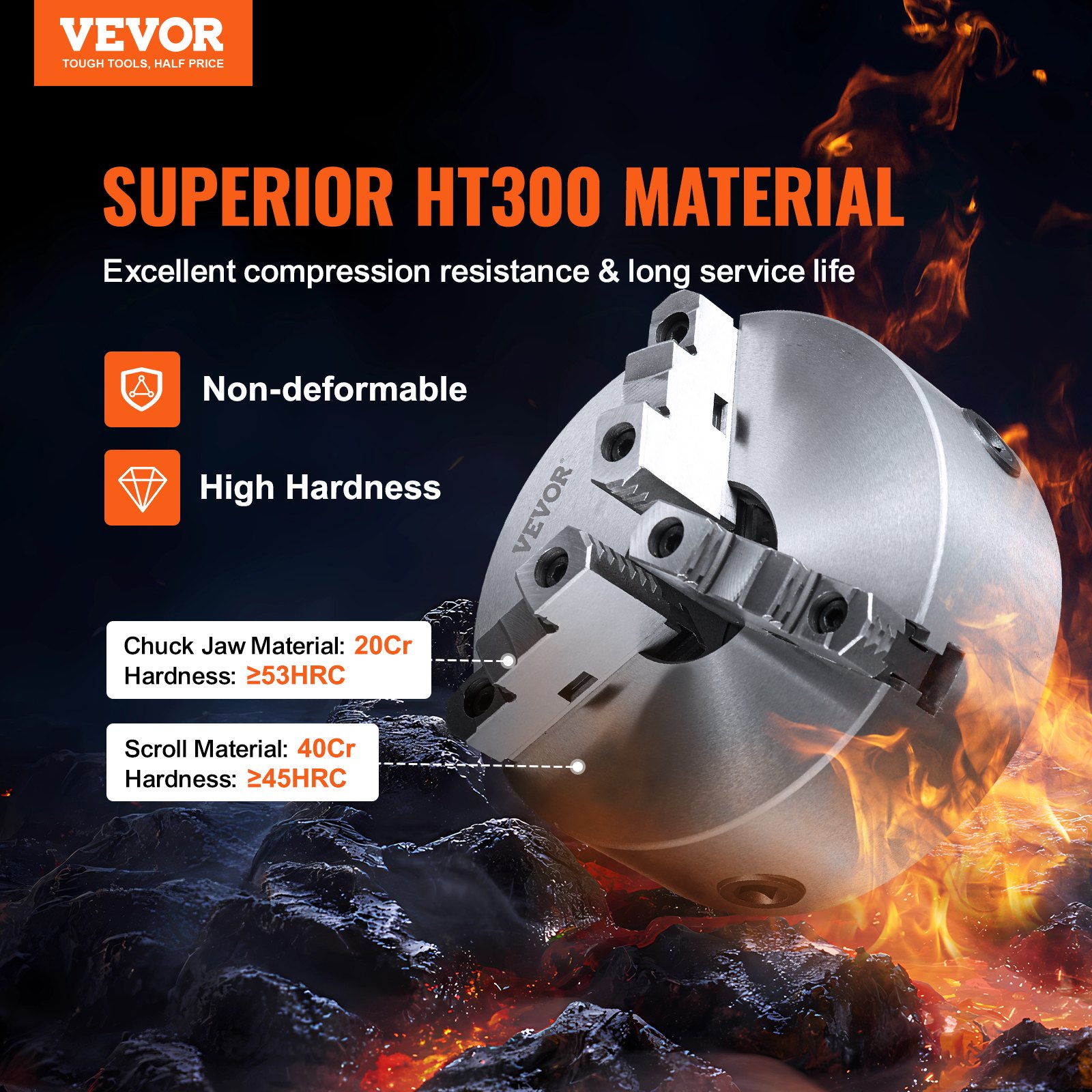

- Superior HT300 material: Our three-jaw chuck is made of HT300 material, with a 20Cr steel jaw (53 HRC hardness) and a 40Cr steel worm (45 HRC hardness). Hardened for high hardness and corrosion resistance, the chuck offers excellent performance and reliability for both small and large workpieces.

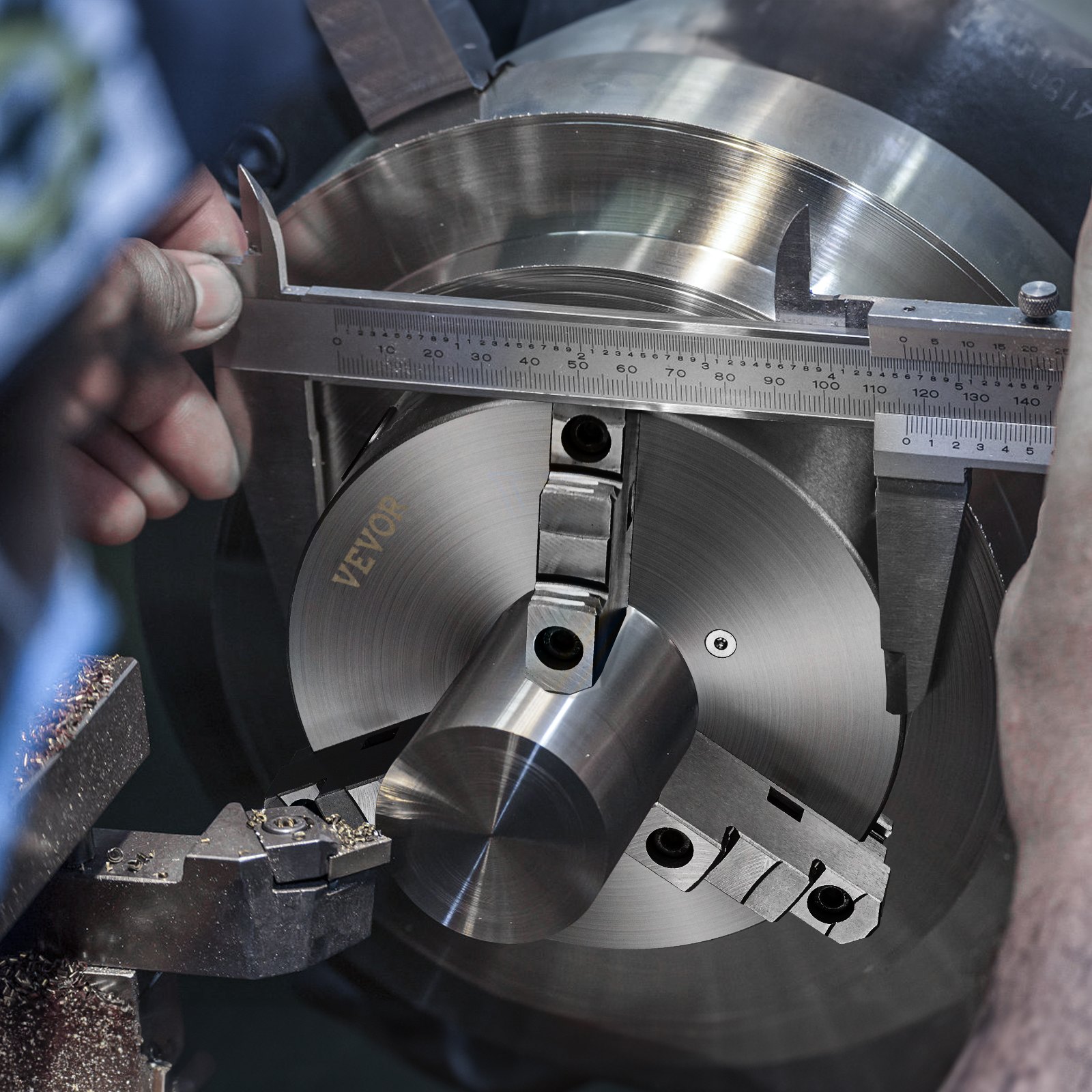

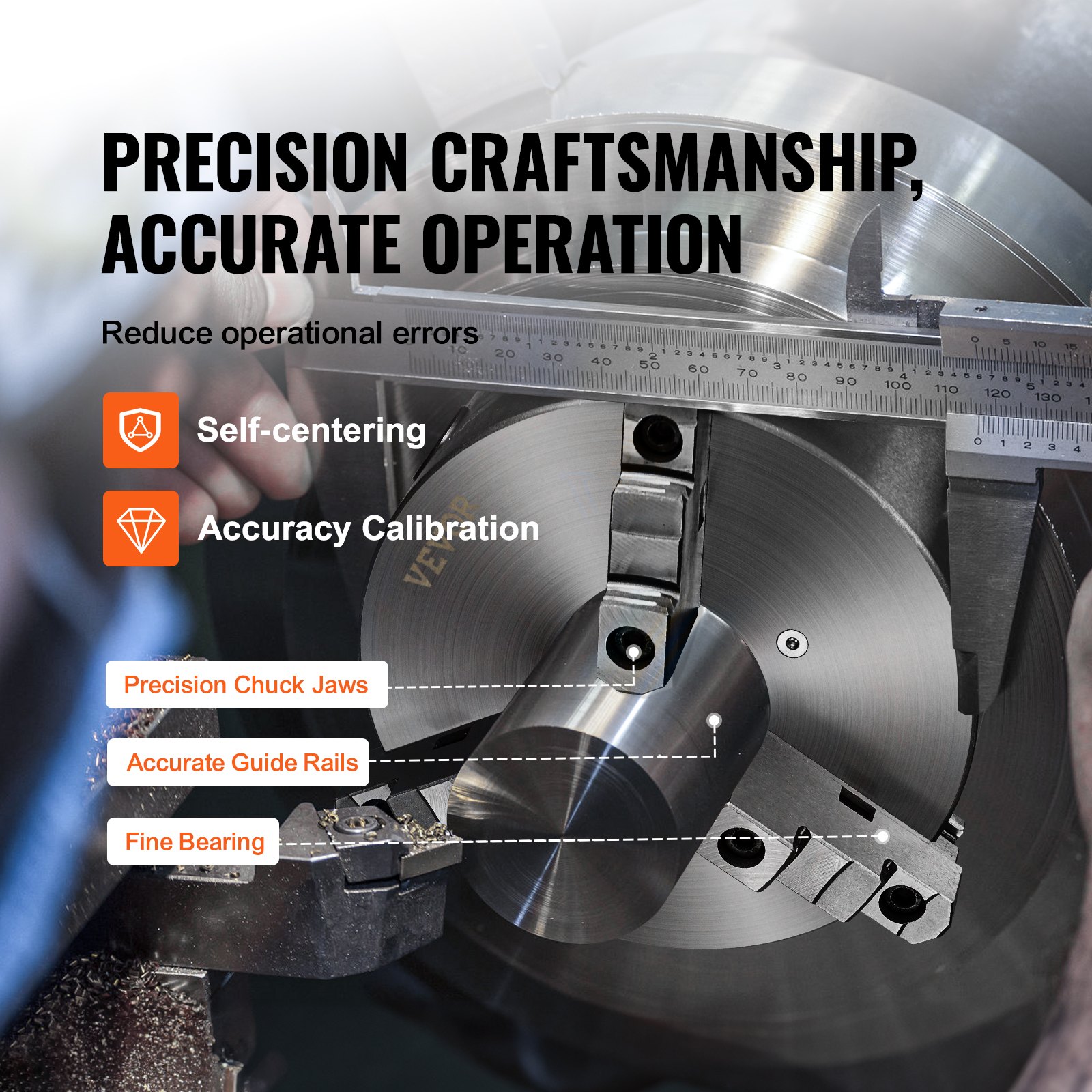

- High precision: A high-precision machining process ensures the structural stability and machining accuracy of the three-jaw chuck. The self-centering turned part contains a sensitive bevel gear and three pinions, contributing to precise machining progress. The bearing tolerance is ≤ 0.05 mm.

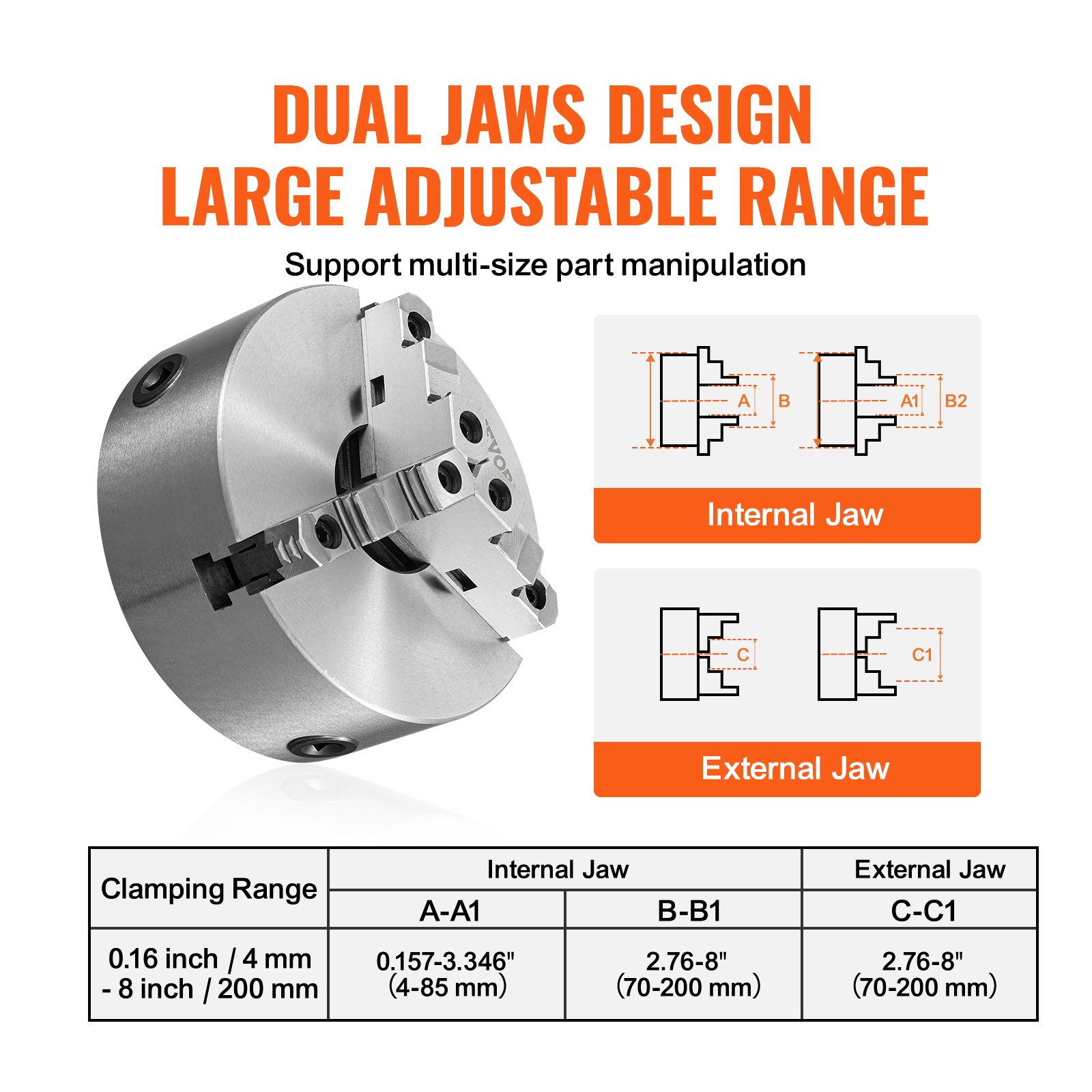

- Dual-Use Back: The clamping jaws can be used as both inner and outer jaws. The outer jaws are capable of clamping larger industrial parts. The clamping range of 4 to 200 mm ensures precise clamping and securing of various industrial components.

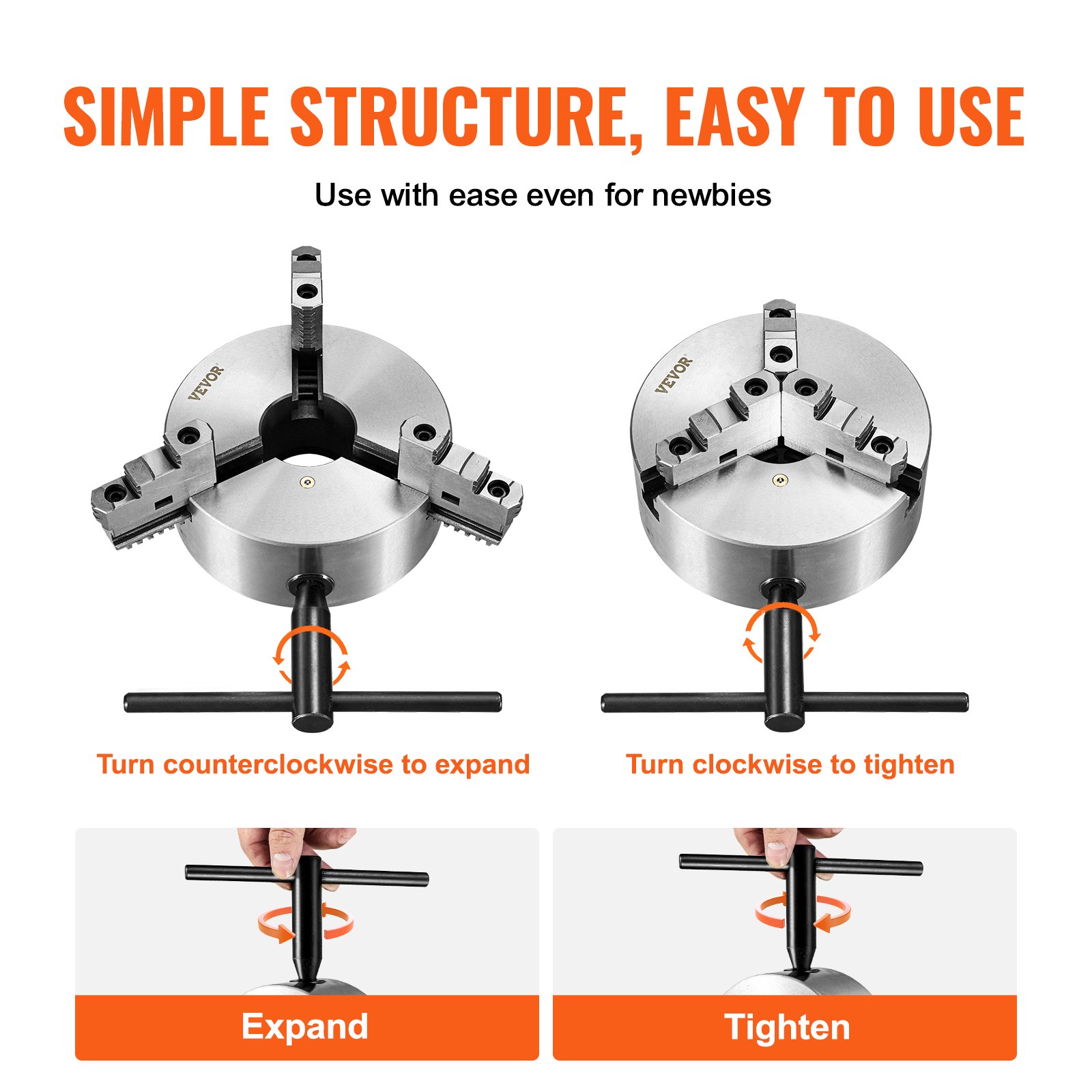

- Easy to use: The 3-jaw chuck features a simple and compact design, offering an optimal balance between function and reliability. The built-in self-centering function allows you to use it without repeated calibration. Simply install it in the correct order and you can use it with confidence.
- Applicable to various lathes: Our self-centering chuck can be perfectly adapted to your application requirements, whether you are working in metalworking, drilling, or milling. Using our chuck allows you to improve machining efficiency and operational flexibility, thus achieving accurate and consistent results.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 11 reviews
Reviews 4.7
All reviews are from verified purchases
See all 11 reviews
About this item

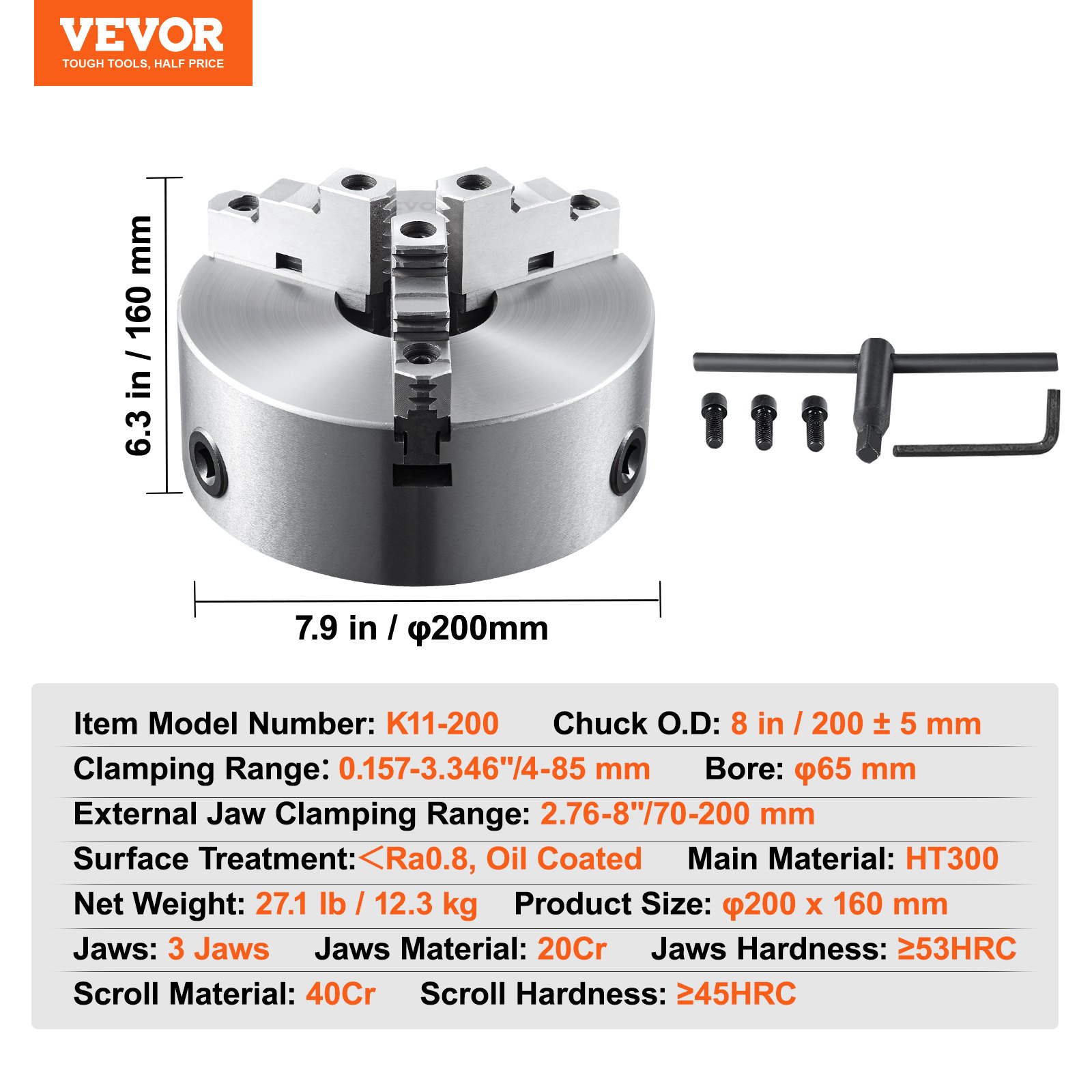

Product specification
- Article model number
- K11-200
- Chuck outer diameter
- 200 ± 5 mm (8 inches)
- Clamping range
- 4–85 mm (0.157–3.346 inches)
- Clamping range of the outer jaws
- 70–200 mm (2.76–8 inches)
- Fixed thread
- 3-M10
- Bore
- φ 65 mm
- Surface treatment
-
Description

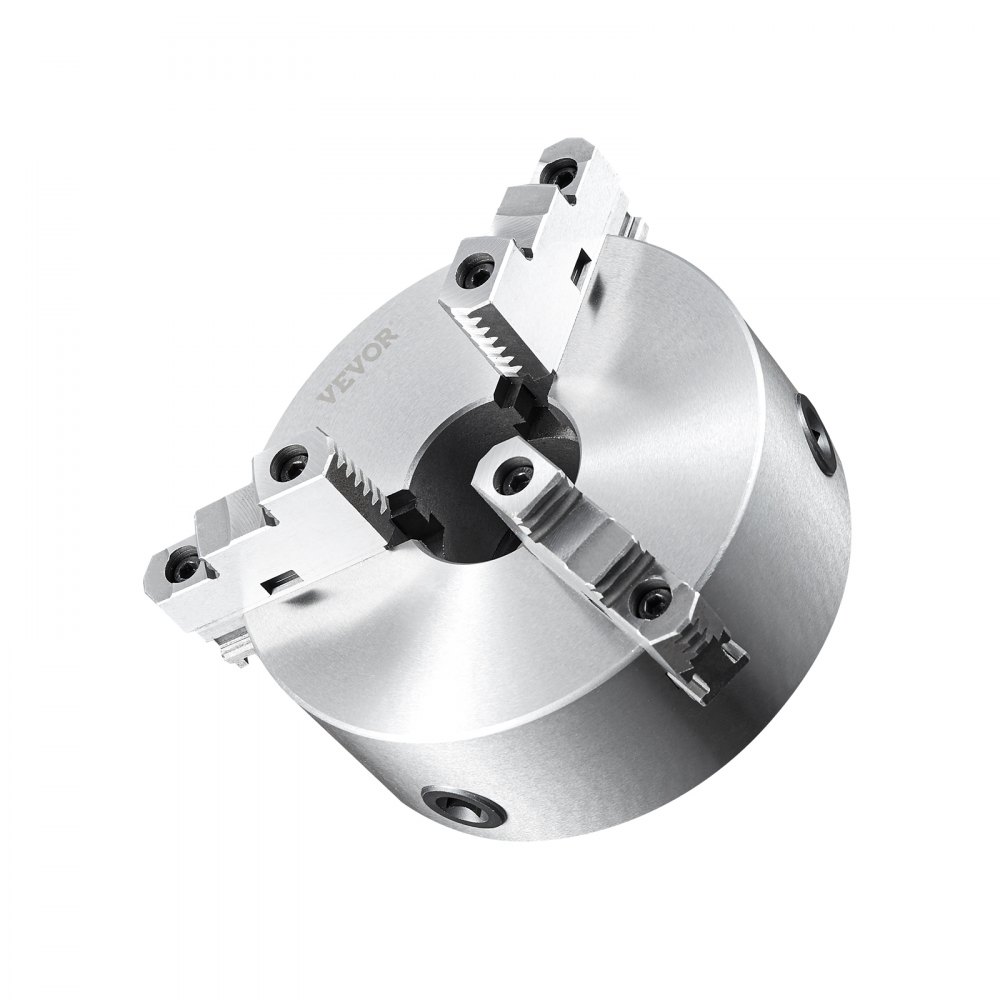

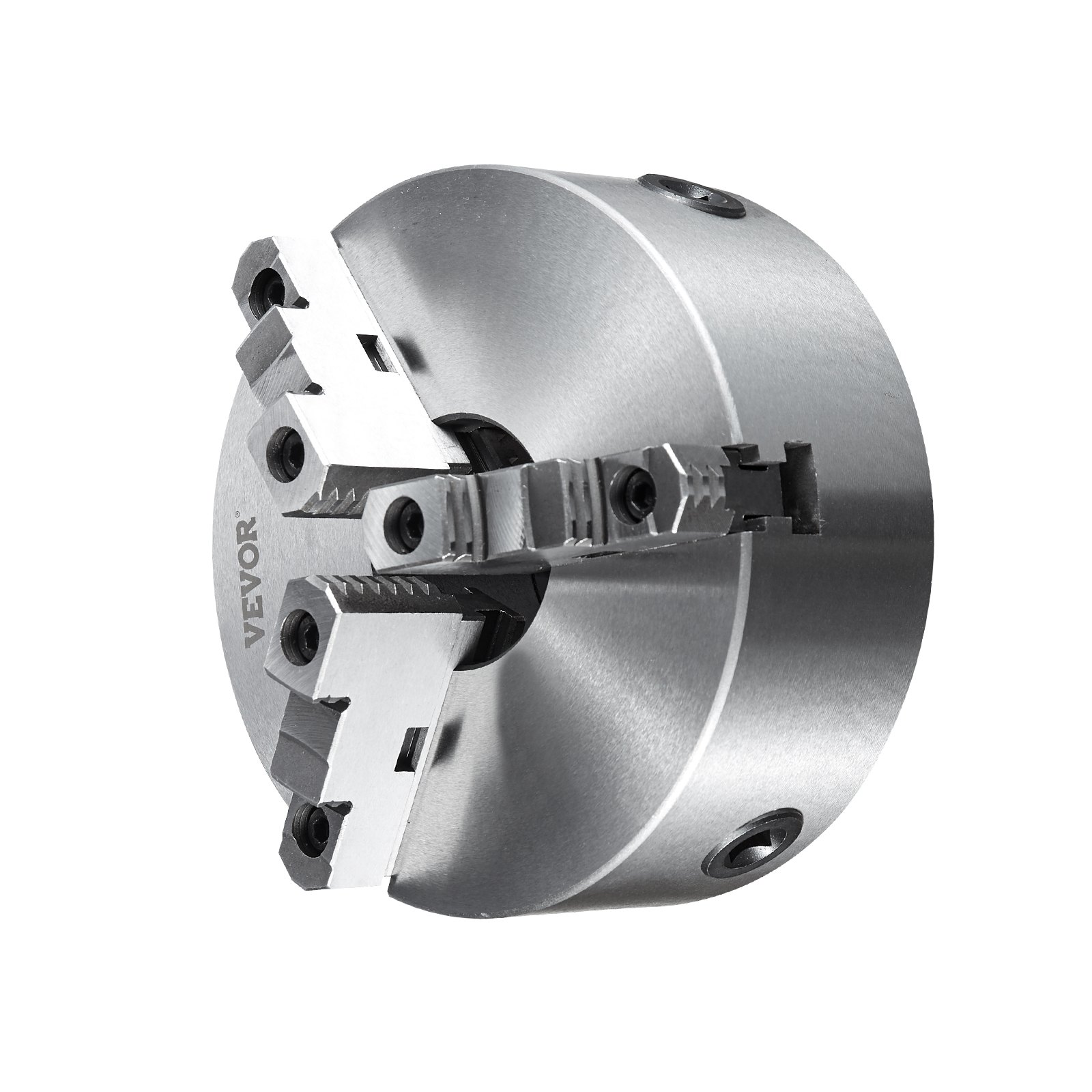

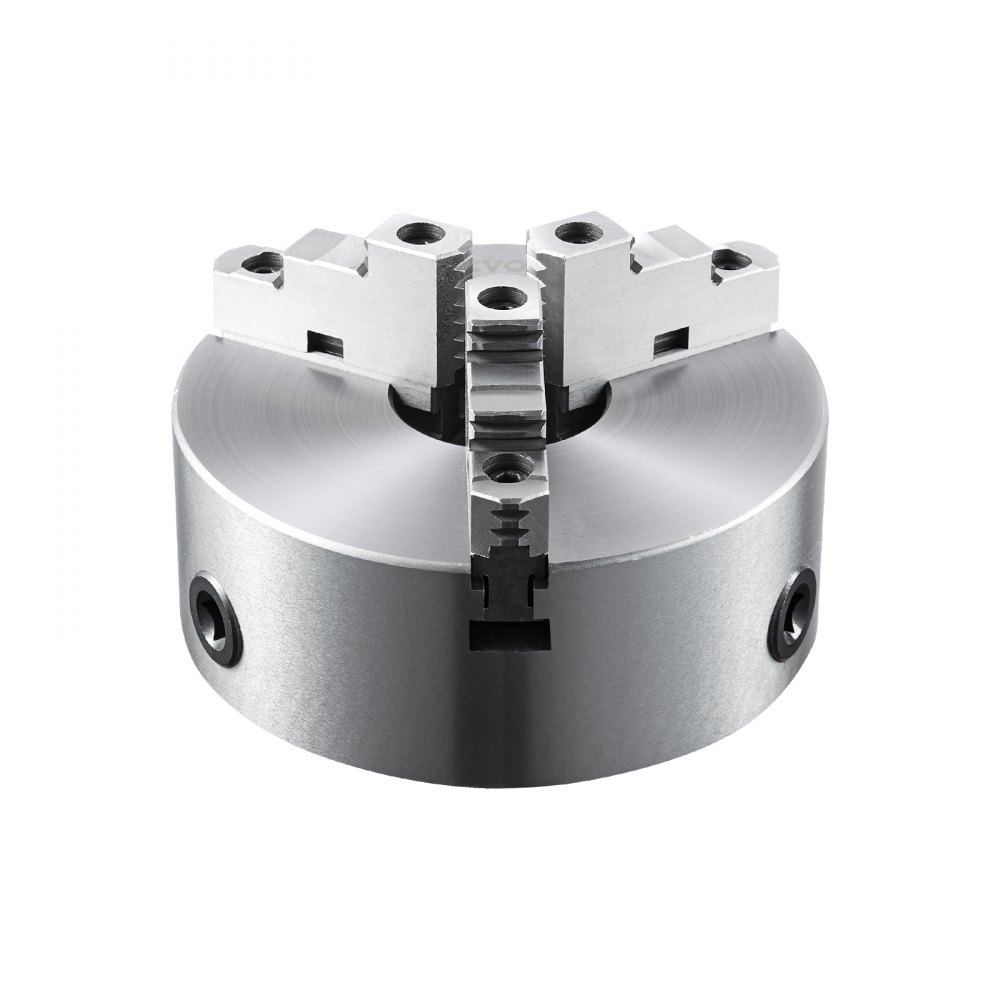

200 mm self-centering chuck
The 200 mm three-jaw chuck is made of high-strength HT300 material, offering high compressive strength and a long service life. It features an inner and outer jaw for clamping larger industrial parts and a self-centering function to eliminate the need for recalibration.
The three-jaw chuck features a self-centering function and a bevel gear drive for precise control of the workpiece's accuracy. A bearing tolerance of ≤ 0.05 mm ensures the chuck's structural stability and high accuracy.
The clamping jaws can be used as both internal and external jaws and are suitable for clamping larger industrial components. They can precisely clamp and secure various industrial components.

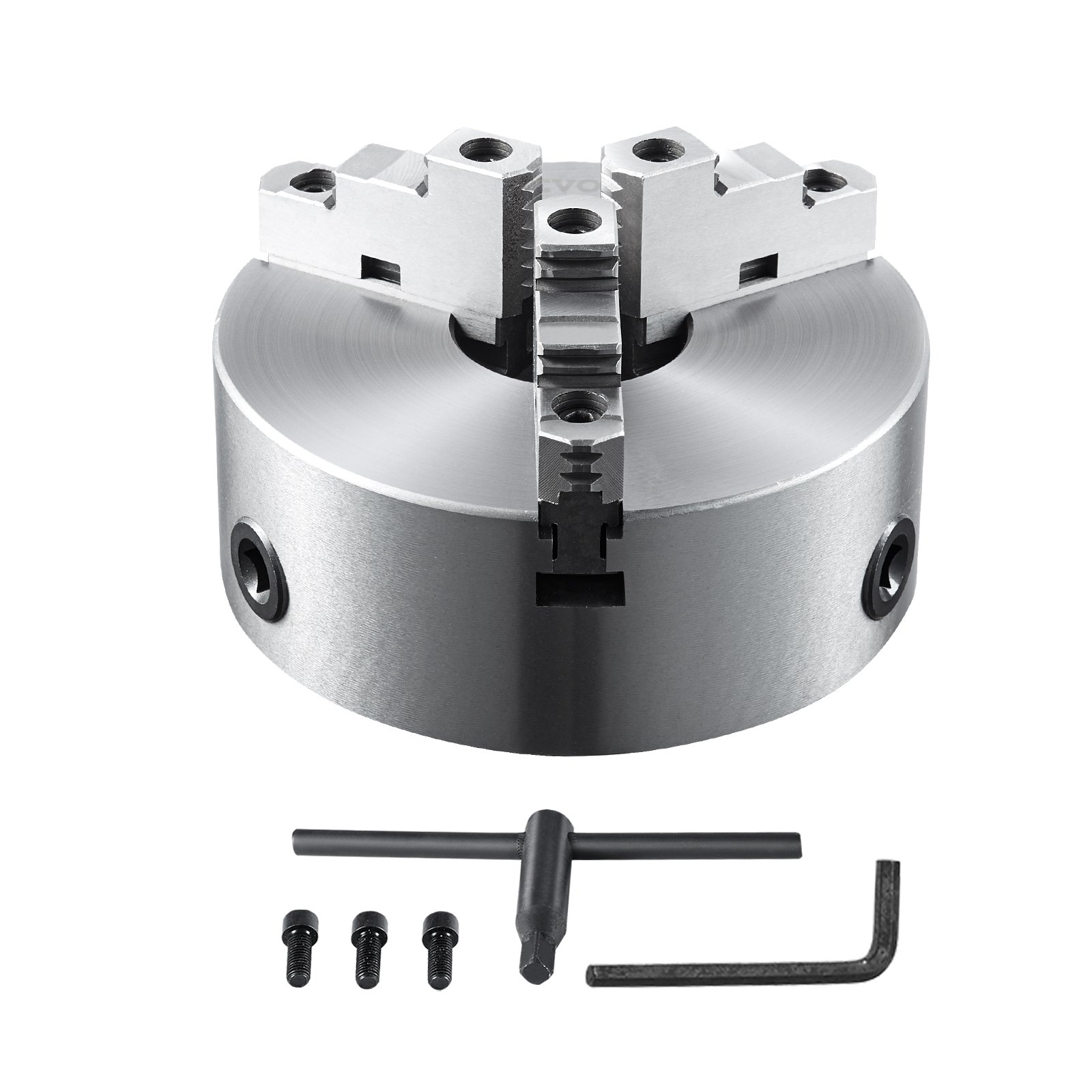

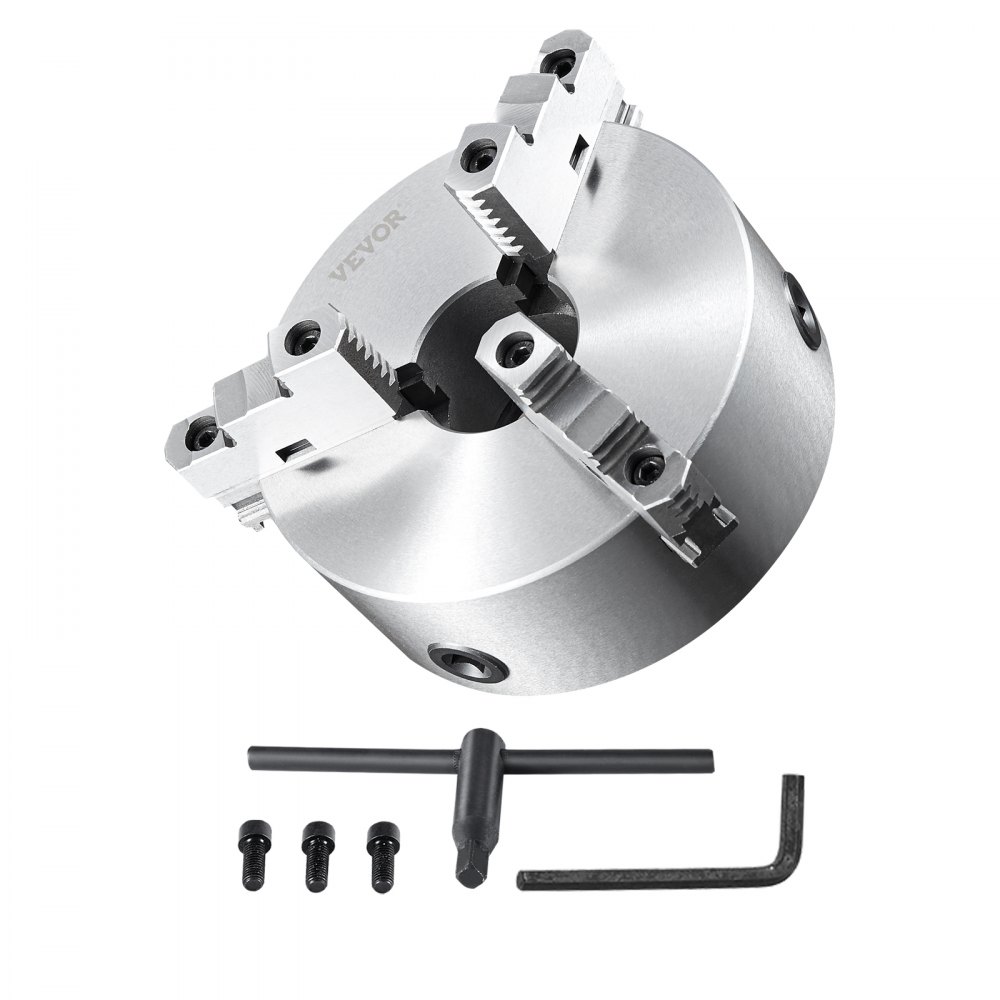

This chuck consists of a chuck body, a movable chuck, and a jaw drive with a simple structure. When clamping a workpiece, the chuck is able to automatically find and hold the center of the workpiece.
Whether you work in woodworking, metalworking, drilling or milling, our self-centering 3-jaw chuck meets your requirements for improved machining efficiency and increases the flexibility and precision of your work.
Product guides and documents
User manual-de (PDF) Review
Questions and Answers (1)
Hallöchen! Geht das Backenfutter auf die vevor 7X14 Drehmaschine?
Es wird empfohlen, für den Anschluss eine Flanschplatte anzufertigen.
