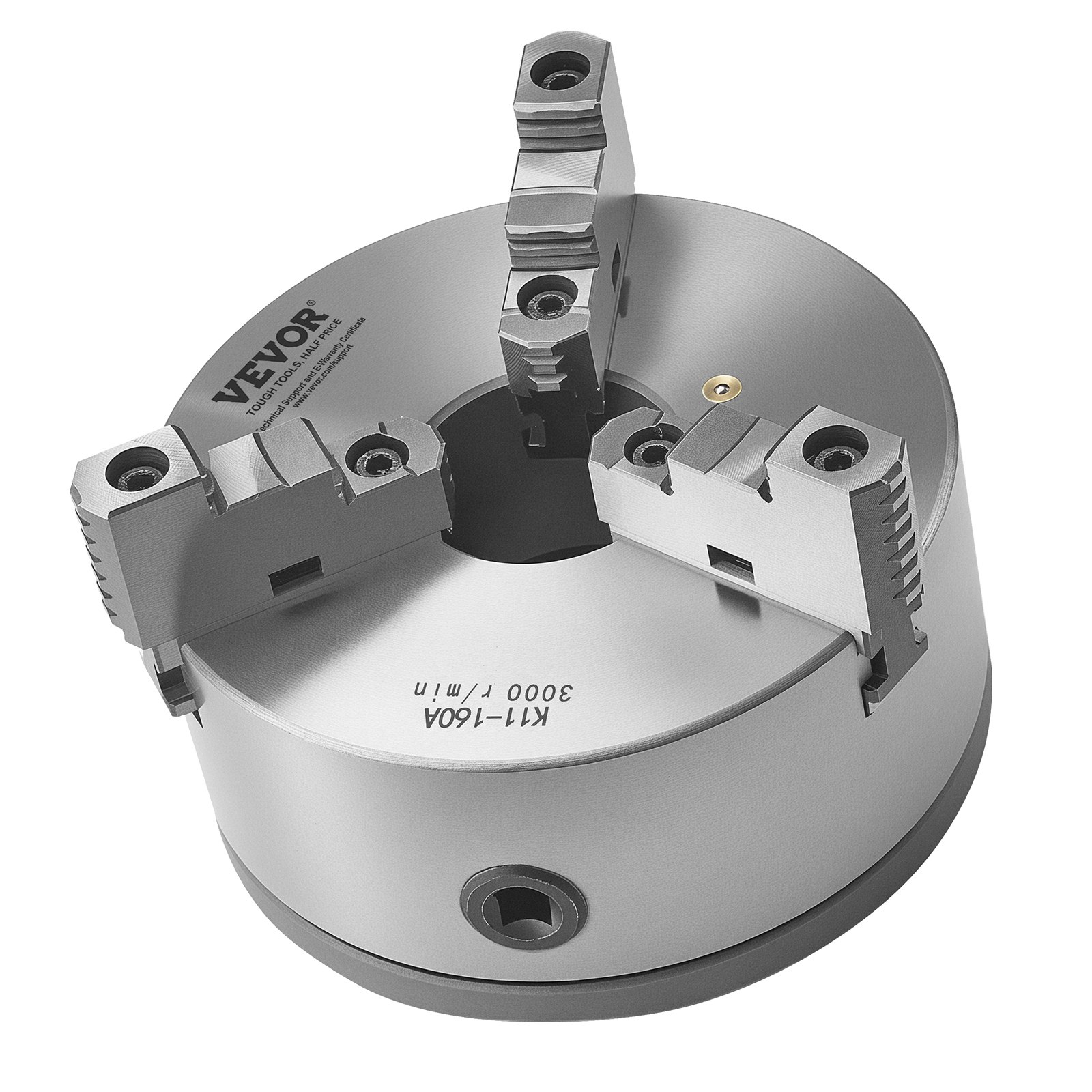

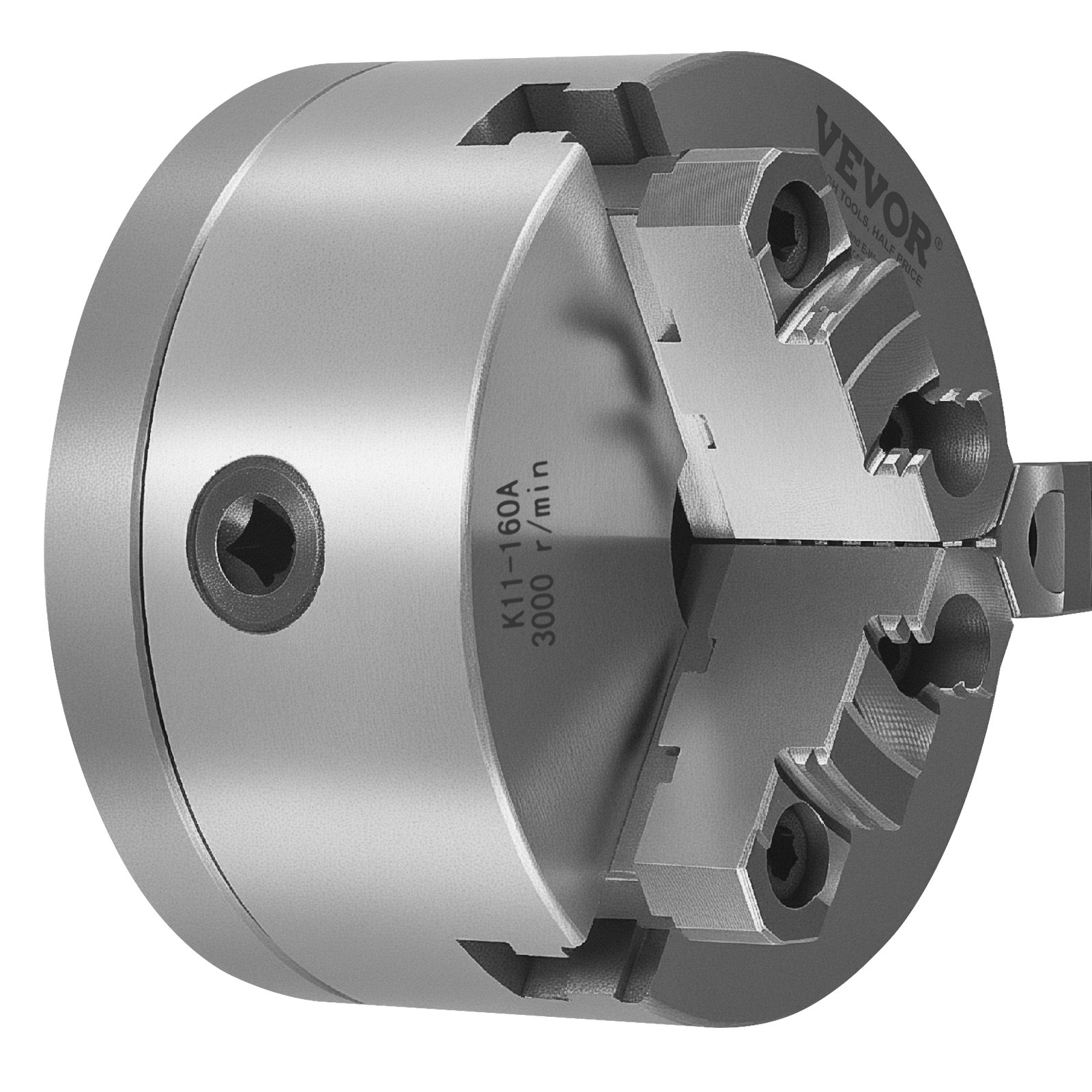

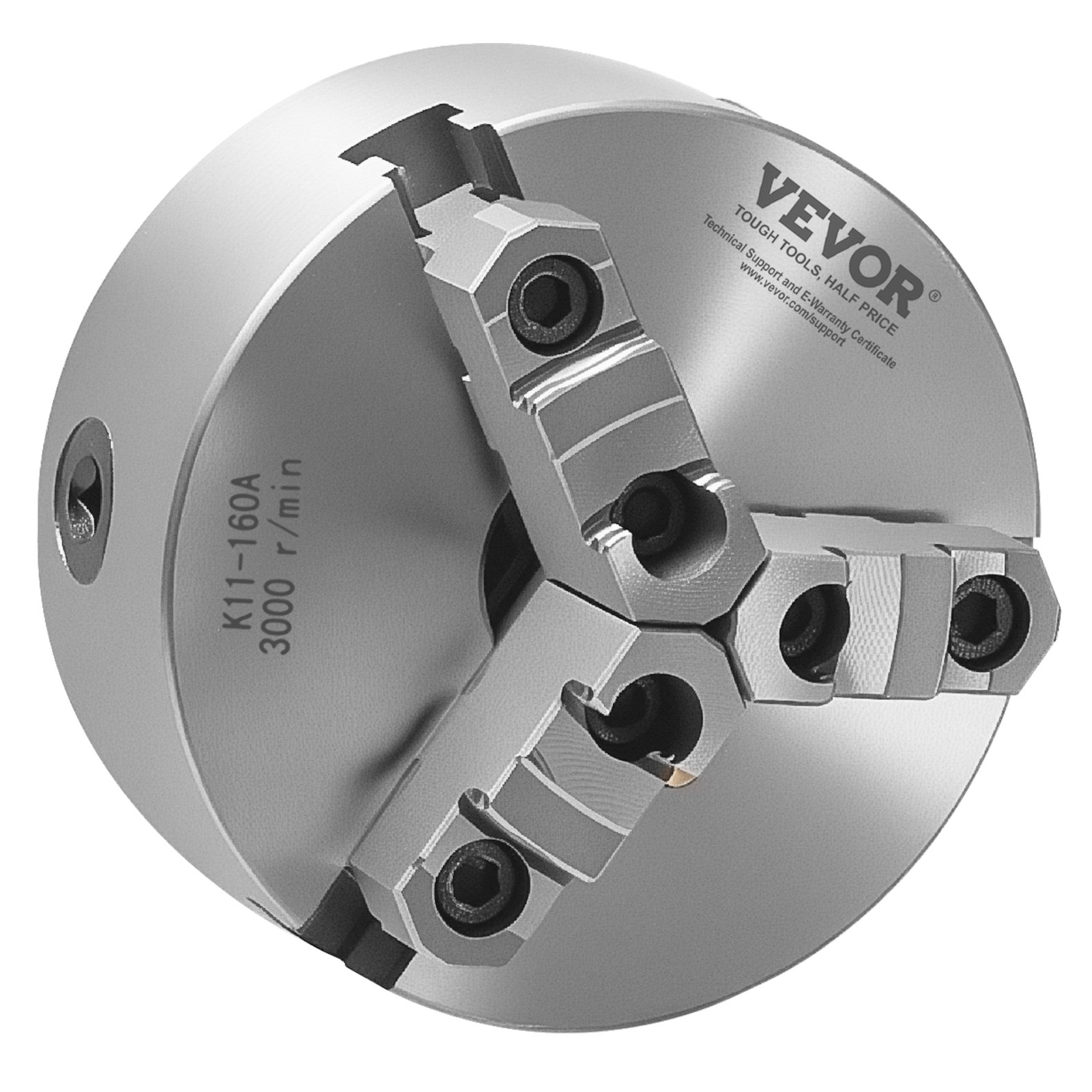

VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
+12
More
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes
VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes VEVOR 3-jaw chuck, φ160 mm, self-centering chuck with 38.1 mm 8-threaded carrier plate, 3-145 mm clamping range with T-bolts, HT300 material, for wood/metal lathes

Features & Details

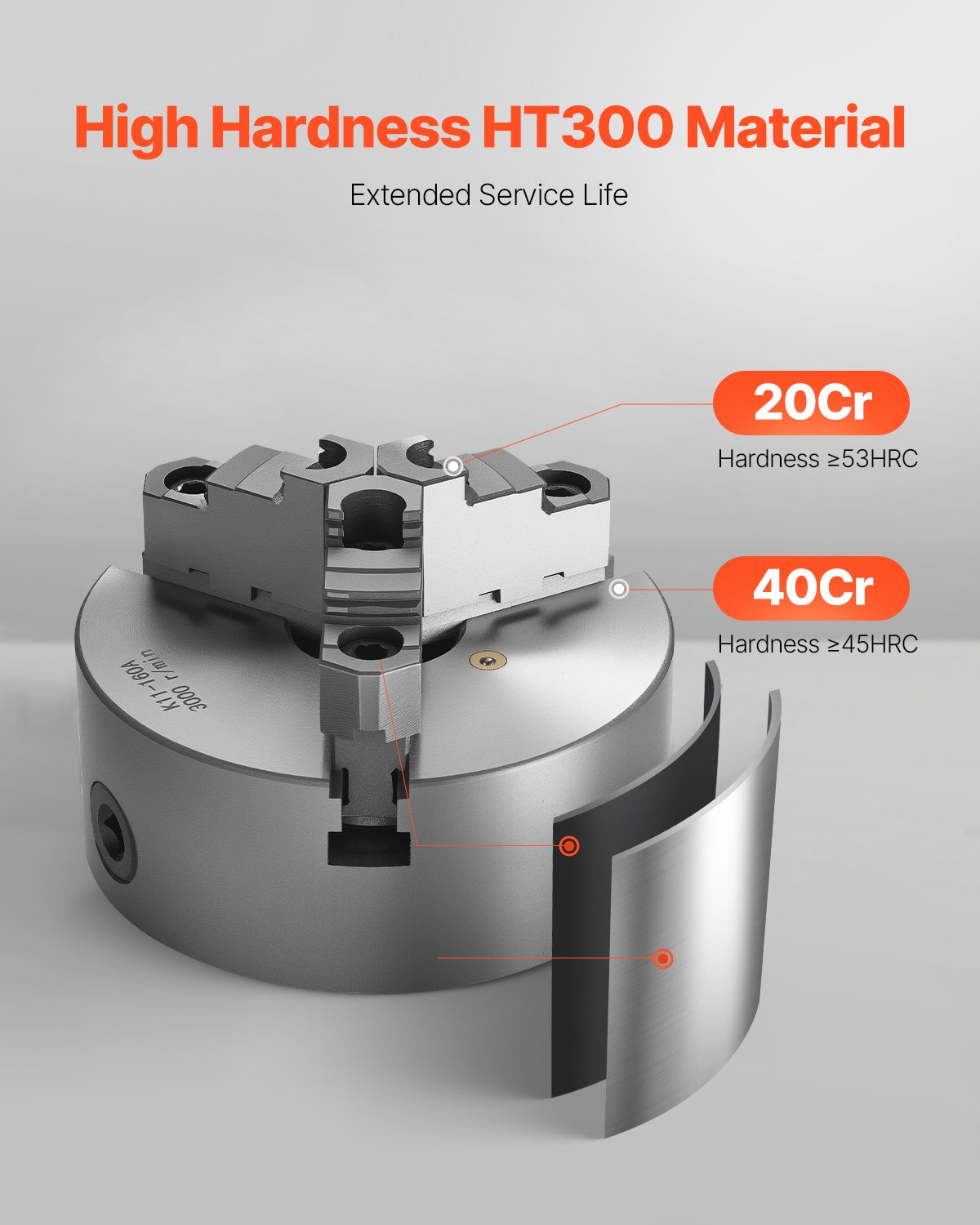

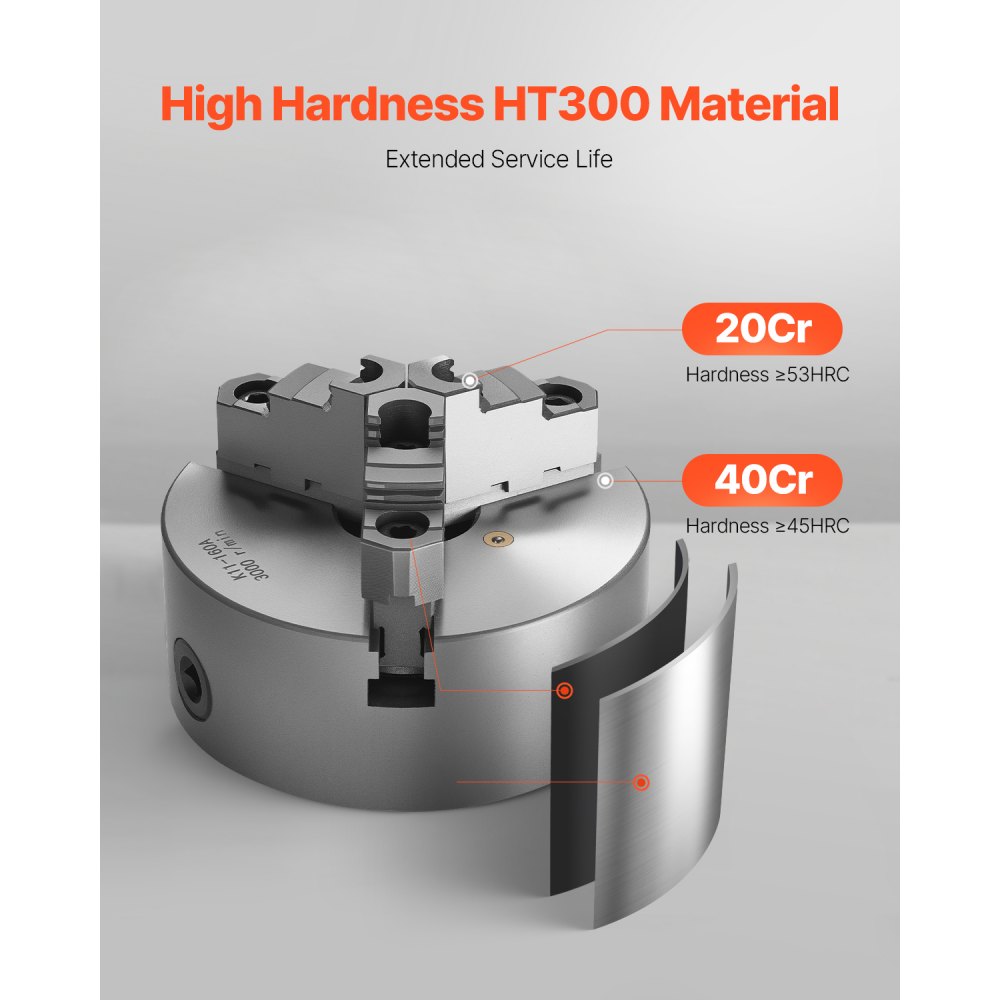

  • Exceptional hardness: This chuck, made of high-quality HT300 cast iron, features jaws with a hardness of ≥53 HRC and a spiral plate hardness of ≥45 HRC. Quenching for enhanced durability ensures excellent hardness and corrosion resistance, guaranteeing a long service life.

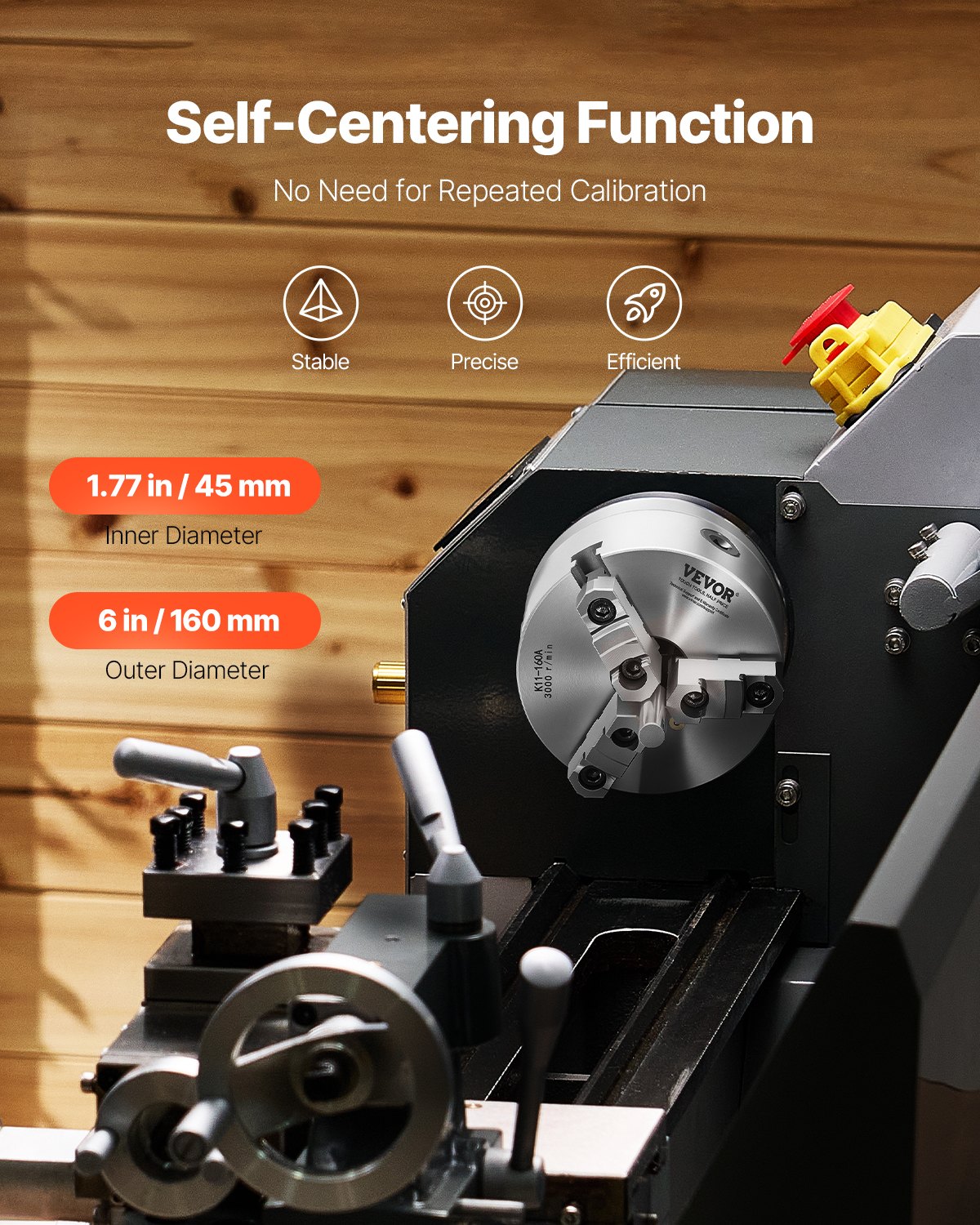

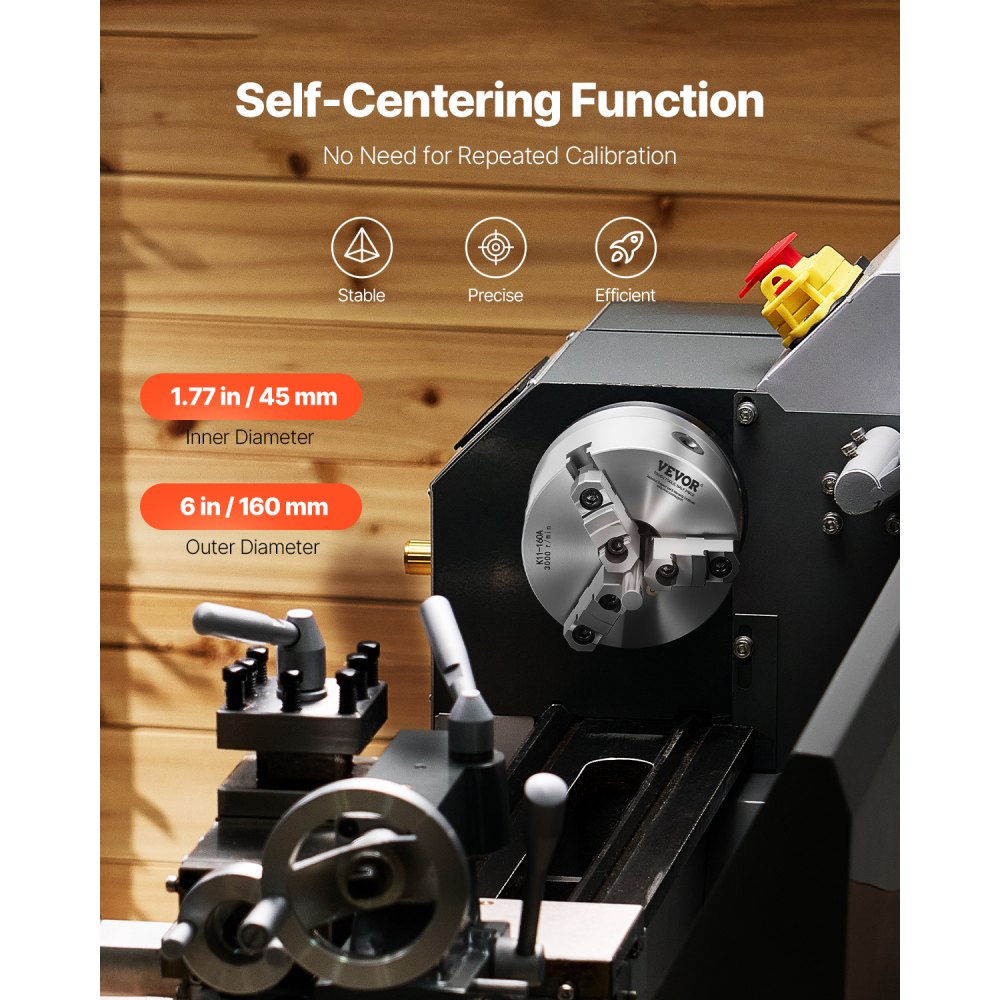

  • Self-centering function: The integrated self-centering feature allows for trouble-free use without repeated calibration. It ensures precise control of clamping accuracy and provides stability and high precision of the chuck for flawless performance.

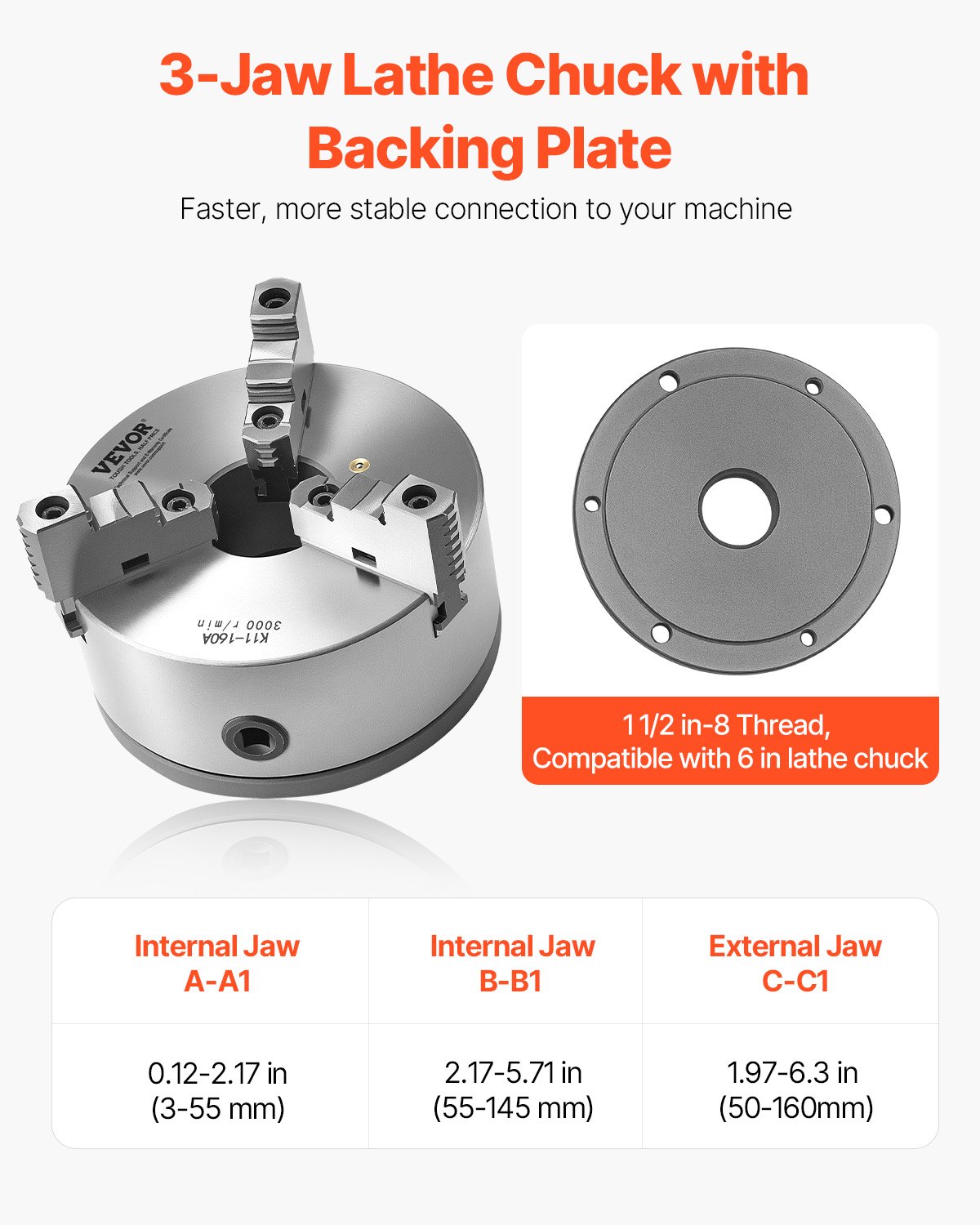

  • 6-inch (160 mm) three-jaw chuck: Featuring a 1 1/2-inch (38.1 mm) threaded adapter plate, this chuck allows for a faster and more stable connection to your machine. With an inner diameter of 1.77 inches (45 mm) and an outer diameter of 6 inches (160 mm), it clamps workpieces from 0.12 to 5.71 inches (3 to 145 mm) in diameter, making it versatile for various sizes.

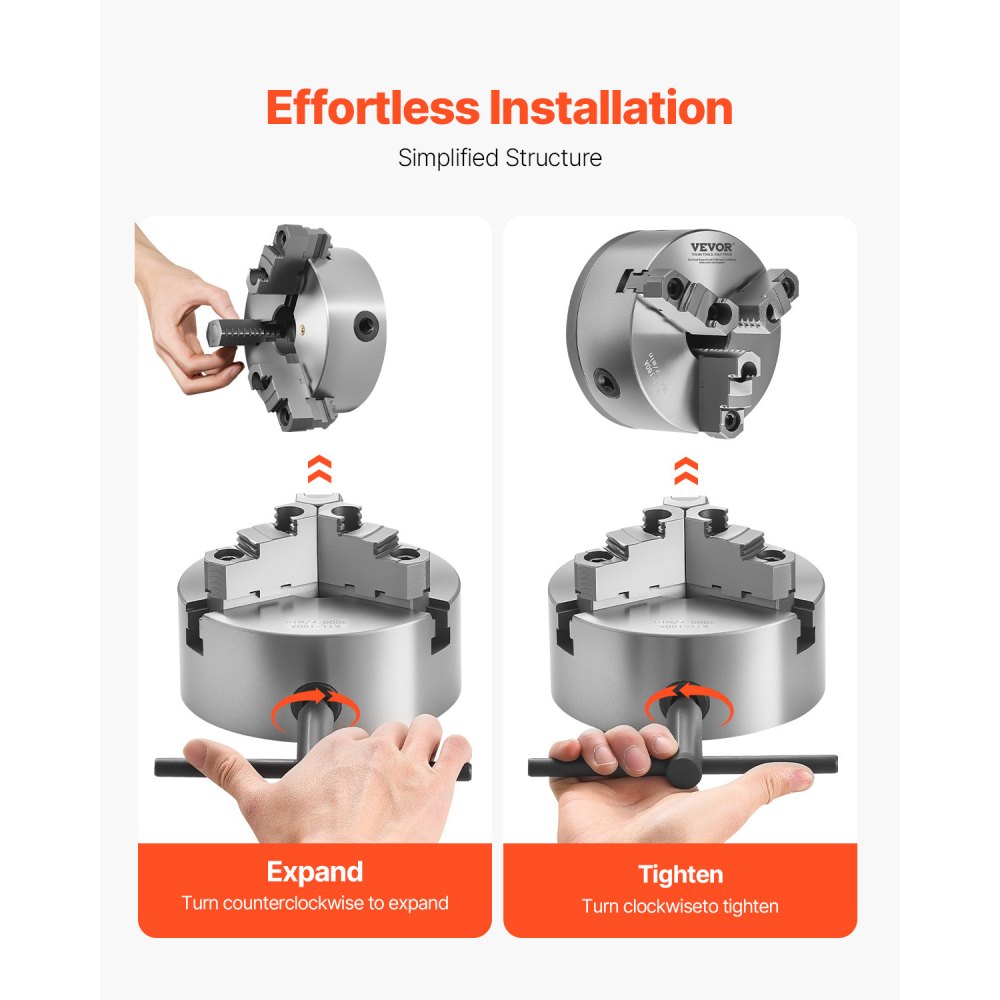

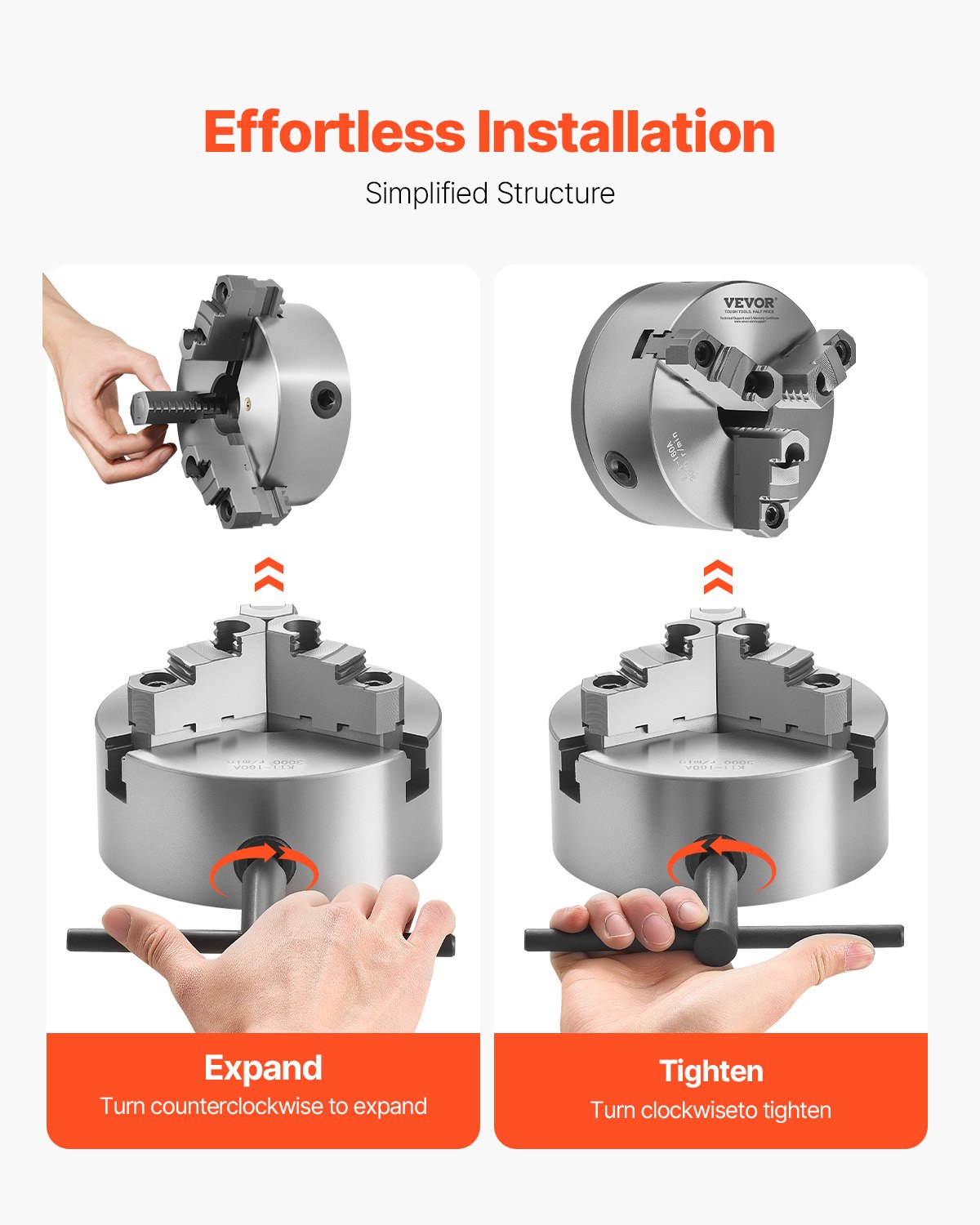

  • Effortless operation: This chuck impresses with its simple, compact design, combining functionality and reliability. Thanks to the T-shaped tool, mounting our chuck is a breeze. Simply follow the instructions for a smooth setup.

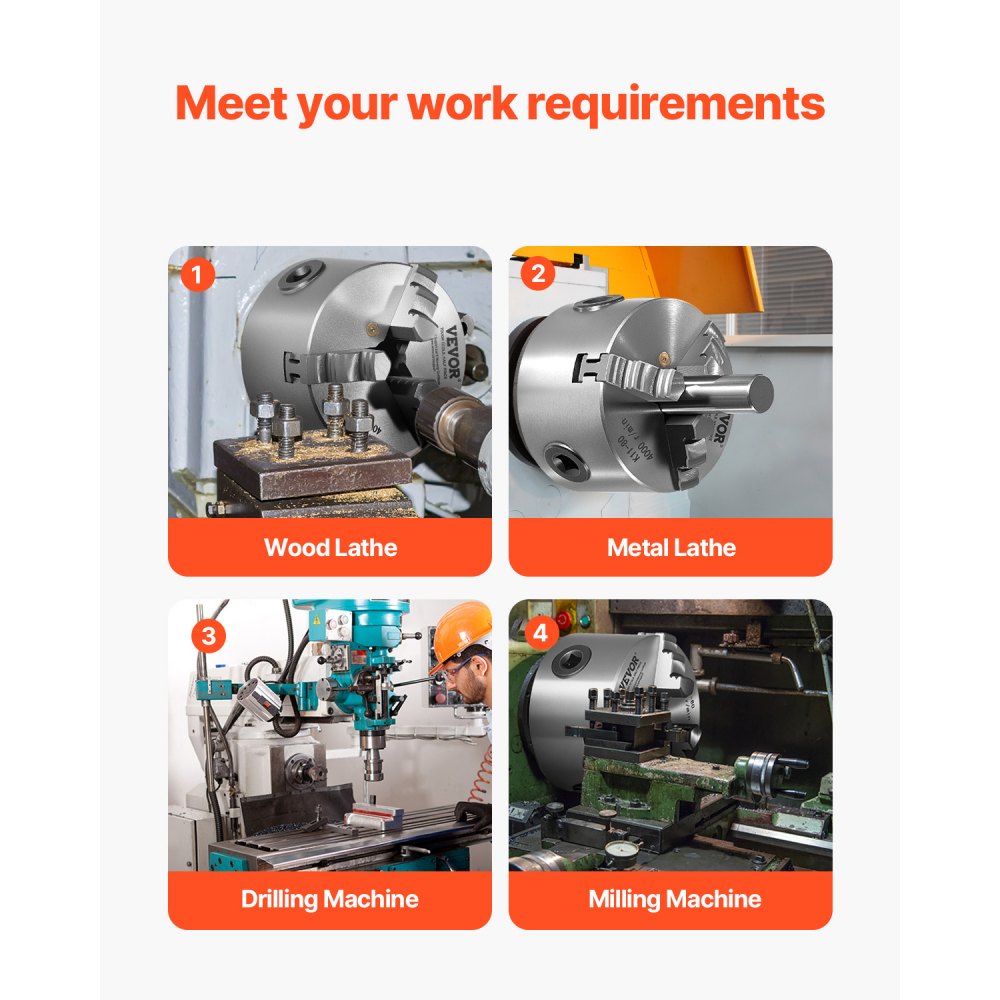

  • Ideal for most lathes: Whether you're working with metal, drilling, or milling, our chuck increases your machining efficiency and flexibility. It helps you achieve precise and consistent results every time.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews

See all 1 reviews

About this item

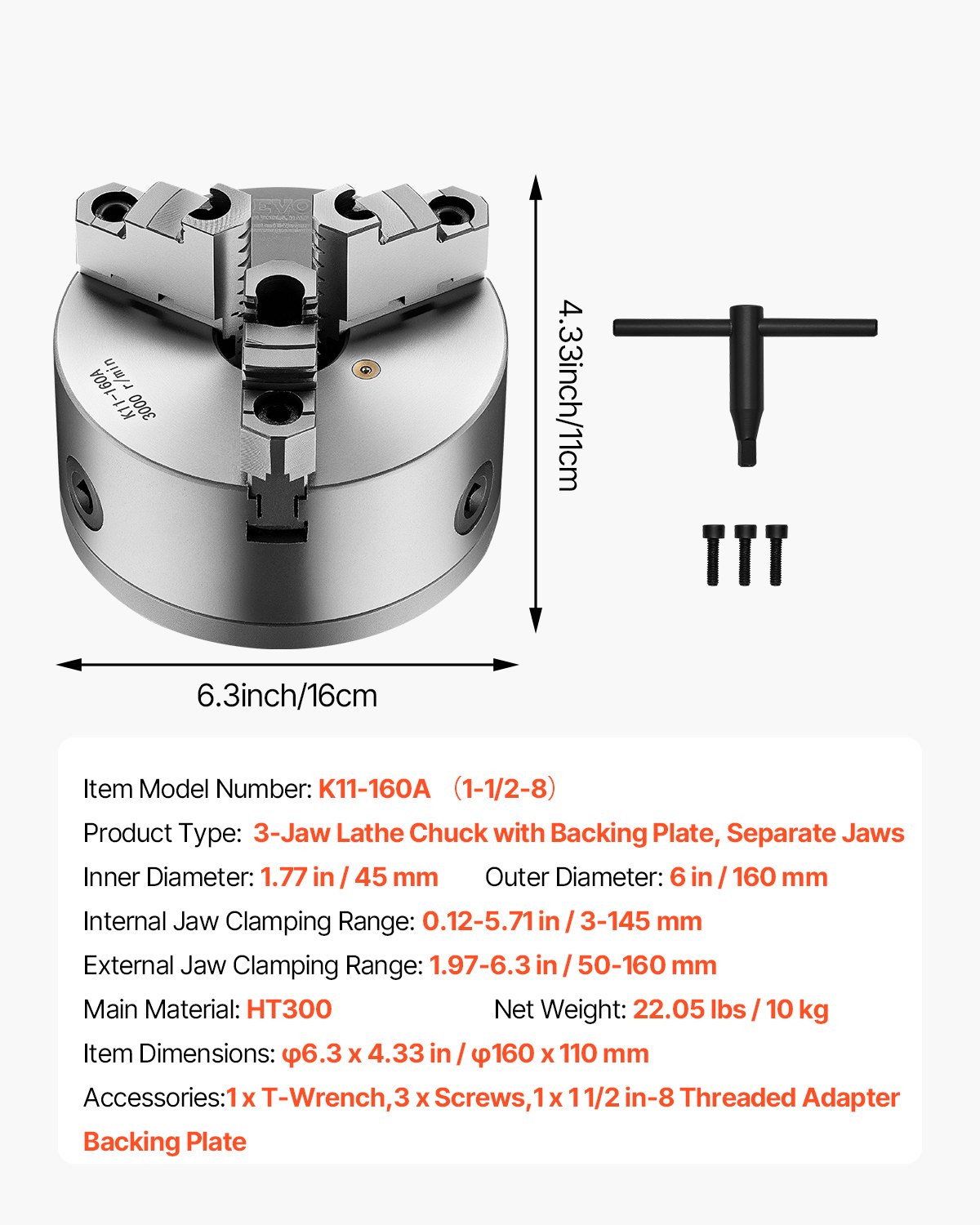

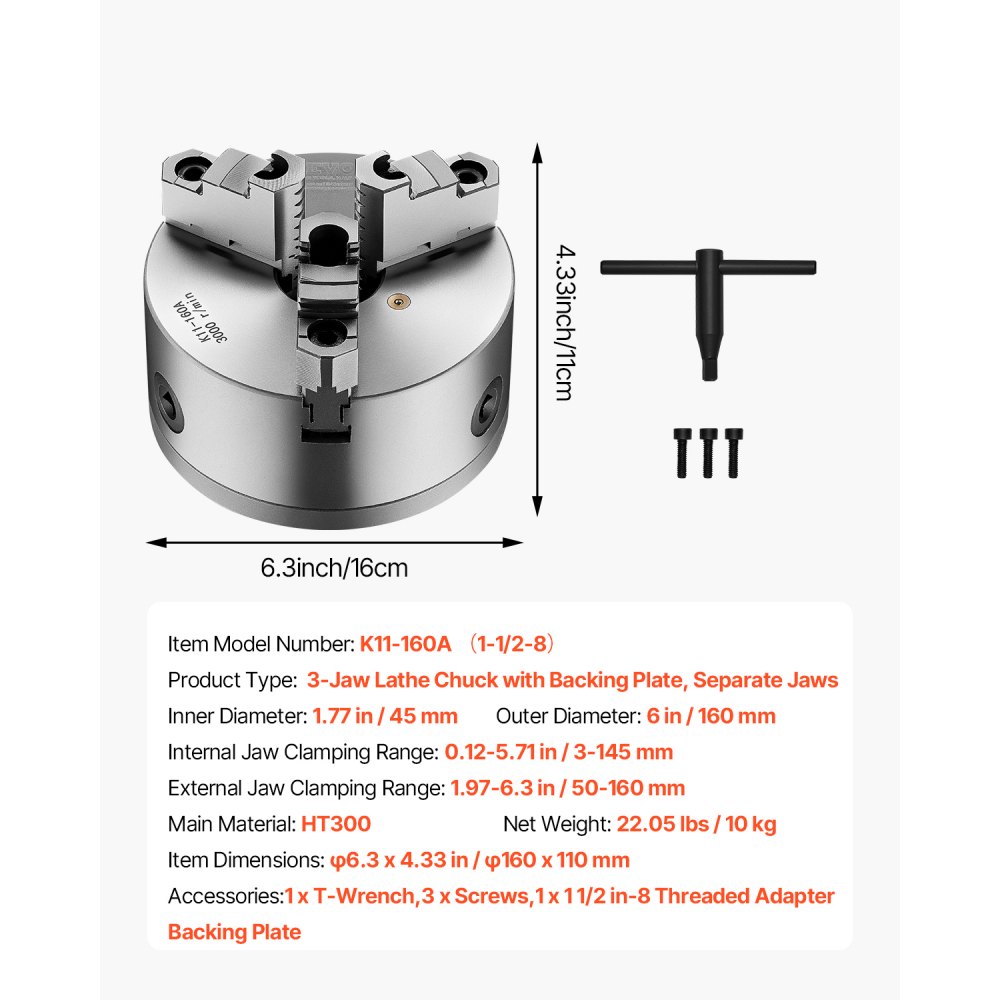

Product specification
Item model number
K11 160A (1-1/2-8)
Product type
3-jaw chuck with carrier plate, separate jaws
Inner diameter
1.77 inches / 45 mm
Outer diameter
6 inches / 160 mm
Internal jaw clamping range
0.12–5.71 inches / 3–145 mm
External jaw clamping range
1.97–6.3 inches / 50–160 mm
Main material
HT300
Net weight
22.05 lbs / 10 kg
Item dimensions
φ6.3 x 4.33 inches / φ160 x 110 mm
Description

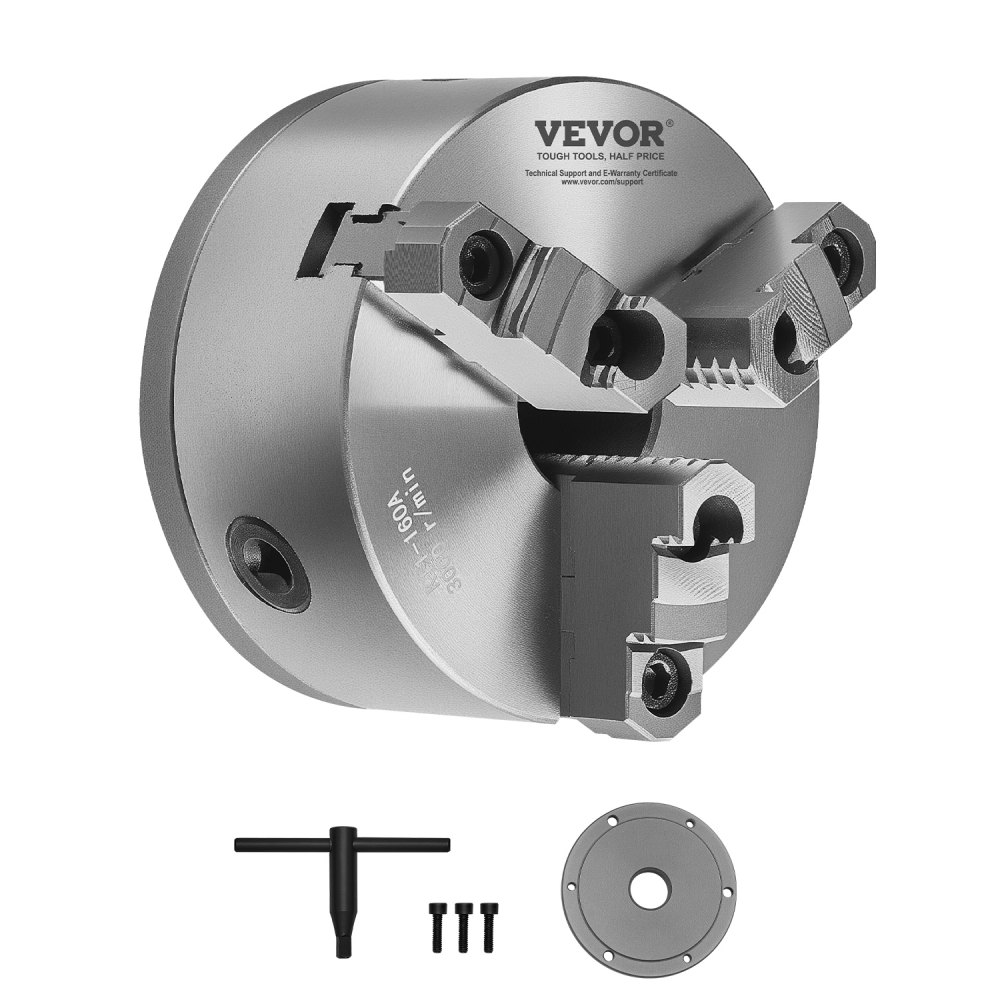

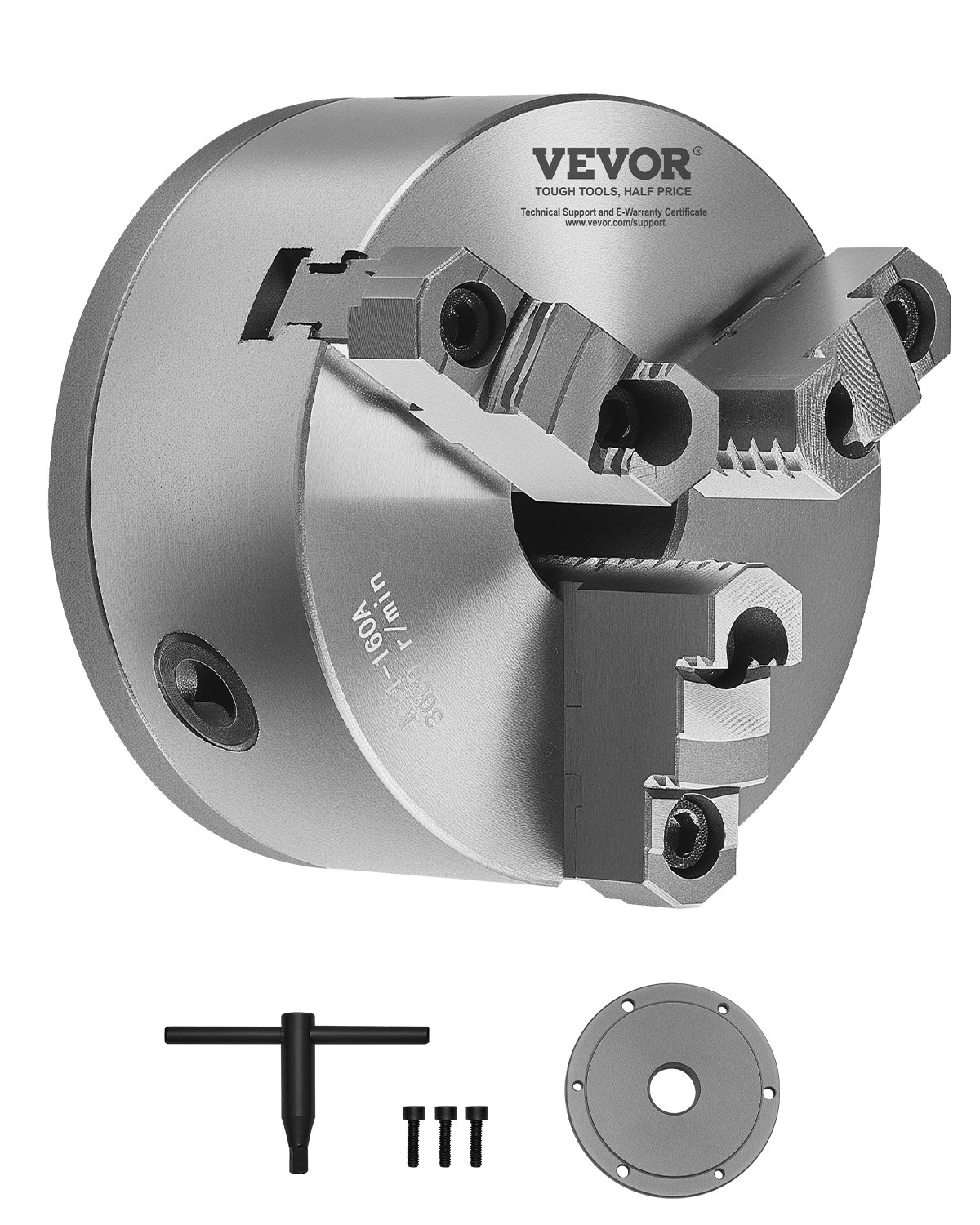

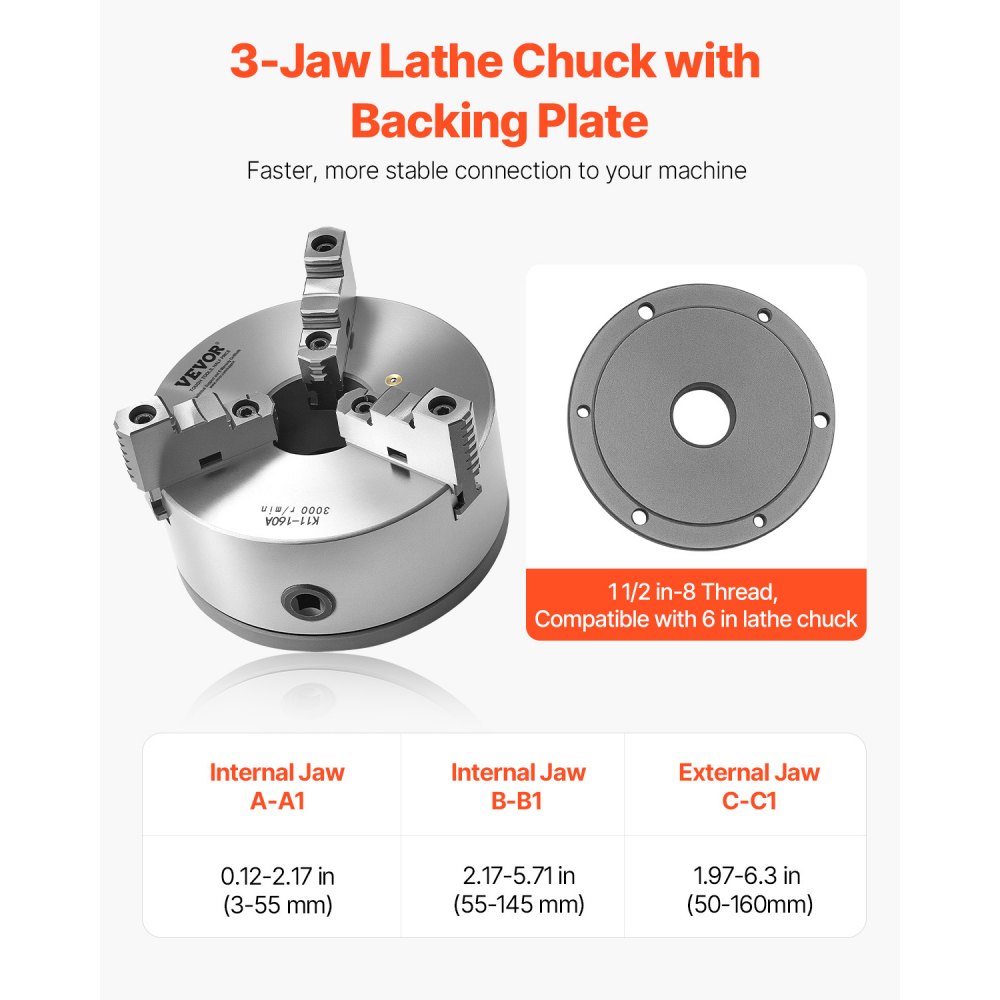

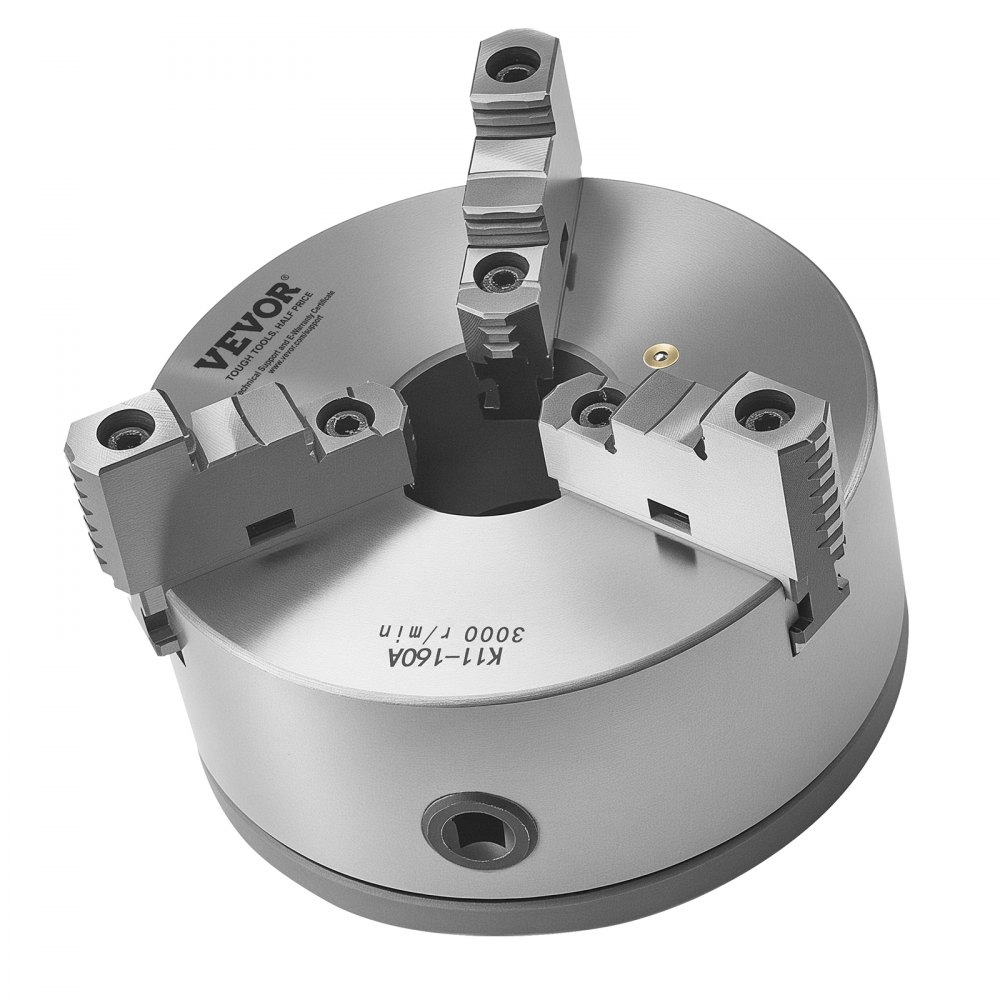

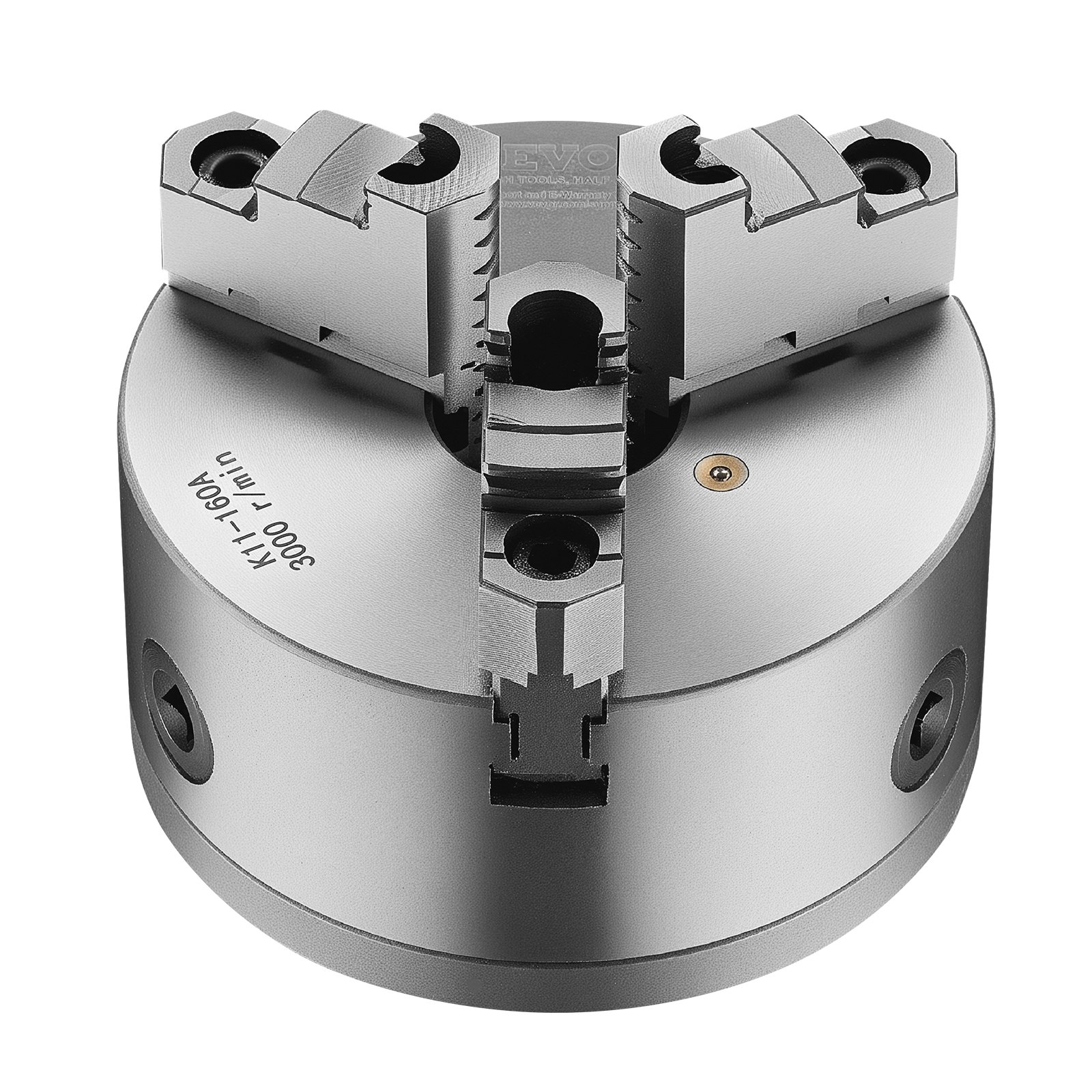

6 inch (160 mm) three-jaw chuck with carrier plate
Our chuck with carrier plate enables faster and more stable machine connections. Made from high-quality HT300 cast iron with a jaw hardness of ≥53 HRC for exceptional durability. The self-centering design ensures high-precision clamping from 0.12 to 5.71 inches with a 1.77-inch inner diameter and a 6-inch (160 mm) outer diameter.
Key Features
Stable and reliable
This chuck is designed for high hardness and precision and features a T-shaped tool for easy installation. Whether turning or clamping small workpieces, you can always rely on consistent, dependable performance.
Precision machining
With a self-centering function and fine toothing, our chuck ensures precise control of clamping accuracy and is therefore ideal for precision machining tasks.
Versatile
This self-centering chuck is designed for both internal and external clamping and meets a wide range of machining requirements. It offers efficient and stable clamping performance.
