Features & Details

  • Versatile: This cross-table milling machine is ideal for mounting on drill presses for precise positioning. It can be used for most types of milling and drilling operations and is perfect for all drill stands, drill presses, and milling machines. Table size: 23 x 13 inches / 58 x 33 cm
  • High-quality structure: Made of heavy-duty, corrosion- and rust-resistant cast iron, the angle milling table withstands harsh environmental conditions and is designed for a long service life.
  • High polishing and rigidity: The composite slide, with its high hardness and rigidity, is precision ground and does not deform easily. Three precise T-slots can meet different force requirements.
  • 2 axes, 4 directions of movement: Handles with trapezoidal lead screws allow for easy direction adjustment. X-axis travel: 8.3 inches / 210 mm, Y-axis travel: 4.3 inches / 110 mm. A precise scale allows you to set the optimal working position as needed.
  • Tightening adjustment: Equipped with several high-quality screws and nuts, you can easily adjust the tightness of this cross slide. Convenient for your use.

Frequently Bought Together

Reviews 4.7
All reviews are from verified purchases
Average rating based on 74 reviews

See all 74 reviews

About this item

Product specification
Worktable length
17.7 inches / 450 mm
Worktable width
6.7 inches / 170 mm
Lateral movement (X-route)
8.3 inches / 210 mm
Longitudinal movement (Y-route)
4.3 inches / 110 mm
Mounting hole size (horizontal)
6.2 inches / 15.7 cm
Mounting hole size (lengthwise)
5.3 inches / 13.5 cm
Case size
10 x 9 inches / 26 x 23 cm
Overall height
3.9 inches / 100 mm
Net weight
66 lbs / 30 kg
Item dimensions (L x W x H)
23 x 13 x 5 inches / 58 x 33 x 12.7 cm
Description

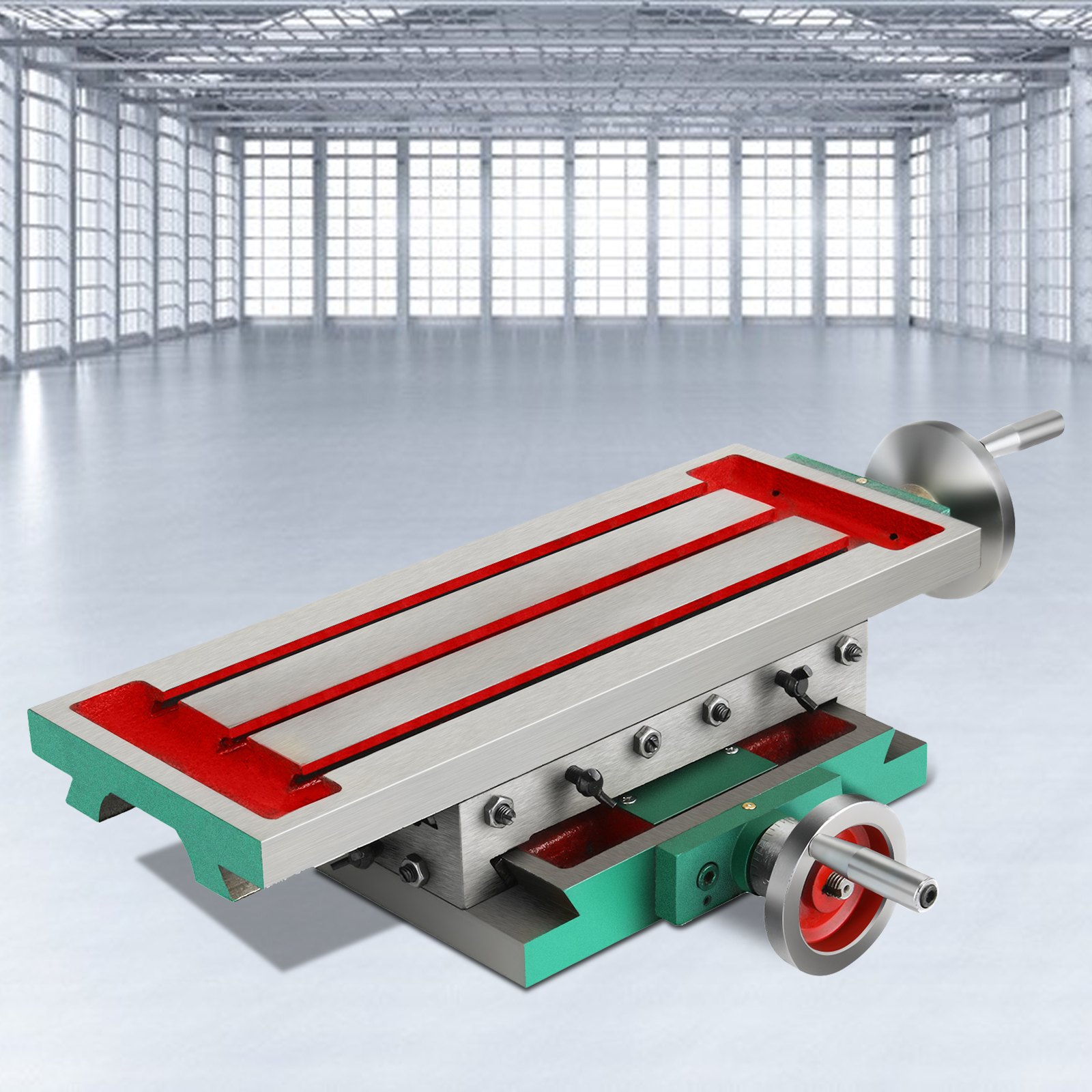

VEVOR milling machine table with adjustable x & y axis and regulate ruler.

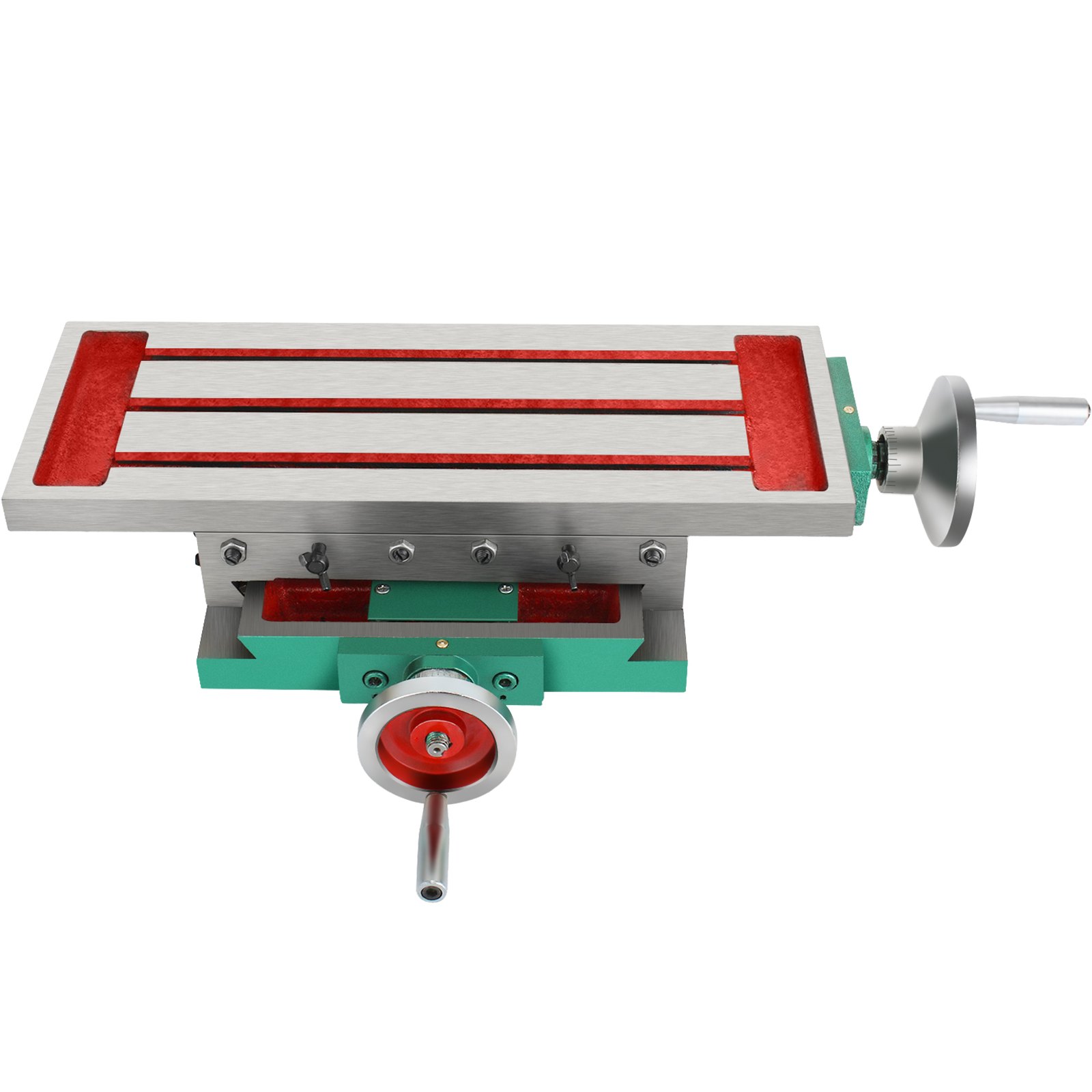

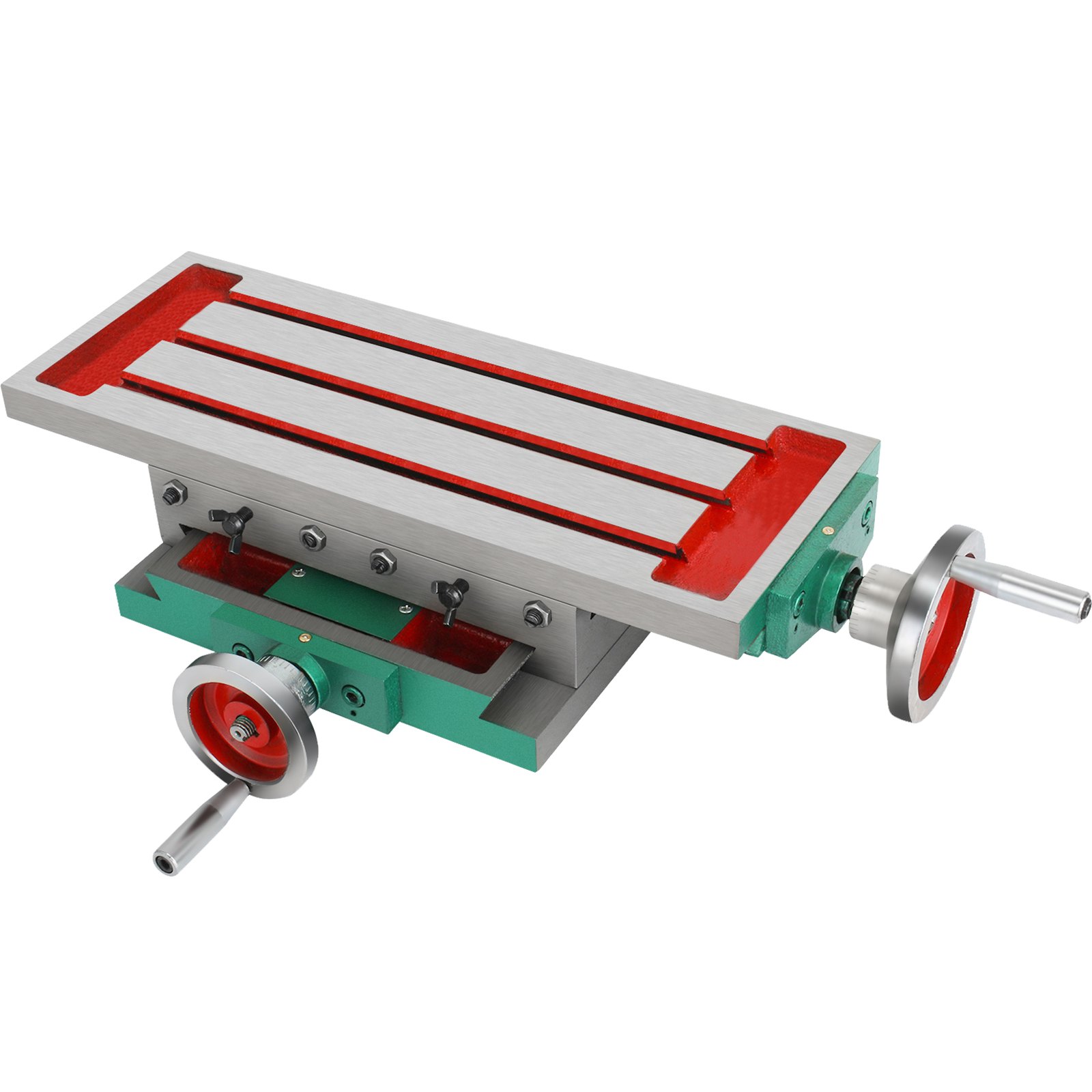

VEVOR milling machine table with green base and adjustment handles.
6.7 inch / 170 mm worktable for milling machines
Large worktable, flexible movement and high precision
The dual-axis workbench surface features three T-slots and offers two-axis (lateral and transverse) positioning via two handwheels for precise adjustments. Perfect for drilling, grinding, and milling operations.
  • High-quality structure
  • High polishing and stiffness
  • Adjustment in XY direction
  • Adjusting the tightness

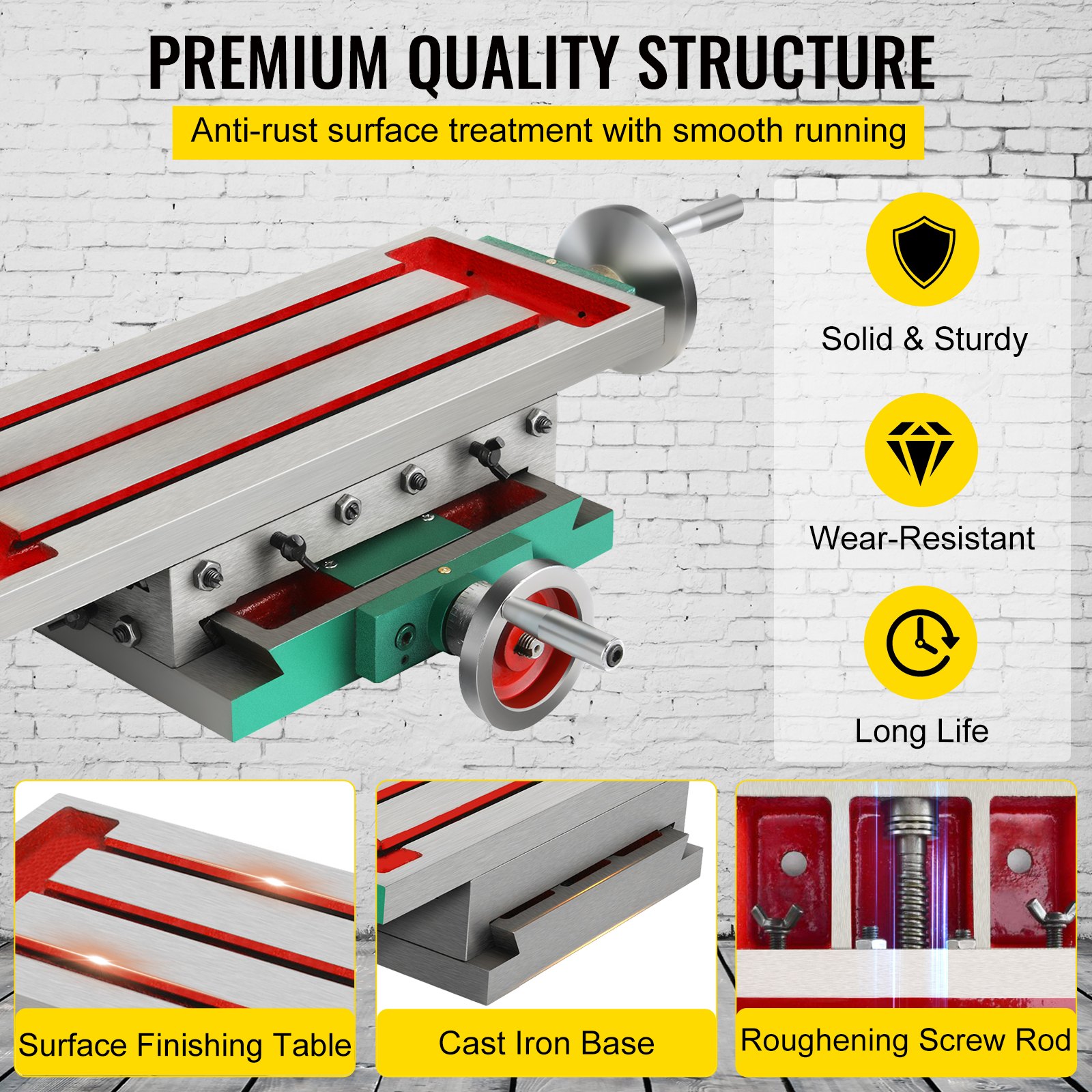

VEVOR milling machine table, heavy-duty cast iron, wear-resistant construction.
High-performance cast iron
The cross table is made of high-quality cast iron, which is corrosion and rust resistant, more durable, and ensures a long service life.
VEVOR milling machine table with t groove fixing design in metallic finish.
T-slot mounting design
The composite table, with its high hardness and rigidity, is precision-ground and resistant to deformation. The design with three T-slots can accommodate varying load requirements.

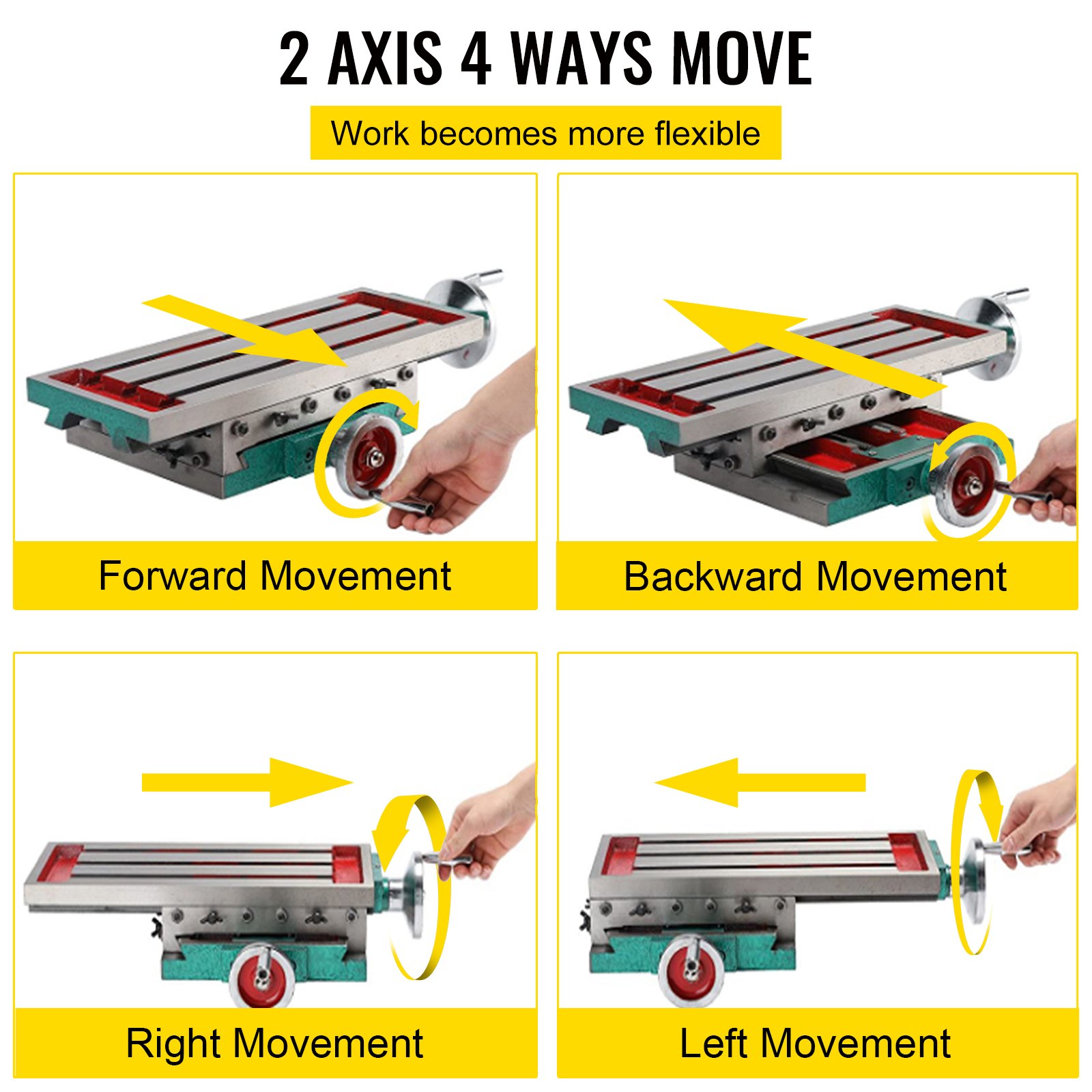

VEVOR milling machine table showcasing forward, backward, right, and left 2-axis movement.
2-axis movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as needed.

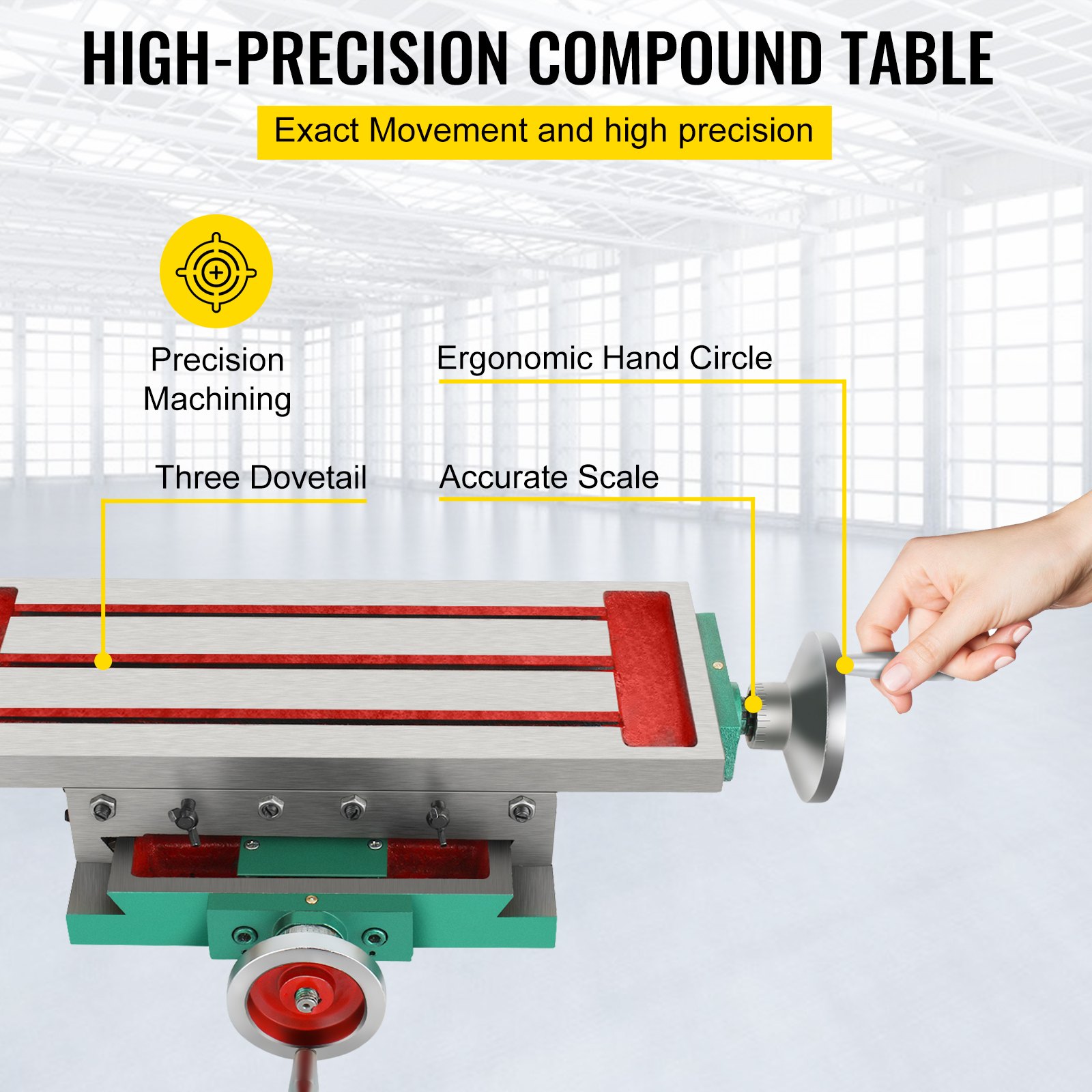

VEVOR milling machine table with adjustable dials, accurate scale, and precision machining.
Adjustable handle
A metal handle with a good texture makes adjusting the direction easier. Thanks to the clear scale, use is more precise.

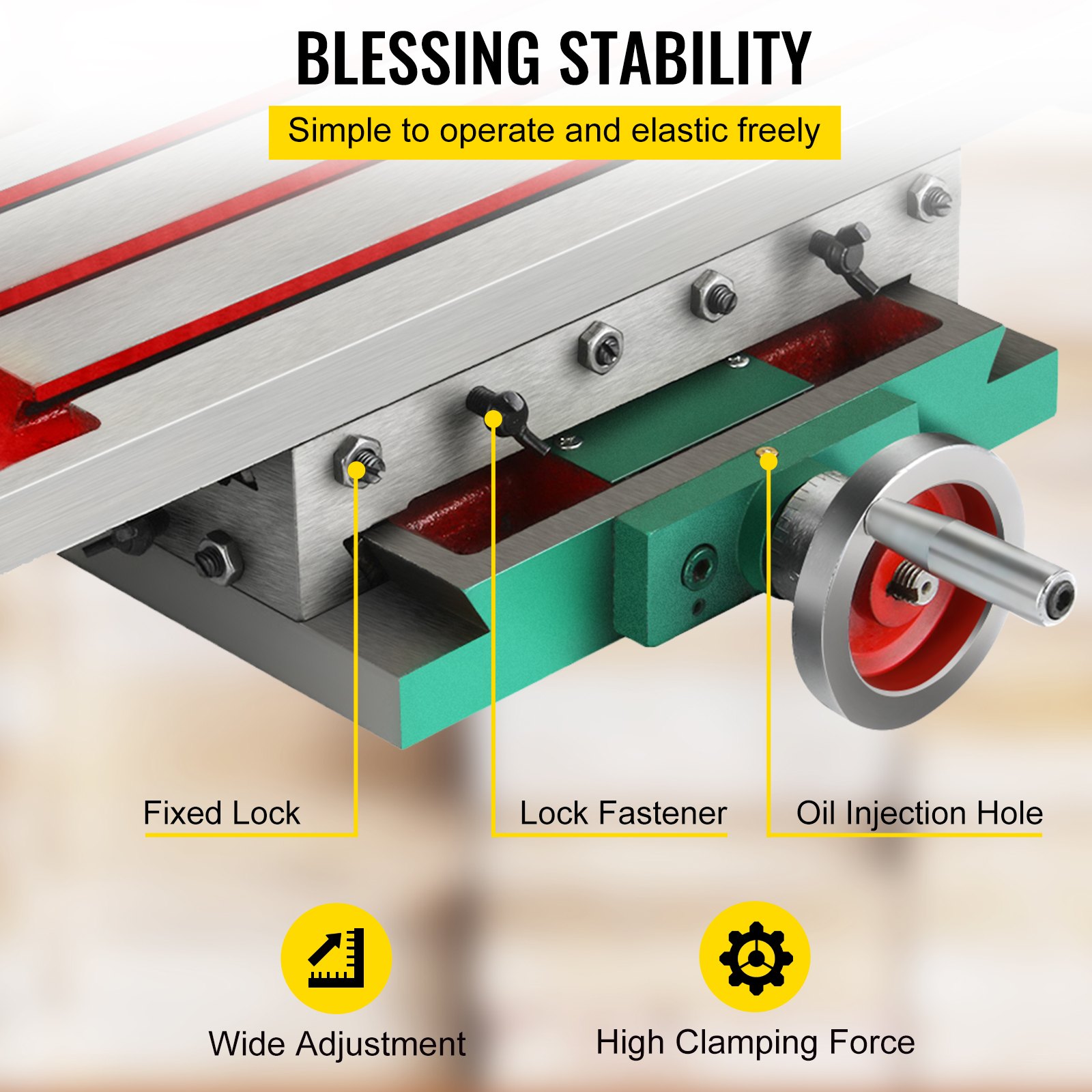

VEVOR milling machine table with quality bolts, nuts, and roughening screw rod.
Quality screws and nuts
The stability of the worktable on the drill press table can be adjusted more conveniently using a series of screws and nuts.

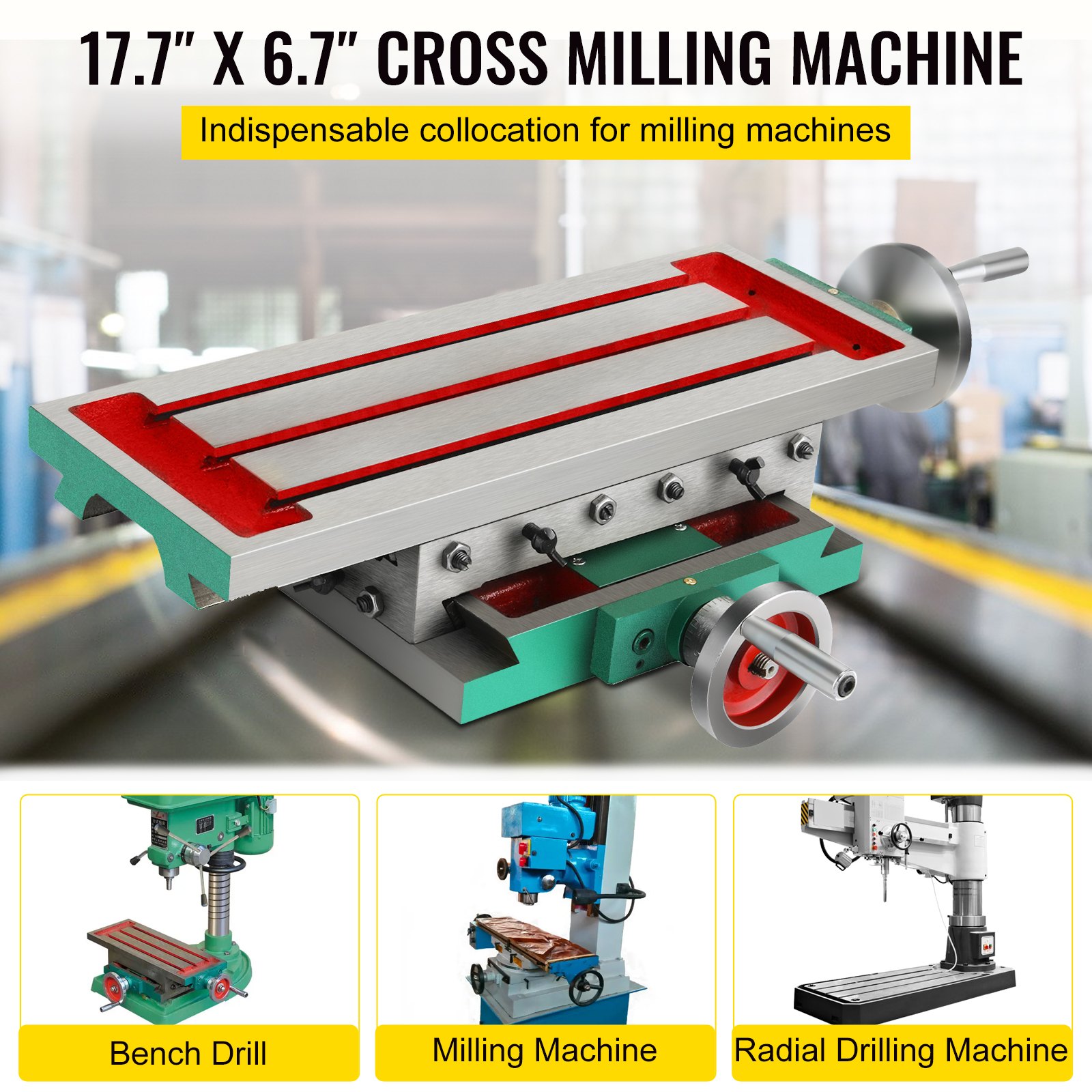

extensive application showcasing rocker milling machine, drilling and boring machine, small grinder, and machine tools.
Wide application
This milling worktable can be used for most types of milling, drilling and staging work and is ideal for all drill stands, drilling and milling machines.

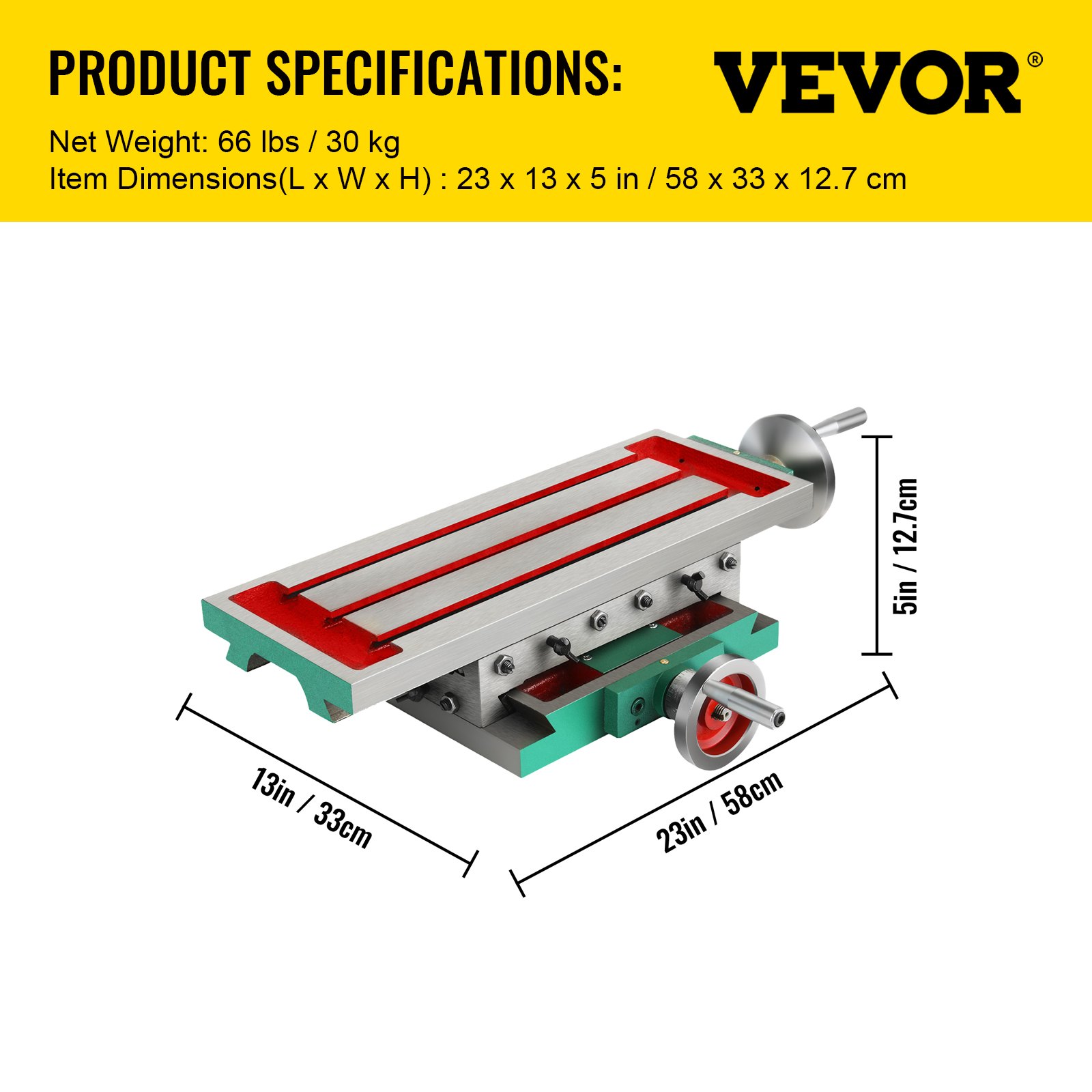

VEVOR milling machine table with dimensions 13"x23"x5".
  • Worktable length: 17.7 inches / 450 mm
  • Worktable width: 6.7 inches / 170 mm
  • Lateral movement (X-route): 8.3 inches / 210 mm
  • Longitudinal movement (Y-route): 4.3 inches / 110 mm
  • Mounting hole size (horizontal): 6.2 inches / 15.7 cm
  • Mounting hole size (lengthwise): 5.3 inches / 13.5 cm
  • Case size: 10 x 9 inches / 26 x 23 cm
  • Overall height: 3.9 inches / 100 mm
  • Net weight: 66 lbs / 30 kg
  • Item dimensions (L x W x H): 23 x 13 x 5 inches / 58 x 33 x 12.7 cm

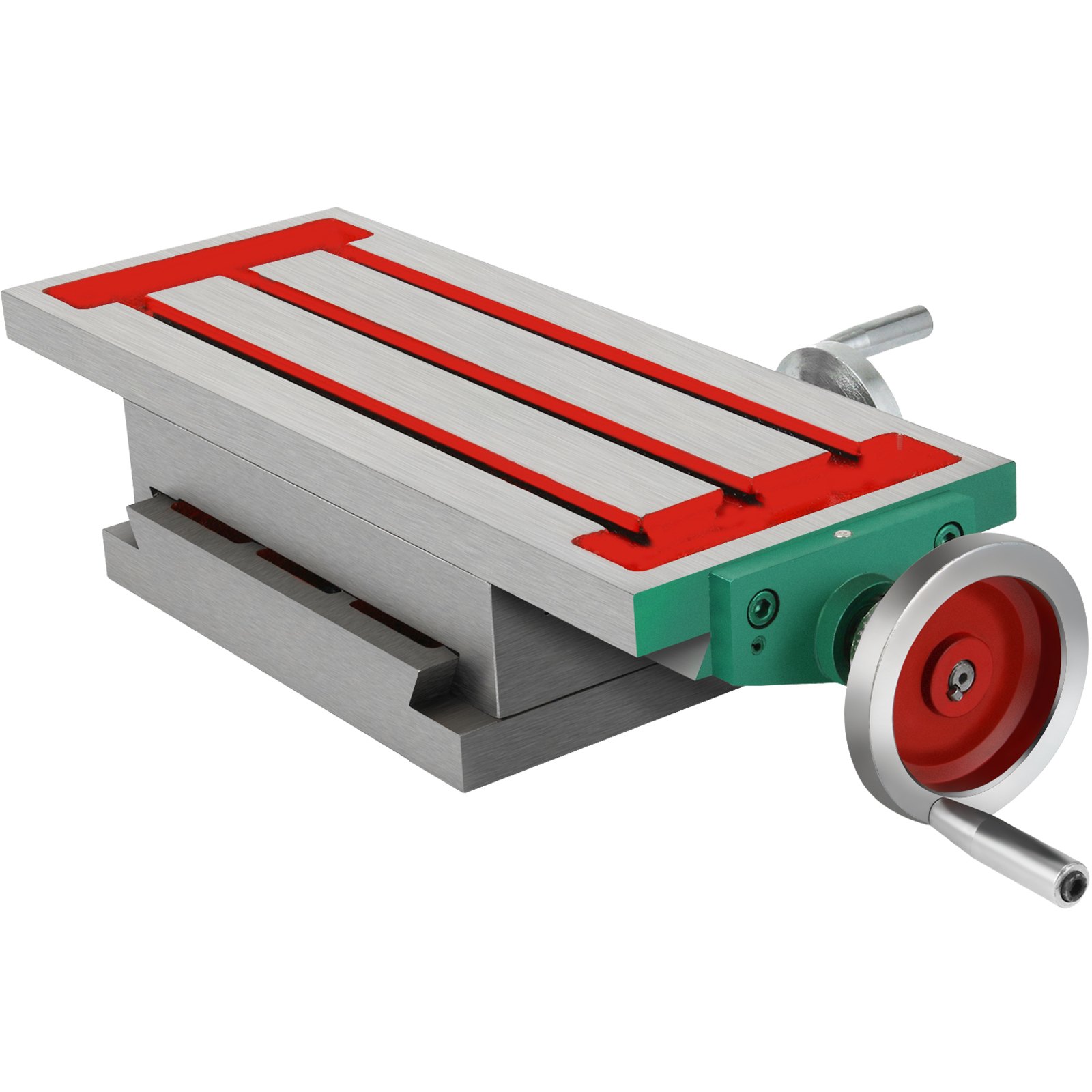

VEVOR milling machine table with precision adjustment handles and dovetail slide.
  • 1 x Milling support table worktable
VEVOR milling machine table with adjustable x & y axis and regulate ruler.
VEVOR milling machine table with green base and adjustment handles.
6.7 inch / 170 mm worktable for milling machines
Large worktable, flexible movement and high precision
The dual-axis workbench surface features three T-slots and offers two-axis (lateral and transverse) positioning via two handwheels for precise adjustments. Perfect for drilling, grinding, and milling operations.
  • High-quality structure
  • High polishing and stiffness
  • Adjustment in XY direction
  • Adjusting the tightness
VEVOR milling machine table, heavy-duty cast iron, wear-resistant construction.
High-performance cast iron
The cross table is made of high-quality cast iron, which is corrosion and rust resistant, more durable, and ensures a long service life.
VEVOR milling machine table with t groove fixing design in metallic finish.
T-slot mounting design
The composite table, with its high hardness and rigidity, is precision-ground and resistant to deformation. The design with three T-slots can accommodate varying load requirements.
VEVOR milling machine table showcasing forward, backward, right, and left 2-axis movement.
2-axis movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as needed.
VEVOR milling machine table with adjustable dials, accurate scale, and precision machining.
Adjustable handle
A metal handle with a good texture makes adjusting the direction easier. Thanks to the clear scale, use is more precise.
VEVOR milling machine table with quality bolts, nuts, and roughening screw rod.
Quality screws and nuts
The stability of the worktable on the drill press table can be adjusted more conveniently using a series of screws and nuts.
extensive application showcasing rocker milling machine, drilling and boring machine, small grinder, and machine tools.
Wide application
This milling worktable can be used for most types of milling, drilling and staging work and is ideal for all drill stands, drilling and milling machines.
VEVOR milling machine table with precision adjustment handles and dovetail slide.
  • 1 x Milling support table worktable
VEVOR milling machine table with dimensions 13"x23"x5".
  • Worktable length: 17.7 inches / 450 mm
  • Worktable width: 6.7 inches / 170 mm
  • Lateral movement (X-route): 8.3 inches / 210 mm
  • Longitudinal movement (Y-route): 4.3 inches / 110 mm
  • Mounting hole size (horizontal): 6.2 inches / 15.7 cm
  • Mounting hole size (lengthwise): 5.3 inches / 13.5 cm
  • Case size: 10 x 9 inches / 26 x 23 cm
  • Overall height: 3.9 inches / 100 mm
  • Net weight: 66 lbs / 30 kg
  • Item dimensions (L x W x H): 23 x 13 x 5 inches / 58 x 33 x 12.7 cm
Product guides and documents
User manual-de (PDF) Review

Questions and Answers (6)

6 Questions
Ask a Question
Welche Größe müssen die Nutensteine haben? Und zwar für den kleinen als auch für den großen Tisch/Schraubstock. Haben die beiden die gleiche oder verschiedene Größen?
Answer This Question
Es wird empfohlen, M10-Muttern zu verwenden.
By vevor
Helpful ( 1 )
Welche Nutbreite hat der Kreuztisch
Answer This Question
Schlitzbreite 12 mm.
By vevor
Helpful ( 1 )
Welche Größe hat das T-Nut-Niederhalter-Set "bridgeport milling t-slot"?
Answer This Question
Es wird ein M8-T-Nutensatz verwendet.
By vevor
Helpful ( 1 )
Welchen Durchmesser haben die beiden Handräder?
Answer This Question
80*110mm
By vevor
Helpful ( 0 )
Aus welcher Art von Metall ist es hergestellt?
Answer This Question
Gusseisen.
By vevor
Helpful ( 0 )
