Eigenschaften & Details
- Superiority
- 1. 126 Channels jumping frequency automatically, high anti-jamming ability to ensure works reliability. No time delay during data transmission.
- 2. 7 Groups ID code settable. User can use 7 groups individual wireless net without any interference with each other in the same place.
- 3. One transmitter can control many receivers. Wireless DMX512 can be used in all DMX lamps.
- Setting Operating
Häufig Zusammen Gekauft
Bewertungen 0.0
Alle Bewertungen stammen von verifizierten Käufen
Durchschnittliche Bewertung basierend auf 0 Bewertungen
Bewertungen 0.0
Alle Bewertungen stammen von verifizierten Käufen
Alle 0 Bewertungen ansehen
Über diesen Artikel
Produktspezifikation

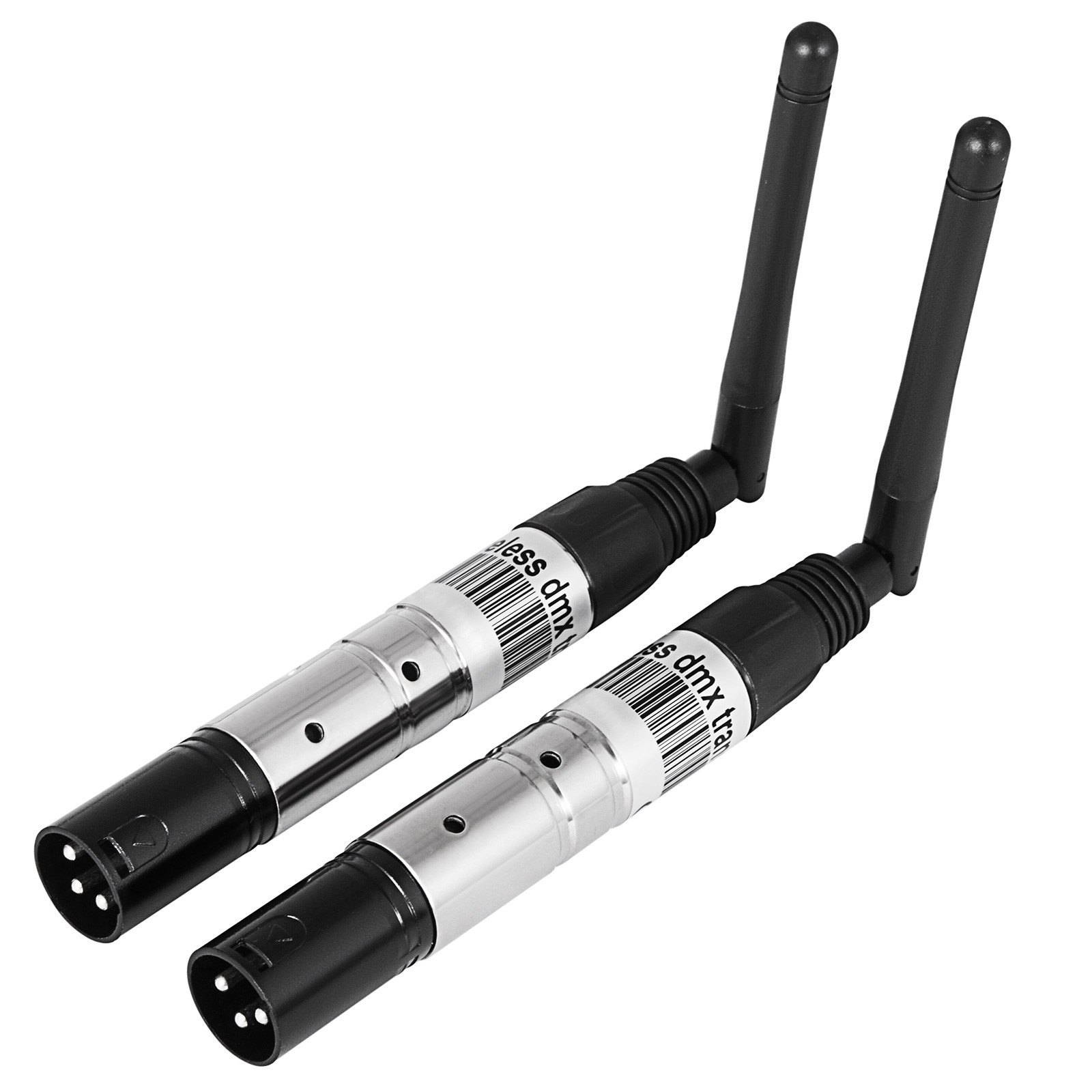

- 5 x DMX512 Wireless Receiver

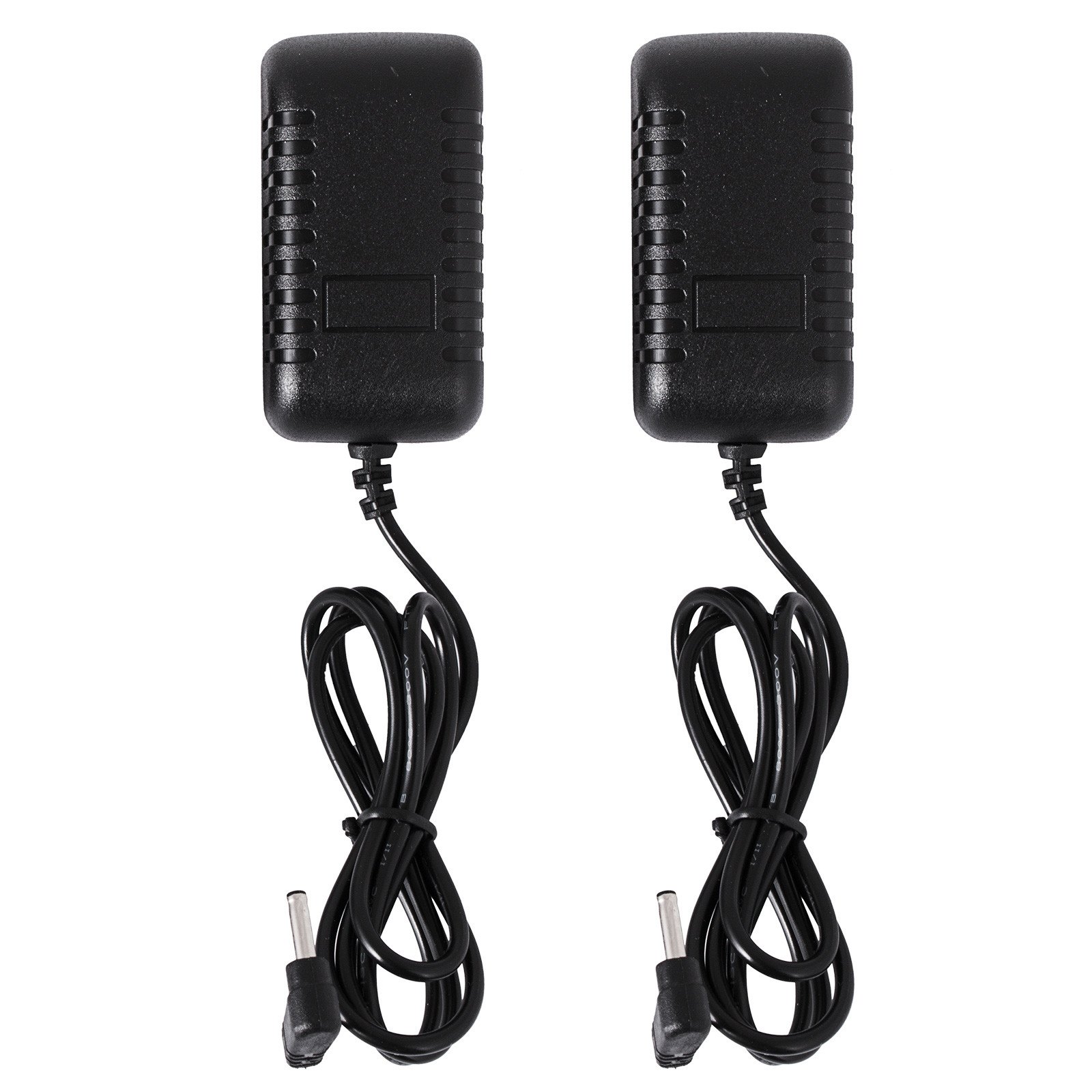

- 6 x Power Adapter
- 3 x Product Manual
Beschreibung

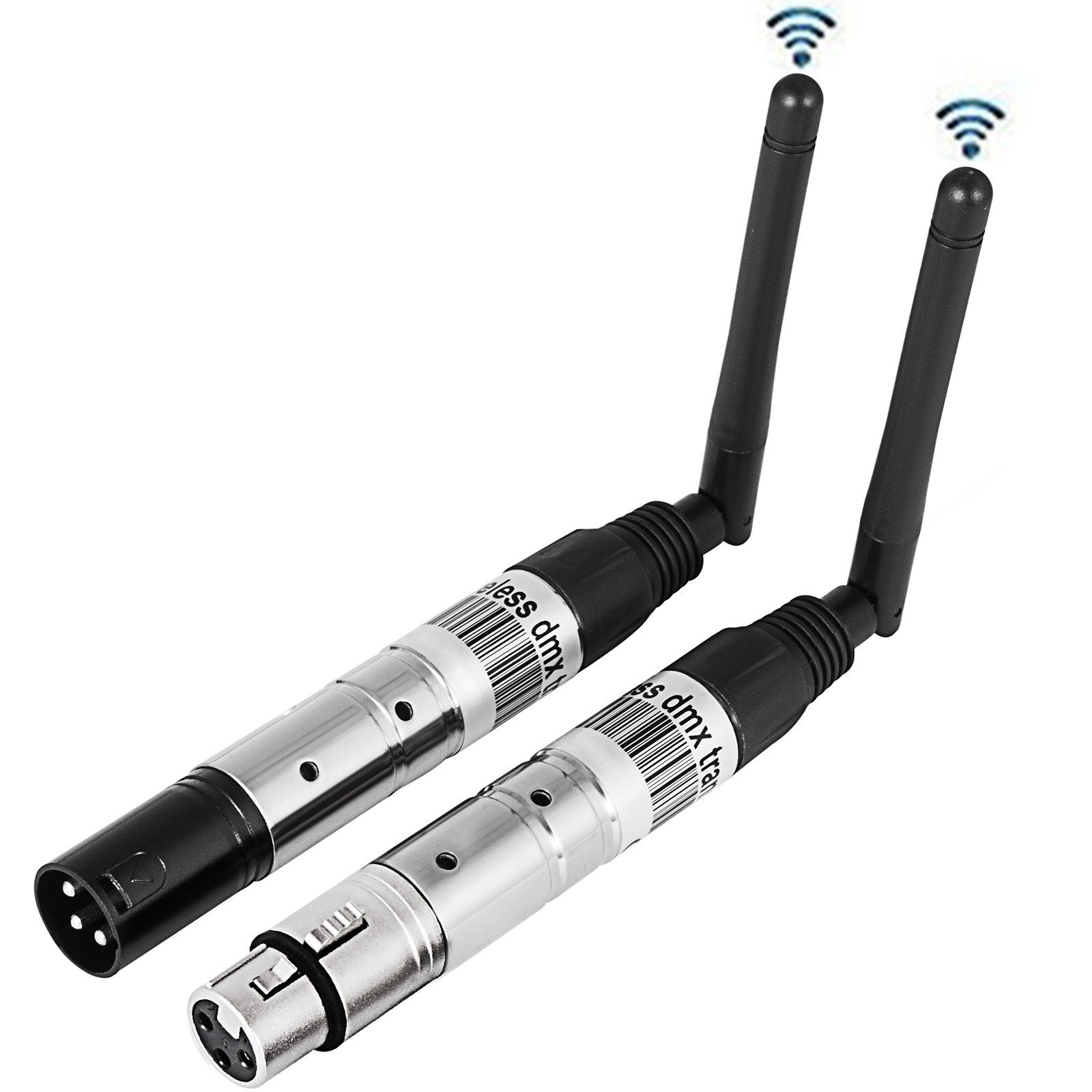

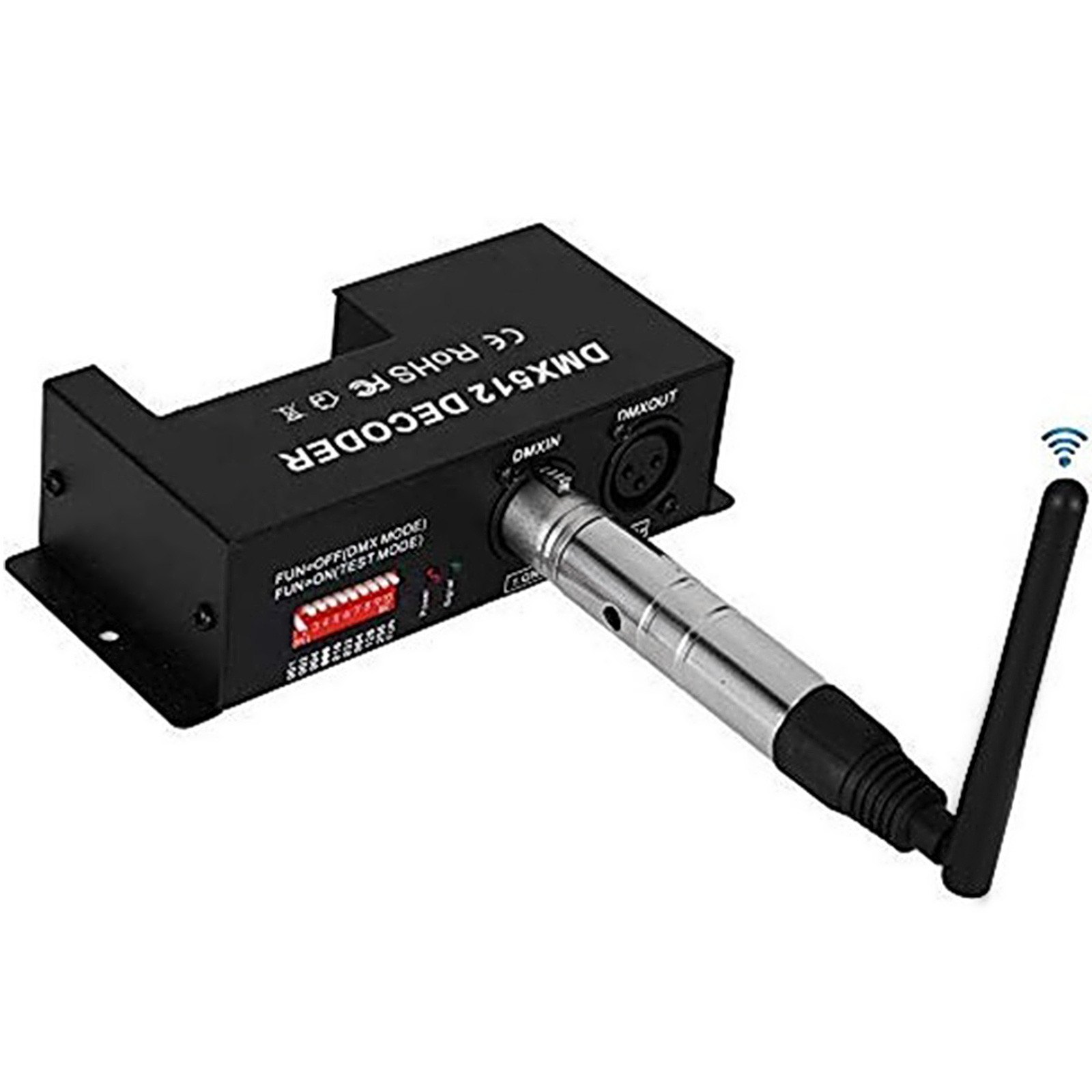

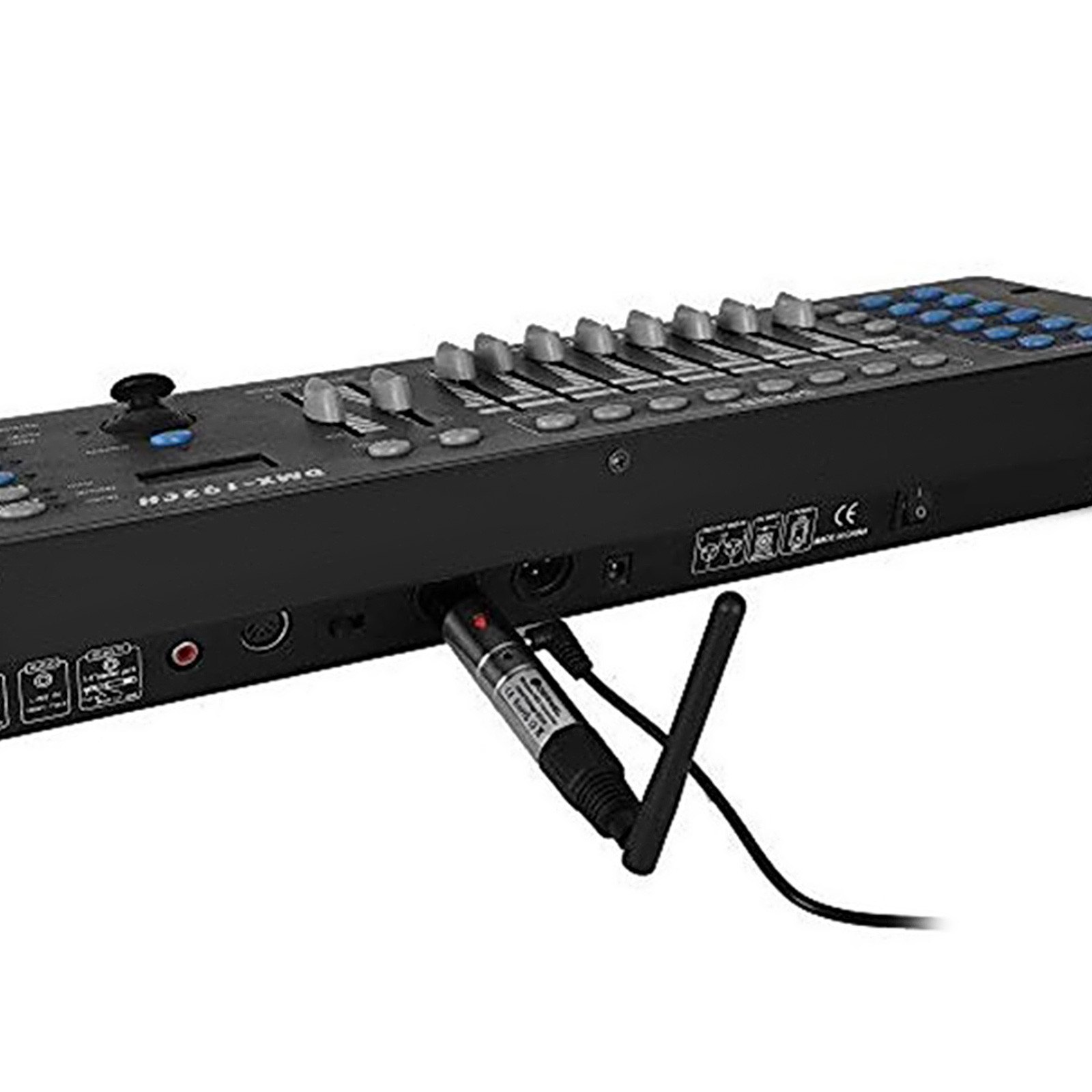

The listing is about DMX512 wireless system: 1 transmitter, 5 receiver, with 6 power adapter, for stage lighting control. Just plug the transmitter into stage lamp console, plug the receivers into stage lamp and you will be free to control stage lamp without wire. It's the perfect way to get rid of the trouble of winding wire.
Superiority
1. 126 Channels jumping frequency automatically, high anti-jamming ability to ensure works reliability. No time delay during data transmission.2. 7 Groups ID code settable. User can use 7 groups individual wireless net without any interference with each other in the same place.
3. One transmitter can control many receivers. Wireless DMX512 can be used in all DMX lamps.
Setting Operating
ID code and LED color corresponding relationship:1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press momentary switch above the side led indicator to indicate ID setting, press again to set the color ID desired, then ID value adding 1 each time by press.
Working Condition
LED constant lit up: No DMX or wireless signalRed LED flash: Transmitting
Green LED flash: Receiving
NOTE
Please read the Product Manual carefully before operating the wireless system.- DMX512 wireless system
- 1 Transmitter and 5 receiver
- Includes 6 power adapter
- For stage lighting control
- 2.4G wireless DMX512 R/T
- Tricolor LED displaying Indicators
- 126 Channels jumping frequency automatically
- 7 Groups ID code settable
- Wireless DMX512 can be used in all DMX lamps
- Product: Wireless system
- Model: DMX512
- Input voltage: 5VDC 500mA MIN
- Communication distance: 500M (visible distance)
- Work frequency section: 2.4GHz ISM band,126 channels frequency section
- Max transmitting power rate: 23dBm
- Receiver Sensitivity: -94dBm
- Number of channels: 126
- ID code: 7 Groups
- CPU: 32-bit ARM Core
- Modulation: GFSK
- DMX signal interface: RS485
- Automatic reboot trigger: Built-in WDT
- Operating temperature: -40 ~ 85℃
- Storage temperature: -65 ~ 150℃
- Ambient relative humidity: 5 to 95% (non-condensing)

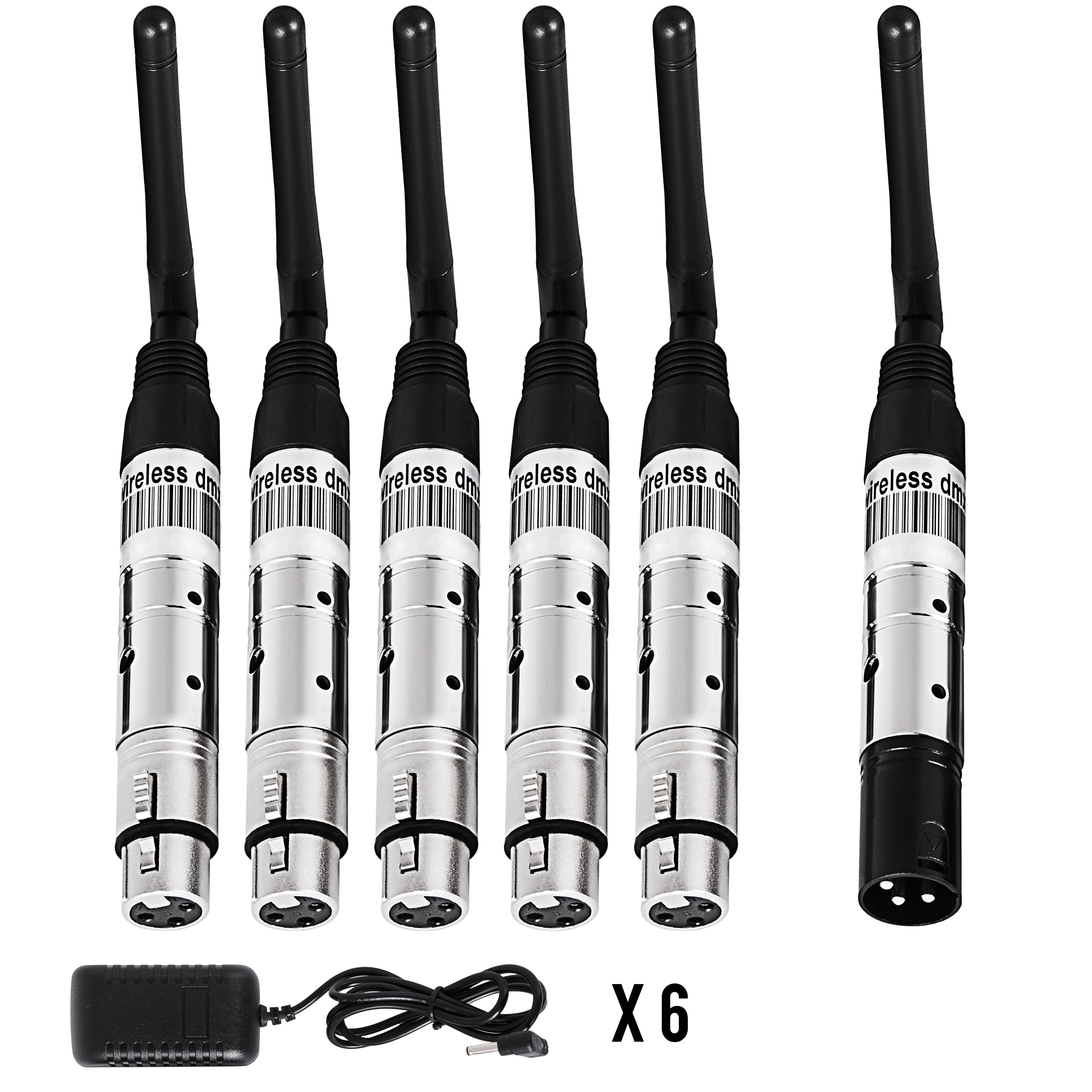

- 1 x DMX512 Wireless Transmitter
- 5 x DMX512 Wireless Receiver
- 6 x Power Adapter
- 3 x Product Manual
The listing is about DMX512 wireless system: 1 transmitter, 5 receiver, with 6 power adapter, for stage lighting control. Just plug the transmitter into stage lamp console, plug the receivers into stage lamp and you will be free to control stage lamp without wire. It's the perfect way to get rid of the trouble of winding wire.
Superiority
1. 126 Channels jumping frequency automatically, high anti-jamming ability to ensure works reliability. No time delay during data transmission.2. 7 Groups ID code settable. User can use 7 groups individual wireless net without any interference with each other in the same place.
3. One transmitter can control many receivers. Wireless DMX512 can be used in all DMX lamps.
Setting Operating
ID code and LED color corresponding relationship:1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press momentary switch above the side led indicator to indicate ID setting, press again to set the color ID desired, then ID value adding 1 each time by press.
Working Condition
LED constant lit up: No DMX or wireless signalRed LED flash: Transmitting
Green LED flash: Receiving
NOTE
Please read the Product Manual carefully before operating the wireless system.- DMX512 wireless system
- 1 Transmitter and 5 receiver
- Includes 6 power adapter
- For stage lighting control
- 2.4G wireless DMX512 R/T
- Tricolor LED displaying Indicators
- 126 Channels jumping frequency automatically
- 7 Groups ID code settable
- Wireless DMX512 can be used in all DMX lamps
- Product: Wireless system
- Model: DMX512
- Input voltage: 5VDC 500mA MIN
- Communication distance: 500M (visible distance)
- Work frequency section: 2.4GHz ISM band,126 channels frequency section
- Max transmitting power rate: 23dBm
- Receiver Sensitivity: -94dBm
- Number of channels: 126
- ID code: 7 Groups
- CPU: 32-bit ARM Core
- Modulation: GFSK
- DMX signal interface: RS485
- Automatic reboot trigger: Built-in WDT
- Operating temperature: -40 ~ 85℃
- Storage temperature: -65 ~ 150℃
- Ambient relative humidity: 5 to 95% (non-condensing)
- 1 x DMX512 Wireless Transmitter
- 5 x DMX512 Wireless Receiver
- 6 x Power Adapter
- 3 x Product Manual
