Features & Details

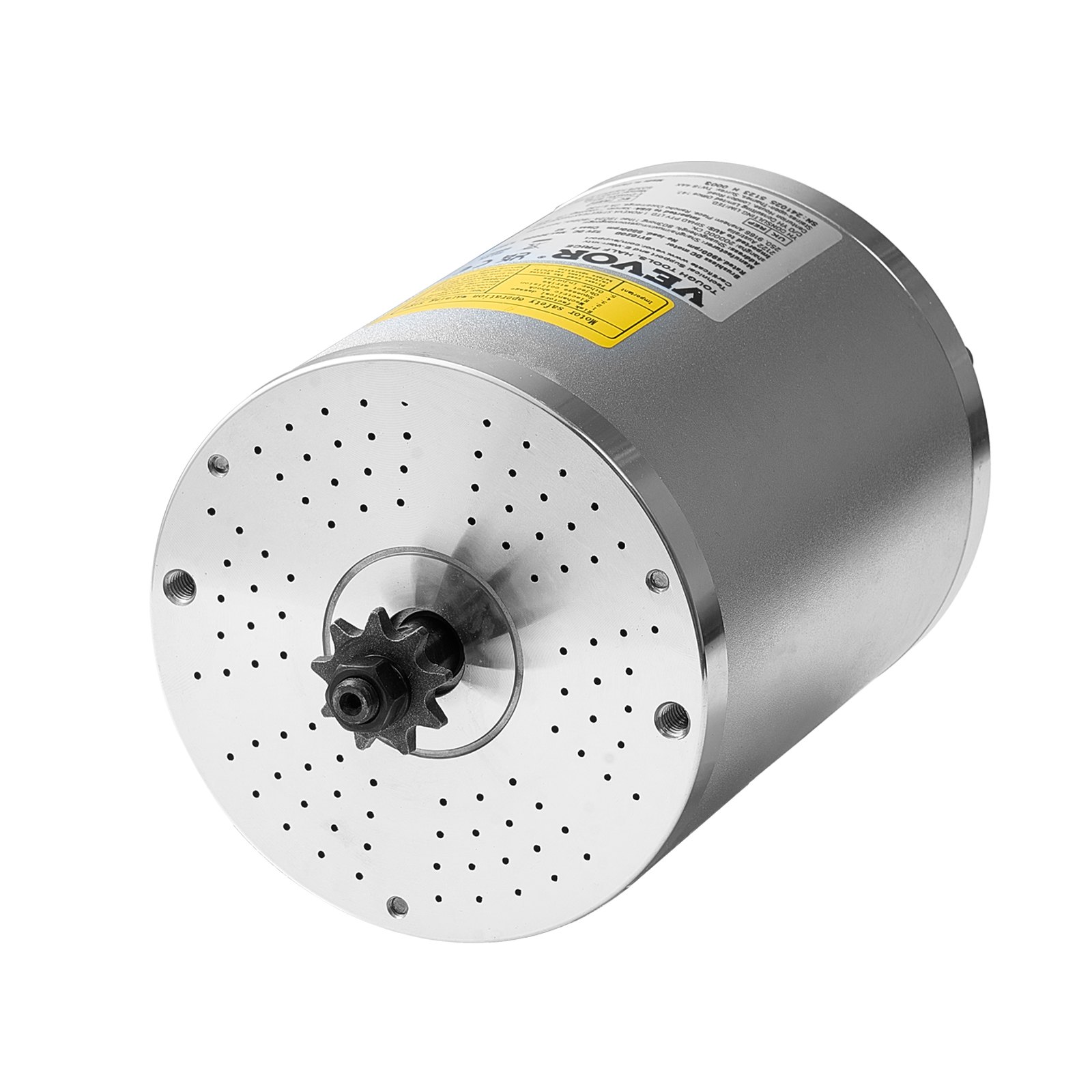

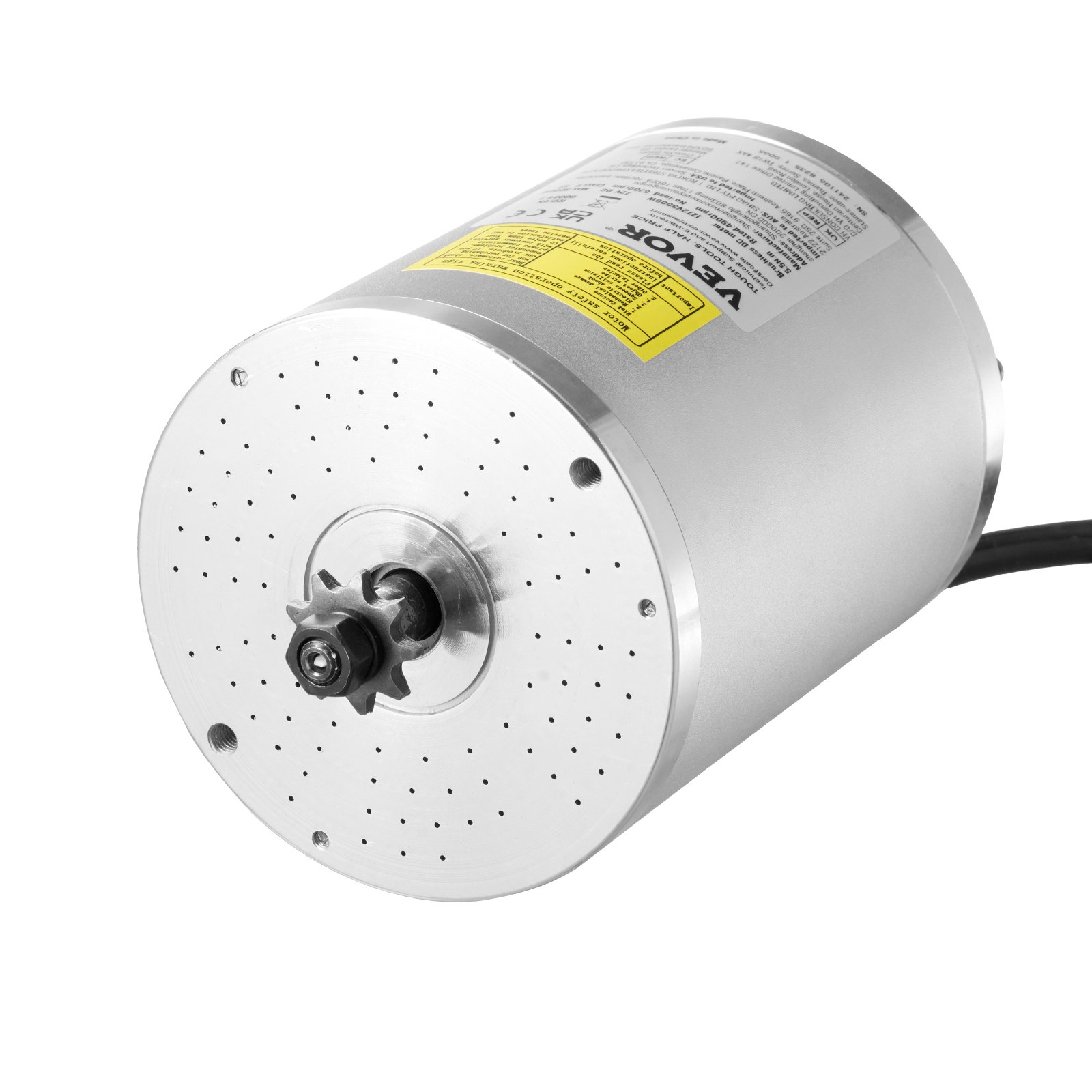

- Powerful, efficient performance: The VEVOR brushless DC motor delivers 3000W of output power and operates efficiently with a conversion efficiency of ≥85%. This ensures reliable speed even on challenging terrain and lower energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive torque and speed: Reach up to 63 km/h at rated speed and an unloaded speed of 88 km/h with a 16-inch wheel, ensuring a fast and smooth ride for commuting or leisure. The rated torque of 5.5 Nm provides reliable performance even on steep inclines and uneven terrain.
- Quiet, reliable, and versatile operation: The motor features a 100% copper core for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. Operating at a low noise level of 70 dB, this motor offers quiet operation. It also features bidirectional control (clockwise and counterclockwise) for easy switching between forward and reverse, providing added versatility in confined spaces.

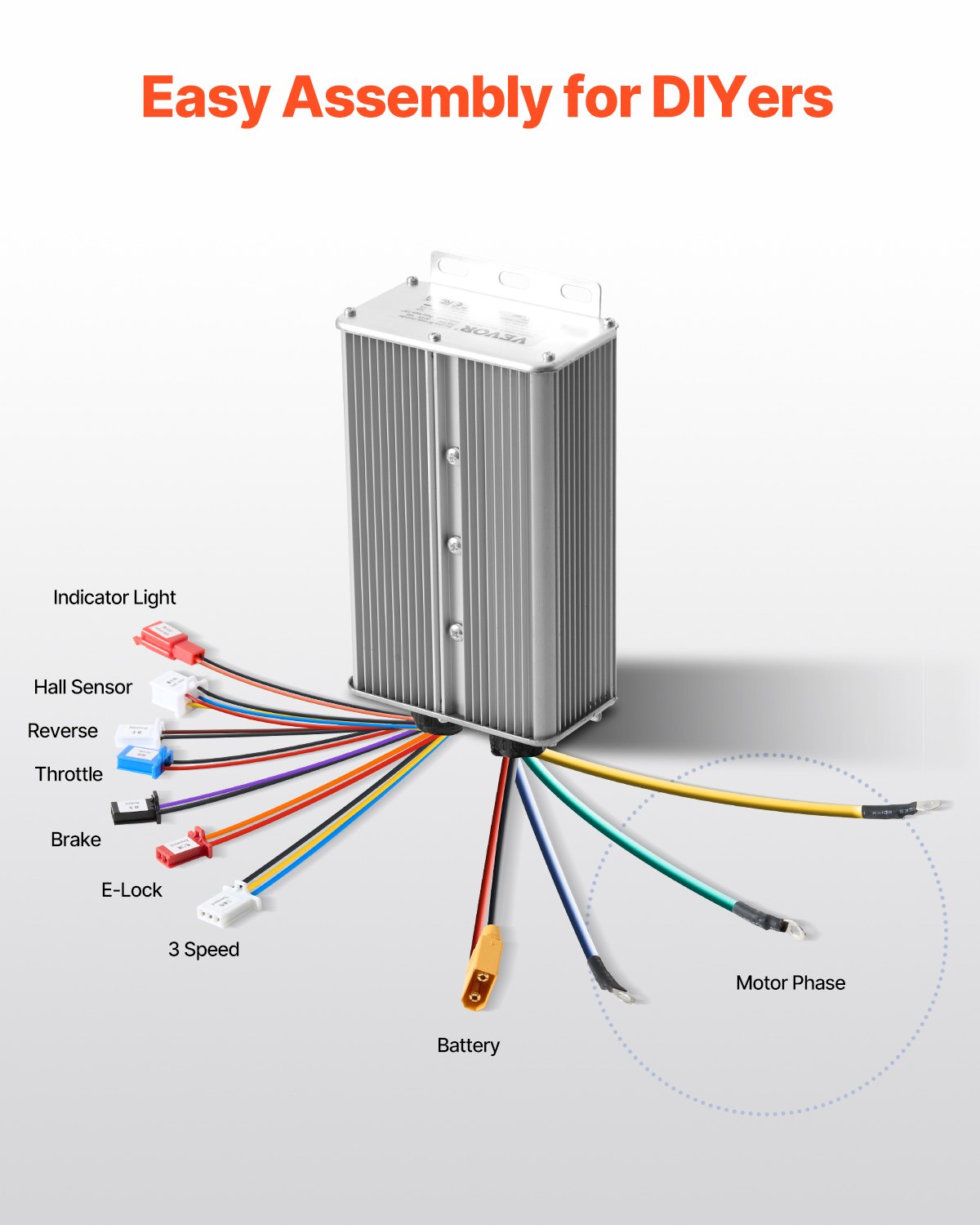

- Enhanced safety and control features: The improved controller integrates multiple safety features, including overload, undervoltage, and short-circuit protection. It also offers essential user functions such as speed control, braking, reverse, and soft start for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility under varying conditions.

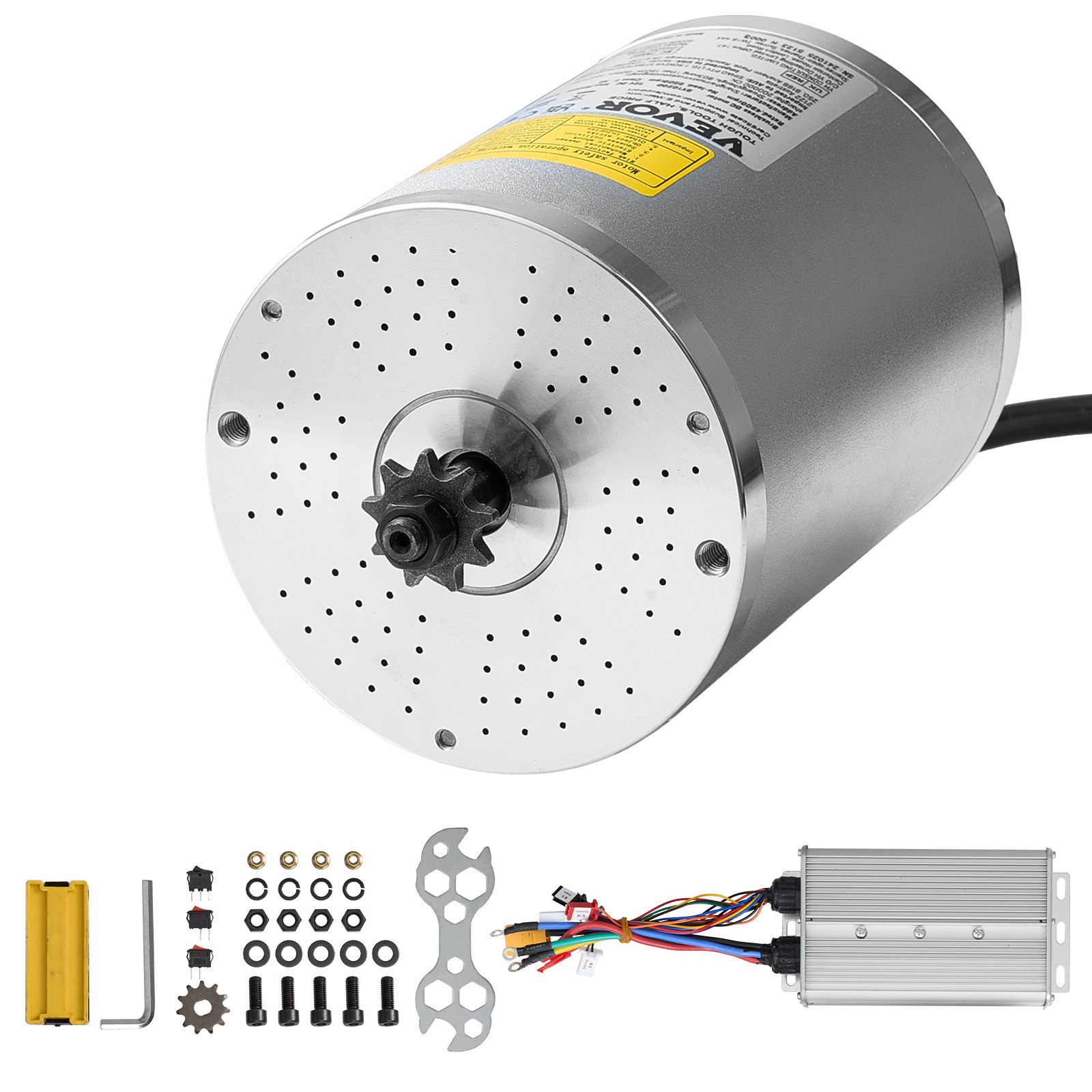

- Easy self-installation: The package includes: 1 x 72V 3000W brushless motor, 1 x motor controller, 1 x mounting hardware kit, and 1 x user manual. This motor kit includes a detailed wiring diagram, ideal for DIY enthusiasts and hobbyists who want to upgrade or customize electric vehicles.
Frequently Bought Together
Reviews 4.6
All reviews are from verified purchases
Average rating based on 17 reviews
Reviews 4.6
All reviews are from verified purchases
See all 17 reviews
About this item

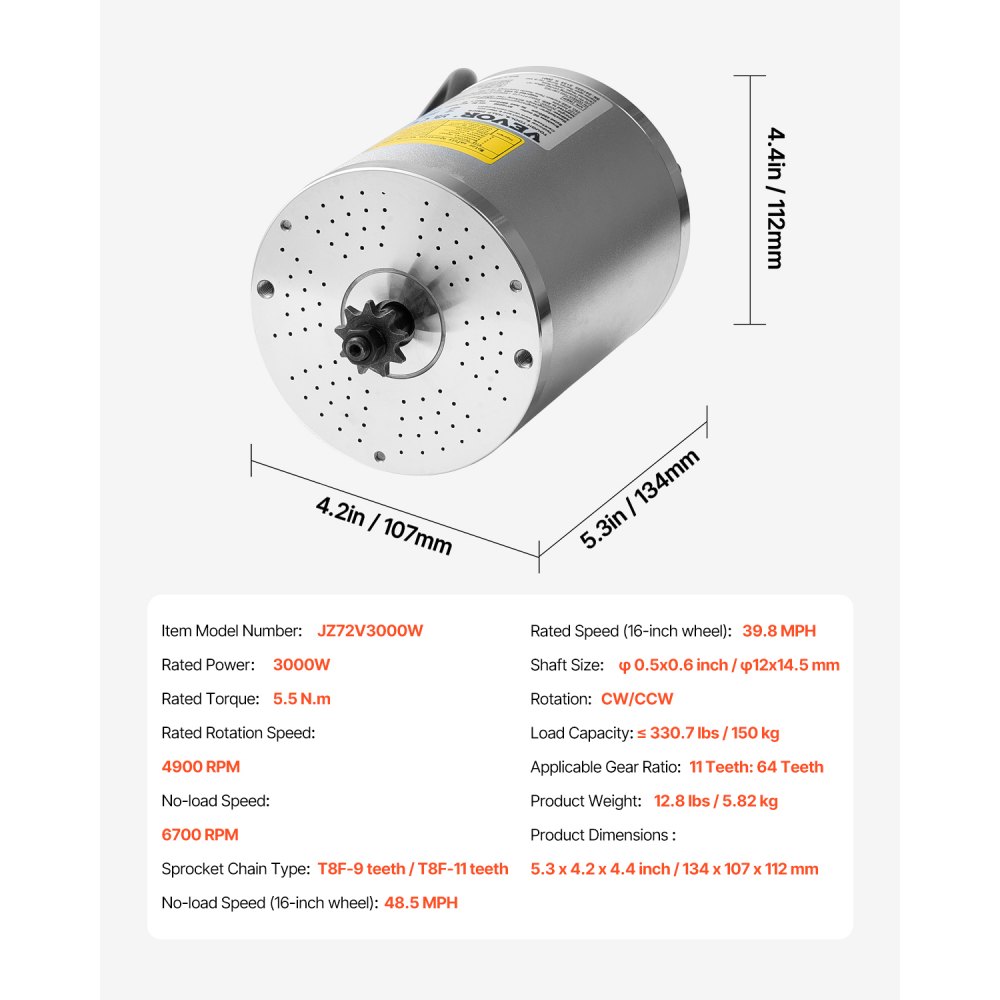

Product specification

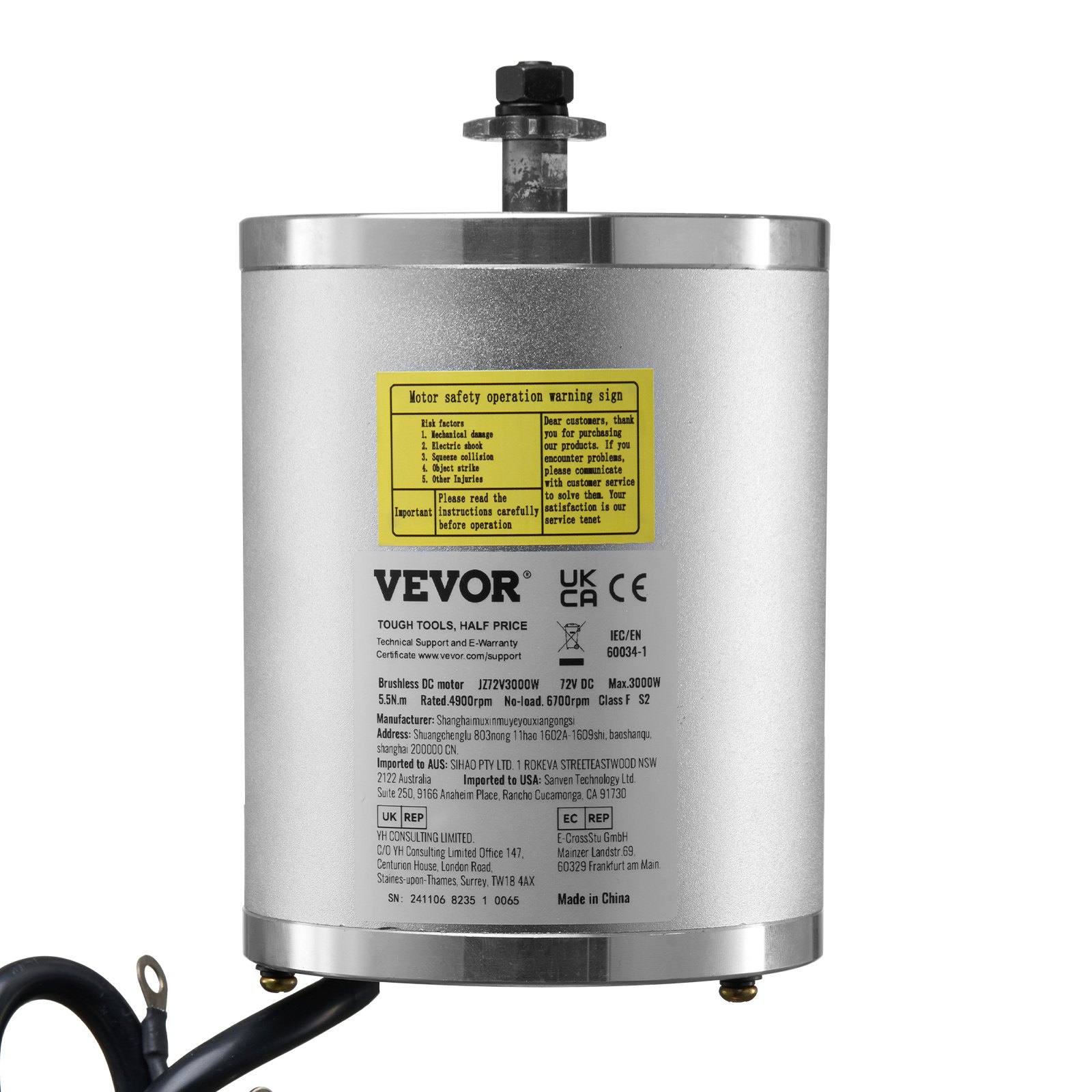

- Item model number
- JZ72V3000W
- Rated power
- 3000 W
- Rated torque
- 5.5 Nm
- Rated speed
- 4900 rpm
- Idle speed
- 6700 rpm

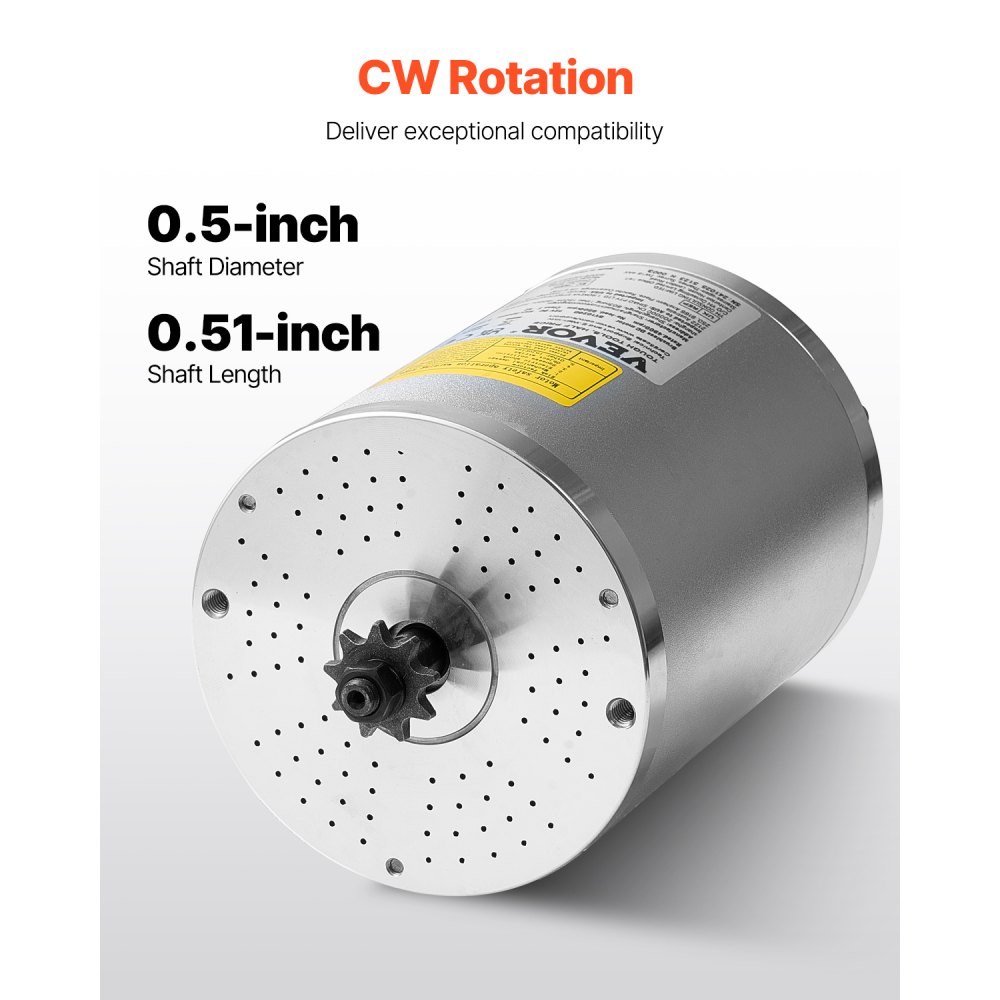

- Rotation
- clockwise/counterclockwise
- Load capacity
- ≤ 330.7 lbs / 150 kg
- Noise level
- 70 dB
- Applicable gear ratio
- 9 teeth / 11 teeth
- Product weight
- 12.8 lbs / 5.82 kg

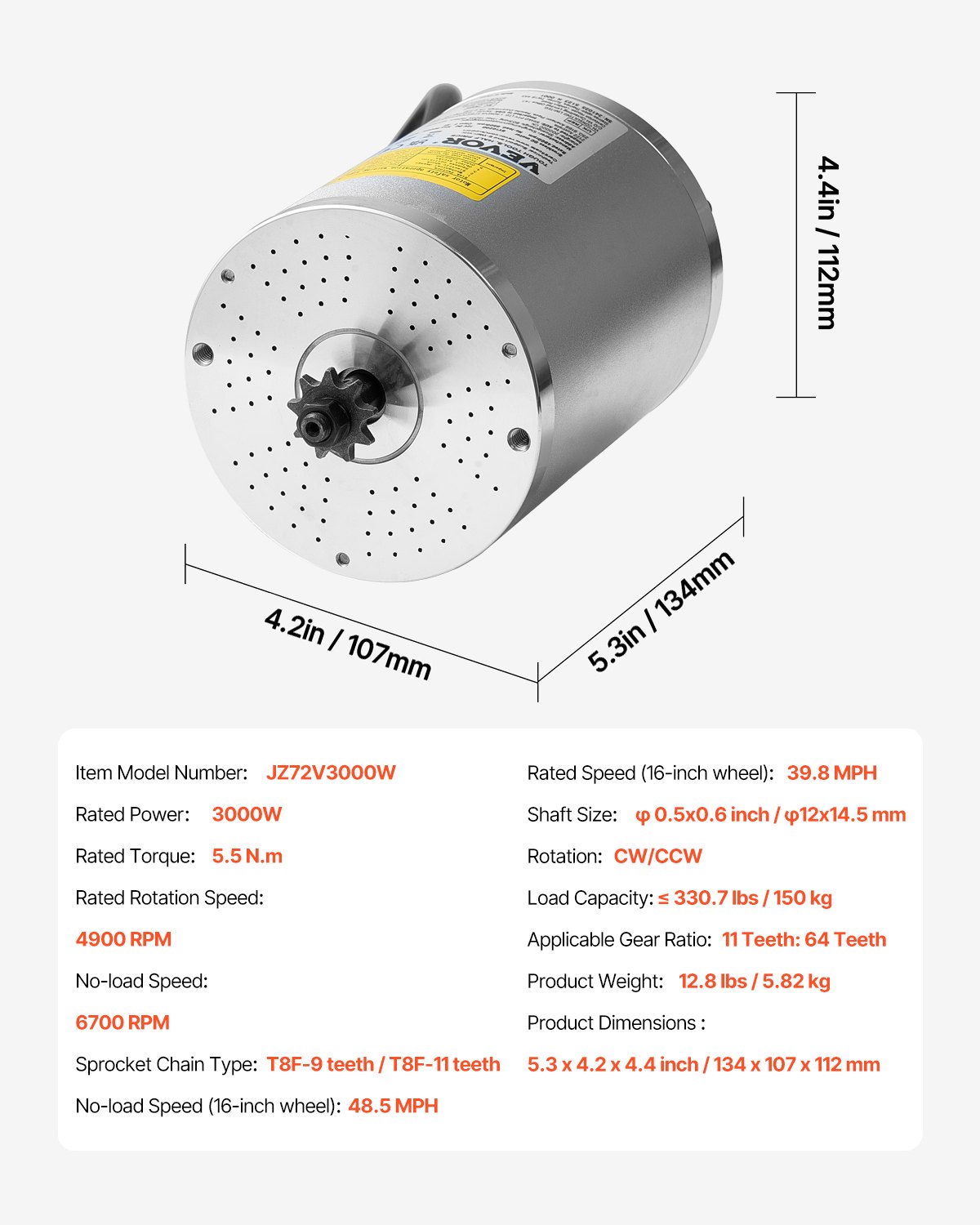

- Product dimensions
- 5.3 x 4.2 x 4.4 inches / 134 x 107 x 112 mm
Description
Smooth yet powerful driving – Ready for any adventure
Upgrade your bike with confidence and experience more power, reliability and riding fun with the 3000W 72V DC brushless motor kit, improved controller, 5.5 Nm rated torque and bidirectional control (clockwise and counterclockwise).
Experience the thrill of fast rides that make every journey unforgettable. (This top speed is based on idling conditions with a 16-inch wheel – actual speed may vary depending on load, road conditions, and rider weight.)
Complete your DIY projects with our brushless DC motor. Whether you want to increase speed, boost torque, or improve overall efficiency, it offers the perfect solution for customizing your bike.

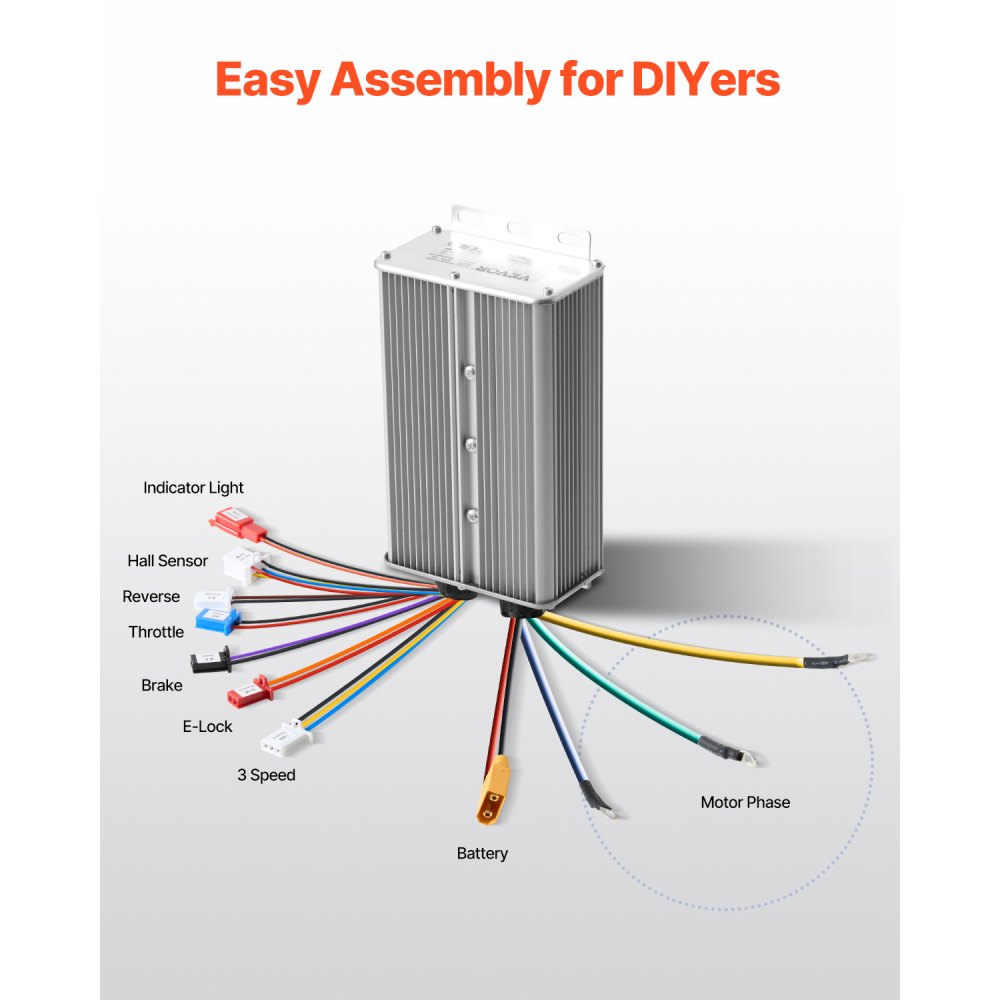

Upgrade to our next-generation controller and drive with confidence. It features an XT90 connector, which improves power connection stability and ensures reliable performance.
The motor, with its 100% pure copper core, offers exceptional resistance to deformation and rust and features high conductivity for optimal efficiency. It is designed for extreme weather conditions and ensures a smooth and safe ride.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (0)
Typical questions asked about products: Is the product durable? ...
ZLWSDJTJ30000IDZCV9
VEVOR 3000W Brushless DC Electric Motor Kit - 72V 4900 RPM 5.5 Nm Electric Motor with Improved Speed Controller, Low Noise, Ideal for Go-Karts, E-Bikes, Motorcycles, and Scooters
4.6 17 Reviews
204 99 €
