Features & Details
- Basic parameters: This brushless go-kart motor is powerful and efficient. Input voltage: 48V DC, output power: 1800W, rated current: 33A, rated speed: 4500 RPM, maximum speed: 5200 RPM, pinion gear: T8F-9T, maximum current: 37.5A. Package includes: 1 x brushless DC motor, 1 x controller, 1 x pedal, 1 x charger, 2 x wrenches, 1 x screw set, 1 x accessory kit.
- 1800W Brushless Motor: The brushless DC electric go-kart motor features a 100% copper core, ensuring quiet operation and excellent speed control. The high-precision rotor incorporates advanced components, a clean surface for water resistance, and high efficiency. Get ready to leave the competition in the dust.
- Robust aluminum construction: The housing of the brushless DC motor is made of an aluminum alloy that is heat and cold resistant and does not deform easily, thus preventing rust. This DC electric motor is a forward and reverse rotation motor, allowing you to effortlessly switch between rotation speeds.
- Includes speed controller: This brushless DC electric motor comes with a controller to regulate and adjust the speed within a desired range: potentiometer. Model: BY15WF01-A, Current: 33 A, Phase angle: 120°, Conversion efficiency: 90%, Undervoltage protection voltage: 41 ± 0.5 V.
- Wide application: The brushless motor surpasses the brushed motor in terms of high efficiency, energy saving, low noise, long lifespan, and stable operation. It is suitable for go-karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini-bikes, pocket bikes, etc. Get your adrenaline pumping with a brushless motor.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 36 reviews
Reviews 4.9
All reviews are from verified purchases
See all 36 reviews
About this item
Product specification
- Motor
- Model
- MY1020D
- Input voltage
- 48 V DC
- Output power
- 1800 W
- Rated current
- 33 A
- Rated speed
- 4500 RPM
- Maximum speed
- 5200 RPM
- Sprocket
- T8F-9T
- Power
- 2.4 HP
- Rated torque
- 4.0 Nm / 566.44 oz.in
- Maximum current
- 37.5 A
- No-load current
- ≤ 3.5 A
- Peak efficiency
- ≥ 85%
- Operating temperature
- < 248 ℉ / 120 °C
- Wavelength
- 5.28 inches / 134 mm
- Net weight
- 9.26 lbs / 4.2 kg
- Bracket dimensions
- 2.2 x 4 inches / 56 x 102 mm
- Dimensions (L x W x H)
- 6.7 x 4.2 x 4.3 inches / 169 x 107 x 110 mm
- control unit
- Model
- BY15WF01-A
- Current
- 33 A
- Phase degree
- 120°
- Conversion efficiency
- 90%
- Undervoltage protection voltage
- 41 ± 0.5 V
Description

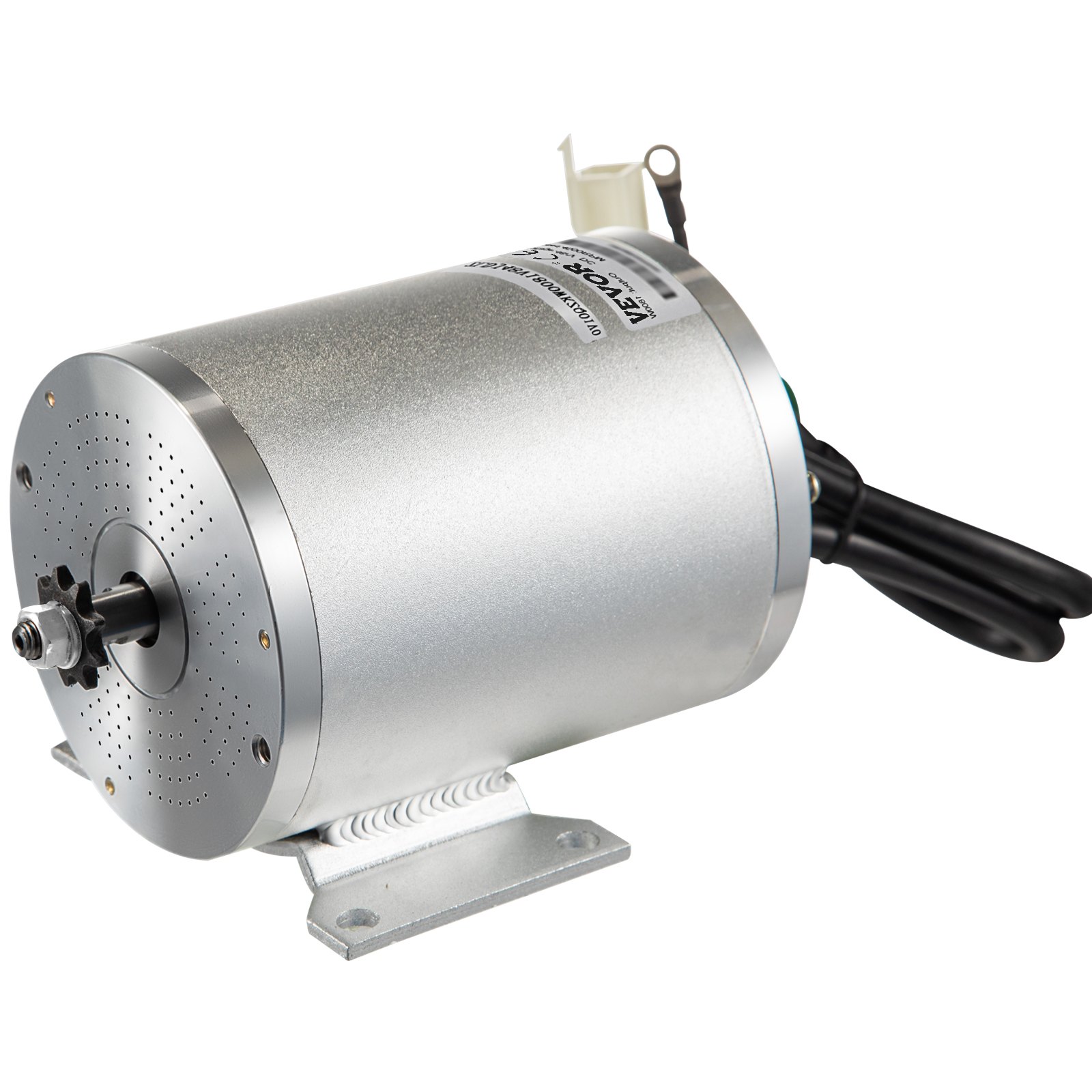

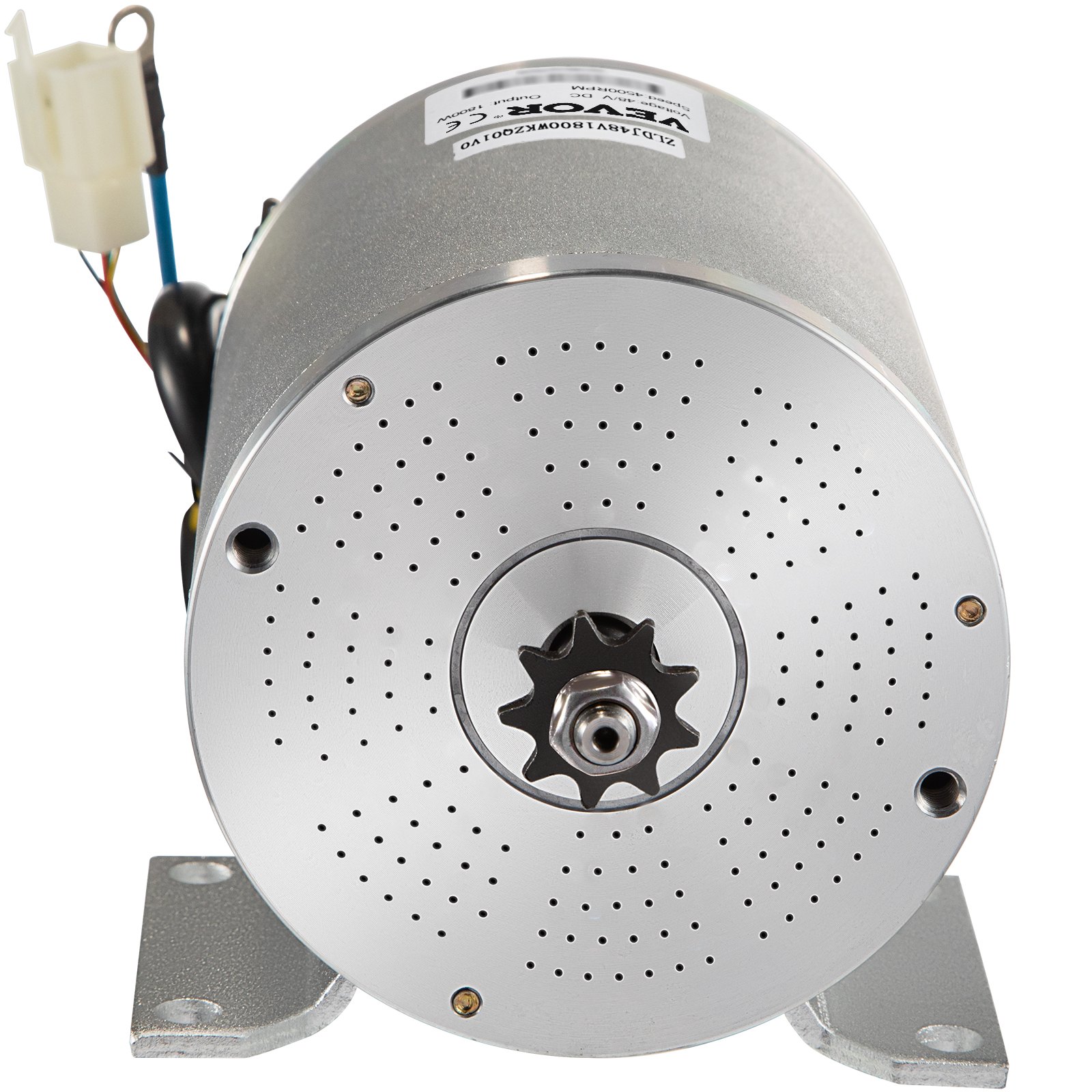

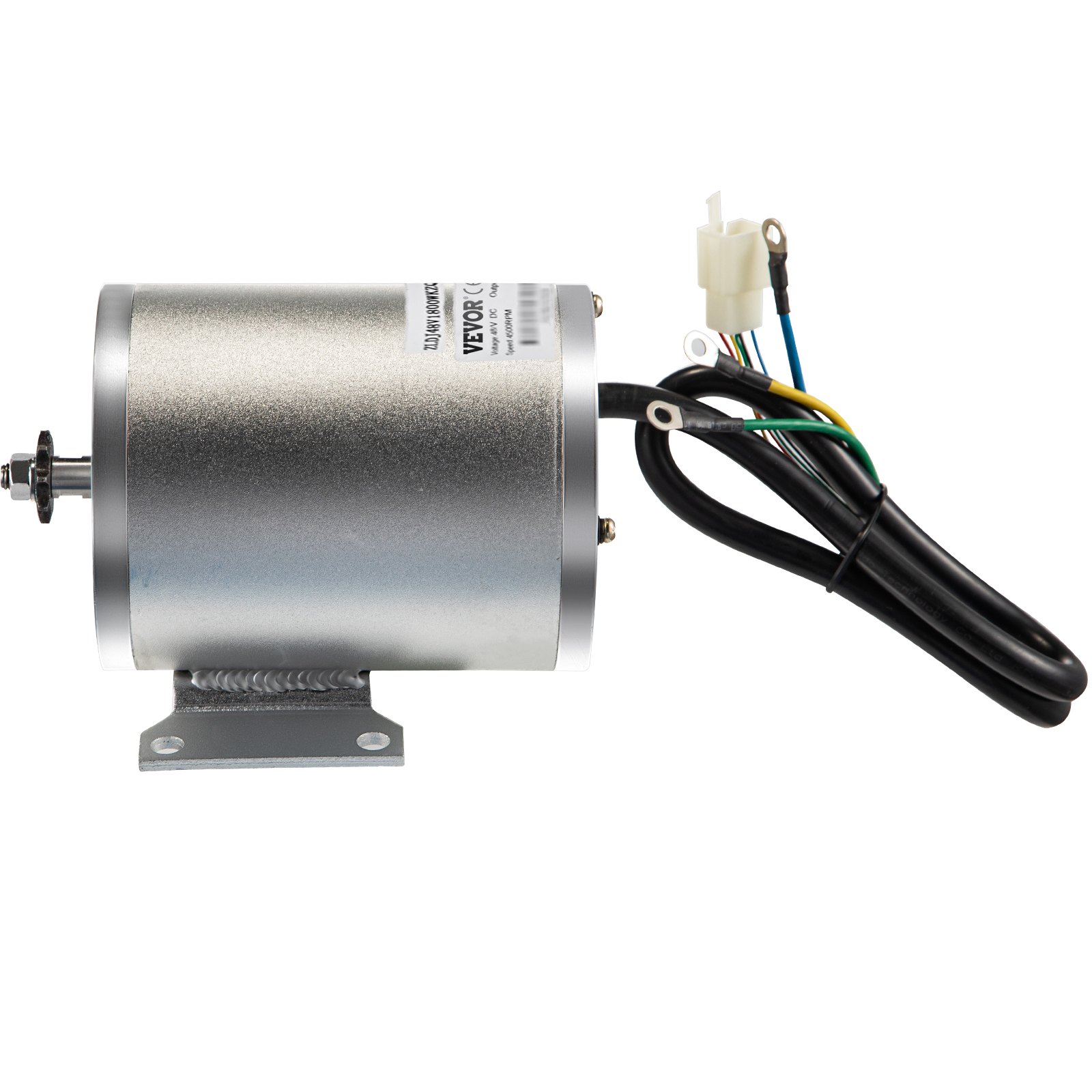

48V 1800W Brushless DC Motor Kit
Includes controller, pedal, and charger
This brushless electric motor is built with a 100% copper core for quiet operation and high efficiency. It features an aluminum alloy housing and a complete mounting kit for secure installation. It's ideal for go-karts, electric scooters, e-bikes, ATVs, motorized bicycles, and more. Get up and running faster than ever with our brushless DC motor kit.
- Basic parameters
- 1800 W brushless motor
- Robust aluminum construction

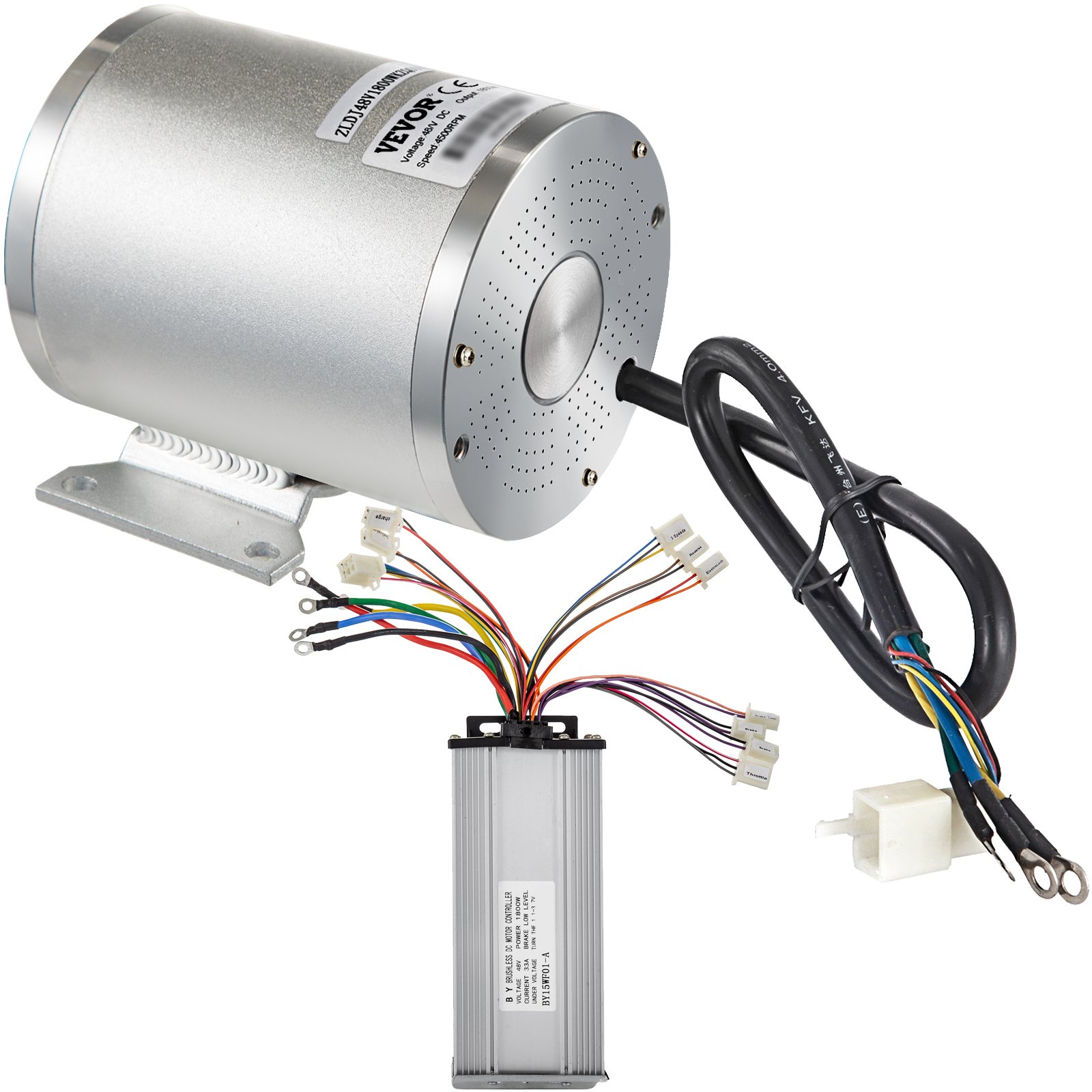

- Includes speed controller

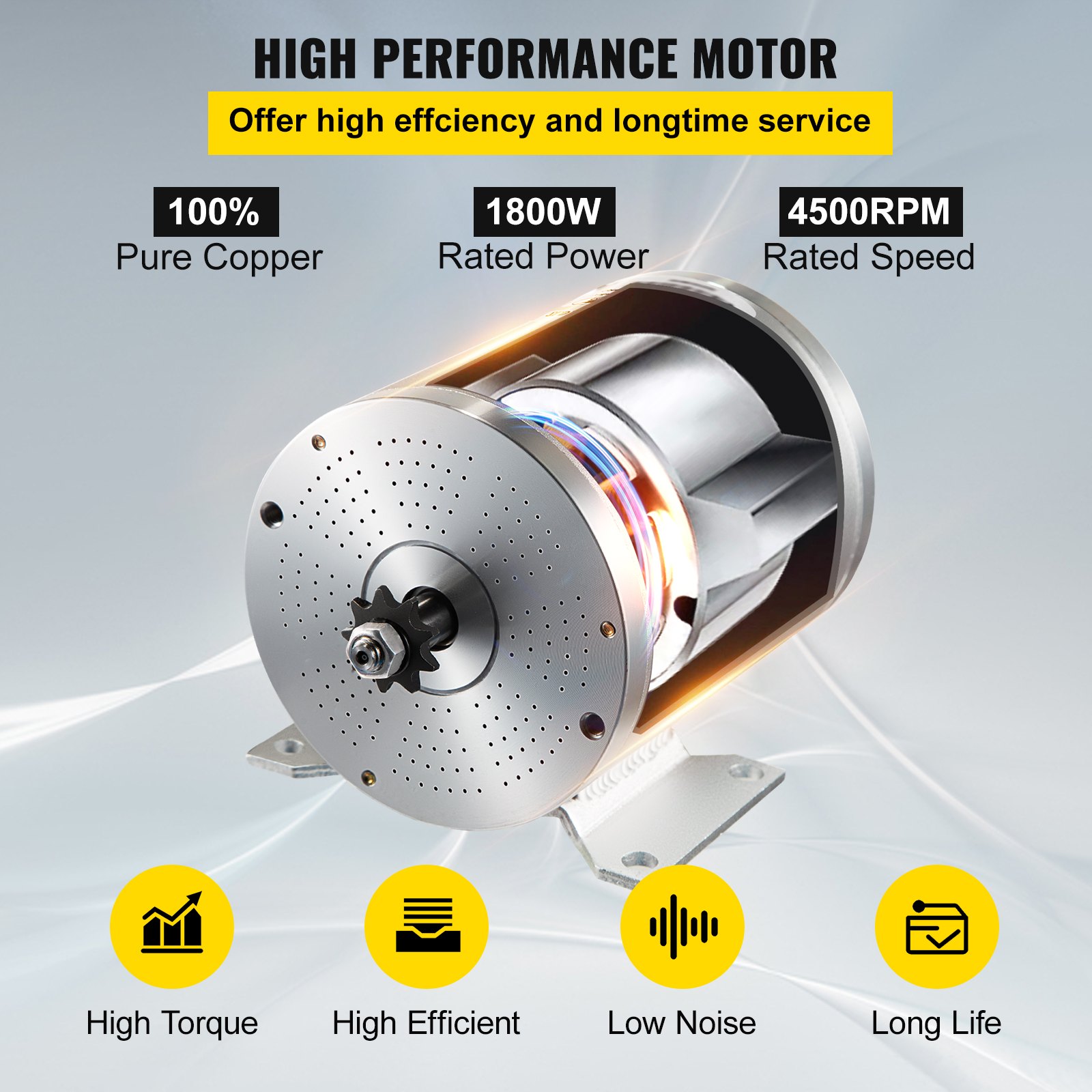

Motor made of pure copper
The brushless DC motor features a core made of 100% pure copper for high conductivity, high temperature resistance, low noise, and saves energy during extended use.
4500 RPM High speed
This brushless DC motor has a power output of 1800 W, a rated speed of 4500 RPM, and a maximum speed of 5200 RPM. This allows it to provide rapid acceleration and unparalleled performance for your machines.
Durable aluminum alloy
The electric go-kart motor is made of an aluminum alloy that can resist oxidation, compression, and deformation. It is also light enough to be easily carried and handled.

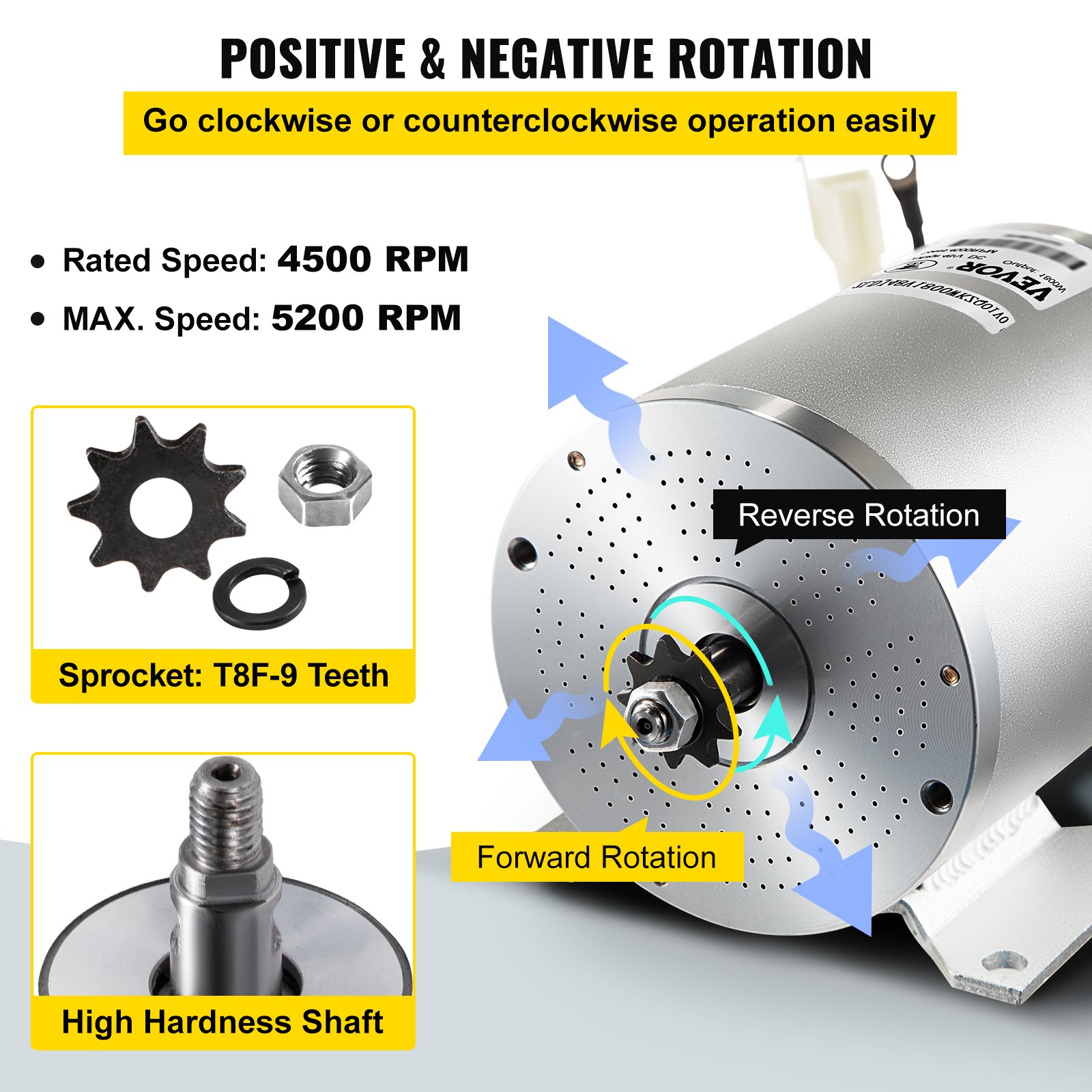

Bidirectional design
You can switch the rotation either clockwise or counterclockwise by reversing the power cables of the go-kart electric motor, which are easily adjustable.

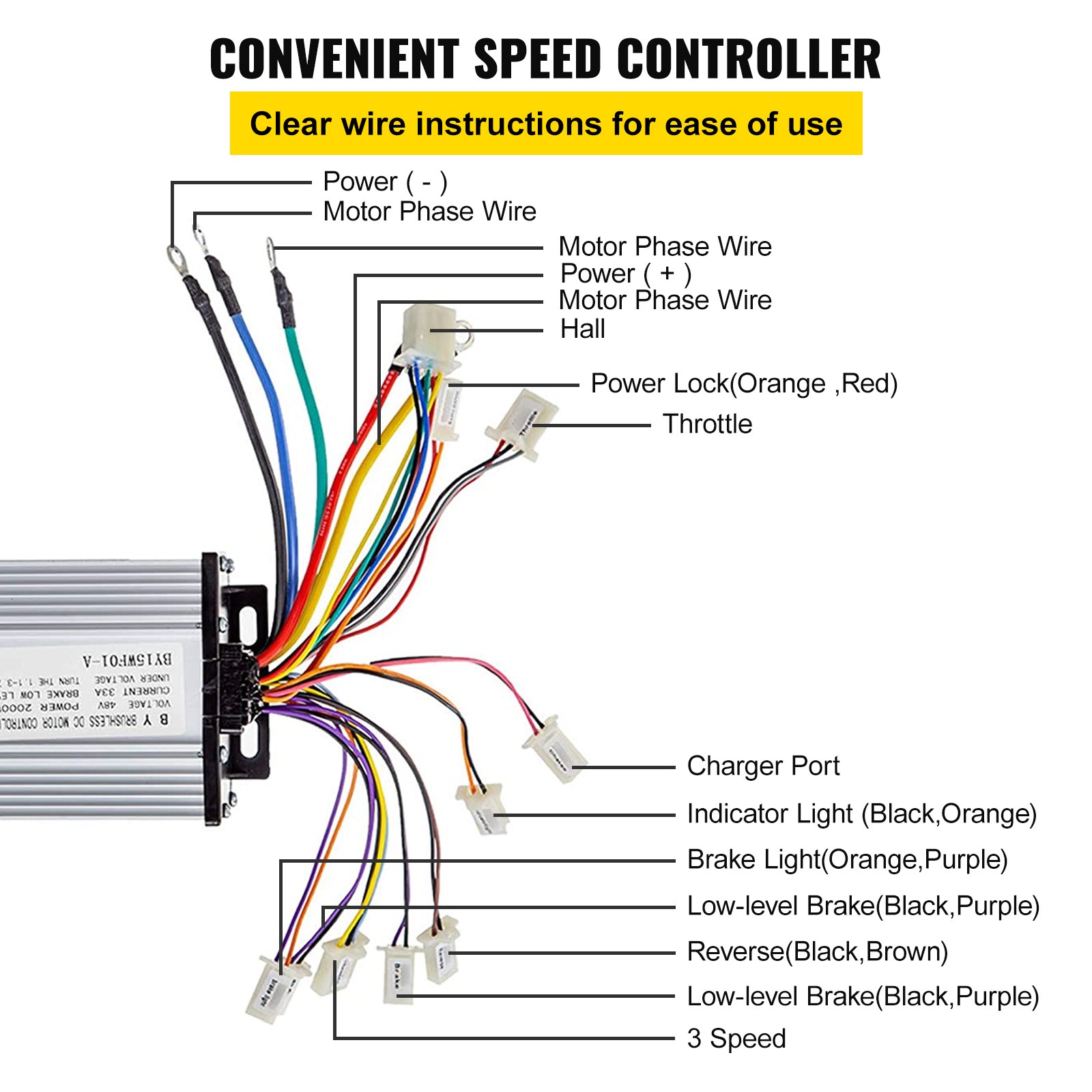

Simple speed control
The speed controller allows you to easily control the speed. The complete brushless motor set, the speed controller, and other necessary components facilitate the operation of the machine.

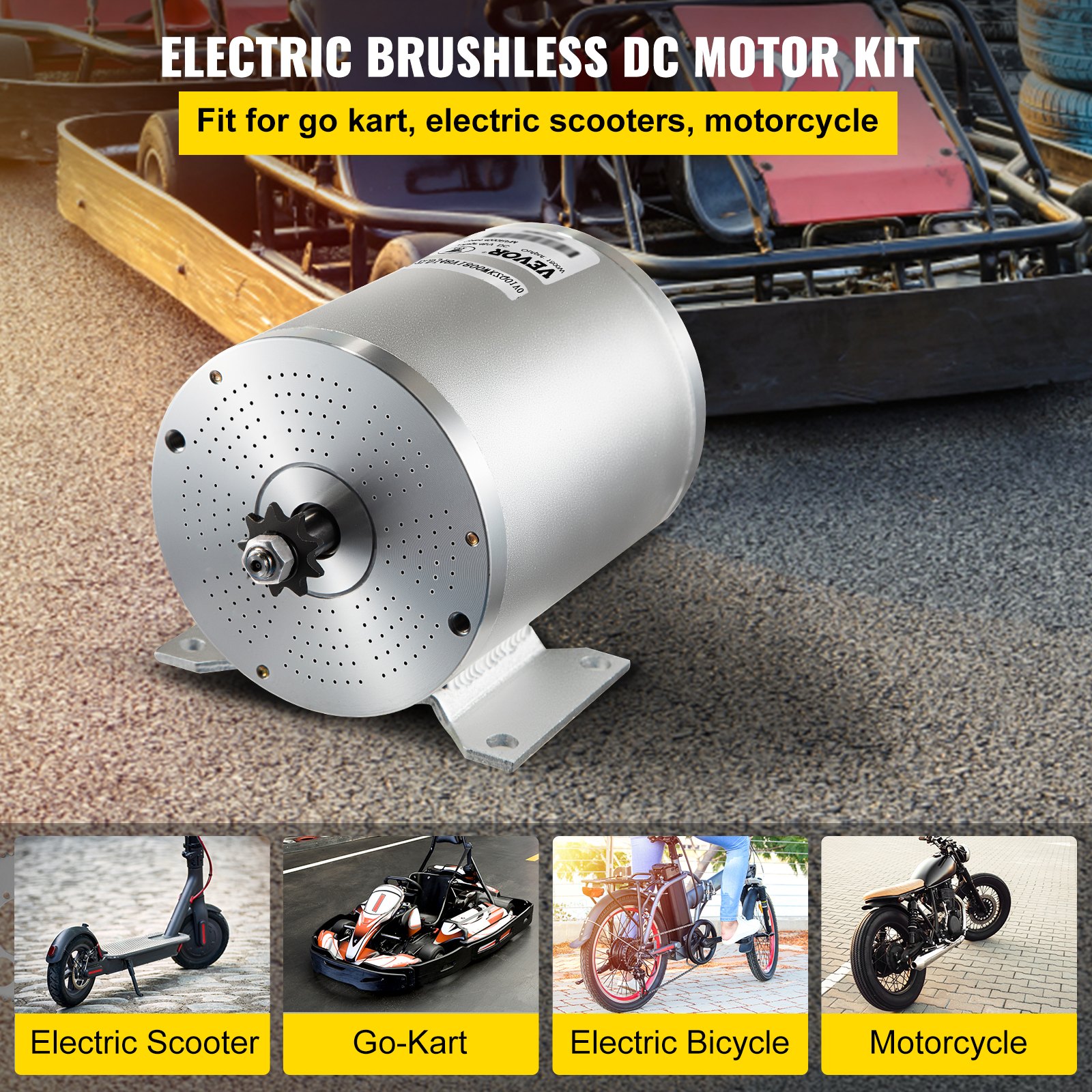

Wide application
The brushless electric motor is ideal for electric scooters, motorcycles, e-bikes, motorcycles, e-trikes, mid-drive motor kits, complete sets, DIY motor systems, bicycle parts, mini electric motorcycles, DIY motor kits, etc.
- Motor
- Model: MY1020D
- Input voltage: 48 V DC
- Output power: 1800 W
- Rated current: 33 A
- Rated speed: 4500 RPM
- Maximum speed: 5200 RPM
- Sprocket: T8F-9T
- Power: 2.4 HP
- Rated torque: 4.0 Nm / 566.44 oz.in
- Maximum current: 37.5 A
- No-load current: ≤ 3.5 A
- Peak efficiency: ≥ 85%
- Operating temperature: < 248 ℉ / 120 °C
- Wavelength: 5.28 inches / 134 mm
- Net weight: 9.26 lbs / 4.2 kg
- Bracket dimensions: 2.2 x 4 inches / 56 x 102 mm

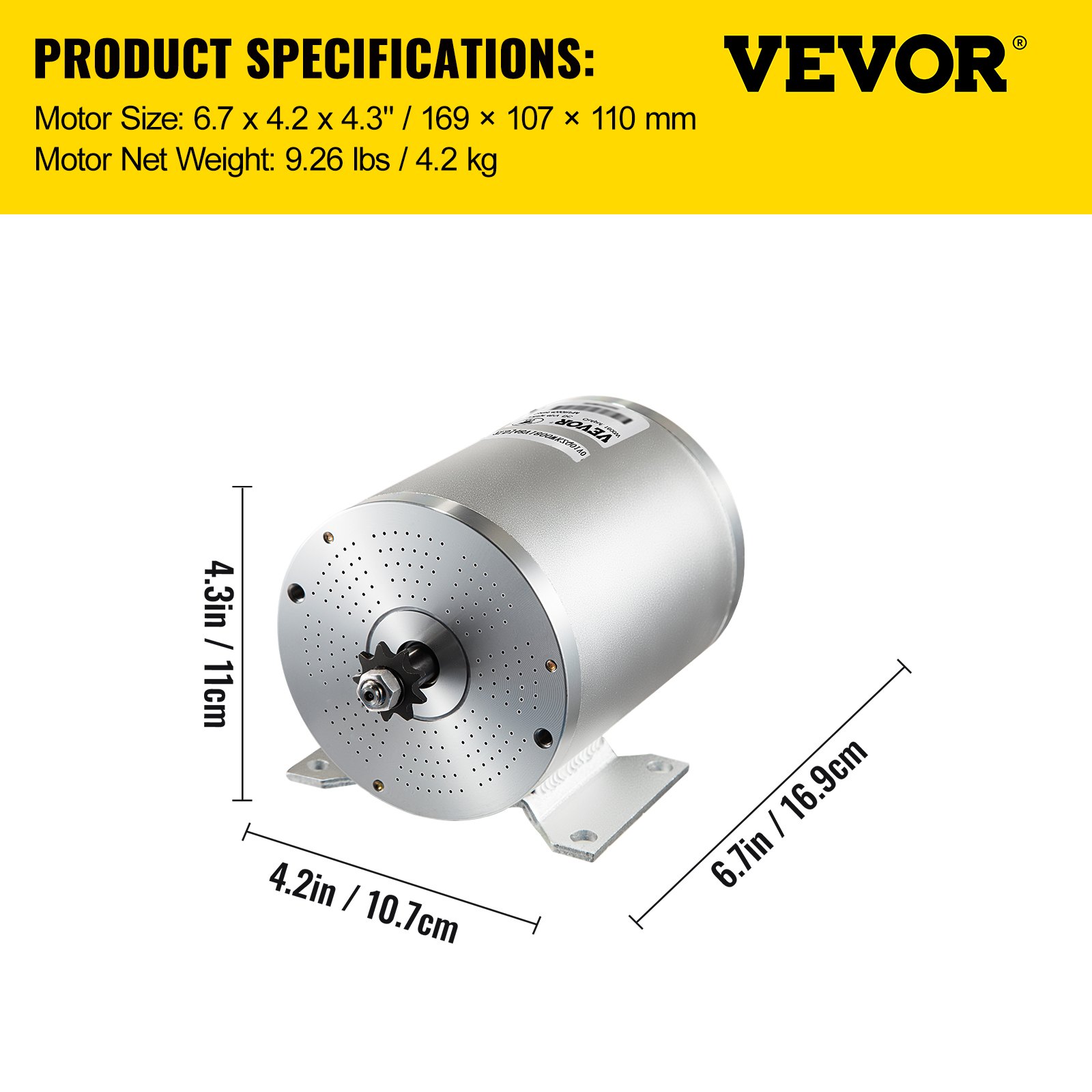

- Dimensions (L x W x H): 6.7 x 4.2 x 4.3 inches / 169 x 107 x 110 mm
- control unit
- Model: BY15WF01-A
- Current: 33 A
- Phase degree: 120°
- Conversion efficiency: 90%
- Undervoltage protection voltage: 41 ± 0.5 V

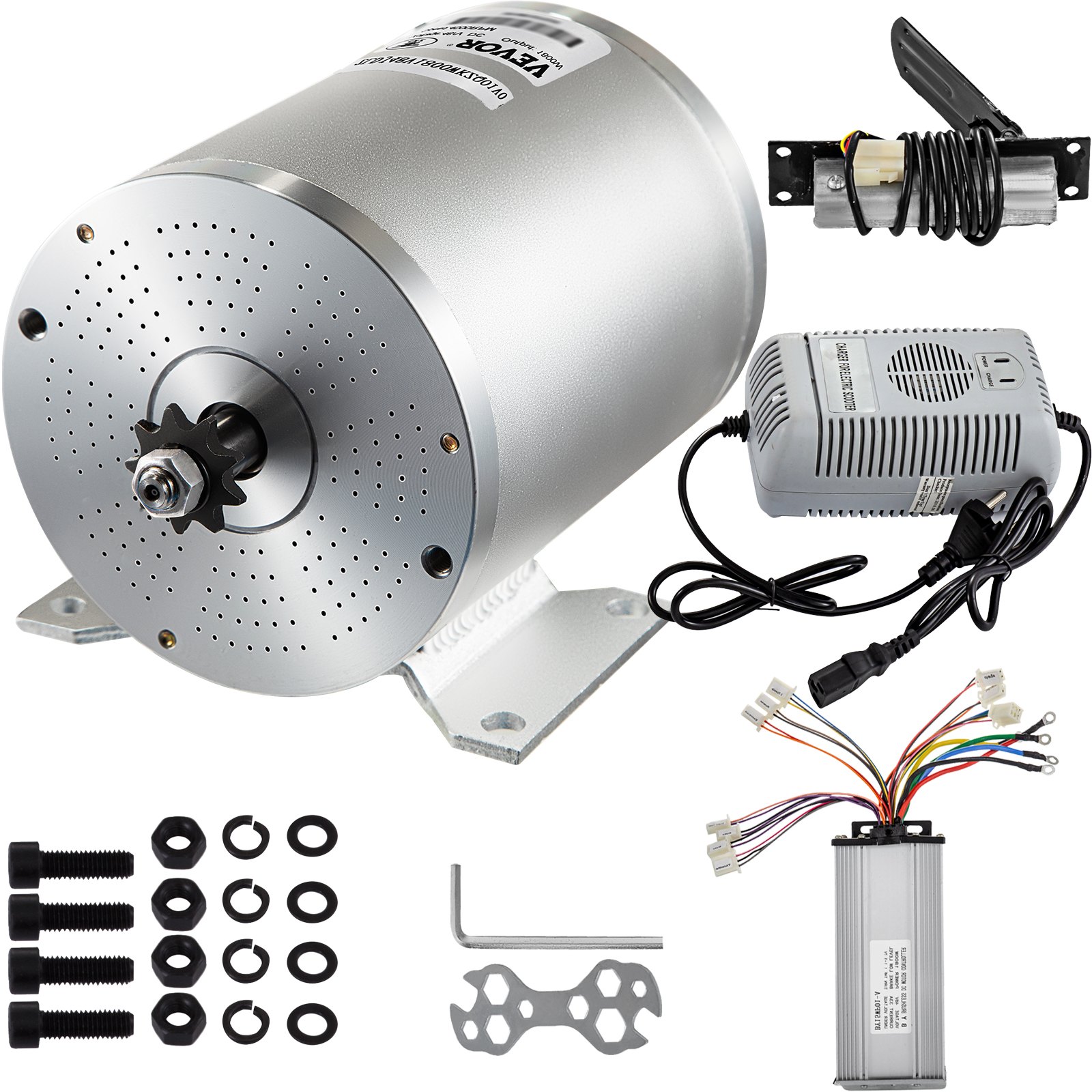

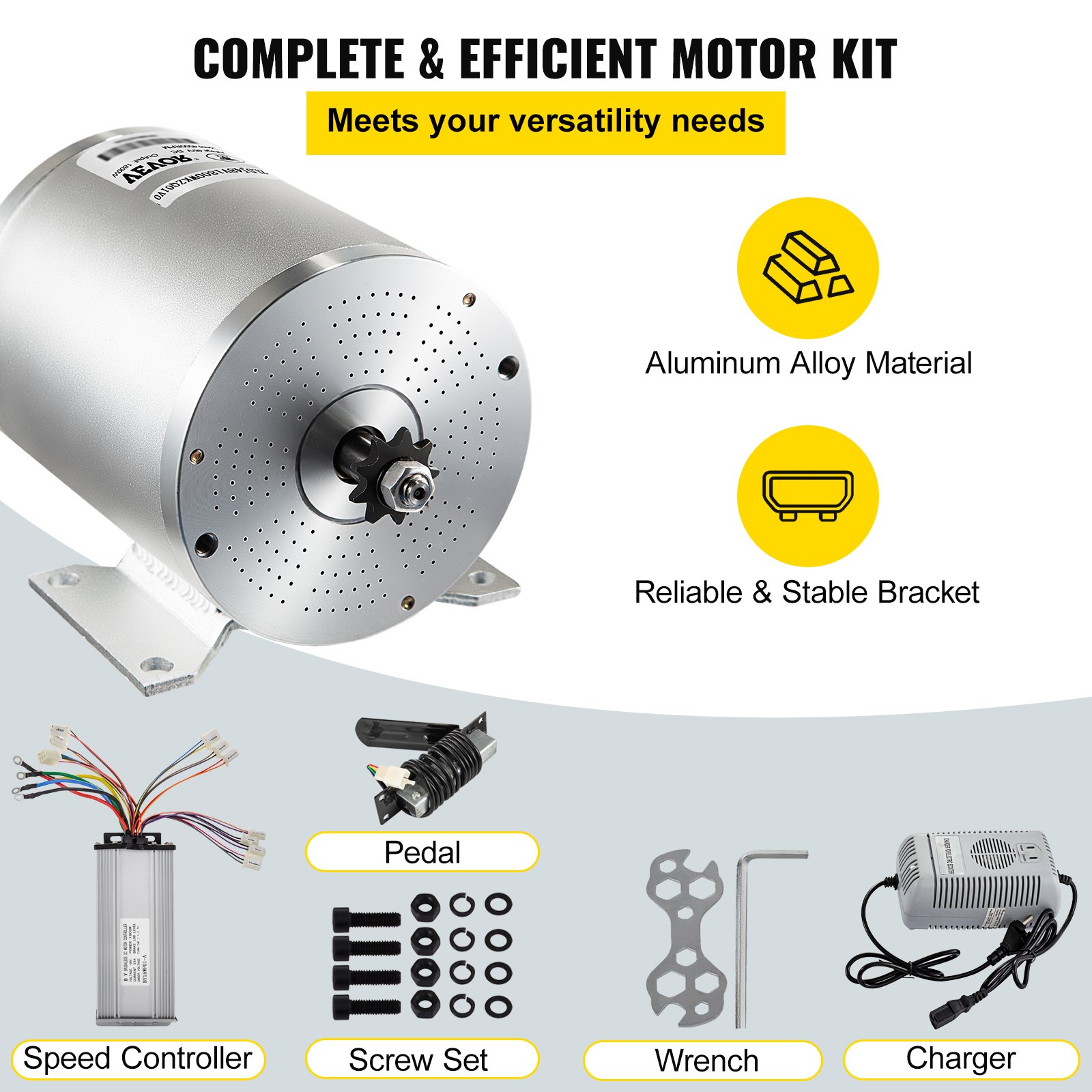

- 1 x Brushless DC Motor
- 1 x control unit
- 1 x pedal
- 1 x charger
- 2 x wrenches
- 1 x screw set
- 1 x Additional accessories
48V 1800W Brushless DC Motor Kit
Includes controller, pedal, and charger
This brushless electric motor is built with a 100% copper core for quiet operation and high efficiency. It features an aluminum alloy housing and a complete mounting kit for secure installation. It's ideal for go-karts, electric scooters, e-bikes, ATVs, motorized bicycles, and more. Get up and running faster than ever with our brushless DC motor kit.
- Basic parameters
- 1800 W brushless motor
- Robust aluminum construction
- Includes speed controller
Motor made of pure copper
The brushless DC motor features a core made of 100% pure copper for high conductivity, high temperature resistance, low noise, and saves energy during extended use.
4500 RPM High speed
This brushless DC motor has a power output of 1800 W, a rated speed of 4500 RPM, and a maximum speed of 5200 RPM. This allows it to provide rapid acceleration and unparalleled performance for your machines.
Durable aluminum alloy
The electric go-kart motor is made of an aluminum alloy that can resist oxidation, compression, and deformation. It is also light enough to be easily carried and handled.
Bidirectional design
You can switch the rotation either clockwise or counterclockwise by reversing the power cables of the go-kart electric motor, which are easily adjustable.
Simple speed control
The speed controller allows you to easily control the speed. The complete brushless motor set, the speed controller, and other necessary components facilitate the operation of the machine.
Wide application
The brushless electric motor is ideal for electric scooters, motorcycles, e-bikes, motorcycles, e-trikes, mid-drive motor kits, complete sets, DIY motor systems, bicycle parts, mini electric motorcycles, DIY motor kits, etc.
- 1 x Brushless DC Motor
- 1 x control unit
- 1 x pedal
- 1 x charger
- 2 x wrenches
- 1 x screw set
- 1 x Additional accessories
- Motor
- Model: MY1020D
- Input voltage: 48 V DC
- Output power: 1800 W
- Rated current: 33 A
- Rated speed: 4500 RPM
- Maximum speed: 5200 RPM
- Sprocket: T8F-9T
- Power: 2.4 HP
- Rated torque: 4.0 Nm / 566.44 oz.in
- Maximum current: 37.5 A
- No-load current: ≤ 3.5 A
- Peak efficiency: ≥ 85%
- Operating temperature: < 248 ℉ / 120 °C
- Wavelength: 5.28 inches / 134 mm
- Net weight: 9.26 lbs / 4.2 kg
- Bracket dimensions: 2.2 x 4 inches / 56 x 102 mm
- Dimensions (L x W x H): 6.7 x 4.2 x 4.3 inches / 169 x 107 x 110 mm
- control unit
- Model: BY15WF01-A
- Current: 33 A
- Phase degree: 120°
- Conversion efficiency: 90%
- Undervoltage protection voltage: 41 ± 0.5 V
Questions and Answers (23)
Hallo, wenn ich es richtig verstehe benötige ich noch eine Batterie dazu? Wenn ja, welche Parameter sollte diese aufweisen?
Die Arbeitsspannung beträgt 48–54 V und die Kapazität 12–20 Ah. Empfohlen werden Blei-Säure-Batterien. Lithium-Batterien sind ebenfalls akzeptabel, achten Sie jedoch darauf, Batterien mit entsprechender Leistung zu kaufen.
By vevor
Helpful
(
14
)
Kann man eine 100 oder 200 ah Akku benutzen wenn nein haben sie einen Motor mit dem es möglich ist.
Ich will mir einen e Gokart bauen und es wäre mir wichtig wenn es viel laufen könnte.
Für eine so große Kapazität nicht geeignet. 12–20 Ah werden empfohlen. Da der Motor längere Zeit nicht läuft, ist die Kapazität von 100–200 Ah zu groß, und wenn er zu lange verwendet wird, erzeugt der Motor leicht Hitze und brennt durch.
By vevor
Helpful
(
4
)
Ist es möglich diesen Motor mit dieser Batterie zu be Powern:
https://www.compass24.at/compass-power-batterie-397023/74-18-28x18x19
Es wird empfohlen, Blei-Säure-Batterien zu verwenden, die in Reihe zu 48 V mit einer Kapazität von 12 bis 20 Ah geschaltet werden.
By vevor
Helpful
(
2
)
Verkaufen Sie auch zu dem eMotor die passenden Akkus?
Hallo, wir bedauern, Ihnen mitteilen zu müssen, dass auf unserer Website derzeit keine Batterien separat verkauft werden. Wir werden Ihre Bedürfnisse jedoch an die Einkaufsabteilung des Unternehmens weiterleiten, um die Vielfalt unserer Verkäufe zu erhöhen. Wir hoffen, dass Sie auf unserer Website kaufen können, was Sie benötigen Zukunft. Ware.
By vevor
Helpful
(
2
)
Was ist das Ausgangssignal des Pedals? Eine Spannung? Wenn ja, bis zu welcher Höhe? Ich möchte ggf ein Potentiometer anschliessen.
Die Spannung beträgt 48-59V, 1,8A.
By vevor
Helpful
(
2
)
ZLDJ1800W48VWKTC1V0
