VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
+12
More
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size
VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size VEVOR Hydraulic Outboard Steering Kit 90 HP, Outboard Hydraulic Steering System with Helm Pump Cylinder, Marine Steering System Kit, 200 mm Step Size

Features & Details

  • 90 HP Hydraulic Steering Kit: This hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction steering console, a one-piece 20-foot hose, and a filling kit. It perfectly replaces your aging or broken equipment and will be a great companion for your sailing trips.
  • Power steering cylinder: Output force: 232 kgf. The balanced cylinder features a compact design that fits most spray fountains and allows full motor movement. Thanks to its robust cylinder construction and efficient sealing, the system also withstands harsh environmental conditions.
  • Max. 90 hp helmet pump: Max. working pressure: 4.5 MPa/650 psi. The low-friction control console ensures smooth and comfortable steering. It also features a replaceable shaft seal for easy replacement.
  • Pre-cut hoses: Our high-strength nylon hose is equipped with a 1/4-inch quick-connect fitting for easy and fast installation and multiple reuses. The hose is 20 feet long and can be cut to size for your specific installation.
  • A great partner for your boat: Our hydraulic steering kit is suitable for boats with an outboard motor and a power output of up to 90 hp, including runabouts and inflatable boats.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 7 reviews

See all 7 reviews

About this item

Product specification
Item model number
Hydraulic boat steering set
Application
Up to 90 hp
Maximum pressure
4.5 MPa (650 PSI)
Starting force
232 kgf
Volume
73cc
Pipe ID
Φ 25 mm
Rod ID
Φ 14 mm
Step size
200 mm
Description

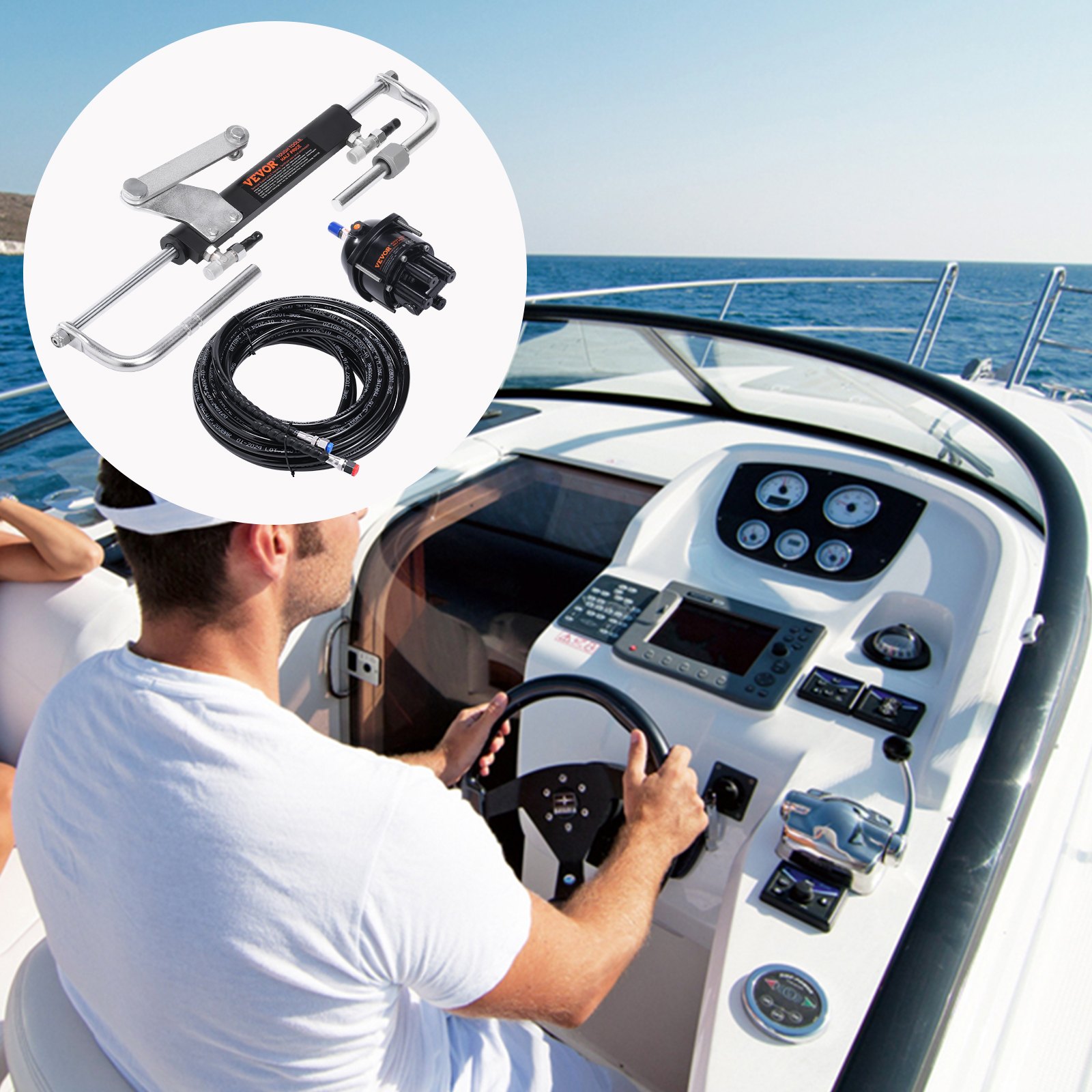

VEVOR hydraulic steering kit for a yacht on the water, ideal for outboard boats.

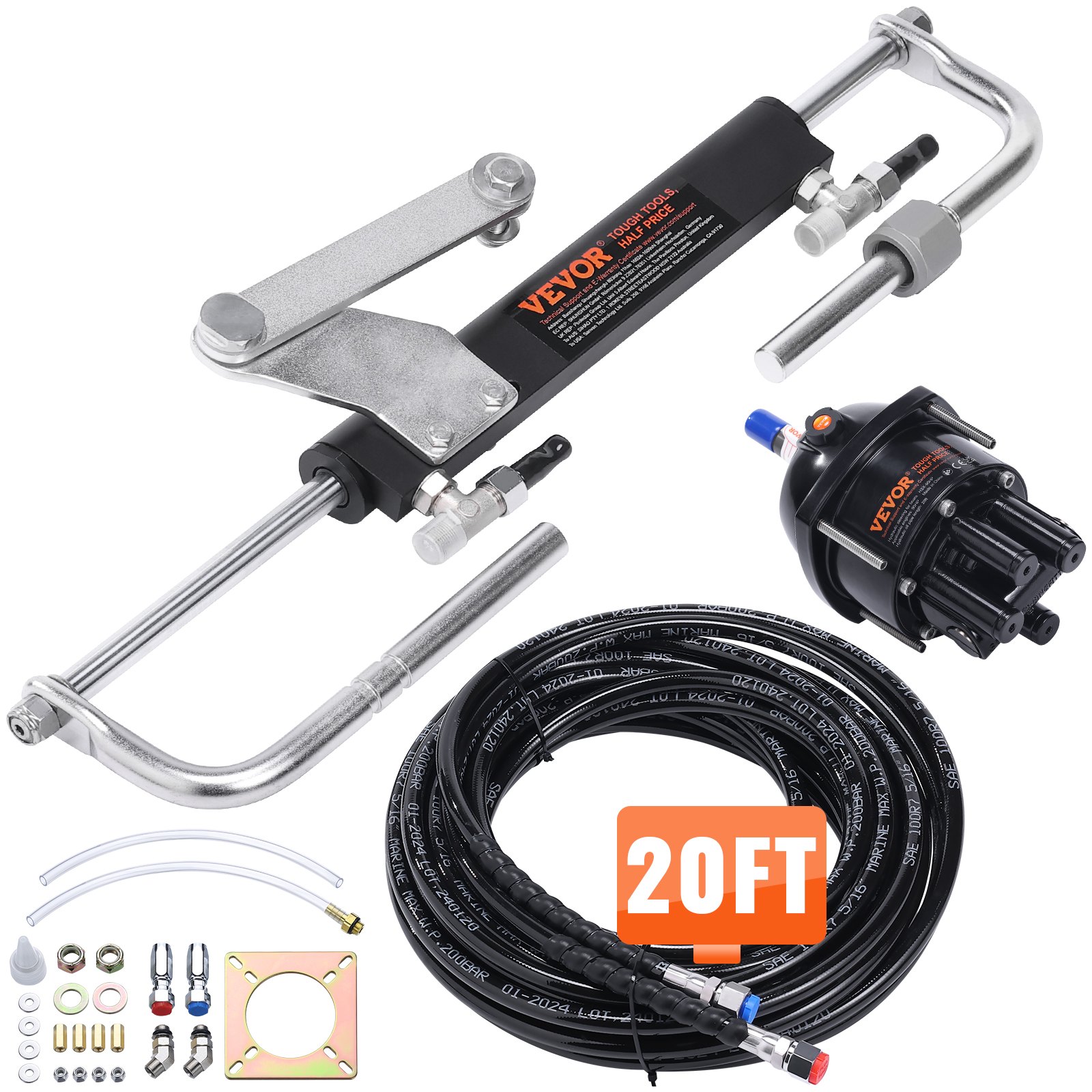

VEVOR hydraulic steering kit, 20ft hose, steering cylinder, and installation hardware.
90 hp hydraulic outboard steering kit
Complete kit, compact cylinder and low-friction helmet
The VEVOR hydraulic steering kit helps you install hydraulic steering on your 90 hp (or less) outboard motor boat. Our steering kit consists of a low-friction steering console for smooth and comfortable steering. It features a balanced cylinder in a compact design. For your convenience, 20-foot hoses and filler tubes are included for easy installation. Upgrade your boat and create waves with our kit.
  • Note: Hydraulic oil is not included in this kit.
  • Further options for hydraulic rudders, cylinders and hydraulic rudder sets can be found here.
  • 90 hp hydraulic steering kit
  • Performance steering cylinder
  • Max. 90 hp helmet pump
  • Cut-to-length hoses
VEVOR hydraulic steering kit with components and coiled hose.
Hydraulic directional system
The hydraulic outboard boat steering kit with compact cylinder, steering console and hose is suitable for most outboard motors. A steering system makes steering easier, allowing you to enjoy more time on the water.
VEVOR hydraulic steering kit with aluminum alloy casing

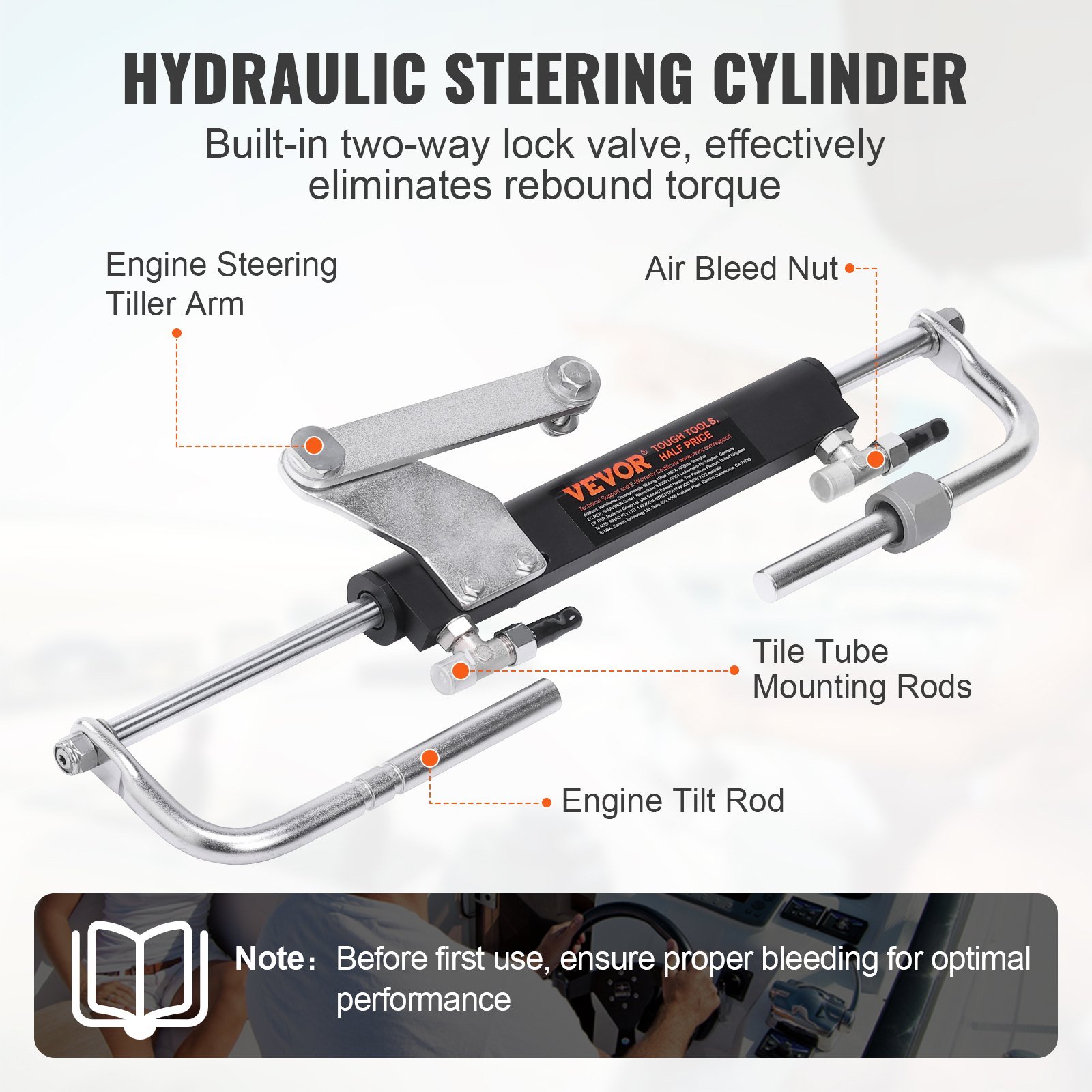

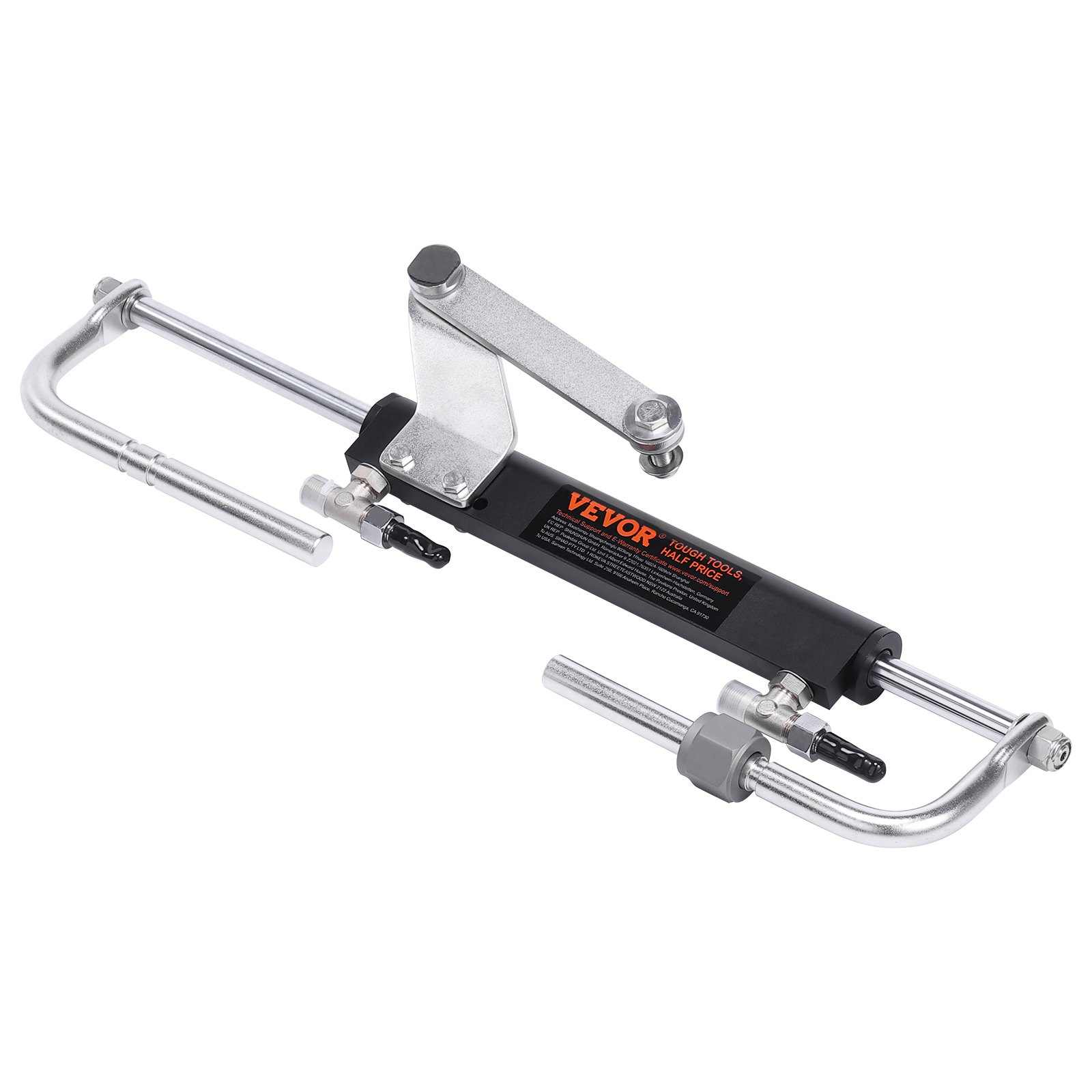

Robust and slim cylinder
The steering cylinder features an improved sealing system for maximum protection against salt and fresh water.
VEVOR hydraulic steering kit - compact and neat, efficient, reliable, professional

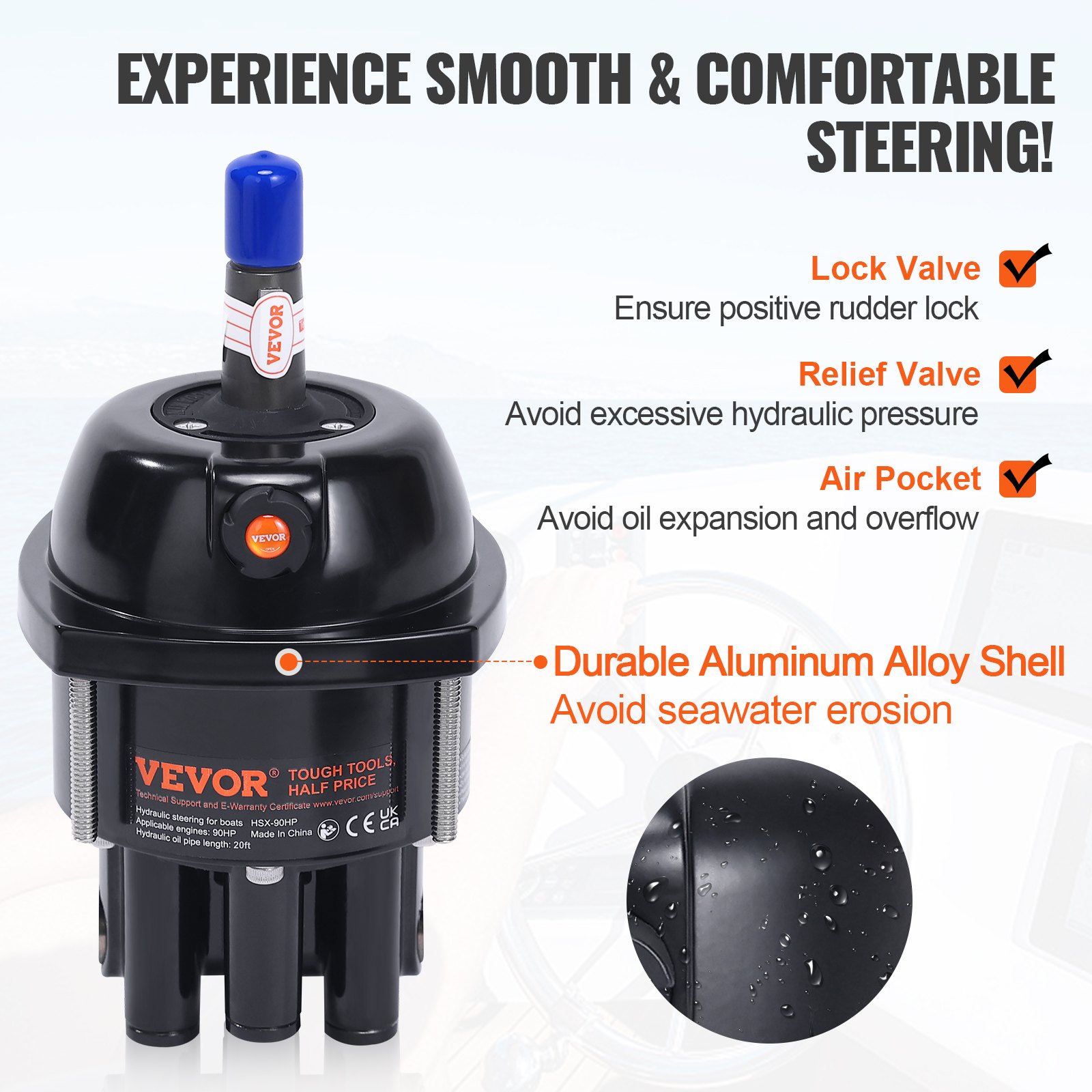

Efficient hydraulic helmet
The control position is max. The operating pressure is 4.5 MPa/650 psi. It comes with a replaceable shaft seal to prevent fluid leakage, and the shaft seal is easy to replace.
VEVOR hydraulic steering kit high-strength nylon hose with quick-fit 1/4" pipe fitting.

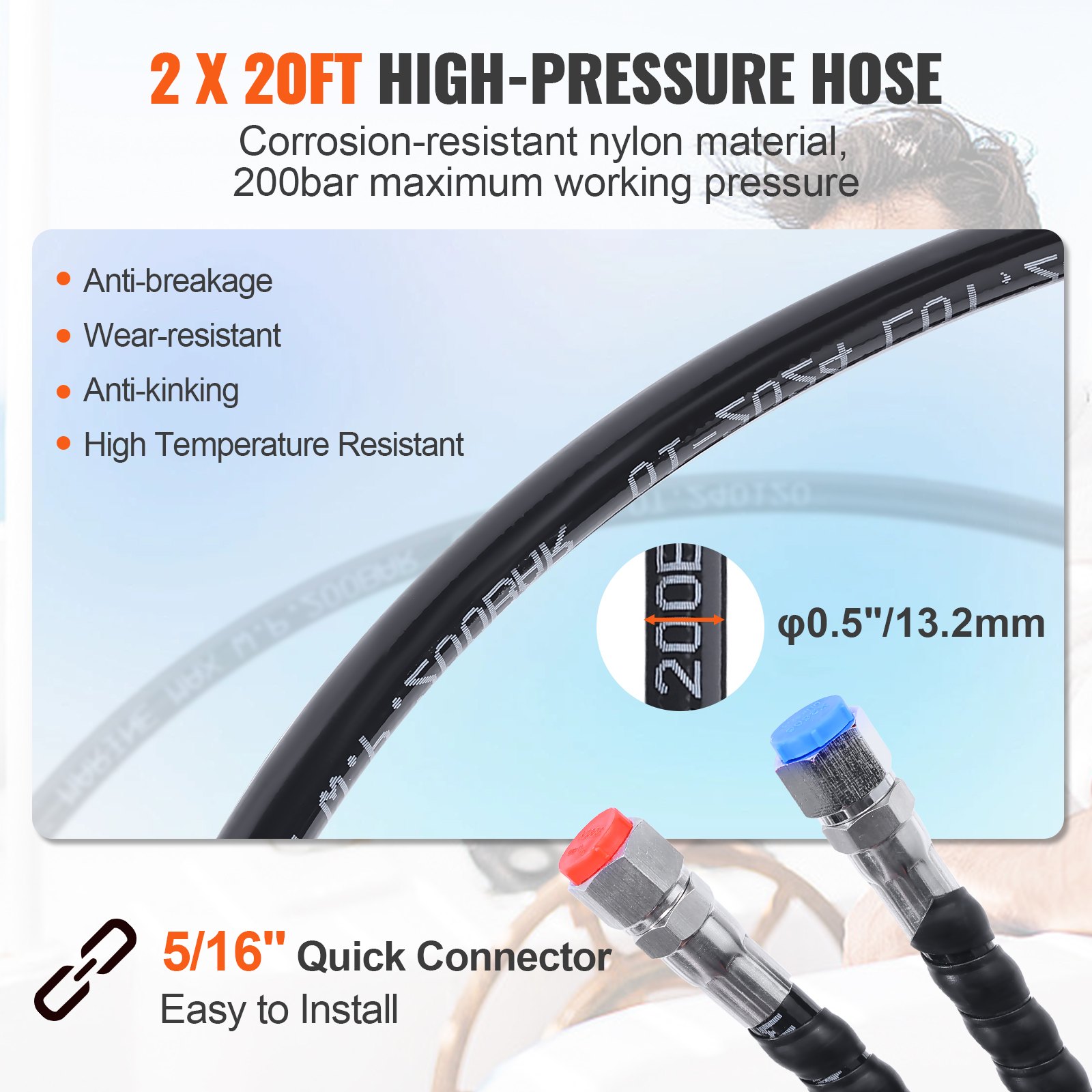

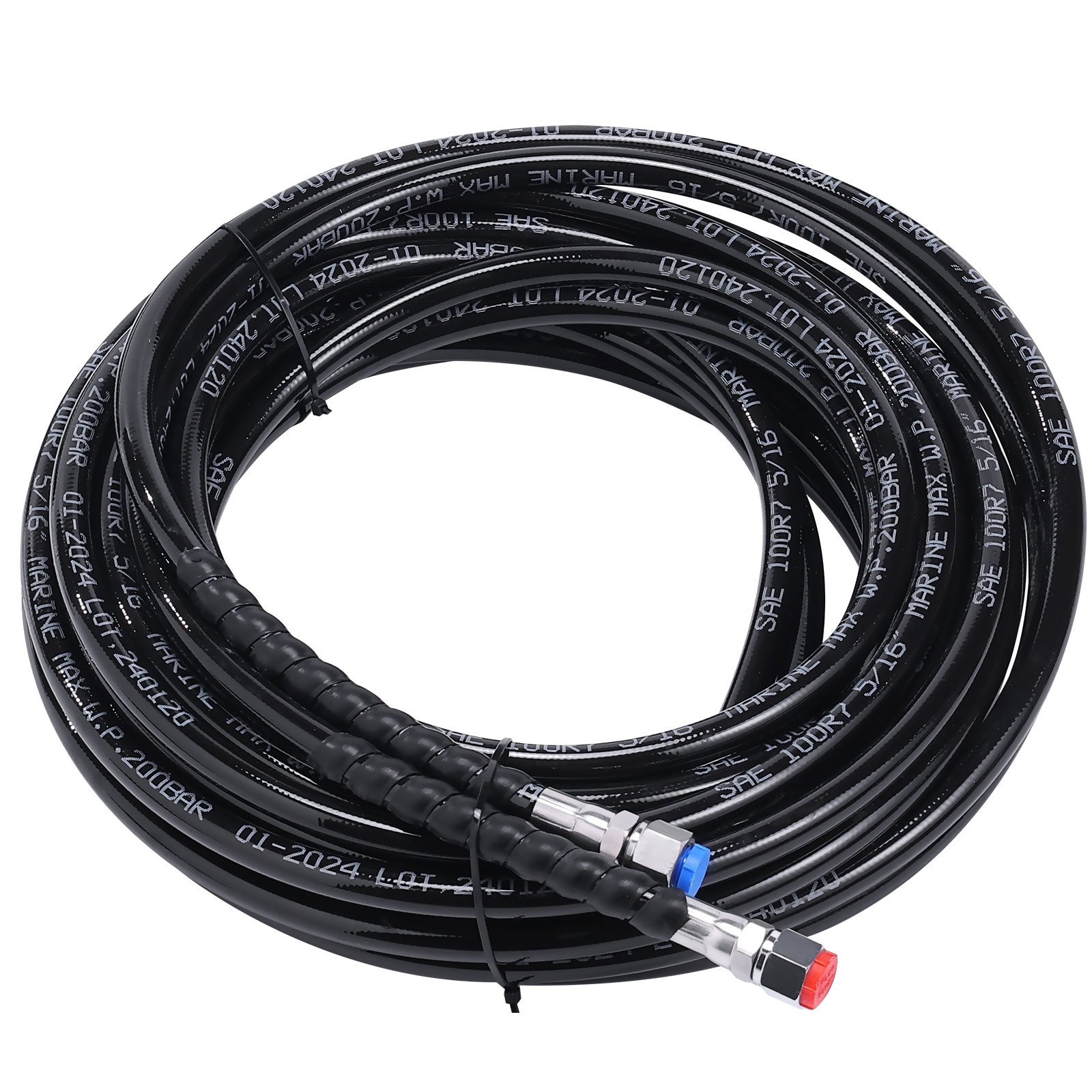

20 feet high-strength hose
Our high-strength nylon hose with a quick-connect 1/4" tube is easy to install. The hose is 20 feet long, and the oar connector can be cut to size for your specific installation.
VEVOR hydraulic steering kit components and hydraulic rubber parts on a white background.
Standard accessories
This kit contains two tubes. A plastic hose is attached to the quart bottle, the other end of which is screwed into the pump's filling opening, making it easier to bleed the system.
application scenarios for VEVOR hydraulic steering kit: offshore fishing, ship, flat-bottomed ship, yacht.
Wide application

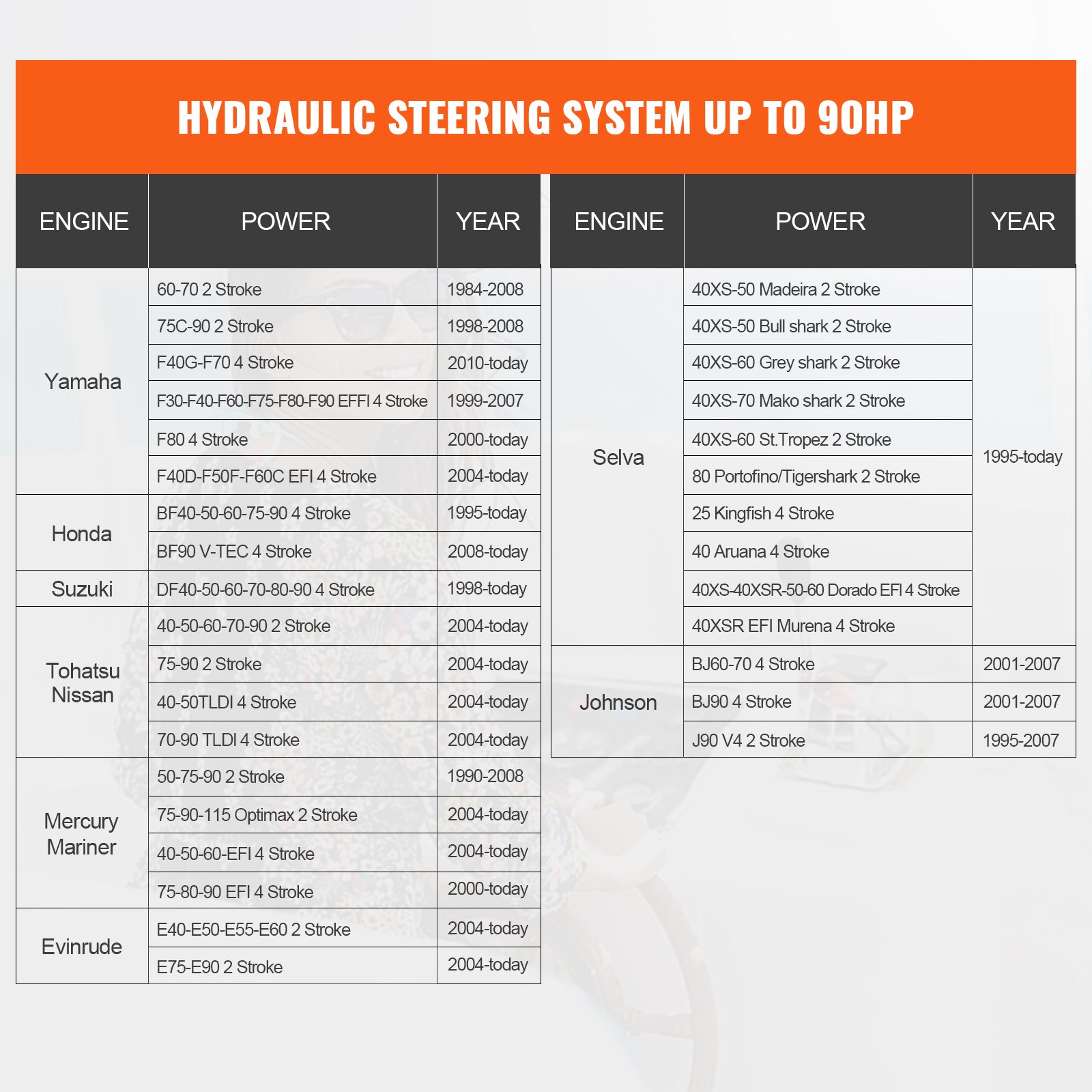

Our hydraulic system kit comes complete with everything needed for installation. It fits most pontoon boats, deck boats, fishing boats, and runabouts with outboard motors up to 90 hp.

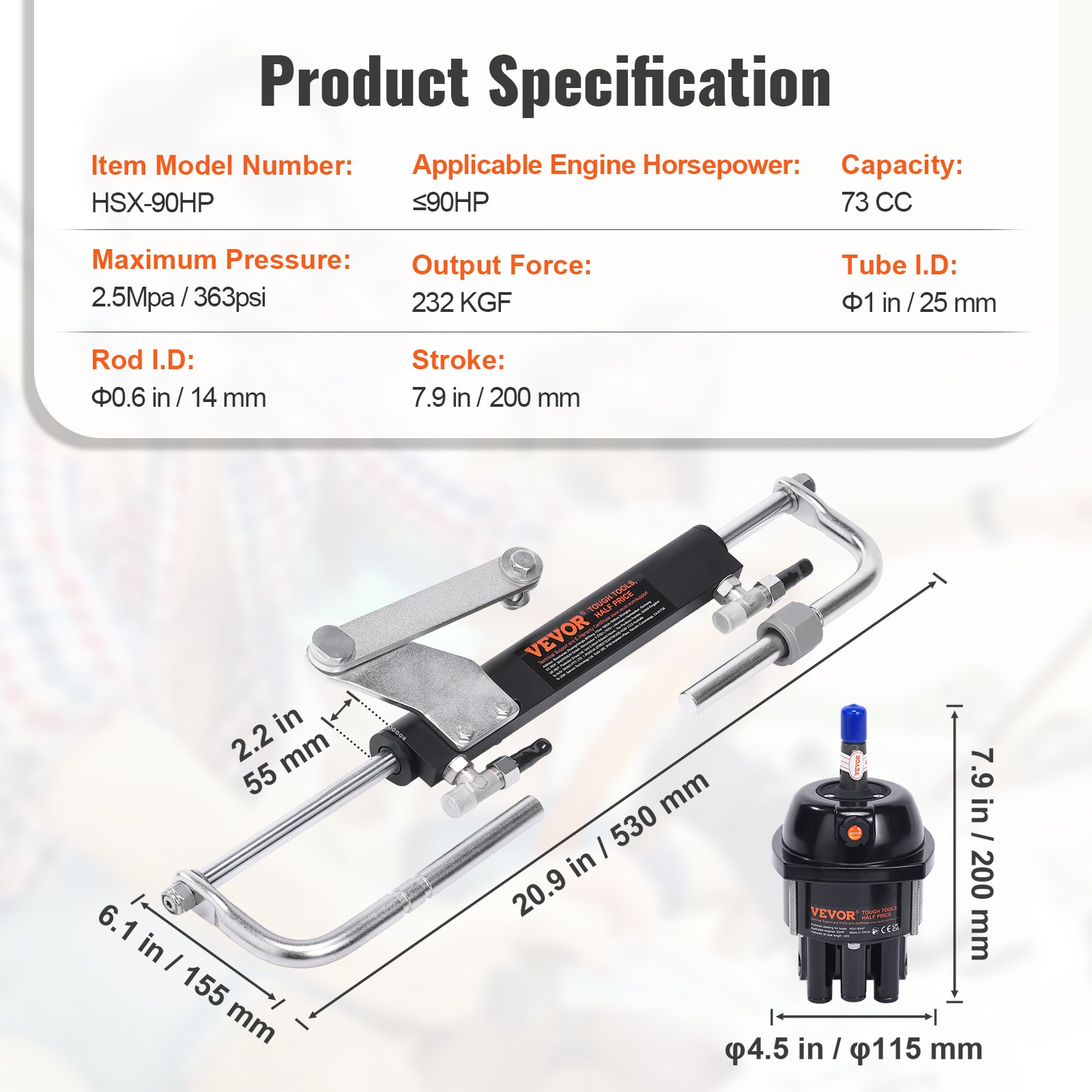

VEVOR hydraulic steering kit with measurements for reference.
  • Item model number: Hydraulic boat steering set
  • Application: Up to 90 hp
  • Maximum pressure: 4.5 MPa (650 PSI)
  • Starting force: 232 kgf
  • Volume: 73cc
  • Pipe ID: Φ 25 mm
  • Rod ID: Φ 14 mm
  • Step size: 200 mm

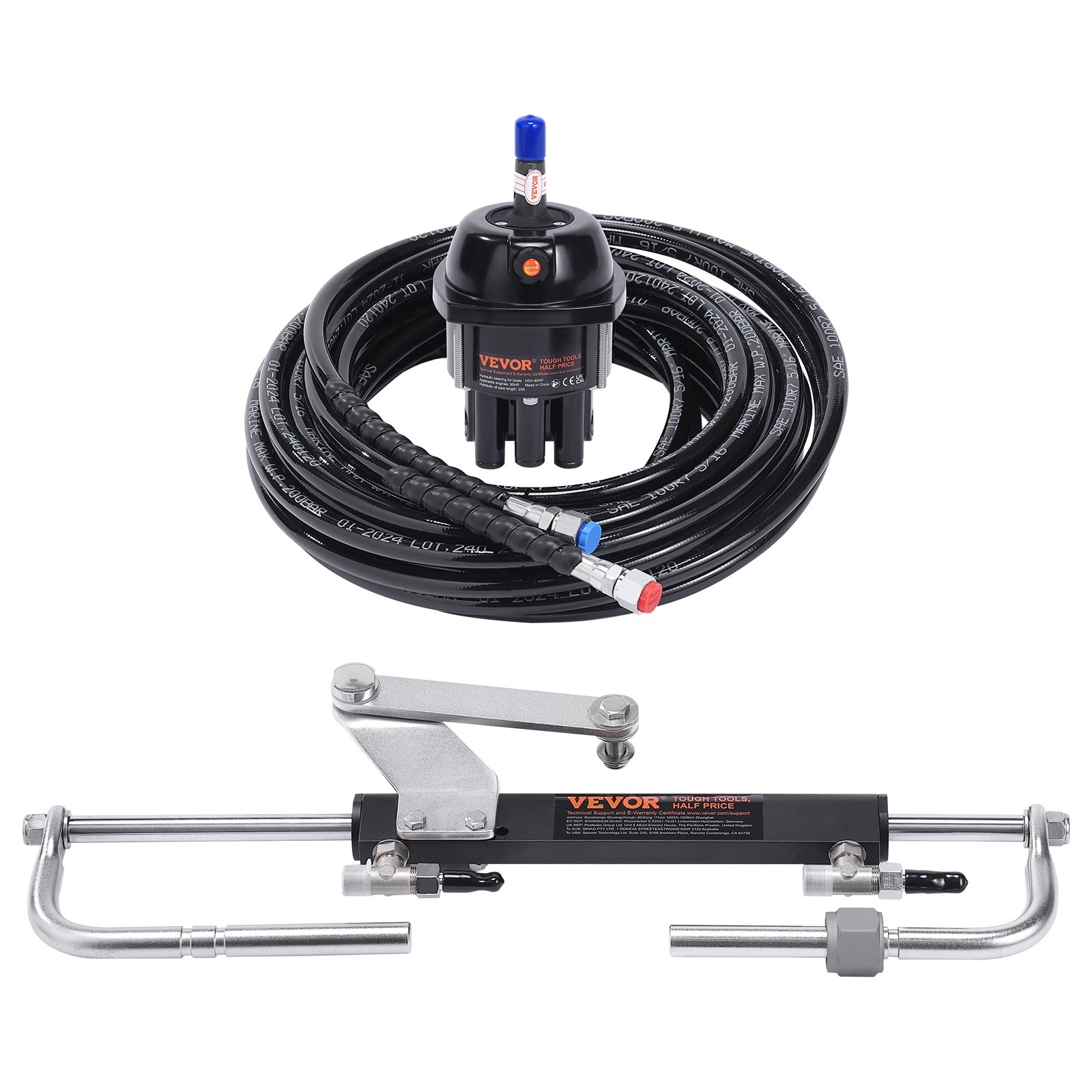

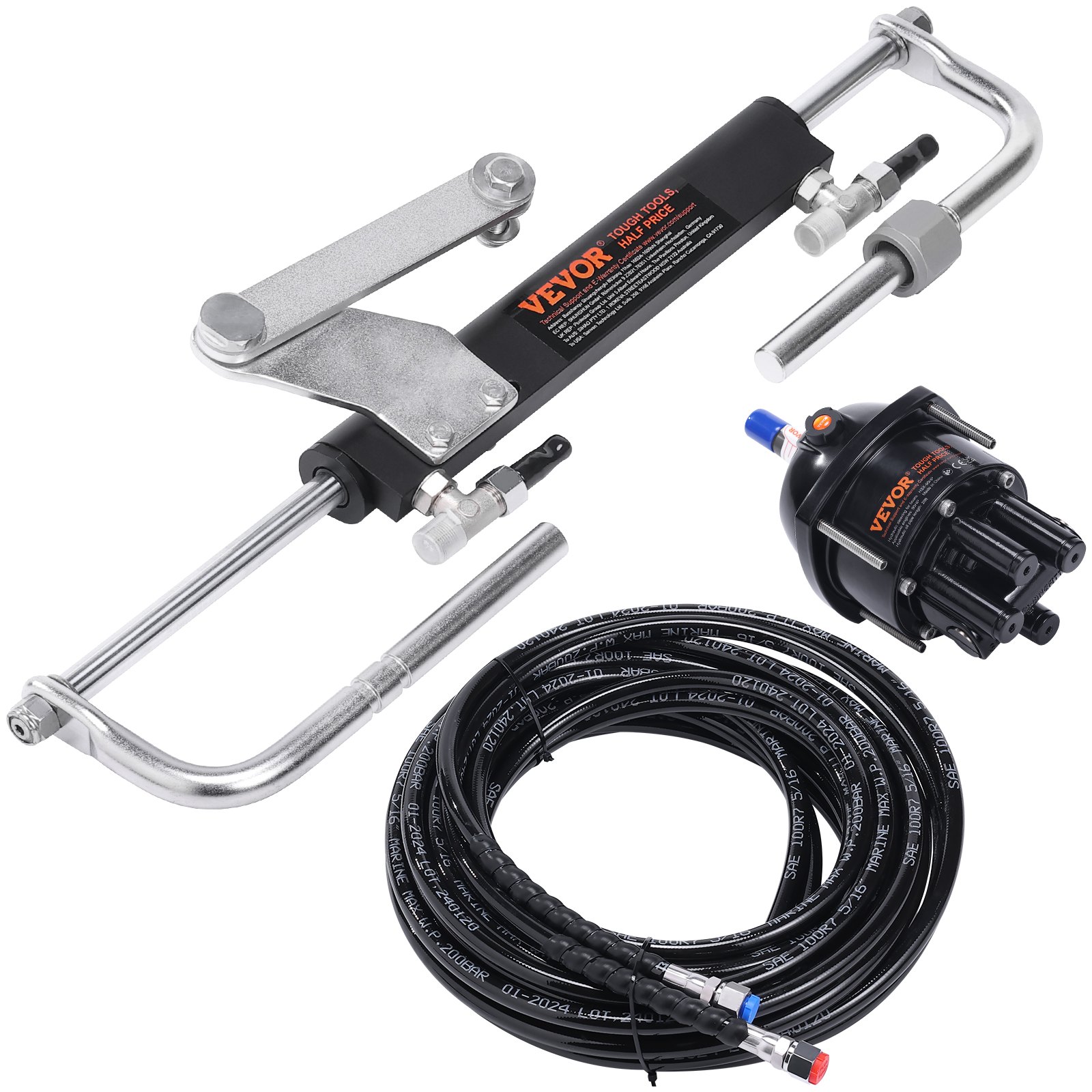

VEVOR hydraulic steering kit components including cylinder, hose, and helm unit.
  • 1 x hydraulic pump
  • 1 x 20 ft hose
  • 1 x cylinder
  • 1 x accessory set
VEVOR hydraulic steering kit for a yacht on the water, ideal for outboard boats.
VEVOR hydraulic steering kit, 20ft hose, steering cylinder, and installation hardware.
90 hp hydraulic outboard steering kit
Complete kit, compact cylinder and low-friction helmet
The VEVOR hydraulic steering kit helps you install hydraulic steering on your 90 hp (or less) outboard motor boat. Our steering kit consists of a low-friction steering console for smooth and comfortable steering. It features a balanced cylinder in a compact design. For your convenience, 20-foot hoses and filler tubes are included for easy installation. Upgrade your boat and create waves with our kit.
  • Note: Hydraulic oil is not included in this kit.
  • Further options for hydraulic rudders, cylinders and hydraulic rudder sets can be found here.
  • 90 hp hydraulic steering kit
  • Performance steering cylinder
  • Max. 90 hp helmet pump
  • Cut-to-length hoses
VEVOR hydraulic steering kit with components and coiled hose.
Hydraulic directional system
The hydraulic outboard boat steering kit with compact cylinder, steering console and hose is suitable for most outboard motors. A steering system makes steering easier, allowing you to enjoy more time on the water.
VEVOR hydraulic steering kit with aluminum alloy casing
Robust and slim cylinder
The steering cylinder features an improved sealing system for maximum protection against salt and fresh water.
VEVOR hydraulic steering kit - compact and neat, efficient, reliable, professional
Efficient hydraulic helmet
The control position is max. The operating pressure is 4.5 MPa/650 psi. It comes with a replaceable shaft seal to prevent fluid leakage, and the shaft seal is easy to replace.
VEVOR hydraulic steering kit high-strength nylon hose with quick-fit 1/4" pipe fitting.
20 feet high-strength hose
Our high-strength nylon hose with a quick-connect 1/4" tube is easy to install. The hose is 20 feet long, and the oar connector can be cut to size for your specific installation.
VEVOR hydraulic steering kit components and hydraulic rubber parts on a white background.
Standard accessories
This kit contains two tubes. A plastic hose is attached to the quart bottle, the other end of which is screwed into the pump's filling opening, making it easier to bleed the system.
application scenarios for VEVOR hydraulic steering kit: offshore fishing, ship, flat-bottomed ship, yacht.
Wide application
Our hydraulic system kit comes complete with everything needed for installation. It fits most pontoon boats, deck boats, fishing boats, and runabouts with outboard motors up to 90 hp.
VEVOR hydraulic steering kit components including cylinder, hose, and helm unit.
  • 1 x hydraulic pump
  • 1 x 20 ft hose
  • 1 x cylinder
  • 1 x accessory set
VEVOR hydraulic steering kit with measurements for reference.
  • Item model number: Hydraulic boat steering set
  • Application: Up to 90 hp
  • Maximum pressure: 4.5 MPa (650 PSI)
  • Starting force: 232 kgf
  • Volume: 73cc
  • Pipe ID: Φ 25 mm
  • Rod ID: Φ 14 mm
  • Step size: 200 mm
Product guides and documents
User manual-de (PDF) Review

Questions and Answers (1)

1 Questions
Ask a Question
Wieviel Umdrehungen von Anschlag zu Anschlag. Welches Öl wird eingefüllt
Answer This Question
Es dauert 5,5 Runden. Als Hydrauliköl können Sie das Verschleißschutz-Hydrauliköl Nr. 10-15 verwenden.
